The document discusses refactoring code to centralize business logic using pipelines in Elixir. It describes how the code was originally scattered across different modules, with the parsing, expiration checking, and sending of webhooks handled separately. The refactored code defines a WebhookState struct and uses pipelines to chain the parsing, checking, and sending functions together. This leads to more modular, readable code with centralized business logic.

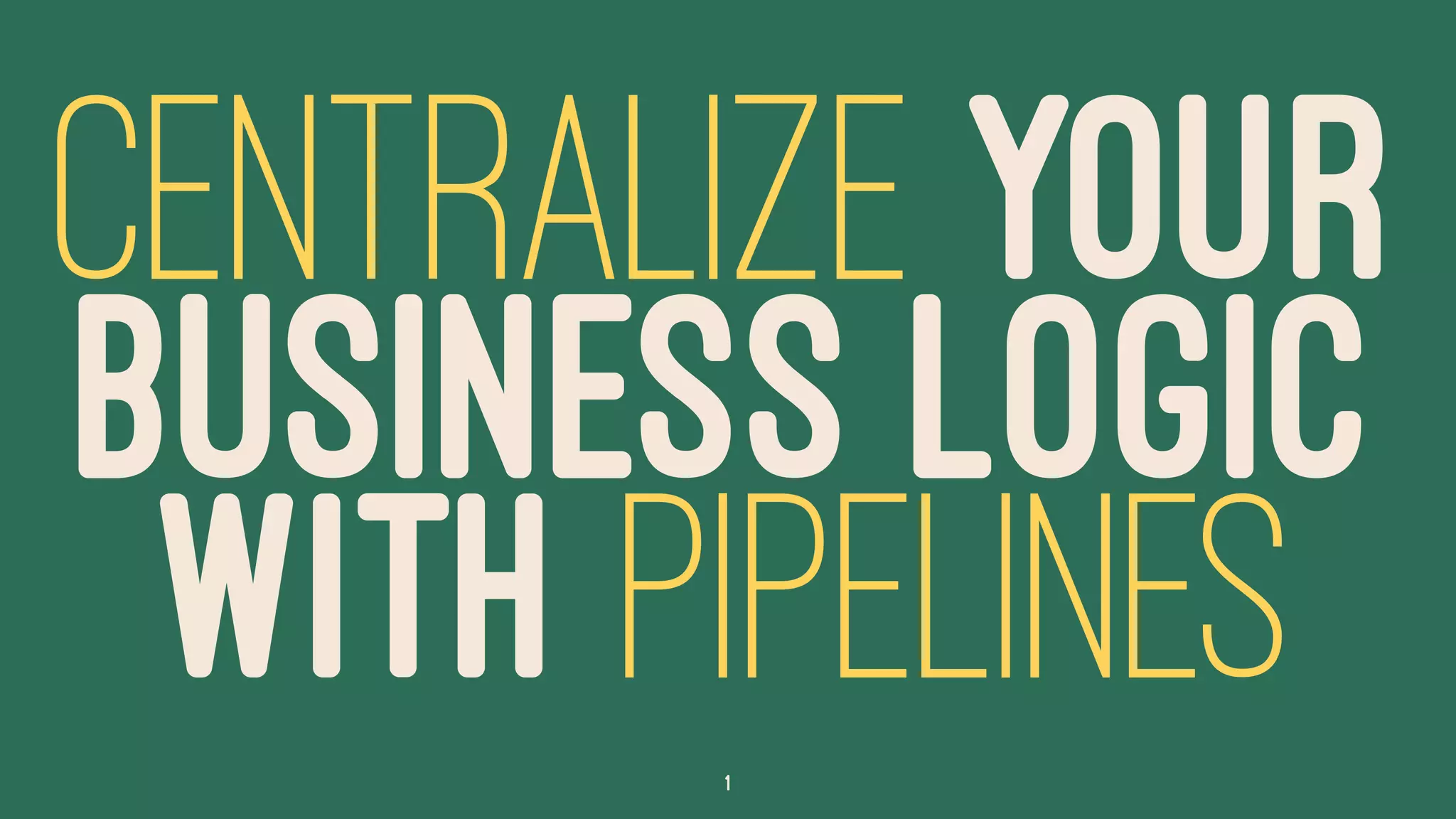

1. CENTRALIZE YOUR
BUSINESS LOGIC
WITH PIPELINES1

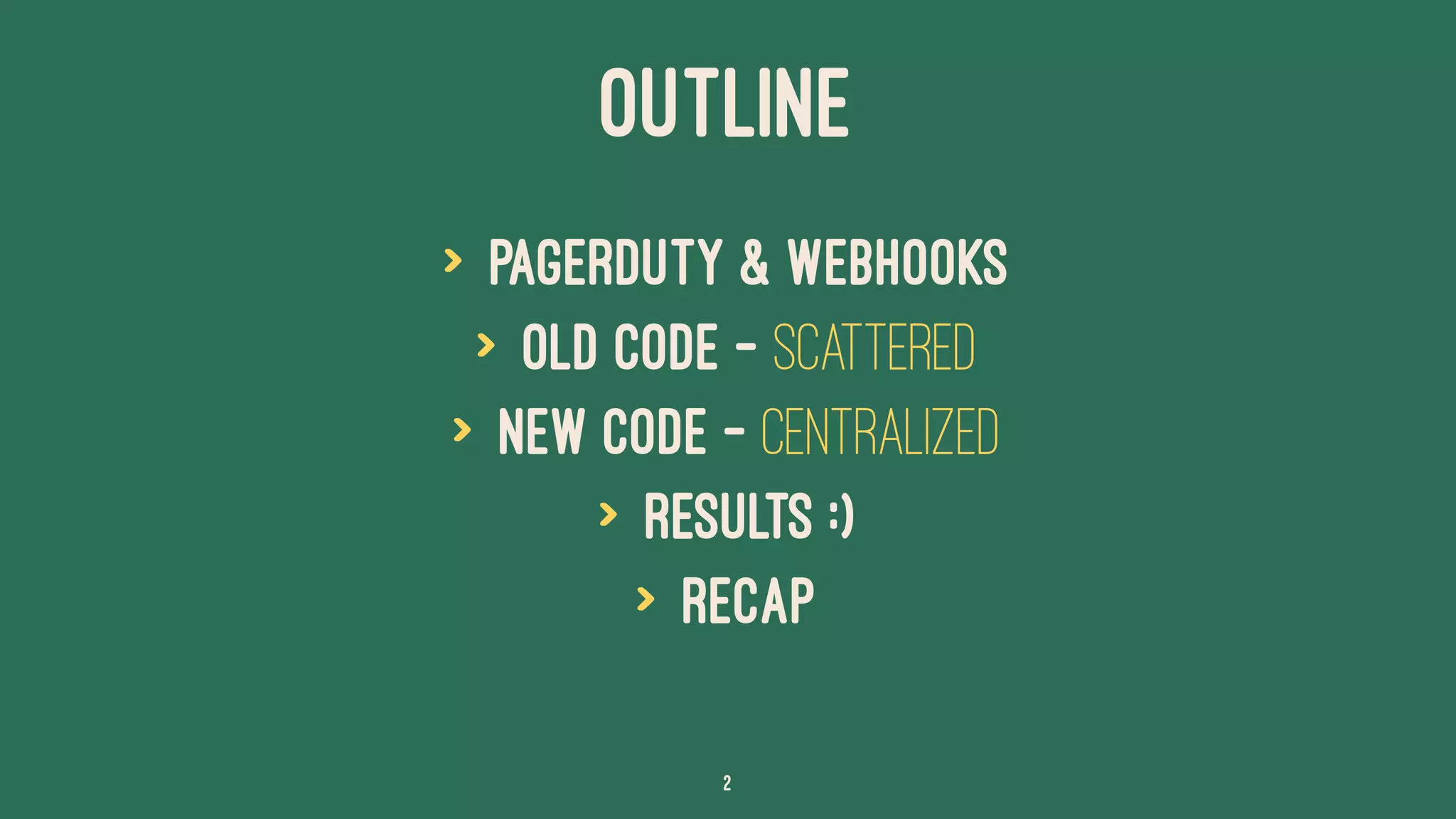

2. OUTLINE
> PagerDuty & Webhooks
> Old Code - Scattered
> New Code - Centralized
> Results :)
> Recap
2

3. WHAT YOU SHOULD TAKE AWAY
Centralized business logic leads to:
> More readable code
> Clearer business logic
> Happier team!
3

4. 4

5. PAGERDUTY &
WEBHOOKS
AN ANALOGY
5

6. 6

7. 7

8. 8

9. 9

10. 10

11. 11

12. {
"payload": {
"type": "incident.trigger",
"data": {
"title": "Response times are spiking!",
}
},
"endpoint": "https://slack.api.com/message/create"
}
12

13. 13

14. def process(raw_webhook) do
with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
)
14

15. 15

16. 16

17. Our goal when using a functional
paradigm is to think out our
program as one big function,
transforming its inputs into
outputs
— Dave Thomas, "Elixir for Programmers"
17

18. THE STORY SO FAR
> PagerDuty enables engineers to go on-call
> Webhooks let you send data to different systems
> My teams owns the webhooks service
18

19. OLD CODE
SCATTERED
19

20. 20

21. defmodule Processor do
def process(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload} ->
HTTP.post(endpoint, payload)
{:error, error_msg} ->
Logger.error("error - #{error_msg}")
end
end
end
21

22. defmodule Processor do
def process(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload} ->
HTTP.post(endpoint, payload)
{:error, error_msg} ->
Logger.error("error - #{error_msg}")
end
end
end
21

23. defmodule Processor do
def process(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload} ->
HTTP.post(endpoint, payload)
{:error, error_msg} ->
Logger.error("error - #{error_msg}")
end
end
end
21

24. defmodule Parser do
@expired_threshold_seconds 5
def parse(raw_webhook) do
decoded_webhook = JSON.decode(raw_webhook)
endpoint = decoded_webhook.endpoint
payload = decoded_webhook.payload
time_since_created = decoded_webhook.created_at - Time.now
is_expired = time_since_created > @expired_threshold_seconds * 1000
case is_expired do
true -> {:error, "webhook expired"}
false -> {:ok, endpoint, payload}
end
end
22

25. defmodule Parser do
@expired_threshold_seconds 5
def parse(raw_webhook) do
decoded_webhook = JSON.decode(raw_webhook)
endpoint = decoded_webhook.endpoint
payload = decoded_webhook.payload
time_since_created = decoded_webhook.created_at - Time.now
is_expired = time_since_created > @expired_threshold_seconds * 1000
case is_expired do
true -> {:error, "webhook expired"}
false -> {:ok, endpoint, payload}
end
end
22

26. defmodule Parser do
@expired_threshold_seconds 5
def parse(raw_webhook) do
decoded_webhook = JSON.decode(raw_webhook)
endpoint = decoded_webhook.endpoint
payload = decoded_webhook.payload
time_since_created = decoded_webhook.created_at - Time.now
is_expired = time_since_created > @expired_threshold_seconds * 1000
case is_expired do
true -> {:error, "webhook expired"}
false -> {:ok, endpoint, payload}
end
end
22

27. defmodule Parser do
@expired_threshold_seconds 5
def parse(raw_webhook) do
decoded_webhook = JSON.decode(raw_webhook)
endpoint = decoded_webhook.endpoint
payload = decoded_webhook.payload
time_since_created = decoded_webhook.created_at - Time.now
is_expired = time_since_created > @expired_threshold_seconds * 1000
case is_expired do
true -> {:error, "webhook expired"}
false -> {:ok, endpoint, payload}
end
end
22

28. defmodule Parser do
@expired_threshold_seconds 5
def parse(raw_webhook) do
decoded_webhook = JSON.decode(raw_webhook)
endpoint = decoded_webhook.endpoint
payload = decoded_webhook.payload
time_since_created = decoded_webhook.created_at - Time.now
is_expired = time_since_created > @expired_threshold_seconds * 1000
case is_expired do
true -> {:error, "webhook expired"}
false -> {:ok, endpoint, payload}
end
end
22

29. defmodule Processor do
def process(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload} ->
HTTP.post(endpoint, payload)
{:error, error_msg} ->
Logger.error("error - #{error_msg}")
end
end
end
23

30. defmodule Processor do
def process(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload} ->
HTTP.post(endpoint, payload)
{:error, error_msg} ->
Logger.error("error - #{error_msg}")
end
end
end
23

31. defmodule Processor do
def process(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload} ->
HTTP.post(endpoint, payload)
{:error, error_msg} ->
Logger.error("error - #{error_msg}")
end
end
end
23

32. Bad Modularization
24

33. Scattered Business Logic
25

34. NEW CODE
CENTRALIZED
26

35. 27

36. 28

37. defmodule Processor do
defmodule WebhookState do
defstruct(
endpoint: "",
payload: "",
created_at: ""
)
end
29

38. defmodule Processor do
defmodule WebhookState do
defstruct(
endpoint: "",
payload: "",
created_at: ""
)
end
29

39. def process(raw_webhook) do
with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
Logger.info("webhook processed successfully :) !")
:ok
else
{:error, msg} ->
Logger.error("error processing webhook :( ! - #{msg}")
:error
end
end
30

40. def process(raw_webhook) do
with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
Logger.info("webhook processed successfully :) !")
:ok
else
{:error, msg} ->
Logger.error("error processing webhook :( ! - #{msg}")
:error
end
end
30

41. BUT THAT'S NOT
A |> PIPELINE!?
31

42. parse(raw_webhook)
|> check_expired(webhook)
|> send(webhook)
32

43. defp parse(:error), do: :error
defp parse(webhook)
...
end
defp check_expired(:error), do: :error
defp check_expired(webhook)
...
end
defp send(:error), do: :error
defp send(webhook)
...
end
33

44. with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
:ok
else
:error
end
34

45. with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
:ok
else
:error
end
34

46. with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
:ok
else
:error
end
34

47. def process(raw_webhook) do
with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
Logger.info("webhook processed successfully :) !")
:ok
else
{:error, msg} ->
Logger.error("error processing webhook :( ! - #{msg}")
:error
end
end
35

48. defp parse(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload, created_at} ->
{:ok, %WebhookState{
endpoint: endpoint,
payload: payload,
created_at: created_at
}}
{:error, error_msg} ->
{:error, "failed to parse webhook"}
end
end
36

49. defp parse(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload, created_at} ->
{:ok, %WebhookState{
endpoint: endpoint,
payload: payload,
created_at: created_at
}}
{:error, error_msg} ->
{:error, "failed to parse webhook"}
end
end
36

50. defmodule Parser do
def parse(raw_webhook) do
decoded_webhook = JSON.decode(raw_webhook)
endpoint = decoded_webhook.event.endpoint
payload = decoded_webhook.event.payload
created_at = decoded_webhook.event.created_at
# no more expired webhook logic :) !
{:ok, endpoint, payload, created_at}
end
end
37

51. defmodule Parser do
def parse(raw_webhook) do
decoded_webhook = JSON.decode(raw_webhook)
endpoint = decoded_webhook.event.endpoint
payload = decoded_webhook.event.payload
created_at = decoded_webhook.event.created_at
# no more expired webhook logic :) !
{:ok, endpoint, payload, created_at}
end
end
37

52. defp parse(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload, created_at} ->
{:ok, %WebhookState{
endpoint: endpoint,
payload: payload,
created_at: created_at
}}
{:error, error_msg} ->
{:error, "failed to parse webhook"}
end
end
38

53. defp parse(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload, created_at} ->
{:ok, %WebhookState{
endpoint: endpoint,
payload: payload,
created_at: created_at
}}
{:error, error_msg} ->
{:error, "failed to parse webhook"}
end
end
38

54. defp parse(raw_webhook) do
parsed_webhook = Parser.parse(raw_webhook)
case parsed_webhook do
{:ok, endpoint, payload, created_at} ->
{:ok, %WebhookState{
endpoint: endpoint,
payload: payload,
created_at: created_at
}}
{:error, error_msg} ->
{:error, "failed to parse webhook"}
end
end
38

55. def process(raw_webhook) do
with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
Logger.info("webhook processed successfully :) !")
:ok
else
{:error, msg} ->
Logger.error("error processing webhook :( ! - #{msg}")
:error
end
end
39

56. def process(raw_webhook) do
with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
Logger.info("webhook processed successfully :) !")
:ok
else
{:error, msg} ->
Logger.error("error processing webhook :( ! - #{msg}")
:error
end
end
39

57. @expired_threshold_seconds 5
defp check_expired(webhook = %WebhookState{created_at: created_at}) do
# this was moved from Parser to Processor :) !
time_since_created = created_at - Time.now
is_expired = time_since_created > @expired_threshold_seconds * 1000
case is_expired do
true ->
{:error, "webhook expired"}
false ->
{:ok, webhook}
end
end
40

58. @expired_threshold_seconds 5
defp check_expired(webhook = %WebhookState{created_at: created_at}) do
# this was moved from Parser to Processor :) !
time_since_created = created_at - Time.now
is_expired = time_since_created > @expired_threshold_seconds * 1000
case is_expired do
true ->
{:error, "webhook expired"}
false ->
{:ok, webhook}
end
end
40

59. @expired_threshold_seconds 5
defp check_expired(webhook = %WebhookState{created_at: created_at}) do
# this was moved from Parser to Processor :) !
time_since_created = created_at - Time.now
is_expired = time_since_created > @expired_threshold_seconds * 1000
case is_expired do
true ->
{:error, "webhook expired"}
false ->
{:ok, webhook}
end
end
40

60. def process(raw_webhook) do
with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
Logger.info("webhook processed successfully :) !")
:ok
else
{:error, msg} ->
Logger.error("error processing webhook :( ! - #{msg}")
:error
end
end
41

61. def process(raw_webhook) do
with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
) do
Logger.info("webhook processed successfully :) !")
:ok
else
{:error, msg} ->
Logger.error("error processing webhook :( ! - #{msg}")
:error
end
end
41

62. defp send(webhook = %WebhookState{endpoint: endpoint, payload: payload}) do
HTTP.post(endpoint, payload)
end
42

63. defp send(webhook = %WebhookState{endpoint: endpoint, payload: payload}) do
HTTP.post(endpoint, payload)
end
42

64. 43

65. Good modularization!
44

66. Centralized Business Logic!
45

67. RESULTS :)
46

68. 47

69. RECAP
48

70. def process(raw_webhook) do
with(
{:ok, webhook} <- parse(raw_webhook),
{:ok, webhook} <- check_expired(webhook),
{:ok, webhook} <- send(webhook)
)
> Good modularization! ✓
> Centralized business logic! ✓
> Happy team! ✓
49

71. LINKS
> Slides - bit.ly/2HINSBU
> Blog post - bit.ly/2Nb5shE
> Elixir course - bit.ly/2SdseX2
> LinkedIn - linkedin.com/in/MichaelViveros/
> MichaelViveros@gmail.com
> QUESTIONS?
50
