1. CE 337/CE 568 : Prestressed
Concrete Design
Prof. Sasankasekhar Mandal
BE (Jadavpur Univ., Kolkata, 1993), ME (UOR, Roorkee, 1996), PhD (IIT, Roorkee, 2001)
Department of Civil Engineering
IIT (BHU), Varanasi, UP 221 005

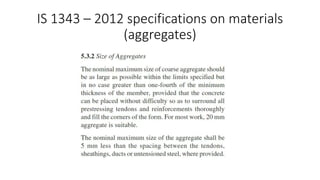

2. IS 1343 – 2012 specifications on materials
(aggregates)

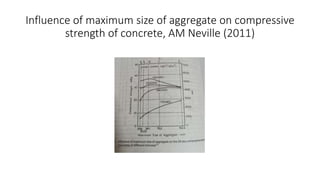

3. Influence of maximum size of aggregate on compressive
strength of concrete, AM Neville (2011)

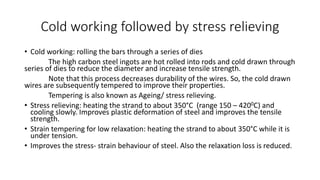

4. Cold working followed by stress relieving
• Cold working: rolling the bars through a series of dies
The high carbon steel ingots are hot rolled into rods and cold drawn through
series of dies to reduce the diameter and increase tensile strength.
Note that this process decreases durability of the wires. So, the cold drawn
wires are subsequently tempered to improve their properties.
Tempering is also known as Ageing/ stress relieving.
• Stress relieving: heating the strand to about 350°C (range 150 – 4200C) and
cooling slowly. Improves plastic deformation of steel and improves the tensile
strength.
• Strain tempering for low relaxation: heating the strand to about 350°C while it is
under tension.
• Improves the stress- strain behaviour of steel. Also the relaxation loss is reduced.

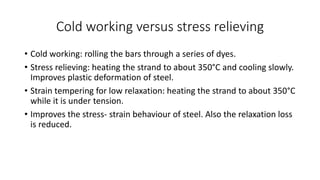

5. Cold working versus stress relieving
• Cold working: rolling the bars through a series of dyes.
• Stress relieving: heating the strand to about 350°C and cooling slowly.
Improves plastic deformation of steel.
• Strain tempering for low relaxation: heating the strand to about 350°C
while it is under tension.
• Improves the stress- strain behaviour of steel. Also the relaxation loss
is reduced.

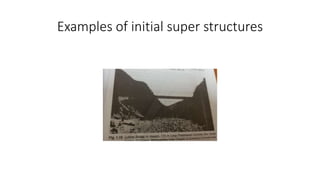

6. Examples of initial super structures

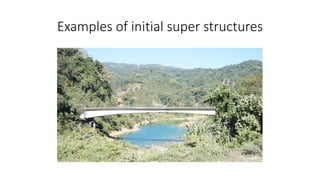

7. Examples of initial super structures

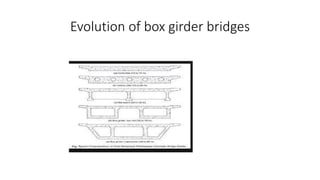

8. Evolution of box girder bridges

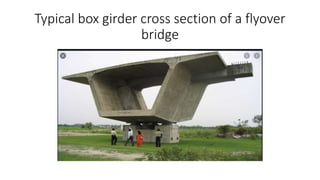

9. Typical box girder cross section of a flyover
bridge

10. Examples of initial super structures

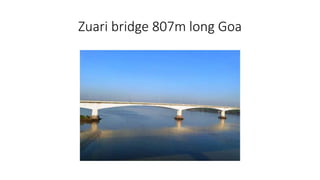

11. Zuari bridge 807m long Goa

12. Properties of cold drawn stress relieved wires (IS 1785)

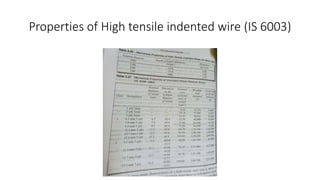

13. Properties of High tensile indented wire (IS 6003)

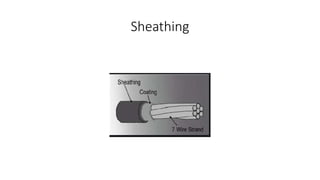

14. Sheathing

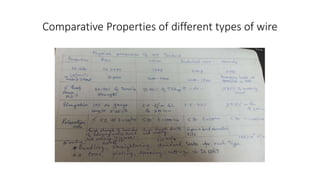

15. Comparative Properties of different types of wire

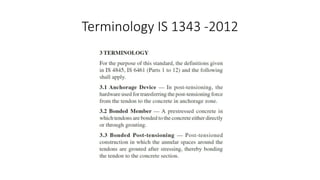

16. Terminology IS 1343 -2012

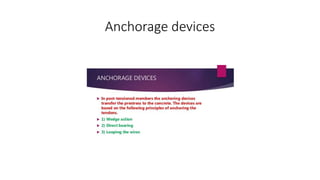

17. Anchorage devices

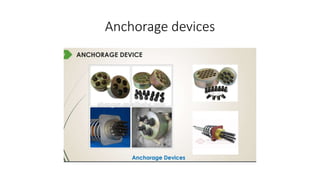

18. Anchorage devices

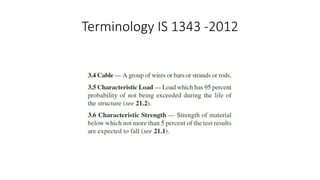

19. Terminology IS 1343 -2012

20. Terminology IS 1343 -2012

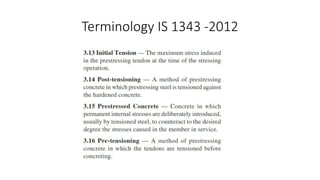

21. Terminology IS 1343 -2012

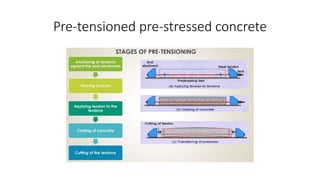

22. Pre-tensioned pre-stressed concrete

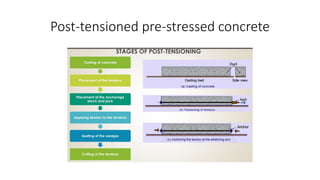

23. Post-tensioned pre-stressed concrete

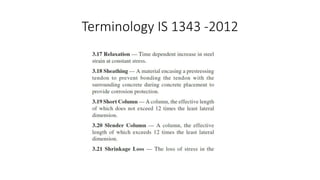

24. Terminology IS 1343 -2012

25. Sheathing

26. Sheathing : Corrugated HDPE ducts

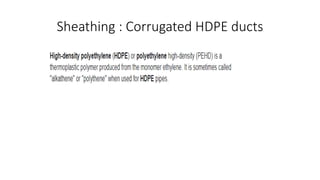

27. Sheathing : Corrugated HDPE ducts

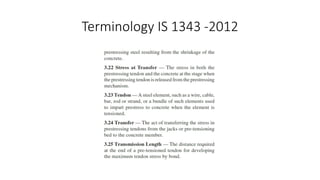

28. Terminology IS 1343 -2012

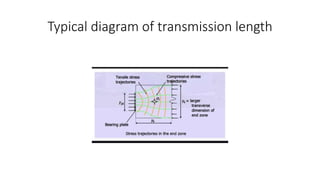

29. Typical diagram of transmission length

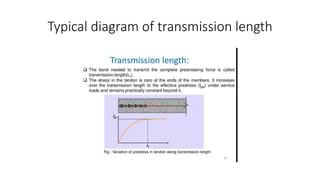

30. Typical diagram of transmission length
