Catalog VORTEX Birding Optics | Optics Trade | 2014

Vortex Optics produces a line of binoculars, monoculars, spotting scopes, and tripods for birdwatching and nature observation. Their binocular models include the Razor HD, Viper HD, Viper, and Talon HD, which feature premium optical components like extra-low dispersion glass, multi-coated lenses, and argon gas purging to provide clear, bright images. Vortex aims to exceed expectations with high-quality optics that allow users to see nature in high definition.

Technology◦
Related topics:
Optics Trade•

Embed presentation

Download to read offline
1 BINOCULARS | MONOCULARS | SPOTTING SCOPES | TRIPODS VORTEX ®

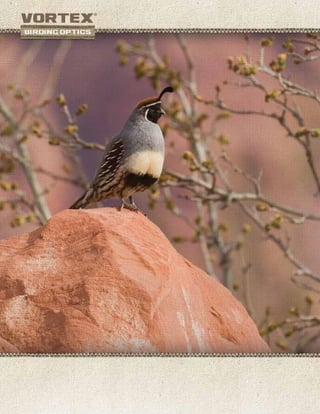

2 VORTEX ®

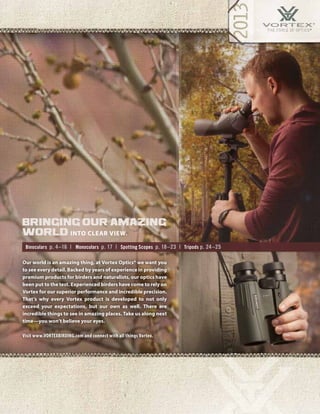

3 Binoculars p. 4–16 | Monoculars p. 17 | Spotting Scopes p. 18–23 | Tripods p. 24–25 Our world is an amazing thing, at Vortex Optics® we want you to see every detail. Backed by years of experience in providing premium products for birders and naturalists, our optics have been put to the test. Experienced birders have come to rely on Vortex for our superior performance and incredible precision. That’s why every Vortex product is developed to not only exceed your expectations, but our own as well. There are incredible things to see in amazing places. Take us along next time—you won’t believe your eyes. Visit www.VORTEXBIRDING.com and connect with all things Vortex. bringing our amazing world into clear view.

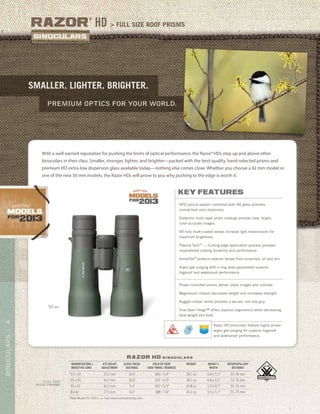

4BINOCULARS| > full size roof prismsRazor ® HD premium Optics for your world. smallER. lightER. brightER. razor hd b i n o c u l a r s *New Model for 2013. >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE *12 x 50 15.5 mm 10.0’ 285’ / 5.4° 28.7 oz 6.8 x 5.1” 57–74 mm *10 x 50 16.5 mm 10.0’ 315’ / 6.0° 28.1 oz 6.8 x 5.1” 57–74 mm 10 x 42 16.5 mm 6.0’ 362’ / 6.9° 24.8 oz 5.9 x 5.1” 55–75 mm 8 x 42 17.5 mm 6.0’ 388’ / 7.4° 24.2 oz 5.9 x 5.1” 55–75 mm FULL SIZE ROOF PRISMS With a well-earned reputation for pushing the limits of optical performance, the Razor®HDs step up and above other binoculars in their class. Smaller, stronger, lighter, and brighter—packed with the best-quality, hand-selected prisms and premium HD extra-low dispersion glass available today—nothing else comes close. Whether you choose a 42 mm model or one of the new 50 mm models, the Razor HDs will prove to you why pushing to the edge is worth it. key features APO optical system combined with HD glass provides unmatched color sharpness. Dielectric multi-layer prism coatings provide clear, bright, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. Plasma TechTM — Cutting edge application process provides unparalleled coating durability and performance. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance. Phase-corrected prisms deliver sharp images and contrast. Magnesium chassis decreases weight and increases strength. Rugged rubber armor provides a secure, non-slip grip. True Open Hinge™ offers superior ergonomics while decreasing total weight and bulk. 50 MM Razor HD binoculars feature highly prized argon gas purging for superior fogproof and waterproof performance.
5BINOCULARS| premium optical performance features include: APO Optical System APO optical system combined with HD (High Density) premium extra-low dispersion glass provide unmatched color sharpness, resolution and color fidelity. XR LENS COATINGS XR anti-reflective coatings deliver incredible image detail with extremely high resolution and light transmission. Fully multi-coated lens coatings eliminate annoying image-degrading reflections and offer extraordinary brightness. repels the oil and corrosive salts of fingerprints from lenses. This ultra-hard lens armor is chemically bonded to outer glass elements, providing a surface that is scratch-resistant and stain-proof. ArmorTek protects optical glass from dust, dirt and smudges. ArmorTek ® The True Open Hinge™ design, coupled with a magnesium chassis, makes the Razor lightweight, ultra-tough, and extremely comfortable to hold. Vortex’s Razor HD binoculars deliver the highest level of optical performance—ensuring you have the edge every time you lift them to your eyes! True open hinge design

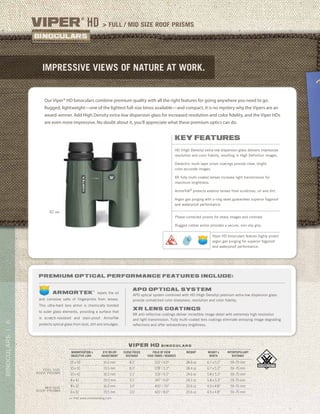

6BINOCULARS| impressive views of nature at work. > full / mid size roof prismsViper ® HD >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 15 x 50 16.0 mm 8.2’ 210’ / 4.0° 28.4 oz 6.7 x 5.2” 59–75 mm 10 x 50 19.5 mm 8.2’ 278’ / 5.3° 28.4 oz 6.7 x 5.2” 59–75 mm 10 x 42 16.5 mm 5.1’ 319’ / 6.1° 24.6 oz 5.8 x 5.3” 59–75 mm 8 x 42 20.0 mm 5.1’ 347’ / 6.6° 24.2 oz 5.8 x 5.3” 59–75 mm 8 x 32 16.0 mm 3.0’ 400’ / 7.6° 20.6 oz 4.9 x 4.8” 59–75 mm 6 x 32 19.5 mm 3.0’ 420’ / 8.0° 20.6 oz 4.9 x 4.8” 59–75 mm FULL SIZE ROOF PRISMS Mid SIZE ROOF PRISMS viper hd b i n o c u l a r s premium optical performance features include: APO Optical System APO optical system combined with HD (High Density) premium extra-low dispersion glass provide unmatched color sharpness, resolution and color fidelity. XR LENS COATINGS XR anti-reflective coatings deliver incredible image detail with extremely high resolution and light transmission. Fully multi-coated lens coatings eliminate annoying image-degrading reflections and offer extraordinary brightness. repels the oil and corrosive salts of fingerprints from lenses. This ultra-hard lens armor is chemically bonded to outer glass elements, providing a surface that is scratch-resistant and stain-proof. ArmorTek protects optical glass from dust, dirt and smudges. ArmorTek ® Our Viper® HD binoculars combine premium quality with all the right features for going anywhere you need to go. Rugged, lightweight—one of the lightest full-size binos available—and compact, it is no mystery why the Vipers are an award-winner. Add High Density extra-low dispersion glass for increased resolution and color fidelity, and the Viper HDs are even more impressive. No doubt about it, you’ll appreciate what these premium optics can do. 42 MM key features HD (High Density) extra-low dispersion glass delivers impressive resolution and color fidelity, resulting in High Definition images. Dielectric multi-layer prism coatings provide clear, bright, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance. Phase-corrected prisms for sharp images and contrast. Rugged rubber armor provides a secure, non-slip grip. Viper HD binoculars feature highly prized argon gas purging for superior fogproof and waterproof performance.

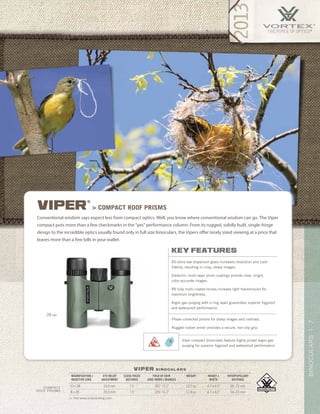

7BINOCULARS| viper b i n o c u l a r s >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 10 x 28 19.0 mm 7.5’ 267’ / 5.1° 12.0 oz 4.7 x 4.5” 56–73 mm 8 x 28 20.0 mm 7.5’ 319’ / 6.1° 11.8 oz 4.7 x 4.5” 56–73 mm compact ROOF PRISMS Conventional wisdom says expect less from compact optics. Well, you know where conventional wisdom can go. The Viper compact puts more than a few checkmarks in the “yes” performance column. From its rugged, solidly built, single-hinge design to the incredible optics usually found only in full size binoculars, the Vipers offer nicely sized viewing at a price that leaves more than a few bills in your wallet. viper ® > compact roof prisms 28 MM key features XD extra-low dispersion glass increases resolution and color fidelity, resulting in crisp, sharp images. Dielectric multi-layer prism coatings provide clear, bright, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance. Viper compact binoculars feature highly prized argon gas purging for superior fogproof and waterproof performance. Phase-corrected prisms for sharp images and contrast. Rugged rubber armor provides a secure, non-slip grip.

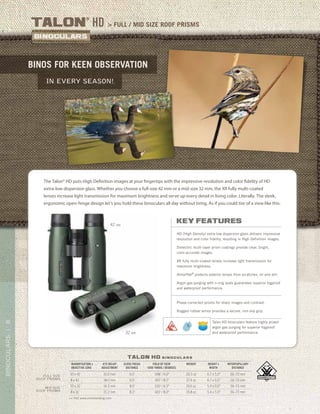

8BINOCULARS| > full / mid size roof prismstalon ® HD binos for keen observation in every season! talon hd b i n o c u l a r s >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 10 x 42 16.0 mm 6.0’ 348’ / 6.6° 26.5 oz 6.7 x 5.0” 56–73 mm 8 x 42 18.0 mm 6.0’ 425’ / 8.1° 27.4 oz 6.7 x 5.0” 56–73 mm 10 x 32 14.3 mm 8.0’ 330’ / 6.3° 19.6 oz 5.4 x 5.0” 56–73 mm 8 x 32 15.2 mm 8.2’ 420’ / 8.0° 19.8 oz 5.4 x 5.0” 56–73 mm Mid SIZE ROOF PRISMS FULL SIZE ROOF PRISMS The Talon® HD puts High Definition images at your fingertips with the impressive resolution and color fidelity of HD extra-low dispersion glass. Whether you choose a full-size 42 mm or a mid-size 32 mm, the XR fully multi-coated lenses increase light transmission for maximum brightness and serve up every detail in living color. Literally. The sleek, ergonomic open-hinge design let’s you hold these binoculars all day without tiring. As if you could tire of a view like this. 42 MM 32 MM key features HD (High Density) extra-low dispersion glass delivers impressive resolution and color fidelity, resulting in High Definition images. Dielectric multi-layer prism coatings provide clear, bright, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance. Phase-corrected prisms for sharp images and contrast. Rugged rubber armor provides a secure, non-slip grip. Talon HD binoculars feature highly prized argon gas purging for superior fogproof and waterproof performance.
9BINOCULARS| premium optical performance features include: APO Optical System APO optical system combined with HD (High Density) premium extra-low dispersion glass provide unmatched color sharpness, resolution and color fidelity. XR LENS COATINGS XR anti-reflective coatings deliver incredible image detail with extremely high resolution and light transmission. Fully multi-coated lens coatings eliminate annoying image-degrading reflections and offer extraordinary brightness. repels the oil and corrosive salts of fingerprints from lenses. This ultra-hard lens armor is chemically bonded to outer glass elements, providing a surface that is scratch-resistant and stain-proof. ArmorTek protects optical glass from dust, dirt and smudges. ArmorTek ® Pick up a pair of Talon HDs and you will instantly become attached to the slim, thoughtfully designed chassis. You will notice a redefined balance and comfort. Naturally weighted and contoured to fit your hands — fatigue is a thing of the past. Wrap Your hands around this

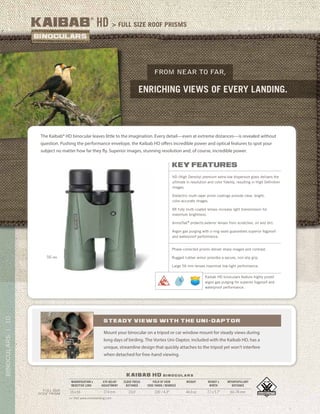

10BINOCULARS| from NEAR TO FAR, > full size roof prismskaibab ® HD enriching views OF every landing. Kaibab hd b i n o c u l a r s Mount your binocular on a tripod or car window mount for steady views during long days of birding. The Vortex Uni-Daptor, included with the Kaibab HD, has a unique, streamline design that quickly attaches to the tripod yet won’t interfere when detached for free-hand viewing. steady views with the Uni-Daptor >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 15 x 56 17.4 mm 23.0’ 226’ / 4.3° 44.0 oz 7.7 x 5.7” 60–74 mmFULL SIZE ROOF PRISM The Kaibab® HD binocular leaves little to the imagination. Every detail—even at extreme distances—is revealed without question. Pushing the performance envelope, the Kaibab HD offers incredible power and optical features to spot your subject no matter how far they fly. Superior images, stunning resolution and, of course, incredible power. key features HD (High Density) premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images. Dielectric multi-layer prism coatings provide clear, bright, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance. Phase-corrected prisms deliver sharp images and contrast. Rugged rubber armor provides a secure, non-slip grip. Large 56 mm lenses maximize low-light performance. Kaibab HD binoculars feature highly prized argon gas purging for superior fogproof and waterproof performance. 56 MM

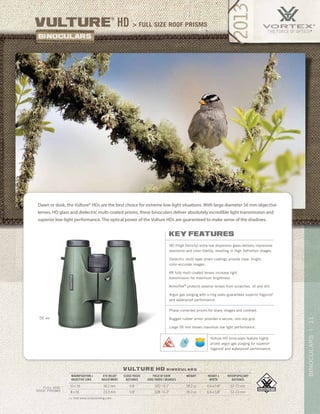

11BINOCULARS| > full size roof prismsvulture ® HD vulture hd b i n o c u l a r s >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 10 x 56 18.2 mm 9.8’ 320’ / 6.1° 39.2 oz 6.6 x 5.8” 57–73 mm 8 x 56 23.0 mm 9.8’ 328’ / 6.3° 39.2 oz 6.6 x 5.8” 57–73 mm FULL SIZE ROOF PRISMS key features HD (High Density) extra-low dispersion glass delivers impressive resolution and color fidelity, resulting in High Definition images. Dielectric multi-layer prism coatings provide clear, bright, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance. Phase-corrected prisms for sharp images and contrast. Rugged rubber armor provides a secure, non-slip grip. Large 56 mm lenses maximize low light performance. Dawn or dusk, the Vulture® HDs are the best choice for extreme low-light situations. With large diameter 56 mm objective lenses, HD glass and dielectric multi-coated prisms, these binoculars deliver absolutely incredible light transmission and superior low-light performance. The optical power of the Vulture HDs are guaranteed to make sense of the shadows. Vulture HD binoculars feature highly prized argon gas purging for superior fogproof and waterproof performance. 56 MM
12BINOCULARS| > full / Mid size roof prismsdiamondback ® and the hush of a moment. For captured memories diamondback b i n o c u l a r s >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 12 x 50 18.0 mm 9.0’ 241’ / 4.6° 31.0 oz 6.8 x 5.6” 61–74 mm 10 x 50 19.0 mm 9.0’ 283’ / 5.4° 31.0 oz 6.8 x 5.6” 61–74 mm 8.5 x 50 21.5 mm 9.0’ 283’ / 5.4° 31.0 oz 6.9 x 5.6” 61–74 mm 10 x 42 16.0 mm 5.0’ 345’ / 6.6° 24.4 oz 5.9 x 5.6” 57–73 mm 8 x 42 18.0 mm 4.5’ 420’ / 8.0° 25.2 oz 5.9 x 5.6” 57–73 mm 10 x 32 10.0 mm 5.3’ 341’ / 6.5° 18.8 oz 4.5 x 5.3” 58–74 mm 8 x 32 12.0 mm 5.3’ 420’ / 8.0° 18.4 oz 4.5 x 5.3” 58–74 mm mid size ROOF PRISMS FULL SIZE ROOF PRISMS We’ve all been there... give up one thing to get another. Making concessions is a part of life, but not today. Today you discover that superior quality, high-performance birding optics can find their way around your neck for a surprisingly affordable price. Huge field of view—the largest in its class—fully multi-coated optics, phase-corrected prisms, waterproof/fogproof construction, soft tapered eyecups, rugged rubber armor. It’s all there in the Diamondback®. 32 MM 42 MM key features Fully multi-coated with anti-reflective coatings for brighter views. Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance. Phase-corrected prisms for sharp images and contrast. Rugged diamond-checkered rubber armor provides a secure, non-slip grip. Super-wide field of view for scanning. Diamondback binoculars feature highly prized argon gas purging for superior fogproof and waterproof performance.

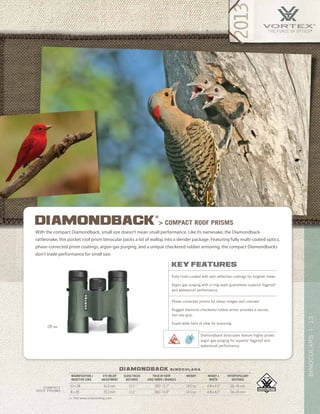

13BINOCULARS| diamondback b i n o c u l a r s key features Fully multi-coated with anti-reflective coatings for brighter views. Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance. Phase-corrected prisms for sharp images and contrast. Rugged diamond-checkered rubber armor provides a secure, non-slip grip. Super-wide field of view for scanning. diamondback ® > compact roof prisms With the compact Diamondback, small size doesn’t mean small performance. Like its namesake, the Diamondback rattlesnake, this pocket roof prism binocular packs a lot of wallop into a slender package. Featuring fully multi-coated optics, phase-corrected prism coatings, argon gas purging, and a unique checkered rubber armoring, the compact Diamondbacks don’t trade performance for small size. 28 MM Diamondback binoculars feature highly prized argon gas purging for superior fogproof and waterproof performance. >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 10 x 28 16.0 mm 13.1’ 300’ / 5.7° 14.0 oz 4.8 x 4.5” 56–74 mm 8 x 28 19.3 mm 13.1’ 360’ / 6.9° 14.0 oz 4.8 x 4.5” 56–74 mm compact ROOF PRISMS
14BINOCULARS| > full Size roof prismscrossfire ® ii ... making every day extraordinary. crossfire ii b i n o c u l a r s *New Model for 2013. >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE *10 x 42 14.0 mm 7.0’ 315’ / 6.0° 20.8 oz 5.6 x 5.0” 58–75 mm *8 x 42 17.0 mm 7.0’ 315’ / 6.0° 21.2 oz 5.9 x 5.0” 58–75 mm FULL SIZE roof PRISMS Feature for feature, you just won’t find what the new Crossfire® II has to offer on any other value-priced binocular. Period. What’s more, the fully multi-coated optics deliver performance that most assume is only available in binoculars costing twice as much. Add in complete waterproof/fogproof protection, twist-up eyecups and a rubber armored chassis, and it becomes clear that the Crossfire II is a rare find. 42 MM key features Fully multi-coated with anti-reflective coatings for brighter views. Nitrogen gas purging with o-ring seals delivers fogproof, waterproof performance. Crossfire II binoculars are waterproof and fogproof with nitrogen gas purging for reliable performance in any weather. Rugged rubber armor provides a secure, non-slip grip.

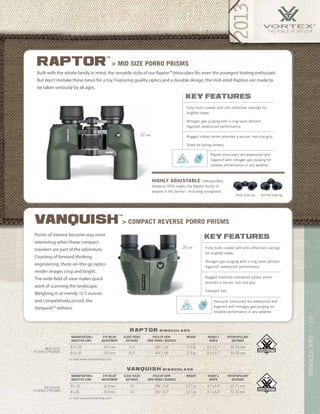

15BINOCULARS| raptor b i n o c u l a r s vanquish b i n o c u l a r s >> Visit www.vortexbirding.com >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 10 x 26 16.0 mm 7.6’ 294’ / 5.6° 12.7 oz 4.7 x 4.4” 57–71 mm 8 x 26 15.0 mm 7.6’ 352’ / 6.7° 12.7 oz 4.7 x 4.4” 57–71 mm MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 8.5 x 32 14.0 mm 15.0’ 390’ / 7.4° 17.3 oz 4.5 x 5.7” 50–70 mm 6.5 x 32 20.0 mm 15.0’ 410’ / 7.8° 17.3 oz 4.5 x 5.7” 50–70 mm reverse porro PRISMS mid SIZE porro PRISMS Points of interest become way more interesting when these compact travelers are part of the adventure. Courtesy of forward-thinking engineering, these on-the-go optics render images crisp and bright. The wide field of view makes quick work of scanning the landscape. Weighing in at merely 12.7 ounces and competitively priced, the Vanquish™ delivers. vanquish ™ > compact Reverse Porro prisms 26 MM key features Fully multi-coated with anti-reflective coatings for brighter views. Nitrogen gas purging with o-ring seals delivers fogproof, waterproof performance. Rugged diamond-checkered rubber armor provides a secure, non-slip grip. Compact size. Vanquish binoculars are waterproof and fogproof with nitrogen gas purging for reliable performance in any weather. Built with the whole family in mind, the versatile style of our Raptor™ binoculars fits even the youngest birding enthusiast. But don’t mistake these binos for a toy. Featuring quality optics and a durable design, the mid-sized Raptors are made to be taken seriously by all ages. raptor ™ > Mid Size Porro prisms 32 MM Highly adjustable interpupillary distance (IPD) makes the Raptor nicely fit anyone in the family—including youngsters. Wide Spacing Narrow Spacing key features Fully multi-coated with anti-reflective coatings for brighter views. Nitrogen gas purging with o-ring seals delivers fogproof, waterproof performance. Raptor binoculars are waterproof and fogproof with nitrogen gas purging for reliable performance in any weather. Rugged rubber armor provides a secure, non-slip grip. Sized for young birders.

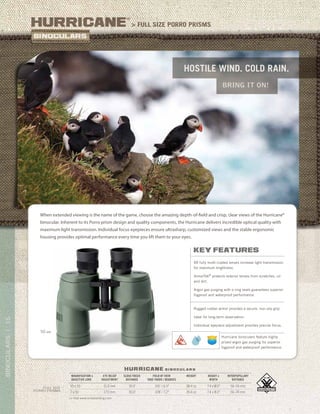

16BINOCULARS|16BINOCULARS| Hostile wind. cold rain. bring it on! > full Size Porro prismsHurricane ® >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT HEIGHT x WIDTH INTERPUPILLARY DISTANCE 10 x 50 15.0 mm 30.0’ 341’ / 6.5° 38.4 oz 7.4 x 8.0” 56–74 mm 7 x 50 17.0 mm 30.0’ 378’ / 7.2° 39.4 oz 7.4 x 8.0” 56–74 mm FULL SIZE Porro PRISMS hurricane b i n o c u l a r s When extended viewing is the name of the game, choose the amazing depth-of-field and crisp, clear views of the Hurricane® binocular. Inherent to its Porro prism design and quality components, the Hurricane delivers incredible optical quality with maximum light transmission. Individual focus eyepieces ensure ultrasharp, customized views and the stable ergonomic housing provides optimal performance every time you lift them to your eyes. 50 MM key features XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance. Rugged rubber armor provides a secure, non-slip grip. Ideal for long-term observation. Individual eyepiece adjustment provides precise focus. Hurricane binoculars feature highly prized argon gas purging for superior fogproof and waterproof performance.

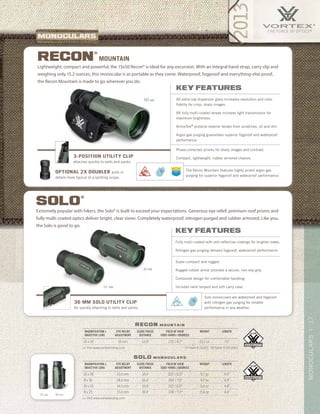

17MoNOCULARS| US Patent 8,116,015 US Patent D 603,436 S 25 MM 36 MM recon m o u n ta i n solo m o n o c u l a r s >> Visit www.vortexbirding.com >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT LENGTH 10 x 36 15.0 mm 16.4’ 325’ / 6.2° 9.7 oz 4.9” 8 x 36 18.0 mm 16.4’ 393’ / 7.5° 9.7 oz 4.9” 10 x 25 14.5 mm 16.4’ 315’ / 6.0° 5.6 oz 4.4” 8 x 25 15.0 mm 16.4’ 378’ / 7.2° 5.6 oz 4.4” MAGNIFICATION x OBJECTIVE LENS EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES WEIGHT LENGTH 15 x 50 16 mm 12.0’ 215’ / 4.1° 15.2 oz 7.0” 50 MM Lightweight, compact and powerful, the 15x50 Recon® is ideal for any excursion. With an integral hand strap, carry clip and weighing only 15.2 ounces, this monocular is as portable as they come. Waterproof, fogproof and everything-else proof, the Recon Mountain is made to go wherever you do. key features XD extra-low dispersion glass increases resolution and color fidelity for crisp, sharp images. XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging guarantees superior fogproof and waterproof performance. Phase-corrected prisms for sharp images and contrast. Compact, lightweight, rubber armored chassis. Mountainrecon ® The Recon Mountain features highly prized argon gas purging for superior fogproof and waterproof performance. 3-position utility clip attaches quickly to belts and packs. optional 2x doubler pulls in details more typical of a spotting scope. 25 MM 36 MM key features Fully multi-coated with anti-reflective coatings for brighter views. Nitrogen gas purging delivers fogproof, waterproof performance. Super compact and rugged. Rugged rubber armor provides a secure, non-slip grip. Contoured design for comfortable handling. Includes neck lanyard and soft carry case. Extremely popular with hikers, the Solo® is built to exceed your expectations. Generous eye relief, premium roof prisms and fully multi-coated optics deliver bright, clear views. Completely waterproof, nitrogen purged and rubber armored. Like you, the Solo is good to go. solo ® 36 mm Solo utility clip for quickly attaching to belts and packs. Solo monoculars are waterproof and fogproof with nitrogen gas purging for reliable performance in any weather.

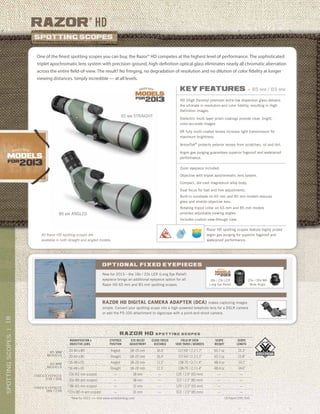

18SPOTTINGSCOPES| US Patent D595,754S razor ® Hd razor hd s p o t t i n g s c o p e s *New for 2013. >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYEPIECE POSITION EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES SCOPE WEIGHT SCOPE LENGTH 20-60 x 85 Angled 18–20 mm 16.4’ 117-60’ / 2.2-1.1° 65.7 oz 15.3” 20-60 x 85 Straight 18–20 mm 16.4’ 117-60’ / 2.2-1.1° 65.7 oz 15.8” *16-48 x 65 Angled 18–20 mm 11.5’ 138-75’ / 2.7-1.4° 48.4 oz 14.1” *16-48 x 65 Straight 18–20 mm 11.5’ 138-75’ / 2.7-1.4° 48.4 oz 14.6” 23x (65 mm scopes) — 18 mm — 135’ / 2.6° (65 mm) — — 30x (85 mm scopes) — 18 mm — 112’ / 2.1° (85 mm) — — *18x (65 mm scopes) — 31 mm — 129’ / 2.5° (65 mm) — — *23 x (85 m wm scopes) — 31 mm — 103’ / 2.0° (85 mm) — — 65 mm models FIXED Eyepiece 23x / 30X FIXED Eyepiece 18x / 23X 85 mm models New for 2013—the 18x / 23x LER (Long Eye Relief) eyepiece brings an additional eyepeice option for all Razor HD 65 mm and 85 mm spotting scopes. Optional fixed Eyepieces Razor HD Digital Camera Adapter (DCA) makes capturing images simple. Convert your spotting scope into a high-powered telephoto lens for a DSLR camera or add the PS-100 attachment to digiscope with a point-and-shoot camera. 18x / 23x LER Long Eye Relief 23x / 30x WA Wide Angle One of the finest spotting scopes you can buy, the Razor® HD competes at the highest level of performance. The sophisticated triplet apochromatic lens system with precision-ground, high-definition optical glass eliminates nearly all chromatic aberration across the entire field-of-view. The result? No fringing, no degradation of resolution and no dilution of color fidelity at longer viewing distances. Simply incredible — at all levels. 85 MM ANGLED 65 MM STRAIGHT key features » 85 mm / 65 mm HD (High Density) premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images. Dielectric multi-layer prism coatings provide clear, bright, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging guarantees superior fogproof and waterproof performance. Zoom eyepiece included. Objective with triplet apochromatic lens system. Compact, die-cast magnesium alloy body. Dual focus for fast and fine adjustments. Built-in sunshade on 65 mm and 85 mm models reduces glare and shields objective lens. Rotating tripod collar on 65 mm and 85 mm models provides adjustable viewing angles. Includes custom view-through case. Razor HD spotting scopes feature highly prized argon gas purging for superior fogproof and waterproof performance. All Razor HD spotting scopes are available in both straight and angled models.

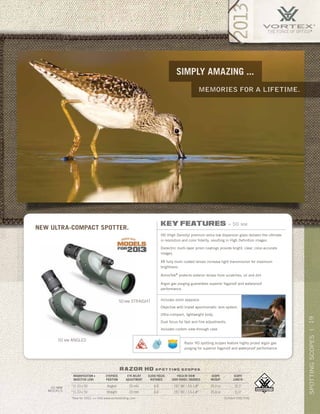

19SPOTTINGSCOPES| memories for A lifetime. simply amazing ... razor hd s p o t t i n g s c o p e s *New for 2013. >> Visit www.vortexbirding.com MAGNIFICATION x OBJECTIVE LENS EYEPIECE POSITION EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES SCOPE WEIGHT SCOPE LENGTH *11-33 x 50 Angled 20 mm 6.6’ 191’-96’ / 3.6-1.8° 25.0 oz 10.3” *11-33 x 50 Straight 20 mm 6.6’ 191’-96’ / 3.6-1.8° 25.0 oz 11.0” 50 mm models US Patent D595,754S 50 MM ANGLED 50 MM STRAIGHT New ultra-compact spotter. key features » 50 mm HD (High Density) premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images. Dielectric multi-layer prism coatings provide bright, clear, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging guarantees superior fogproof and waterproof performance. Includes zoom eyepiece. Objective with triplet apochromatic lens system. Ultra-compact, lightweight body. Dual focus for fast and fine adjustments. Includes custom view-through case. Razor HD spotting scopes feature highly prized argon gas purging for superior fogproof and waterproof performance.

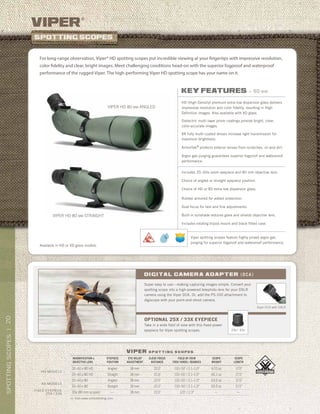

20SPOTTINGSCOPES| >> Visit www.vortexbirding.com viper ® viper s p o t t i n g s c o p e s MAGNIFICATION x OBJECTIVE LENS EYEPIECE POSITION EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES SCOPE WEIGHT SCOPE LENGTH 20–60 x 80 HD Angled 18 mm 22.0’ 110–50’ / 2.1–1.0° 67.0 oz 17.5” 20–60 x 80 HD Straight 18 mm 22.0’ 110–50’ / 2.1–1.0° 66.1 oz 17.5” 20–60 x 80 Angled 18 mm 22.0’ 110–50’ / 2.1–1.0° 63.0 oz 17.5” 20–60 x 80 Straight 18 mm 22.0’ 110–50’ / 2.1–1.0° 62.2 oz 17.5” 33x (80 mm scopes) — 18 mm 22.0’ 120’ / 2.3° — — hd models Xd models FIXED Eyepiece 25X / 33X Available in HD or XD glass models. VIPER HD 80 MM ANGLED VIPER HD 80 MM STRAIGHT For long-range observation, Viper® HD spotting scopes put incredible viewing at your fingertips with impressive resolution, color fidelity and clear, bright images. Meet challenging conditions head-on with the superior fogproof and waterproof performance of the rugged Viper. The high-performing Viper HD spotting scope has your name on it. key features » 80 mm HD (High Density) premium extra-low dispersion glass delivers impressive resolution and color fidelity, resulting in High Definition images. Also available with XD glass. Dielectric multi-layer prism coatings provide bright, clear, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging guarantees superior fogproof and waterproof performance. Includes 20–60x zoom eyepiece and 80 mm objective lens. Choice of angled or straight eyepiece position. Choice of HD or XD extra-low dispersion glass. Rubber armored for added protection. Dual focus for fast and fine adjustments. Built-in sunshade reduces glare and shields objective lens. Includes rotating tripod mount and black fitted case. Viper spotting scopes feature highly prized argon gas purging for superior fogproof and waterproof performance. Super easy to use—making capturing images simple. Convert your spotting scope into a high-powered telephoto lens for your DSLR camera using the Viper DCA. Or, add the PS-100 attachment to digiscope with your point-and-shoot camera. digital camera adapter (DCA) optional 25x / 33x eyepiece Take in a wide field of view with this fixed-power eyepiece for Viper spotting scopes. 23x / 33x Viper DCA with DSLR

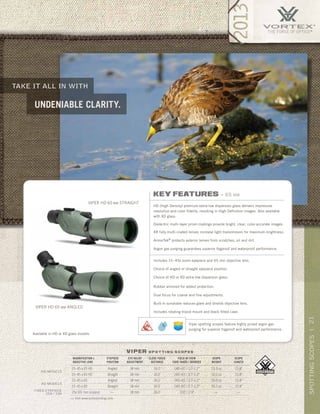

21SPOTTINGSCOPES| >> Visit www.vortexbirding.com take it all in with undeniable clarity. viper s p o t t i n g s c o p e s MAGNIFICATION x OBJECTIVE LENS EYEPIECE POSITION EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES SCOPE WEIGHT SCOPE LENGTH 15–45 x 65 HD Angled 18 mm 16.0’ 140–65’ / 2.7–1.2° 53.3 oz 15.8” 15–45 x 65 HD Straight 18 mm 16.0’ 140–65’ / 2.7–1.2° 52.0 oz 15.8” 15–45 x 65 Angled 18 mm 16.0’ 140–65’ / 2.7–1.2° 50.9 oz 15.8” 15–45 x 65 Straight 18 mm 16.0’ 140–65’ / 2.7–1.2° 50.1 oz 15.8” 25x (65 mm scopes) — 18 mm 16.0’ 150’ / 2.9° — — hd models Xd models FIXED Eyepiece 25X / 33X VIPER HD 65 MM ANGLED VIPER HD 65 MM STRAIGHT Available in HD or XD glass models. key features » 65 mm HD (High Density) premium extra-low dispersion glass delivers impressive resolution and color fidelity, resulting in High Definition images. Also available with XD glass. Dielectric multi-layer prism coatings provide bright, clear, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. ArmorTek® protects exterior lenses from scratches, oil and dirt. Argon gas purging guarantees superior fogproof and waterproof performance. Includes 15–45x zoom eyepiece and 65 mm objective lens. Choice of angled or straight eyepiece position. Choice of HD or XD extra-low dispersion glass. Rubber armored for added protection. Dual focus for coarse and fine adjustments. Built-in sunshade reduces glare and shields objective lens. Includes rotating tripod mount and black fitted case. Viper spotting scopes feature highly prized argon gas purging for superior fogproof and waterproof performance.

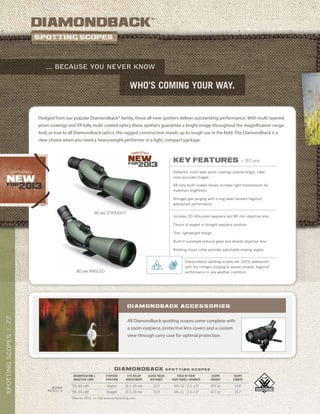

22SPOTTINGSCOPES| *New for 2013. >> Visit www.vortexbirding.com diamondback ® who’s coming your way. ... because you never know diamondback s p o t t i n g s c o p e s MAGNIFICATION x OBJECTIVE LENS EYEPIECE POSITION EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES SCOPE WEIGHT SCOPE LENGTH *20–60 x 80 Angled 16.5–20 mm 22.0’ 105–51’ / 2.0–1.0° 47.1 oz 14.8” *20–60 x 80 Straight 16.5–20 mm 22.0’ 105–51’ / 2.0–1.0° 47.1 oz 15.7” 80mm models All Diamondback spotting scopes come complete with a zoom eyepiece, protective lens covers and a custom view-through carry case for optimal protection. Diamondback accessories key features » 80 mm Dielectric multi-layer prism coatings provide bright, clear, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. Nitrogen gas purging with o-ring seals delivers fogproof, waterproof performance. Includes 20–60x zoom eyepiece and 80 mm objective lens. Choice of angled or straight eyepiece position. Trim, lightweight design. Built-in sunshade reduces glare and shields objective lens. Rotating tripod collar provides adjustable viewing angles. Fledged from our popular Diamondback® family, these all-new spotters deliver outstanding performance. With multi-layered prism coatings and XR fully multi-coated optics these spotters guarantee a bright image throughout the magnification range. And, as true to all Diamondback optics, the rugged construction stands up to rough use in the field. The Diamondback is a clear choice when you need a heavyweight performer in a light, compact package. 80 MM ANGLED 80 MM STRAIGHT Diamondback spotting scopes are 100% waterproof with dry nitrogen purging to assure reliable, fogproof performance in any weather condition.

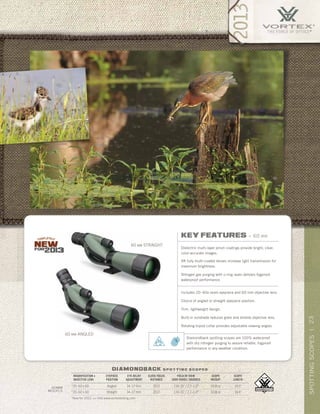

23SPOTTINGSCOPES| *New for 2013. >> Visit www.vortexbirding.com diamondback s p o t t i n g s c o p e s MAGNIFICATION x OBJECTIVE LENS EYEPIECE POSITION EYE RELIEF ADJUSTMENT CLOSE FOCUS DISTANCE FIELD OF VIEW 1000 YARDS / DEGREES SCOPE WEIGHT SCOPE LENGTH *20–60 x 60 Angled 14–17 mm 20.0’ 114–51’ / 2.2–1.0° 33.8 oz 14.0” *20–60 x 60 Straight 14–17 mm 20.0’ 114–51’ / 2.2–1.0° 33.8 oz 14.4” 60mm models 60 MM ANGLED 60 MM STRAIGHT key features » 60 mm Dielectric multi-layer prism coatings provide bright, clear, color-accurate images. XR fully multi-coated lenses increase light transmission for maximum brightness. Nitrogen gas purging with o-ring seals delivers fogproof, waterproof performance. Includes 20–60x zoom eyepiece and 60 mm objective lens. Choice of angled or straight eyepiece position. Trim, lightweight design. Built-in sunshade reduces glare and shields objective lens. Rotating tripod collar provides adjustable viewing angles. Diamondback spotting scopes are 100% waterproof with dry nitrogen purging to assure reliable, fogproof performance in any weather condition.

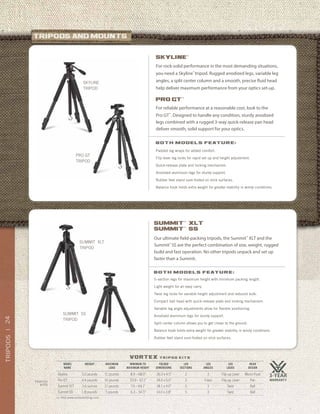

24TRIPODS| >> Visit www.vortexbirding.com warranty tRIPOD kITS vortex t r i p o d k i t s B o t h M o d e l s f e at u r e : Padded leg wraps for added comfort. Flip lever leg locks for rapid set up and height adjustment. Quick-release plate and locking mechanism. Anodized aluminum legs for sturdy support. Rubber feet stand sure-footed on slick surfaces. Balance hook holds extra weight for greater stability in windy conditions. For rock-solid performance in the most demanding situations, you need a Skyline™ tripod. Rugged anodized legs, variable leg angles, a split center column and a smooth, precise fluid head help deliver maximum performance from your optics set-up. SKYLINE™ For reliable performance at a reasonable cost, look to the Pro GT™ . Designed to handle any condition, sturdy anodized legs combined with a rugged 3-way quick-release pan head deliver smooth, solid support for your optics. pro gt™ PRO GT TRIPOD SKYLINE TRIPOD Our ultimate field-packing tripods, the Summit™ XLT and the Summit™ SS are the perfect combination of size, weight, rugged build and fast operation. No other tripods unpack and set up faster than a Summit. SUMMIT™ XLT SUMMIT™ SS B o t h M o d e l s f e at u r e : 5-section legs for maximum height with minimum packing length. Light weight for an easy carry. Twist leg locks for variable height adjustment and reduced bulk. Compact ball head with quick-release plate and locking mechanism. Variable leg angle adjustments allow for flexible positioning. Anodized aluminum legs for sturdy support. Split center column allows you to get closer to the ground. Balance hook holds extra weight for greater stability in windy conditions. Rubber feet stand sure-footed on slick surfaces. SUMMIT XLT TRIPOD SUMMIT SS TRIPOD MODEL NAME WEIGHT MAXIMUM LOAD MINIMUM TO MAXIMUM HEIGHT FOLDED DIMENSIONS LEG SECTIONS LEG ANGLES LEG LOCKS HEAD DESIGN Skyline 5.0 pounds 11 pounds 8.9 – 68.0” 26.0 x 4.5” 3 3 Flip-up Lever Micro-Fluid Pro GT 4.4 pounds 10 pounds 23.9 – 67.1” 24.6 x 5.0” 3 Fixed Flip-up Lever Pan Summit XLT 3.6 ounces 11 pounds 7.6 – 64.1” 18.1 x 4.0” 5 3 Twist Ball Summit SS 1.8 pounds 5 pounds 6.3 – 54.5” 14.0 x 3.8” 5 3 Twist Ball

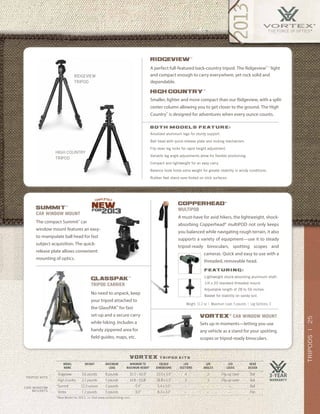

25TRIPODS| *New Model for 2013. >> Visit www.vortexbirding.com warranty tRIPOD kITS Car Window mounts vortex t r i p o d k i t s B o t h M o d e l s f e at u r e : A perfect full-featured back-country tripod. The Ridgeview™ — light and compact enough to carry everywhere, yet rock solid and dependable. Ridgeview™ Smaller, lighter and more compact than our Ridgeview, with a split- center column allowing you to get closer to the ground. The High Country™ is designed for adventures when every ounce counts. high country™ Anodized aluminum legs for sturdy support. Ball head with quick-release plate and locking mechanism. Flip lever leg locks for rapid height adjustment. Variable leg angle adjustments allow for flexible positioning. Compact and lightweight for an easy carry. Balance hook holds extra weight for greater stability in windy conditions. Rubber feet stand sure-footed on slick surfaces. RIDGEVIEW TRIPOD HIGH COUNTRY TRIPOD MODEL NAME WEIGHT MAXIMUM LOAD MINIMUM TO MAXIMUM HEIGHT FOLDED DIMENSIONS LEG SECTIONS LEG ANGLES LEG LOCKS HEAD DESIGN Ridgeview 3.6 pounds 8 pounds 35.5 – 60.9” 23.0 x 3.5” 4 3 Flip-up Lever Ball High Country 2.1 pounds 5 pounds 14.8 – 53.8” 18.8 x 3.5” 5 3 Flip-up Lever Ball *Summit 12.3 ounces 5 pounds 5.4” 5.4 x 3.0” – – – Ball Vortex 1.2 pounds 5 pounds 3.0” 8.3 x 3.0” – – – Pan * The compact Summit™ car window mount features an easy- to-manipulate ball head for fast subject acquisition. The quick- release plate allows convenient mounting of optics. No need to unpack, keep your tripod attached to the GlassPAK™ for fast set-up and a secure carry while hiking. Includes a handy zippered area for field guides, maps, etc. GlassPAK™ tripod carrier Summit™ Car window mount Sets up in moments—letting you use any vehicle as a stand for your spotting scopes or tripod-ready binoculars. vortex® Car window MOUNT A must-have for avid hikers, the lightweight, shock- absorbing Copperhead® multiPOD not only keeps you balanced while navigating rough terrain, it also supports a variety of equipment—use it to steady tripod-ready binoculars, spotting scopes and cameras. Quick and easy to use with a threaded, removable head. f e at u r ing : Lightweight shock-absorbing aluminum shaft. 1/4 x 20 standard threaded mount. Adjustable length of 28 to 56 inches. Basket for stability on sandy soil. COPPERHEAD® Multipod Weight: 11.2 oz | Maximum Load: 5 pounds | Leg Sections: 3

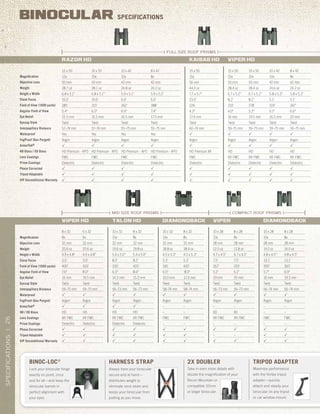

26SPECIFICATIONS| Magnification Objective Lens Weight Height x Width Close Focus Field of View (1000 yards) Angular Field of View Eye Relief Eyecup Style Interpupillary Distance Waterproof FogProof (Gas Purged) ArmorTek® HD / XD Glass Lens Coatings Prism Coatings Phase Corrected Tripod Adaptable VIP Unconditional Warranty Magnification Objective Lens Weight Height x Width Close Focus Field of View (1000 yards) Angular Field of View Eye Relief Eyecup Style Interpupillary Distance Waterproof FogProof (Gas Purged) ArmorTek® HD Glass / XD Glass Lens Coatings Prism Coatings Phase Corrected Tripod Adaptable VIP Unconditional Warranty 12 x 50 12x 50 mm 28.7 oz 6.8 x 5.1” 10.0’ 285’ 5.4° 15.5 mm Twist 57–74 mm Yes Argon P HD Premium - APO FMC Dielectric P P P 10 x 50 10x 50 mm 28.1 oz 6.8 x 5.1” 10.0’ 315’ 6.0° 16.5 mm Twist 57–74 mm Yes Argon P HD Premium - APO FMC Dielectric P P P 10 x 42 10x 42 mm 24.8 oz 5.9 x 5.1” 6.0’ 362’ 6.9° 16.5 mm Twist 55–75 mm Yes Argon P HD Premium - APO FMC Dielectric P P P 8 x 42 8x 42 mm 24.2 oz 5.9 x 5.1” 6.0’ 388’ 7.4° 17.5 mm Twist 55–75 mm Yes Argon P HD Premium - APO FMC Dielectric P P P 15 x 56 15x 56 mm 44.0 oz 7.7 x 5.7” 23.0’ 226’ 4.3° 17.4 mm Twist 60–74 mm P Argon P HD Premium XR FMC Dielectric P P P 8 x 32 8x 32 mm 20.6 oz 4.9 x 4.8” 3.0’ 400’ 7.6° 16 mm Twist 59–75 mm P Argon P HD XR FMC Dielectric P P P 6 x 32 6x 32 mm 20.6 oz 4.9 x 4.8” 3.0’ 420’ 8.0° 19.5 mm Twist 59–75 mm P Argon P HD XR FMC Dielectric P P P 15 x 50 15x 50 mm 28.4 oz 6.7 x 5.2” 8.2’ 210’ 4.0° 16 mm Twist 59–75 mm P Argon P HD XR FMC Dielectric P P P 10 x 50 10x 50 mm 28.4 oz 6.7 x 5.2” 8.2’ 278’ 5.3° 19.5 mm Twist 59–75 mm P Argon P HD XR FMC Dielectric P P P 10 x 42 10x 42 mm 24.6 oz 5.8 x 5.3” 5.1’ 319’ 6.1° 16.5 mm Twist 59–75 mm P Argon P HD XR FMC Dielectric P P P 8 x 42 8x 42 mm 24.2 oz 5.8 x 5.3” 5.1’ 347’ 6.6° 20 mm Twist 59–75 mm P Argon P HD XR FMC Dielectric P P P [ full SIZE ROOF PRISMS ] 10 x 32 10x 32 mm 19.6 oz 5.4 x 5.0” 8.0’ 330’ 6.3° 14.3 mm Twist 56–73 mm P Argon P HD XR FMC Dielectric P P P 8 x 32 8x 32 mm 19.8 oz 5.4 x 5.0” 8.2’ 420’ 8.0° 15.2 mm Twist 56–73 mm P Argon P HD XR FMC Dielectric P P P 10 x 32 10x 32 mm 18.8 oz 4.5 x 5.3” 5.3’ 341’ 6.5° 10.0 mm Twist 58–74 mm P Argon – – FMC – P P P 8 x 32 8x 32 mm 18.4 oz 4.5 x 5.3” 5.3’ 420’ 8.0° 12.0 mm Twist 58–74 mm P Argon – – FMC – P P P KAIBAB HDrazor HD viper HD vipertalon HD viper HD diamondback Binoc-Loc® Lock your binocular hinge exactly on point, once and for all—and keep the binocular barrels in perfect alignment with your eyes. Harness strap Always have your binocular secure and at hand— distributes weight to eliminate neck strain and keeps your binocular from jostling as you move. 2X DOUBLER Take in even more details with double the magnification of your Recon Mountain or compatible 32mm or larger binocular. TRIPOD ADAPTER Maximize performance with the Vortex tripod adapter—quickly attach and steady your binocular on any tripod or car window mount. [ mid SIZE ROOF PRISMS ] [ compact roof PRISMS ] BINOCULAR SPECIFICATIONS diamondback 10 x 28 10x 28 mm 12.0 oz 4.7 x 4.5” 7.5’ 267’ 5.1° 19 mm Twist 56–73 mm P Argon – XD XR FMC – P – P 8 x 28 8x 28 mm 11.8 oz 4.7 x 4.5” 7.5’ 319’ 6.1° 20 mm Twist 56–73 mm P Argon – XD XR FMC – P – P 10 x 28 10x 28 mm 14.0 oz 4.8 x 4.5” 13.1’ 300’ 5.7° 16 mm Twist 56–74 mm P Argon – – FMC – P P P 8 x 28 8x 28 mm 14.0 oz 4.8 x 4.5” 13.1’ 360’ 6.9° 19.3 mm Twist 56–74 mm P Argon – – FMC – P P P

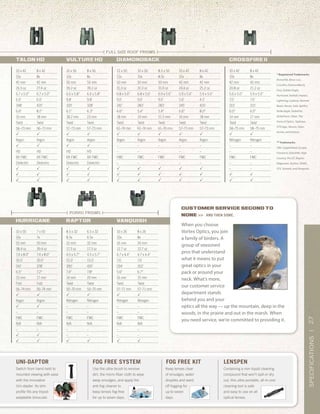

27SPECIFICATIONS| ® Registered Trademarks ArmorTek, Binoc-Loc, Crossfire, Diamondback, Fury, Golden Eagle, Hurricane, Kaibab, Impact, Lightning, Lookout, Nomad, Razor, Recon, Solo, Spitfire, Strike Eagle, StrikeFire, StrikeForce, Talon, The Force of Optics, Typhoon, VTX logo, Venom, Viper, Vortex, and Vulture. TM Trademarks CBX, Copperhead, Escape, Firestorm, GlassPAK, High Country, Pro GT, Raptor, Ridgeview, Skyline, SPARC, STX, Summit, and Vanquish. CUSTOMER SERVICE SECOND TO NONE >> AND THEN SOME. When you choose Vortex Optics, you join a family of birders. A group of seasoned pros that understand what it means to put great optics in your pack or around your neck. What’s more, our customer service department stands behind you and your optics all the way — up the mountain, deep in the woods, in the prairie and out in the marsh. When you need service, we’re committed to providing it. 10 x 42 10x 42 mm 26.5 oz 6.7 x 5.0” 6.0’ 348’ 6.6° 16 mm Twist 56–73 mm P Argon P HD XR FMC Dielectric P P P 8 x 42 8x 42 mm 27.4 oz 6.7 x 5.0” 6.0’ 425’ 8.1° 18 mm Twist 56–73 mm P Argon P HD XR FMC Dielectric P P P 10 x 56 10x 56 mm 39.2 oz 6.6 x 5.8” 9.8’ 320’ 6.1° 18.2 mm Twist 57–73 mm P Argon P HD XR FMC Dielectric P P P 8 x 56 8x 56 mm 39.2 oz 6.6 x 5.8” 9.8’ 328’ 6.3° 23 mm Twist 57–73 mm P Argon P HD XR FMC Dielectric P P P 10 x 42 10x 42 mm 24.4 oz 5.9 x 5.6” 5.0’ 345’ 6.6° 16 mm Twist 57–73 mm P Argon – – FMC – P P P 8 x 42 8x 42 mm 25.2 oz 5.9 x 5.6” 4.5’ 420’ 8.0° 18 mm Twist 57–73 mm P Argon – – FMC – P P P 12 x 50 12x 50 mm 31.0 oz 6.8 x 5.6” 9.0’ 241’ 4.6° 18 mm Twist 61–74 mm P Argon – – FMC – P P P 10 x 50 10x 50 mm 31.0 oz 6.8 x 5.6” 9.0’ 283’ 5.4° 19 mm Twist 61–74 mm P Argon – – FMC – P P P 8.5 x 50 8.5x 50 mm 31.0 oz 6.9 x 5.6” 9.0’ 283’ 5.4° 21.5 mm Twist 61–74 mm P Argon – – FMC – P P P 10 x 42 10x 42 mm 20.8 oz 5.6 x 5.0” 7.0’ 315’ 6.0° 14 mm Twist 58–75 mm P Nitrogen – – FMC – – P P 8 x 42 8x 42 mm 21.2 oz 5.9 x 5.0” 7.0’ 315’ 6.0° 17 mm Twist 58–75 mm P Nitrogen – – FMC – – P P [ full SIZE ROOF PRISMS ] 10 x 26 10x 26 mm 12.7 oz 4.7 x 4.4” 7.6’ 294’ 5.6° 16 mm Twist 57–71 mm P Nitrogen – – FMC N/A – – P 8 x 26 8x 26 mm 12.7 oz 4.7 x 4.4” 7.6’ 352’ 6.7° 15 mm Twist 57–71 mm P Nitrogen – – FMC N/A – – P 8.5 x 32 8.5x 32 mm 17.3 oz 4.5 x 5.7” 15.0’ 390’ 7.4° 14 mm Twist 50–70 mm P Nitrogen – – FMC N/A – – P 6.5 x 32 6.5x 32 mm 17.3 oz 4.5 x 5.7” 15.0’ 410’ 7.8° 20 mm Twist 50–70 mm P Nitrogen – – FMC N/A – – P 10 x 50 10x 50 mm 38.4 oz 7.4 x 8.0” 30.0’ 341’ 6.5° 15 mm Fold 56–74 mm P Argon P – FMC N/A – P P 7 x 50 7x 50 mm 39.4 oz 7.4 x 8.0” 30.0’ 378’ 7.2° 17 mm Fold 56–74 mm P Argon P – FMC N/A – P P crossfire IIdiamondbackVulture HDTALOn HD vanquishraptorhurricane Uni-Daptor Switch from hand-held to mounted viewing with ease with the innovative Uni-dapter. Its slim profile fits any tripod- adaptable binocular. Fog Free System Fog Free Kit Lenspen Keep lenses clear of smudges, water droplets and ward off fogging for up to seven days. Use the ultra-brush to remove dirt, the micro-fiber cloth to wipe away smudges, and apply the anti-fog cleaner to keep lenses fog-free for up to seven days. Containing a non-liquid cleaning compound that won’t spill or dry out, this ultra-portable, all-in-one cleaning tool is safe and easy to use on all optical lenses. [ porro PRISMS ]

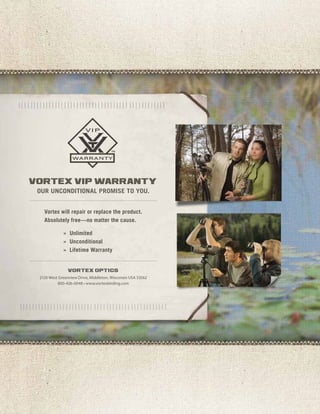

our unconditional promise to you. Vortex will repair or replace the product. Absolutely free—no matter the cause. » Unlimited » Unconditional » Lifetime Warranty 2120 West Greenview Drive, Middleton, Wisconsin USA 53562 800-426-0048 • www.vortexbirding.com vortex vip warranty vortex optics
