This document summarizes specifications for different models of caliper thickness gauges that use a dead weight system to measure the thickness of materials. The gauges can measure materials from 0-10mm or 0-1mm in thickness with a resolution of 10 or 1 microns. They apply a constant pressure of 500g/cm2 using a dead weight and dial or digital sensors to measure and display the thickness. The document provides a comparison of various analog and digital models that differ in range, resolution, power source, and lifting mechanism.

1. Thickness
Confirms to TAPPI / ASTM
Caliper Thickness Tester
(Dead-Weight Type)

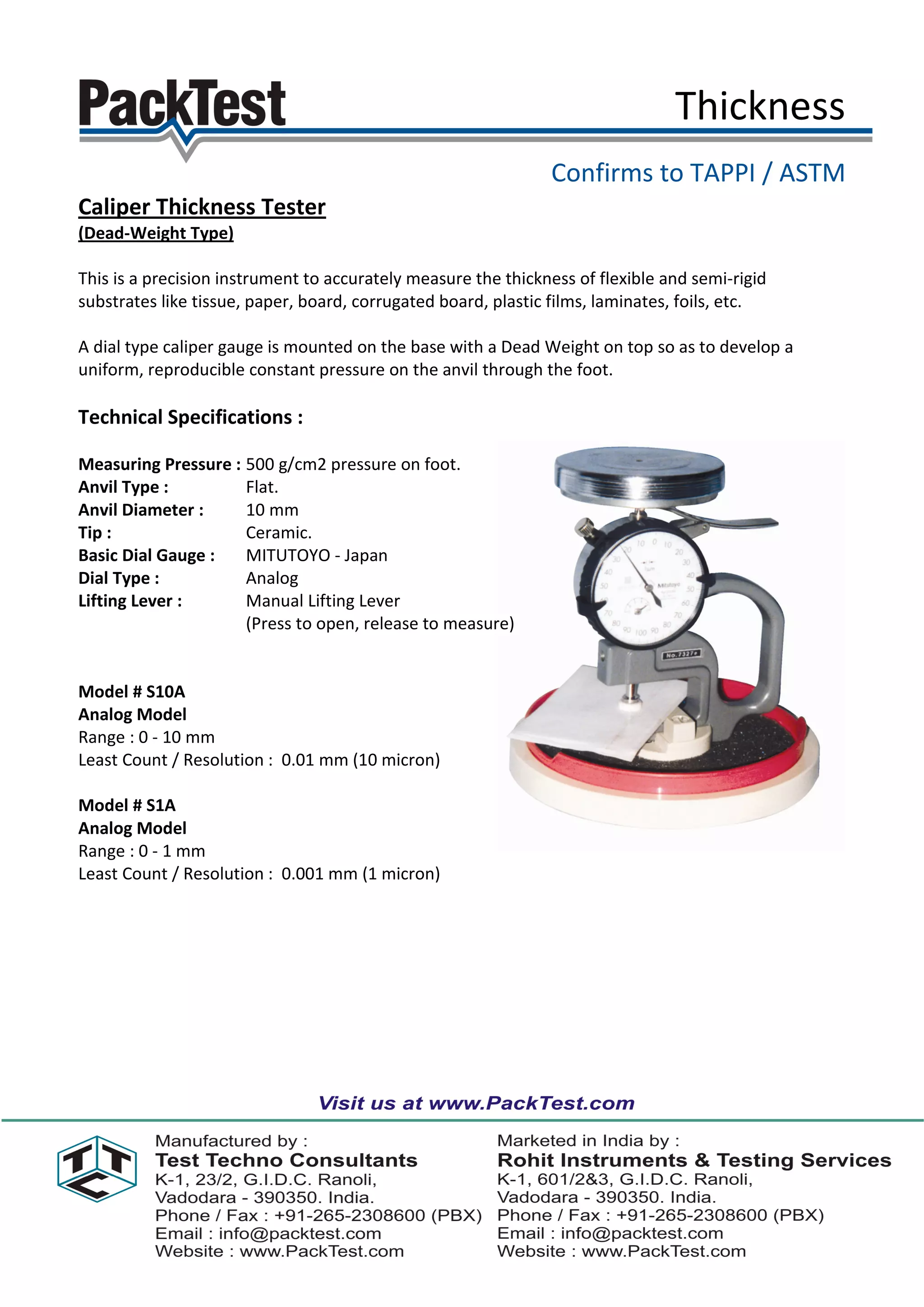

This is a precision instrument to accurately measure the thickness of flexible and semi-rigid
substrates like tissue, paper, board, corrugated board, plastic films, laminates, foils, etc.
A dial type caliper gauge is mounted on the base with a Dead Weight on top so as to develop a
uniform, reproducible constant pressure on the anvil through the foot.
Technical Specifications :
Measuring Pressure : 500 g/cm2 pressure on foot.
Anvil Type : Flat.
Anvil Diameter : 10 mm
Tip : Ceramic.
Basic Dial Gauge : MITUTOYO - Japan
Dial Type : Analog
Lifting Lever : Manual Lifting Lever
(Press to open, release to measure)
Model # S10A
Analog Model
Range : 0 - 10 mm
Least Count / Resolution : 0.01 mm (10 micron)
Model # S1A
Analog Model
Range : 0 - 1 mm
Least Count / Resolution : 0.001 mm (1 micron)

2. Caliper Thickness Gauge (Dead Weight type)

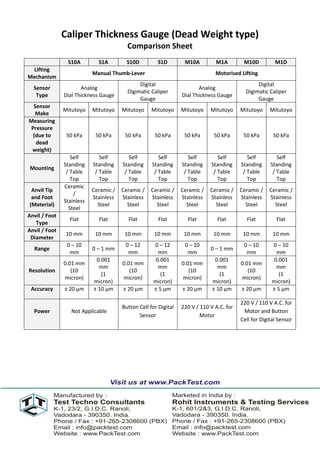

Comparison Sheet
S10A S1A S10D S1D M10A M1A M10D M1D
Lifting
Manual Thumb-Lever Motorised Lifting
Mechanism
Digital Digital
Sensor Analog Analog
Digimatic Caliper Digimatic Caliper
Type Dial Thickness Gauge Dial Thickness Gauge
Gauge Gauge
Sensor
Mitutoyo Mitutoyo Mitutoyo Mitutoyo Mitutoyo Mitutoyo Mitutoyo Mitutoyo
Make
Measuring
Pressure
(due to 50 kPa 50 kPa 50 kPa 50 kPa 50 kPa 50 kPa 50 kPa 50 kPa
dead
weight)
Self Self Self Self Self Self Self Self
Standing Standing Standing Standing Standing Standing Standing Standing
Mounting
/ Table / Table / Table / Table / Table / Table / Table / Table
Top Top Top Top Top Top Top Top
Ceramic
Anvil Tip Ceramic / Ceramic / Ceramic / Ceramic / Ceramic / Ceramic / Ceramic /
/
and Foot Stainless Stainless Stainless Stainless Stainless Stainless Stainless
Stainless
(Material) Steel Steel Steel Steel Steel Steel Steel
Steel
Anvil / Foot
Flat Flat Flat Flat Flat Flat Flat Flat
Type
Anvil / Foot
10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm
Diameter
0 – 10 0 – 12 0 – 12 0 – 10 0 – 10 0 – 10
Range 0 – 1 mm 0 – 1 mm
mm mm mm mm mm mm
0.001 0.001 0.001 0.001
0.01 mm 0.01 mm 0.01 mm 0.01 mm
mm mm mm mm
Resolution (10 (10 (10 (10
(1 (1 (1 (1
micron) micron) micron) micron)
micron) micron) micron) micron)
Accuracy ± 20 µm ± 10 µm ± 20 µm ± 5 µm ± 20 µm ± 10 µm ± 20 µm ± 5 µm
220 V / 110 V A.C. for
Button Cell for Digital 220 V / 110 V A.C. for
Power Not Applicable Motor and Button
Sensor Motor
Cell for Digital Sensor
