This document discusses different types and construction of bulk storage tanks. It describes horizontal tanks that can be above ground, semi-buried, or underground installed in a kaccha pit, masonry pit or RCC pedestal. Vertical tanks are classified as fixed cone roof, floating roof, or high pressure tanks. The construction of tanks involves building the shell, bottom, roof and other components on various foundation types.

1. BULK STORAGE TANK

2. INTRODUCTION
AIM
PREVIEW :-
PHASE I :- TYPE OF TANKS
PHASE II:- CONSTRUCTION OF TANKS
CONCLUSION

3. TYPE OF TANKS
• HORIZONTAL STORAGE TANK
• VERTICAL STORAGE TANK

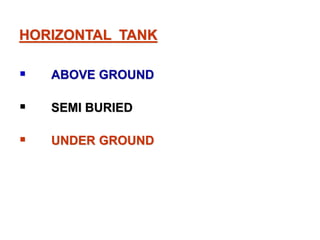

4. HORIZONTAL TANK
 ABOVE GROUND
 SEMI BURIED
 UNDER GROUND

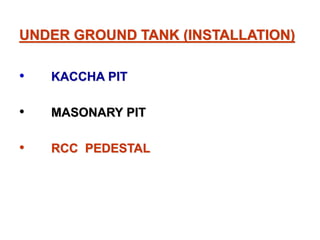

5. UNDER GROUND TANK (INSTALLATION)
• KACCHA PIT
• MASONARY PIT
• RCC PEDESTAL

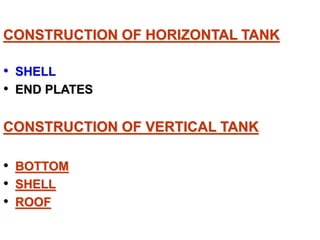

6. CONSTRUCTION OF HORIZONTAL TANK
• SHELL
• END PLATES
CONSTRUCTION OF VERTICAL TANK
• BOTTOM
• SHELL
• ROOF

7. VERTICAL STORAGE TANK
• FIXED/ CONEROOF TANK
• FLOATING ROOF TANK
• HIGH PRESSURE TANK

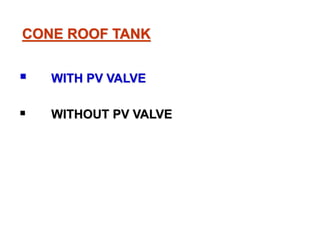

8. CONE ROOF TANK
 WITH PV VALVE
 WITHOUT PV VALVE

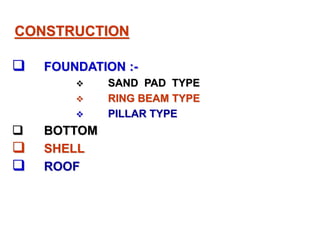

9. CONSTRUCTION
 FOUNDATION :-
 SAND PAD TYPE
 RING BEAM TYPE
 PILLAR TYPE
 BOTTOM
 SHELL
 ROOF

10. CLARIFICATION OF DOUBTS
CONCLUSION
