The document describes a bulk SMS modem with 32 GPRS modems in a single box that can send up to 19,200 SMS per hour. It has 32 SIM card slots, dual/tri/quad band connectivity, and an AT command interface. The modem supports various operating systems, has a USB interface, and dimensions of 400mm x 125mm x 130mm.

1. BULK SMS MODEM 8 PORT 16 PORT 32 PORT 64
PORT BULK SMS MODEM
www.dolphinautomation.in
Based on Wavecom and Siemens Wireless Modules.
- Build in 32 GPRS modem in one box
- Sigle power supply for 32 modems
- Power button to control on and off
- USB interface
- Dual Band: 900/1800Mhz
Tri Band: 850/1800/1900MHz, or 900/1800/1900Mhz
Quad Band EGPRS 850/900/1800/1900 Mhz
- Send MMS
- GPRS class 10:max 85.6kbps(downlink)
- Auto answer function for voice and data collection with the remote device.
- AT command to control and program
- Designed for WAP, MMS, SMS, CSD data, fax, and voice applications
- Support XP/NT/2000/2003/vista operation systems
- Design for high traffic communicaton

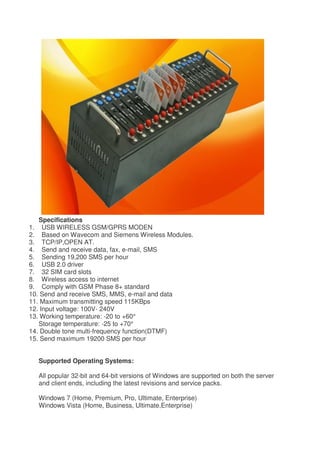

3. Specifications
1. USB WIRELESS GSM/GPRS MODEN
2. Based on Wavecom and Siemens Wireless Modules.
3. TCP/IP,OPEN AT.
4. Send and receive data, fax, e-mail, SMS
5. Sending 19,200 SMS per hour
6. USB 2.0 driver
7. 32 SIM card slots
8. Wireless access to internet
9. Comply with GSM Phase 8+ standard
10. Send and receive SMS, MMS, e-mail and data
11. Maximum transmitting speed 115KBps
12. Input voltage: 100V- 240V
13. Working temperature: -20 to +60°
Storage temperature: -25 to +70°
14. Double tone multi-frequency function(DTMF)
15. Send maximum 19200 SMS per hour
Supported Operating Systems:
All popular 32-bit and 64-bit versions of Windows are supported on both the server
and client ends, including the latest revisions and service packs.
Windows 7 (Home, Premium, Pro, Ultimate, Enterprise)
Windows Vista (Home, Business, Ultimate,Enterprise)

4. Windows XP (Pro and Home)
Windows Server 2003 (original and R2)
Windows 2000 (Server and Pro)
Windows 98SE/CE
Linux 2.40
MAC 9.8X
Weight: 10kg
Size: 400mm x 125mm x 130mm
Accessories: 1Power Cable, 1 USB 2.0 cable,
32 SMA antennas, 1 Driver CD
