1. 2.4G Wireless Inwall AP X221
- 300Mbps Atheros Indoor wireless AP
- Multiple wireless modes（Ap Bridge/Client Bridge/
WAN Getway）
- 2.4Ghz Standard channels
- 48V POE supply convenient and easy use
- Built in 3dBi omni-direction antenna
- Support multi-SSID& roaming
- 23dBm High output transmission power and
receiving sensitivity optimized
- Multiple encryption modes and strategy, wireless network is safer.
2.4G Wireless Inwall AP X221 Specs
Hardware
MCU Chipset AR9341
RF 2T2R MIMO 802.11N
SDRAM 64MB DDR RAM
Flash 16MB
Interface
2 x RJ-45 for 10/100 Mbps(WAN/LAN, WAN support 48V PoE)
1 x RJ-11 Port
1 x Phone Line
1 x Reset button(Reset & Factory Defaults)
Power 48V IEEE802.3af
Antenna
Internal 2dBi Omni ANT
110x110xx65mm
Dimensions 86mm*86mm*40mm
Product Weight 0.2kg
Package 300Mbps Access Point, User Guide
Wireless
Standard IEEE 802.11g, IEEE 802.11b, IEEE 802.11n

2. Contact www.isigal.com.cn tsg302@gmail.com

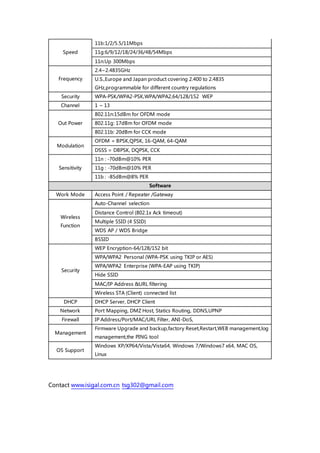

Speed
11b:1/2/5.5/11Mbps
11g:6/9/12/18/24/36/48/54Mbps
11n:Up 300Mbps
Frequency
2.4~2.4835GHz
U.S.,Europe and Japan product covering 2.400 to 2.4835
GHz,programmable for different country regulations
Security WPA-PSK/WPA2-PSK,WPA/WPA2,64/128/152 WEP
Channel 1 ~ 13
Out Power
802.11n:15dBm for OFDM mode
802.11g: 17dBm for OFDM mode
802.11b: 20dBm for CCK mode
Modulation
OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Sensitivity
11n : -70dBm@10% PER
11g : -70dBm@10% PER
11b : -85dBm@8% PER
Software
Work Mode Access Point / Repeater /Gateway
Wireless
Function
Auto-Channel selection
Distance Control (802.1x Ack timeout)
Multiple SSID (4 SSID)
WDS AP / WDS Bridge
BSSID
Security
WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
Hide SSID
MAC/IP Address &URL filtering
Wireless STA (Client) connected list
DHCP DHCP Server, DHCP Client
Network Port Mapping, DMZ Host, Statics Routing, DDNS,UPNP
Firewall IP Address/Port/MAC/URL Filter, ANI-DoS,
Management
Firmware Upgrade and backup,factory Reset,Restart,WEB management,log
management,the PING tool
OS Support
Windows XP/XP64/Vista/Vista64, Windows 7/Windows7 x64, MAC OS,
Linux
