1. Building Perfect Defence Quality Aerospace
Wire Harnesses
Every electric and electronic device needs cables to function. Simple machines
just need a few cables, but complicated machines need hundreds of wires
interconnected to make the equipment work. Defence I is one such sector that
needs such specialized machineries and cables. Cables are necessary for a
number of applications including power, data, Ethernet, communication, and
more, whether they are for commercial aircraft or military and defence planes.
Yet, all cables that will be used inside of aircrafts must adhere to a variety of
environmental and safety standards in order for the aircrafts to fly safely while
travelling great distances from the earth. Let’s look at all the fundamental
decisions that must be taken when designing such aeronautical cables.
Environmental considerations
Military aircrafts operate in a variety of situations. They experience a wide range
of temperatures and humidity. They experience every conceivable type of
environmental condition, including heat, cold, aridity, humidity, heavy rains, fog,
and more. An aircraft’s wires should be flexible enough to respond to any
circumstance while also operating effectively at all times. In the case of a fire
explosion, the cables must also be able to endure smoke and hazardous gases
too.
Weight considerations

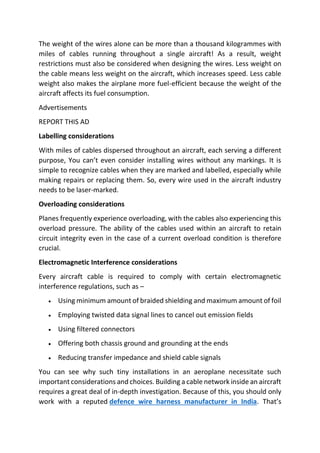

2. The weight of the wires alone can be more than a thousand kilogrammes with
miles of cables running throughout a single aircraft! As a result, weight
restrictions must also be considered when designing the wires. Less weight on
the cable means less weight on the aircraft, which increases speed. Less cable
weight also makes the airplane more fuel-efficient because the weight of the
aircraft affects its fuel consumption.
Advertisements
REPORT THIS AD
Labelling considerations
With miles of cables dispersed throughout an aircraft, each serving a different
purpose, You can’t even consider installing wires without any markings. It is
simple to recognize cables when they are marked and labelled, especially while
making repairs or replacing them. So, every wire used in the aircraft industry
needs to be laser-marked.
Overloading considerations
Planes frequently experience overloading, with the cables also experiencing this
overload pressure. The ability of the cables used within an aircraft to retain
circuit integrity even in the case of a current overload condition is therefore
crucial.
Electromagnetic Interference considerations
Every aircraft cable is required to comply with certain electromagnetic
interference regulations, such as –
• Using minimum amount of braided shielding and maximum amount of foil
• Employing twisted data signal lines to cancel out emission fields
• Using filtered connectors
• Offering both chassis ground and grounding at the ends
• Reducing transfer impedance and shield cable signals
You can see why such tiny installations in an aeroplane necessitate such
important considerations and choices. Building a cable network inside an aircraft
requires a great deal of in-depth investigation. Because of this, you should only
work with a reputed defence wire harness manufacturer in India. That’s

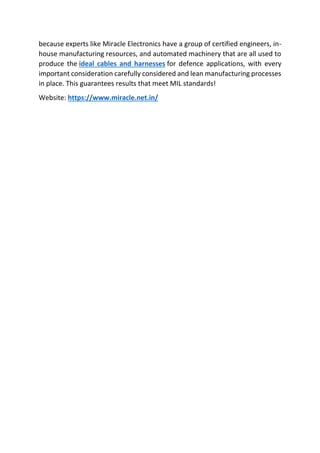

3. because experts like Miracle Electronics have a group of certified engineers, in-
house manufacturing resources, and automated machinery that are all used to
produce the ideal cables and harnesses for defence applications, with every
important consideration carefully considered and lean manufacturing processes
in place. This guarantees results that meet MIL standards!
Website: https://www.miracle.net.in/
