GOTO Nights Berlin | 03.05.2016 | Christian Deger
Highway to heaven
Building microservices in the cloud
Christian Deger
Architect
cdeger@autoscout24.com
@cdeger
2,4 Million Vehicles
17 countries
350 employees
140 in IT
RUS
S
PL
NL
D
B
F A
HR RO
BG
UA
I
TR
E
CZ
2000 Servers
2 Data Centers
MTBF optimized
Building Microservices in the cloud - GOTO Nights Berlin 2016
New
CEO
Talent?
Do you attract
Building Microservices in the cloud - GOTO Nights Berlin 2016
good
Hmm, we are
Reboot
everything
Project
Tatsu
.NET / Windows to JVM / Linux
Monolith to Microservices
Data center to AWS
Devs + Ops to Collaboration culture
Involve product people
Building Microservices in the cloud - GOTO Nights Berlin 2016
same
direction
STRATEGIC
GOALS
Goals of the business side
ARCHITECTURAL
PRINCIPLES
High-Level Principles
DESIGN AND DELIVERY
PRINCIPLES
Tactical measures
REDUCE TIME TO MARKET
Speed, Fast Feedback
COST EFFICIENCY
Collect metrics to allow decisions cost vs. value.
SUPPORT DATA-DRIVEN DECISIONS
Listen to users and validate hypothesis.
Provide as many relevant metrics & data as possible.
YOU BUILT IT, YOU RUN IT
The team is responsible for shaping, building, running and
maintaining its products. Fast feedback from live and
customers helps us to continuously improve.
ORGANIZED AROUND BUSINESS CAPABILITIES
Build teams around products not projects. Follow the
domain and respect bounded contexts. Inverse Conway
Maneuver.
LOOSELY COUPLED
By default avoid sharing and tight coupling, except for the
big things in common. Don’t create the next monolith.
MACRO AND MICRO ARCHITECTURE
Clear separation. Autonomous micro services within the
rules and constraints of the macro architecture.
AWS FIRST
Favor AWS platform service over managed service, over
self-hosted OSS, over self-rolled solutions.
DATA-DRIVEN / METRIC-DRIVEN
Collect metrics from processes and applications. Analyze,
alert and act on them.
ELIMINATE ACCIDENTAL COMPLEXITY
Strive to keep it simple. Focus on essential complexity.
You build one, you delete one.
AUTONOMOUS TEAMS
Make fast local decisions. Be responsible. Know your
boundaries. Share findings.
INFRASTRACTURE AS CODE
Automate everything: Reproducible, traceable and tested.
Immutable servers over snowflake servers.
COLLABORATION CULTURE
Engineers from all backgrounds work together in
collaborative teams as engineers and share
responsibilities. No silos.
BE BOLD
Go into production early. Value monitoring over tests.
Recover and learn. Optimize for MTTR not MTBF.
SECURITY, COMPLIANCE AND DATA PRIVACY
Security must be included from the beginning and
everybody’s concern. Keep data-privacy in mind.
CONTAINMENT AND BOUNDARIES
Align blast radius and vendor lock-in with the boundaries of
the organization or business capabilities.
Version 1.0
Icons made by Freepik from www.flaticon.com are licensed under CC BY 3.0
Autonomous teams
business capabilities
organized around
collaboration culture
We are all
engineers!
You build it,
you run it.
Continuous
Delivery
Unlimited Infrastructure with APIs
Building Microservices in the cloud - GOTO Nights Berlin 2016
Immutable
Servers

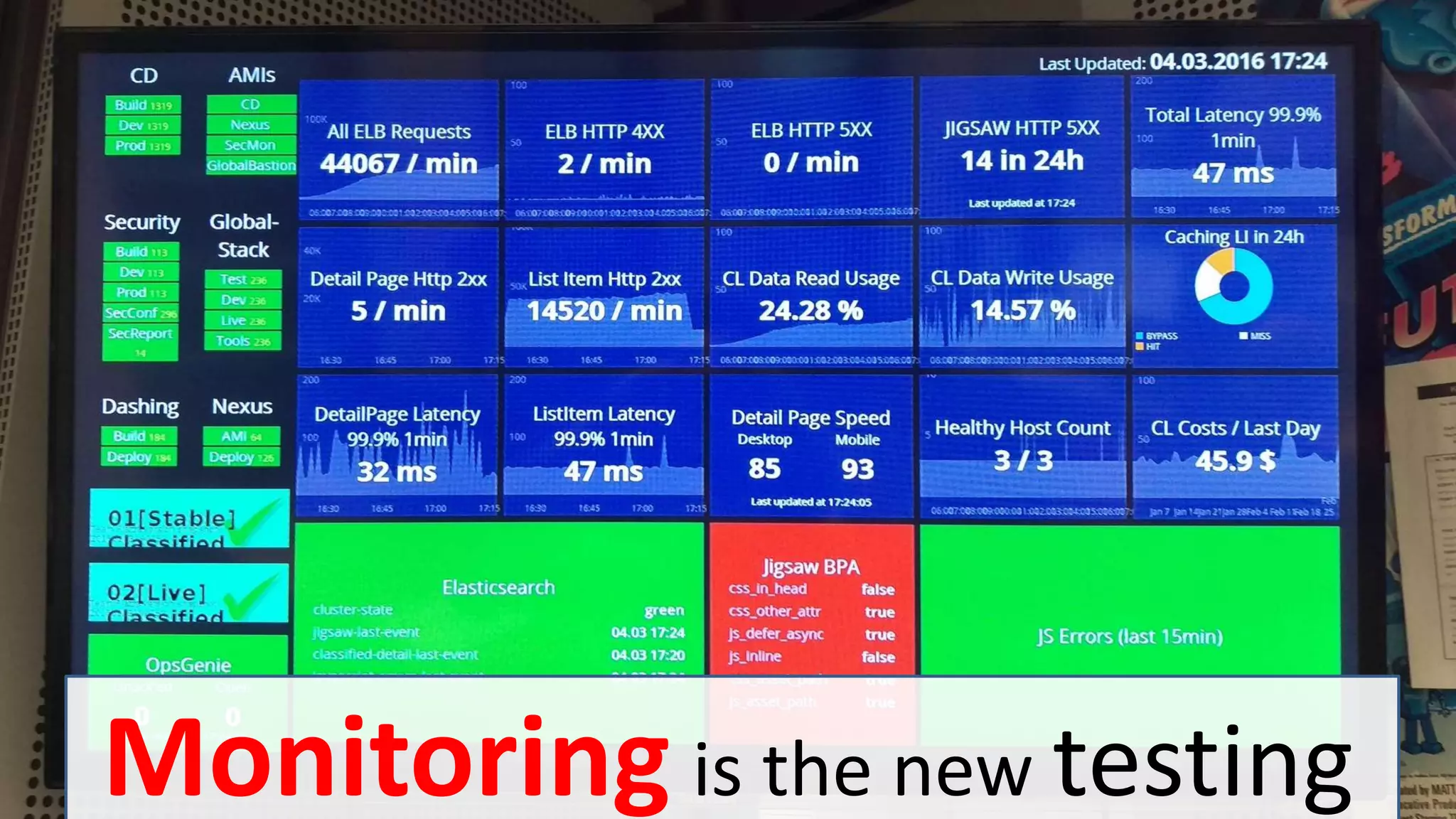

Monitoring is the new testing
Separate
code deployment
feature release
from
How many environments?
Which versions on staging?
Prod differs anyway: Load, data, patterns
V2V3
V6 V5
V4
V7
V5
V8
Engineer CI Dev Staging
V1
V4
Prod
No
staging
environment
Event Sourcing
one way data highway
and data pumps
SQS + S3
Kinesis + S3
Kinesis + DynamoDB
SQS + DynamoDB
Proxy + DynamoDB
DynamoDB
Evolution
How (not) to share
shared nothing as default
loosely coupled
fast local decisions
voluntary adoption
exception: macro concerns
Frontend integration
Loosely coupled
Autonomous team
High optimization
Building Microservices in the cloud - GOTO Nights Berlin 2016

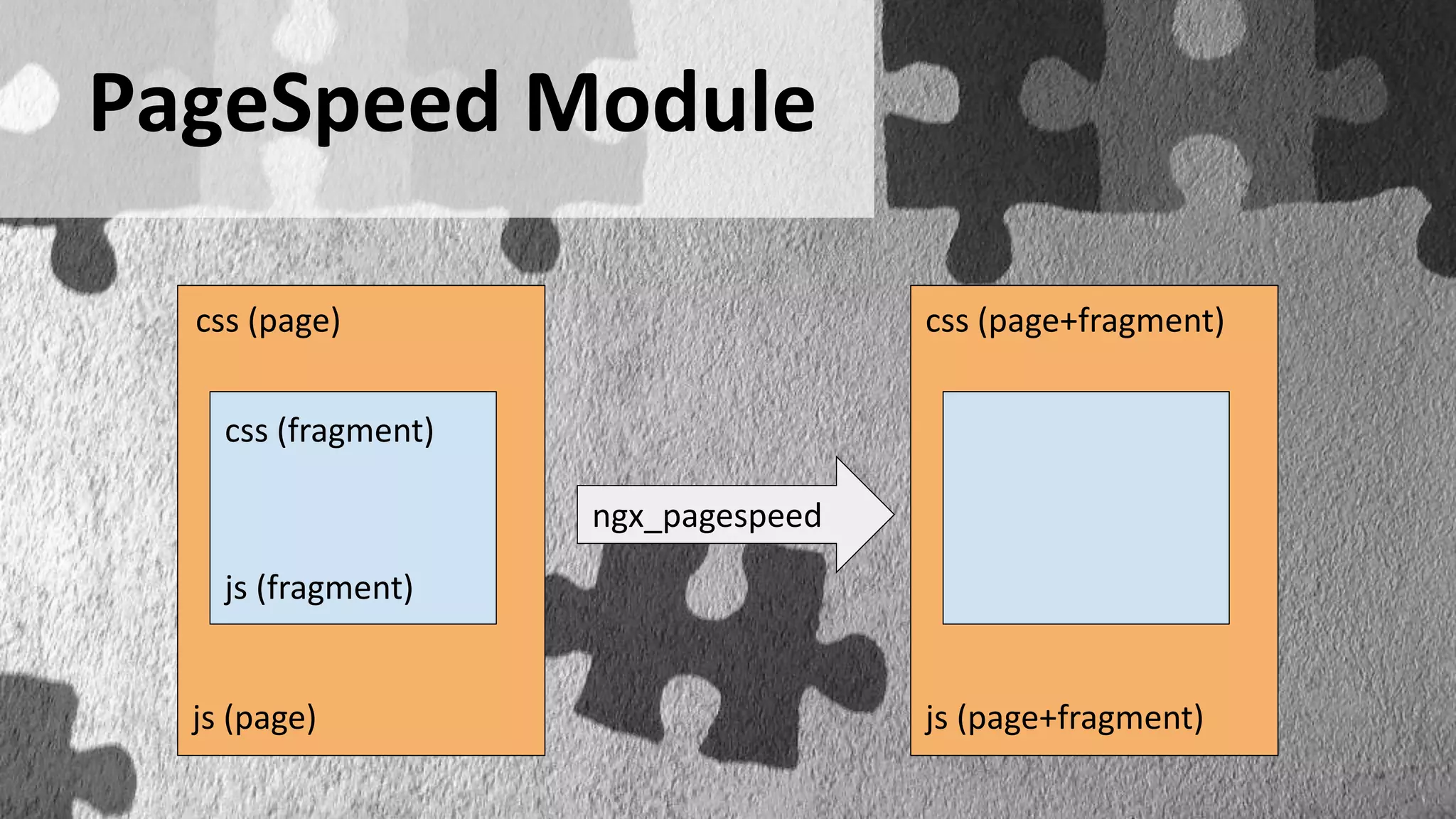

PageSpeed Module
css (page+fragment)
js (page+fragment)
ngx_pagespeed
css (page)
js (page)
css (fragment)
js (fragment)
Infrastructure guild
Agree on things to do
Share learnings
Delegate implementation to teams
Infrastructure product teams needed?
Building Microservices in the cloud - GOTO Nights Berlin 2016
STRATEGIC
GOALS
Goals of the business side
ARCHITECTURAL
PRINCIPLES
High-Level Principles
DESIGN AND DELIVERY
PRINCIPLES
Tactical measures
REDUCE TIME TO MARKET
Speed, Fast Feedback
COST EFFICIENCY
Collect metrics to allow decisions cost vs. value.
SUPPORT DATA-DRIVEN DECISIONS
Listen to users and validate hypothesis.
Provide as many relevant metrics & data as possible.
YOU BUILT IT, YOU RUN IT
The team is responsible for shaping, building, running and
maintaining its products. Fast feedback from live and
customers helps us to continuously improve.
ORGANIZED AROUND BUSINESS CAPABILITIES
Build teams around products not projects. Follow the
domain and respect bounded contexts. Inverse Conway
Maneuver.
LOOSELY COUPLED
By default avoid sharing and tight coupling, except for the
big things in common. Don’t create the next monolith.
MACRO AND MICRO ARCHITECTURE
Clear separation. Autonomous micro services within the
rules and constraints of the macro architecture.
AWS FIRST
Favor AWS platform service over managed service, over
self-hosted OSS, over self-rolled solutions.
DATA-DRIVEN / METRIC-DRIVEN
Collect metrics from processes and applications. Analyze,
alert and act on them.
ELIMINATE ACCIDENTAL COMPLEXITY
Strive to keep it simple. Focus on essential complexity.
You build one, you delete one.
AUTONOMOUS TEAMS
Make fast local decisions. Be responsible. Know your
boundaries. Share findings.
INFRASTRACTURE AS CODE
Automate everything: Reproducible, traceable and tested.
Immutable servers over snowflake servers.
COLLABORATION CULTURE
Engineers from all backgrounds work together in
collaborative teams as engineers and share
responsibilities. No silos.
BE BOLD
Go into production early. Value monitoring over tests.
Recover and learn. Optimize for MTTR not MTBF.
SECURITY, COMPLIANCE AND DATA PRIVACY
Security must be included from the beginning and
everybody’s concern. Keep data-privacy in mind.
CONTAINMENT AND BOUNDARIES
Align blast radius and vendor lock-in with the boundaries of
the organization or business capabilities.
Version 1.0
Icons made by Freepik from www.flaticon.com are licensed under CC BY 3.0

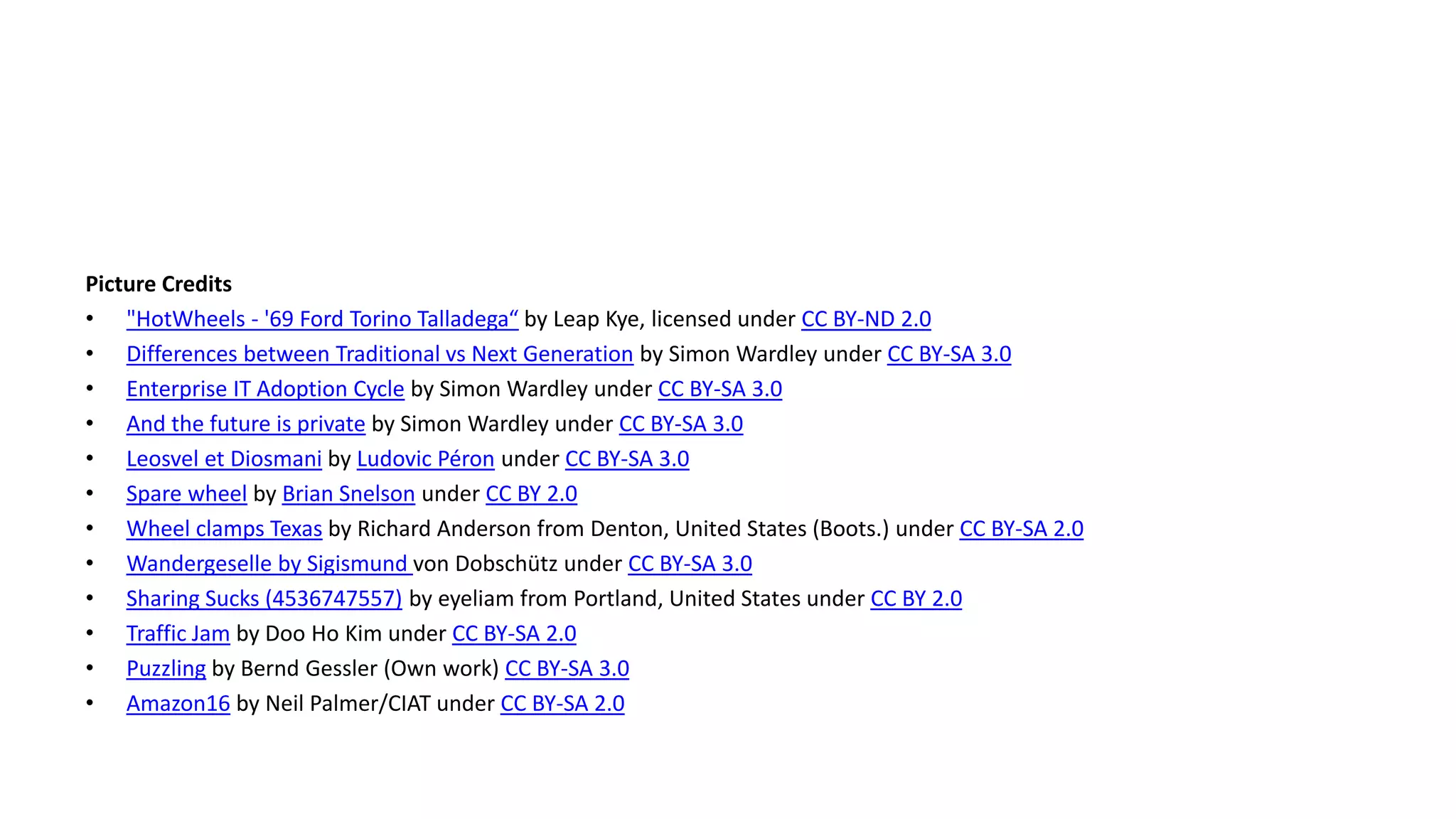

Picture Credits
• "HotWheels - '69 Ford Torino Talladega“ by Leap Kye, licensed under CC BY-ND 2.0
• Differences between Traditional vs Next Generation by Simon Wardley under CC BY-SA 3.0

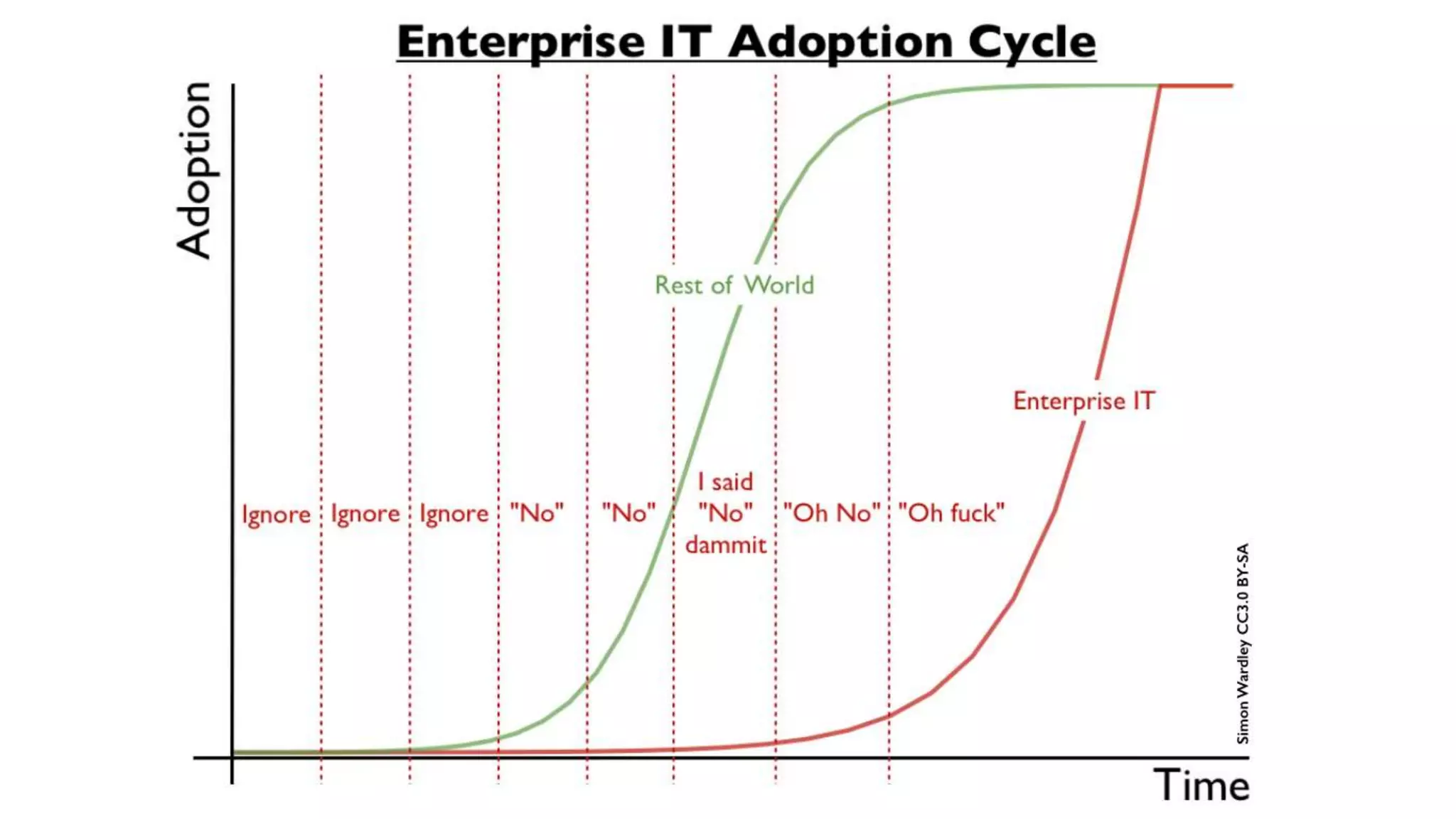

• Enterprise IT Adoption Cycle by Simon Wardley under CC BY-SA 3.0
• And the future is private by Simon Wardley under CC BY-SA 3.0
• Leosvel et Diosmani by Ludovic Péron under CC BY-SA 3.0
• Spare wheel by Brian Snelson under CC BY 2.0
• Wheel clamps Texas by Richard Anderson from Denton, United States (Boots.) under CC BY-SA 2.0
• Wandergeselle by Sigismund von Dobschütz under CC BY-SA 3.0
• Sharing Sucks (4536747557) by eyeliam from Portland, United States under CC BY 2.0
• Traffic Jam by Doo Ho Kim under CC BY-SA 2.0
• Puzzling by Bernd Gessler (Own work) CC BY-SA 3.0
• Amazon16 by Neil Palmer/CIAT under CC BY-SA 2.0
Backup
Building Microservices in the cloud - GOTO Nights Berlin 2016
21st Century
What does a
tech company
look like?
Great Design
Universally Connected
Mobile First
Instant Business Value
Massive Data Insight
Highly Available
Giants
Stand on the
Shoulders of
Building Microservices in the cloud - GOTO Nights Berlin 2016
Conway’s Law
“organizations which design systems ... are
constrained to produce designs which are
copies of the communication structures of
these organizations”
Unified
Logs
CC
Two stacks
Cash stack meets shiny new stack
One company
Lights on in cash stack
Feature freeze
Where to build new features?
Ease of integration helps business people
WW

More Related Content

What's hot

Highway to heaven - XConf Manchester 2015
Highway to heaven - XConf Manchester 2015Highway to heaven - XConf Manchester 2015
Highway to heaven - XConf Manchester 2015
Christian Deger

Reactive Microservices Roadshow Berlin
Reactive Microservices Roadshow BerlinReactive Microservices Roadshow Berlin
Reactive Microservices Roadshow Berlin
Christian Deger

Lean Cloud - Amazon Web Services
Lean Cloud - Amazon Web ServicesLean Cloud - Amazon Web Services
Lean Cloud - Amazon Web Services
Simone Brunozzi

Scenarios for building Hybrid Cloud
Scenarios for building Hybrid CloudScenarios for building Hybrid Cloud
Scenarios for building Hybrid Cloud
Pracheta Budhwar

GOTO Amsterdam 2017 - Enterprise Fast Lane
GOTO Amsterdam 2017 - Enterprise Fast LaneGOTO Amsterdam 2017 - Enterprise Fast Lane
GOTO Amsterdam 2017 - Enterprise Fast Lane
Christian Deger

The Cloud Native Journey with Simon Elisha
The Cloud Native Journey with Simon ElishaThe Cloud Native Journey with Simon Elisha
The Cloud Native Journey with Simon Elisha
Chloe Jackson

CloudCamp London 3 - 451 Group - William Fellows
CloudCamp London 3 - 451 Group - William FellowsCloudCamp London 3 - 451 Group - William Fellows
CloudCamp London 3 - 451 Group - William Fellows
Chris Purrington

Microservices: Decomposing Applications for Deployability and Scalability (ja...
Microservices: Decomposing Applications for Deployability and Scalability (ja...Microservices: Decomposing Applications for Deployability and Scalability (ja...
Microservices: Decomposing Applications for Deployability and Scalability (ja...
Chris Richardson

If You’re Out of Cloud, You’re Out of Work; Key Skills to Move into Cloud
If You’re Out of Cloud, You’re Out of Work; Key Skills to Move into CloudIf You’re Out of Cloud, You’re Out of Work; Key Skills to Move into Cloud
If You’re Out of Cloud, You’re Out of Work; Key Skills to Move into Cloud
Tristano Vacondio

Every Cloud Has a Silver Lining
Every Cloud Has a Silver LiningEvery Cloud Has a Silver Lining
Every Cloud Has a Silver Lining
John Pozadzides

Trends in the Cloud: Public, Private or Hybrid and How to Evaluate Them
Trends in the Cloud: Public, Private or Hybrid and How to Evaluate ThemTrends in the Cloud: Public, Private or Hybrid and How to Evaluate Them
Trends in the Cloud: Public, Private or Hybrid and How to Evaluate Them
CopperCloud

Hybrid- and Multi-Cloud by design - IBM Cloud and your journey to Cloud
Hybrid- and Multi-Cloud by design - IBM Cloud and your journey to CloudHybrid- and Multi-Cloud by design - IBM Cloud and your journey to Cloud
Hybrid- and Multi-Cloud by design - IBM Cloud and your journey to Cloud
Aleksandar Francuz

CloudCamp
CloudCampCloudCamp
CloudCamp
RightScale

Evolving to Cloud-Native - Nate Schutta (2/2)
Evolving to Cloud-Native - Nate Schutta (2/2)Evolving to Cloud-Native - Nate Schutta (2/2)
Evolving to Cloud-Native - Nate Schutta (2/2)
VMware Tanzu

Made for Each Other: Microservices + PaaS
Made for Each Other: Microservices + PaaSMade for Each Other: Microservices + PaaS
Made for Each Other: Microservices + PaaS
VMware Tanzu

GE minds and machines keynote 2015 cloud foundry
GE minds and machines keynote 2015   cloud foundryGE minds and machines keynote 2015   cloud foundry
GE minds and machines keynote 2015 cloud foundry
Cloud Foundry Foundation

Availability in a cloud native world - Guidelines for mere mortals v2.0
Availability in a cloud native world - Guidelines for mere mortals v2.0Availability in a cloud native world - Guidelines for mere mortals v2.0
Availability in a cloud native world - Guidelines for mere mortals v2.0
Haytham Elkhoja

Building a Hybrid Cloud The Real Deal
Building a Hybrid Cloud The Real DealBuilding a Hybrid Cloud The Real Deal
Building a Hybrid Cloud The Real Deal
RightScale

Ultimate AppDev Stack is Cloud Suite
Ultimate AppDev Stack is Cloud SuiteUltimate AppDev Stack is Cloud Suite
Ultimate AppDev Stack is Cloud Suite
Eric D. Schabell

Cloud development and career path
Cloud development and career pathCloud development and career path
Cloud development and career path
Praveen Hanchinal


What's hot (20)

Highway to heaven - XConf Manchester 2015
Highway to heaven - XConf Manchester 2015Highway to heaven - XConf Manchester 2015
Highway to heaven - XConf Manchester 2015

Reactive Microservices Roadshow Berlin
Reactive Microservices Roadshow BerlinReactive Microservices Roadshow Berlin
Reactive Microservices Roadshow Berlin

Lean Cloud - Amazon Web Services
Lean Cloud - Amazon Web ServicesLean Cloud - Amazon Web Services
Lean Cloud - Amazon Web Services

Scenarios for building Hybrid Cloud
Scenarios for building Hybrid CloudScenarios for building Hybrid Cloud
Scenarios for building Hybrid Cloud

GOTO Amsterdam 2017 - Enterprise Fast Lane
GOTO Amsterdam 2017 - Enterprise Fast LaneGOTO Amsterdam 2017 - Enterprise Fast Lane
GOTO Amsterdam 2017 - Enterprise Fast Lane

The Cloud Native Journey with Simon Elisha
The Cloud Native Journey with Simon ElishaThe Cloud Native Journey with Simon Elisha
The Cloud Native Journey with Simon Elisha

CloudCamp London 3 - 451 Group - William Fellows
CloudCamp London 3 - 451 Group - William FellowsCloudCamp London 3 - 451 Group - William Fellows
CloudCamp London 3 - 451 Group - William Fellows

Microservices: Decomposing Applications for Deployability and Scalability (ja...
Microservices: Decomposing Applications for Deployability and Scalability (ja...Microservices: Decomposing Applications for Deployability and Scalability (ja...
Microservices: Decomposing Applications for Deployability and Scalability (ja...

If You’re Out of Cloud, You’re Out of Work; Key Skills to Move into Cloud
If You’re Out of Cloud, You’re Out of Work; Key Skills to Move into CloudIf You’re Out of Cloud, You’re Out of Work; Key Skills to Move into Cloud
If You’re Out of Cloud, You’re Out of Work; Key Skills to Move into Cloud

Every Cloud Has a Silver Lining
Every Cloud Has a Silver LiningEvery Cloud Has a Silver Lining
Every Cloud Has a Silver Lining

Trends in the Cloud: Public, Private or Hybrid and How to Evaluate Them
Trends in the Cloud: Public, Private or Hybrid and How to Evaluate ThemTrends in the Cloud: Public, Private or Hybrid and How to Evaluate Them
Trends in the Cloud: Public, Private or Hybrid and How to Evaluate Them

Hybrid- and Multi-Cloud by design - IBM Cloud and your journey to Cloud
Hybrid- and Multi-Cloud by design - IBM Cloud and your journey to CloudHybrid- and Multi-Cloud by design - IBM Cloud and your journey to Cloud
Hybrid- and Multi-Cloud by design - IBM Cloud and your journey to Cloud

CloudCamp
CloudCampCloudCamp
CloudCamp

Evolving to Cloud-Native - Nate Schutta (2/2)
Evolving to Cloud-Native - Nate Schutta (2/2)Evolving to Cloud-Native - Nate Schutta (2/2)
Evolving to Cloud-Native - Nate Schutta (2/2)

Made for Each Other: Microservices + PaaS
Made for Each Other: Microservices + PaaSMade for Each Other: Microservices + PaaS
Made for Each Other: Microservices + PaaS

GE minds and machines keynote 2015 cloud foundry
GE minds and machines keynote 2015   cloud foundryGE minds and machines keynote 2015   cloud foundry
GE minds and machines keynote 2015 cloud foundry

Availability in a cloud native world - Guidelines for mere mortals v2.0
Availability in a cloud native world - Guidelines for mere mortals v2.0Availability in a cloud native world - Guidelines for mere mortals v2.0
Availability in a cloud native world - Guidelines for mere mortals v2.0

Building a Hybrid Cloud The Real Deal
Building a Hybrid Cloud The Real DealBuilding a Hybrid Cloud The Real Deal
Building a Hybrid Cloud The Real Deal

Ultimate AppDev Stack is Cloud Suite
Ultimate AppDev Stack is Cloud SuiteUltimate AppDev Stack is Cloud Suite
Ultimate AppDev Stack is Cloud Suite

Cloud development and career path
Cloud development and career pathCloud development and career path
Cloud development and career path


Similar to Building Microservices in the cloud - GOTO Nights Berlin 2016

AWS re:Invent 2016: [JK REPEAT] The Enterprise Fast Lane - What Your Competit...
AWS re:Invent 2016: [JK REPEAT] The Enterprise Fast Lane - What Your Competit...AWS re:Invent 2016: [JK REPEAT] The Enterprise Fast Lane - What Your Competit...
AWS re:Invent 2016: [JK REPEAT] The Enterprise Fast Lane - What Your Competit...
Amazon Web Services

ElasticSearch on AWS
ElasticSearch on AWSElasticSearch on AWS
ElasticSearch on AWS
Philipp Garbe

AWS Cloud For Breakfast - Building Microservices in the Cloud
AWS Cloud For Breakfast - Building Microservices in the CloudAWS Cloud For Breakfast - Building Microservices in the Cloud
AWS Cloud For Breakfast - Building Microservices in the Cloud
Christian Deger

Highway to heaven - Microservices Meetup Munich
Highway to heaven - Microservices Meetup MunichHighway to heaven - Microservices Meetup Munich
Highway to heaven - Microservices Meetup Munich
Christian Deger

AWS Partner: Grindr: Aggregate, Analyze, and Act on 900M Daily API Calls
AWS Partner: Grindr: Aggregate, Analyze, and Act on 900M Daily API CallsAWS Partner: Grindr: Aggregate, Analyze, and Act on 900M Daily API Calls
AWS Partner: Grindr: Aggregate, Analyze, and Act on 900M Daily API Calls
Amazon Web Services

Micro Front-End & Microservices - Plansoft
Micro Front-End & Microservices - PlansoftMicro Front-End & Microservices - Plansoft
Micro Front-End & Microservices - Plansoft
Miki Lombardi

Optimize your CI/CD with GitLab and AWS
Optimize your CI/CD with GitLab and AWSOptimize your CI/CD with GitLab and AWS
Optimize your CI/CD with GitLab and AWS
DevOps.com

MiCADO - Auto-scaling Framework for Docker Containers, orchestrated by Kubern...
MiCADO - Auto-scaling Framework for Docker Containers, orchestrated by Kubern...MiCADO - Auto-scaling Framework for Docker Containers, orchestrated by Kubern...
MiCADO - Auto-scaling Framework for Docker Containers, orchestrated by Kubern...
Project COLA

MiCADO framework by Project COLA
MiCADO framework by Project COLAMiCADO framework by Project COLA
MiCADO framework by Project COLA
Project COLA

Cloud Innovation Tour - Discover Track
Cloud Innovation Tour - Discover TrackCloud Innovation Tour - Discover Track
Cloud Innovation Tour - Discover Track
LaurenWendler

Cloud Seeding
Cloud SeedingCloud Seeding
Cloud Seeding
Trish McGinity, CCSK

Serverless is a win for businesses, not just developers
Serverless is a win for businesses, not just developersServerless is a win for businesses, not just developers
Serverless is a win for businesses, not just developers
Yan Cui

How Hudl and Cloud Cruiser Leverage Sumo Logic's Unified Logs and Metrics
How Hudl and Cloud Cruiser Leverage Sumo Logic's Unified Logs and MetricsHow Hudl and Cloud Cruiser Leverage Sumo Logic's Unified Logs and Metrics
How Hudl and Cloud Cruiser Leverage Sumo Logic's Unified Logs and Metrics
Sumo Logic

Intro slides
Intro slides Intro slides
Intro slides
Amazon Web Services

Microservices Workshop All Topics Deck 2016
Microservices Workshop All Topics Deck 2016Microservices Workshop All Topics Deck 2016
Microservices Workshop All Topics Deck 2016
Adrian Cockcroft

Cloud Innovation Tour - Discover Track
Cloud Innovation Tour - Discover TrackCloud Innovation Tour - Discover Track
Cloud Innovation Tour - Discover Track
LaurenWendler

TechEvent 2019: More Agile, More AI, More Cloud! Less Work?!; Oliver Dörr - T...
TechEvent 2019: More Agile, More AI, More Cloud! Less Work?!; Oliver Dörr - T...TechEvent 2019: More Agile, More AI, More Cloud! Less Work?!; Oliver Dörr - T...
TechEvent 2019: More Agile, More AI, More Cloud! Less Work?!; Oliver Dörr - T...
Trivadis

From Monoliths to Services: Paying Your Technical Debt
From Monoliths to Services: Paying Your Technical DebtFrom Monoliths to Services: Paying Your Technical Debt
From Monoliths to Services: Paying Your Technical Debt
TechWell

Elevate Your Continuous Delivery Strategy Above the Rolling Clouds (Interconn...
Elevate Your Continuous Delivery Strategy Above the Rolling Clouds (Interconn...Elevate Your Continuous Delivery Strategy Above the Rolling Clouds (Interconn...
Elevate Your Continuous Delivery Strategy Above the Rolling Clouds (Interconn...
Michael Elder

Andy Malone - Keynote: the cloud one small step for man one giant leap for it
Andy Malone - Keynote: the cloud one small step for man one giant leap for itAndy Malone - Keynote: the cloud one small step for man one giant leap for it
Andy Malone - Keynote: the cloud one small step for man one giant leap for it
Nordic Infrastructure Conference


Similar to Building Microservices in the cloud - GOTO Nights Berlin 2016 (20)

AWS re:Invent 2016: [JK REPEAT] The Enterprise Fast Lane - What Your Competit...
AWS re:Invent 2016: [JK REPEAT] The Enterprise Fast Lane - What Your Competit...AWS re:Invent 2016: [JK REPEAT] The Enterprise Fast Lane - What Your Competit...
AWS re:Invent 2016: [JK REPEAT] The Enterprise Fast Lane - What Your Competit...

ElasticSearch on AWS
ElasticSearch on AWSElasticSearch on AWS
ElasticSearch on AWS

AWS Cloud For Breakfast - Building Microservices in the Cloud
AWS Cloud For Breakfast - Building Microservices in the CloudAWS Cloud For Breakfast - Building Microservices in the Cloud
AWS Cloud For Breakfast - Building Microservices in the Cloud

Highway to heaven - Microservices Meetup Munich
Highway to heaven - Microservices Meetup MunichHighway to heaven - Microservices Meetup Munich
Highway to heaven - Microservices Meetup Munich

AWS Partner: Grindr: Aggregate, Analyze, and Act on 900M Daily API Calls
AWS Partner: Grindr: Aggregate, Analyze, and Act on 900M Daily API CallsAWS Partner: Grindr: Aggregate, Analyze, and Act on 900M Daily API Calls
AWS Partner: Grindr: Aggregate, Analyze, and Act on 900M Daily API Calls

Micro Front-End & Microservices - Plansoft
Micro Front-End & Microservices - PlansoftMicro Front-End & Microservices - Plansoft
Micro Front-End & Microservices - Plansoft

Optimize your CI/CD with GitLab and AWS
Optimize your CI/CD with GitLab and AWSOptimize your CI/CD with GitLab and AWS
Optimize your CI/CD with GitLab and AWS

MiCADO - Auto-scaling Framework for Docker Containers, orchestrated by Kubern...
MiCADO - Auto-scaling Framework for Docker Containers, orchestrated by Kubern...MiCADO - Auto-scaling Framework for Docker Containers, orchestrated by Kubern...
MiCADO - Auto-scaling Framework for Docker Containers, orchestrated by Kubern...

MiCADO framework by Project COLA
MiCADO framework by Project COLAMiCADO framework by Project COLA
MiCADO framework by Project COLA

Cloud Innovation Tour - Discover Track
Cloud Innovation Tour - Discover TrackCloud Innovation Tour - Discover Track
Cloud Innovation Tour - Discover Track

Cloud Seeding
Cloud SeedingCloud Seeding
Cloud Seeding

Serverless is a win for businesses, not just developers
Serverless is a win for businesses, not just developersServerless is a win for businesses, not just developers
Serverless is a win for businesses, not just developers

How Hudl and Cloud Cruiser Leverage Sumo Logic's Unified Logs and Metrics
How Hudl and Cloud Cruiser Leverage Sumo Logic's Unified Logs and MetricsHow Hudl and Cloud Cruiser Leverage Sumo Logic's Unified Logs and Metrics
How Hudl and Cloud Cruiser Leverage Sumo Logic's Unified Logs and Metrics

Intro slides
Intro slides Intro slides
Intro slides

Microservices Workshop All Topics Deck 2016
Microservices Workshop All Topics Deck 2016Microservices Workshop All Topics Deck 2016
Microservices Workshop All Topics Deck 2016

Cloud Innovation Tour - Discover Track
Cloud Innovation Tour - Discover TrackCloud Innovation Tour - Discover Track
Cloud Innovation Tour - Discover Track

TechEvent 2019: More Agile, More AI, More Cloud! Less Work?!; Oliver Dörr - T...
TechEvent 2019: More Agile, More AI, More Cloud! Less Work?!; Oliver Dörr - T...TechEvent 2019: More Agile, More AI, More Cloud! Less Work?!; Oliver Dörr - T...
TechEvent 2019: More Agile, More AI, More Cloud! Less Work?!; Oliver Dörr - T...

From Monoliths to Services: Paying Your Technical Debt
From Monoliths to Services: Paying Your Technical DebtFrom Monoliths to Services: Paying Your Technical Debt
From Monoliths to Services: Paying Your Technical Debt

Elevate Your Continuous Delivery Strategy Above the Rolling Clouds (Interconn...
Elevate Your Continuous Delivery Strategy Above the Rolling Clouds (Interconn...Elevate Your Continuous Delivery Strategy Above the Rolling Clouds (Interconn...
Elevate Your Continuous Delivery Strategy Above the Rolling Clouds (Interconn...

Andy Malone - Keynote: the cloud one small step for man one giant leap for it
Andy Malone - Keynote: the cloud one small step for man one giant leap for itAndy Malone - Keynote: the cloud one small step for man one giant leap for it
Andy Malone - Keynote: the cloud one small step for man one giant leap for it


Recently uploaded

Wired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptxWired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptx
SimonedeGijt

Building infrastructure with code_ A deep dive into CDK for IaC in Java.pdf
Building infrastructure with code_ A deep dive into CDK for IaC in Java.pdfBuilding infrastructure with code_ A deep dive into CDK for IaC in Java.pdf
Building infrastructure with code_ A deep dive into CDK for IaC in Java.pdf
mohitd6

Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
ThousandEyes

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
bhumivarma35300

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
Srinivas Dukka

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps
AsifKarimJim

Splunk_Remote_Work_Insights_Overview.pptx
Splunk_Remote_Work_Insights_Overview.pptxSplunk_Remote_Work_Insights_Overview.pptx
Splunk_Remote_Work_Insights_Overview.pptx
sudsdeep

Addressing the Top 9 User Pain Points with Visual Design Elements.pptx
Addressing the Top 9 User Pain Points with Visual Design Elements.pptxAddressing the Top 9 User Pain Points with Visual Design Elements.pptx
Addressing the Top 9 User Pain Points with Visual Design Elements.pptx
Sparity1

Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
confluent

HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
HIRE A HACKER FOR CHEATING HUSBAND/WIFE)HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
josephinedrea942

Artificial intelligence in customer services or chatbots
Artificial intelligence  in customer services or chatbotsArtificial intelligence  in customer services or chatbots
Artificial intelligence in customer services or chatbots
kayash1656

introduction of Ansys software and basic and advance knowledge of modelling s...
introduction of Ansys software and basic and advance knowledge of modelling s...introduction of Ansys software and basic and advance knowledge of modelling s...
introduction of Ansys software and basic and advance knowledge of modelling s...
sachin chaurasia

Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …
908dutch

Safe Work Permit Management Software for Hot Work Permits
Safe Work Permit Management Software for Hot Work PermitsSafe Work Permit Management Software for Hot Work Permits
Safe Work Permit Management Software for Hot Work Permits
sheqnetworkmarketing

Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
aslasdfmkhan4750

The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to KnowThe Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
onemonitarsoftware

Introduction_to_Security_Assessments.ppt
Introduction_to_Security_Assessments.pptIntroduction_to_Security_Assessments.ppt
Introduction_to_Security_Assessments.ppt
sudsdeep

React Native vs Flutter - SSTech System
React Native vs Flutter  - SSTech SystemReact Native vs Flutter  - SSTech System
React Native vs Flutter - SSTech System
SSTech System

AWS Cloud Practitioner Essentials (Second Edition) (Arabic) .pdf
AWS Cloud Practitioner Essentials (Second Edition) (Arabic) .pdfAWS Cloud Practitioner Essentials (Second Edition) (Arabic) .pdf
AWS Cloud Practitioner Essentials (Second Edition) (Arabic) .pdf
karim wahed

Break data silos with real-time connectivity using Confluent Cloud Connectors
Break data silos with real-time connectivity using Confluent Cloud ConnectorsBreak data silos with real-time connectivity using Confluent Cloud Connectors
Break data silos with real-time connectivity using Confluent Cloud Connectors
confluent


Recently uploaded (20)

Wired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptxWired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptx

Building infrastructure with code_ A deep dive into CDK for IaC in Java.pdf
Building infrastructure with code_ A deep dive into CDK for IaC in Java.pdfBuilding infrastructure with code_ A deep dive into CDK for IaC in Java.pdf
Building infrastructure with code_ A deep dive into CDK for IaC in Java.pdf

Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps

Splunk_Remote_Work_Insights_Overview.pptx
Splunk_Remote_Work_Insights_Overview.pptxSplunk_Remote_Work_Insights_Overview.pptx
Splunk_Remote_Work_Insights_Overview.pptx

Addressing the Top 9 User Pain Points with Visual Design Elements.pptx
Addressing the Top 9 User Pain Points with Visual Design Elements.pptxAddressing the Top 9 User Pain Points with Visual Design Elements.pptx
Addressing the Top 9 User Pain Points with Visual Design Elements.pptx

Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...

HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
HIRE A HACKER FOR CHEATING HUSBAND/WIFE)HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
HIRE A HACKER FOR CHEATING HUSBAND/WIFE)

Artificial intelligence in customer services or chatbots
Artificial intelligence  in customer services or chatbotsArtificial intelligence  in customer services or chatbots
Artificial intelligence in customer services or chatbots

introduction of Ansys software and basic and advance knowledge of modelling s...
introduction of Ansys software and basic and advance knowledge of modelling s...introduction of Ansys software and basic and advance knowledge of modelling s...
introduction of Ansys software and basic and advance knowledge of modelling s...

Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …

Safe Work Permit Management Software for Hot Work Permits
Safe Work Permit Management Software for Hot Work PermitsSafe Work Permit Management Software for Hot Work Permits
Safe Work Permit Management Software for Hot Work Permits

Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...

The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to KnowThe Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to Know

Introduction_to_Security_Assessments.ppt
Introduction_to_Security_Assessments.pptIntroduction_to_Security_Assessments.ppt
Introduction_to_Security_Assessments.ppt

React Native vs Flutter - SSTech System
React Native vs Flutter  - SSTech SystemReact Native vs Flutter  - SSTech System
React Native vs Flutter - SSTech System

AWS Cloud Practitioner Essentials (Second Edition) (Arabic) .pdf
AWS Cloud Practitioner Essentials (Second Edition) (Arabic) .pdfAWS Cloud Practitioner Essentials (Second Edition) (Arabic) .pdf
AWS Cloud Practitioner Essentials (Second Edition) (Arabic) .pdf

Break data silos with real-time connectivity using Confluent Cloud Connectors
Break data silos with real-time connectivity using Confluent Cloud ConnectorsBreak data silos with real-time connectivity using Confluent Cloud Connectors
Break data silos with real-time connectivity using Confluent Cloud Connectors


Building Microservices in the cloud - GOTO Nights Berlin 2016

  • 1. GOTO Nights Berlin | 03.05.2016 | Christian Deger Highway to heaven Building microservices in the cloud
  • 4. 17 countries 350 employees 140 in IT RUS S PL NL D B F A HR RO BG UA I TR E CZ
  • 5. 2000 Servers 2 Data Centers MTBF optimized
  • 13. .NET / Windows to JVM / Linux Monolith to Microservices Data center to AWS Devs + Ops to Collaboration culture Involve product people
  • 16. STRATEGIC GOALS Goals of the business side ARCHITECTURAL PRINCIPLES High-Level Principles DESIGN AND DELIVERY PRINCIPLES Tactical measures REDUCE TIME TO MARKET Speed, Fast Feedback COST EFFICIENCY Collect metrics to allow decisions cost vs. value. SUPPORT DATA-DRIVEN DECISIONS Listen to users and validate hypothesis. Provide as many relevant metrics & data as possible. YOU BUILT IT, YOU RUN IT The team is responsible for shaping, building, running and maintaining its products. Fast feedback from live and customers helps us to continuously improve. ORGANIZED AROUND BUSINESS CAPABILITIES Build teams around products not projects. Follow the domain and respect bounded contexts. Inverse Conway Maneuver. LOOSELY COUPLED By default avoid sharing and tight coupling, except for the big things in common. Don’t create the next monolith. MACRO AND MICRO ARCHITECTURE Clear separation. Autonomous micro services within the rules and constraints of the macro architecture. AWS FIRST Favor AWS platform service over managed service, over self-hosted OSS, over self-rolled solutions. DATA-DRIVEN / METRIC-DRIVEN Collect metrics from processes and applications. Analyze, alert and act on them. ELIMINATE ACCIDENTAL COMPLEXITY Strive to keep it simple. Focus on essential complexity. You build one, you delete one. AUTONOMOUS TEAMS Make fast local decisions. Be responsible. Know your boundaries. Share findings. INFRASTRACTURE AS CODE Automate everything: Reproducible, traceable and tested. Immutable servers over snowflake servers. COLLABORATION CULTURE Engineers from all backgrounds work together in collaborative teams as engineers and share responsibilities. No silos. BE BOLD Go into production early. Value monitoring over tests. Recover and learn. Optimize for MTTR not MTBF. SECURITY, COMPLIANCE AND DATA PRIVACY Security must be included from the beginning and everybody’s concern. Keep data-privacy in mind. CONTAINMENT AND BOUNDARIES Align blast radius and vendor lock-in with the boundaries of the organization or business capabilities. Version 1.0 Icons made by Freepik from www.flaticon.com are licensed under CC BY 3.0
  • 20. You build it, you run it.
  • 25. Monitoring is the new testing
  • 27. How many environments? Which versions on staging? Prod differs anyway: Load, data, patterns V2V3 V6 V5 V4 V7 V5 V8 Engineer CI Dev Staging V1 V4 Prod
  • 29. Event Sourcing one way data highway and data pumps
  • 30. SQS + S3 Kinesis + S3 Kinesis + DynamoDB SQS + DynamoDB Proxy + DynamoDB DynamoDB Evolution
  • 31. How (not) to share shared nothing as default loosely coupled fast local decisions voluntary adoption exception: macro concerns
  • 34. PageSpeed Module css (page+fragment) js (page+fragment) ngx_pagespeed css (page) js (page) css (fragment) js (fragment)
  • 35. Infrastructure guild Agree on things to do Share learnings Delegate implementation to teams Infrastructure product teams needed?
  • 37. STRATEGIC GOALS Goals of the business side ARCHITECTURAL PRINCIPLES High-Level Principles DESIGN AND DELIVERY PRINCIPLES Tactical measures REDUCE TIME TO MARKET Speed, Fast Feedback COST EFFICIENCY Collect metrics to allow decisions cost vs. value. SUPPORT DATA-DRIVEN DECISIONS Listen to users and validate hypothesis. Provide as many relevant metrics & data as possible. YOU BUILT IT, YOU RUN IT The team is responsible for shaping, building, running and maintaining its products. Fast feedback from live and customers helps us to continuously improve. ORGANIZED AROUND BUSINESS CAPABILITIES Build teams around products not projects. Follow the domain and respect bounded contexts. Inverse Conway Maneuver. LOOSELY COUPLED By default avoid sharing and tight coupling, except for the big things in common. Don’t create the next monolith. MACRO AND MICRO ARCHITECTURE Clear separation. Autonomous micro services within the rules and constraints of the macro architecture. AWS FIRST Favor AWS platform service over managed service, over self-hosted OSS, over self-rolled solutions. DATA-DRIVEN / METRIC-DRIVEN Collect metrics from processes and applications. Analyze, alert and act on them. ELIMINATE ACCIDENTAL COMPLEXITY Strive to keep it simple. Focus on essential complexity. You build one, you delete one. AUTONOMOUS TEAMS Make fast local decisions. Be responsible. Know your boundaries. Share findings. INFRASTRACTURE AS CODE Automate everything: Reproducible, traceable and tested. Immutable servers over snowflake servers. COLLABORATION CULTURE Engineers from all backgrounds work together in collaborative teams as engineers and share responsibilities. No silos. BE BOLD Go into production early. Value monitoring over tests. Recover and learn. Optimize for MTTR not MTBF. SECURITY, COMPLIANCE AND DATA PRIVACY Security must be included from the beginning and everybody’s concern. Keep data-privacy in mind. CONTAINMENT AND BOUNDARIES Align blast radius and vendor lock-in with the boundaries of the organization or business capabilities. Version 1.0 Icons made by Freepik from www.flaticon.com are licensed under CC BY 3.0
  • 38. Picture Credits • "HotWheels - '69 Ford Torino Talladega“ by Leap Kye, licensed under CC BY-ND 2.0 • Differences between Traditional vs Next Generation by Simon Wardley under CC BY-SA 3.0 • Enterprise IT Adoption Cycle by Simon Wardley under CC BY-SA 3.0 • And the future is private by Simon Wardley under CC BY-SA 3.0 • Leosvel et Diosmani by Ludovic Péron under CC BY-SA 3.0 • Spare wheel by Brian Snelson under CC BY 2.0 • Wheel clamps Texas by Richard Anderson from Denton, United States (Boots.) under CC BY-SA 2.0 • Wandergeselle by Sigismund von Dobschütz under CC BY-SA 3.0 • Sharing Sucks (4536747557) by eyeliam from Portland, United States under CC BY 2.0 • Traffic Jam by Doo Ho Kim under CC BY-SA 2.0 • Puzzling by Bernd Gessler (Own work) CC BY-SA 3.0 • Amazon16 by Neil Palmer/CIAT under CC BY-SA 2.0
  • 41. 21st Century What does a tech company look like?
  • 42. Great Design Universally Connected Mobile First Instant Business Value Massive Data Insight Highly Available
  • 45. Conway’s Law “organizations which design systems ... are constrained to produce designs which are copies of the communication structures of these organizations”
  • 47. Two stacks Cash stack meets shiny new stack One company Lights on in cash stack Feature freeze Where to build new features? Ease of integration helps business people WW
