1. Building APIs the Serverless
Way
by Tessa Mero
Nov 6th, 2019 - Serverless Computing, London
The content of this presentation is proprietary information of Cloudinary. It is not intended to be distributed to any third party without the written
consent of Cloudinary. © 2019 Cloudinary inc.
@tessamero

2. Oh hai
● Developer Advocate at
Cloudinary
● Developer, Teacher, Advocate
● Community Leader
○ Past: Joomla, PHP
○ Current: API, Vue.js, JAMStack,
DevRel
● Gamer + Mom
● Cooking (<3 Korean food!)
@tessamero

3. Topics
● What is Serverless?
● Using Serverless
technologies to create an
API - End Result?
● Technologies Used
● Demo
● Resources
@tessamero

4. What are we building?

5. End Result!
● Can we get a 200 OK???
Make an API call to your own API! 200 OK!

6. What do you
need?
● We have an API!
● Prerequisites
Do I need anything installed?
● Node.js
○ v10.16.3
○ Version check: node -v
○ Nodejs.org
● AWS Account and credentials
○ for IAM, DynamoDB, and API Gateway
○ aws.amazon.com (Click Services)
● Serverless Framework
○ v1.53.0
○ Version check: serverless --version
○ serverless.com
● Postman
○ getpostman.com

7. What is Serverless?

8. What is
Serverless?
● No Servers!
● Cost
● Scale
● Time
Is there really no servers?

9. Technologies Used

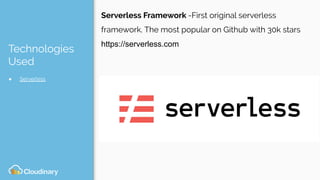

10. Technologies
Used
● Serverless
Serverless Framework -First original serverless
framework. The most popular on Github with 30k stars
https://serverless.com

11. Technologies
Used
● Serverless
● IAM

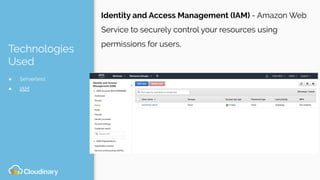

Identity and Access Management (IAM) - Amazon Web
Service to securely control your resources using
permissions for users.

12. Technologies
Used
● Serverless
● IAM
● DynamoDB
DynamoDB -Amazon Web Service’s non-relational
database.

13. Technologies
Used
● Serverless
● IAM
● DynamoDB
● API Gateway
API Gateway -Amazon Web Service’s API Gateway is for
creating, publishing, maintaining, monitoring, and security
REST and WebSocket APIs at any scale.

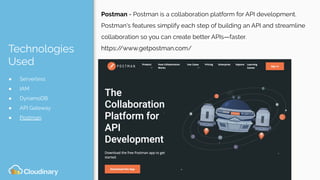

14. Technologies
Used
● Serverless
● IAM
● DynamoDB
● API Gateway
● Postman
Postman - Postman is a collaboration platform for API development.
Postman's features simplify each step of building an API and streamline
collaboration so you can create better APIs—faster.
https://www.getpostman.com/

15. Demo

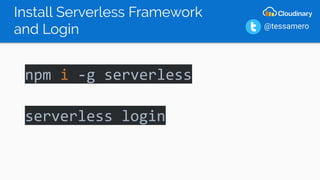

16. Install Serverless Framework
and Login
npm i -g serverless
serverless login
@tessamero

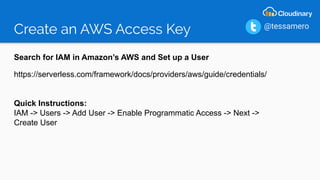

17. Create an AWS Access Key
Search for IAM in Amazon’s AWS and Set up a User
https://serverless.com/framework/docs/providers/aws/guide/credentials/
Quick Instructions:
IAM -> Users -> Add User -> Enable Programmatic Access -> Next ->
Create User
@tessamero

18. Add AWS Creds to Serverless
serverless config credentials
--provider aws --key
ABCDEFGHIJKLMNOP12345 --secret
abcdefg/aBcdefG12345aBcdefg
@tessamero

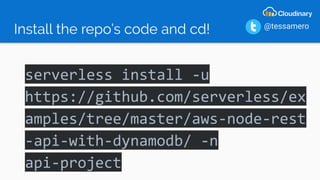

19. Install the repo’s code and cd!
serverless install -u
https://github.com/serverless/ex
amples/tree/master/aws-node-rest
-api-with-dynamodb/ -n
api-project
@tessamero

20. Install Node
npm install
@tessamero

21. open serverless.yml
service: api-project
app: aws-serverlessapi (app name in
serverless.com)
tenant: tessamero (username in
serverless.com)
@tessamero

22. Deploy!
serverless deploy
@tessamero

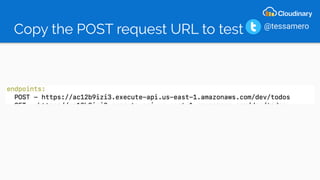

23. Copy the POST request URL to test @tessamero

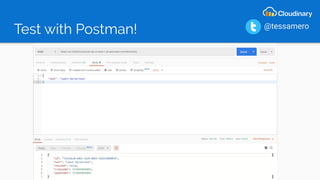

24. Test with Postman! @tessamero

25. Looking into the Code

26. Looking into
the Code
● File Structure

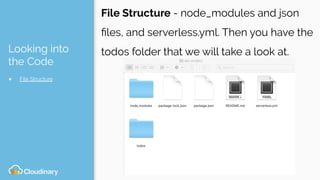

File Structure - node_modules and json
files, and serverless.yml. Then you have the
todos folder that we will take a look at.

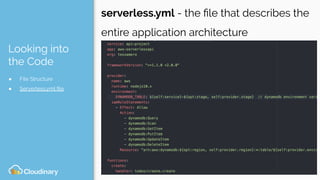

27. Looking into
the Code
● File Structure
● Serverless.yml file
serverless.yml - the file that describes the
entire application architecture

28. Looking into
the Code

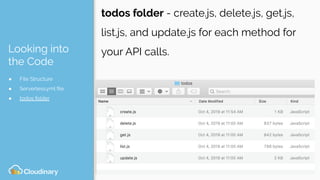

● File Structure
● Serverless.yml file
● todos folder
todos folder - create.js, delete.js, get.js,
list.js, and update.js for each method for
your API calls.

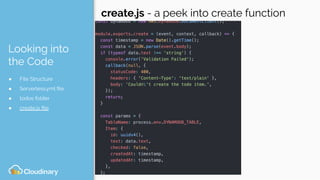

29. Looking into
the Code
● File Structure
● Serverless.yml file
● todos folder
● create.js file
create.js - a peek into create function

30. Looking into
the Code
● File Structure
● Serverless.yml file
● todos folder
● create.js file
● delete.js file

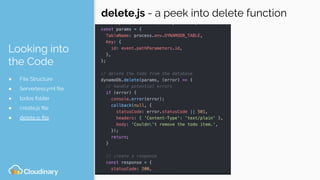

delete.js - a peek into delete function

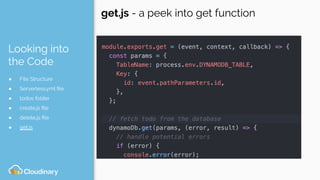

31. Looking into
the Code
● File Structure
● Serverless.yml file
● todos folder
● create.js file
● delete.js file
● get.js
get.js - a peek into get function

32. Looking into
the Code
● File Structure
● Serverless.yml file
● todos folder
● create.js file
● delete.js file
● get.js
● list.js

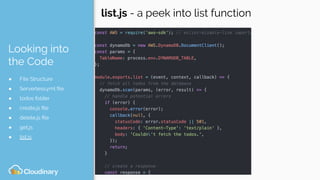

list.js - a peek into list function

33. Looking into
the Code
● File Structure
● Serverless.yml file
● todos folder
● create.js file
● delete.js file
● get.js
● list.js
● update.js
update.js - a peek into update function

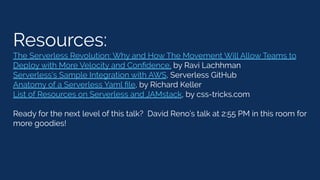

34. Resources:
The Serverless Revolution: Why and How The Movement Will Allow Teams to
Deploy with More Velocity and Confidence, by Ravi Lachhman
Serverless’s Sample Integration with AWS, Serverless GitHub
Anatomy of a Serverless Yaml file, by Richard Keller
List of Resources on Serverless and JAMstack, by css-tricks.com
Ready for the next level of this talk? David Reno’s talk at 2:55 PM in this room for
more goodies!

35. << end
● Twitter: https://twitter.com/tessamero
● Email.: tessa.mero@cloudinary.com
● Slides: https://slideshare.net/tessa99
THANK YOU!
@tessamero
