Agile OpenStack Networking with Cisco solutions Rohit Agarwalla, Senior Technical Leader @rohitagarwalla BRKDCT-2445
• Introduction to OpenStack • Cisco and OpenStack • OpenStack Networking – Neutron • Neutron Network Architectures • Cisco Integrations into Neutron • Demo • Advanced Neutron considerations • Summary/Q&A Agenda
Introduction to OpenStack

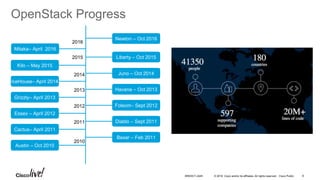

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 5 OpenStack Overview Open source Cloud Computing Platform for Private and Public Clouds BRKDCT-2445 Multi-tenancy and Pluggable back-ends
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 6 OpenStack Projects Compute (Nova) Dashboard (Horizon) Database (Trove) Network (Neutron) Image (Glance) Orchestration (Heat) Object Storage (Swift) Identity (KeyStone) Data Processing (Sahara) Block Storage (Cinder) Telemetry (Ceilometer) Deployment (Kolla) Bare Metal (Ironic) DNS (Designate) Application Catalog (Murano) Containers (Magnum) Key Management (Barbican) Policy (Congress) File System (Manila) Messaging (Zaqar) …. BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 7BRKDCT-2445 Core and Optional Services Source: https://www.openstack.org/software/project-navigator/
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public OpenStack Progress 8 Austin – Oct 2010 Bexar – Feb 2011 Cactus– April 2011 Diablo – Sept 2011 Essex – April 2012 Folsom– Sept 2012 Grizzly– April 2013 Havana – Oct 2013 IceHouse– April 2014 Juno – Oct 2014 Kilo – May 2015 2010 2011 2012 2013 2014 Liberty – Oct 2015 Mitaka– April 2016 BRKDCT-2445 Newton – Oct 2016 2015 2016
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Plan to attend the next Summit 10BRKDCT-2445 https://www.openstack.org/summit/barcelona-2016/
Cisco and OpenStack

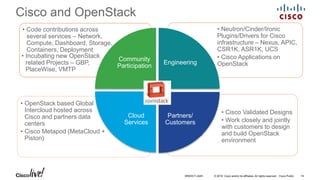

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 14 Cisco and OpenStack • Cisco Validated Designs • Work closely and jointly with customers to design and build OpenStack environment • OpenStack based Global Intercloud hosted across Cisco and partners data centers • Cisco Metapod (MetaCloud + Piston) • Neutron/Cinder/Ironic Plugins/Drivers for Cisco infrastructure – Nexus, APIC, CSR1K, ASR1K, UCS • Cisco Applications on OpenStack • Code contributions across several services – Network. Compute, Dashboard, Storage, Containers, Deployment Community Participation Engineering Partners/ Customers Cloud Services • Incubating new OpenStack related Projects – GBP, PlaceWise, VMTP BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public • Kloudbuster • VMTP • Group Based Policy 15 Mitaka release contributions lead by Cisco Mitaka release Kolla Magnum Neutron Horizon Ironic Rally Cisco lead Projects Heat • UCSM, Nexus driver • ODL driver • ASR1000 driver • PNR driver • Bay and BayModel Support • UCS CIMC, UCSM driver • Benchmarks/Scenarios for Swift APIs • Magnum container support • ASR1000 support • Developer dashboard and preview panel • Kolla PTL • Upgrade and Reconfigure actions • Security/TLS • Pluggable Networking BRKDCT-2445
OpenStack Networking - Neutron

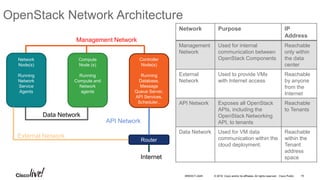

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public OpenStack Network Architecture Tenant A Compute Node (s) Running Compute and Network agents Controller Node(s) Running Database, Message Queue Server, API Services, Scheduler.. Router Network Node(s) Running Network Service Agents API Network External Network Internet Data Network Management Network Network Purpose IP Address Management Network Used for internal communication between OpenStack Components Reachable only within the data center External Network Used to provide VMs with Internet access Reachable by anyone from the Internet API Network Exposes all OpenStack APIs, including the OpenStack Networking API, to tenants Reachable to Tenants Data Network Used for VM data communication within the cloud deployment. Reachable within the Tenant address space 19BRKDCT-2445

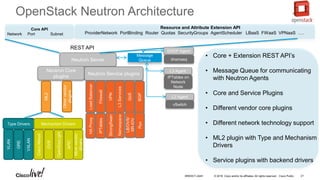

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Neutron Overview Tenant A Router Subnet Red Subnet Blue VM 1 Tenant A VM 2 VM 1 Logical Model Physical implementation Compute Node Compute Node VM1 Controller Node(s) Router Network Node(s) External Network VM2 VM1 Internet vswitch vswitchvswitch Data Network Namespace Management Network API Network 20BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public OpenStack Neutron Architecture Neutron Server REST API Neutron Core plugins Neutron Service plugins • Core + Extension REST API’s • Message Queue for communicating with Neutron Agents • Core and Service Plugins • Different vendor core plugins • Different network technology support • ML2 plugin with Type and Mechanism Drivers • Service plugins with backend drivers Core API Network Port Subnet Resource and Attribute Extension API ProviderNetwork PortBinding Router Quotas SecurityGroups AgentScheduler LBaaS FWaaS VPNaaS …. Type Drivers Mechanism Drivers VLAN GRE VXLAN CiscoNexus OVS OpenDayLight APIC Morevendor drivers ML2 Othervendor plugins DHCP Agent L3 Agent Message Queue IPTables on Network Node L2 Agent vSwitch dnsmasq BRKDCT-2445 21 LoadBalancer Firewall VPN HAProxy IPTables StrongSwan L3ServicesNamespace QoS BGP LB/OVS/ SR-IOV Ryu
Neutron Architectures
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Layer 2 network tenant topologies Compute Node Compute Node VM3 VM4 VM2 vswitch SR-IOV Data Network VM1 Fabric Leaf, Top of Rack Compute Node Compute Node VM3 VM4 VM2 vswitch vswitch Data Network VM1 Fabric Leaf, Top of Rack Host and Network based VLAN Host based overlays Compute Node Compute Node VM3 VM4 VM2 vswitch vswitch Data Network VM1 Fabric Leaf , Top of Rack Network based overlays VLAN Overlay 24BRKDCT-2445

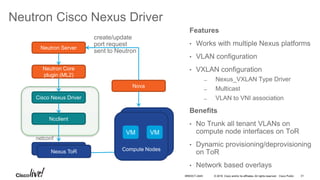

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public • Number of Tenant Network Segments • VLAN based tenant networks ̶ Host (vswitch v/s SR-IOV) ̶ Host and Network • VXLAN based tenant networks ̶ Host (L2 population) ̶ VXLAN offload - Network ̶ Multicast v/s Controller (EVPN) • Provider Networks 25BRKDCT-2445 Layer 2 network tenant topologies – Design Considerations
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Compute Node vswitch Layer 3 tenant network topologies Linux Host Compute Node VM1 Network Node(s) VM2 vswitchvswitch Data Network Namespace Service VMs Fabric, Top of Rack VM1 Compute Node VM2 vswitch Data Network Service VMs Fabric, Top of Rack Compute Node VM1 Network Node(s) VM vswitch Data Network Fabric, Service Node Fabric or Service Node 26 vswitch BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Layer 3 network tenant topologies – Design Considerations • External connectivity for tenant networks • Floating IPs • L3 Traffic Pattern E-W and N-S Routing • Central v/s Distributed Routing • Host v/s Network based routing 27BRKDCT-2445
Cisco integrations into Neutron

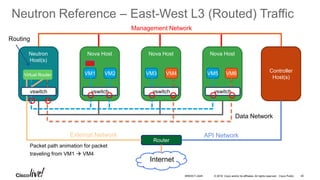

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Neutron Layer 2 Default Implementation Neutron Server Neutron Core plugin (ML2) Network REST API requests Open vSwitch/Linux Bridge Mechanism Drivers Compute Node Network and Compute Nodes VM VM vswitch RPC message to agent on nodes 29 • Implements Neutron Core Resources • Open vSwitch and Linux Bridge Mechanism Drivers • Agents on Network and Compute Nodes • Host based VLAN or Overlay (VXLAN, GRE) Type Drivers BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Nova HostNova HostNova Host 30BRKDCT-2445 Neutron Reference – East-West L2 (Switched) Traffic VM1 Controller Host(s) Router Neutron Host(s) DHCP ports API NetworkExternal Network Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitchvswitch Data Network PKT Packet path animation for packet traveling from VM1  VM3.
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public VM on a Compute Nodes Neutron Cisco Nexus Driver Neutron Server Neutron Core plugin (ML2) Cisco Nexus Driver Ncclient Nexus Nova Compute Nodes create/update port request sent to Neutron Features • Works with multiple Nexus platforms • VLAN configuration • VXLAN configuration ̶ Nexus_VXLAN Type Driver ̶ Multicast ̶ VLAN to VNI association Benefits • No Trunk all tenant VLANs on compute node interfaces on ToR • Dynamic provisioning/deprovisioning on ToR • Network based overlays Nexus ToR VM VM netconf BRKDCT-2445 31
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public VMs on Compute Node Neutron Cisco UCSM Driver (KVM) Neutron Server Neutron Core plugin (ML2) Cisco UCSM driver UCSM SDK Compute Nodes Nova create/update port Features: • Supports VLAN configuration of SR-IOV ports (using port profiles) and vNIC ports (using Service Profiles) • Nova and Neutron enhancements to support SR- IOV • Enables configuration of VLAN profiles and automatic association with network ports • Support for multiple UCSM domains and discovery of blades (hosts) to Service Profile mapping Benefits • SR-IOV and non SR-IOV based UCS Fabric Interconnect configurations • High network performance bypassing hypervisor switch VM VM BRKDCT-2445 32 UCS Fabric Interconnect
Demo

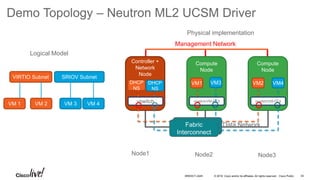

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Demo Topology – Neutron ML2 UCSM Driver VIRTIO Subnet SRIOV Subnet VM 1 Tenant A VM 2 VM 3 Logical Model Physical implementation Compute Node Compute Node VM1 Controller + Network Node VM2 VM4 vswitch/VM-FEX vswitch/VM-FEXvswitch Data Network Management Network 34 DHCP NS DHCP NS Node1 Node2 Node3 Fabric Interconnect VM 4 VM3 BRKDCT-2445 Fabric Interconnect
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Neutron Routing Implementation Neutron Server Neutron Service plugin (L3) Routing REST API requests L3 agent on Network Node L3 agent on Network Nodes Default Gateway, Namespace and IPTables Namespace maps to a Neutron logical router. IPTables handle address translations Agent Scheduler Picks a L3 agent on a Network Node Compute Node Compute Nodes L3 traffic goes through Network node VM VM Neutron router HA capabilities using VRRP 39BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Nova HostNova HostNova Host 40BRKDCT-2445 Neutron Reference – East-West L3 (Routed) Traffic VM1 Controller Host(s) Router Neutron Host(s) API NetworkExternal Network Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitchvswitch Data Network PKT Routing Packet path animation for packet traveling from VM1  VM4 Virtual Router
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Nova HostNova HostNova Host 41BRKDCT-2445 Neutron Reference – North-South L3 Traffic (NAT) VM1 Controller Host(s) Router Neutron Host(s) API NetworkExternal Network Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitchvswitch Data Network PKT NAT Packet path animation for packet traveling from VM1  Internet Virtual Router
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Issues in Neutron Reference L3 and ASR1K Solutions • NAT for External Connectivity: • Issue - Scale limitation in Linux iptables software NAT. • Solution - ASR1K can scale up to 4 million dynamic NAT entries and 16K static NAT entries. • Tenant Routing: • Issue – Managing Linux namespaces and interfaces software based tenant networking. • Solution - ASR1K uses Virtual Routing and Forwarding (VRF) instances for tenant routers. • Data Throughput: • Issue - Performance limitations with software packet forwarding and NAT on generic compute hardware. • Solution - ASR1K can perform packet forwarding and NAT at rates upto 230 Gbps. 42BRKDCT-2445

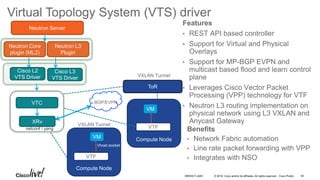

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 43 Neutron Cisco ASR1000 for Neutron L3 Service • Mapping of Neutron reference L3 implementation - - Linux namespaces - ASR1K VRF - Internal Router ports – ASR1K VLAN or Port Channel sub interfaces - External Gateway ports – ASR1K VLAN or Port Channel sub interfaces - Linux IPTables – ASR1K NAT • Benefits • Routing using physical infrastructure • Support for HSRP and Port Channel • OpenStack Multi-Region Support • Config Agent Sync with ASR1K (Keep Alive) • Integrates with ACI Neutron Server Neutron Service plugin (L3) Routing Device Driver (ASR1K) Config Agent Cisco Config Agent Nexus ASR1K netconf BRKDCT-2445

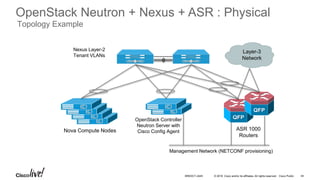

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 44 OpenStack Neutron + Nexus + ASR : Physical Topology Example Layer-3 Network ASR 1000 Routers OpenStack Controller Neutron Server with Cisco Config AgentNova Compute Nodes Nexus Layer-2 Tenant VLANs Management Network (NETCONF provisioning) BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public ASR1K Neutron Host(s) Nova HostNova HostNova Host 45BRKDCT-2445 ASR1K - East-West L3 (Routed) Traffic VM1 Controller Node(s) Router API NetworkExternal Network Data Network (L3 routed) Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitch Nexus TOR Nexus TOR ASR1K L3 Plugin VRF with default GW and NAT (to global routing). PKT Note : Packet animation included – VM1  VM4 Virtual Router
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public ASR1K Neutron Host(s) Nova HostNova HostNova Host 46BRKDCT-2445 ASR1K - North-South L3 Traffic (NAT) VM1 Controller Node(s) Router API NetworkExternal Network Data Network (L3 routed) Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitch Nexus TOR Nexus TOR ASR1K L3 Plugin VRF with default GW and NAT (to global routing). PKT Note : Packet animation included – VM1  Internet Virtual Router
Demo
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 48 Demo Topology – Neutron ASR1K Driver for L3 Private Subnet Private1 Subnet VM 1 Tenant A VM 2 Logical Model Physical implementation Compute Node Compute Node VM1 Controller + Network Node VM2 vswitch vswitchvswitch Data Network Management Network DHCP NS DHCP NS Node 1 Node 2 Node 3 Nexus Router BRKDCT-2445 ASR1KASR1K Nexus Port-Channel 10, 11
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Virtual Topology System (VTS) driver XRv Compute Node Features • REST API based controller • Support for Virtual and Physical Overlays • Support for MP-BGP EVPN and multicast based flood and learn control plane • Leverages Cisco Vector Packet Processing (VPP) technology for VTF • Neutron L3 routing implementation on physical network using L3 VXLAN and Anycast Gateway REST Compute Node VM VTC VTF VTF BGP/EVPN VXLAN Tunnel Vhost socket netconf / yang BRKDCT-2445 54 ToR VM Neutron Core plugin (ML2) Cisco L2 VTS Driver Cisco L3 VTS Driver Neutron L3 Plugin VXLAN Tunnel Neutron Server Benefits • Network Fabric automation • Line rate packet forwarding with VPP • Integrates with NSO
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public VMs on Compute Nodes Neutron Cisco Application Policy Infrastructure Controller (APIC) Driver Neutron Server Neutron Core plugin (ML2) Cisco L2 APIC Driver APIC VMs on Compute Nodes Cisco L3 APIC Driver ACI Spine/Leaf Switches REST API Network:EPG, Router:Contract Provides distributed L2,L3 functionality Neutron L3 Plugin  Neutron API: Network, Router, Subnet, Security Group  L2 / L3 enforced in fabric, security groups enforced on hypervisor 55BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Group Based Policy and Neutron VMs on Compute Nodes Group Based Policy (GBP) GBP Neutron Driver Neutron APIC VMs on Compute Nodes APIC GBP Driver ACI Spine/Leaf Switches REST API Policy Group, Ruleset Provides distributed L2,L3 functionality GBP Driver Neutron Plugins/Drive rs Network, Router Create Classifier/ Rule gbp policy-classifier-create web-traffic – protocol tcp –port-range 80 –direction in gbp policy-rule-create web-policy-rule – classifier web-traffic –actions allow Create Policy RuleSet gbp ruleset-create web-ruleset –policy- rules web-policy-rule Create Group gbp group-create web Group Association gbp group-update web –provided-rulesets web-ruleset Launch Web Server VM using Endpoint in EPG gbp member-create –group web web-1 vswitch 57BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public OpFlex Integration • Hypervisor local enforcement security policies • Security Groups (ML2 driver) via IP Tables • GBP via OpenFlow in Open vSwitch • Distributed NAT support on each compute node • Floating IP • sNAT (via hypervisor host IP) • Distributed Neutron services per compute node • L3 / Anycast gateway, metadata, DHCP • Multiple VRF support BRKDCT-2445 58 Hypervisor vm4 Project 1 Project 2 Project 3 vm5 vm3 vm5 vm6 OpFlex Agent OpFlex Proxy V(X)LAN OpenStack Group-Based Policy (optional) APIC ML2 APIC
Advanced Neutron considerations

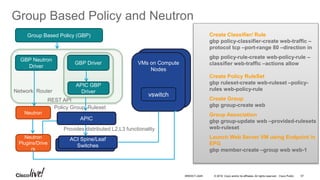

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Tenant 2Tenant 1 VMTP Data Plane Flows (logical) Automated data path validation and performance tests using VMTP tool. Client VM 2L3 fixed IP L2 same network Client VM 1 Client VM 3 L3 floating IP Server VM Virtual router Client VM 4upload 5 download (external host) VMTP – Data path validation and performance tool BRKDCT-2445 60
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Neutron IPv6 for tenant data network • IPv6 addressing using two attributes - • ipv6_ra_mode – Determines who sends RA • ipv6_address_mode – Determines how instances obtain IPv6 address, default gateway, and/or optional information. • Support for different IPv6 addressing schemes • SLAAC • DHCPv6-stateless • DHCPv6-stateful • Dual Stack Support • IPv6 Routing • Prefix Delegation 61BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Neutron Addressing Schemes ipv6_ra_mode ipv6_address_mode Result SLAAC N/S Address using Neutron router N/S SLAAC Address using external router SLAAC SLAAC Address using Neutron router ipv6_ra_mode ipv6_address_mode Result DHCPv6- stateless N/S Address using Neutron router and optional information using external service N/S DHCPv6-stateless Address using external router and optional information using Neutron DHCP implementation DHCPv6- stateless DHCPv6-stateless Address and optional information using Neutron router and DHCP implementation respectively ipv6_ra_mode ipv6_address_mode Result DHCPv6-stateful N/S Address and optional information using external service N/S DHCPv6-stateful Address and optional information using Neutron DHCP implementation DHCPv6-stateful DHCPv6-stateful Address and optional information using Neutron DHCP implementation Address Configuration Flags Value Auto 1 Managed 0 Other 0 Address Configuration Flags Value Auto 1 Managed 0 Other 1 Address Configuration Flags Value Auto 0 Managed 1 Other 1 62BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Network Function Virtualization Tenant A Compute Node Compute Node VM1 Network Node(s) VM2 VM1 vswitch vswitchvswitch Data Network Namespace 10.1.0.4 10.1.0.5 10.1.0.1 10.1.1.1 10.1.1.4 Admin provisioned Service Compute Node Compute Node VM1 VM2 VM1 vswitch vswitch Data Network 10.1.0.4 10.1.0.5 Tenant provisioned Service Service VM 10.1.1.4 66BRKDCT-2445

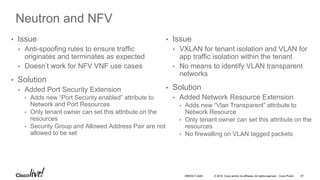

© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Neutron and NFV • Issue • Anti-spoofing rules to ensure traffic originates and terminates as expected • Doesn’t work for NFV VNF use cases • Solution • Added Port Security Extension • Adds new “Port Security enabled” attribute to Network and Port Resources • Only tenant owner can set this attribute on the resources • Security Group and Allowed Address Pair are not allowed to be set • Issue • VXLAN for tenant isolation and VLAN for app traffic isolation within the tenant • No means to identify VLAN transparent networks • Solution • Added Network Resource Extension • Adds new “Vlan Transparent” attribute to Network Resource • Only tenant owner can set this attribute on the resources • No firewalling on VLAN tagged packets 67BRKDCT-2445

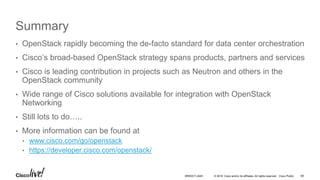

Summary
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Summary • OpenStack rapidly becoming the de-facto standard for data center orchestration • Cisco’s broad-based OpenStack strategy spans products, partners and services • Cisco is leading contribution in projects such as Neutron and others in the OpenStack community • Wide range of Cisco solutions available for integration with OpenStack Networking • Still lots to do….. • More information can be found at • www.cisco.com/go/openstack • https://developer.cisco.com/openstack/ 69BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Call to Action • Breakout sessions: • OpenStack Deployment for Enterprise and Service Provider (BRKDCT-2367) • Agile OpenStack Networking with Cisco Solutions (BRKDCT-2445) • Mastering OpenStack and ACI (BRKACI-3456) • Media Data Center: Private Cloud for Media Workloads (BRKSPV-2510) • Cloud Network Automation with OpenStack Neutron (BRKCLD-2012) • Inside Cisco IT: Automating ITIL Configuration Management for OpenStack (BRKCOC-3001) • Visit the World of Solutions and Labs for: • Cisco Virtualized Packet Core Installation on OpenStack (LABSPM-2012) • OpenStack Installation and Deployment with Cisco ACI Using OpFlex (LTRACI-2225) • VTS Integration with OpenStack/VMware for Data Center Orchestration (LTRDCN-2001) • DevNet zone related sessions: • Open Source - Is it a Good Bet for Developing your Next Application? (DEVNET-1034) • OpenStack Enabling DevOps (DEVNET-1104) • Getting Started with OpenStack (DEVNET-1105) • Upcoming Services in OpenStack (DEVNET-1106) • DevNet Workshop - Getting Started with OpenStack (DEVNET-1211) • BEST REST in OpenStack - Hands-on Workshop (DEVNET-2004) • Multicast in an OpenStack Cloud (DEVNET-2055) • Deploying Your Apps in an OpenStack Cloud (DEVNET-2018) BRKDCT-2445 70
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Complete Your Online Session Evaluation Don’t forget: Cisco Live sessions will be available for viewing on-demand after the event at CiscoLive.com/Online • Give us your feedback to be entered into a Daily Survey Drawing. A daily winner will receive a $750 Amazon gift card. • Complete your session surveys through the Cisco Live mobile app or from the Session Catalog on CiscoLive.com/us. 71BRKDCT-2445
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Continue Your Education • Demos in the Cisco Campus • Walk-in Self-Paced Labs • Lunch & Learn • Meet the Engineer 1:1 meetings • Related sessions 72BRKDCT-2445
Thank you
BRKDCT-2445

More Related Content

PPTX
BRKDCT-2445 Agile OpenStack Networking with Cisco Solutions-Cisco Live! US 20...
byRohit Agarwalla

PPTX
BRKSDN-2115
byRohit Agarwalla

PPTX
PSOCLD-1006 Cisco Cloud Architectures on OpenStack - Cisco Live! US 2015 San ...
byRohit Agarwalla

PPTX
BRKDCT-2445 Agile OpenStack Networking with Cisco Solutions - Cisco Live! US ...
byRohit Agarwalla

PDF
Agile OpenStack Networking with Cisco Solutions
byCisco DevNet

PPTX
Deploying OpenStack with Cisco Networking, Compute and Storage
byLora O'Haver

PDF
5 cisco open_stack
byopenstackindia

PPTX
Agile Networking with OpenStack
byopenstackcisco

BRKDCT-2445 Agile OpenStack Networking with Cisco Solutions-Cisco Live! US 20...
byRohit Agarwalla

BRKSDN-2115
byRohit Agarwalla

PSOCLD-1006 Cisco Cloud Architectures on OpenStack - Cisco Live! US 2015 San ...
byRohit Agarwalla

BRKDCT-2445 Agile OpenStack Networking with Cisco Solutions - Cisco Live! US ...
byRohit Agarwalla

Agile OpenStack Networking with Cisco Solutions
byCisco DevNet

Deploying OpenStack with Cisco Networking, Compute and Storage
byLora O'Haver

5 cisco open_stack
byopenstackindia

Agile Networking with OpenStack
byopenstackcisco


What's hot

PDF
[OpenStack Day in Korea 2015] Keynote 2 - Leveraging OpenStack to Realize the...
byOpenStack Korea Community

PDF
[OpenStack Day in Korea 2015] Track 2-3 - 오픈스택 클라우드에 최적화된 네트워크 가상화 '누아지(Nuage)'
byOpenStack Korea Community

PDF
[OpenStack Day in Korea 2015] Track 3-4 - Software Defined Storage (SDS) and ...
byOpenStack Korea Community

PDF
Networking For Nested Containers: Magnum, Kuryr, Neutron Integration
byFawad Khaliq

PDF
Nexus1000V on KVM and OpenStack Integration
byopenstackindia

PDF
Openstack architecture for the enterprise (Openstack Ireland Meet-up)
byKeith Tobin

PPTX
Is OpenStack Neutron production ready for large scale deployments?
byЕлена Ежова

PPTX
OpenStack and the Transformation of the Data Center - Lew Tucker
byLew Tucker

PDF
Cloud Computing using OpenStack
byJobayer Almahmud Hossain (RHCA, RHCDS, RHCSS)

PPTX
OpenStack Neutron behind the Scenes
byAnil Bidari ( CEO , Cloud Enabled)

PPTX
Integrating OpenStack To Existing Infrastructure
byHui Cheng

PDF
Open stack korea_uni2u_pdf
byYongyoon Shin

PDF
Cisco UCS for OpenStack Cloud
byLora O'Haver

PDF
MAAS High Availability Overview
byChristian "kiko" Reis

PPTX
Scaling OpenStack Networking Beyond 4000 Nodes with Dragonflow - Eshed Gal-Or...
byCloud Native Day Tel Aviv

PPTX
OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...
byCloud Native Day Tel Aviv

PPTX
Orchestration tool roundup kubernetes vs. docker vs. heat vs. terra form vs...
byNati Shalom

PDF
[2015-05월 세미나] Network Bottlenecks Mutiply with NFV Don't Forget Performance ...
byOpenStack Korea Community

PPTX
OpenStack and OpenDaylight Workshop: ONUG Spring 2014
bymestery

PDF
Open stack networking_101_update_2014-os-meetups
byyfauser

[OpenStack Day in Korea 2015] Keynote 2 - Leveraging OpenStack to Realize the...
byOpenStack Korea Community

[OpenStack Day in Korea 2015] Track 2-3 - 오픈스택 클라우드에 최적화된 네트워크 가상화 '누아지(Nuage)'
byOpenStack Korea Community

[OpenStack Day in Korea 2015] Track 3-4 - Software Defined Storage (SDS) and ...
byOpenStack Korea Community

Networking For Nested Containers: Magnum, Kuryr, Neutron Integration
byFawad Khaliq

Nexus1000V on KVM and OpenStack Integration
byopenstackindia

Openstack architecture for the enterprise (Openstack Ireland Meet-up)
byKeith Tobin

Is OpenStack Neutron production ready for large scale deployments?
byЕлена Ежова

OpenStack and the Transformation of the Data Center - Lew Tucker
byLew Tucker

Cloud Computing using OpenStack
byJobayer Almahmud Hossain (RHCA, RHCDS, RHCSS)

OpenStack Neutron behind the Scenes
byAnil Bidari ( CEO , Cloud Enabled)

Integrating OpenStack To Existing Infrastructure
byHui Cheng

Open stack korea_uni2u_pdf
byYongyoon Shin

Cisco UCS for OpenStack Cloud
byLora O'Haver

MAAS High Availability Overview
byChristian "kiko" Reis

Scaling OpenStack Networking Beyond 4000 Nodes with Dragonflow - Eshed Gal-Or...
byCloud Native Day Tel Aviv

OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...
byCloud Native Day Tel Aviv

Orchestration tool roundup kubernetes vs. docker vs. heat vs. terra form vs...
byNati Shalom

[2015-05월 세미나] Network Bottlenecks Mutiply with NFV Don't Forget Performance ...
byOpenStack Korea Community

OpenStack and OpenDaylight Workshop: ONUG Spring 2014
bymestery

Open stack networking_101_update_2014-os-meetups
byyfauser


Similar to BRKDCT-2445

PPTX
Cisco cloud computing deploying openstack
bysolarisyougood

PPTX
Cisco deploying openstack with UCS
bysolarisyougood

PDF
BRKVIR-2601 Architecting an OpenStack Based Cloud with Cisco Infrastructure.pdf
byssuserc6aaff

PPTX
OpenStack with OpenDaylight
byVikram G Hosakote

PDF
Whats new in neutron for open stack havana
byKamesh Pemmaraju

PPTX
OpenStack at Cisco, June 2015
byLora O'Haver

PPTX
DevOops - Lessons Learned from an OpenStack Network Architect
byJames Denton

PDF
neutron_icehouse_update
byAkihiro Motoki

PDF
Bridges and Tunnels: A Drive Through OpenStack Networking
bymarkmcclain

PDF
ONUG Tutorial: Bridges and Tunnels Drive Through OpenStack Networking
bymarkmcclain

PPTX
Networking in Openstack - Neutron 101
byMochamad Taufik Romdony

PDF
OpenStack Neutron: What's New In Kilo and a Look Toward Liberty
bymestery

PDF
OpenStack Benelux Conference 2014 | Openstack Iaas and the Future of Applicat...
byGuston Remie

PDF
Open stack networking_101_part-1
byyfauser

PPTX
How APIs are Transforming Cisco Solutions and Catalyzing an Innovation Ecosystem
byCisco DevNet

PDF
Open stack networking_101_update_2014
byyfauser

PDF
Open stack networking_101_part-2_tech_deep_dive
byyfauser

PDF
Getting Started with OpenStack
byCisco DevNet

PDF
tack Deployment in the Enterprise
byCisco Canada

PPTX
OpenStack and the Future of Application Centric Infrastructure
byLew Tucker

Cisco cloud computing deploying openstack
bysolarisyougood

Cisco deploying openstack with UCS
bysolarisyougood

BRKVIR-2601 Architecting an OpenStack Based Cloud with Cisco Infrastructure.pdf
byssuserc6aaff

OpenStack with OpenDaylight
byVikram G Hosakote

Whats new in neutron for open stack havana
byKamesh Pemmaraju

OpenStack at Cisco, June 2015
byLora O'Haver

DevOops - Lessons Learned from an OpenStack Network Architect
byJames Denton

neutron_icehouse_update
byAkihiro Motoki

Bridges and Tunnels: A Drive Through OpenStack Networking
bymarkmcclain

ONUG Tutorial: Bridges and Tunnels Drive Through OpenStack Networking
bymarkmcclain

Networking in Openstack - Neutron 101
byMochamad Taufik Romdony

OpenStack Neutron: What's New In Kilo and a Look Toward Liberty
bymestery

OpenStack Benelux Conference 2014 | Openstack Iaas and the Future of Applicat...
byGuston Remie

Open stack networking_101_part-1
byyfauser

How APIs are Transforming Cisco Solutions and Catalyzing an Innovation Ecosystem
byCisco DevNet

Open stack networking_101_update_2014
byyfauser

Open stack networking_101_part-2_tech_deep_dive
byyfauser

Getting Started with OpenStack
byCisco DevNet

tack Deployment in the Enterprise
byCisco Canada

OpenStack and the Future of Application Centric Infrastructure
byLew Tucker


Recently uploaded

PPTX
GET 211- Computing and Software Engineering (1).pptx
byfestusdaniel142

PPTX
Basic Volume Mass Relationship and unit weight as function of volumetric wate...
byMahmoodKhalid11

PPTX
ISO 13485.2016 Awareness's Training material
byPrakashSivan

PDF
Rajesh Prasad- Brief Profile with educational, professional highlights
byRajesh Prasad

PPTX
Fitting Infiltration Models to Infiltration using Excel (1).pptx
byTomNickoRivera1

PDF
Infinite Sequence and Series: It Includes basic Sequence and Series
byDynamicDomain1

PDF
PROBLEM SLOVING AND PYTHON PROGRAMMING UNIT 3.pdf
byA R SIVANESH M.E., QIP-PG (Cyber Security)., (Ph.D)

PPTX
uADPF Topology_SFP requirements_locked slides.pptx
byMd Bellal Hossain

PDF
Applications of AI in Civil Engineering - Dr. Rohan Dasgupta
byRohan Dasgupta

PDF
Computer Graphics Fundamentals (v0p1) - DannyJiang
byDanny Jiang

PPTX
What Green Hydrogen Is Definition: Hydrogen produced via electrolysis of wate...
byThit57

PPTX
This Bearing Didn’t Fail Suddenly — How Vibration Data Predicts Failure Month...
byMaintWiz Technologies Private Limited

PDF
Shear Strength of Soil (Direct shear test).pdf
byMahmoodKhalid11

PDF
Plasticity and Structure of Soil/Atterberg Limits.pdf
byMahmoodKhalid11

PDF
NS unit wise unit wise 1 -5 so prepare,.
bykumaransudhan1512

PPTX
Day 3 Module 5_Optical fiber Network (operation and management).pptx
bySachayaG

PPTX
Introduction to AI and Applications Module-4.pptx
byKalaiselviSubramania2

PPTX
Why TPM Succeeds in Some Plants and Struggles in Others | MaintWiz
byMaintWiz Technologies Private Limited

PDF
Chad Ayach - An Accomplished Mechanical Engineer
byChad Ayach

PDF
Shear Strength of Soil/Mohr Coulomb Failure Criteria-1.pdf
byMahmoodKhalid11

GET 211- Computing and Software Engineering (1).pptx
byfestusdaniel142

Basic Volume Mass Relationship and unit weight as function of volumetric wate...
byMahmoodKhalid11

ISO 13485.2016 Awareness's Training material
byPrakashSivan

Rajesh Prasad- Brief Profile with educational, professional highlights
byRajesh Prasad

Fitting Infiltration Models to Infiltration using Excel (1).pptx
byTomNickoRivera1

Infinite Sequence and Series: It Includes basic Sequence and Series
byDynamicDomain1

PROBLEM SLOVING AND PYTHON PROGRAMMING UNIT 3.pdf
byA R SIVANESH M.E., QIP-PG (Cyber Security)., (Ph.D)

uADPF Topology_SFP requirements_locked slides.pptx
byMd Bellal Hossain

Applications of AI in Civil Engineering - Dr. Rohan Dasgupta
byRohan Dasgupta

Computer Graphics Fundamentals (v0p1) - DannyJiang
byDanny Jiang

What Green Hydrogen Is Definition: Hydrogen produced via electrolysis of wate...
byThit57

This Bearing Didn’t Fail Suddenly — How Vibration Data Predicts Failure Month...
byMaintWiz Technologies Private Limited

Shear Strength of Soil (Direct shear test).pdf
byMahmoodKhalid11

Plasticity and Structure of Soil/Atterberg Limits.pdf
byMahmoodKhalid11

NS unit wise unit wise 1 -5 so prepare,.
bykumaransudhan1512

Day 3 Module 5_Optical fiber Network (operation and management).pptx
bySachayaG

Introduction to AI and Applications Module-4.pptx
byKalaiselviSubramania2

Why TPM Succeeds in Some Plants and Struggles in Others | MaintWiz
byMaintWiz Technologies Private Limited

Chad Ayach - An Accomplished Mechanical Engineer
byChad Ayach

Shear Strength of Soil/Mohr Coulomb Failure Criteria-1.pdf
byMahmoodKhalid11


BRKDCT-2445

  • 2.
    Agile OpenStack Networkingwith Cisco solutions Rohit Agarwalla, Senior Technical Leader @rohitagarwalla BRKDCT-2445
  • 3.
    • Introduction toOpenStack • Cisco and OpenStack • OpenStack Networking – Neutron • Neutron Network Architectures • Cisco Integrations into Neutron • Demo • Advanced Neutron considerations • Summary/Q&A Agenda
  • 4.
  • 5.

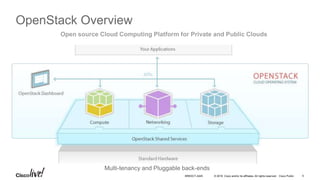

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public 5 OpenStack Overview Open source Cloud Computing Platform for Private and Public Clouds BRKDCT-2445 Multi-tenancy and Pluggable back-ends
  • 6.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public 6 OpenStack Projects Compute (Nova) Dashboard (Horizon) Database (Trove) Network (Neutron) Image (Glance) Orchestration (Heat) Object Storage (Swift) Identity (KeyStone) Data Processing (Sahara) Block Storage (Cinder) Telemetry (Ceilometer) Deployment (Kolla) Bare Metal (Ironic) DNS (Designate) Application Catalog (Murano) Containers (Magnum) Key Management (Barbican) Policy (Congress) File System (Manila) Messaging (Zaqar) …. BRKDCT-2445
  • 7.

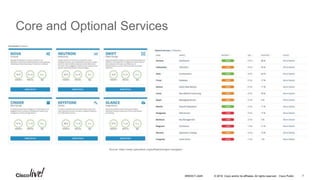

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public 7BRKDCT-2445 Core and Optional Services Source: https://www.openstack.org/software/project-navigator/
  • 8.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public OpenStack Progress 8 Austin – Oct 2010 Bexar – Feb 2011 Cactus– April 2011 Diablo – Sept 2011 Essex – April 2012 Folsom– Sept 2012 Grizzly– April 2013 Havana – Oct 2013 IceHouse– April 2014 Juno – Oct 2014 Kilo – May 2015 2010 2011 2012 2013 2014 Liberty – Oct 2015 Mitaka– April 2016 BRKDCT-2445 Newton – Oct 2016 2015 2016
  • 9.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Plan to attend the next Summit 10BRKDCT-2445 https://www.openstack.org/summit/barcelona-2016/
  • 10.
  • 11.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public 14 Cisco and OpenStack • Cisco Validated Designs • Work closely and jointly with customers to design and build OpenStack environment • OpenStack based Global Intercloud hosted across Cisco and partners data centers • Cisco Metapod (MetaCloud + Piston) • Neutron/Cinder/Ironic Plugins/Drivers for Cisco infrastructure – Nexus, APIC, CSR1K, ASR1K, UCS • Cisco Applications on OpenStack • Code contributions across several services – Network. Compute, Dashboard, Storage, Containers, Deployment Community Participation Engineering Partners/ Customers Cloud Services • Incubating new OpenStack related Projects – GBP, PlaceWise, VMTP BRKDCT-2445
  • 12.

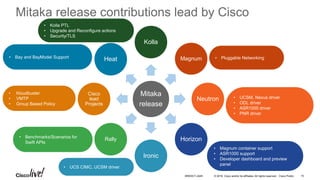

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public • Kloudbuster • VMTP • Group Based Policy 15 Mitaka release contributions lead by Cisco Mitaka release Kolla Magnum Neutron Horizon Ironic Rally Cisco lead Projects Heat • UCSM, Nexus driver • ODL driver • ASR1000 driver • PNR driver • Bay and BayModel Support • UCS CIMC, UCSM driver • Benchmarks/Scenarios for Swift APIs • Magnum container support • ASR1000 support • Developer dashboard and preview panel • Kolla PTL • Upgrade and Reconfigure actions • Security/TLS • Pluggable Networking BRKDCT-2445
  • 13.
  • 14.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public OpenStack Network Architecture Tenant A Compute Node (s) Running Compute and Network agents Controller Node(s) Running Database, Message Queue Server, API Services, Scheduler.. Router Network Node(s) Running Network Service Agents API Network External Network Internet Data Network Management Network Network Purpose IP Address Management Network Used for internal communication between OpenStack Components Reachable only within the data center External Network Used to provide VMs with Internet access Reachable by anyone from the Internet API Network Exposes all OpenStack APIs, including the OpenStack Networking API, to tenants Reachable to Tenants Data Network Used for VM data communication within the cloud deployment. Reachable within the Tenant address space 19BRKDCT-2445
  • 15.

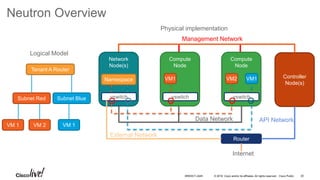

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Neutron Overview Tenant A Router Subnet Red Subnet Blue VM 1 Tenant A VM 2 VM 1 Logical Model Physical implementation Compute Node Compute Node VM1 Controller Node(s) Router Network Node(s) External Network VM2 VM1 Internet vswitch vswitchvswitch Data Network Namespace Management Network API Network 20BRKDCT-2445
  • 16.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public OpenStack Neutron Architecture Neutron Server REST API Neutron Core plugins Neutron Service plugins • Core + Extension REST API’s • Message Queue for communicating with Neutron Agents • Core and Service Plugins • Different vendor core plugins • Different network technology support • ML2 plugin with Type and Mechanism Drivers • Service plugins with backend drivers Core API Network Port Subnet Resource and Attribute Extension API ProviderNetwork PortBinding Router Quotas SecurityGroups AgentScheduler LBaaS FWaaS VPNaaS …. Type Drivers Mechanism Drivers VLAN GRE VXLAN CiscoNexus OVS OpenDayLight APIC Morevendor drivers ML2 Othervendor plugins DHCP Agent L3 Agent Message Queue IPTables on Network Node L2 Agent vSwitch dnsmasq BRKDCT-2445 21 LoadBalancer Firewall VPN HAProxy IPTables StrongSwan L3ServicesNamespace QoS BGP LB/OVS/ SR-IOV Ryu
  • 17.
  • 18.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Layer 2 network tenant topologies Compute Node Compute Node VM3 VM4 VM2 vswitch SR-IOV Data Network VM1 Fabric Leaf, Top of Rack Compute Node Compute Node VM3 VM4 VM2 vswitch vswitch Data Network VM1 Fabric Leaf, Top of Rack Host and Network based VLAN Host based overlays Compute Node Compute Node VM3 VM4 VM2 vswitch vswitch Data Network VM1 Fabric Leaf , Top of Rack Network based overlays VLAN Overlay 24BRKDCT-2445
  • 19.

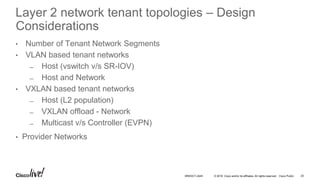

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public • Number of Tenant Network Segments • VLAN based tenant networks ̶ Host (vswitch v/s SR-IOV) ̶ Host and Network • VXLAN based tenant networks ̶ Host (L2 population) ̶ VXLAN offload - Network ̶ Multicast v/s Controller (EVPN) • Provider Networks 25BRKDCT-2445 Layer 2 network tenant topologies – Design Considerations
  • 20.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Compute Node vswitch Layer 3 tenant network topologies Linux Host Compute Node VM1 Network Node(s) VM2 vswitchvswitch Data Network Namespace Service VMs Fabric, Top of Rack VM1 Compute Node VM2 vswitch Data Network Service VMs Fabric, Top of Rack Compute Node VM1 Network Node(s) VM vswitch Data Network Fabric, Service Node Fabric or Service Node 26 vswitch BRKDCT-2445
  • 21.

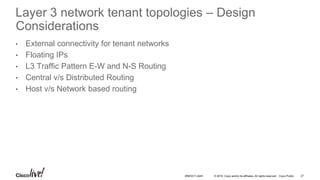

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Layer 3 network tenant topologies – Design Considerations • External connectivity for tenant networks • Floating IPs • L3 Traffic Pattern E-W and N-S Routing • Central v/s Distributed Routing • Host v/s Network based routing 27BRKDCT-2445
  • 22.
  • 23.

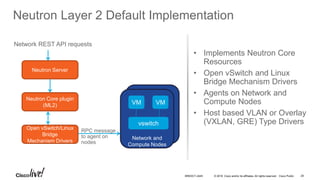

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Neutron Layer 2 Default Implementation Neutron Server Neutron Core plugin (ML2) Network REST API requests Open vSwitch/Linux Bridge Mechanism Drivers Compute Node Network and Compute Nodes VM VM vswitch RPC message to agent on nodes 29 • Implements Neutron Core Resources • Open vSwitch and Linux Bridge Mechanism Drivers • Agents on Network and Compute Nodes • Host based VLAN or Overlay (VXLAN, GRE) Type Drivers BRKDCT-2445
  • 24.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Nova HostNova HostNova Host 30BRKDCT-2445 Neutron Reference – East-West L2 (Switched) Traffic VM1 Controller Host(s) Router Neutron Host(s) DHCP ports API NetworkExternal Network Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitchvswitch Data Network PKT Packet path animation for packet traveling from VM1  VM3.
  • 25.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public VM on a Compute Nodes Neutron Cisco Nexus Driver Neutron Server Neutron Core plugin (ML2) Cisco Nexus Driver Ncclient Nexus Nova Compute Nodes create/update port request sent to Neutron Features • Works with multiple Nexus platforms • VLAN configuration • VXLAN configuration ̶ Nexus_VXLAN Type Driver ̶ Multicast ̶ VLAN to VNI association Benefits • No Trunk all tenant VLANs on compute node interfaces on ToR • Dynamic provisioning/deprovisioning on ToR • Network based overlays Nexus ToR VM VM netconf BRKDCT-2445 31
  • 26.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public VMs on Compute Node Neutron Cisco UCSM Driver (KVM) Neutron Server Neutron Core plugin (ML2) Cisco UCSM driver UCSM SDK Compute Nodes Nova create/update port Features: • Supports VLAN configuration of SR-IOV ports (using port profiles) and vNIC ports (using Service Profiles) • Nova and Neutron enhancements to support SR- IOV • Enables configuration of VLAN profiles and automatic association with network ports • Support for multiple UCSM domains and discovery of blades (hosts) to Service Profile mapping Benefits • SR-IOV and non SR-IOV based UCS Fabric Interconnect configurations • High network performance bypassing hypervisor switch VM VM BRKDCT-2445 32 UCS Fabric Interconnect
  • 27.
  • 28.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Demo Topology – Neutron ML2 UCSM Driver VIRTIO Subnet SRIOV Subnet VM 1 Tenant A VM 2 VM 3 Logical Model Physical implementation Compute Node Compute Node VM1 Controller + Network Node VM2 VM4 vswitch/VM-FEX vswitch/VM-FEXvswitch Data Network Management Network 34 DHCP NS DHCP NS Node1 Node2 Node3 Fabric Interconnect VM 4 VM3 BRKDCT-2445 Fabric Interconnect
  • 29.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Neutron Routing Implementation Neutron Server Neutron Service plugin (L3) Routing REST API requests L3 agent on Network Node L3 agent on Network Nodes Default Gateway, Namespace and IPTables Namespace maps to a Neutron logical router. IPTables handle address translations Agent Scheduler Picks a L3 agent on a Network Node Compute Node Compute Nodes L3 traffic goes through Network node VM VM Neutron router HA capabilities using VRRP 39BRKDCT-2445
  • 30.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Nova HostNova HostNova Host 40BRKDCT-2445 Neutron Reference – East-West L3 (Routed) Traffic VM1 Controller Host(s) Router Neutron Host(s) API NetworkExternal Network Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitchvswitch Data Network PKT Routing Packet path animation for packet traveling from VM1  VM4 Virtual Router
  • 31.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Nova HostNova HostNova Host 41BRKDCT-2445 Neutron Reference – North-South L3 Traffic (NAT) VM1 Controller Host(s) Router Neutron Host(s) API NetworkExternal Network Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitchvswitch Data Network PKT NAT Packet path animation for packet traveling from VM1  Internet Virtual Router
  • 32.

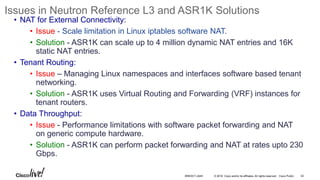

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Issues in Neutron Reference L3 and ASR1K Solutions • NAT for External Connectivity: • Issue - Scale limitation in Linux iptables software NAT. • Solution - ASR1K can scale up to 4 million dynamic NAT entries and 16K static NAT entries. • Tenant Routing: • Issue – Managing Linux namespaces and interfaces software based tenant networking. • Solution - ASR1K uses Virtual Routing and Forwarding (VRF) instances for tenant routers. • Data Throughput: • Issue - Performance limitations with software packet forwarding and NAT on generic compute hardware. • Solution - ASR1K can perform packet forwarding and NAT at rates upto 230 Gbps. 42BRKDCT-2445
  • 33.

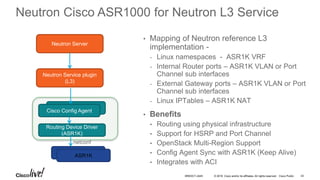

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public 43 Neutron Cisco ASR1000 for Neutron L3 Service • Mapping of Neutron reference L3 implementation - - Linux namespaces - ASR1K VRF - Internal Router ports – ASR1K VLAN or Port Channel sub interfaces - External Gateway ports – ASR1K VLAN or Port Channel sub interfaces - Linux IPTables – ASR1K NAT • Benefits • Routing using physical infrastructure • Support for HSRP and Port Channel • OpenStack Multi-Region Support • Config Agent Sync with ASR1K (Keep Alive) • Integrates with ACI Neutron Server Neutron Service plugin (L3) Routing Device Driver (ASR1K) Config Agent Cisco Config Agent Nexus ASR1K netconf BRKDCT-2445
  • 34.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public 44 OpenStack Neutron + Nexus + ASR : Physical Topology Example Layer-3 Network ASR 1000 Routers OpenStack Controller Neutron Server with Cisco Config AgentNova Compute Nodes Nexus Layer-2 Tenant VLANs Management Network (NETCONF provisioning) BRKDCT-2445
  • 35.

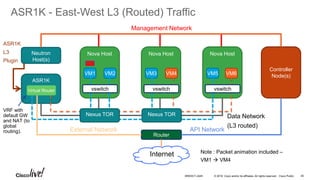

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public ASR1K Neutron Host(s) Nova HostNova HostNova Host 45BRKDCT-2445 ASR1K - East-West L3 (Routed) Traffic VM1 Controller Node(s) Router API NetworkExternal Network Data Network (L3 routed) Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitch Nexus TOR Nexus TOR ASR1K L3 Plugin VRF with default GW and NAT (to global routing). PKT Note : Packet animation included – VM1  VM4 Virtual Router
  • 36.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public ASR1K Neutron Host(s) Nova HostNova HostNova Host 46BRKDCT-2445 ASR1K - North-South L3 Traffic (NAT) VM1 Controller Node(s) Router API NetworkExternal Network Data Network (L3 routed) Management Network VM6VM5VM2 VM3 VM4 Internet vswitch vswitch vswitch Nexus TOR Nexus TOR ASR1K L3 Plugin VRF with default GW and NAT (to global routing). PKT Note : Packet animation included – VM1  Internet Virtual Router
  • 37.
  • 38.

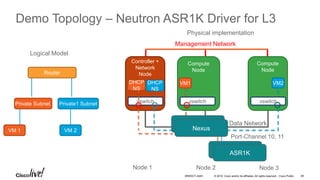

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public 48 Demo Topology – Neutron ASR1K Driver for L3 Private Subnet Private1 Subnet VM 1 Tenant A VM 2 Logical Model Physical implementation Compute Node Compute Node VM1 Controller + Network Node VM2 vswitch vswitchvswitch Data Network Management Network DHCP NS DHCP NS Node 1 Node 2 Node 3 Nexus Router BRKDCT-2445 ASR1KASR1K Nexus Port-Channel 10, 11
  • 39.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Virtual Topology System (VTS) driver XRv Compute Node Features • REST API based controller • Support for Virtual and Physical Overlays • Support for MP-BGP EVPN and multicast based flood and learn control plane • Leverages Cisco Vector Packet Processing (VPP) technology for VTF • Neutron L3 routing implementation on physical network using L3 VXLAN and Anycast Gateway REST Compute Node VM VTC VTF VTF BGP/EVPN VXLAN Tunnel Vhost socket netconf / yang BRKDCT-2445 54 ToR VM Neutron Core plugin (ML2) Cisco L2 VTS Driver Cisco L3 VTS Driver Neutron L3 Plugin VXLAN Tunnel Neutron Server Benefits • Network Fabric automation • Line rate packet forwarding with VPP • Integrates with NSO
  • 40.

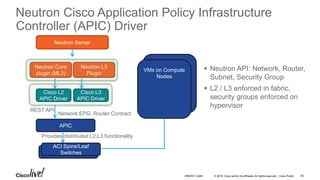

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public VMs on Compute Nodes Neutron Cisco Application Policy Infrastructure Controller (APIC) Driver Neutron Server Neutron Core plugin (ML2) Cisco L2 APIC Driver APIC VMs on Compute Nodes Cisco L3 APIC Driver ACI Spine/Leaf Switches REST API Network:EPG, Router:Contract Provides distributed L2,L3 functionality Neutron L3 Plugin  Neutron API: Network, Router, Subnet, Security Group  L2 / L3 enforced in fabric, security groups enforced on hypervisor 55BRKDCT-2445
  • 41.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Group Based Policy and Neutron VMs on Compute Nodes Group Based Policy (GBP) GBP Neutron Driver Neutron APIC VMs on Compute Nodes APIC GBP Driver ACI Spine/Leaf Switches REST API Policy Group, Ruleset Provides distributed L2,L3 functionality GBP Driver Neutron Plugins/Drive rs Network, Router Create Classifier/ Rule gbp policy-classifier-create web-traffic – protocol tcp –port-range 80 –direction in gbp policy-rule-create web-policy-rule – classifier web-traffic –actions allow Create Policy RuleSet gbp ruleset-create web-ruleset –policy- rules web-policy-rule Create Group gbp group-create web Group Association gbp group-update web –provided-rulesets web-ruleset Launch Web Server VM using Endpoint in EPG gbp member-create –group web web-1 vswitch 57BRKDCT-2445
  • 42.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public OpFlex Integration • Hypervisor local enforcement security policies • Security Groups (ML2 driver) via IP Tables • GBP via OpenFlow in Open vSwitch • Distributed NAT support on each compute node • Floating IP • sNAT (via hypervisor host IP) • Distributed Neutron services per compute node • L3 / Anycast gateway, metadata, DHCP • Multiple VRF support BRKDCT-2445 58 Hypervisor vm4 Project 1 Project 2 Project 3 vm5 vm3 vm5 vm6 OpFlex Agent OpFlex Proxy V(X)LAN OpenStack Group-Based Policy (optional) APIC ML2 APIC
  • 43.
  • 44.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Tenant 2Tenant 1 VMTP Data Plane Flows (logical) Automated data path validation and performance tests using VMTP tool. Client VM 2L3 fixed IP L2 same network Client VM 1 Client VM 3 L3 floating IP Server VM Virtual router Client VM 4upload 5 download (external host) VMTP – Data path validation and performance tool BRKDCT-2445 60
  • 45.

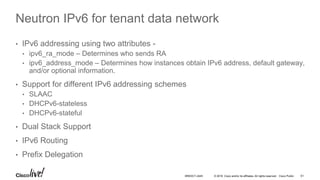

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Neutron IPv6 for tenant data network • IPv6 addressing using two attributes - • ipv6_ra_mode – Determines who sends RA • ipv6_address_mode – Determines how instances obtain IPv6 address, default gateway, and/or optional information. • Support for different IPv6 addressing schemes • SLAAC • DHCPv6-stateless • DHCPv6-stateful • Dual Stack Support • IPv6 Routing • Prefix Delegation 61BRKDCT-2445
  • 46.

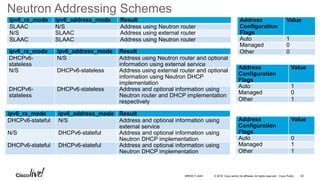

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Neutron Addressing Schemes ipv6_ra_mode ipv6_address_mode Result SLAAC N/S Address using Neutron router N/S SLAAC Address using external router SLAAC SLAAC Address using Neutron router ipv6_ra_mode ipv6_address_mode Result DHCPv6- stateless N/S Address using Neutron router and optional information using external service N/S DHCPv6-stateless Address using external router and optional information using Neutron DHCP implementation DHCPv6- stateless DHCPv6-stateless Address and optional information using Neutron router and DHCP implementation respectively ipv6_ra_mode ipv6_address_mode Result DHCPv6-stateful N/S Address and optional information using external service N/S DHCPv6-stateful Address and optional information using Neutron DHCP implementation DHCPv6-stateful DHCPv6-stateful Address and optional information using Neutron DHCP implementation Address Configuration Flags Value Auto 1 Managed 0 Other 0 Address Configuration Flags Value Auto 1 Managed 0 Other 1 Address Configuration Flags Value Auto 0 Managed 1 Other 1 62BRKDCT-2445
  • 47.

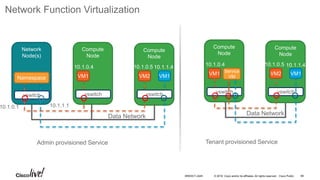

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Network Function Virtualization Tenant A Compute Node Compute Node VM1 Network Node(s) VM2 VM1 vswitch vswitchvswitch Data Network Namespace 10.1.0.4 10.1.0.5 10.1.0.1 10.1.1.1 10.1.1.4 Admin provisioned Service Compute Node Compute Node VM1 VM2 VM1 vswitch vswitch Data Network 10.1.0.4 10.1.0.5 Tenant provisioned Service Service VM 10.1.1.4 66BRKDCT-2445
  • 48.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Neutron and NFV • Issue • Anti-spoofing rules to ensure traffic originates and terminates as expected • Doesn’t work for NFV VNF use cases • Solution • Added Port Security Extension • Adds new “Port Security enabled” attribute to Network and Port Resources • Only tenant owner can set this attribute on the resources • Security Group and Allowed Address Pair are not allowed to be set • Issue • VXLAN for tenant isolation and VLAN for app traffic isolation within the tenant • No means to identify VLAN transparent networks • Solution • Added Network Resource Extension • Adds new “Vlan Transparent” attribute to Network Resource • Only tenant owner can set this attribute on the resources • No firewalling on VLAN tagged packets 67BRKDCT-2445
  • 49.
  • 50.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Summary • OpenStack rapidly becoming the de-facto standard for data center orchestration • Cisco’s broad-based OpenStack strategy spans products, partners and services • Cisco is leading contribution in projects such as Neutron and others in the OpenStack community • Wide range of Cisco solutions available for integration with OpenStack Networking • Still lots to do….. • More information can be found at • www.cisco.com/go/openstack • https://developer.cisco.com/openstack/ 69BRKDCT-2445
  • 51.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Call to Action • Breakout sessions: • OpenStack Deployment for Enterprise and Service Provider (BRKDCT-2367) • Agile OpenStack Networking with Cisco Solutions (BRKDCT-2445) • Mastering OpenStack and ACI (BRKACI-3456) • Media Data Center: Private Cloud for Media Workloads (BRKSPV-2510) • Cloud Network Automation with OpenStack Neutron (BRKCLD-2012) • Inside Cisco IT: Automating ITIL Configuration Management for OpenStack (BRKCOC-3001) • Visit the World of Solutions and Labs for: • Cisco Virtualized Packet Core Installation on OpenStack (LABSPM-2012) • OpenStack Installation and Deployment with Cisco ACI Using OpFlex (LTRACI-2225) • VTS Integration with OpenStack/VMware for Data Center Orchestration (LTRDCN-2001) • DevNet zone related sessions: • Open Source - Is it a Good Bet for Developing your Next Application? (DEVNET-1034) • OpenStack Enabling DevOps (DEVNET-1104) • Getting Started with OpenStack (DEVNET-1105) • Upcoming Services in OpenStack (DEVNET-1106) • DevNet Workshop - Getting Started with OpenStack (DEVNET-1211) • BEST REST in OpenStack - Hands-on Workshop (DEVNET-2004) • Multicast in an OpenStack Cloud (DEVNET-2055) • Deploying Your Apps in an OpenStack Cloud (DEVNET-2018) BRKDCT-2445 70
  • 52.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Complete Your Online Session Evaluation Don’t forget: Cisco Live sessions will be available for viewing on-demand after the event at CiscoLive.com/Online • Give us your feedback to be entered into a Daily Survey Drawing. A daily winner will receive a $750 Amazon gift card. • Complete your session surveys through the Cisco Live mobile app or from the Session Catalog on CiscoLive.com/us. 71BRKDCT-2445
  • 53.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Continue Your Education • Demos in the Cisco Campus • Walk-in Self-Paced Labs • Lunch & Learn • Meet the Engineer 1:1 meetings • Related sessions 72BRKDCT-2445
  • 54.
  • 55.

Editor's Notes

  • #10 User Experience – Consistent and better platform for end users Single OpenStack Client, Improved SDK Manageability – Finer grained controls and easier management for operators Simplified Nova and Keystone configuration, improved Neutron L3 with DVR Scalability – Performance and stability for larger deployments Heat horizontal scaling, Keystone Fernet tokens
  • #44 BGP integration ?
  • #61 Connectivity and performance tests
