1. Bridges

2. Why do we need bridges?
OGo over obstacles
O River
O Lake
O Road
O Canyon

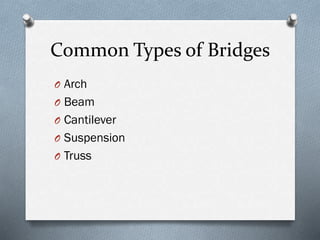

3. Common Types of Bridges
O Arch
O Beam
O Cantilever
O Suspension
O Truss

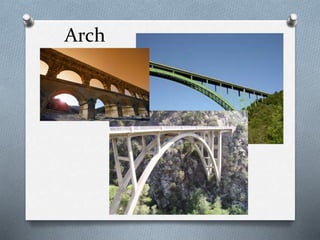

4. Arch

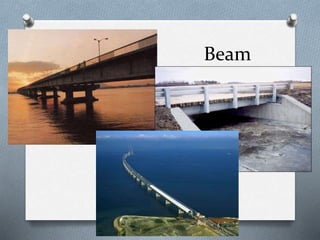

5. Beam

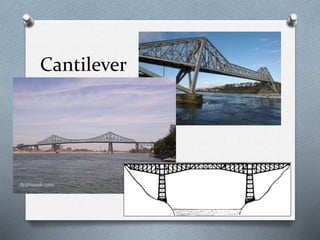

6. Cantilever

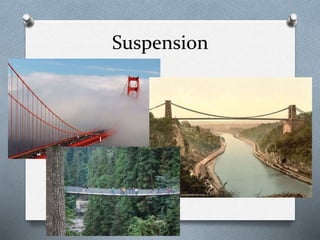

7. Suspension

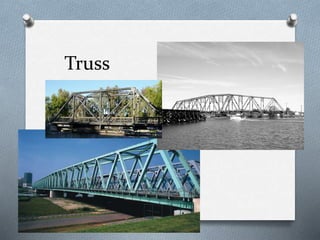

8. Truss

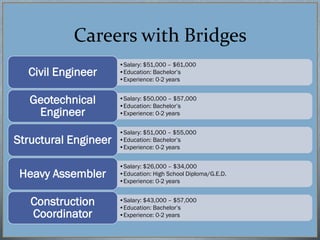

13. Careers with Bridges
•Salary: $51,000 – $61,000
•Education: Bachelor’s
•Experience: 0-2 years
Civil Engineer
•Salary: $50,000 – $57,000
•Education: Bachelor’s
•Experience: 0-2 years
Geotechnical
Engineer
•Salary: $51,000 – $55,000
•Education: Bachelor’s
•Experience: 0-2 years
Structural Engineer
•Salary: $26,000 – $34,000
•Education: High School Diploma/G.E.D.
•Experience: 0-2 years
Heavy Assembler
•Salary: $43,000 – $57,000
•Education: Bachelor’s
•Experience: 0-2 years
Construction
Coordinator

14. Civil Engineer
O Designs and supervises construction
projects such as airports, bridges, channels,
dams, railroads and roads
O Responsibilities also include estimating
costs and personnel and material needs,
preparing proposals and establishing
completion dates

15. Geotechnical Engineer
O Prepares and inspects projects involving
drilling and exploration
O Responsible for geological mapping, report
writing, site characterization, numerical
modeling and analysis of
excavations/supports

16. Structural Engineer
O Designs load-bearing structures or structural elements,
such as buildings, bridges or roadways
O Performs analysis of building materials for use in
construction
O Develops blueprints or specifications for use during
construction and ensures all projects comply with
applicable codes and regulations
O Determines cause of structural failures, damages and
defects through site investigations
O Provides reports detailing investigations and assessment of
damages to the structure

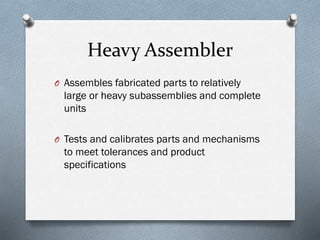

17. Heavy Assembler
O Assembles fabricated parts to relatively
large or heavy subassemblies and complete
units
O Tests and calibrates parts and mechanisms
to meet tolerances and product
specifications

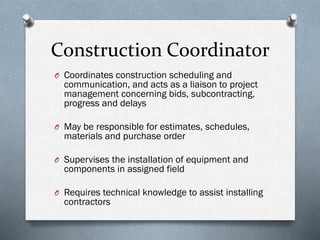

18. Construction Coordinator
O Coordinates construction scheduling and
communication, and acts as a liaison to project
management concerning bids, subcontracting,
progress and delays
O May be responsible for estimates, schedules,
materials and purchase order
O Supervises the installation of equipment and
components in assigned field
O Requires technical knowledge to assist installing
contractors

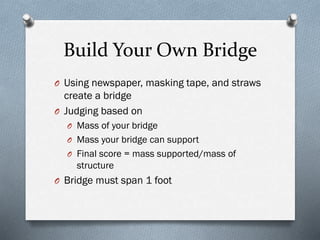

19. Build Your Own Bridge
O Using newspaper (1), masking tape (6 ft)
and straws (15), create a bridge
O Judging is based on
O Mass of your bridge
O Mass your bridge can support
O Final score = mass supported/mass of
structure
O Bridge must span 1 foot
