Breaking the monolith
Massimo Re Ferrè
Developer Advocate
Amazon Web Services

2. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Who Am I ?
Amazon Web Services (Developer Advocate)
VMware (Solutions Architect and Technical Product Manager)
IBM (Professional Services and Solutions Architect)
Developer (many kilos ago)
Email: mreferre@amazon.com
Twitter: @mreferre
Github: github.com/mreferre

3. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
How software value gets created (in the old model)
Monolithic
application
“Time to user”: months / years
Very heavy
manual
integrations

4. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

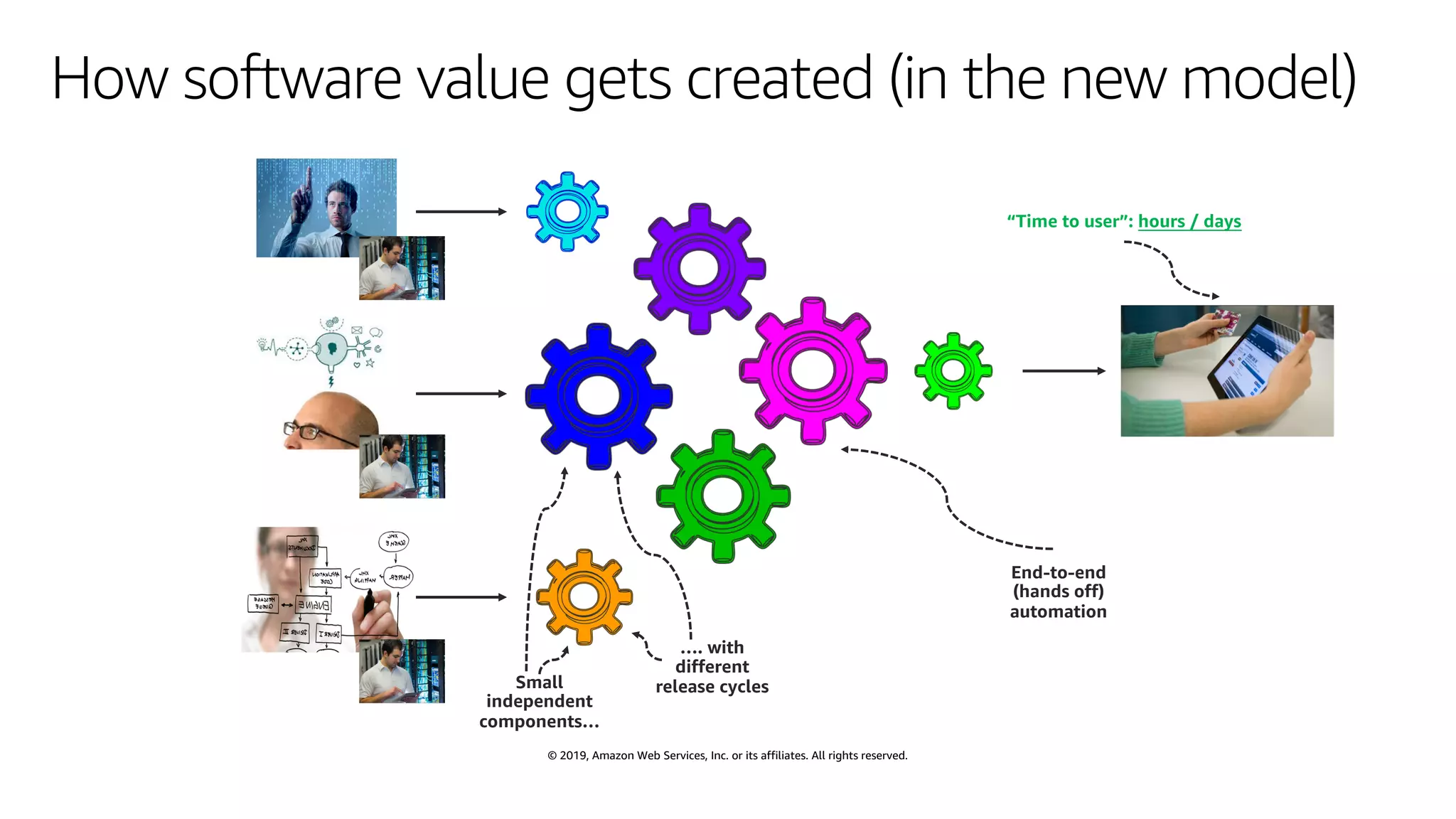

How software value gets created (in the new model)
“Time to user”: hours / days
Small
independent
components…
End-to-end
(hands off)
automation
…. with
different
release cycles

5. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

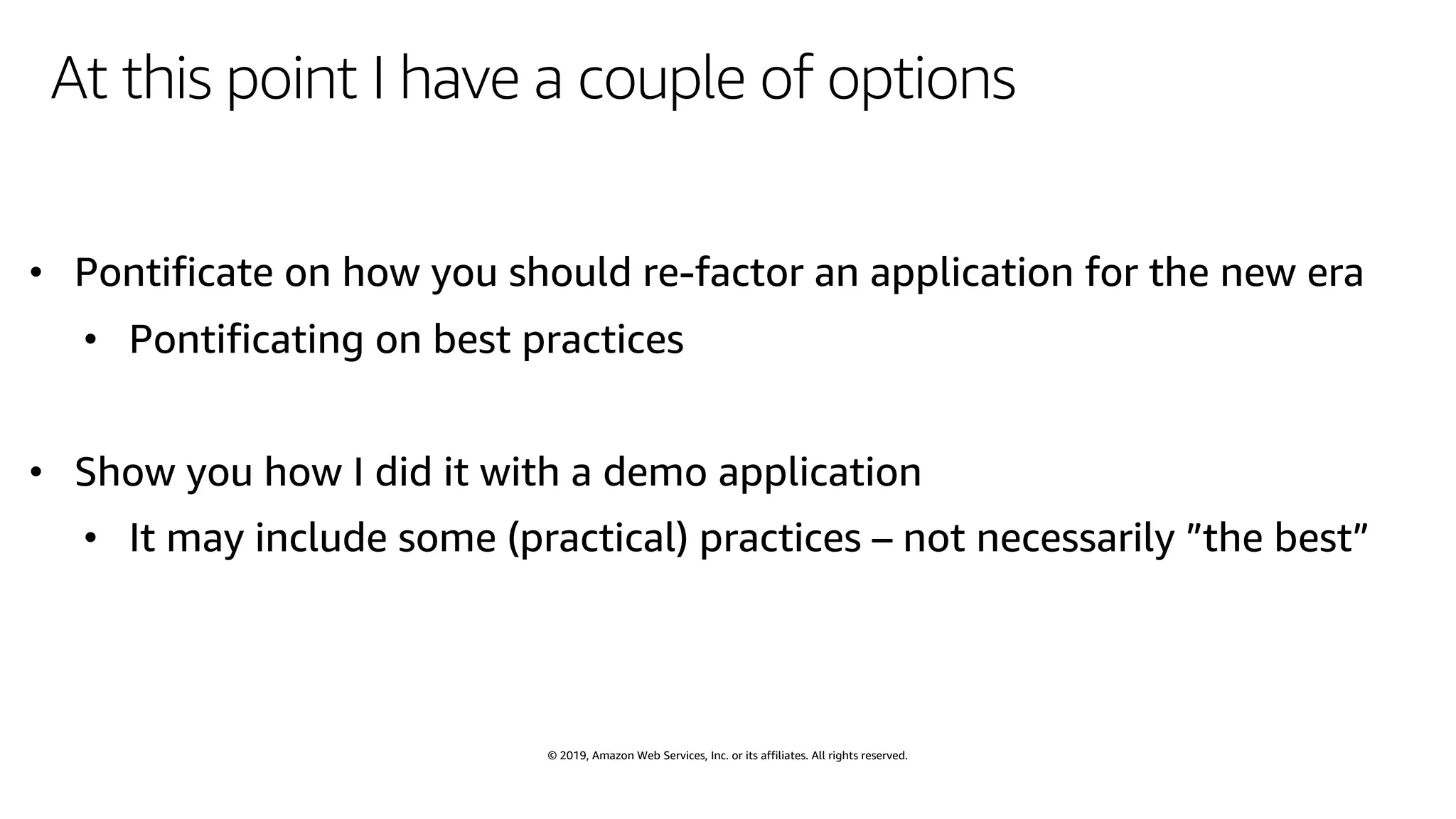

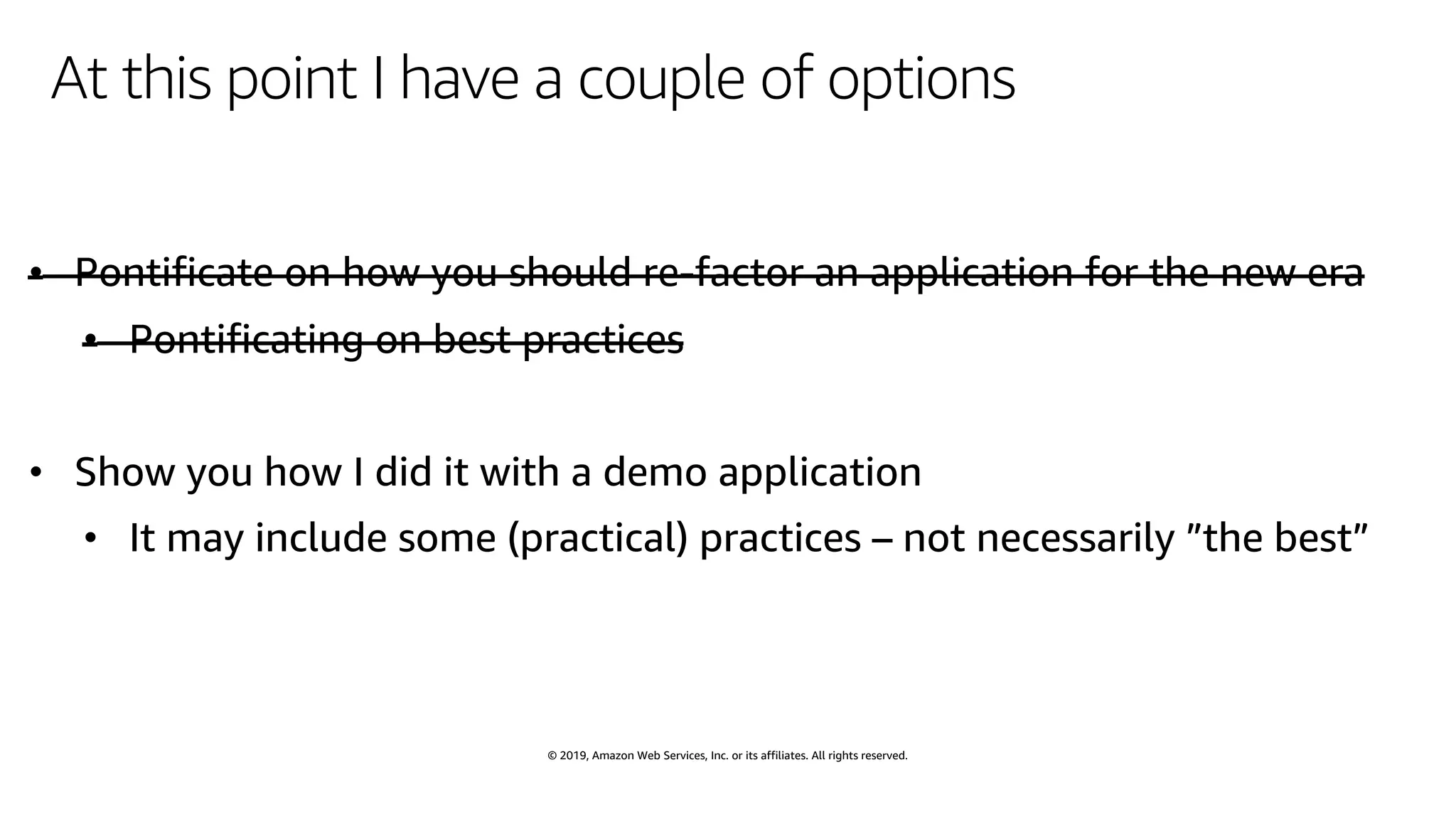

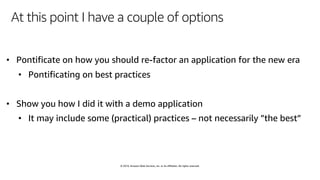

At this point I have a couple of options

6. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
At this point I have a couple of options

7. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Demo?

8. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

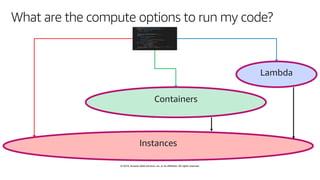

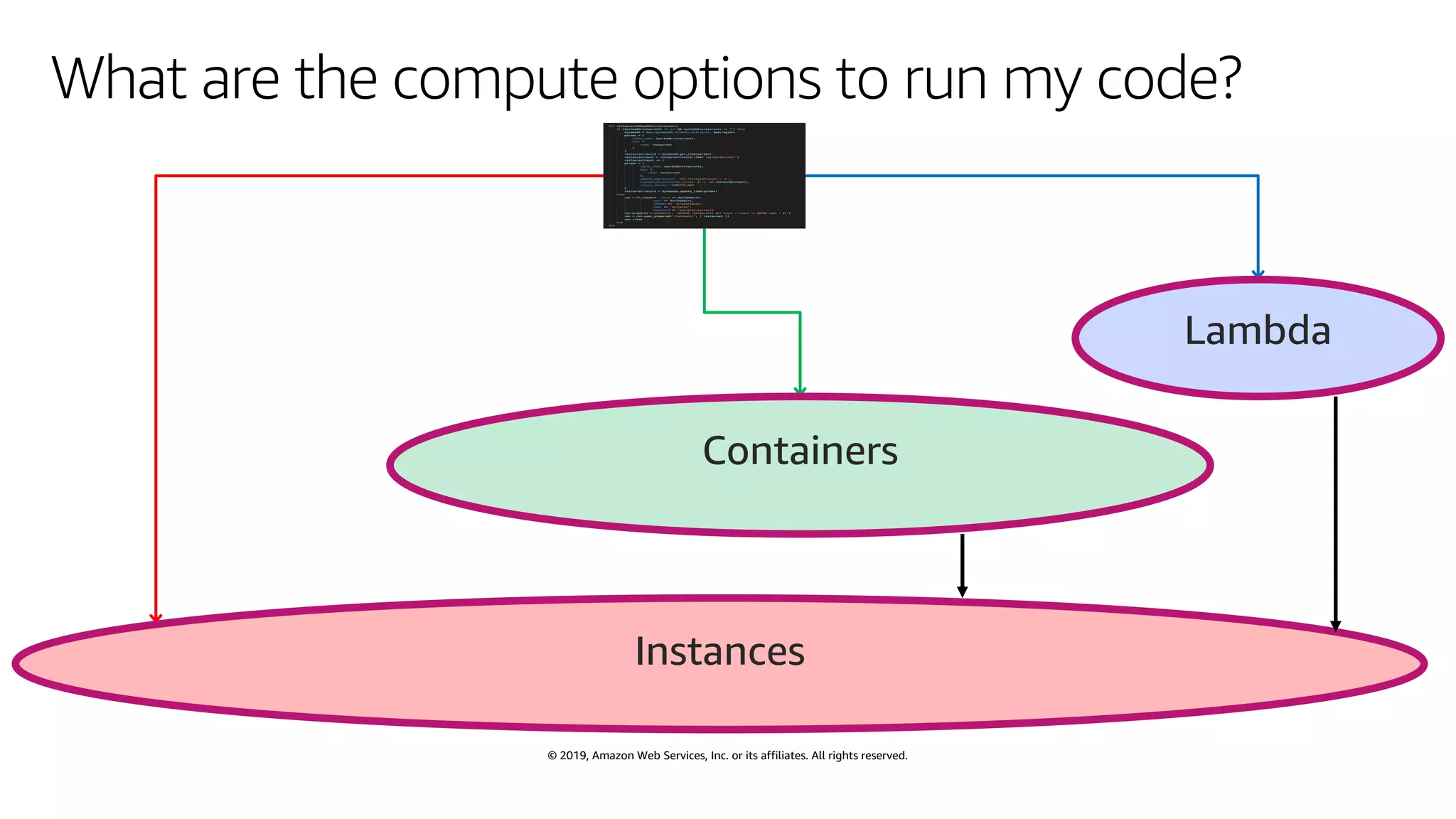

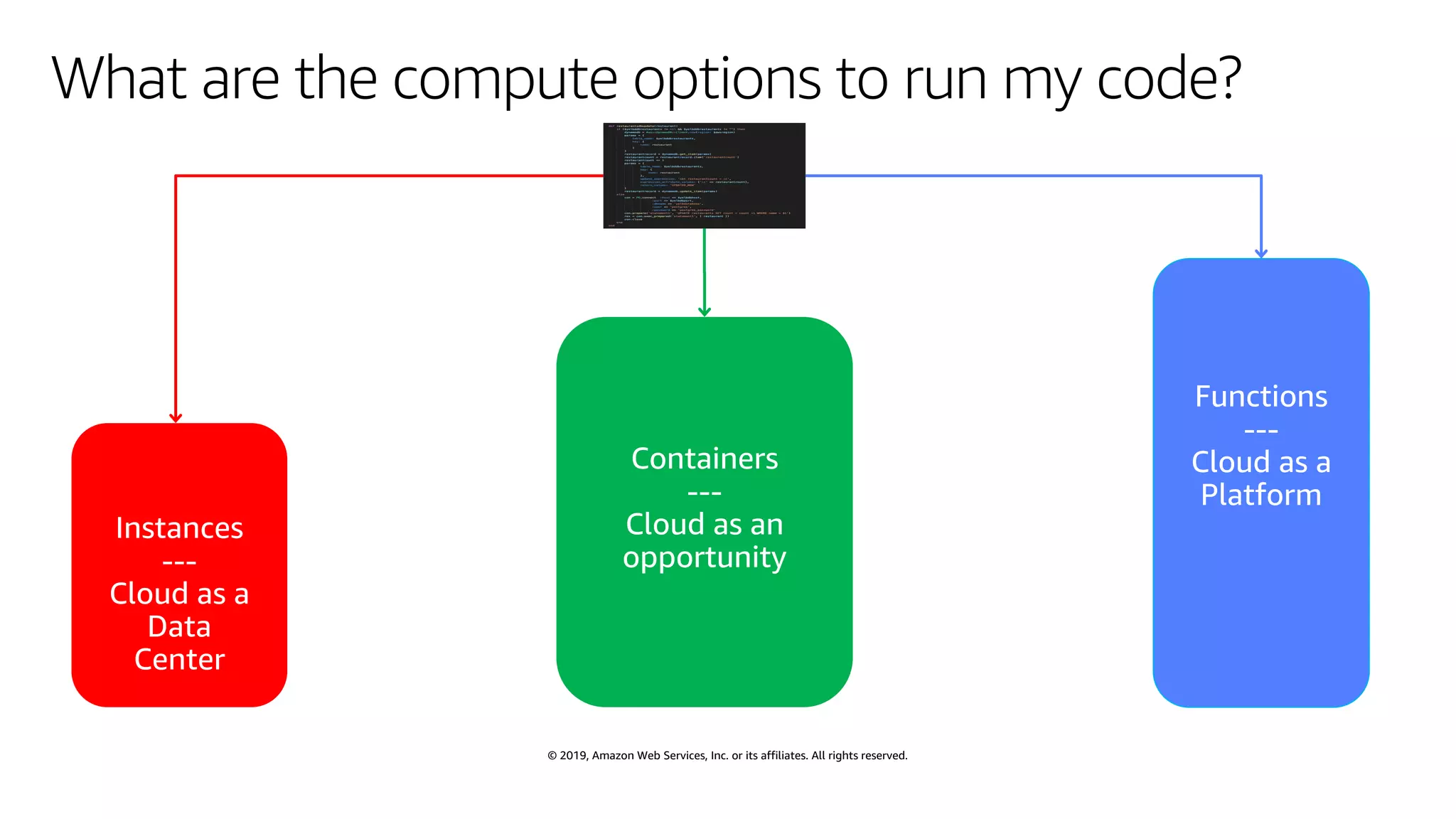

What are the compute options to run my code?

9. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
What are the compute options to run my code?
Instances
Containers
Lambda

10. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

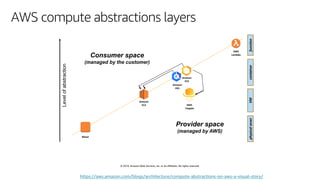

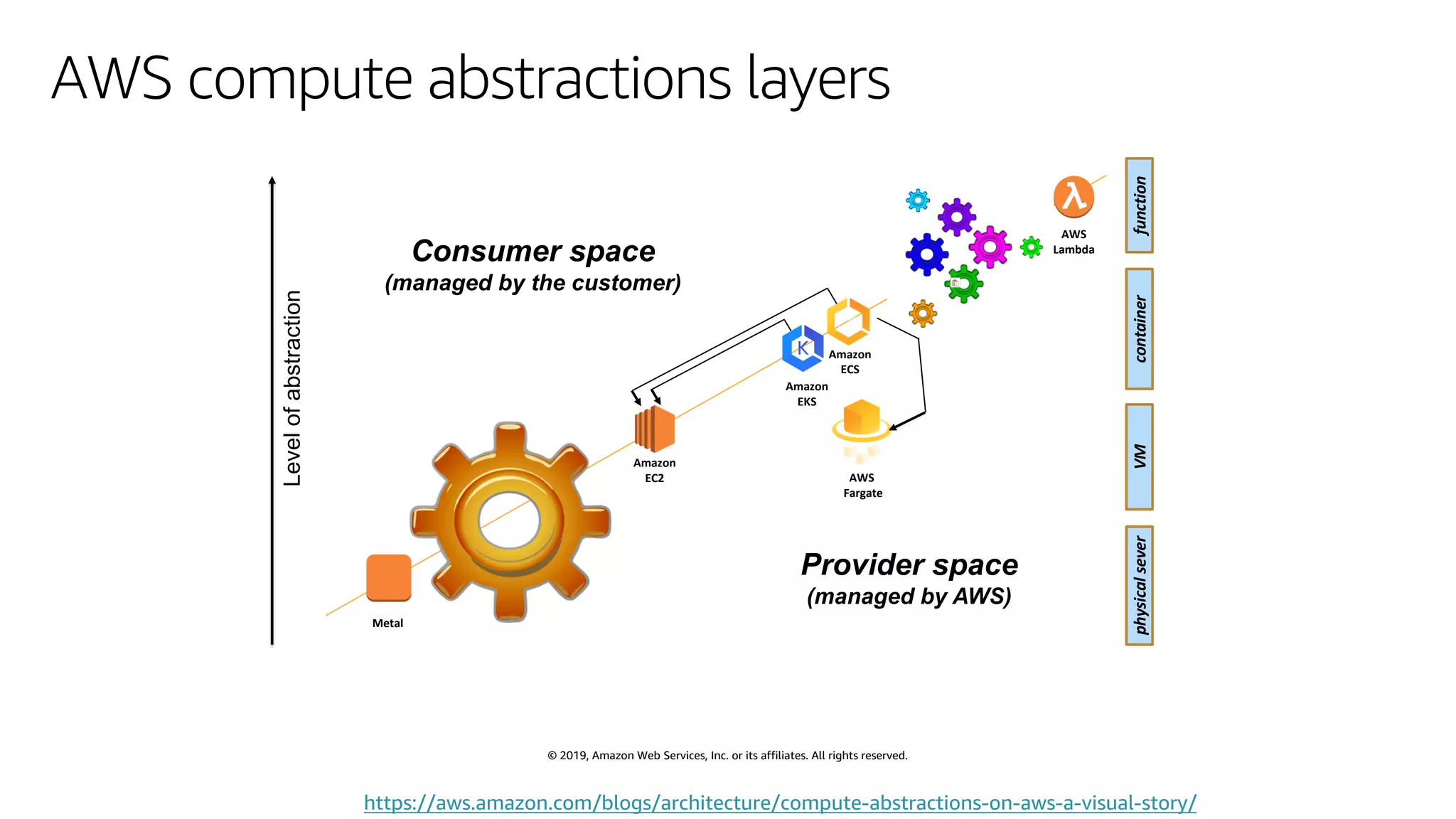

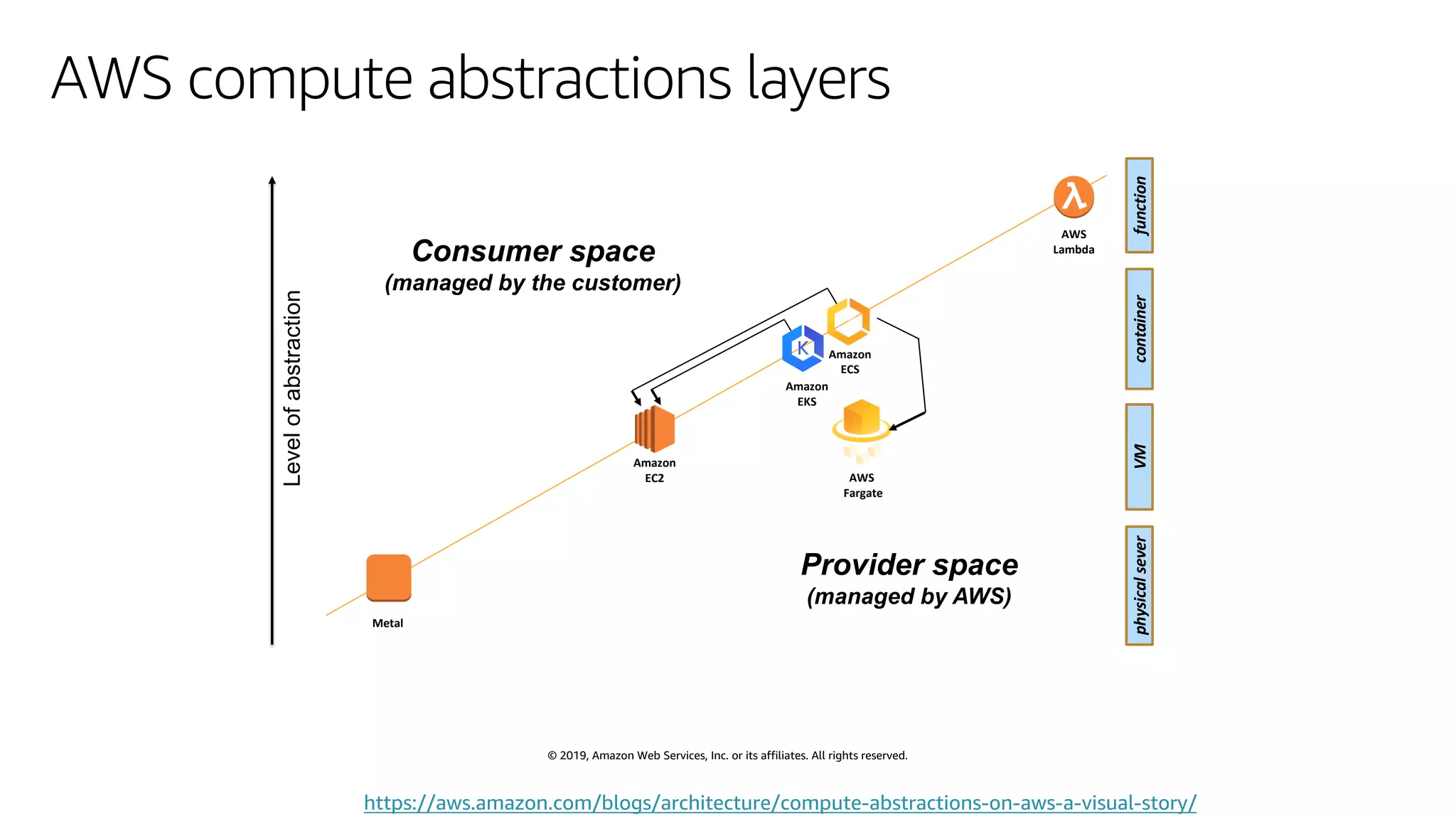

AWS compute abstractions layers
AWS
Lambda
Amazon
EC2
Metal
AWS
Fargate
Amazon
EKS
physicalseverVMcontainerfunction
Levelofabstraction
Provider space
(managed by AWS)
Consumer space
(managed by the customer)
Amazon
ECS
https://aws.amazon.com/blogs/architecture/compute-abstractions-on-aws-a-visual-story/

11. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
AWS compute abstractions layers
AWS
Lambda
Amazon
EC2
Metal
AWS
Fargate
Amazon
EKS
physicalseverVMcontainerfunction
Levelofabstraction
Provider space
(managed by AWS)
Consumer space
(managed by the customer)
Amazon
ECS
https://aws.amazon.com/blogs/architecture/compute-abstractions-on-aws-a-visual-story/

12. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

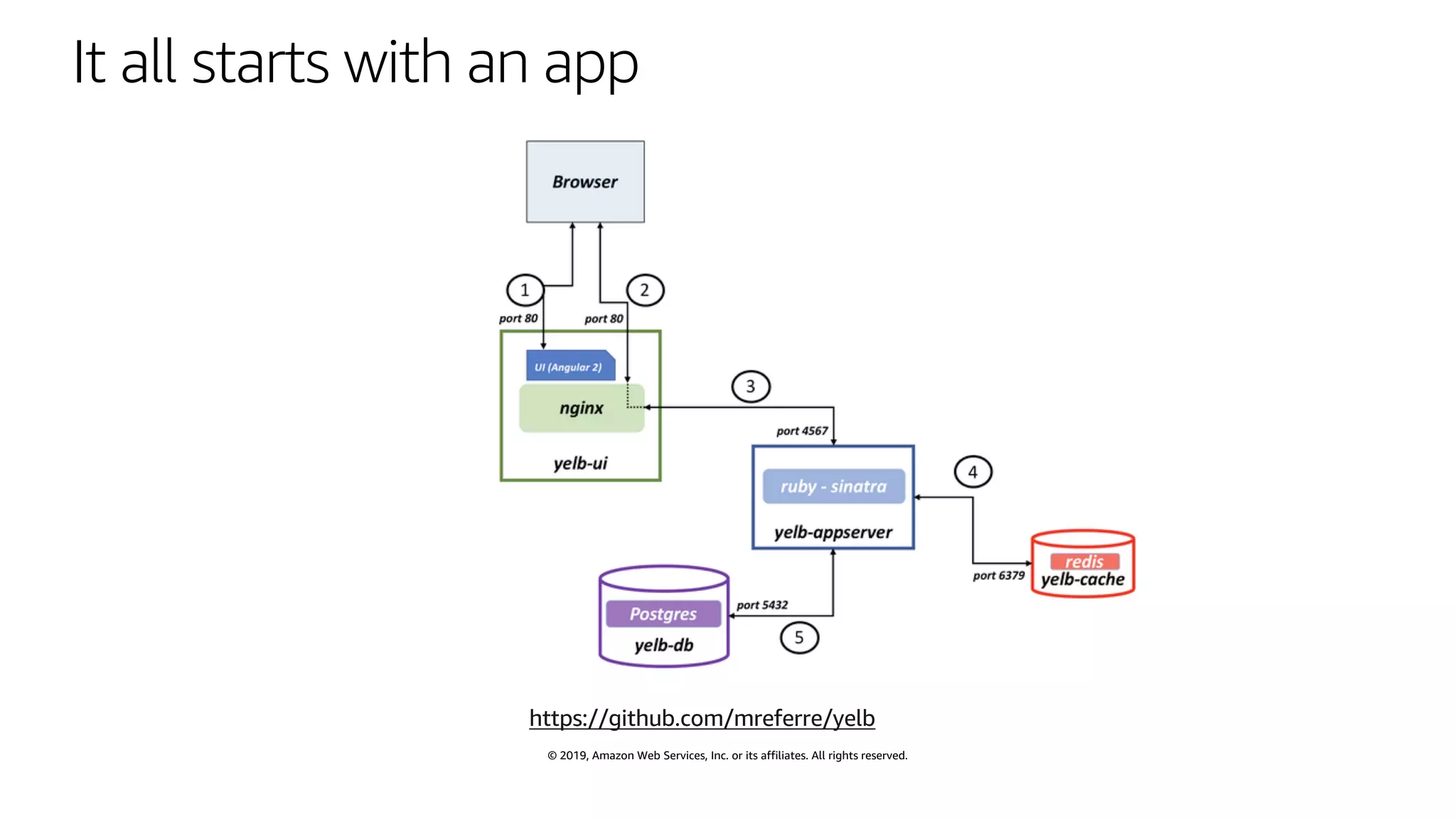

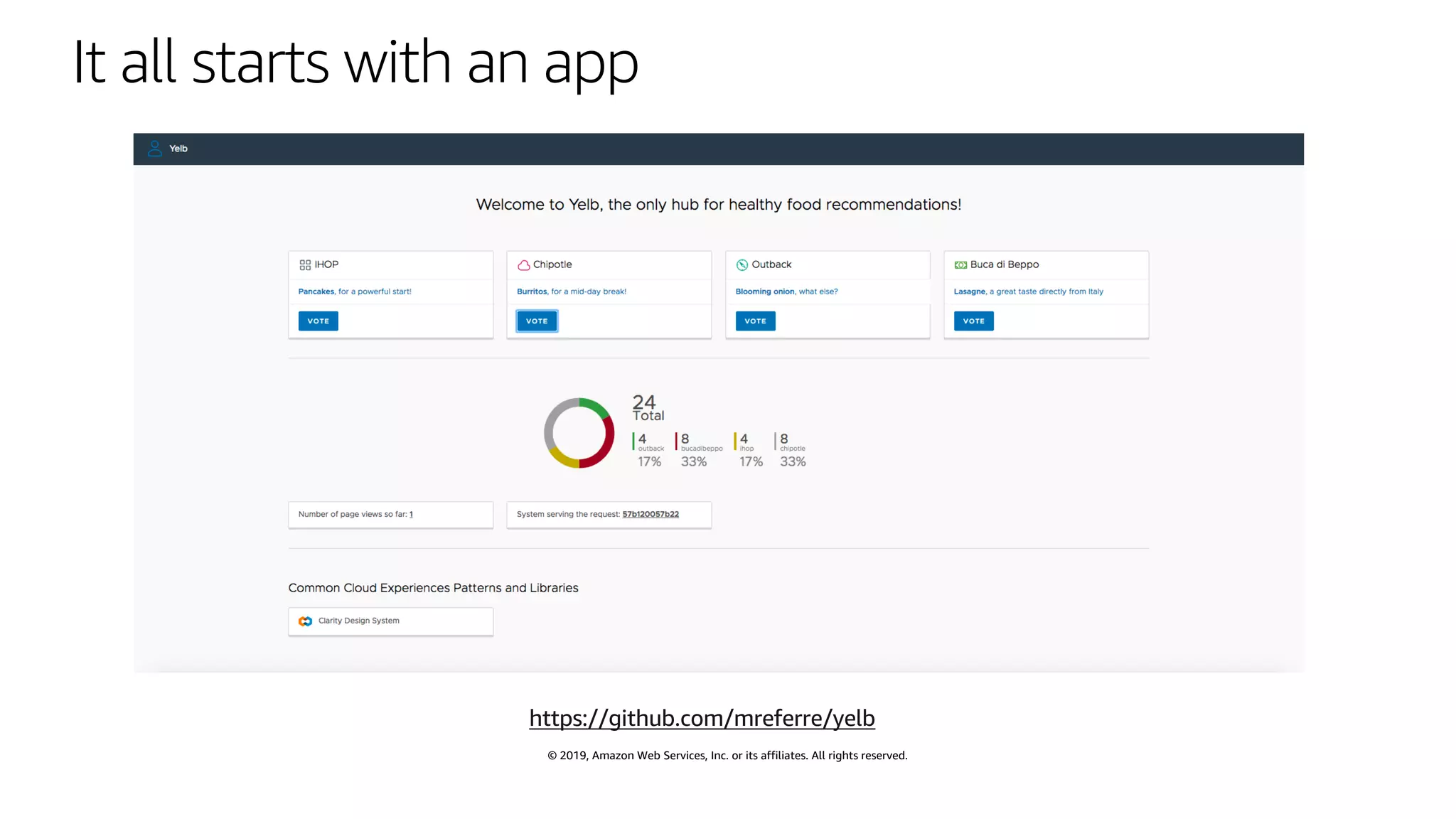

It all starts with an app
https://github.com/mreferre/yelb

13. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

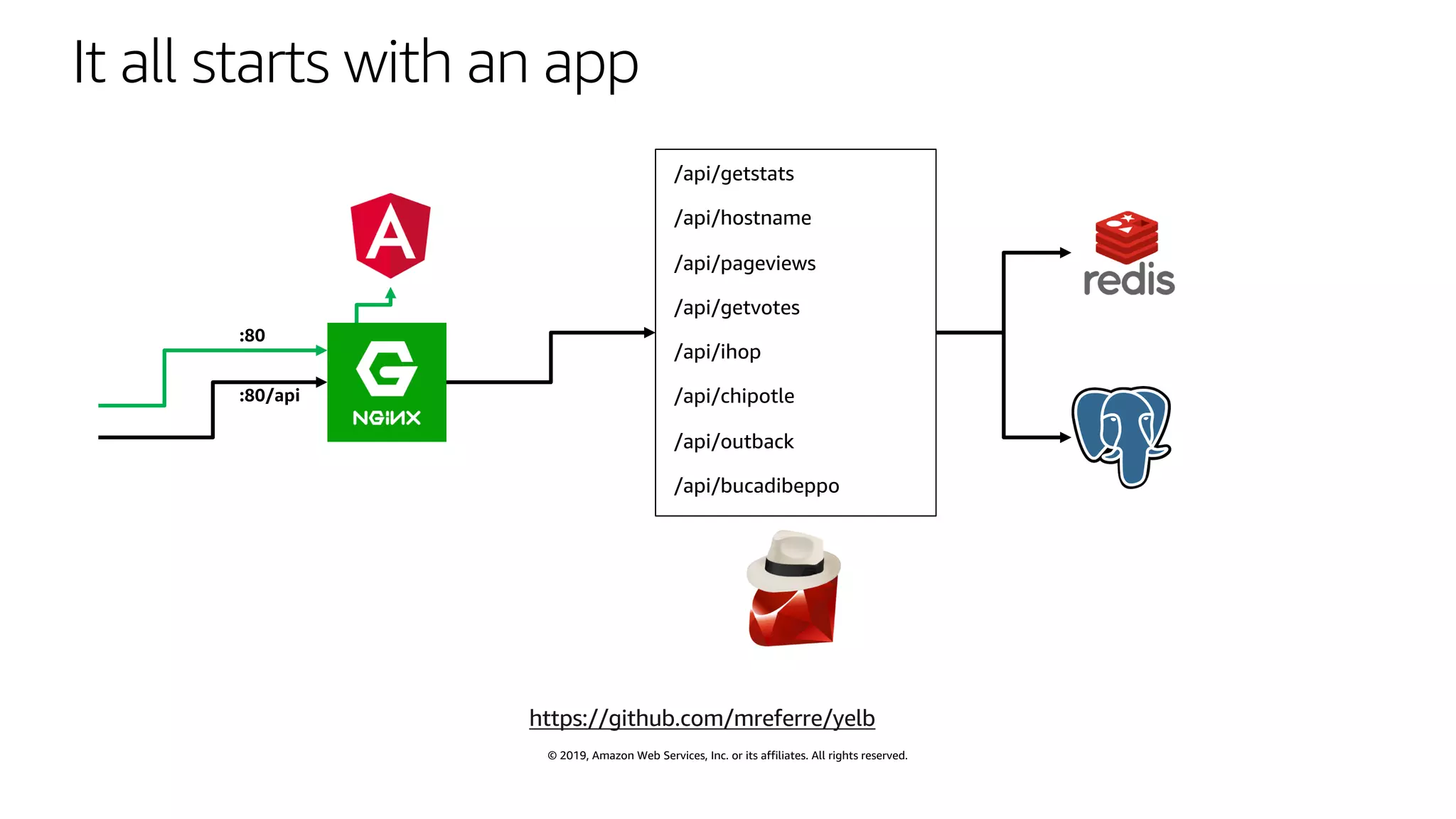

It all starts with an app
https://github.com/mreferre/yelb

14. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
It all starts with an app
https://github.com/mreferre/yelb

15. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

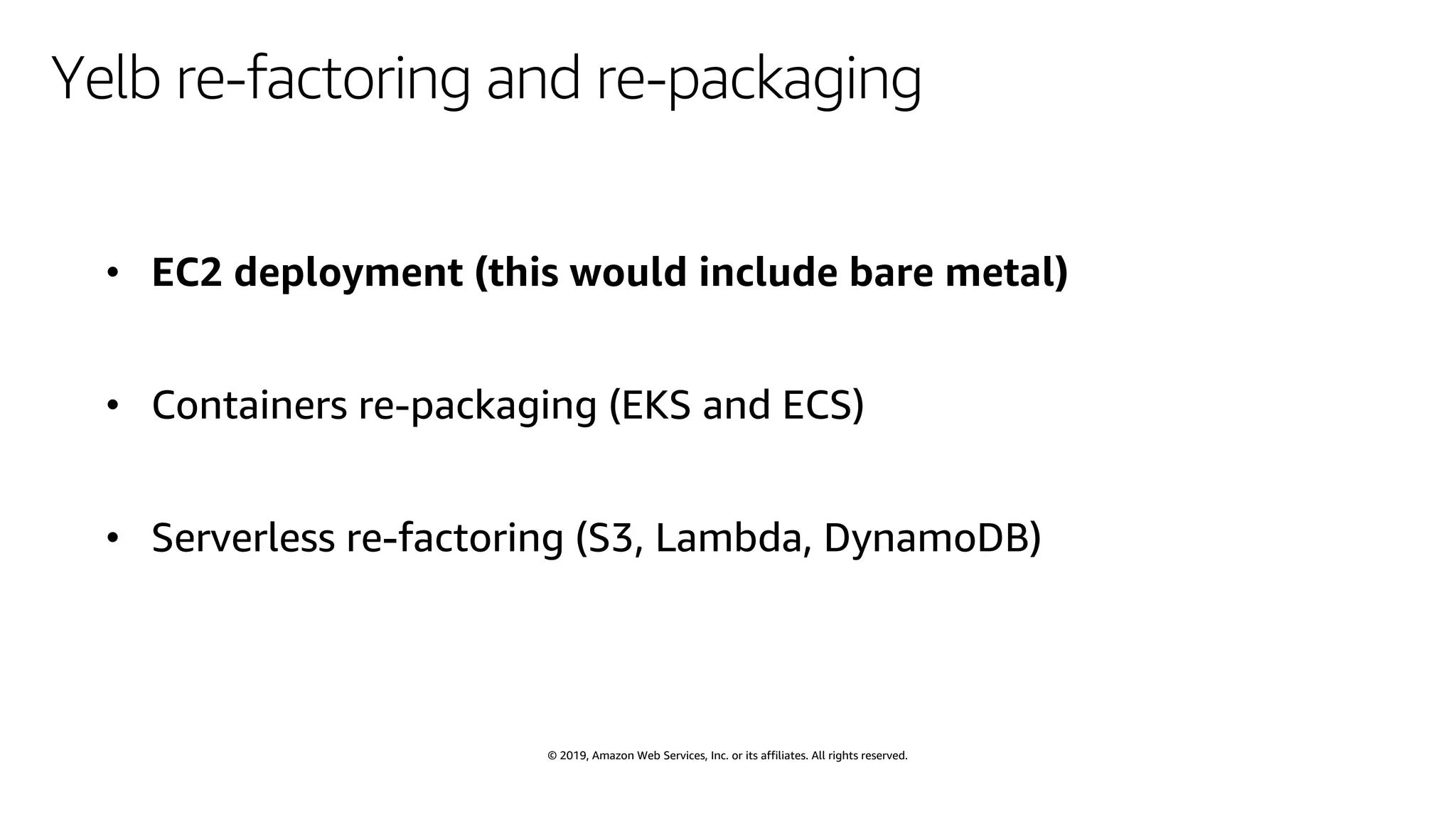

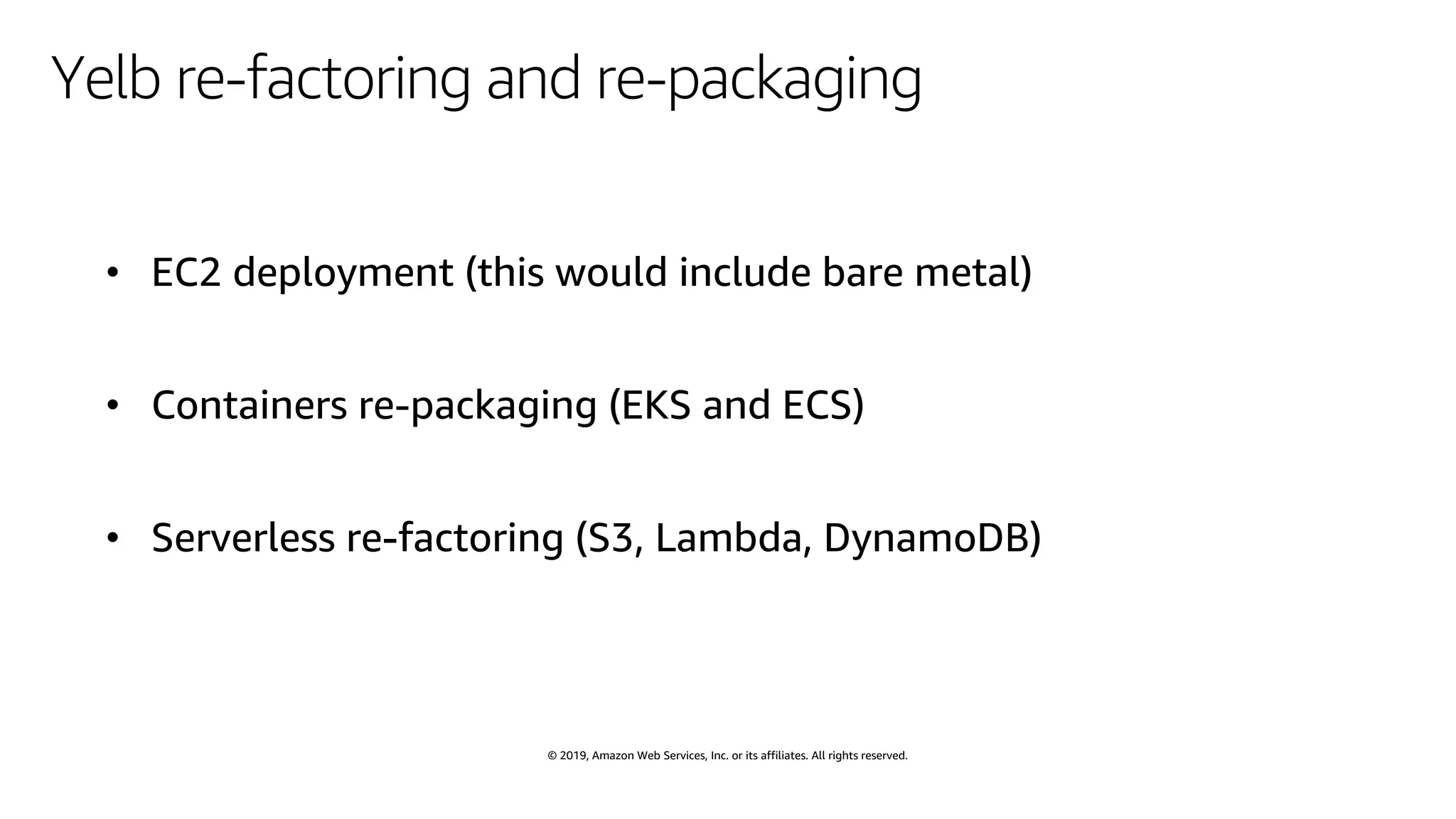

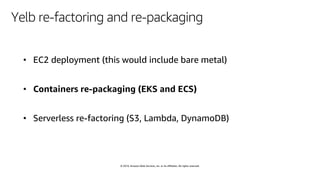

Yelb re-factoring and re-packaging

16. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

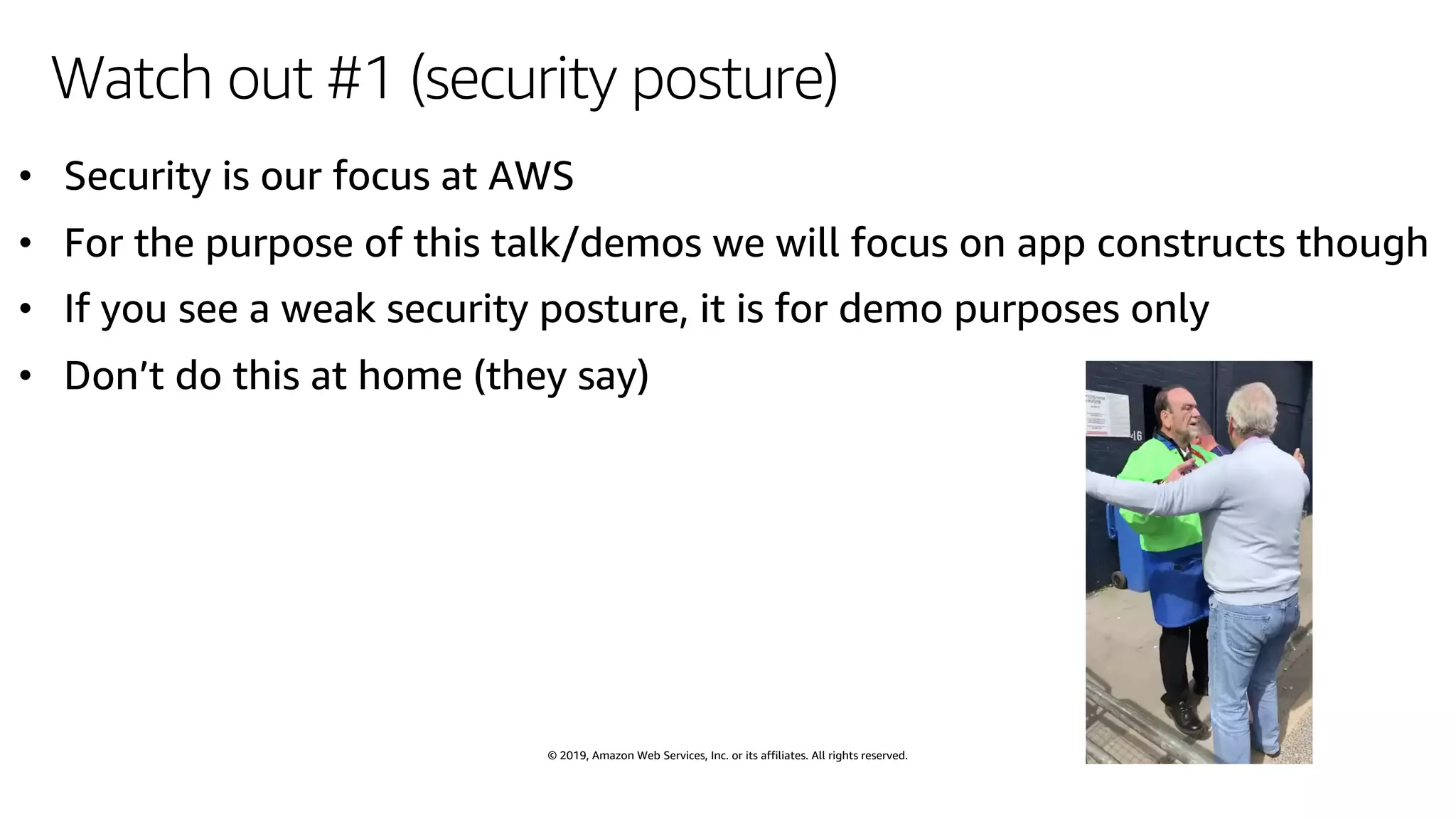

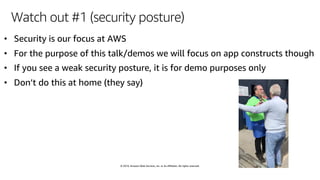

Watch out #1 (security posture)

17. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

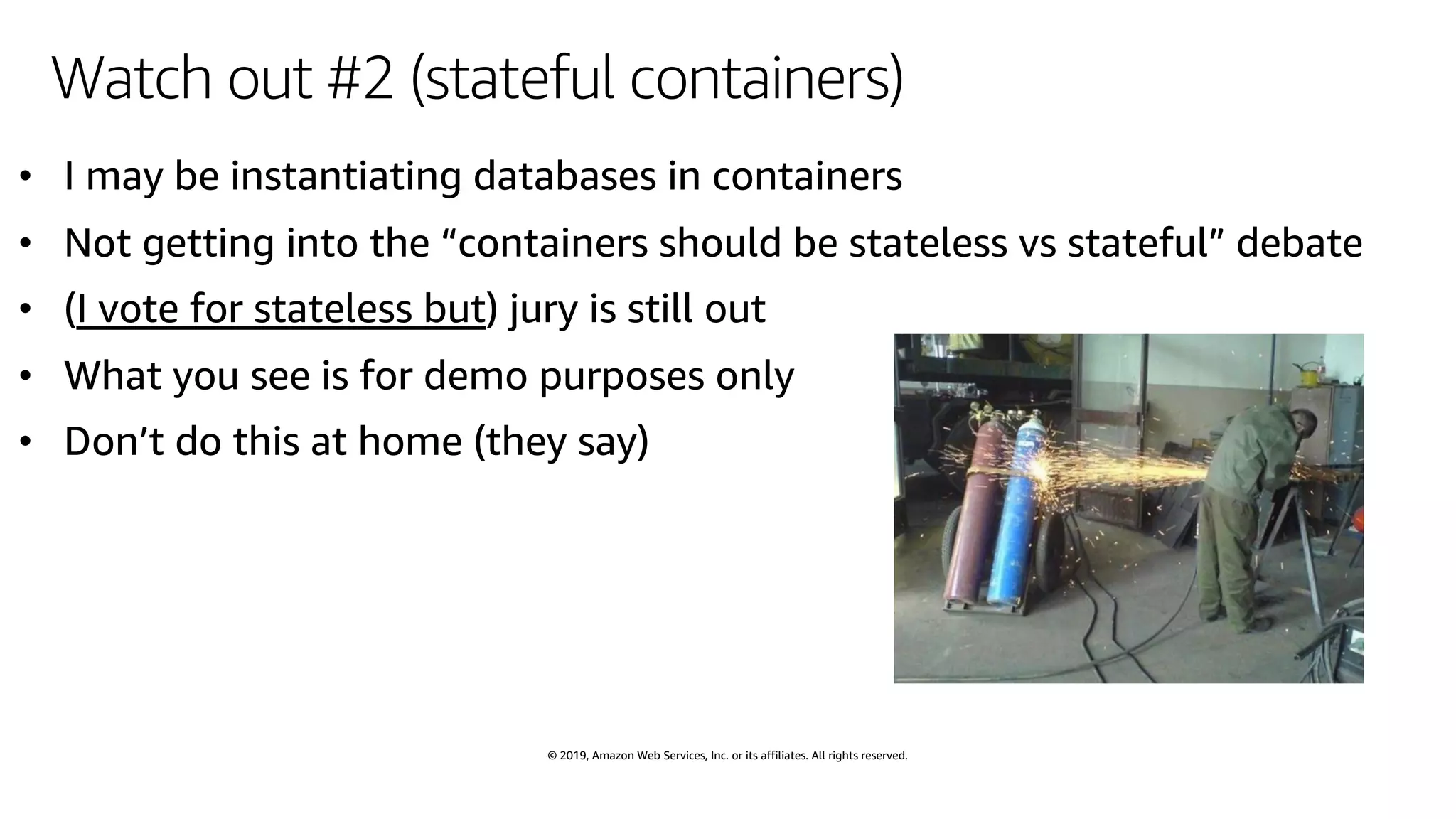

Watch out #2 (stateful containers)

18. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

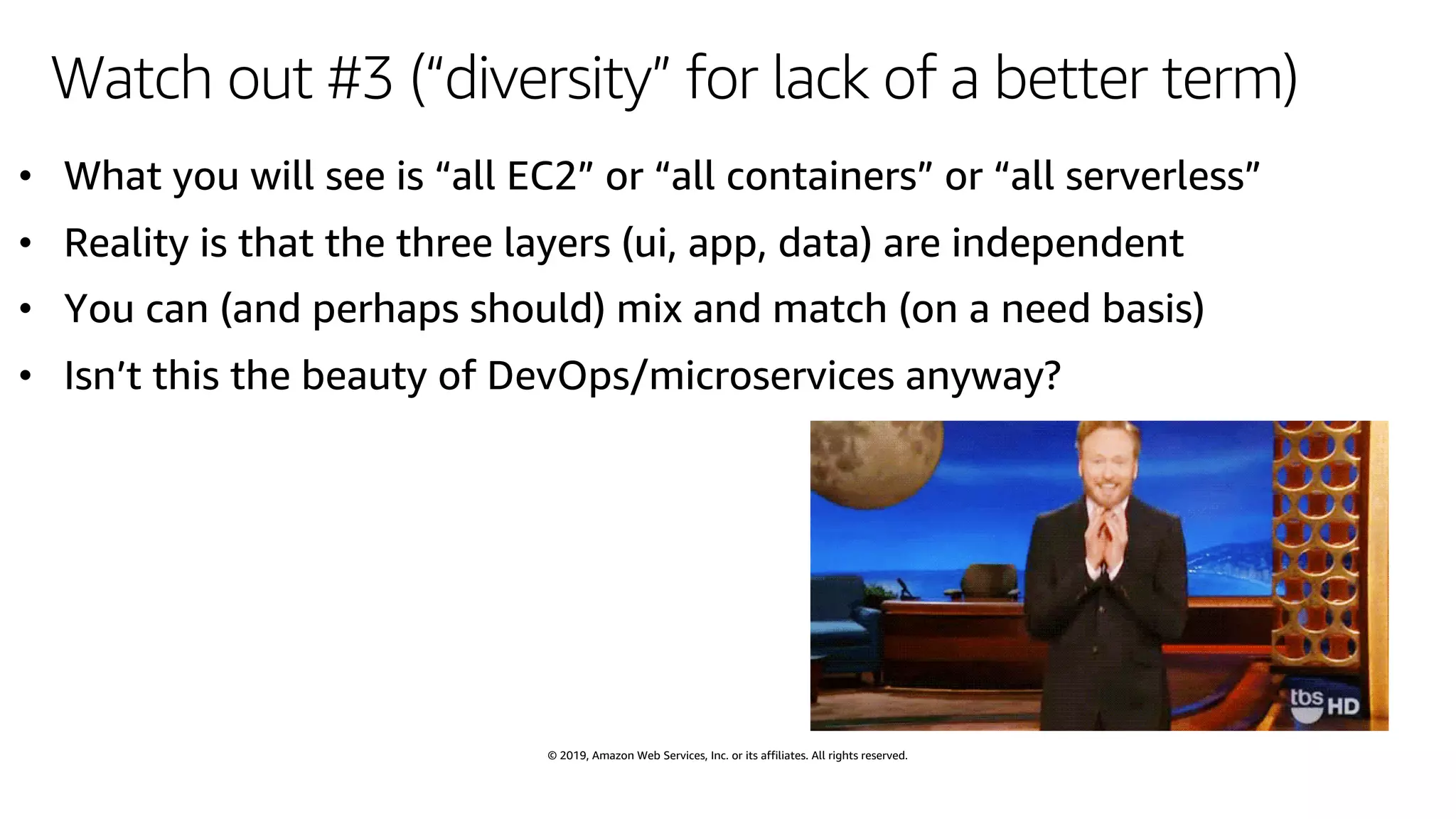

Watch out #3 (“diversity” for lack of a better term)

19. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Yelb re-factoring and re-packaging

20. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

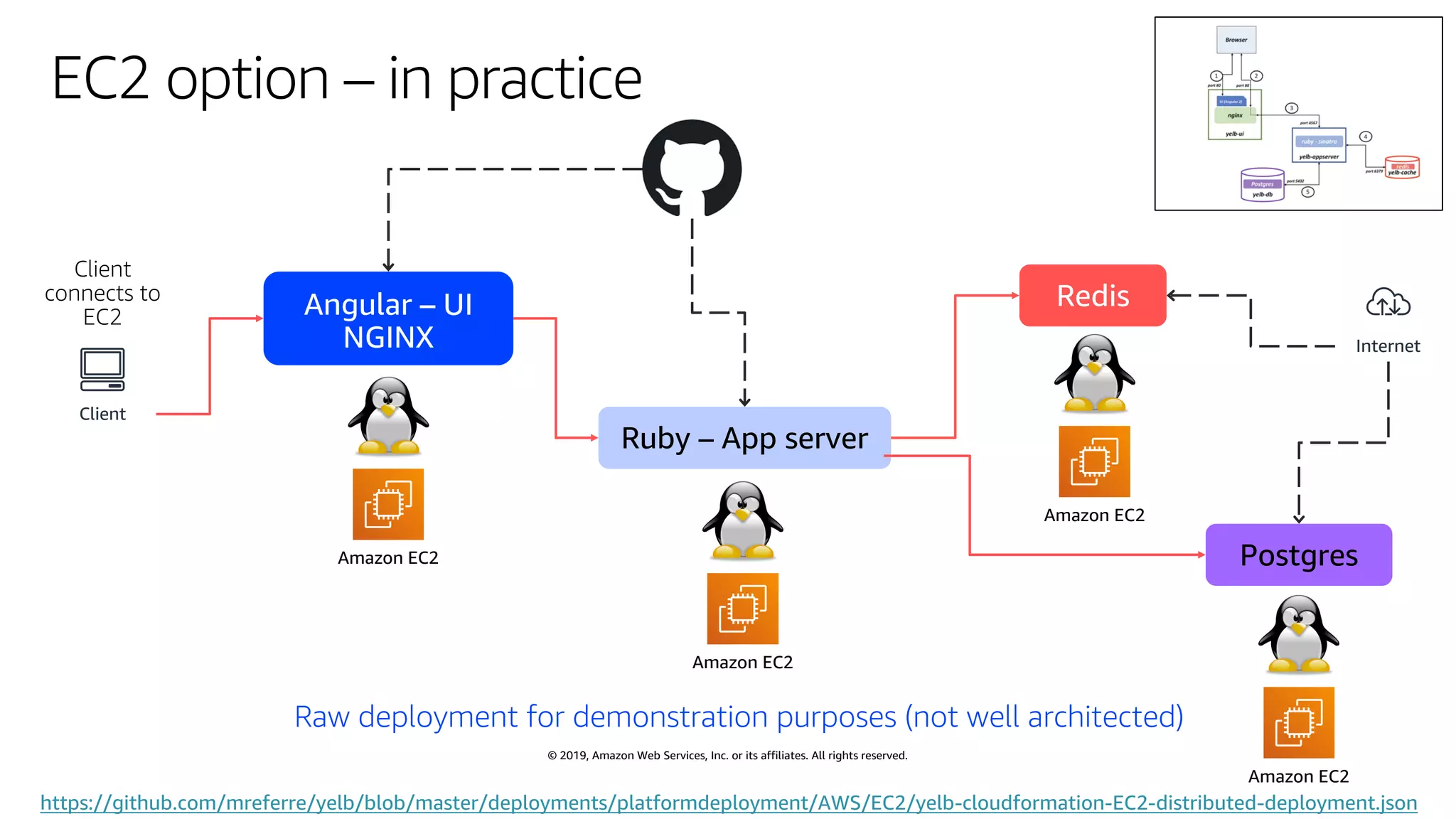

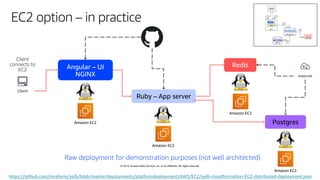

EC2 option – in practice
Amazon EC2
Amazon EC2
Amazon EC2
Amazon EC2
Ruby – App server
Postgres
Internet
Client
https://github.com/mreferre/yelb/blob/master/deployments/platformdeployment/AWS/EC2/yelb-cloudformation-EC2-distributed-deployment.json
Raw deployment for demonstration purposes (not well architected)

21. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

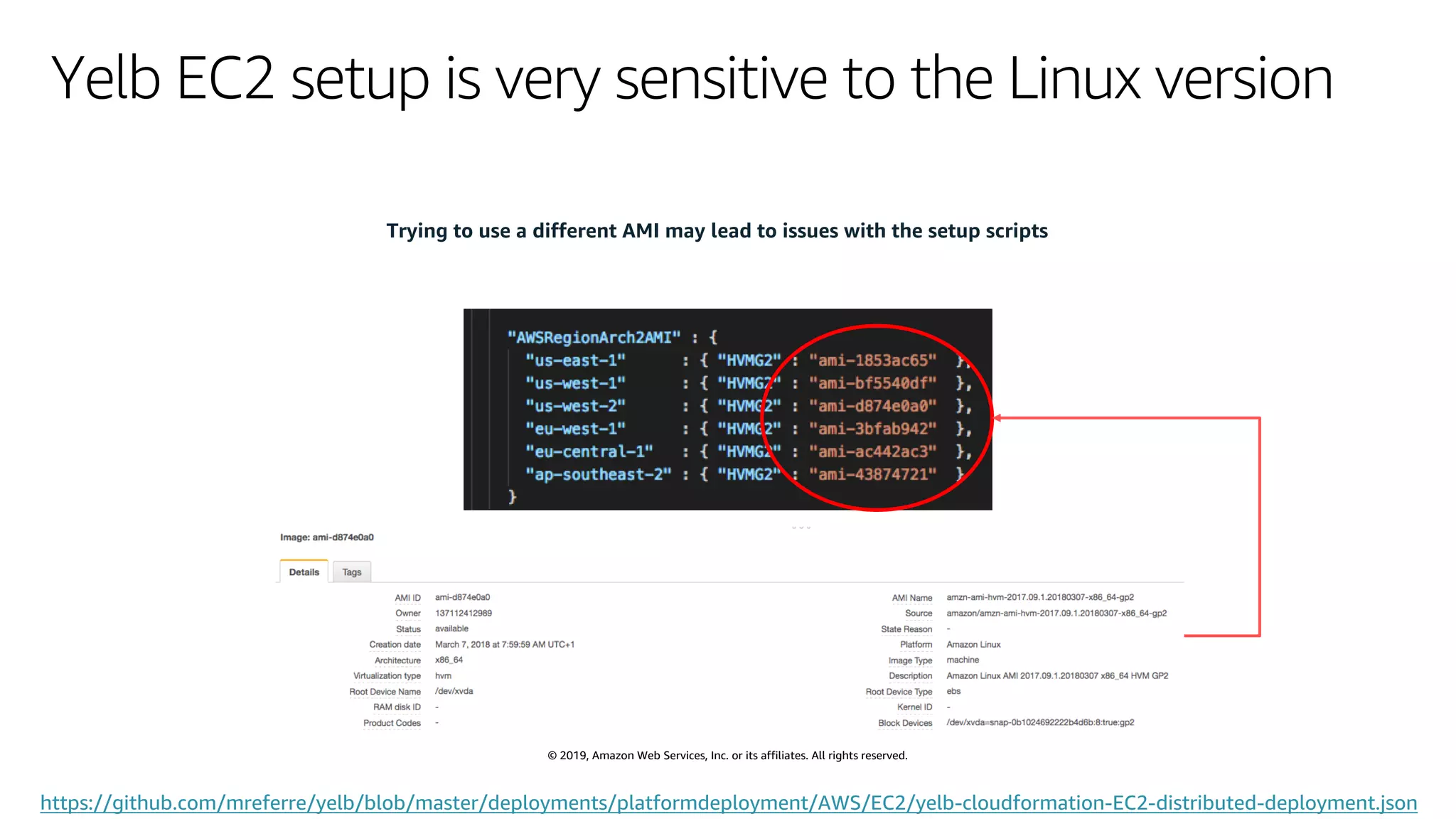

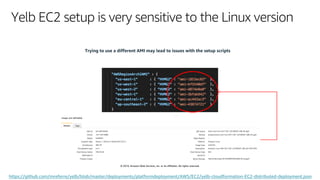

Yelb EC2 setup is very sensitive to the Linux version
Trying to use a different AMI may lead to issues with the setup scripts
https://github.com/mreferre/yelb/blob/master/deployments/platformdeployment/AWS/EC2/yelb-cloudformation-EC2-distributed-deployment.json

22. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

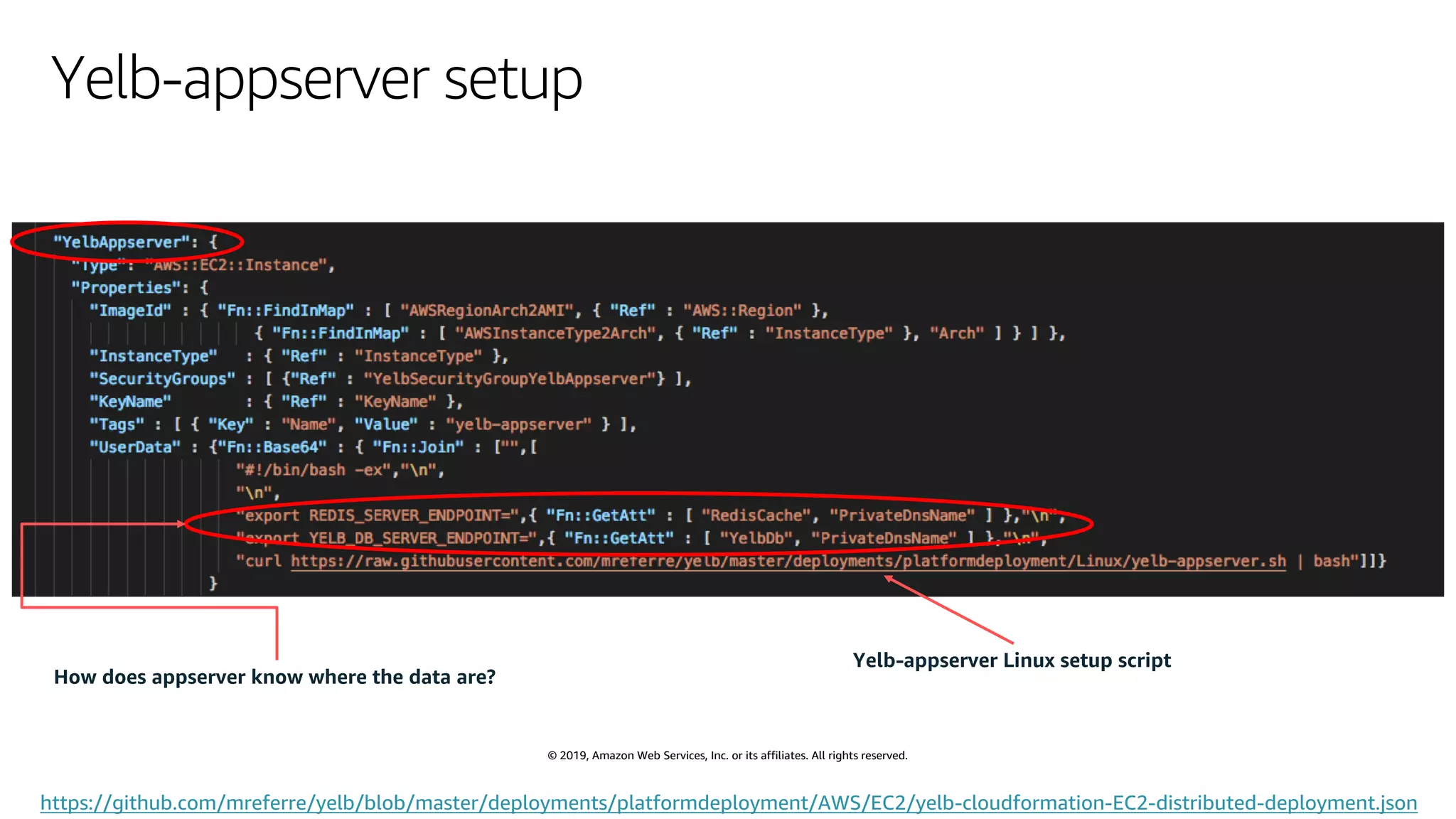

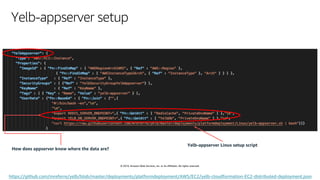

Yelb-appserver setup
Yelb-appserver Linux setup script
How does appserver know where the data are?
https://github.com/mreferre/yelb/blob/master/deployments/platformdeployment/AWS/EC2/yelb-cloudformation-EC2-distributed-deployment.json

23. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

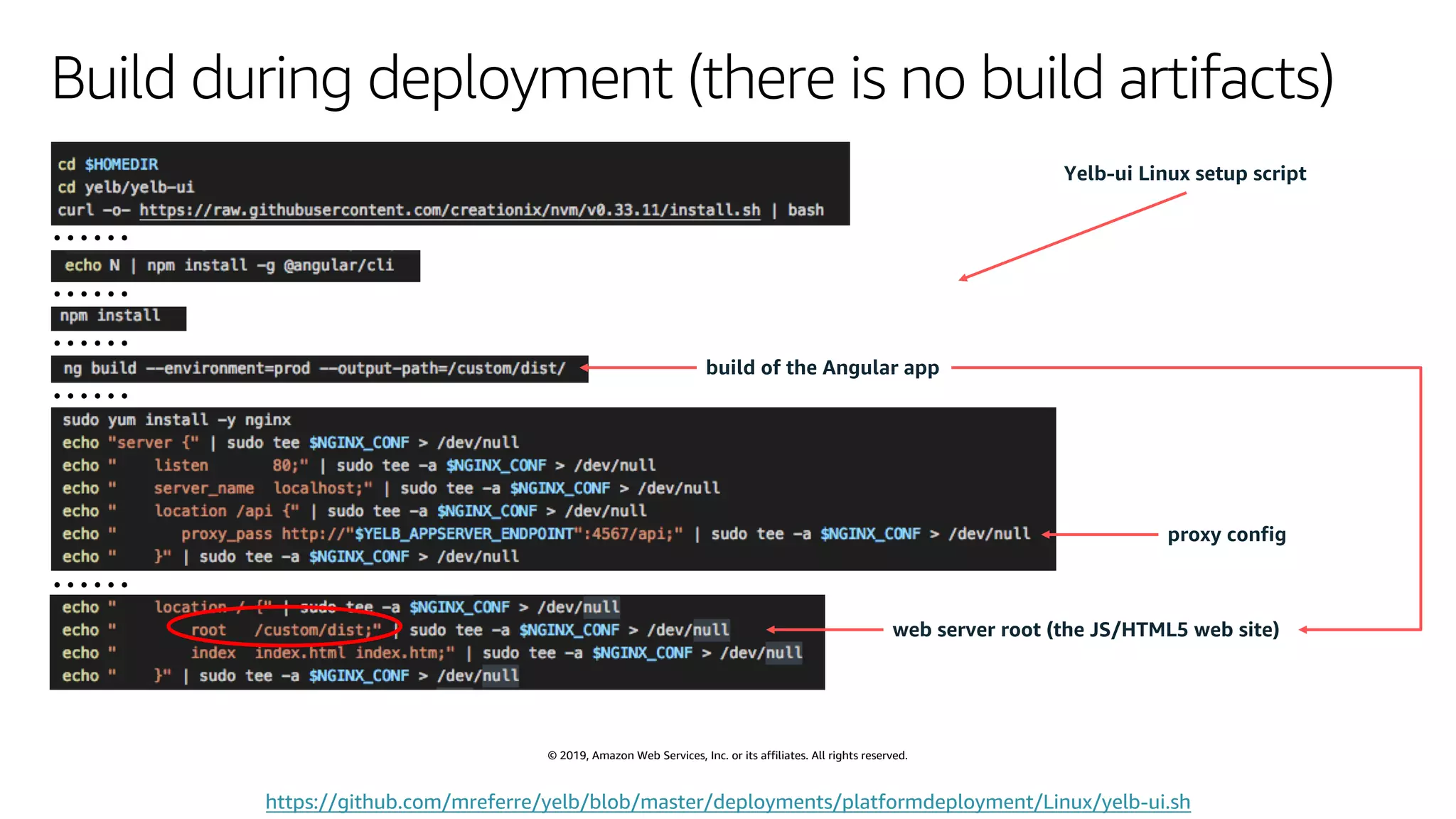

Build during deployment (there is no build artifacts)
web server root (the JS/HTML5 web site)
proxy config
build of the Angular app
https://github.com/mreferre/yelb/blob/master/deployments/platformdeployment/Linux/yelb-ui.sh
Yelb-ui Linux setup script

24. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

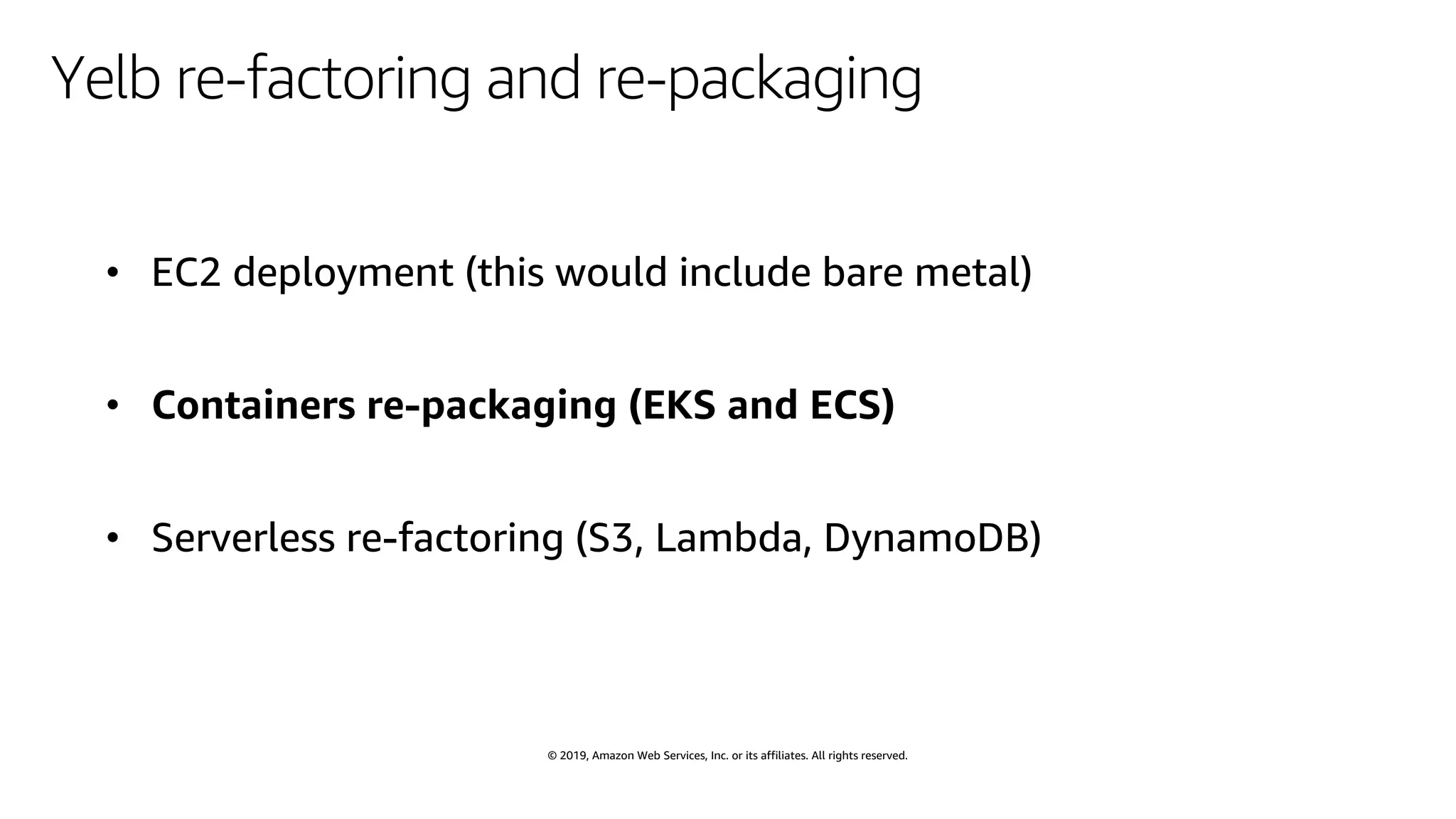

Yelb re-factoring and re-packaging

25. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

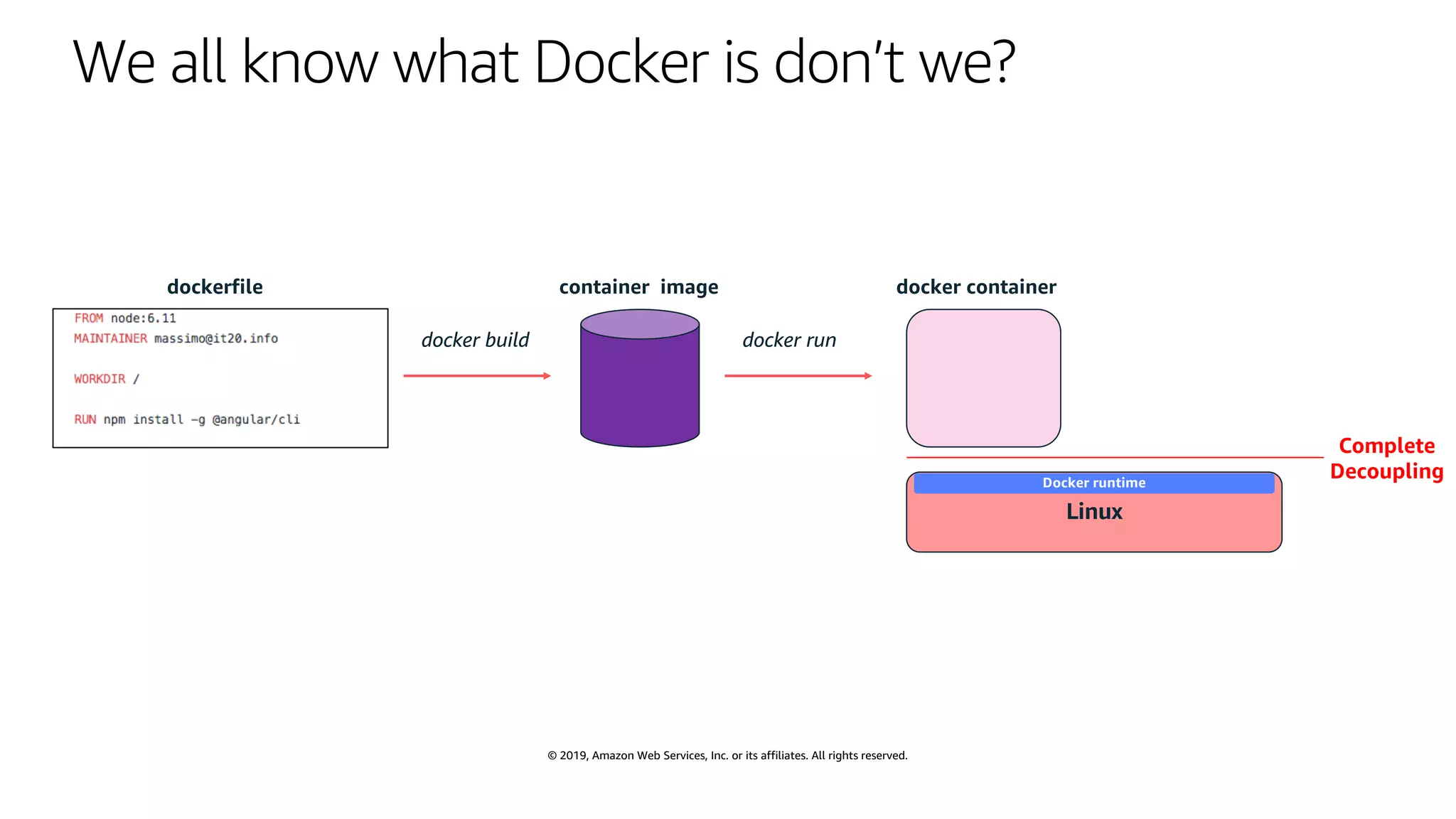

We all know what Docker is don’t we?
dockerfile
docker build docker run
Linux
docker container
Docker runtime
Complete
Decoupling
container image

26. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

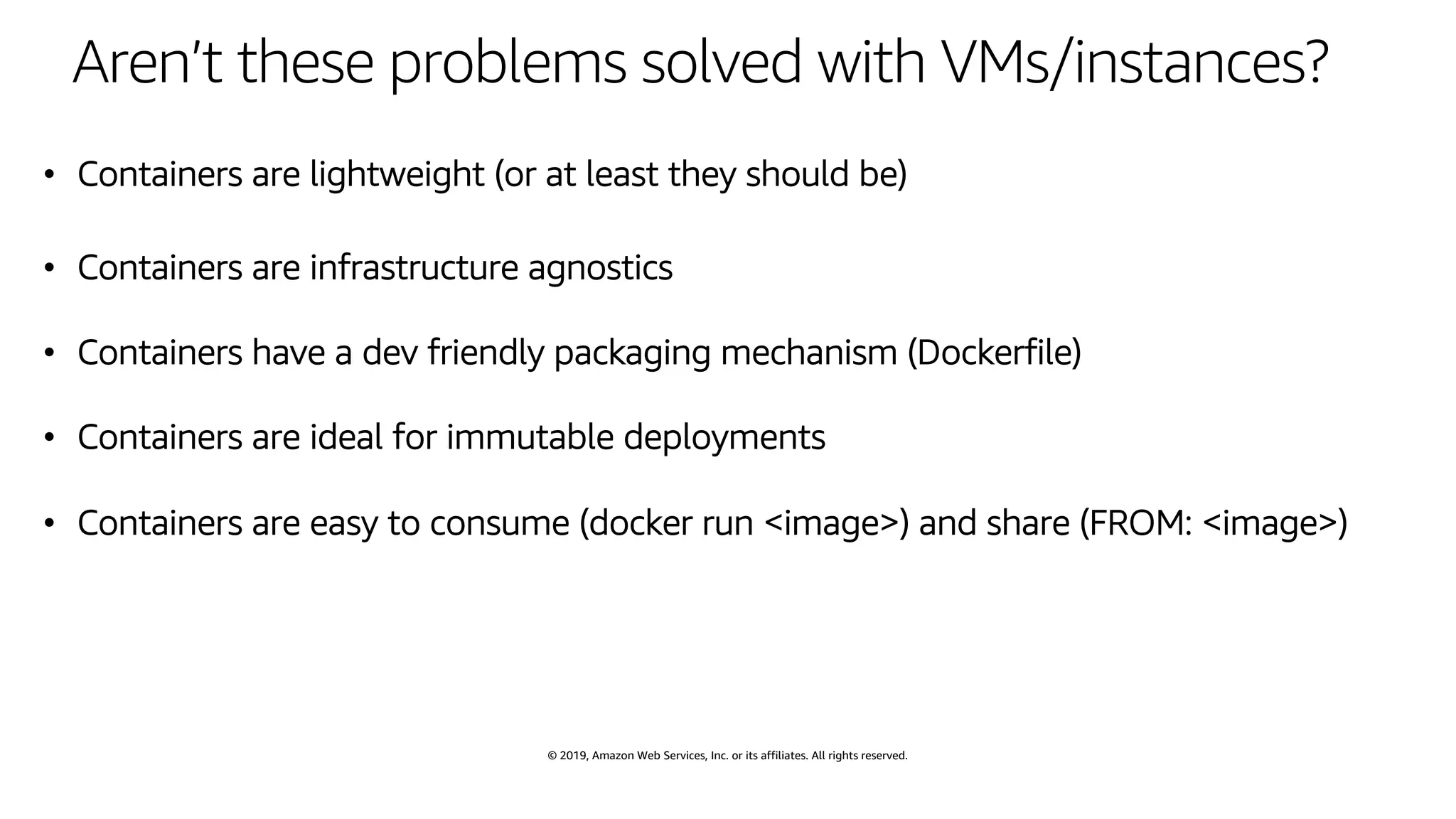

Aren’t these problems solved with VMs/instances?
• Containers are lightweight (or at least they should be)
• Containers are infrastructure agnostics
• Containers have a dev friendly packaging mechanism (Dockerfile)
• Containers are ideal for immutable deployments
• Containers are easy to consume (docker run <image>) and share (FROM: <image>)

27. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

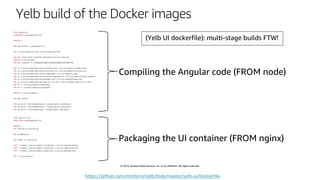

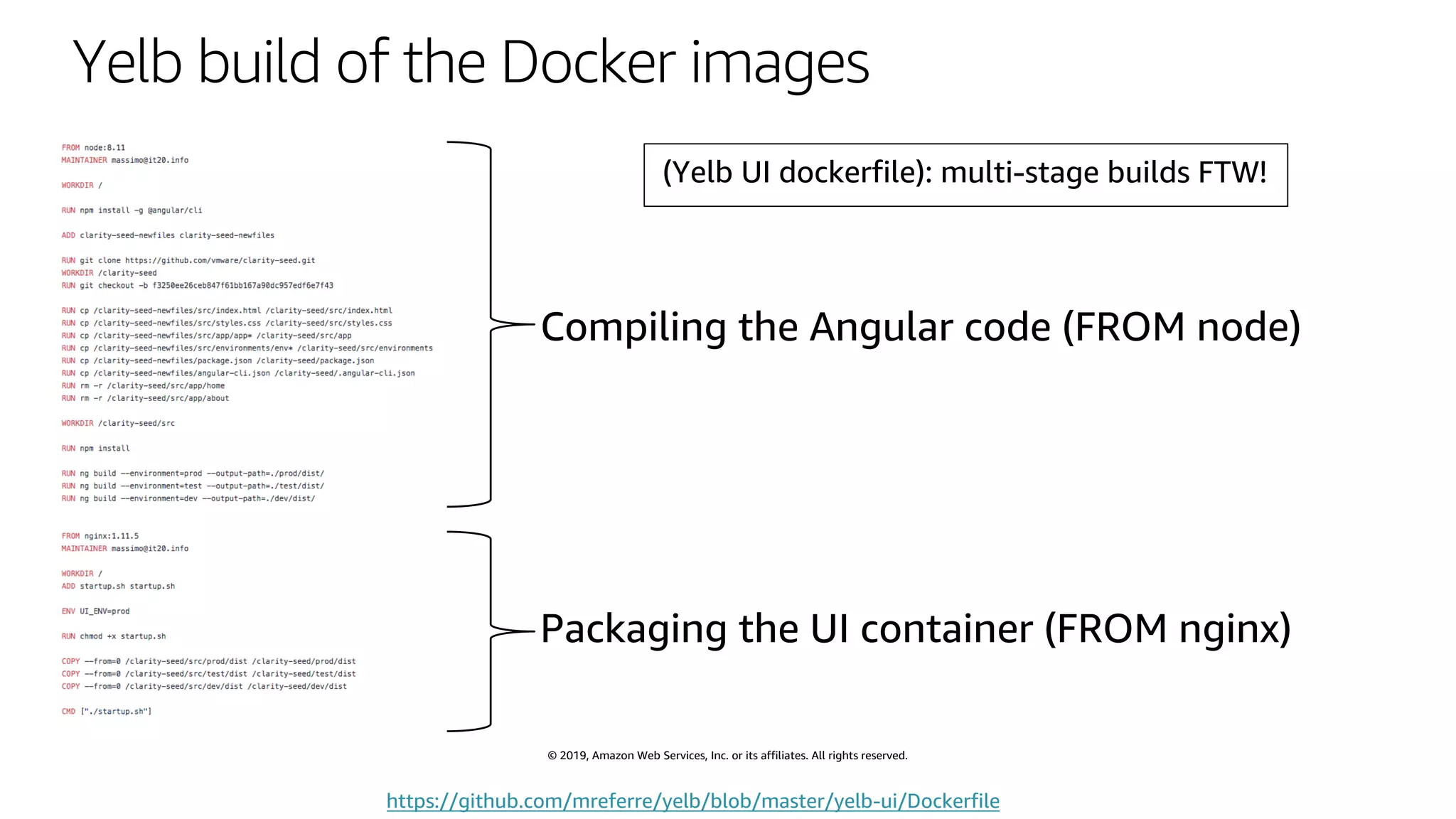

Yelb build of the Docker images
(Yelb UI dockerfile): m
https://github.com/mreferre/yelb/blob/master/yelb-ui/Dockerfile

28. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

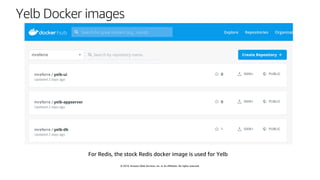

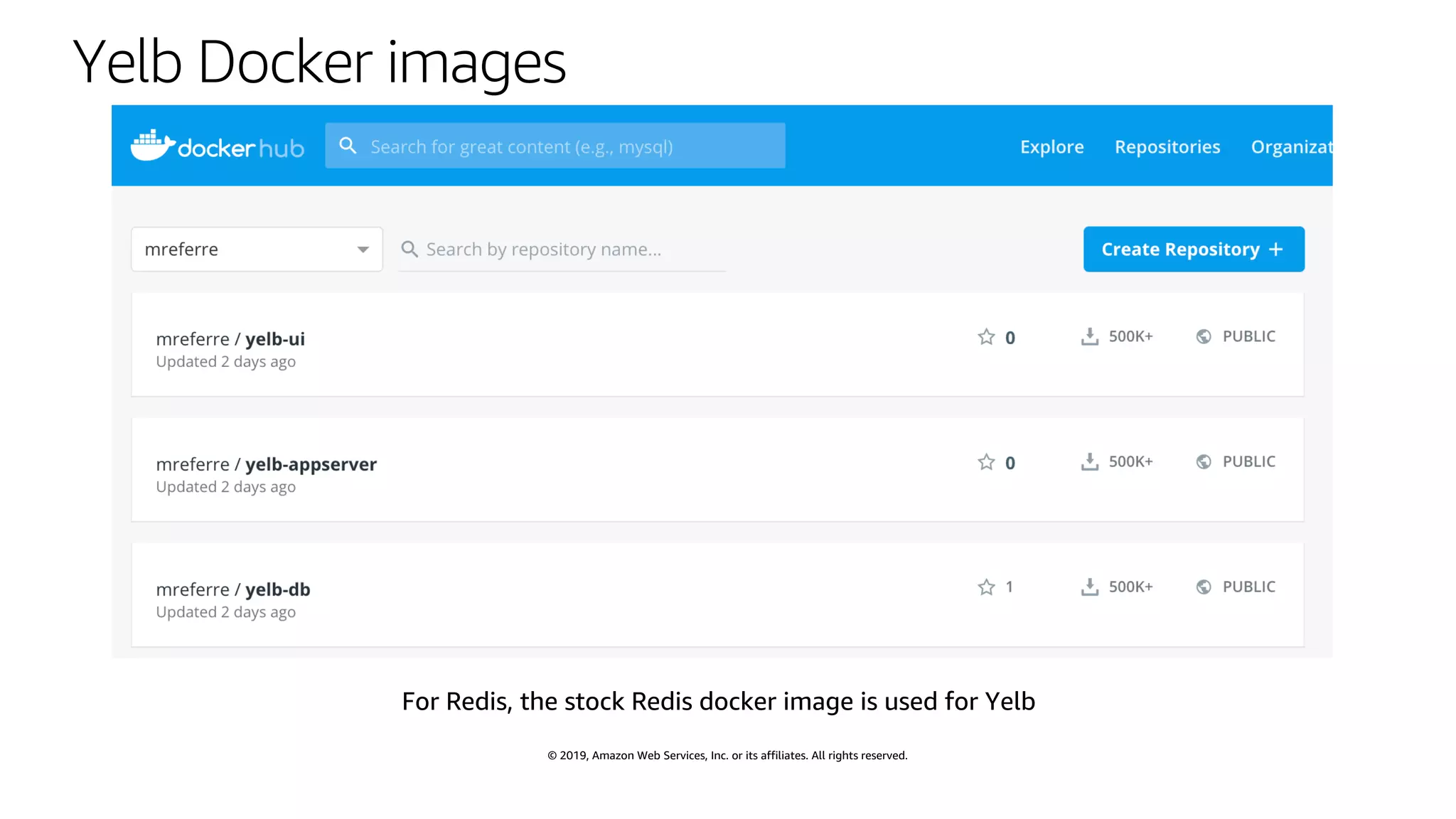

Yelb Docker images

29. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

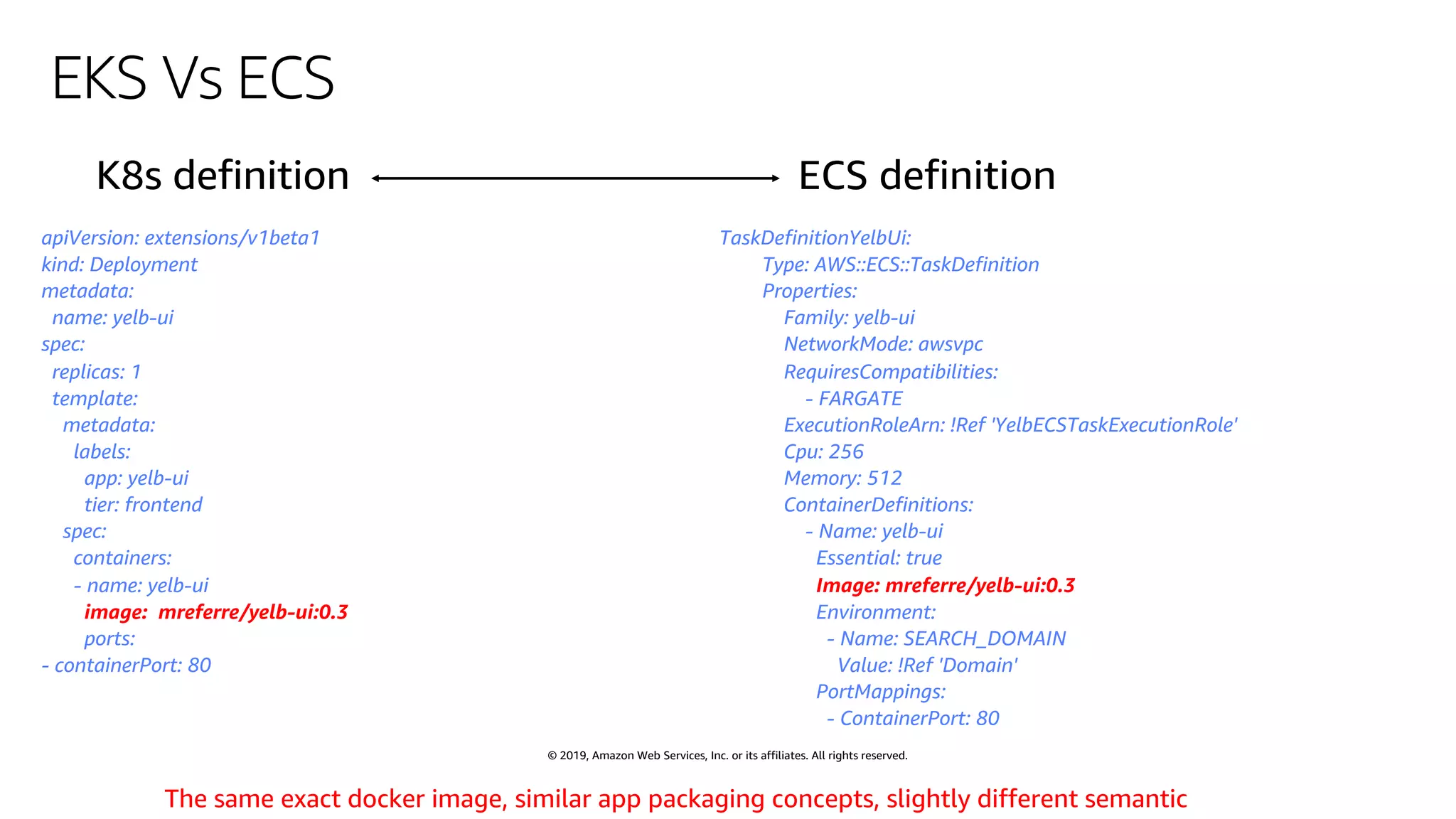

EKS Vs ECS
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
name: yelb-ui
spec:
replicas: 1
template:
metadata:
labels:
app: yelb-ui
tier: frontend
spec:
containers:
- name: yelb-ui
image: mreferre/yelb-ui:0.3
ports:
- containerPort: 80
TaskDefinitionYelbUi:
Type: AWS::ECS::TaskDefinition
Properties:
Family: yelb-ui
NetworkMode: awsvpc
RequiresCompatibilities:
- FARGATE
ExecutionRoleArn: !Ref 'YelbECSTaskExecutionRole'
Cpu: 256
Memory: 512
ContainerDefinitions:
- Name: yelb-ui
Essential: true
Image: mreferre/yelb-ui:0.3
Environment:
- Name: SEARCH_DOMAIN
Value: !Ref 'Domain'
PortMappings:
- ContainerPort: 80
The same exact docker image, similar app packaging concepts, slightly different semantic

30. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

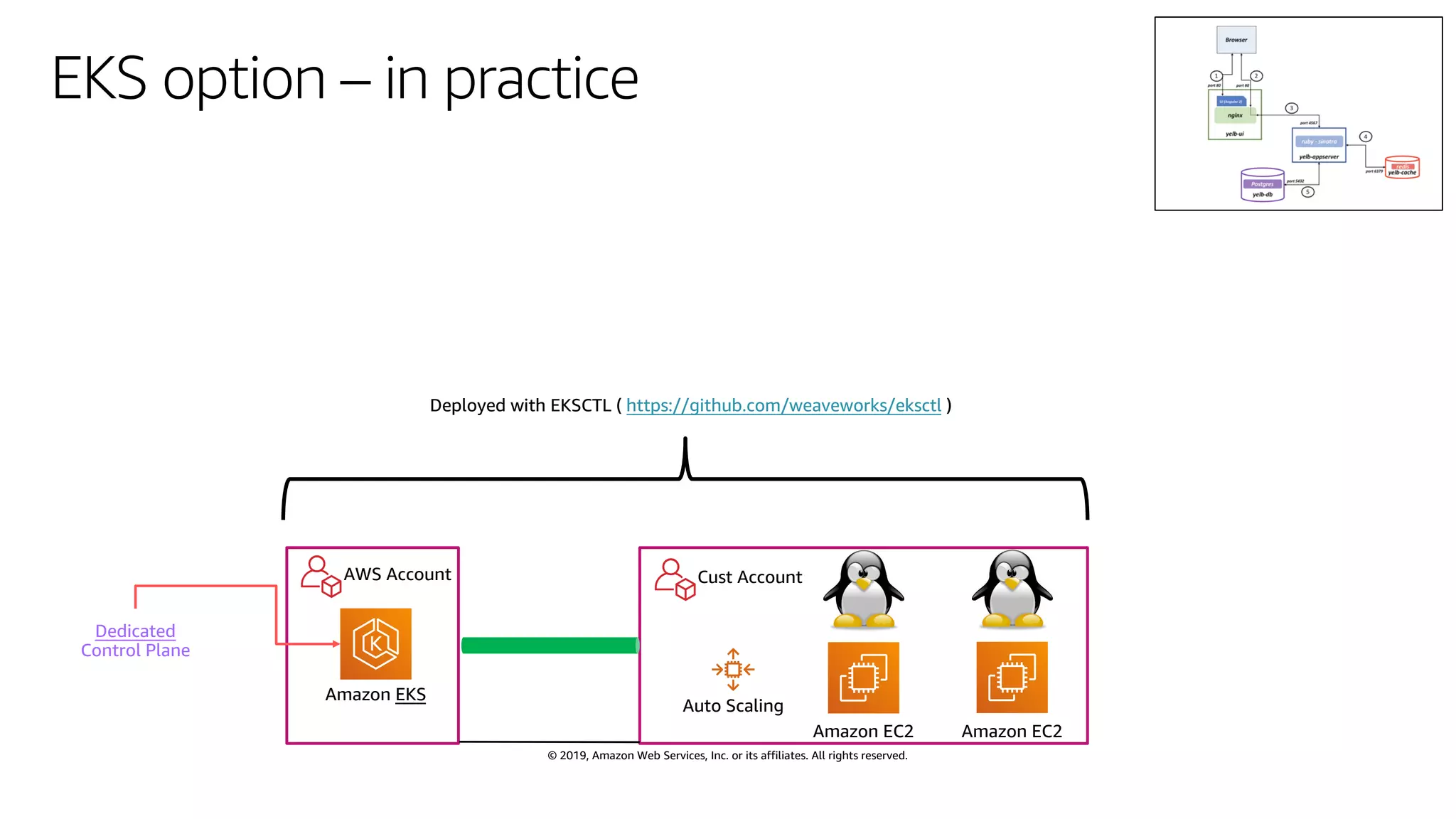

EKS option – in practice
Amazon EC2 Amazon EC2
Amazon EKS
AWS Account Cust Account
Auto Scaling
Dedicated
Control Plane
Deployed with EKSCTL ( https://github.com/weaveworks/eksctl )

31. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

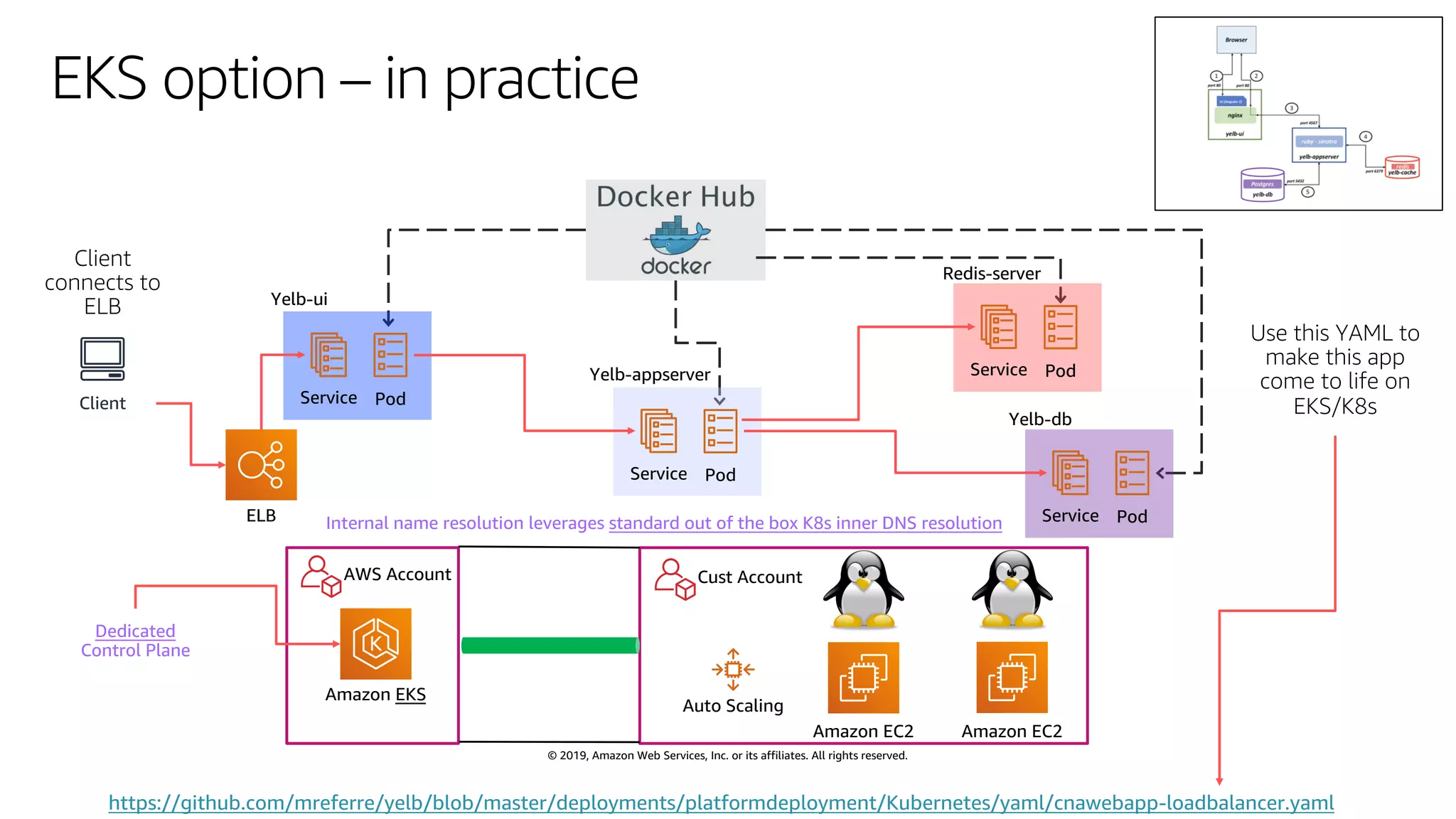

EKS option – in practice
Amazon EC2
Client
https://github.com/mreferre/yelb/blob/master/deployments/platformdeployment/Kubernetes/yaml/cnawebapp-loadbalancer.yaml
Amazon EC2
Amazon EKS
ELB
PodService
PodService
PodService
PodService
Yelb-ui
Yelb-appserver
Redis-server
Yelb-db
AWS Account Cust Account
Auto Scaling
Internal name resolution leverages standard out of the box K8s inner DNS resolution
Dedicated
Control Plane

32. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

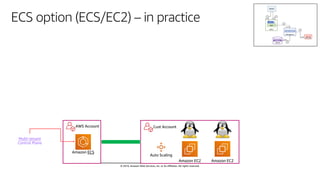

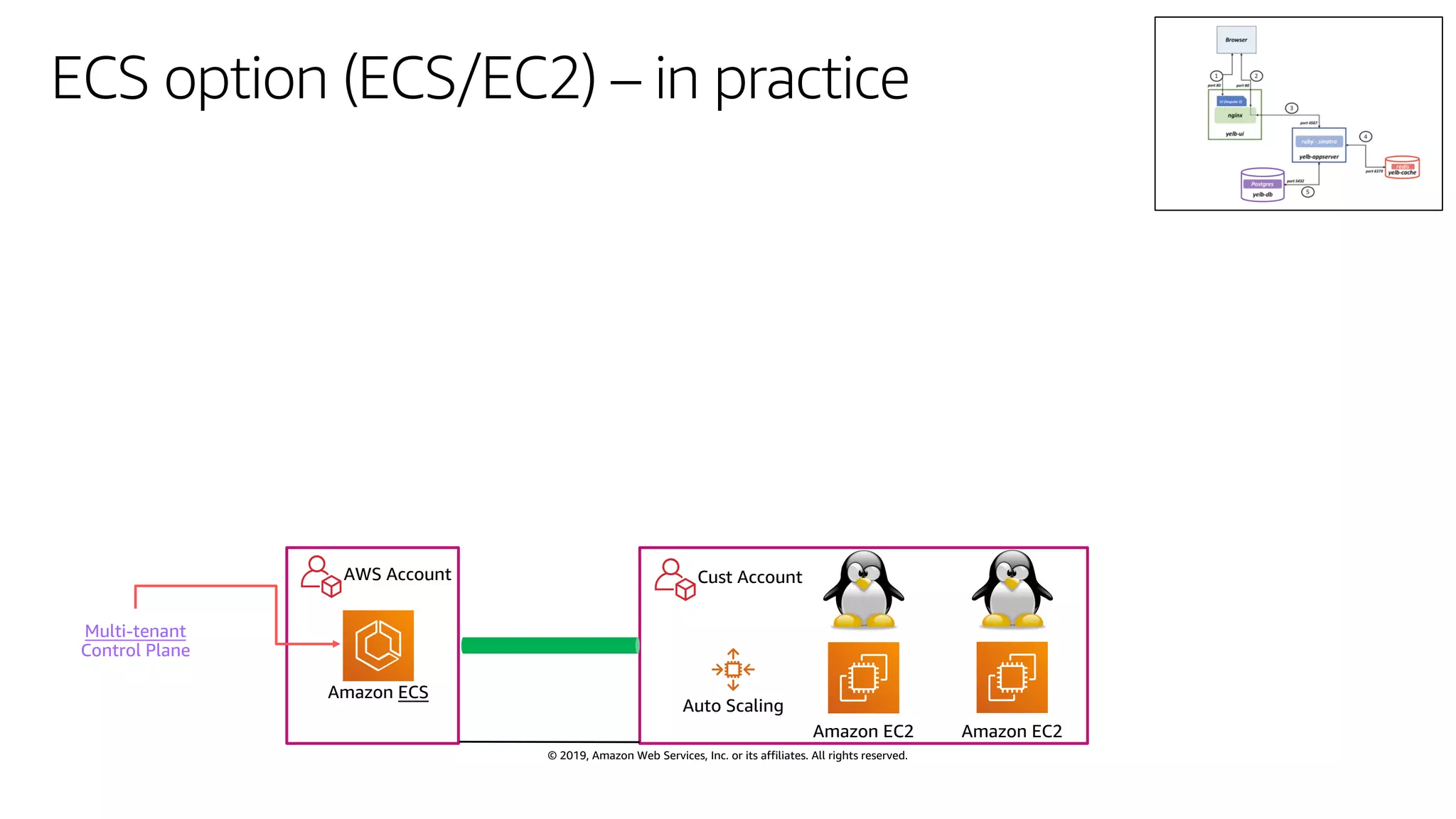

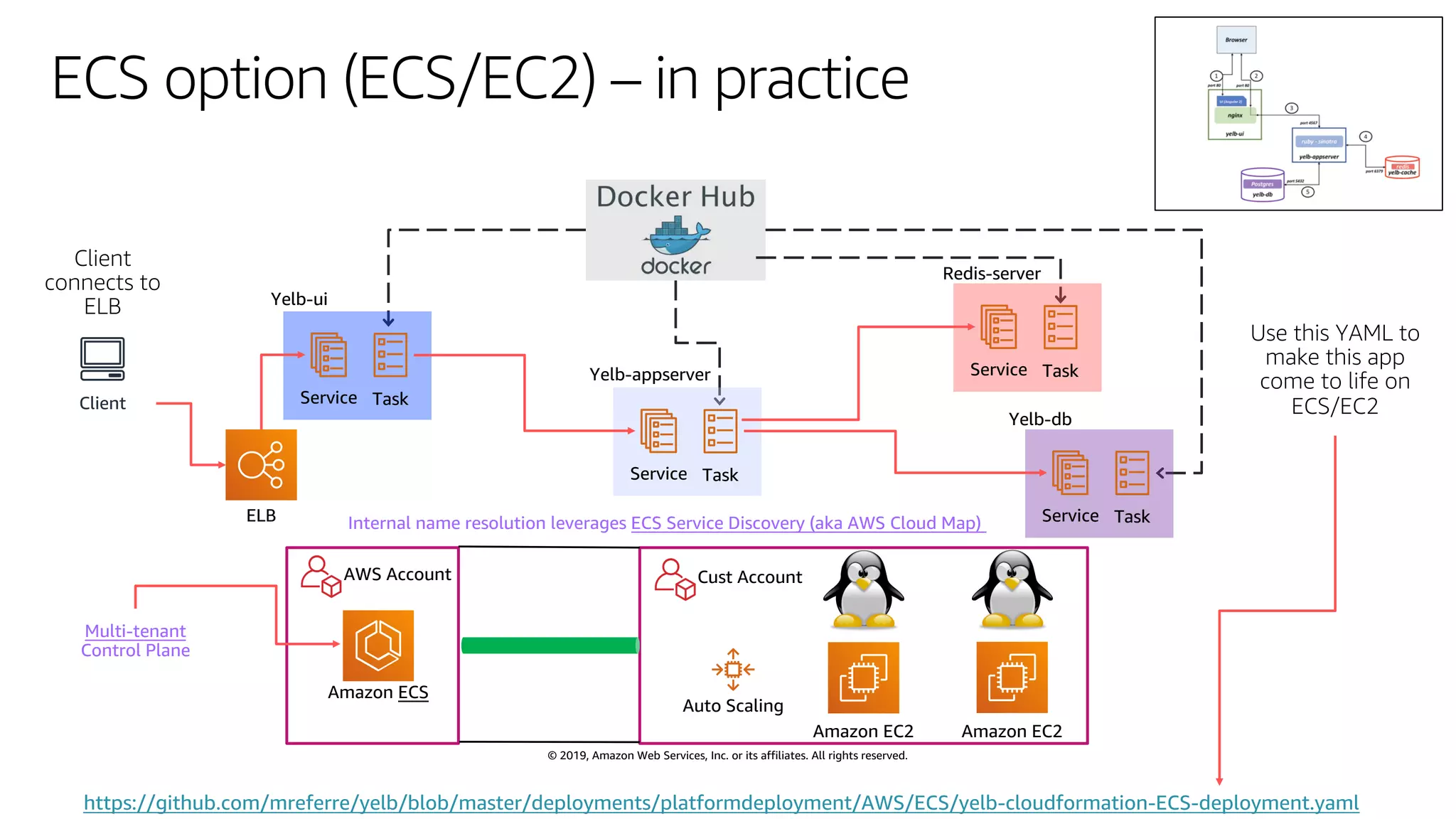

ECS option (ECS/EC2) – in practice
Amazon EC2 Amazon EC2
AWS Account Cust Account
Auto Scaling
Multi-tenant
Control Plane
Amazon ECS

33. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
ECS option (ECS/EC2) – in practice
Client
https://github.com/mreferre/yelb/blob/master/deployments/platformdeployment/AWS/ECS/yelb-cloudformation-ECS-deployment.yaml
ELB
TaskService
TaskService
TaskService
TaskService
Yelb-ui
Yelb-appserver
Redis-server
Yelb-db
Internal name resolution leverages ECS Service Discovery (aka AWS Cloud Map)
Amazon EC2 Amazon EC2
AWS Account Cust Account
Auto Scaling
Multi-tenant
Control Plane
Amazon ECS

34. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

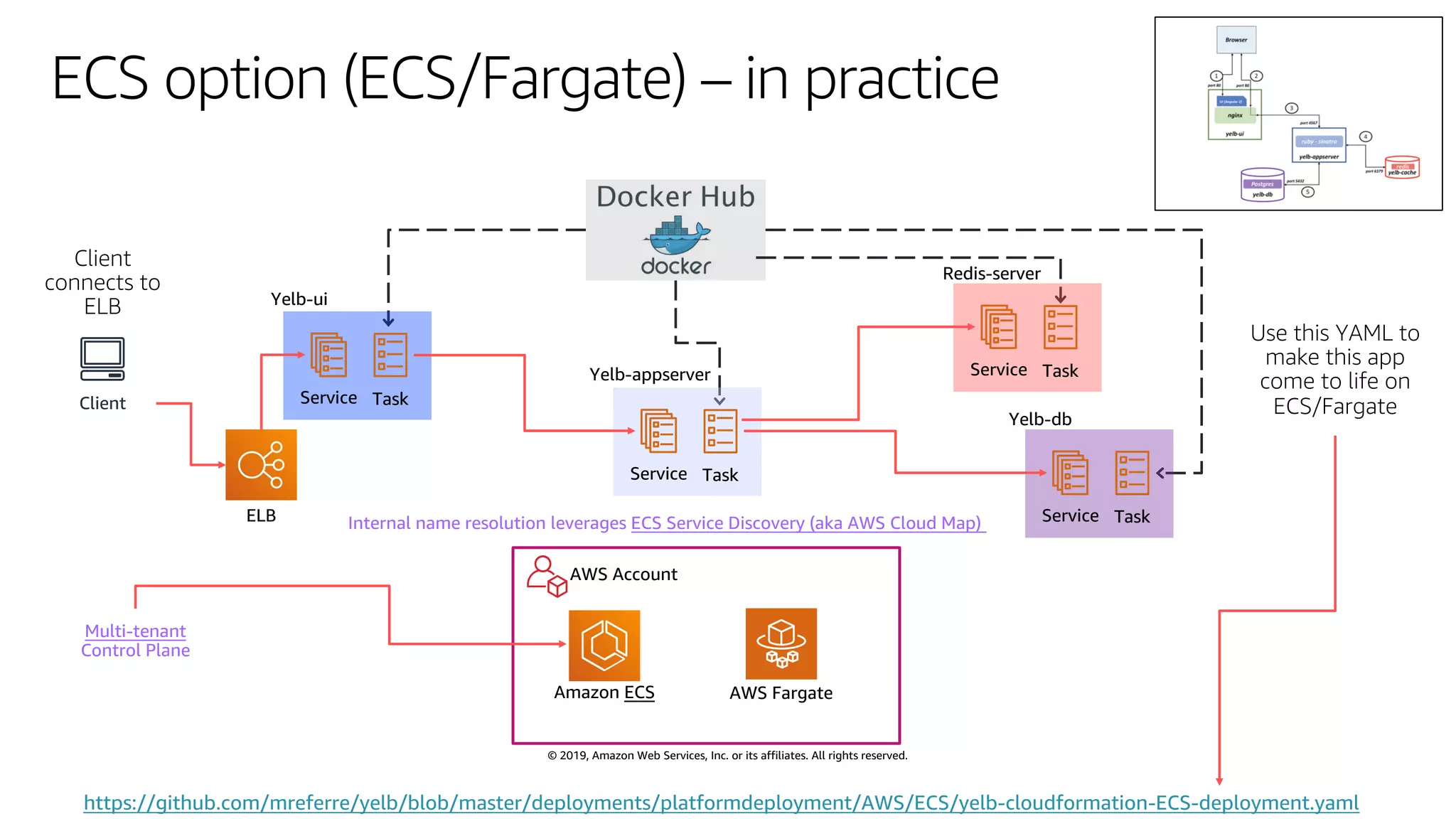

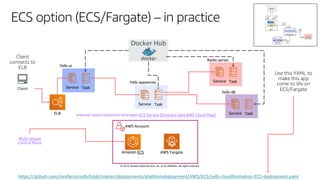

ECS option (ECS/Fargate) – in practice
Client
https://github.com/mreferre/yelb/blob/master/deployments/platformdeployment/AWS/ECS/yelb-cloudformation-ECS-deployment.yaml
ELB
TaskService
TaskService
TaskService
TaskService
Yelb-ui
Yelb-appserver
Redis-server
Yelb-db
Internal name resolution leverages ECS Service Discovery (aka AWS Cloud Map)
AWS Account
Multi-tenant
Control Plane
AWS FargateAmazon ECS

35. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

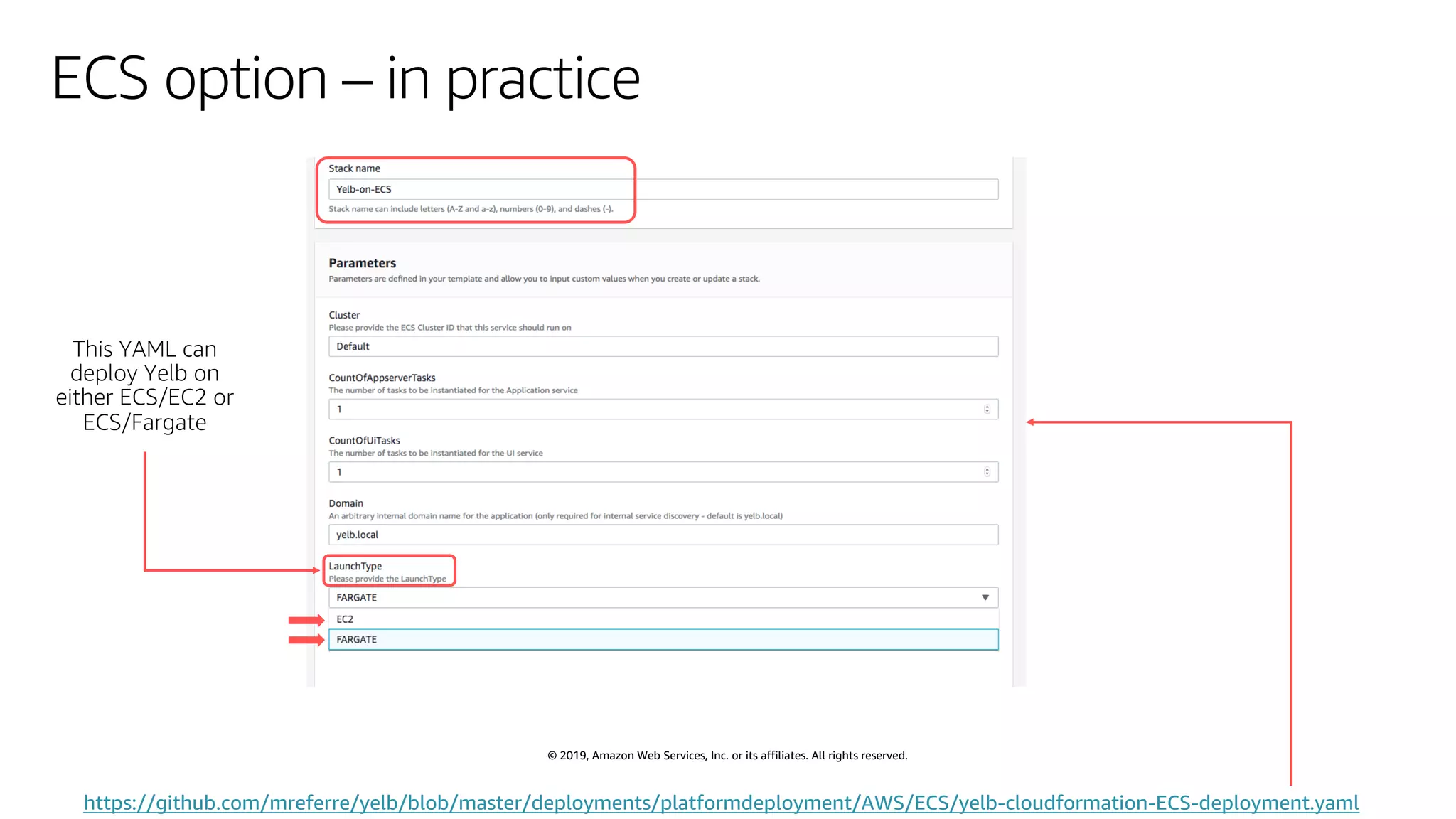

ECS option – in practice
https://github.com/mreferre/yelb/blob/master/deployments/platformdeployment/AWS/ECS/yelb-cloudformation-ECS-deployment.yaml

36. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Yelb re-factoring and re-packaging

37. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

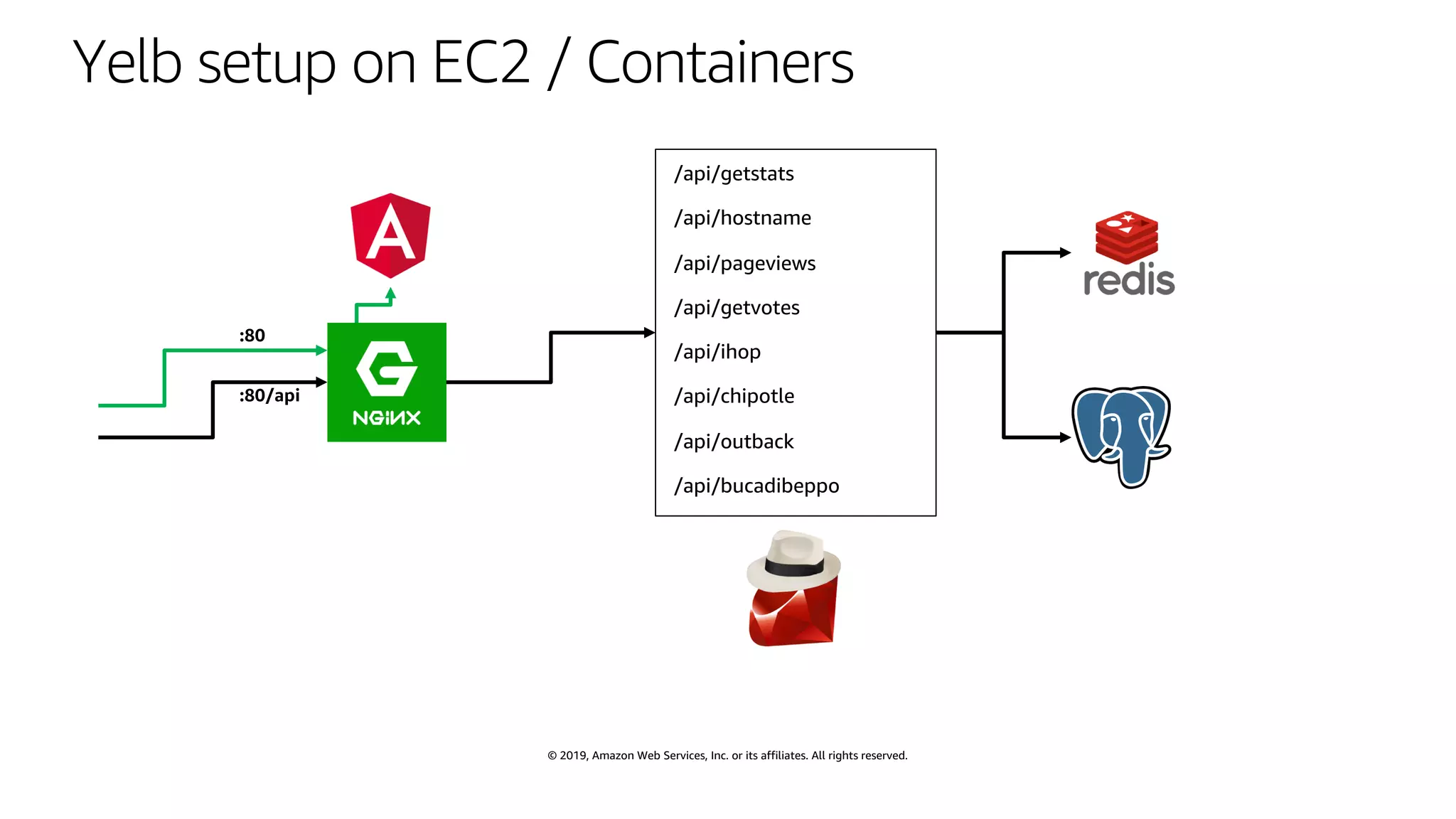

Yelb setup on EC2 / Containers

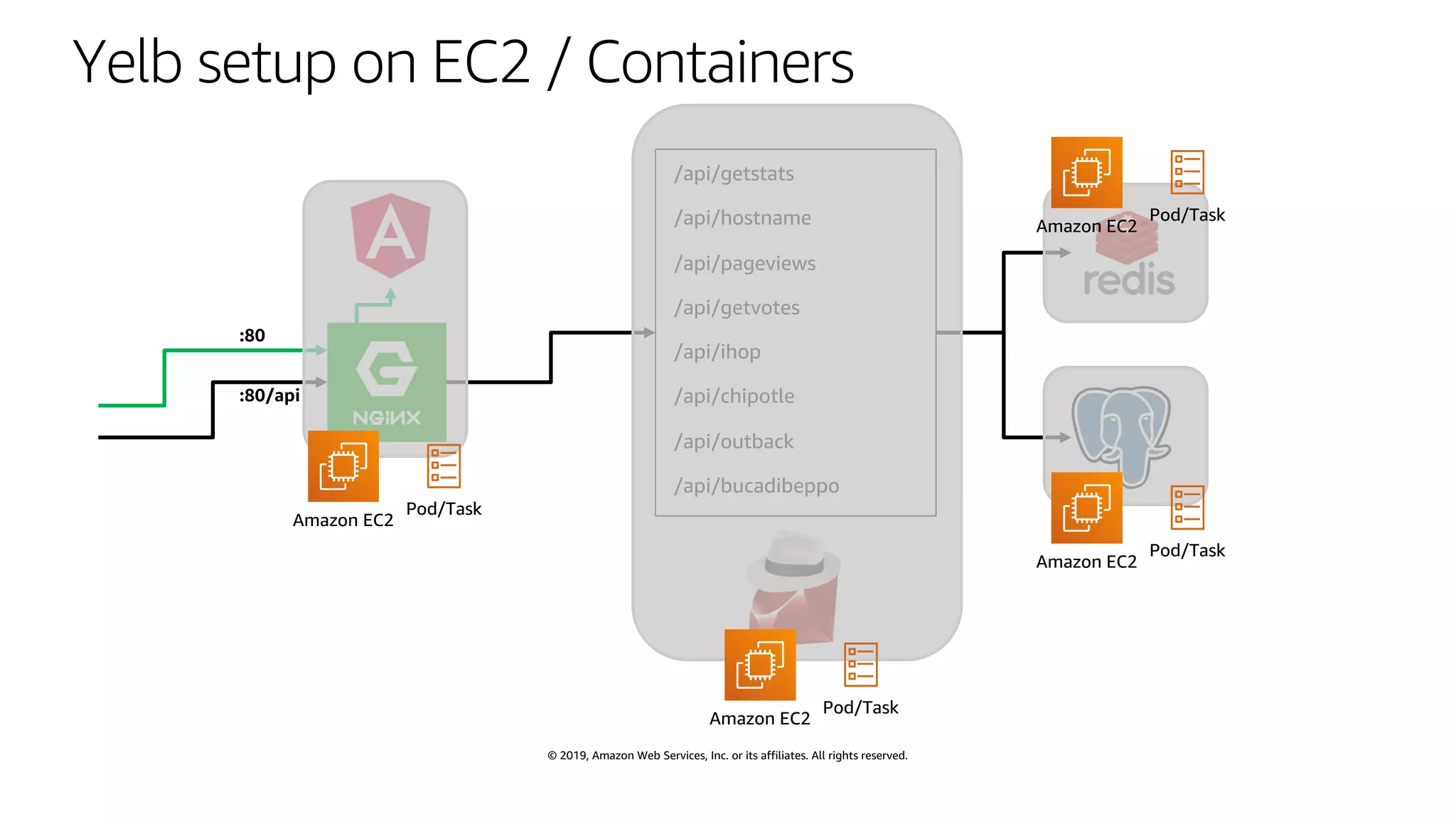

38. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

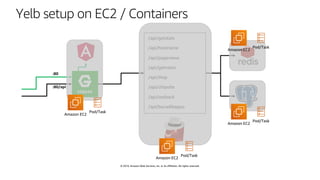

Yelb setup on EC2 / Containers
Amazon EC2
Pod/Task
Amazon EC2
Pod/Task
Amazon EC2
Pod/Task
Amazon EC2
Pod/Task

39. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

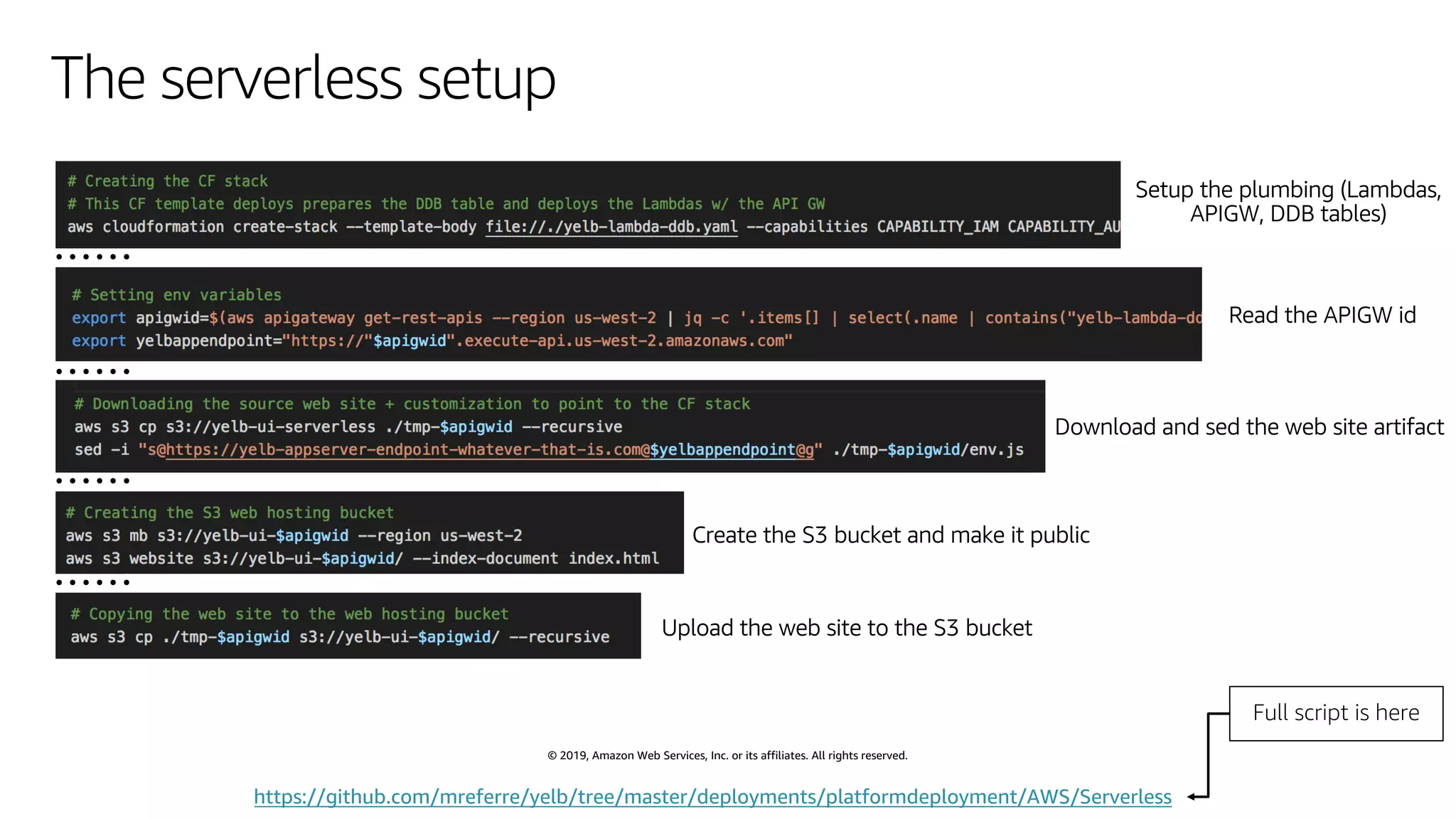

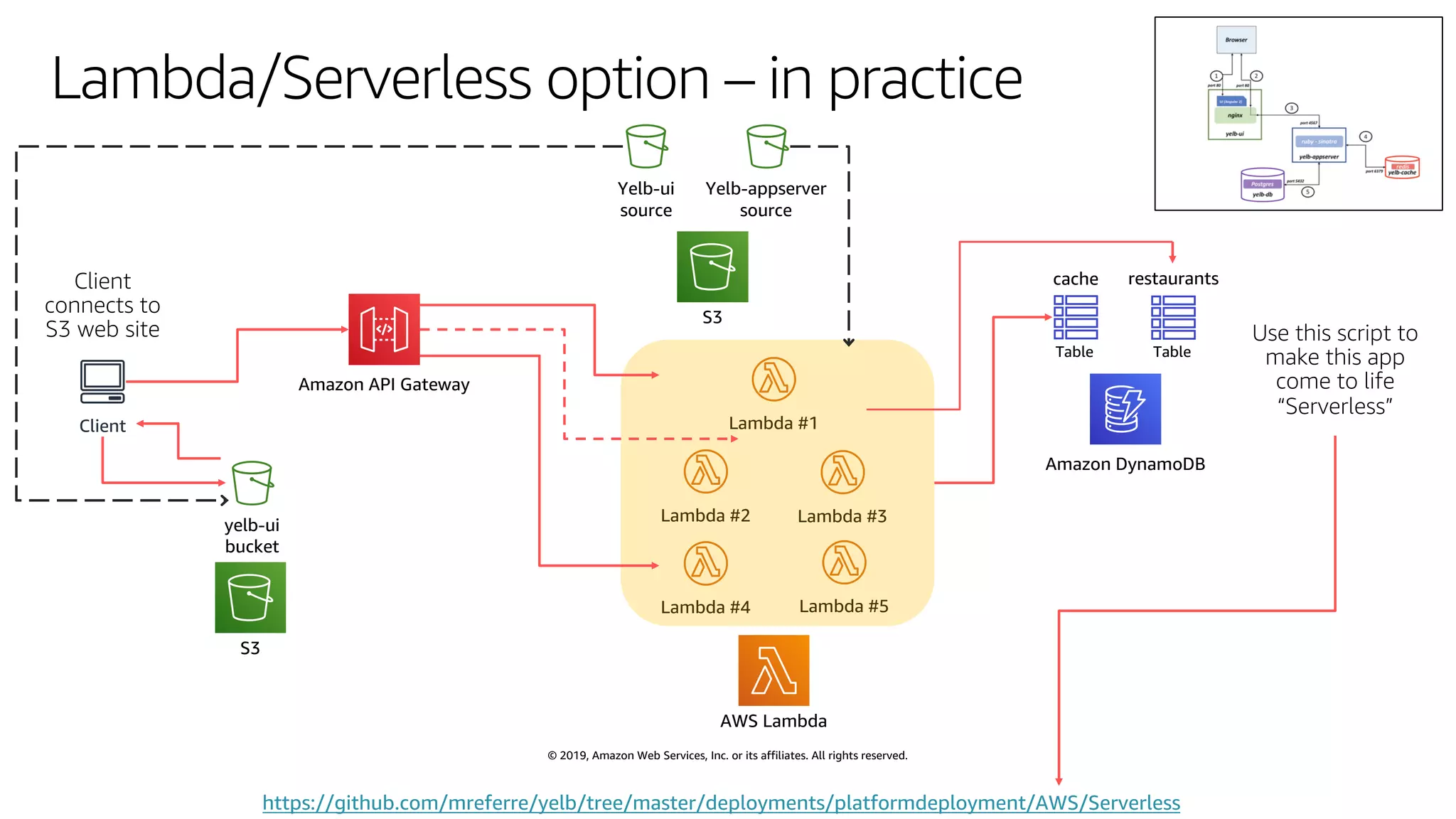

Lambda/Serverless option – in practice
Client
restaurants
Amazon DynamoDB
Table Table
cache
S3
yelb-ui
bucket
Amazon API Gateway
AWS Lambda
Lambda #1
Lambda #2 Lambda #3
Lambda #4 Lambda #5
S3
Yelb-ui
source
Yelb-appserver
source
https://github.com/mreferre/yelb/tree/master/deployments/platformdeployment/AWS/Serverless

40. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
How to refactor the UI for S3 hosting?
Client
S3
yelb-ui
bucket
Amazon API Gateway

41. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

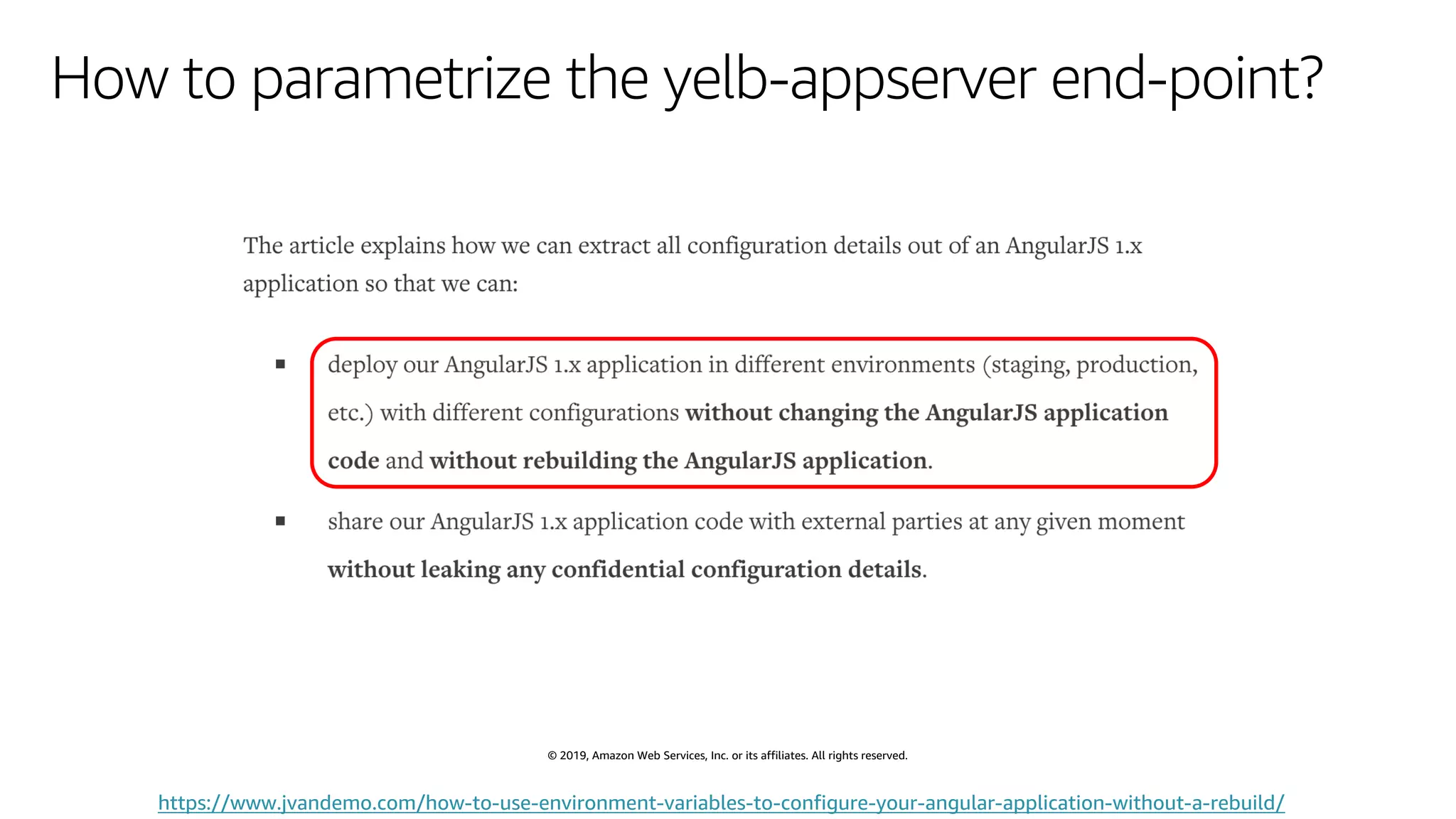

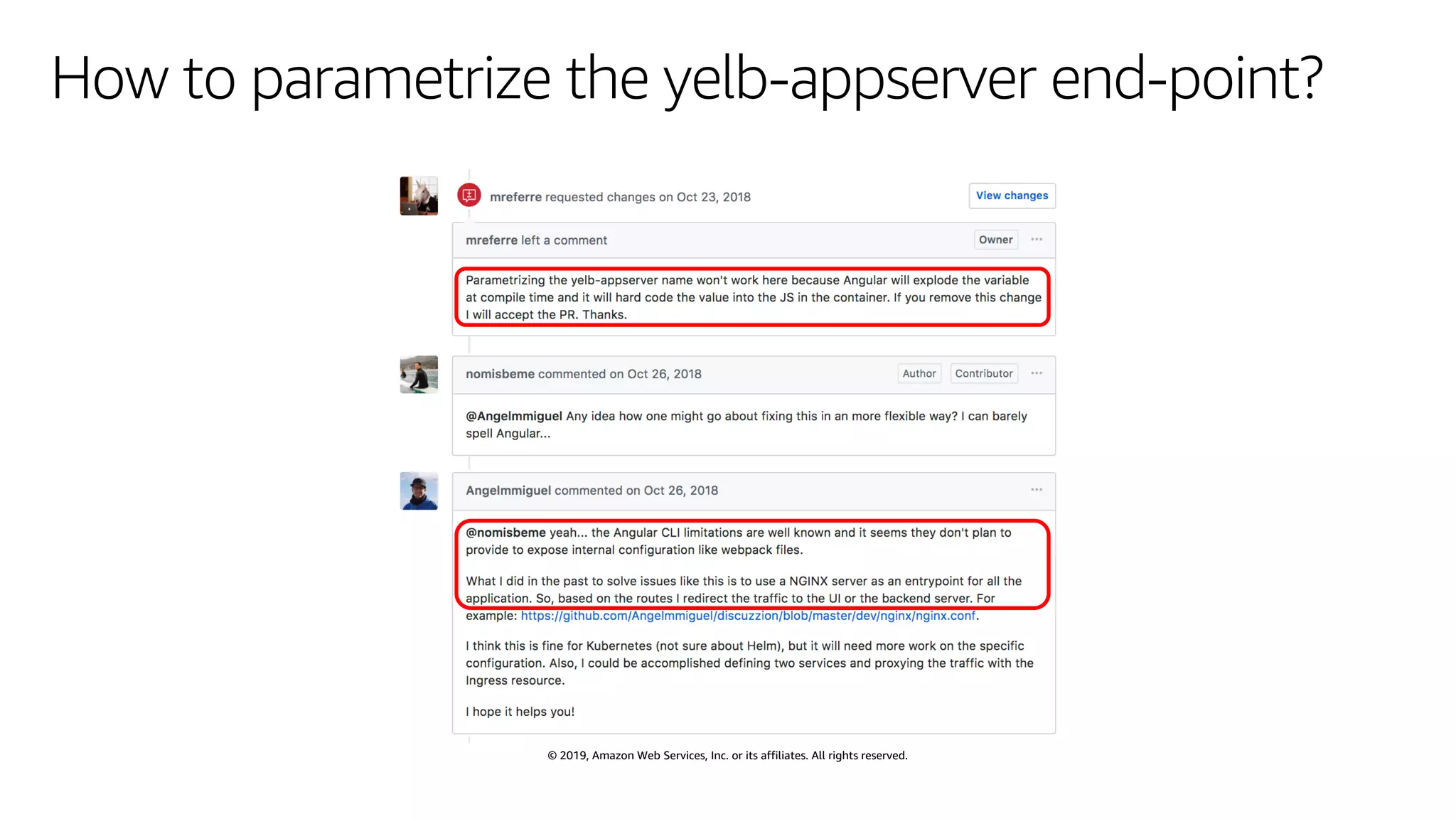

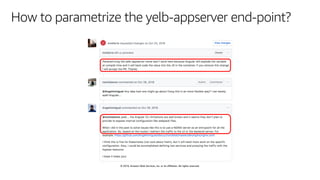

How to parametrize the yelb-appserver end-point?

42. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
How to parametrize the yelb-appserver end-point?

43. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
How to parametrize the yelb-appserver end-point?

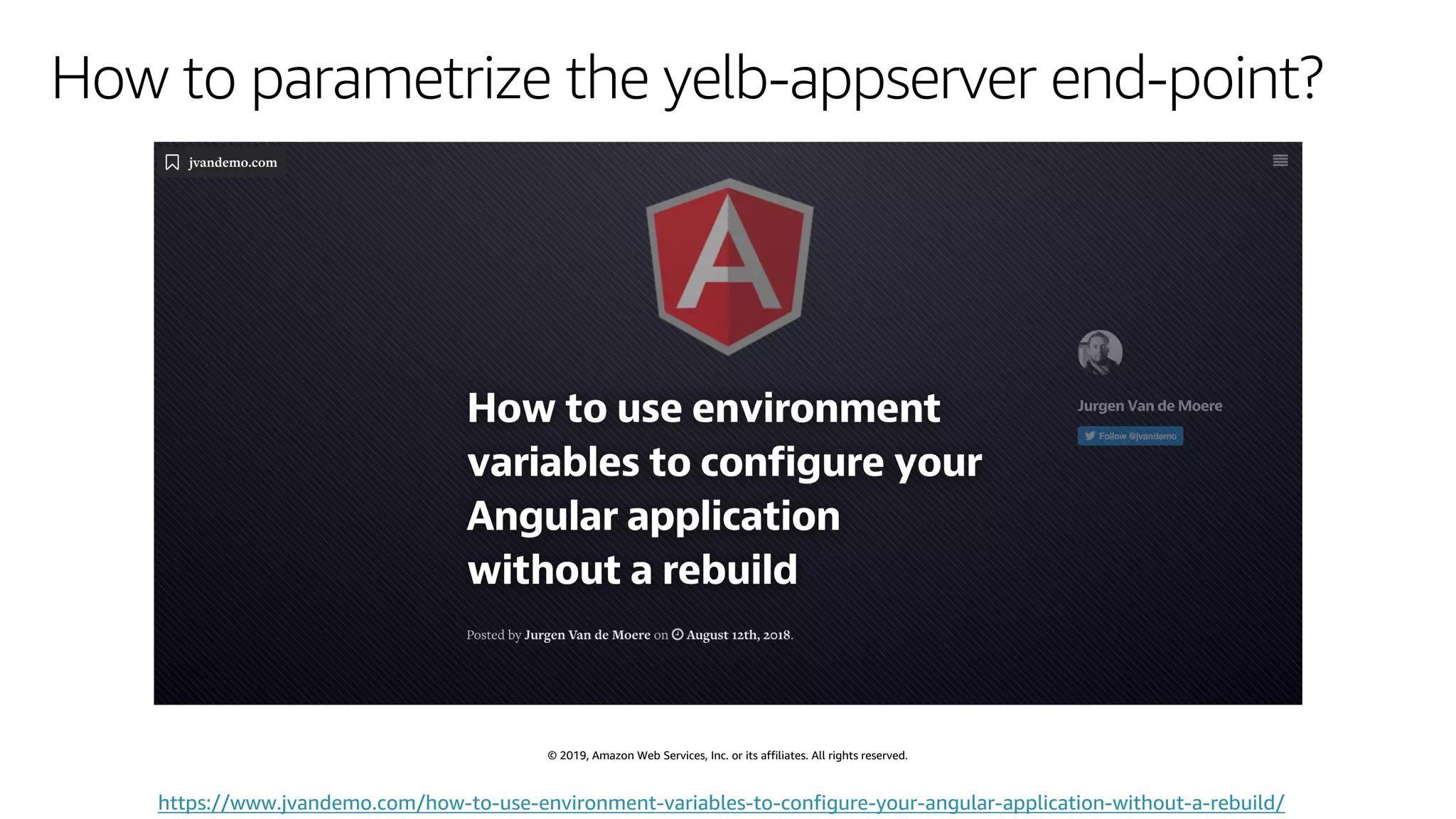

https://www.jvandemo.com/how-to-use-environment-variables-to-configure-your-angular-application-without-a-rebuild/

44. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
How to parametrize the yelb-appserver end-point?
https://www.jvandemo.com/how-to-use-environment-variables-to-configure-your-angular-application-without-a-rebuild/

45. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

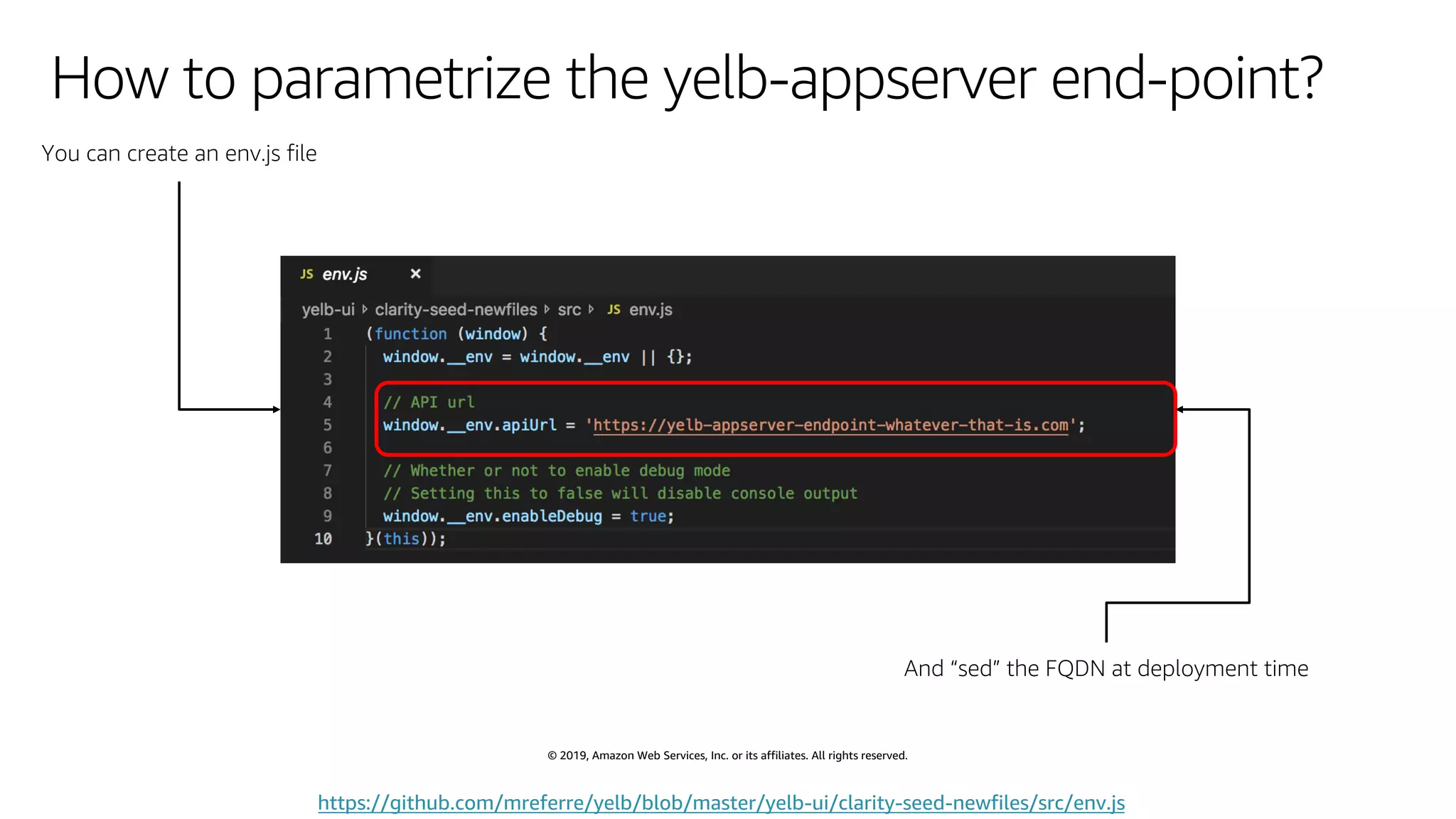

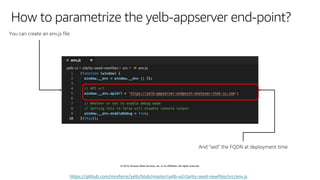

How to parametrize the yelb-appserver end-point?
https://github.com/mreferre/yelb/blob/master/yelb-ui/clarity-seed-newfiles/src/env.js

46. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
The application monolith

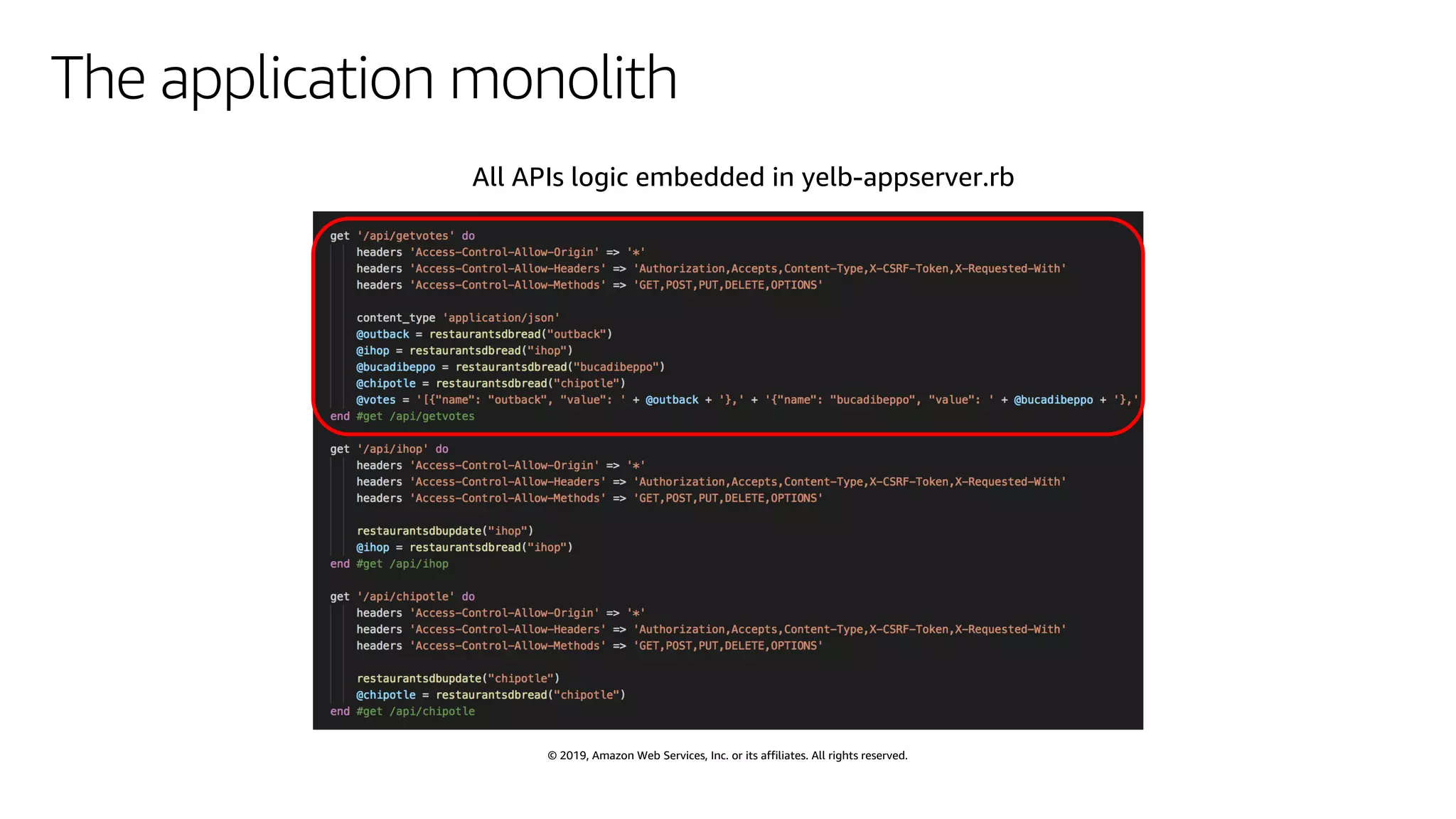

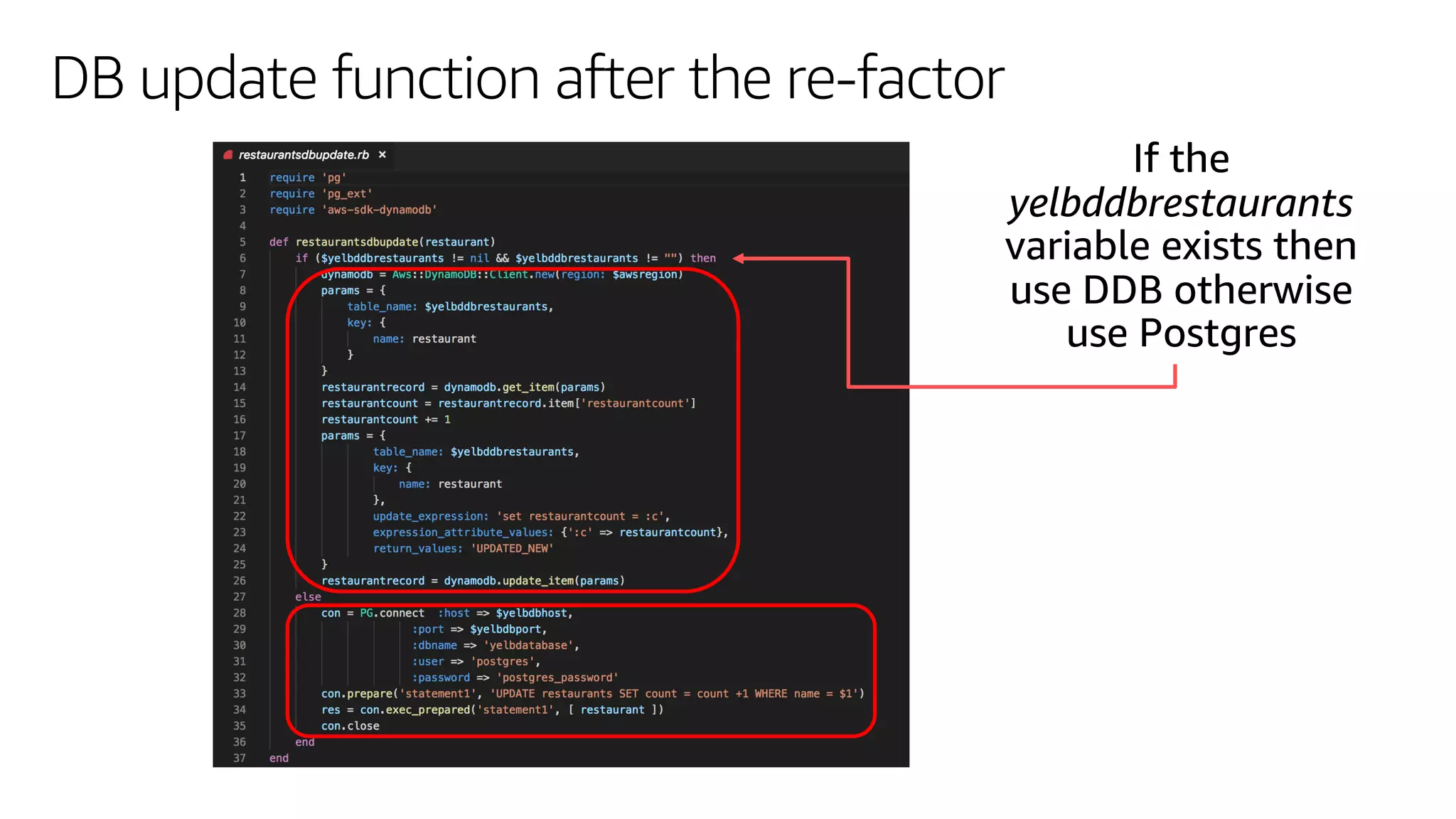

All APIs logic embedded in yelb-appserver.rb

47. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
The application monolith

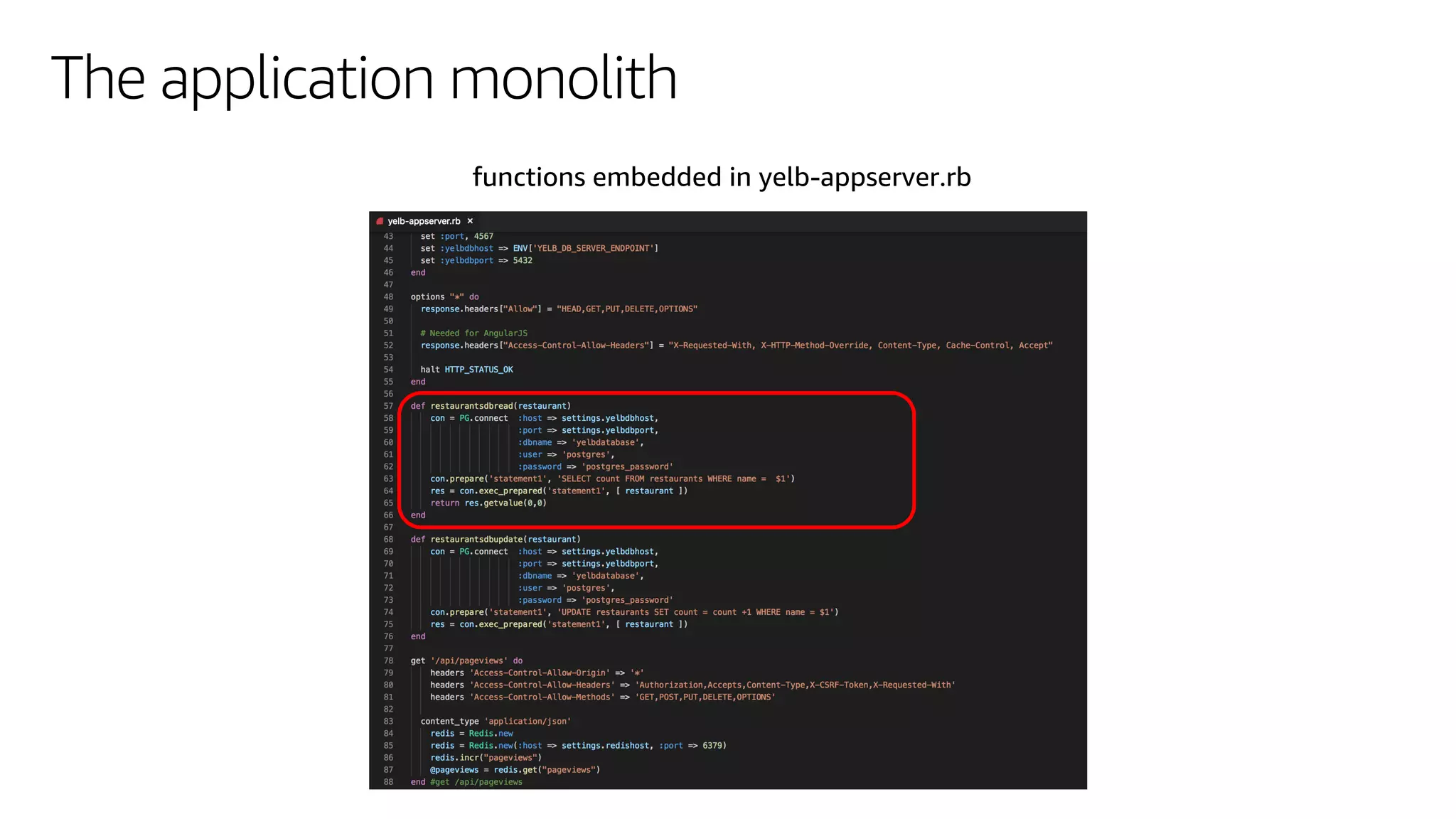

functions embedded in yelb-appserver.rb

48. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
The application monolith

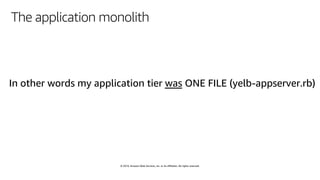

In other words my application tier was ONE FILE (yelb-appserver.rb)

49. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

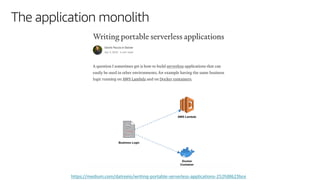

The application monolith

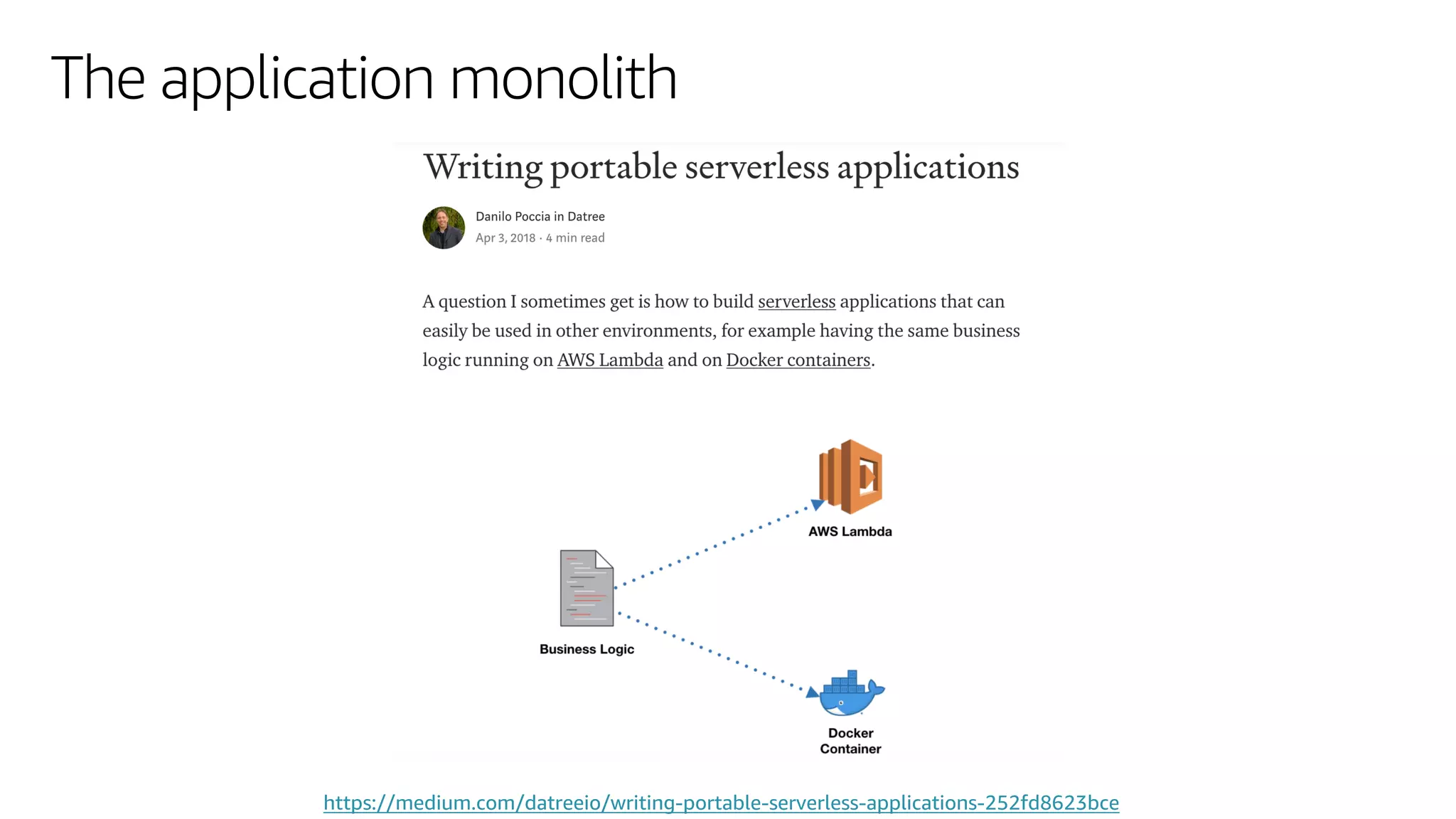

https://medium.com/datreeio/writing-portable-serverless-applications-252fd8623bce

50. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

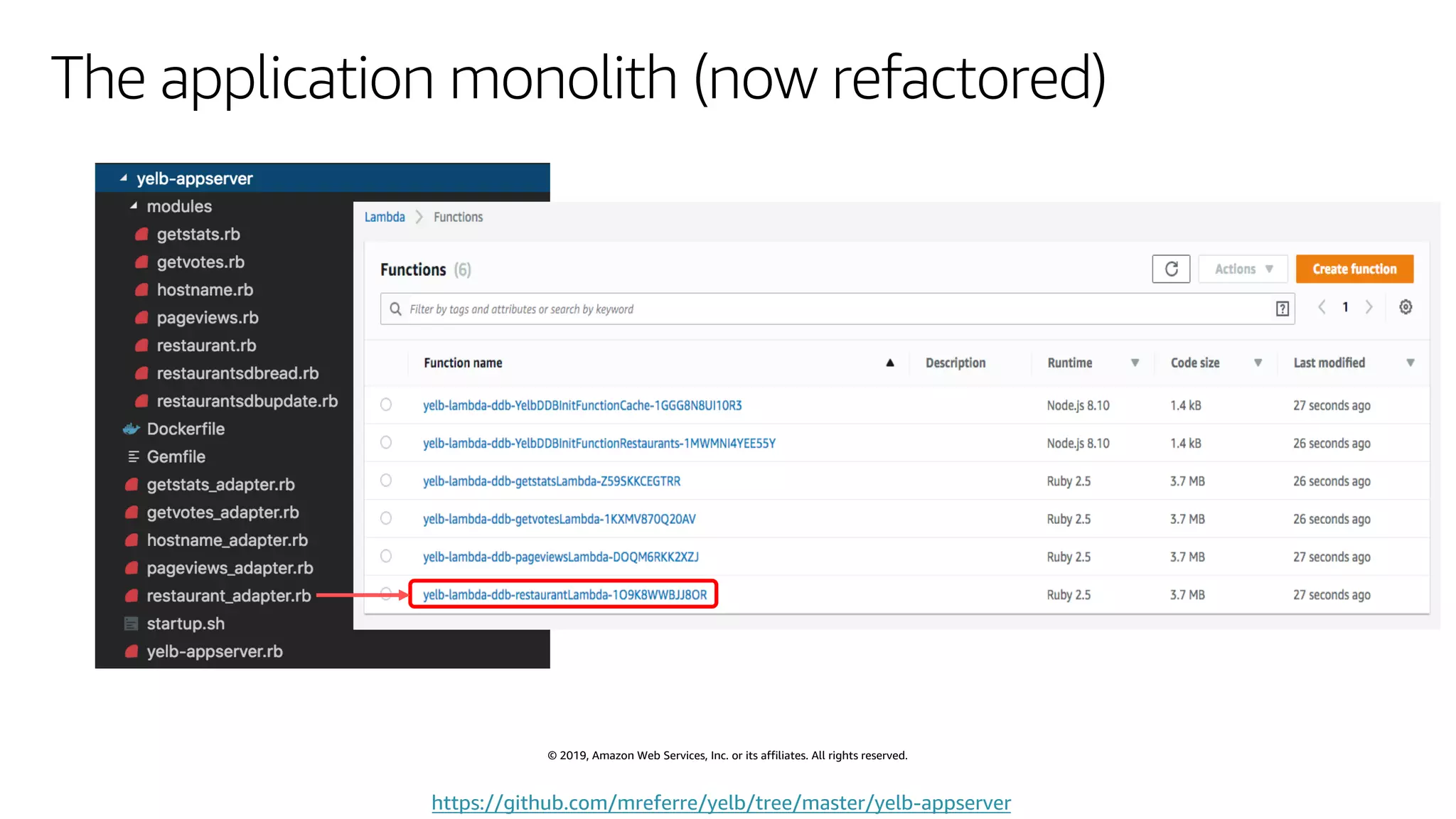

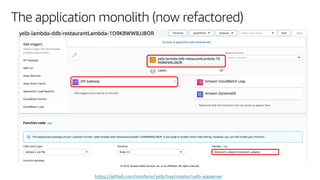

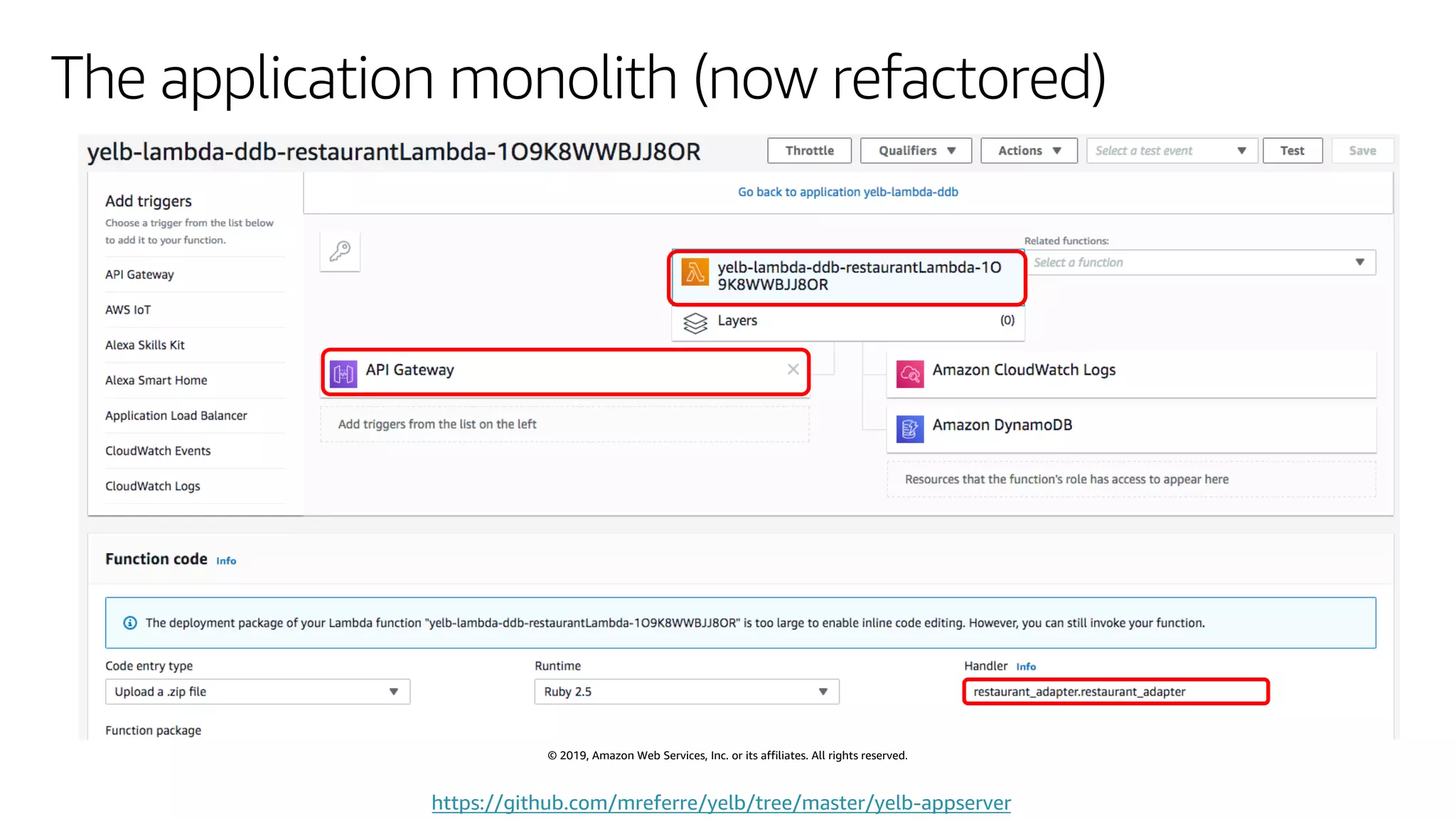

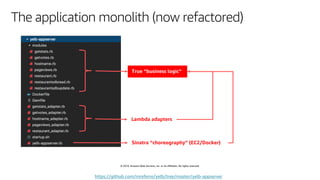

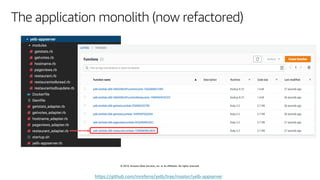

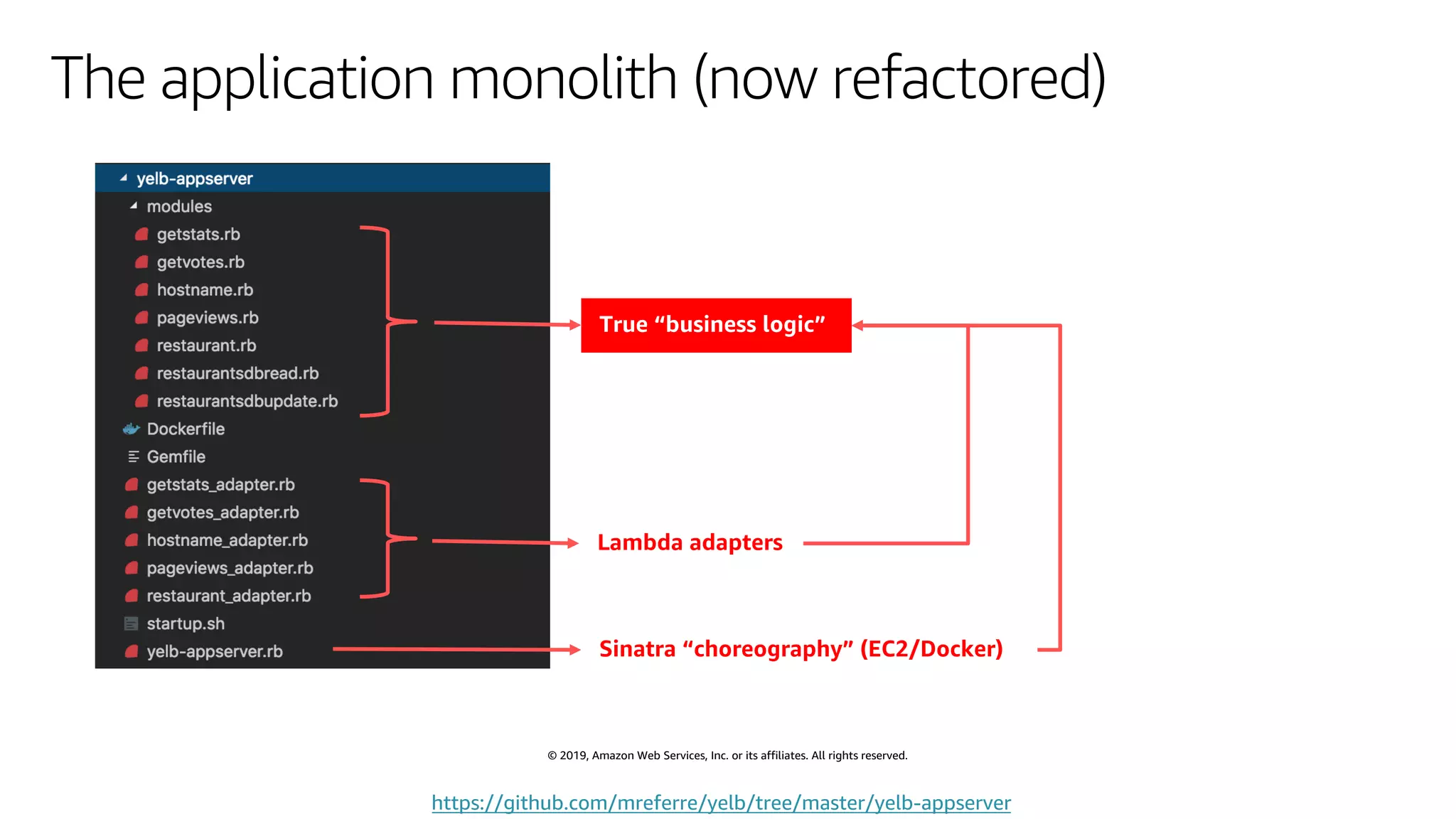

The application monolith (now refactored)
https://github.com/mreferre/yelb/tree/master/yelb-appserver
Sinatra “choreography” (EC2/Docker)
Lambda adapters
True “business logic”

51. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
The application monolith (now refactored)
https://github.com/mreferre/yelb/tree/master/yelb-appserver

52. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
The application monolith (now refactored)
https://github.com/mreferre/yelb/tree/master/yelb-appserver

53. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

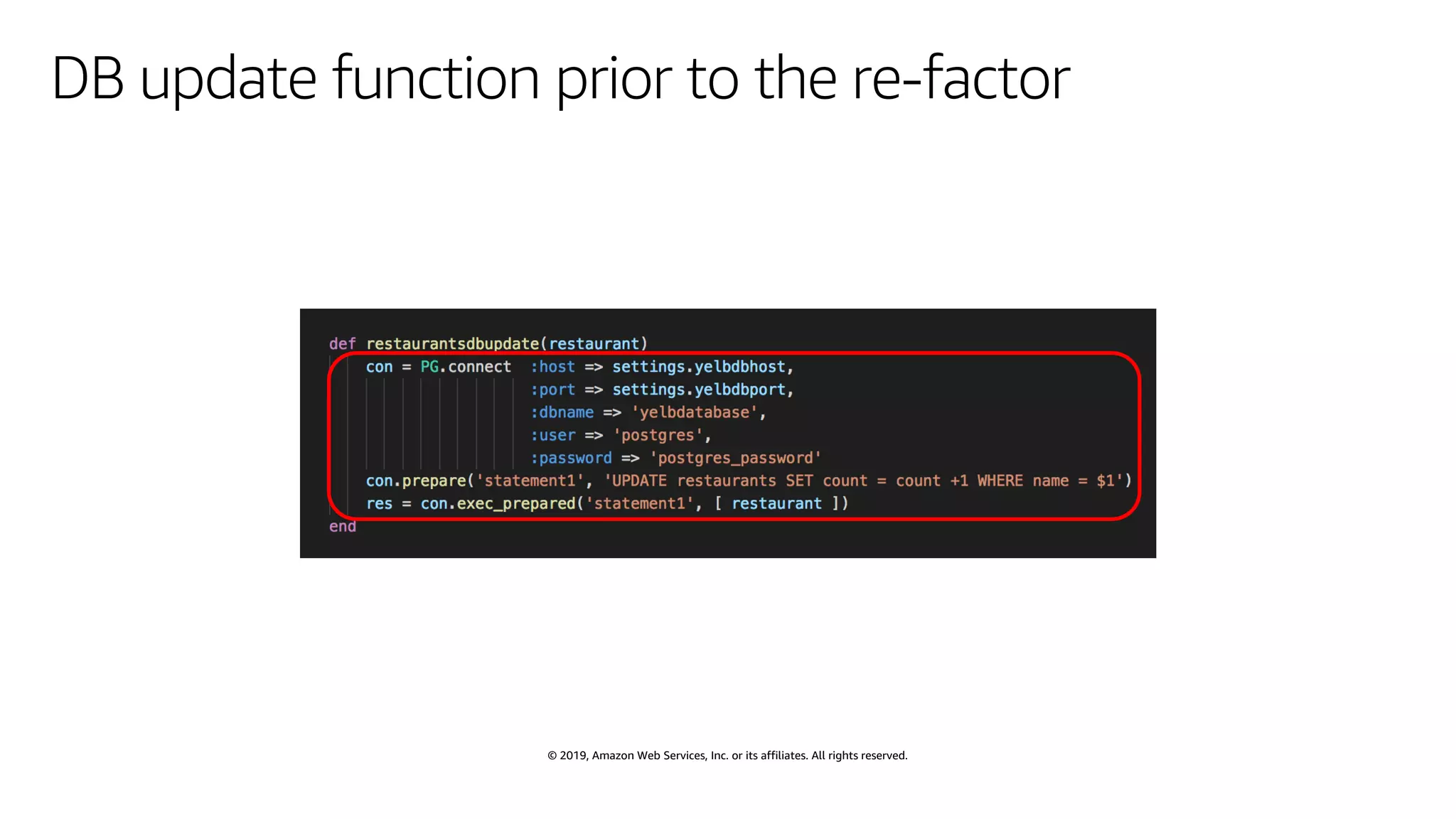

DB update function prior to the re-factor

54. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
DB update function after the re-factor

55. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

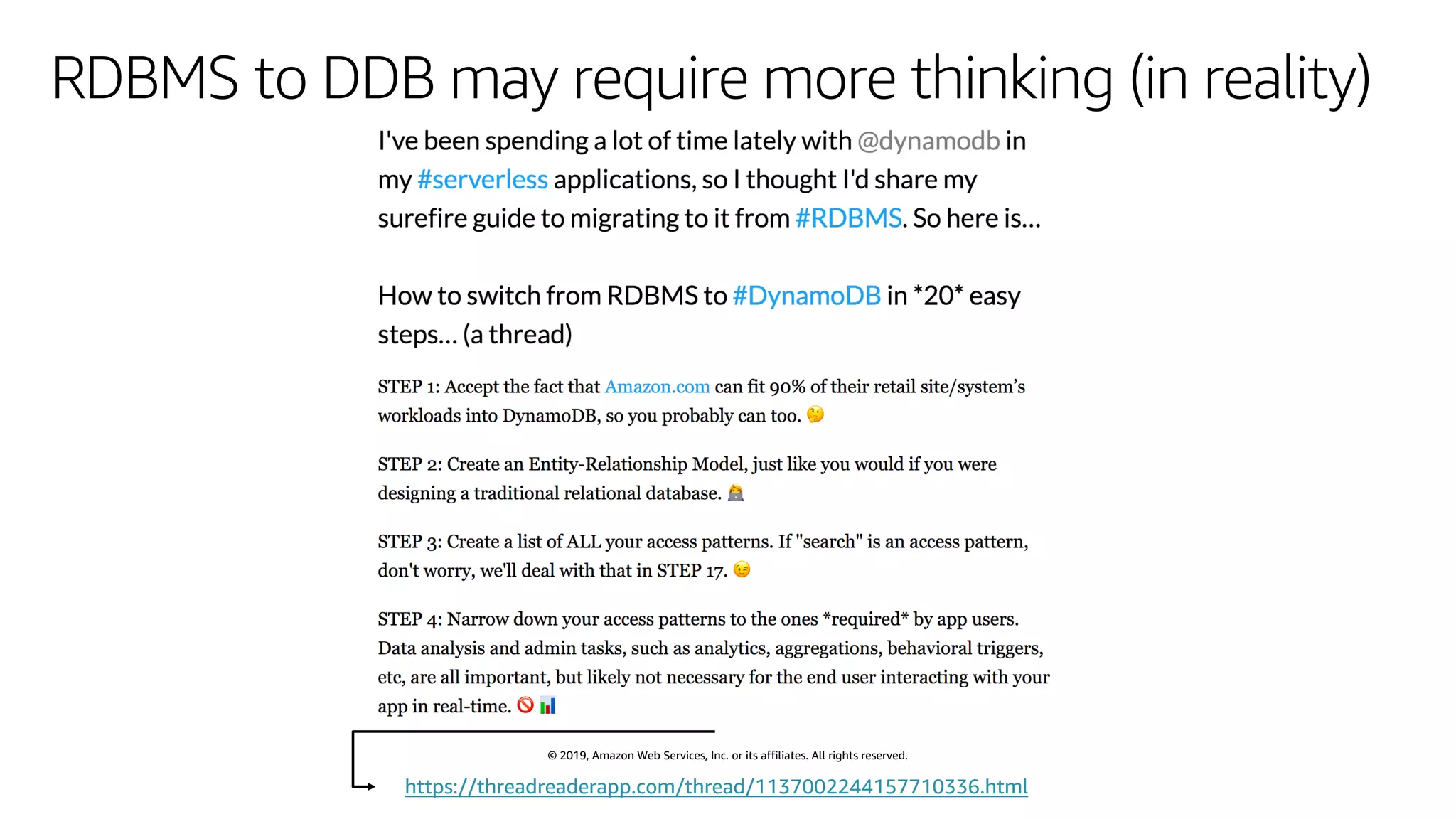

RDBMS to DDB may require more thinking (in reality)
https://threadreaderapp.com/thread/1137002244157710336.html

56. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

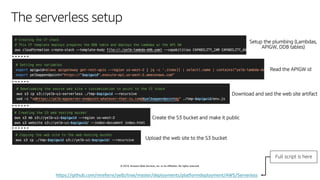

The serverless setup
https://github.com/mreferre/yelb/tree/master/deployments/platformdeployment/AWS/Serverless

57. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

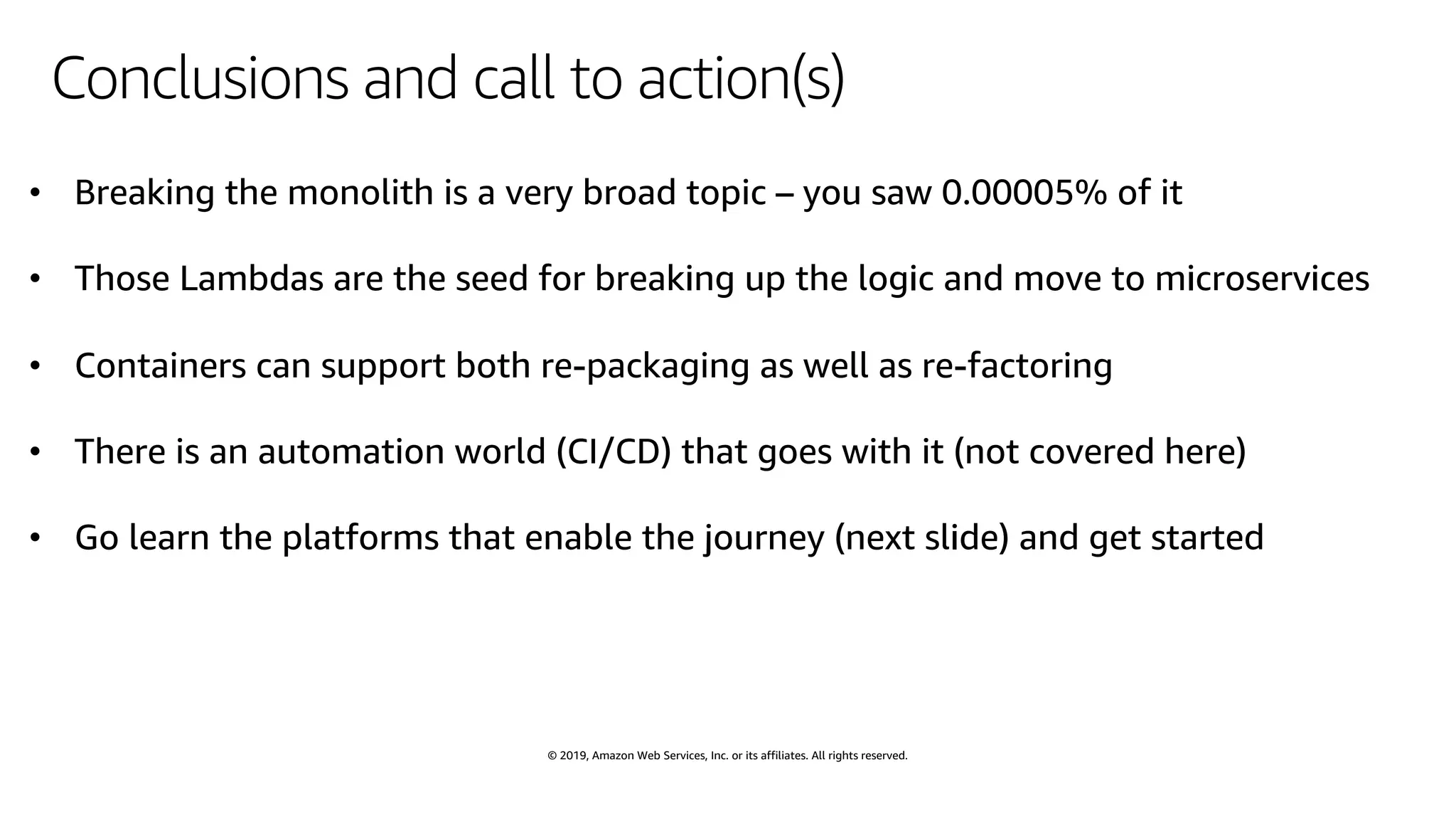

Conclusions and call to action(s)

58. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Useful links:
• Demo App: https://github.com/mreferre/yelb
• ECS workshop: https://ecsworkshop.com/
• EKS workshop: https://eksworkshop.com/
• Serverless Workshop: https://github.com/aws-samples/aws-serverless-
workshops

59. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Who Am I ?
Email: mreferre@amazon.com
Twitter: @mreferre
Github: github.com/mreferre
