1. Bot or Not?
Detecting bots in GitHub
pull request activity based
on comment similarity
-- Mehdi Golzadeh
-- Damien Legay
-- Alexandre Decan
-- Tom Mens
---------------------------------------
{firstname.lastname}@umons.ac.be
Software engineering lab - Univerisity of Mons
2nd International Workshop on Bots in Software Engineering
May 24th, 2020, Seoul, South Korea In conjunction with ICSE 2020

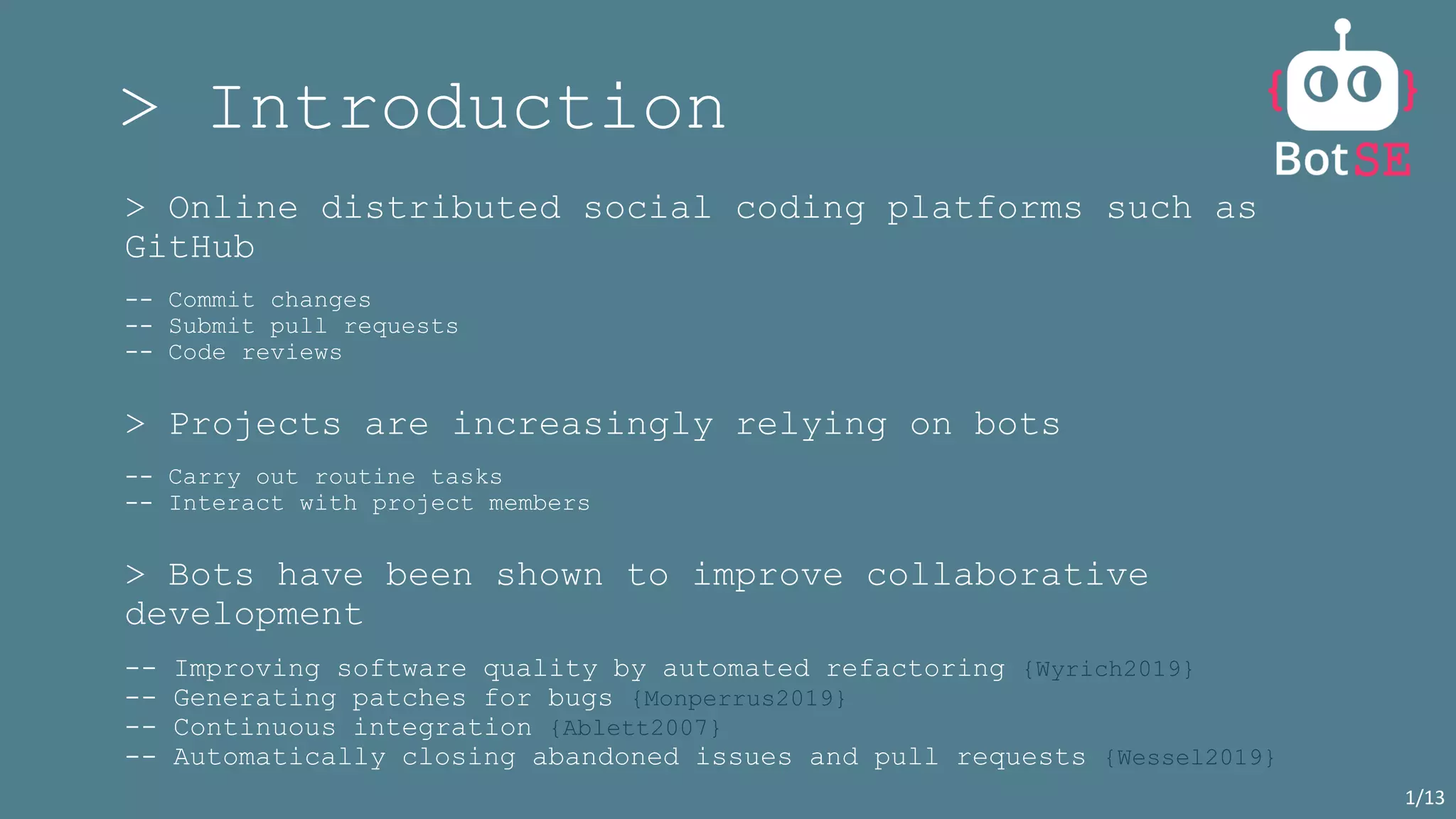

2. > Introduction
> Online distributed social coding platforms such as
GitHub
-- Commit changes
-- Submit pull requests
-- Code reviews
> Projects are increasingly relying on bots
-- Carry out routine tasks
-- Interact with project members
> Bots have been shown to improve collaborative
development
-- Improving software quality by automated refactoring {Wyrich2019}
-- Generating patches for bugs {Monperrus2019}
-- Continuous integration {Ablett2007}
-- Automatically closing abandoned issues and pull requests {Wessel2019}
1/13

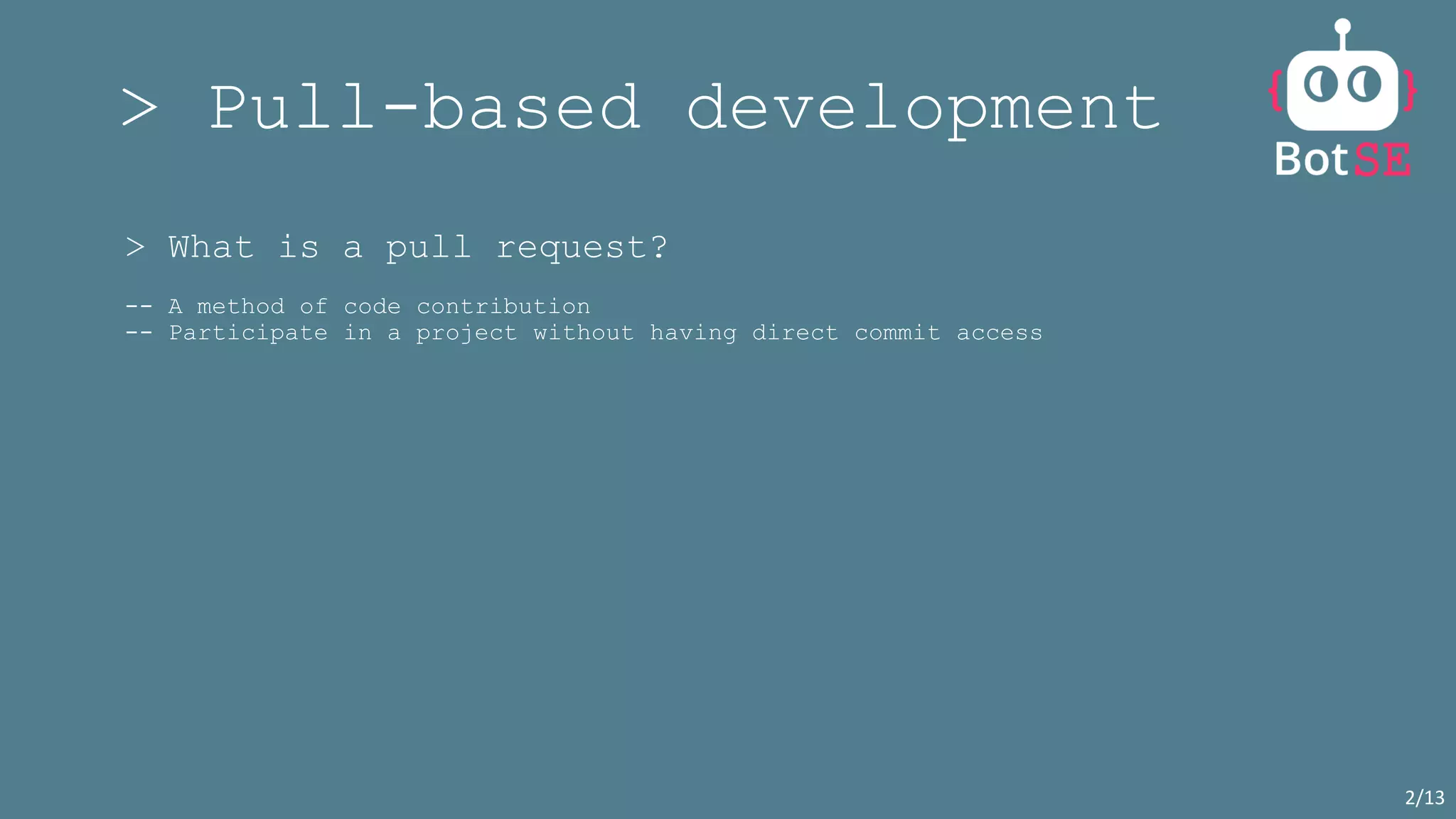

3. > What is a pull request?
-- A method of code contribution
-- Participate in a project without having direct commit access
> Pull-based development
2/13

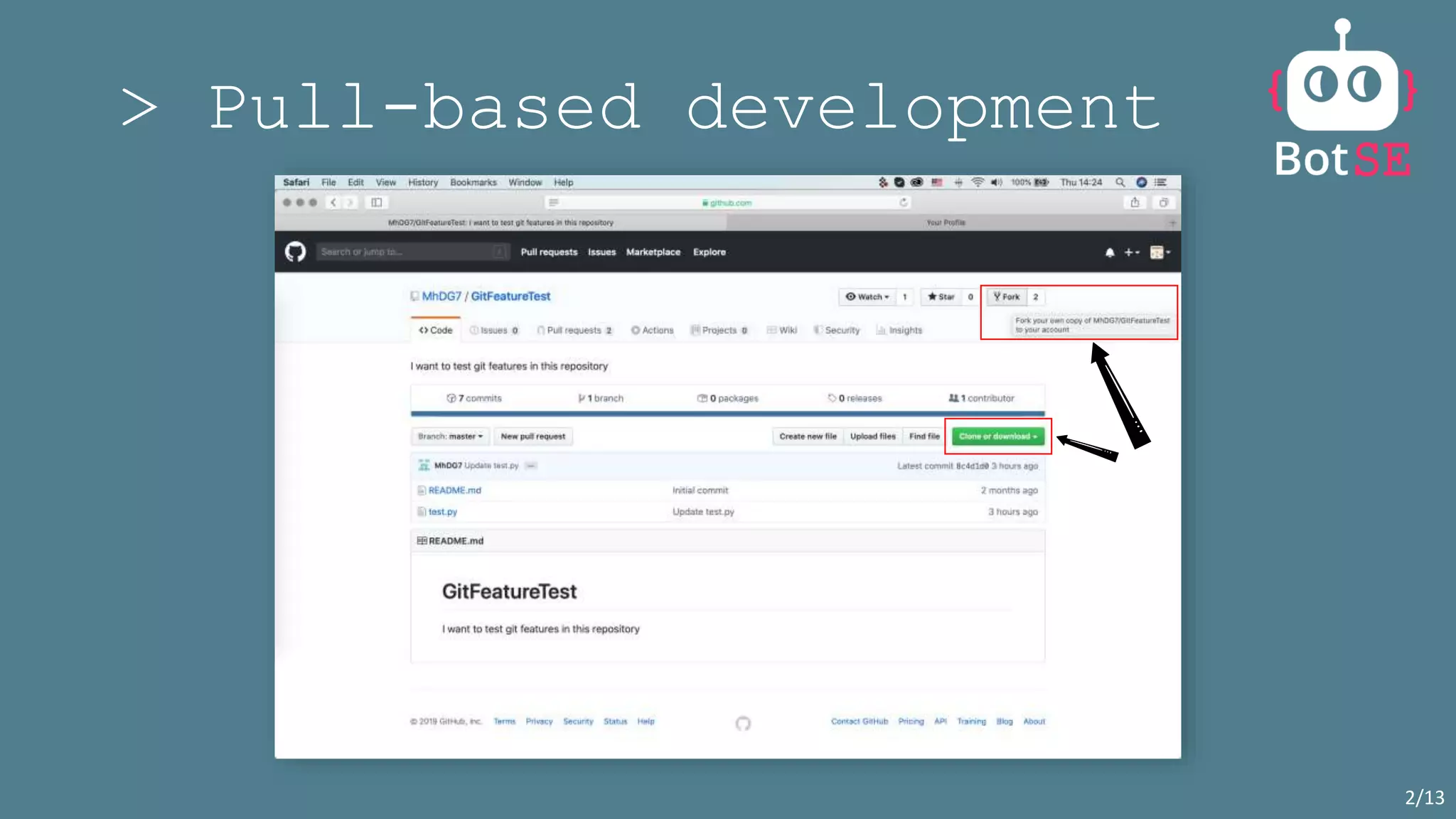

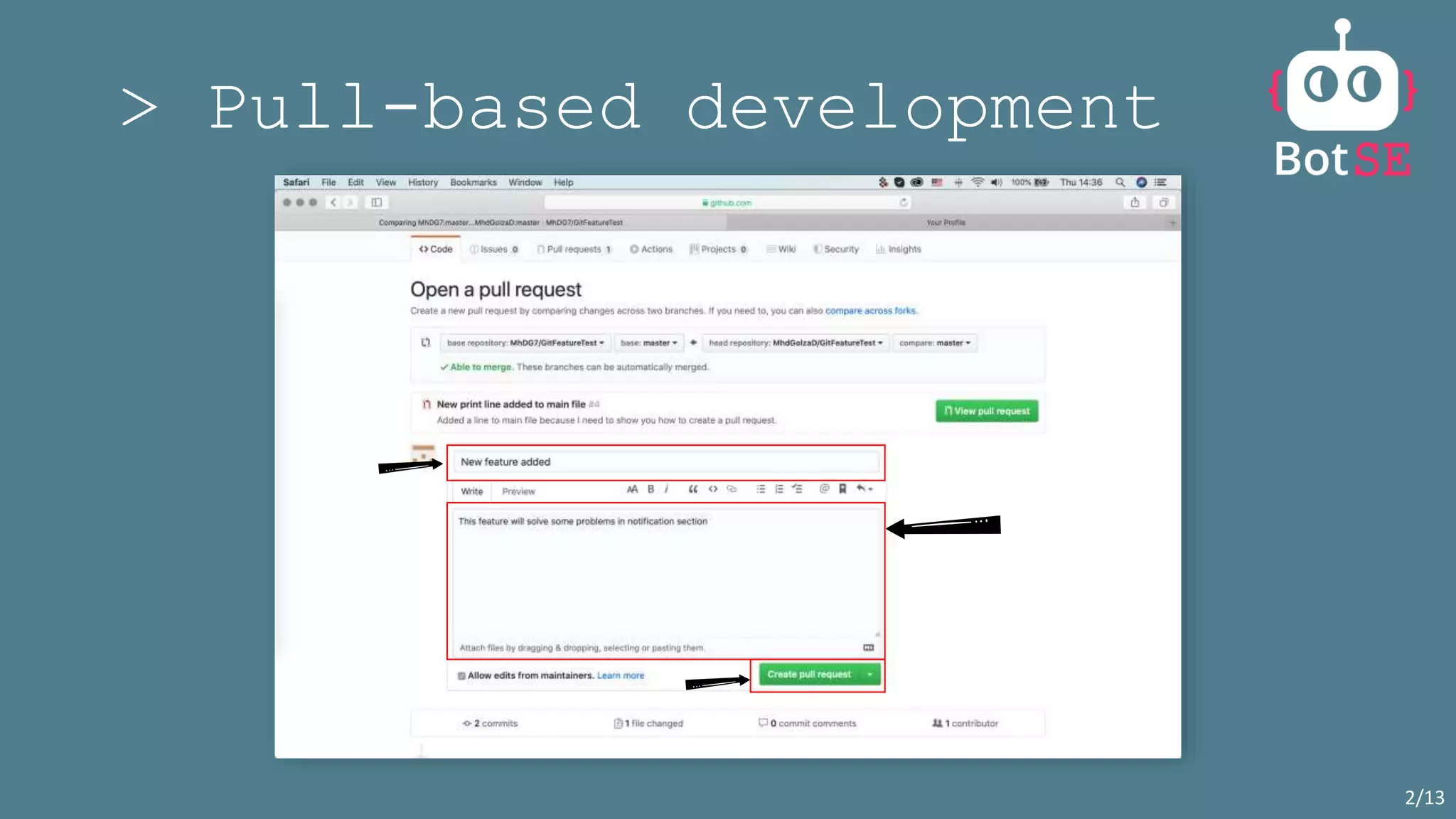

4. > Pull-based development
2/13

5. > Pull-based development
2/13

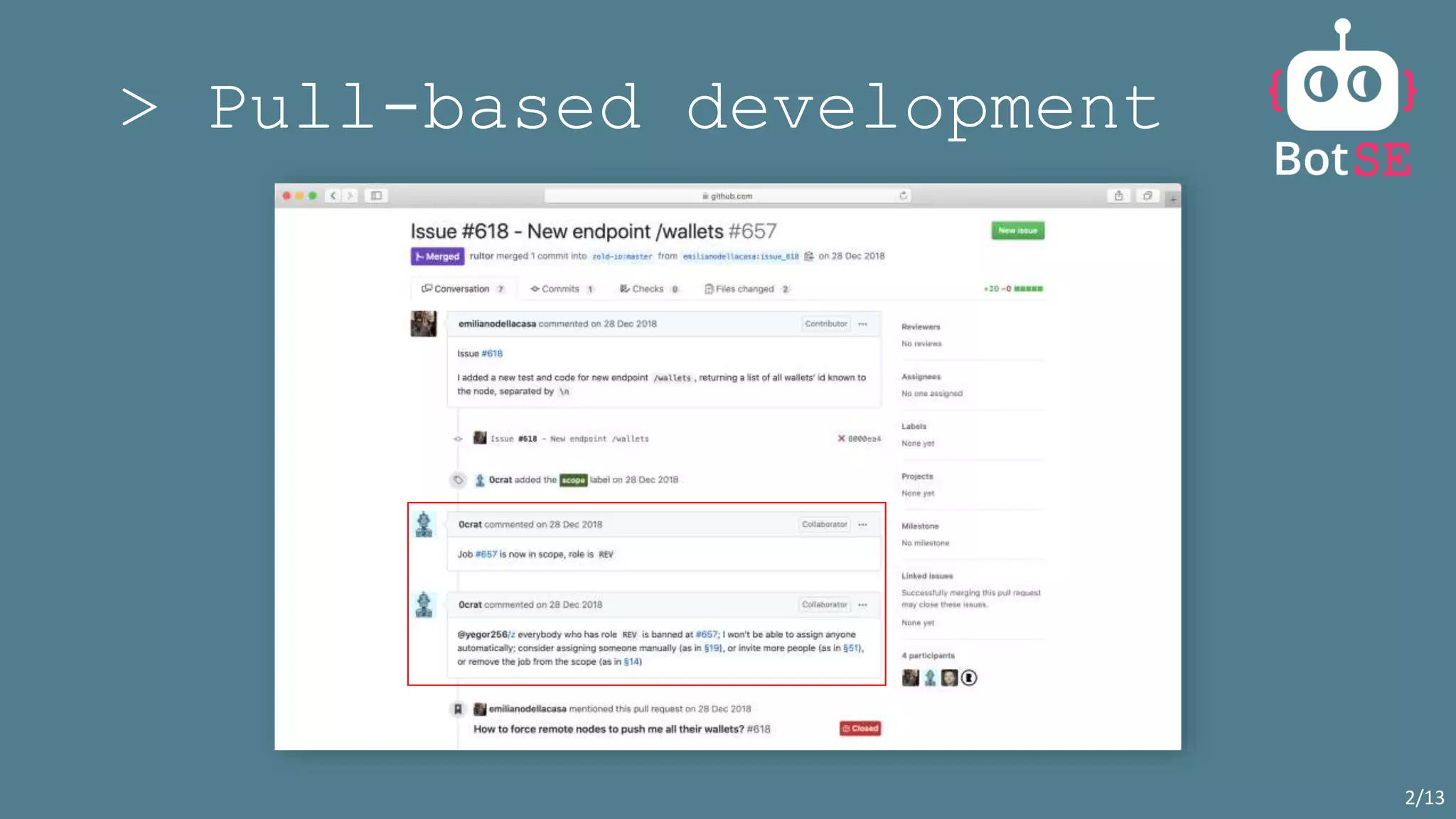

6. > Pull-based development
2/13

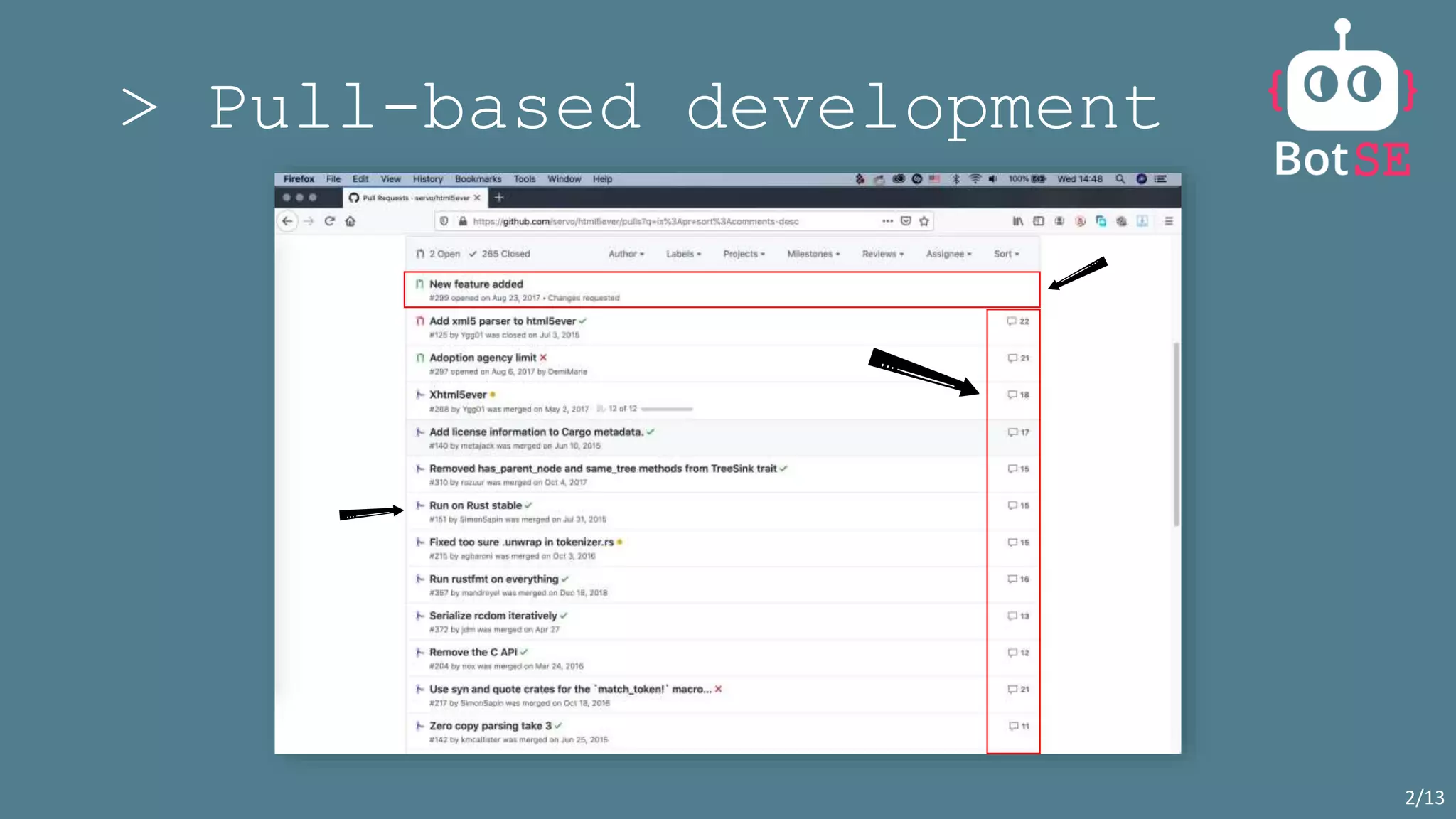

7. > Pull-based development
2/13

8. > Problems
> Empirical studies about human behaviour
-- Distinguish human behaviour from automated behaviour {Liu2019}
-- Identity merging {GoeminneComparison2012}
-- Contributor onboarding {Casalnuovo2015}
-- Contributor abandonment {Constantinou2017ISSE}
-- Team productivity {Meyer2014,Vasilescu2015}
-- Team collaboration {Tamburri2019}

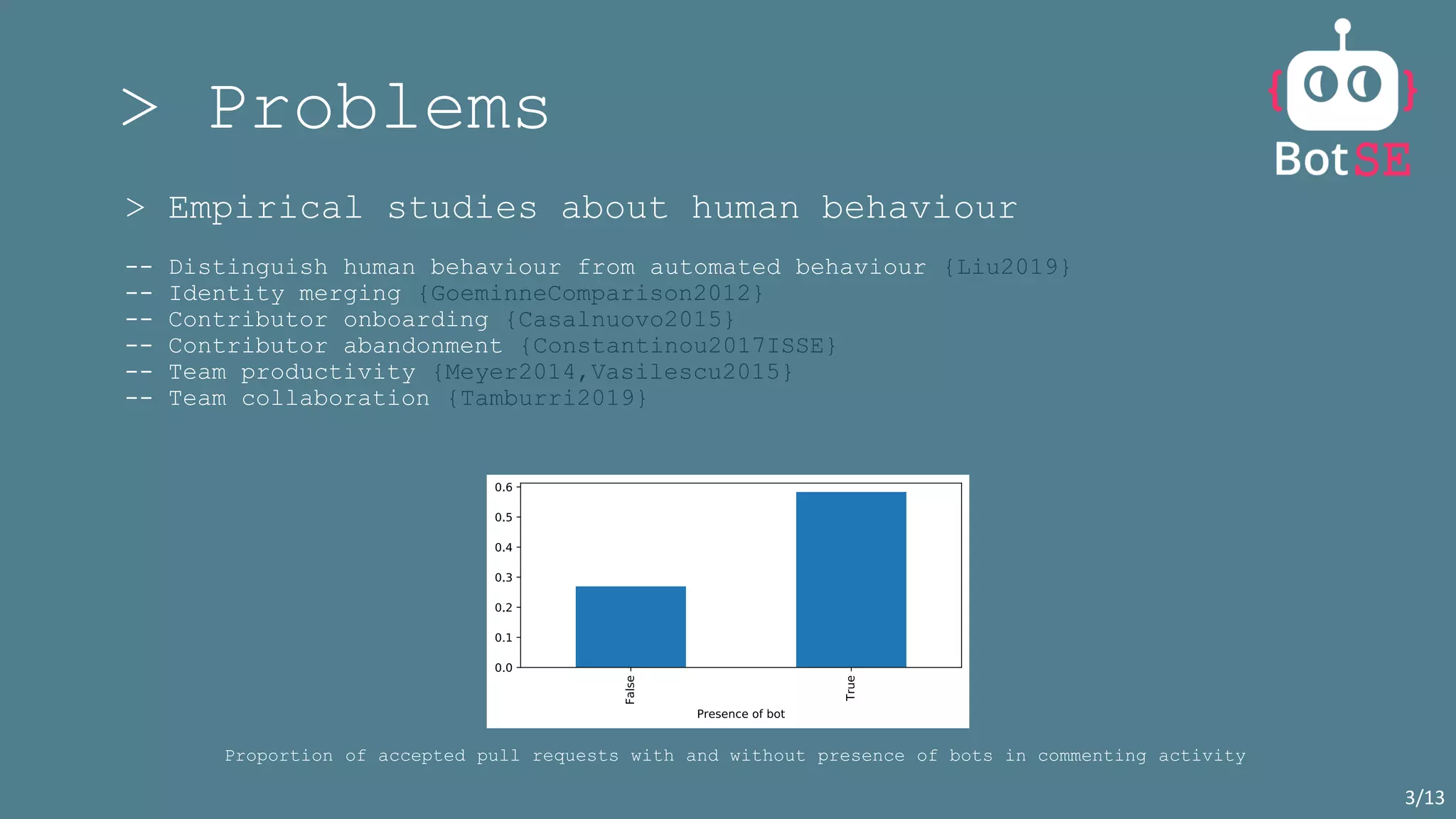

Proportion of accepted pull requests with and without presence of bots in commenting activity
3/13

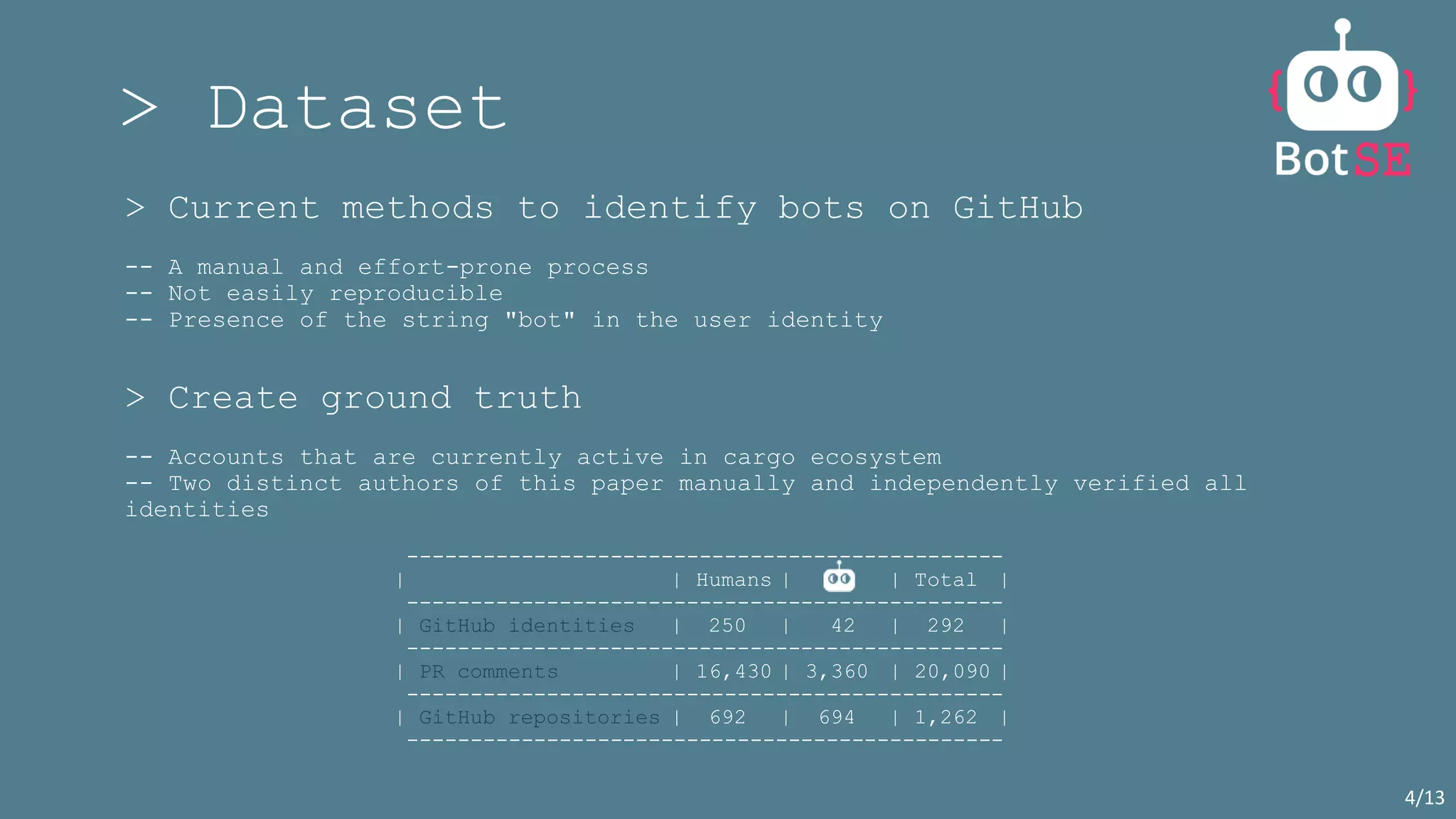

9. > Dataset
> Current methods to identify bots on GitHub
-- A manual and effort-prone process
-- Not easily reproducible
-- Presence of the string "bot" in the user identity
> Create ground truth
-- Accounts that are currently active in cargo ecosystem
-- Two distinct authors of this paper manually and independently verified all
identities
-----------------------------------------------
| | Humans | | Total |
-----------------------------------------------
| GitHub identities | 250 | 42 | 292 |
-----------------------------------------------
| PR comments | 16,430 | 3,360 | 20,090 |
-----------------------------------------------
| GitHub repositories | 692 | 694 | 1,262 |
-----------------------------------------------
4/13

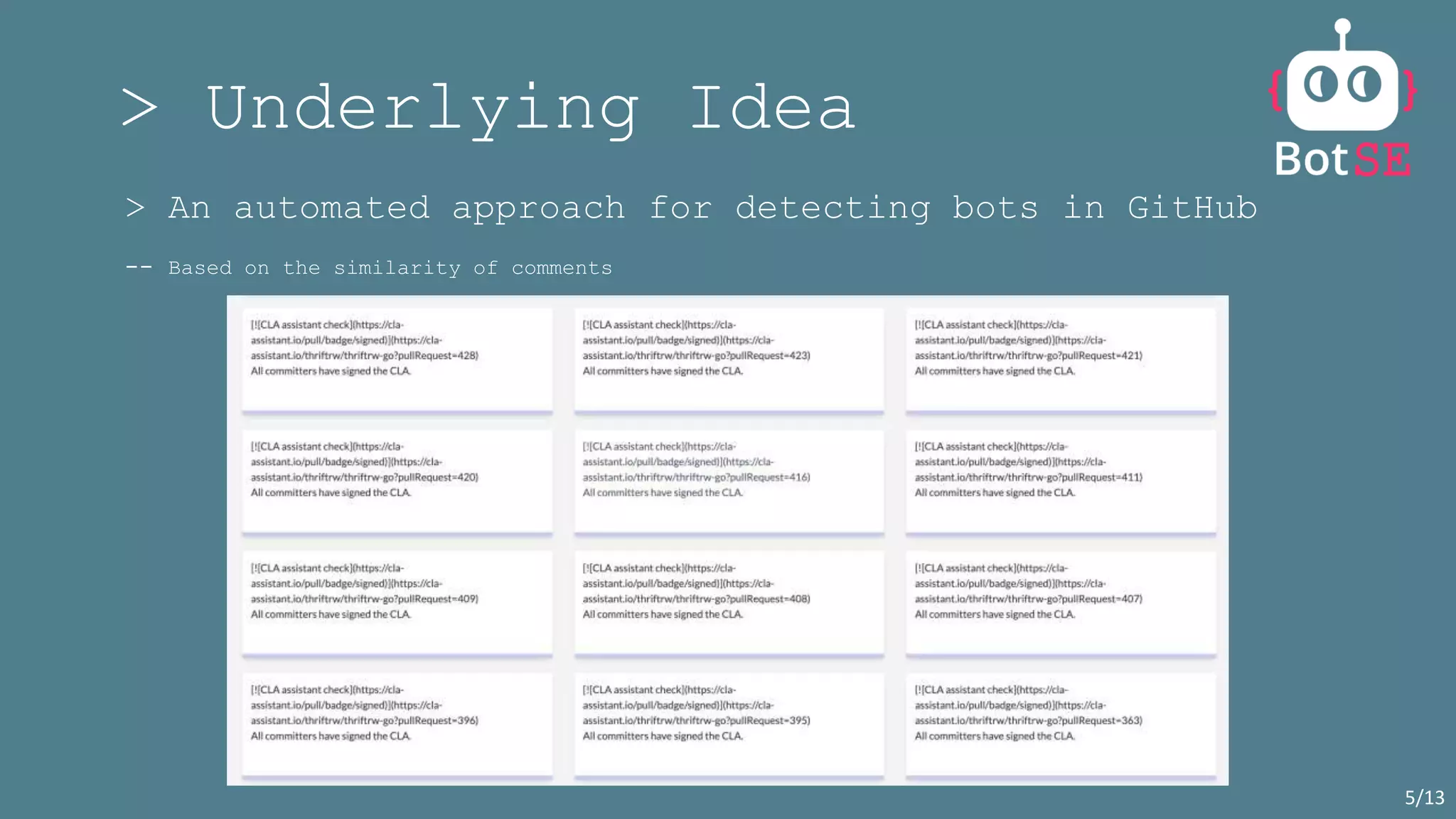

10. > Underlying Idea
> An automated approach for detecting bots in GitHub
-- Based on the similarity of comments
5/13

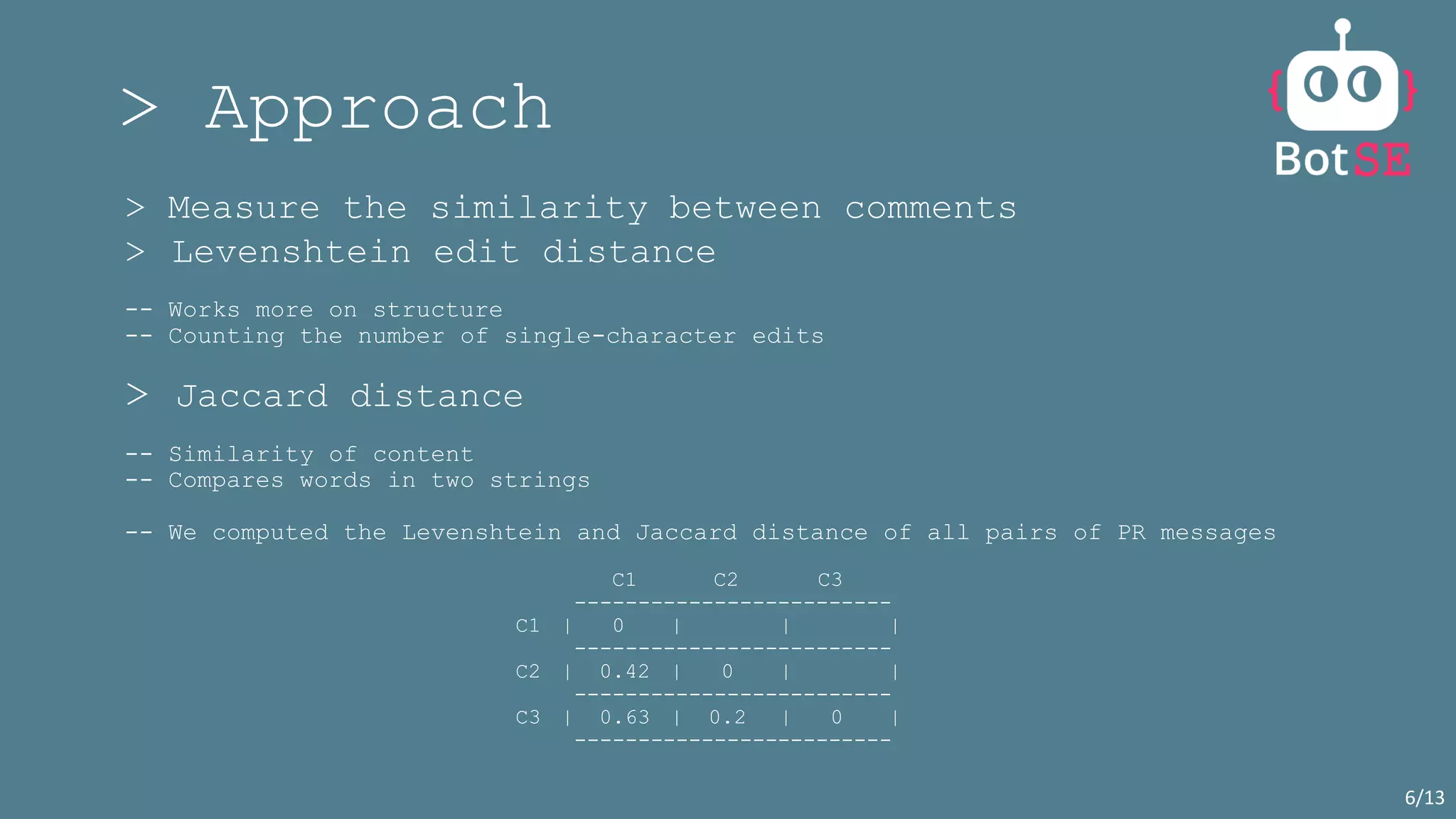

11. > Approach
> Measure the similarity between comments
> Levenshtein edit distance
-- Works more on structure
-- Counting the number of single-character edits
> Jaccard distance
-- Similarity of content
-- Compares words in two strings
-- We computed the Levenshtein and Jaccard distance of all pairs of PR messages
C1 C2 C3
-------------------------
C1 | 0 | | |
-------------------------
C2 | 0.42 | 0 | |
-------------------------
C3 | 0.63 | 0.2 | 0 |
-------------------------
6/13

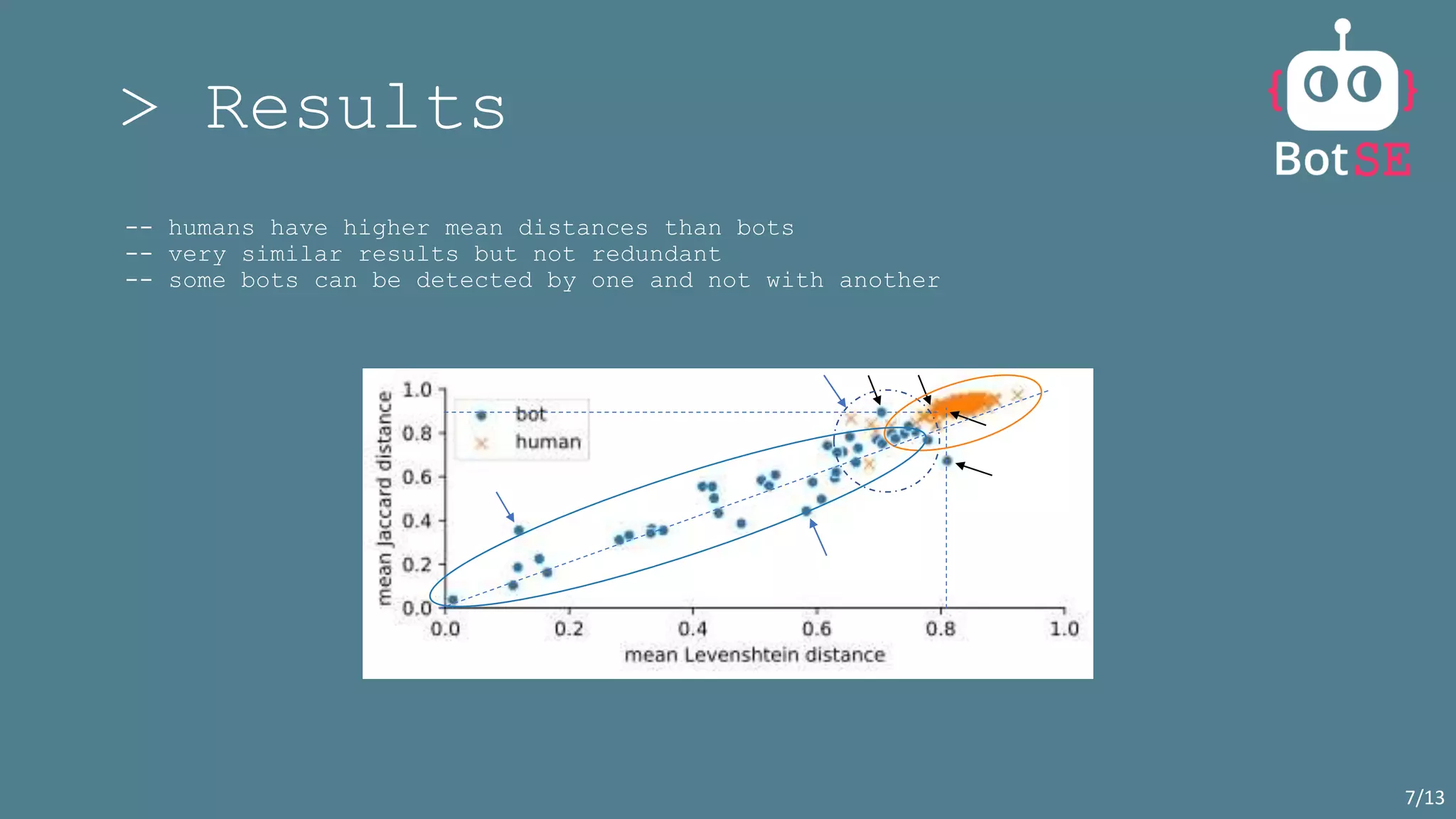

12. > Results
-- humans have higher mean distances than bots
-- very similar results but not redundant
-- some bots can be detected by one and not with another
7/13

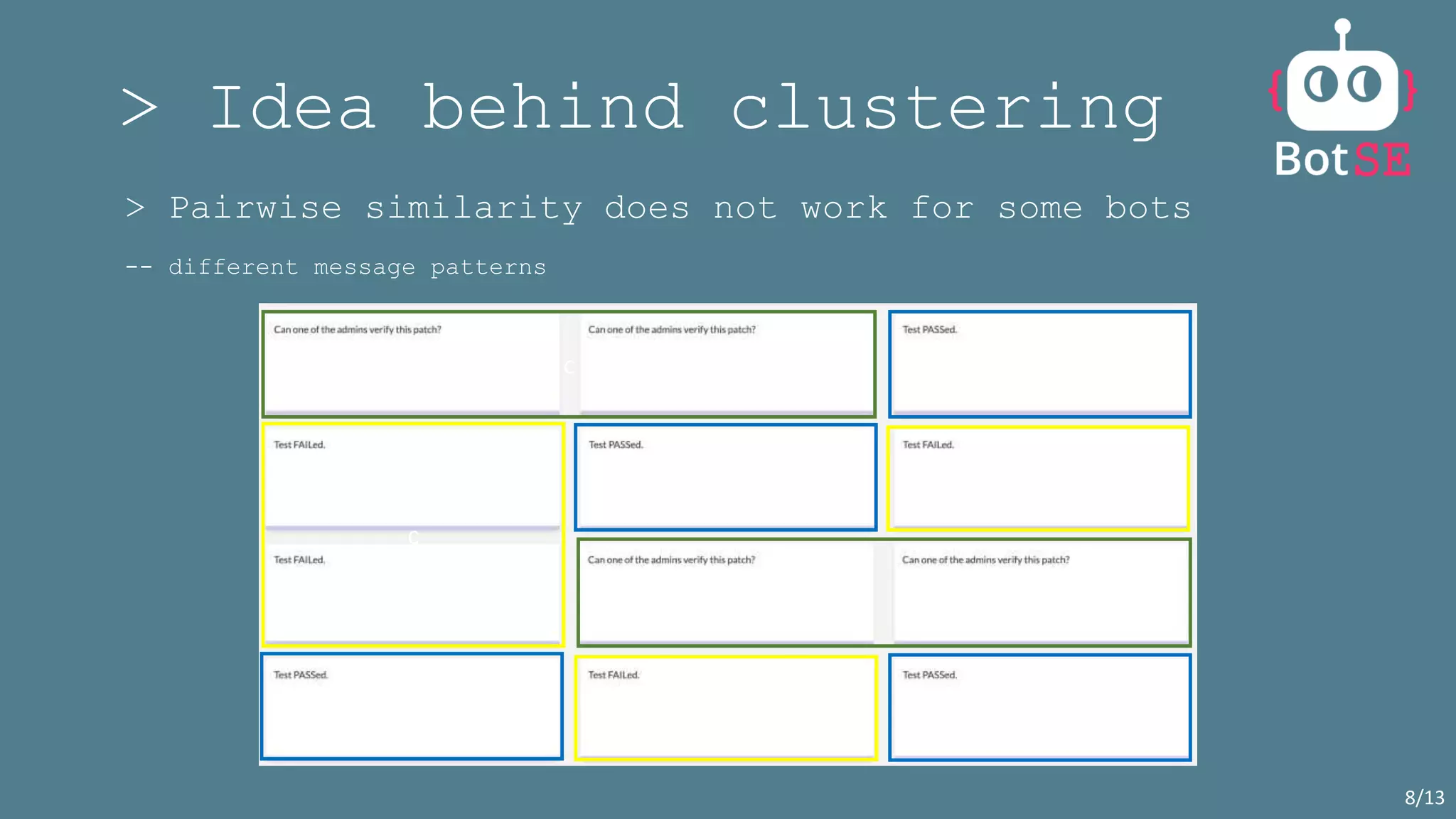

13. > Idea behind clustering
> Pairwise similarity does not work for some bots
-- different message patterns
8/13
c c
c
c c
c
c
c

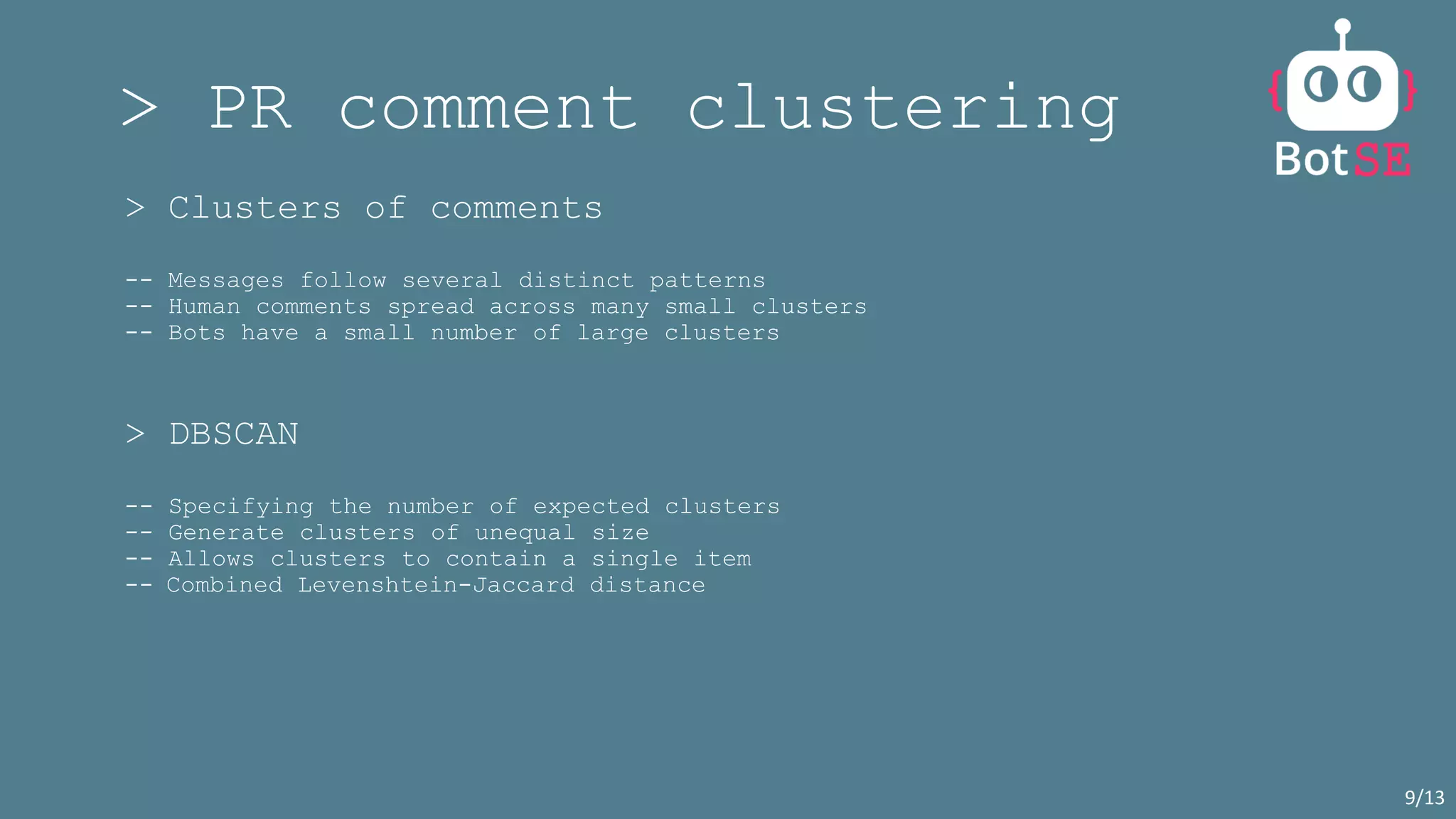

14. > PR comment clustering
> Clusters of comments
-- Messages follow several distinct patterns
-- Human comments spread across many small clusters
-- Bots have a small number of large clusters
> DBSCAN
-- Specifying the number of expected clusters
-- Generate clusters of unequal size
-- Allows clusters to contain a single item
-- Combined Levenshtein-Jaccard distance
9/13

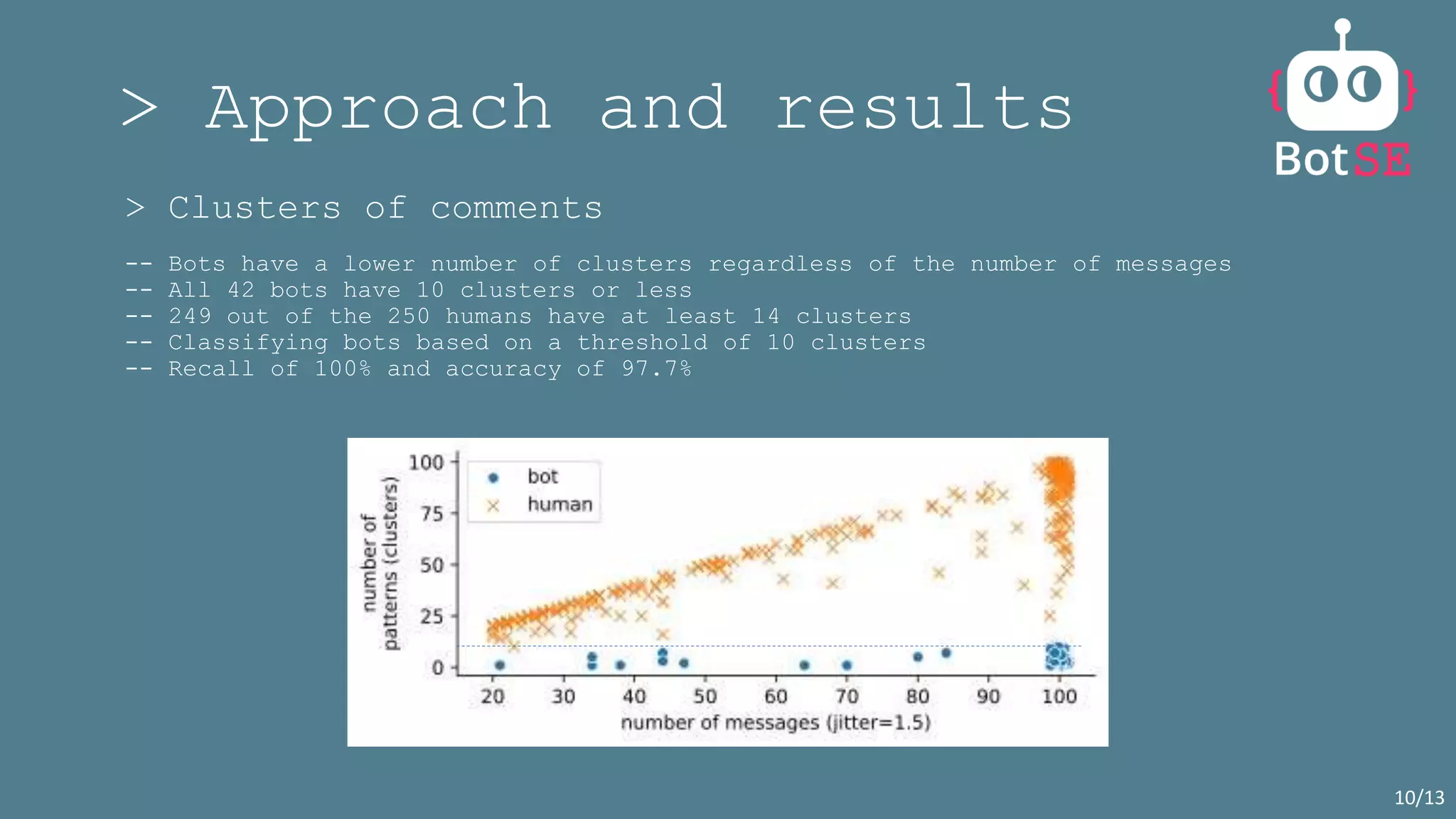

15. > Approach and results
> Clusters of comments
-- Bots have a lower number of clusters regardless of the number of messages
-- All 42 bots have 10 clusters or less
-- 249 out of the 250 humans have at least 14 clusters
-- Classifying bots based on a threshold of 10 clusters
-- Recall of 100% and accuracy of 97.7%
10/13

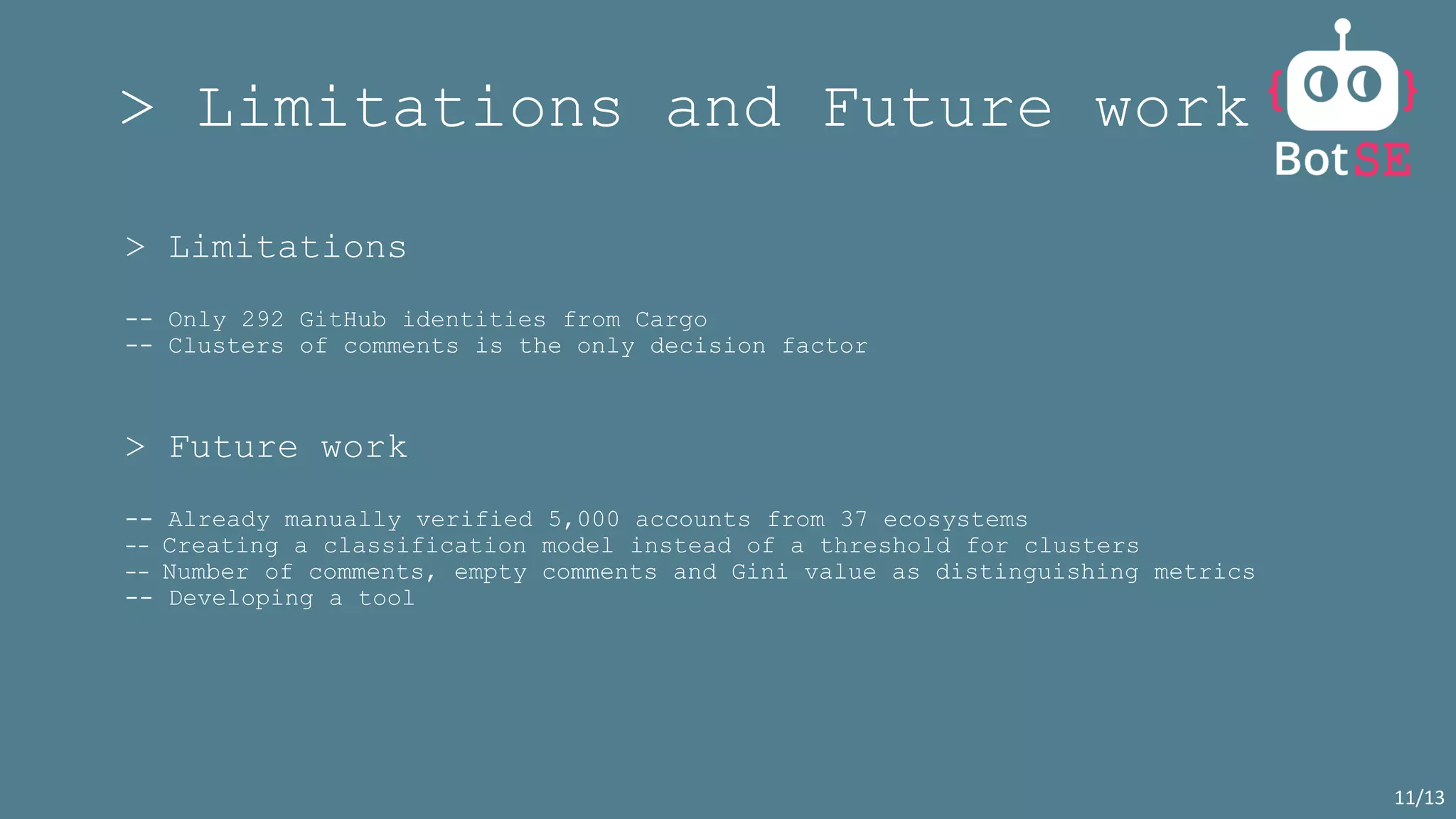

16. > Limitations and Future work
> Limitations
-- Only 292 GitHub identities from Cargo
-- Clusters of comments is the only decision factor
> Future work
-- Already manually verified 5,000 accounts from 37 ecosystems
-- Creating a classification model instead of a threshold for clusters
-- Number of comments, empty comments and Gini value as distinguishing metrics
-- Developing a tool
11/13

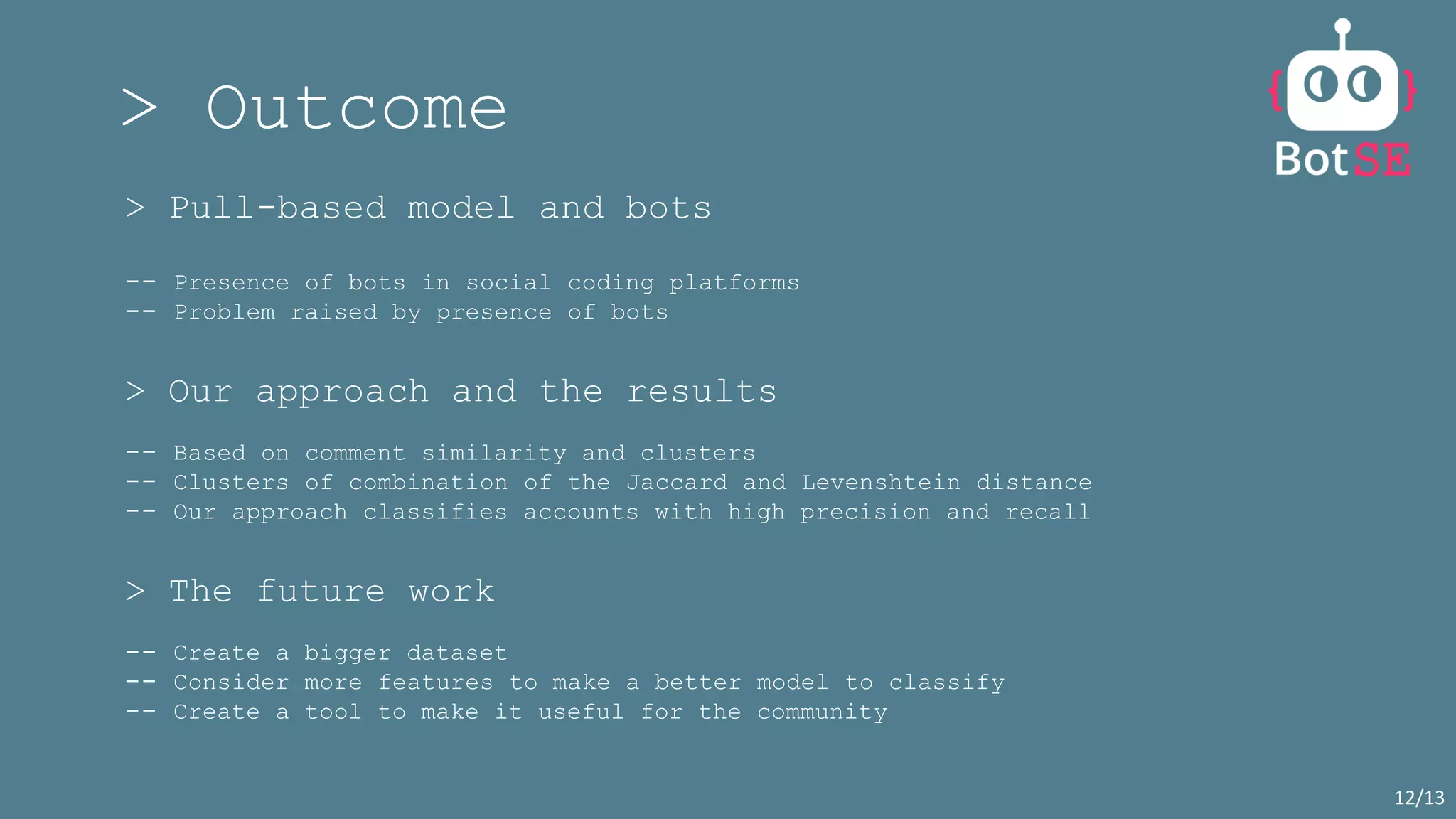

17. > Outcome
> Pull-based model and bots
-- Presence of bots in social coding platforms
-- Problem raised by presence of bots
> Our approach and the results
-- Based on comment similarity and clusters
-- Clusters of combination of the Jaccard and Levenshtein distance
-- Our approach classifies accounts with high precision and recall
> The future work
-- Create a bigger dataset
-- Consider more features to make a better model to classify
-- Create a tool to make it useful for the community
12/13

18. > Ctrl + Z
> Thanks
-- Any question?
13/13joint FNRS / FWO Excellence of Science project SECO-ASSIST
