BLAZE AUTOMATION CCTV SOLUTION

Topics

 Current Surveillance System
 PC-Independent System
 PC-Base System

 What’s Internet Camera
 Market Trend
 Application Diagram

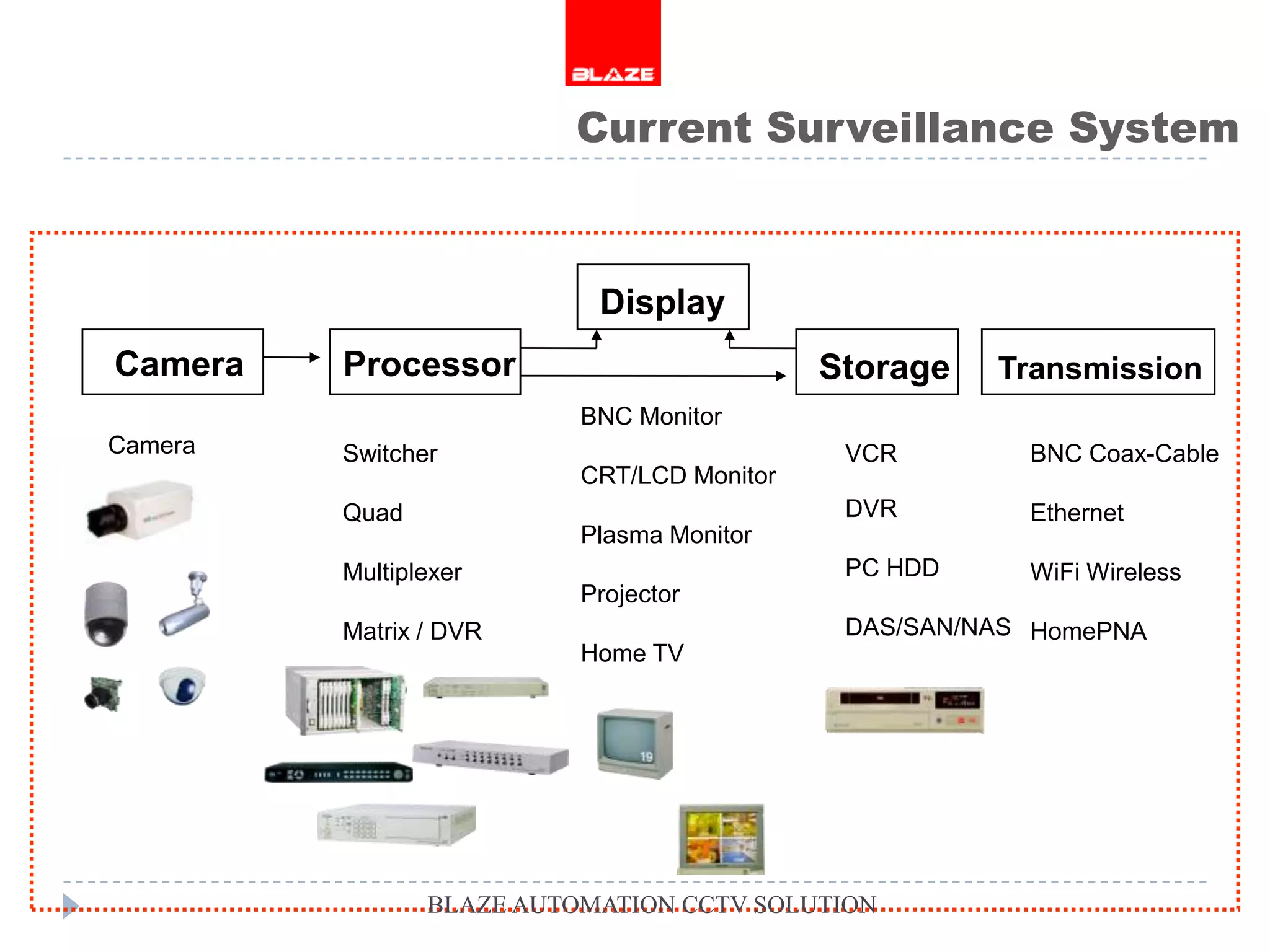

Current Surveillance System

Display
Camera Processor Storage Transmission
BNC Monitor
Camera Switcher VCR BNC Coax-Cable
CRT/LCD Monitor
Quad DVR Ethernet
Plasma Monitor
Multiplexer PC HDD WiFi Wireless
Projector
Matrix / DVR DAS/SAN/NAS HomePNA
Home TV


BNC CCTV Camera
PC-Independent System

BNC
Analog
Codec
Processor

( CCD or CMOS )

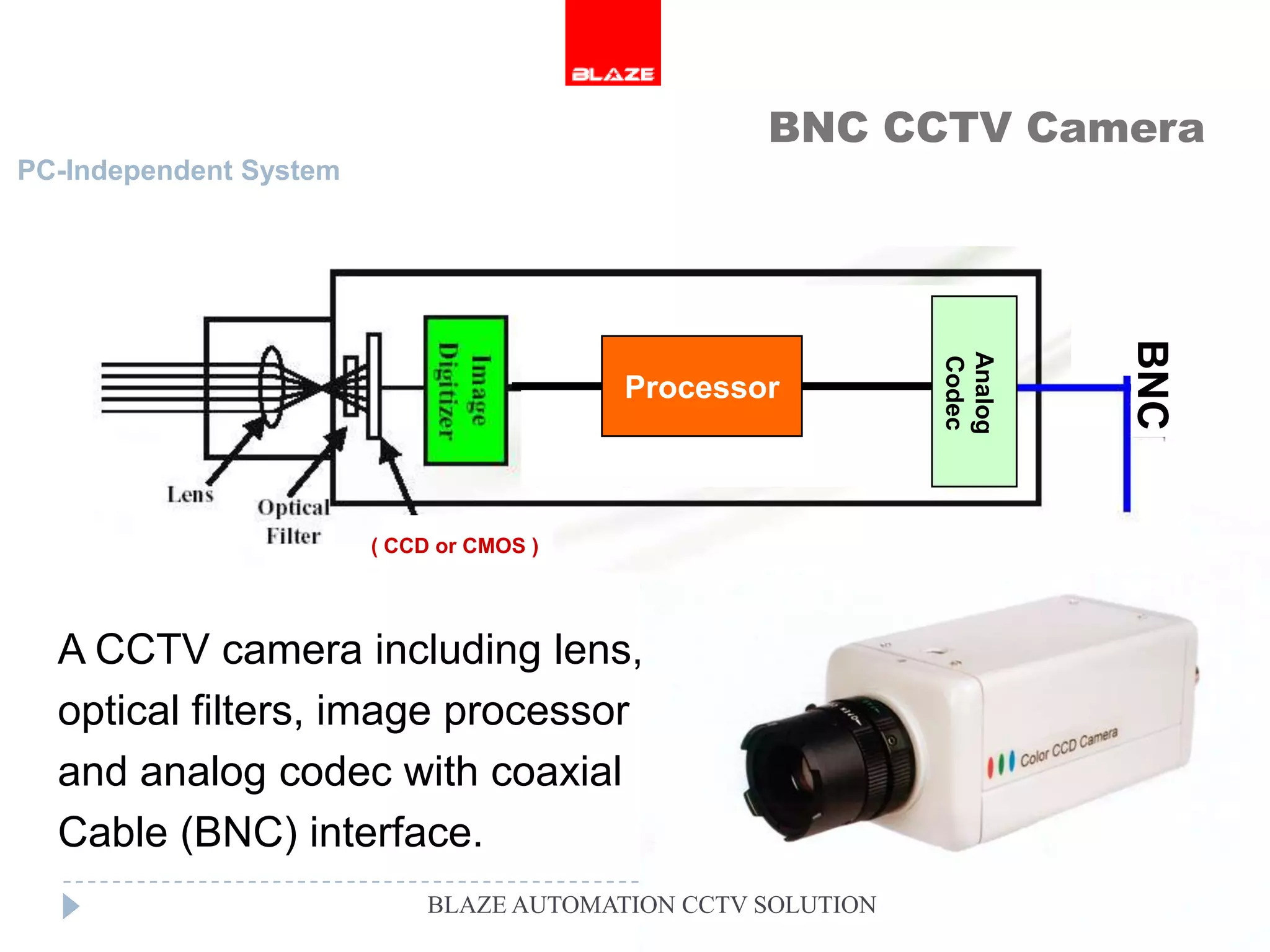

A CCTV camera including lens,
optical filters, image processor
and analog codec with coaxial
Cable (BNC) interface.

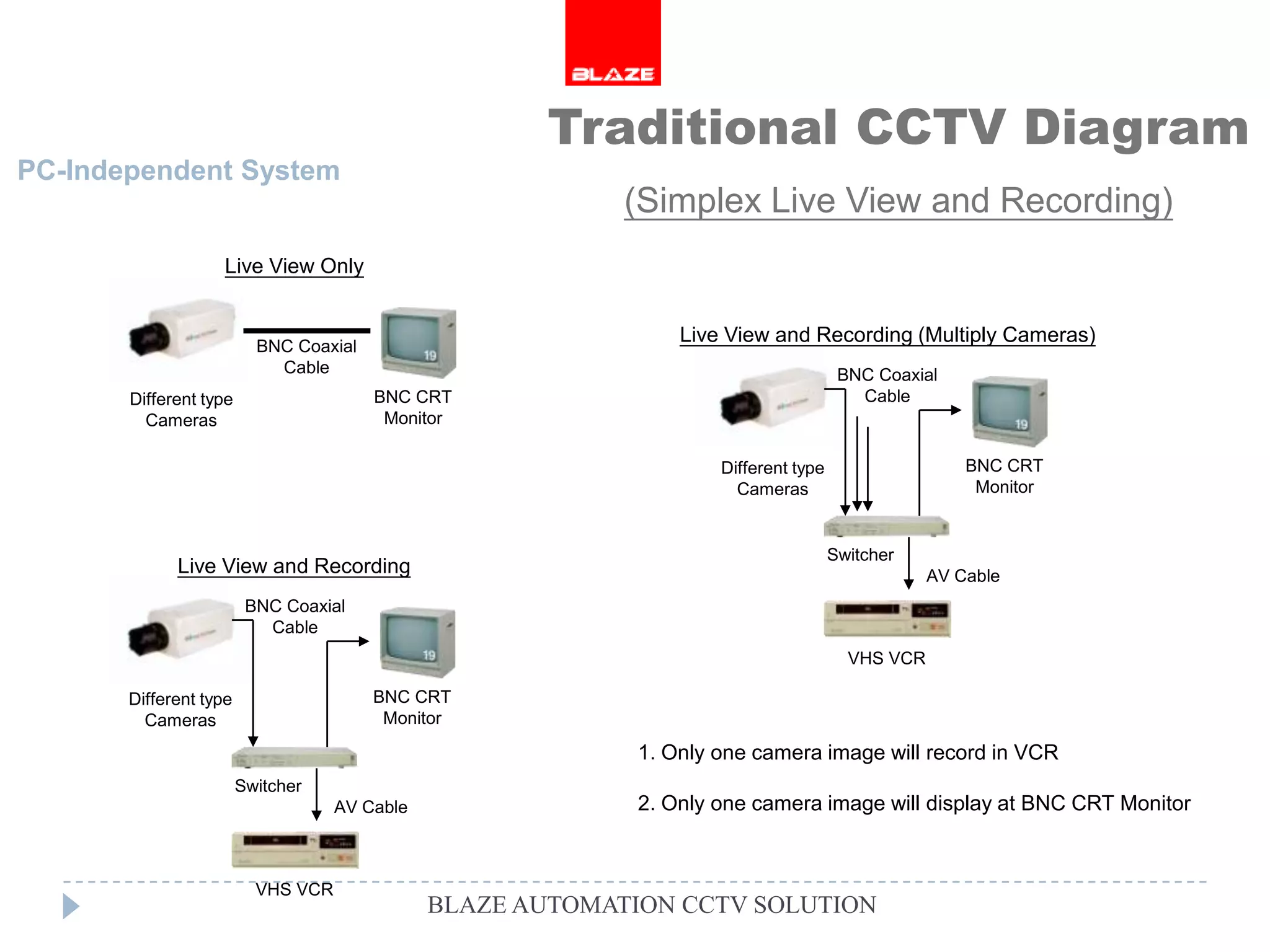

Traditional CCTV Diagram
(Simplex Live View and Recording)
Live View Only

BNC Coaxial
Live View and Recording (Multiply Cameras)
Cable BNC Coaxial
Different type BNC CRT Cable
Cameras Monitor

Different type BNC CRT
Cameras Monitor

Switcher
Live View and Recording AV Cable
BNC Coaxial
Cable
VHS VCR

Different type BNC CRT
Cameras Monitor

1. Only one camera image will record in VCR
Switcher
AV Cable 2. Only one camera image will display at BNC CRT Monitor

VHS VCR

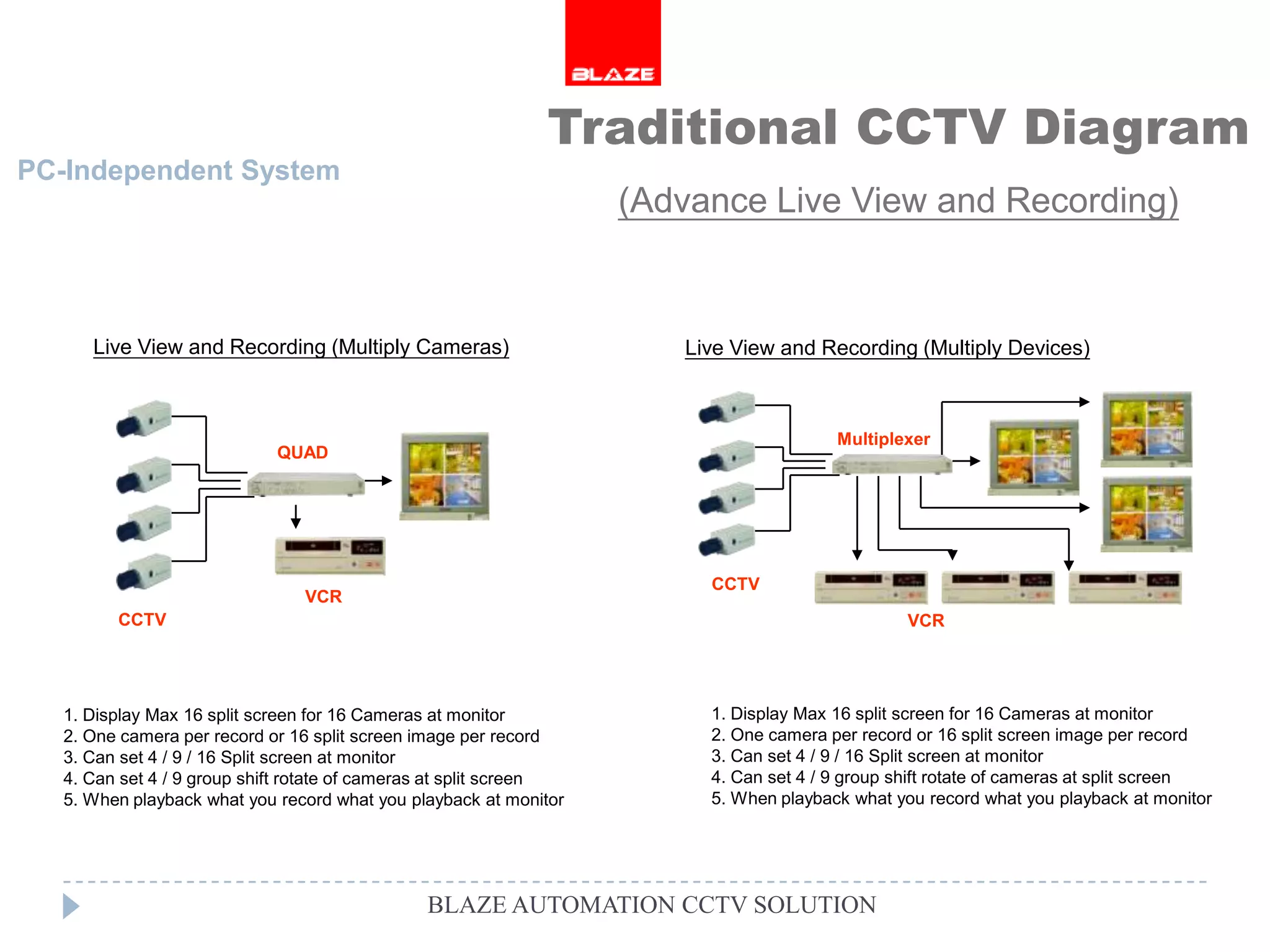

(Advance Live View and Recording)

Live View and Recording (Multiply Cameras) Live View and Recording (Multiply Devices)

Multiplexer
QUAD

CCTV
VCR
CCTV VCR

1. Display Max 16 split screen for 16 Cameras at monitor 1. Display Max 16 split screen for 16 Cameras at monitor
2. One camera per record or 16 split screen image per record 2. One camera per record or 16 split screen image per record
3. Can set 4 / 9 / 16 Split screen at monitor 3. Can set 4 / 9 / 16 Split screen at monitor
4. Can set 4 / 9 group shift rotate of cameras at split screen 4. Can set 4 / 9 group shift rotate of cameras at split screen
5. When playback what you record what you playback at monitor 5. When playback what you record what you playback at monitor

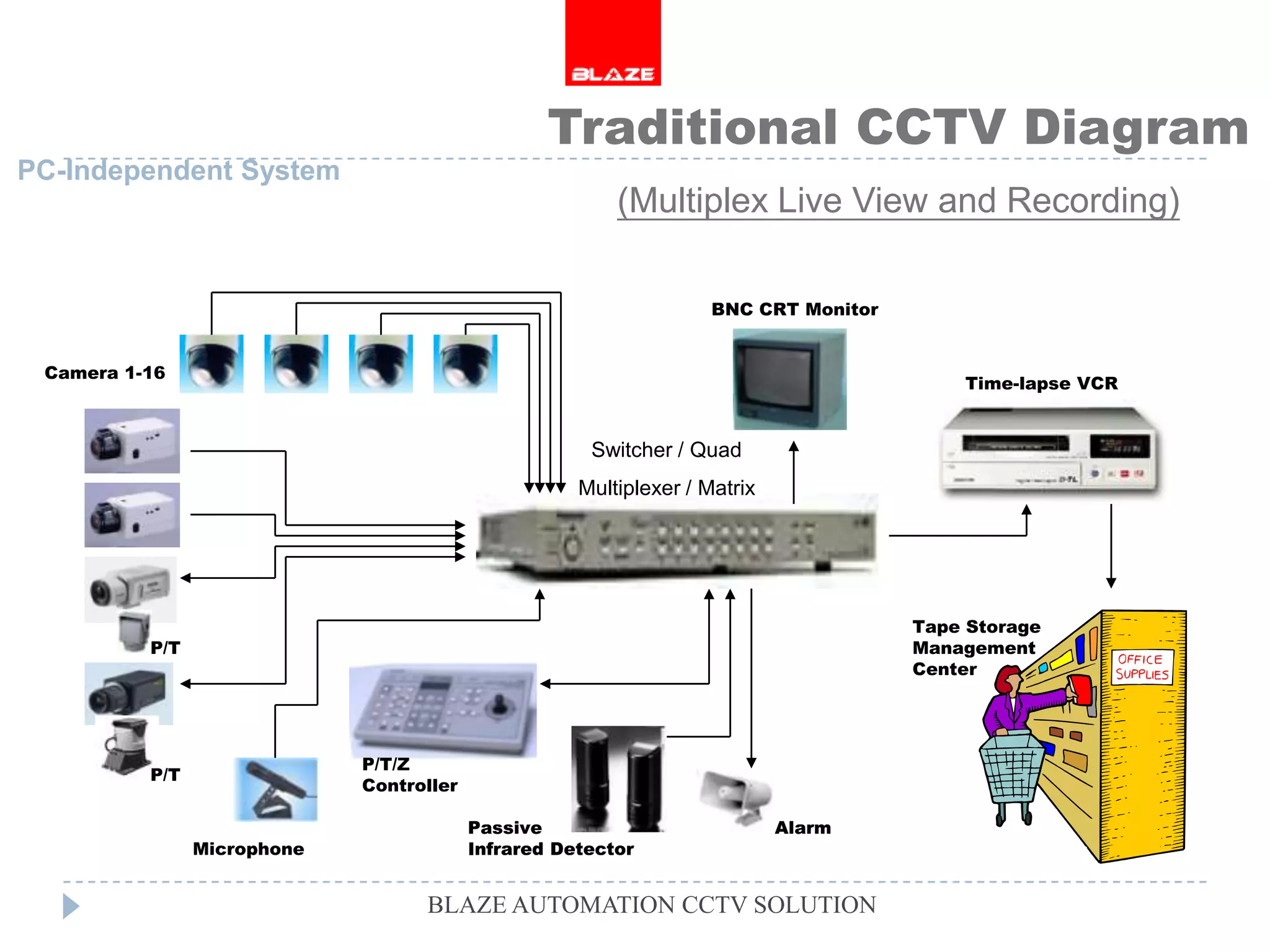

(Multiplex Live View and Recording)

BNC CRT Monitor

Camera 1-16
Time-lapse VCR

Switcher / Quad
Multiplexer / Matrix

Tape Storage
P/T Management
Center

P/T/Z
P/T
Controller

Passive Alarm
Microphone Infrared Detector

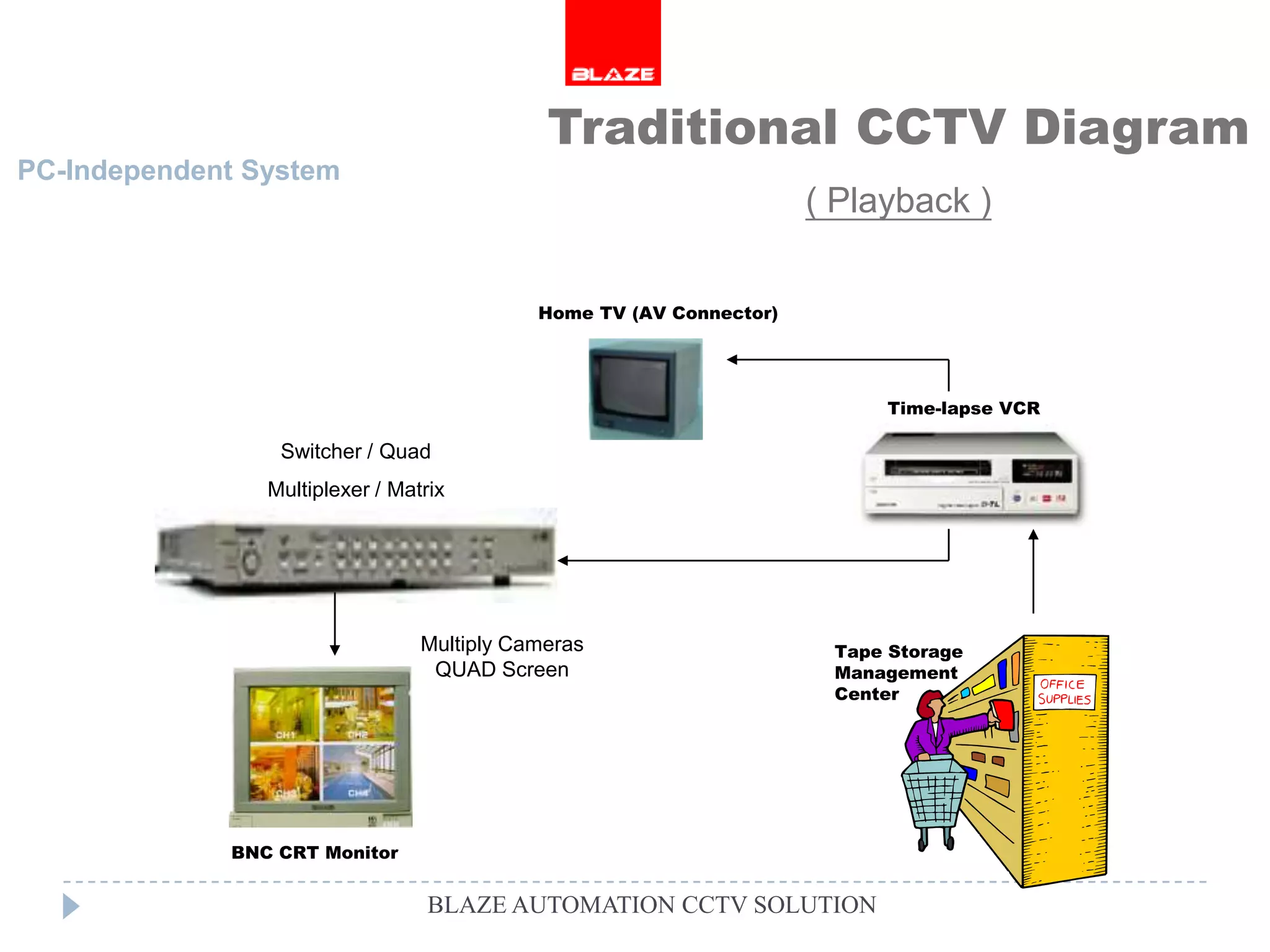

( Playback )

Home TV (AV Connector)

Time-lapse VCR

Switcher / Quad
Multiplexer / Matrix

Multiply Cameras Tape Storage
QUAD Screen Management
Center

BNC CRT Monitor

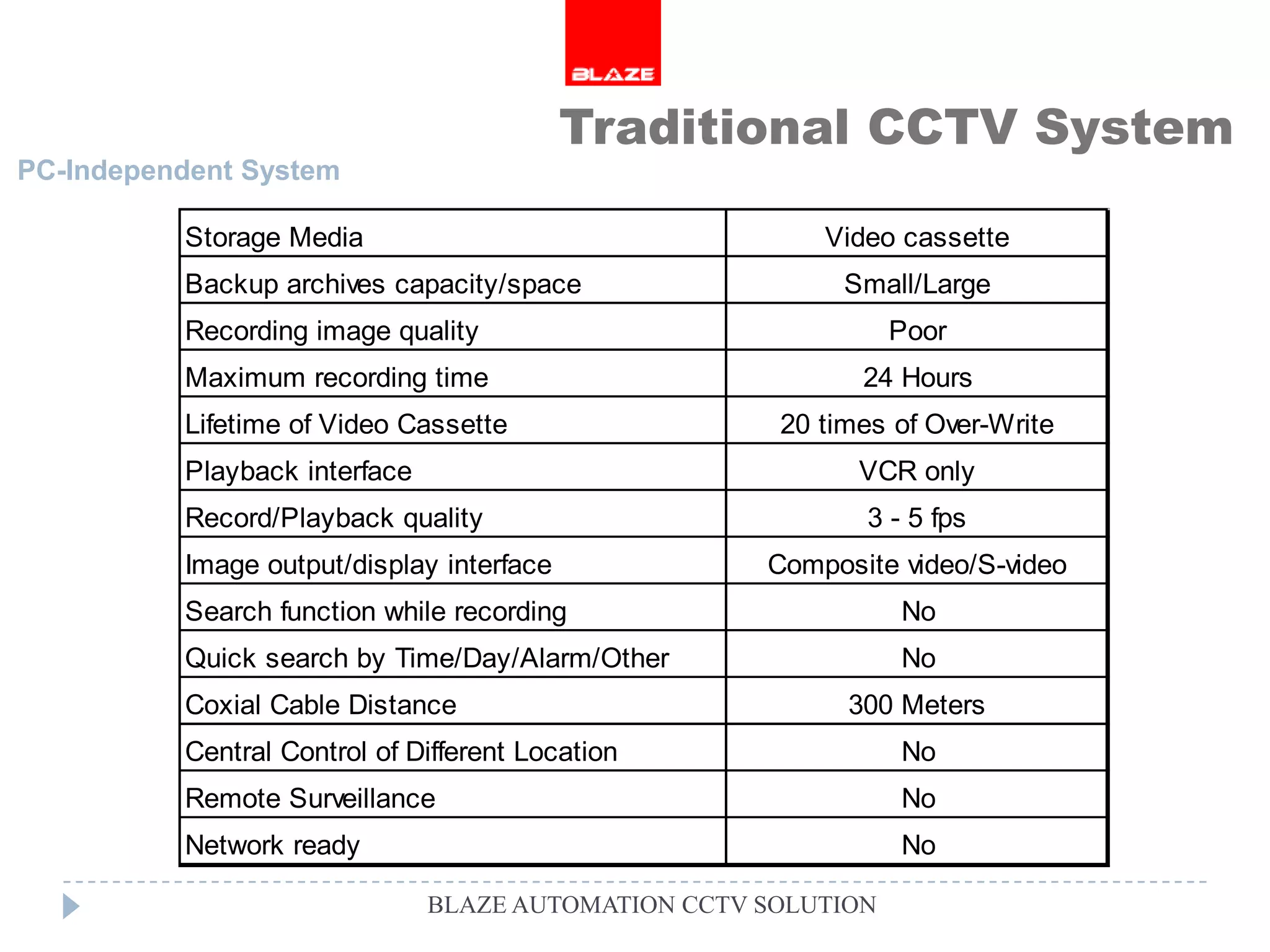

Traditional CCTV System

Storage Media Video cassette
Backup archives capacity/space Small/Large
Recording image quality Poor
Maximum recording time 24 Hours
Lifetime of Video Cassette 20 times of Over-Write
Playback interface VCR only
Record/Playback quality 3 - 5 fps
Image output/display interface Composite video/S-video
Search function while recording No
Quick search by Time/Day/Alarm/Other No
Coxial Cable Distance 300 Meters
Central Control of Different Location No
Remote Surveillance No
Network ready No

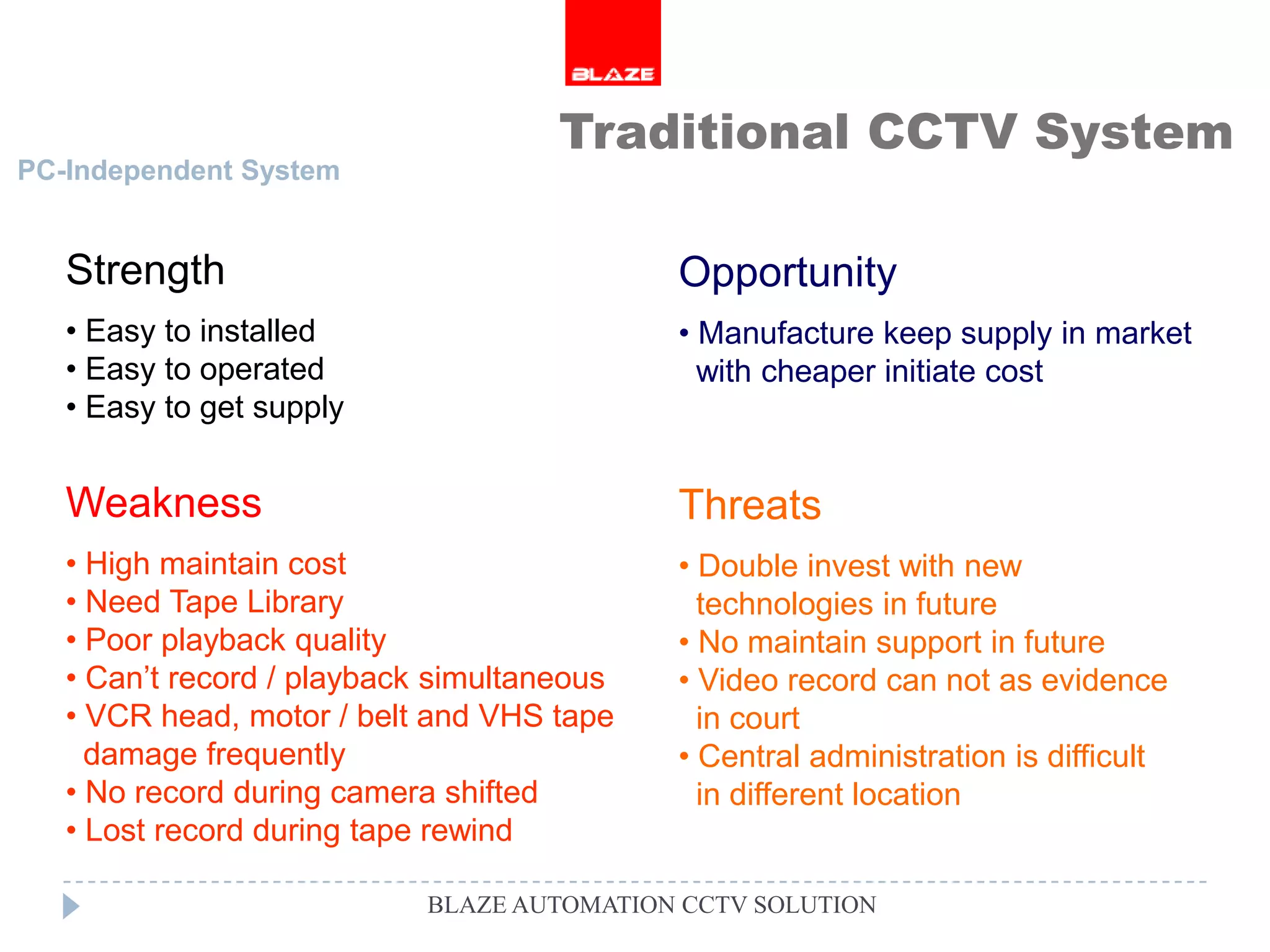

Traditional CCTV System

Strength Opportunity
• Easy to installed • Manufacture keep supply in market
• Easy to operated with cheaper initiate cost
• Easy to get supply

Weakness Threats
• High maintain cost • Double invest with new
• Need Tape Library technologies in future
• Poor playback quality • No maintain support in future
• Can’t record / playback simultaneous • Video record can not as evidence
• VCR head, motor / belt and VHS tape in court
damage frequently • Central administration is difficult
• No record during camera shifted in different location
• Lost record during tape rewind


PC-Base System

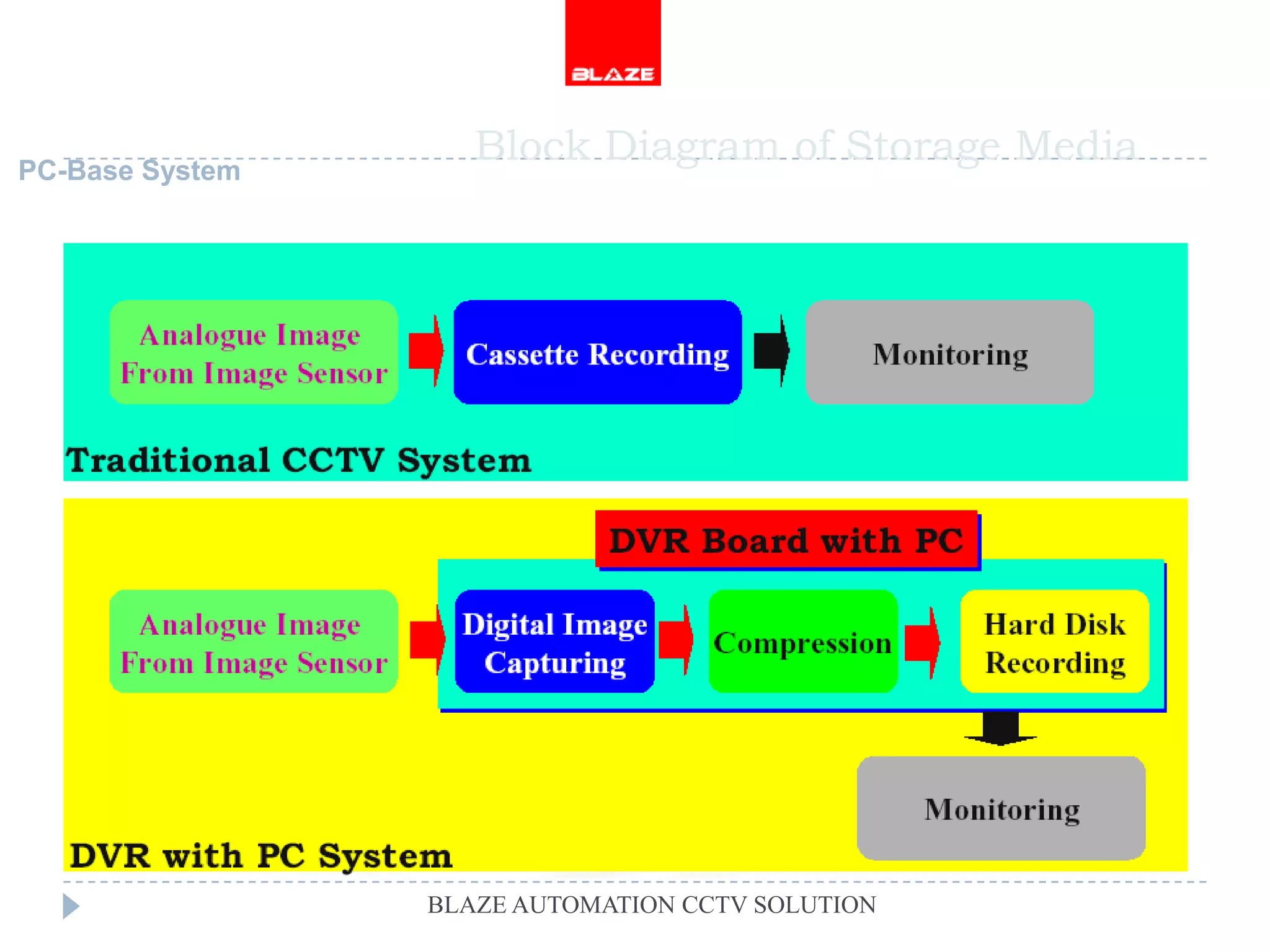

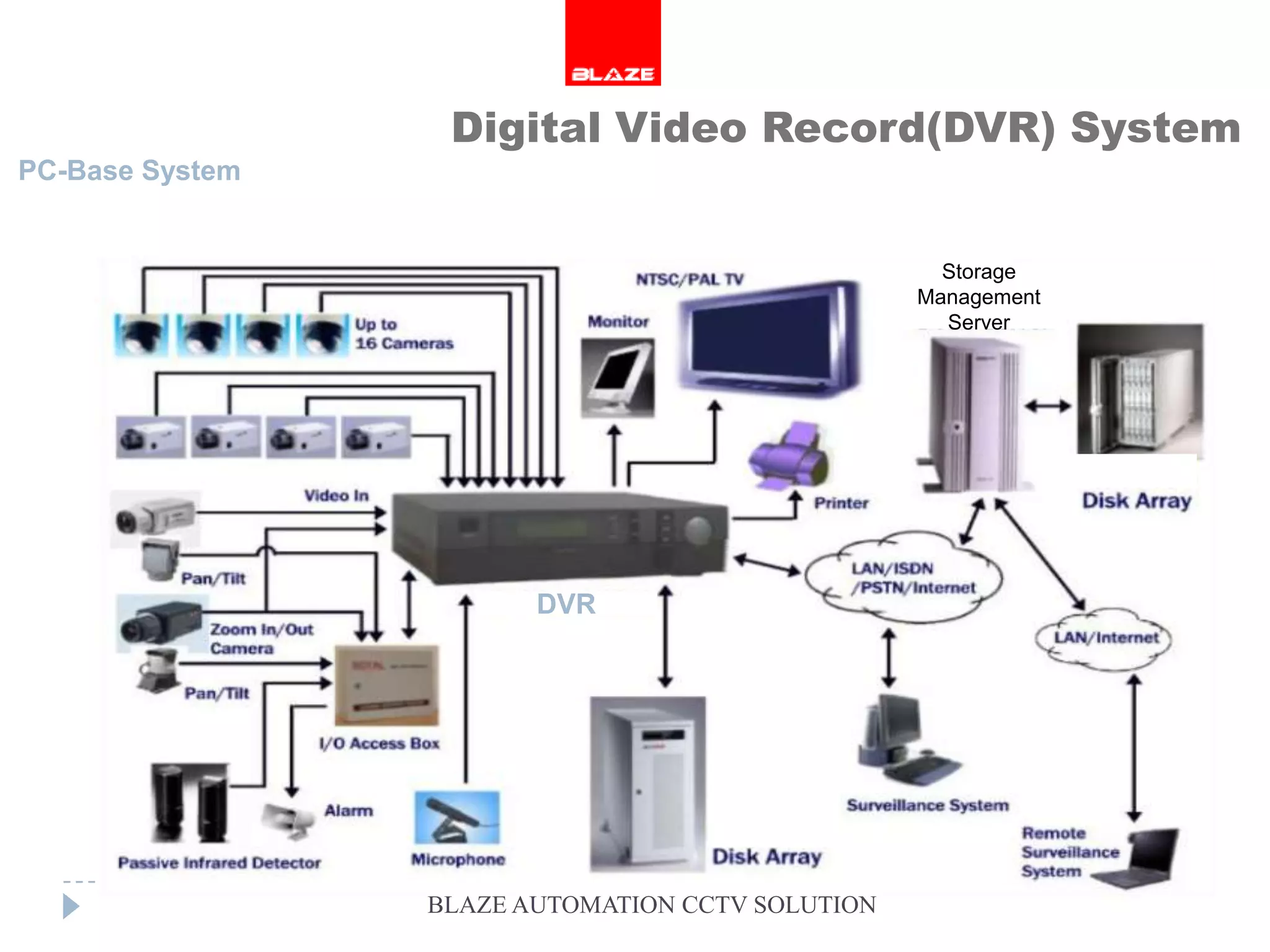

Block Diagram of Storage Media


Digital Video Record(DVR) System
PC-Base System

Storage
Management
Server

DVR

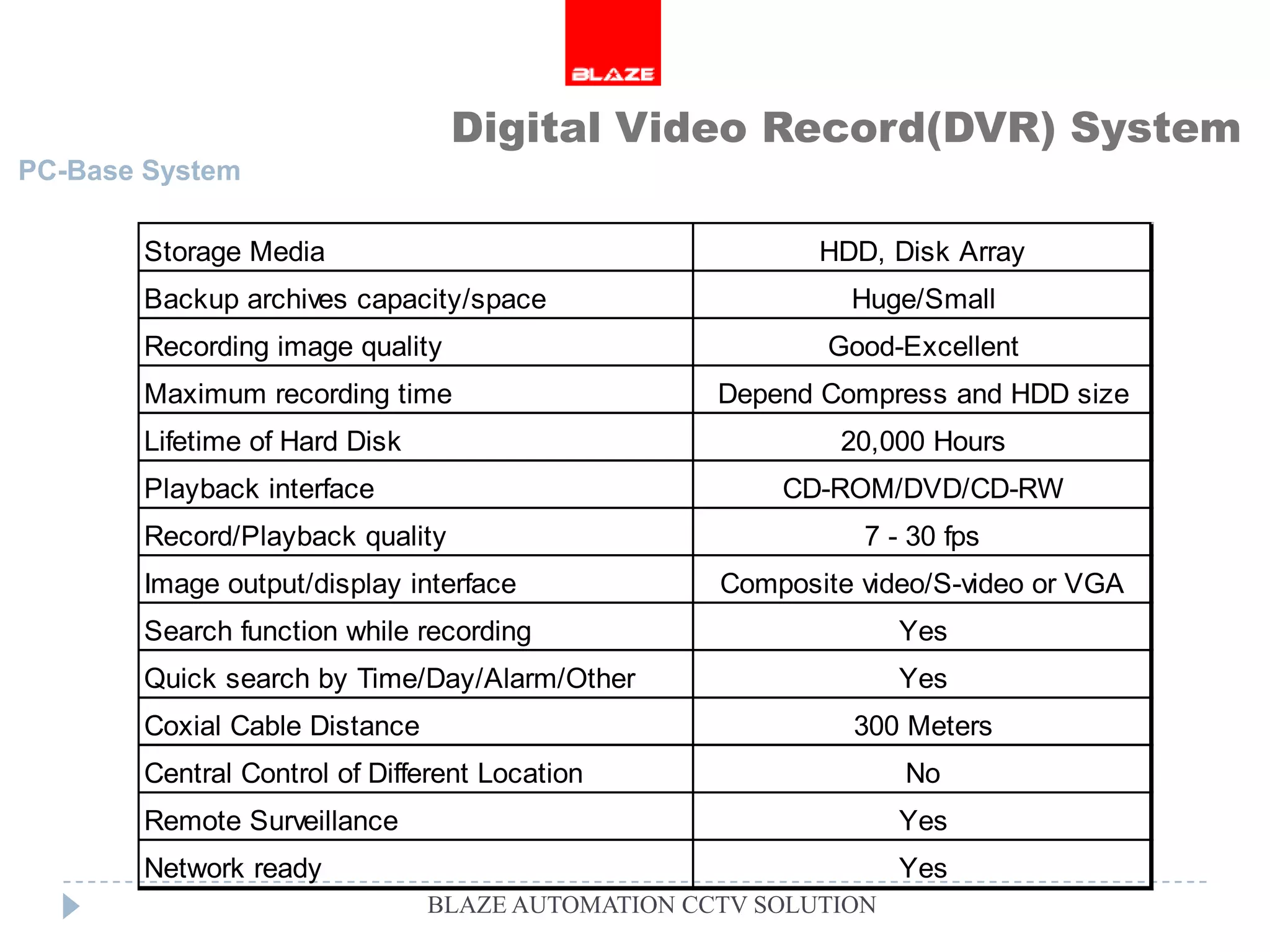

PC-Base System

Storage Media HDD, Disk Array
Backup archives capacity/space Huge/Small
Recording image quality Good-Excellent
Maximum recording time Depend Compress and HDD size
Lifetime of Hard Disk 20,000 Hours
Playback interface CD-ROM/DVD/CD-RW
Record/Playback quality 7 - 30 fps
Image output/display interface Composite video/S-video or VGA
Search function while recording Yes
Quick search by Time/Day/Alarm/Other Yes
Coxial Cable Distance 300 Meters
Central Control of Different Location No
Remote Surveillance Yes
Network ready Yes

PC-Base System

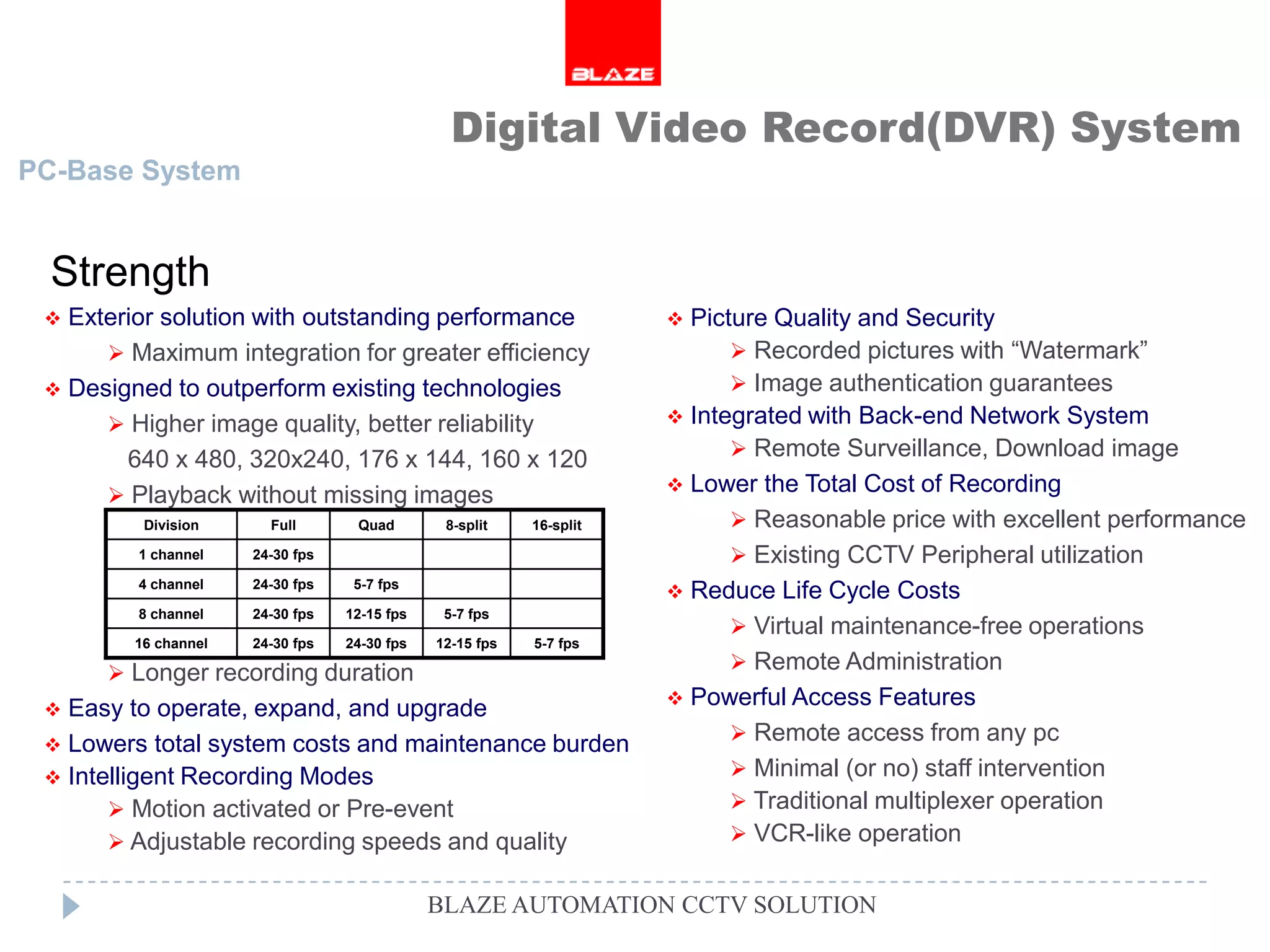

Strength
 Exterior solution with outstanding performance  Picture Quality and Security
 Maximum integration for greater efficiency  Recorded pictures with “Watermark”
 Designed to outperform existing technologies  Image authentication guarantees
 Higher image quality, better reliability  Integrated with Back-end Network System

640 x 480, 320x240, 176 x 144, 160 x 120  Remote Surveillance, Download image
 Lower the Total Cost of Recording
 Playback without missing images
Division Full Quad 8-split 16-split  Reasonable price with excellent performance
1 channel 24-30 fps  Existing CCTV Peripheral utilization
4 channel 24-30 fps 5-7 fps
 Reduce Life Cycle Costs
8 channel 24-30 fps 12-15 fps 5-7 fps
 Virtual maintenance-free operations
16 channel 24-30 fps 24-30 fps 12-15 fps 5-7 fps

 Longer recording duration
 Remote Administration
 Powerful Access Features
 Easy to operate, expand, and upgrade
 Remote access from any pc
 Lowers total system costs and maintenance burden
 Intelligent Recording Modes  Minimal (or no) staff intervention
 Motion activated or Pre-event  Traditional multiplexer operation
 Adjustable recording speeds and quality  VCR-like operation

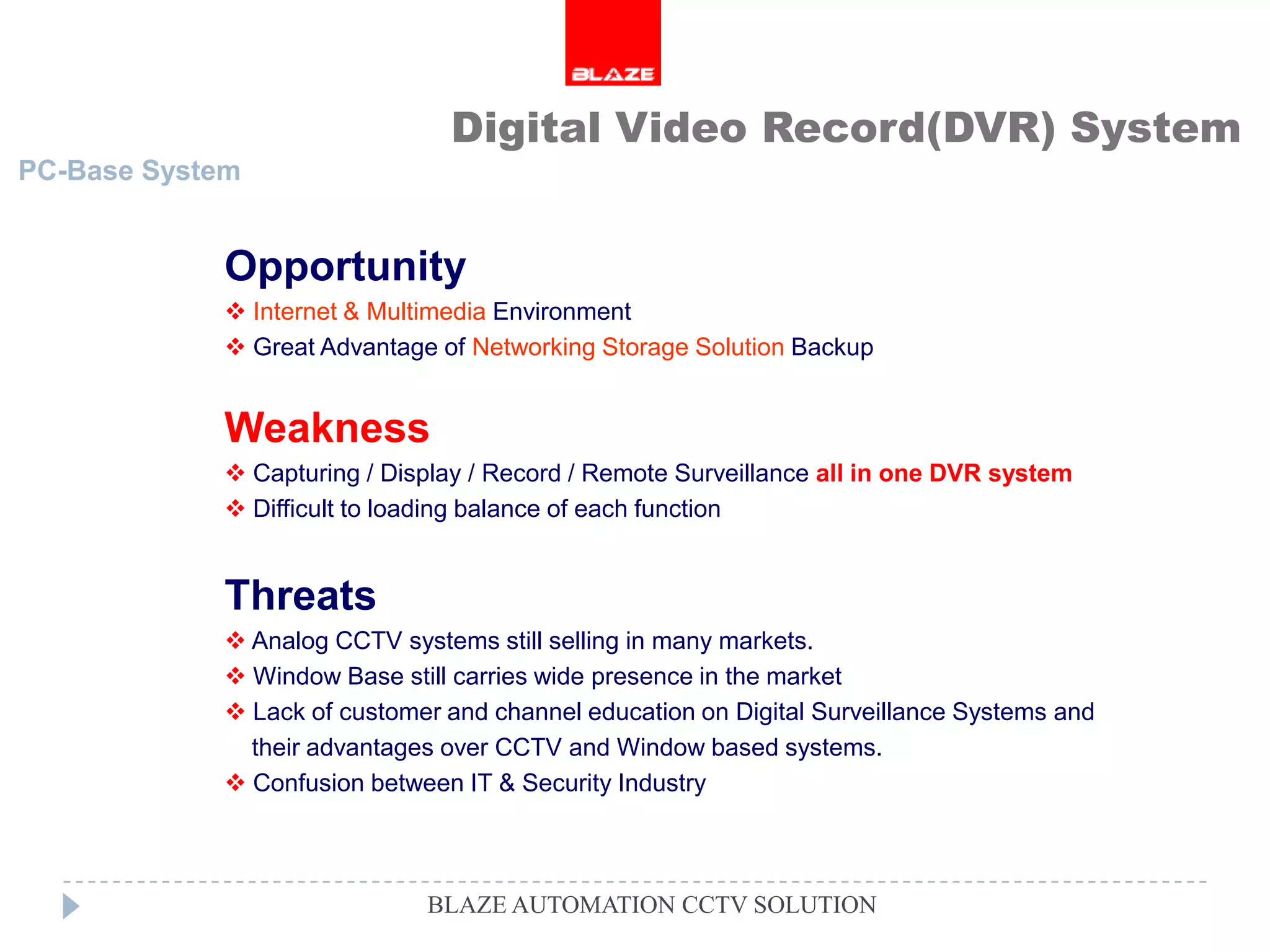

PC-Base System

Opportunity
 Internet & Multimedia Environment
 Great Advantage of Networking Storage Solution Backup

Weakness
 Capturing / Display / Record / Remote Surveillance all in one DVR system
 Difficult to loading balance of each function

Threats
 Analog CCTV systems still selling in many markets.
 Window Base still carries wide presence in the market
 Lack of customer and channel education on Digital Surveillance Systems and
their advantages over CCTV and Window based systems.
 Confusion between IT & Security Industry


Digital Video Server System
Embedded System

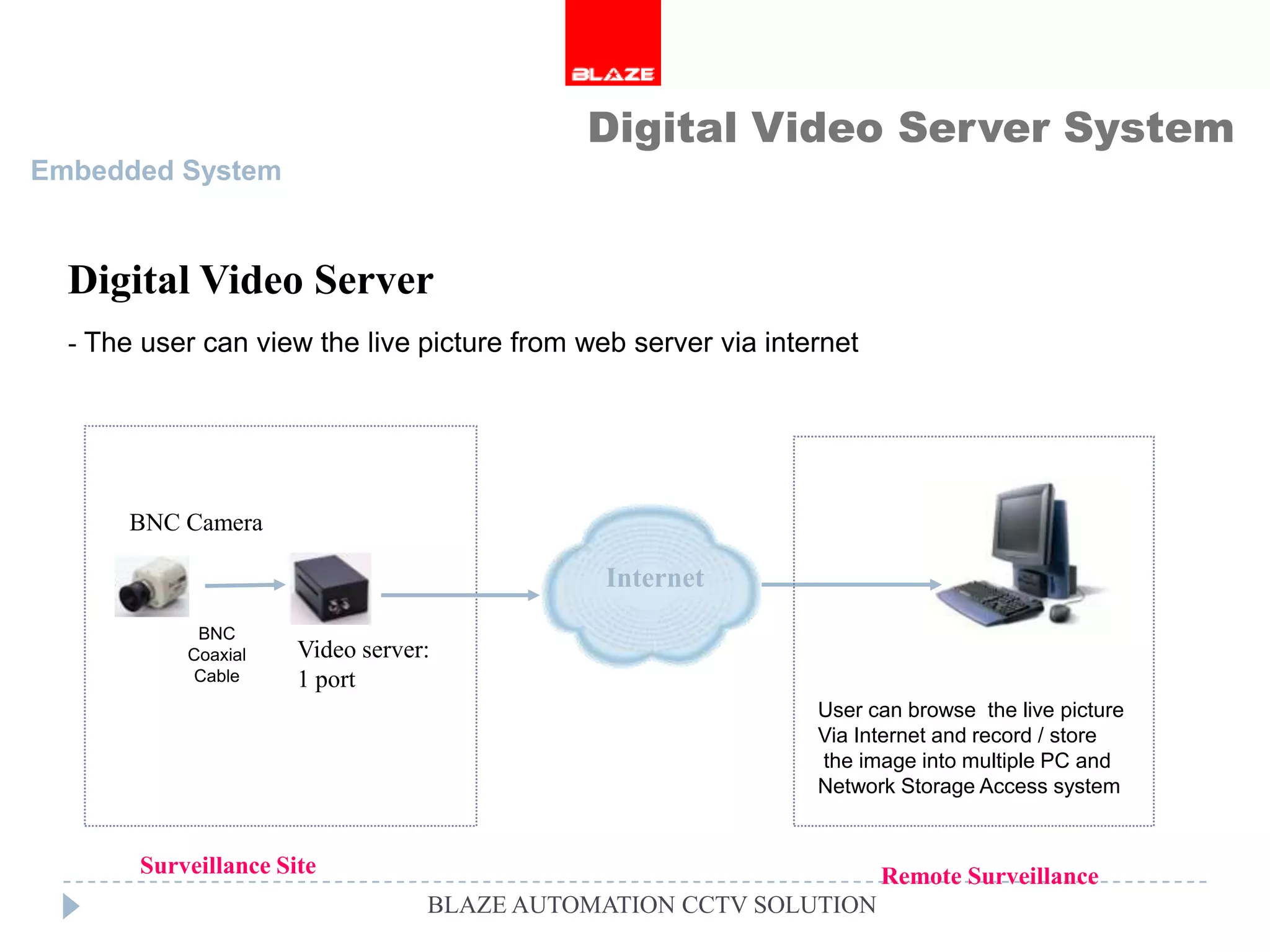

Digital Video Server
- The user can view the live picture from web server via internet

BNC Camera

Internet
BNC
Coaxial Video server:
Cable 1 port
User can browse the live picture
Via Internet and record / store
the image into multiple PC and
Network Storage Access system

Surveillance Site Remote Surveillance

Embedded System

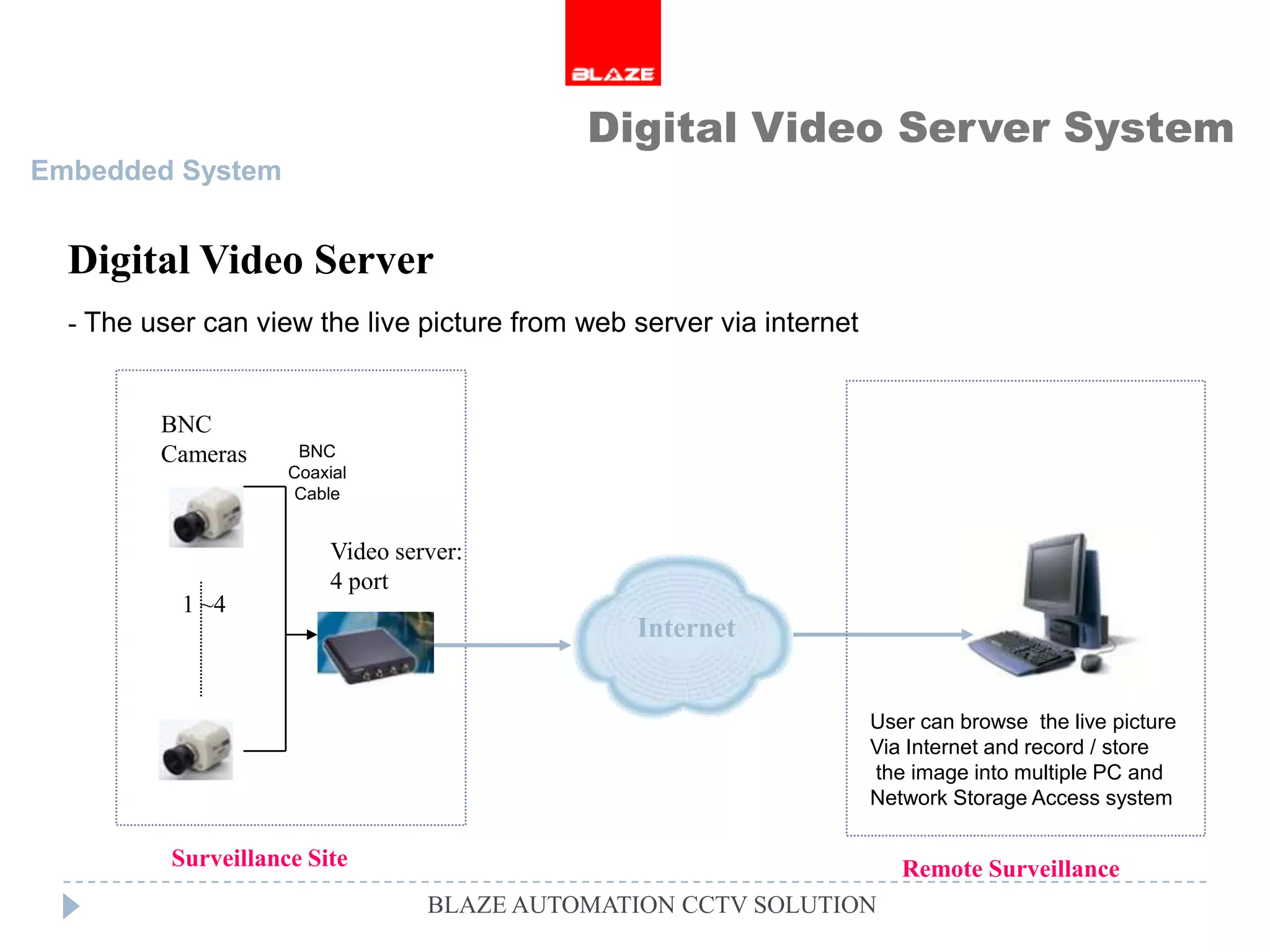

Digital Video Server
- The user can view the live picture from web server via internet

BNC
Cameras BNC
Coaxial
Cable

Video server:
4 port
1 ~4
Internet

User can browse the live picture
Via Internet and record / store
the image into multiple PC and
Network Storage Access system

Surveillance Site Remote Surveillance

Embedded System

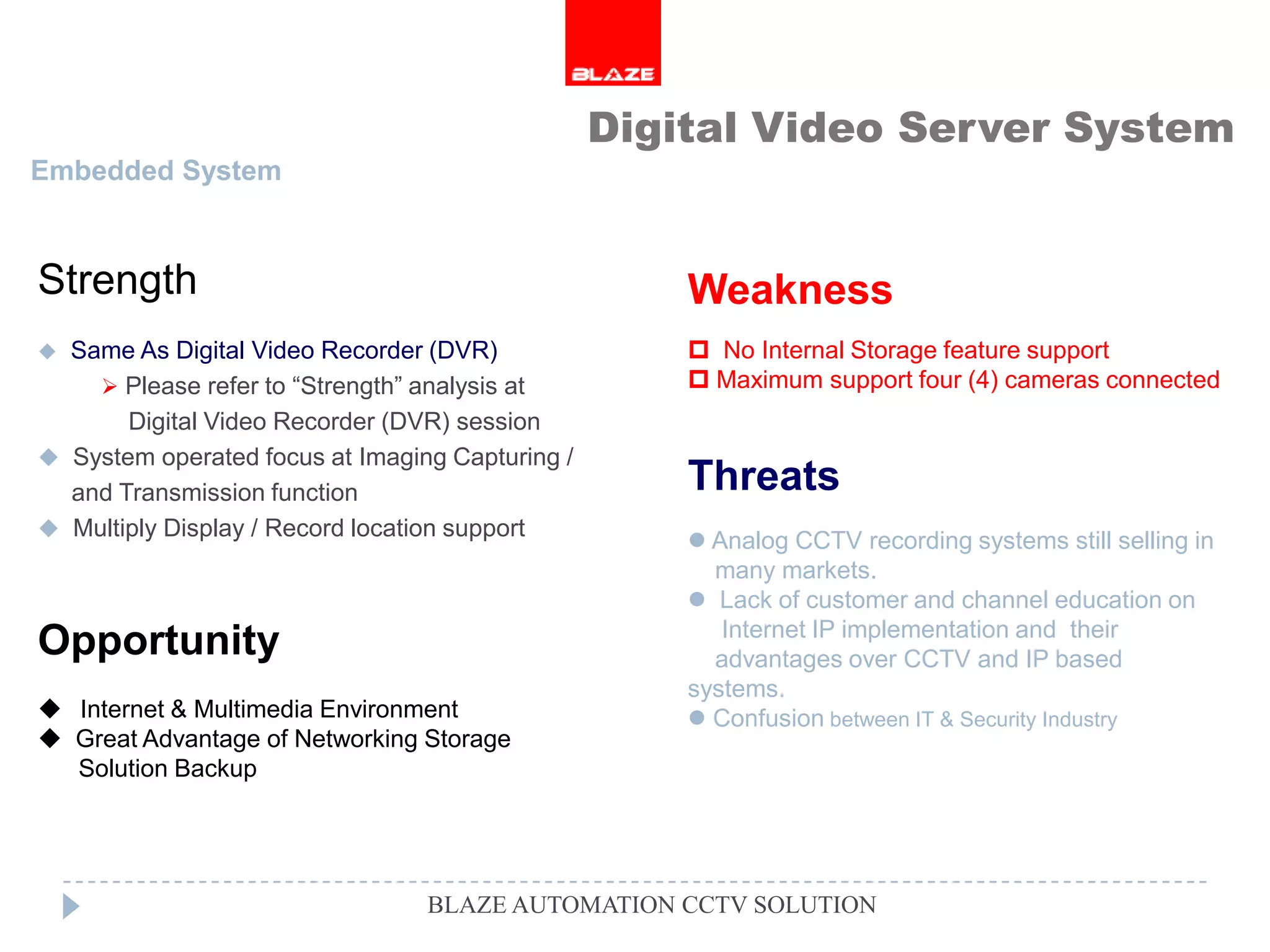

Strength Weakness
 Same As Digital Video Recorder (DVR)  No Internal Storage feature support
 Please refer to “Strength” analysis at  Maximum support four (4) cameras connected
Digital Video Recorder (DVR) session
 System operated focus at Imaging Capturing /
and Transmission function Threats
 Multiply Display / Record location support
 Analog CCTV recording systems still selling in
many markets.
 Lack of customer and channel education on
Internet IP implementation and their
Opportunity advantages over CCTV and IP based
systems.
 Internet & Multimedia Environment  Confusion between IT & Security Industry
 Great Advantage of Networking Storage
Solution Backup

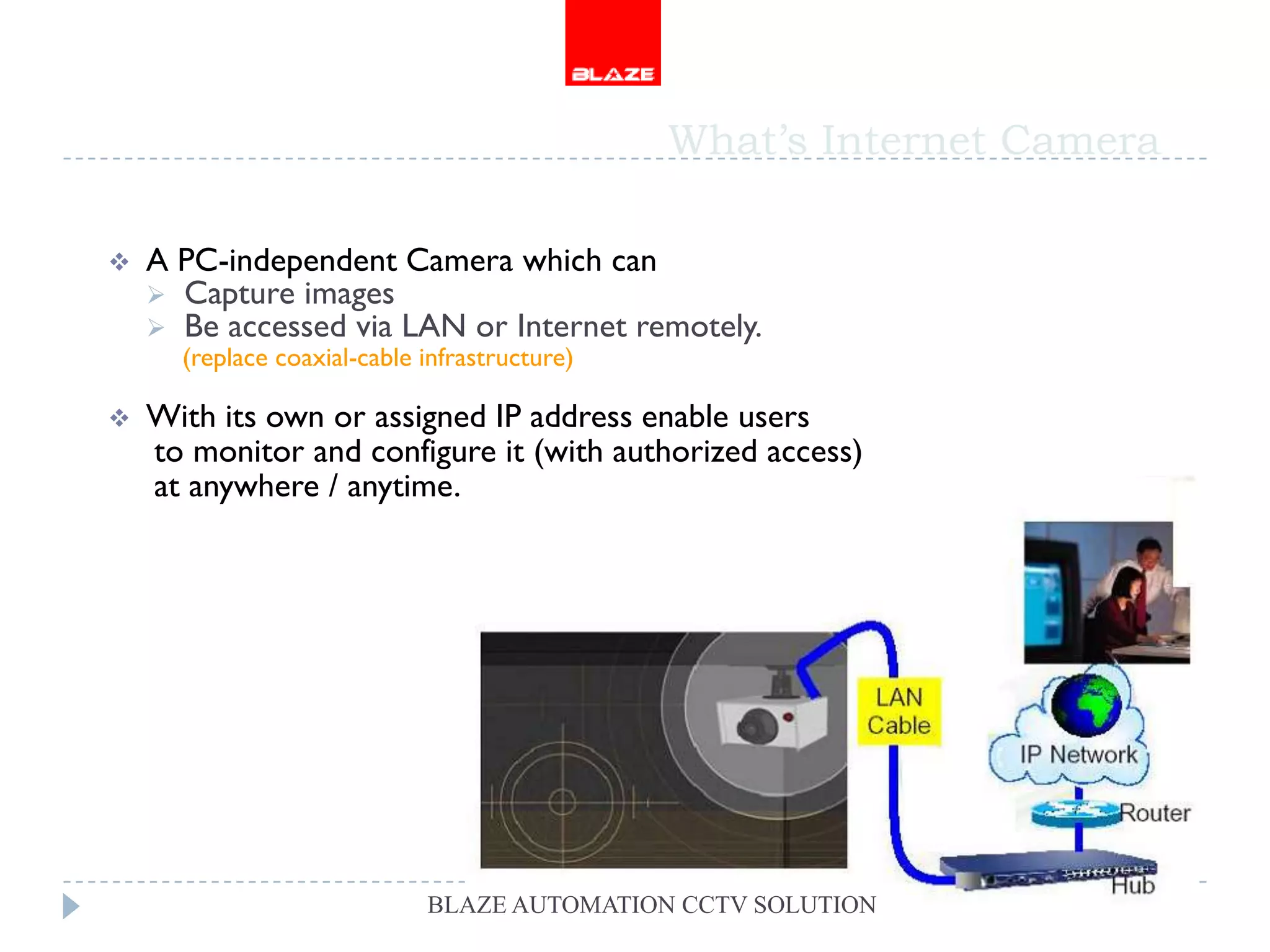

What’s Internet Camera

 A PC-independent Camera which can
 Capture images
 Be accessed via LAN or Internet remotely.
(replace coaxial-cable infrastructure)

 With its own or assigned IP address enable users
to monitor and configure it (with authorized access)
at anywhere / anytime.


What’s Internet Camera -Con’d

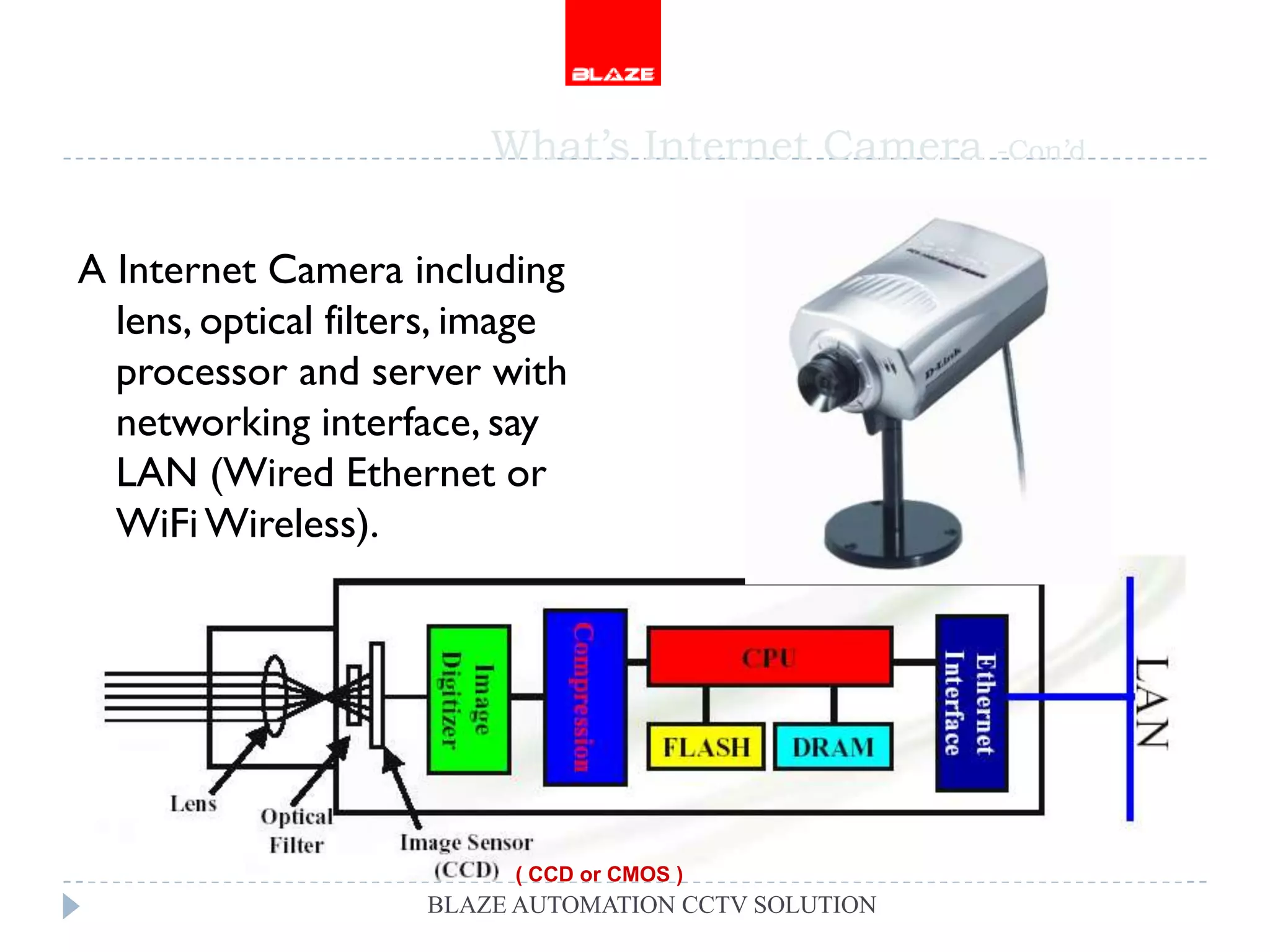

A Internet Camera including
lens, optical filters, image
processor and server with
networking interface, say
LAN (Wired Ethernet or
WiFi Wireless).

( CCD or CMOS )

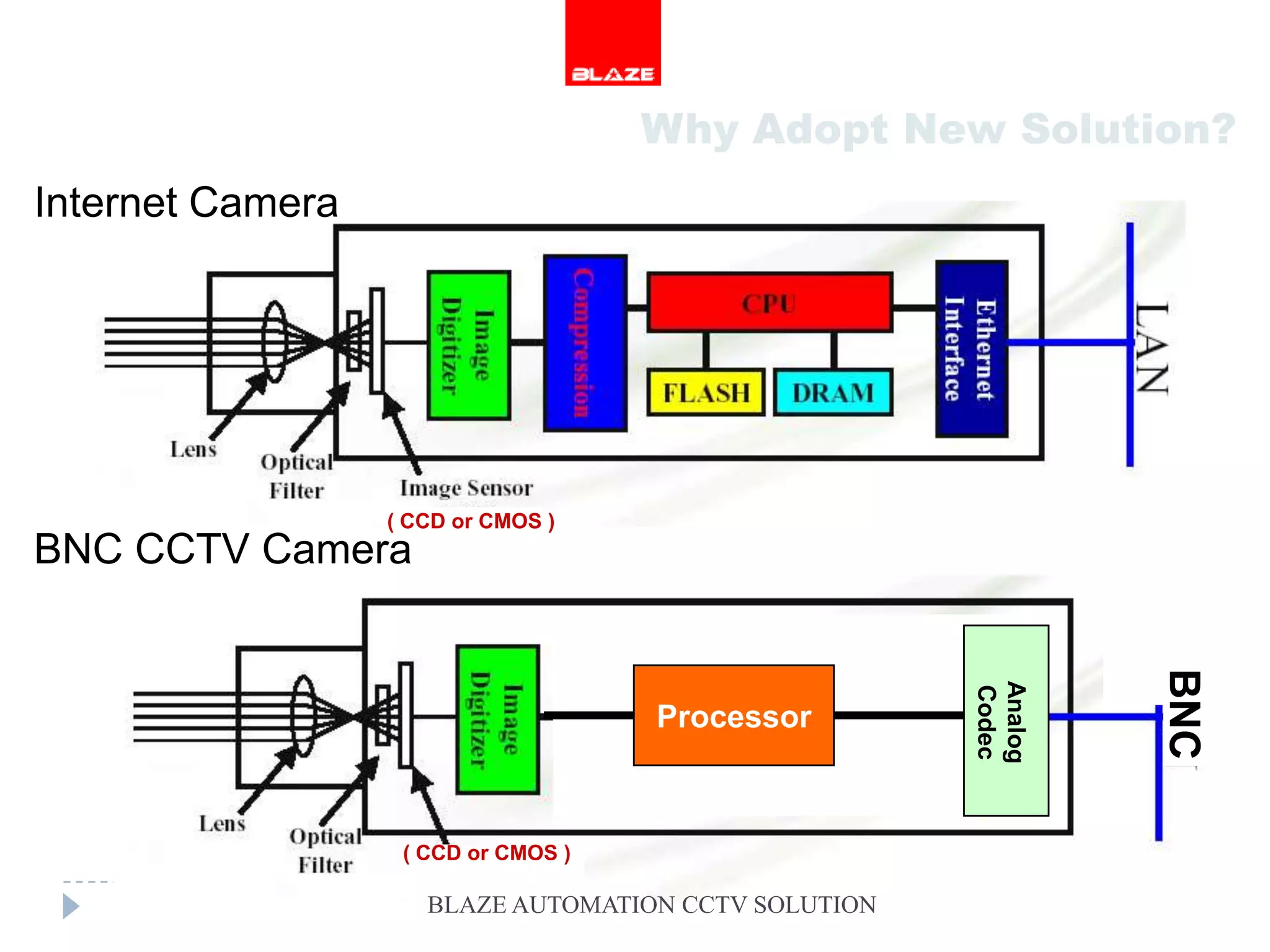

Why Adopt New Solution?
Internet Camera

( CCD or CMOS )
BNC CCTV Camera

BNC
Analog
Codec
Processor

( CCD or CMOS )


Why Adopt New Solution? -Con’d

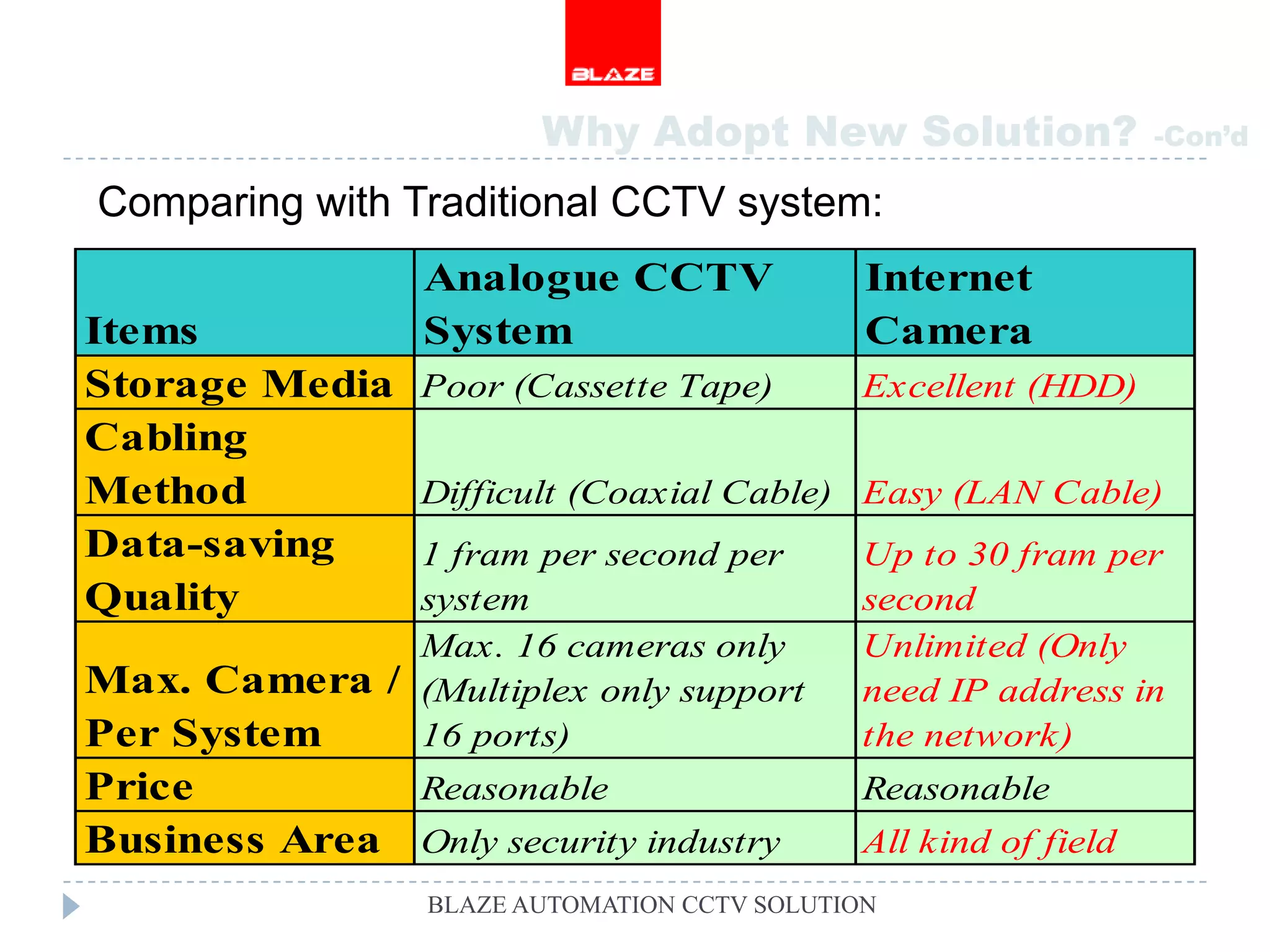

Comparing with Traditional CCTV system:
Analogue CCTV Internet
Items System Camera
Storage Media Poor (Cassette Tape) Excellent (HDD)
Cabling
Method Difficult (Coaxial Cable) Easy (LAN Cable)
Data-saving 1 fram per second per Up to 30 fram per
Quality system second
Max. 16 cameras only Unlimited (Only
Max. Camera / (Multiplex only support need IP address in
Per System 16 ports) the network)
Price Reasonable Reasonable
Business Area Only security industry All kind of field


Comparing with Digital CCTV system:

• Heavy loading on PC or DVR system for data compressing
 Internet Camera compress data inside the camera internally

• BNC cable with distance limitation
 Internet Camera not distance limitation in Internet environment

• Centralized image database management
 Multiple image database management capability

• Image capturing / data compress / data storing / playback
all in one system
 Flexible arrange different PCs to managing above feature

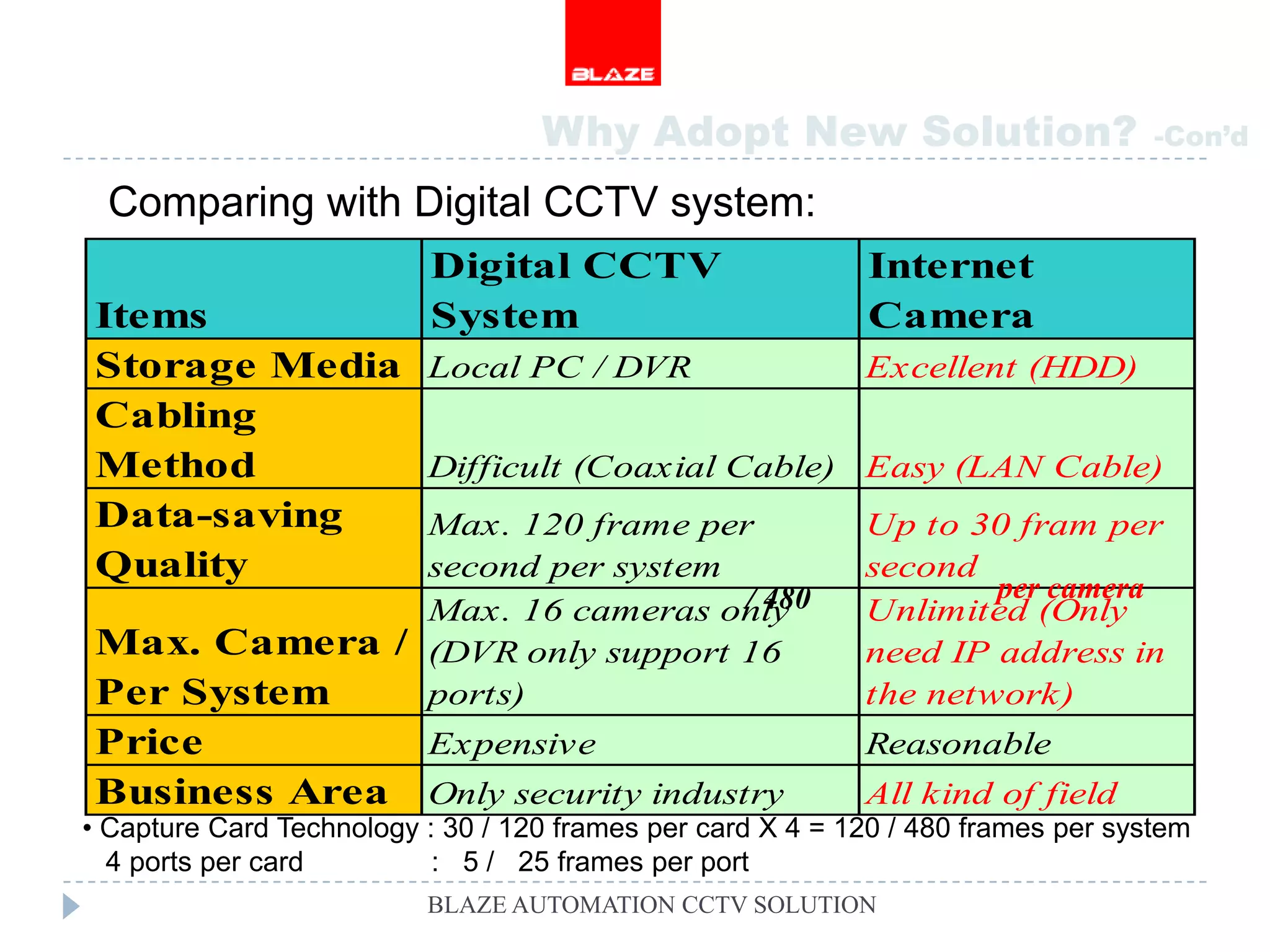

Comparing with Digital CCTV system:
Digital CCTV Internet
Items System Camera
Storage Media Local PC / DVR Excellent (HDD)
Cabling
Method Difficult (Coaxial Cable) Easy (LAN Cable)
Data-saving Max. 120 frame per Up to 30 fram per
Quality second per system second
/ 480 per camera
Max. 16 cameras only Unlimited (Only
Max. Camera / (DVR only support 16 need IP address in
Per System ports) the network)
Price Expensive Reasonable
Business Area Only security industry All kind of field
• Capture Card Technology : 30 / 120 frames per card X 4 = 120 / 480 frames per system
4 ports per card : 5 / 25 frames per port

Market Trend

 Market Trend Overview

 Market Segment

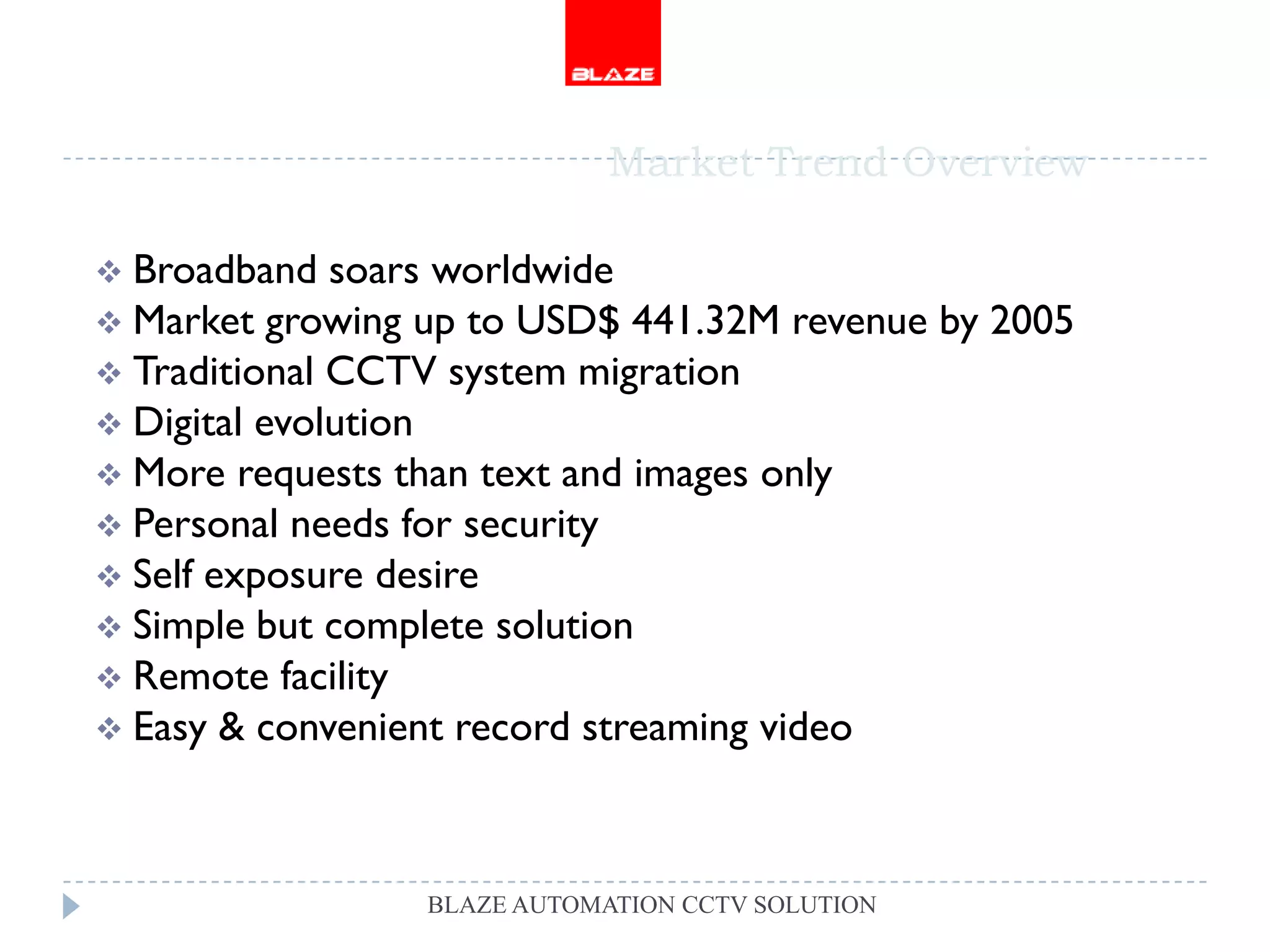

Market Trend Overview

 Broadband soars worldwide
 Market growing up to USD$ 441.32M revenue by 2005
 Traditional CCTV system migration
 Digital evolution
 More requests than text and images only
 Personal needs for security
 Self exposure desire
 Simple but complete solution
 Remote facility
 Easy & convenient record streaming video

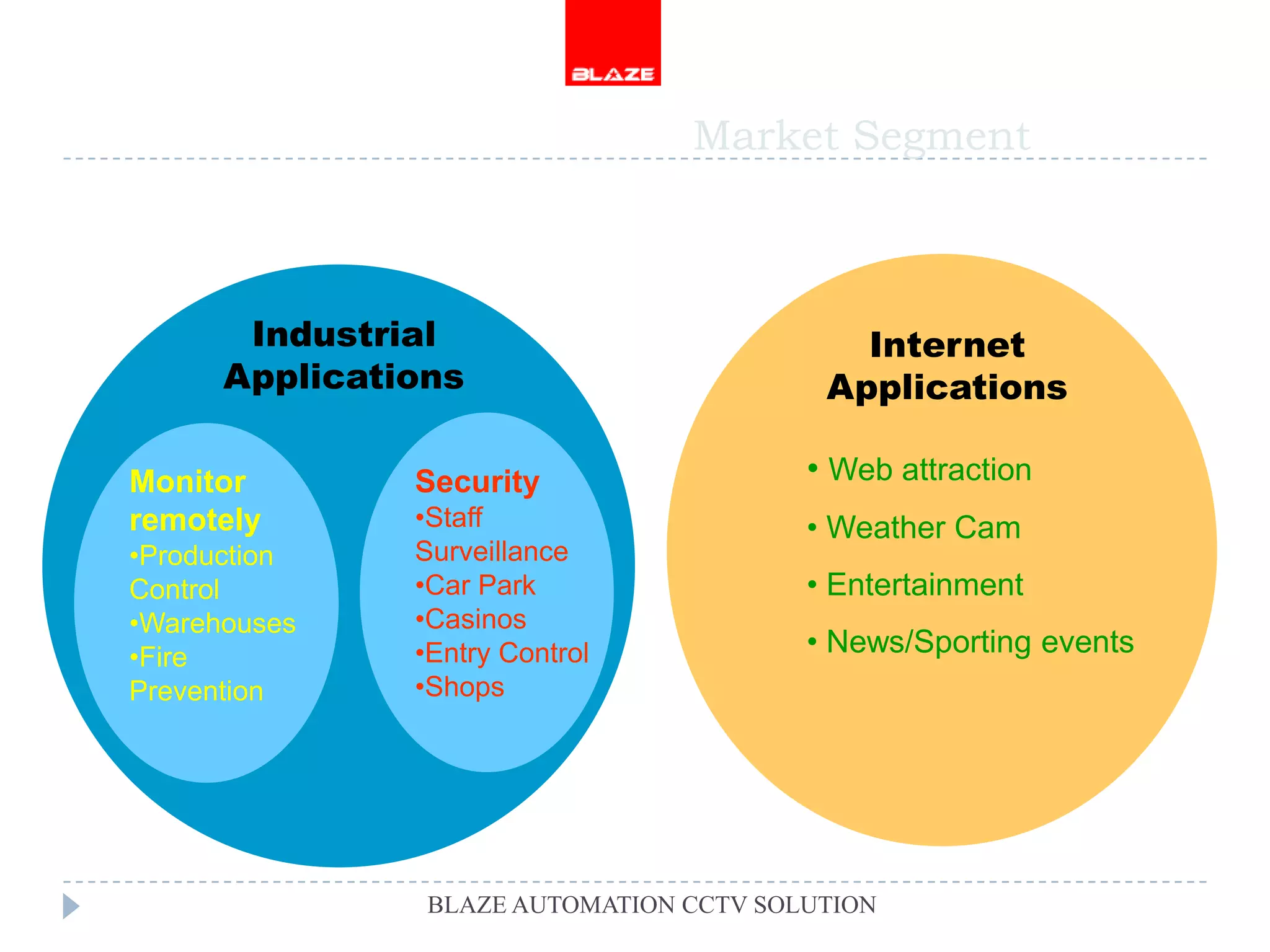

Market Segment

Industrial Internet
Applications Applications

Monitor Security • Web attraction
remotely •Staff • Weather Cam
•Production Surveillance
Control •Car Park • Entertainment
•Warehouses •Casinos
•Fire •Entry Control • News/Sporting events
Prevention •Shops


Application Diagram

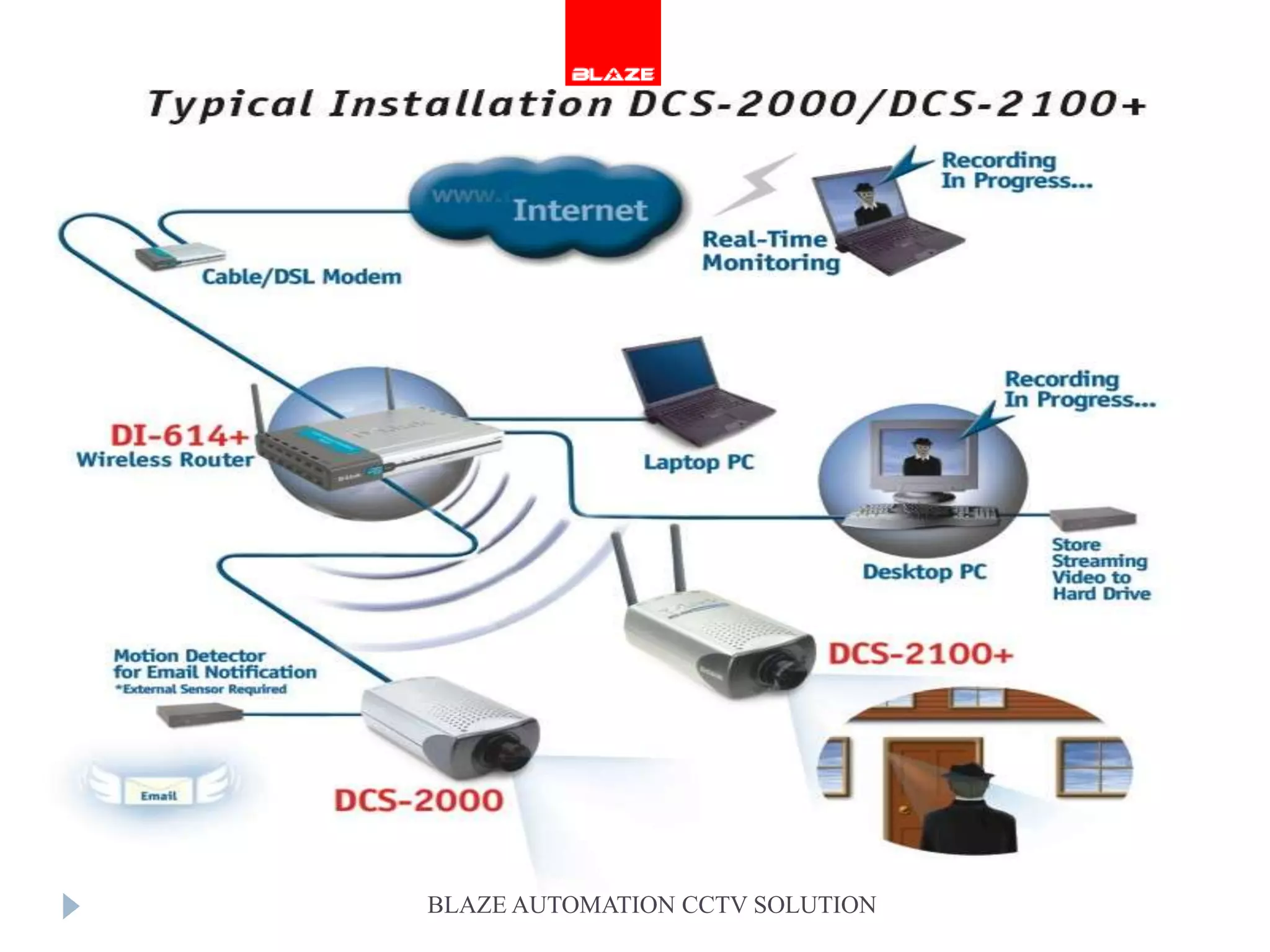

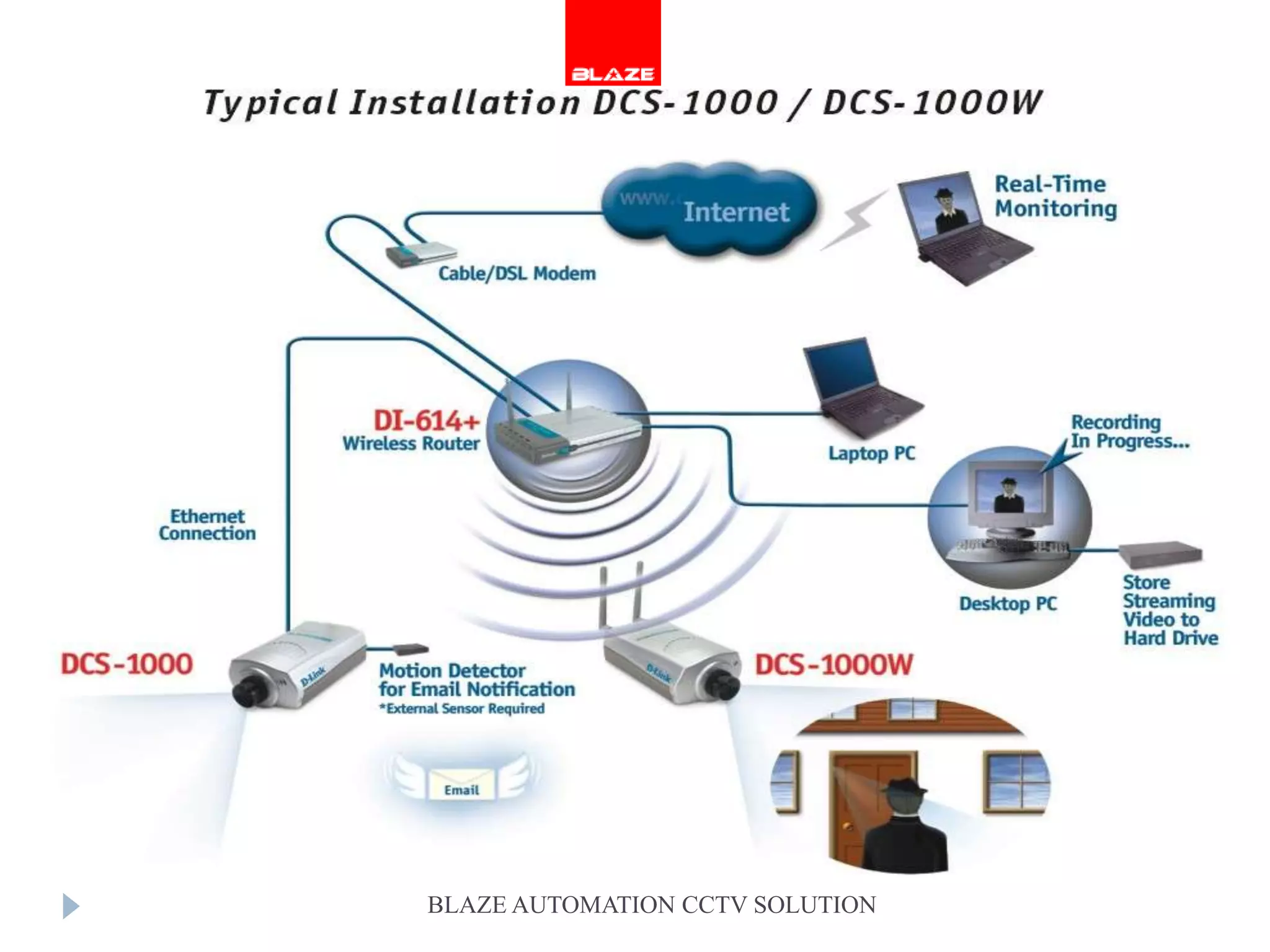

 Typical Installation DCS-1000/1000W/2000/2100+

 DIY Surveillance

 Real-Time Monitoring

 Via VPN Tunnel

 Simultaneously 16 Cameras

 Internet Camera with NAS for Security Service


DIY Surveillance


View Everywhere via Internet
61.219.201.69

192.19.3.55

200.25.10.95

(1) HTTP request to 61.219.201.69
(2) HTTP request to 192.19.3.55
(4) HTTP request to 185.57.23.79 185.57.23.79


Indian Office China Factory

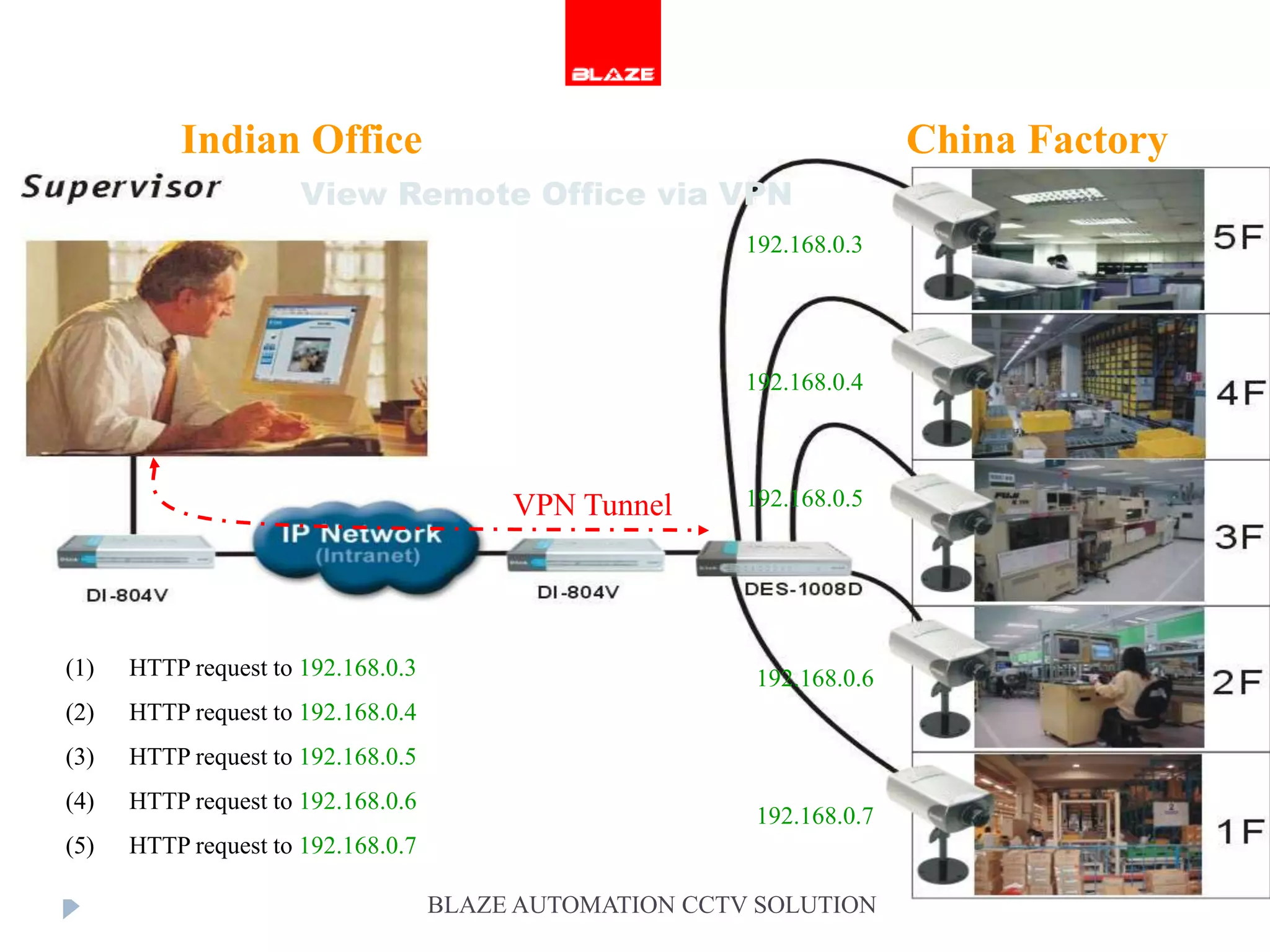

View Remote Office via VPN
192.168.0.3

192.168.0.4

VPN Tunnel 192.168.0.5

(1) HTTP request to 192.168.0.3 192.168.0.6
192.168.0.7

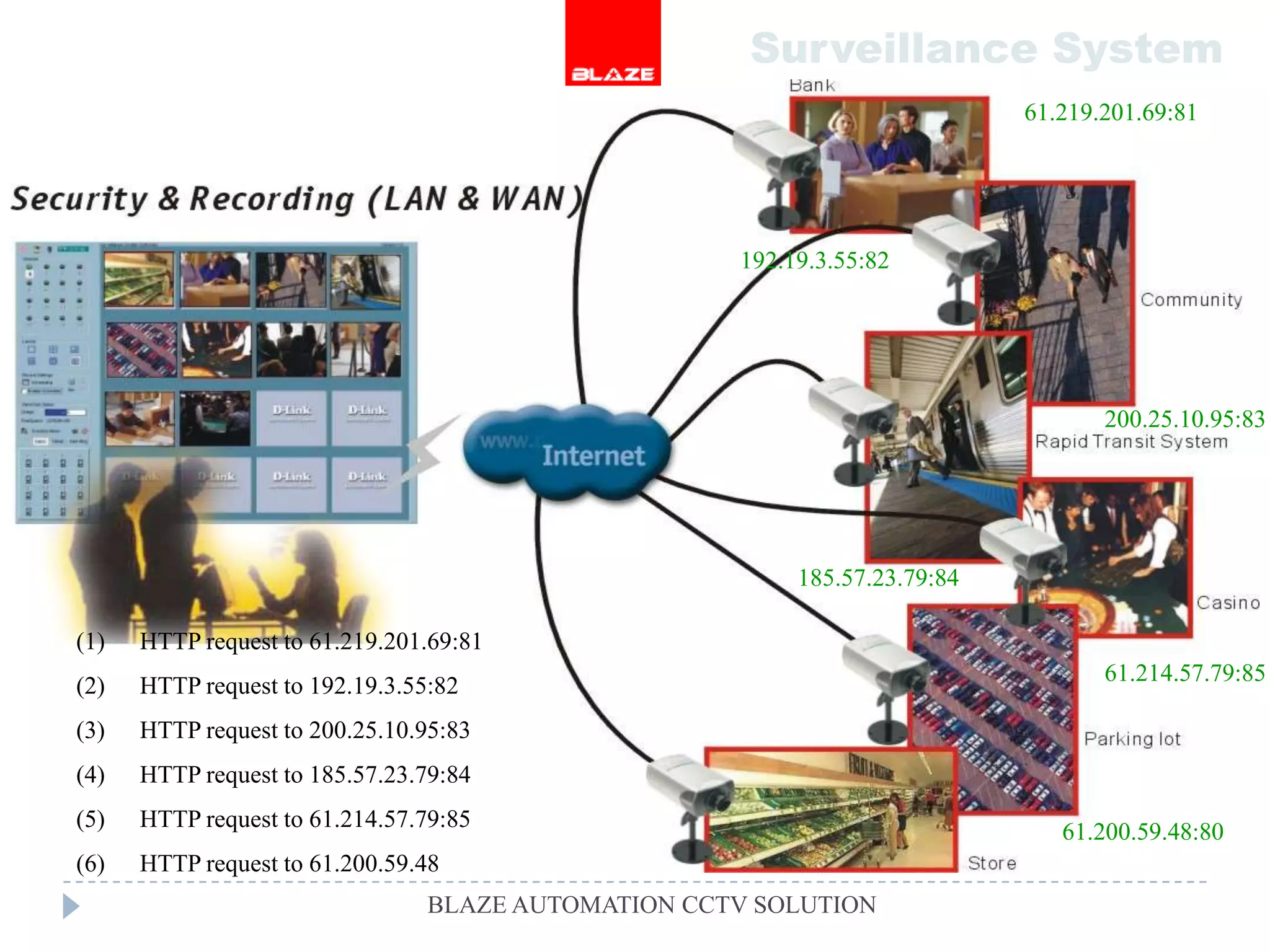

Surveillance System
61.219.201.69:81

192.19.3.55:82

200.25.10.95:83

185.57.23.79:84

(1) HTTP request to 61.219.201.69:81
61.214.57.79:85
(2) HTTP request to 192.19.3.55:82
(3) HTTP request to 200.25.10.95:83
(4) HTTP request to 185.57.23.79:84
(5) HTTP request to 61.214.57.79:85
61.200.59.48:80

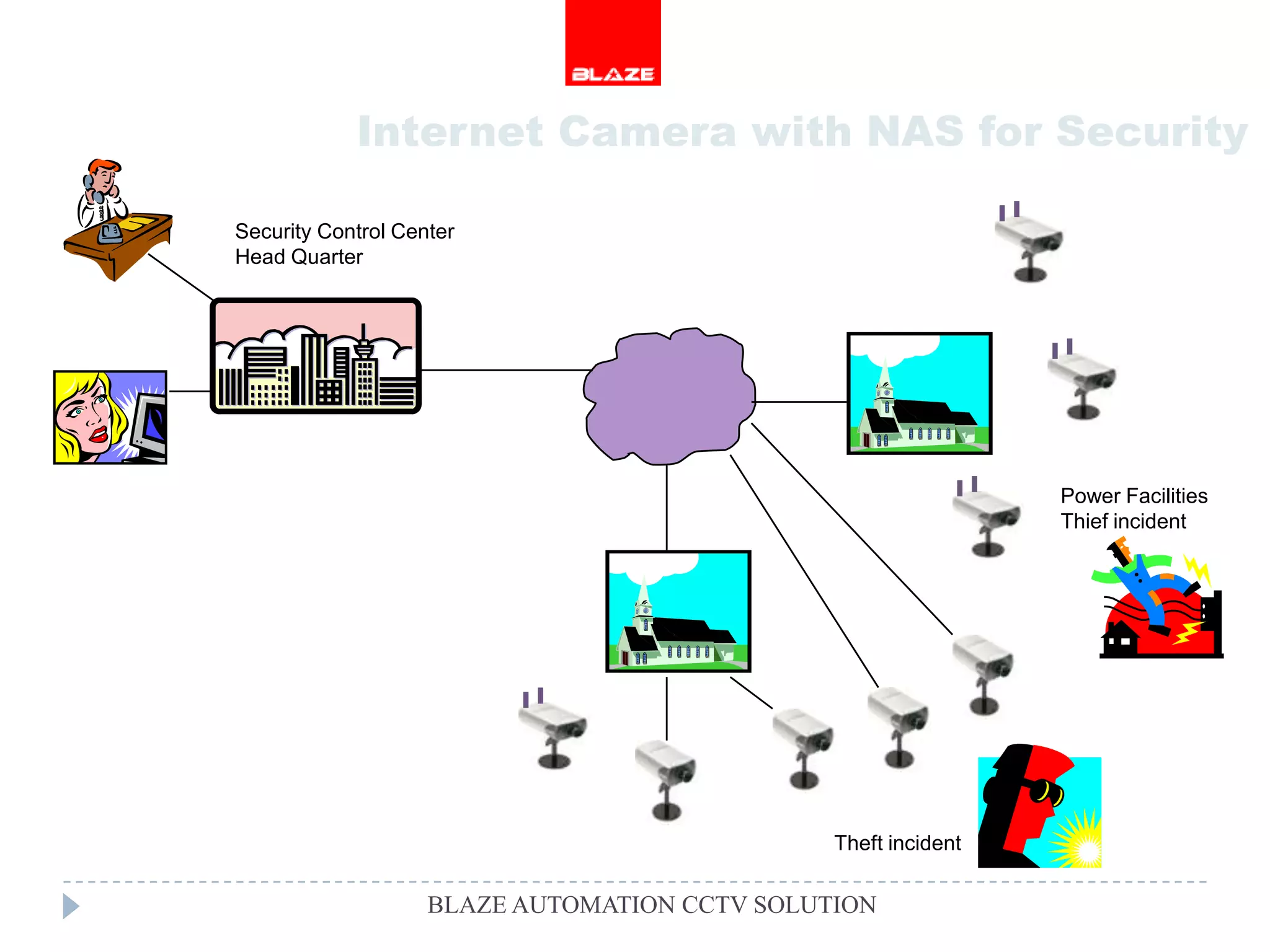

Internet Camera with NAS for Security

Security Control Center
Head Quarter

Power Facilities
Thief incident

Theft incident


Thank You!

Blaze cctv camera solutions blaze automation

More Related Content

What's hot

Similar to Blaze cctv camera solutions blaze automation

More from Blaze_Hyd

Recently uploaded

Blaze cctv camera solutions blaze automation
