The MS-800 is an integrated live production system centered around the SE-800 4-channel DV/analog video switcher. It allows switching of up to 4 video and 6 audio channels. Additional integrated components include a hard drive recorder, monitoring, intercom, and titling systems. The MS-800 provides various video and audio connections and outputs composite, S-video, component, SDI, and DV signals for live broadcasting or recording in both analog and digital formats. It is designed for quick setup and portable use at live events.

1. DV | Y:U:V | Y/C & COMPOSITE VIDEO
MS-800 At the heart of the MS-800 lies the SE-800 4 channel
DV / analogue audio video switcher. The SE-800
allows four channels of digital or analogue video and
up to six channels of audio to be mixed / switched.
The whole system is fully integrated with the ITC-
100 for talkback / intercom, RMC-140 for next
source preview and tally display, TLM-404 for input
monitoring and TLM-702 for next source and main
output monitoring. Built in DN-500 hard drive recorder
for play back or recording.
One box solution for “live in seconds” at any location
including Conference, Studio, Outside Broadcast,
Internet Streaming facility and many more.
Outputs include: Component (Y.U.V) which could be
connected to a DVD recorder or projector, DV which
could be connected to a DV Deck and SDI output
for live broadcast. The MS-800 also provides a SDI
overlay facility allowing broadcast quality titling using
Datavideo CG-100 SDI CG software, for example.
4
1.Built in PD-1 power distribution centre. Power all equipment from a single AC Mains
or 12V DC power cable.
2.The transit lock, ensures the equipment is secure while in transport
3.Video connections
(1).Industry standard DV25 ensure loss less connection of Digital Video equipment
(2).Analogue in/out connections include Component (Y:U:V), S-video (Y/C) and
Composite (CV)
4.Easy Setup, break down and storage at any location. Designed to "live-in-seconds"
5.Anti shock padding protects the MS-800 during transit.
6.Standard 19-Inch rack unit for integration with 3rd party products like wireless
microphone systems and traditional tape based existing recorders
7.Loop through of all camera sources, not just next source and program output, for
confident preview of all live sources
www.datavideo-tek.com

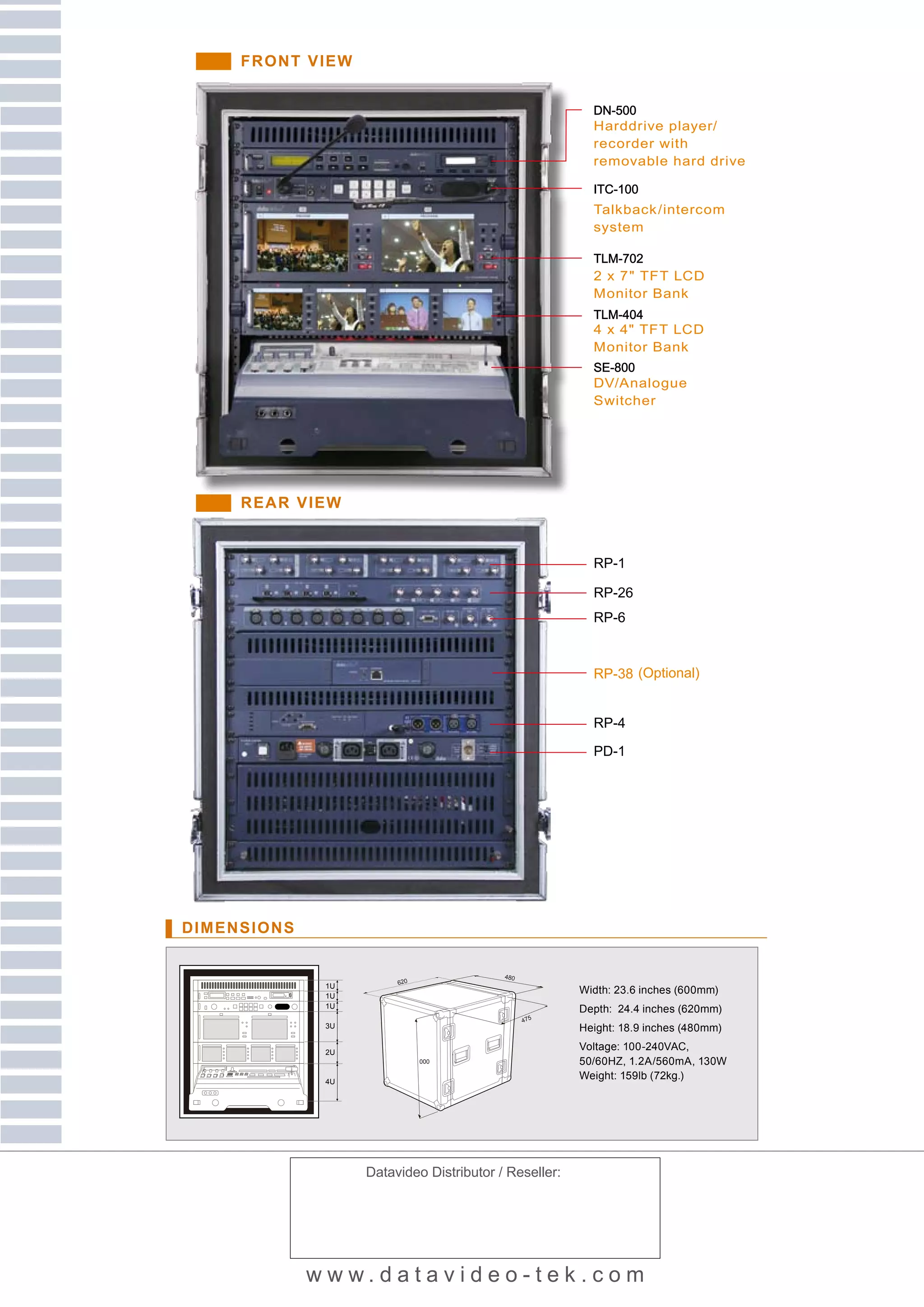

2. FRONT VIEW
DN-500
Harddrive player/
recorder with
removable hard drive
ITC-100
Talkback /intercom
system
TLM-702
2 x 7" TFT LCD
Monitor Bank
TLM-404
4 x 4" TFT LCD
Monitor Bank
SE-800
DV/Analogue
Switcher
REAR VIEW
RP-1
RP-26
RP-6
RP-38 (Optional)
RP-4
PD-1
DIMENSIONS
480
620
1U
1U
Width: 23.6 inches (600mm)
1U
Depth: 24.4 inches (620mm)
475
3U Height: 18.9 inches (480mm)
2U
Voltage: 100-240VAC,
000 50/60HZ, 1.2A/560mA, 130W
4U
Weight: 159lb (72kg.)
