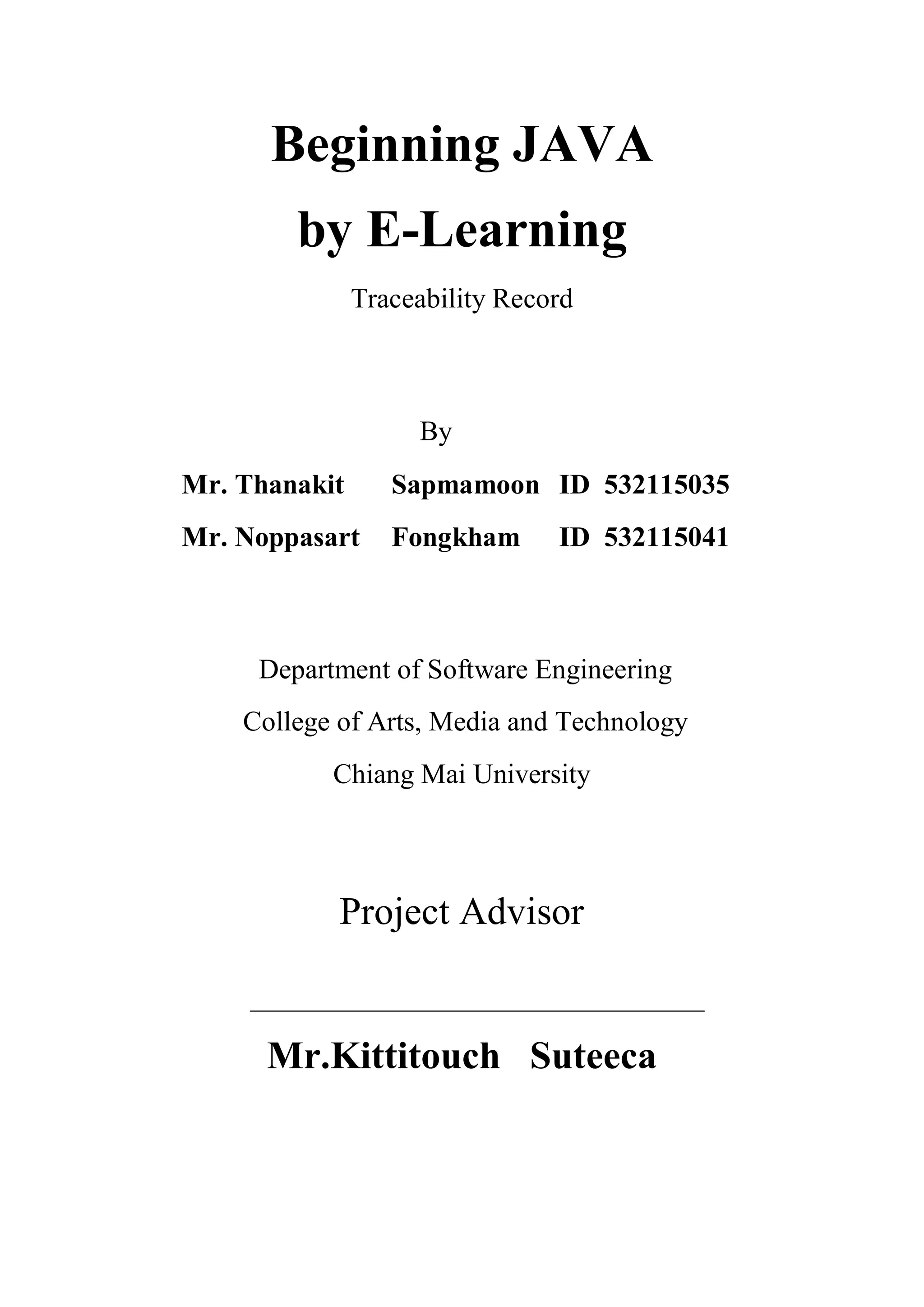

1. Beginning JAVA
by E-Learning
Traceability Record
By
Mr. Thanakit
Sapmamoon ID 532115035
Mr. Noppasart
Fongkham
ID 532115041
Department of Software Engineering
College of Arts, Media and Technology
Chiang Mai University
Project Advisor
Mr.Kittitouch Suteeca

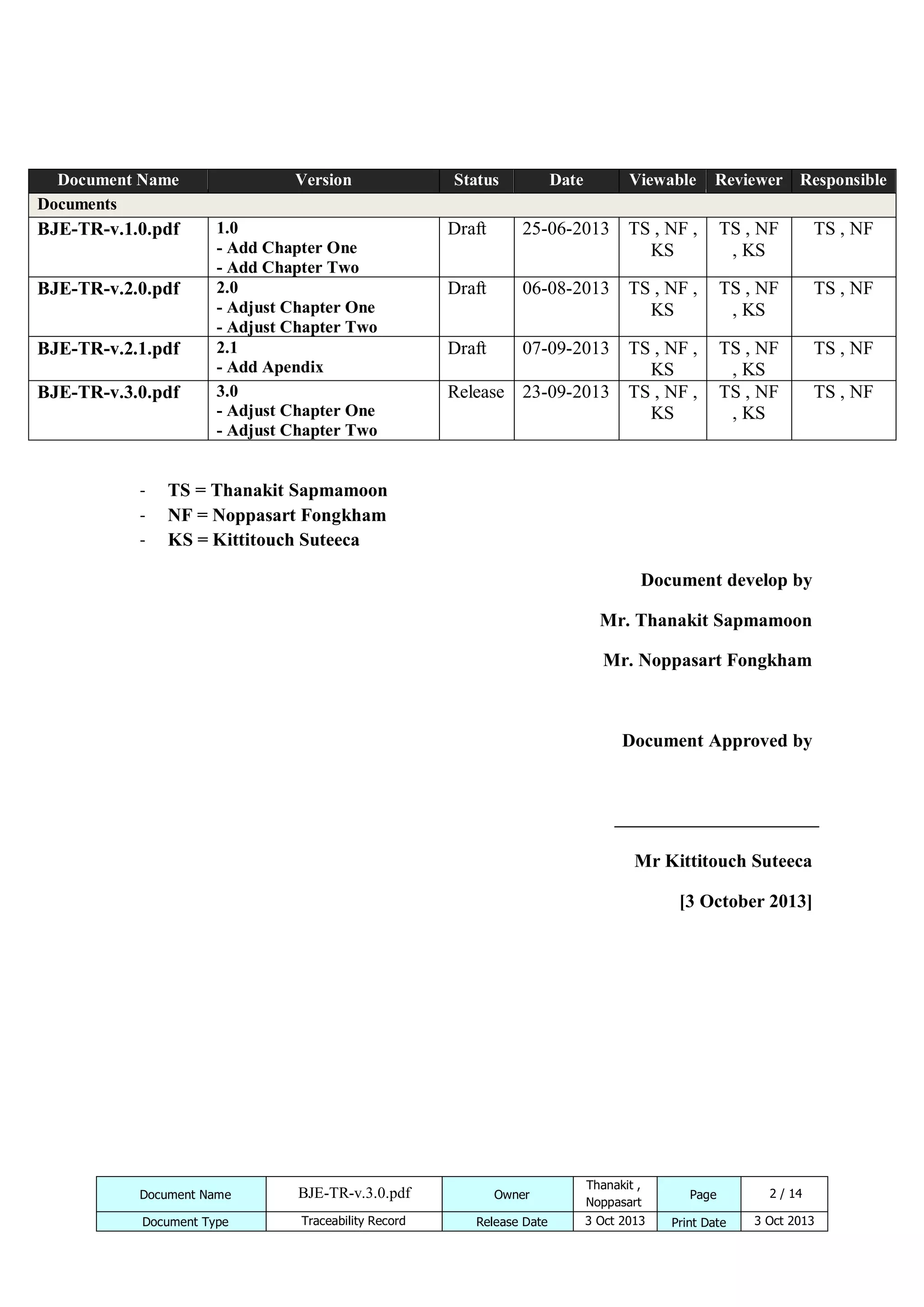

2. Document Name
Documents
BJE-TR-v.1.0.pdf
BJE-TR-v.2.0.pdf
BJE-TR-v.2.1.pdf
BJE-TR-v.3.0.pdf
-
Version
1.0
- Add Chapter One
- Add Chapter Two
2.0
- Adjust Chapter One
- Adjust Chapter Two
2.1
- Add Apendix
3.0
- Adjust Chapter One
- Adjust Chapter Two
Status
Date
Viewable
Reviewer Responsible
Draft
25-06-2013
TS , NF ,
KS
TS , NF
, KS
TS , NF
Draft
06-08-2013
TS , NF ,
KS
TS , NF
, KS
TS , NF
Draft
07-09-2013
TS , NF ,
KS
TS , NF ,
KS
TS , NF
, KS
TS , NF
, KS
TS , NF
Release 23-09-2013
TS , NF
TS = Thanakit Sapmamoon
NF = Noppasart Fongkham
KS = Kittitouch Suteeca
Document develop by
Mr. Thanakit Sapmamoon
Mr. Noppasart Fongkham
Document Approved by
Mr Kittitouch Suteeca
[3 October 2013]
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
2 / 14
3 Oct 2013

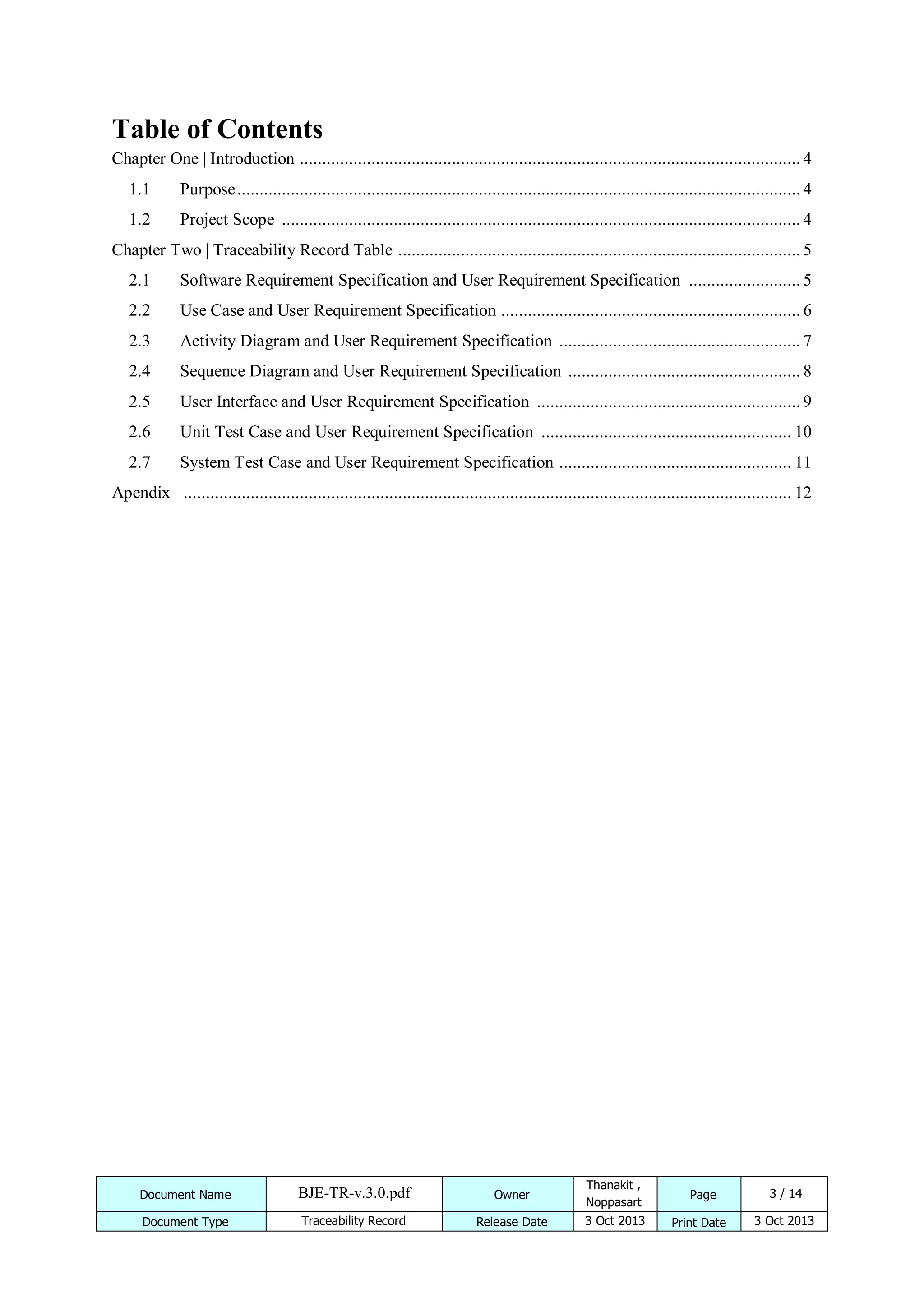

3. Table of Contents
Chapter One | Introduction ................................................................................................................ 4
1.1
Purpose .............................................................................................................................. 4
1.2
Project Scope .................................................................................................................... 4
Chapter Two | Traceability Record Table .......................................................................................... 5
2.1
Software Requirement Specification and User Requirement Specification ......................... 5
2.2
Use Case and User Requirement Specification ................................................................... 6
2.3
Activity Diagram and User Requirement Specification ...................................................... 7
2.4
Sequence Diagram and User Requirement Specification .................................................... 8
2.5
User Interface and User Requirement Specification ........................................................... 9
2.6
Unit Test Case and User Requirement Specification ........................................................ 10
2.7
System Test Case and User Requirement Specification .................................................... 11
Apendix ........................................................................................................................................ 12
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
3 / 14
3 Oct 2013

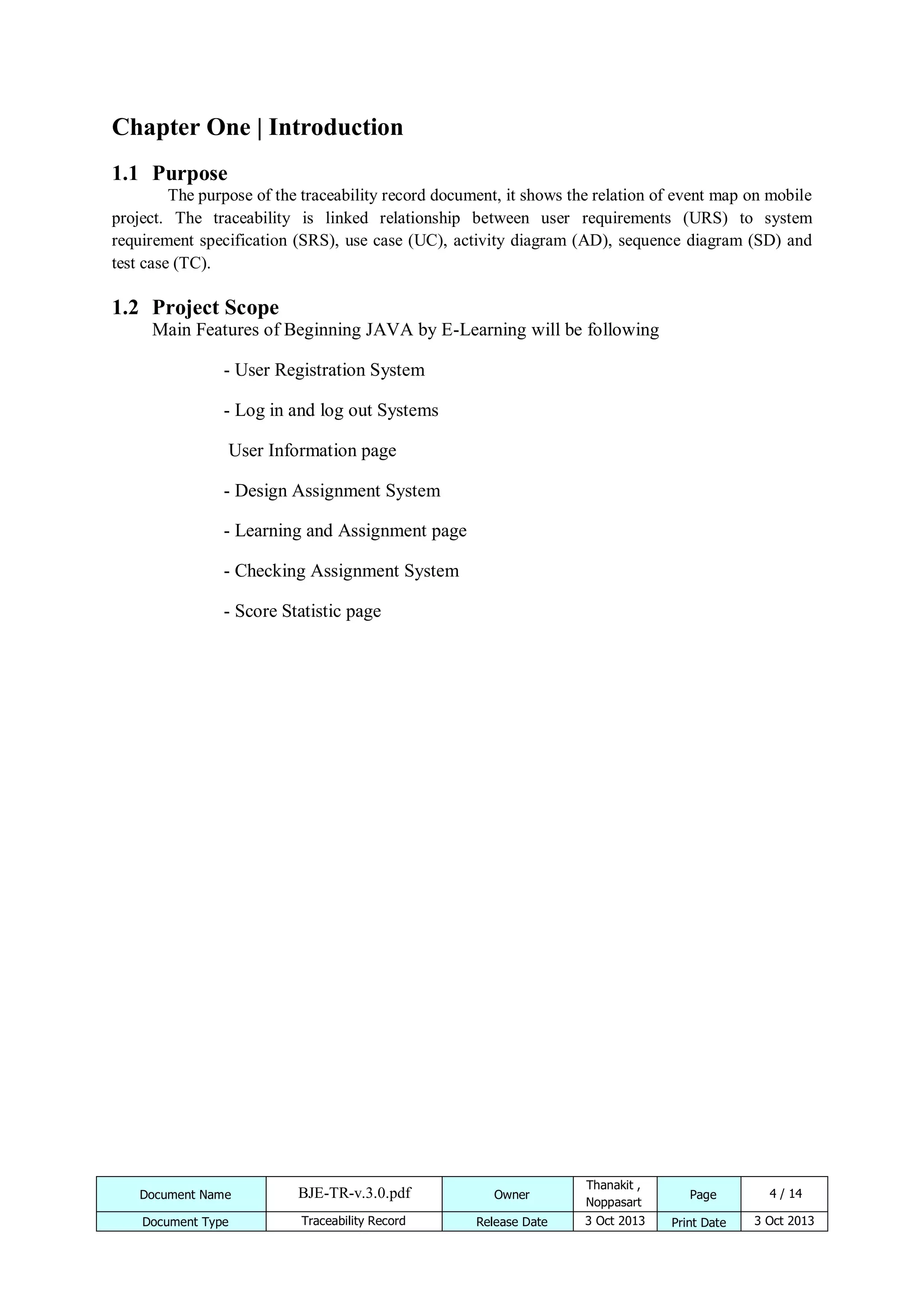

4. Chapter One | Introduction
1.1 Purpose
The purpose of the traceability record document, it shows the relation of event map on mobile
project. The traceability is linked relationship between user requirements (URS) to system
requirement specification (SRS), use case (UC), activity diagram (AD), sequence diagram (SD) and
test case (TC).
1.2 Project Scope
Main Features of Beginning JAVA by E-Learning will be following
- User Registration System
- Log in and log out Systems
User Information page
- Design Assignment System
- Learning and Assignment page
- Checking Assignment System
- Score Statistic page
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
4 / 14
3 Oct 2013

5. Chapter Two | Traceability Record Table

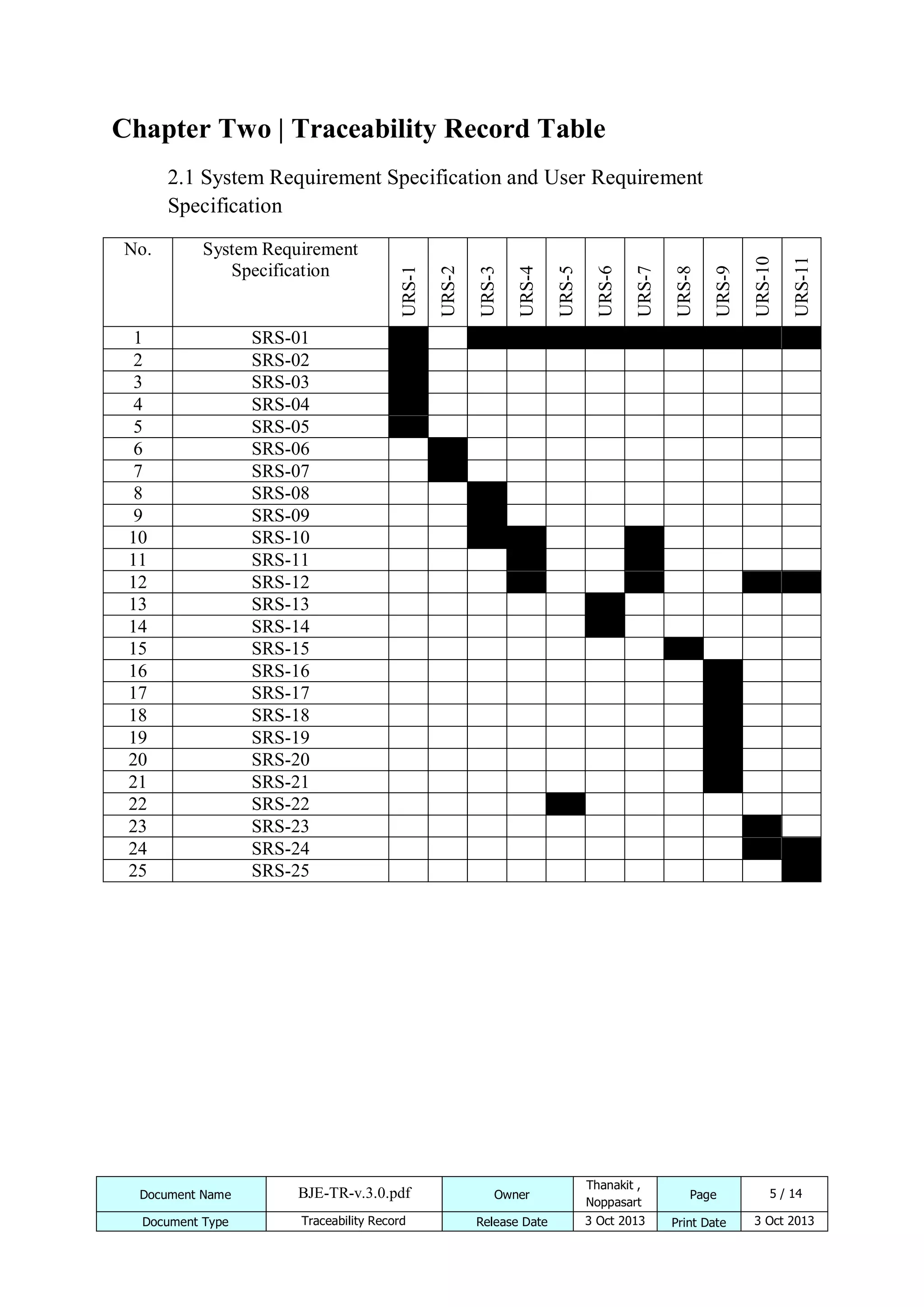

2.1 System Requirement Specification and User Requirement
Specification
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
URS-11
URS-10
URS-9
URS-8
URS-7
URS-6
URS-5
URS-4
SRS-01
SRS-02
SRS-03
SRS-04
SRS-05
SRS-06
SRS-07
SRS-08
SRS-09
SRS-10
SRS-11
SRS-12
SRS-13
SRS-14
SRS-15
SRS-16
SRS-17
SRS-18
SRS-19
SRS-20
SRS-21
SRS-22
SRS-23
SRS-24
SRS-25
URS-3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
URS-2
System Requirement
Specification
URS-1
No.
5 / 14
3 Oct 2013

6. 1
2
3
4
5
6
7
8
9
10
11
URS-11
URS-9
URS-8
URS-7
URS-6
URS-5
URS-4
URS-3
URS-2
Use Case
URS-1
No.
URS-10

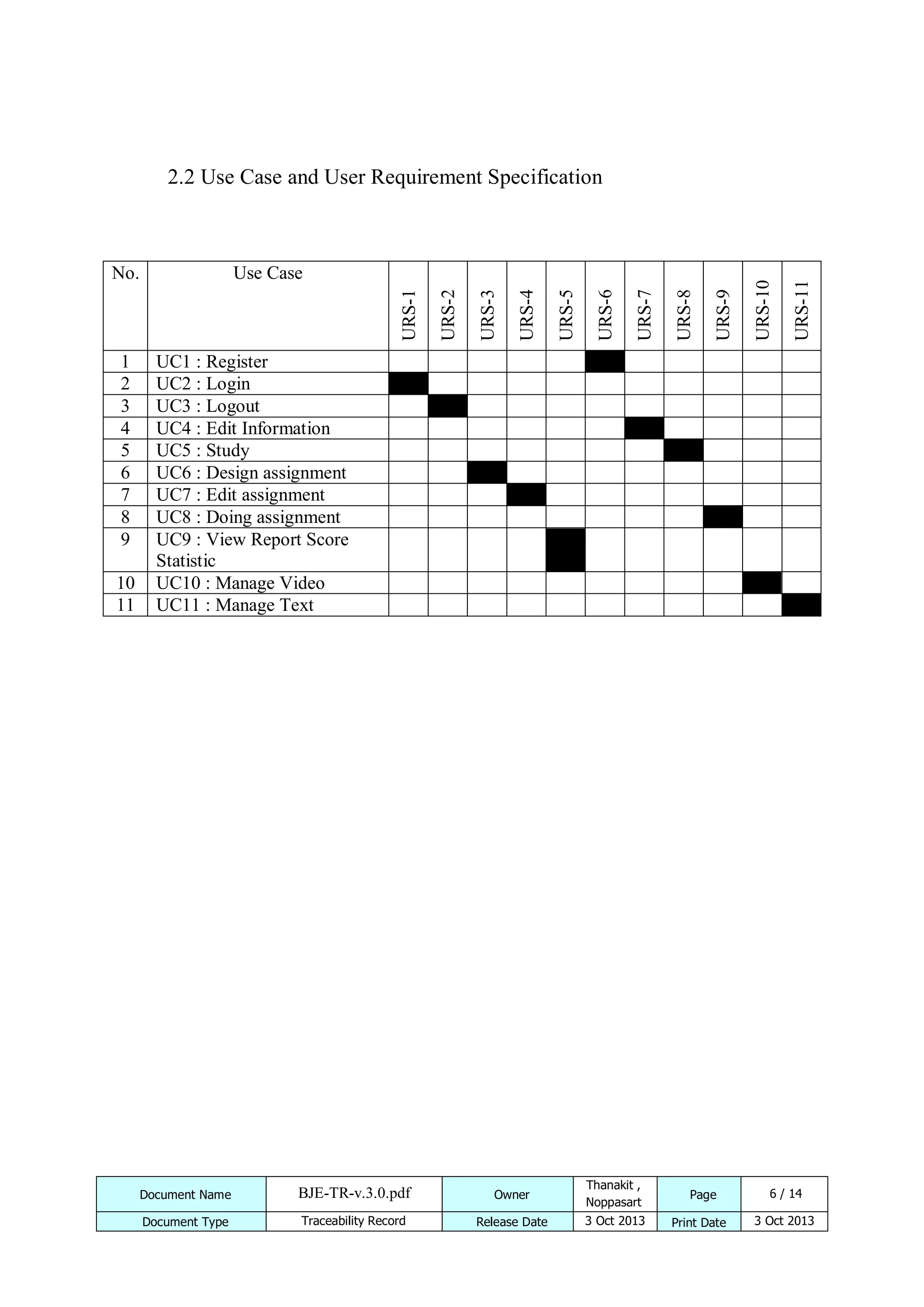

2.2 Use Case and User Requirement Specification
UC1 : Register
UC2 : Login
UC3 : Logout
UC4 : Edit Information
UC5 : Study
UC6 : Design assignment
UC7 : Edit assignment
UC8 : Doing assignment
UC9 : View Report Score
Statistic
UC10 : Manage Video
UC11 : Manage Text
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
6 / 14
3 Oct 2013

7. 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
URS-11
URS-9
URS-8
URS-7
URS-6
URS-5
URS-4
URS-3
URS-2
URS-1
No. Activity Diagram
URS-10

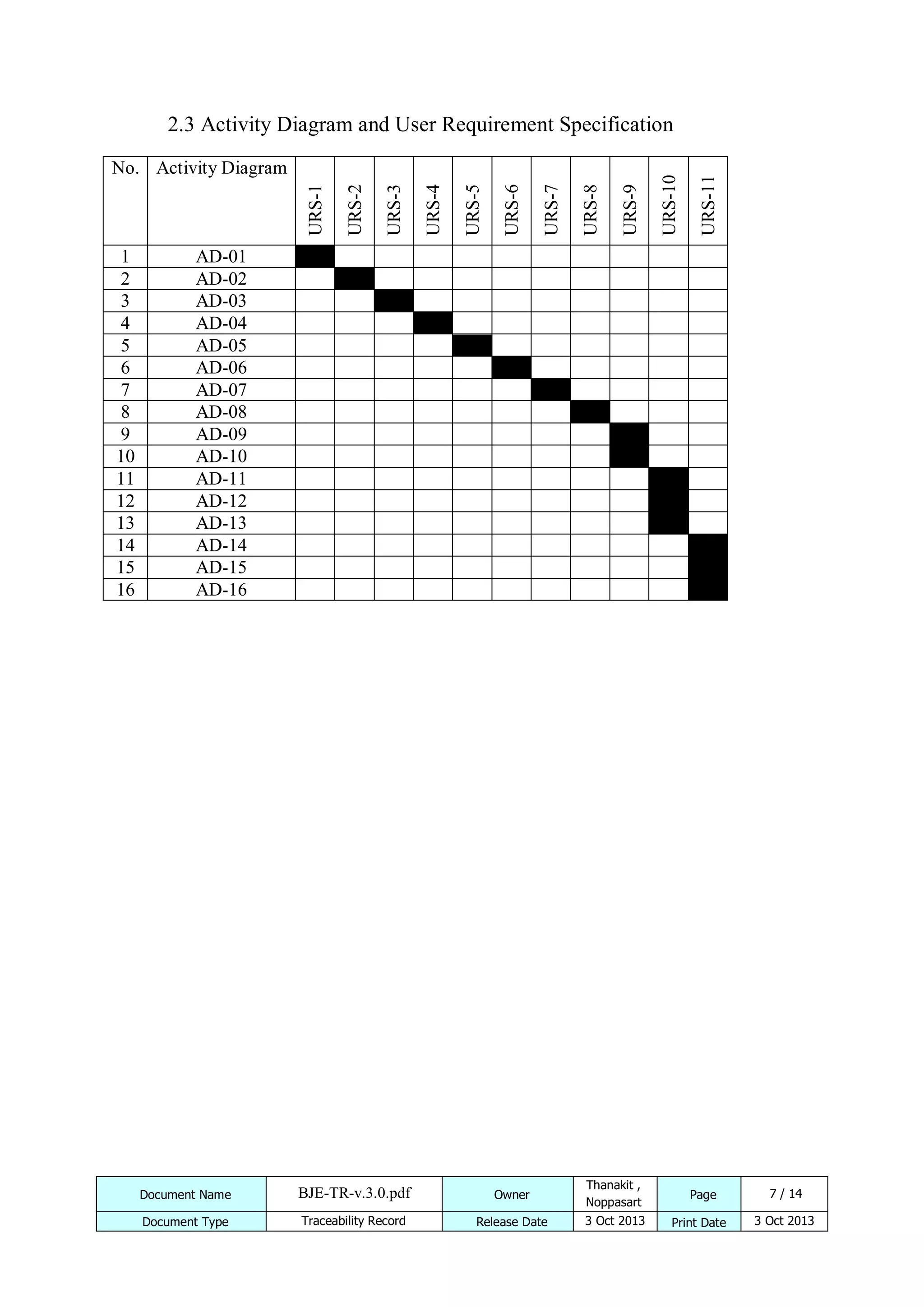

2.3 Activity Diagram and User Requirement Specification
AD-01
AD-02
AD-03
AD-04
AD-05
AD-06
AD-07
AD-08
AD-09
AD-10
AD-11
AD-12
AD-13
AD-14
AD-15
AD-16
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
7 / 14
3 Oct 2013

8. 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
URS-11
URS-9
URS-8
URS-7
URS-6
URS-5
URS-4
URS-3
URS-2
URS-1
No. Sequence Diagram
URS-10

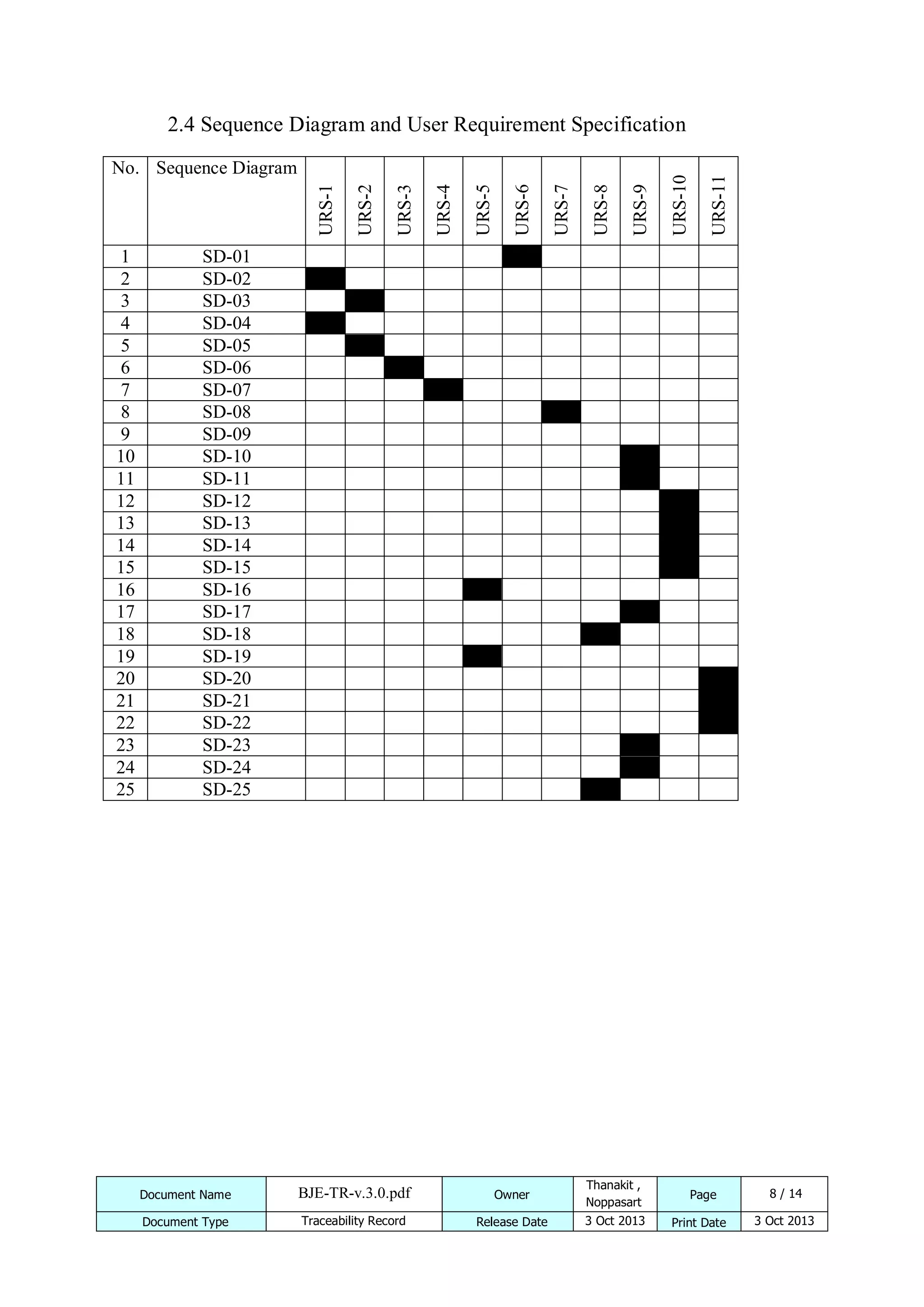

2.4 Sequence Diagram and User Requirement Specification
SD-01
SD-02
SD-03
SD-04
SD-05
SD-06
SD-07
SD-08
SD-09
SD-10
SD-11
SD-12
SD-13
SD-14
SD-15
SD-16
SD-17
SD-18
SD-19
SD-20
SD-21
SD-22
SD-23
SD-24
SD-25
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
8 / 14
3 Oct 2013

9. 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
URS-11
URS-9
URS-8
URS-7
URS-6
URS-5
URS-4
URS-3
URS-2
URS-1
No. User Interface
URS-10

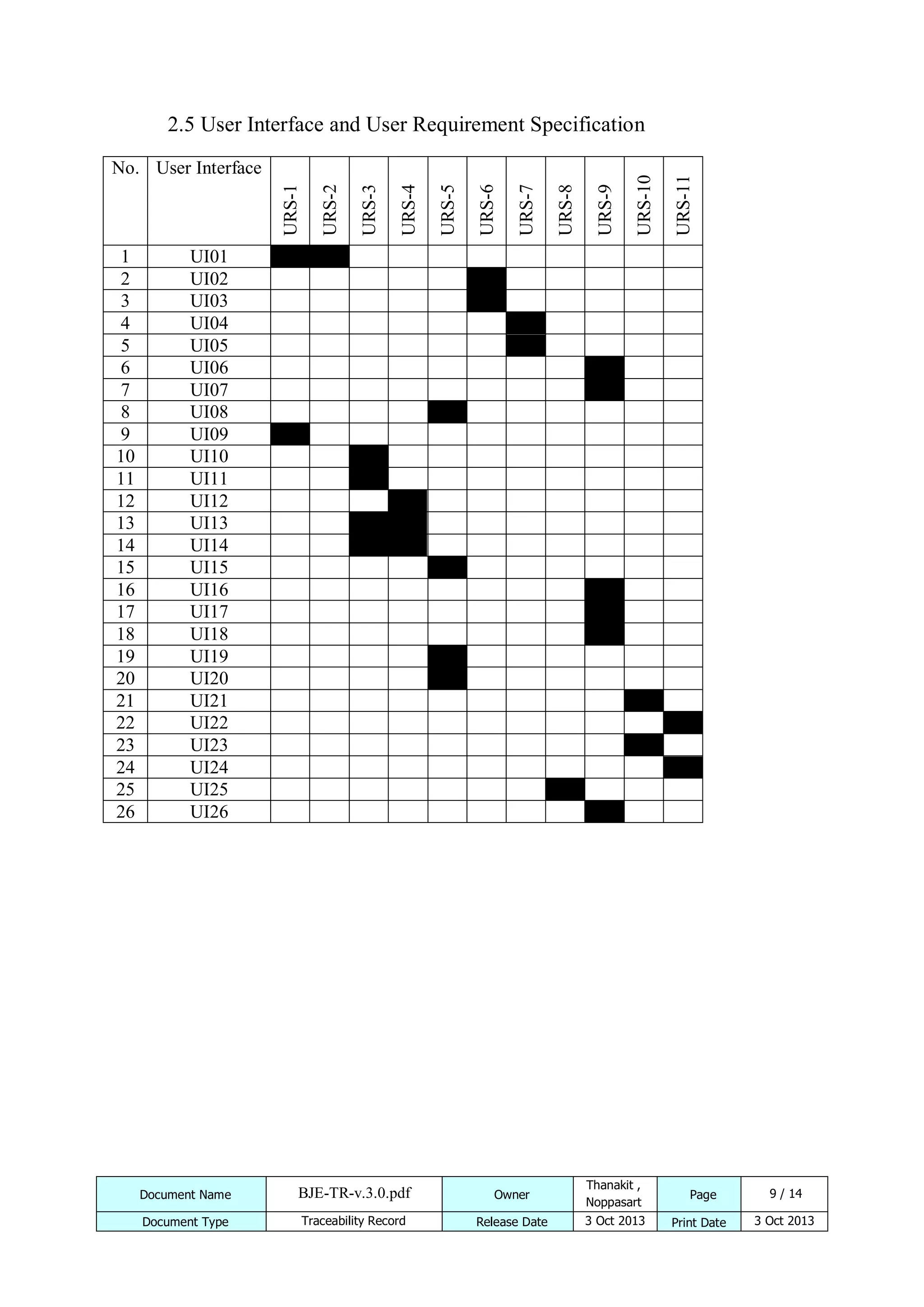

2.5 User Interface and User Requirement Specification
UI01
UI02
UI03
UI04
UI05
UI06
UI07
UI08
UI09
UI10
UI11
UI12
UI13
UI14
UI15
UI16
UI17
UI18
UI19
UI20
UI21
UI22
UI23
UI24
UI25
UI26
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
9 / 14
3 Oct 2013

10. 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
URS-11
URS-9
URS-8
URS-7
URS-6
URS-5
URS-4
URS-3
URS-2
URS-1
No. Unit Test Case
URS-10

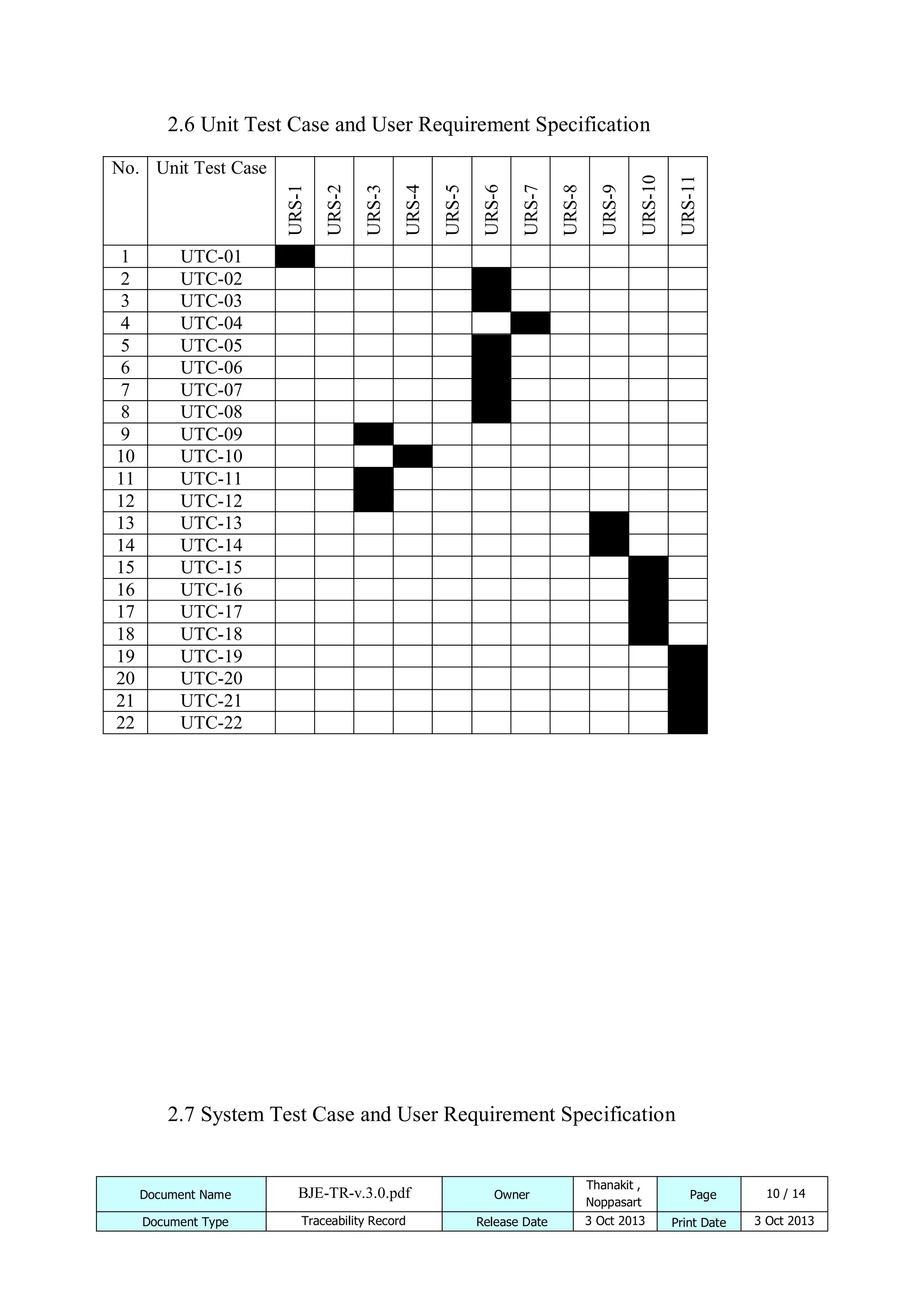

2.6 Unit Test Case and User Requirement Specification
UTC-01
UTC-02
UTC-03
UTC-04
UTC-05
UTC-06
UTC-07
UTC-08
UTC-09
UTC-10
UTC-11
UTC-12
UTC-13
UTC-14
UTC-15
UTC-16
UTC-17
UTC-18
UTC-19
UTC-20
UTC-21
UTC-22
2.7 System Test Case and User Requirement Specification
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
10 / 14
3 Oct 2013

11. 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
URS-11
URS-10
URS-9
URS-8
URS-7
URS-6
URS-5
URS-4
URS-3
URS-2
URS-1
No. System Test Case
STC-01
STC-02
STC-03
STC-04
STC-05
STC-06
STC-07
STC-08
STC-09
STC-10
STC-11
STC-12
STC-13
STC-14
STC-15
STC-16
STC-17
STC-18
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
11 / 14
3 Oct 2013

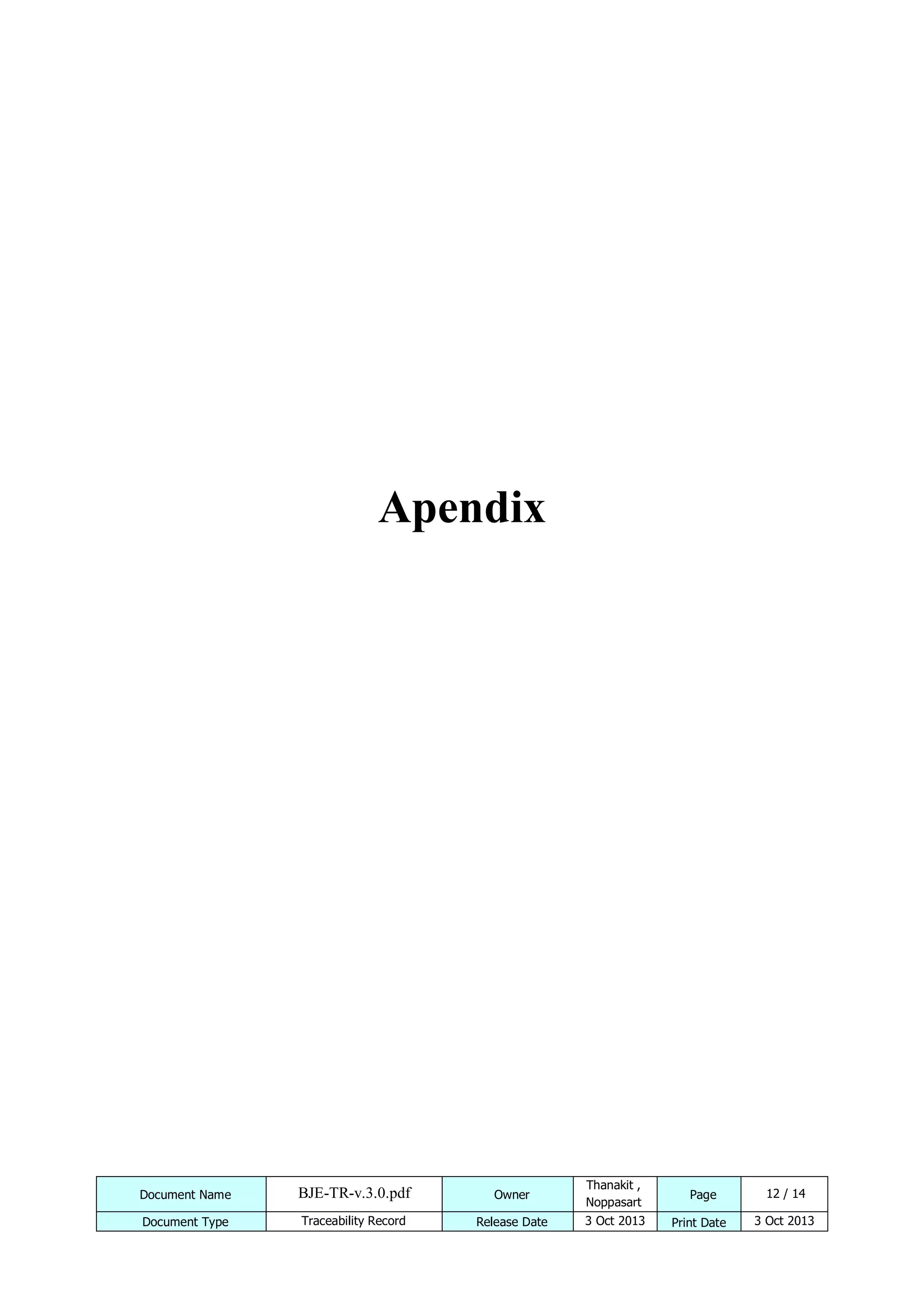

12. Apendix
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
12 / 14
3 Oct 2013

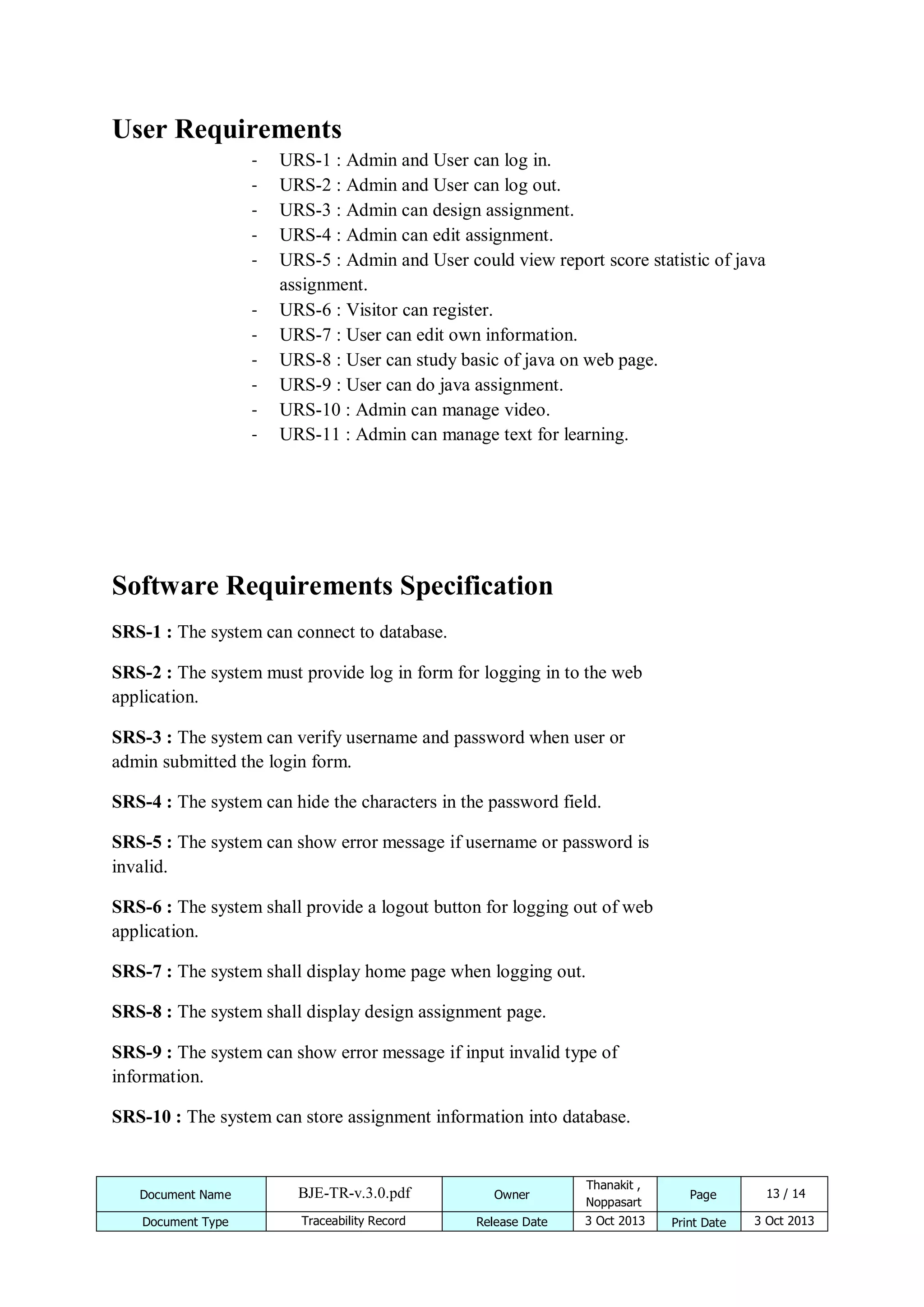

13. User Requirements
-
URS-1 : Admin and User can log in.
URS-2 : Admin and User can log out.
URS-3 : Admin can design assignment.
URS-4 : Admin can edit assignment.
URS-5 : Admin and User could view report score statistic of java
assignment.
URS-6 : Visitor can register.
URS-7 : User can edit own information.
URS-8 : User can study basic of java on web page.
URS-9 : User can do java assignment.
URS-10 : Admin can manage video.
URS-11 : Admin can manage text for learning.
Software Requirements Specification
SRS-1 : The system can connect to database.
SRS-2 : The system must provide log in form for logging in to the web
application.
SRS-3 : The system can verify username and password when user or
admin submitted the login form.
SRS-4 : The system can hide the characters in the password field.
SRS-5 : The system can show error message if username or password is
invalid.
SRS-6 : The system shall provide a logout button for logging out of web
application.
SRS-7 : The system shall display home page when logging out.
SRS-8 : The system shall display design assignment page.
SRS-9 : The system can show error message if input invalid type of
information.
SRS-10 : The system can store assignment information into database.
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
13 / 14
3 Oct 2013

14. SRS-11 : The system can show error message if input invalid type of
information.
SRS-12 : The system can update information into database.
SRS-13 : The system can verify and validate input information.
SRS-14 : The system can store registration information into database.
SRS-15 : The system shall display study page.
SRS-16 : The system shall retrieve information from database.
SRS-17 : The system shall display list of all assignment. In each assignment shall
display no.lab , no.assignment , score etc.
SRS-18 : The system shall provide user can click on make button to let
user do assignment.
SRS-19 : The system shall checking output after user click excute button.
SRS-20 : The system shall show error message if output is invalid.
SRS-21 : The system can keeping score into database.
SRS-22 : The system can display score statistic.
SRS-23 : The system shall display manage video page.
SRS-24 : The system shall keeping information into database.
SRS-25 : The system shall display manage text page.
Document Name
BJE-TR-v.3.0.pdf
Owner
Thanakit ,
Noppasart
Document Type
Traceability Record
Release Date
3 Oct 2013
Page
Print Date
14 / 14
3 Oct 2013
