Birdie Design Report

CIS 591 Design / Final Report: ‘Birdie’
http://birdie.kreegerstudios.com/

Benjamin Kreeger
(816) 806-7096
kreeger545@missouristate.edu

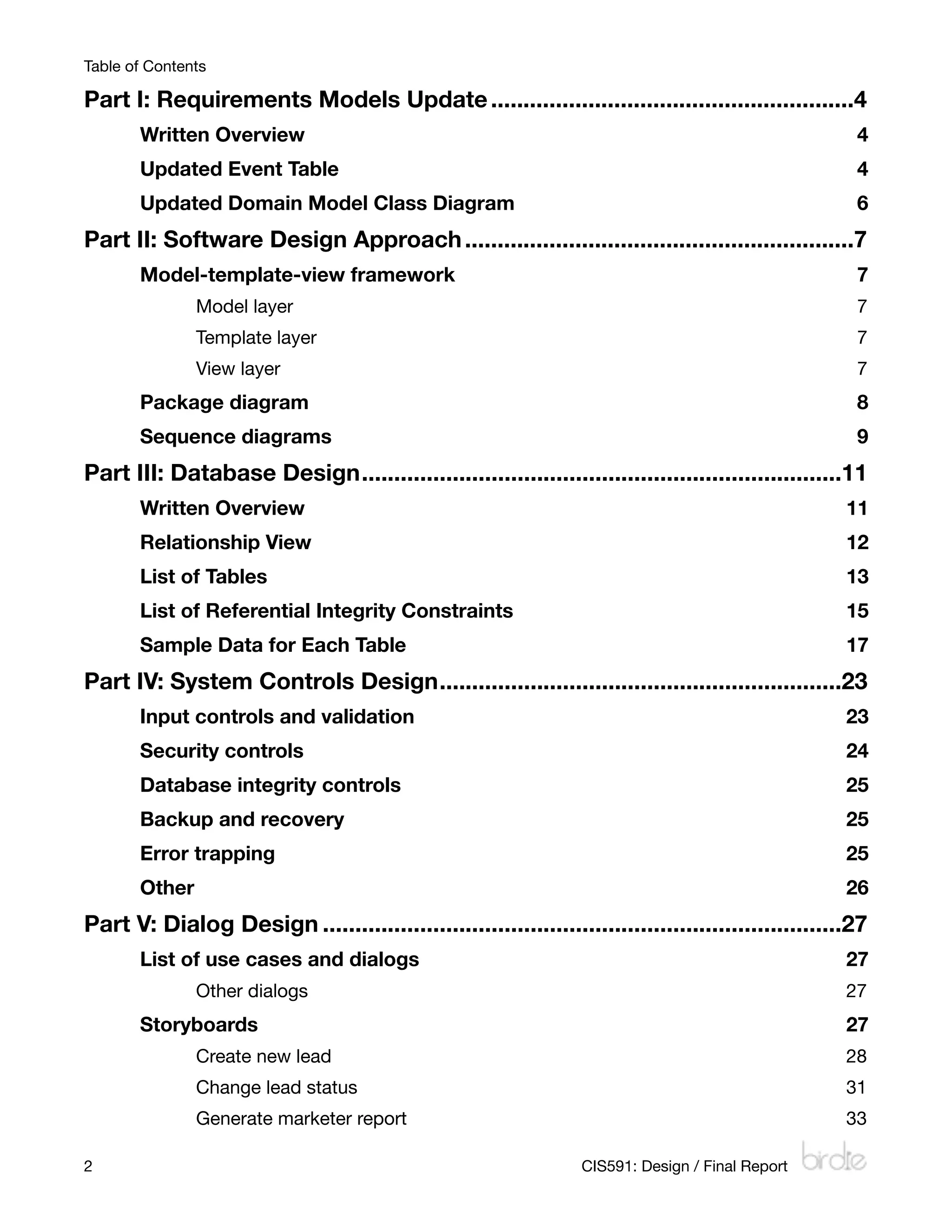

Table of Contents

Part I: Requirements Models Update
........................................................4
Written Overview
4
Updated Event Table
4
Updated Domain Model Class Diagram
6
Part II: Software Design Approach
............................................................7
Model-template-view framework
7
Model layer
7
Template layer
7
View layer
7
Package diagram
8

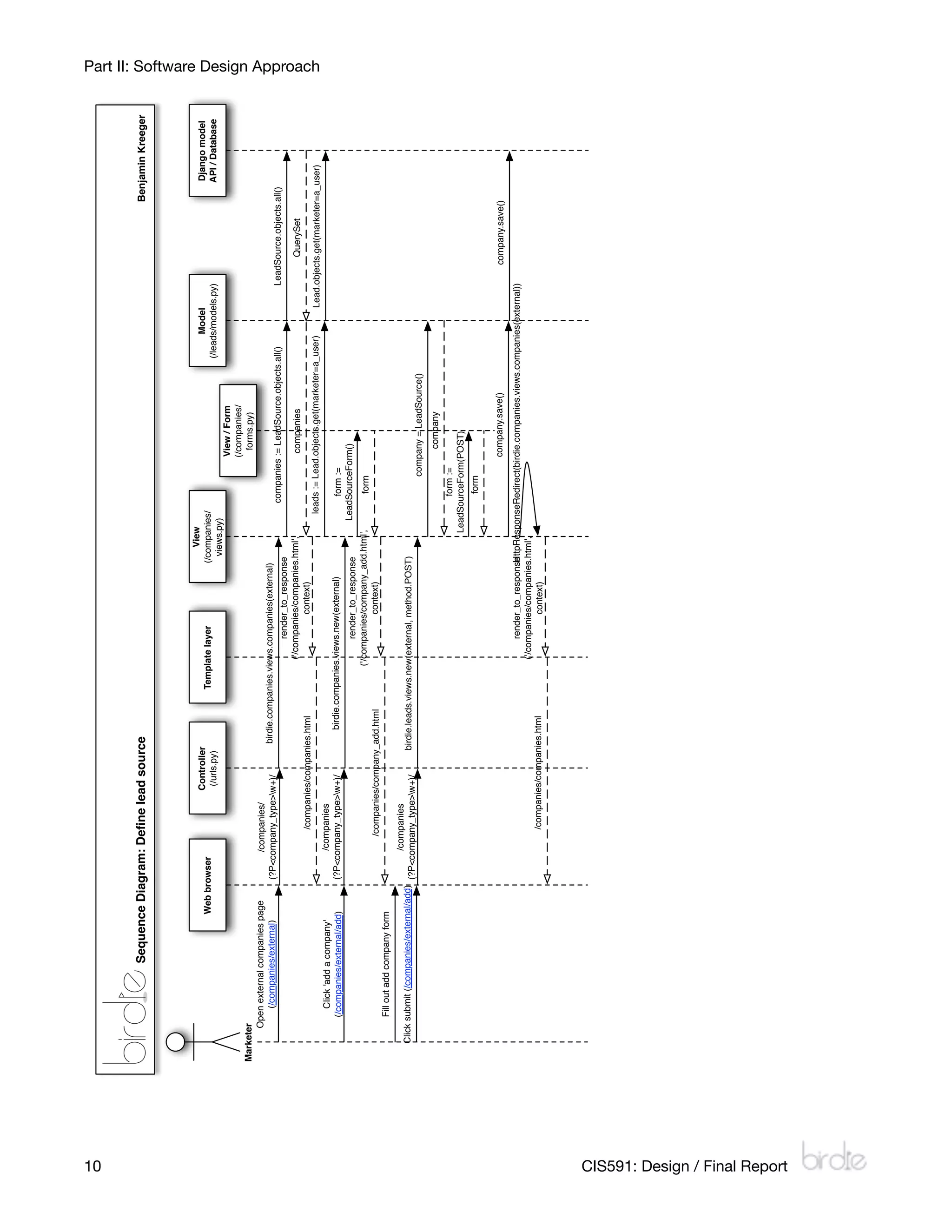

Sequence diagrams
9
Part III: Database Design
..........................................................................11

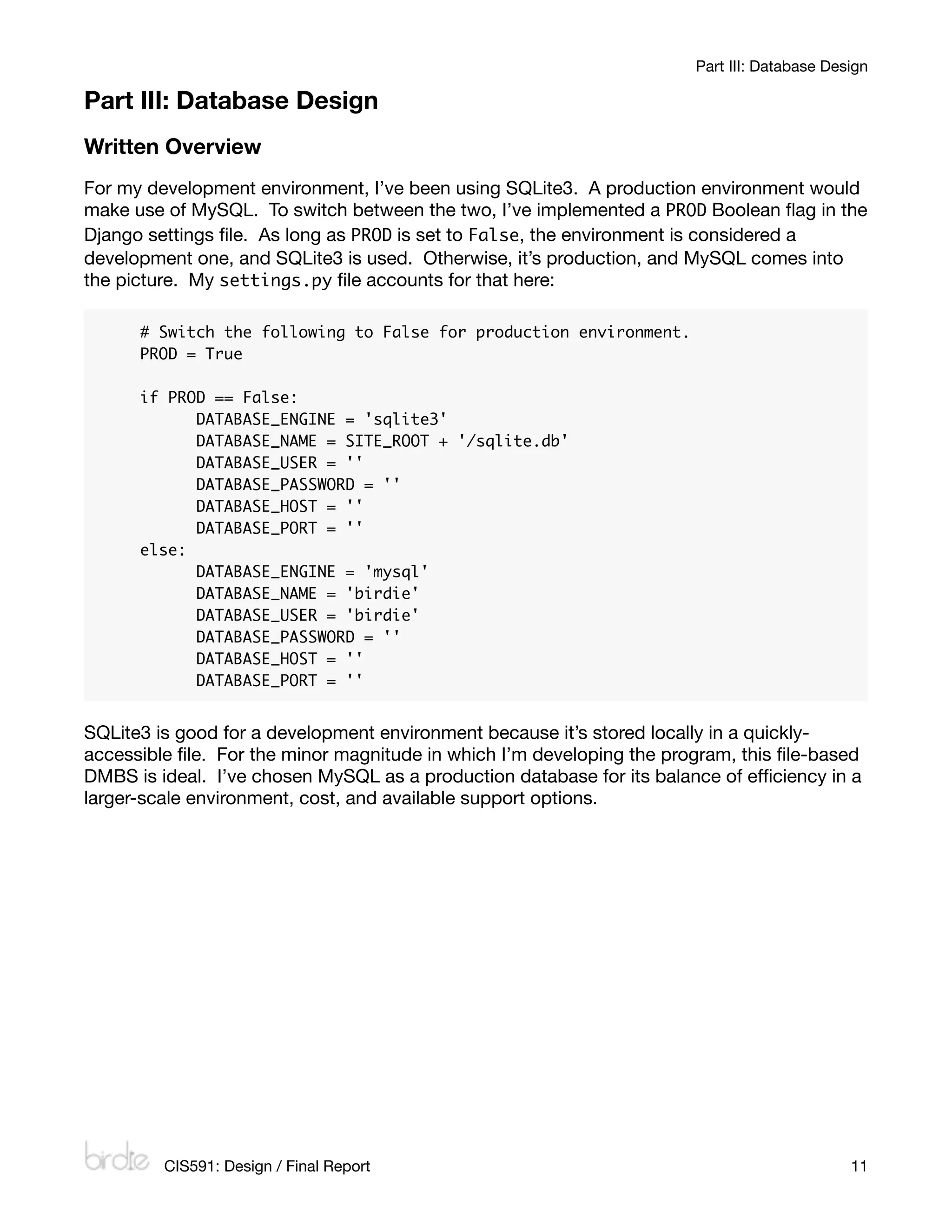

Written Overview
11

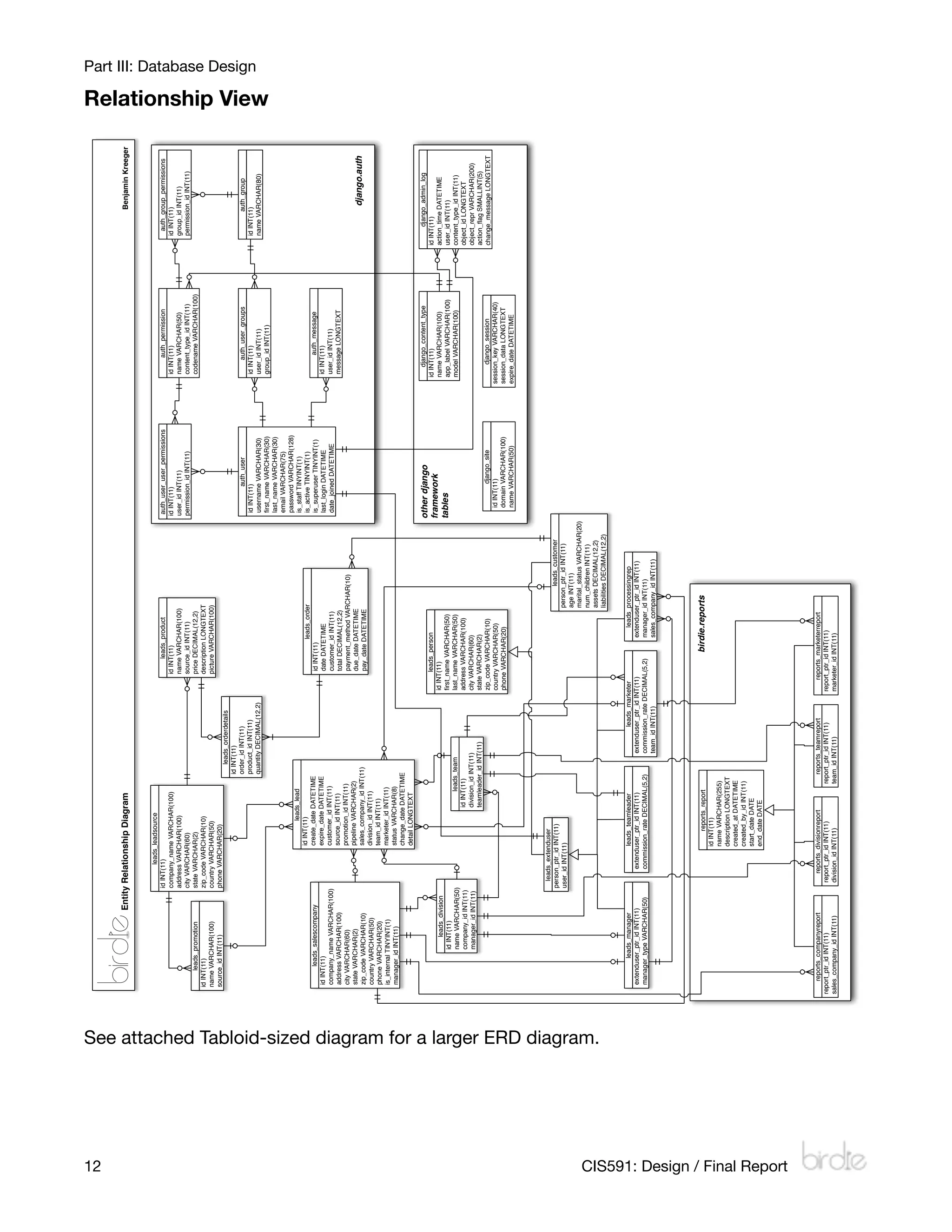

Relationship View
12

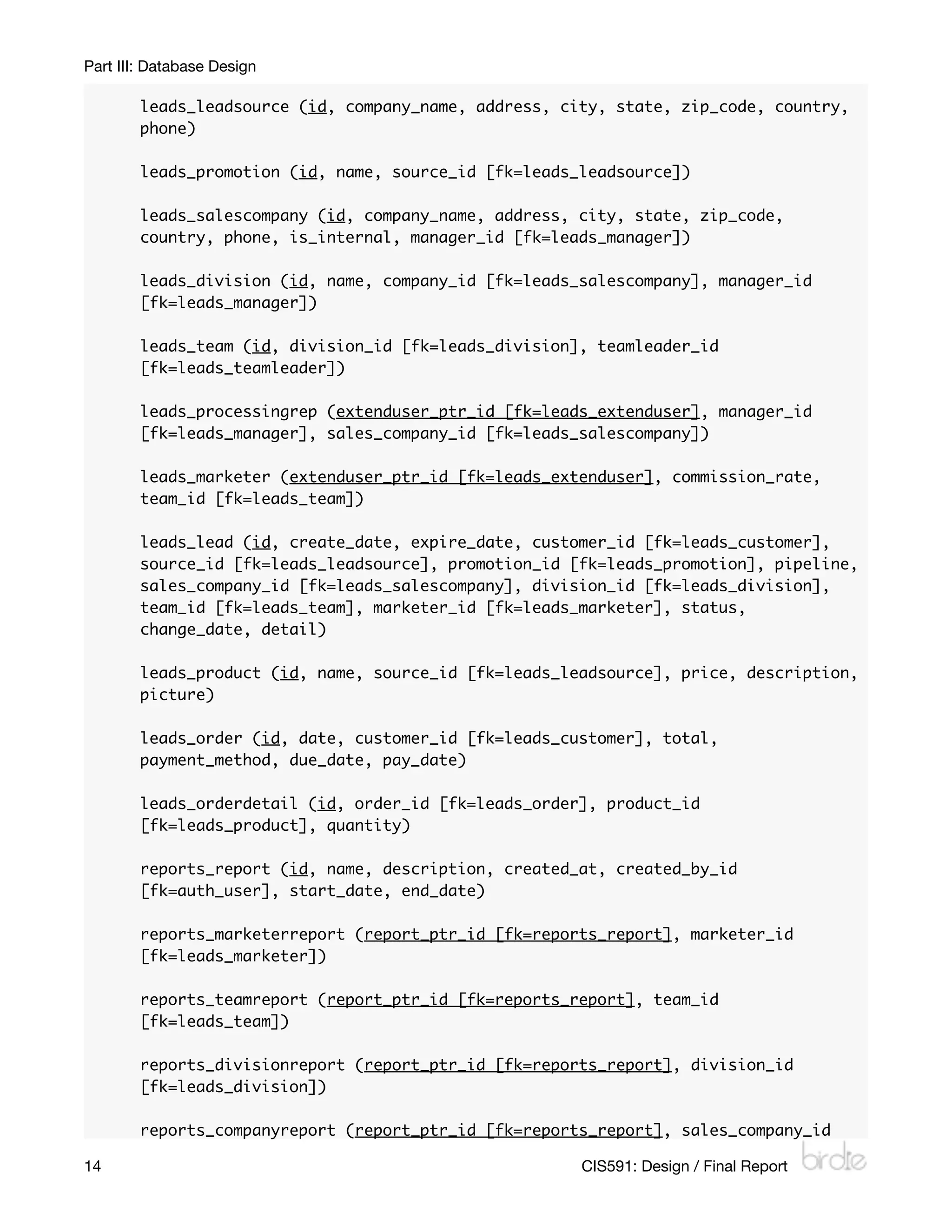

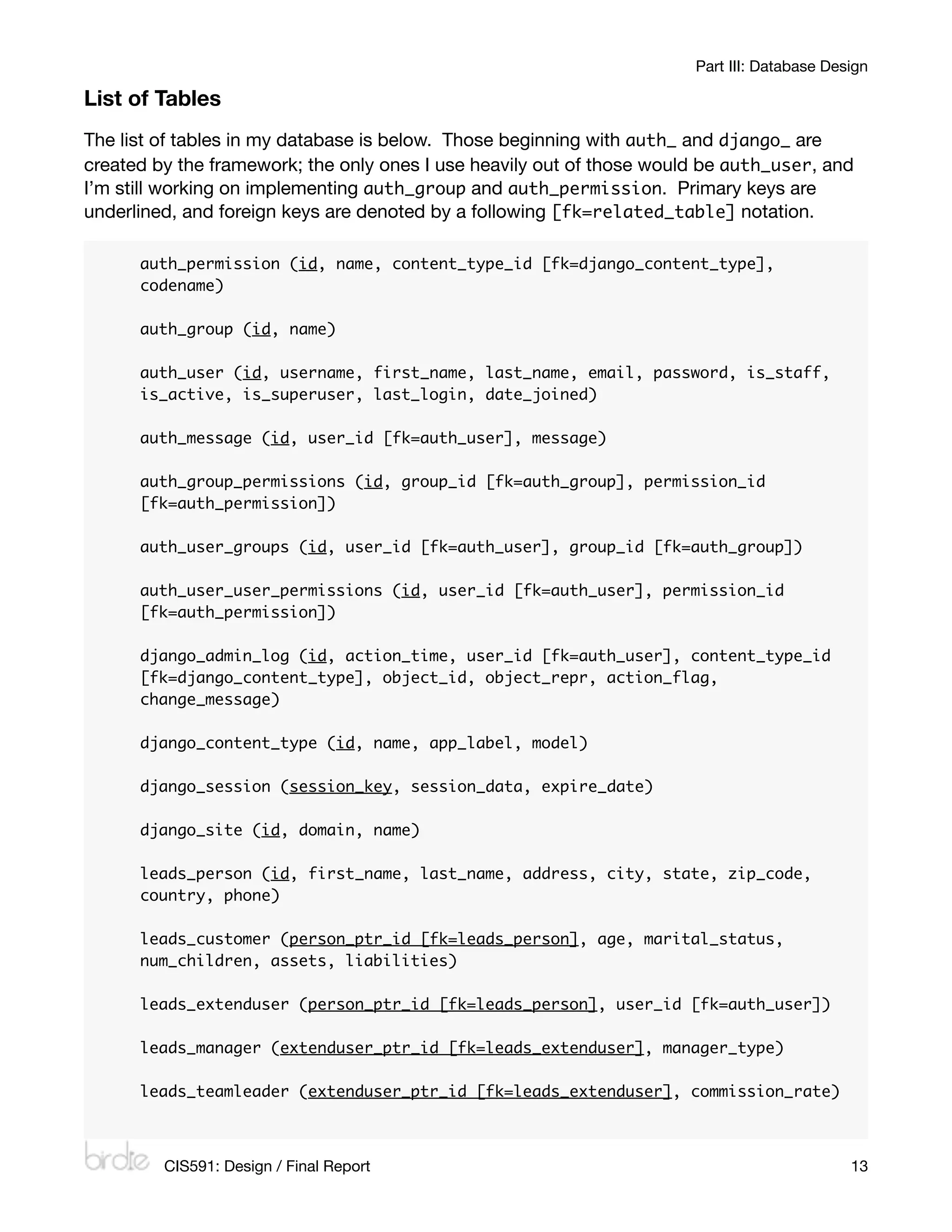

List of Tables
13

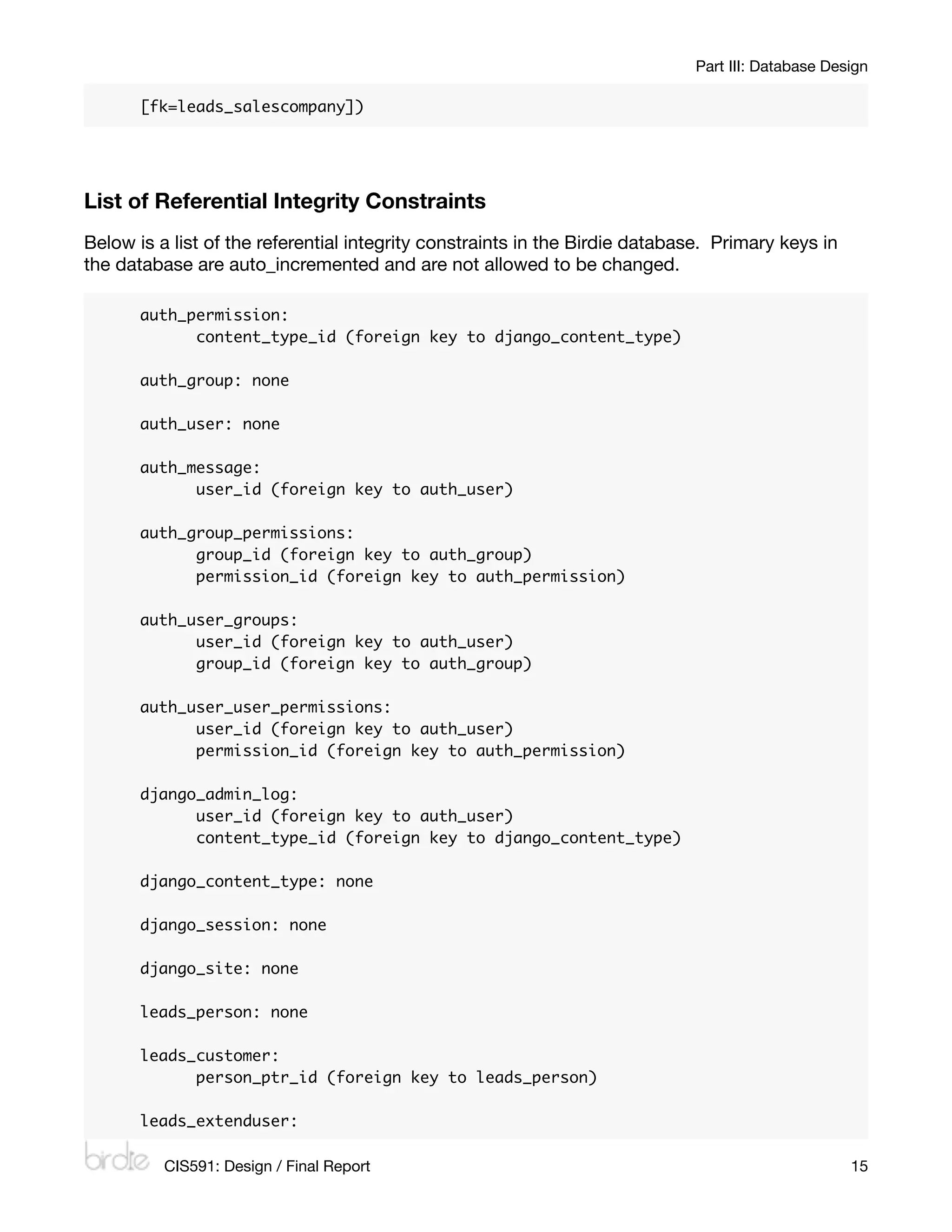

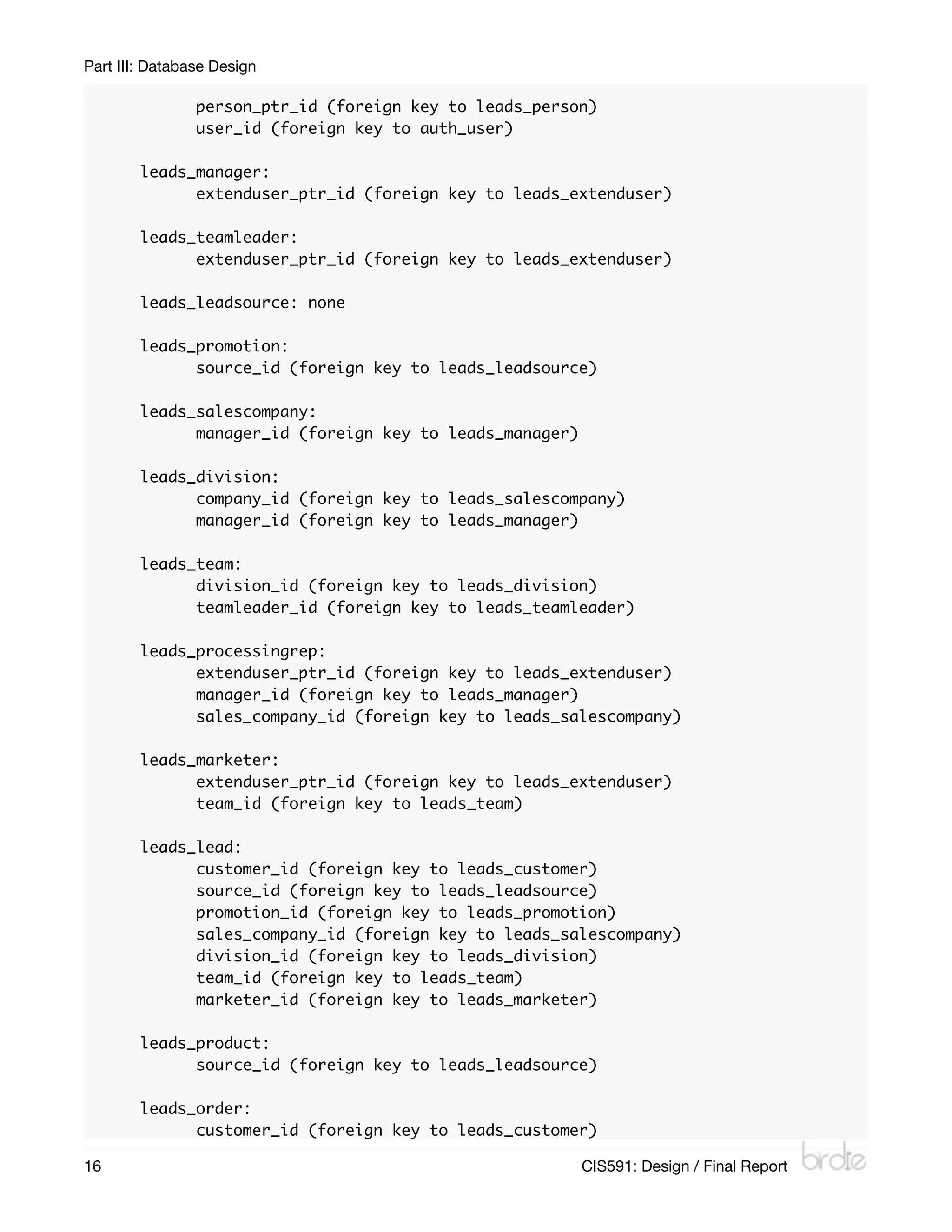

List of Referential Integrity Constraints
15

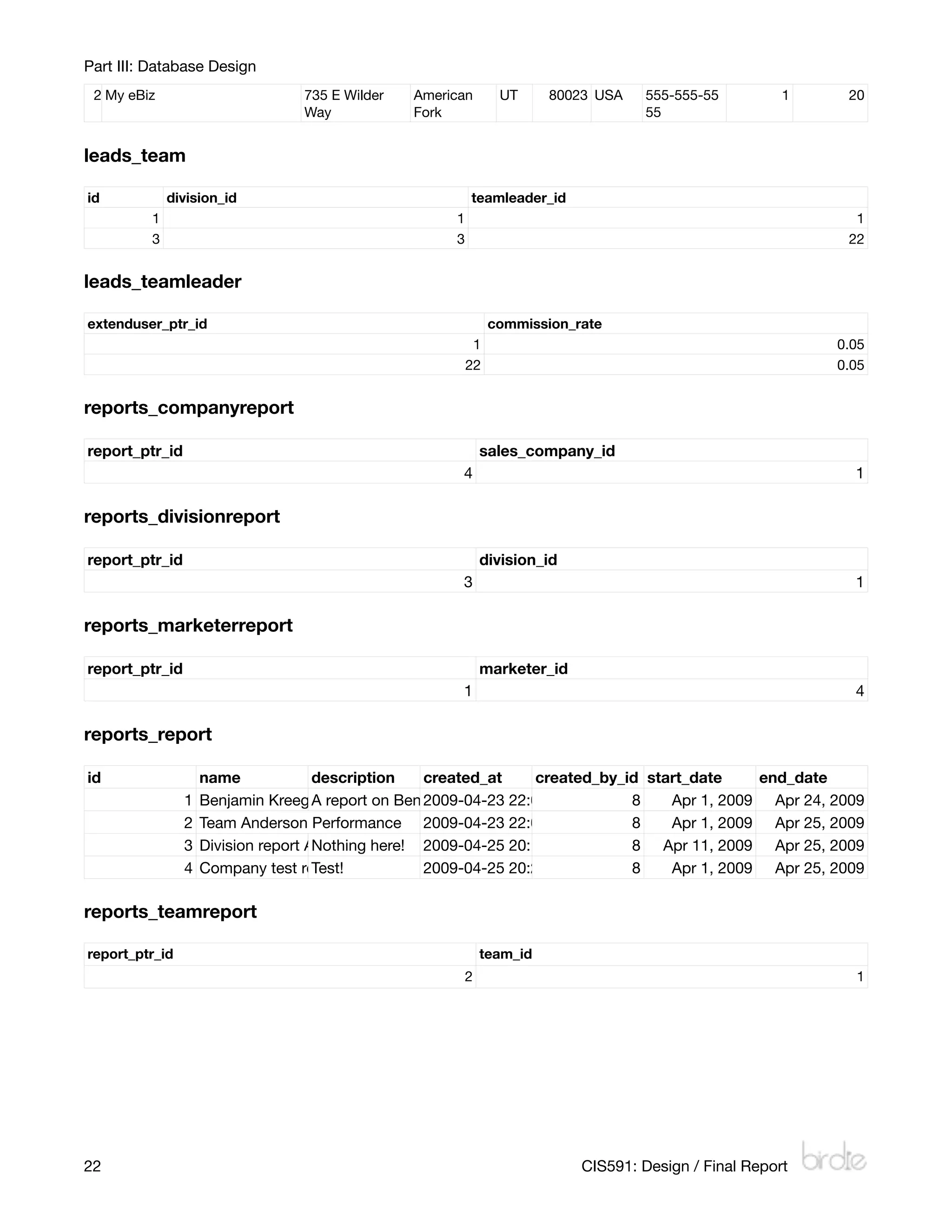

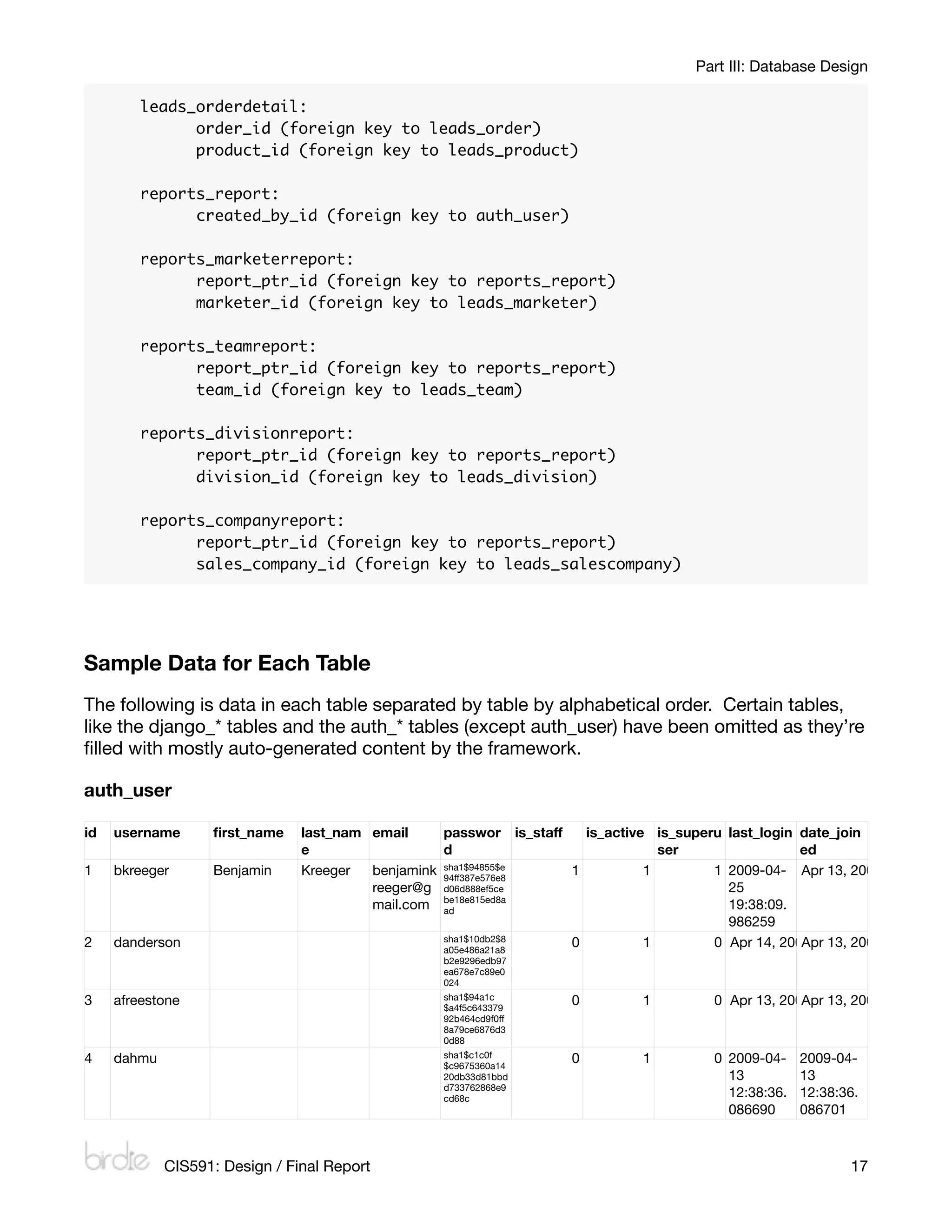

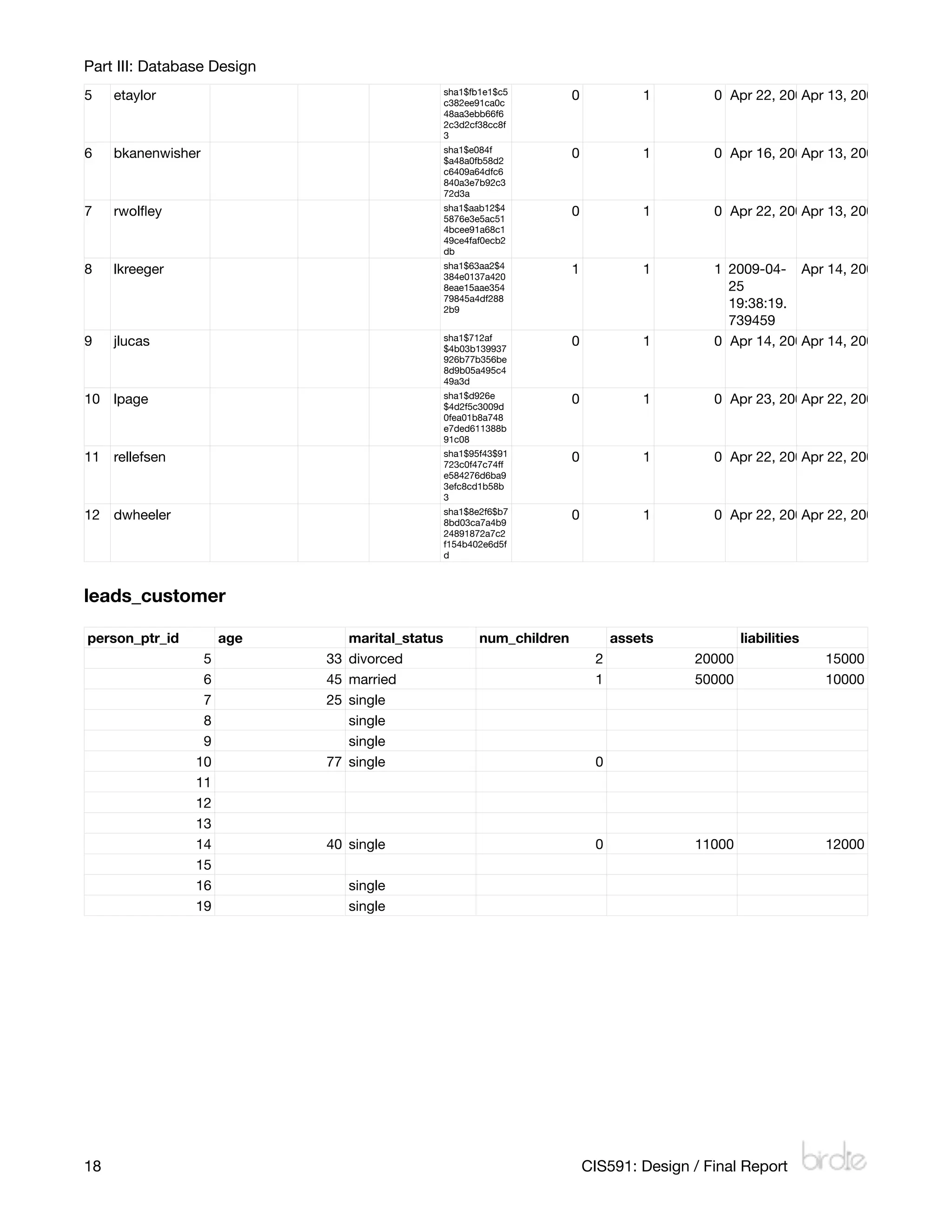

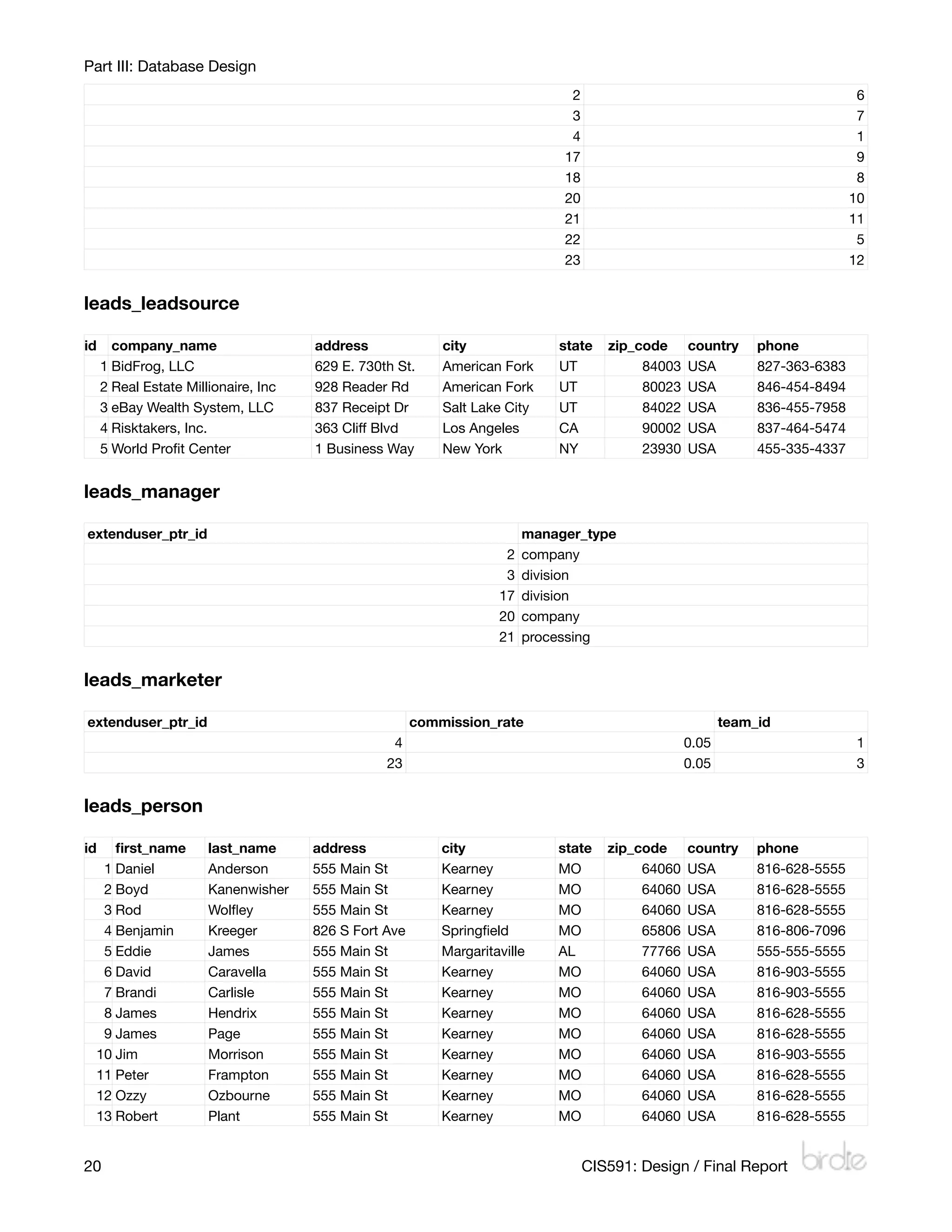

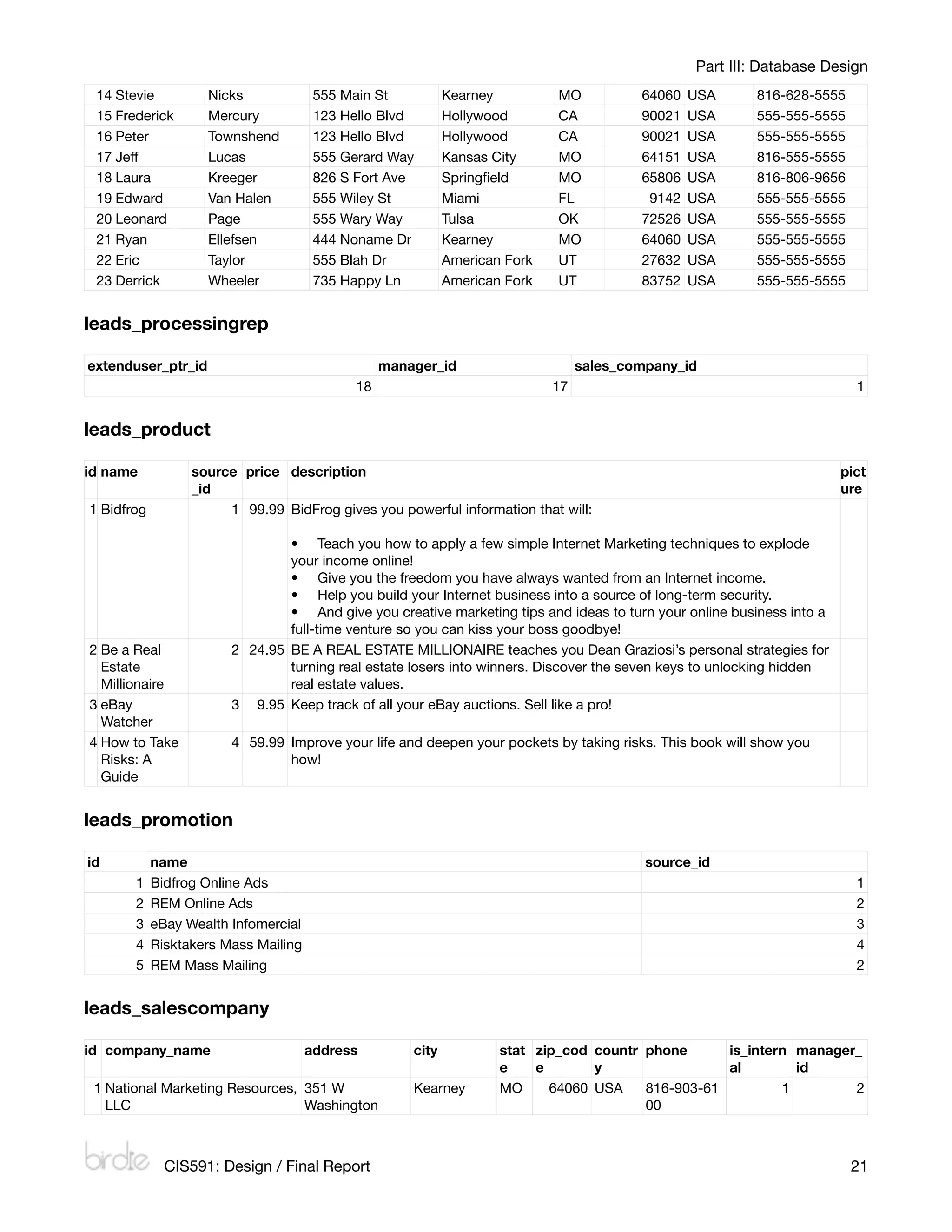

Sample Data for Each Table
17
Part IV: System Controls Design
..............................................................23

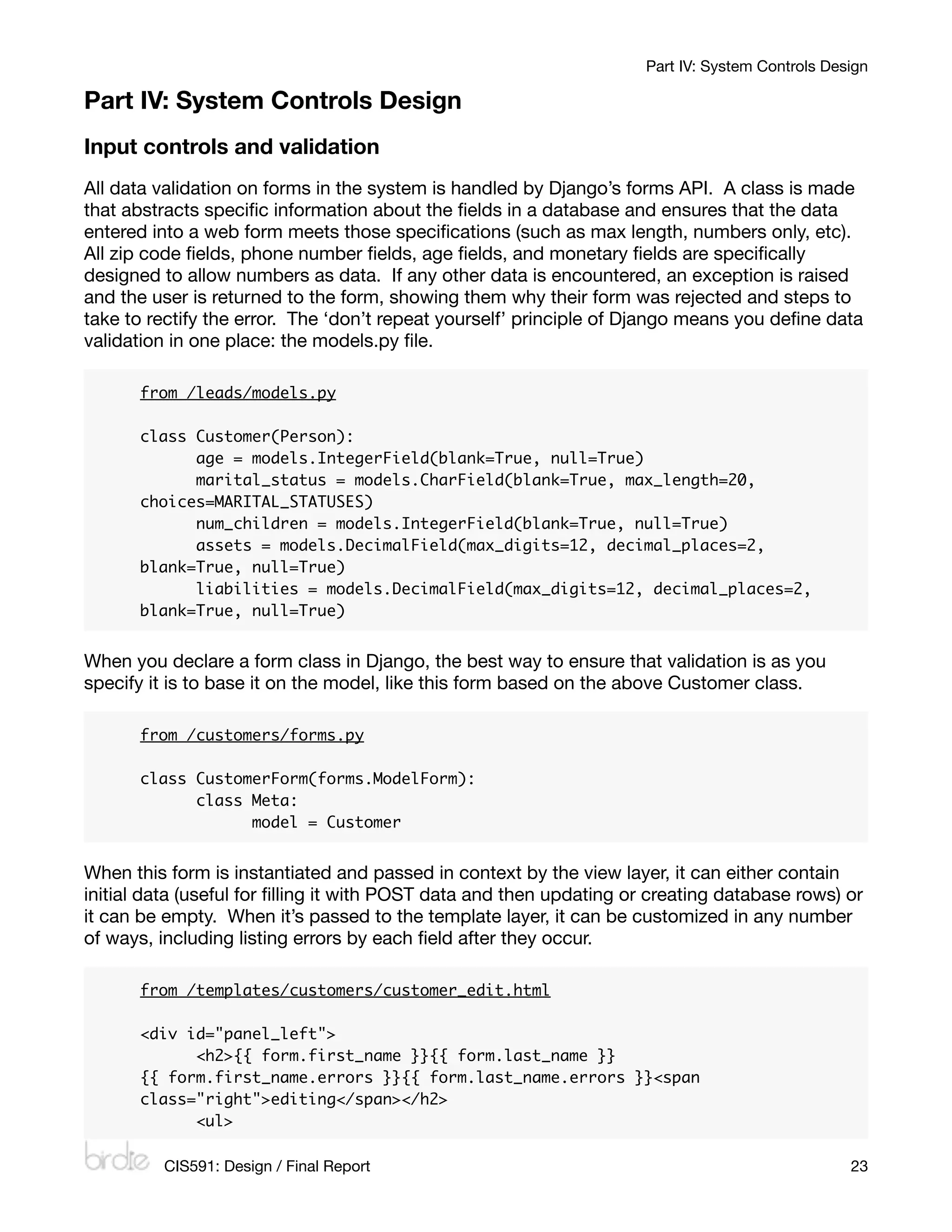

Input controls and validation
23

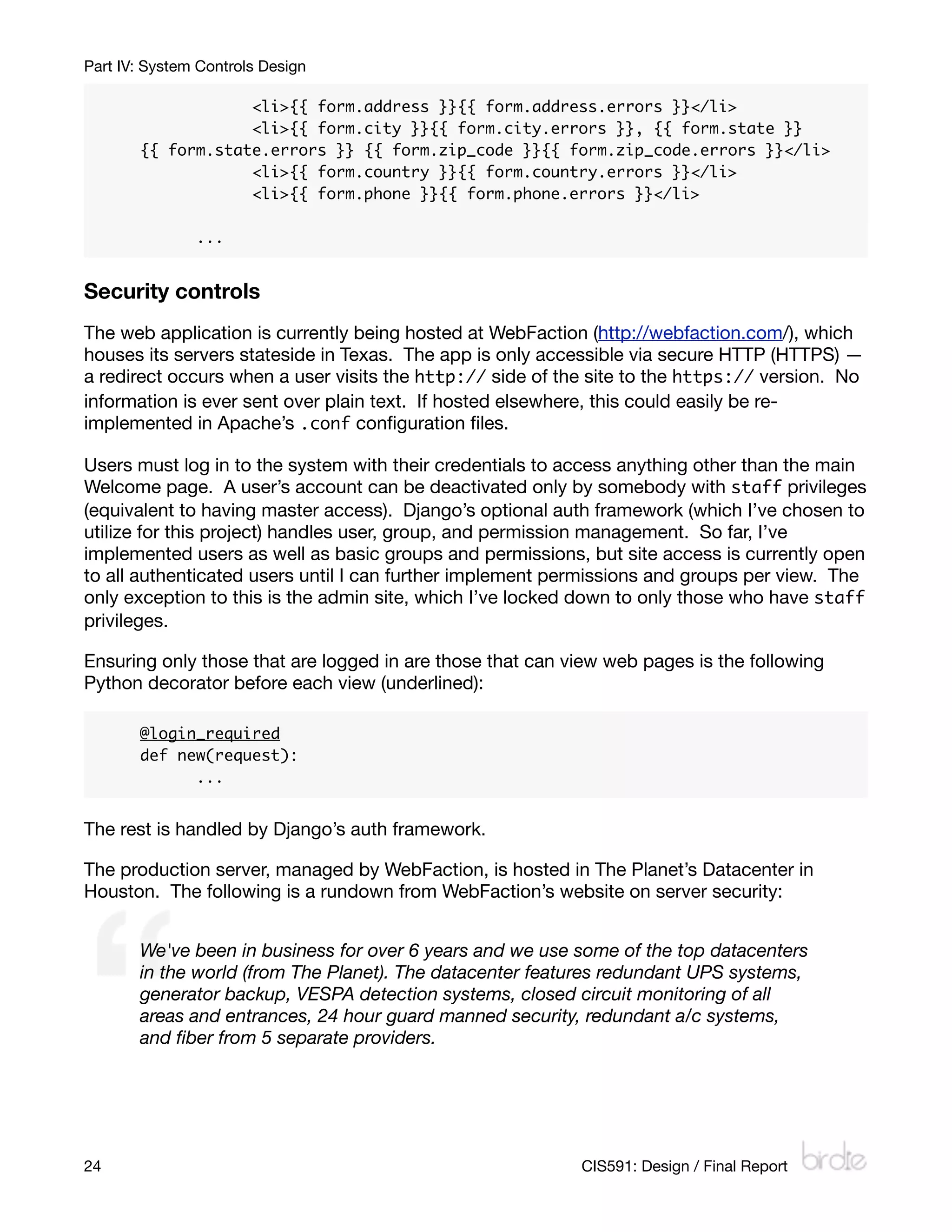

Security controls
24

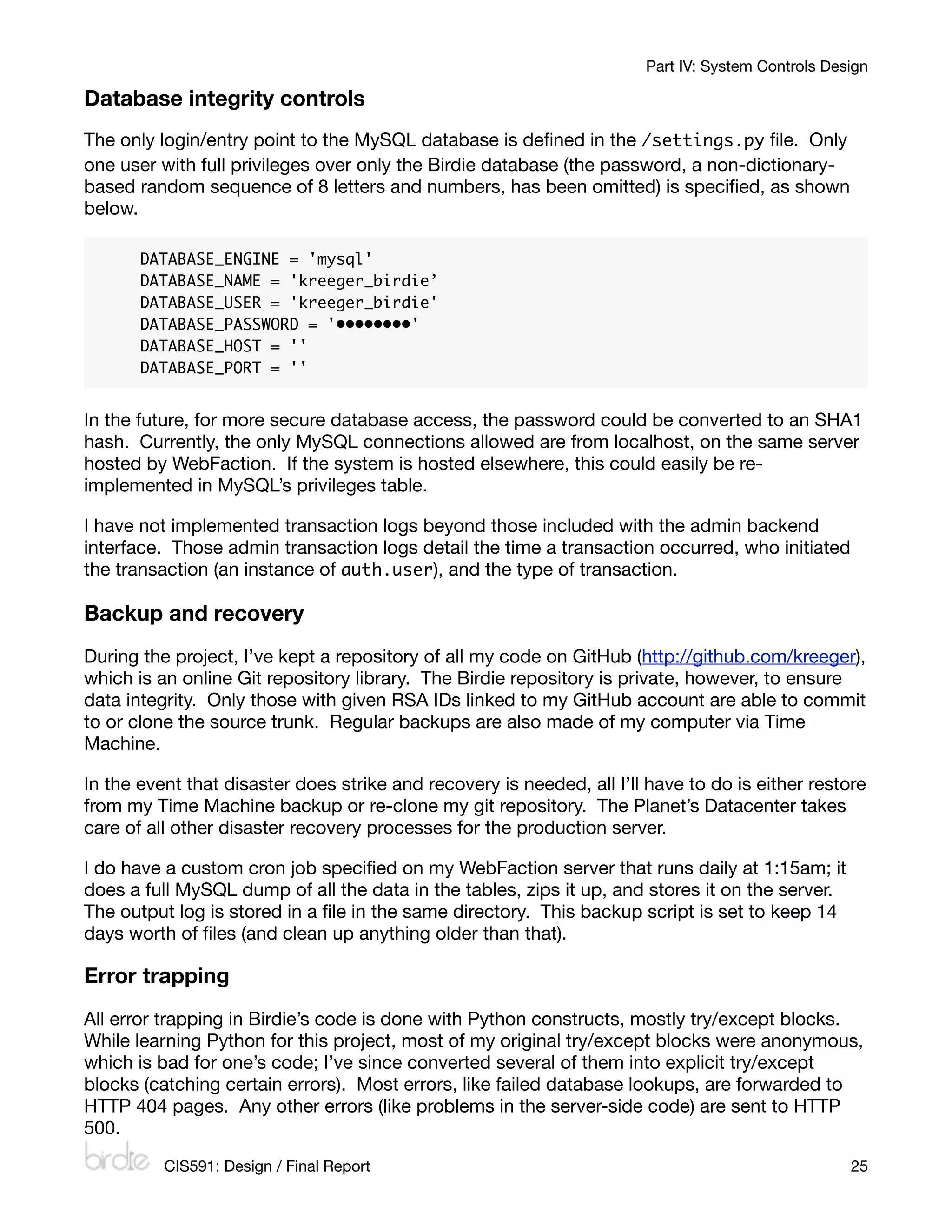

Database integrity controls
25
Backup and recovery
25
Error trapping
25

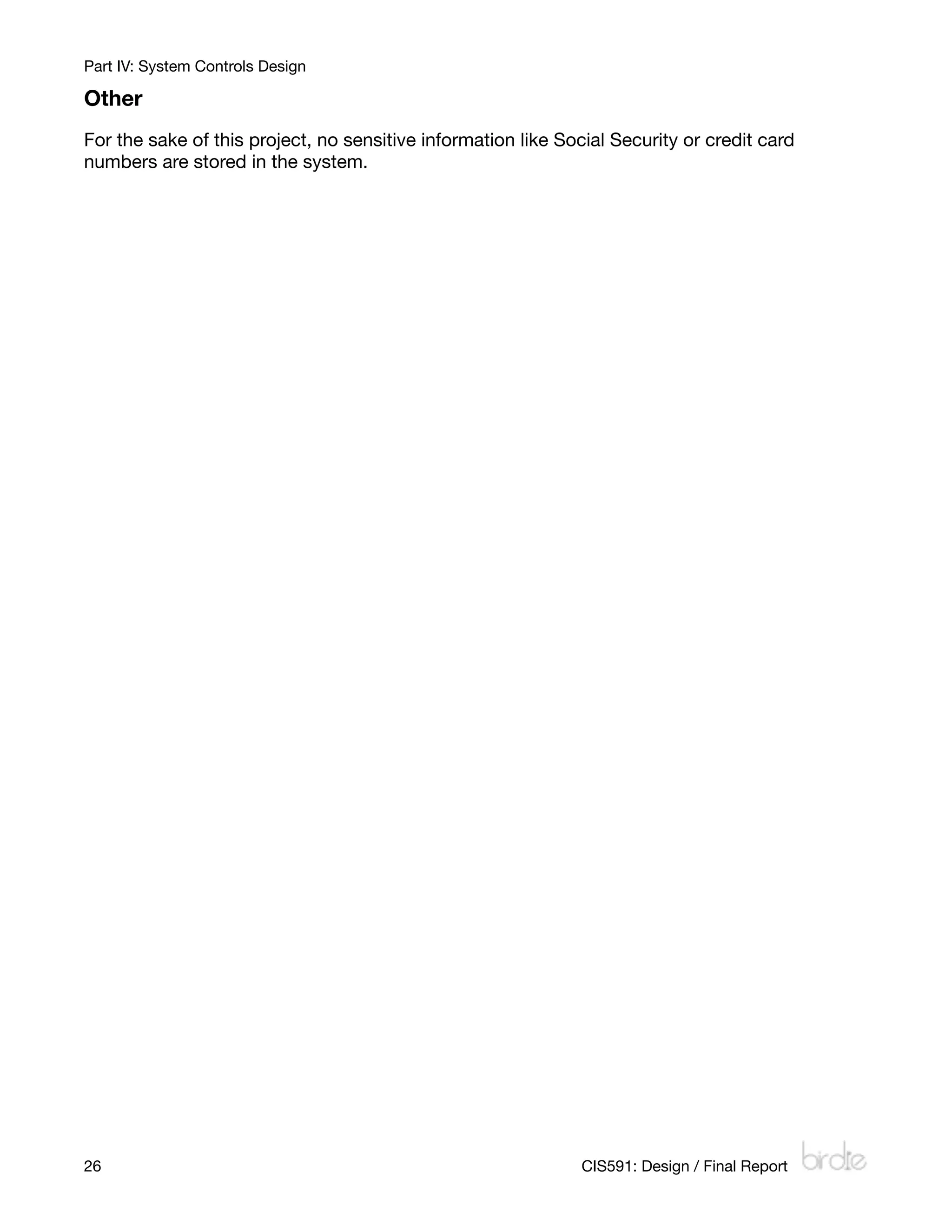

Other
26

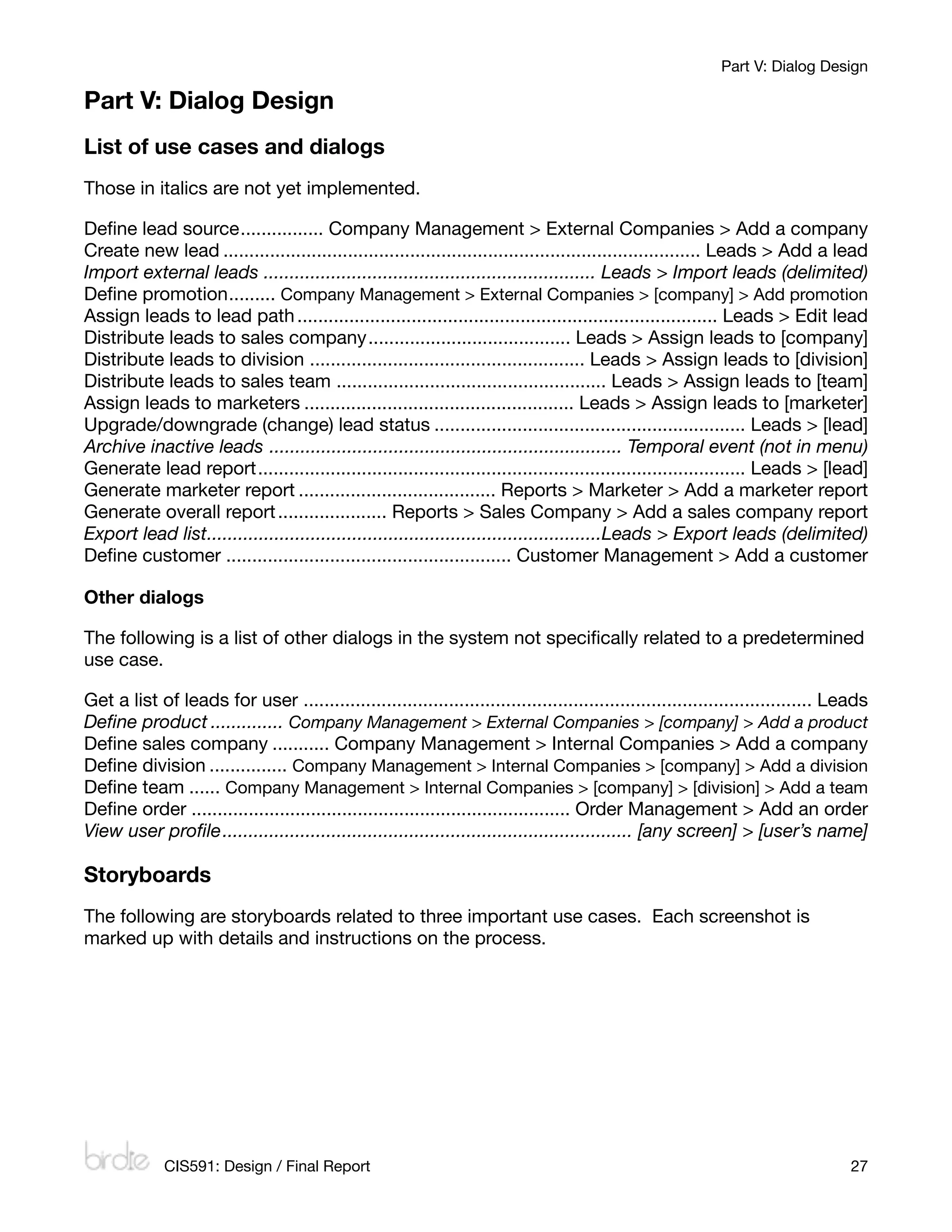

Part V: Dialog Design
................................................................................27
List of use cases and dialogs
27
Other dialogs
27
Storyboards
27

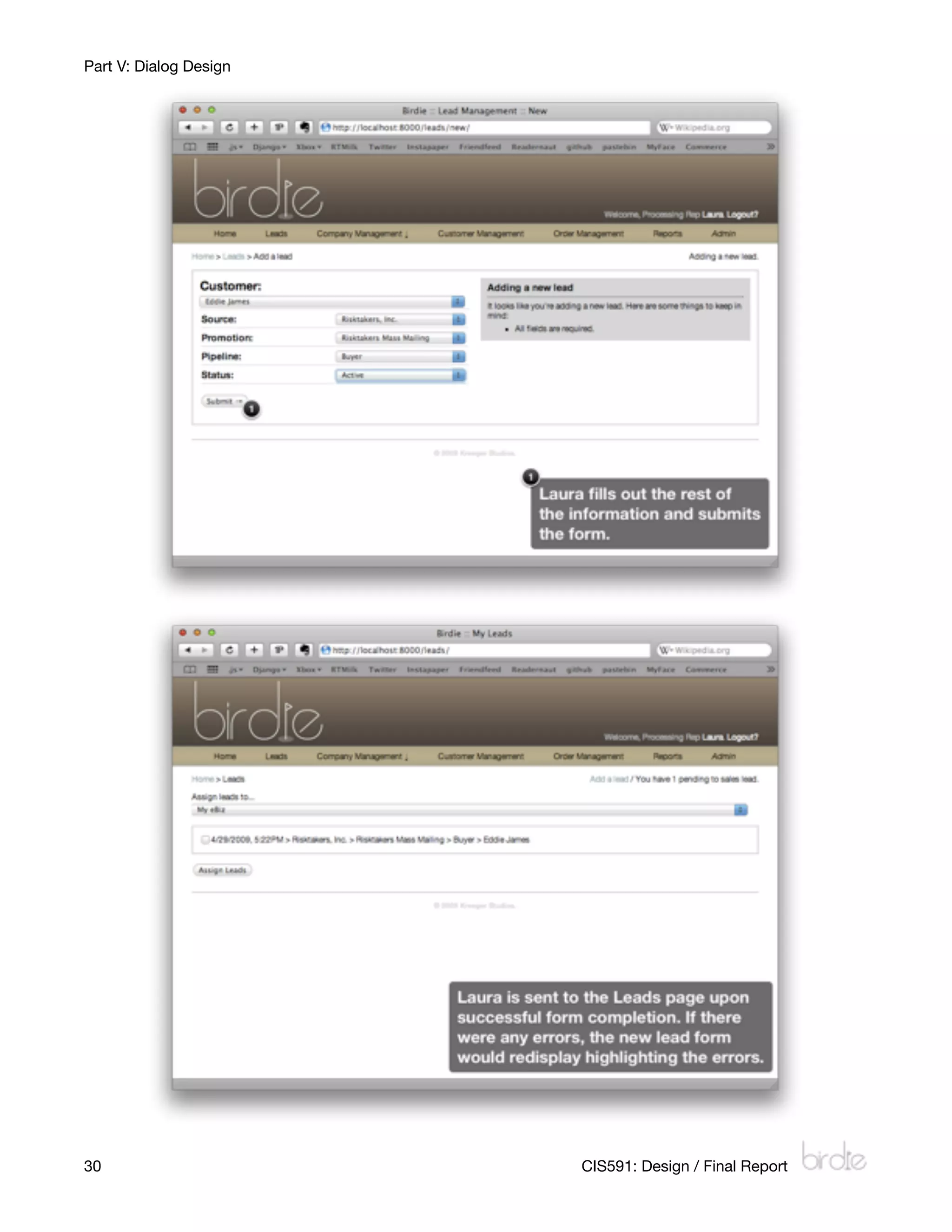

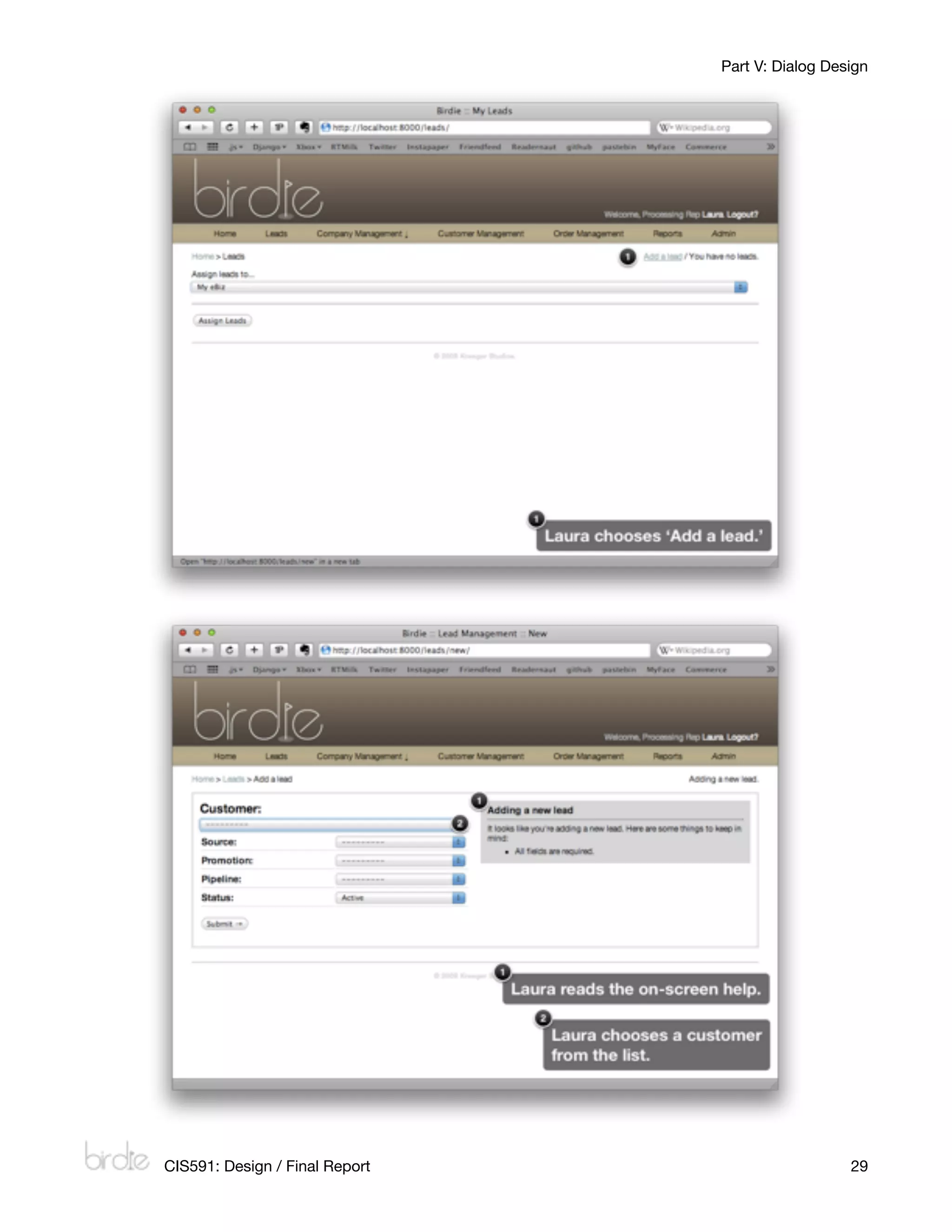

Create new lead
28

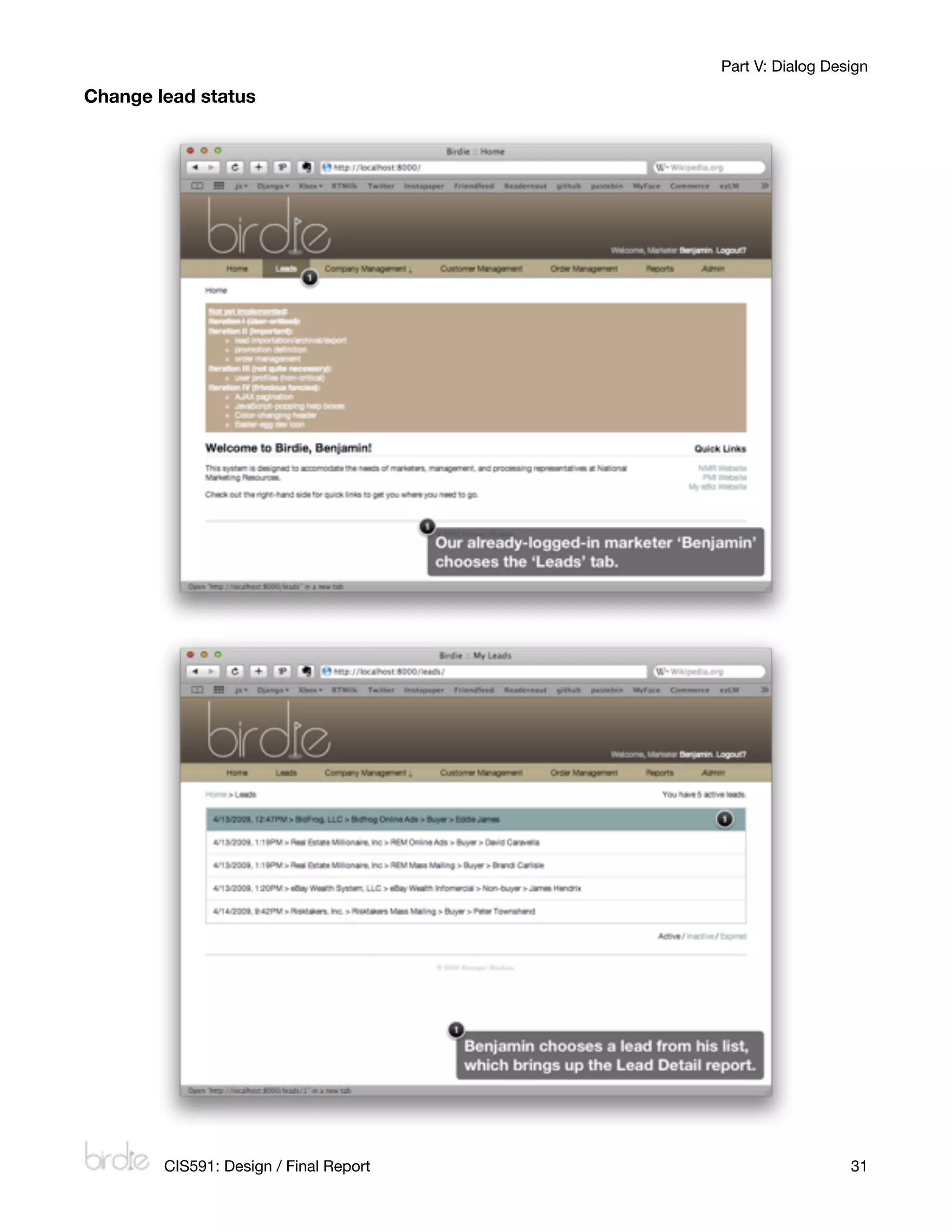

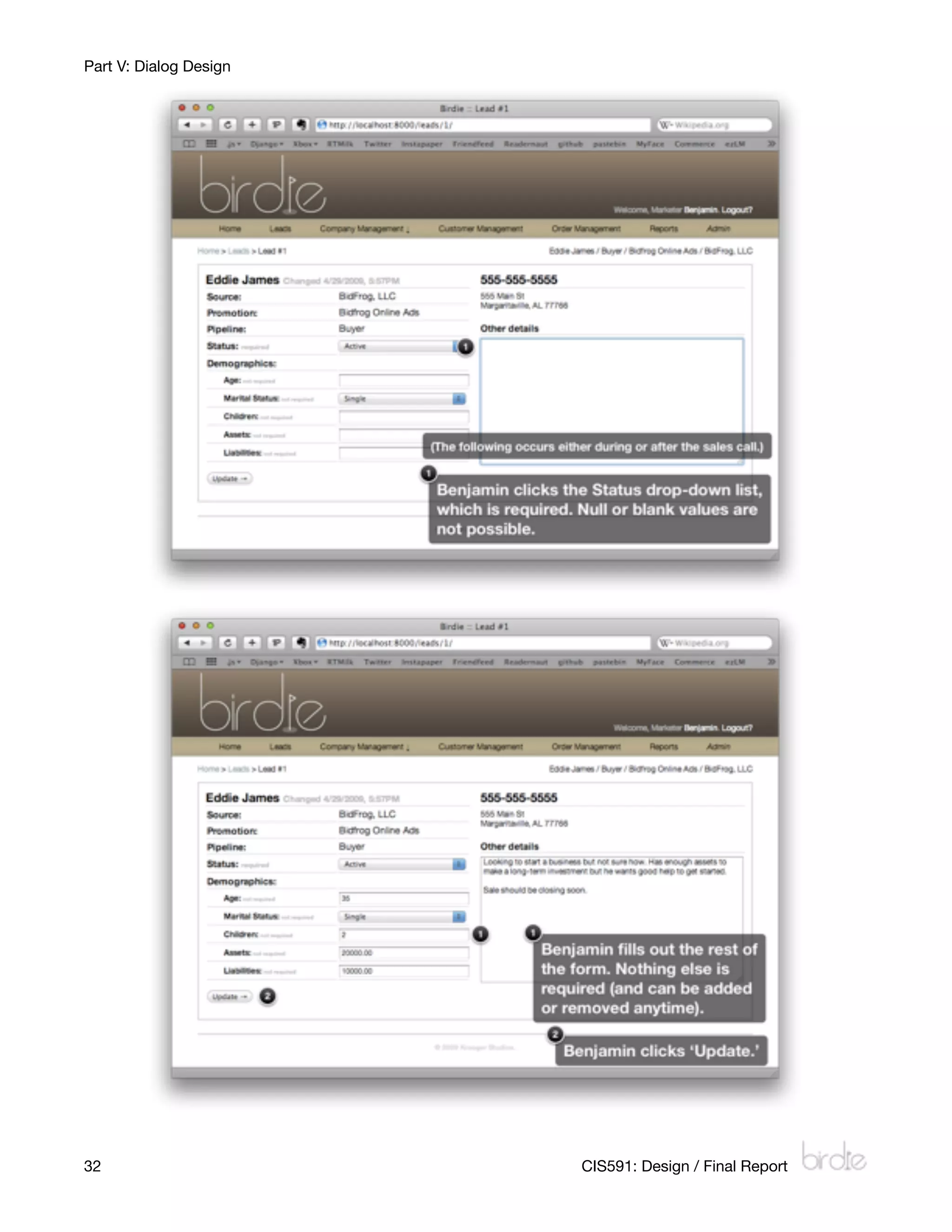

Change lead status
31

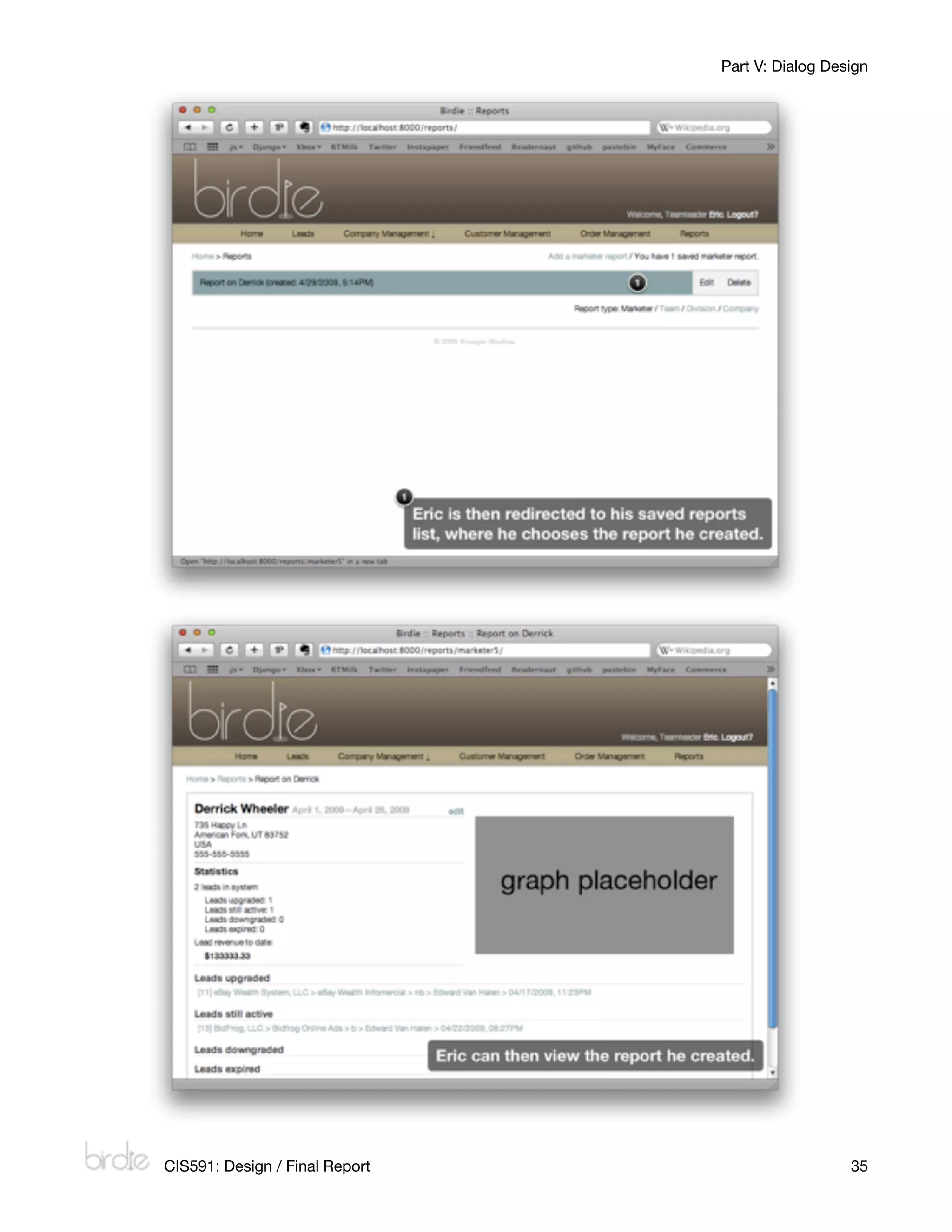

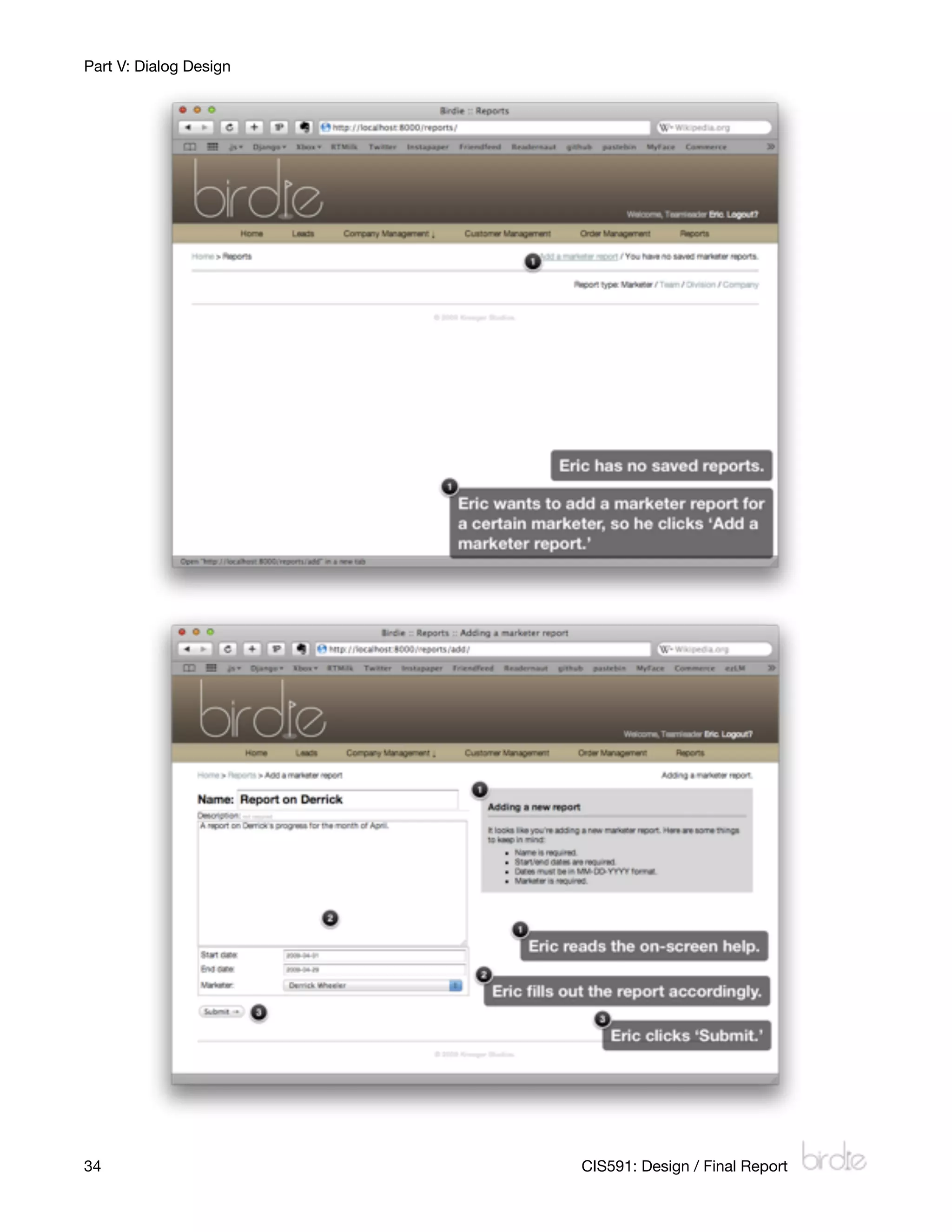

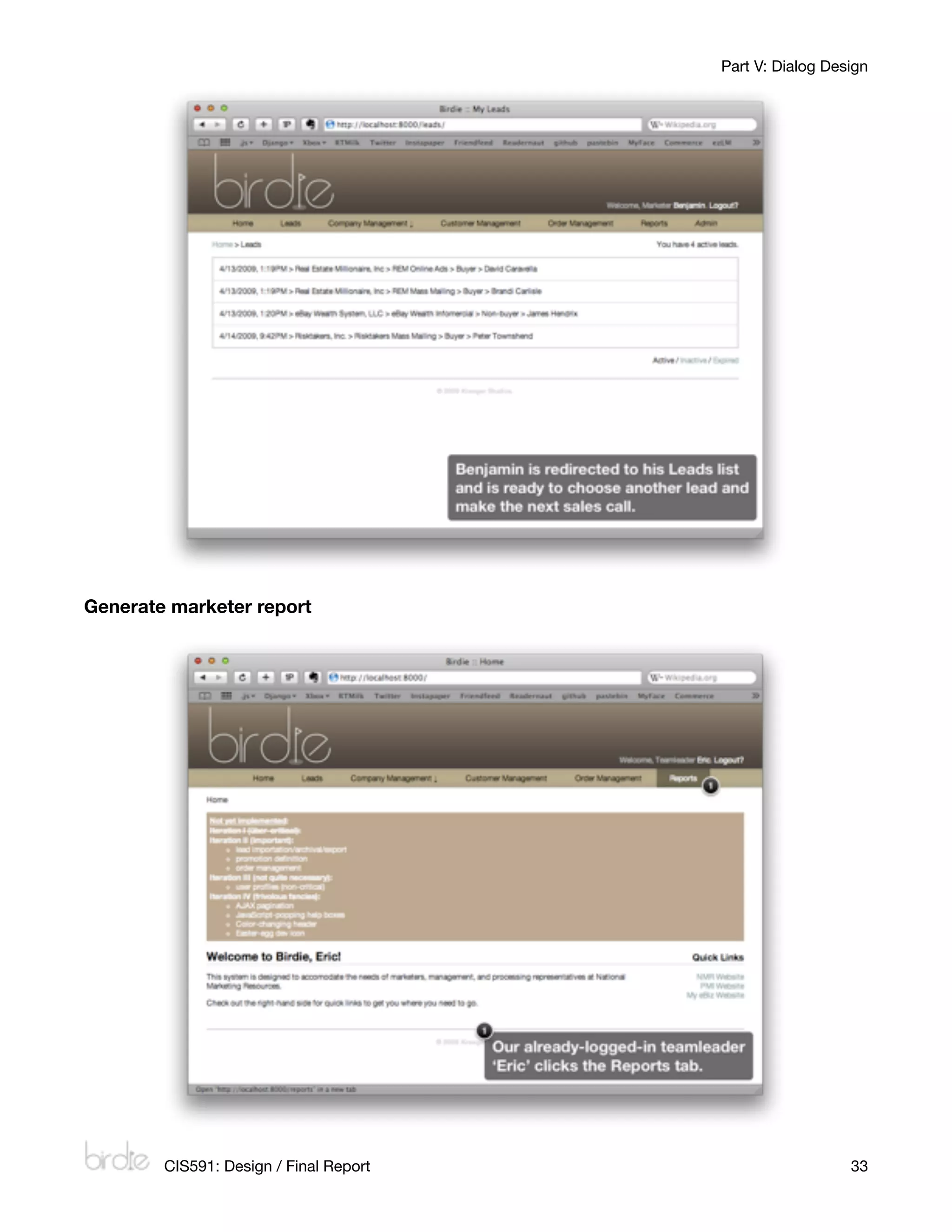

Generate marketer report
33

2
CIS591: Design / Final Report

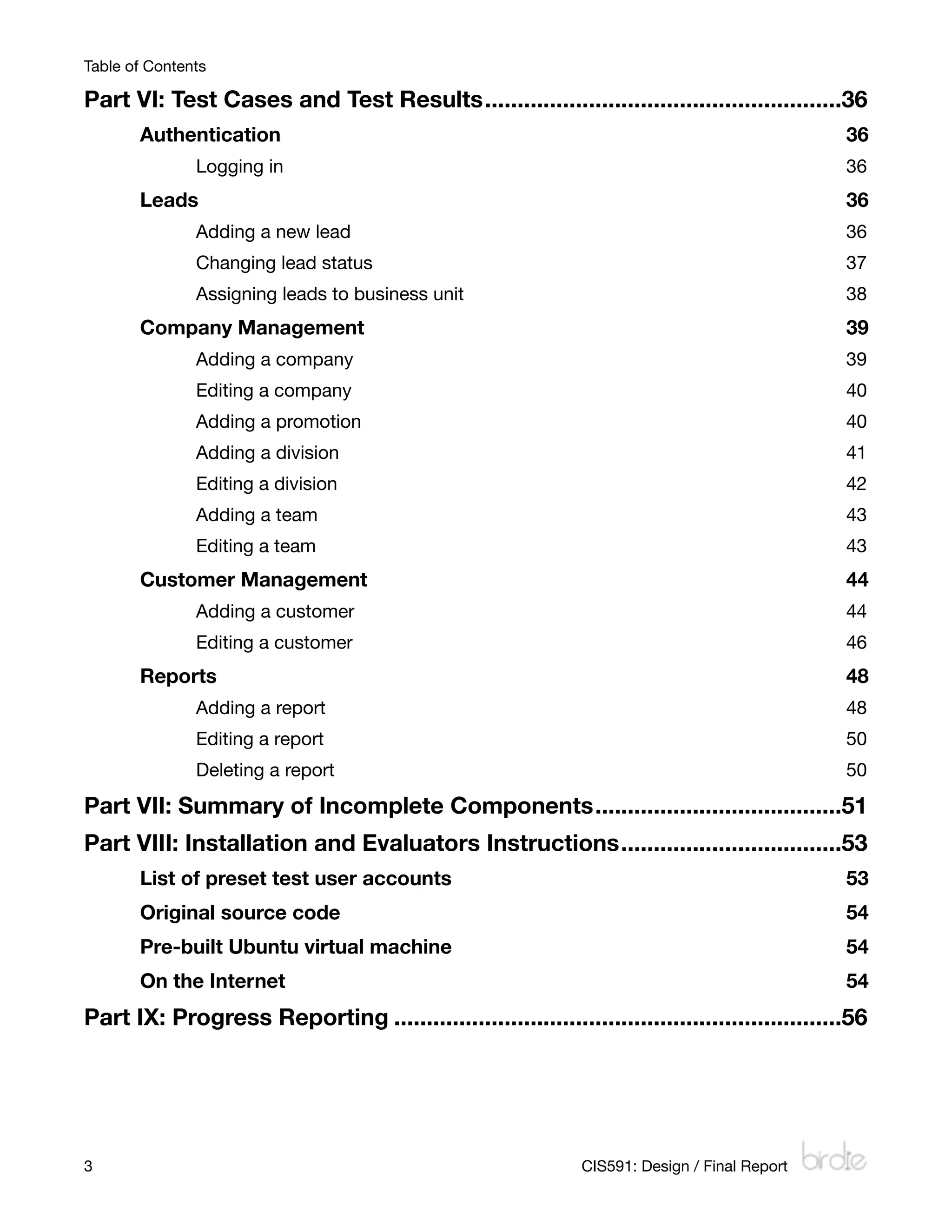

Table of Contents

Part VI: Test Cases and Test Results
.......................................................36

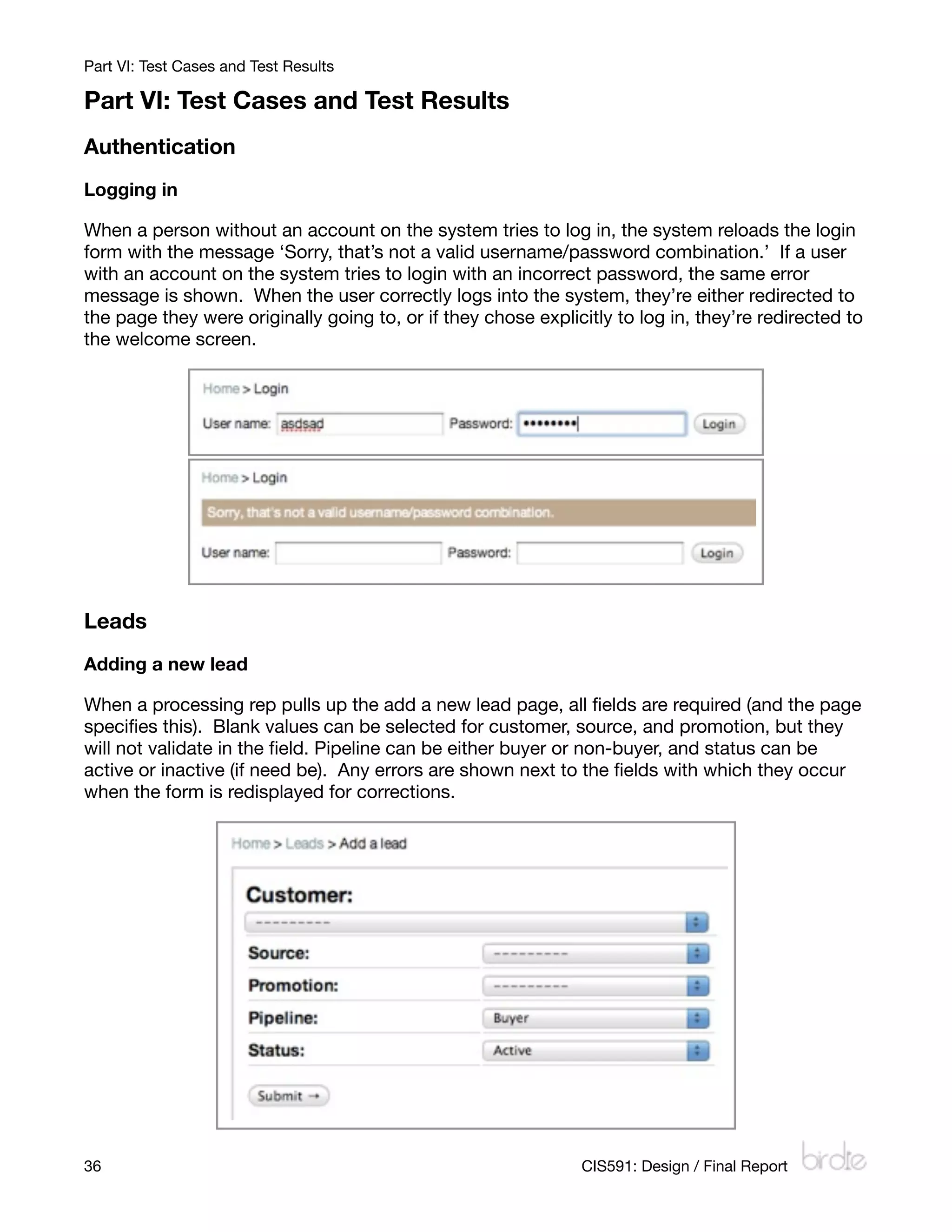

Authentication
36
Logging in
36
Leads
36
Adding a new lead
36

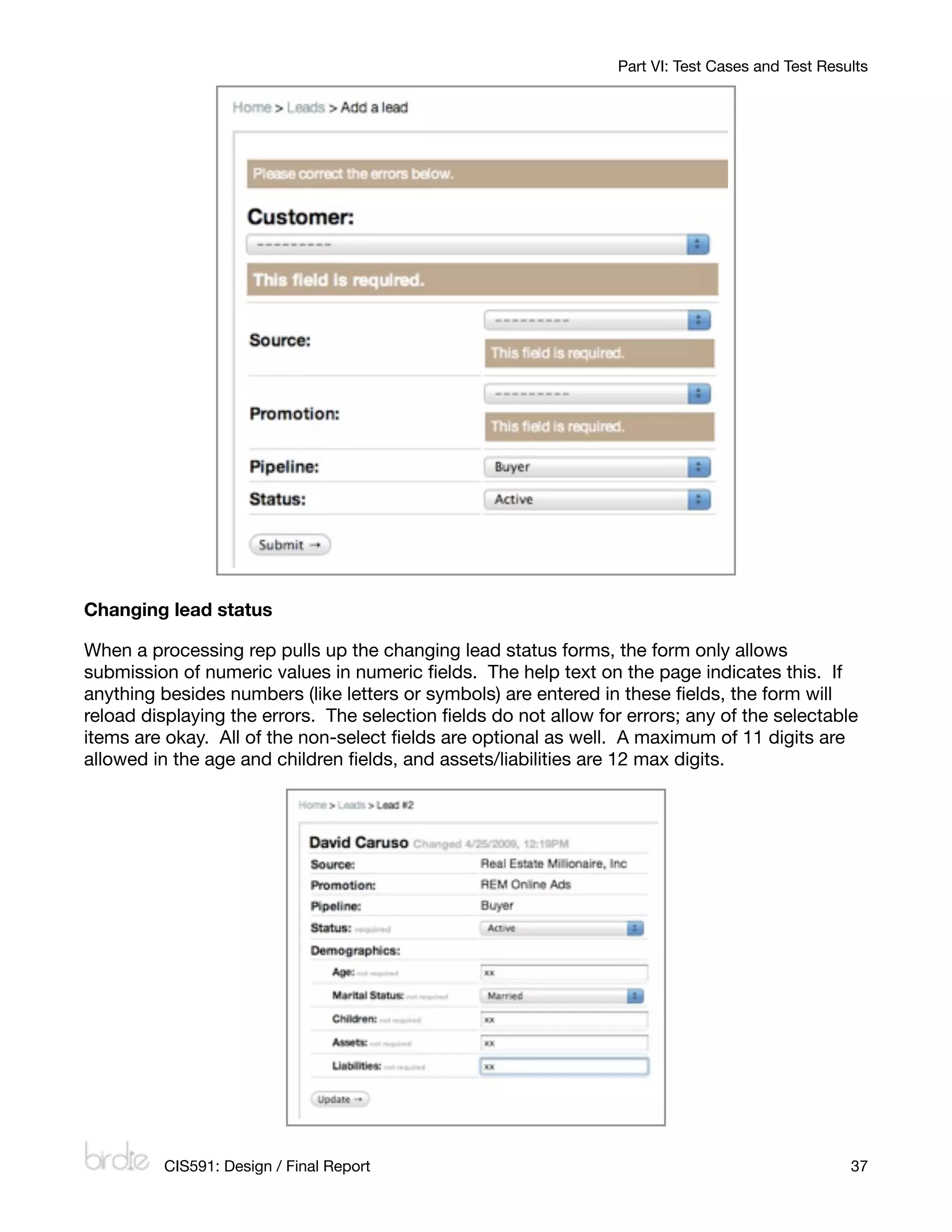

Changing lead status
37

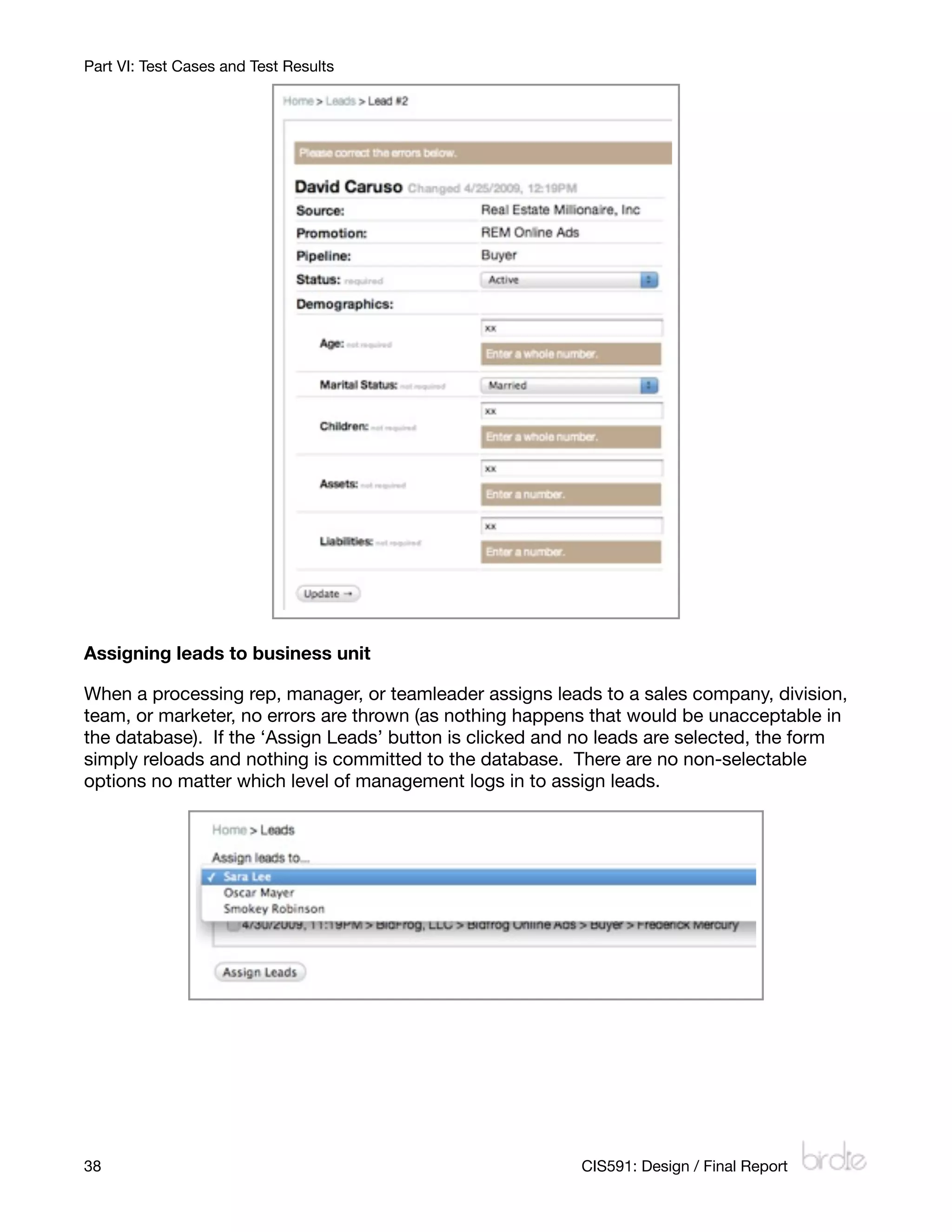

Assigning leads to business unit
38
Company Management
39

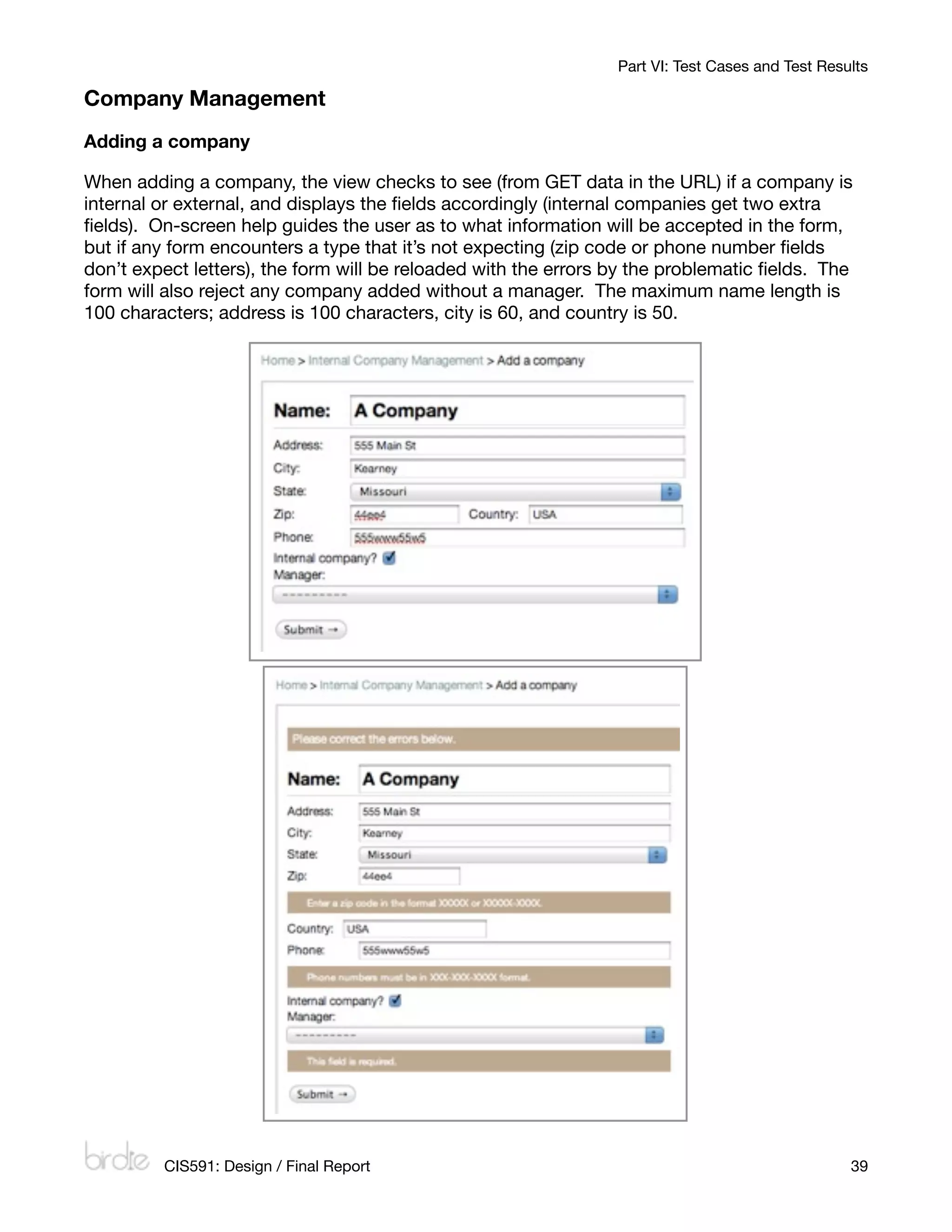

Adding a company
39

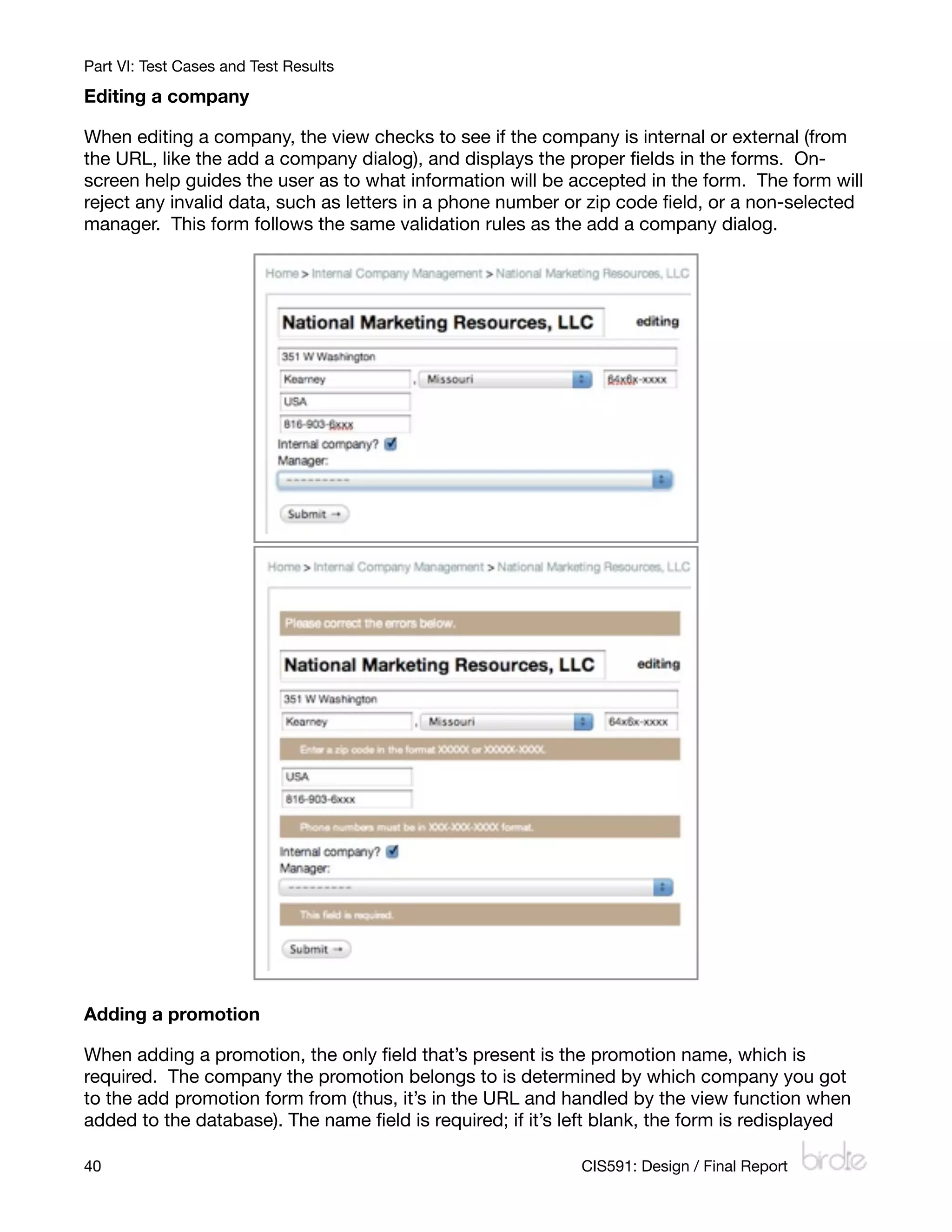

Editing a company
40
Adding a promotion
40

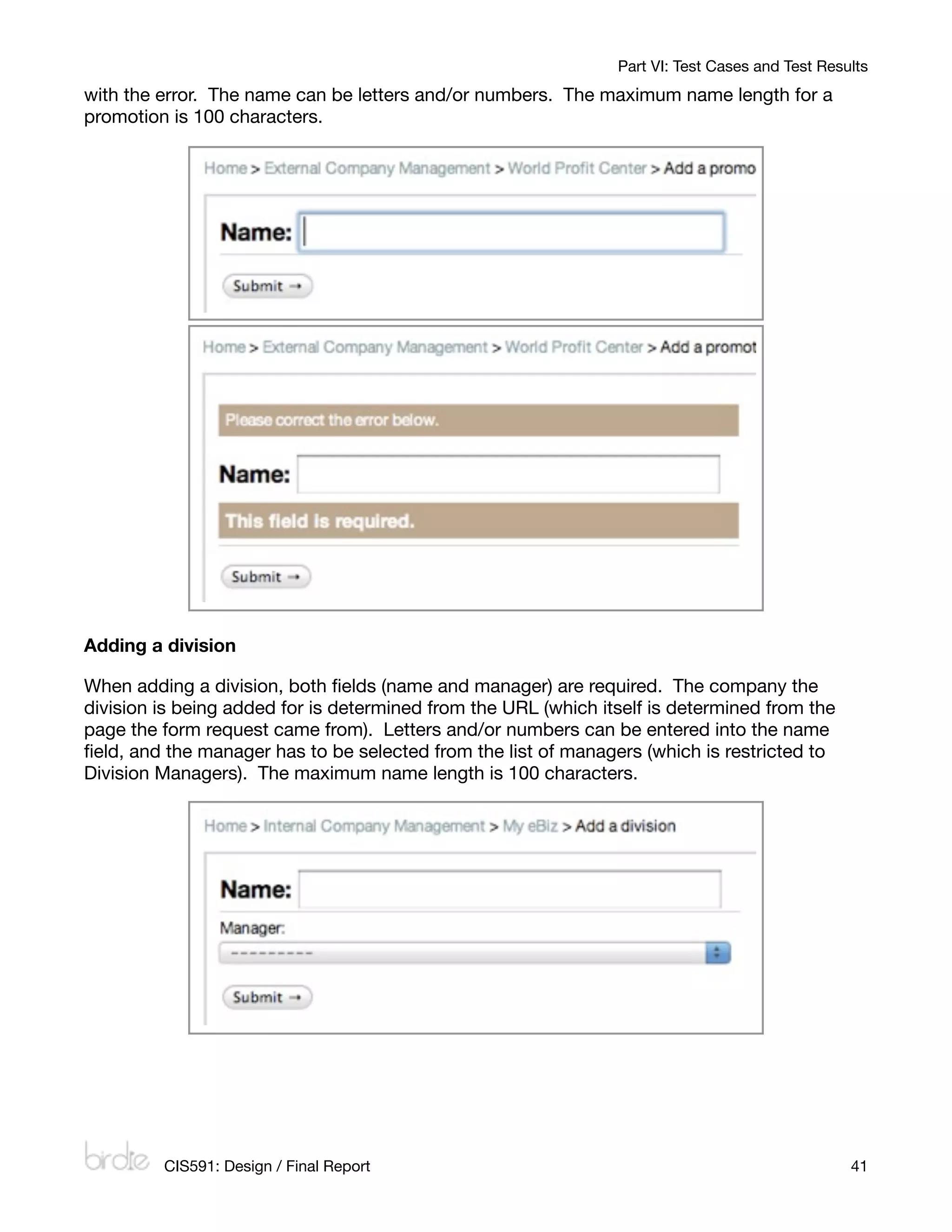

Adding a division
41

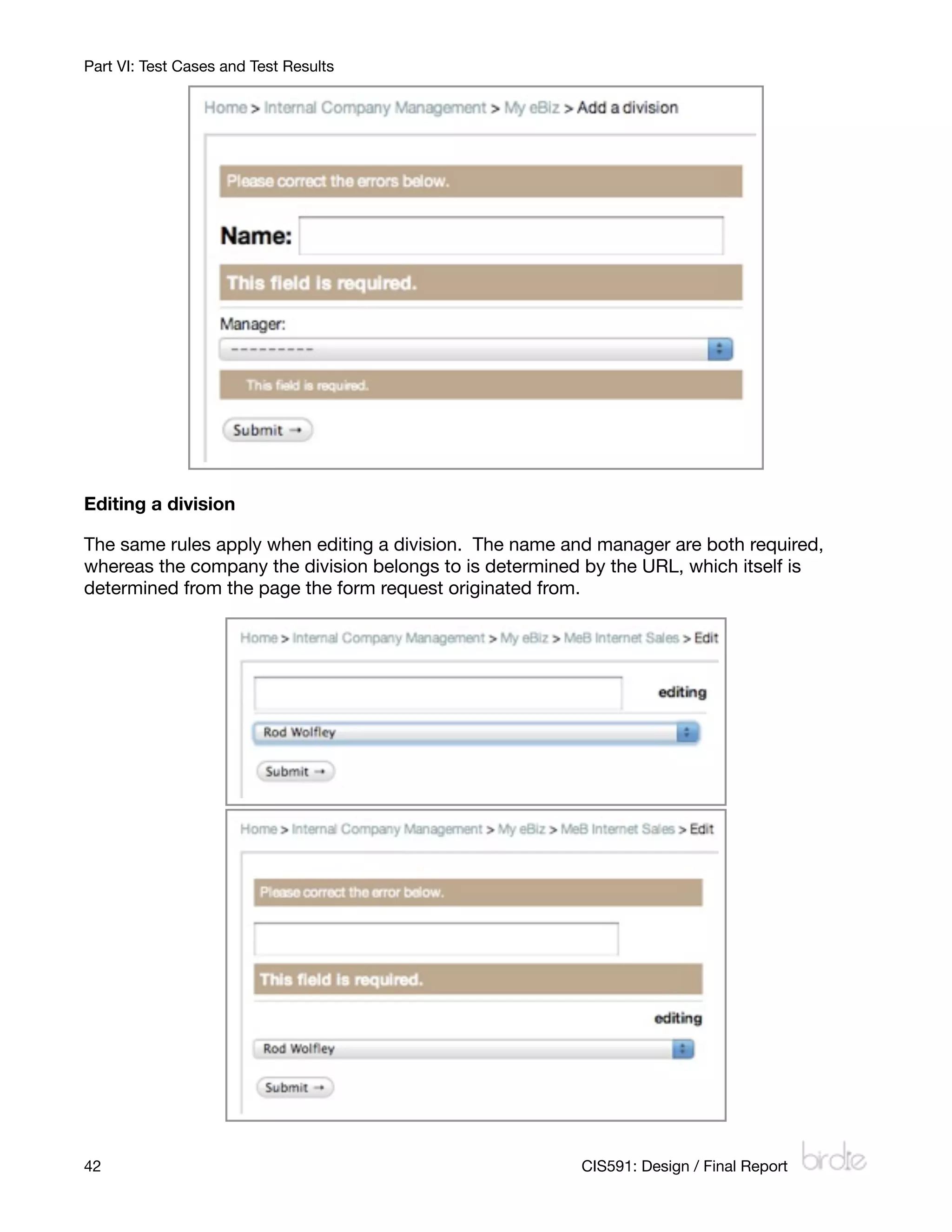

Editing a division
42

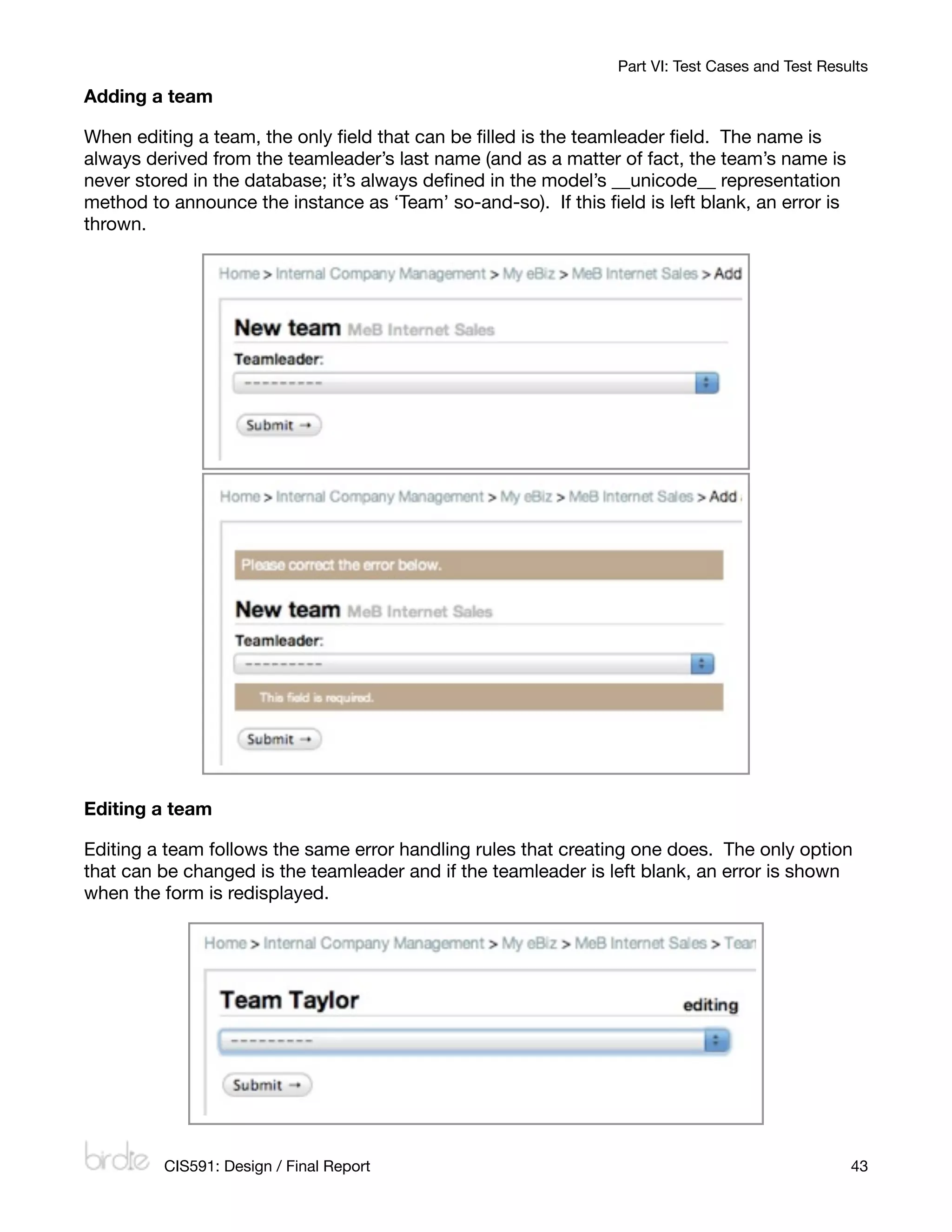

Adding a team
43
Editing a team
43
Customer Management
44

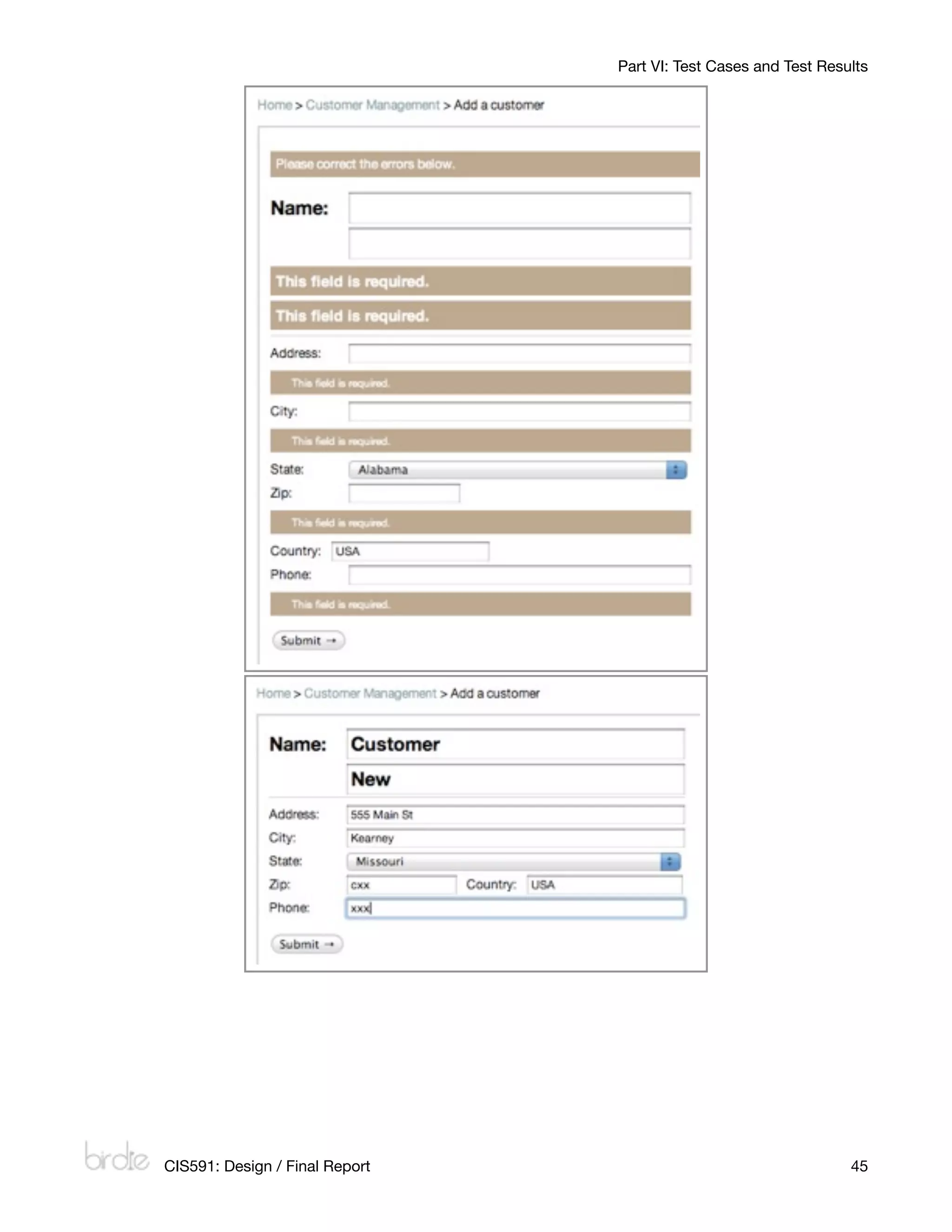

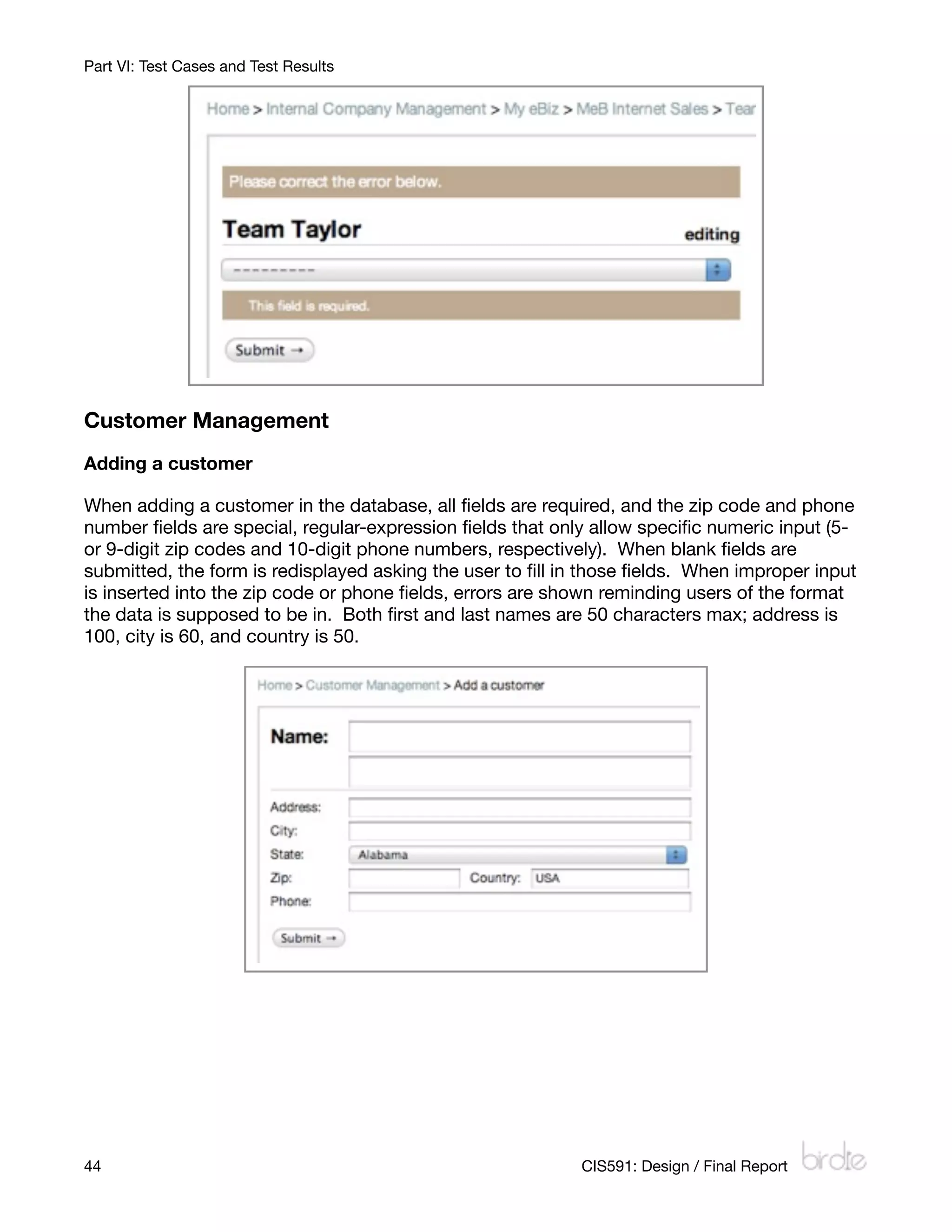

Adding a customer
44

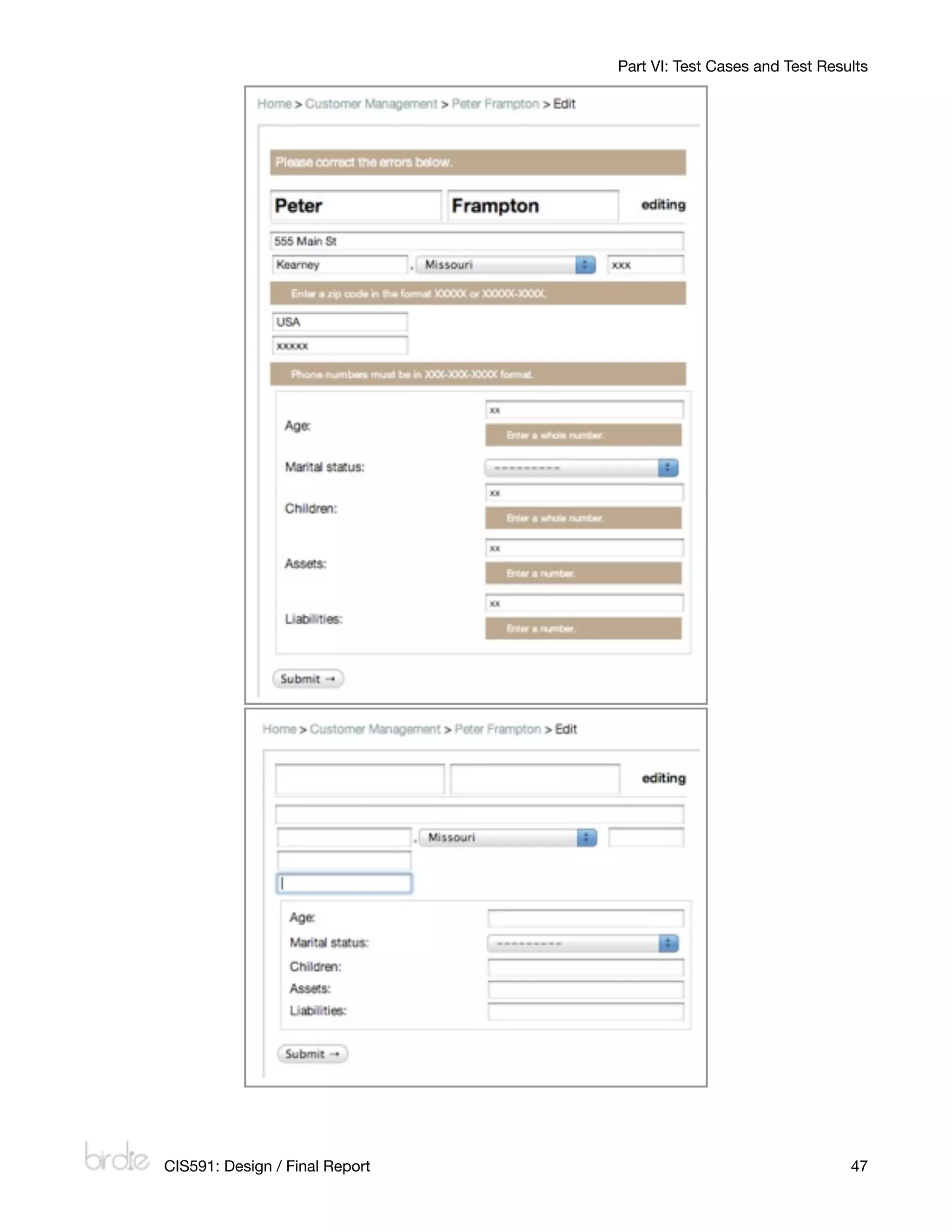

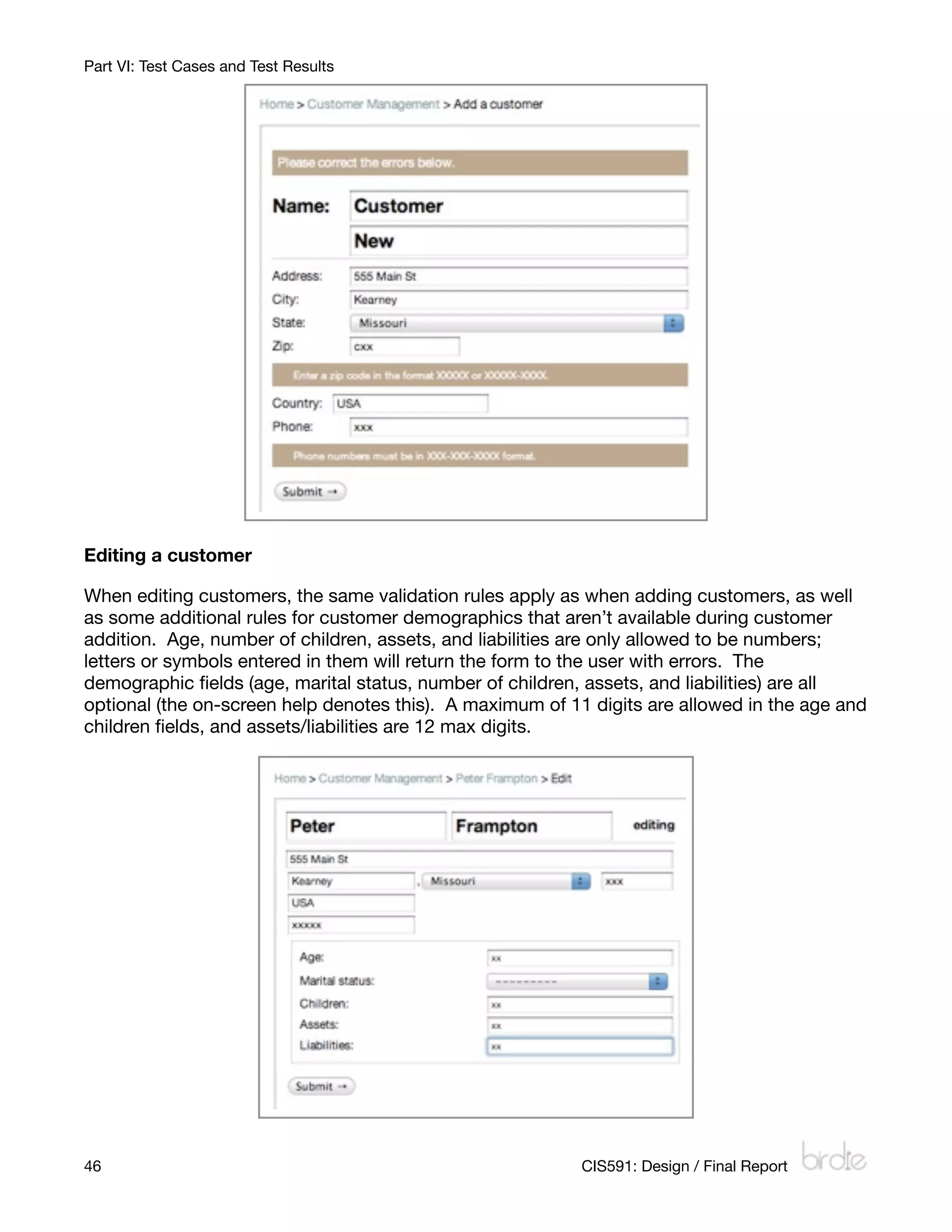

Editing a customer
46

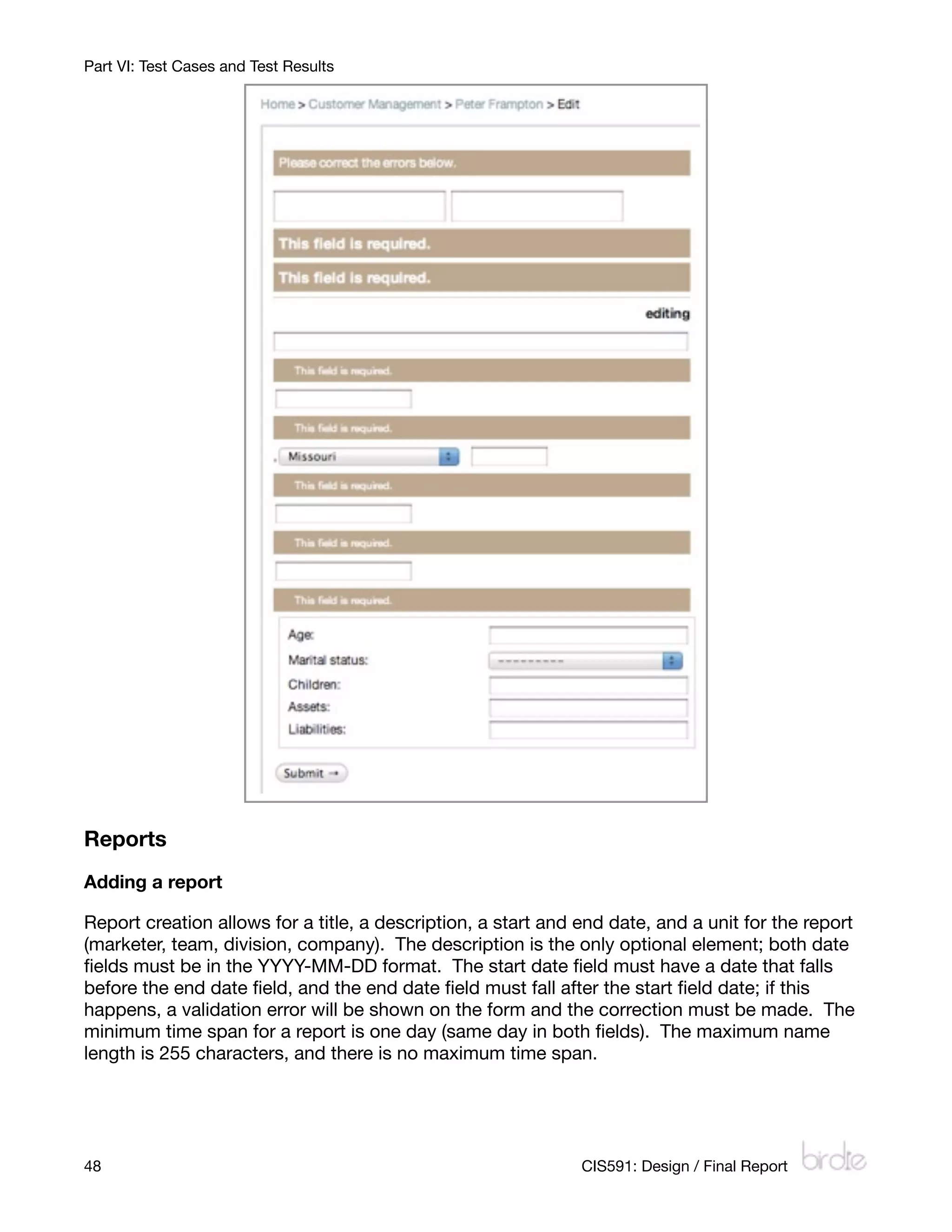

Reports
48

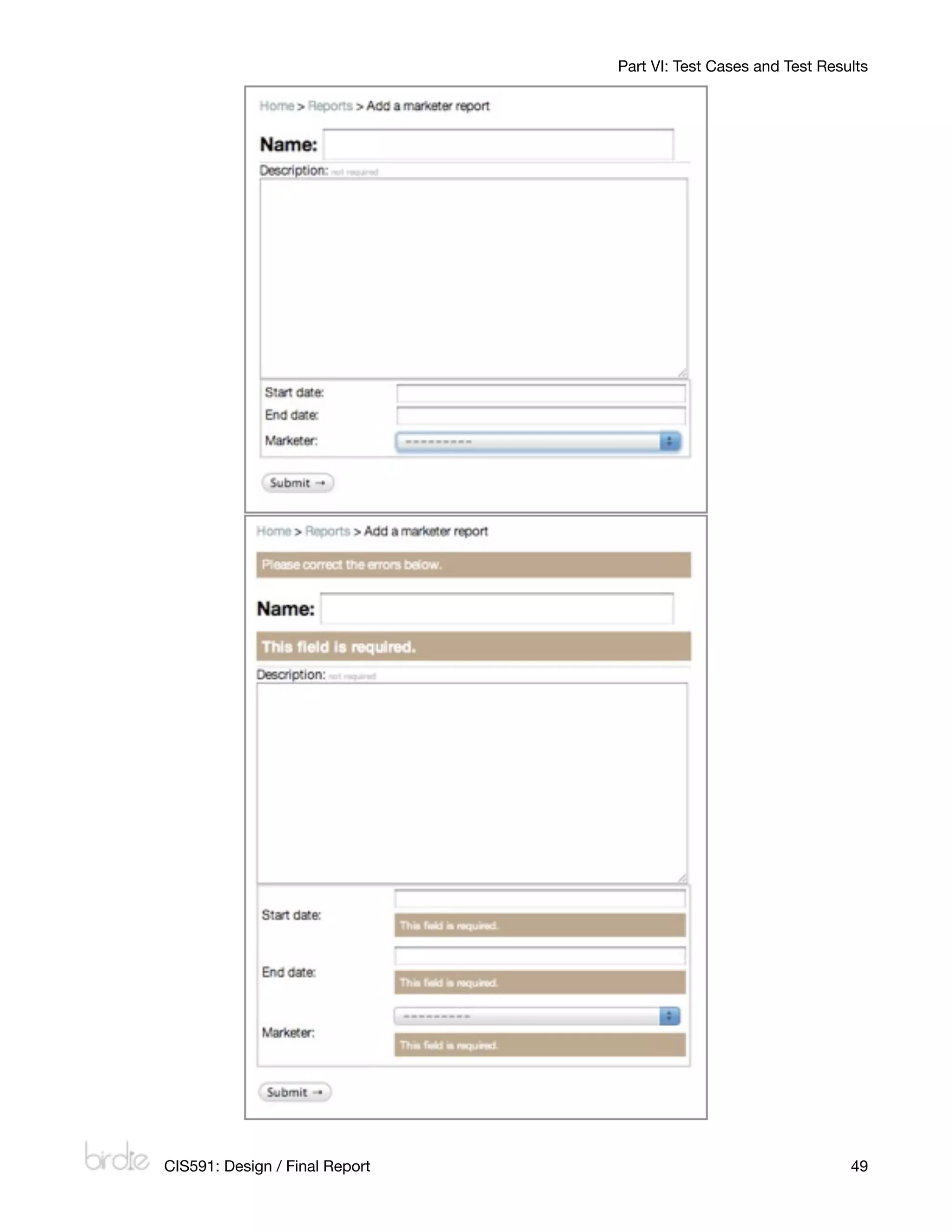

Adding a report
48

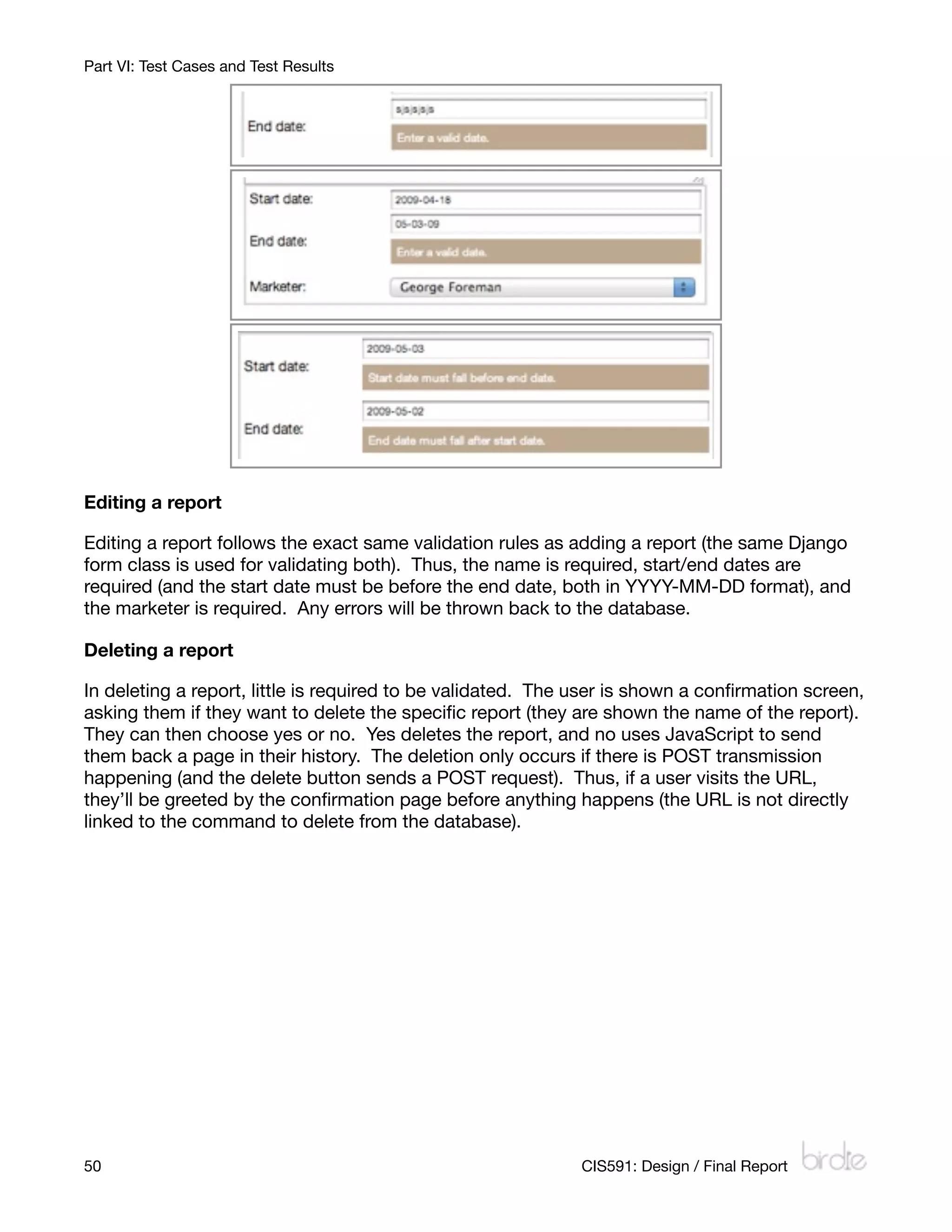

Editing a report
50
Deleting a report
50

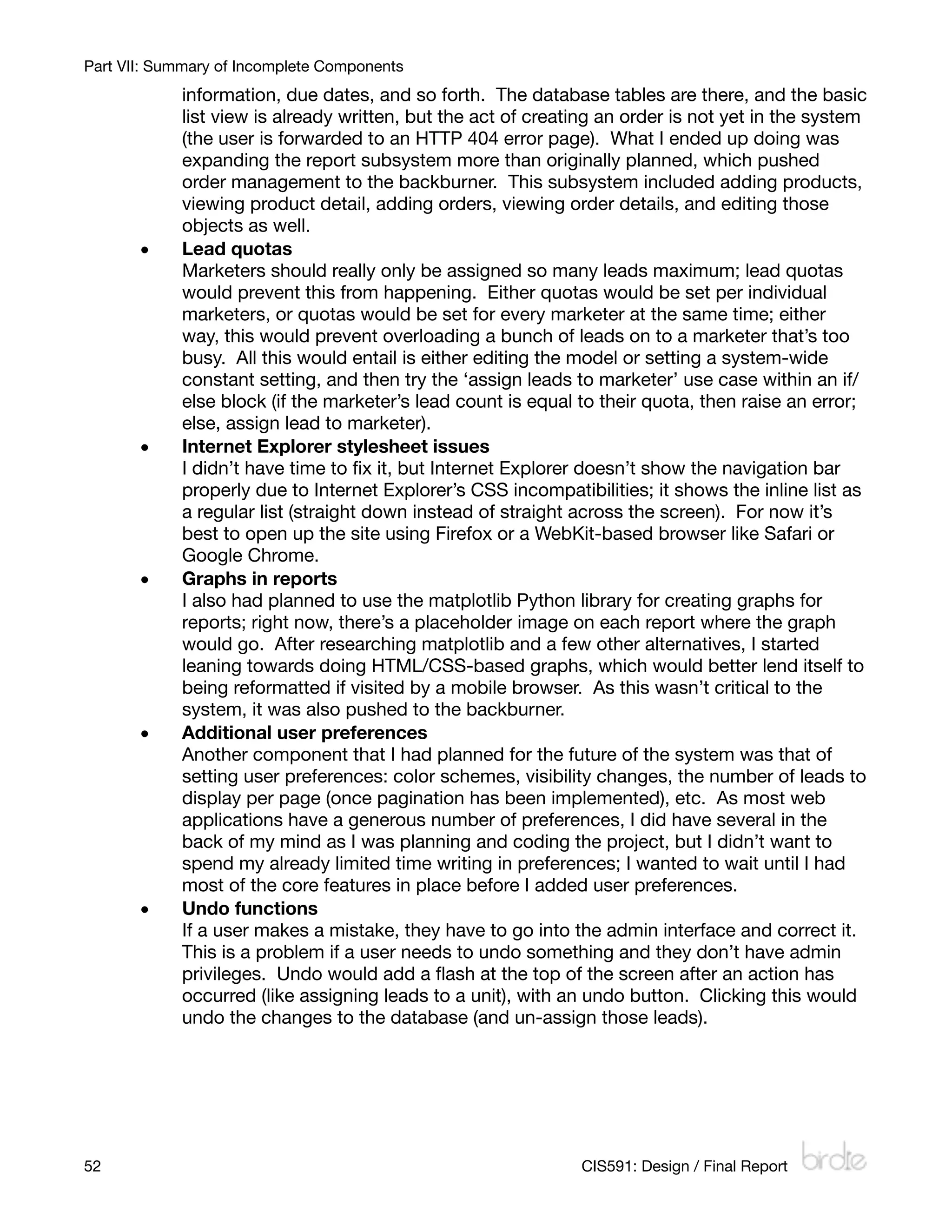

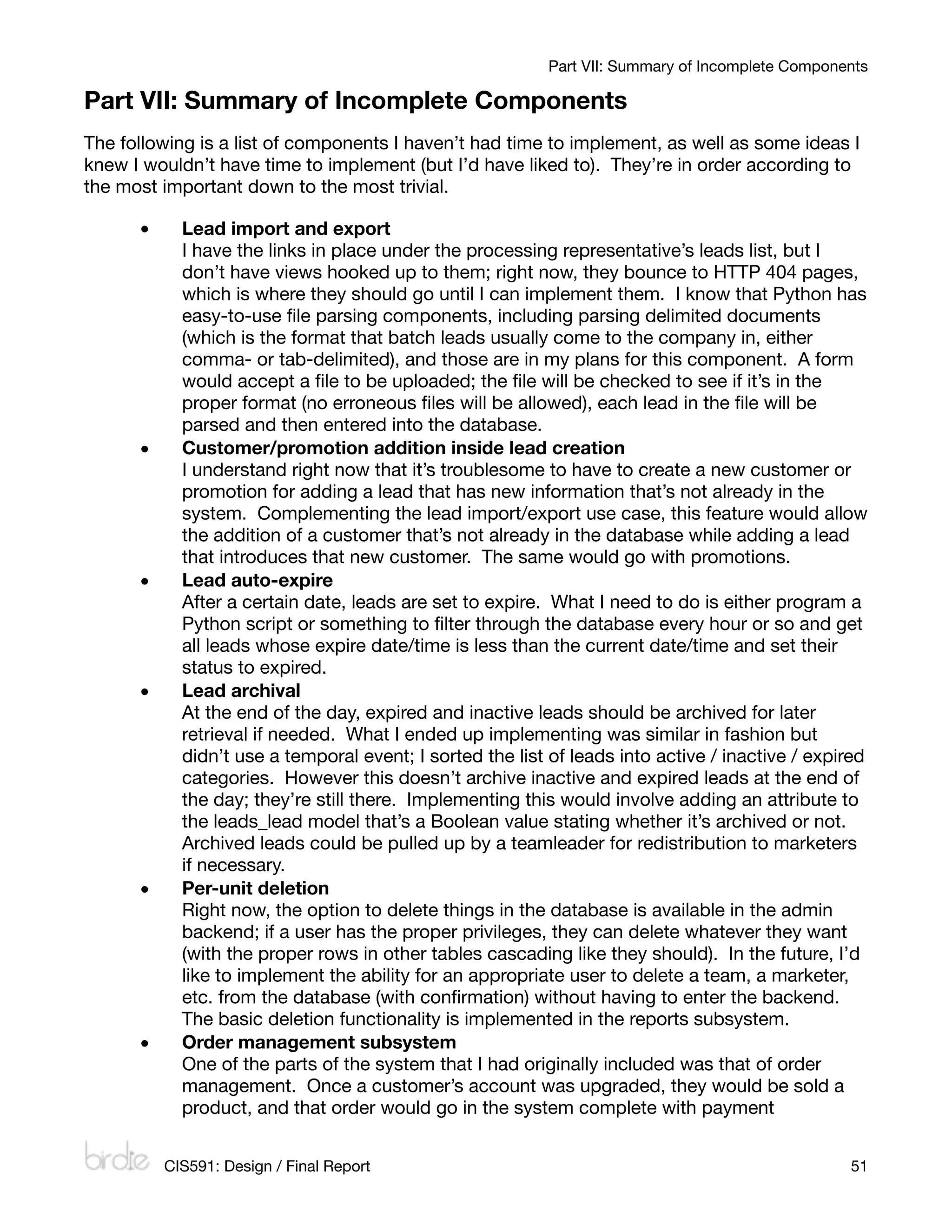

Part VII: Summary of Incomplete Components
......................................51

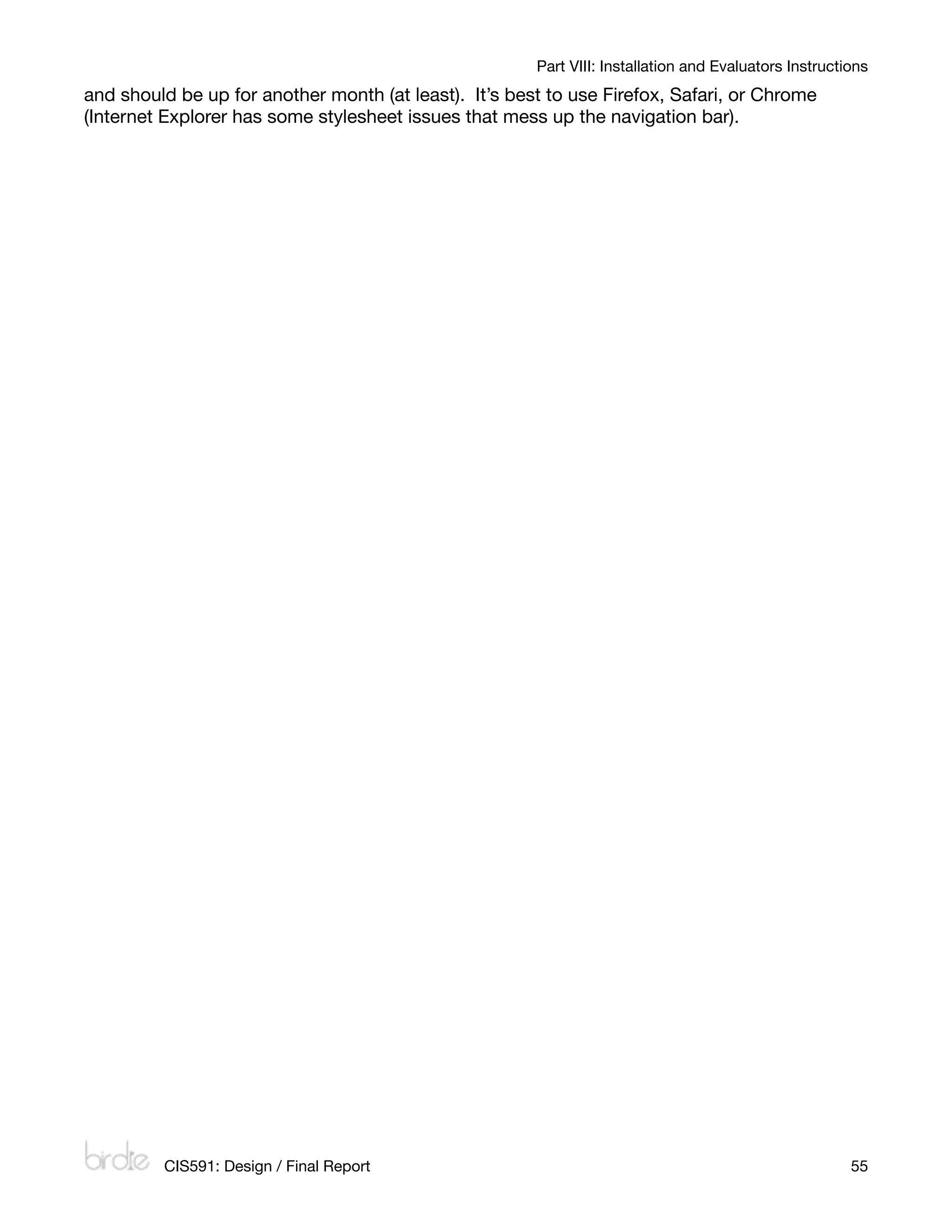

Part VIII: Installation and Evaluators Instructions
..................................53

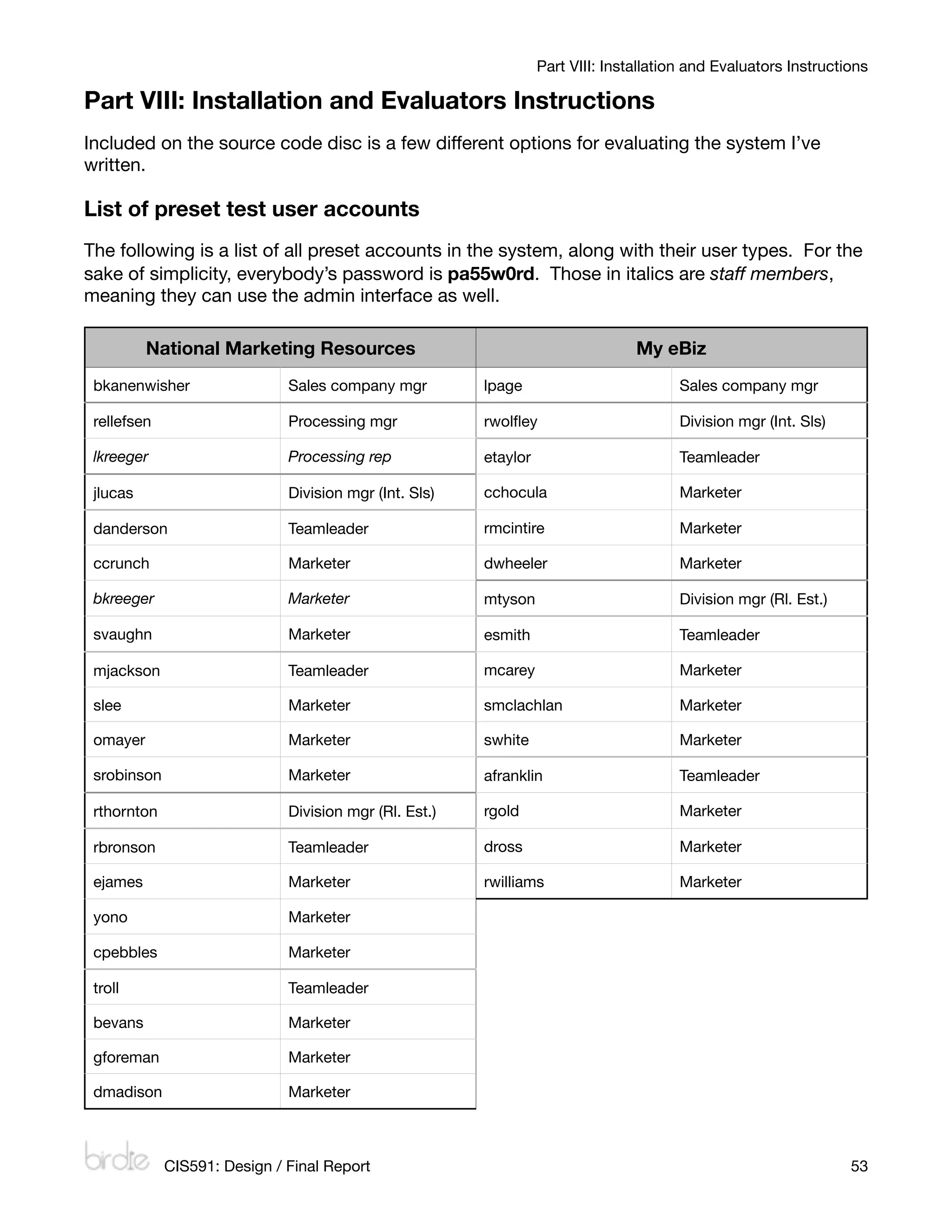

List of preset test user accounts
53

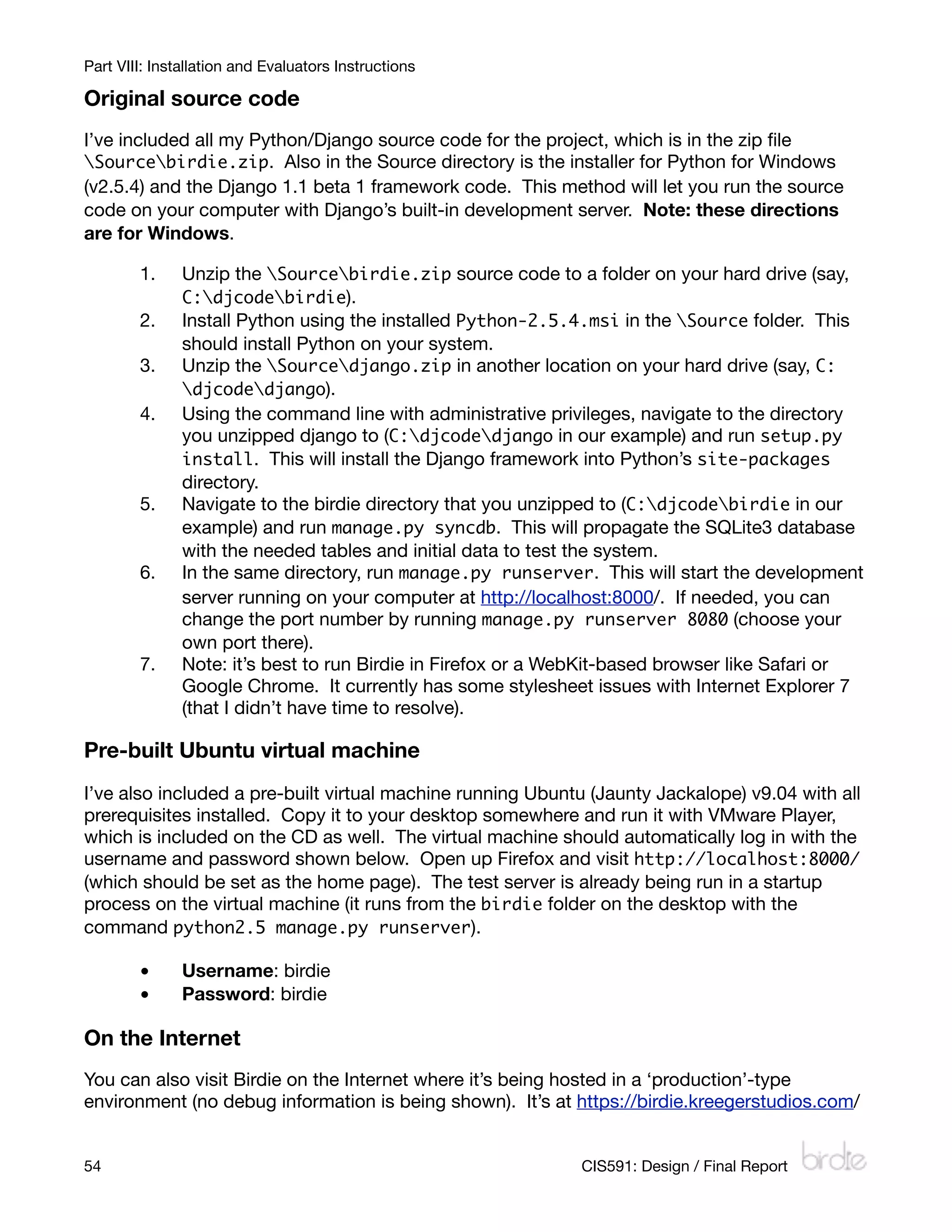

Original source code
54
Pre-built Ubuntu virtual machine
54
On the Internet
54

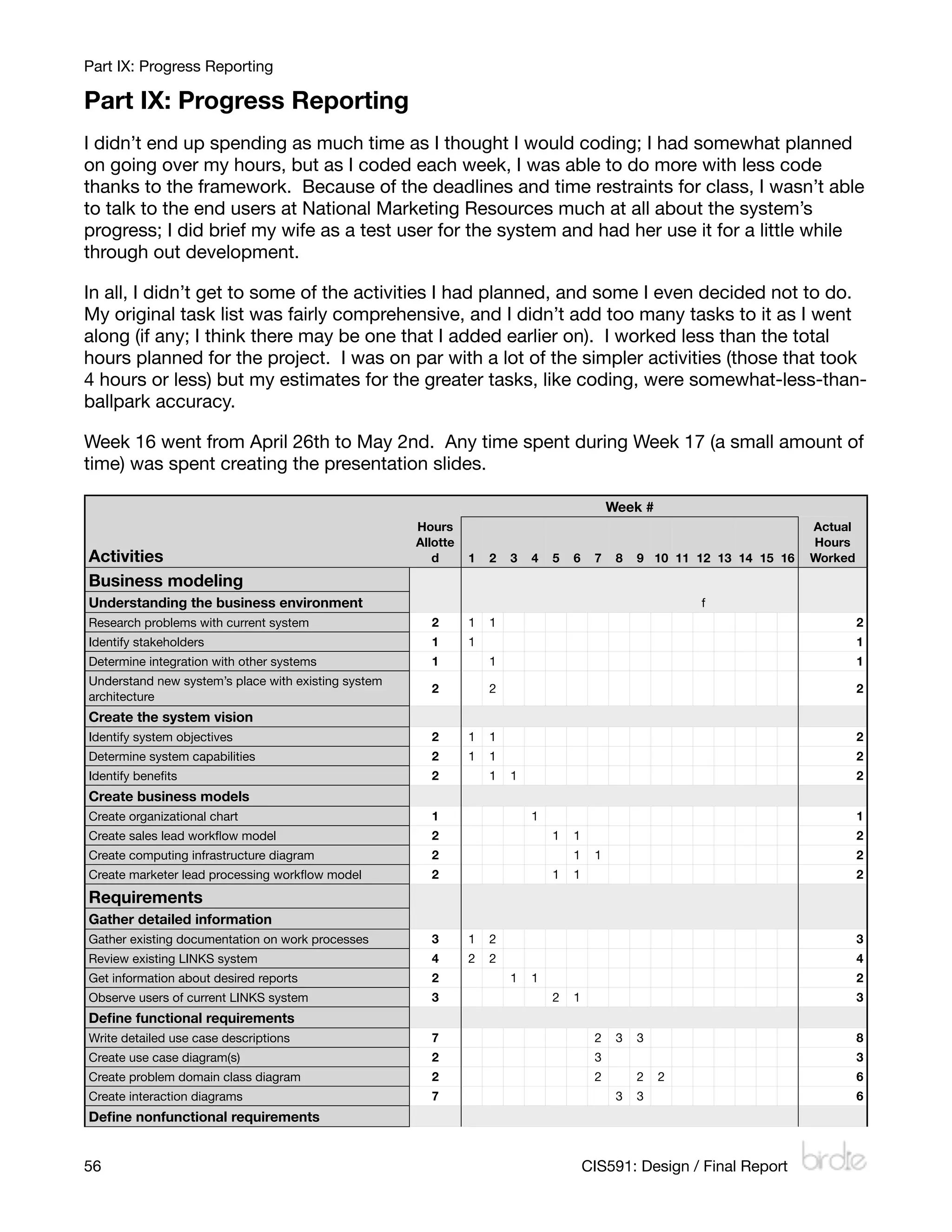

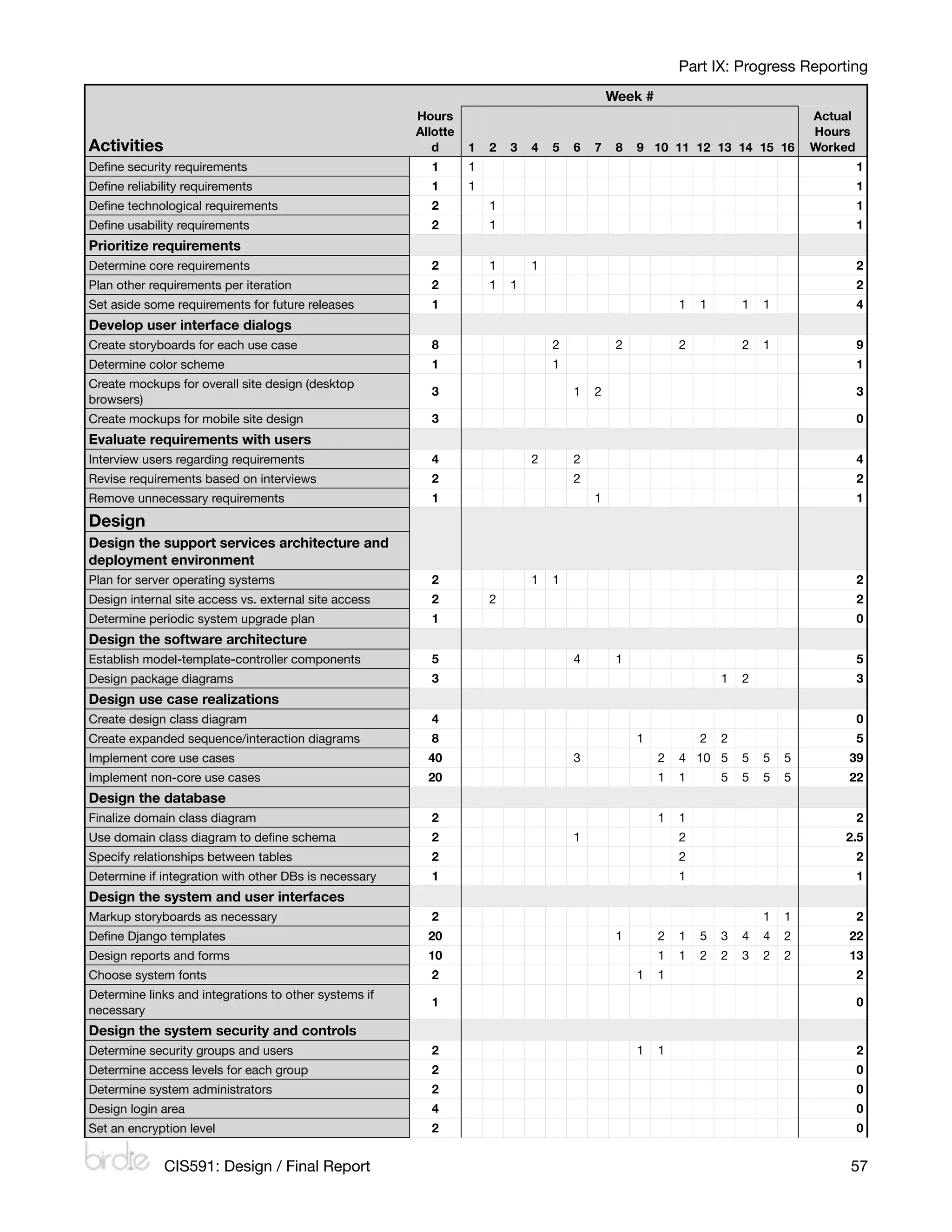

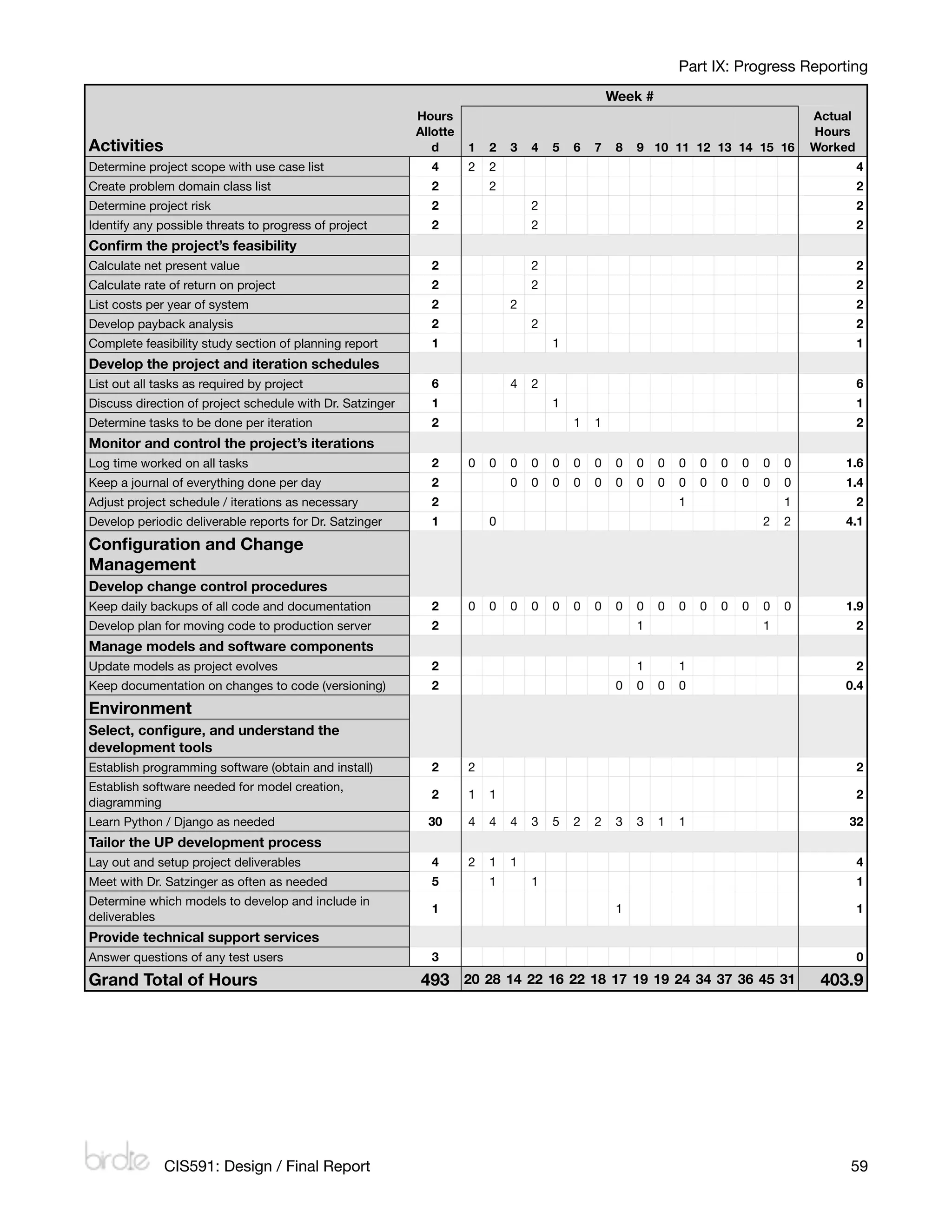

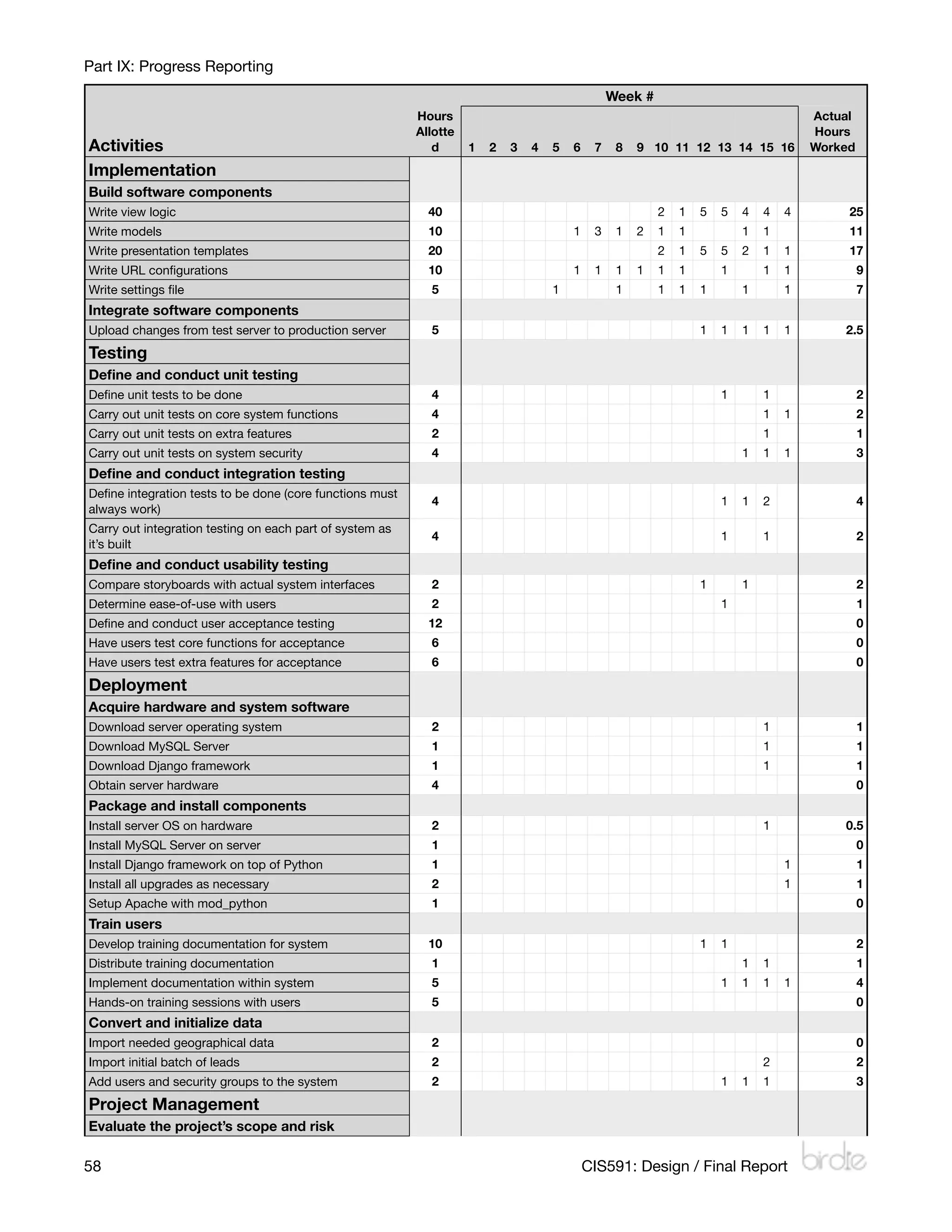

Part IX: Progress Reporting
.....................................................................56

3

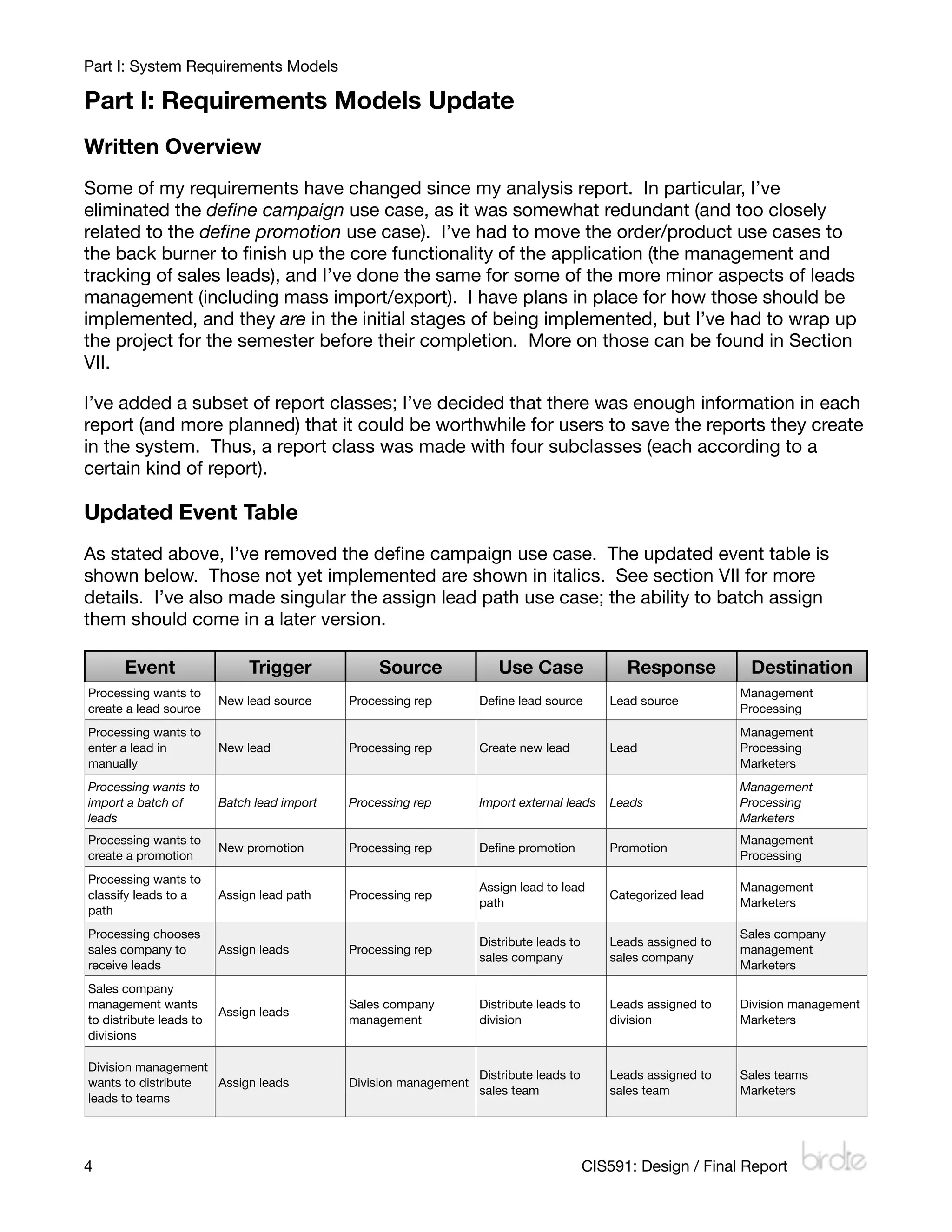

Part I: System Requirements Models

Written Overview
Some of my requirements have changed since my analysis report. In particular, I’ve
eliminated the define campaign use case, as it was somewhat redundant (and too closely
related to the define promotion use case). I’ve had to move the order/product use cases to
the back burner to finish up the core functionality of the application (the management and
tracking of sales leads), and I’ve done the same for some of the more minor aspects of leads
management (including mass import/export). I have plans in place for how those should be
implemented, and they are in the initial stages of being implemented, but I’ve had to wrap up
the project for the semester before their completion. More on those can be found in Section
VII.

I’ve added a subset of report classes; I’ve decided that there was enough information in each
report (and more planned) that it could be worthwhile for users to save the reports they create
in the system. Thus, a report class was made with four subclasses (each according to a
certain kind of report).

Updated Event Table
As stated above, I’ve removed the define campaign use case. The updated event table is
shown below. Those not yet implemented are shown in italics. See section VII for more
details. I’ve also made singular the assign lead path use case; the ability to batch assign
them should come in a later version.

Event Trigger Source Use Case Response Destination
Processing wants to Management
New lead source Processing rep Define lead source Lead source
create a lead source Processing
enter a lead in New lead Processing rep Create new lead Lead Processing
manually Marketers
import a batch of Batch lead import Processing rep Import external leads Leads Processing
leads Marketers
New promotion Processing rep Define promotion Promotion
create a promotion Processing
Processing wants to
Assign lead to lead Management
classify leads to a Assign lead path Processing rep Categorized lead
path Marketers
path
Processing chooses Sales company
Distribute leads to Leads assigned to
sales company to Assign leads Processing rep management
sales company sales company
receive leads Marketers
Sales company
management wants Sales company Distribute leads to Leads assigned to Division management
Assign leads
to distribute leads to management division division Marketers
divisions

Division management
Distribute leads to Leads assigned to Sales teams
wants to distribute Assign leads Division management
sales team sales team Marketers
leads to teams

4

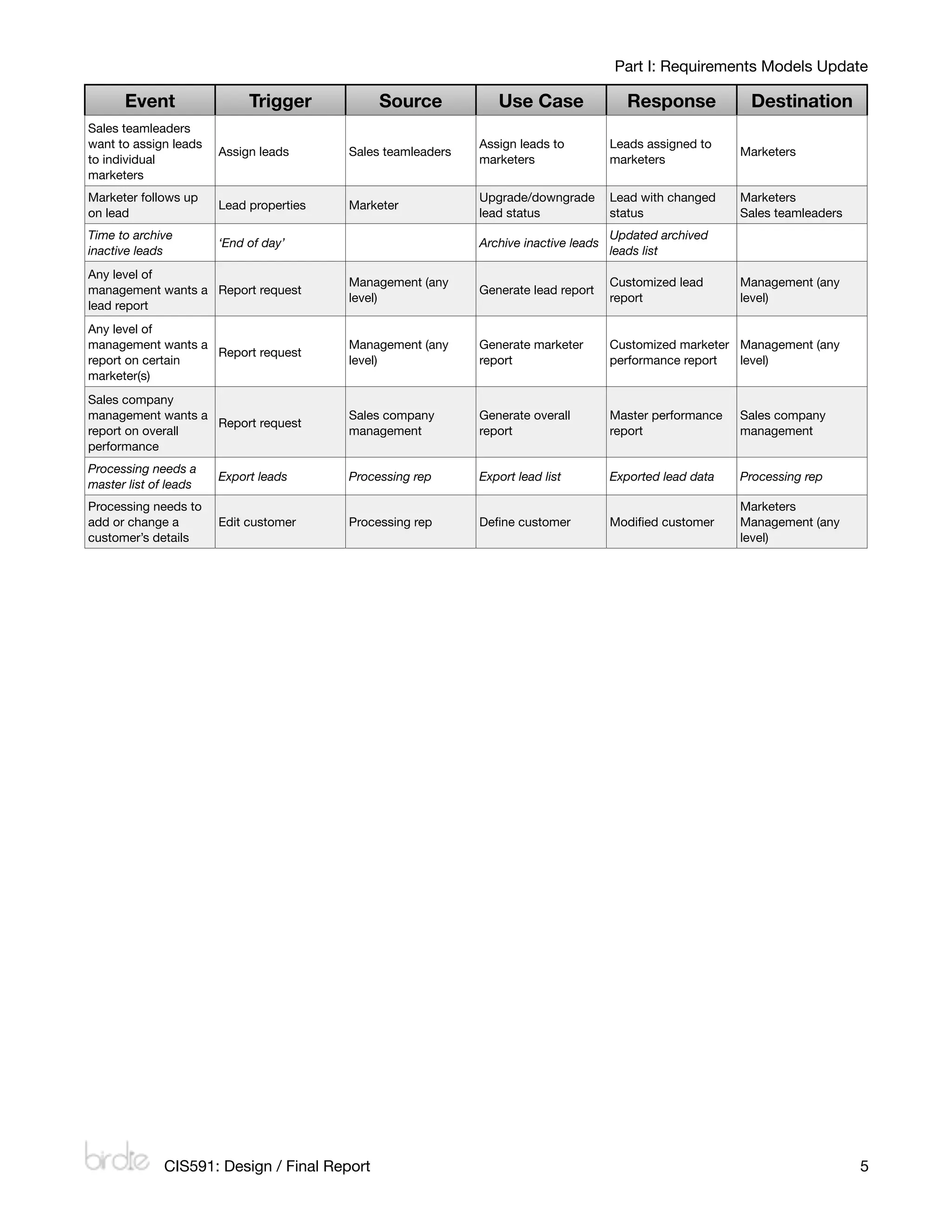

Event Trigger Source Use Case Response Destination
Sales teamleaders
want to assign leads Assign leads to Leads assigned to
Assign leads Sales teamleaders Marketers
to individual marketers marketers
marketers
Marketer follows up Upgrade/downgrade Lead with changed Marketers
Lead properties Marketer
on lead lead status status Sales teamleaders
Time to archive Updated archived
‘End of day’ Archive inactive leads
inactive leads leads list
Any level of
Management (any Customized lead Management (any
management wants a Report request Generate lead report
level) report level)
lead report
Any level of
management wants a Management (any Generate marketer Customized marketer Management (any
Report request
report on certain level) report performance report level)
marketer(s)
Sales company
management wants a Sales company Generate overall Master performance Sales company
Report request
report on overall management report report management
performance
Processing needs a
Export leads Processing rep Export lead list Exported lead data Processing rep
master list of leads
Processing needs to Marketers
add or change a Edit customer Processing rep Deﬁne customer Modiﬁed customer Management (any
customer’s details level)

5

Part I: System Requirements Models

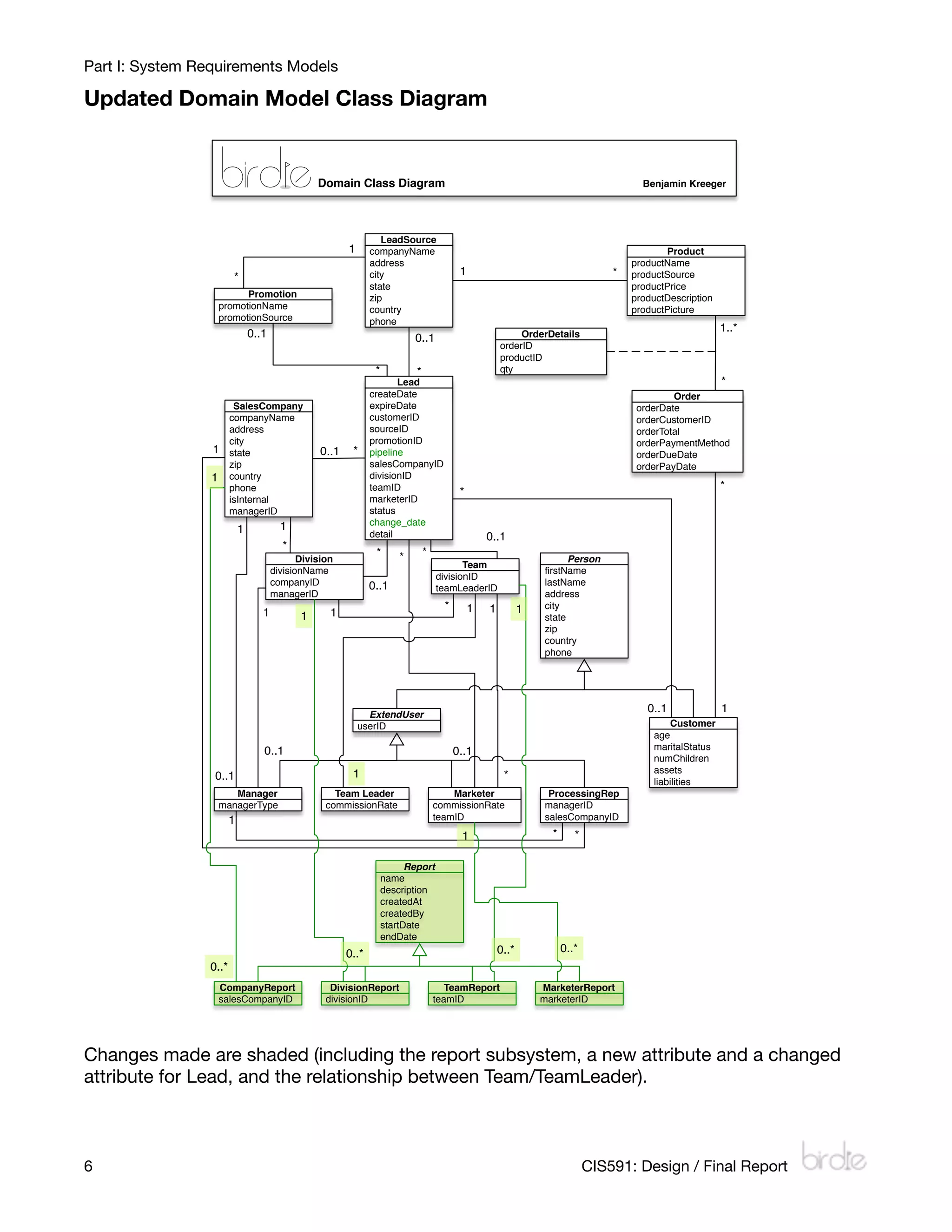

Updated Domain Model Class Diagram

Domain Class Diagram Benjamin Kreeger

LeadSource
1 companyName Product
address productName
city 1 * productSource
*
state productPrice
Promotion zip productDescription
promotionName country productPicture
promotionSource phone
0..1 OrderDetails
1..*
0..1
orderID
productID
* * qty
Lead *
createDate Order
SalesCompany expireDate orderDate
companyName customerID orderCustomerID
address sourceID orderTotal
city promotionID orderPaymentMethod
1 state 0..1 * pipeline orderDueDate
zip salesCompanyID orderPayDate
1 country divisionID
phone teamID *
*
isInternal marketerID
managerID status
1 change_date
1 detail 0..1
*
* * *
Division Person
Team
divisionName ﬁrstName
divisionID
companyID 0..1 lastName
teamLeaderID
managerID address
* 1 1 1 city
1 1 1 state
zip
country
phone

ExtendUser
0..1 1
userID Customer
age
0..1 0..1 maritalStatus
numChildren
1 assets
0..1 *
liabilities
Manager Team Leader Marketer ProcessingRep
managerType commissionRate commissionRate managerID
1 teamID salesCompanyID
1 * *

Report
name
description
createdAt
createdBy
startDate
endDate
0..* 0..* 0..*
0..*
CompanyReport DivisionReport TeamReport MarketerReport
salesCompanyID divisionID teamID marketerID

Changes made are shaded (including the report subsystem, a new attribute and a changed
attribute for Lead, and the relationship between Team/TeamLeader).

6

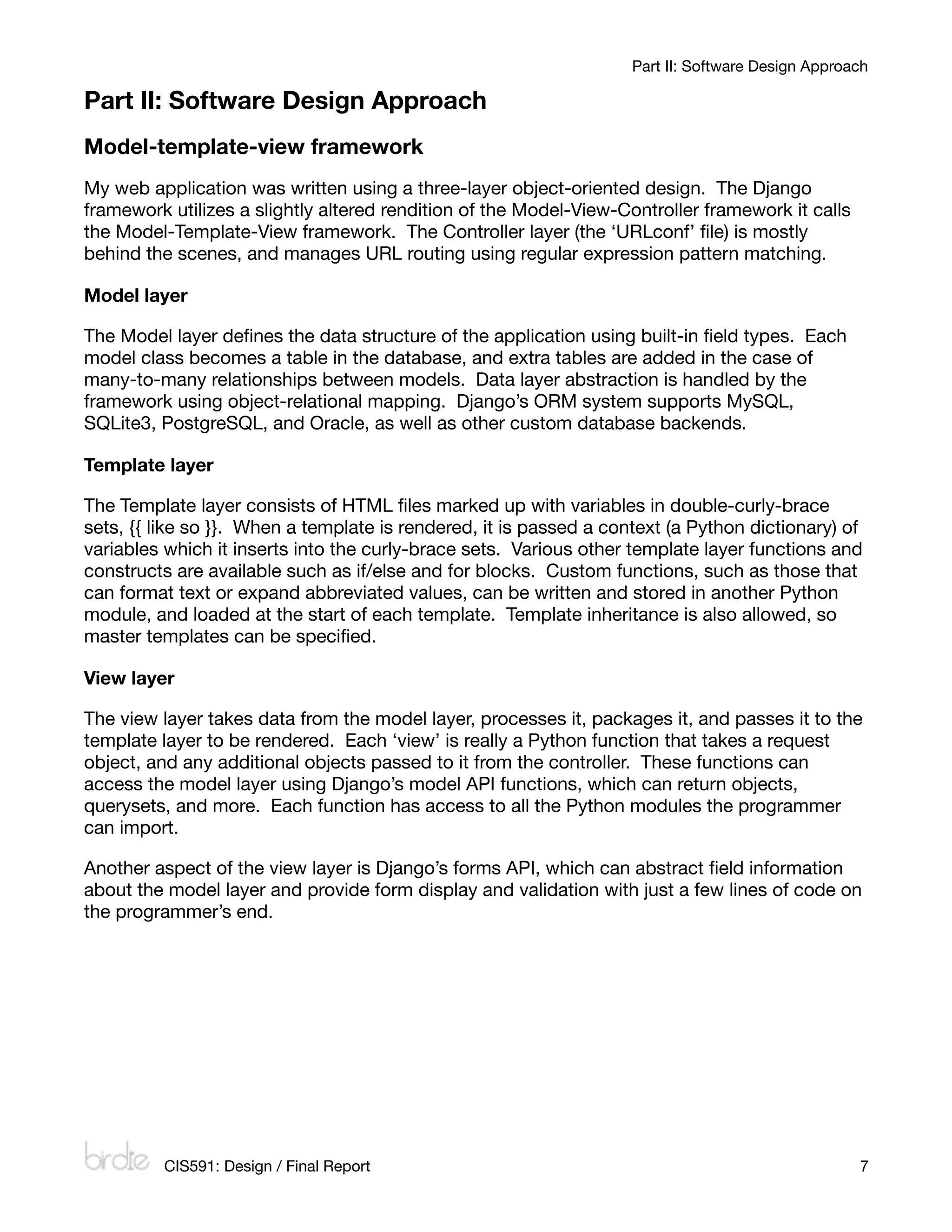

Model-template-view framework
My web application was written using a three-layer object-oriented design. The Django
framework utilizes a slightly altered rendition of the Model-View-Controller framework it calls
the Model-Template-View framework. The Controller layer (the ‘URLconf’ file) is mostly
behind the scenes, and manages URL routing using regular expression pattern matching.

Model layer

The Model layer defines the data structure of the application using built-in field types. Each
model class becomes a table in the database, and extra tables are added in the case of
many-to-many relationships between models. Data layer abstraction is handled by the
framework using object-relational mapping. Django’s ORM system supports MySQL,
SQLite3, PostgreSQL, and Oracle, as well as other custom database backends.

Template layer

The Template layer consists of HTML files marked up with variables in double-curly-brace
sets, {{ like so }}. When a template is rendered, it is passed a context (a Python dictionary) of
variables which it inserts into the curly-brace sets. Various other template layer functions and
constructs are available such as if/else and for blocks. Custom functions, such as those that
can format text or expand abbreviated values, can be written and stored in another Python
module, and loaded at the start of each template. Template inheritance is also allowed, so
master templates can be specified.

View layer

The view layer takes data from the model layer, processes it, packages it, and passes it to the
template layer to be rendered. Each ‘view’ is really a Python function that takes a request
object, and any additional objects passed to it from the controller. These functions can
access the model layer using Django’s model API functions, which can return objects,
querysets, and more. Each function has access to all the Python modules the programmer
can import.

Another aspect of the view layer is Django’s forms API, which can abstract field information
about the model layer and provide form display and validation with just a few lines of code on
the programmer’s end.

7

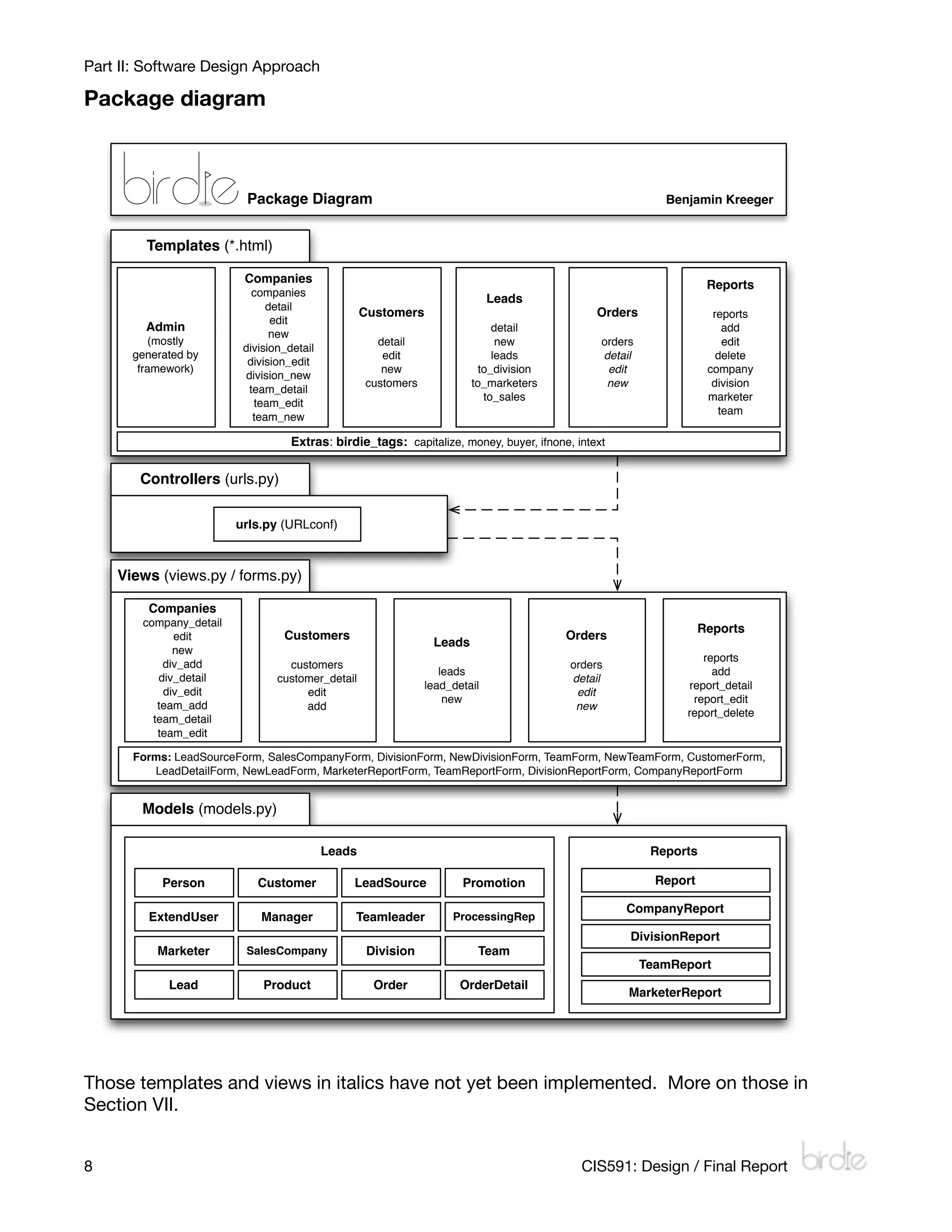

Package diagram

Package Diagram Benjamin Kreeger

Templates (*.html)

Companies Reports
companies
Leads
detail
Customers Orders reports
edit
Admin detail add
new
(mostly detail new orders edit
division_detail
generated by edit leads detail delete
division_edit
framework) new to_division edit company
division_new
customers to_marketers new division
team_detail
to_sales marketer
team_edit
team
team_new

Extras: birdie_tags: capitalize, money, buyer, ifnone, intext

Controllers (urls.py)

urls.py (URLconf)

Views (views.py / forms.py)

Companies
company_detail
Reports
edit Customers Orders
Leads
new
reports
div_add customers orders
leads add
div_detail customer_detail detail
lead_detail report_detail
div_edit edit edit
new report_edit
team_add add new
report_delete
team_detail
team_edit

Forms: LeadSourceForm, SalesCompanyForm, DivisionForm, NewDivisionForm, TeamForm, NewTeamForm, CustomerForm,
LeadDetailForm, NewLeadForm, MarketerReportForm, TeamReportForm, DivisionReportForm, CompanyReportForm

Models (models.py)

Leads Reports

Person Customer LeadSource Promotion Report

CompanyReport
ExtendUser Manager Teamleader ProcessingRep
DivisionReport
Marketer SalesCompany Division Team
TeamReport
Lead Product Order OrderDetail
MarketerReport

Those templates and views in italics have not yet been implemented. More on those in
Section VII.

8

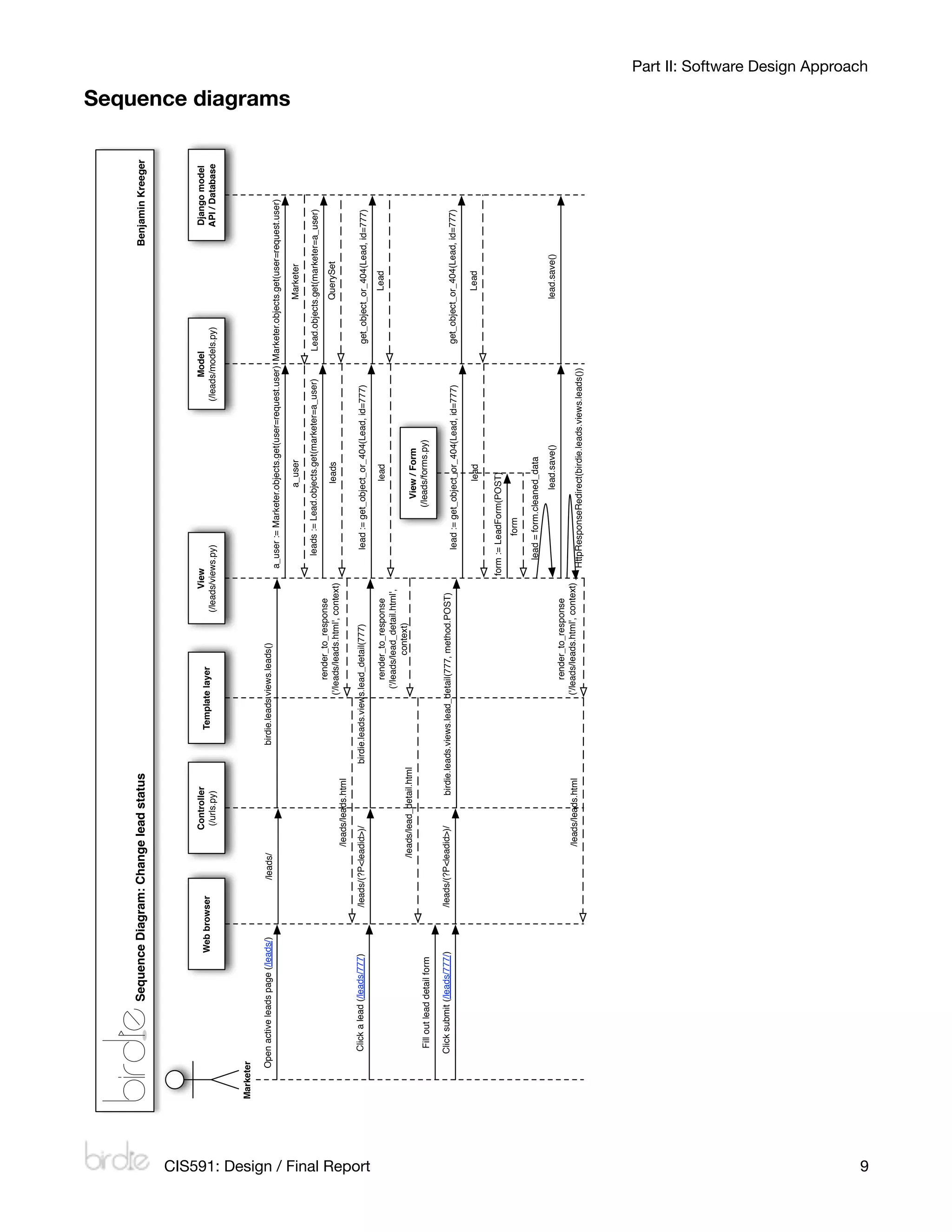

Sequence Diagram: Change lead status Benjamin Kreeger

Controller View Model Django model
Web browser Template layer
(/urls.py) (/leads/views.py) (/leads/models.py) API / Database

Marketer

Open active leads page (/leads/) /leads/ birdie.leads.views.leads()
a_user := Marketer.objects.get(user=request.user) Marketer.objects.get(user=request.user)
Sequence diagrams

a_user Marketer
leads := Lead.objects.get(marketer=a_user) Lead.objects.get(marketer=a_user)
render_to_response
('/leads/leads.html', context) leads QuerySet
/leads/leads.html
Click a lead (/leads/777) /leads/(?P<leadid>)/ birdie.leads.views.lead_detail(777) lead := get_object_or_404(Lead, id=777) get_object_or_404(Lead, id=777)

render_to_response lead Lead
('/leads/lead_detail.html',
context)
/leads/lead_detail.html View / Form
Fill out lead detail form (/leads/forms.py)

Click submit (/leads/777/) /leads/(?P<leadid>)/ birdie.leads.views.lead_detail(777, method.POST)
lead := get_object_or_404(Lead, id=777) get_object_or_404(Lead, id=777)

lead Lead

form := LeadForm(POST)
form

lead = form.cleaned_data
lead.save() lead.save()
render_to_response
/leads/leads.html ('/leads/leads.html', context)
HttpResponseRedirect(birdie.leads.views.leads())

9

10
Sequence Diagram: Deﬁne lead source Benjamin Kreeger

View
Controller Model Django model
Web browser Template layer (/companies/
(/urls.py) (/leads/models.py) API / Database
views.py)
View / Form
(/companies/
Marketer forms.py)
Open external companies page /companies/
(/companies/external) (?P<company_type>w+)/ birdie.companies.views.companies(external)
companies := LeadSource.objects.all() LeadSource.objects.all()
render_to_response
('/companies/companies.html', companies QuerySet
/companies/companies.html context)

leads := Lead.objects.get(marketer=a_user) Lead.objects.get(marketer=a_user)
Click 'add a company' /companies
(/companies/external/add) (?P<company_type>w+)/ birdie.companies.views.new(external) form :=
render_to_response LeadSourceForm()
('/companies/company_add.html', form
/companies/company_add.html context)
Fill out add company form
/companies
Click submit (/companies/external/add) (?P<company_type>w+)/ birdie.leads.views.new(external, method.POST)
company = LeadSource()
company
form :=
LeadSourceForm(POST)
form

company.save() company.save()
HttpResponseRedirect(birdie.companies.views.companies(external))
render_to_response
('/companies/companies.html',
/companies/companies.html context)



Written Overview
For my development environment, I’ve been using SQLite3. A production environment would
make use of MySQL. To switch between the two, I’ve implemented a PROD Boolean flag in the
Django settings file. As long as PROD is set to False, the environment is considered a
development one, and SQLite3 is used. Otherwise, it’s production, and MySQL comes into
the picture. My settings.py file accounts for that here:

# Switch the following to False for production environment.
PROD = True

if PROD == False:
DATABASE_ENGINE = 'sqlite3'
DATABASE_NAME = SITE_ROOT + '/sqlite.db'
DATABASE_USER = ''
DATABASE_PASSWORD = ''
DATABASE_HOST = ''
DATABASE_PORT = ''
else:
DATABASE_ENGINE = 'mysql'
DATABASE_NAME = 'birdie'
DATABASE_USER = 'birdie'
DATABASE_PASSWORD = ''
DATABASE_HOST = ''
DATABASE_PORT = ''

SQLite3 is good for a development environment because it’s stored locally in a quickly-
accessible file. For the minor magnitude in which I’m developing the program, this file-based
DMBS is ideal. I’ve chosen MySQL as a production database for its balance of efficiency in a
larger-scale environment, cost, and available support options.

11

12
Entity Relationship Diagram Benjamin Kreeger

leads_leadsource
id INT(11) leads_product auth_user_user_permissions auth_permission auth_group_permissions
company_name VARCHAR(100) id INT(11) id INT(11) id INT(11) id INT(11)
address VARCHAR(100) name VARCHAR(100) user_id INT(11) name VARCHAR(50) group_id INT(11)
city VARCHAR(60) source_id INT(11) permission_id INT(11) content_type_id INT(11) permission_id INT(11)
leads_promotion state VARCHAR(2) price DECIMAL(12,2) codename VARCHAR(100)
id INT(11) zip_code VARCHAR(10) description LONGTEXT
name VARCHAR(100) country VARCHAR(50) picture VARCHAR(100)
source_id INT(11) phone VARCHAR(20)
leads_orderdetails
id INT(11)
order_id INT(11) auth_user auth_user_groups auth_group
product_id INT(11) id INT(11) id INT(11) id INT(11)

quantity DECIMAL(12,2) username VARCHAR(30) user_id INT(11) name VARCHAR(80)
Relationship View

first_name VARCHAR(30) group_id INT(11)
last_name VARCHAR(30)
email VARCHAR(75)
password VARCHAR(128)
leads_lead is_staff TINYINT(1)
id INT(11) leads_order is_active TINYINT(1)
leads_salescompany create_date DATETIME id INT(11) is_superuser TINYINT(1) auth_message
id INT(11) expire_date DATETIME date DATETIME last_login DATETIME id INT(11)
company_name VARCHAR(100) customer_id INT(11) customer_id INT(11) date_joined DATETIME user_id INT(11)
address VARCHAR(100) source_id INT(11) total DECIMAL(12,2) message LONGTEXT
city VARCHAR(60) promotion_id INT(11) payment_method VARCHAR(10)
state VARCHAR(2) pipeline VARCHAR(2) due_date DATETIME
zip_code VARCHAR(10) sales_company_id INT(11) django.auth
pay_date DATETIME
country VARCHAR(50) division_id INT(11)
phone VARCHAR(20) team_id INT(11)
is_internal TINYINT(1) marketer_id INT(11)
manager_id INT(11) status VARCHAR(8)
change_date DATETIME
detail LONGTEXT

other django django_content_type django_admin_log
leads_person id INT(11) id INT(11)
id INT(11) framework name VARCHAR(100) action_time DATETIME
leads_division
id INT(11) first_name VARCHAR(50) tables app_label VARCHAR(100) user_id INT(11)
name VARCHAR(50) leads_team last_name VARCHAR(50) model VARCHAR(100) content_type_id INT(11)
company_id INT(11) id INT(11) address VARCHAR(100) object_id LONGTEXT
manager_id INT(11) division_id INT(11) city VARCHAR(60) object_repr VARCHAR(200)
teamleader_id INT(11) state VARCHAR(2) action_flag SMALLINT(5)
zip_code VARCHAR(10) django_site django_session change_message LONGTEXT
country VARCHAR(50) id INT(11) session_key VARCHAR(40)
phone VARCHAR(20) domain VARCHAR(100) session_data LONGTEXT
name VARCHAR(50) expire_date DATETIME

leads_extenduser
person_ptr_id INT(11) leads_customer
user_id INT(11) person_ptr_id INT(11)
age INT(11)
marital_status VARCHAR(20)
num_children INT(11)
assets DECIMAL(12,2)

See attached Tabloid-sized diagram for a larger ERD diagram.
liabilities DECIMAL(12,2)

leads_manager leads_teamleader leads_marketer leads_processingrep
extenduser_ptr_id INT(11) extenduser_ptr_id INT(11) extenduser_ptr_id INT(11) extenduser_ptr_id INT(11)
manager_type VARCHAR(50) commission_rate DECIMAL(5,2) commission_rate DECIMAL(5,2) manager_id INT(11)
team_id INT(11) sales_company_id INT(11)

reports_report birdie.reports
id INT(11)
name VARCHAR(255)
description LONGTEXT
created_at DATETIME
created_by_id INT(11)
start_date DATE
end_date DATE

reports_companyreport reports_divisionreport reports_teamreport reports_marketerreport
report_ptr_id INT(11) report_ptr_id INT(11) report_ptr_id INT(11) report_ptr_id INT(11)
sales_company_id INT(11) division_id INT(11) team_id INT(11) marketer_id INT(11)


List of Tables
The list of tables in my database is below. Those beginning with auth_ and django_ are
created by the framework; the only ones I use heavily out of those would be auth_user, and
I’m still working on implementing auth_group and auth_permission. Primary keys are
underlined, and foreign keys are denoted by a following [fk=related_table] notation.

auth_permission (id, name, content_type_id [fk=django_content_type],
codename)

auth_group (id, name)

auth_user (id, username, first_name, last_name, email, password, is_staff,
is_active, is_superuser, last_login, date_joined)

auth_message (id, user_id [fk=auth_user], message)

auth_group_permissions (id, group_id [fk=auth_group], permission_id
[fk=auth_permission])

auth_user_groups (id, user_id [fk=auth_user], group_id [fk=auth_group])

auth_user_user_permissions (id, user_id [fk=auth_user], permission_id
[fk=auth_permission])

django_admin_log (id, action_time, user_id [fk=auth_user], content_type_id
[fk=django_content_type], object_id, object_repr, action_flag,
change_message)

django_content_type (id, name, app_label, model)

django_session (session_key, session_data, expire_date)

django_site (id, domain, name)

leads_person (id, first_name, last_name, address, city, state, zip_code,
country, phone)

leads_customer (person_ptr_id [fk=leads_person], age, marital_status,
num_children, assets, liabilities)

leads_extenduser (person_ptr_id [fk=leads_person], user_id [fk=auth_user])

leads_manager (extenduser_ptr_id [fk=leads_extenduser], manager_type)

leads_teamleader (extenduser_ptr_id [fk=leads_extenduser], commission_rate)

13


leads_leadsource (id, company_name, address, city, state, zip_code, country,
phone)

leads_promotion (id, name, source_id [fk=leads_leadsource])

leads_salescompany (id, company_name, address, city, state, zip_code,
country, phone, is_internal, manager_id [fk=leads_manager])

leads_division (id, name, company_id [fk=leads_salescompany], manager_id
[fk=leads_manager])

leads_team (id, division_id [fk=leads_division], teamleader_id
[fk=leads_teamleader])

leads_processingrep (extenduser_ptr_id [fk=leads_extenduser], manager_id
[fk=leads_manager], sales_company_id [fk=leads_salescompany])

leads_marketer (extenduser_ptr_id [fk=leads_extenduser], commission_rate,
team_id [fk=leads_team])

leads_lead (id, create_date, expire_date, customer_id [fk=leads_customer],
source_id [fk=leads_leadsource], promotion_id [fk=leads_promotion], pipeline,
sales_company_id [fk=leads_salescompany], division_id [fk=leads_division],
team_id [fk=leads_team], marketer_id [fk=leads_marketer], status,
change_date, detail)

leads_product (id, name, source_id [fk=leads_leadsource], price, description,
picture)

leads_order (id, date, customer_id [fk=leads_customer], total,
payment_method, due_date, pay_date)

leads_orderdetail (id, order_id [fk=leads_order], product_id
[fk=leads_product], quantity)

reports_report (id, name, description, created_at, created_by_id
[fk=auth_user], start_date, end_date)

reports_marketerreport (report_ptr_id [fk=reports_report], marketer_id
[fk=leads_marketer])

reports_teamreport (report_ptr_id [fk=reports_report], team_id
[fk=leads_team])

reports_divisionreport (report_ptr_id [fk=reports_report], division_id
[fk=leads_division])

reports_companyreport (report_ptr_id [fk=reports_report], sales_company_id

14


[fk=leads_salescompany])

List of Referential Integrity Constraints
Below is a list of the referential integrity constraints in the Birdie database. Primary keys in
the database are auto_incremented and are not allowed to be changed.

auth_permission:
content_type_id (foreign key to django_content_type)

auth_group: none

auth_user: none

auth_message:
user_id (foreign key to auth_user)

auth_group_permissions:
group_id (foreign key to auth_group)
permission_id (foreign key to auth_permission)

auth_user_groups:
group_id (foreign key to auth_group)

auth_user_user_permissions:
permission_id (foreign key to auth_permission)

django_admin_log:
content_type_id (foreign key to django_content_type)

django_content_type: none

django_session: none

django_site: none

leads_person: none

leads_customer:
person_ptr_id (foreign key to leads_person)

leads_extenduser:

15


person_ptr_id (foreign key to leads_person)

leads_manager:
extenduser_ptr_id (foreign key to leads_extenduser)

leads_teamleader:

leads_leadsource: none

leads_promotion:
source_id (foreign key to leads_leadsource)

leads_salescompany:
manager_id (foreign key to leads_manager)

leads_division:
company_id (foreign key to leads_salescompany)

leads_team:
division_id (foreign key to leads_division)
teamleader_id (foreign key to leads_teamleader)

leads_processingrep:
sales_company_id (foreign key to leads_salescompany)

leads_marketer:
team_id (foreign key to leads_team)

leads_lead:
customer_id (foreign key to leads_customer)
promotion_id (foreign key to leads_promotion)
marketer_id (foreign key to leads_marketer)

leads_product:

leads_order:
customer_id (foreign key to leads_customer)

16


leads_orderdetail:
order_id (foreign key to leads_order)
product_id (foreign key to leads_product)

reports_report:
created_by_id (foreign key to auth_user)

reports_marketerreport:
report_ptr_id (foreign key to reports_report)
marketer_id (foreign key to leads_marketer)

reports_teamreport:

reports_divisionreport:

reports_companyreport:

Sample Data for Each Table
The following is data in each table separated by table by alphabetical order. Certain tables,
like the django_* tables and the auth_* tables (except auth_user) have been omitted as they’re
ﬁlled with mostly auto-generated content by the framework.

auth_user

id username ﬁrst_name last_nam email passwor is_staff is_active is_superulast_login date_join
e d ser ed
1 bkreeger Benjamin Kreeger benjamink sha1$94855$e
94ff387e576e8
1 1 12009-04- Apr 13, 2009 12:31 PM
reeger@g d06d888ef5ce 25
mail.com be18e815ed8a
ad 19:38:09.
986259
sha1$10db2$8
2 danderson a05e486a21a8
0 1 0 Apr 14, 2009 10:06 2009 12:37 PM
Apr 13, PM
b2e9296edb97
ea678e7c89e0
024
sha1$94a1c
3 afreestone $a4f5c643379
0 1 0 Apr 13, 2009 12:38 2009 12:38 PM
Apr 13, PM
92b464cd9f0ff
8a79ce6876d3
0d88
sha1$c1c0f
4 dahmu $c9675360a14
0 1 0 2009-04- 2009-04-
20db33d81bbd 13 13
d733762868e9
cd68c 12:38:36. 12:38:36.
086690 086701

17

sha1$fb1e1$c5
5 etaylor c382ee91ca0c
0 1 0 Apr 22, 2009 8:29 PM 12:39 PM
Apr 13, 2009
48aa3ebb66f6
2c3d2cf38cc8f
3
sha1$e084f
6 bkanenwisher $a48a0fb58d2
0 1 0 Apr 16, 2009 1:29 PM 12:39 PM
Apr 13, 2009
c6409a64dfc6
840a3e7b92c3
72d3a
sha1$aab12$4
7 rwolﬂey 5876e3e5ac51
0 1 0 Apr 22, 2009 8:27 PM 12:41 PM
Apr 13, 2009
4bcee91a68c1
49ce4faf0ecb2
db
sha1$63aa2$4
8 lkreeger 384e0137a420
1 1 1 2009-04- Apr 14, 2009 8:08 PM
8eae15aae354 25
79845a4df288
2b9 19:38:19.
739459
sha1$712af
9 jlucas $4b03b139937
0 1 0 Apr 14, 2009 8:10 PM 8:09 PM
Apr 14, 2009
926b77b356be
8d9b05a495c4
49a3d
sha1$d926e
10 lpage $4d2f5c3009d
0 1 0 Apr 23, 2009 8:54 PM 7:51 PM
Apr 22, 2009
0fea01b8a748
e7ded611388b
91c08
sha1$95f43$91
11 rellefsen 723c0f47c74ff
0 1 0 Apr 22, 2009 7:57 PM 7:57 PM
Apr 22, 2009
e584276d6ba9
3efc8cd1b58b
3
sha1$8e2f6$b7
12 dwheeler 8bd03ca7a4b9
0 1 0 Apr 22, 2009 8:29 PM 8:28 PM
Apr 22, 2009
24891872a7c2
f154b402e6d5f
d

leads_customer

person_ptr_id age marital_status num_children assets liabilities
5 33 divorced 2 20000 15000
6 45 married 1 50000 10000
7 25 single
8 single
9 single
10 77 single 0
11
12
13
14 40 single 0 11000 12000
15
16 single
19 single

18

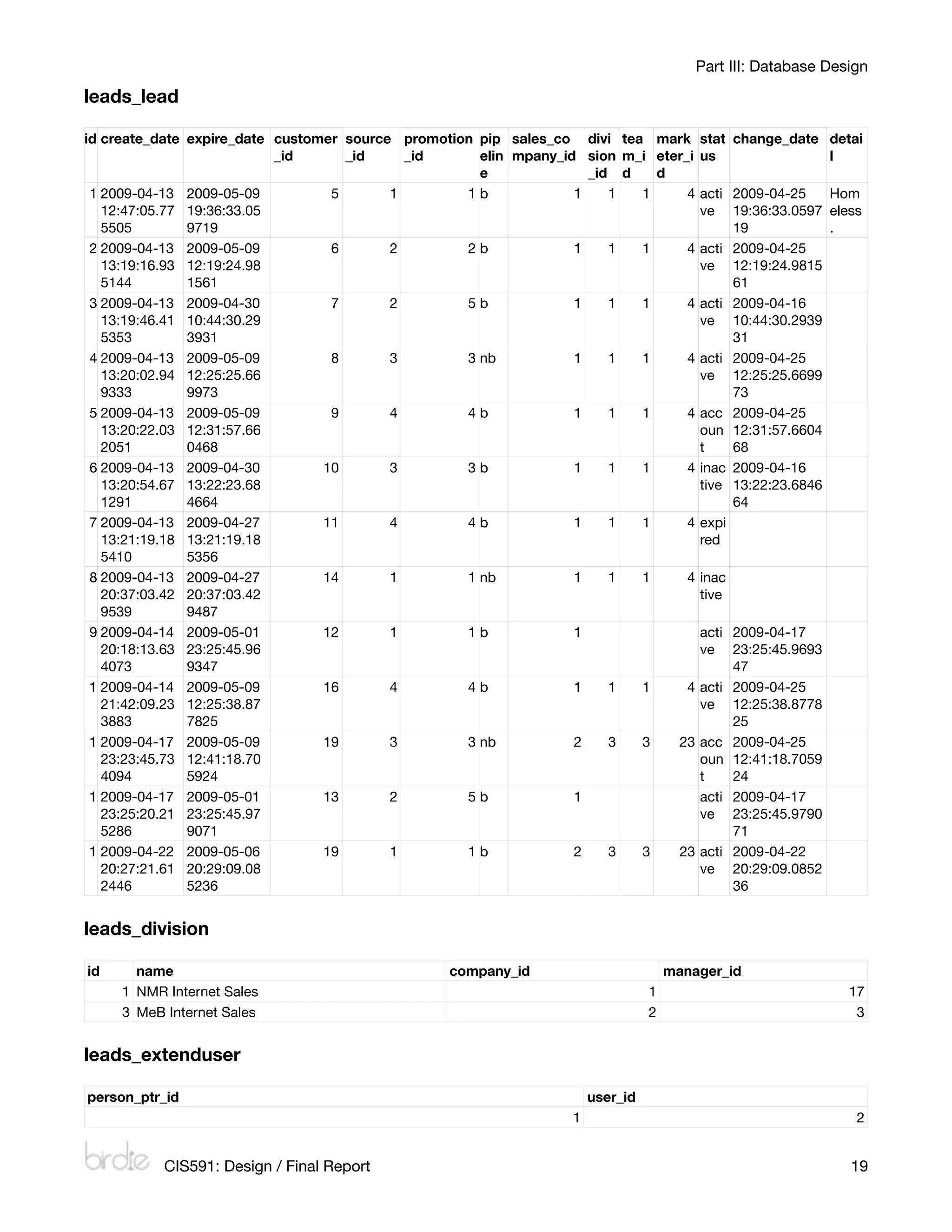

leads_lead

id create_date expire_date customer source promotion pip sales_co divi tea mark stat change_date detai
_id _id _id elin mpany_id sion m_i eter_i us l
e _id d d
1 2009-04-13 2009-05-09 5 1 1b 1 1 1 4 acti 2009-04-25 Hom
12:47:05.77 19:36:33.05 ve 19:36:33.0597 eless
5505 9719 19 .
2 2009-04-13 2009-05-09 6 2 2b 1 1 1 4 acti 2009-04-25
13:19:16.93 12:19:24.98 ve 12:19:24.9815
5144 1561 61
3 2009-04-13 2009-04-30 7 2 5b 1 1 1 4 acti 2009-04-16
13:19:46.41 10:44:30.29 ve 10:44:30.2939
5353 3931 31
4 2009-04-13 2009-05-09 8 3 3 nb 1 1 1 4 acti 2009-04-25
13:20:02.94 12:25:25.66 ve 12:25:25.6699
9333 9973 73
5 2009-04-13 2009-05-09 9 4 4b 1 1 1 4 acc 2009-04-25
13:20:22.03 12:31:57.66 oun 12:31:57.6604
2051 0468 t 68
6 2009-04-13 2009-04-30 10 3 3b 1 1 1 4 inac 2009-04-16
13:20:54.67 13:22:23.68 tive 13:22:23.6846
1291 4664 64
7 2009-04-13 2009-04-27 11 4 4b 1 1 1 4 expi
13:21:19.18 13:21:19.18 red
5410 5356
8 2009-04-13 2009-04-27 14 1 1 nb 1 1 1 4 inac
20:37:03.42 20:37:03.42 tive
9539 9487
9 2009-04-14 2009-05-01 12 1 1b 1 acti 2009-04-17
20:18:13.63 23:25:45.96 ve 23:25:45.9693
4073 9347 47
102009-04-14 2009-05-09 16 4 4b 1 1 1 4 acti 2009-04-25
21:42:09.23 12:25:38.87 ve 12:25:38.8778
3883 7825 25
112009-04-17 2009-05-09 19 3 3 nb 2 3 3 23 acc 2009-04-25
23:23:45.73 12:41:18.70 oun 12:41:18.7059
4094 5924 t 24
122009-04-17 2009-05-01 13 2 5b 1 acti 2009-04-17
23:25:20.21 23:25:45.97 ve 23:25:45.9790
5286 9071 71
132009-04-22 2009-05-06 19 1 1b 2 3 3 23 acti 2009-04-22
20:27:21.61 20:29:09.08 ve 20:29:09.0852
2446 5236 36

leads_division

id name company_id manager_id
1 NMR Internet Sales 1 17
3 MeB Internet Sales 2 3

leads_extenduser

person_ptr_id user_id
1 2

19

2 6
3 7
4 1
17 9
18 8
20 10
21 11
22 5
23 12

leads_leadsource

id company_name address city state zip_code country phone
1 BidFrog, LLC 629 E. 730th St. American Fork UT 84003 USA 827-363-6383
2 Real Estate Millionaire, Inc 928 Reader Rd American Fork UT 80023 USA 846-454-8494
3 eBay Wealth System, LLC 837 Receipt Dr Salt Lake City UT 84022 USA 836-455-7958
4 Risktakers, Inc. 363 Cliff Blvd Los Angeles CA 90002 USA 837-464-5474
5 World Profit Center 1 Business Way New York NY 23930 USA 455-335-4337

leads_manager

extenduser_ptr_id manager_type
2 company
3 division
17 division
20 company
21 processing

leads_marketer

extenduser_ptr_id commission_rate team_id
4 0.05 1
23 0.05 3

leads_person

id first_name last_name address city state zip_code country phone
1 Daniel Anderson 555 Main St Kearney MO 64060 USA 816-628-5555
2 Boyd Kanenwisher 555 Main St Kearney MO 64060 USA 816-628-5555
3 Rod Wolfley 555 Main St Kearney MO 64060 USA 816-628-5555
4 Benjamin Kreeger 826 S Fort Ave Springfield MO 65806 USA 816-806-7096
5 Eddie James 555 Main St Margaritaville AL 77766 USA 555-555-5555
6 David Caravella 555 Main St Kearney MO 64060 USA 816-903-5555
7 Brandi Carlisle 555 Main St Kearney MO 64060 USA 816-903-5555
8 James Hendrix 555 Main St Kearney MO 64060 USA 816-628-5555
9 James Page 555 Main St Kearney MO 64060 USA 816-628-5555
10 Jim Morrison 555 Main St Kearney MO 64060 USA 816-903-5555
11 Peter Frampton 555 Main St Kearney MO 64060 USA 816-628-5555
12 Ozzy Ozbourne 555 Main St Kearney MO 64060 USA 816-628-5555
13 Robert Plant 555 Main St Kearney MO 64060 USA 816-628-5555

20

14 Stevie Nicks 555 Main St Kearney MO 64060 USA 816-628-5555
15 Frederick Mercury 123 Hello Blvd Hollywood CA 90021 USA 555-555-5555
16 Peter Townshend 123 Hello Blvd Hollywood CA 90021 USA 555-555-5555
17 Jeff Lucas 555 Gerard Way Kansas City MO 64151 USA 816-555-5555
18 Laura Kreeger 826 S Fort Ave Springﬁeld MO 65806 USA 816-806-9656
19 Edward Van Halen 555 Wiley St Miami FL 9142 USA 555-555-5555
20 Leonard Page 555 Wary Way Tulsa OK 72526 USA 555-555-5555
21 Ryan Ellefsen 444 Noname Dr Kearney MO 64060 USA 555-555-5555
22 Eric Taylor 555 Blah Dr American Fork UT 27632 USA 555-555-5555
23 Derrick Wheeler 735 Happy Ln American Fork UT 83752 USA 555-555-5555

leads_processingrep

extenduser_ptr_id manager_id sales_company_id
18 17 1

leads_product

id name source price description pict
_id ure
1 Bidfrog 1 99.99 BidFrog gives you powerful information that will:

• Teach you how to apply a few simple Internet Marketing techniques to explode
your income online!
• Give you the freedom you have always wanted from an Internet income.
• Help you build your Internet business into a source of long-term security.
• And give you creative marketing tips and ideas to turn your online business into a
full-time venture so you can kiss your boss goodbye!
2 Be a Real 2 24.95 BE A REAL ESTATE MILLIONAIRE teaches you Dean Graziosi’s personal strategies for
Estate turning real estate losers into winners. Discover the seven keys to unlocking hidden
Millionaire real estate values.
3 eBay 3 9.95 Keep track of all your eBay auctions. Sell like a pro!
Watcher
4 How to Take 4 59.99 Improve your life and deepen your pockets by taking risks. This book will show you
Risks: A how!
Guide

leads_promotion

id name source_id
1 Bidfrog Online Ads 1
2 REM Online Ads 2
3 eBay Wealth Infomercial 3
4 Risktakers Mass Mailing 4
5 REM Mass Mailing 2

leads_salescompany

id company_name address city stat zip_cod countr phone is_intern manager_
e e y al id
1 National Marketing Resources, 351 W Kearney MO 64060 USA 816-903-61 1 2
LLC Washington 00

21

2 My eBiz 735 E Wilder American UT 80023 USA 555-555-55 1 20
Way Fork 55

leads_team

id division_id teamleader_id
1 1 1
3 3 22

leads_teamleader

extenduser_ptr_id commission_rate
1 0.05
22 0.05

reports_companyreport

report_ptr_id sales_company_id
4 1

reports_divisionreport

report_ptr_id division_id
3 1

reports_marketerreport

report_ptr_id marketer_id
1 4

reports_report

id name description created_at created_by_id start_date end_date
1 Benjamin Kreeger report on Benjamin Kreeger's progress for the ﬁrstApr 1, 2009 Apr 24, 2009
A report 2009-04-23 22:00:48.544827 8 half of April.
2 Team Anderson Performance 2009-04-23 22:03:25.693368 8 Apr 1, 2009 Apr 25, 2009
3 Division report ANothing here! 2009-04-25 20:19:44.609280 8 Apr 11, 2009 Apr 25, 2009
4 Company test report
Test! 2009-04-25 20:26:49.119675 8 Apr 1, 2009 Apr 25, 2009

reports_teamreport

report_ptr_id team_id
2 1

22


Input controls and validation
All data validation on forms in the system is handled by Django’s forms API. A class is made
that abstracts specific information about the fields in a database and ensures that the data
entered into a web form meets those specifications (such as max length, numbers only, etc).
All zip code fields, phone number fields, age fields, and monetary fields are specifically
designed to allow numbers as data. If any other data is encountered, an exception is raised
and the user is returned to the form, showing them why their form was rejected and steps to
take to rectify the error. The ‘don’t repeat yourself’ principle of Django means you define data
validation in one place: the models.py file.

from /leads/models.py

class Customer(Person):
age = models.IntegerField(blank=True, null=True)
marital_status = models.CharField(blank=True, max_length=20,
choices=MARITAL_STATUSES)
num_children = models.IntegerField(blank=True, null=True)
assets = models.DecimalField(max_digits=12, decimal_places=2,
blank=True, null=True)
liabilities = models.DecimalField(max_digits=12, decimal_places=2,
blank=True, null=True)

When you declare a form class in Django, the best way to ensure that validation is as you
specify it is to base it on the model, like this form based on the above Customer class.

from /customers/forms.py

class CustomerForm(forms.ModelForm):
class Meta:
model = Customer

When this form is instantiated and passed in context by the view layer, it can either contain
initial data (useful for filling it with POST data and then updating or creating database rows) or
it can be empty. When it’s passed to the template layer, it can be customized in any number
of ways, including listing errors by each field after they occur.

from /templates/customers/customer_edit.html

<div id="panel_left">
<h2>{{ form.first_name }}{{ form.last_name }}
{{ form.first_name.errors }}{{ form.last_name.errors }}<span
class="right">editing</span></h2>
<ul>

23


<li>{{ form.address }}{{ form.address.errors }}</li>
<li>{{ form.city }}{{ form.city.errors }}, {{ form.state }}
{{ form.state.errors }} {{ form.zip_code }}{{ form.zip_code.errors }}</li>
<li>{{ form.country }}{{ form.country.errors }}</li>
<li>{{ form.phone }}{{ form.phone.errors }}</li>

...

Security controls
The web application is currently being hosted at WebFaction (http://webfaction.com/), which
houses its servers stateside in Texas. The app is only accessible via secure HTTP (HTTPS) —
a redirect occurs when a user visits the http:// side of the site to the https:// version. No
information is ever sent over plain text. If hosted elsewhere, this could easily be re-
implemented in Apache’s .conf configuration files.

Users must log in to the system with their credentials to access anything other than the main
Welcome page. A user’s account can be deactivated only by somebody with staff privileges
(equivalent to having master access). Django’s optional auth framework (which I’ve chosen to
utilize for this project) handles user, group, and permission management. So far, I’ve
implemented users as well as basic groups and permissions, but site access is currently open
to all authenticated users until I can further implement permissions and groups per view. The
only exception to this is the admin site, which I’ve locked down to only those who have staff
privileges.

Ensuring only those that are logged in are those that can view web pages is the following
Python decorator before each view (underlined):

@login_required
def new(request):
...

The rest is handled by Django’s auth framework.

The production server, managed by WebFaction, is hosted in The Planet’s Datacenter in
Houston. The following is a rundown from WebFaction’s website on server security:

We've been in business for over 6 years and we use some of the top datacenters
in the world (from The Planet). The datacenter features redundant UPS systems,
generator backup, VESPA detection systems, closed circuit monitoring of all
areas and entrances, 24 hour guard manned security, redundant a/c systems,
and fiber from 5 separate providers.

24


Database integrity controls
The only login/entry point to the MySQL database is defined in the /settings.py file. Only
one user with full privileges over only the Birdie database (the password, a non-dictionary-
based random sequence of 8 letters and numbers, has been omitted) is specified, as shown
below.

DATABASE_ENGINE = 'mysql'
DATABASE_NAME = 'kreeger_birdie’
DATABASE_USER = 'kreeger_birdie'
DATABASE_PASSWORD = '••••••••'
DATABASE_HOST = ''
DATABASE_PORT = ''

In the future, for more secure database access, the password could be converted to an SHA1
hash. Currently, the only MySQL connections allowed are from localhost, on the same server
hosted by WebFaction. If the system is hosted elsewhere, this could easily be re-
implemented in MySQL’s privileges table.

I have not implemented transaction logs beyond those included with the admin backend
interface. Those admin transaction logs detail the time a transaction occurred, who initiated
the transaction (an instance of auth.user), and the type of transaction.

Backup and recovery
During the project, I’ve kept a repository of all my code on GitHub (http://github.com/kreeger),
which is an online Git repository library. The Birdie repository is private, however, to ensure
data integrity. Only those with given RSA IDs linked to my GitHub account are able to commit
to or clone the source trunk. Regular backups are also made of my computer via Time
Machine.

In the event that disaster does strike and recovery is needed, all I’ll have to do is either restore
from my Time Machine backup or re-clone my git repository. The Planet’s Datacenter takes
care of all other disaster recovery processes for the production server.

I do have a custom cron job specified on my WebFaction server that runs daily at 1:15am; it
does a full MySQL dump of all the data in the tables, zips it up, and stores it on the server.
The output log is stored in a file in the same directory. This backup script is set to keep 14
days worth of files (and clean up anything older than that).

Error trapping
All error trapping in Birdie’s code is done with Python constructs, mostly try/except blocks.
While learning Python for this project, most of my original try/except blocks were anonymous,
which is bad for one’s code; I’ve since converted several of them into explicit try/except
blocks (catching certain errors). Most errors, like failed database lookups, are forwarded to
HTTP 404 pages. Any other errors (like problems in the server-side code) are sent to HTTP
500.

25


Other
For the sake of this project, no sensitive information like Social Security or credit card
numbers are stored in the system.

26


List of use cases and dialogs
Those in italics are not yet implemented.

Define lead source ................ Company Management > External Companies > Add a company
Create new lead ............................................................................................ Leads > Add a lead
Import external leads ................................................................ Leads > Import leads (delimited)
Define promotion ......... Company Management > External Companies > [company] > Add promotion
Assign leads to lead path ................................................................................. Leads > Edit lead
Distribute leads to sales company ....................................... Leads > Assign leads to [company]
Distribute leads to division ..................................................... Leads > Assign leads to [division]
Distribute leads to sales team .................................................... Leads > Assign leads to [team]
Assign leads to marketers .................................................... Leads > Assign leads to [marketer]
Upgrade/downgrade (change) lead status ............................................................ Leads > [lead]
Archive inactive leads .................................................................... Temporal event (not in menu)
Generate lead report .............................................................................................. Leads > [lead]
Generate marketer report ...................................... Reports > Marketer > Add a marketer report
Generate overall report ..................... Reports > Sales Company > Add a sales company report
Export lead list
............................................................................Leads > Export leads (delimited)
Define customer ....................................................... Customer Management > Add a customer

Other dialogs

The following is a list of other dialogs in the system not specifically related to a predetermined
use case.

Get a list of leads for user .................................................................................................. Leads
Define product .............. Company Management > External Companies > [company] > Add a product
Define sales company ........... Company Management > Internal Companies > Add a company
Define division ............... Company Management > Internal Companies > [company] > Add a division
Define team ...... Company Management > Internal Companies > [company] > [division] > Add a team
Define order
......................................................................... Order Management > Add an order
View user profile
............................................................................... [any screen] > [user’s name]

Storyboards
The following are storyboards related to three important use cases. Each screenshot is
marked up with details and instructions on the process.

27


Create new lead

28


29


30


Change lead status

31


32


Generate marketer report

33


34


35


Authentication
Logging in

When a person without an account on the system tries to log in, the system reloads the login
form with the message ‘Sorry, that’s not a valid username/password combination.’ If a user
with an account on the system tries to login with an incorrect password, the same error
message is shown. When the user correctly logs into the system, they’re either redirected to
the page they were originally going to, or if they chose explicitly to log in, they’re redirected to
the welcome screen.

Leads
Adding a new lead

When a processing rep pulls up the add a new lead page, all fields are required (and the page
specifies this). Blank values can be selected for customer, source, and promotion, but they
will not validate in the field. Pipeline can be either buyer or non-buyer, and status can be
active or inactive (if need be). Any errors are shown next to the fields with which they occur
when the form is redisplayed for corrections.

36


Changing lead status

When a processing rep pulls up the changing lead status forms, the form only allows
submission of numeric values in numeric fields. The help text on the page indicates this. If
anything besides numbers (like letters or symbols) are entered in these fields, the form will
reload displaying the errors. The selection fields do not allow for errors; any of the selectable
items are okay. All of the non-select fields are optional as well. A maximum of 11 digits are
allowed in the age and children fields, and assets/liabilities are 12 max digits.

37


Assigning leads to business unit

When a processing rep, manager, or teamleader assigns leads to a sales company, division,
team, or marketer, no errors are thrown (as nothing happens that would be unacceptable in
the database). If the ‘Assign Leads’ button is clicked and no leads are selected, the form
simply reloads and nothing is committed to the database. There are no non-selectable
options no matter which level of management logs in to assign leads.

38


Company Management
Adding a company

When adding a company, the view checks to see (from GET data in the URL) if a company is
internal or external, and displays the fields accordingly (internal companies get two extra
fields). On-screen help guides the user as to what information will be accepted in the form,
but if any form encounters a type that it’s not expecting (zip code or phone number fields
don’t expect letters), the form will be reloaded with the errors by the problematic fields. The
form will also reject any company added without a manager. The maximum name length is
100 characters; address is 100 characters, city is 60, and country is 50.

39


Editing a company

When editing a company, the view checks to see if the company is internal or external (from
the URL, like the add a company dialog), and displays the proper fields in the forms. On-
screen help guides the user as to what information will be accepted in the form. The form will
reject any invalid data, such as letters in a phone number or zip code field, or a non-selected
manager. This form follows the same validation rules as the add a company dialog.

Adding a promotion

When adding a promotion, the only field that’s present is the promotion name, which is
required. The company the promotion belongs to is determined by which company you got
to the add promotion form from (thus, it’s in the URL and handled by the view function when
added to the database). The name field is required; if it’s left blank, the form is redisplayed

40

with the error. The name can be letters and/or numbers. The maximum name length for a
promotion is 100 characters.

Adding a division

When adding a division, both ﬁelds (name and manager) are required. The company the
division is being added for is determined from the URL (which itself is determined from the
page the form request came from). Letters and/or numbers can be entered into the name
ﬁeld, and the manager has to be selected from the list of managers (which is restricted to
Division Managers). The maximum name length is 100 characters.

41


Editing a division

The same rules apply when editing a division. The name and manager are both required,
whereas the company the division belongs to is determined by the URL, which itself is
determined from the page the form request originated from.

42


Adding a team

When editing a team, the only field that can be filled is the teamleader field. The name is
always derived from the teamleader’s last name (and as a matter of fact, the team’s name is
never stored in the database; it’s always defined in the model’s __unicode__ representation
method to announce the instance as ‘Team’ so-and-so). If this field is left blank, an error is
thrown.

Editing a team

Editing a team follows the same error handling rules that creating one does. The only option
that can be changed is the teamleader and if the teamleader is left blank, an error is shown
when the form is redisplayed.

43


Customer Management
Adding a customer

When adding a customer in the database, all fields are required, and the zip code and phone
number fields are special, regular-expression fields that only allow specific numeric input (5-
or 9-digit zip codes and 10-digit phone numbers, respectively). When blank fields are
submitted, the form is redisplayed asking the user to fill in those fields. When improper input
is inserted into the zip code or phone fields, errors are shown reminding users of the format
the data is supposed to be in. Both first and last names are 50 characters max; address is
100, city is 60, and country is 50.

44


45


Editing a customer

When editing customers, the same validation rules apply as when adding customers, as well
as some additional rules for customer demographics that aren’t available during customer
addition. Age, number of children, assets, and liabilities are only allowed to be numbers;
letters or symbols entered in them will return the form to the user with errors. The
demographic ﬁelds (age, marital status, number of children, assets, and liabilities) are all
optional (the on-screen help denotes this). A maximum of 11 digits are allowed in the age and
children ﬁelds, and assets/liabilities are 12 max digits.

46


47


Reports
Adding a report

Report creation allows for a title, a description, a start and end date, and a unit for the report
(marketer, team, division, company). The description is the only optional element; both date
fields must be in the YYYY-MM-DD format. The start date field must have a date that falls
before the end date field, and the end date field must fall after the start field date; if this
happens, a validation error will be shown on the form and the correction must be made. The
minimum time span for a report is one day (same day in both fields). The maximum name
length is 255 characters, and there is no maximum time span.

48


49


Editing a report

Editing a report follows the exact same validation rules as adding a report (the same Django
form class is used for validating both). Thus, the name is required, start/end dates are
required (and the start date must be before the end date, both in YYYY-MM-DD format), and
the marketer is required. Any errors will be thrown back to the database.

Deleting a report

In deleting a report, little is required to be validated. The user is shown a confirmation screen,
asking them if they want to delete the specific report (they are shown the name of the report).
They can then choose yes or no. Yes deletes the report, and no uses JavaScript to send
them back a page in their history. The deletion only occurs if there is POST transmission
happening (and the delete button sends a POST request). Thus, if a user visits the URL,
they’ll be greeted by the confirmation page before anything happens (the URL is not directly
linked to the command to delete from the database).

50


The following is a list of components I haven’t had time to implement, as well as some ideas I
knew I wouldn’t have time to implement (but I’d have liked to). They’re in order according to
the most important down to the most trivial.

• Lead import and export
I have the links in place under the processing representative’s leads list, but I
don’t have views hooked up to them; right now, they bounce to HTTP 404 pages,
which is where they should go until I can implement them. I know that Python has
easy-to-use file parsing components, including parsing delimited documents
(which is the format that batch leads usually come to the company in, either
comma- or tab-delimited), and those are in my plans for this component. A form
would accept a file to be uploaded; the file will be checked to see if it’s in the
proper format (no erroneous files will be allowed), each lead in the file will be
parsed and then entered into the database.
• Customer/promotion addition inside lead creation
I understand right now that it’s troublesome to have to create a new customer or
promotion for adding a lead that has new information that’s not already in the
system. Complementing the lead import/export use case, this feature would allow
the addition of a customer that’s not already in the database while adding a lead
that introduces that new customer. The same would go with promotions.
• Lead auto-expire
After a certain date, leads are set to expire. What I need to do is either program a
Python script or something to filter through the database every hour or so and get
all leads whose expire date/time is less than the current date/time and set their
status to expired.
• Lead archival
At the end of the day, expired and inactive leads should be archived for later
retrieval if needed. What I ended up implementing was similar in fashion but
didn’t use a temporal event; I sorted the list of leads into active / inactive / expired
categories. However this doesn’t archive inactive and expired leads at the end of
the day; they’re still there. Implementing this would involve adding an attribute to
the leads_lead model that’s a Boolean value stating whether it’s archived or not.
Archived leads could be pulled up by a teamleader for redistribution to marketers
if necessary.
• Per-unit deletion
Right now, the option to delete things in the database is available in the admin
backend; if a user has the proper privileges, they can delete whatever they want
(with the proper rows in other tables cascading like they should). In the future, I’d
like to implement the ability for an appropriate user to delete a team, a marketer,
etc. from the database (with confirmation) without having to enter the backend.
The basic deletion functionality is implemented in the reports subsystem.
• Order management subsystem
One of the parts of the system that I had originally included was that of order
management. Once a customer’s account was upgraded, they would be sold a
product, and that order would go in the system complete with payment

51

information, due dates, and so forth. The database tables are there, and the basic
list view is already written, but the act of creating an order is not yet in the system
(the user is forwarded to an HTTP 404 error page). What I ended up doing was
expanding the report subsystem more than originally planned, which pushed
order management to the backburner. This subsystem included adding products,
viewing product detail, adding orders, viewing order details, and editing those
objects as well.
• Lead quotas
Marketers should really only be assigned so many leads maximum; lead quotas
would prevent this from happening. Either quotas would be set per individual
marketers, or quotas would be set for every marketer at the same time; either
way, this would prevent overloading a bunch of leads on to a marketer that’s too
busy. All this would entail is either editing the model or setting a system-wide
constant setting, and then try the ‘assign leads to marketer’ use case within an if/
else block (if the marketer’s lead count is equal to their quota, then raise an error;
else, assign lead to marketer).
• Internet Explorer stylesheet issues
I didn’t have time to ﬁx it, but Internet Explorer doesn’t show the navigation bar
properly due to Internet Explorer’s CSS incompatibilities; it shows the inline list as
a regular list (straight down instead of straight across the screen). For now it’s
best to open up the site using Firefox or a WebKit-based browser like Safari or
Google Chrome.
• Graphs in reports
I also had planned to use the matplotlib Python library for creating graphs for
reports; right now, there’s a placeholder image on each report where the graph
would go. After researching matplotlib and a few other alternatives, I started
leaning towards doing HTML/CSS-based graphs, which would better lend itself to
being reformatted if visited by a mobile browser. As this wasn’t critical to the
system, it was also pushed to the backburner.
• Additional user preferences
Another component that I had planned for the future of the system was that of
setting user preferences: color schemes, visibility changes, the number of leads to
display per page (once pagination has been implemented), etc. As most web
applications have a generous number of preferences, I did have several in the
back of my mind as I was planning and coding the project, but I didn’t want to
spend my already limited time writing in preferences; I wanted to wait until I had
most of the core features in place before I added user preferences.
• Undo functions
If a user makes a mistake, they have to go into the admin interface and correct it.
This is a problem if a user needs to undo something and they don’t have admin
privileges. Undo would add a ﬂash at the top of the screen after an action has
occurred (like assigning leads to a unit), with an undo button. Clicking this would
undo the changes to the database (and un-assign those leads).

52


Included on the source code disc is a few different options for evaluating the system I’ve
written.

List of preset test user accounts
The following is a list of all preset accounts in the system, along with their user types. For the
sake of simplicity, everybody’s password is pa55w0rd. Those in italics are staff members,
meaning they can use the admin interface as well.

National Marketing Resources My eBiz
bkanenwisher Sales company mgr lpage Sales company mgr

rellefsen Processing mgr rwolﬂey Division mgr (Int. Sls)

lkreeger Processing rep etaylor Teamleader

jlucas Division mgr (Int. Sls) cchocula Marketer

danderson Teamleader rmcintire Marketer

ccrunch Marketer dwheeler Marketer

bkreeger Marketer mtyson Division mgr (Rl. Est.)

svaughn Marketer esmith Teamleader

mjackson Teamleader mcarey Marketer

slee Marketer smclachlan Marketer

omayer Marketer swhite Marketer

srobinson Marketer afranklin Teamleader

rthornton Division mgr (Rl. Est.) rgold Marketer

rbronson Teamleader dross Marketer

ejames Marketer rwilliams Marketer

yono Marketer

cpebbles Marketer

troll Teamleader

bevans Marketer

gforeman Marketer

dmadison Marketer

53


Original source code
I’ve included all my Python/Django source code for the project, which is in the zip ﬁle
Sourcebirdie.zip. Also in the Source directory is the installer for Python for Windows
(v2.5.4) and the Django 1.1 beta 1 framework code. This method will let you run the source
code on your computer with Django’s built-in development server. Note: these directions
are for Windows.

1. Unzip the Sourcebirdie.zip source code to a folder on your hard drive (say,
C:djcodebirdie).
2. Install Python using the installed Python-2.5.4.msi in the Source folder. This
should install Python on your system.
3. Unzip the Sourcedjango.zip in another location on your hard drive (say, C:
djcodedjango).
4. Using the command line with administrative privileges, navigate to the directory
you unzipped django to (C:djcodedjango in our example) and run setup.py
install. This will install the Django framework into Python’s site-packages
directory.
5. Navigate to the birdie directory that you unzipped to (C:djcodebirdie in our
example) and run manage.py syncdb. This will propagate the SQLite3 database
with the needed tables and initial data to test the system.
6. In the same directory, run manage.py runserver. This will start the development
server running on your computer at http://localhost:8000/. If needed, you can
change the port number by running manage.py runserver 8080 (choose your
own port there).
7. Note: it’s best to run Birdie in Firefox or a WebKit-based browser like Safari or
Google Chrome. It currently has some stylesheet issues with Internet Explorer 7
(that I didn’t have time to resolve).

Pre-built Ubuntu virtual machine
I’ve also included a pre-built virtual machine running Ubuntu (Jaunty Jackalope) v9.04 with all
prerequisites installed. Copy it to your desktop somewhere and run it with VMware Player,
which is included on the CD as well. The virtual machine should automatically log in with the
username and password shown below. Open up Firefox and visit http://localhost:8000/
(which should be set as the home page). The test server is already being run in a startup
process on the virtual machine (it runs from the birdie folder on the desktop with the
command python2.5 manage.py runserver).

• Username: birdie
• Password: birdie

On the Internet
You can also visit Birdie on the Internet where it’s being hosted in a ‘production’-type
environment (no debug information is being shown). It’s at https://birdie.kreegerstudios.com/

54

and should be up for another month (at least). It’s best to use Firefox, Safari, or Chrome
(Internet Explorer has some stylesheet issues that mess up the navigation bar).

55


I didn’t end up spending as much time as I thought I would coding; I had somewhat planned
on going over my hours, but as I coded each week, I was able to do more with less code
thanks to the framework. Because of the deadlines and time restraints for class, I wasn’t able
to talk to the end users at National Marketing Resources much at all about the system’s
progress; I did brief my wife as a test user for the system and had her use it for a little while
through out development.

In all, I didn’t get to some of the activities I had planned, and some I even decided not to do.
My original task list was fairly comprehensive, and I didn’t add too many tasks to it as I went
along (if any; I think there may be one that I added earlier on). I worked less than the total
hours planned for the project. I was on par with a lot of the simpler activities (those that took
4 hours or less) but my estimates for the greater tasks, like coding, were somewhat-less-than-
ballpark accuracy.

Week 16 went from April 26th to May 2nd. Any time spent during Week 17 (a small amount of
time) was spent creating the presentation slides.

Week #
Hours Actual
Allotte Hours
Activities d 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Worked
Business modeling
Understanding the business environment f
Research problems with current system 2 1 1 2
Identify stakeholders 1 1 1
Determine integration with other systems 1 1 1
Understand new system’s place with existing system
2 2 2
architecture
Create the system vision
Identify system objectives 2 1 1 2
Determine system capabilities 2 1 1 2
Identify benefits 2 1 1 2
Create business models
Create organizational chart 1 1 1
Create sales lead workflow model 2 1 1 2
Create computing infrastructure diagram 2 1 1 2
Create marketer lead processing workflow model 2 1 1 2
Requirements
Gather detailed information
Gather existing documentation on work processes 3 1 2 3
Review existing LINKS system 4 2 2 4
Get information about desired reports 2 1 1 2
Observe users of current LINKS system 3 2 1 3
Define functional requirements
Write detailed use case descriptions 7 2 3 3 8
Create use case diagram(s) 2 3 3
Create problem domain class diagram 2 2 2 2 6
Create interaction diagrams 7 3 3 6
Define nonfunctional requirements

56

Week #
Hours Actual
Allotte Hours
Define security requirements 1 1 1
Define reliability requirements 1 1 1
Define technological requirements 2 1 1
Define usability requirements 2 1 1
Prioritize requirements
Determine core requirements 2 1 1 2
Plan other requirements per iteration 2 1 1 2
Set aside some requirements for future releases 1 1 1 1 1 4
Develop user interface dialogs
Create storyboards for each use case 8 2 2 2 2 1 9
Determine color scheme 1 1 1
Create mockups for overall site design (desktop
3 1 2 3
browsers)
Create mockups for mobile site design 3 0
Evaluate requirements with users
Interview users regarding requirements 4 2 2 4
Revise requirements based on interviews 2 2 2
Remove unnecessary requirements 1 1 1
Design
Design the support services architecture and
deployment environment
Plan for server operating systems 2 1 1 2
Design internal site access vs. external site access 2 2 2
Determine periodic system upgrade plan 1 0
Design the software architecture
Establish model-template-controller components 5 4 1 5
Design package diagrams 3 1 2 3
Design use case realizations
Create design class diagram 4 0
Create expanded sequence/interaction diagrams 8 1 2 2 5
Implement core use cases 40 3 2 4 10 5 5 5 5 39
Implement non-core use cases 20 1 1 5 5 5 5 22
Design the database
Finalize domain class diagram 2 1 1 2
Use domain class diagram to define schema 2 1 2 2.5
Specify relationships between tables 2 2 2
Determine if integration with other DBs is necessary 1 1 1
Design the system and user interfaces
Markup storyboards as necessary 2 1 1 2
Define Django templates 20 1 2 1 5 3 4 4 2 22
Design reports and forms 10 1 1 2 2 3 2 2 13
Choose system fonts 2 1 1 2
Determine links and integrations to other systems if
1 0
necessary
Design the system security and controls
Determine security groups and users 2 1 1 2
Determine access levels for each group 2 0
Determine system administrators 2 0
Design login area 4 0
Set an encryption level 2 0

57

Week #
Hours Actual
Allotte Hours
Implementation
Build software components
Write view logic 40 2 1 5 5 4 4 4 25
Write models 10 1 3 1 2 1 1 1 1 11
Write presentation templates 20 2 1 5 5 2 1 1 17
Write URL configurations 10 1 1 1 1 1 1 1 1 1 9
Write settings file 5 1 1 1 1 1 1 1 7
Integrate software components
Upload changes from test server to production server 5 1 1 1 1 1 2.5
Testing
Define and conduct unit testing
Define unit tests to be done 4 1 1 2
Carry out unit tests on core system functions 4 1 1 2
Carry out unit tests on extra features 2 1 1
Carry out unit tests on system security 4 1 1 1 3
Define and conduct integration testing
Define integration tests to be done (core functions must
4 1 1 2 4
always work)
Carry out integration testing on each part of system as
4 1 1 2
it’s built
Define and conduct usability testing
Compare storyboards with actual system interfaces 2 1 1 2
Determine ease-of-use with users 2 1 1
Define and conduct user acceptance testing 12 0
Have users test core functions for acceptance 6 0
Have users test extra features for acceptance 6 0
Deployment
Acquire hardware and system software
Download server operating system 2 1 1
Download MySQL Server 1 1 1
Download Django framework 1 1 1
Obtain server hardware 4 0
Package and install components
Install server OS on hardware 2 1 0.5
Install MySQL Server on server 1 0
Install Django framework on top of Python 1 1 1
Install all upgrades as necessary 2 1 1
Setup Apache with mod_python 1 0
Train users
Develop training documentation for system 10 1 1 2
Distribute training documentation 1 1 1 1
Implement documentation within system 5 1 1 1 1 4
Hands-on training sessions with users 5 0
Convert and initialize data
Import needed geographical data 2 0
Import initial batch of leads 2 2 2
Add users and security groups to the system 2 1 1 1 3
Project Management
Evaluate the project’s scope and risk

58

Week #
Hours Actual
Allotte Hours
Determine project scope with use case list 4 2 2 4
Create problem domain class list 2 2 2
Determine project risk 2 2 2
Identify any possible threats to progress of project 2 2 2
Confirm the project’s feasibility
Calculate net present value 2 2 2
Calculate rate of return on project 2 2 2
List costs per year of system 2 2 2
Develop payback analysis 2 2 2
Complete feasibility study section of planning report 1 1 1
Develop the project and iteration schedules
List out all tasks as required by project 6 4 2 6
Discuss direction of project schedule with Dr. Satzinger 1 1 1
Determine tasks to be done per iteration 2 1 1 2
Monitor and control the project’s iterations
Log time worked on all tasks 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1.6
Keep a journal of everything done per day 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1.4
Adjust project schedule / iterations as necessary 2 1 1 2
Develop periodic deliverable reports for Dr. Satzinger 1 0 2 2 4.1
Configuration and Change
Management
Develop change control procedures
Keep daily backups of all code and documentation 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1.9
Develop plan for moving code to production server 2 1 1 2
Manage models and software components
Update models as project evolves 2 1 1 2
Keep documentation on changes to code (versioning) 2 0 0 0 0 0.4
Environment
Select, configure, and understand the
development tools
Establish programming software (obtain and install) 2 2 2
Establish software needed for model creation,
2 1 1 2
diagramming
Learn Python / Django as needed 30 4 4 4 3 5 2 2 3 3 1 1 32
Tailor the UP development process
Lay out and setup project deliverables 4 2 1 1 4
Meet with Dr. Satzinger as often as needed 5 1 1 1
Determine which models to develop and include in
1 1 1
deliverables
Provide technical support services
Answer questions of any test users 3 0
Grand Total of Hours 493 20 28 14 22 16 22 18 17 19 19 24 34 37 36 45 31 403.9

59

Birdie Design Report

More Related Content

Similar to Birdie Design Report

More from Benjamin Kreeger

Recently uploaded

Birdie Design Report
