The Big Ed 3750 Rechargeable Flashlight comes with multiple charging options including a fast charger system with a two-bay charger base and a trickle charger system. It provides up to 2 hours of light on its primary batteries and 5 hours on its backup batteries. Accessories include replacement battery packs, additional lamps, and vehicle power adapters.

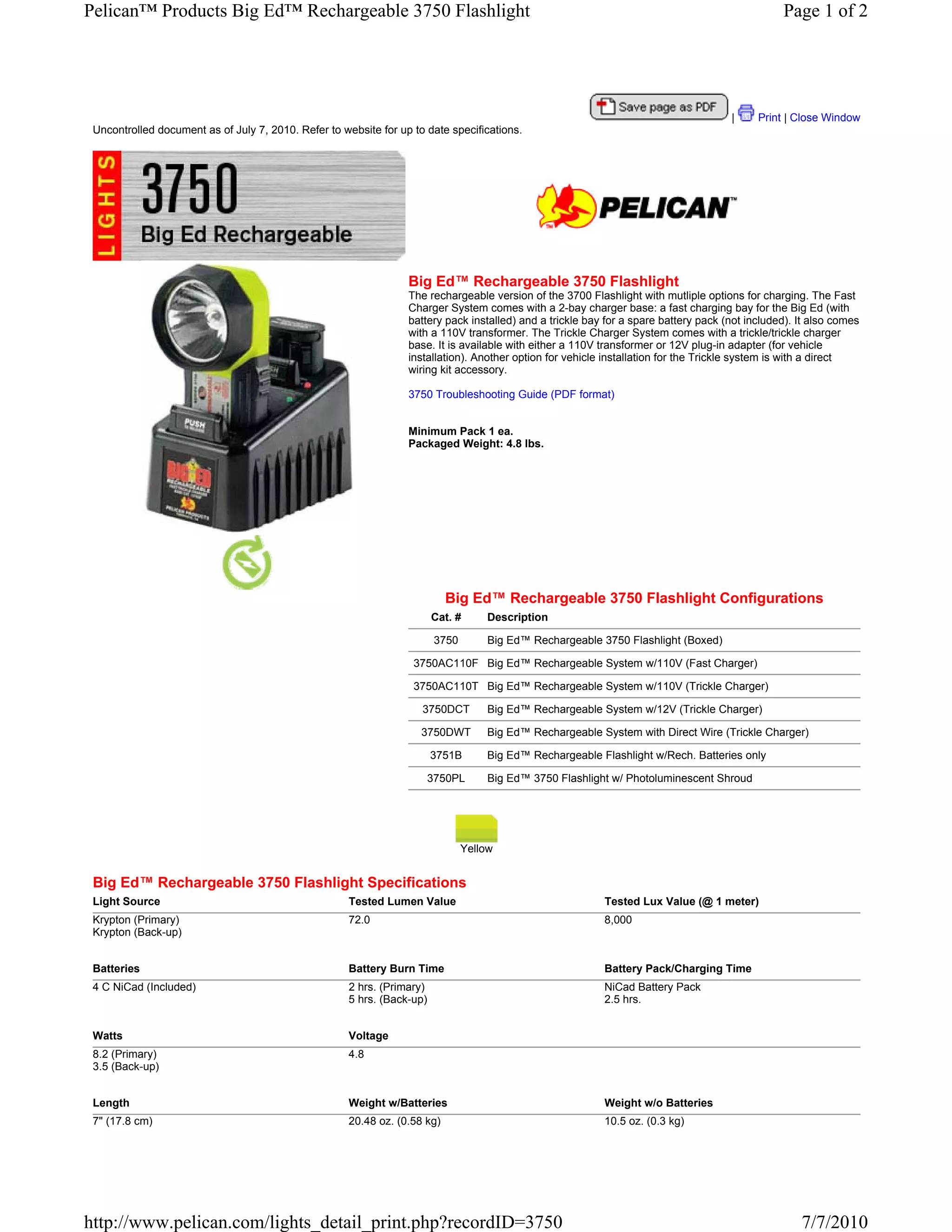

1. Pelican™ Products Big Ed™ Rechargeable 3750 Flashlight Page 1 of 2
| Print | Close Window
Uncontrolled document as of July 7, 2010. Refer to website for up to date specifications.
Big Ed™ Rechargeable 3750 Flashlight
The rechargeable version of the 3700 Flashlight with mutliple options for charging. The Fast
Charger System comes with a 2-bay charger base: a fast charging bay for the Big Ed (with
battery pack installed) and a trickle bay for a spare battery pack (not included). It also comes
with a 110V transformer. The Trickle Charger System comes with a trickle/trickle charger
base. It is available with either a 110V transformer or 12V plug-in adapter (for vehicle
installation). Another option for vehicle installation for the Trickle system is with a direct
wiring kit accessory.
3750 Troubleshooting Guide (PDF format)
Minimum Pack 1 ea.
Packaged Weight: 4.8 lbs.
Big Ed™ Rechargeable 3750 Flashlight Configurations
Cat. # Description
3750 Big Ed™ Rechargeable 3750 Flashlight (Boxed)
3750AC110F Big Ed™ Rechargeable System w/110V (Fast Charger)
3750AC110T Big Ed™ Rechargeable System w/110V (Trickle Charger)
3750DCT Big Ed™ Rechargeable System w/12V (Trickle Charger)
3750DWT Big Ed™ Rechargeable System with Direct Wire (Trickle Charger)
3751B Big Ed™ Rechargeable Flashlight w/Rech. Batteries only
3750PL Big Ed™ 3750 Flashlight w/ Photoluminescent Shroud
Yellow
Big Ed™ Rechargeable 3750 Flashlight Specifications
Light Source Tested Lumen Value Tested Lux Value (@ 1 meter)
Krypton (Primary) 72.0 8,000
Krypton (Back-up)
Batteries Battery Burn Time Battery Pack/Charging Time
4 C NiCad (Included) 2 hrs. (Primary) NiCad Battery Pack
5 hrs. (Back-up) 2.5 hrs.
Watts Voltage
8.2 (Primary) 4.8
3.5 (Back-up)
Length Weight w/Batteries Weight w/o Batteries
7" (17.8 cm) 20.48 oz. (0.58 kg) 10.5 oz. (0.3 kg)
http://www.pelican.com/lights_detail_print.php?recordID=3750 7/7/2010

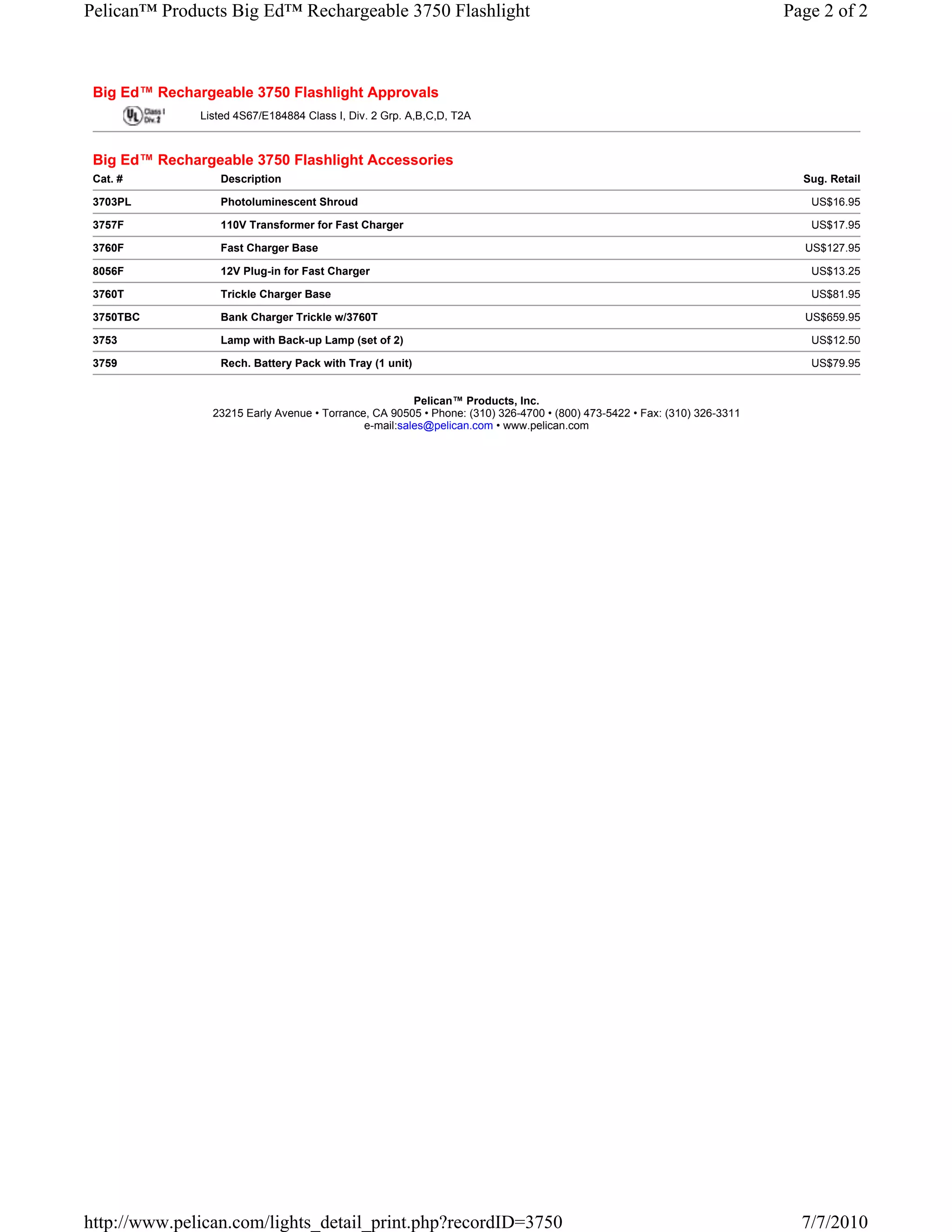

2. Pelican™ Products Big Ed™ Rechargeable 3750 Flashlight Page 2 of 2
Big Ed™ Rechargeable 3750 Flashlight Approvals
Listed 4S67/E184884 Class I, Div. 2 Grp. A,B,C,D, T2A
Big Ed™ Rechargeable 3750 Flashlight Accessories
Cat. # Description Sug. Retail
3703PL Photoluminescent Shroud US$16.95
3757F 110V Transformer for Fast Charger US$17.95
3760F Fast Charger Base US$127.95
8056F 12V Plug-in for Fast Charger US$13.25
3760T Trickle Charger Base US$81.95
3750TBC Bank Charger Trickle w/3760T US$659.95
3753 Lamp with Back-up Lamp (set of 2) US$12.50
3759 Rech. Battery Pack with Tray (1 unit) US$79.95
Pelican™ Products, Inc.
23215 Early Avenue • Torrance, CA 90505 • Phone: (310) 326-4700 • (800) 473-5422 • Fax: (310) 326-3311
e-mail:sales@pelican.com • www.pelican.com
http://www.pelican.com/lights_detail_print.php?recordID=3750 7/7/2010
