This document discusses unit testing in PL/SQL. It emphasizes that testing is important to prevent bugs, make code changeable, prove requirements are met, and document code. The document recommends testing all logic, exceptions, and data. Tests should be automated and run early and often using a test framework like utPLSQL. utPLSQL allows writing isolated tests using annotations and matchers to make assertions. Tests can be organized into suites with contexts and run as part of continuous integration pipelines.

2. https://www.slideshare.net/Kevlin/what-we-talk-about-when-we-talk-about-unit-testing

3. https://www.slideshare.net/Kevlin/what-we-talk-about-when-we-talk-about-unit-testing

4. Jacek Gębal
twitter: @GebalJacek
mail: jgebal@gmail.com
blog: oraclethoughts.com
Principal Software Engineer
@Fidelity Investments - Ireland
co-author & maintainer of: utPLSQL
Test your PL/SQL
not your patience

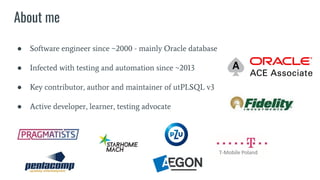

5. About me
● Software engineer since ~2000 - mainly Oracle database
● Infected with testing and automation since ~2013
● Key contributor, author and maintainer of utPLSQL v3
● Active developer, learner, testing advocate

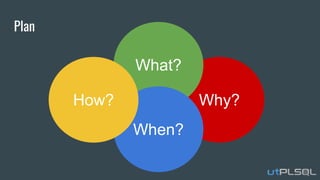

6. Why?
Plan
What?
When?
How?

7. Why test?

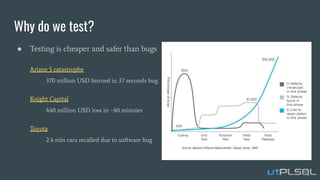

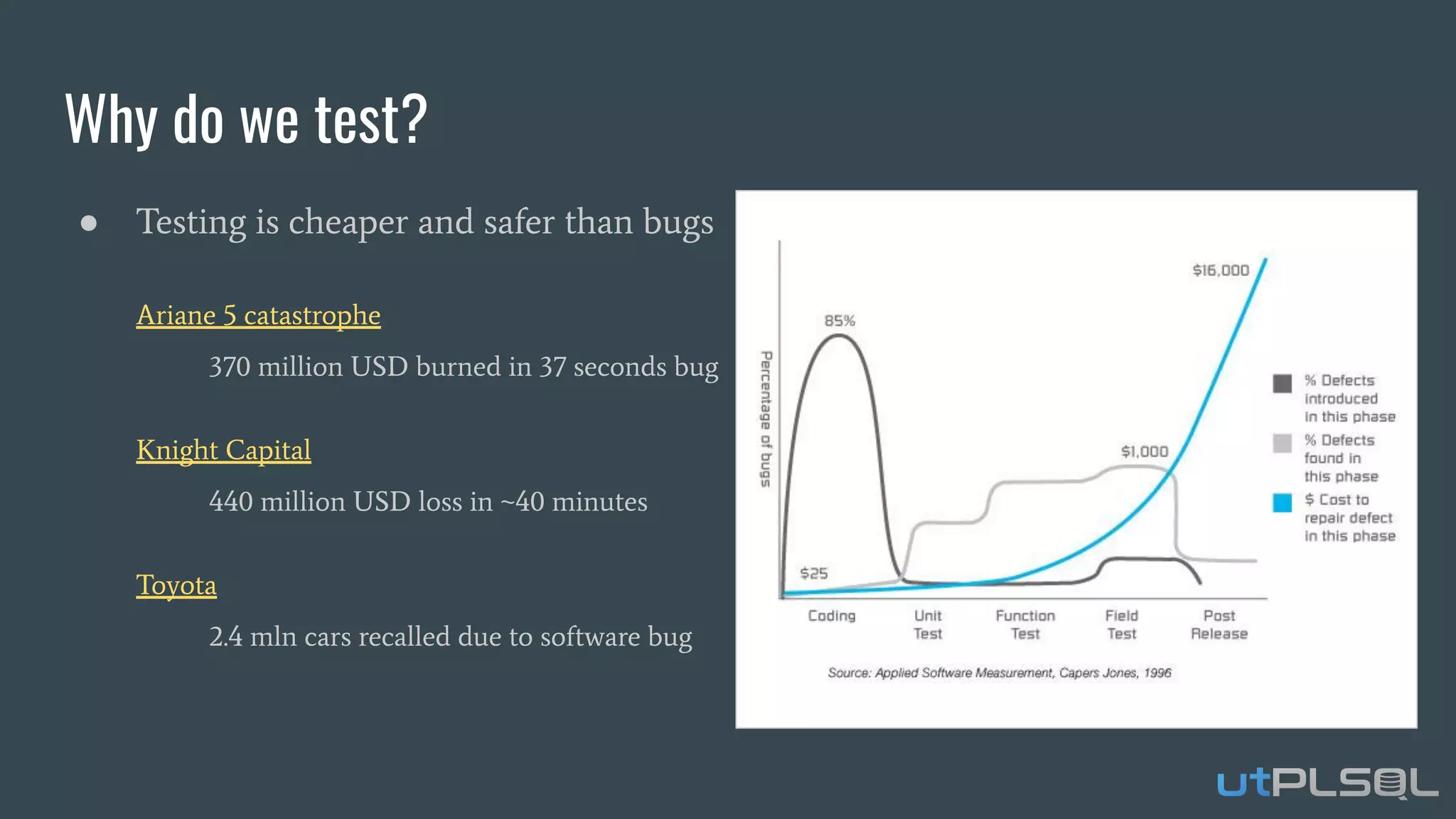

8. Why do we test?

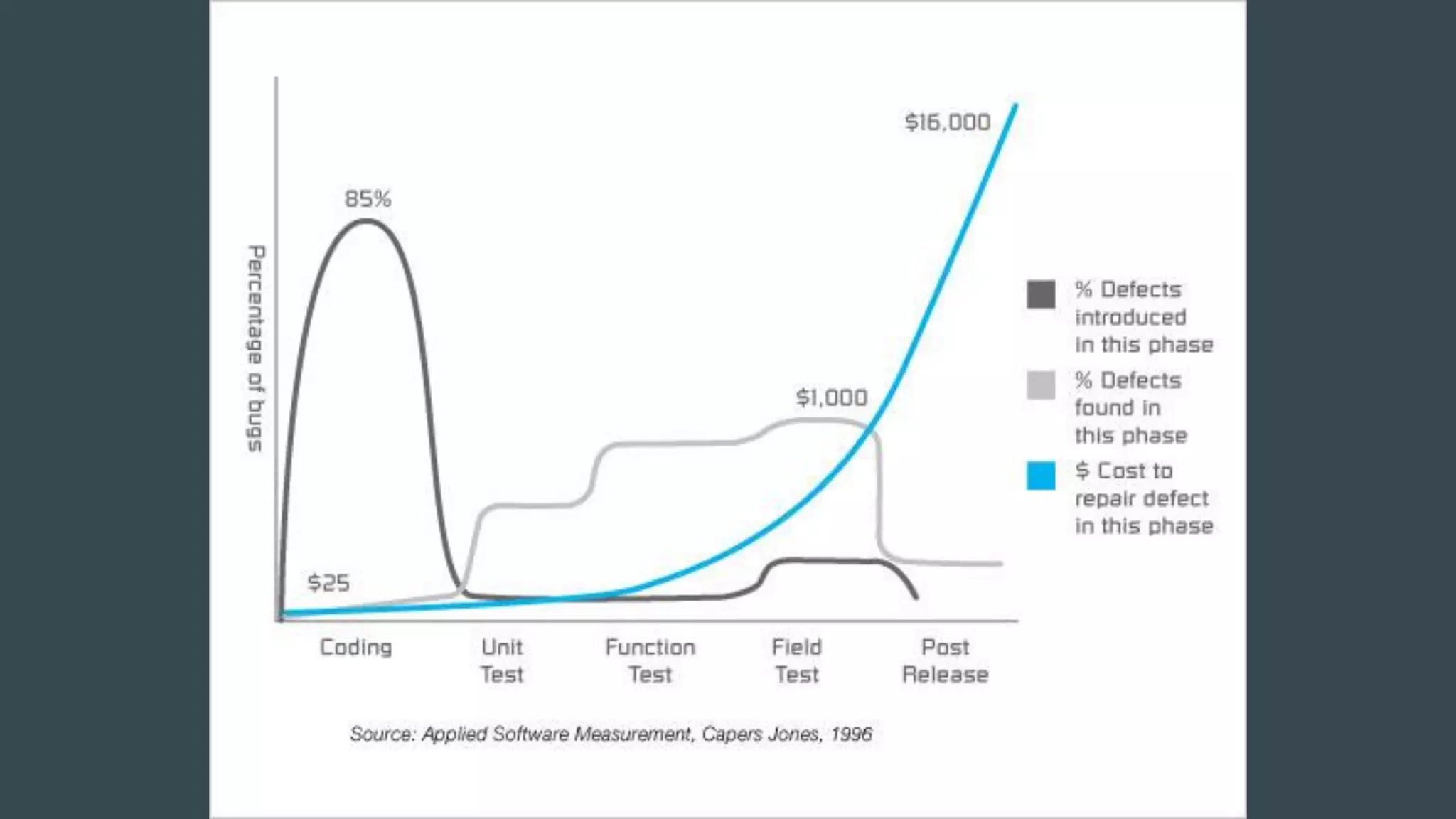

● Testing is cheaper and safer than bugs
Ariane 5 catastrophe
370 million USD burned in 37 seconds bug
Knight Capital
440 million USD loss in ~40 minutes
Toyota
2.4 mln cars recalled due to software bug

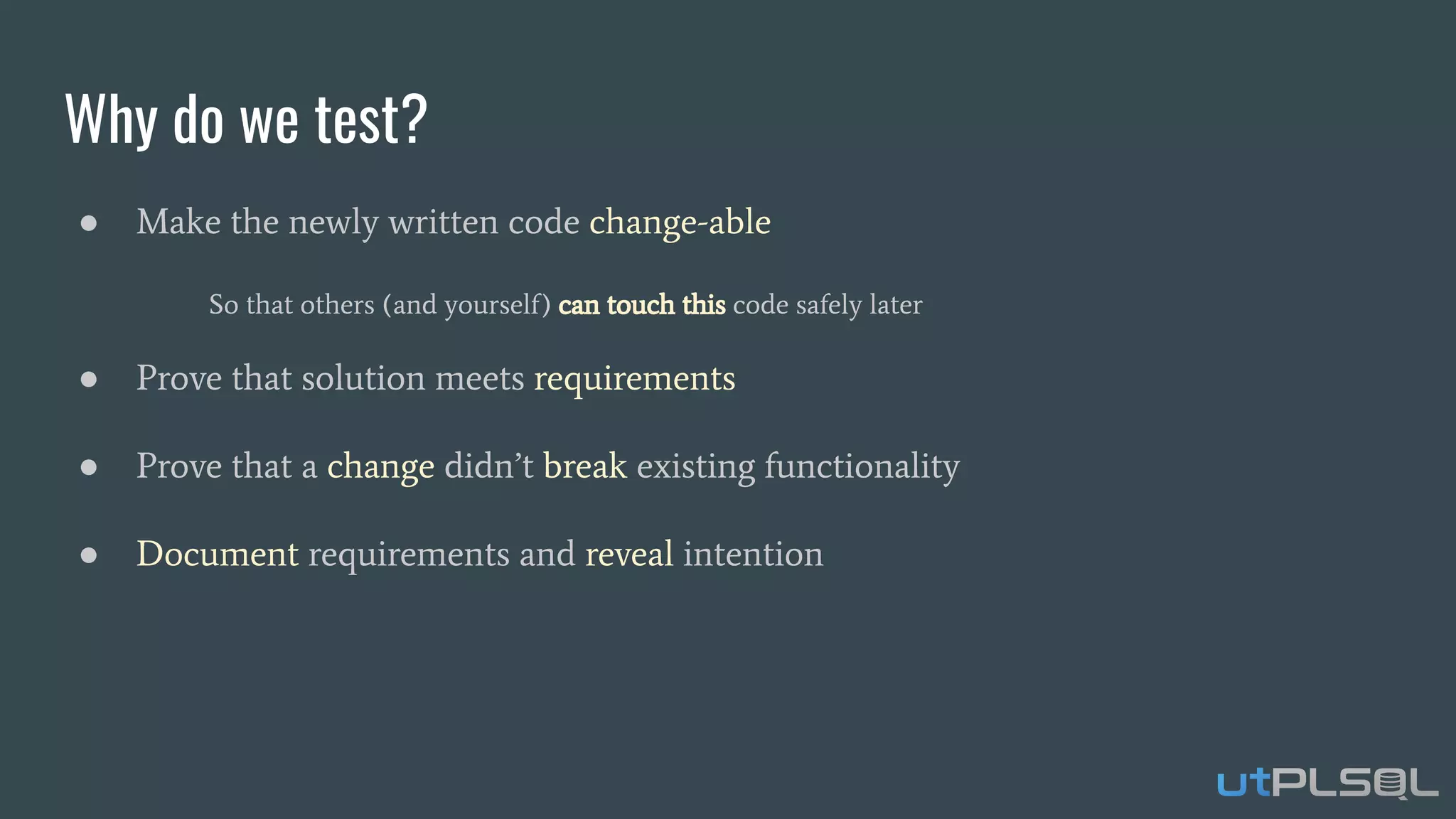

9. Why do we test?
● Make the newly written code change-able
So that others (and yourself) can touch this code safely later
● Prove that solution meets requirements
● Prove that a change didn’t break existing functionality
● Document requirements and reveal intention

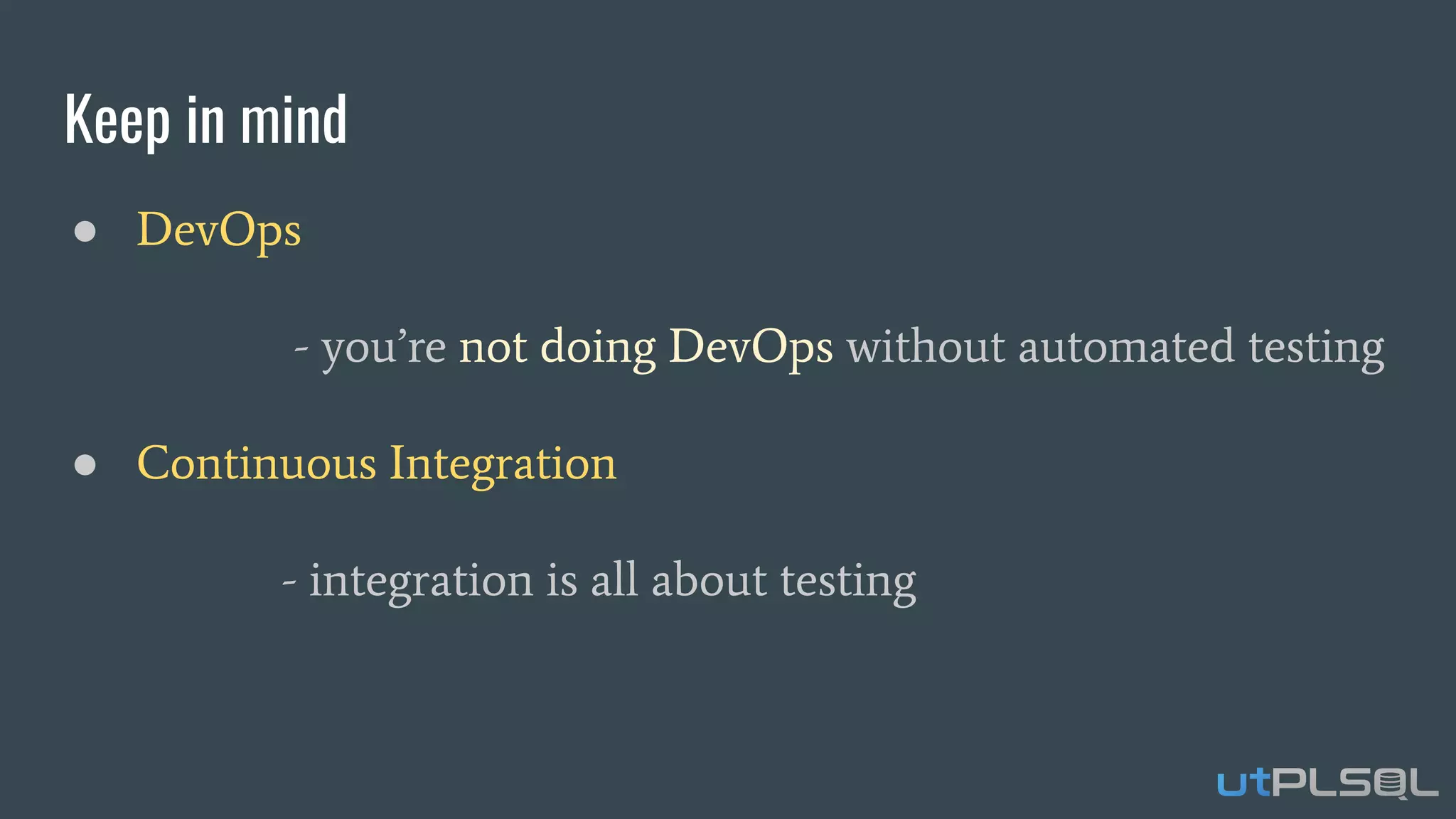

10. Keep in mind
● DevOps
- you’re not doing DevOps without automated testing
● Continuous Integration
- integration is all about testing

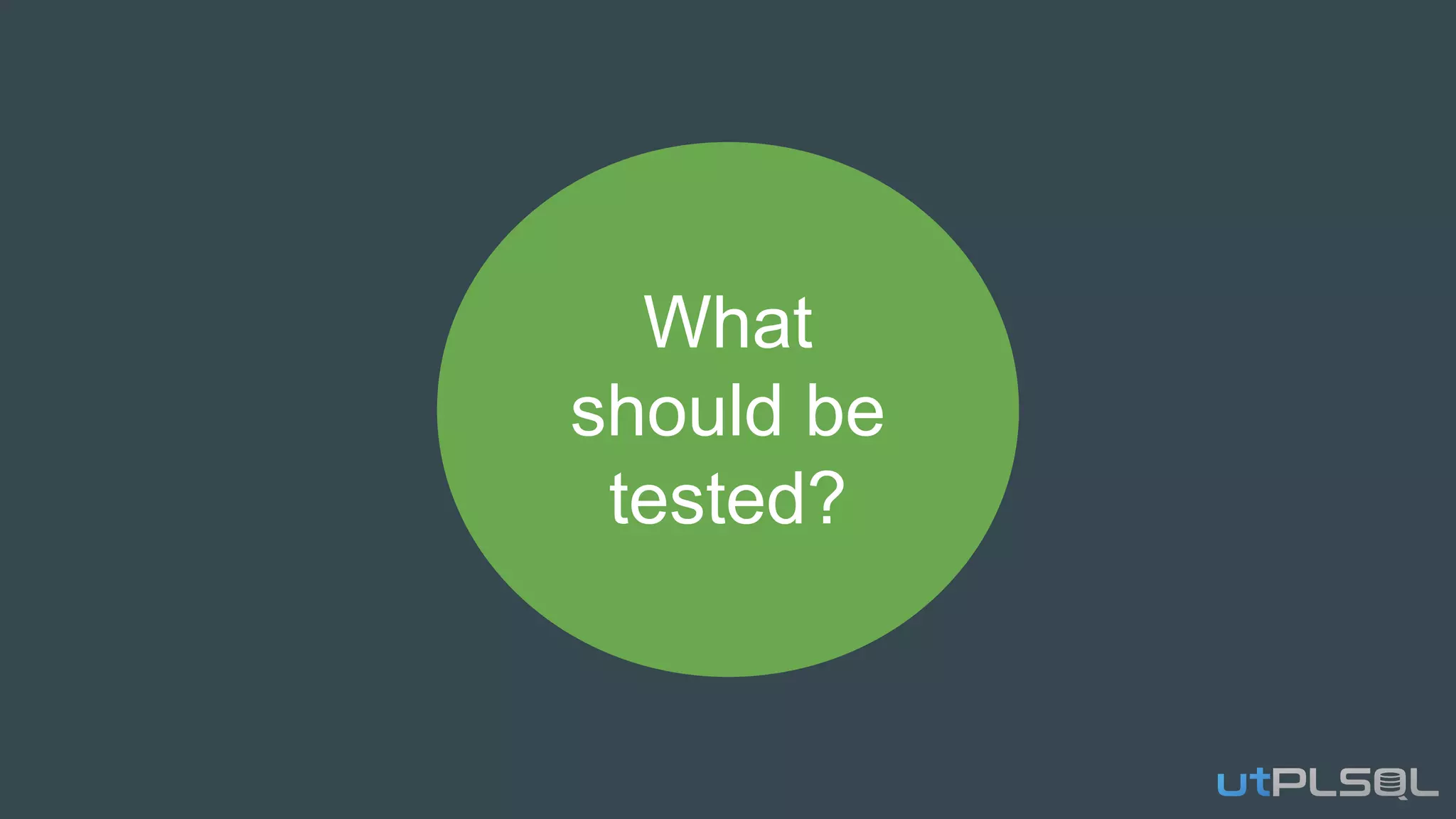

11. What
should be
tested?

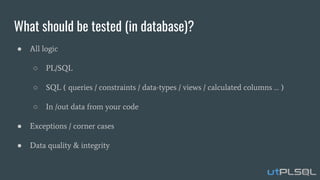

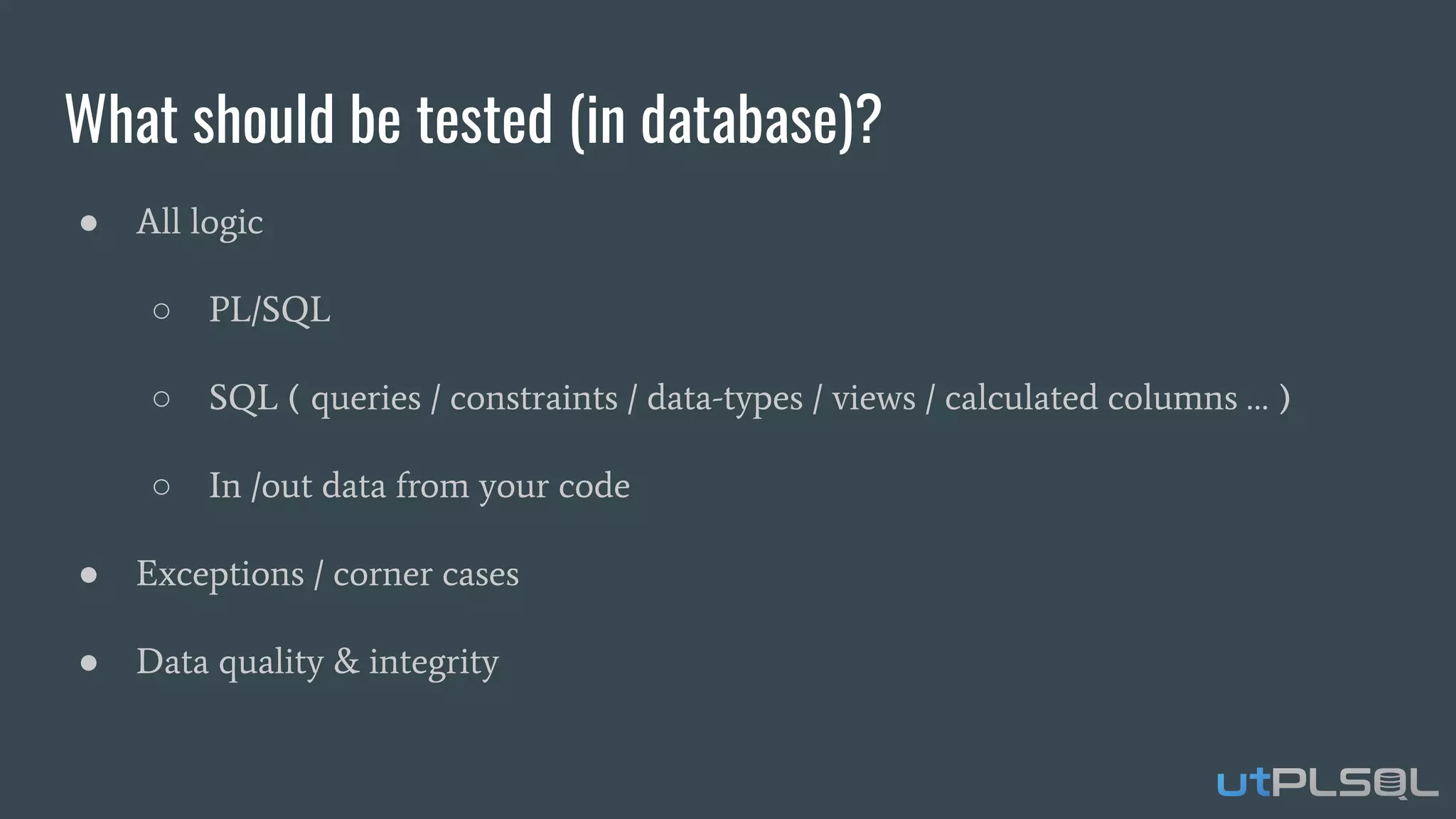

12. What should be tested (in database)?
● All logic
○ PL/SQL
○ SQL ( queries / constraints / data-types / views / calculated columns … )
○ In /out data from your code
● Exceptions / corner cases
● Data quality & integrity

13. When
should I
test?

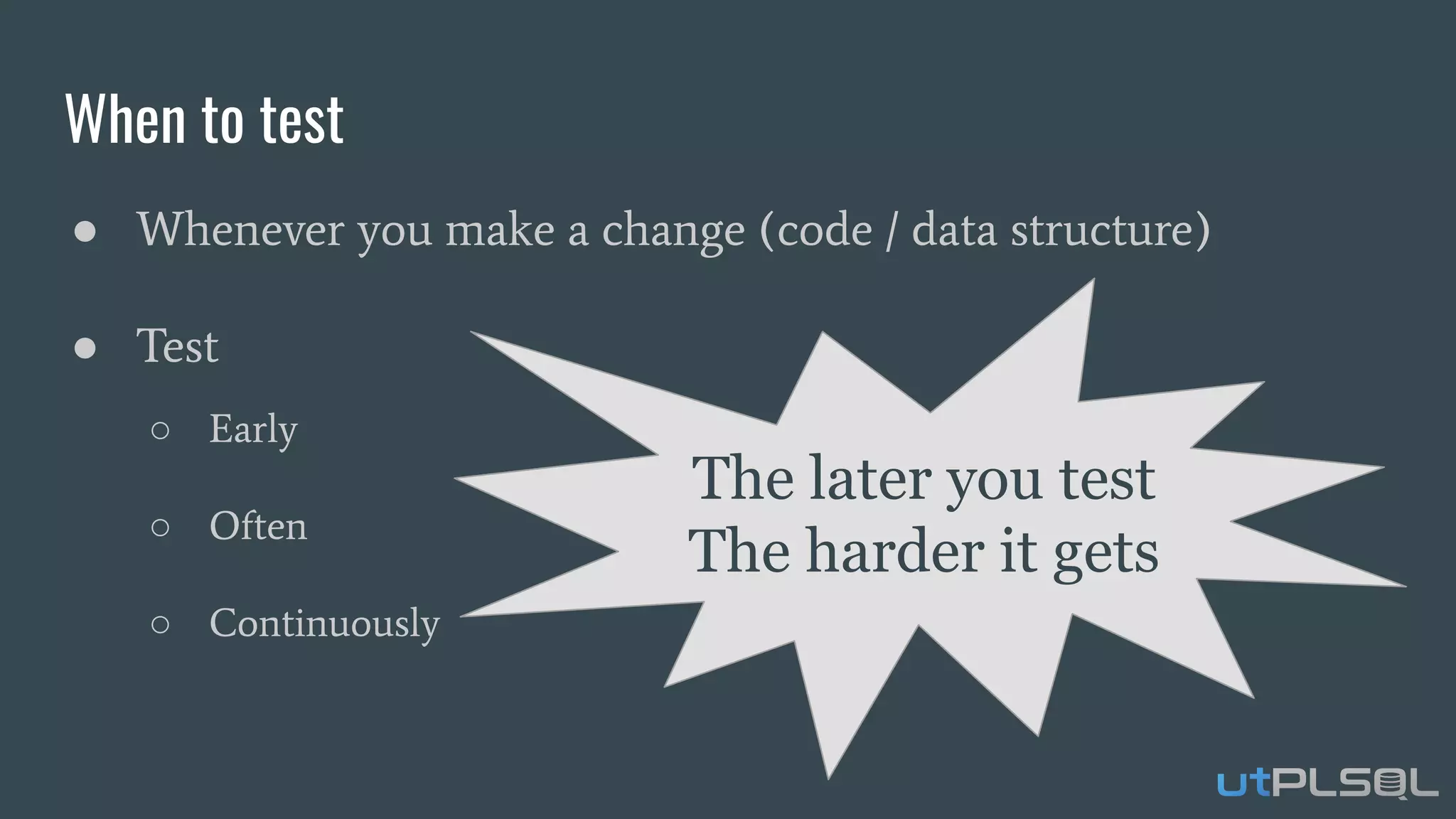

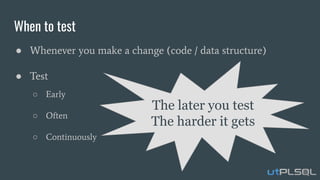

14. When to test
● Whenever you make a change (code / data structure)
● Test
○ Early
○ Often
○ Continuously
The later you test
The harder it gets

15. How should
I test?

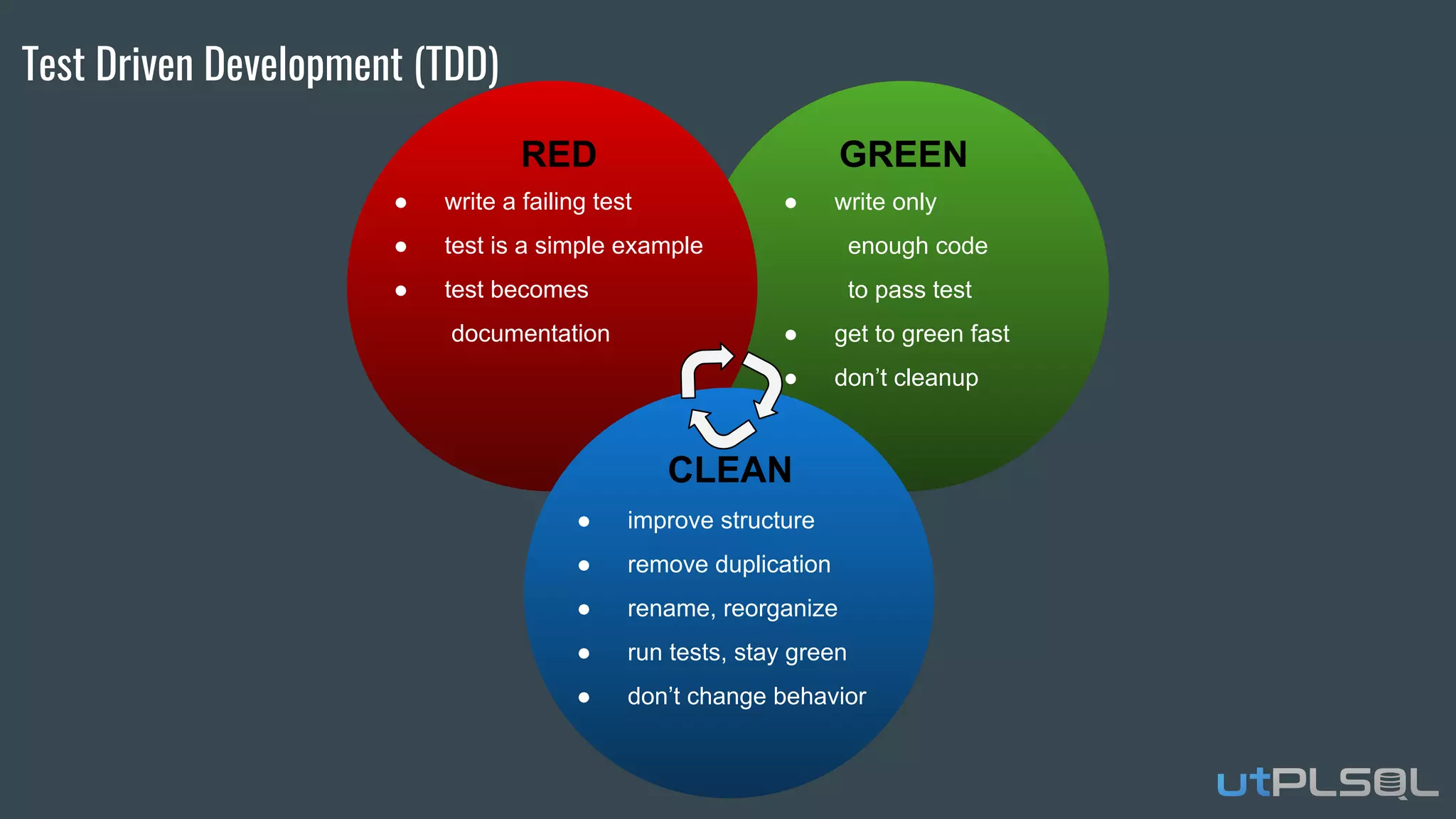

16. ● write only
enough code
to pass test
● get to green fast
● don’t cleanup
● write a failing test
● test is a simple example
● test becomes
documentation
● improve structure
● remove duplication
● rename, reorganize
● run tests, stay green
● don’t change behavior
RED GREEN
CLEAN
Test Driven Development (TDD)

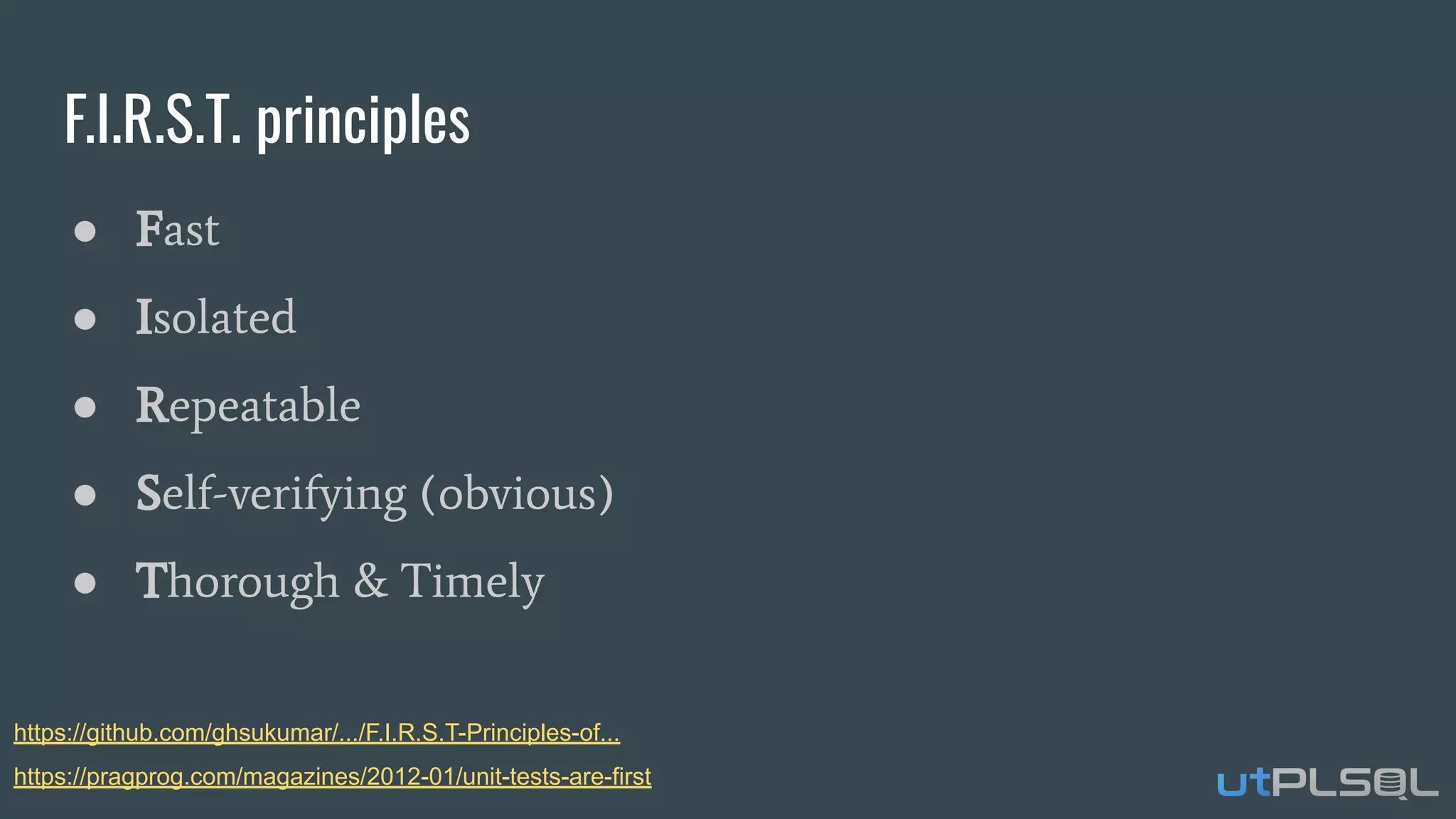

17. F.I.R.S.T. principles
● Fast
● Isolated
● Repeatable
● Self-verifying (obvious)
● Thorough & Timely
https://github.com/ghsukumar/.../F.I.R.S.T-Principles-of...
https://pragprog.com/magazines/2012-01/unit-tests-are-first

18. PLUTO
PL/Unit
ruby-plsql-spec
DBFit
Oracle PL/SQL Testing landscape

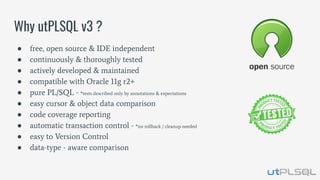

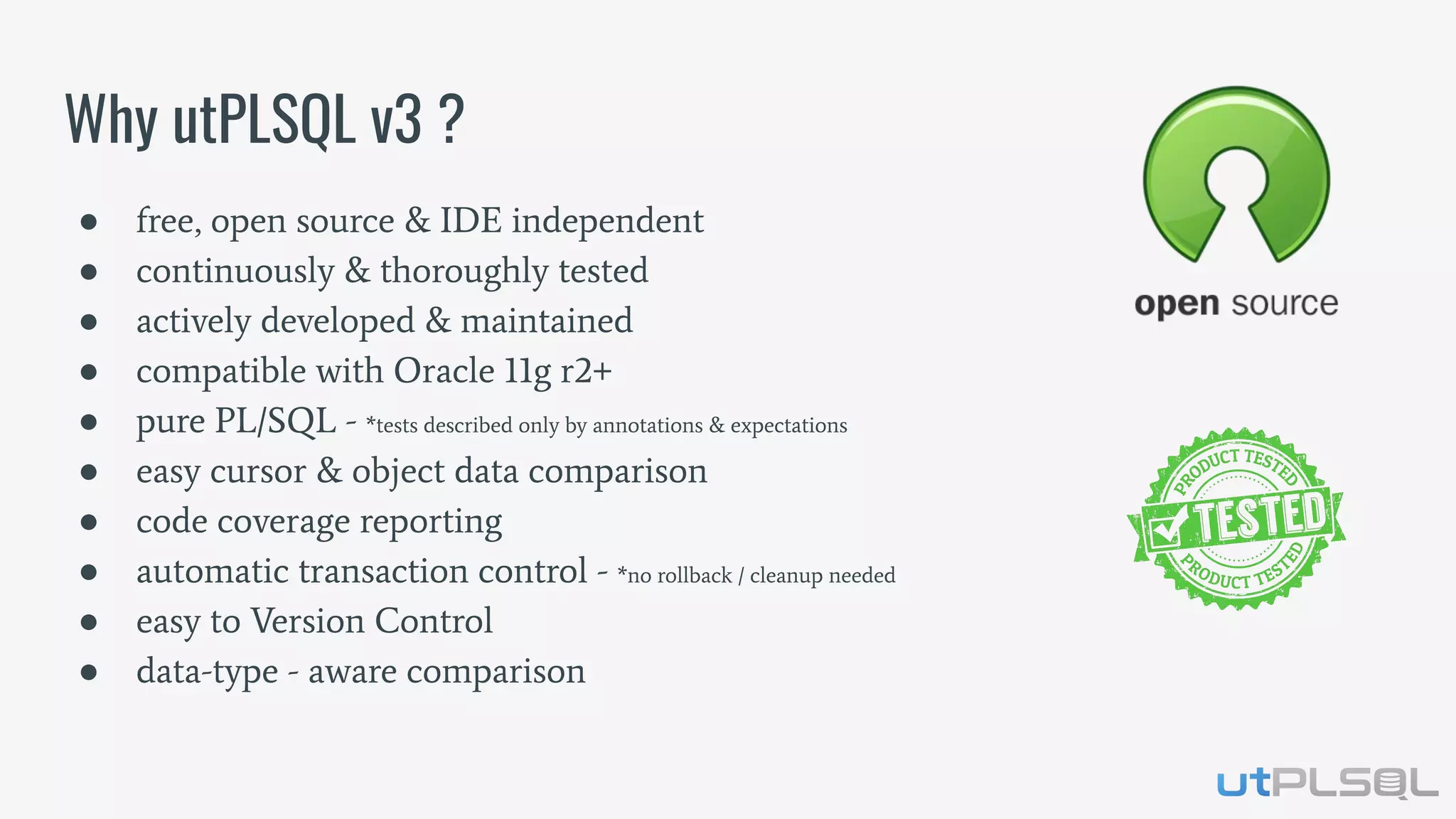

19. ● free, open source & IDE independent
● continuously & thoroughly tested
● actively developed & maintained
● compatible with Oracle 11g r2+
● pure PL/SQL - *tests described only by annotations & expectations
● easy cursor & object data comparison
● code coverage reporting
● automatic transaction control - *no rollback / cleanup needed
● easy to Version Control
● data-type - aware comparison
Why utPLSQL v3 ?

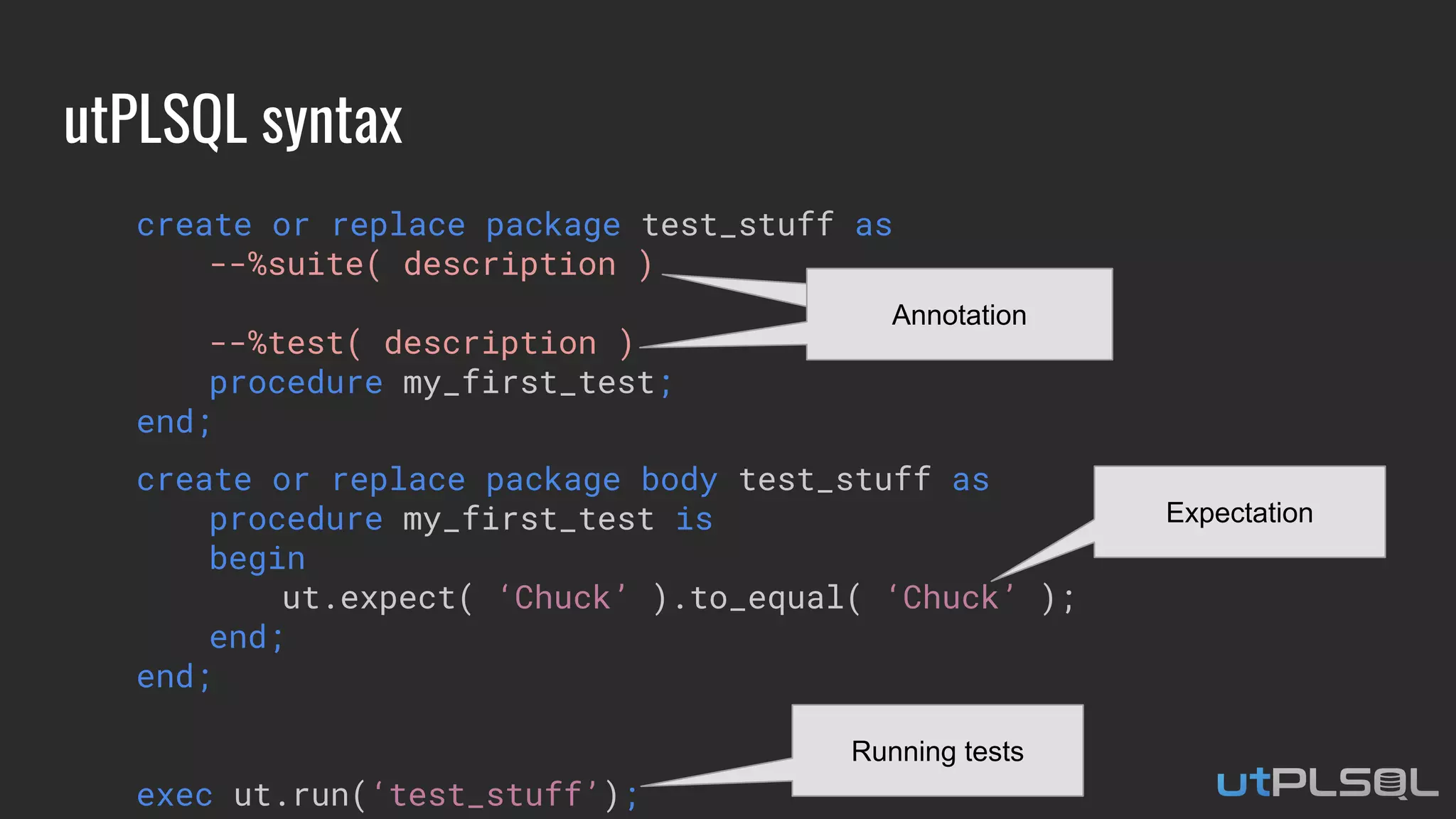

20. utPLSQL syntax
create or replace package test_stuff as
--%suite( description )
--%test( description )
procedure my_first_test;
end;
create or replace package body test_stuff as
procedure my_first_test is
begin
ut.expect( ‘Chuck’ ).to_equal( ‘Chuck’ );
end;
end;
exec ut.run(‘test_stuff’);
Expectation
AnnotationAnnotation
Running tests

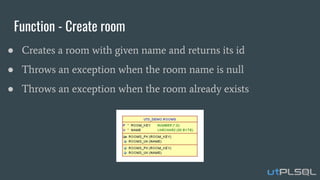

21. Function - Create room
● Creates a room with given name and returns its id
● Throws an exception when the room name is null
● Throws an exception when the room already exists

22. TDD & utPSQL
demo

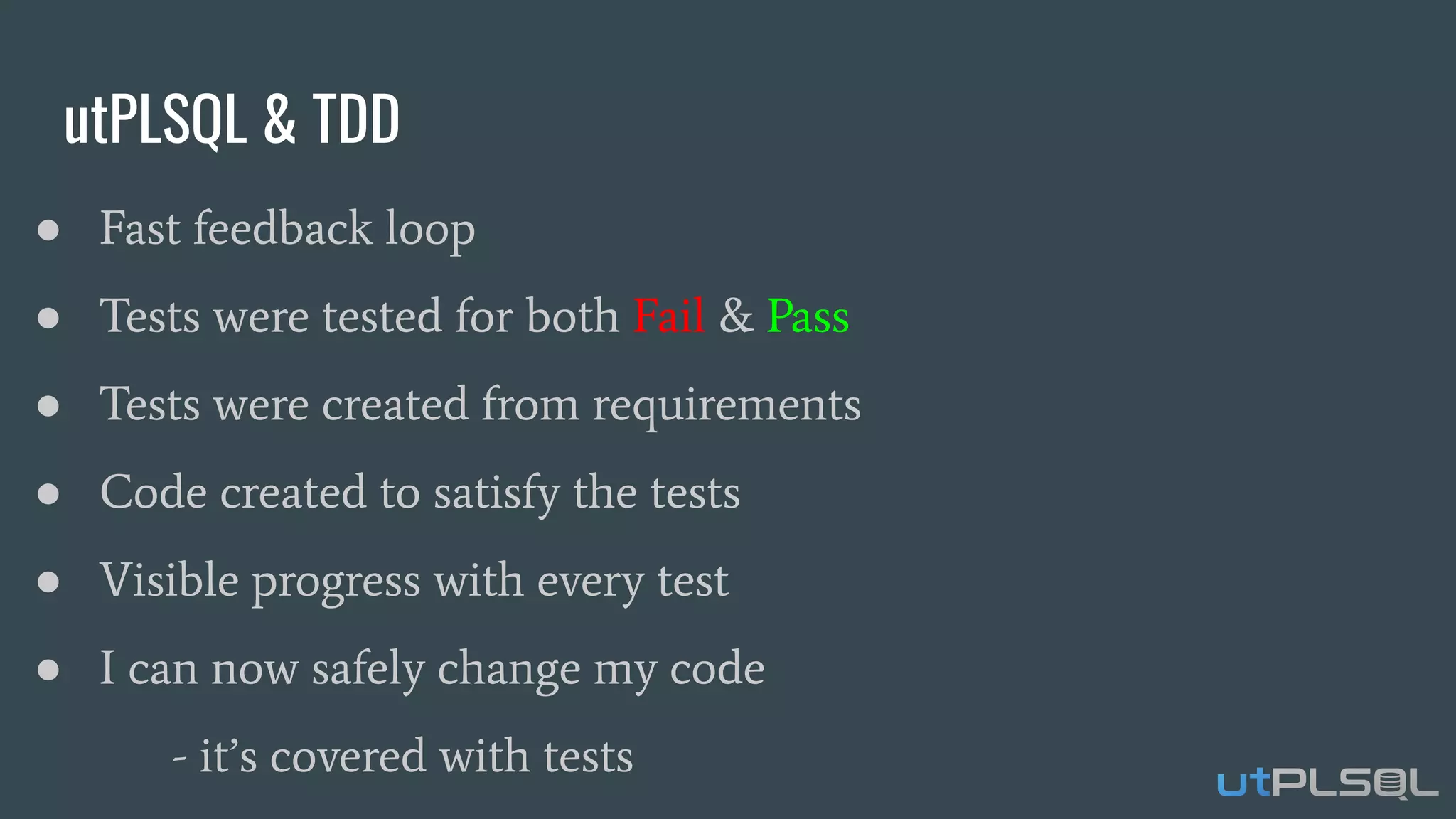

23. utPLSQL & TDD
● Fast feedback loop
● Tests were tested for both Fail & Pass
● Tests were created from requirements
● Code created to satisfy the tests
● Visible progress with every test
● I can now safely change my code
- it’s covered with tests

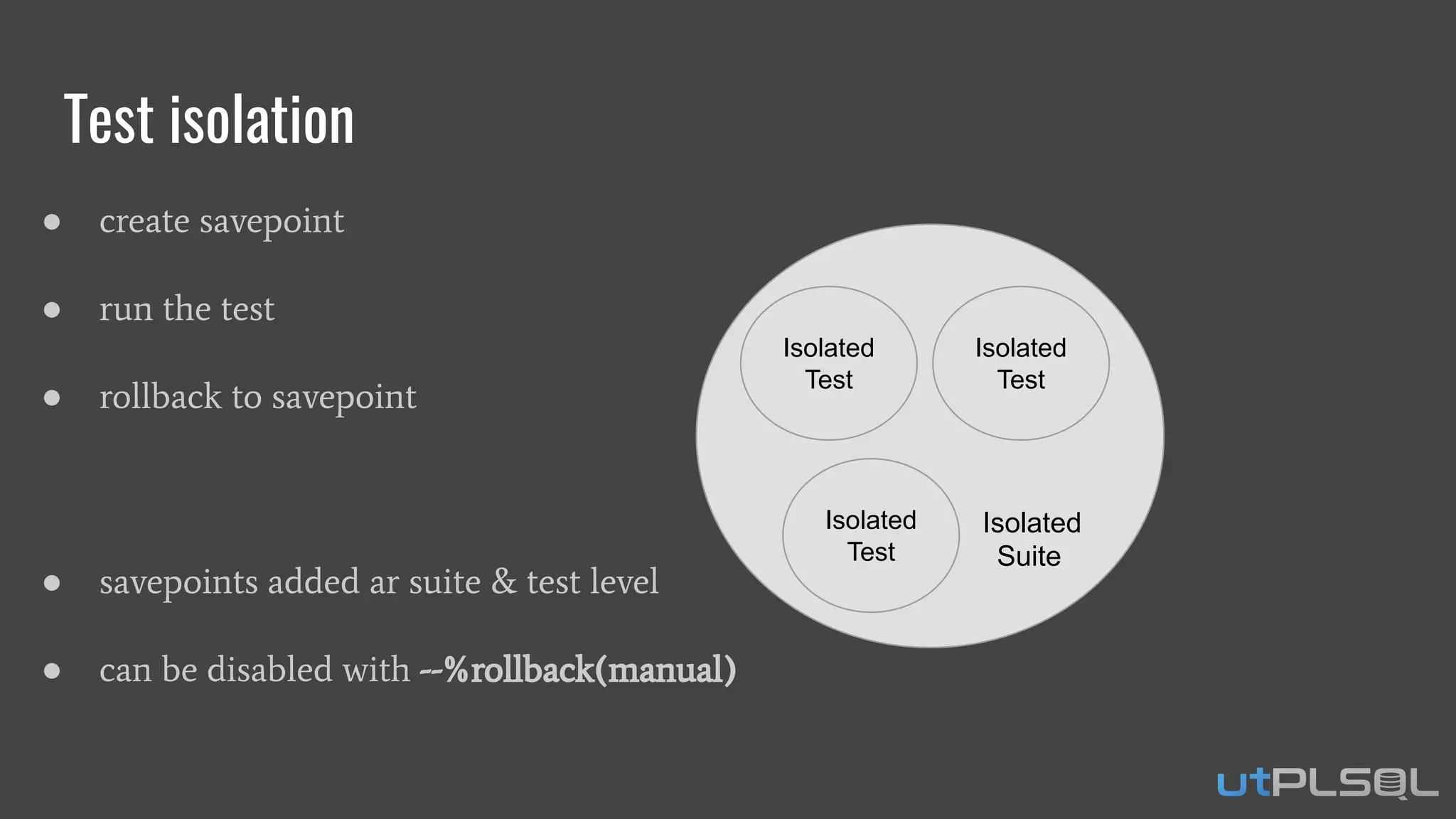

24. Isolated
Suite
Isolated
Test
Isolated
Test
Isolated
Test
Test isolation
● create savepoint
● run the test
● rollback to savepoint
● savepoints added ar suite & test level
● can be disabled with --%rollback(manual)

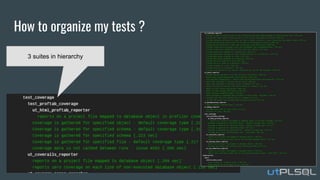

25. How to organize my tests ?
3 suites in hierarchy

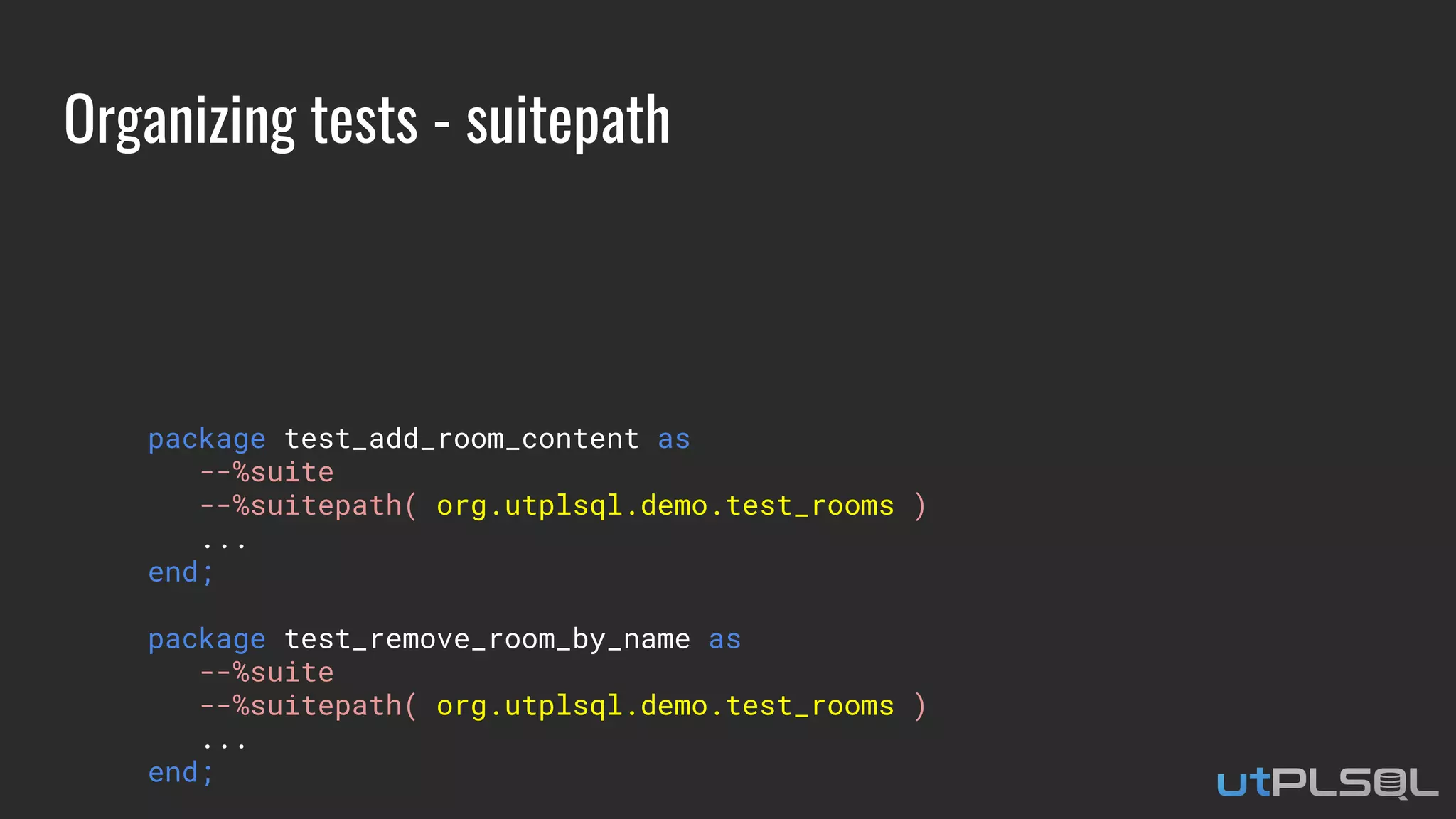

26. Organizing tests - suitepath
package test_add_room_content as
--%suite
--%suitepath( org.utplsql.demo.test_rooms )
...
end;
package test_remove_room_by_name as
--%suite
--%suitepath( org.utplsql.demo.test_rooms )
...
end;

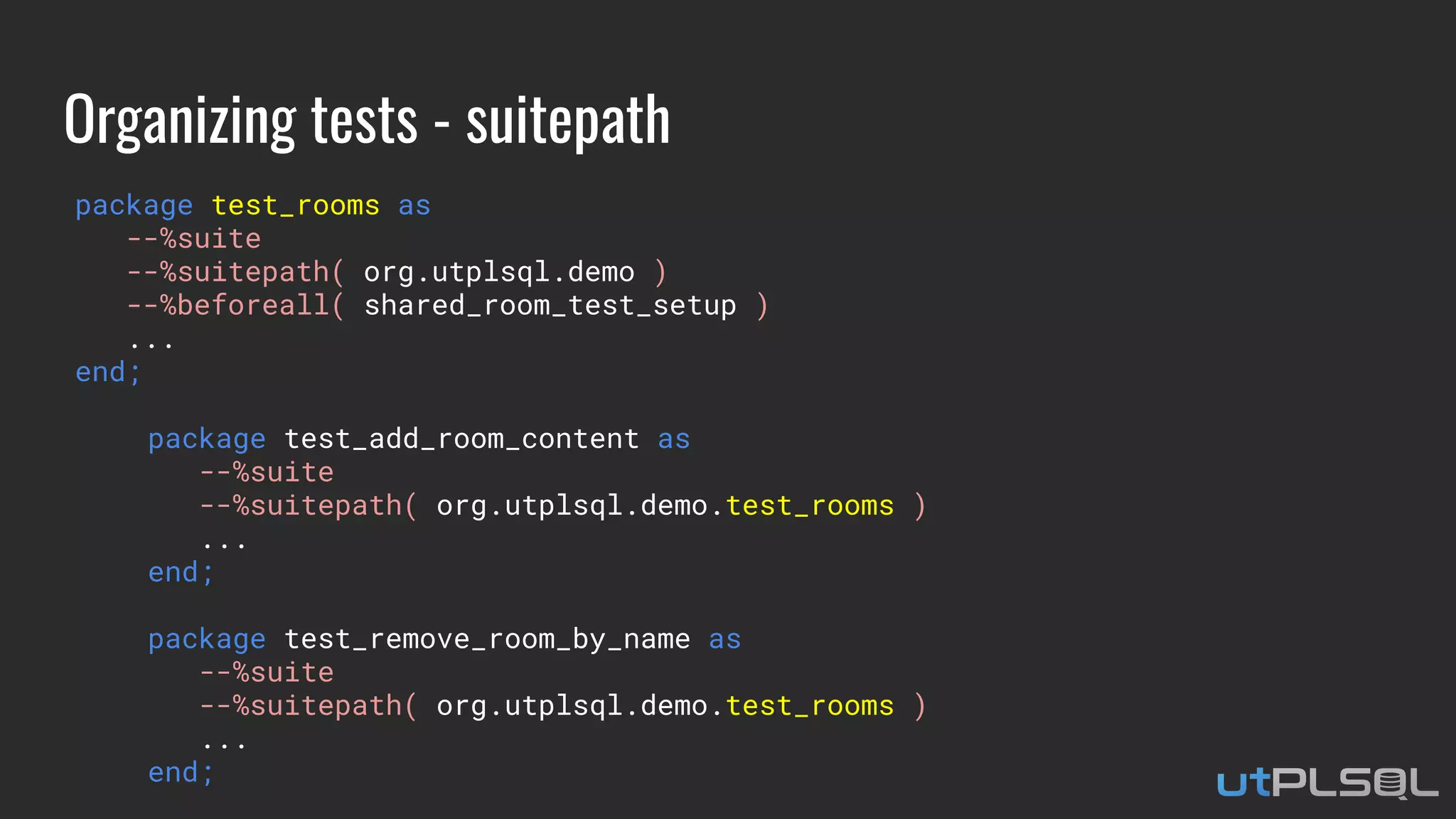

27. Organizing tests - suitepath
package test_rooms as
--%suite
--%suitepath( org.utplsql.demo )
--%beforeall( shared_room_test_setup )
...
end;
package test_add_room_content as
--%suite
--%suitepath( org.utplsql.demo.test_rooms )
...
end;
package test_remove_room_by_name as
--%suite
--%suitepath( org.utplsql.demo.test_rooms )
...
end;

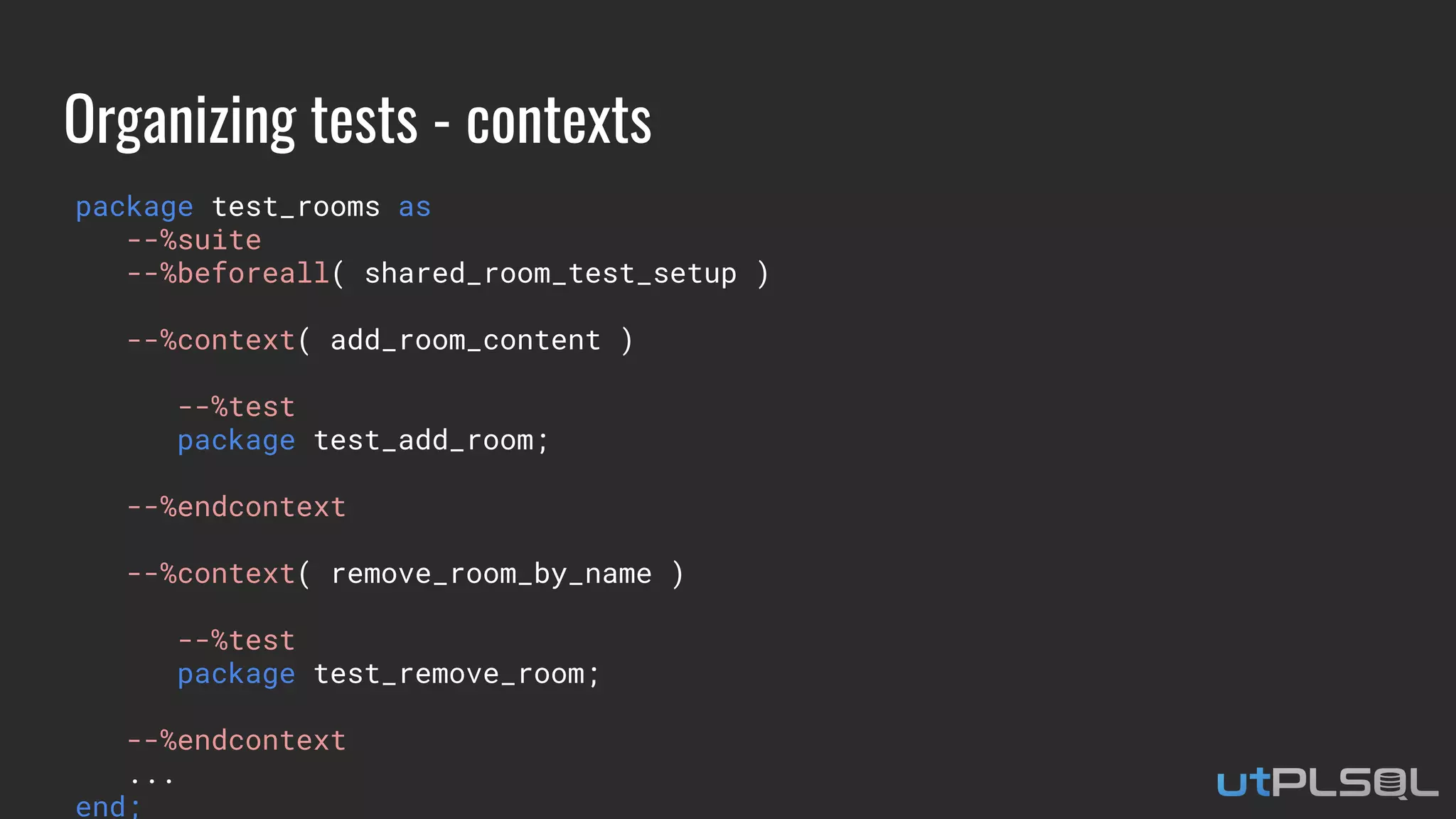

28. Organizing tests - contexts
package test_rooms as
--%suite
--%beforeall( shared_room_test_setup )
--%context( add_room_content )
--%test
package test_add_room;
--%endcontext
--%context( remove_room_by_name )
--%test
package test_remove_room;
--%endcontext
...
end;

29. Organizing tests
● With suitepath
○ Suites can be nested, nested, nested, nested, nested, nested
○ Suites can be grouped
● Suites can be invoked by suitepath
exec ut.run(‘:org.utplsql.demo.test_rooms’);
● Setup from parent suite is visible in child suites
● Contexts -> groups within single package

30. What is my test coverage?
http://utplsql.org/utPLSQL-coverage-html/

31. Definition
Test coverage is a measure used to describe
the degree to which the source code of a program is executed
when a particular test suite runs.
https://en.wikipedia.org/wiki/Code_coverage

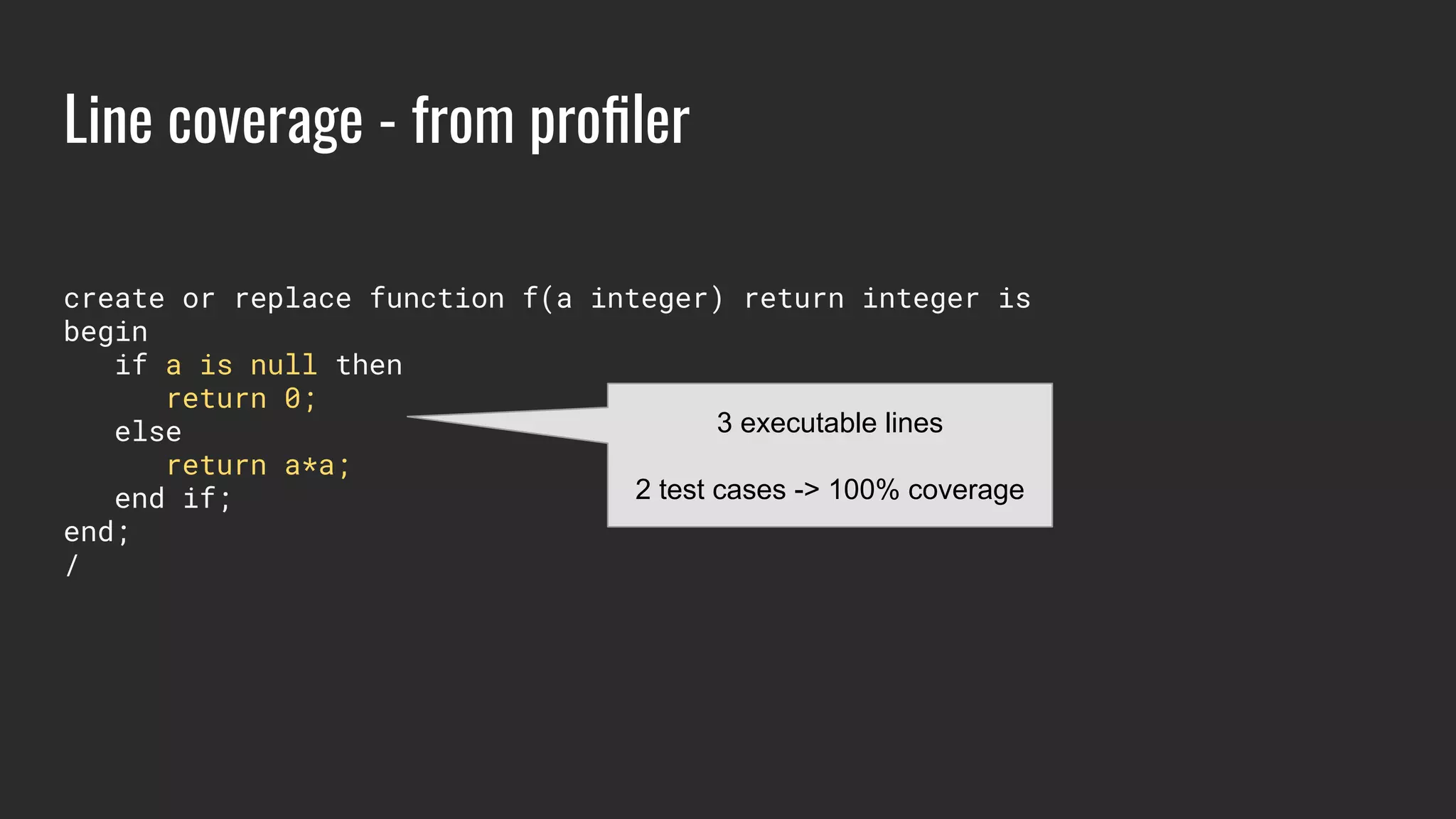

32. Line coverage - from profiler
create or replace function f(a integer) return integer is
begin
if a is null then
return 0;
else
return a*a;
end if;
end;
/
3 executable lines
2 test cases -> 100% coverage

33. Block coverage - since Oracle 12.2
create or replace function f1(a integer) return integer is
begin
if a is null then return 0; else return a*a; end if;
end;
/
create or replace function f2(a integer) return integer is
begin
return nvl(a*a,0);
end;
/
1 executable line
2 executable blocks
2 test cases -> 100% coverage
1 executable line
1 executable block
1 test case -> 100% coverage

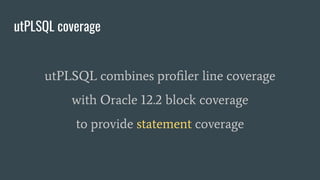

34. utPLSQL coverage
utPLSQL combines profiler line coverage
with Oracle 12.2 block coverage
to provide statement coverage

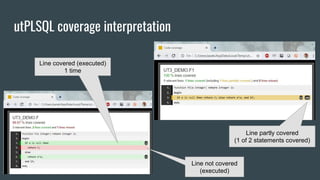

35. utPLSQL coverage interpretation
Line covered (executed)
1 time
Line partly covered
(1 of 2 statements covered)
Line not covered
(executed)

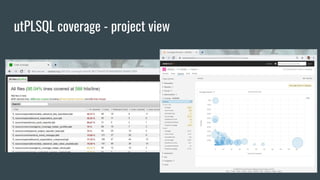

36. utPLSQL coverage - project view

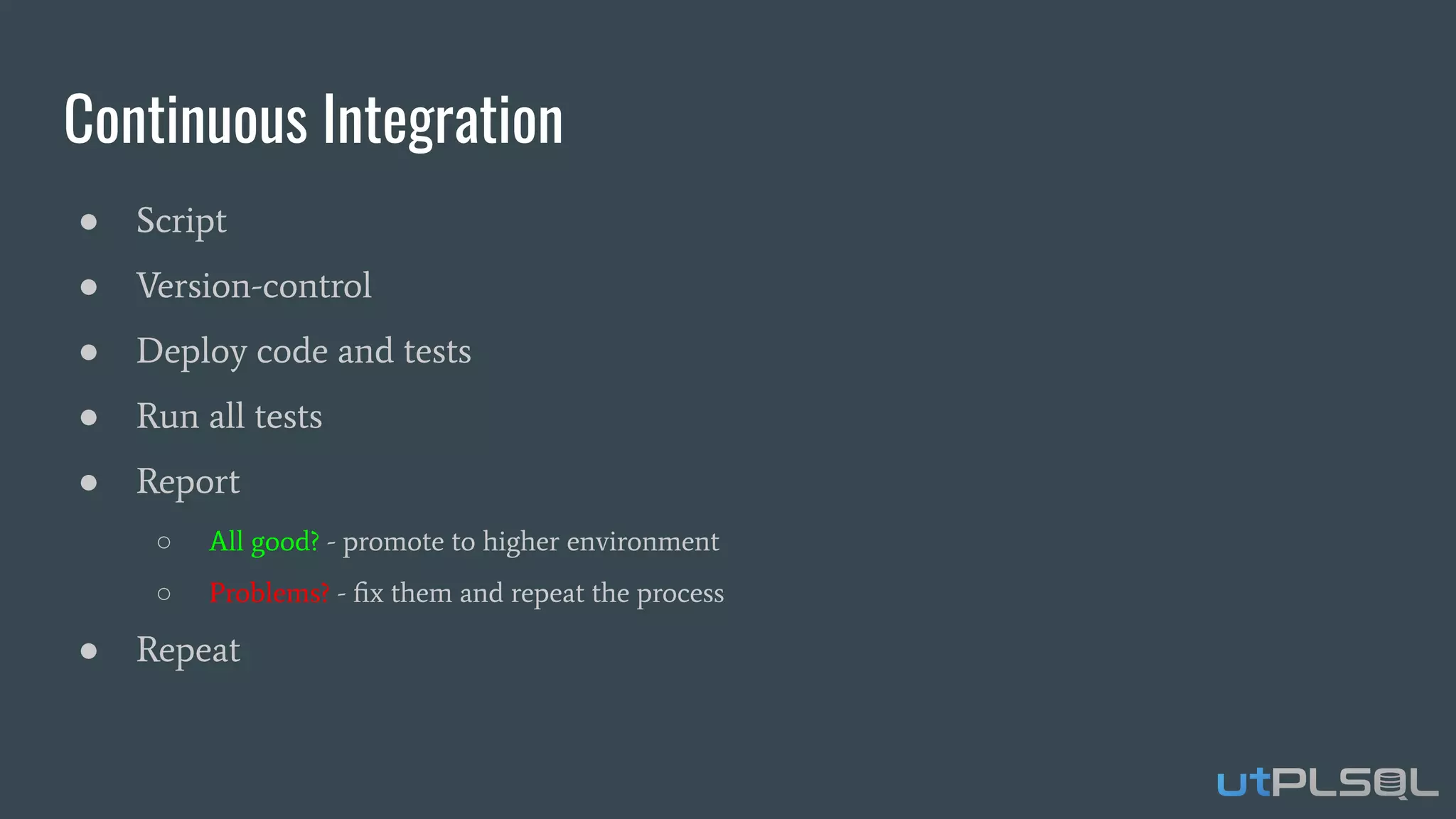

37. Continuous Integration
● Script
● Version-control
● Deploy code and tests
● Run all tests
● Report
○ All good? - promote to higher environment
○ Problems? - fix them and repeat the process
● Repeat

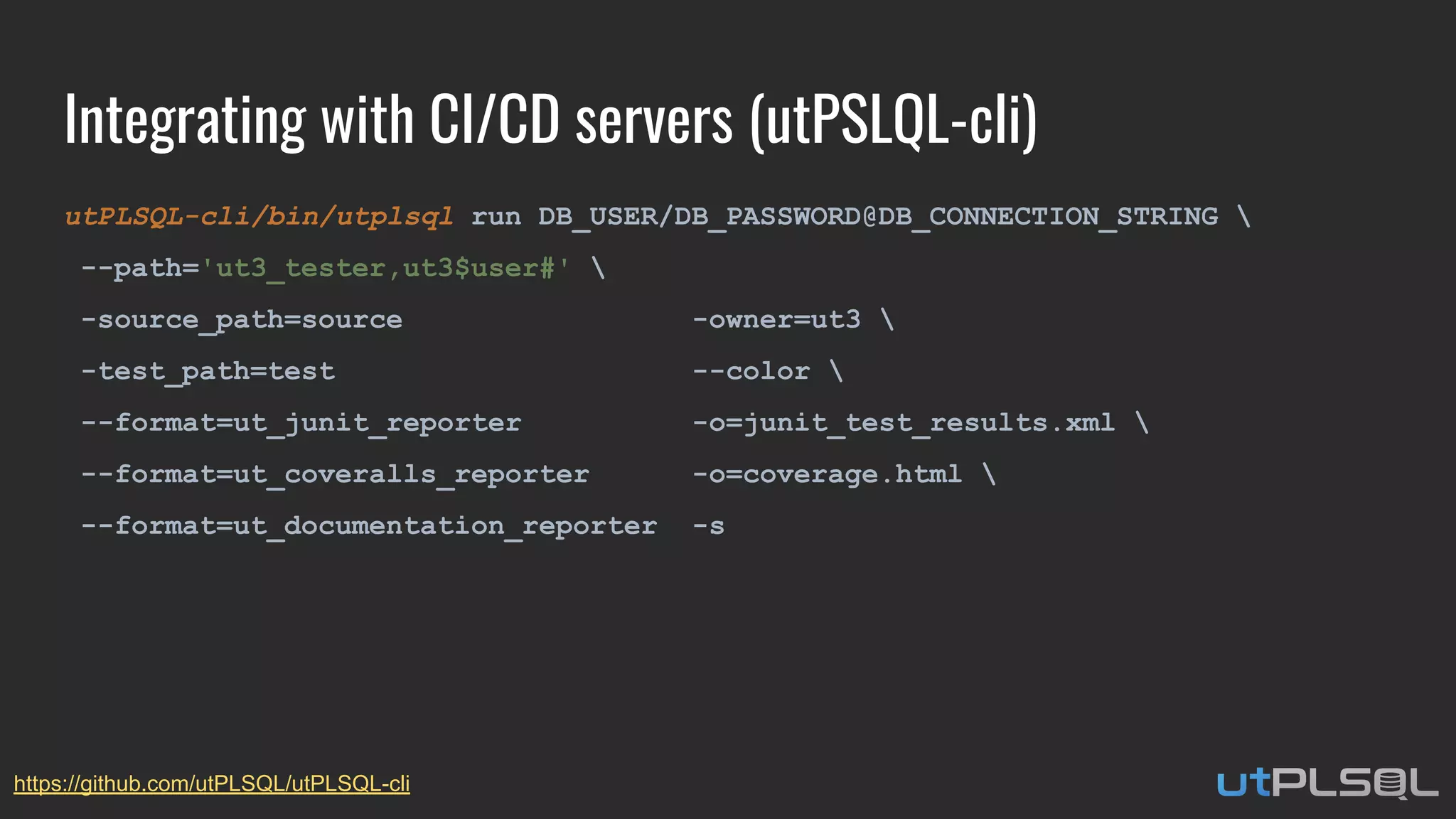

38. Integrating with CI/CD servers (utPSLQL-cli)
utPLSQL-cli/bin/utplsql run DB_USER/DB_PASSWORD@DB_CONNECTION_STRING
--path='ut3_tester,ut3$user#'
-source_path=source -owner=ut3
-test_path=test --color
--format=ut_junit_reporter -o=junit_test_results.xml
--format=ut_coveralls_reporter -o=coverage.html
--format=ut_documentation_reporter -s
https://github.com/utPLSQL/utPLSQL-cli

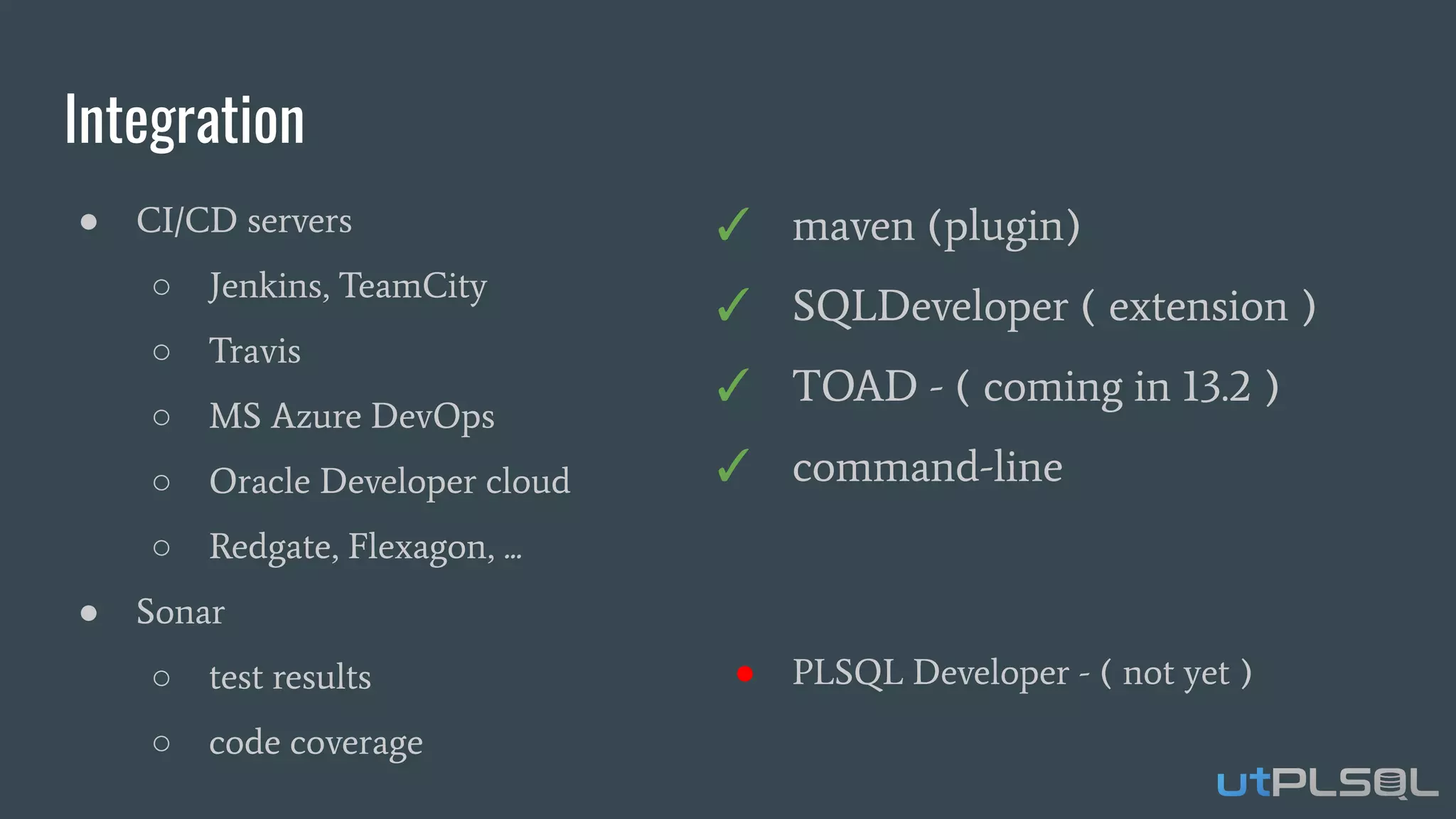

39. Integration
● CI/CD servers
○ Jenkins, TeamCity
○ Travis
○ MS Azure DevOps
○ Oracle Developer cloud
○ Redgate, Flexagon, ...
● Sonar
○ test results
○ code coverage
✓ maven (plugin)
✓ SQLDeveloper ( extension )
✓ TOAD - ( coming in 13.2 )
✓ command-line
● PLSQL Developer - ( not yet )

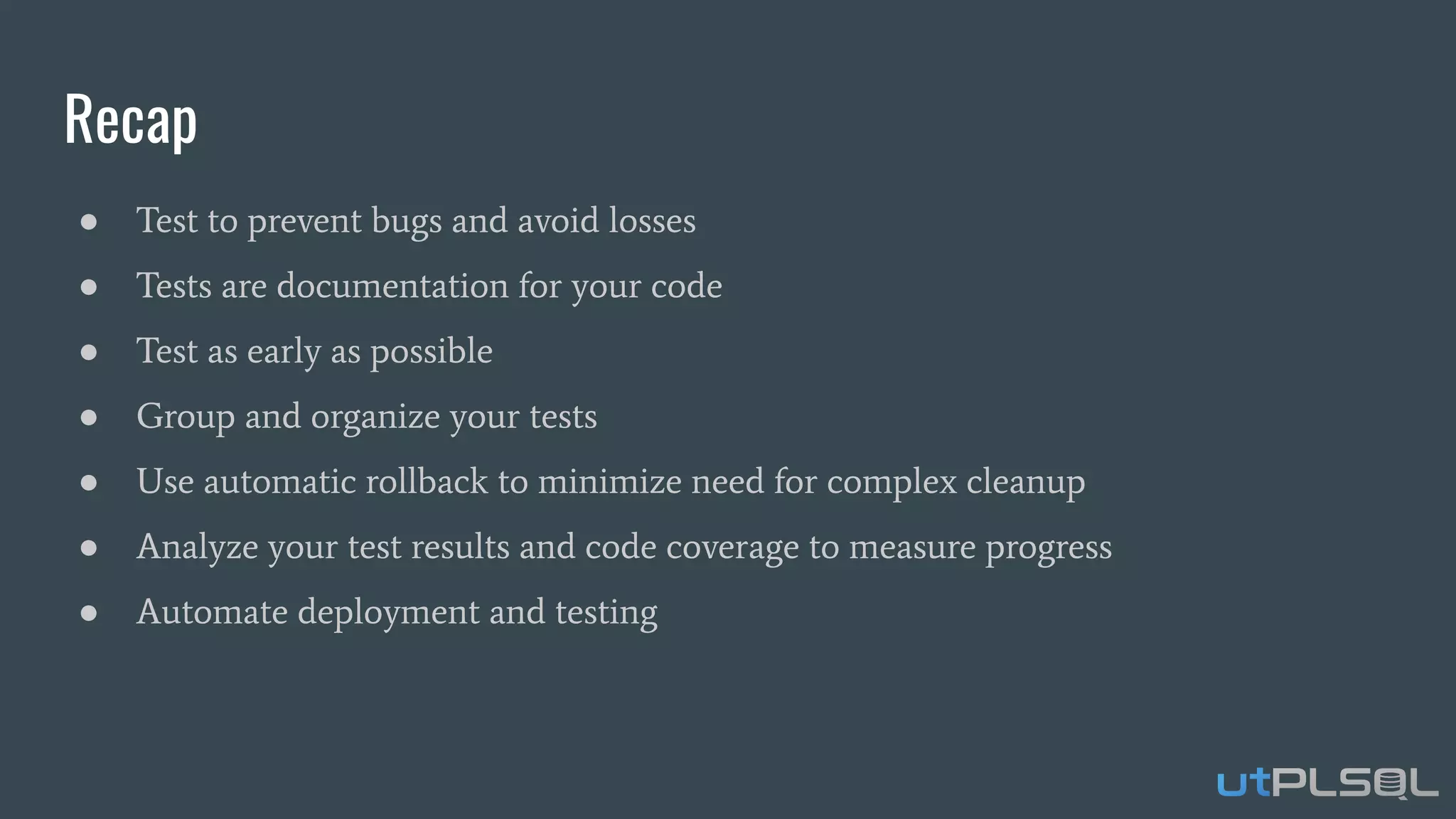

40. Recap
● Test to prevent bugs and avoid losses
● Tests are documentation for your code
● Test as early as possible
● Group and organize your tests
● Use automatic rollback to minimize need for complex cleanup
● Analyze your test results and code coverage to measure progress
● Automate deployment and testing

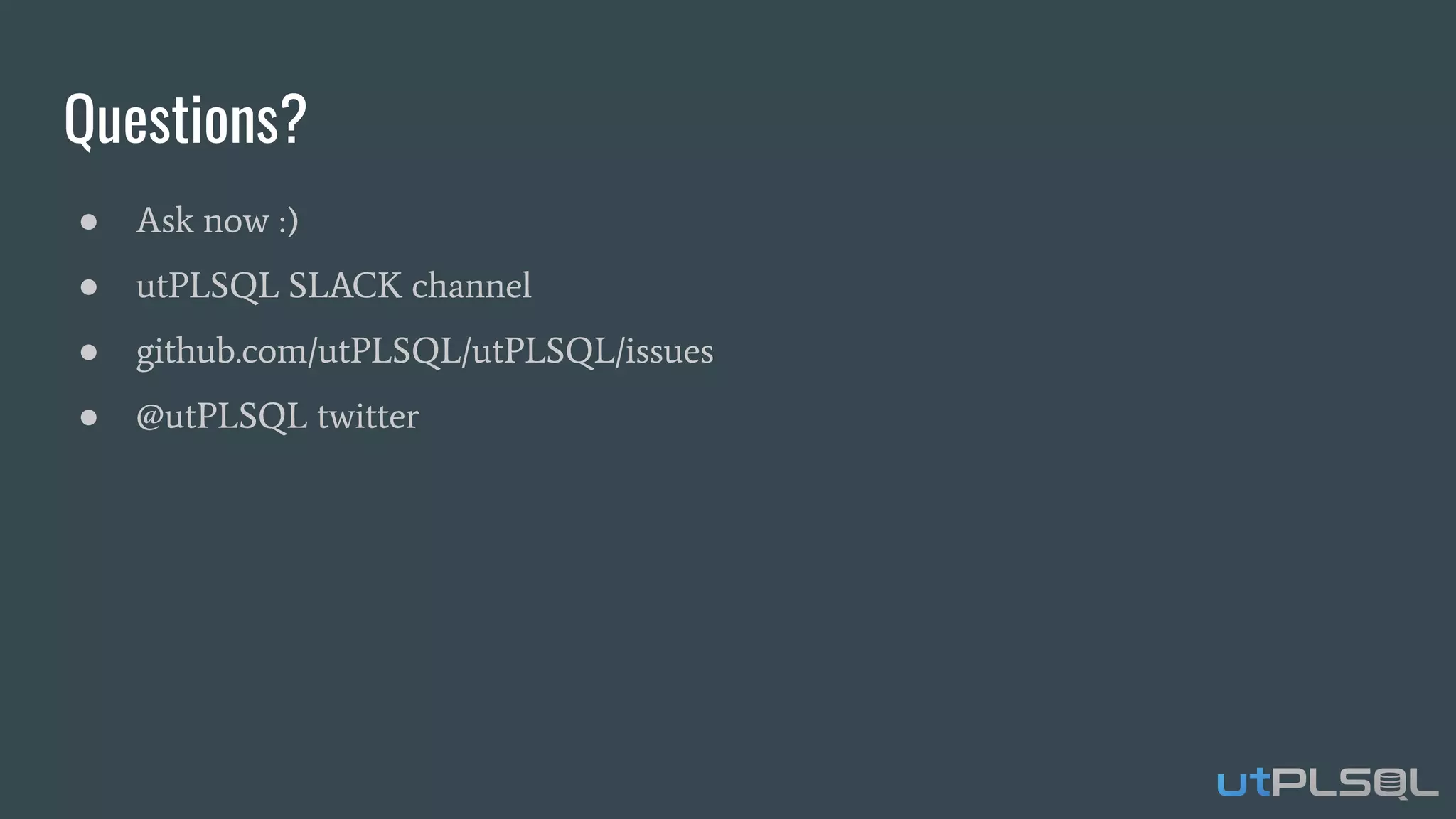

41. Questions?
● Ask now :)
● utPLSQL SLACK channel
● github.com/utPLSQL/utPLSQL/issues
● @utPLSQL twitter

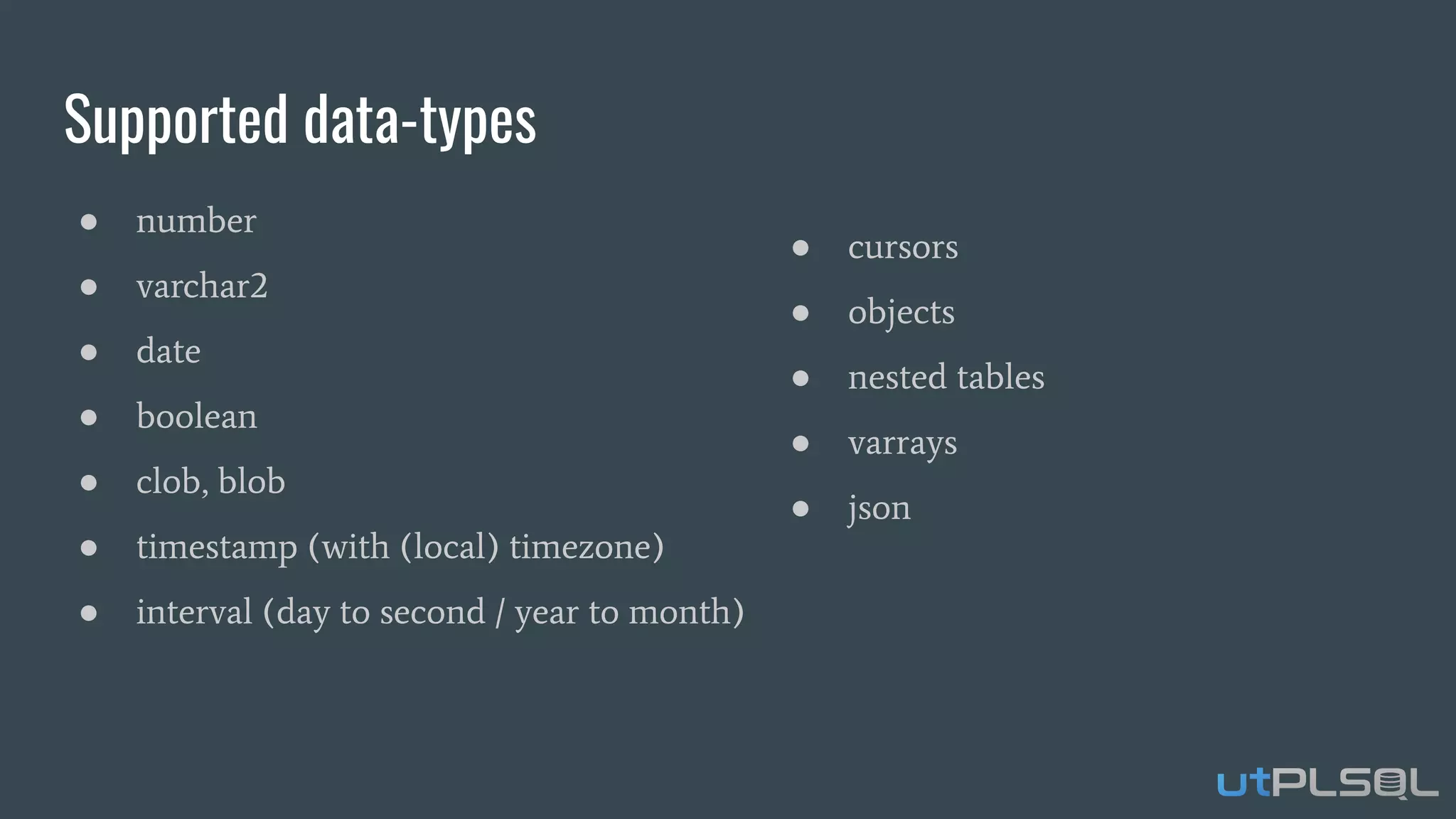

42. Supported data-types
● cursors
● objects
● nested tables
● varrays
● json
● number
● varchar2
● date
● boolean
● clob, blob
● timestamp (with (local) timezone)
● interval (day to second / year to month)

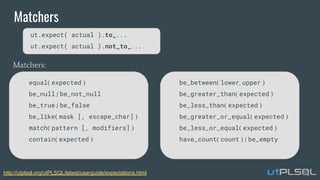

43. Matchers
equal( expected )
be_null / be_not_null
be_true / be_false
be_like( mask [, escape_char] )
match( pattern [, modifiers] )
contain( expected )
ut.expect( actual ).to_...
ut.expect( actual ).not_to_...
be_between( lower, upper )
be_greater_than( expected )
be_less_than( expected )
be_greater_or_equal( expected )
be_less_or_equal( expected )
have_count( count ) / be_empty
Matchers:
http://utplsql.org/utPLSQL/latest/userguide/expectations.html

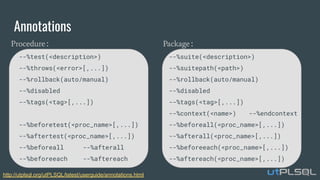

44. Annotations
Package:
--%suite(<description>)
--%suitepath(<path>)
--%rollback(auto/manual)
--%disabled
--%tags(<tag>[,...])
--%context(<name>) --%endcontext
--%beforeall(<proc_name>[,...])
--%afterall(<proc_name>[,...])
--%beforeeach(<proc_name>[,...])
--%aftereach(<proc_name>[,...])
Procedure:
--%test(<description>)
--%throws(<error>[,...])
--%rollback(auto/manual)
--%disabled
--%tags(<tag>[,...])
--%beforetest(<proc_name>[,...])
--%aftertest(<proc_name>[,...])
--%beforeall --%afterall
--%beforeeach --%aftereach
http://utplsql.org/utPLSQL/latest/userguide/annotations.html

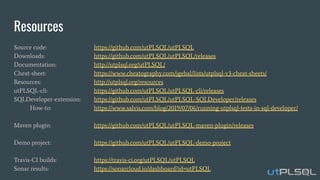

45. Resources
Source code: https://github.com/utPLSQL/utPLSQL
Downloads: https://github.com/utPLSQL/utPLSQL/releases
Documentation: http://utplsql.org/utPLSQL/
Cheat-sheet: https://www.cheatography.com/jgebal/lists/utplsql-v3-cheat-sheets/
Resources: http://utplsql.org/resources
utPLSQL-cli: https://github.com/utPLSQL/utPLSQL-cli/releases
SQLDeveloper-extension: https://github.com/utPLSQL/utPLSQL-SQLDeveloper/releases
How-to: https://www.salvis.com/blog/2019/07/06/running-utplsql-tests-in-sql-developer/
Maven plugin: https://github.com/utPLSQL/utPLSQL-maven-plugin/releases
Demo project: https://github.com/utPLSQL/utPLSQL-demo-project
Travis-CI builds: https://travis-ci.org/utPLSQL/utPLSQL
Sonar results: https://sonarcloud.io/dashboard?id=utPLSQL
