Bga re-workstation
1.
2. BGA means a Ball Grid Array.
Invented in the early 1990.
BGA packages are used to permanently mount devices such as
Microprocessors or Processors or CPU.
Provide more interconnection pins than can be put on dual in-line or flat
package
It is use for various applications such as hand held electronics to
computing to automotive environments.

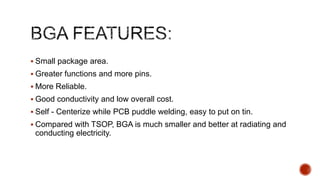

3. Small package area.
Greater functions and more pins.
More Reliable.
Good conductivity and low overall cost.
Self - Centerize while PCB puddle welding, easy to put on tin.
Compared with TSOP, BGA is much smaller and better at radiating and
conducting electricity.
5. BGA Re-works process as following Steps :
Step 1:
BGA Removal from circuit board:
Step 2:
Circuit board site cleaning:
Step 3:
BGA Reballing :
Step 4:
Component Attach/Re-soldering:
6. Away from inflammable and explosives.
Away from water and other liquids
Ventilated, dry place.
Less dust.
No heavy objects on the controlling box.
Not affected by airflow of air conditioner, heater or ventilator.
7. Use a power supply with little fluctuations in voltage
Fluctuation : 220V +-10.
Frequency fluctuation : 50Hz+-3
8. It is used to replace the faulty north bridge IC or south bridge IC.
It is also use to repair Mobile, Laptop, Servers, Desktop boards.
It is safely removed any IC from motherboard without damaging any
thing.
Upgradation of on board or motherboard functionality.
