- 1. 1 PRESENTATION OF OPERATINGSYSTEM SUBMITTED TO: HUSNAINA AKHTAR SUBMITTED BY: MUHAMMAD TAYYAB ROLL # J1F18ASCS0008 ADP(CS)-IV

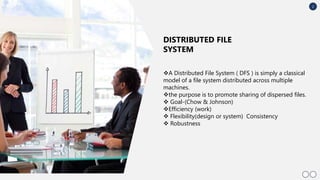

- 2. 2 A Distributed FileSystem ( DFS ) is simply a classical model of a file system distributed across multiple machines. the purpose is to promote sharing of dispersed files. Goal-(Chow & Johnson) Efficiency (work) Flexibility(design or system) Consistency Robustness DISTRIBUTED FILE SYSTEM

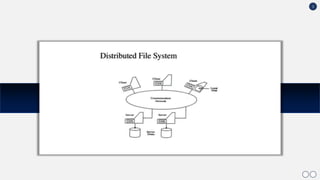

- 3.
- 4.

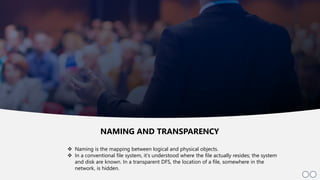

- 5. 5 Naming isthe mapping between logical and physical objects. In a conventional file system, it's understood where the file actually resides; the system and disk are known. In a transparent DFS, the location of a file, somewhere in the network, is hidden. NAMING AND TRANSPARENCY

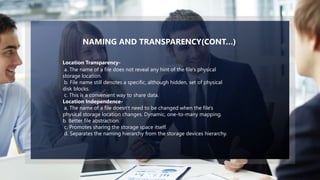

- 6. 6 a. The nameof a file does not reveal any hint of the file's physical storage location. b. File name still denotes a specific, although hidden, set of physical disk blocks. c. This is a convenient way to share data. Location Independence- a. The name of a file doesn't need to be changed when the file's physical storage location changes. Dynamic, one-to-many mapping. b. Better file abstraction. c. Promotes sharing the storage space itself. d. Separates the naming hierarchy from the storage devices hierarchy. Location Transparency- NAMING AND TRANSPARENCY(CONT…)

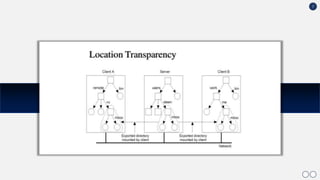

- 7.

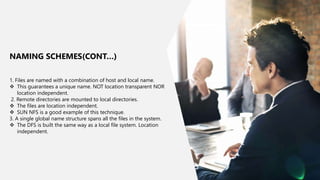

- 8. 8 1. Files arenamed with a combination of host and local name. This guarantees a unique name. NOT location transparent NOR location independent. 2. Remote directories are mounted to local directories. The files are location independent. SUN NFS is a good example of this technique. 3. A single global name structure spans all the files in the system. The DFS is built the same way as a local file system. Location independent. NAMING SCHEMES(CONT…)
- 9.
- 10. 10 Caching- The idea isto retain recently accessed disk blocks in cache so repeated accesses to the same information can be handled locally, without additional network traffic. Reduce network traffic by retaining recently accessed disk blocks in a cache, so that repeated accesses to the same information can be handled locally. If required data is not already cached, a copy of data is brought from the server to the user. REMOTE FILE ACCESSING

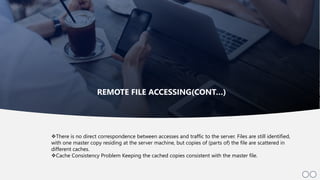

- 11. 11 There is nodirect correspondence between accesses and traffic to the server. Files are still identified, with one master copy residing at the server machine, but copies of (parts of) the file are scattered in different caches. Cache Consistency Problem Keeping the cached copies consistent with the master file. REMOTE FILE ACCESSING(CONT…)

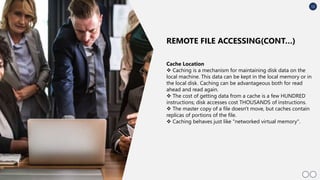

- 12. 12 Cache Location Cachingis a mechanism for maintaining disk data on the local machine. This data can be kept in the local memory or in the local disk. Caching can be advantageous both for read ahead and read again. The cost of getting data from a cache is a few HUNDRED instructions; disk accesses cost THOUSANDS of instructions. The master copy of a file doesn't move, but caches contain replicas of portions of the file. Caching behaves just like "networked virtual memory". REMOTE FILE ACCESSING(CONT…)

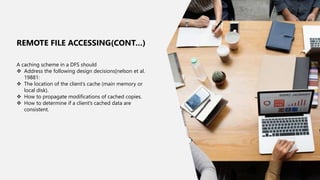

- 13. 13 A caching schemein a DFS should Address the following design decisions[nelson et al. 19881: The location of the client’s cache (main memory or local disk). How to propagate modifications of cached copies. How to determine if a client’s cached data are consistent. REMOTE FILE ACCESSING(CONT…)
- 14.

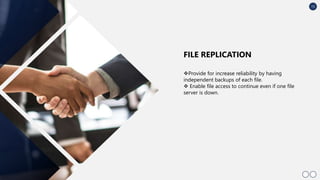

- 15. 15 Provide for increasereliability by having independent backups of each file. Enable file access to continue even if one file server is down. FILE REPLICATION

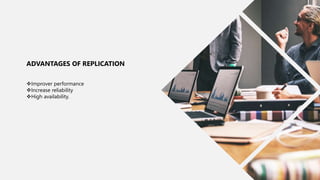

- 16. 16 Improver performance Increase reliability Highavailability. ADVANTAGES OF REPLICATION

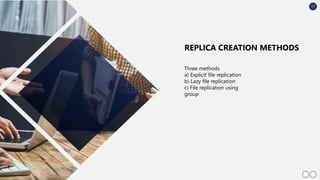

- 17. 17 Three methods a) Explicitfile replication b) Lazy file replication c) File replication using group REPLICA CREATION METHODS

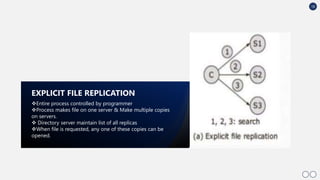

- 18. 18 Entire process controlledby programmer Process makes file on one server & Make multiple copies on servers. Directory server maintain list of all replicas When file is requested, any one of these copies can be opened. EXPLICIT FILE REPLICATION

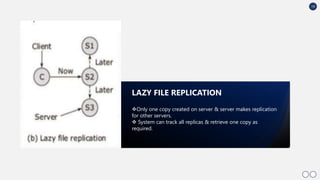

- 19. 19 Only one copycreated on server & server makes replication for other servers. System can track all replicas & retrieve one copy as required. LAZY FILE REPLICATION

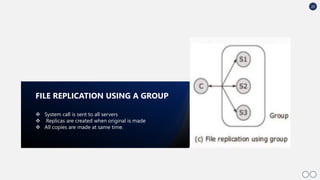

- 20. 20 System callis sent to all servers Replicas are created when original is made All copies are made at same time. FILE REPLICATION USING A GROUP

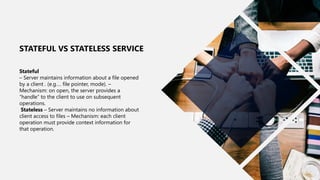

- 21. 21 Stateful – Server maintainsinformation about a file opened by a client . (e.g…. file pointer, mode). – Mechanism: on open, the server provides a “handle” to the client to use on subsequent operations. Stateless – Server maintains no information about client access to files – Mechanism: each client operation must provide context information for that operation. STATEFUL VS STATELESS SERVICE

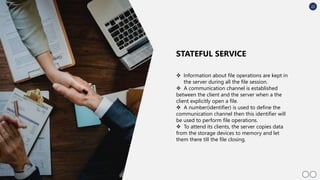

- 22. 22 Information aboutfile operations are kept in the server during all the file session. A communication channel is established between the client and the server when a the client explicitly open a file. A number(identifier) is used to define the communication channel then this identifier will be used to perform file operations. To attend its clients, the server copies data from the storage devices to memory and let them there till the file closing. STATEFUL SERVICE

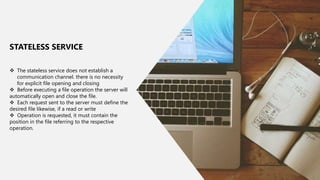

- 23. 23 The statelessservice does not establish a communication channel. there is no necessity for explicit file opening and closing Before executing a file operation the server will automatically open and close the file. Each request sent to the server must define the desired file likewise, if a read or write Operation is requested, it must contain the position in the file referring to the respective operation. STATELESS SERVICE
- 24.
