1. The Deconstruction of Dyninst
Andrew Bernat, Bill Williams
Paradyn Project
CScADS
June 26, 2012

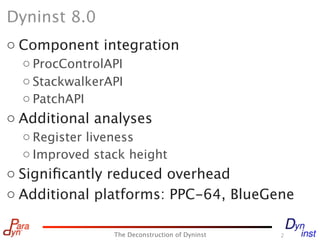

2. Dyninst 8.0
o Component integration
o ProcControlAPI
o StackwalkerAPI
o PatchAPI
o Additional analyses
o Register liveness
o Improved stack height
o Significantly reduced overhead
o Additional platforms: PPC-64, BlueGene
The Deconstruction of Dyninst 2

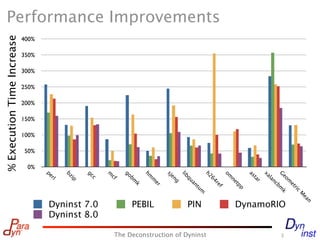

3. Performance Improvements
% Execution Time Increase
400%
350%
300%
250%
200%
150%
100%
50%
0%
pe
bz
gc
m
go
hm
sj
lib
h2
om
as
xa
G
eo
en
cf
ta
c
la
rl
ip
qu
b
6
ne
m
m
4r
m
r
g
nc
a
er
tp
k
et
ef
nt
b
p
r ic
m
um
k
M
ea
Dyninst 7.0 PEBIL PIN DynamoRIO
n
Dyninst 8.0
The Deconstruction of Dyninst 3

4. Dyninst Components Timeline
Design and Implementation
DynCAPI
Beta Release
First Release DataflowAPI
Integration into Dyninst
PatchAPI
ParseAPI
ProcControlAPI
InstructionAPI
StackwalkerAPI
SymtabAPI
2006 2007 2008 2009 2010 2011 2012
The Deconstruction of Dyninst 4

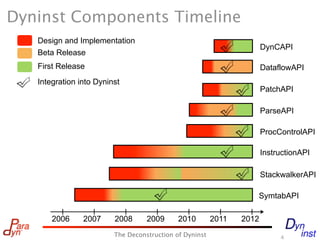

5. Dyninst Components Timeline
Design and Implementation
DynCAPI
Beta Release
First Release DataflowAPI
Integration into Dyninst
PatchAPI
ParseAPI
ProcControlAPI
InstructionAPI
StackwalkerAPI
SymtabAPI
2006 2007 2008 2009 2010 2011 2012
The Deconstruction of Dyninst 4

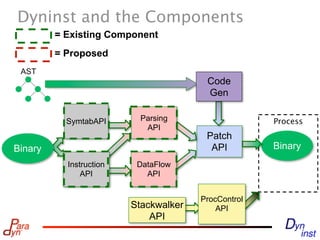

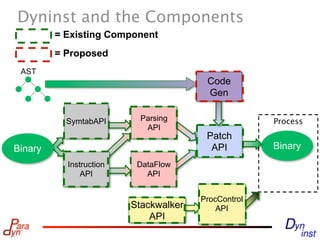

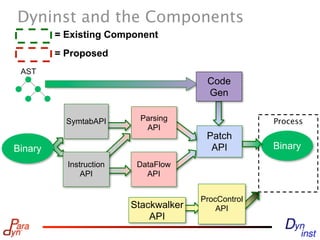

6. Dyninst and the Components
= Existing Component
= Proposed
AST
Code
Gen
SymtabAPI Parsing Process
API
Patch
Binary API Binary
Instruction DataFlow
API API
ProcControl
Stackwalker API
API

7. Dyninst and the Components
= Existing Component
= Proposed
AST
Code
Gen
SymtabAPI Parsing Process
API
Patch
Binary API Binary
Instruction DataFlow
API API
ProcControl
Stackwalker API
API

8. Dyninst and the Components
= Existing Component
= Proposed
AST
Code
Gen
SymtabAPI Parsing Process
API
Patch
Binary API Binary
Instruction DataFlow
API API
ProcControl
Stackwalker API
API

9. Dyninst and the Components
= Existing Component
= Proposed
AST
Code
Gen
SymtabAPI Parsing Process
API
Patch
Binary API Binary
Instruction DataFlow
API API
ProcControl
Stackwalker API
API

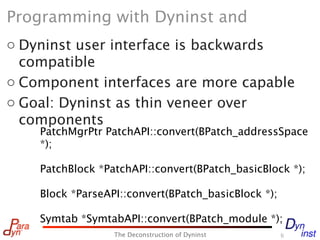

10. Programming with Dyninst and
o Dyninst user interface is backwards
compatible
o Component interfaces are more capable
o Goal: Dyninst as thin veneer over
components
PatchMgrPtr PatchAPI::convert(BPatch_addressSpace
*);
PatchBlock *PatchAPI::convert(BPatch_basicBlock *);
Block *ParseAPI::convert(BPatch_basicBlock *);
Symtab *SymtabAPI::convert(BPatch_module *);
The Deconstruction of Dyninst 6

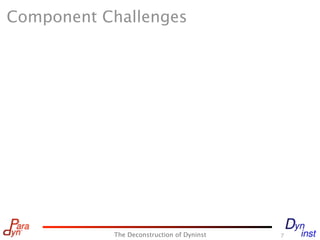

11. Component Challenges
The Deconstruction of Dyninst 7

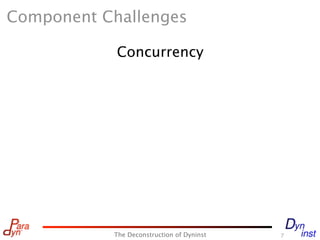

12. Component Challenges
Concurrency
The Deconstruction of Dyninst 7

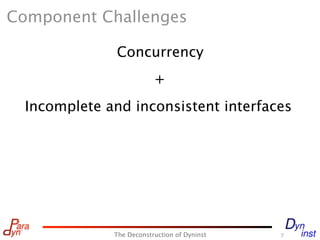

13. Component Challenges
Concurrency
+
Incomplete and inconsistent interfaces
The Deconstruction of Dyninst 7

14. Component Challenges
Concurrency
+
Incomplete and inconsistent interfaces
=
High-performance process control
The Deconstruction of Dyninst 7

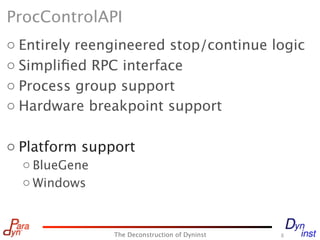

15. ProcControlAPI
o Entirely reengineered stop/continue logic
o Simplified RPC interface
o Process group support
o Hardware breakpoint support
o Platform support
o BlueGene
o Windows
The Deconstruction of Dyninst 8

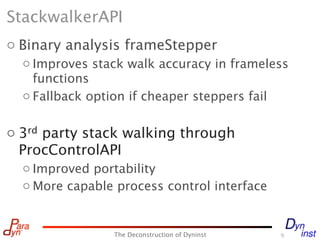

16. StackwalkerAPI
o Binary analysis frameStepper
o Improves stack walk accuracy in frameless
functions
o Fallback option if cheaper steppers fail
o 3rd party stack walking through
ProcControlAPI
o Improved portability
o More capable process control interface
The Deconstruction of Dyninst 9

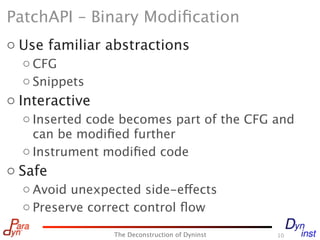

17. PatchAPI – Binary Modification
o Use familiar abstractions
o CFG
o Snippets
o Interactive
o Inserted code becomes part of the CFG and
can be modified further
o Instrument modified code
o Safe
o Avoid unexpected side-effects
o Preserve correct control flow
The Deconstruction of Dyninst 10

18. CFG Transformations
o Modifying code: block split, edge
redirection
o Inserting code: snippets
store
addr add
deref 1
addr
The Deconstruction of Dyninst 11

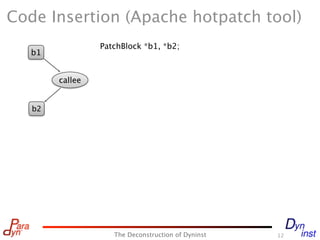

19. Code Insertion (Apache hotpatch tool)
PatchBlock *b1, *b2;
b1
callee
b2
The Deconstruction of Dyninst 12

20. Code Insertion (Apache hotpatch tool)
PatchBlock *b1, *b2;
b1
Snippet::Ptr snip;
callee IC::Ptr code = PatchModifier::insert(b1->obj(),
snip,
b1->exit());
b2
The Deconstruction of Dyninst 12

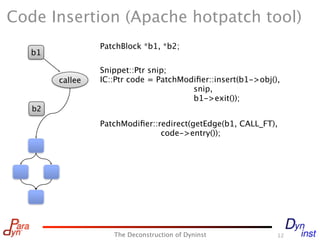

21. Code Insertion (Apache hotpatch tool)
PatchBlock *b1, *b2;
b1
Snippet::Ptr snip;
callee IC::Ptr code = PatchModifier::insert(b1->obj(),
snip,
b1->exit());
b2
PatchModifier::redirect(getEdge(b1, CALL_FT),
code->entry());
The Deconstruction of Dyninst 12

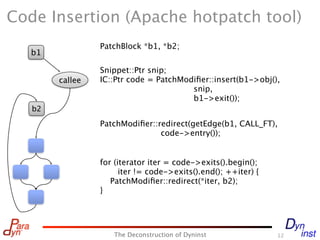

22. Code Insertion (Apache hotpatch tool)
PatchBlock *b1, *b2;
b1
Snippet::Ptr snip;
callee IC::Ptr code = PatchModifier::insert(b1->obj(),
snip,
b1->exit());
b2
PatchModifier::redirect(getEdge(b1, CALL_FT),
code->entry());
for (iterator iter = code->exits().begin();
iter != code->exits().end(); ++iter) {
PatchModifier::redirect(*iter, b2);
}
The Deconstruction of Dyninst 12

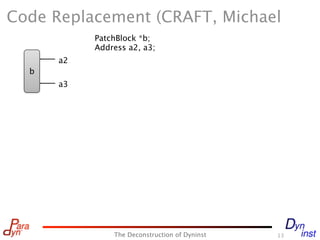

23. Code Replacement (CRAFT, Michael
PatchBlock *b;
Address a2, a3;
a2
b
a3
The Deconstruction of Dyninst 13

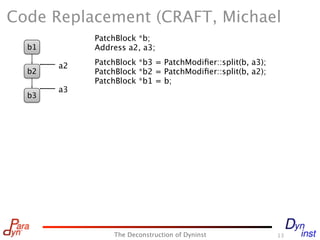

24. Code Replacement (CRAFT, Michael
PatchBlock *b;
b1 Address a2, a3;
a2 PatchBlock *b3 = PatchModifier::split(b, a3);
b2 PatchBlock *b2 = PatchModifier::split(b, a2);
PatchBlock *b1 = b;
a3
b3
The Deconstruction of Dyninst 13

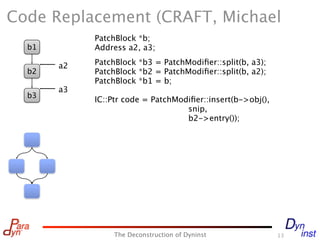

25. Code Replacement (CRAFT, Michael
PatchBlock *b;
b1 Address a2, a3;
a2 PatchBlock *b3 = PatchModifier::split(b, a3);
b2 PatchBlock *b2 = PatchModifier::split(b, a2);
PatchBlock *b1 = b;
a3
b3
IC::Ptr code = PatchModifier::insert(b->obj(),
snip,
b2->entry());
The Deconstruction of Dyninst 13

26. Code Replacement (CRAFT, Michael
PatchBlock *b;
b1 Address a2, a3;
PatchBlock *b3 = PatchModifier::split(b, a3);
b2 PatchBlock *b2 = PatchModifier::split(b, a2);
PatchBlock *b1 = b;
b3
IC::Ptr code = PatchModifier::insert(b->obj(),
snip,
b2->entry());
PatchModifier::redirect(getEdge(b1, FT),
code->entry());
for (iterator iter = code->exits().begin();
iter != code->exits().end(); ++iter) {
PatchModifier::redirect(*iter, b2);
}
The Deconstruction of Dyninst 13

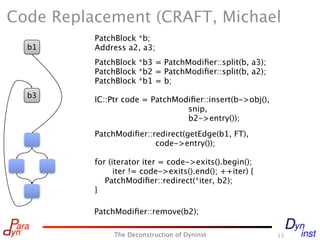

27. Code Replacement (CRAFT, Michael
PatchBlock *b;
b1 Address a2, a3;
PatchBlock *b3 = PatchModifier::split(b, a3);
PatchBlock *b2 = PatchModifier::split(b, a2);
PatchBlock *b1 = b;
b3
IC::Ptr code = PatchModifier::insert(b->obj(),
snip,
b2->entry());
PatchModifier::redirect(getEdge(b1, FT),
code->entry());
for (iterator iter = code->exits().begin();
iter != code->exits().end(); ++iter) {
PatchModifier::redirect(*iter, b2);
}
PatchModifier::remove(b2);
The Deconstruction of Dyninst 13

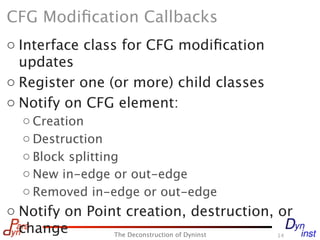

28. CFG Modification Callbacks
o Interface class for CFG modification
updates
o Register one (or more) child classes
o Notify on CFG element:
o Creation
o Destruction
o Block splitting
o New in-edge or out-edge
o Removed in-edge or out-edge
o Notify on Point creation, destruction, or
change The Deconstruction of Dyninst
14

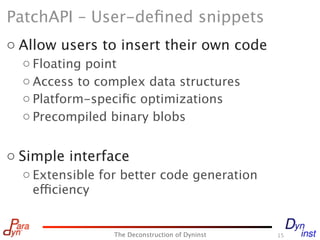

29. PatchAPI – User-defined snippets
o Allow users to insert their own code
o Floating point
o Access to complex data structures
o Platform-specific optimizations
o Precompiled binary blobs
o Simple interface
o Extensible for better code generation
efficiency
The Deconstruction of Dyninst 15

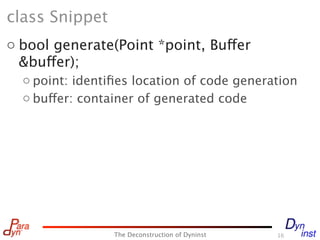

30. class Snippet
o bool generate(Point *point, Buffer
&buffer);
o point: identifies location of code generation
o buffer: container of generated code
The Deconstruction of Dyninst 16

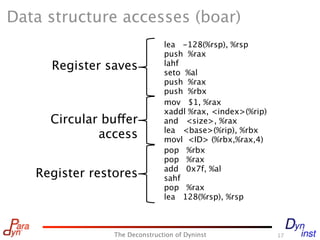

31. Data structure accesses (boar)
lea -128(%rsp), %rsp
push %rax
Register saves lahf
seto %al
push %rax
push %rbx
mov $1, %rax
xaddl %rax, <index>(%rip)
Circular buffer and <size>, %rax
lea <base>(%rip), %rbx
access movl <ID> (%rbx,%rax,4)
pop %rbx
pop %rax
add 0x7f, %al
Register restores sahf
pop %rax
lea 128(%rsp), %rsp
The Deconstruction of Dyninst 17

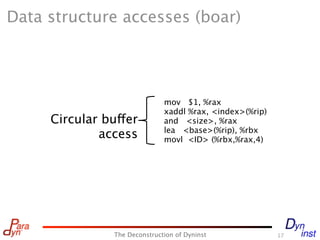

32. Data structure accesses (boar)
mov $1, %rax
xaddl %rax, <index>(%rip)
Circular buffer and <size>, %rax
lea <base>(%rip), %rbx
access movl <ID> (%rbx,%rax,4)
The Deconstruction of Dyninst 17

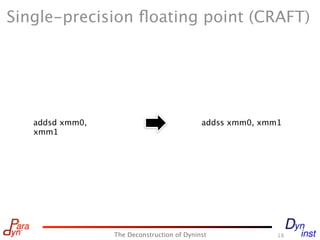

33. Single-precision floating point (CRAFT)
addsd xmm0, addss xmm0, xmm1
xmm1
The Deconstruction of Dyninst 18

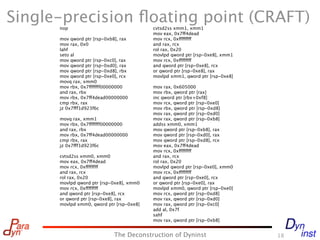

34. Single-precision floating point (CRAFT)
nop cvtsd2ss xmm1, xmm1
mov eax, 0x7ff4dead
mov qword ptr [rsp-0xb8], rax mov rcx, 0xffffffff
mov rax, 0x0 and rax, rcx
lahf rol rax, 0x20
seto al movlpd qword ptr [rsp-0xe8], xmm1
mov qword ptr [rsp-0xc0], rax mov rcx, 0xffffffff
mov qword ptr [rsp-0xd0], rax and qword ptr [rsp-0xe8], rcx
mov qword ptr [rsp-0xd8], rbx or qword ptr [rsp-0xe8], rax
mov qword ptr [rsp-0xe0], rcx movlpd xmm1, qword ptr [rsp-0xe8]
movq rax, xmm0
mov rbx, 0x7fffffff00000000 mov rax, 0x605000
and rax, rbx mov rbx, qword ptr [rax]
mov rbx, 0x7ff4dead00000000 inc qword ptr [rbx+0xf8]
cmp rbx, rax mov rcx, qword ptr [rsp-0xe0]
jz 0x7fff1d923f6c mov rbx, qword ptr [rsp-0xd8]
mov rax, qword ptr [rsp-0xd0]
movq rax, xmm1 mov rax, qword ptr [rsp-0xb8]
mov rbx, 0x7fffffff00000000 addss xmm0, xmm1
and rax, rbx mov qword ptr [rsp-0xb8], rax
mov rbx, 0x7ff4dead00000000 mov qword ptr [rsp-0xd0], rax
cmp rbx, rax mov qword ptr [rsp-0xd8], rcx
jz 0x7fff1d923f6c mov eax, 0x7ff4dead
mov rcx, 0xffffffff
cvtsd2ss xmm0, xmm0 and rax, rcx
mov eax, 0x7ff4dead rol rax, 0x20
mov rcx, 0xffffffff movlpd qword ptr [rsp-0xe0], xmm0
and rax, rcx mov rcx, 0xffffffff
rol rax, 0x20 and qword ptr [rsp-0xe0], rcx
movlpd qword ptr [rsp-0xe8], xmm0 or qword ptr [rsp-0xe0], rax
mov rcx, 0xffffffff movlpd xmm0, qword ptr [rsp-0xe0]
and qword ptr [rsp-0xe8], rcx mov rcx, qword ptr [rsp-0xd8]
or qword ptr [rsp-0xe8], rax mov rax, qword ptr [rsp-0xd0]
movlpd xmm0, qword ptr [rsp-0xe8] mov rax, qword ptr [rsp-0xc0]
add al, 0x7f
sahf
mov rax, qword ptr [rsp-0xb8]
The Deconstruction of Dyninst 18

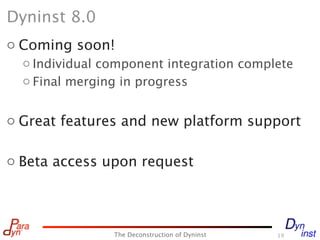

35. Dyninst 8.0
o Coming soon!
o Individual component integration complete
o Final merging in progress
o Great features and new platform support
o Beta access upon request
The Deconstruction of Dyninst 19

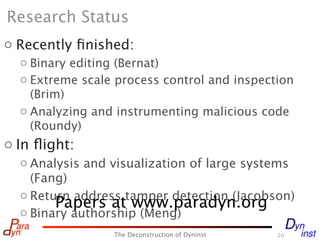

36. Research Status
o Recently finished:
o Binary editing (Bernat)
o Extreme scale process control and inspection
(Brim)
o Analyzing and instrumenting malicious code
(Roundy)
o In flight:
o Analysis and visualization of large systems
(Fang)
o Return address tamper detection (Jacobson)
Papers at www.paradyn.org
o Binary authorship (Meng)
The Deconstruction of Dyninst 20
