1. Combining the power of
InfluxDB and AWS for IoT
Use Cases
Bernard Paques, Amazon Web Services

2. Bernard Paques
Solution Architect Industrial, AWS

3. Agenda
• Real world examples
• AWS for IoT architecture
• Connecting AWS IoT to Telegraf & InfluxDB

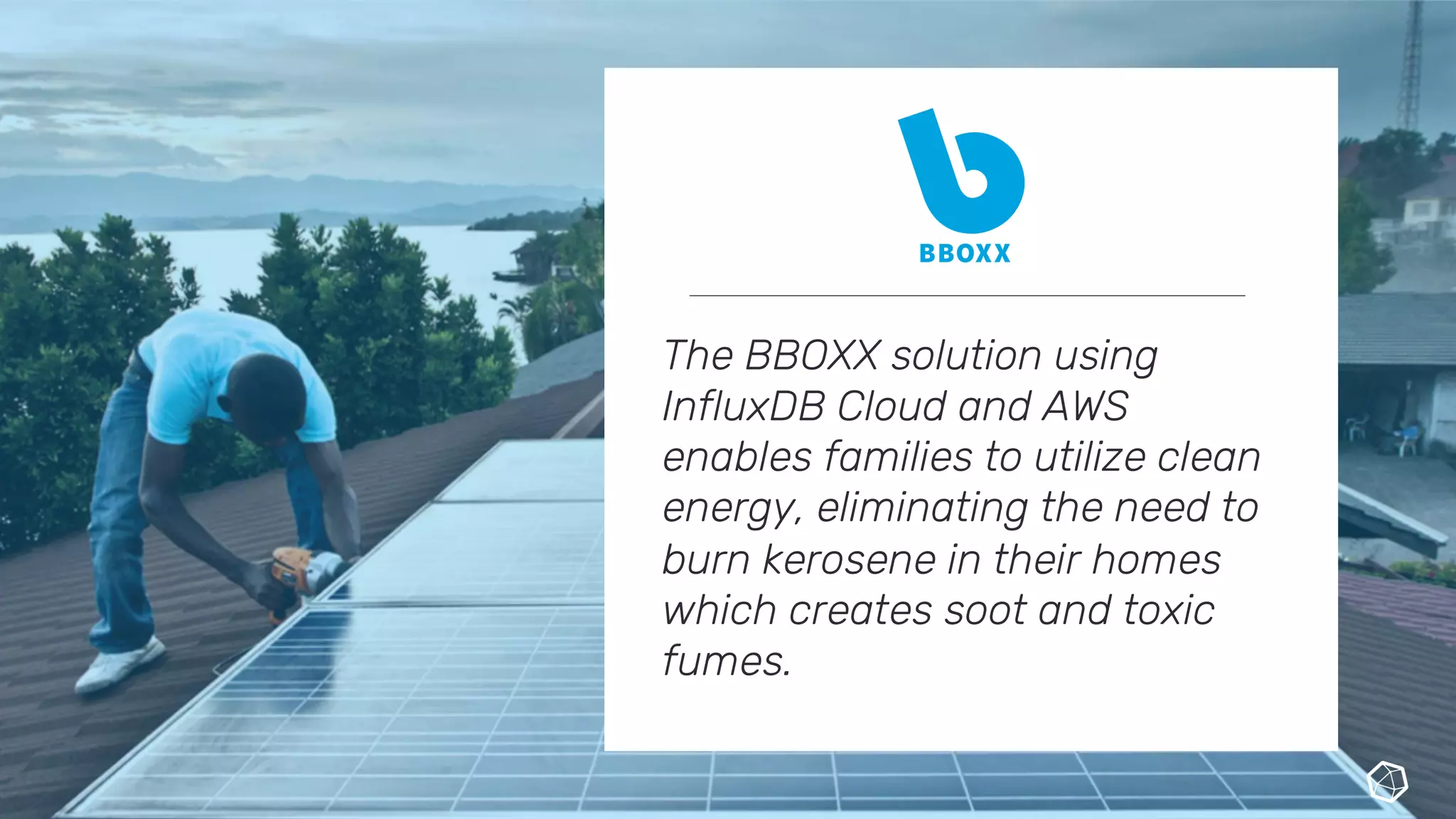

4. The BBOXX solution using
InfluxDB Cloud and AWS
enables families to utilize clean
energy, eliminating the need to
burn kerosene in their homes
which creates soot and toxic
fumes.

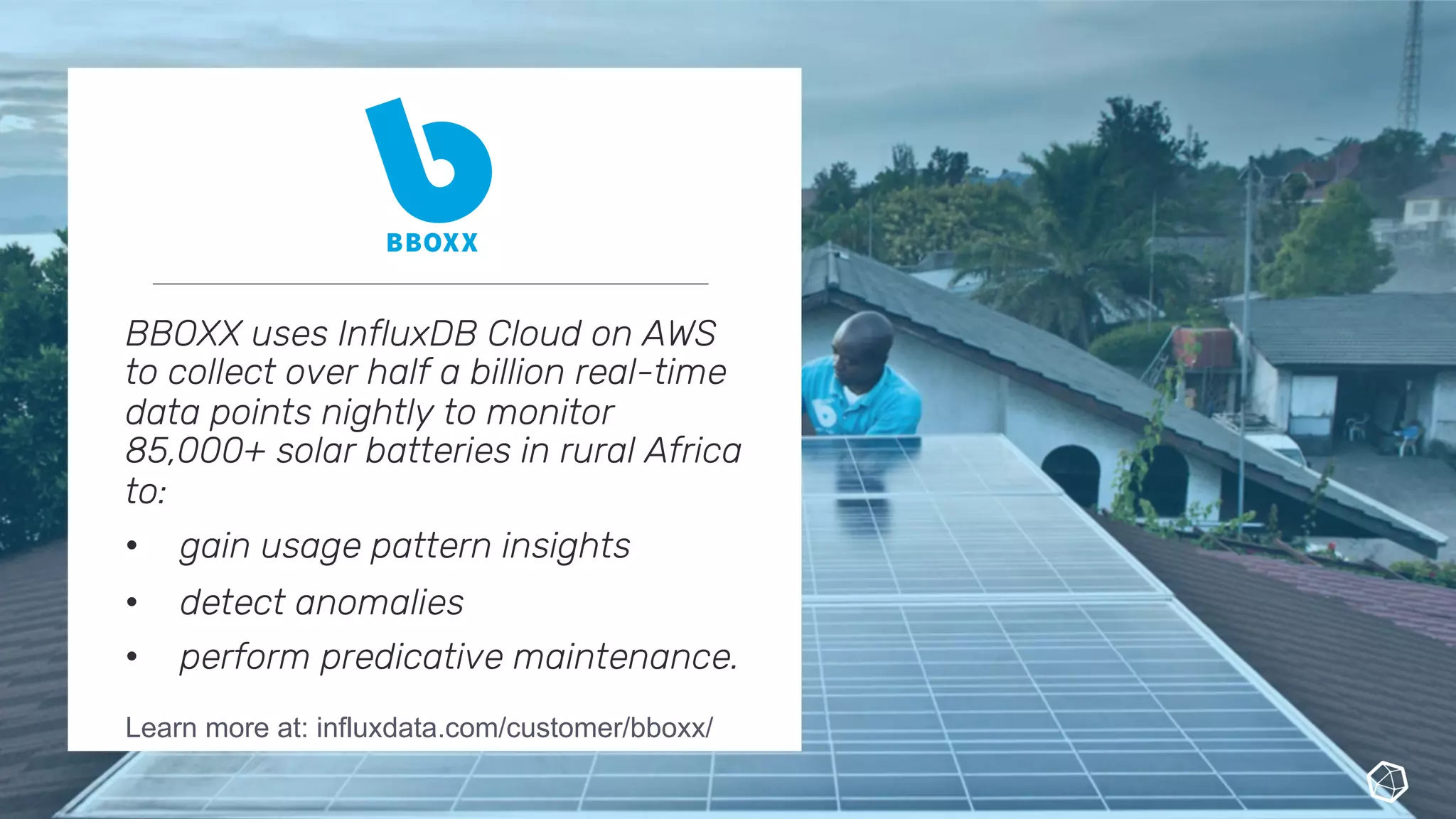

5. BBOXX uses InfluxDB Cloud on AWS
to collect over half a billion real-time
data points nightly to monitor
85,000+ solar batteries in rural Africa
to:
• gain usage pattern insights
• detect anomalies
• perform predicative maintenance.
Learn more at: influxdata.com/customer/bboxx/

6. Moxie IOT uses InfluxDB Cloud
and AWS to power their mobile
platform that tracks activity of
factory assets like forklifts and
cranes in a three-dimensional
view to improve performance
and safety.

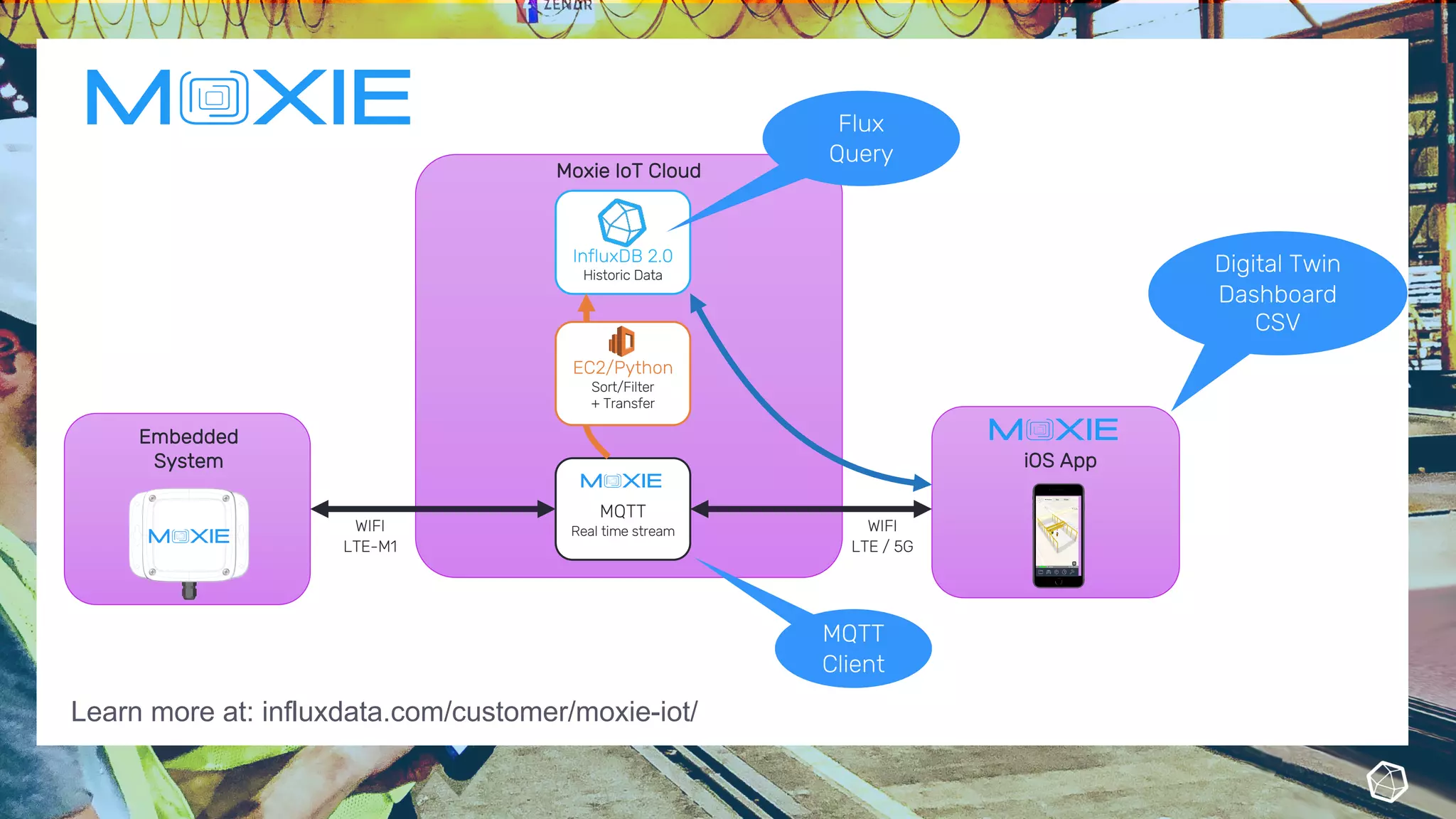

7. Embedded
System
Moxie IoT Cloud
iOS App
MQTT
Real time stream
InfluxDB 2.0
Historic Data
EC2/Python
Sort/Filter
+ Transfer
Flux
Query
Digital Twin
Dashboard
CSV
MQTT
Client
WIFI
LTE-M1
WIFI
LTE / 5G
Learn more at: influxdata.com/customer/moxie-iot/

8. Connecting InfluxDB
and AWS IoT Core

9. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.
© 2021, Amazon Web Services, Inc. or its A9liates.
Bernard Paques, Solution Architect
How to connect machines
on the shop /oor to
In/uxDB?

10. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.
© 2021, Amazon Web Services, Inc. or its A9liates.
If you knew the state of every thing and
could reason on top of that data…
what problems would you solve?

11. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.
AWS IoT customers solve problems in all sectors

12. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.

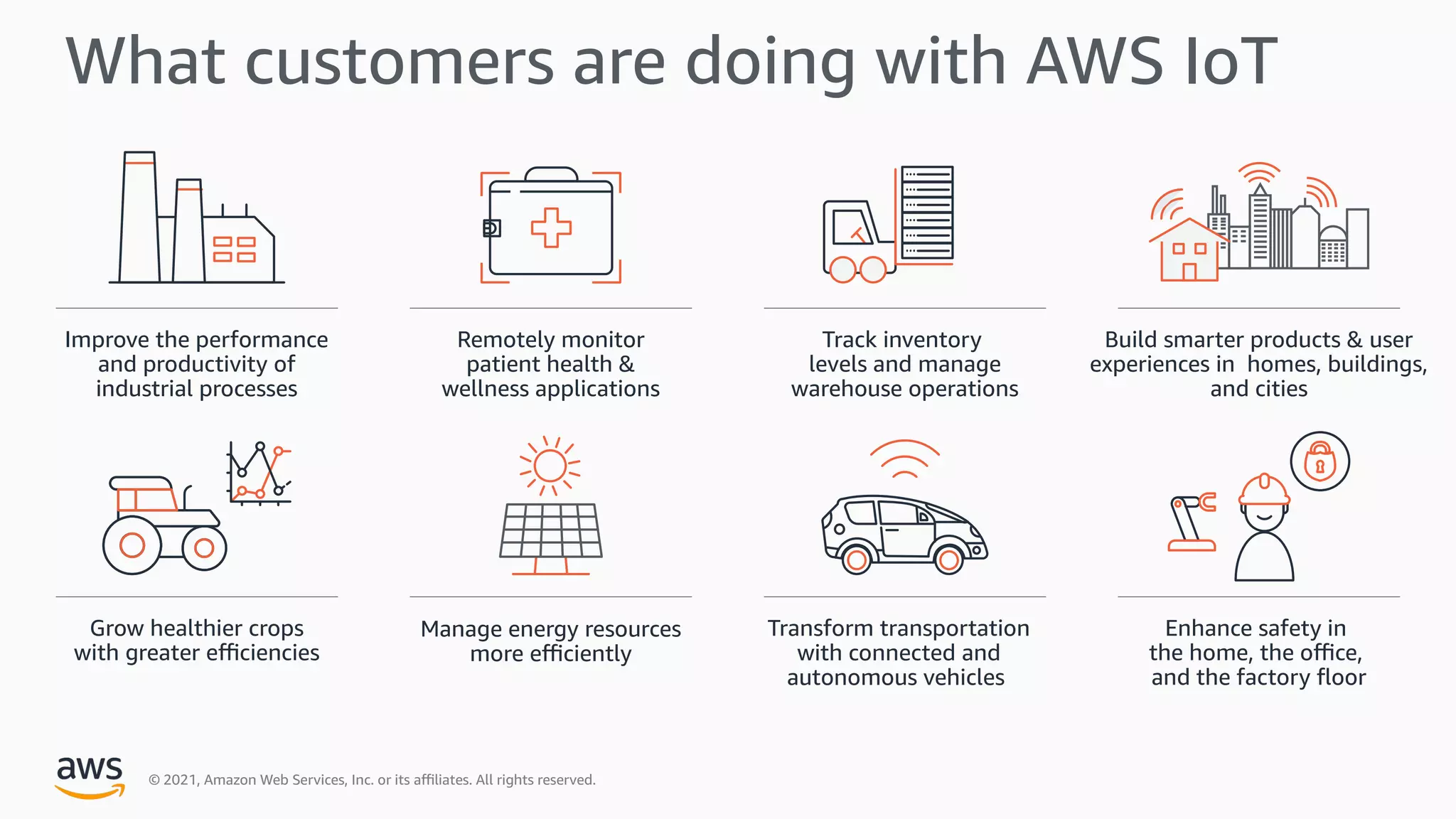

What customers are doing with AWS IoT
Remotely monitor
patient health &
wellness applications
Manage energy resources
more e9ciently
Enhance safety in
the home, the o9ce,
and the factory +oor
Transform transportation
with connected and
autonomous vehicles
Track inventory
levels and manage
warehouse operations
Improve the performance
and productivity of
industrial processes
Build smarter products & user
experiences in homes, buildings,
and cities
Grow healthier crops
with greater e9ciencies

13. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.
© 2021, Amazon Web Services, Inc. or its A9liates.
What are the fundamentals of
AWS IoT?

14. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.

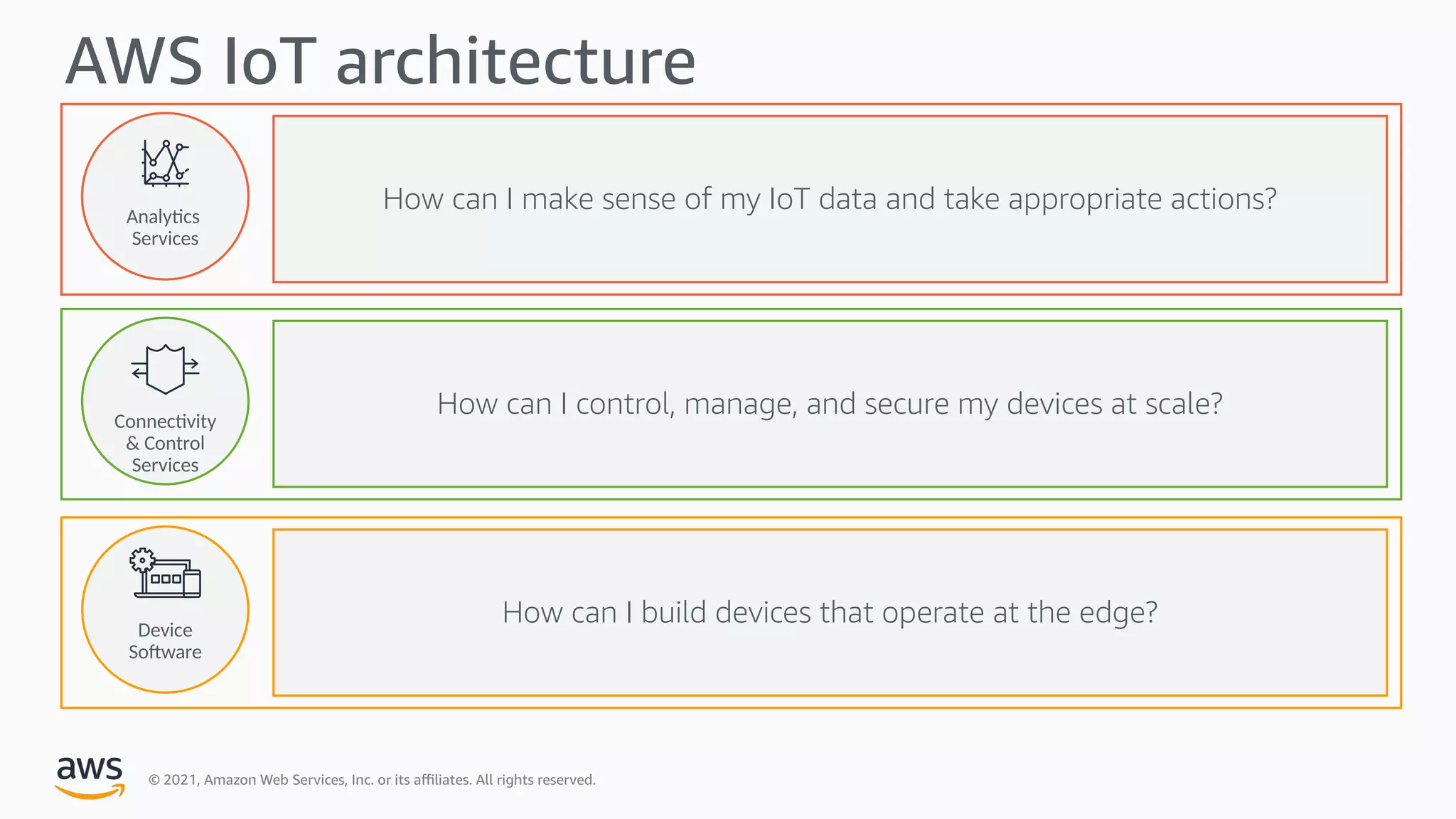

AWS IoT architecture
How can I make sense of my IoT data and take appropriate actions?
How can I control, manage, and secure my devices at scale?
How can I build devices that operate at the edge?
Analy&cs
Services
Connec&vity
& Control
Services
Device
So4ware

15. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.

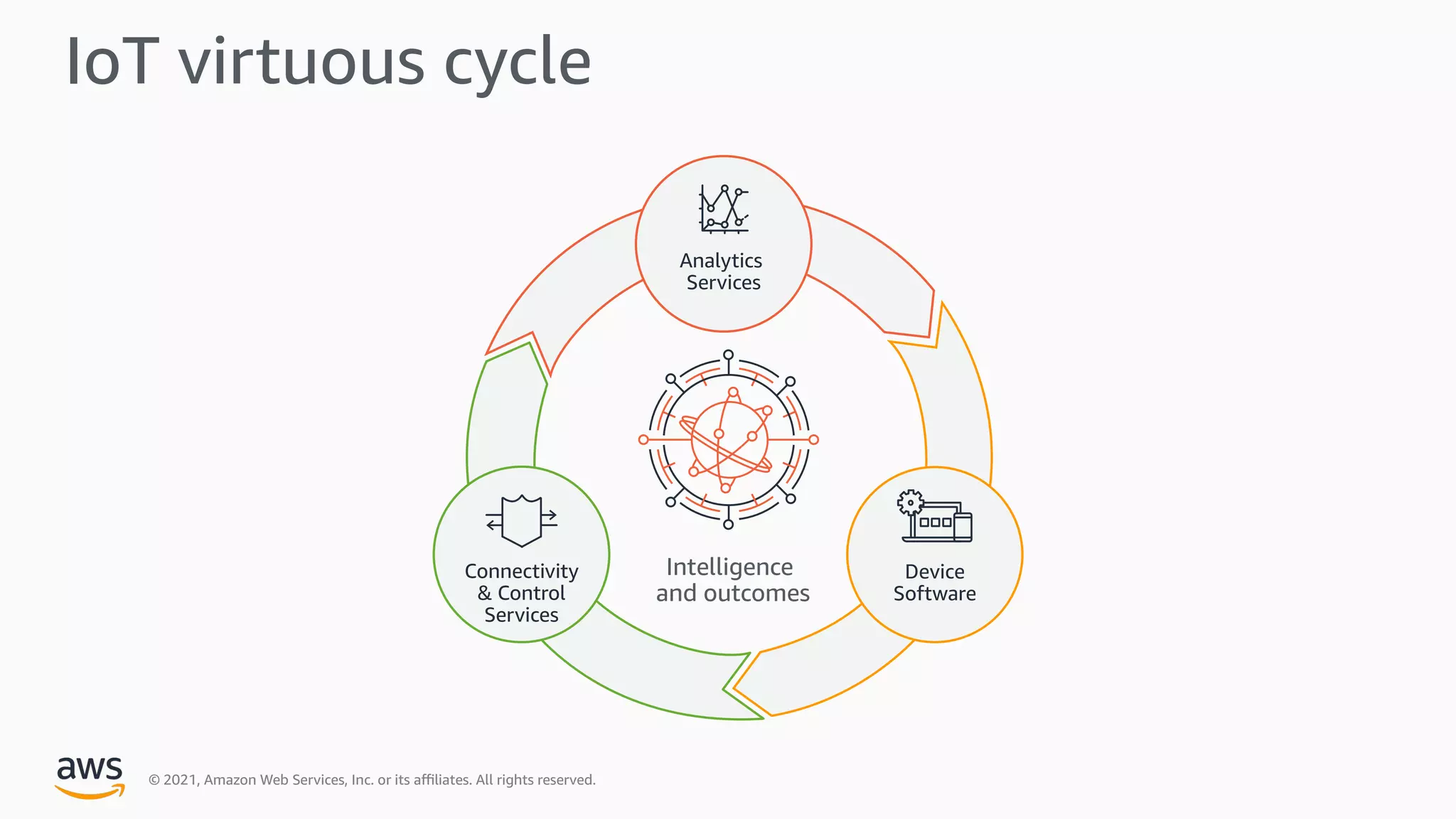

IoT virtuous cycle
Analytics
Services
Connectivity
& Control
Services
Device
Software
Intelligence
and outcomes

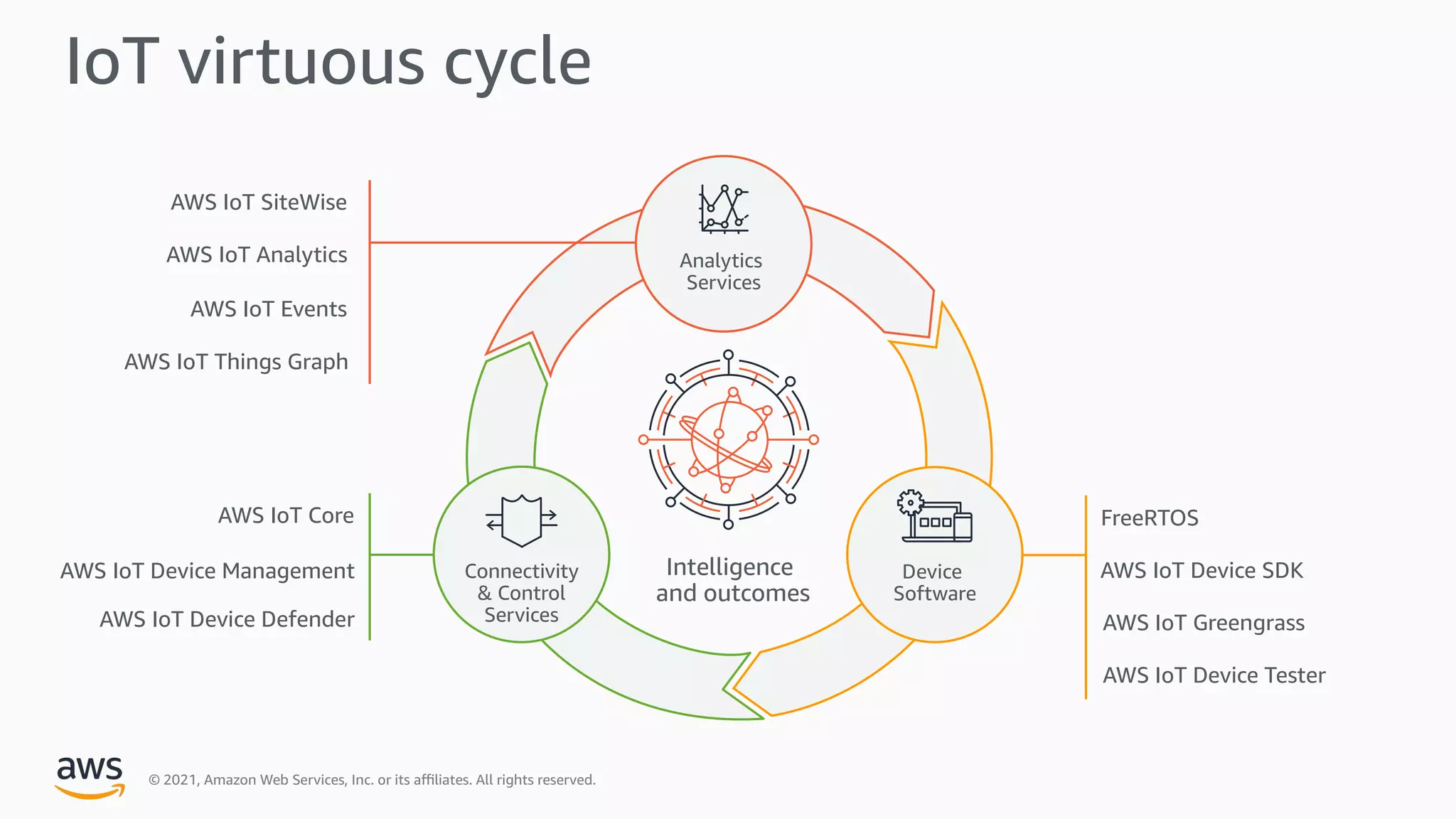

16. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.
IoT virtuous cycle
Intelligence
and outcomes
AWS IoT Things Graph
AWS IoT SiteWise
AWS IoT Analytics
AWS IoT Events
Analytics
Services
AWS IoT Device Management
AWS IoT Device Defender
AWS IoT Core
Connectivity
& Control
Services
AWS IoT Device Tester
AWS IoT Greengrass
FreeRTOS
AWS IoT Device SDK
Device
Software

17. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.
© 2021, Amazon Web Services, Inc. or its A9liates.
How can AWS IoT connect machines
from the shop+oor to In+uxDB?

18. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.

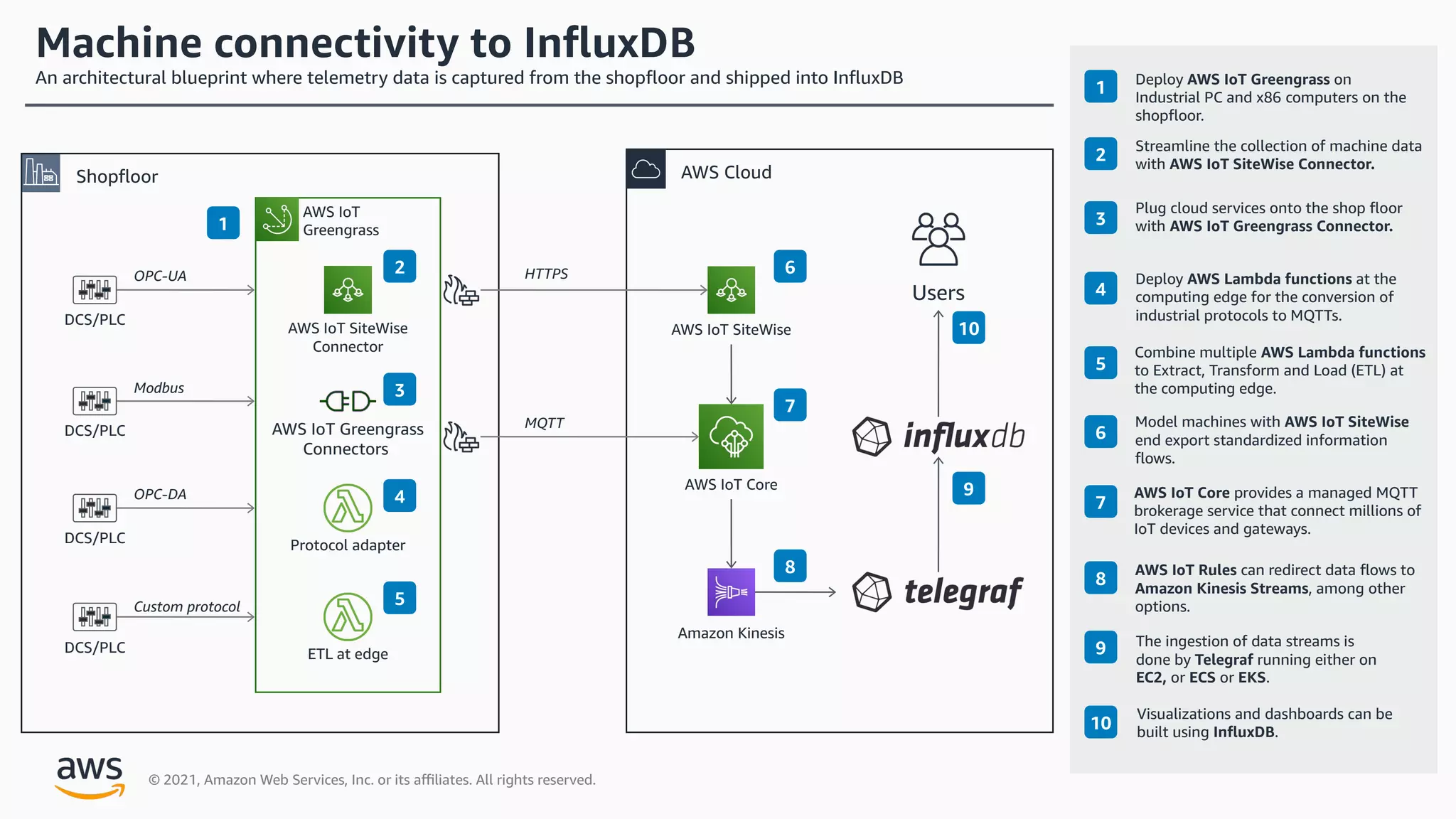

Machine connectivity to In.uxDB
An architectural blueprint where telemetry data is captured from the shop+oor and shipped into In+uxDB
10
The ingestion of data streams is
done by Telegraf running either on
EC2, or ECS or EKS.
9
AWS IoT Rules can redirect data +ows to
Amazon Kinesis Streams, among other
options.
8
AWS IoT Core provides a managed MQTT
brokerage service that connect millions of
IoT devices and gateways.
7
Model machines with AWS IoT SiteWise
end export standardized information
+ows.
6
Combine multiple AWS Lambda functions
to Extract, Transform and Load (ETL) at
the computing edge.
5
Deploy AWS Lambda functions at the
computing edge for the conversion of
industrial protocols to MQTTs.
4
Plug cloud services onto the shop +oor
with AWS IoT Greengrass Connector.
3
Streamline the collection of machine data
with AWS IoT SiteWise Connector.
2
Deploy AWS IoT Greengrass on
Industrial PC and x86 computers on the
shop+oor.
1
AWS Cloud
Visualizations and dashboards can be
built using In.uxDB.
DCS/PLC
Users
1
2
3
4
5
6
7
8
9
10
Shop+oor
OPC-DA
Modbus
OPC-UA
AWS IoT
Greengrass
AWS IoT SiteWise
Connector
Protocol adapter
AWS IoT Greengrass
Connectors
DCS/PLC
DCS/PLC
ETL at edge
Custom protocol
DCS/PLC
AWS IoT SiteWise
AWS IoT Core
Amazon Kinesis
MQTT
HTTPS

19. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.

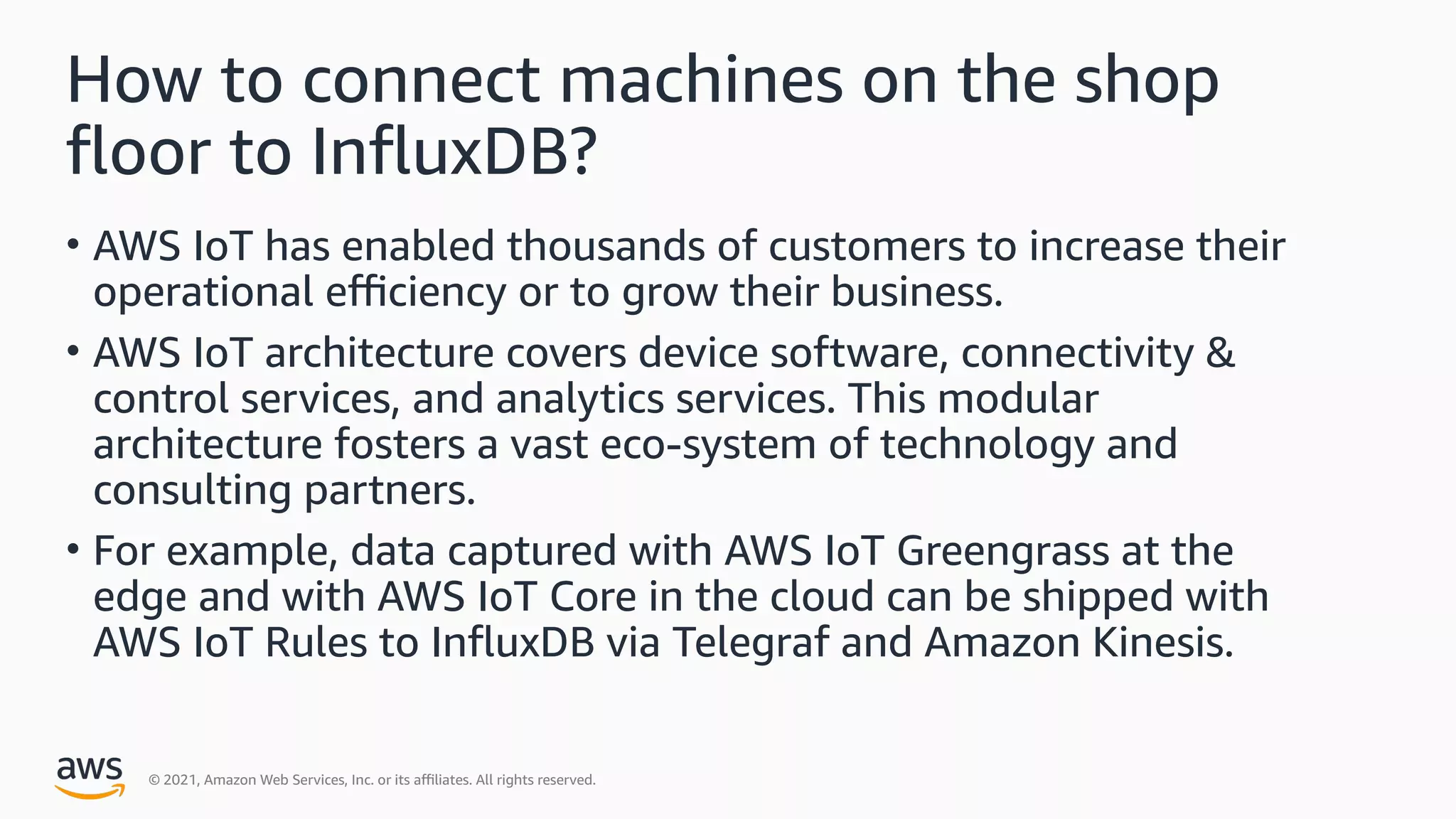

How to connect machines on the shop
+oor to In+uxDB?
• AWS IoT has enabled thousands of customers to increase their
operational e9ciency or to grow their business.
• AWS IoT architecture covers device software, connectivity &
control services, and analytics services. This modular
architecture fosters a vast eco-system of technology and
consulting partners.
• For example, data captured with AWS IoT Greengrass at the
edge and with AWS IoT Core in the cloud can be shipped with
AWS IoT Rules to In+uxDB via Telegraf and Amazon Kinesis.

20. © 2021, Amazon Web Services, Inc. or its a9liates. All rights reserved.
in#uxdata.com/aws

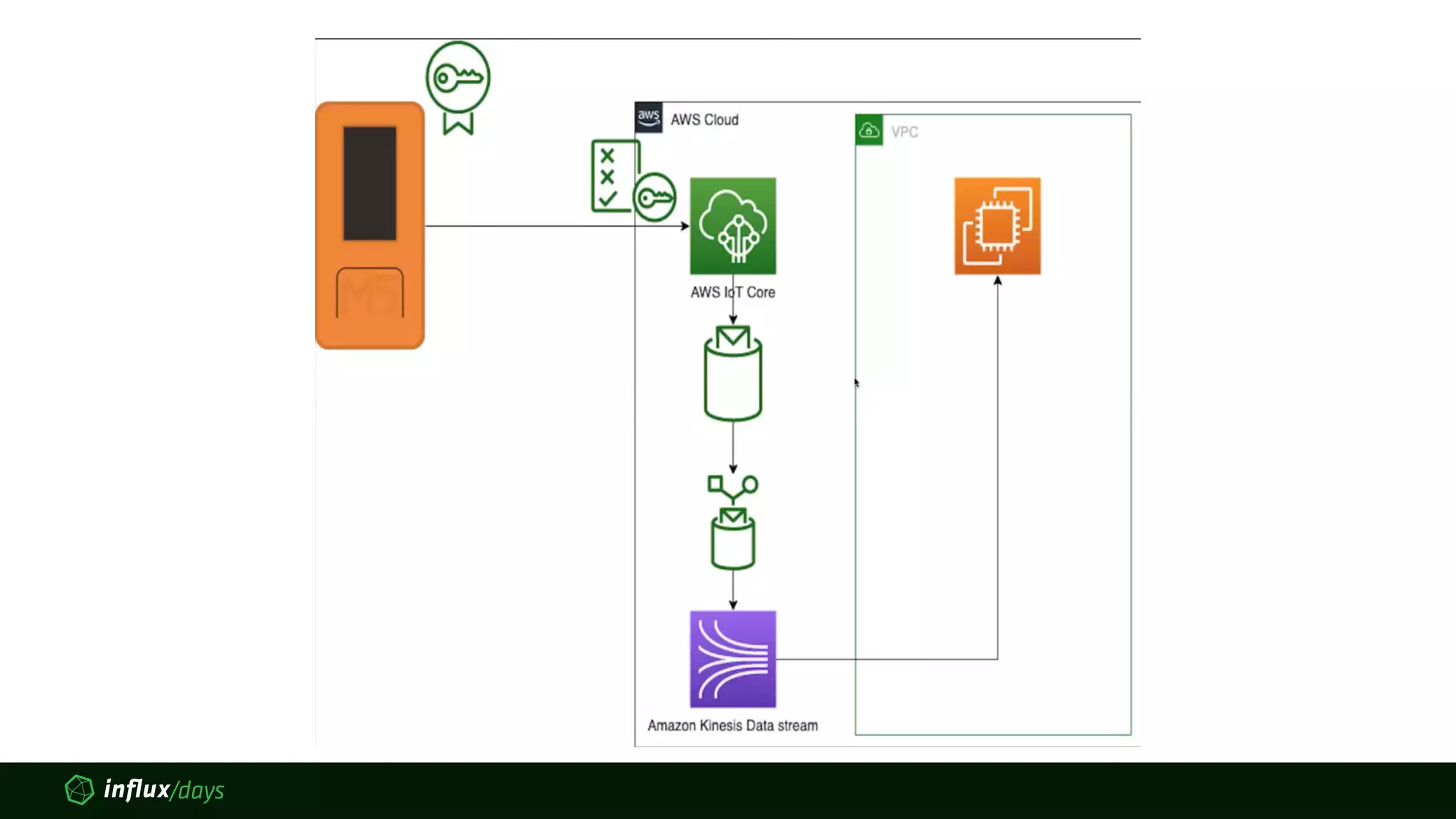

21. Demonstration
Kevin Polossat, Amazon Web Services

23. To learn more, visit:
influxdata.com/aws
