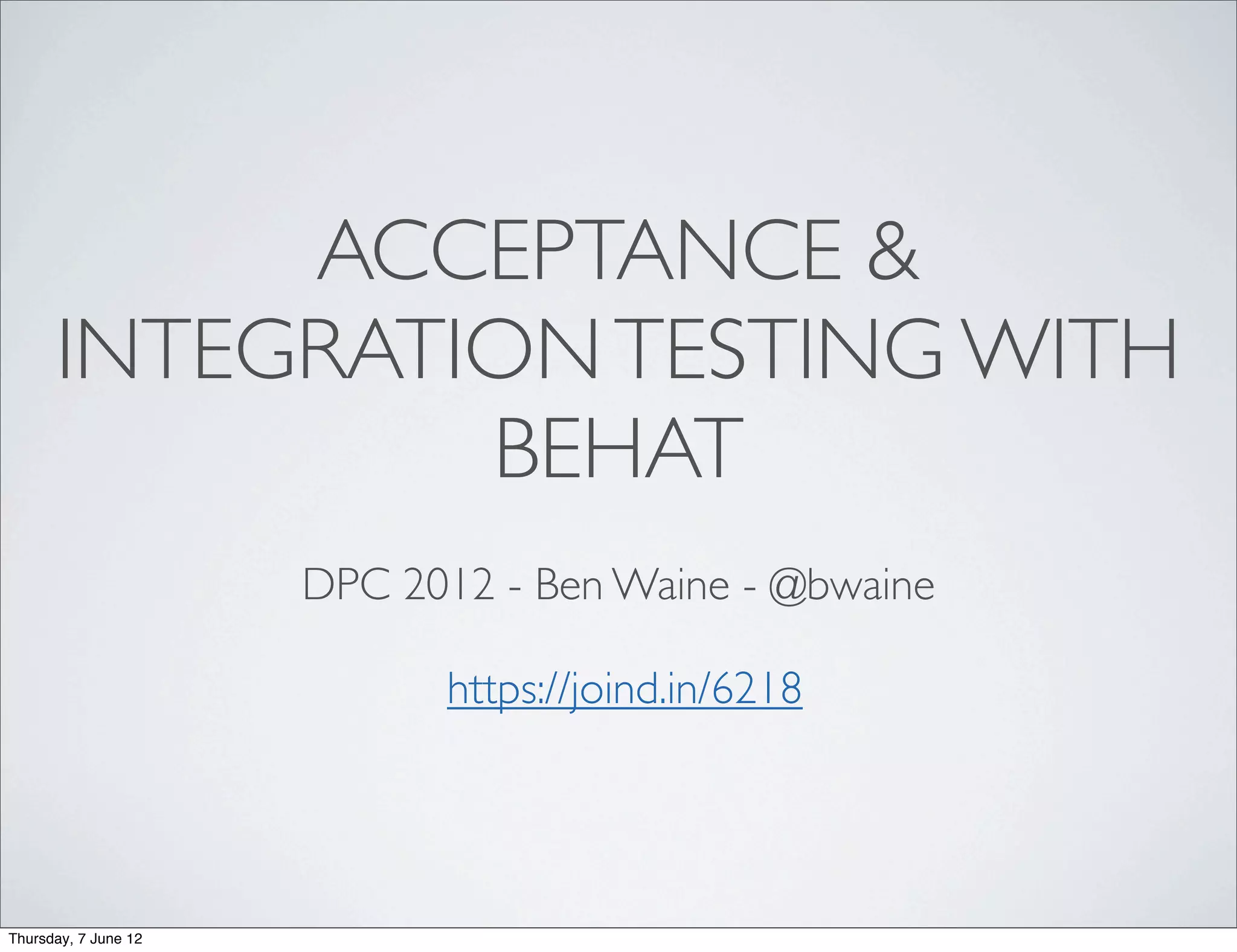

1. ACCEPTANCE &
INTEGRATION TESTING WITH
BEHAT
DPC 2012 - Ben Waine - @bwaine
https://joind.in/6218
Thursday, 7 June 12

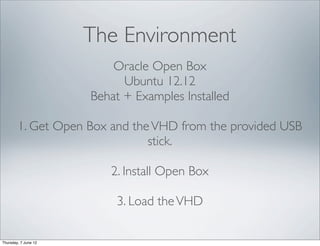

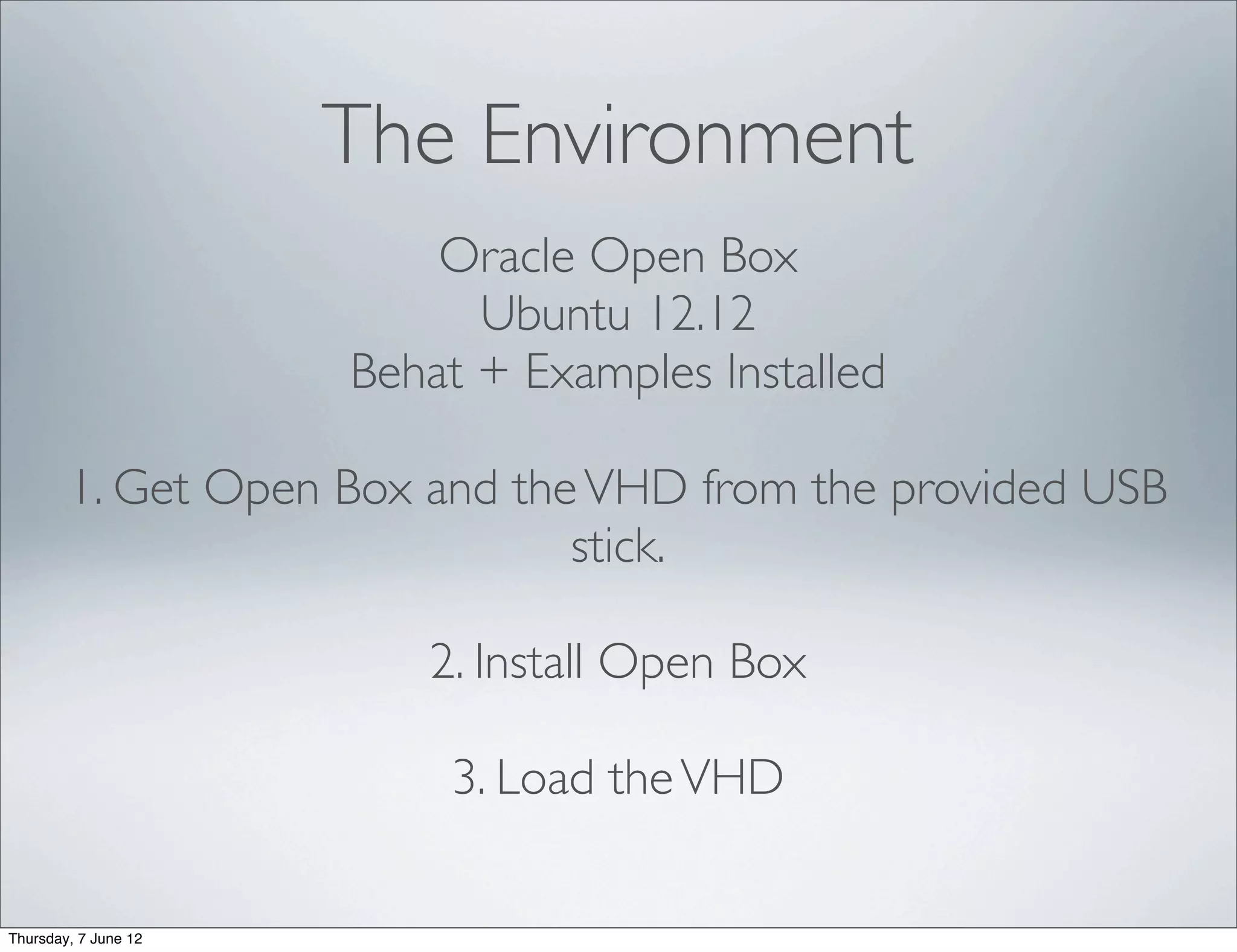

2. The Environment
Oracle Open Box
Ubuntu 12.12
Behat + Examples Installed
1. Get Open Box and the VHD from the provided USB
stick.
2. Install Open Box
3. Load the VHD
Thursday, 7 June 12

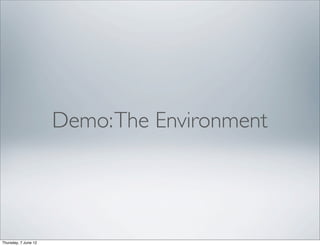

3. Demo: The Environment
Thursday, 7 June 12

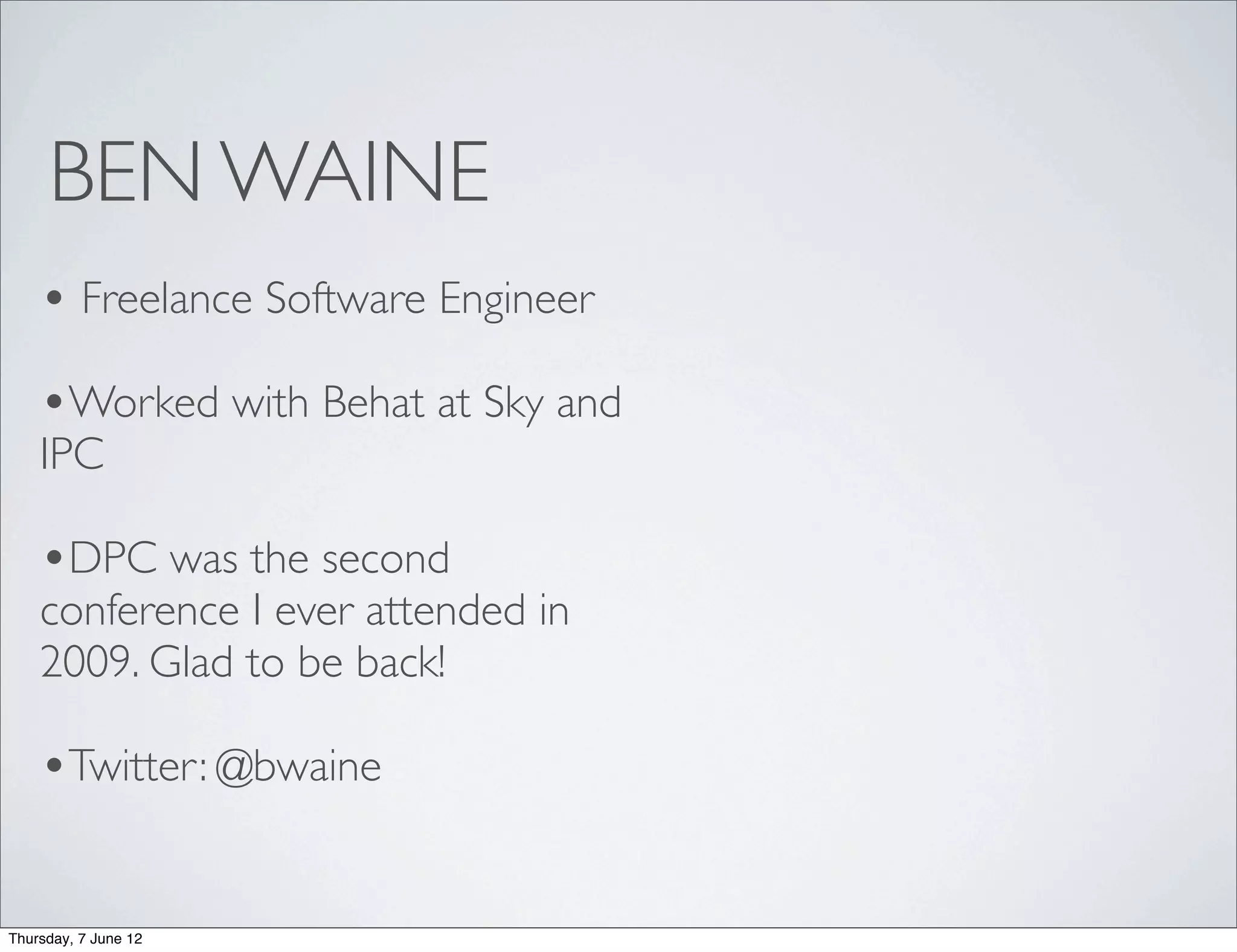

4. BEN WAINE
• Freelance Software Engineer
•Worked with Behat at Sky and
IPC
•DPC was the second
conference I ever attended in
2009. Glad to be back!
•Twitter: @bwaine
Thursday, 7 June 12

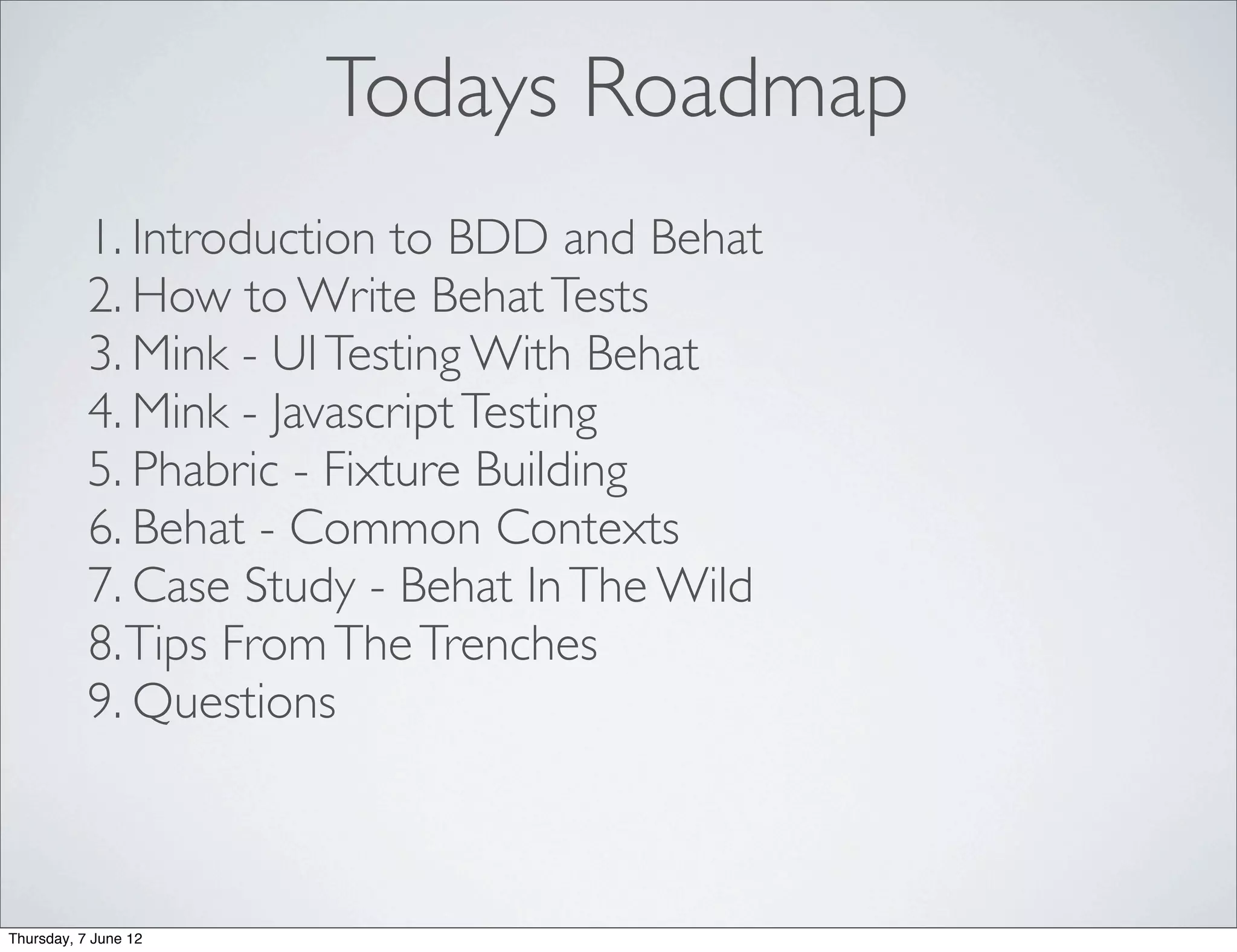

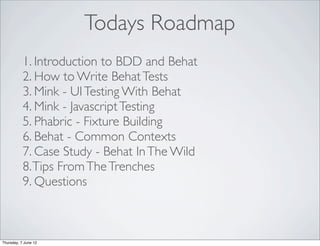

5. Todays Roadmap
1. Introduction to BDD and Behat
2. How to Write Behat Tests
3. Mink - UI Testing With Behat
4. Mink - Javascript Testing
5. Phabric - Fixture Building

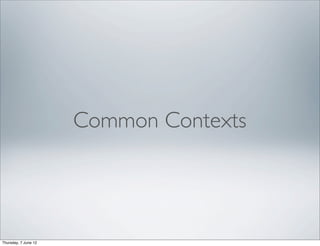

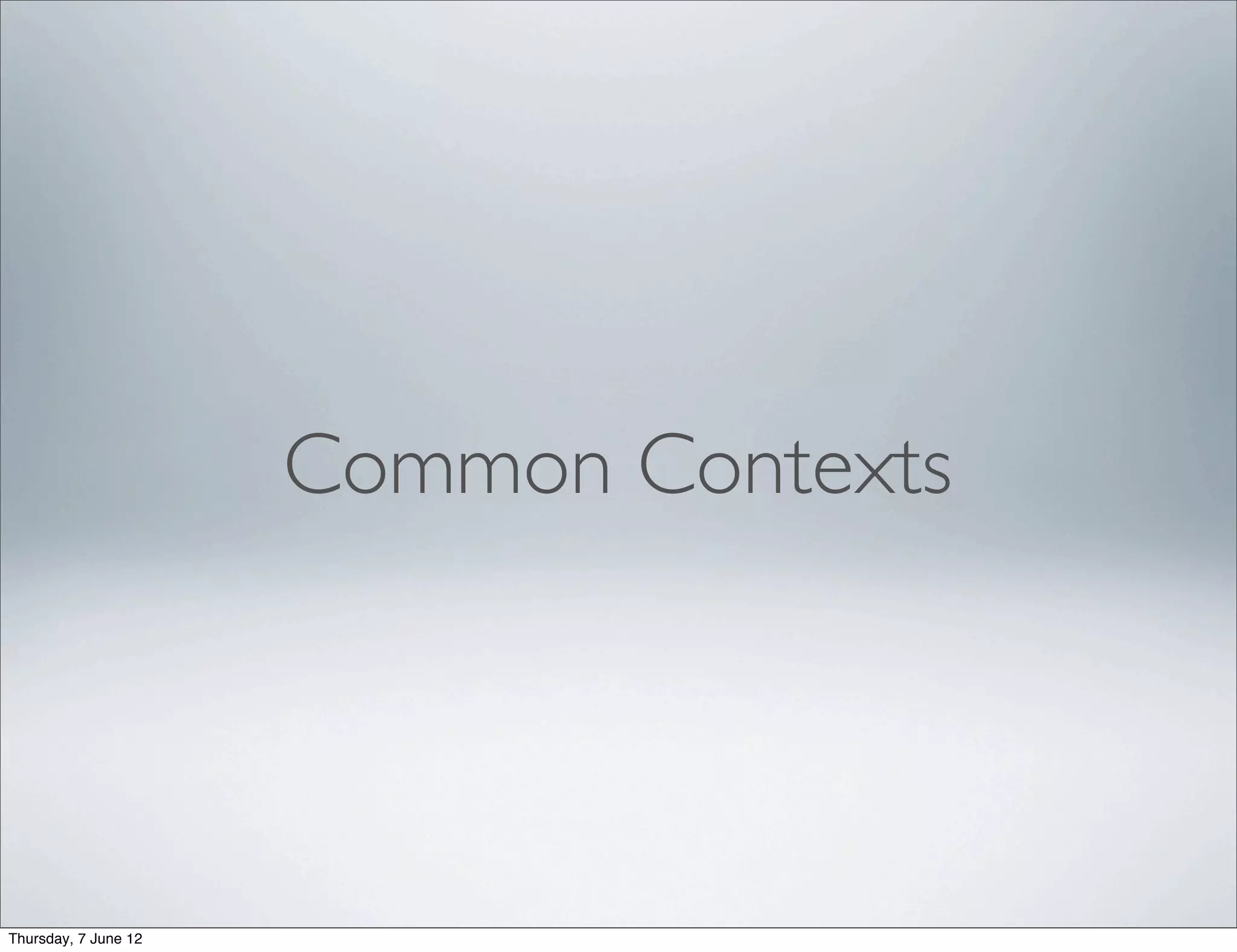

6. Behat - Common Contexts
7. Case Study - Behat In The Wild
8. Tips From The Trenches
9. Questions
Thursday, 7 June 12

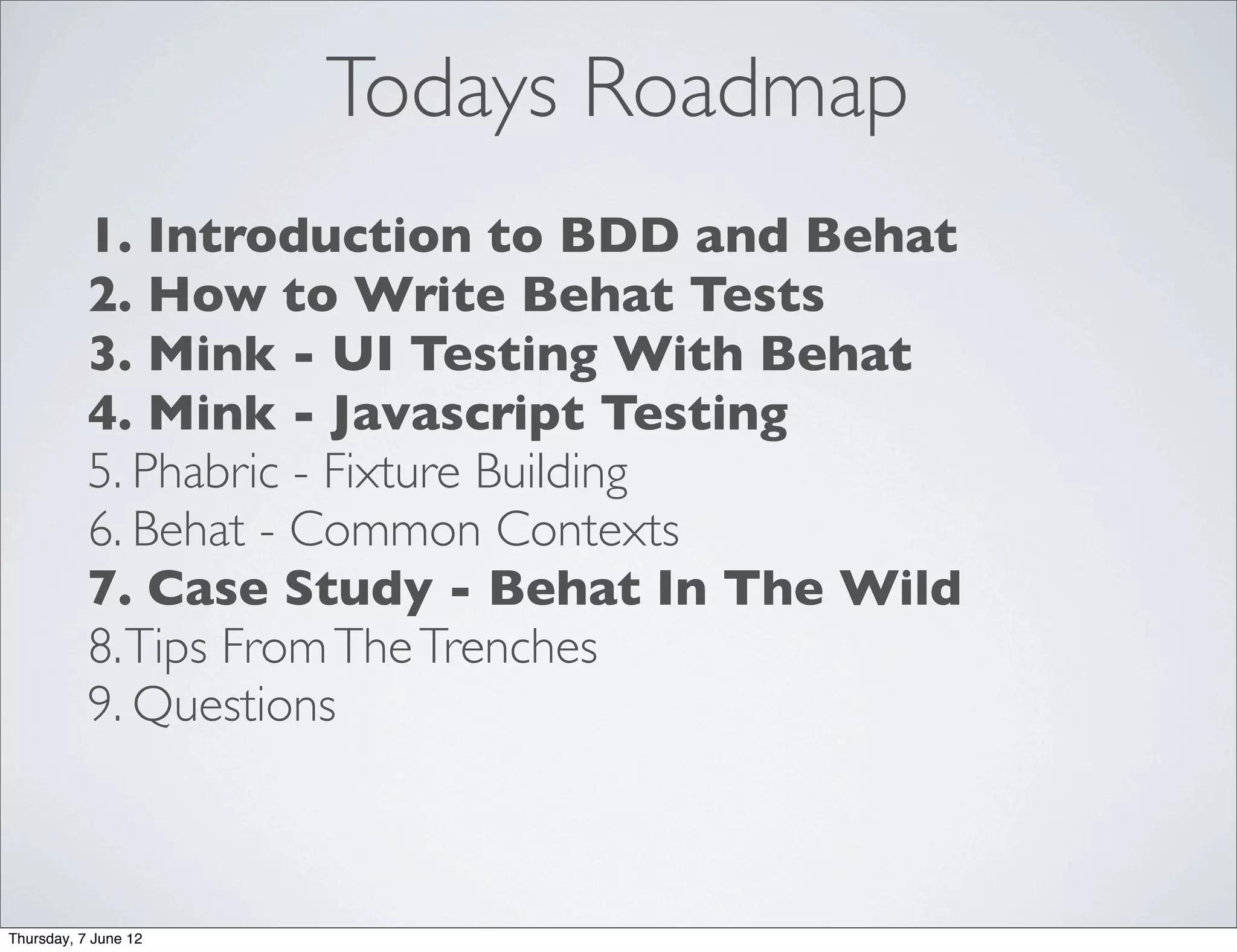

6. Todays Roadmap
1. Introduction to BDD and Behat
2. How to Write Behat Tests
3. Mink - UI Testing With Behat
4. Mink - Javascript Testing
5. Phabric - Fixture Building
6. Behat - Common Contexts
7. Case Study - Behat In The Wild
8. Tips From The Trenches
9. Questions
Thursday, 7 June 12

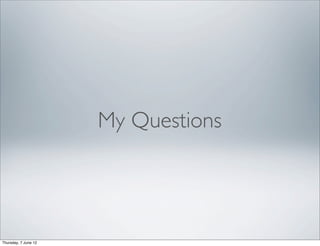

7. My Questions
Thursday, 7 June 12

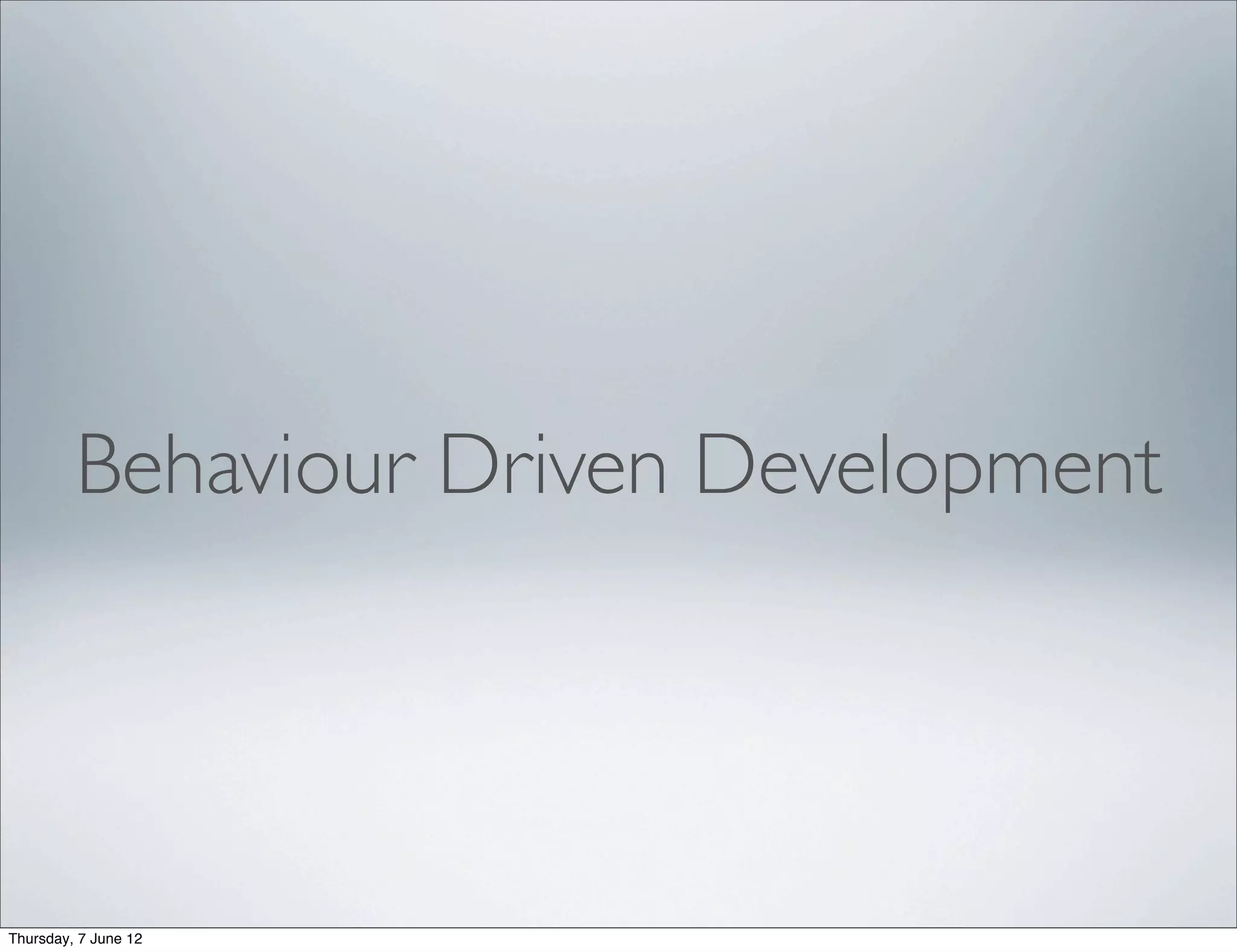

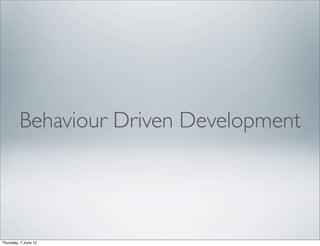

8. Behaviour Driven Development
Thursday, 7 June 12

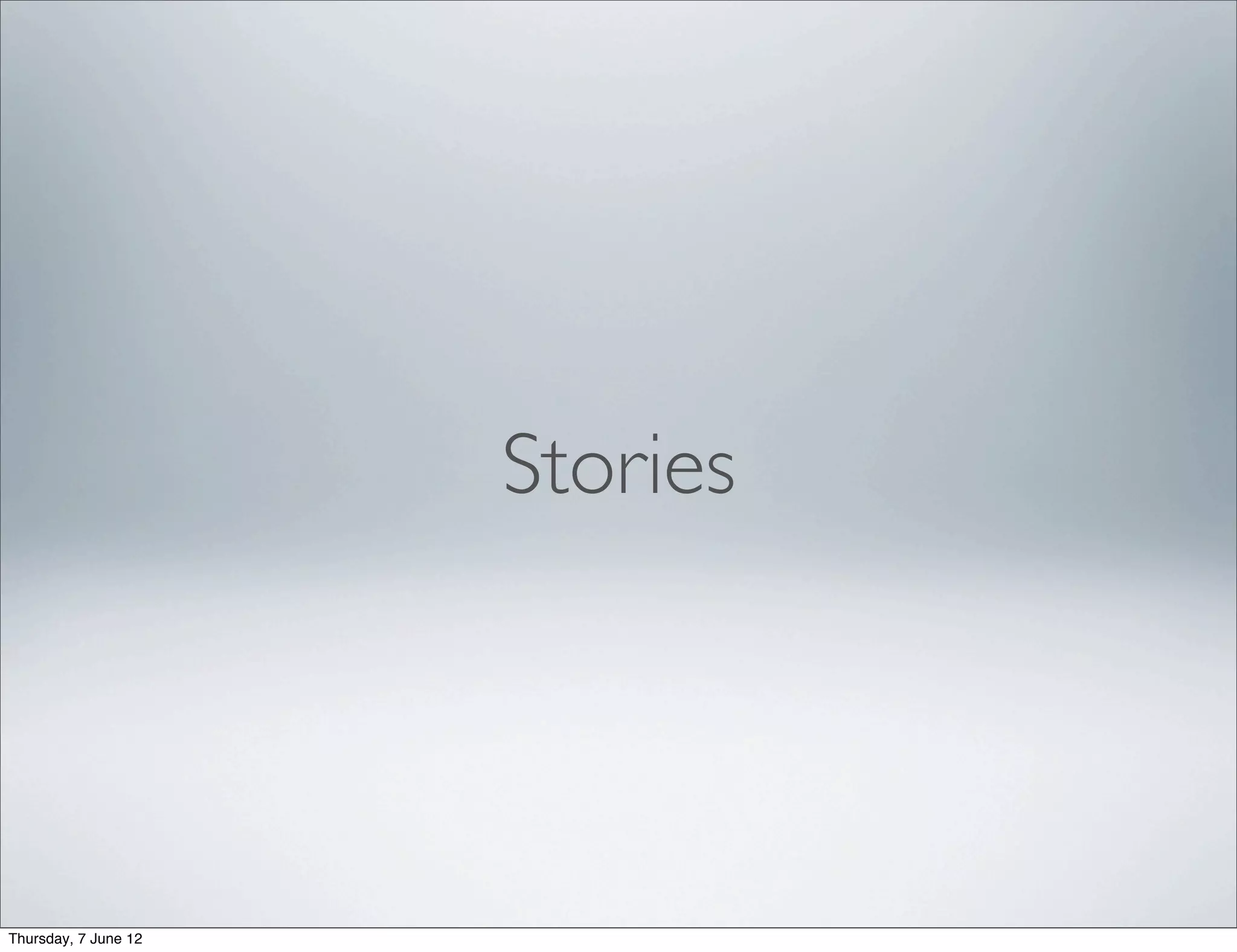

9. Stories
Thursday, 7 June 12

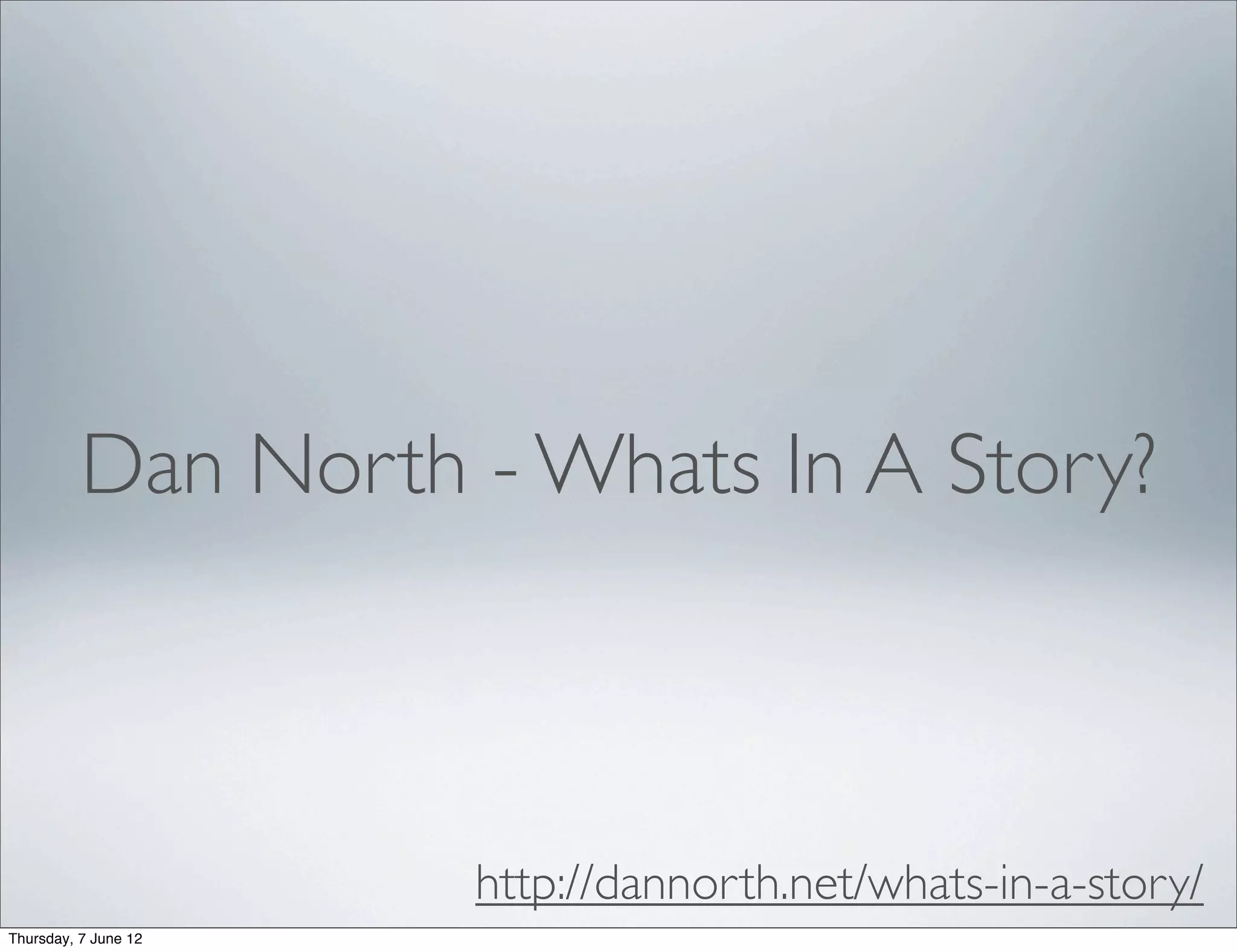

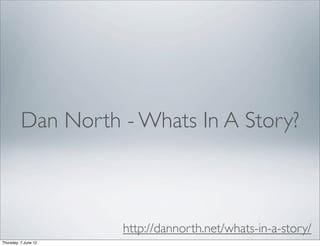

10. Dan North - Whats In A Story?
http://dannorth.net/whats-in-a-story/
Thursday, 7 June 12

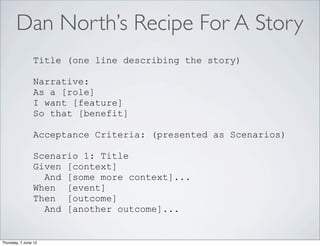

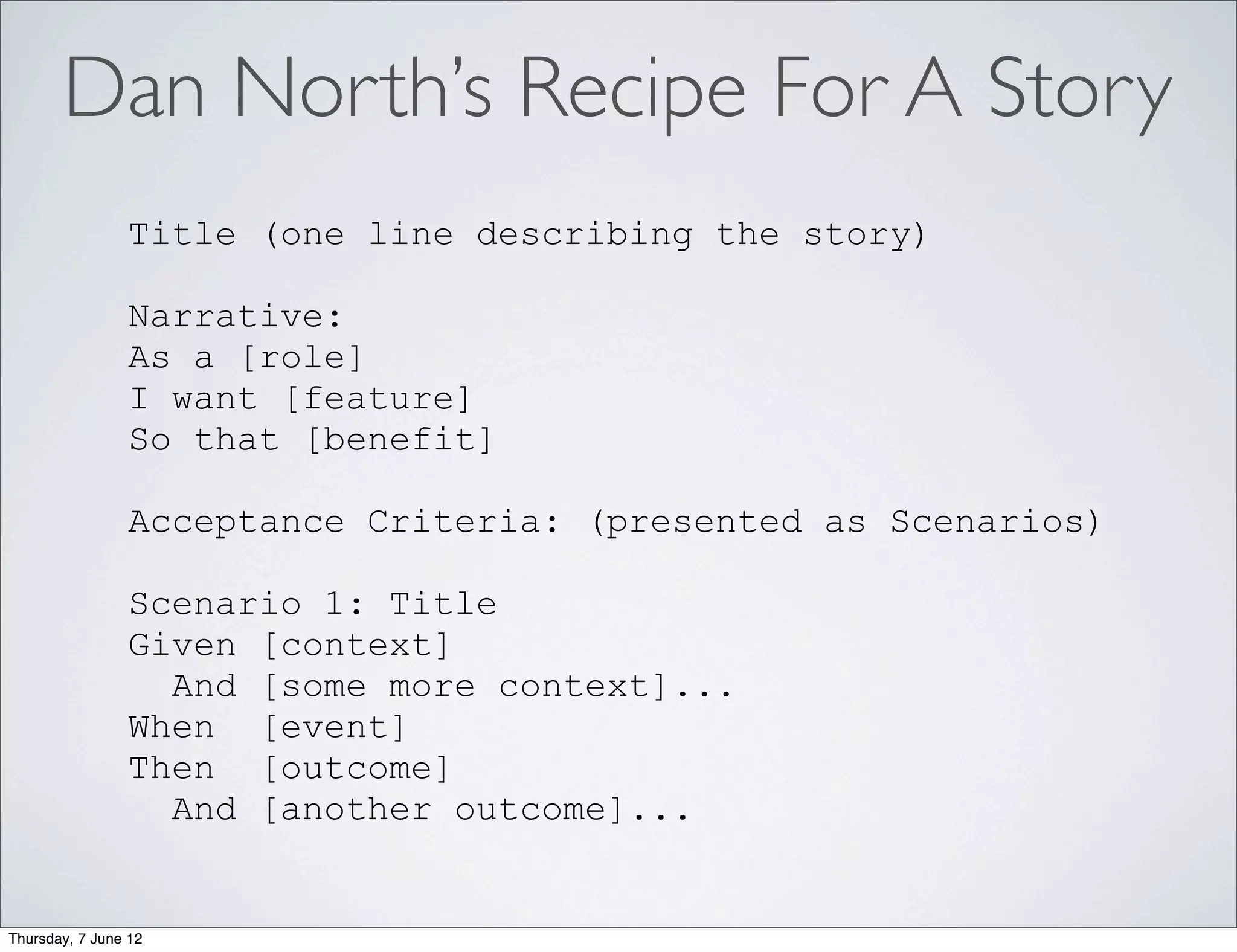

11. Dan North’s Recipe For A Story
Title (one line describing the story)
Narrative:
As a [role]
I want [feature]
So that [benefit]
Acceptance Criteria: (presented as Scenarios)
Scenario 1: Title
Given [context]
And [some more context]...
When [event]
Then [outcome]
And [another outcome]...
Thursday, 7 June 12

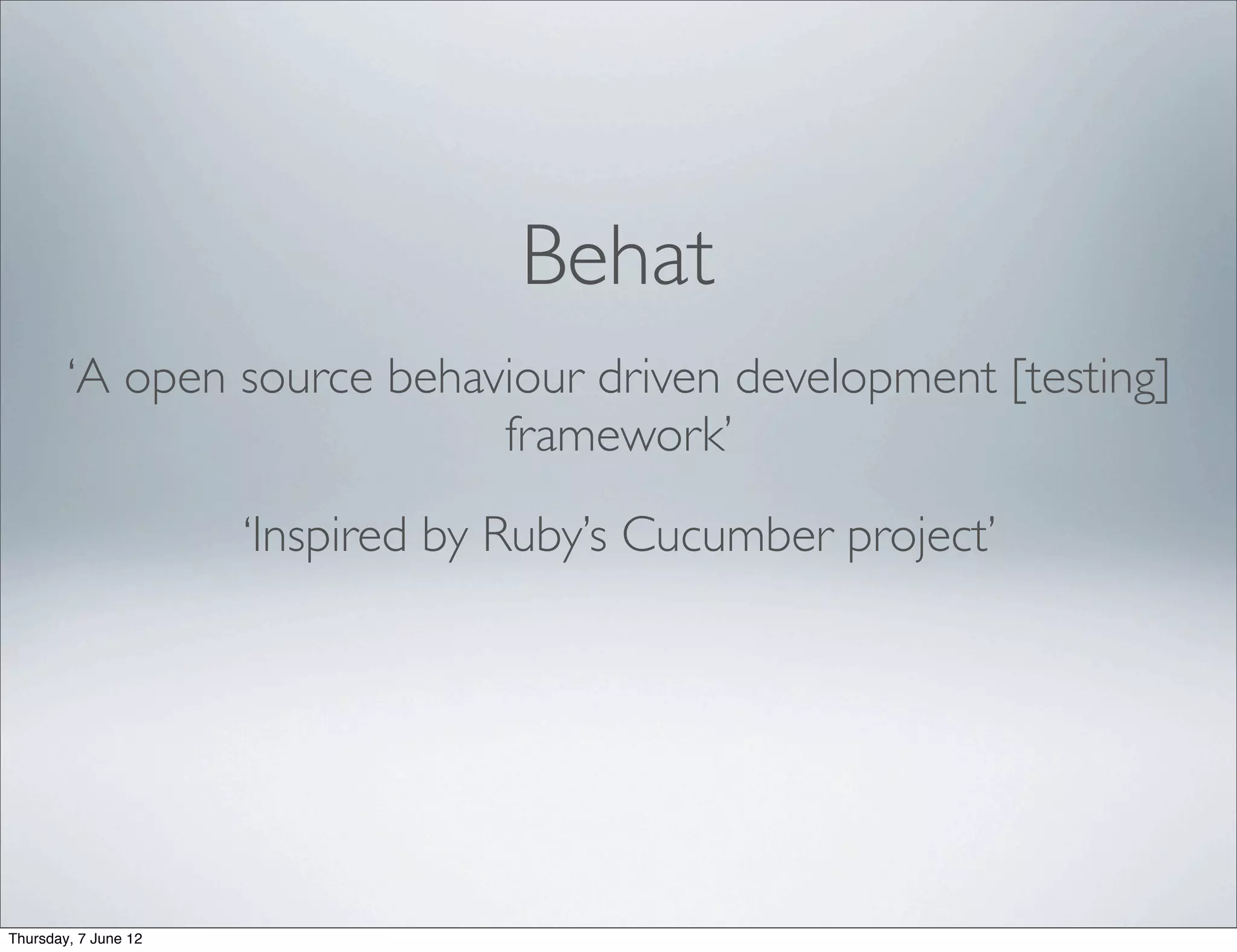

12. Behat
‘A open source behaviour driven development [testing]
framework’
‘Inspired by Ruby’s Cucumber project’
Thursday, 7 June 12

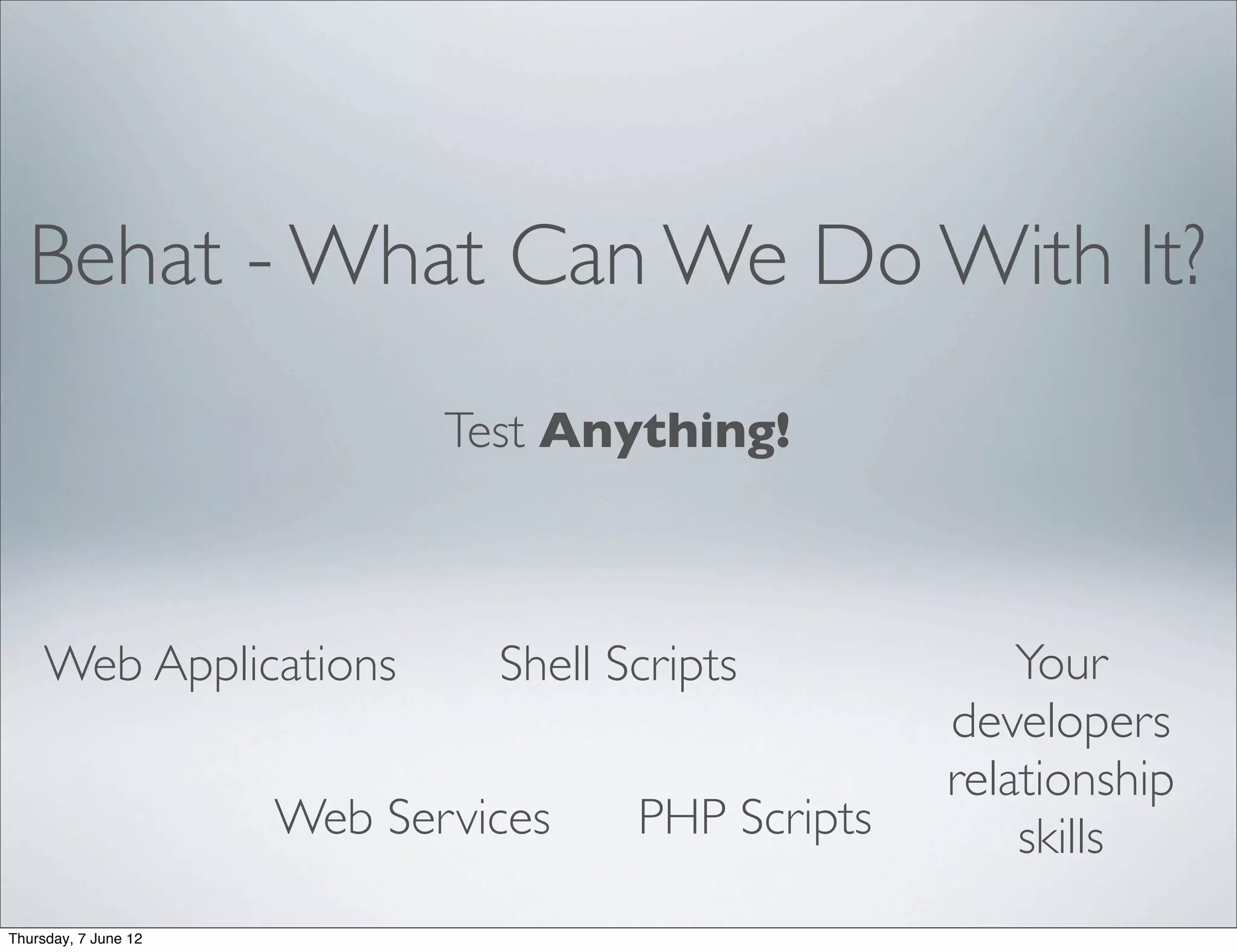

13. Behat - What Can We Do With It?
Test Anything!
Web Applications Shell Scripts Your
developers
relationship
Web Services PHP Scripts skills
Thursday, 7 June 12

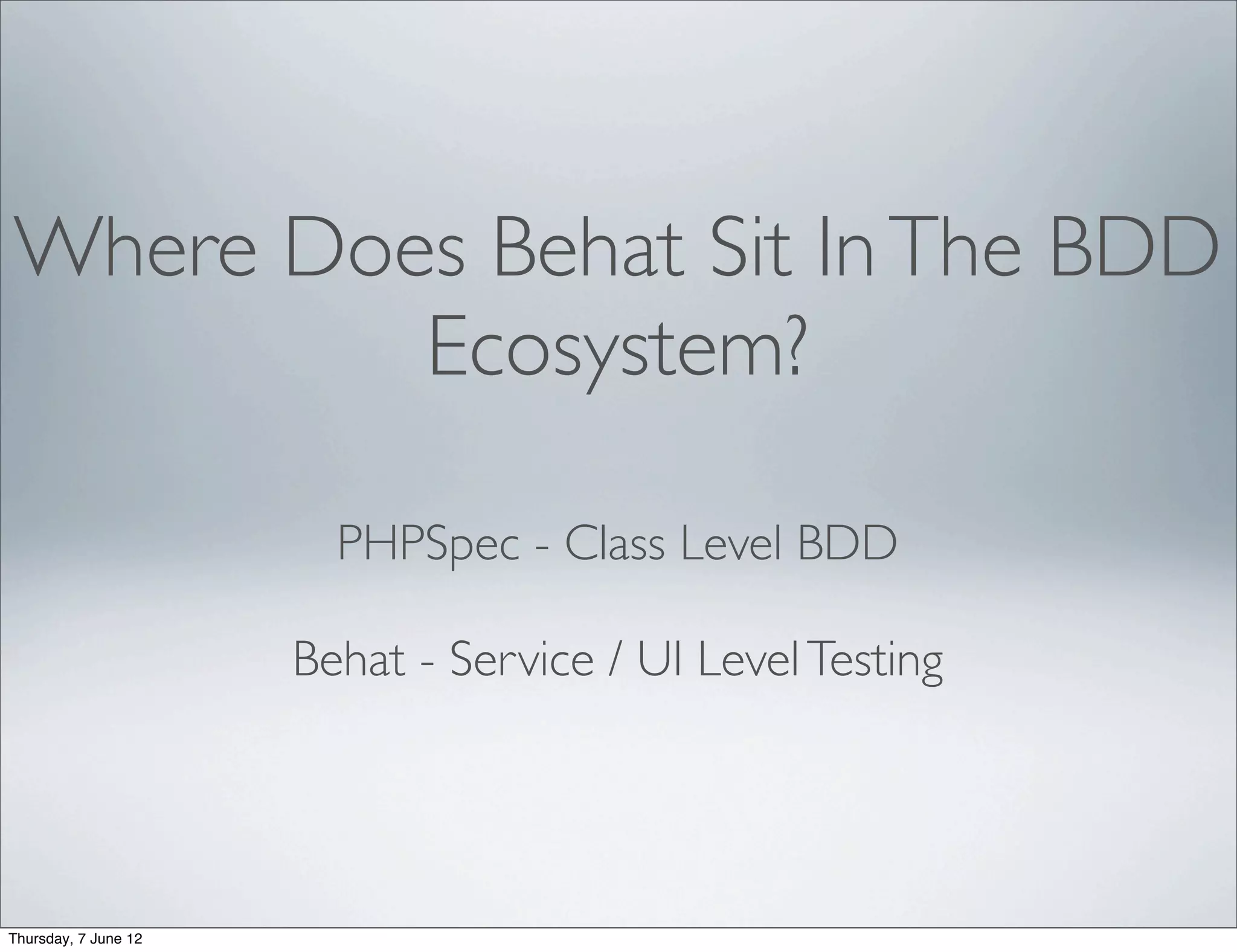

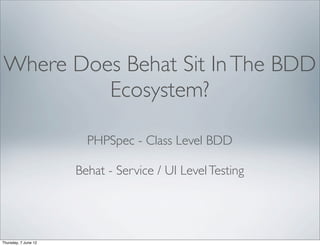

14. Where Does Behat Sit In The BDD
Ecosystem?
PHPSpec - Class Level BDD
Behat - Service / UI Level Testing
Thursday, 7 June 12

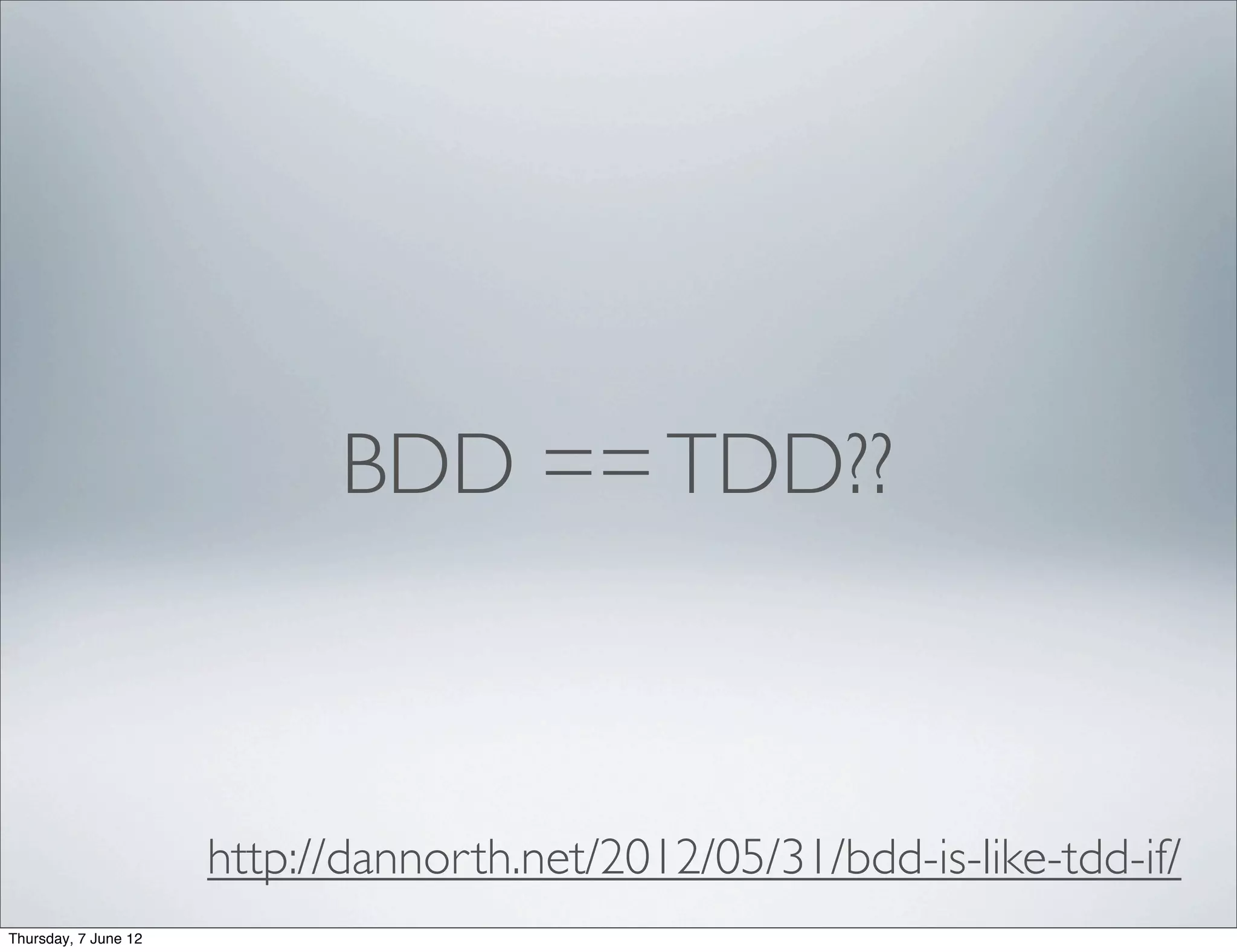

15. BDD == TDD??
http://dannorth.net/2012/05/31/bdd-is-like-tdd-if/
Thursday, 7 June 12

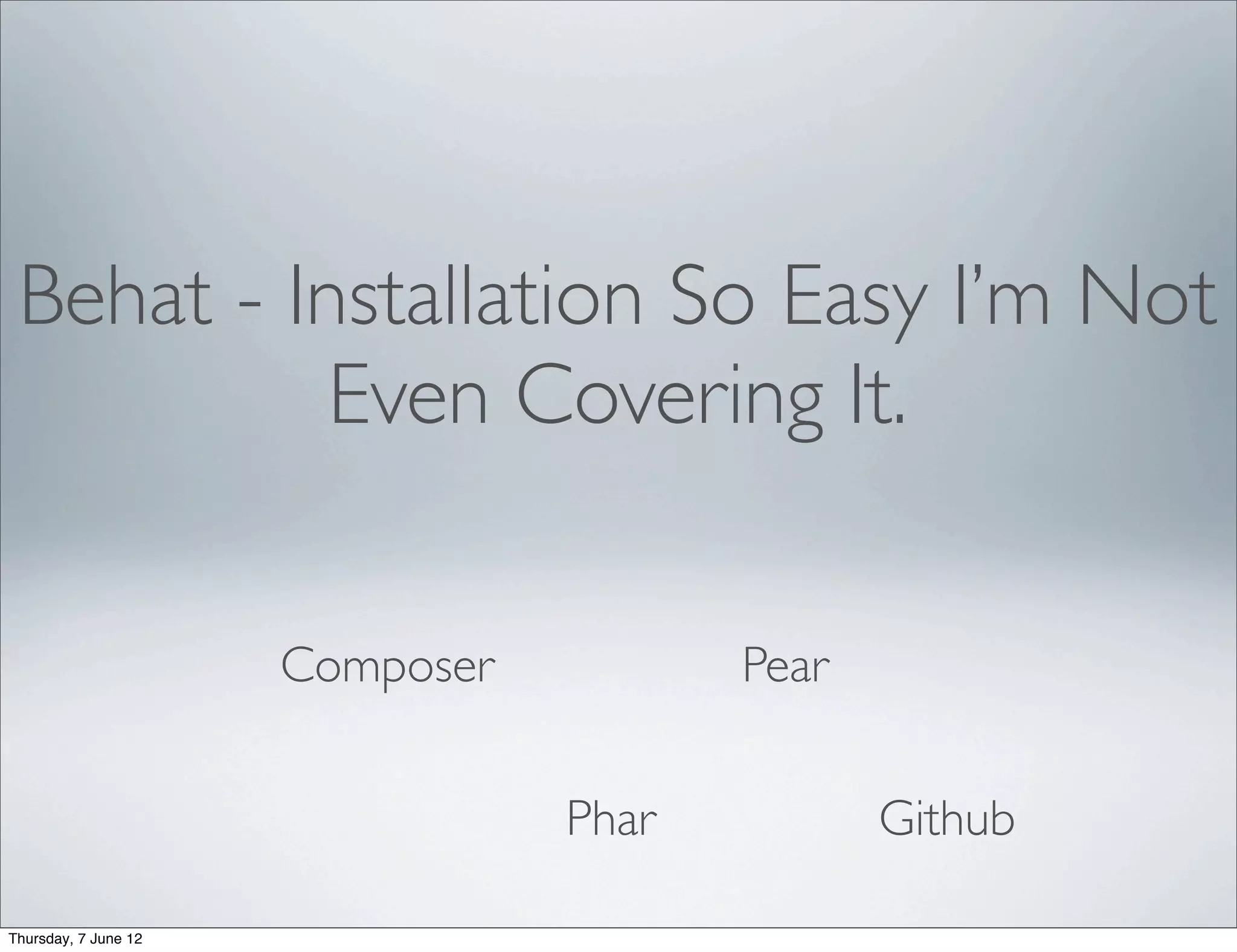

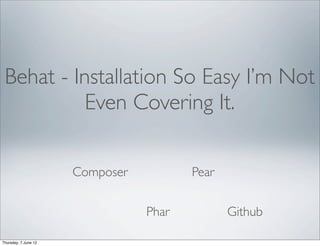

16. Behat - Installation So Easy I’m Not
Even Covering It.
Composer Pear
Phar Github
Thursday, 7 June 12

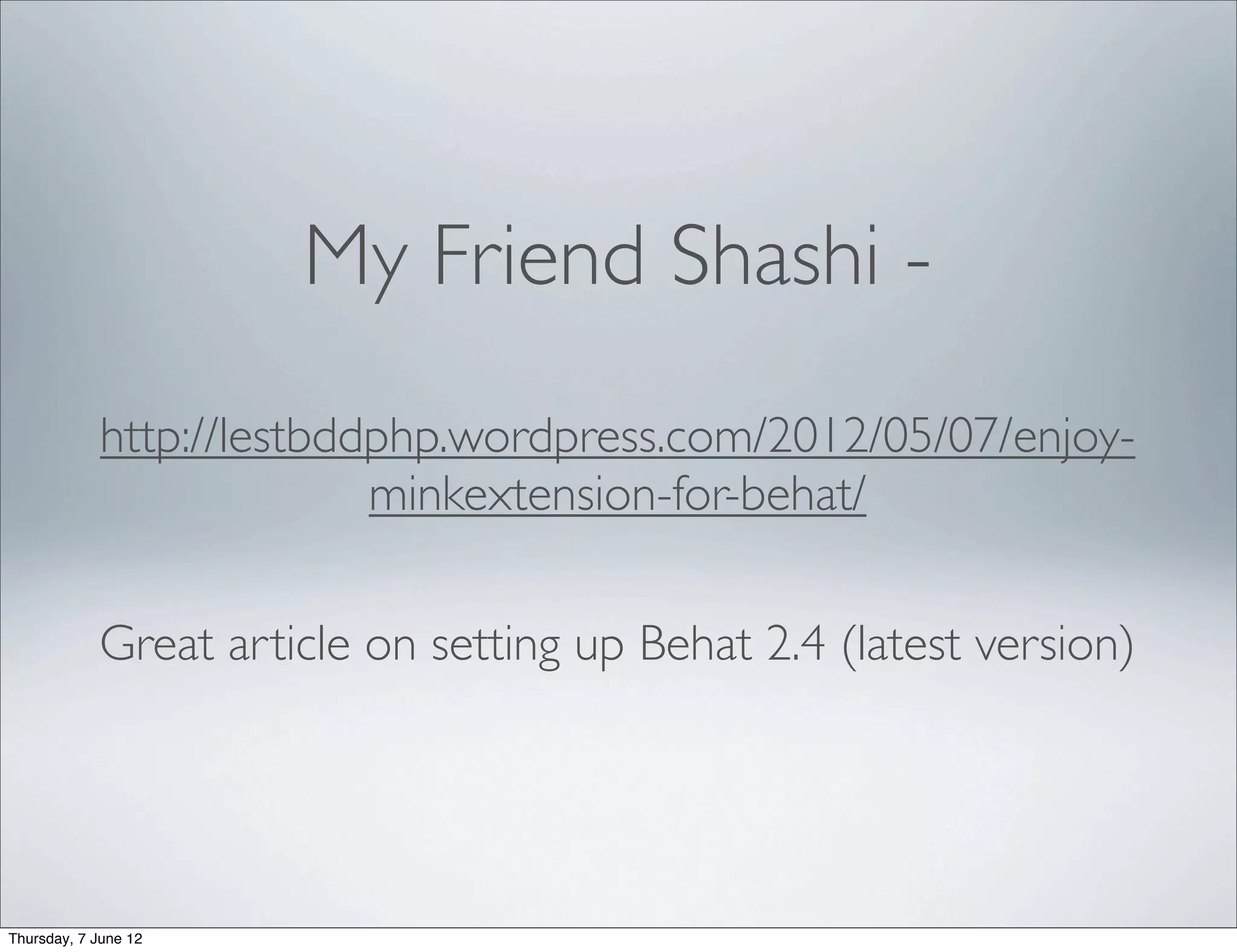

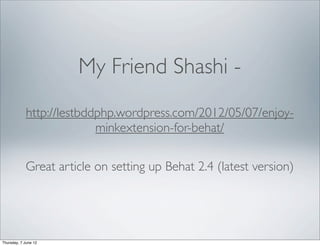

17. My Friend Shashi -
http://lestbddphp.wordpress.com/2012/05/07/enjoy-
minkextension-for-behat/
Great article on setting up Behat 2.4 (latest version)
Thursday, 7 June 12

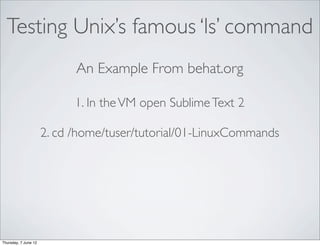

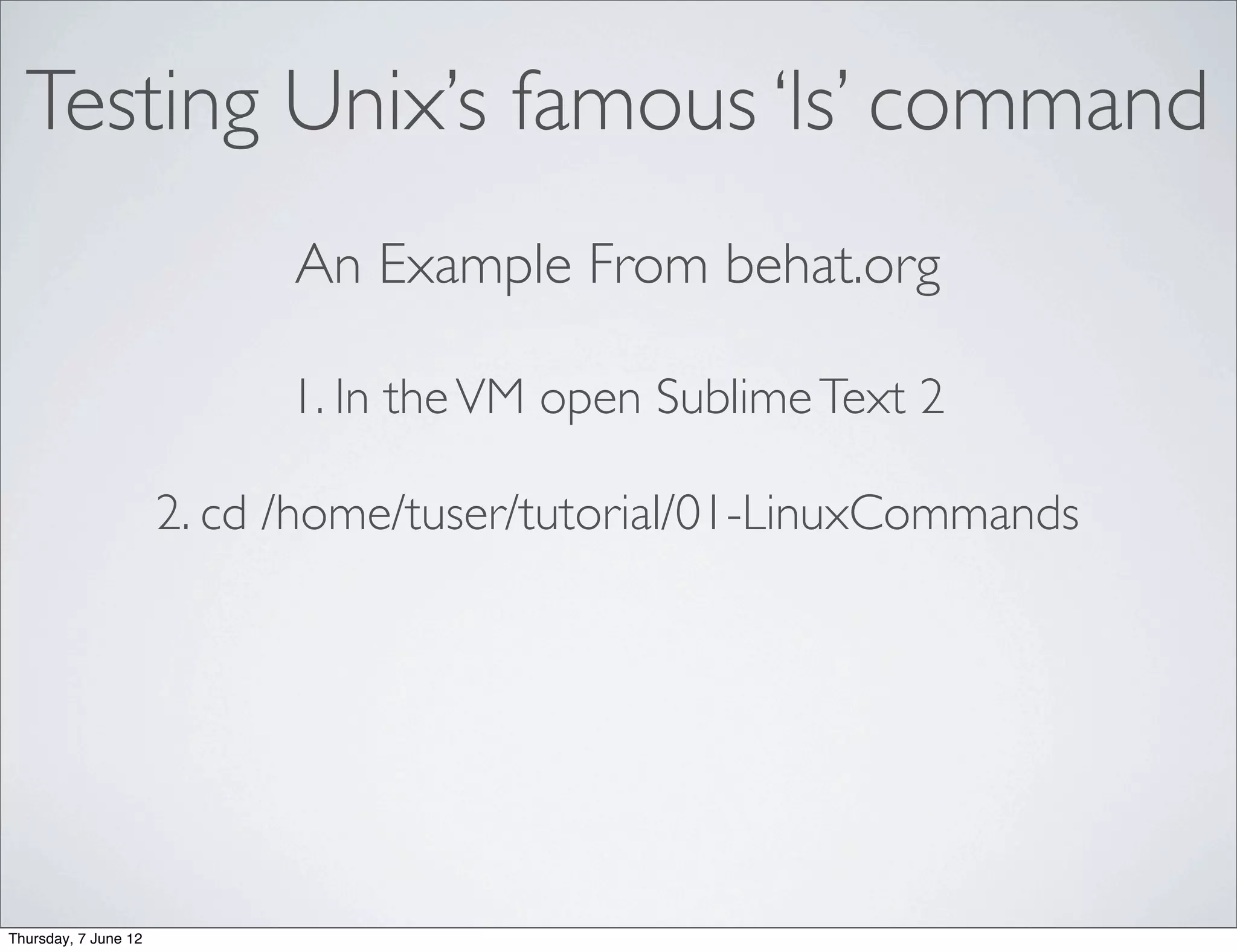

18. Testing Unix’s famous ‘ls’ command
An Example From behat.org
1. In the VM open Sublime Text 2
2. cd /home/tuser/tutorial/01-LinuxCommands
Thursday, 7 June 12

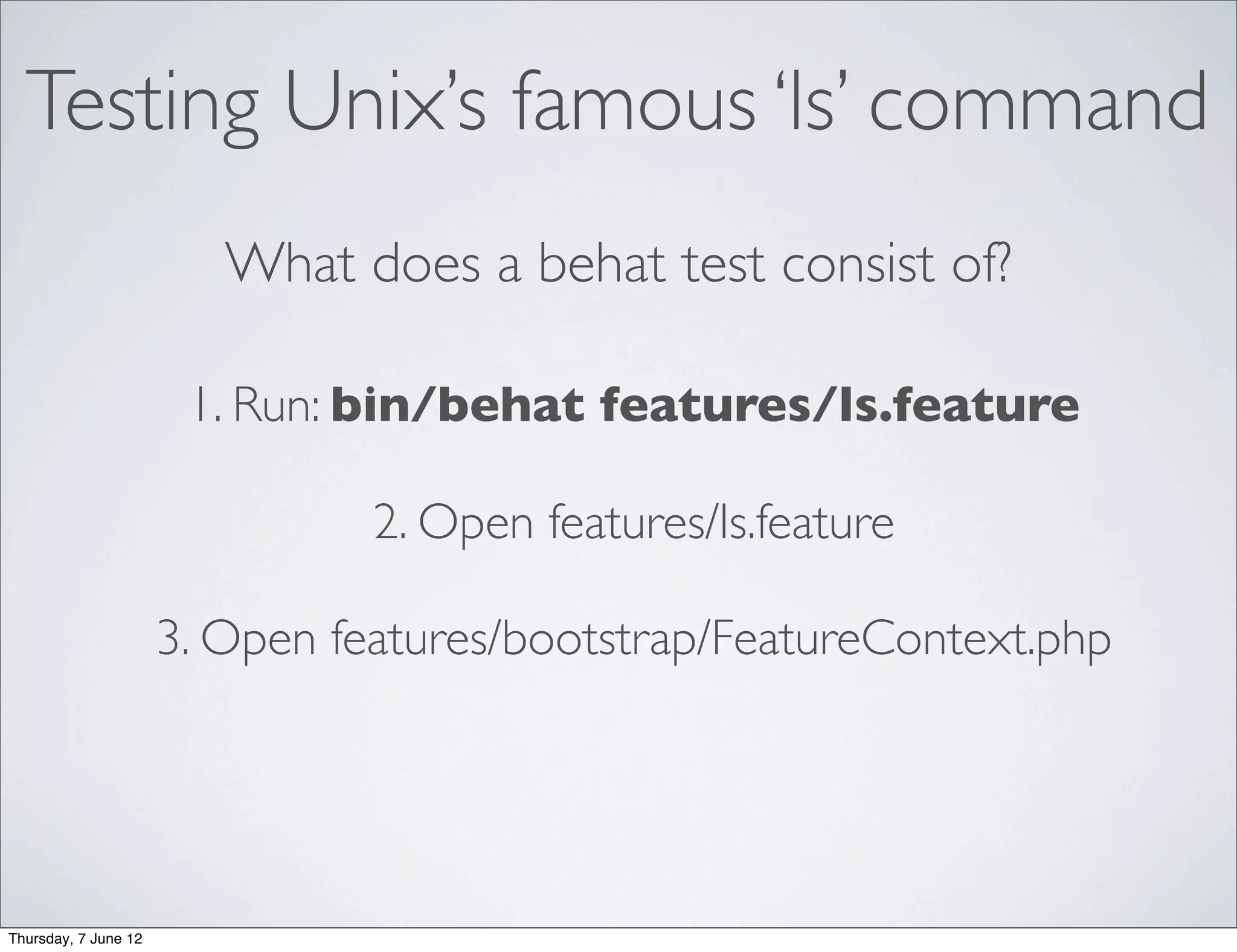

19. Testing Unix’s famous ‘ls’ command
What does a behat test consist of?
1. Run: bin/behat features/ls.feature
2. Open features/ls.feature
3. Open features/bootstrap/FeatureContext.php
Thursday, 7 June 12

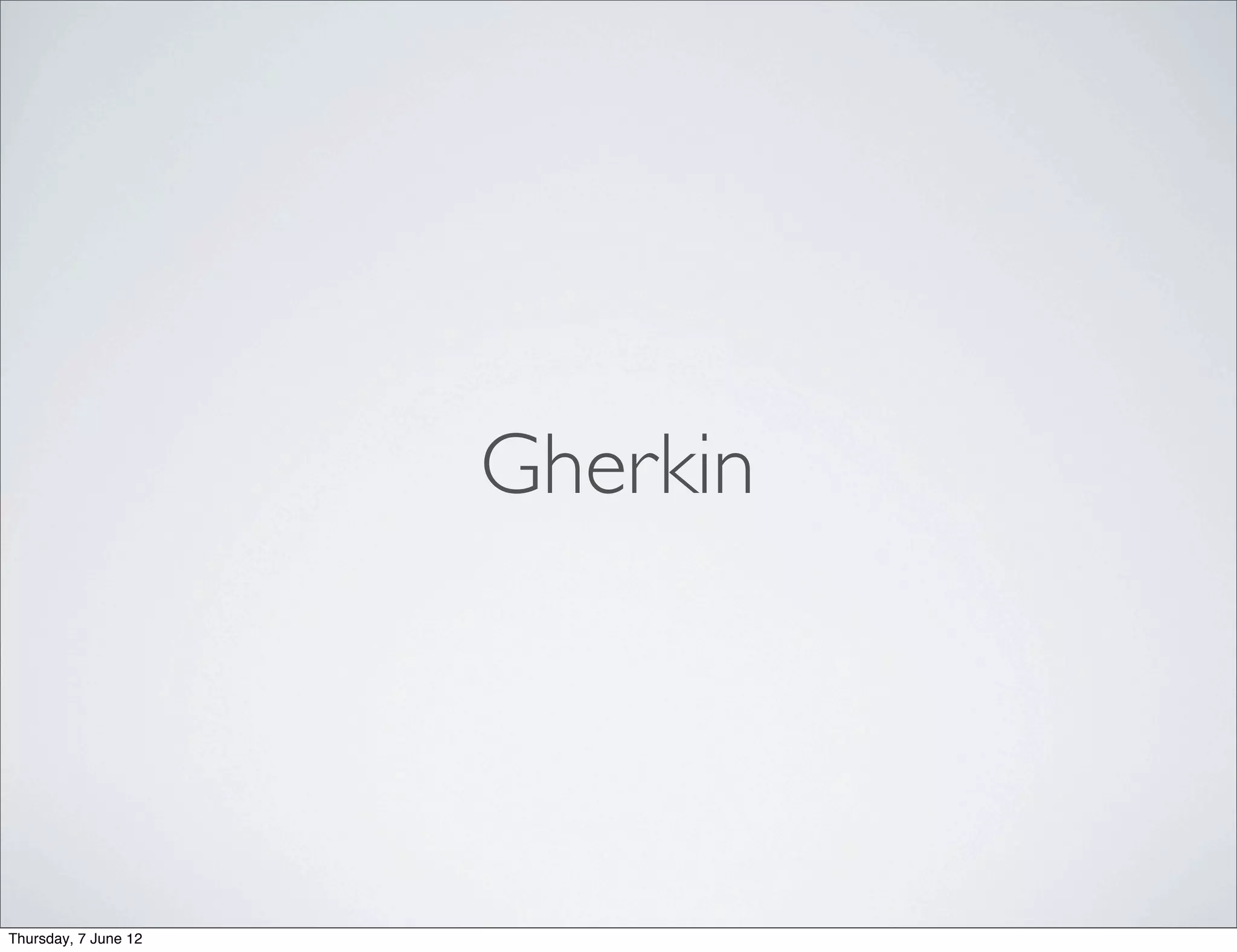

20. Gherkin
Thursday, 7 June 12

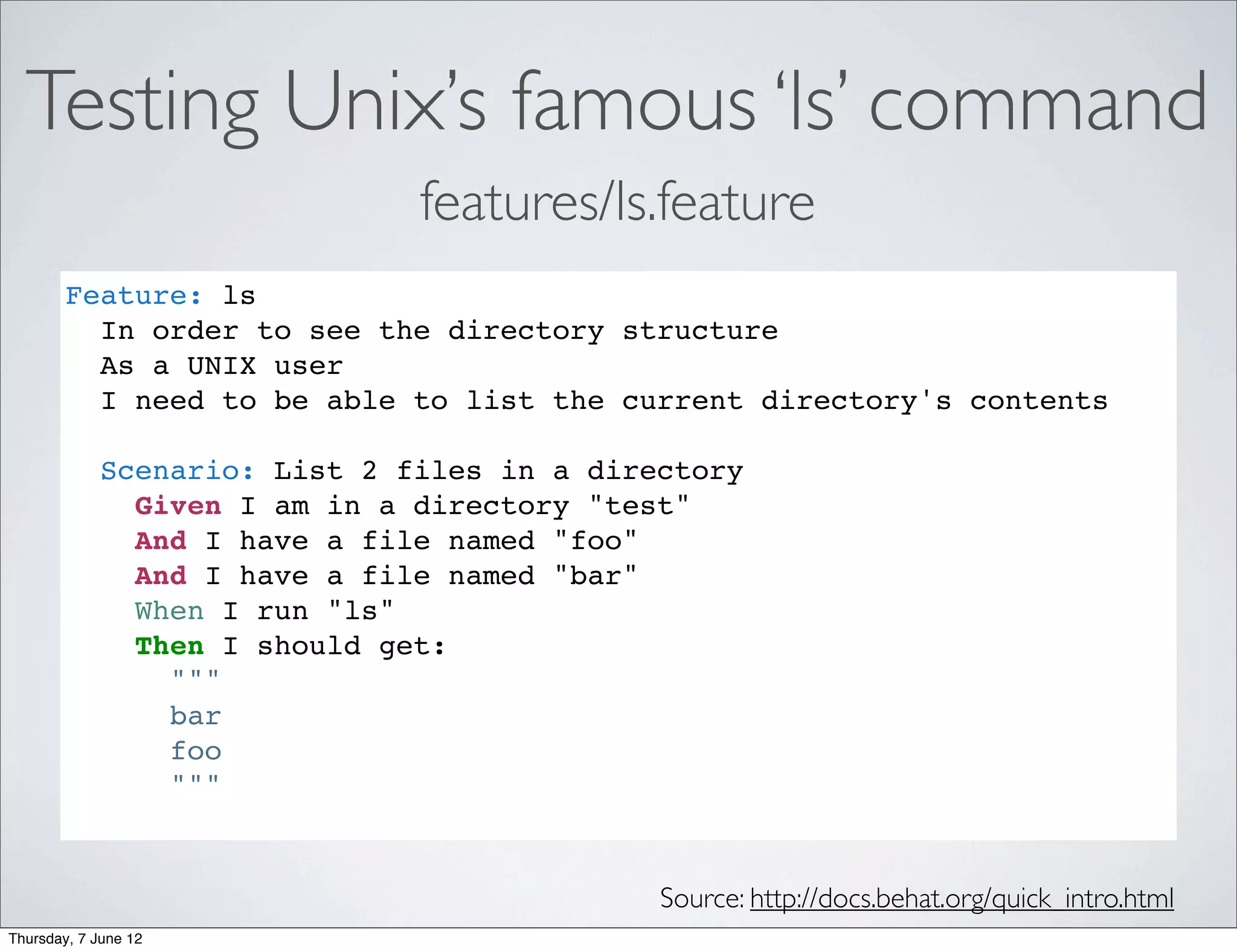

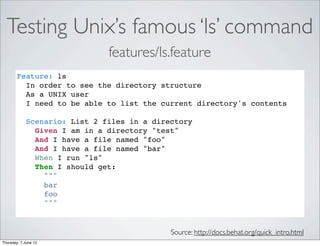

21. Testing Unix’s famous ‘ls’ command
features/ls.feature
Feature: ls
In order to see the directory structure
As a UNIX user
I need to be able to list the current directory's contents
Scenario: List 2 files in a directory
Given I am in a directory "test"
And I have a file named "foo"
And I have a file named "bar"
When I run "ls"
Then I should get:
"""
bar
foo
"""
Source: http://docs.behat.org/quick_intro.html
Thursday, 7 June 12

22. Dan North’s Recipe For A Story
Title (one line describing the story)
Narrative:
As a [role]
I want [feature]
So that [benefit]
Acceptance Criteria: (presented as Scenarios)
Scenario 1: Title
Given [context]
And [some more context]...
When [event]
Then [outcome]
And [another outcome]...
Thursday, 7 June 12

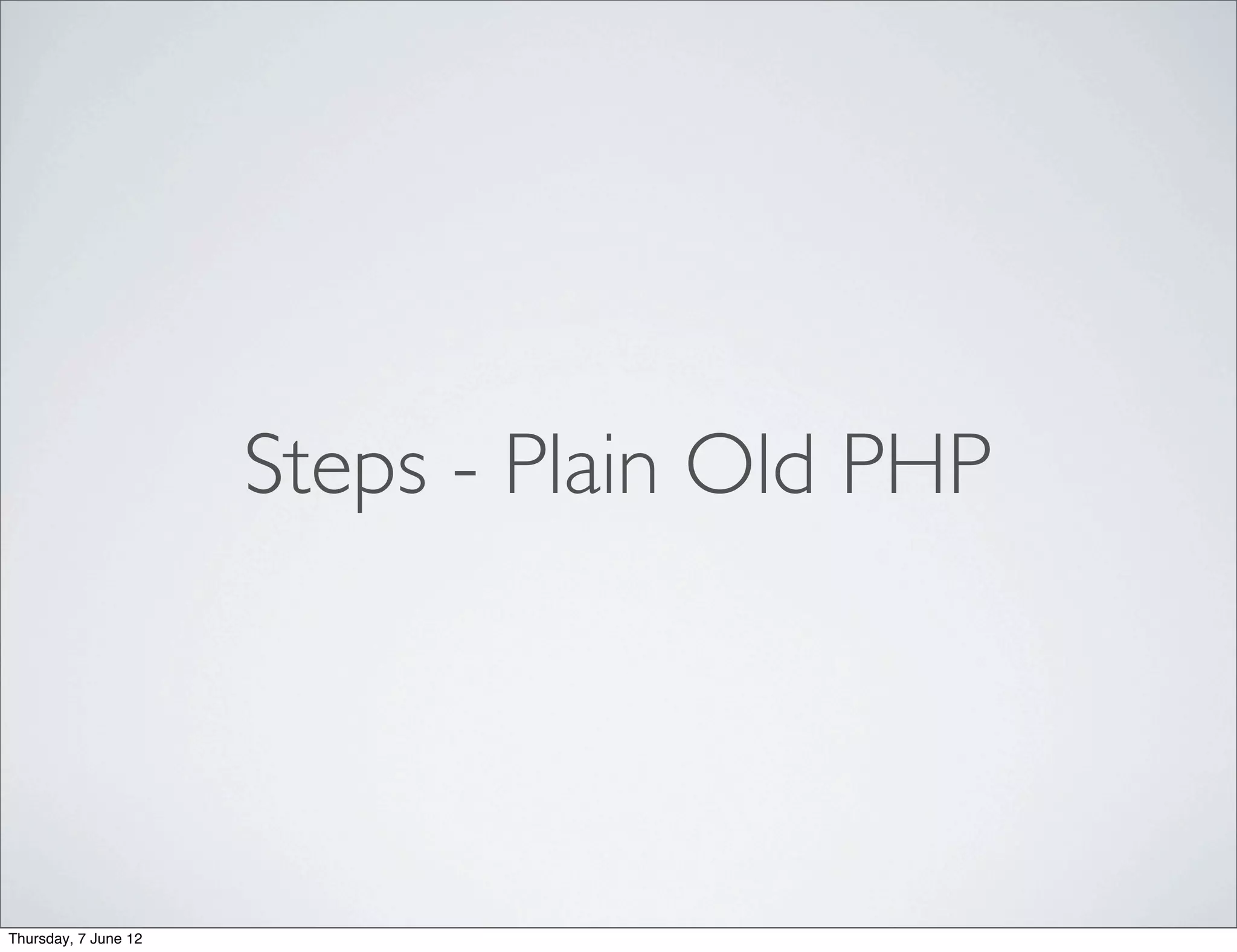

23. Steps - Plain Old PHP
Thursday, 7 June 12

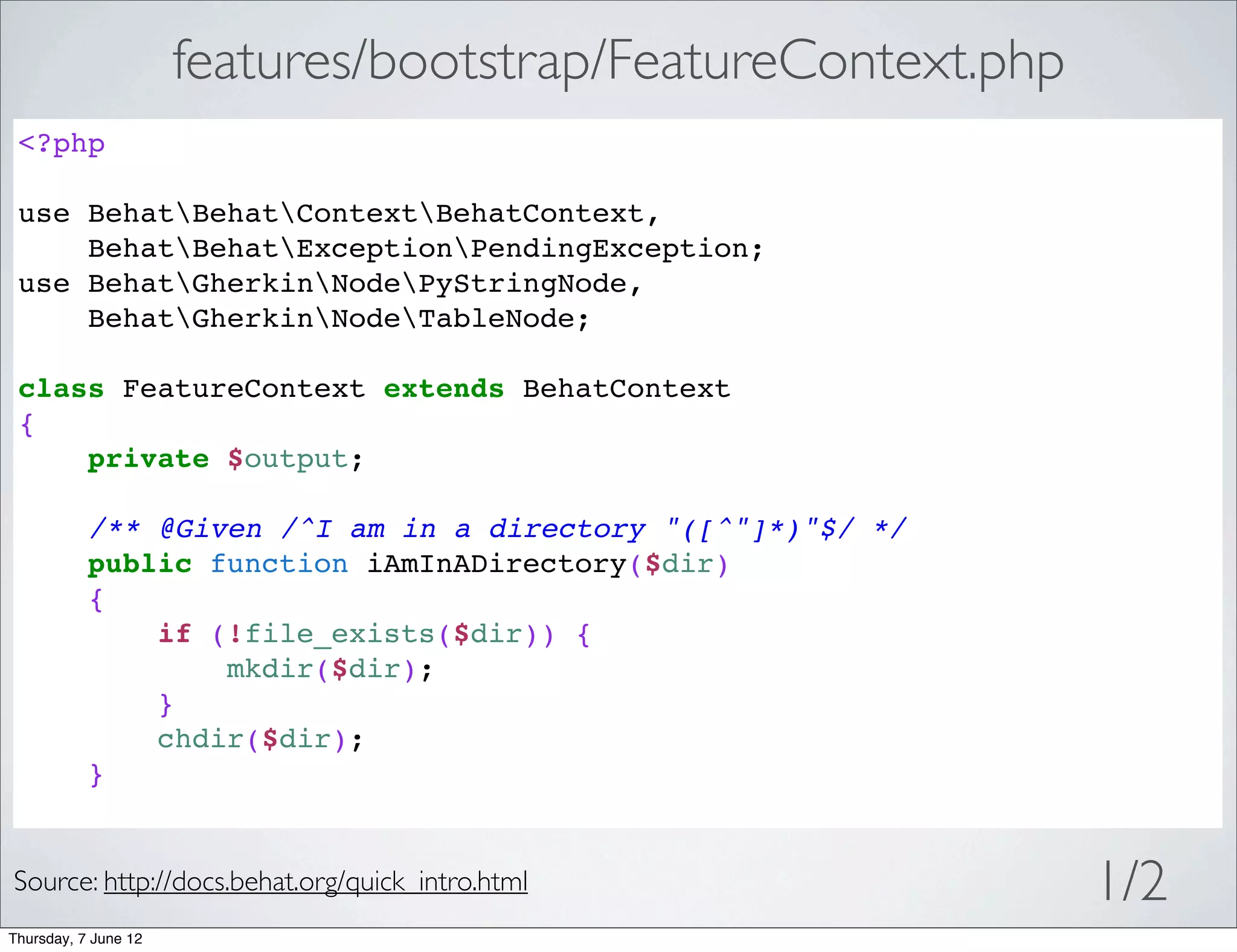

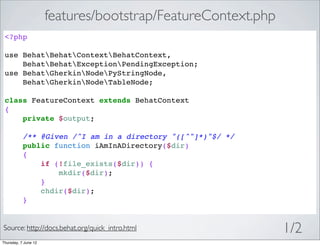

24. features/bootstrap/FeatureContext.php
<?php
use BehatBehatContextBehatContext,
BehatBehatExceptionPendingException;
use BehatGherkinNodePyStringNode,
BehatGherkinNodeTableNode;
class FeatureContext extends BehatContext
{
private $output;
/** @Given /^I am in a directory "([^"]*)"$/ */
public function iAmInADirectory($dir)
{
if (!file_exists($dir)) {
mkdir($dir);
}
chdir($dir);
}
Source: http://docs.behat.org/quick_intro.html 1/2
Thursday, 7 June 12

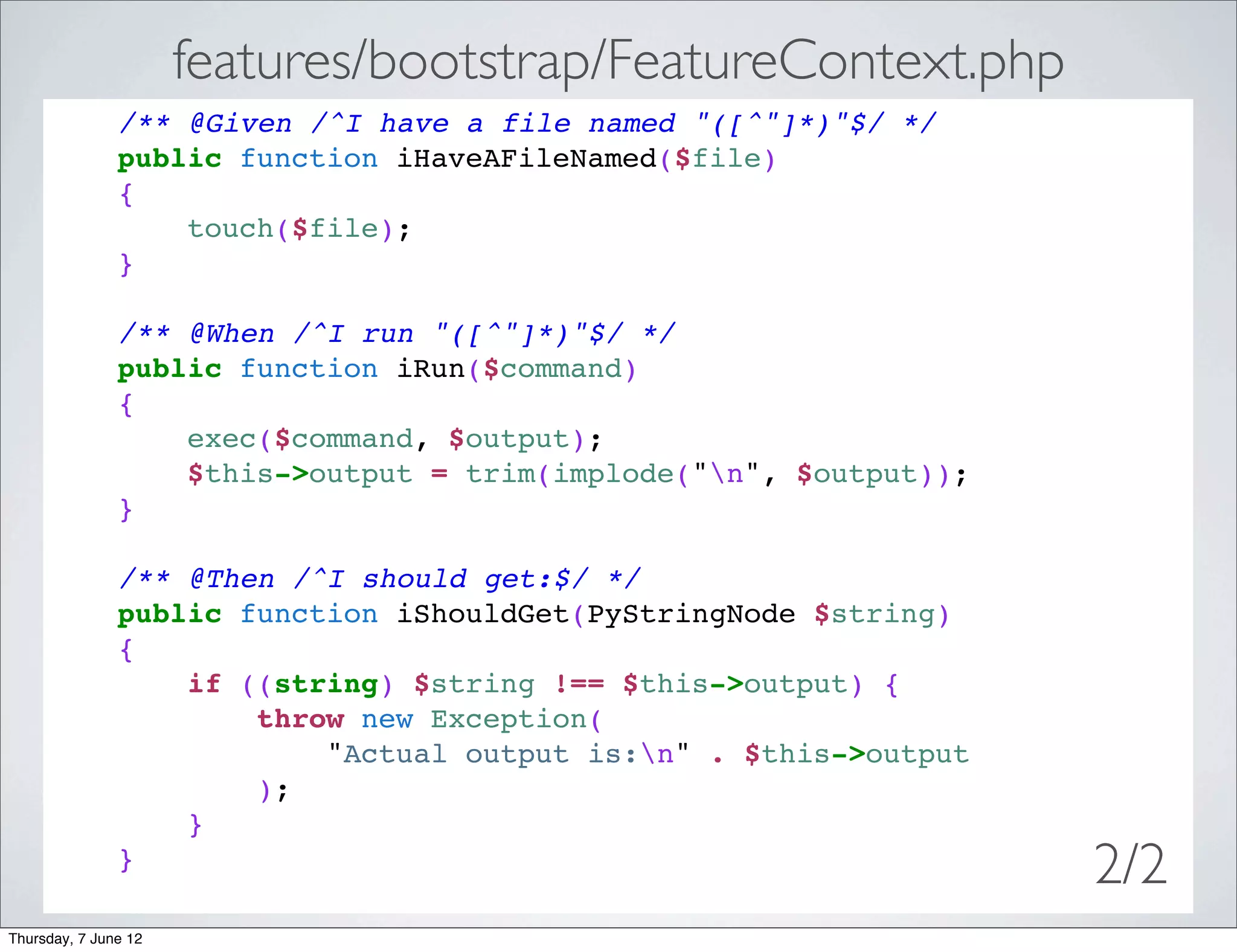

25. features/bootstrap/FeatureContext.php
/** @Given /^I have a file named "([^"]*)"$/ */
public function iHaveAFileNamed($file)
{
touch($file);
}
/** @When /^I run "([^"]*)"$/ */
public function iRun($command)
{
exec($command, $output);
$this->output = trim(implode("n", $output));
}
/** @Then /^I should get:$/ */
public function iShouldGet(PyStringNode $string)
{
if ((string) $string !== $this->output) {
throw new Exception(
"Actual output is:n" . $this->output
);
}
}
2/2
Thursday, 7 June 12

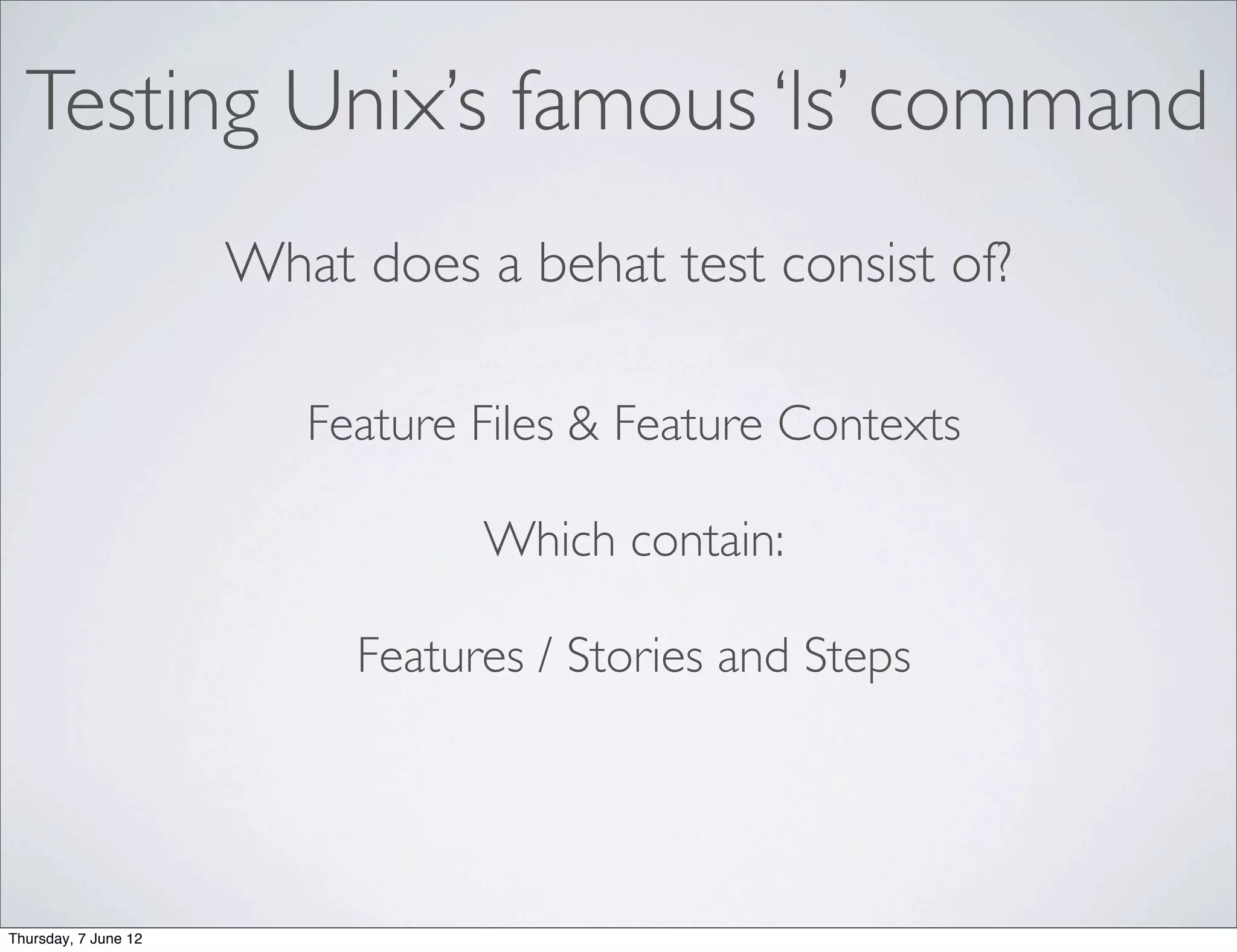

26. Testing Unix’s famous ‘ls’ command
What does a behat test consist of?
Feature Files & Feature Contexts
Which contain:
Features / Stories and Steps
Thursday, 7 June 12

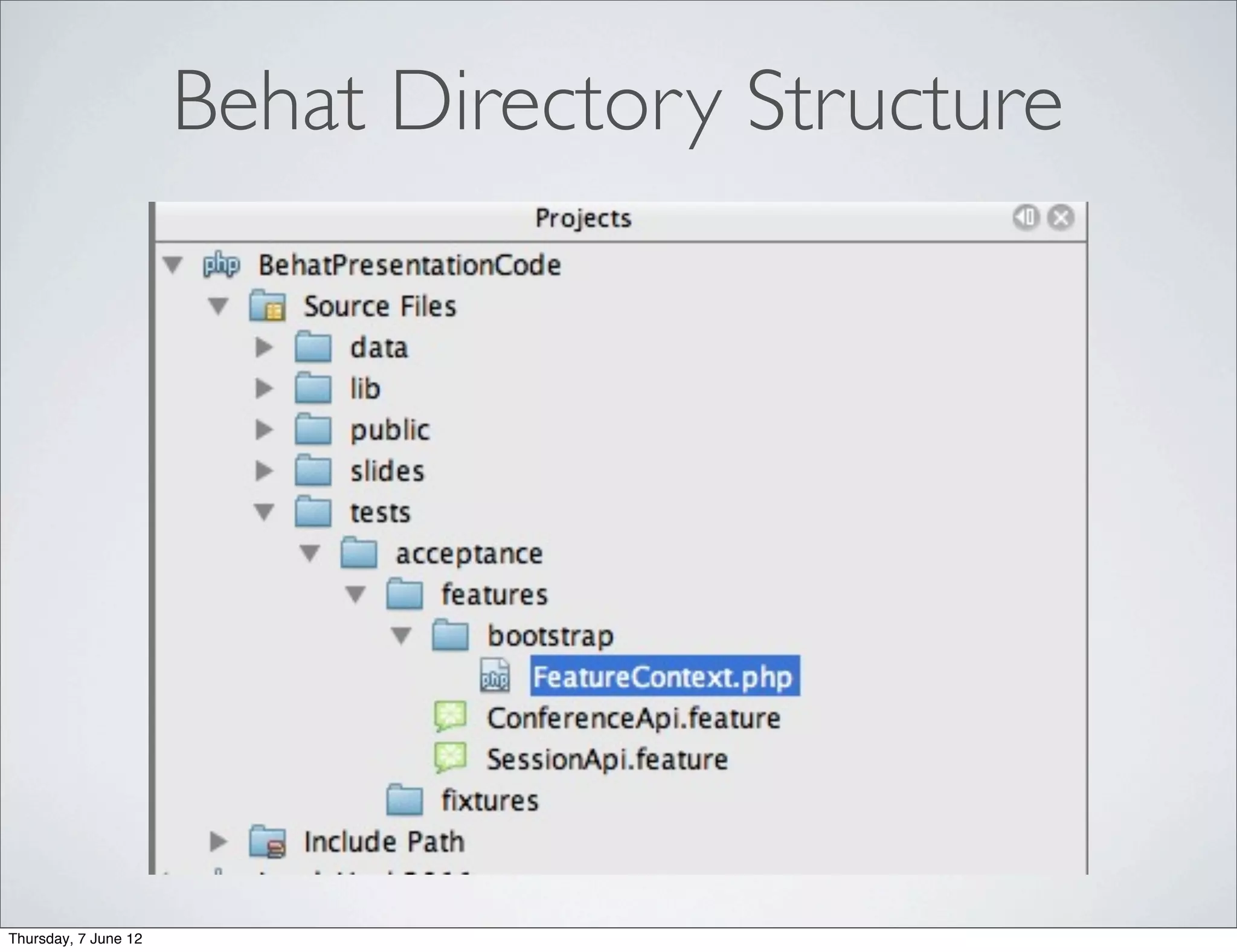

27. Behat Directory Structure
Thursday, 7 June 12

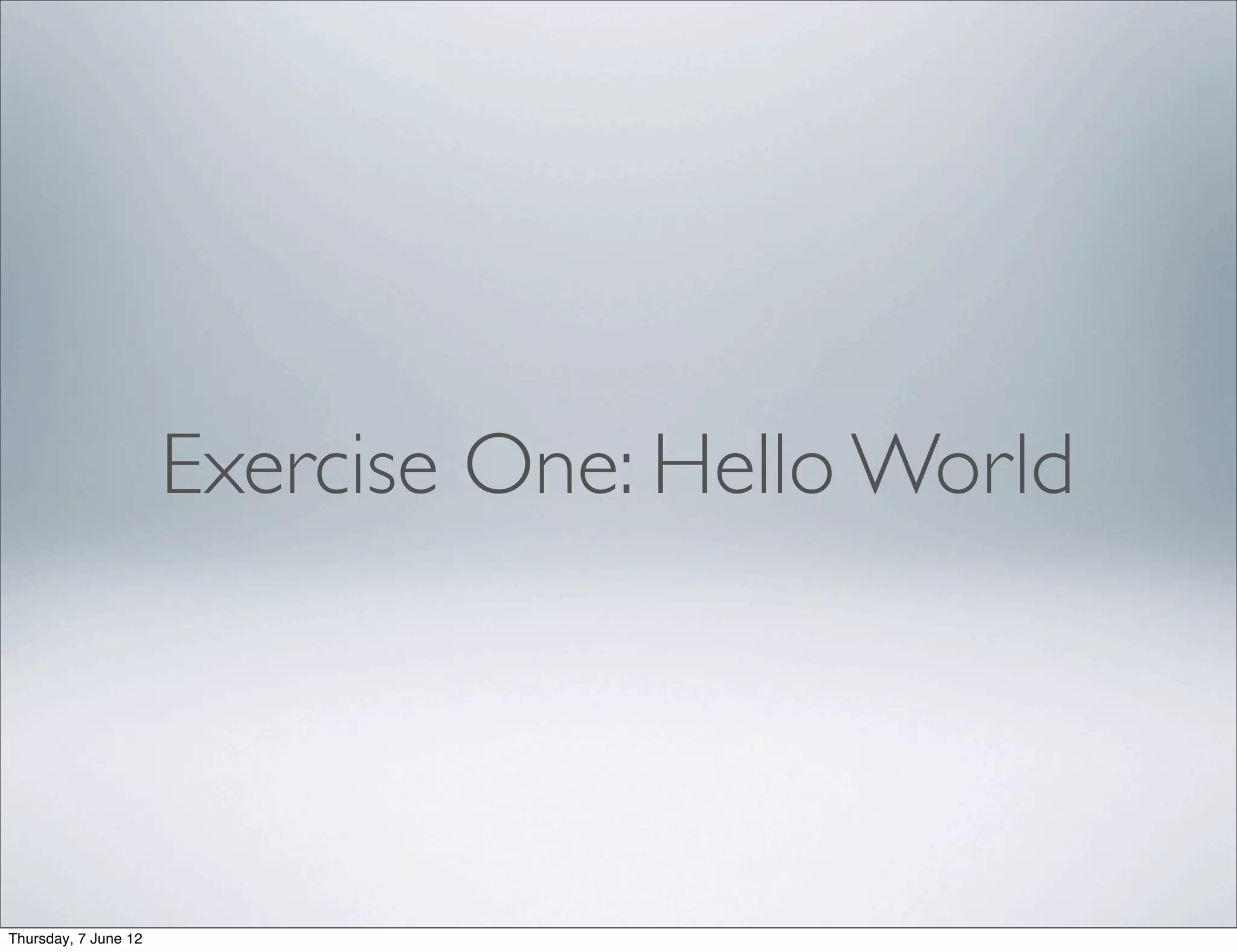

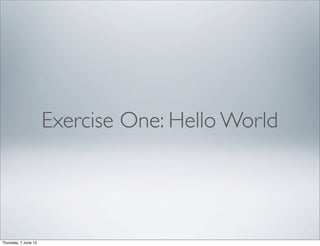

28. Exercise One: Hello World
Thursday, 7 June 12

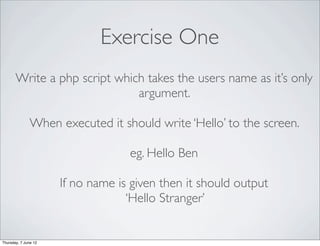

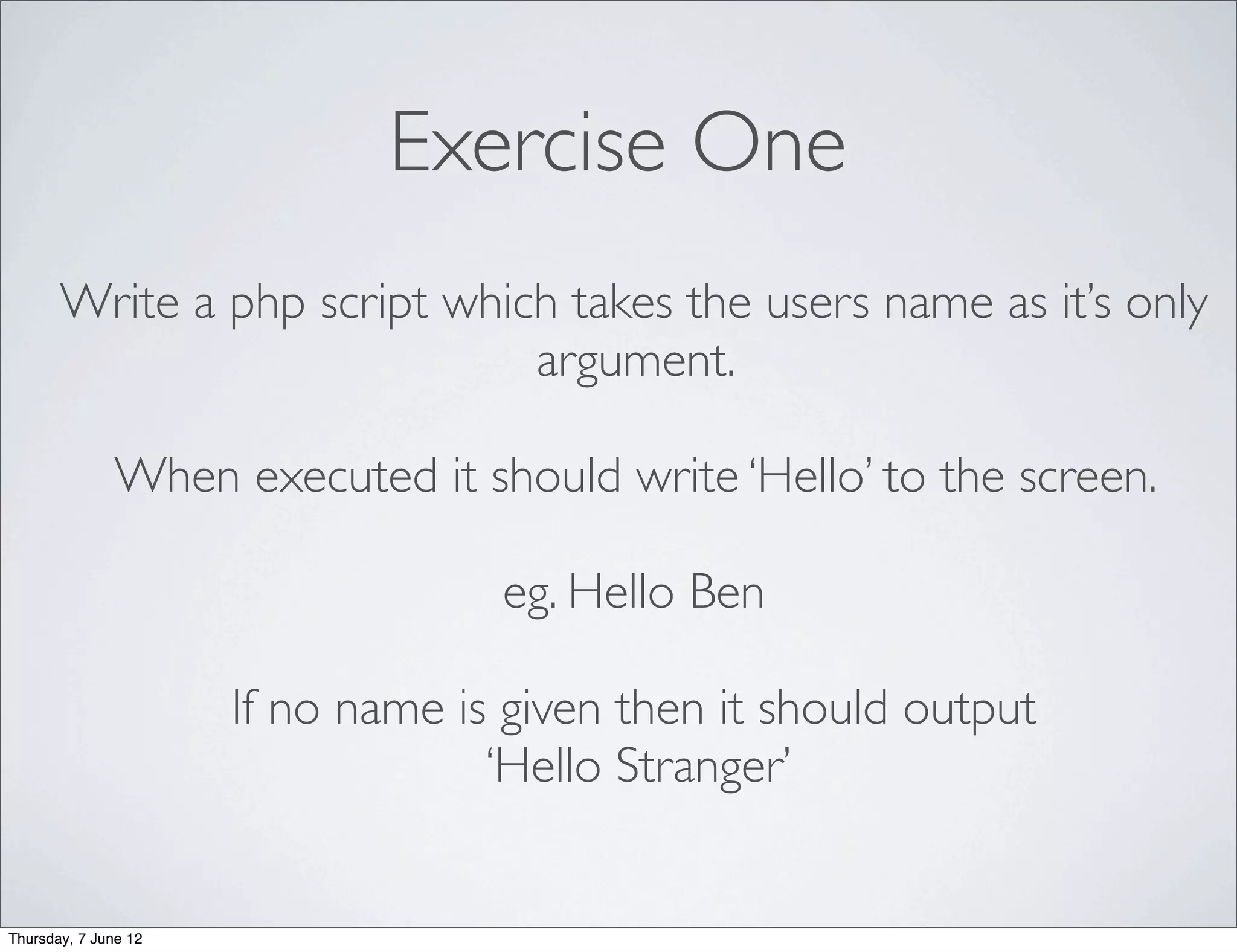

29. Exercise One
Write a php script which takes the users name as it’s only
argument.
When executed it should write ‘Hello’ to the screen.
eg. Hello Ben
If no name is given then it should output
‘Hello Stranger’
Thursday, 7 June 12

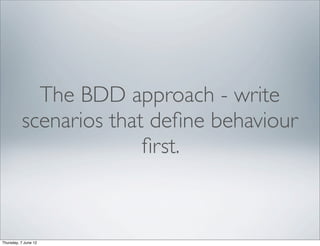

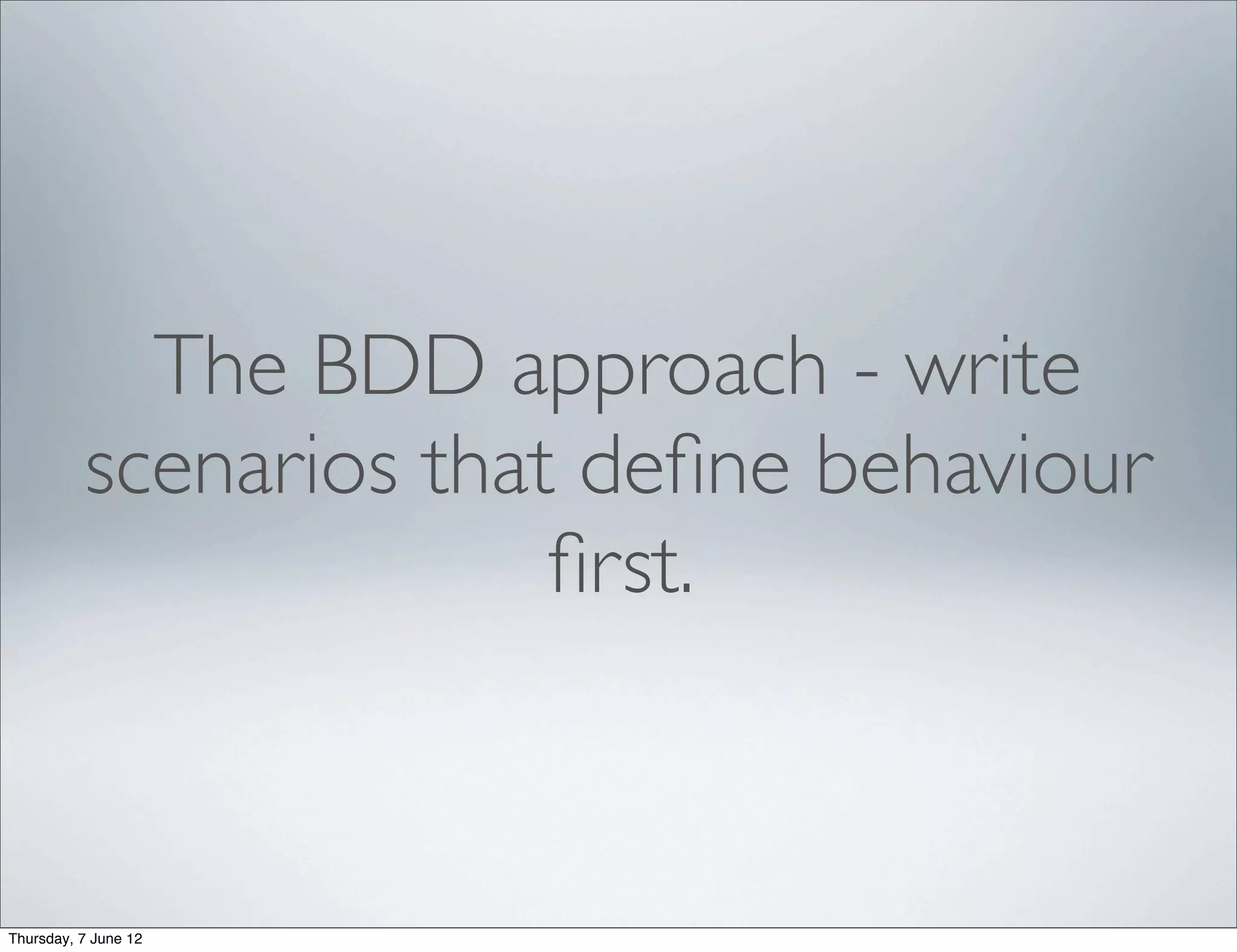

30. The BDD approach - write
scenarios that define behaviour
first.
Thursday, 7 June 12

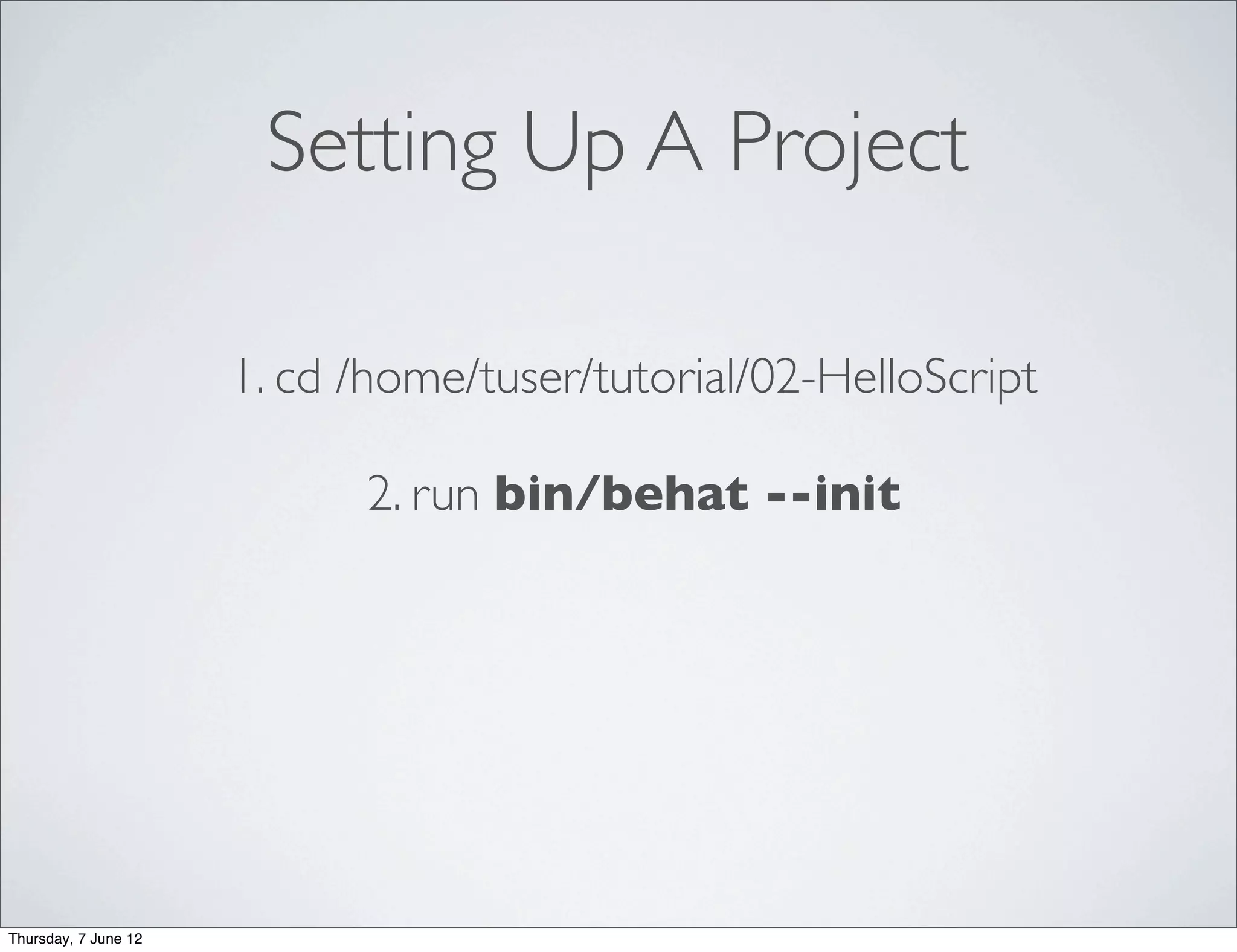

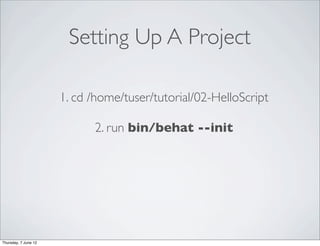

31. Setting Up A Project
1. cd /home/tuser/tutorial/02-HelloScript
2. run bin/behat --init
Thursday, 7 June 12

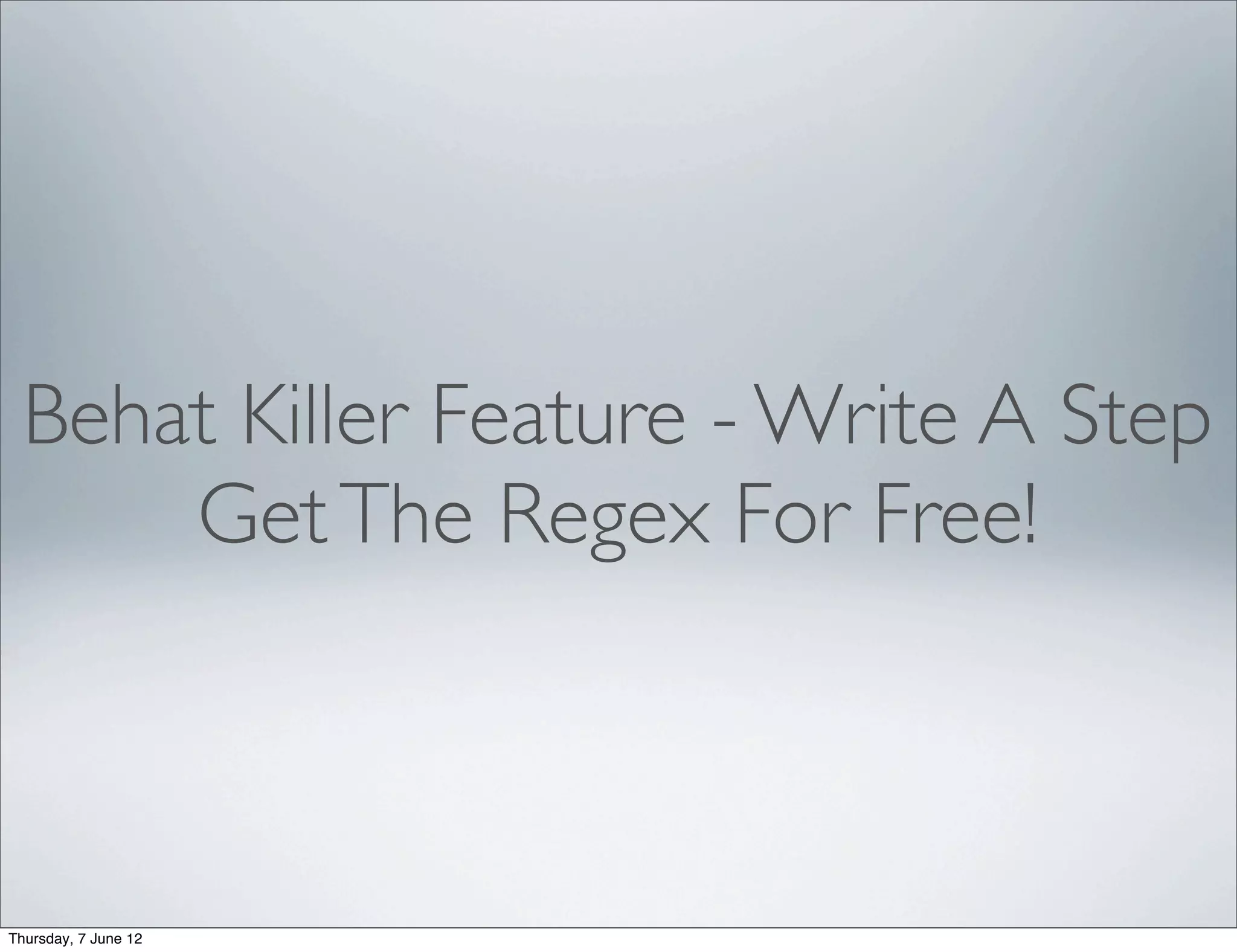

32. Behat Killer Feature - Write A Step
Get The Regex For Free!
Thursday, 7 June 12

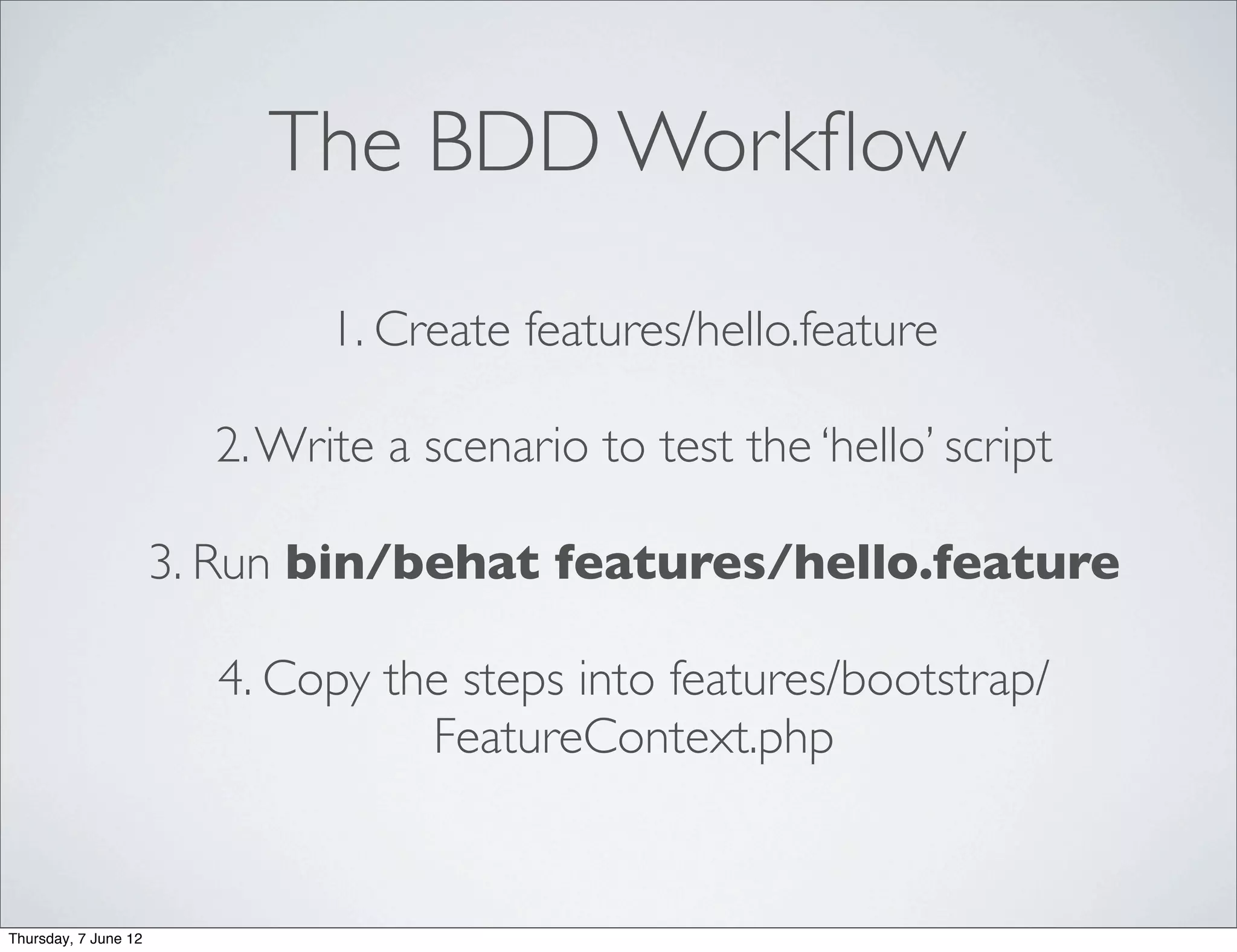

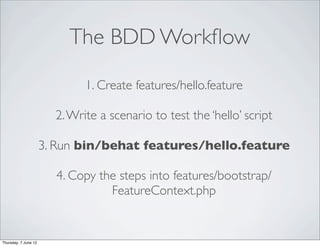

33. The BDD Workflow
1. Create features/hello.feature
2. Write a scenario to test the ‘hello’ script
3. Run bin/behat features/hello.feature
4. Copy the steps into features/bootstrap/
FeatureContext.php
Thursday, 7 June 12

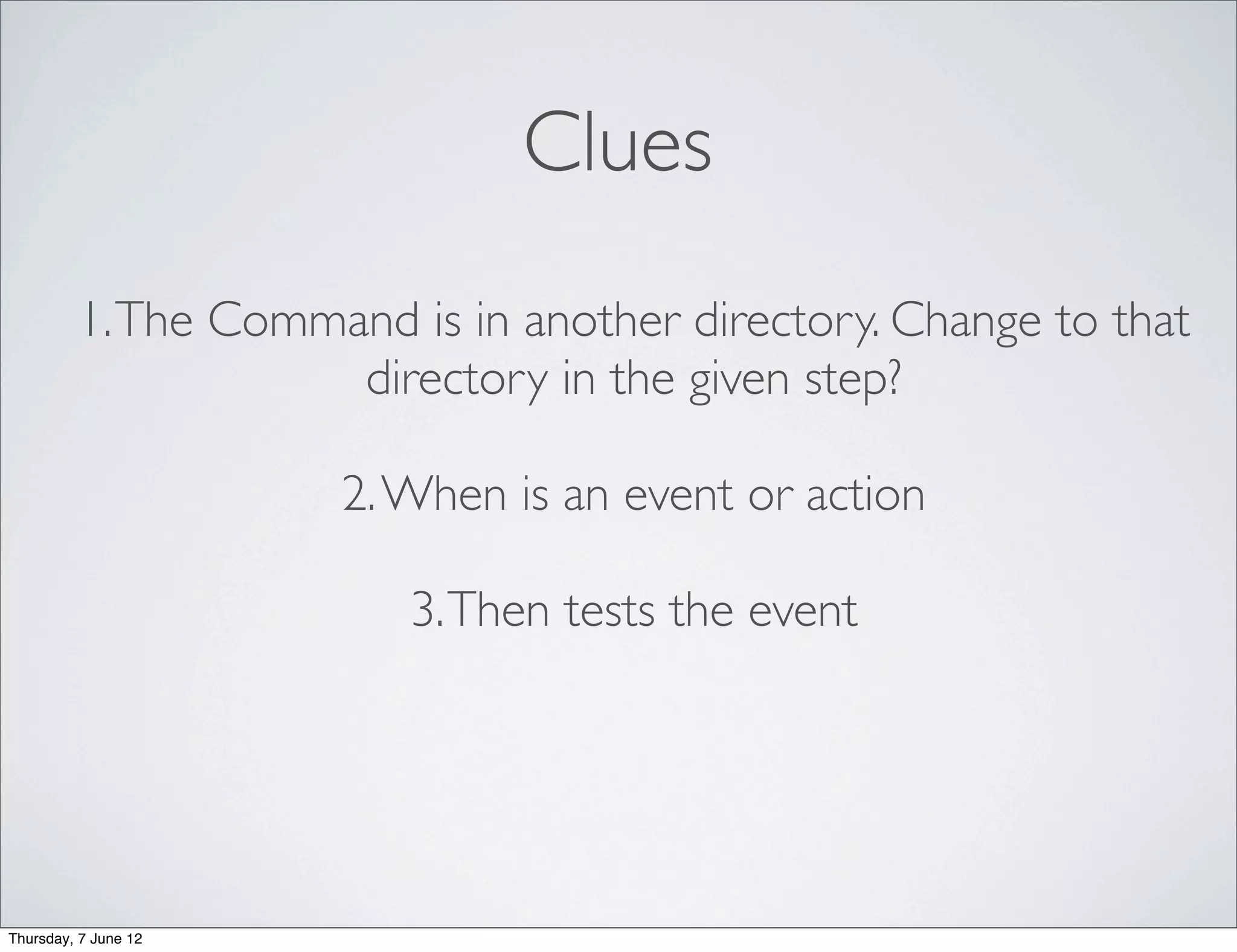

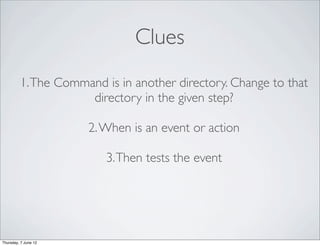

34. Clues
1. The Command is in another directory. Change to that
directory in the given step?
2. When is an event or action
3. Then tests the event
Thursday, 7 June 12

35. The BDD Workflow
1. Create features/hello.feature
2. Write a scenario to test the ‘hello’ script
3. Run bin/behat features/hello.feature
4. Copy the steps into features/bootstrap/
FeatureContext.php
Thursday, 7 June 12

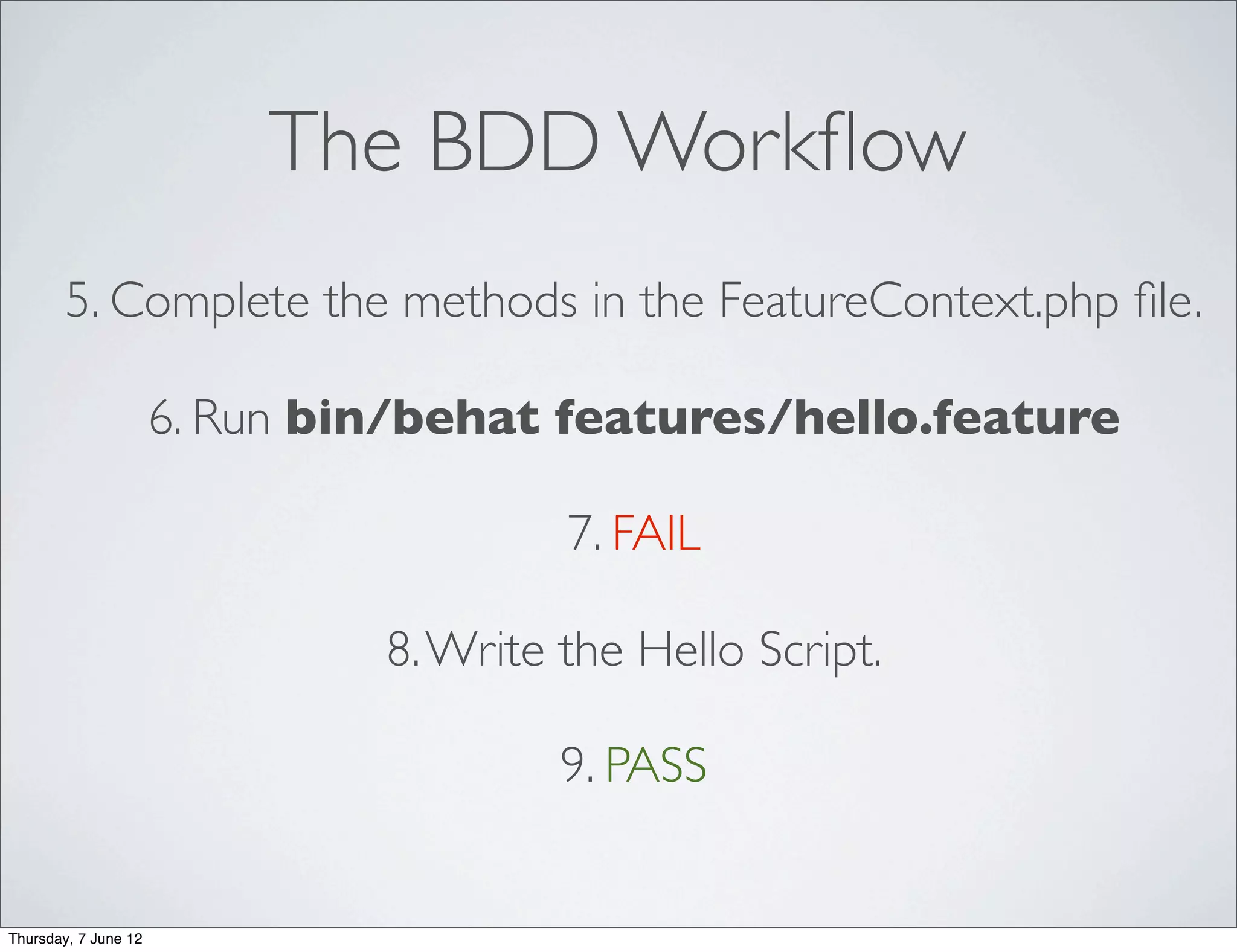

36. The BDD Workflow
5. Complete the methods in the FeatureContext.php file.
6. Run bin/behat features/hello.feature
7. FAIL
8. Write the Hello Script.
9. PASS
Thursday, 7 June 12

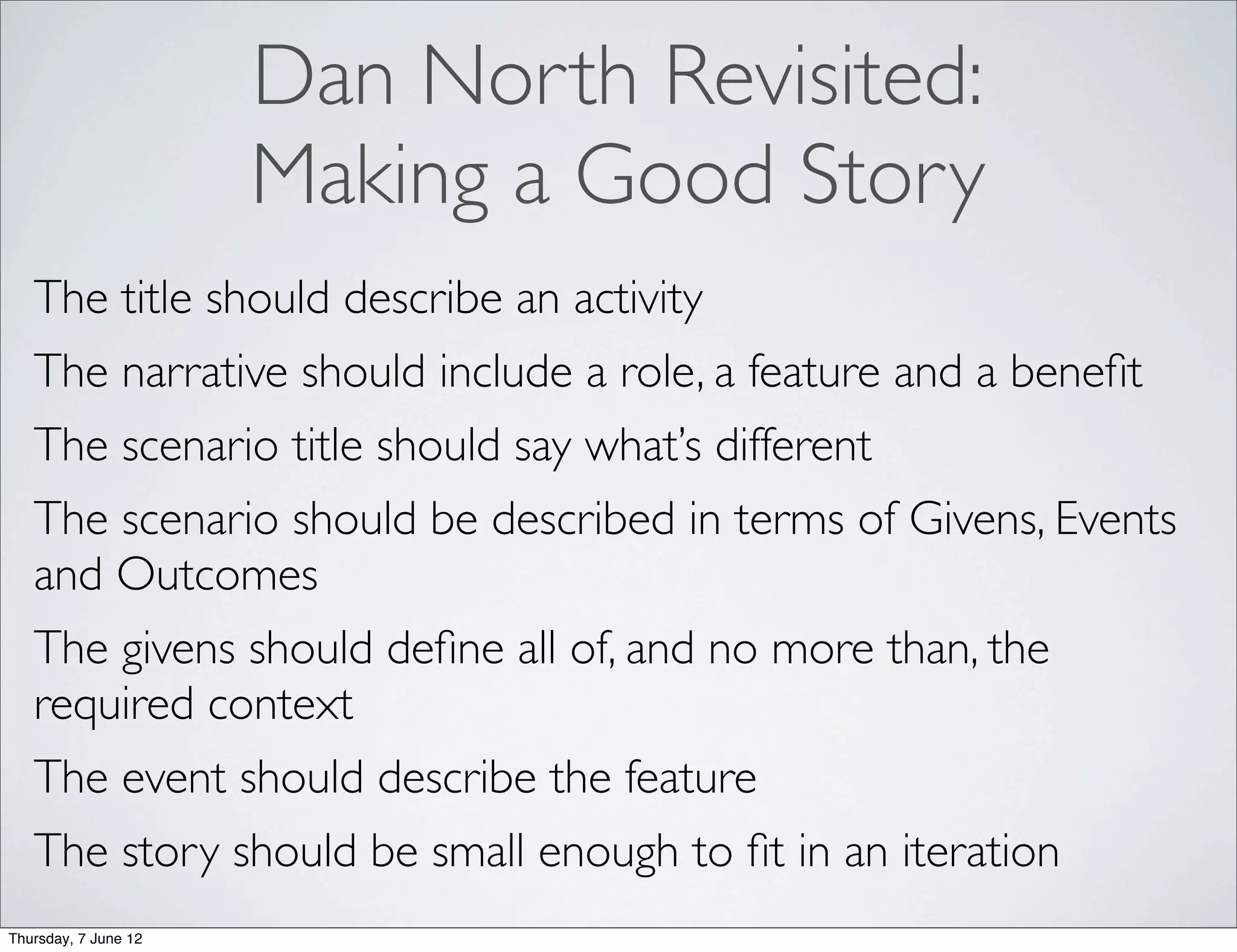

37. Dan North Revisited:
Making a Good Story
The title should describe an activity
The narrative should include a role, a feature and a benefit
The scenario title should say what’s different
The scenario should be described in terms of Givens, Events
and Outcomes
The givens should define all of, and no more than, the
required context
The event should describe the feature
The story should be small enough to fit in an iteration
Thursday, 7 June 12

38. Time to share.
Thursday, 7 June 12

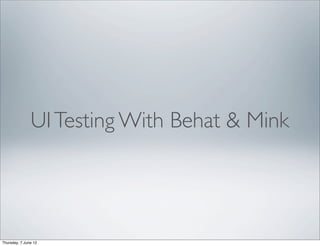

39. UI Testing With Behat & Mink
Thursday, 7 June 12

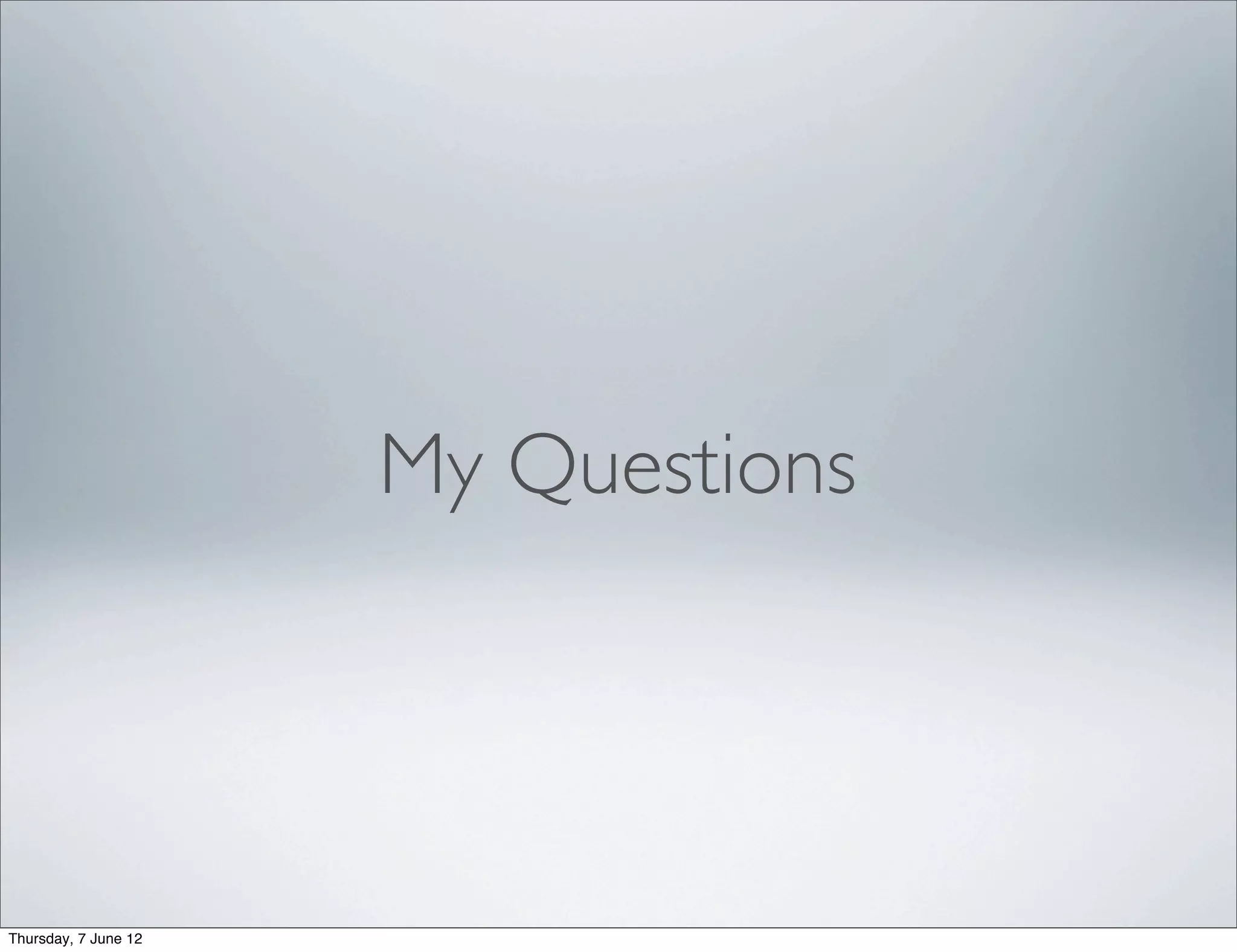

40. My Questions
Thursday, 7 June 12

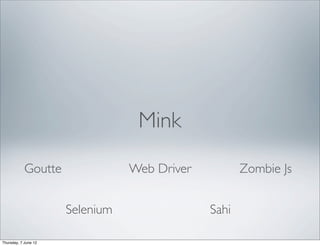

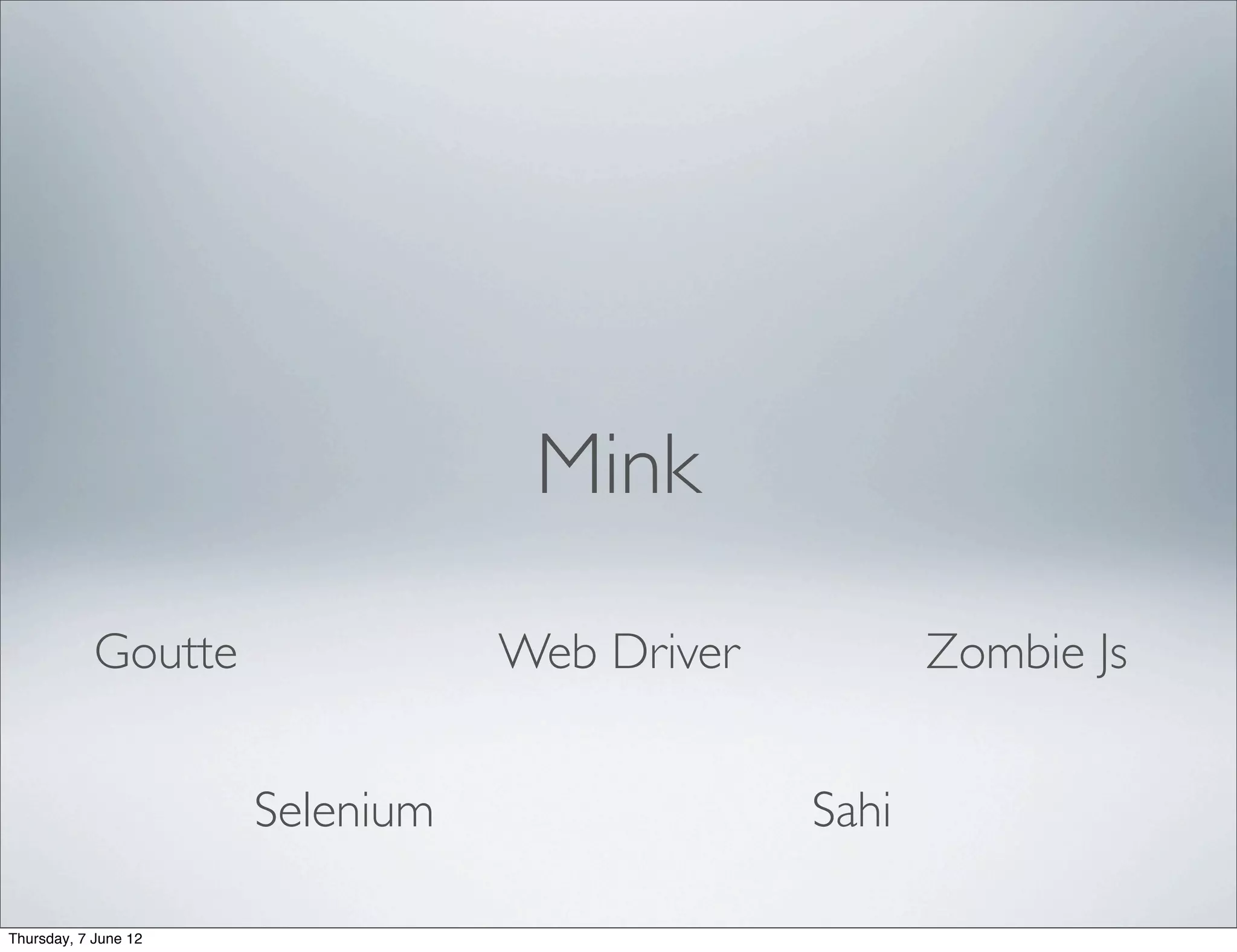

41. Mink
Goutte Web Driver Zombie Js
Selenium Sahi
Thursday, 7 June 12

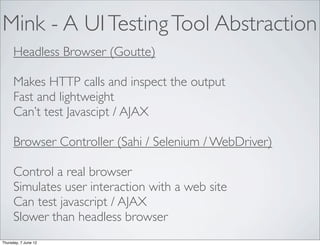

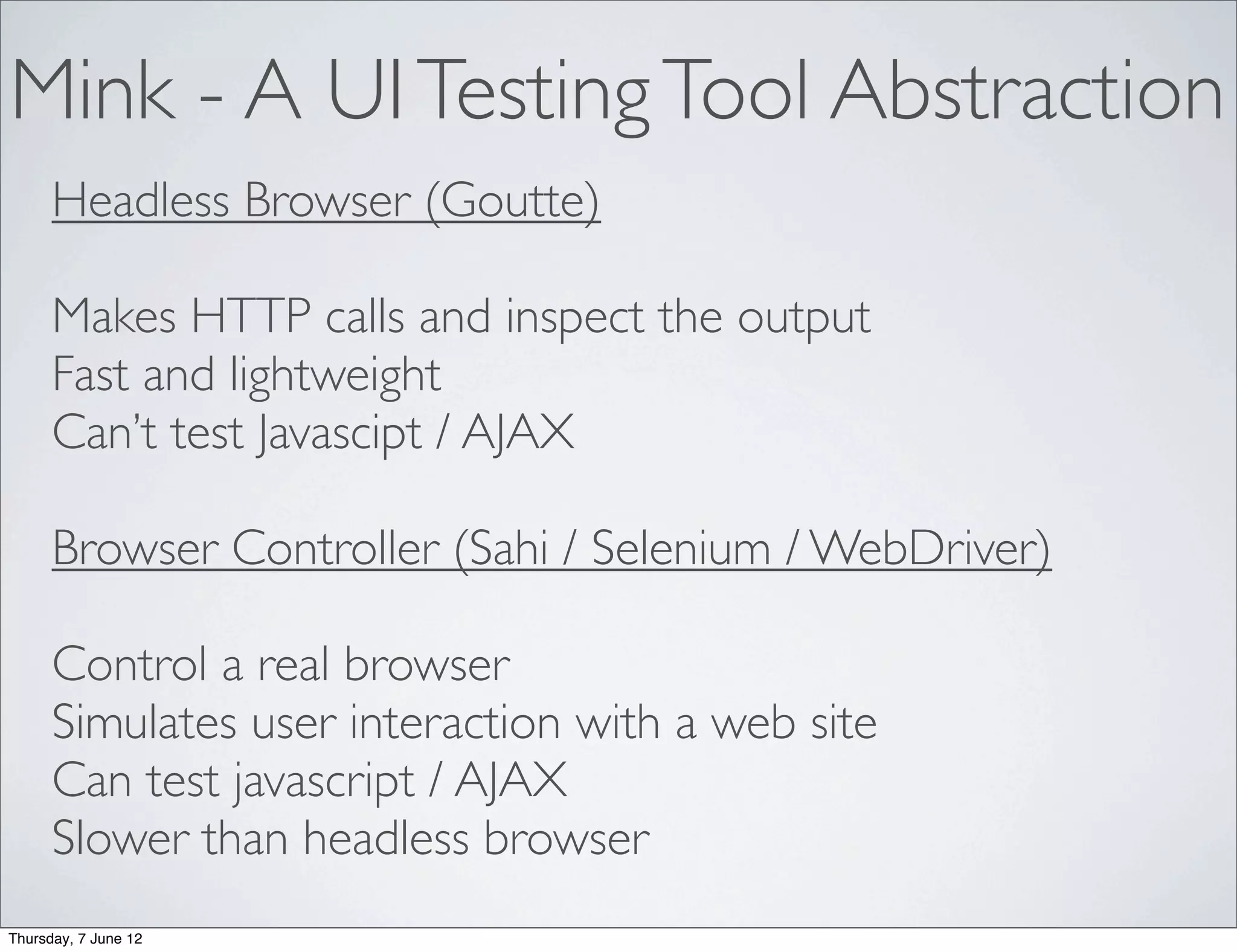

42. Mink - A UI Testing Tool Abstraction
Headless Browser (Goutte)
Makes HTTP calls and inspect the output
Fast and lightweight
Can’t test Javascipt / AJAX
Browser Controller (Sahi / Selenium / WebDriver)
Control a real browser
Simulates user interaction with a web site
Can test javascript / AJAX
Slower than headless browser
Thursday, 7 June 12

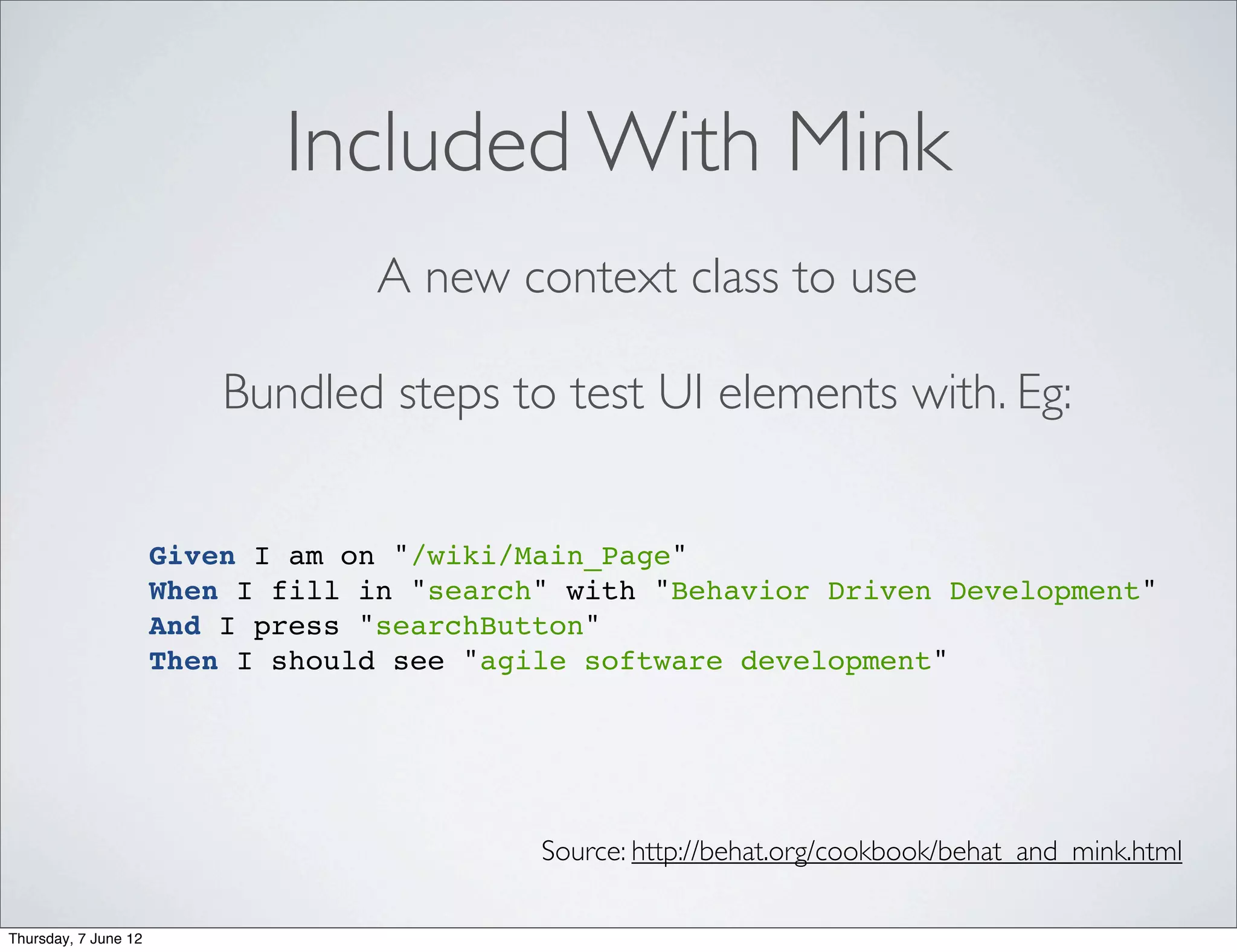

43. Included With Mink
A new context class to use
Bundled steps to test UI elements with. Eg:
Given I am on "/wiki/Main_Page"
When I fill in "search" with "Behavior Driven Development"
And I press "searchButton"
Then I should see "agile software development"
Source: http://behat.org/cookbook/behat_and_mink.html
Thursday, 7 June 12

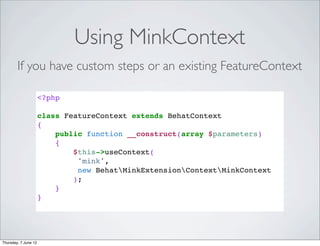

44. Using MinkContext
If you have custom steps or an existing FeatureContext
<?php
class FeatureContext extends BehatContext
{
public function __construct(array $parameters)
{
$this->useContext(
'mink',
new BehatMinkExtensionContextMinkContext
);
}
}
Thursday, 7 June 12

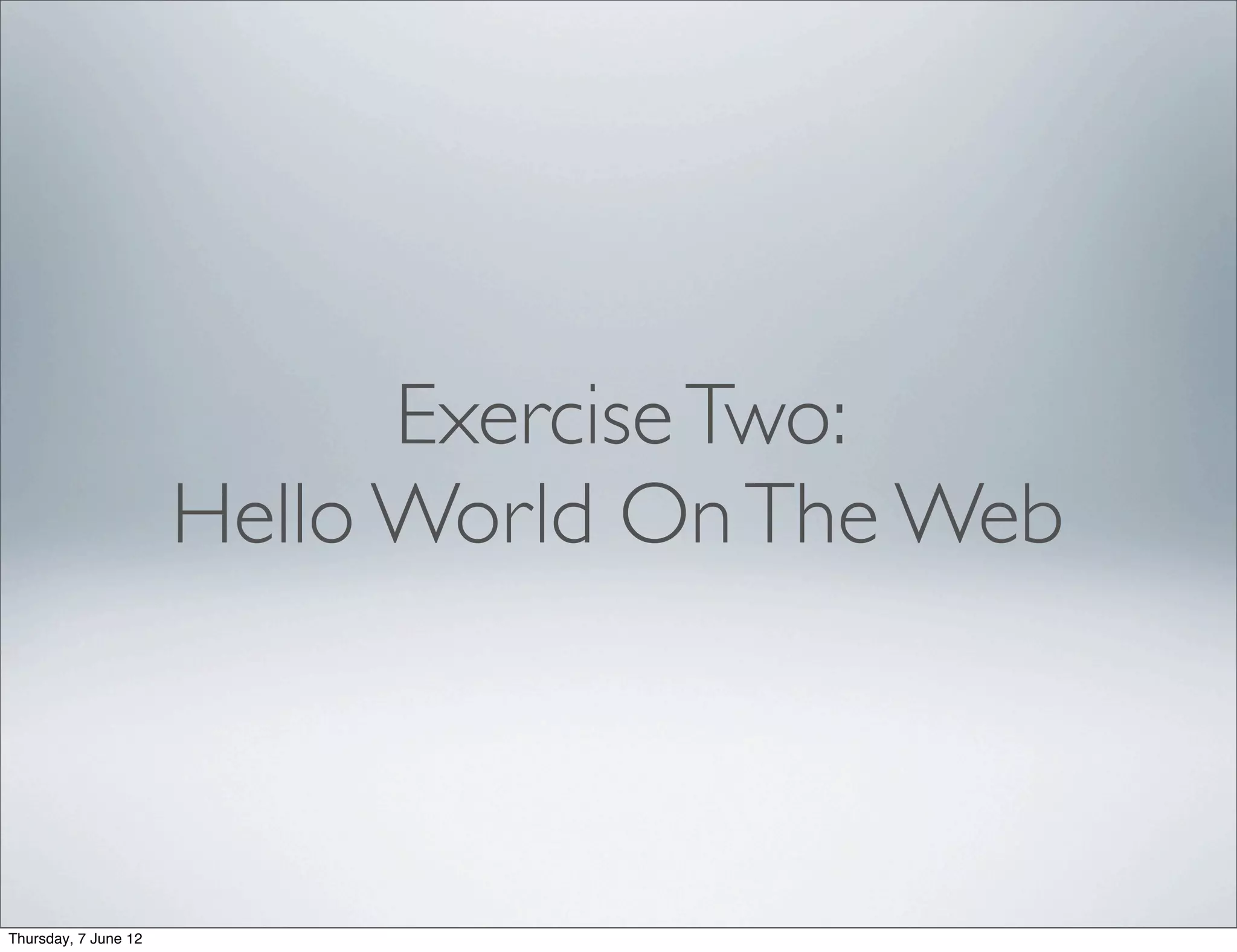

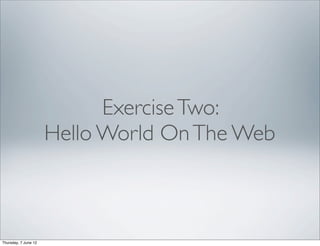

45. Exercise Two:
Hello World On The Web
Thursday, 7 June 12

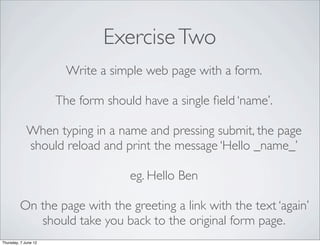

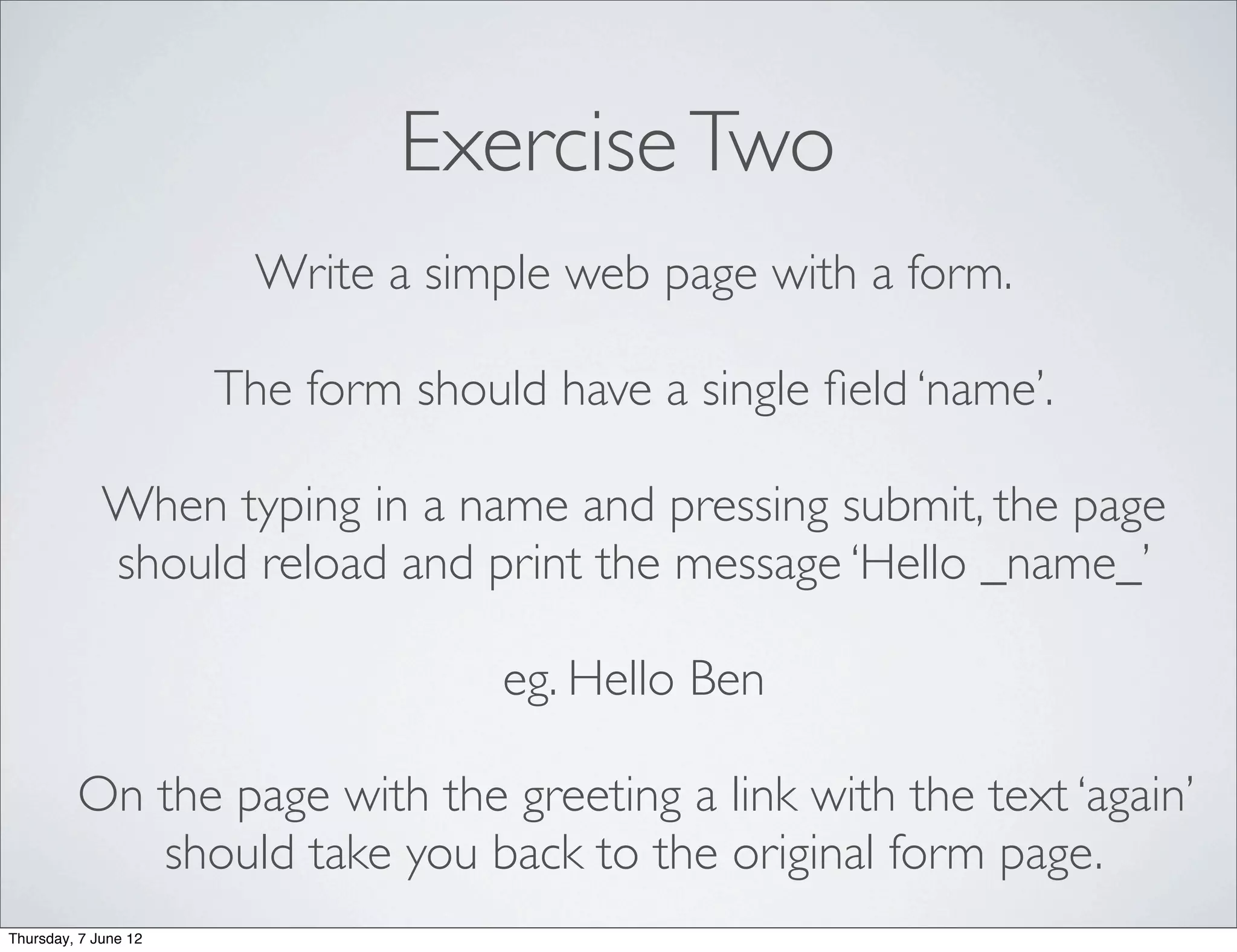

46. Exercise Two
Write a simple web page with a form.
The form should have a single field ‘name’.
When typing in a name and pressing submit, the page
should reload and print the message ‘Hello _name_’
eg. Hello Ben
On the page with the greeting a link with the text ‘again’
should take you back to the original form page.
Thursday, 7 June 12

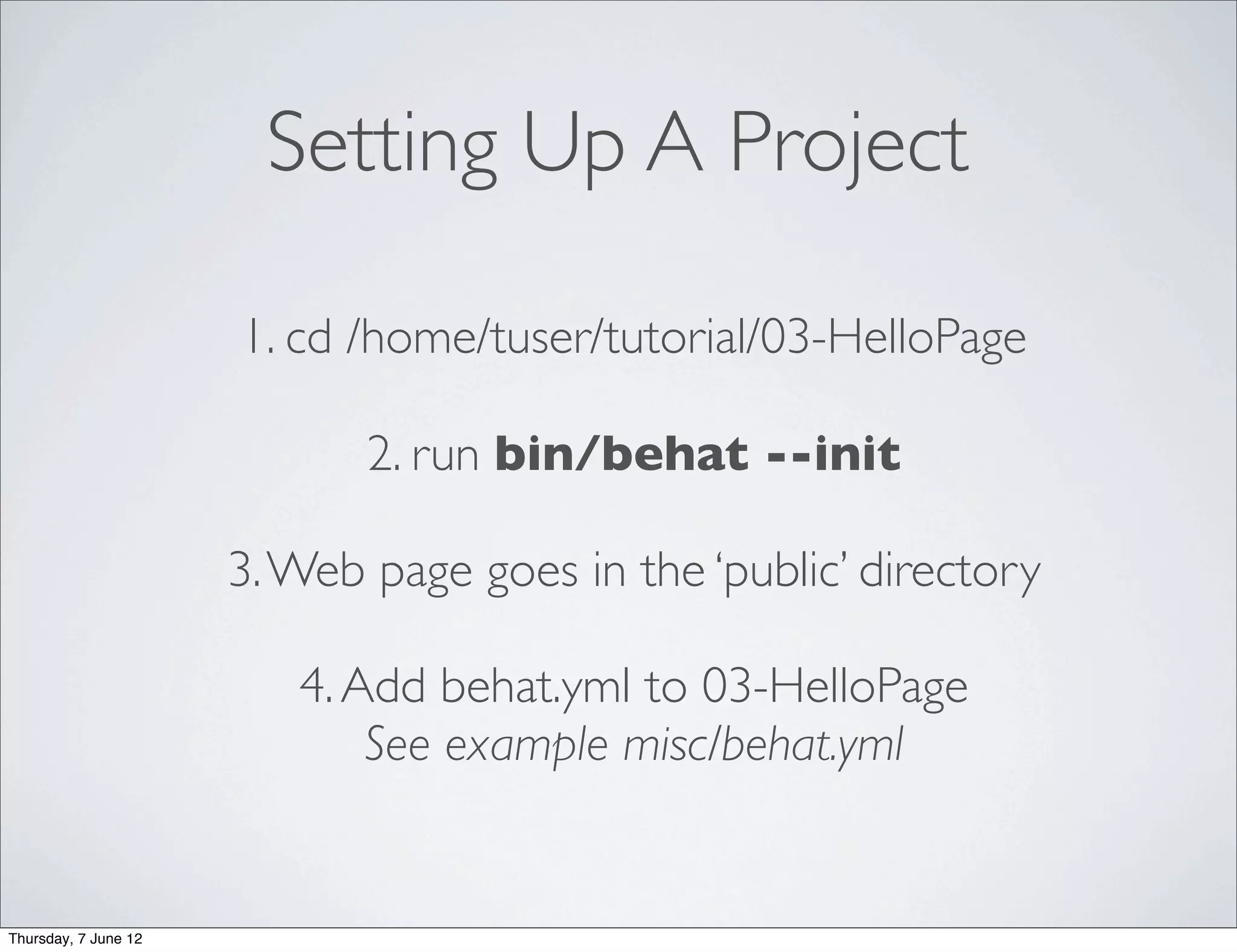

47. Setting Up A Project
1. cd /home/tuser/tutorial/03-HelloPage
2. run bin/behat --init
3. Web page goes in the ‘public’ directory
4. Add behat.yml to 03-HelloPage
See example misc/behat.yml
Thursday, 7 June 12

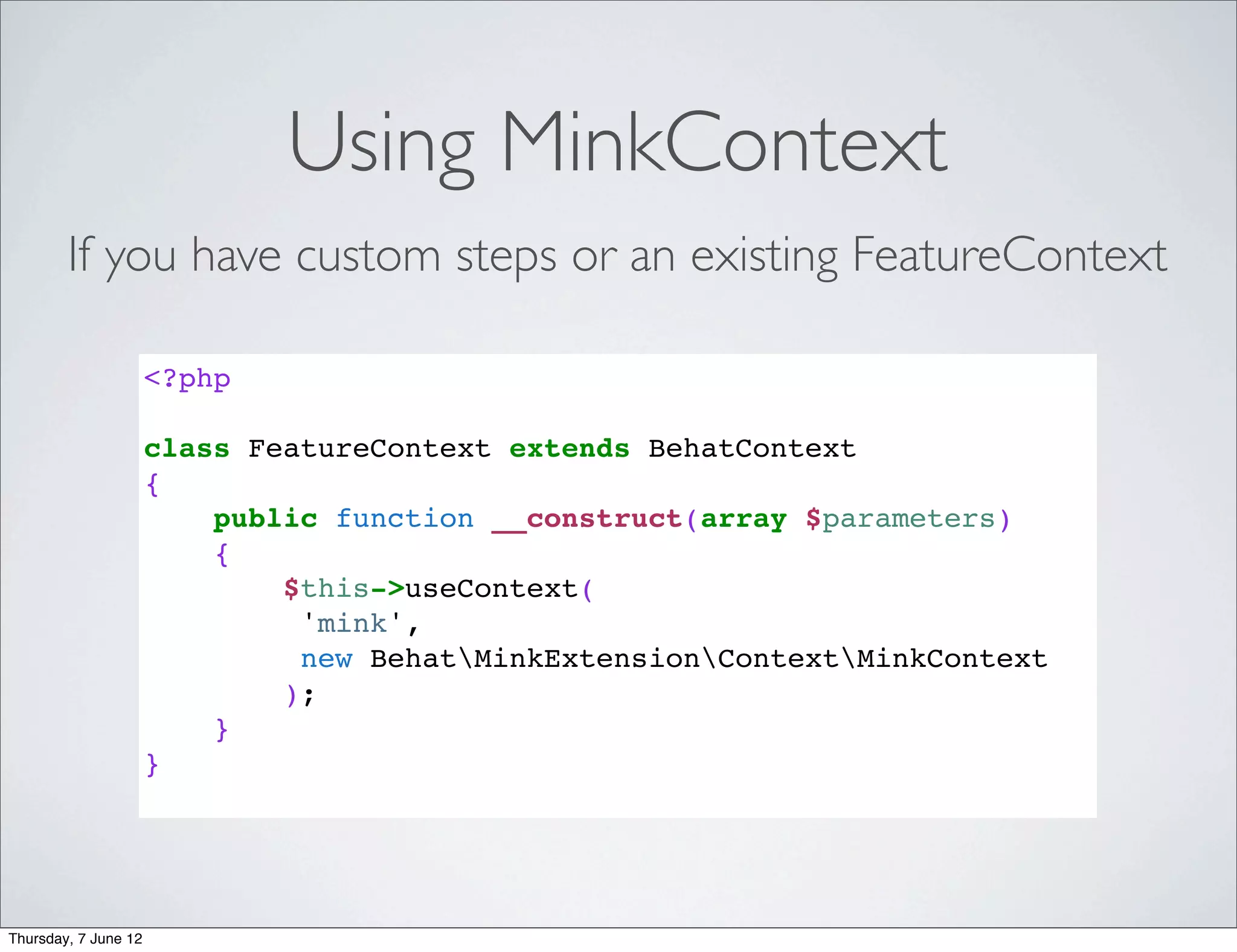

48. Using MinkContext
If you have custom steps or an existing FeatureContext
<?php
class FeatureContext extends BehatContext
{
public function __construct(array $parameters)
{
$this->useContext(
'mink',
new BehatMinkExtensionContextMinkContext
);
}
}
Thursday, 7 June 12

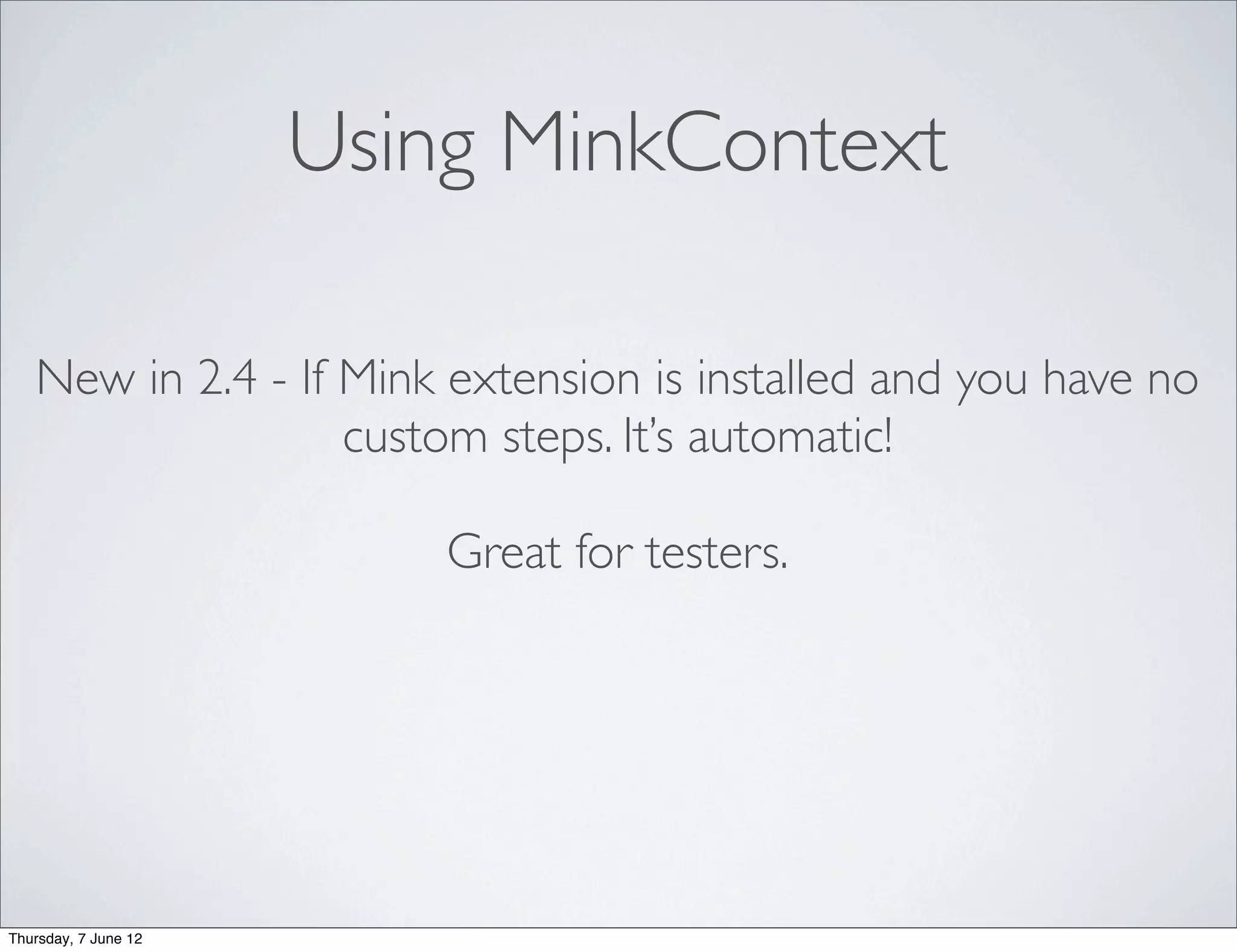

49. Using MinkContext
New in 2.4 - If Mink extension is installed and you have no
custom steps. It’s automatic!
Great for testers.
Thursday, 7 June 12

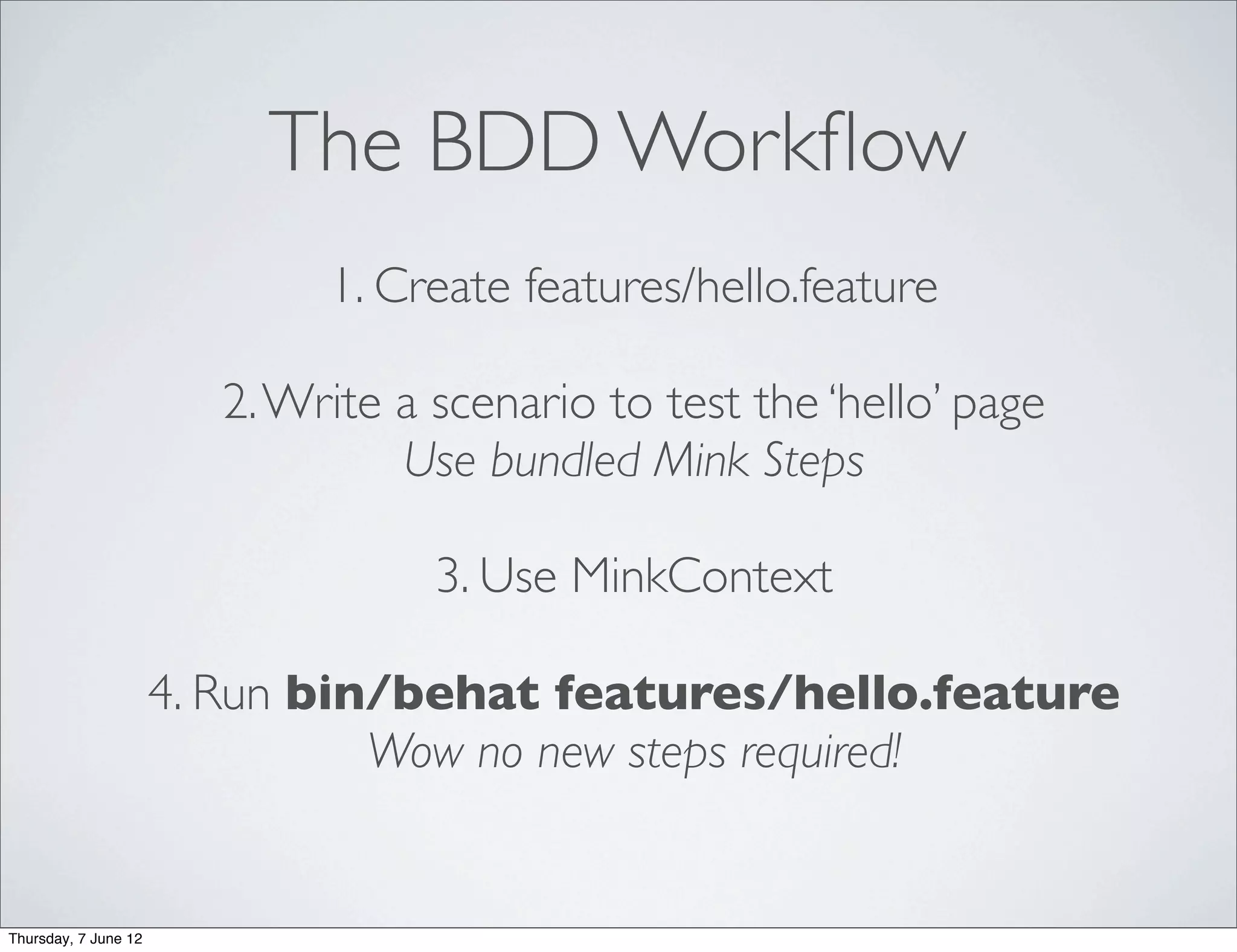

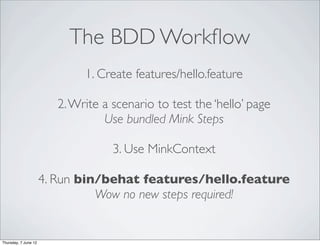

50. The BDD Workflow
1. Create features/hello.feature
2. Write a scenario to test the ‘hello’ page
Use bundled Mink Steps
3. Use MinkContext
4. Run bin/behat features/hello.feature
Wow no new steps required!
Thursday, 7 June 12

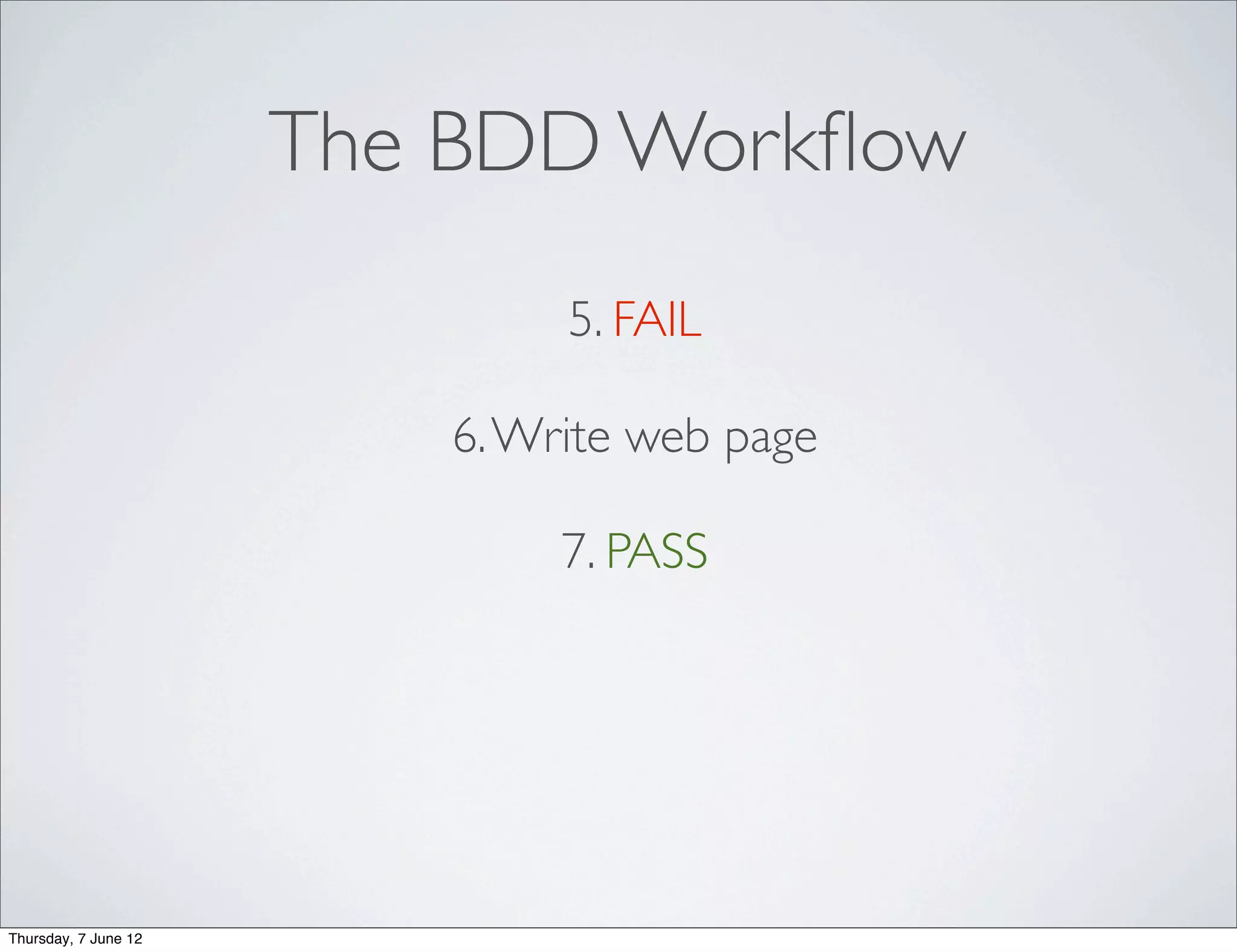

51. The BDD Workflow
5. FAIL
6. Write web page
7. PASS
Thursday, 7 June 12

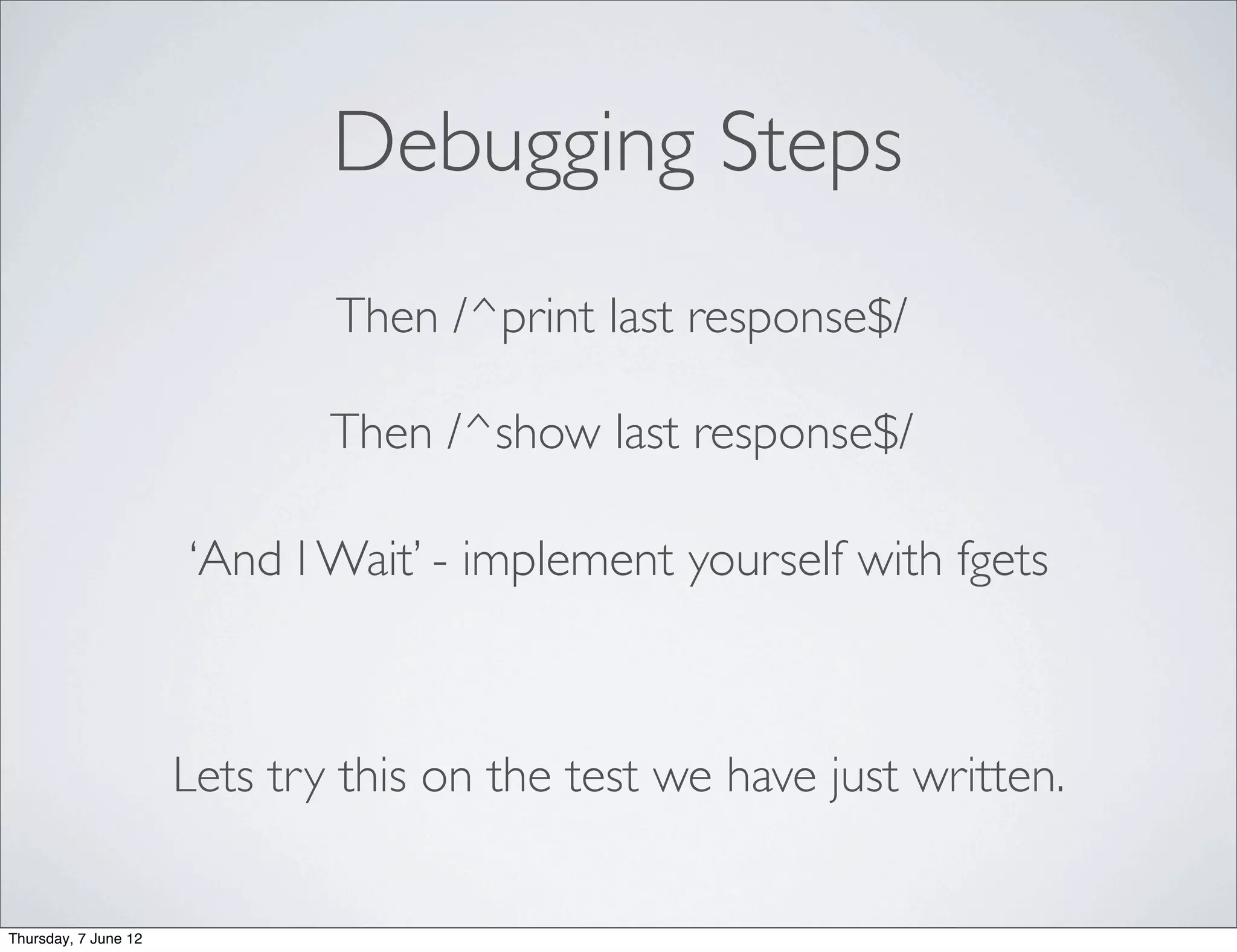

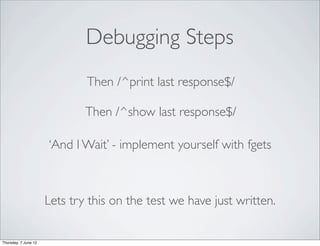

52. Debugging Steps
Then /^print last response$/
Then /^show last response$/
‘And I Wait’ - implement yourself with fgets
Lets try this on the test we have just written.
Thursday, 7 June 12

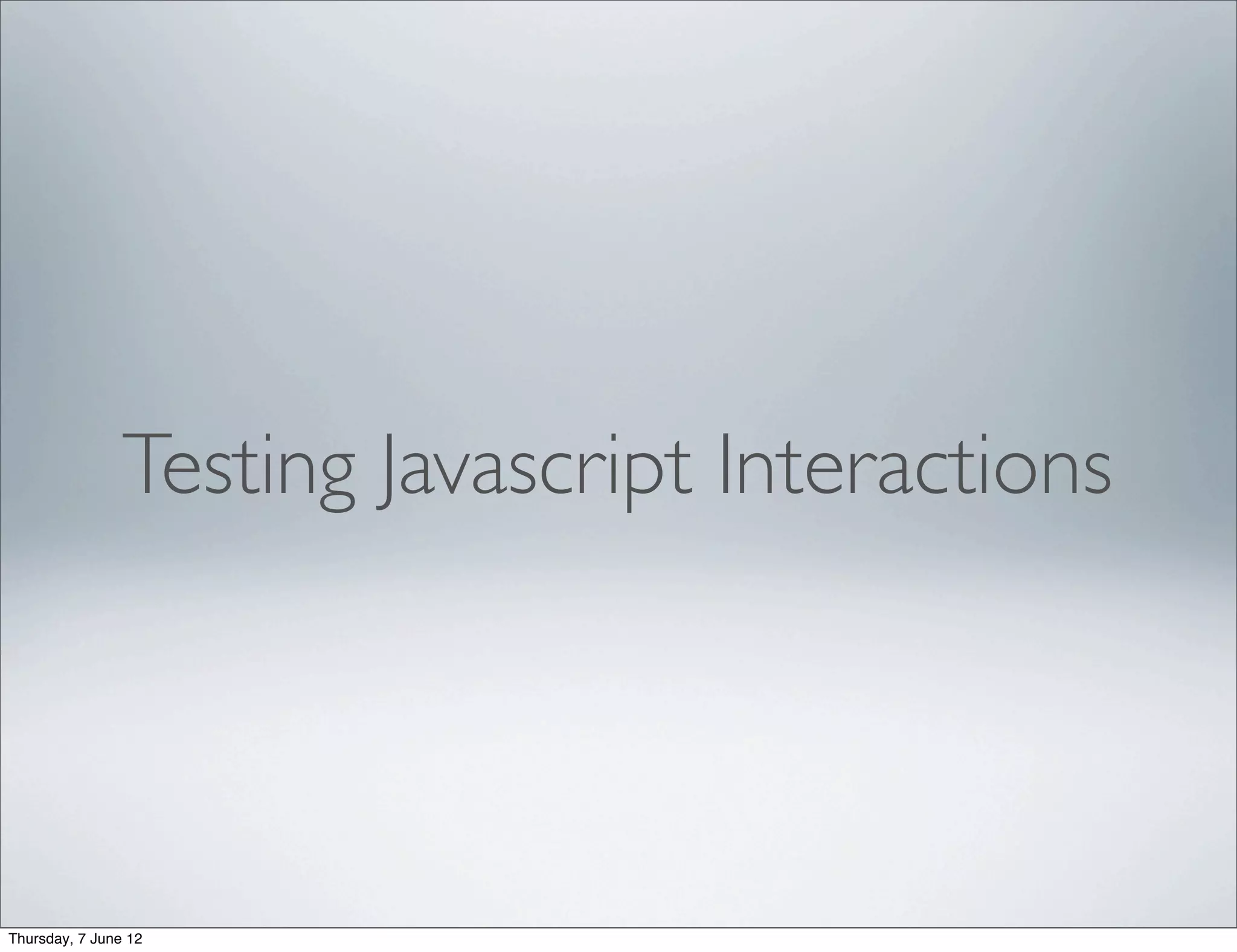

53. Testing Javascript Interactions
Thursday, 7 June 12

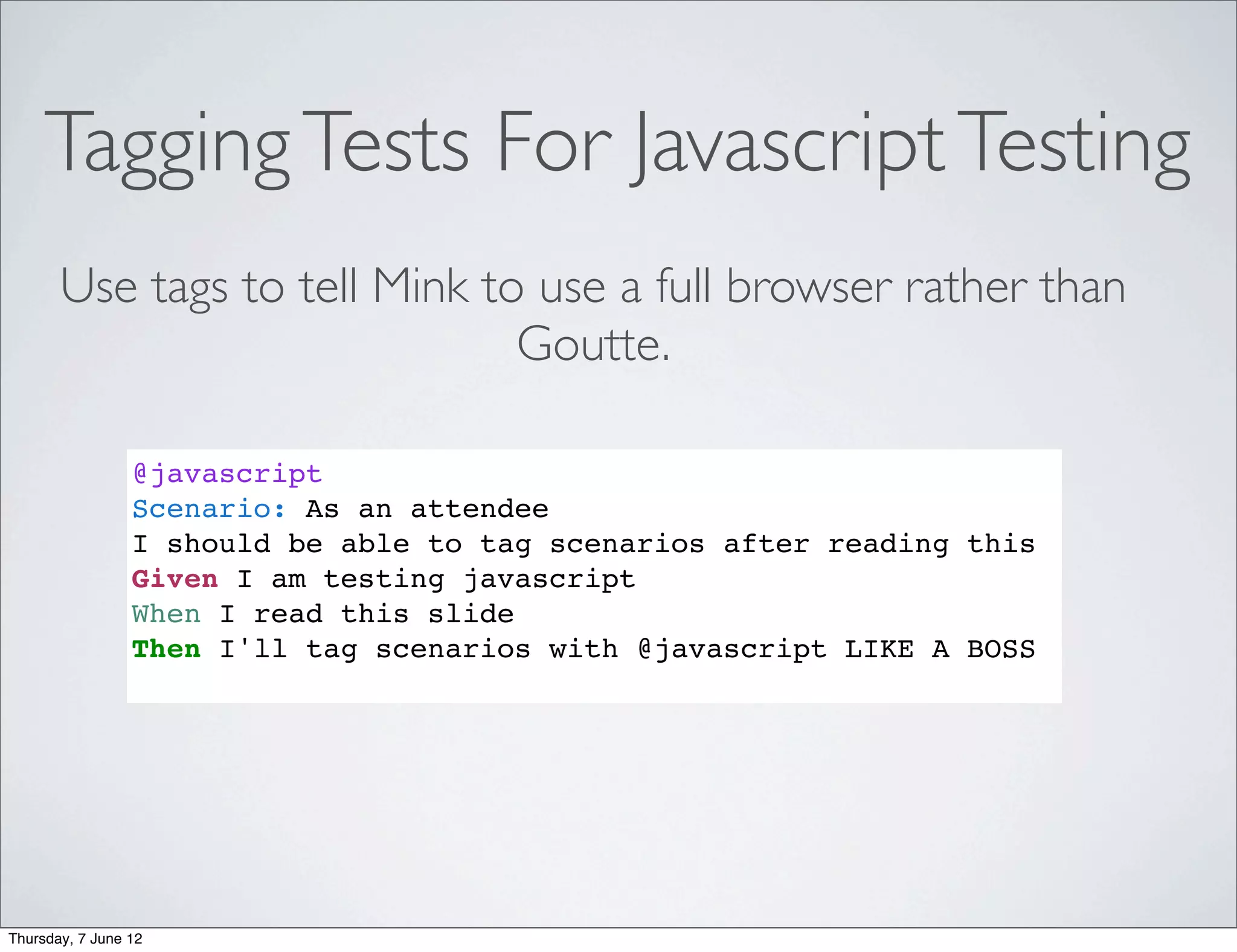

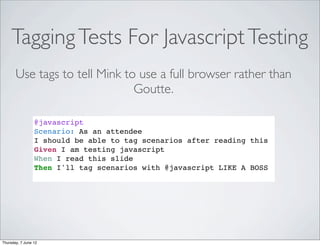

54. Tagging Tests For Javascript Testing
Use tags to tell Mink to use a full browser rather than
Goutte.
@javascript
Scenario: As an attendee
I should be able to tag scenarios after reading this
Given I am testing javascript
When I read this slide
Then I'll tag scenarios with @javascript LIKE A BOSS
Thursday, 7 June 12

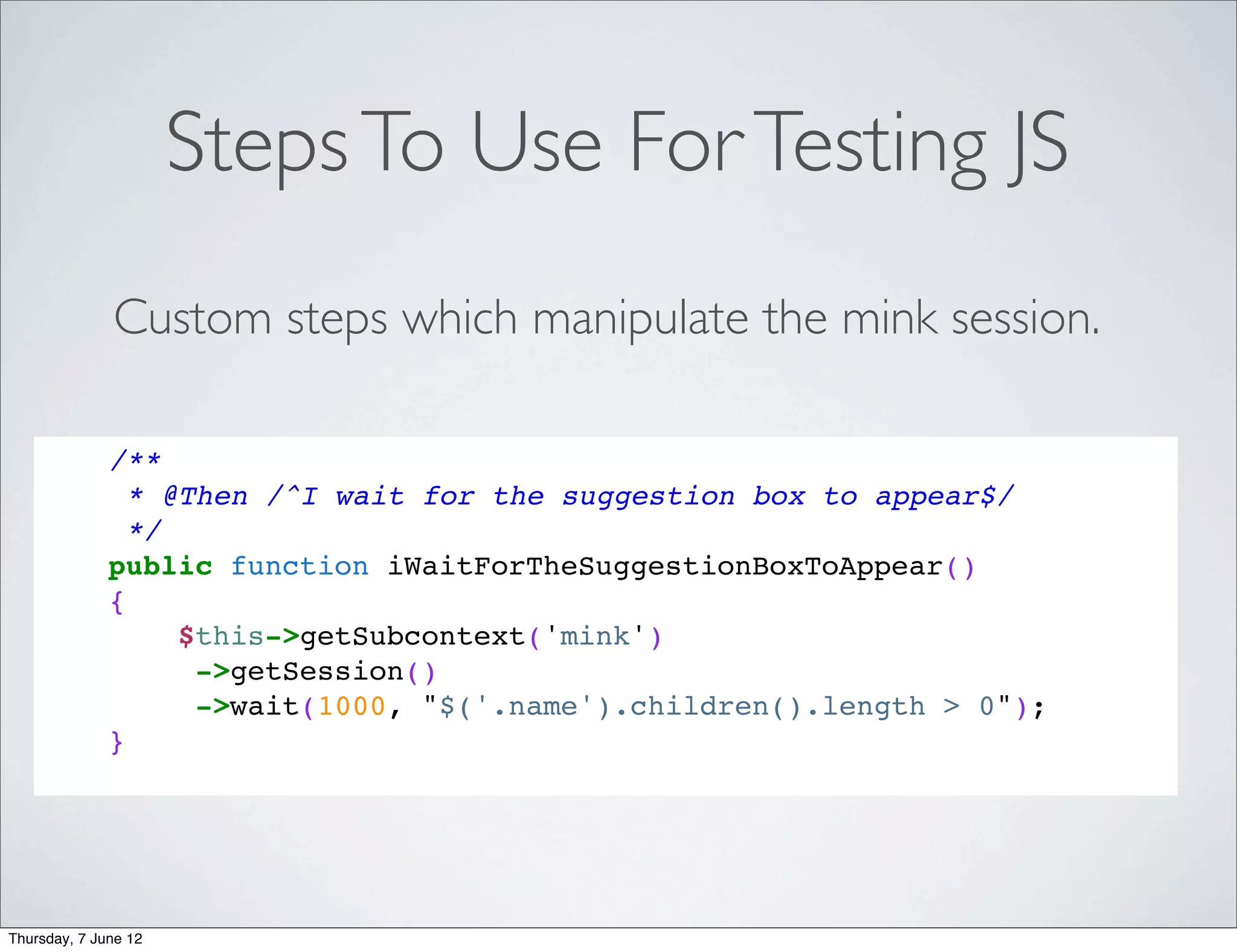

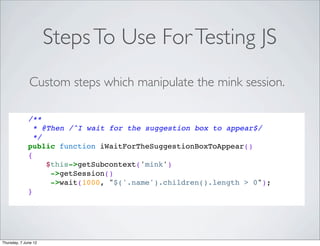

55. Steps To Use For Testing JS
Custom steps which manipulate the mink session.
/**
* @Then /^I wait for the suggestion box to appear$/
*/
public function iWaitForTheSuggestionBoxToAppear()
{
$this->getSubcontext('mink')
->getSession()
->wait(1000, "$('.name').children().length > 0");
}
Thursday, 7 June 12

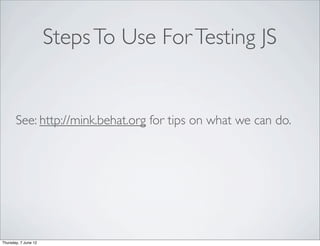

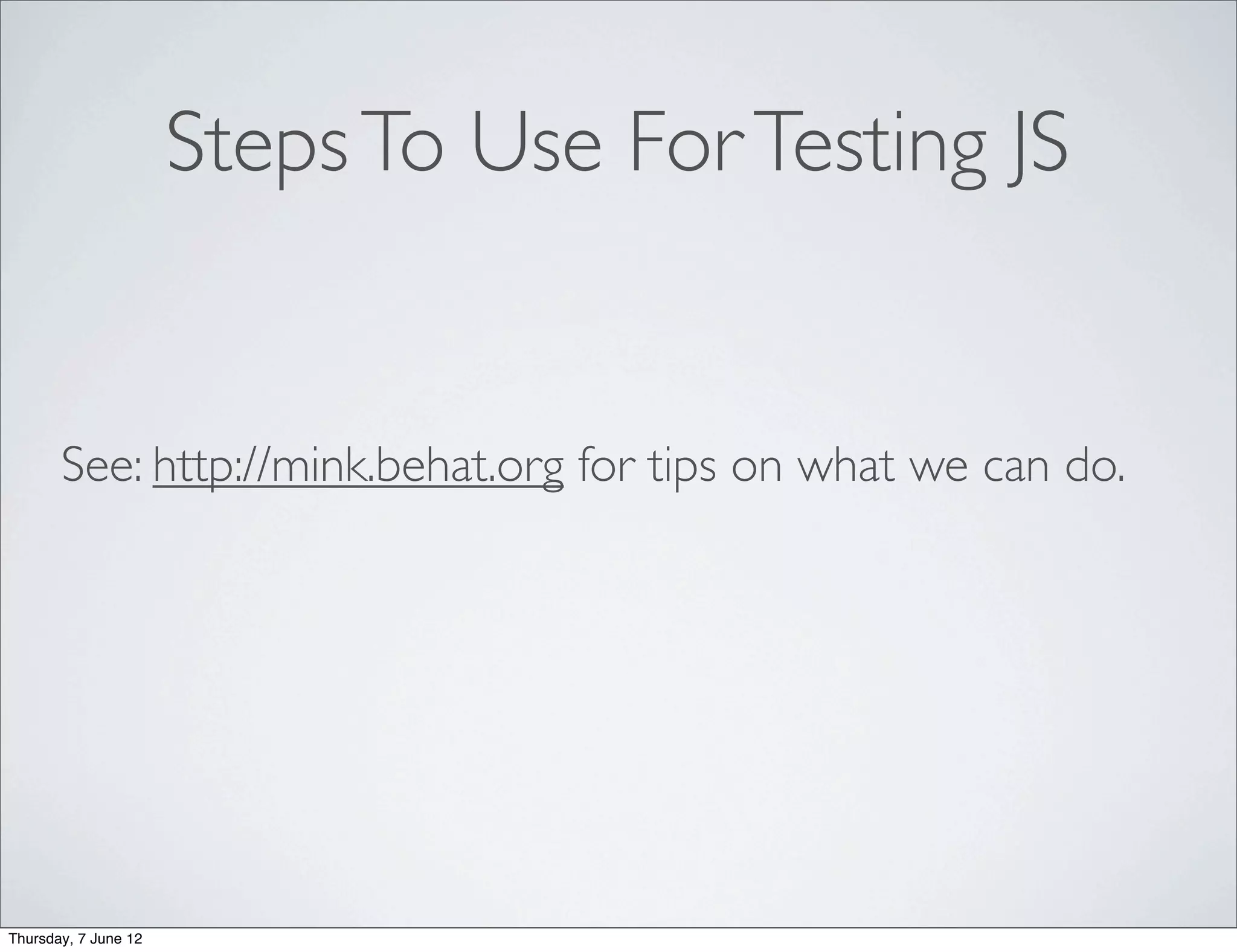

56. Steps To Use For Testing JS
See: http://mink.behat.org for tips on what we can do.
Thursday, 7 June 12

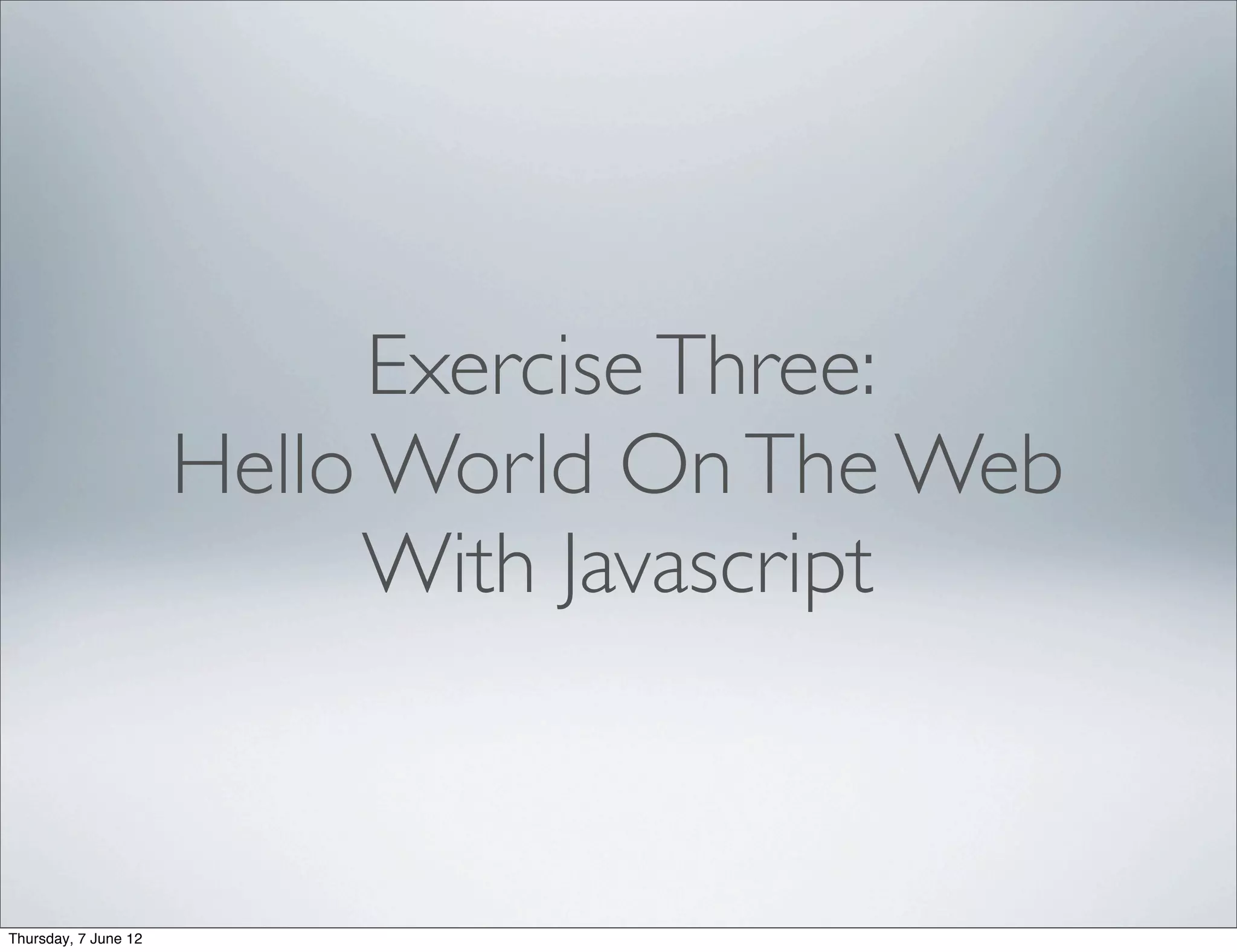

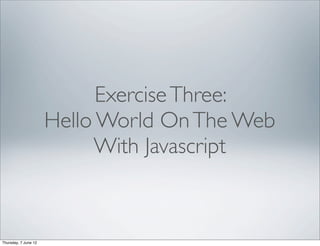

57. Exercise Three:
Hello World On The Web
With Javascript
Thursday, 7 June 12

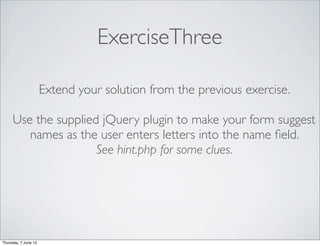

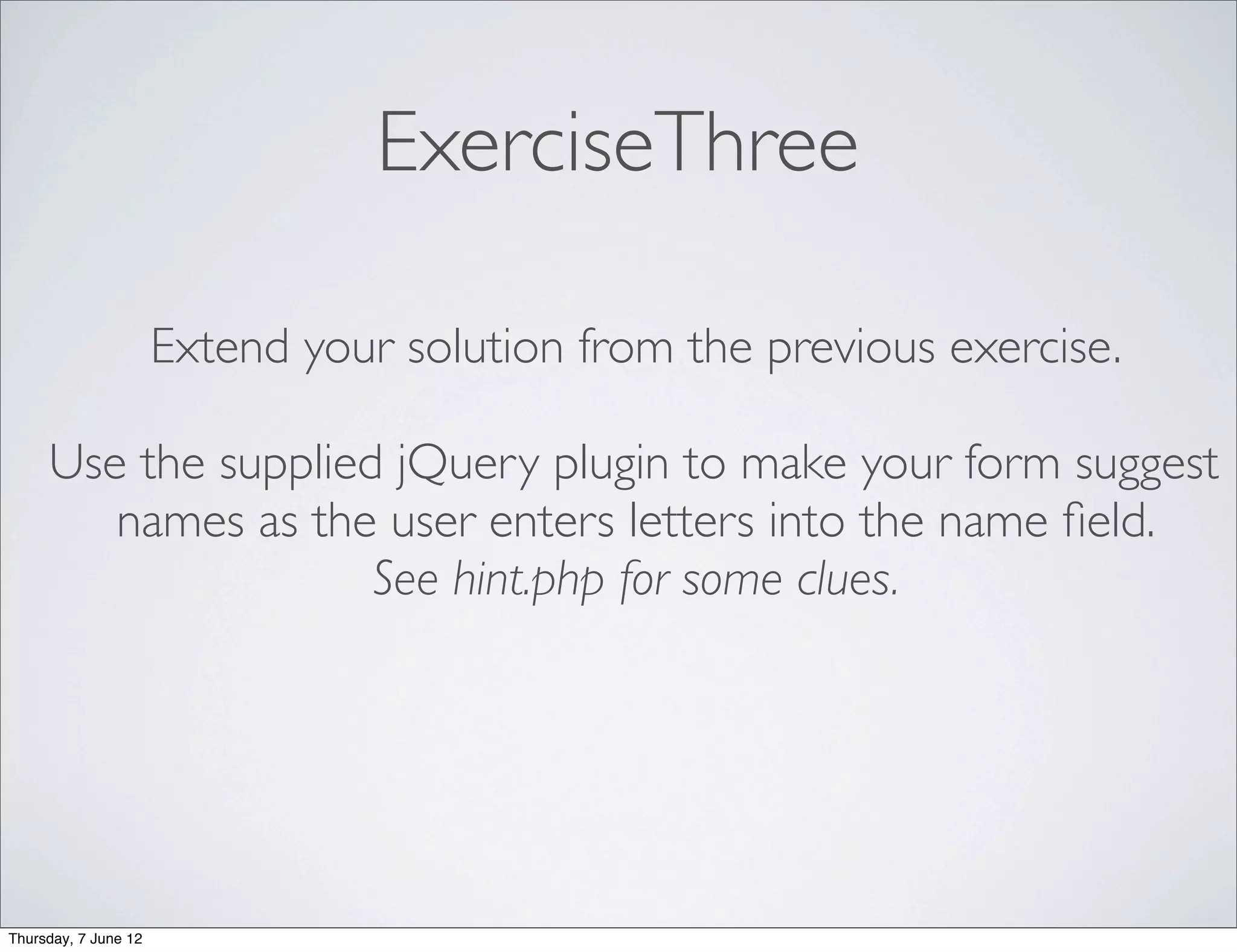

58. ExerciseThree
Extend your solution from the previous exercise.
Use the supplied jQuery plugin to make your form suggest
names as the user enters letters into the name field.
See hint.php for some clues.
Thursday, 7 June 12

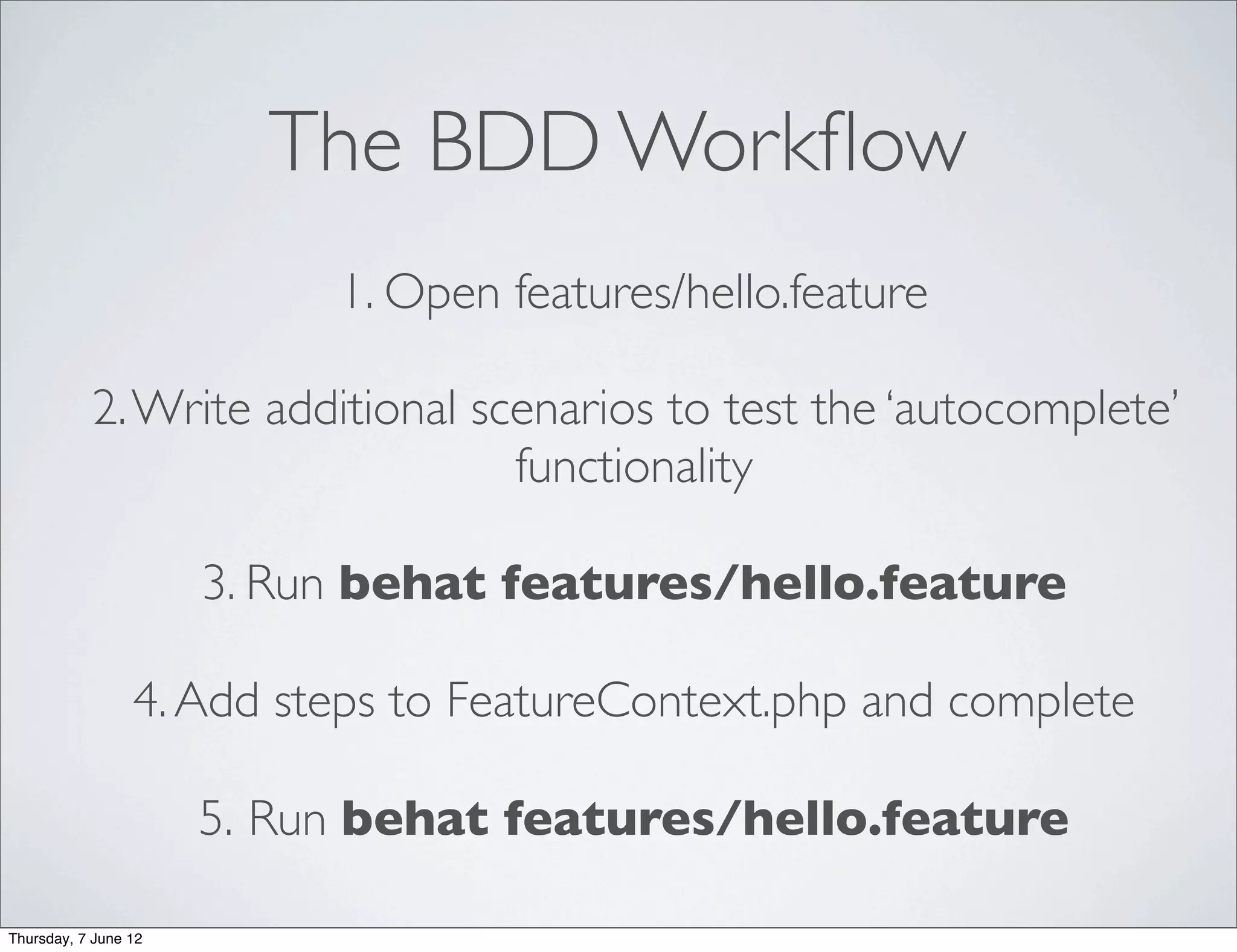

59. The BDD Workflow
1. Open features/hello.feature
2. Write additional scenarios to test the ‘autocomplete’
functionality
3. Run behat features/hello.feature
4. Add steps to FeatureContext.php and complete
5. Run behat features/hello.feature
Thursday, 7 June 12

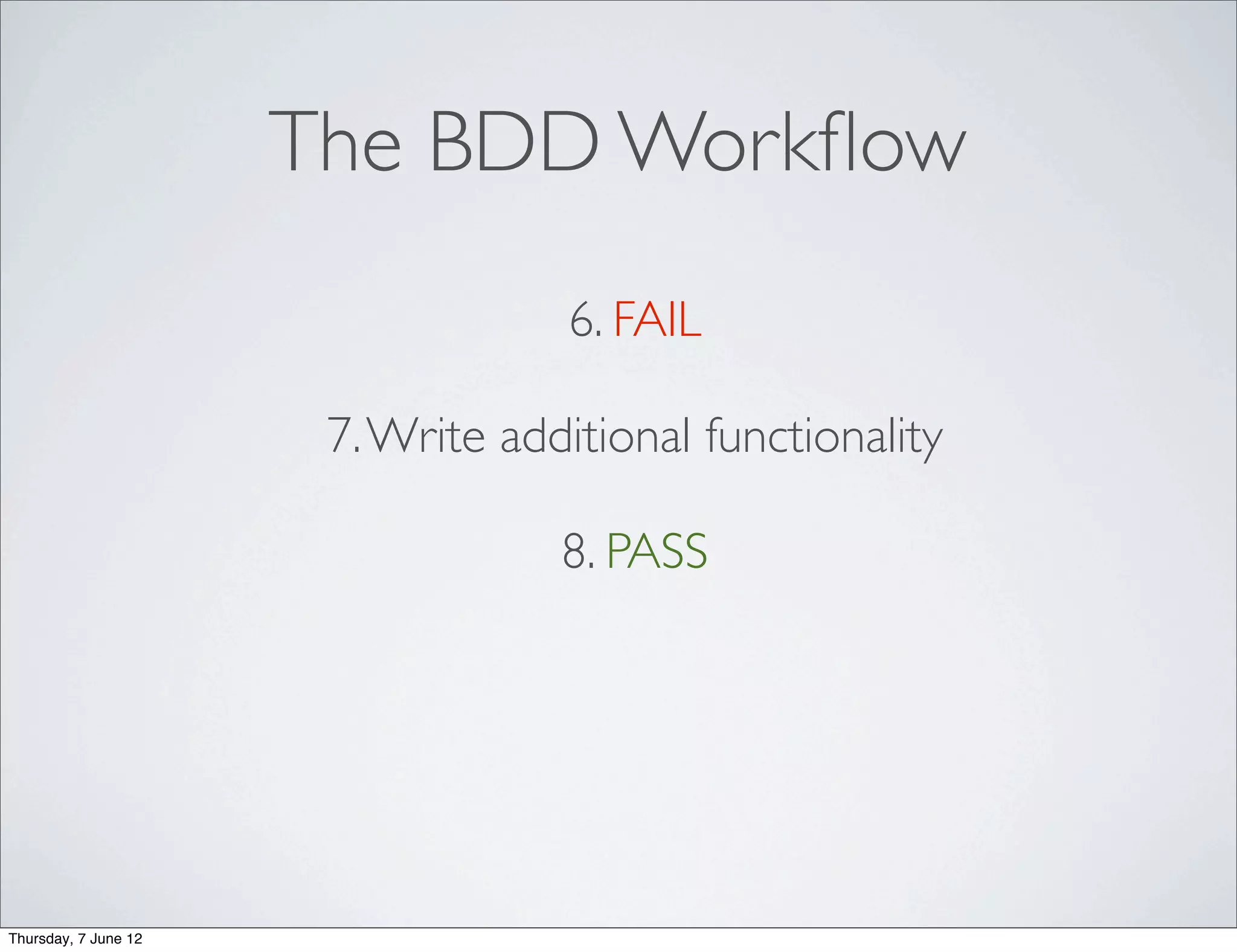

60. The BDD Workflow
6. FAIL
7. Write additional functionality
8. PASS
Thursday, 7 June 12

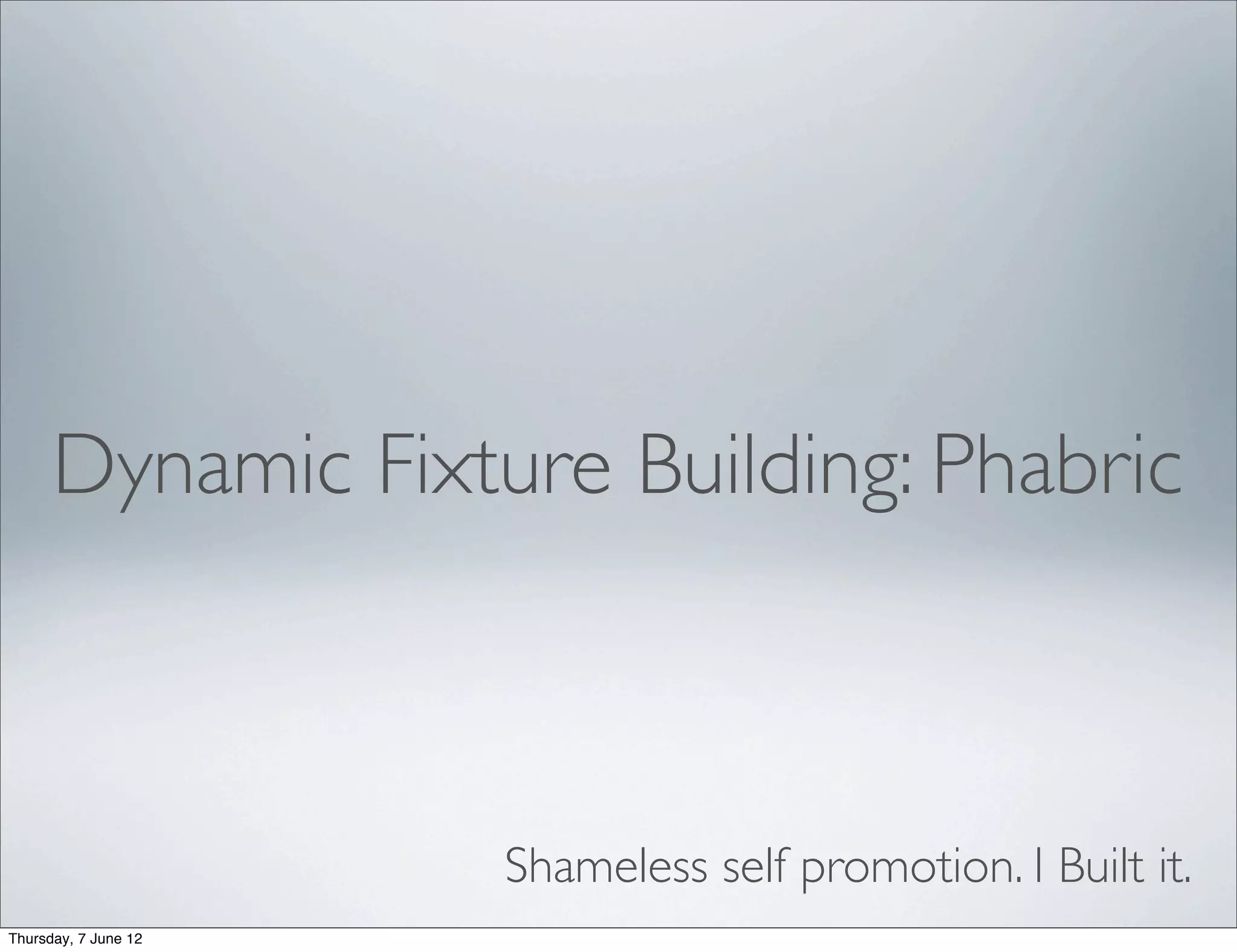

61. Dynamic Fixture Building: Phabric
Shameless self promotion. I Built it.
Thursday, 7 June 12

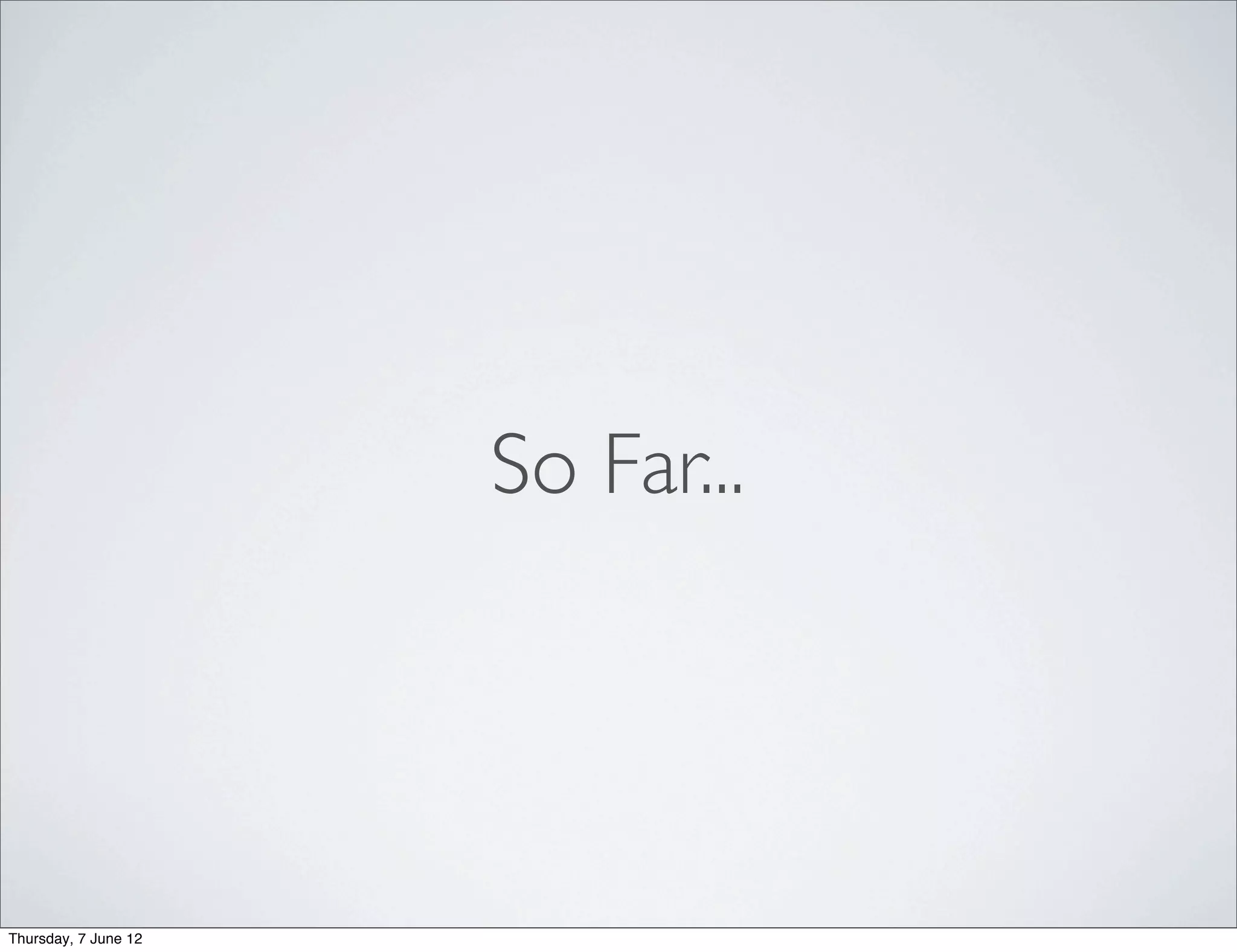

62. So Far...
Thursday, 7 June 12

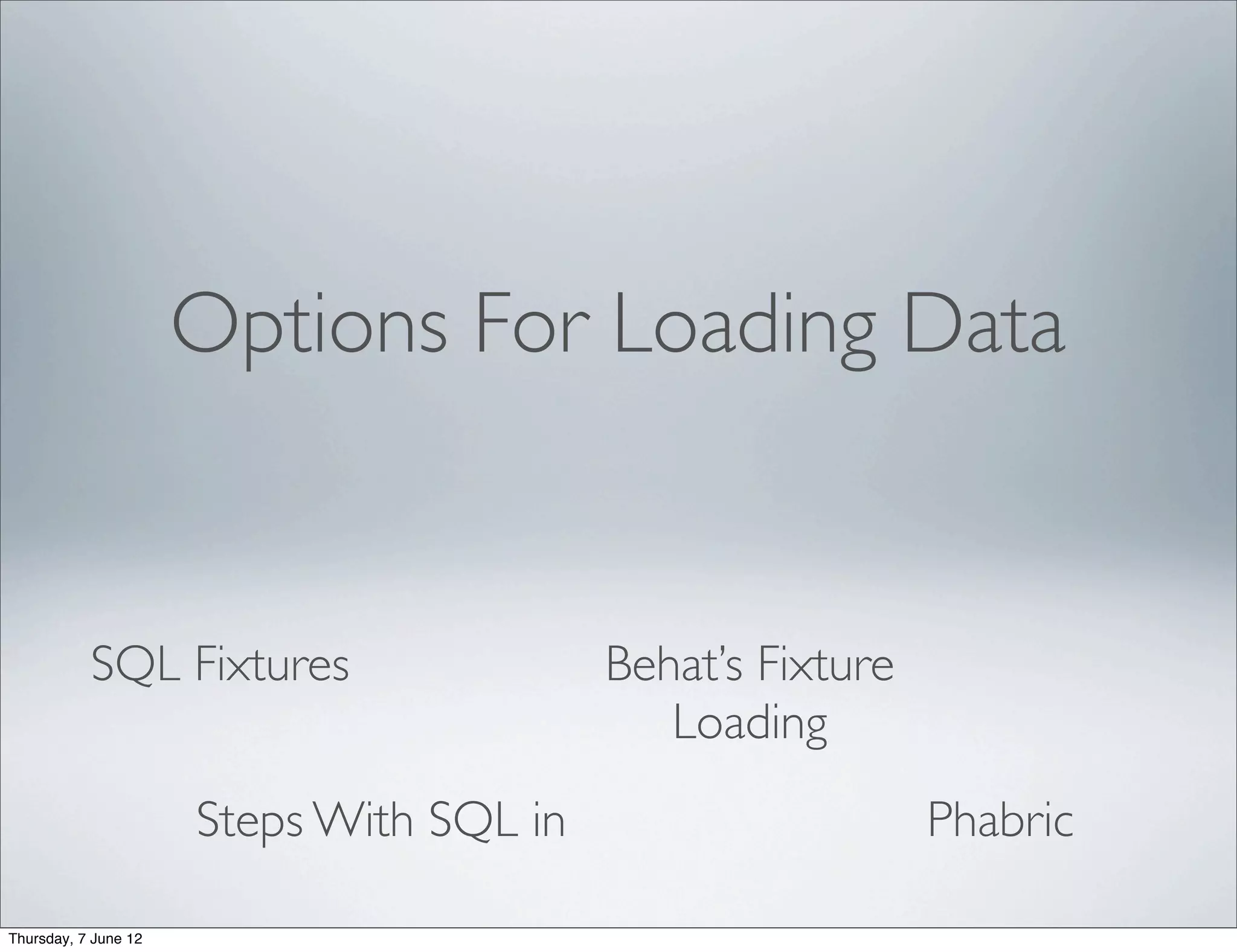

63. Options For Loading Data
SQL Fixtures Behat’s Fixture
Loading
Steps With SQL in Phabric
Thursday, 7 June 12

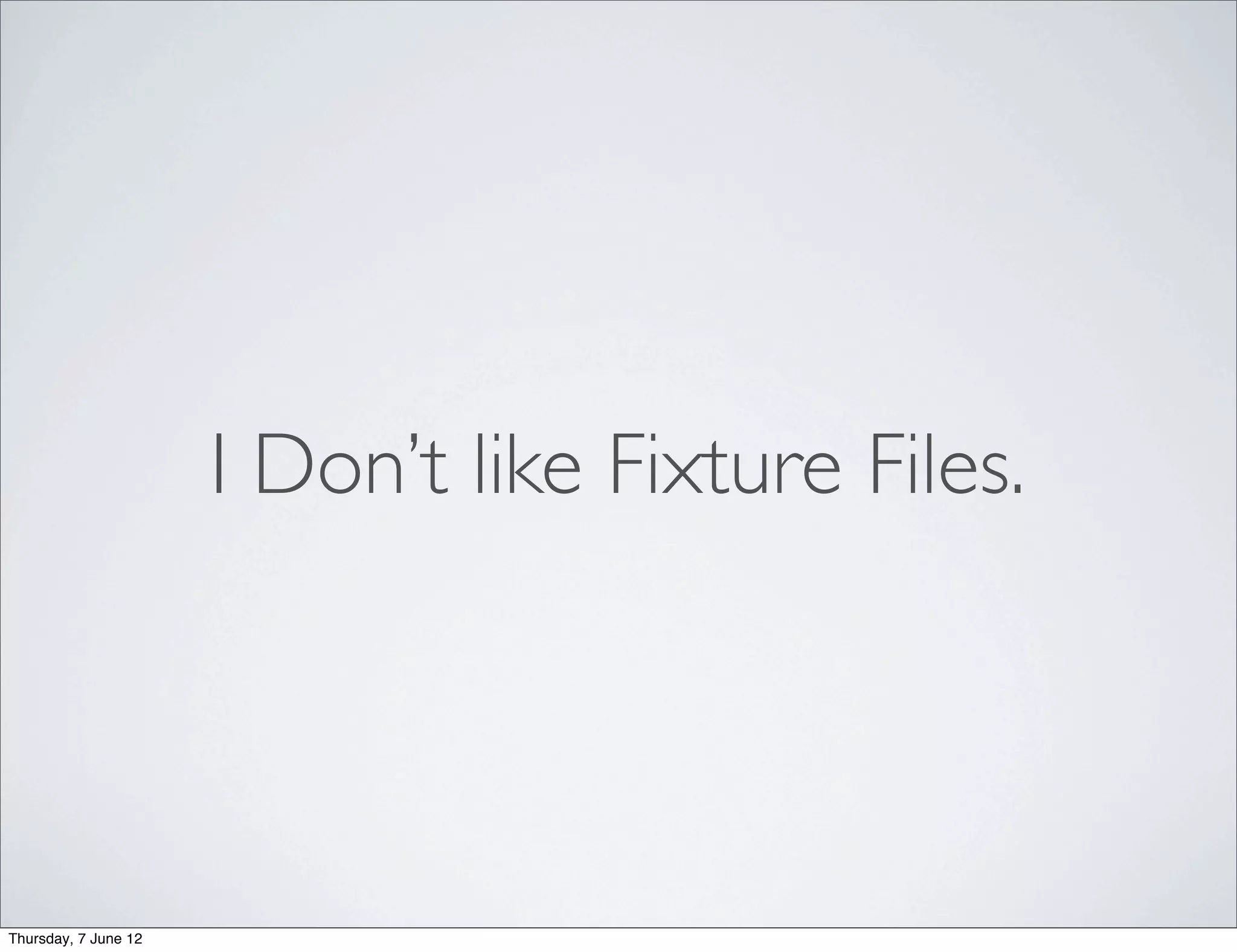

64. I Don’t like Fixture Files.
Thursday, 7 June 12

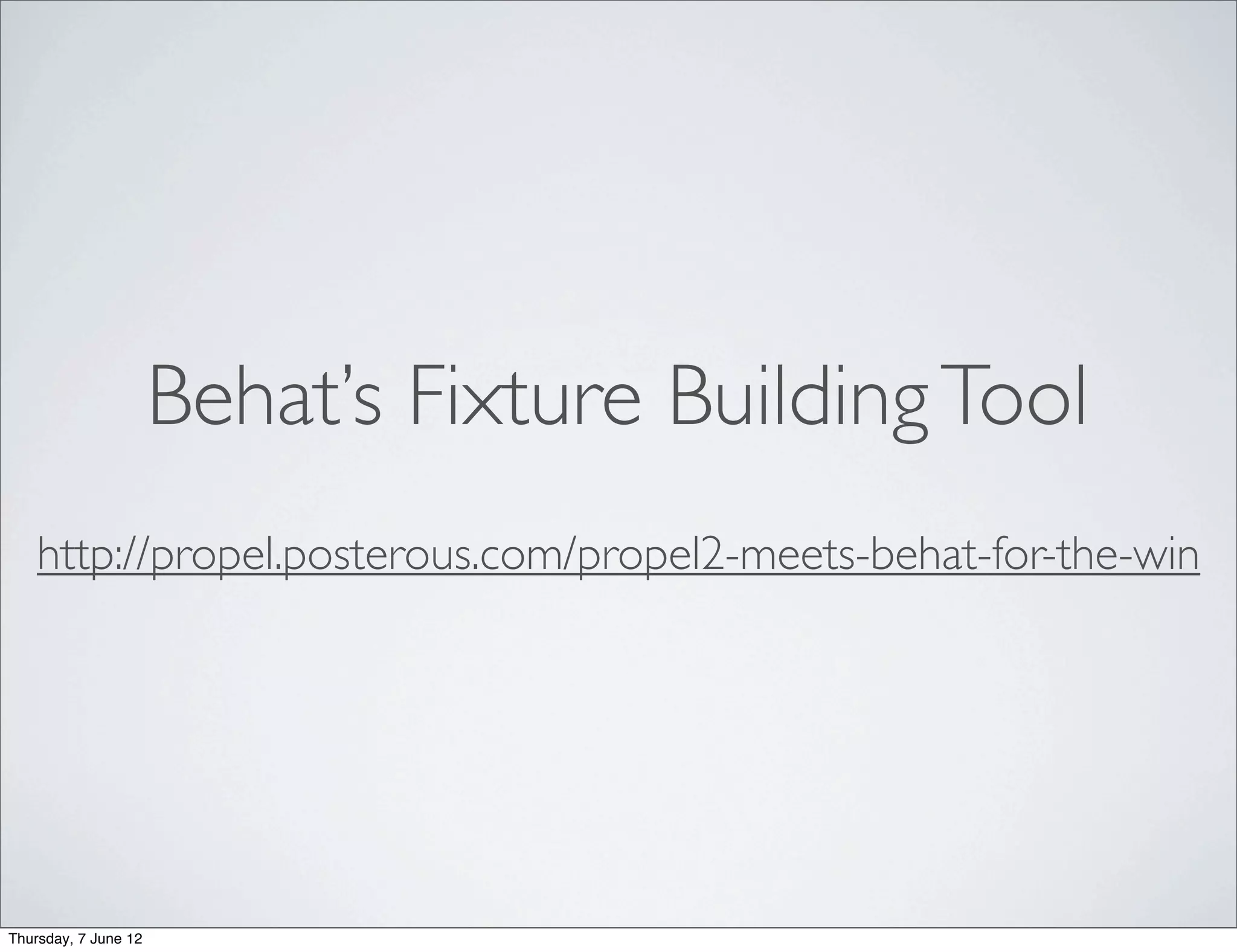

65. Behat’s Fixture Building Tool
http://propel.posterous.com/propel2-meets-behat-for-the-win
Thursday, 7 June 12

66. Phabric
Thursday, 7 June 12

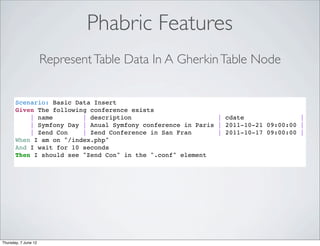

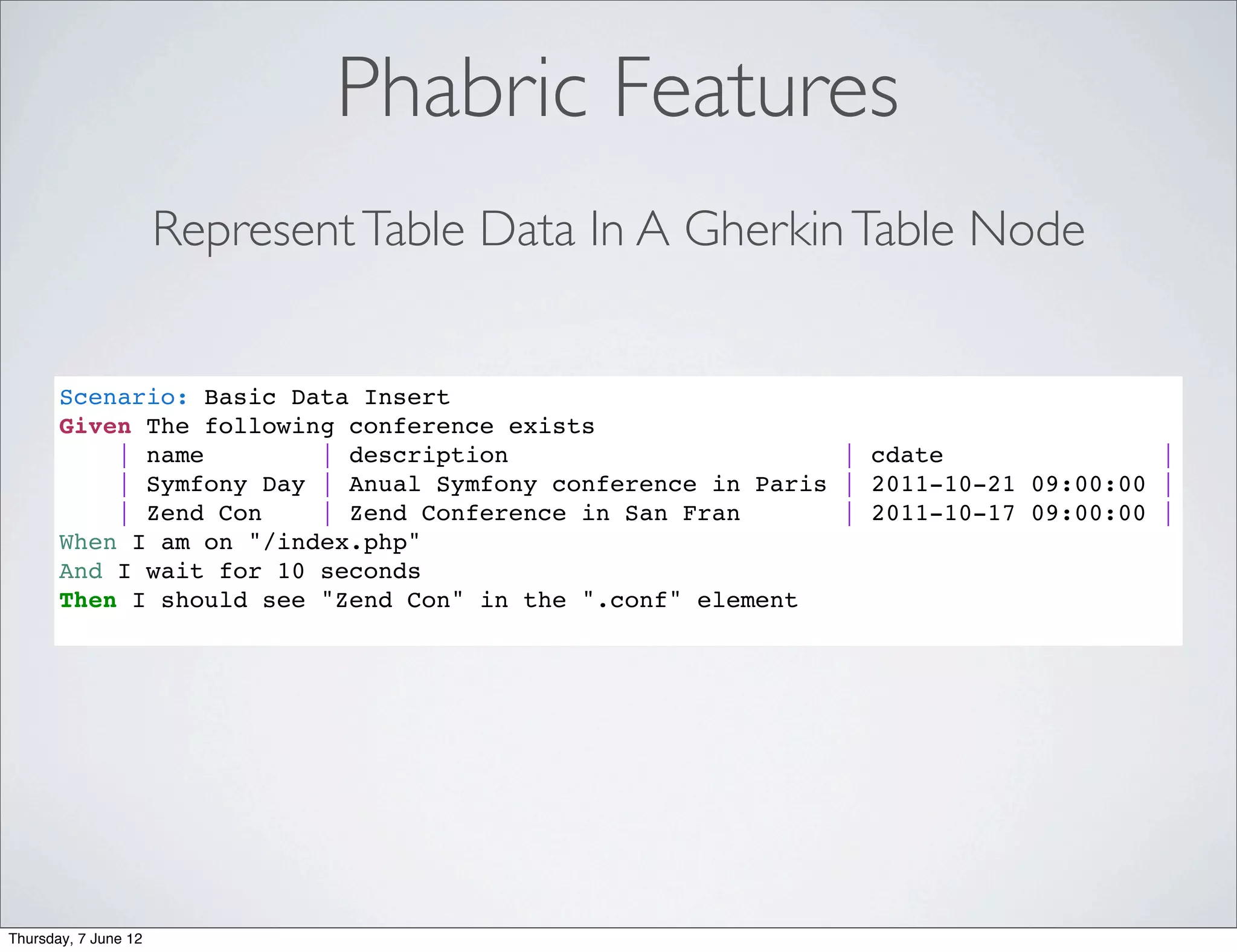

67. Phabric Features
Represent Table Data In A Gherkin Table Node
Scenario: Basic Data Insert
Given The following conference exists
| name | description | cdate |
| Symfony Day | Anual Symfony conference in Paris | 2011-10-21 09:00:00 |
| Zend Con | Zend Conference in San Fran | 2011-10-17 09:00:00 |
When I am on "/index.php"
And I wait for 10 seconds
Then I should see "Zend Con" in the ".conf" element
Thursday, 7 June 12

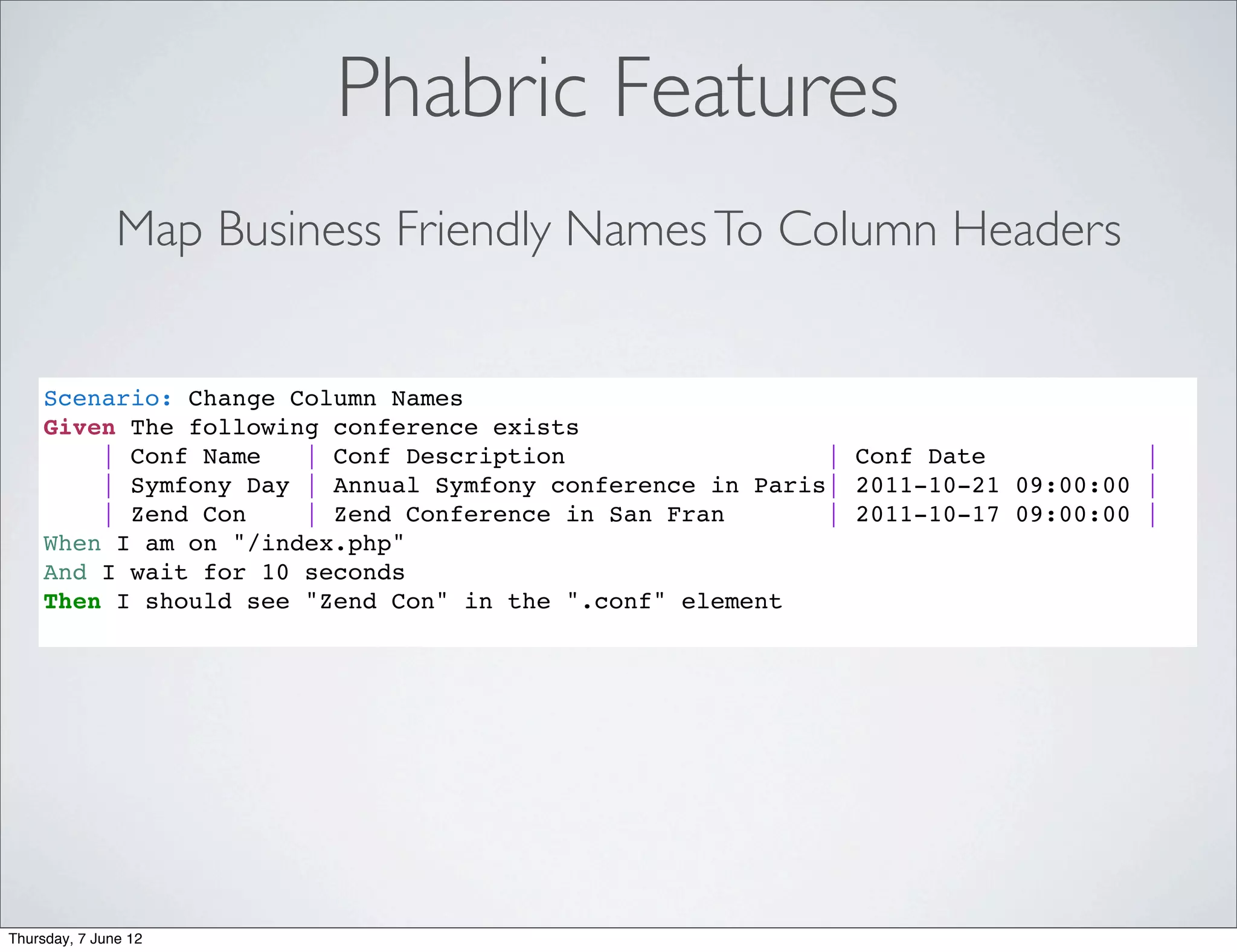

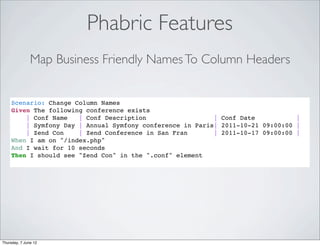

68. Phabric Features
Map Business Friendly Names To Column Headers
Scenario: Change Column Names
Given The following conference exists
| Conf Name | Conf Description | Conf Date |
| Symfony Day | Annual Symfony conference in Paris| 2011-10-21 09:00:00 |
| Zend Con | Zend Conference in San Fran | 2011-10-17 09:00:00 |
When I am on "/index.php"
And I wait for 10 seconds
Then I should see "Zend Con" in the ".conf" element
Thursday, 7 June 12

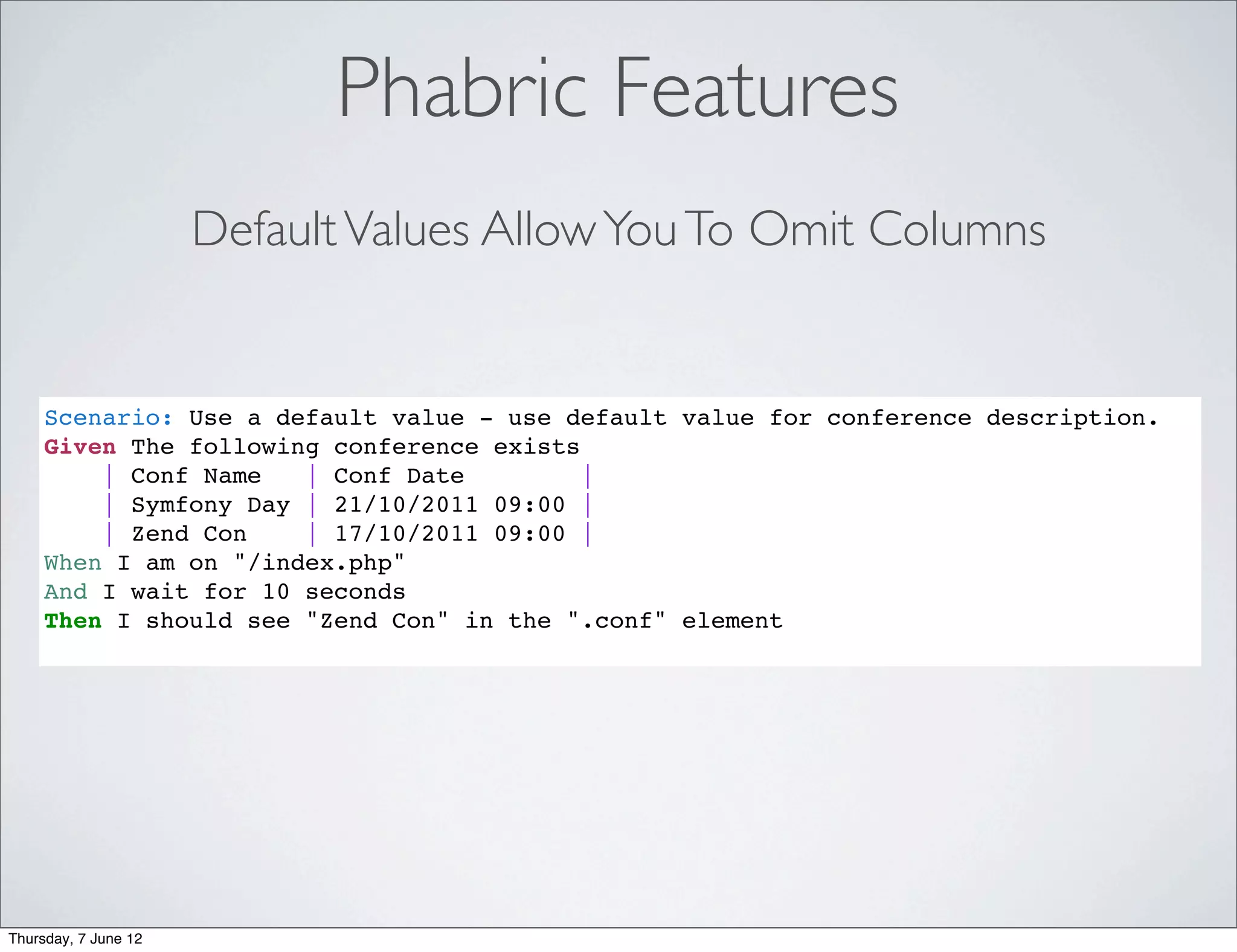

69. Phabric Features
Default Values Allow You To Omit Columns
Scenario: Use a default value - use default value for conference description.
Given The following conference exists
| Conf Name | Conf Date |
| Symfony Day | 21/10/2011 09:00 |
| Zend Con | 17/10/2011 09:00 |
When I am on "/index.php"
And I wait for 10 seconds
Then I should see "Zend Con" in the ".conf" element
Thursday, 7 June 12

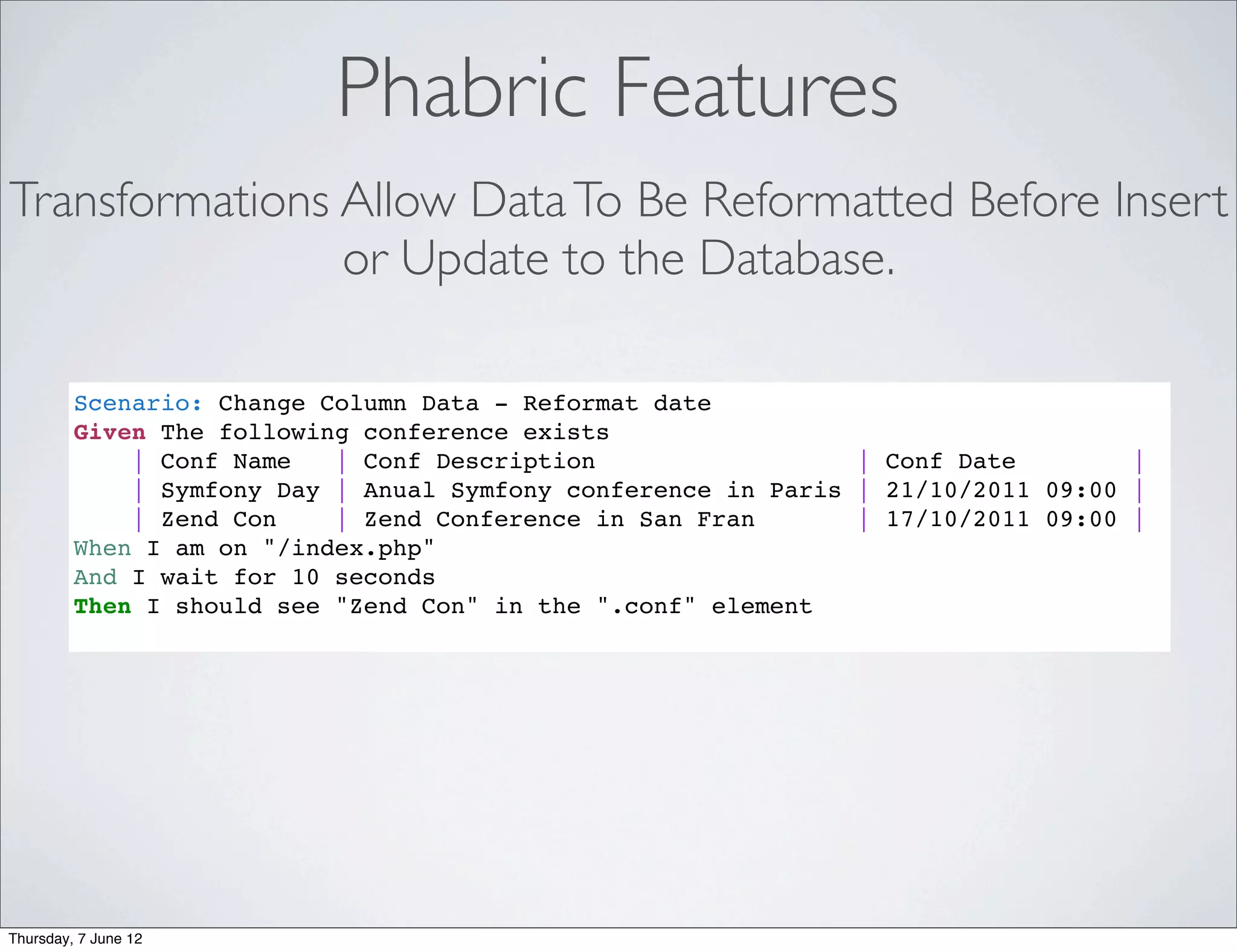

70. Phabric Features
Transformations Allow Data To Be Reformatted Before Insert
or Update to the Database.
Scenario: Change Column Data - Reformat date
Given The following conference exists
| Conf Name | Conf Description | Conf Date |
| Symfony Day | Anual Symfony conference in Paris | 21/10/2011 09:00 |
| Zend Con | Zend Conference in San Fran | 17/10/2011 09:00 |
When I am on "/index.php"
And I wait for 10 seconds
Then I should see "Zend Con" in the ".conf" element
Thursday, 7 June 12

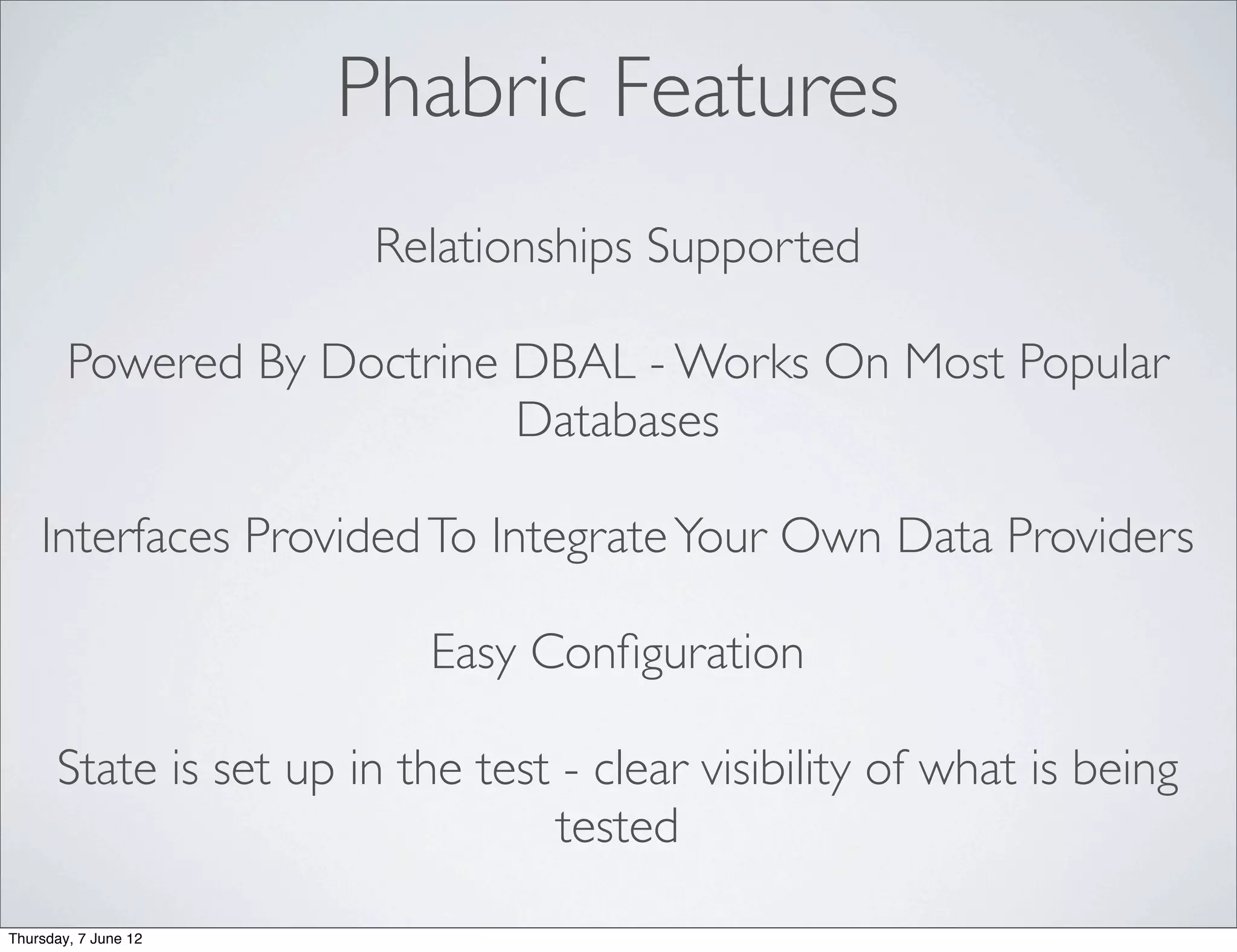

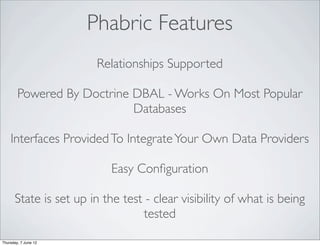

71. Phabric Features
Relationships Supported
Powered By Doctrine DBAL - Works On Most Popular
Databases
Interfaces Provided To Integrate Your Own Data Providers
Easy Configuration
State is set up in the test - clear visibility of what is being
tested
Thursday, 7 June 12

72. Phabric Demo
Thursday, 7 June 12

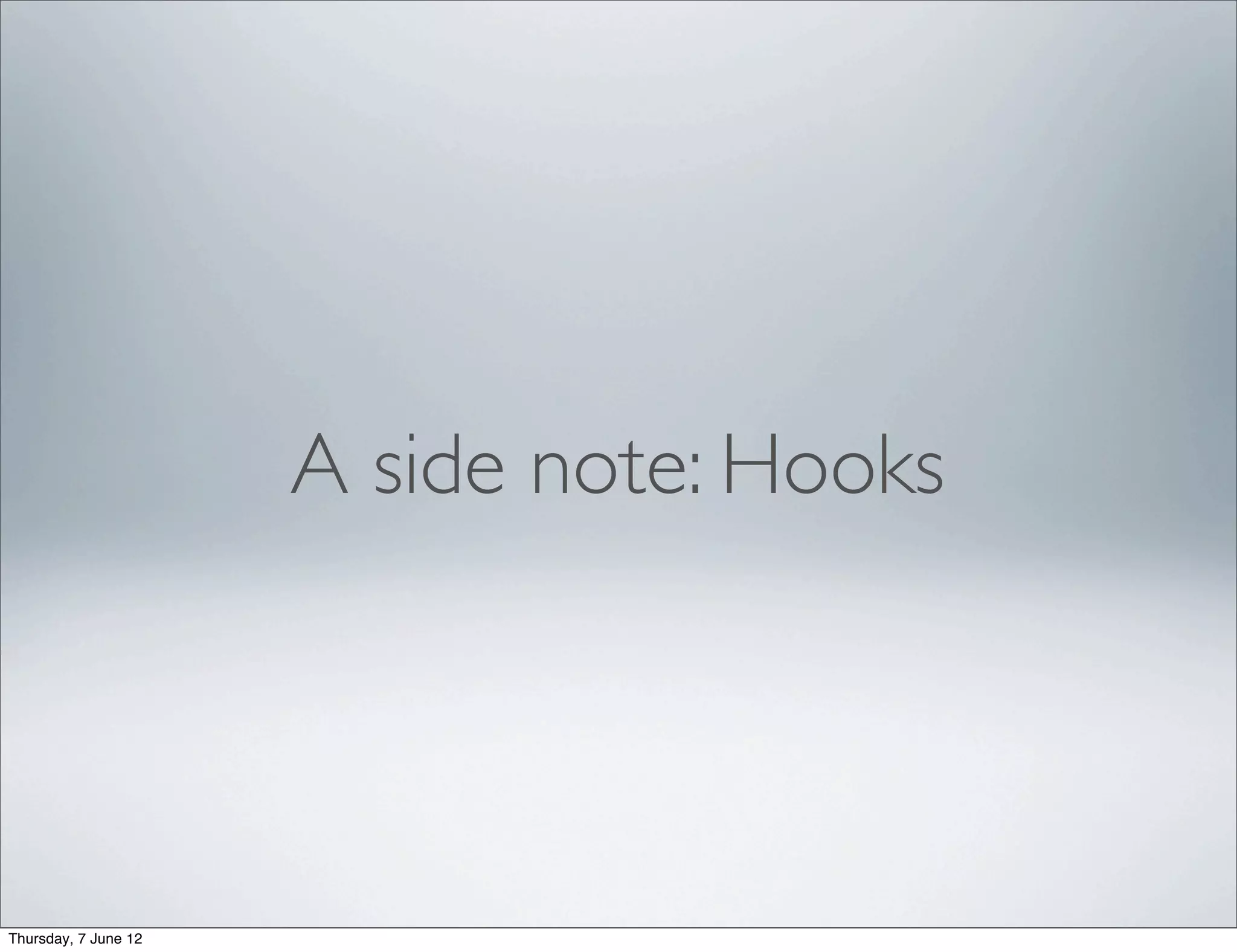

73. A side note: Hooks
Thursday, 7 June 12

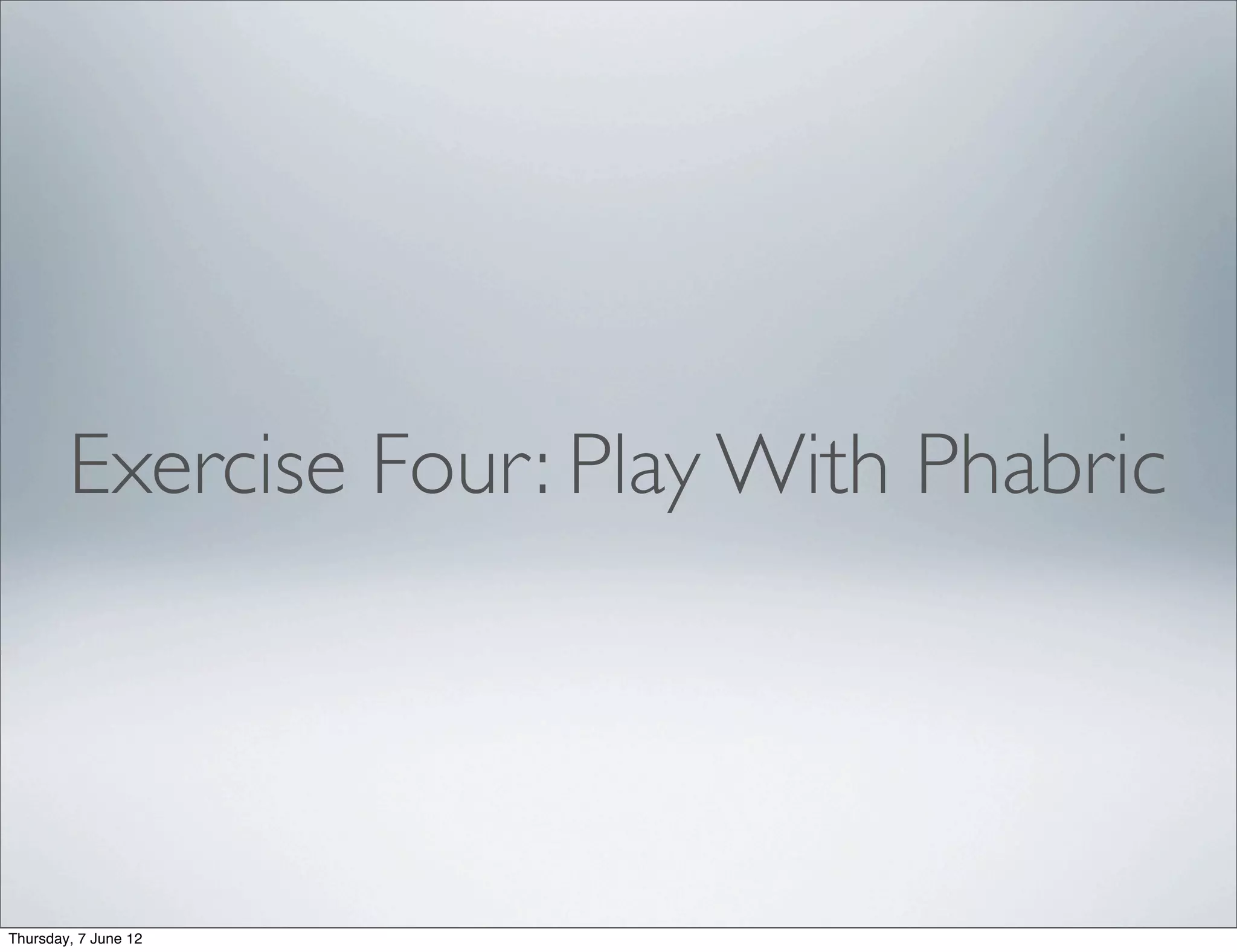

74. Exercise Four: Play With Phabric
Thursday, 7 June 12

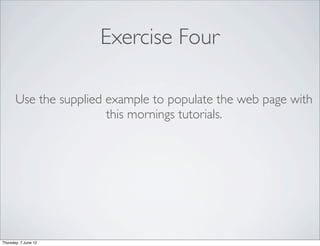

75. Exercise Four
Use the supplied example to populate the web page with
this mornings tutorials.
Thursday, 7 June 12

76. Common Contexts
Thursday, 7 June 12

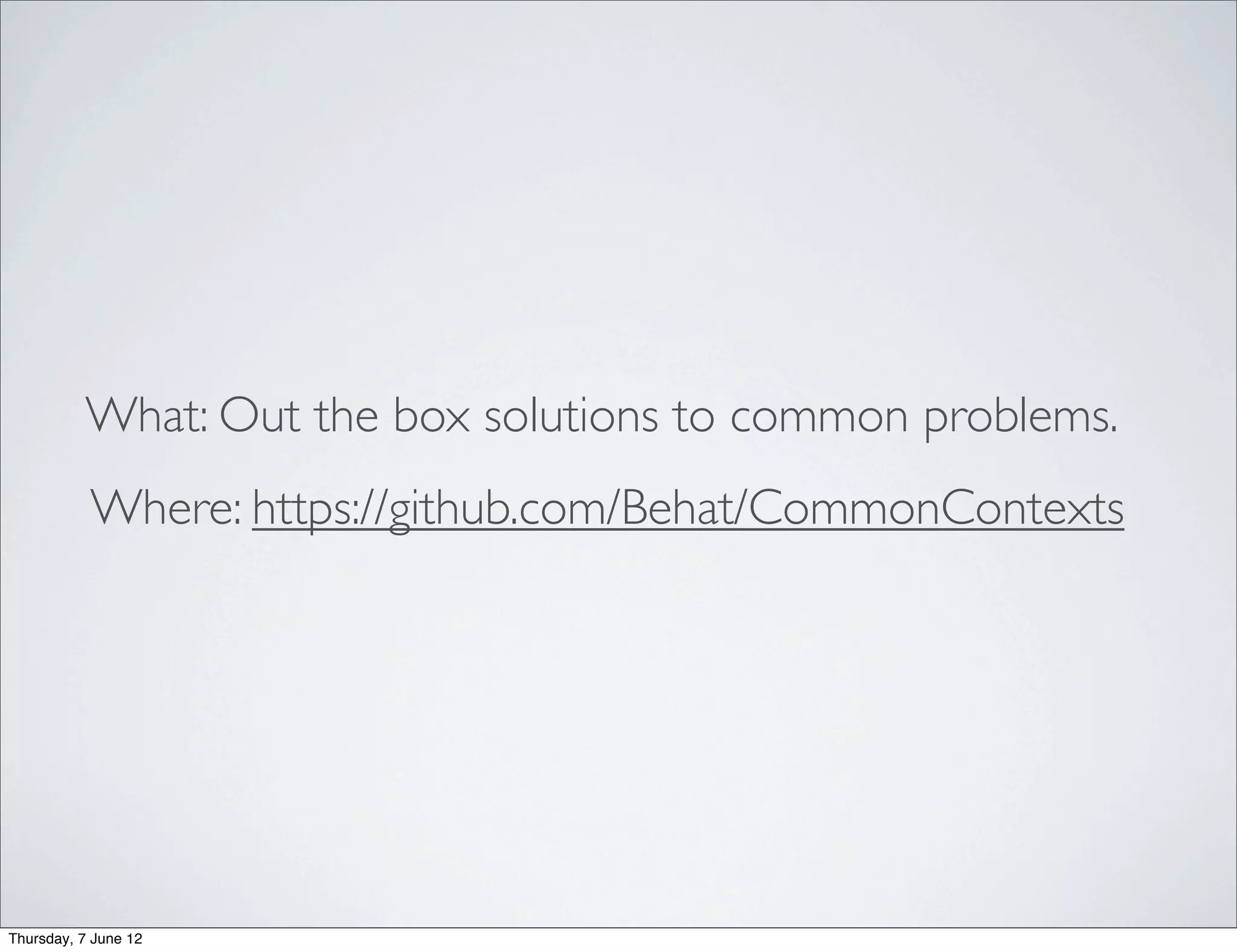

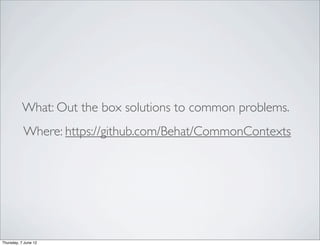

77. What: Out the box solutions to common problems.
Where: https://github.com/Behat/CommonContexts
Thursday, 7 June 12

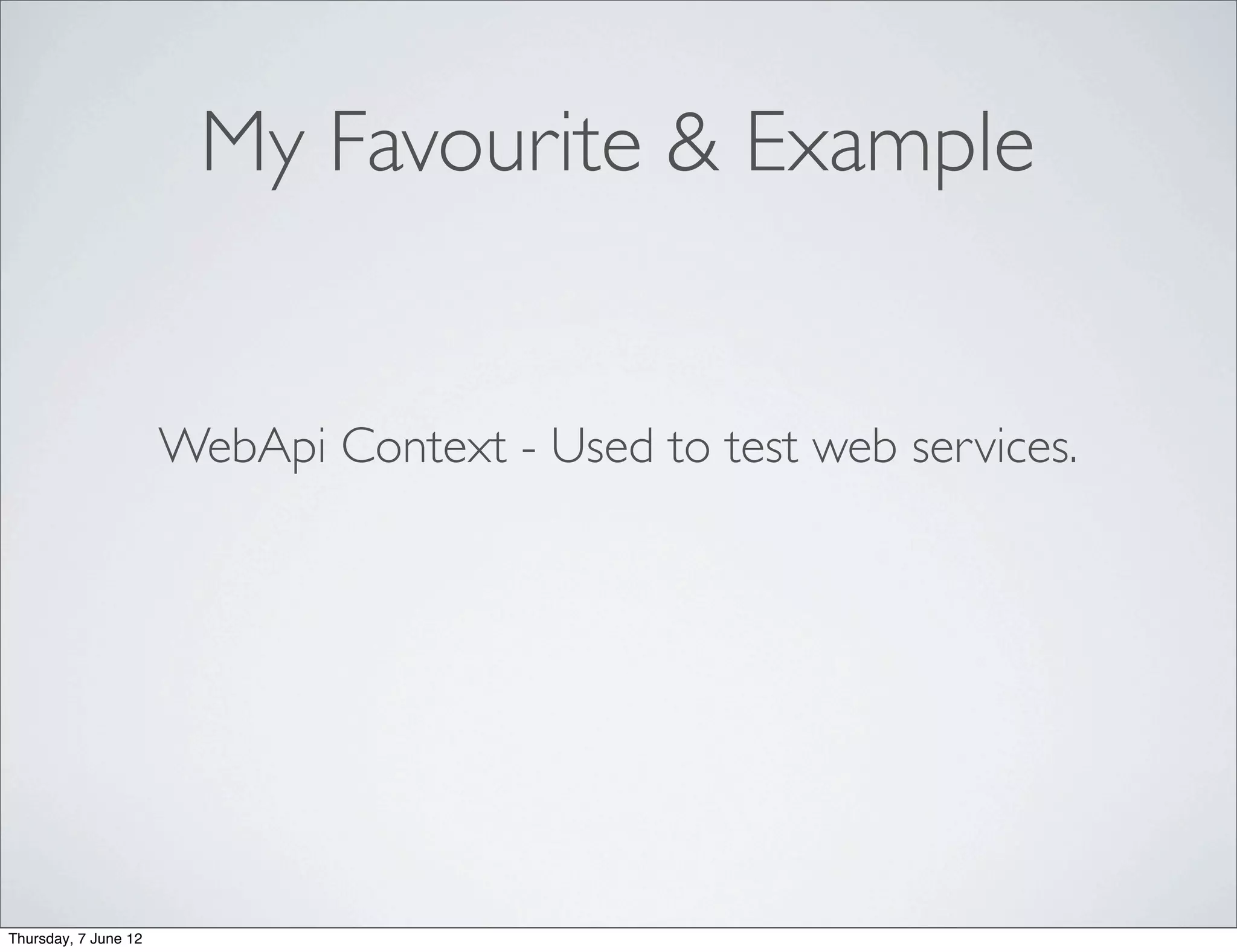

78. My Favourite & Example
WebApi Context - Used to test web services.
Thursday, 7 June 12

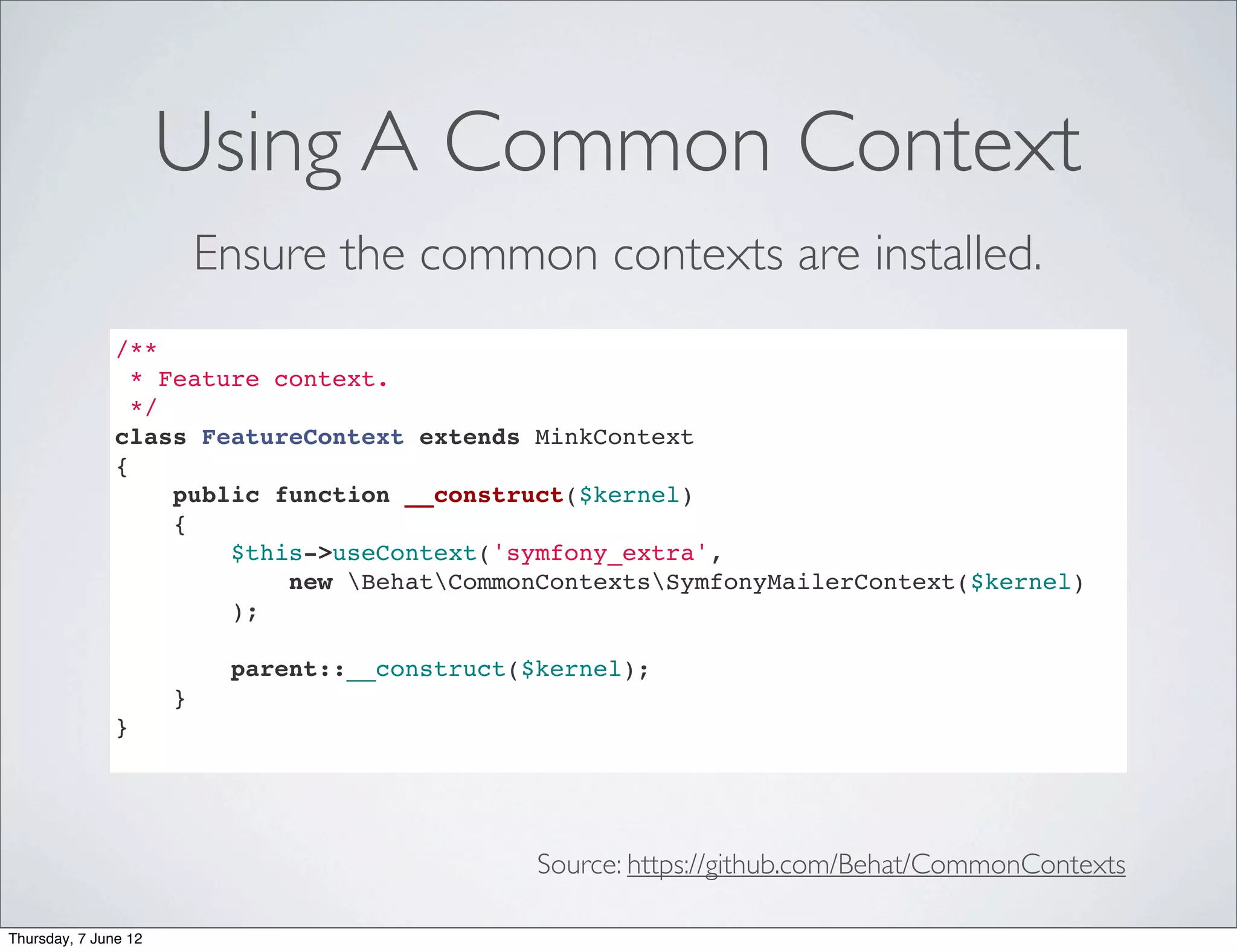

79. Using A Common Context
Ensure the common contexts are installed.
/**
* Feature context.
*/
class FeatureContext extends MinkContext
{
public function __construct($kernel)
{
$this->useContext('symfony_extra',
new BehatCommonContextsSymfonyMailerContext($kernel)
);
parent::__construct($kernel);
}
}
Source: https://github.com/Behat/CommonContexts
Thursday, 7 June 12

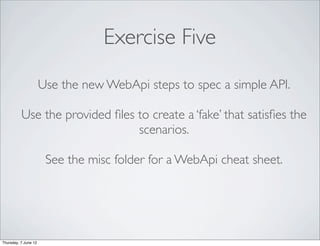

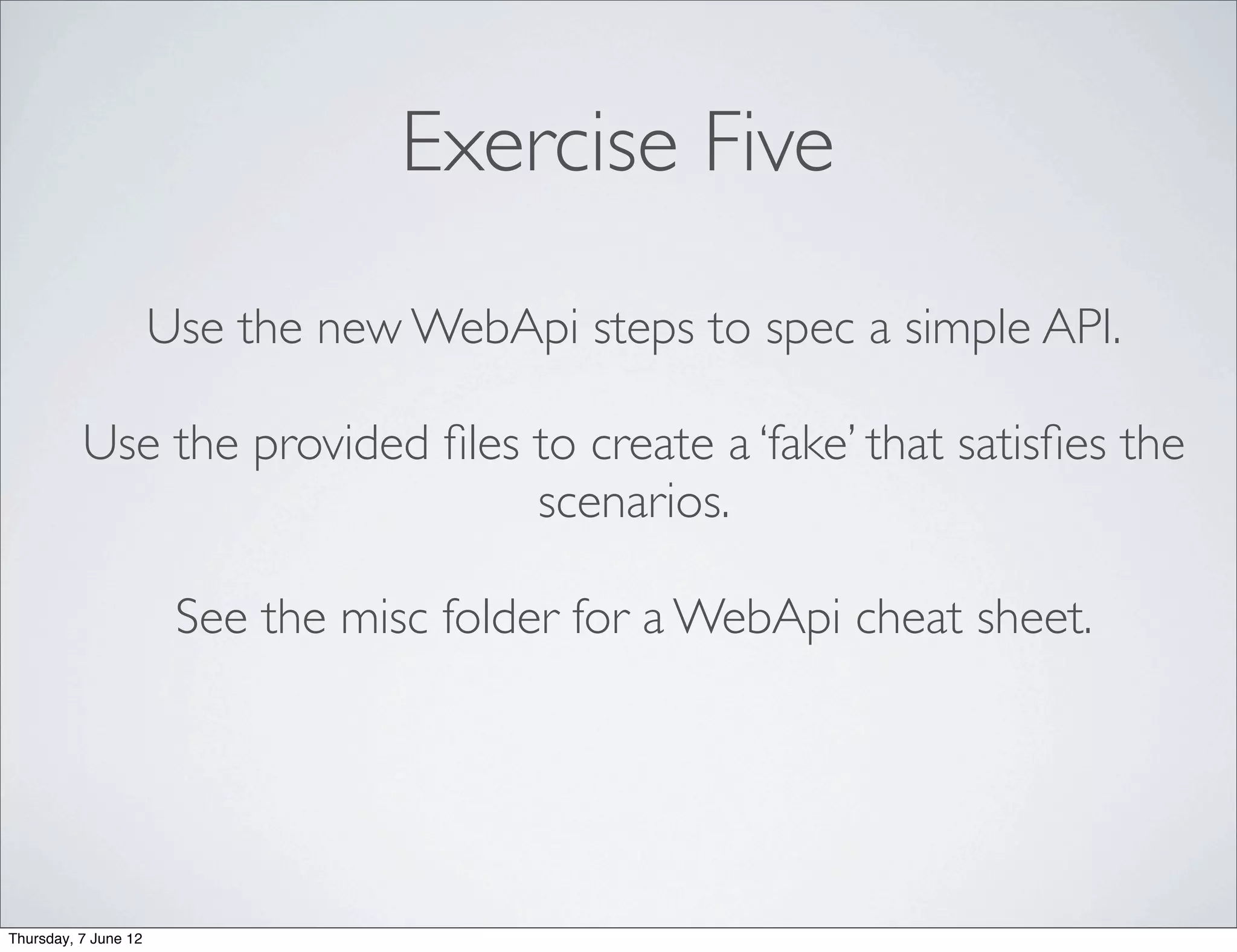

80. Exercise Five
Use the new WebApi steps to spec a simple API.
Use the provided files to create a ‘fake’ that satisfies the
scenarios.
See the misc folder for a WebApi cheat sheet.
Thursday, 7 June 12

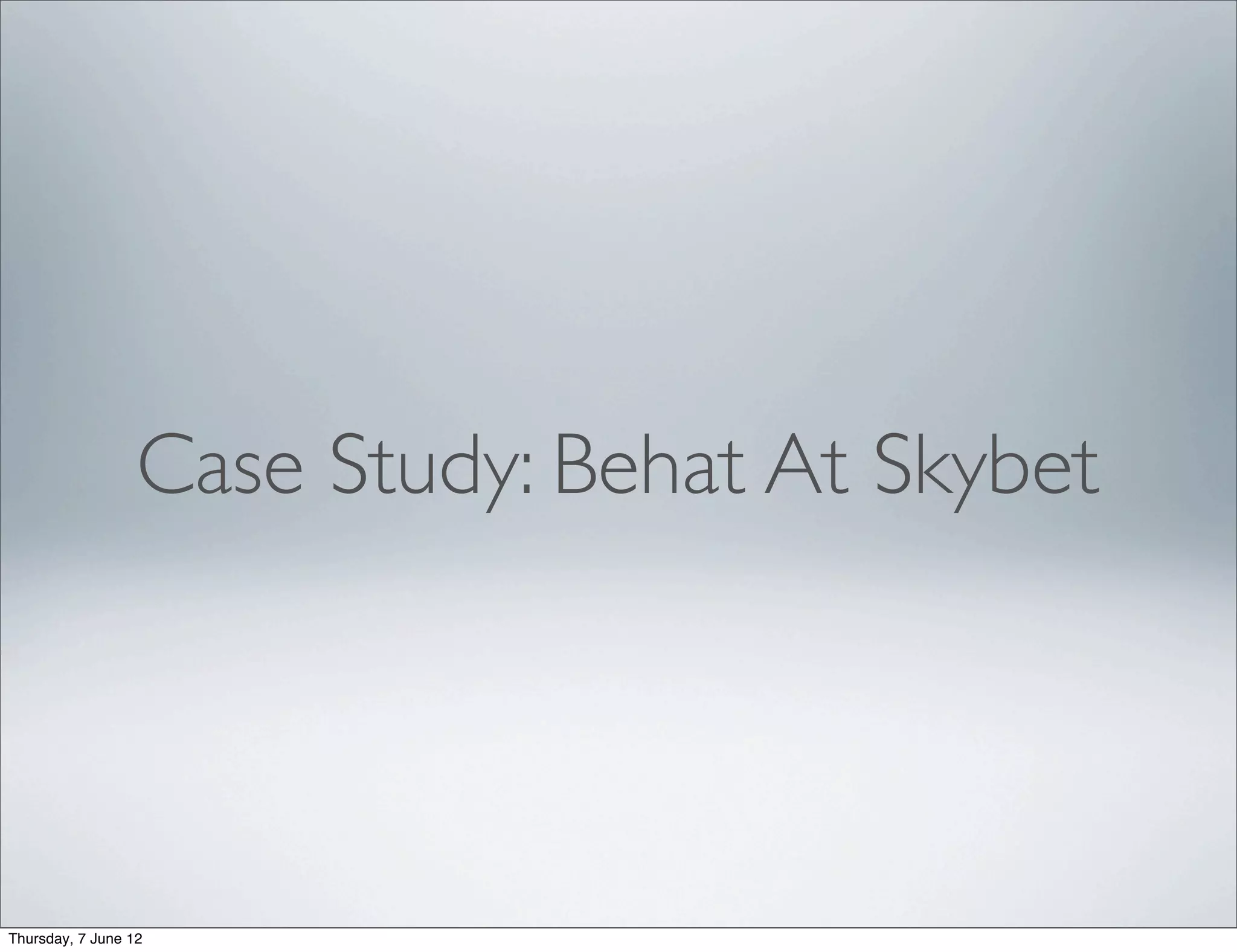

81. Case Study: Behat At Skybet
Thursday, 7 June 12

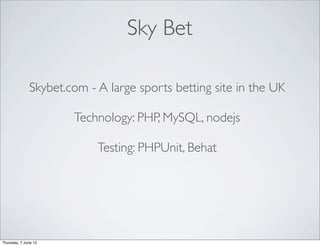

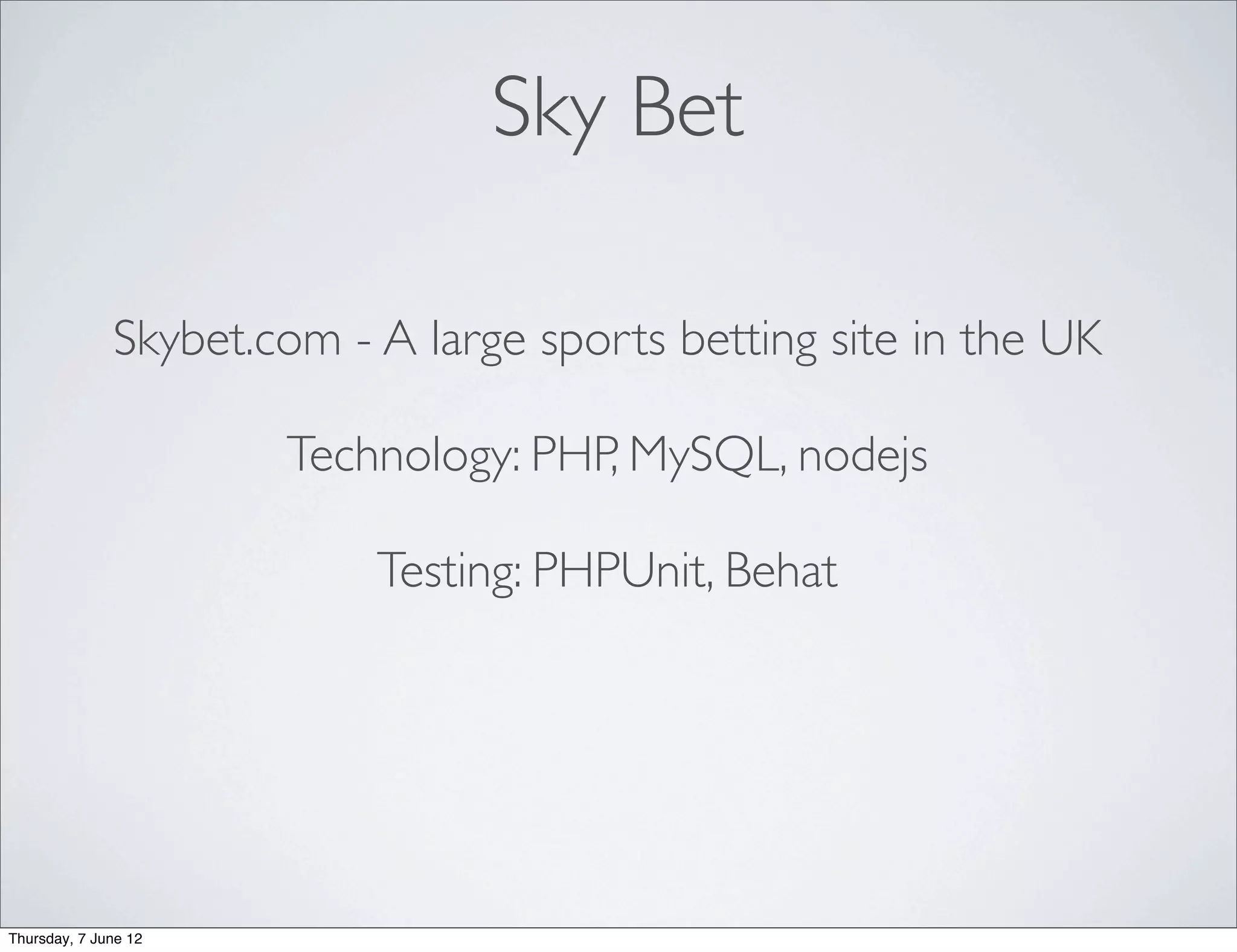

82. Sky Bet
Skybet.com - A large sports betting site in the UK
Technology: PHP, MySQL, nodejs
Testing: PHPUnit, Behat
Thursday, 7 June 12

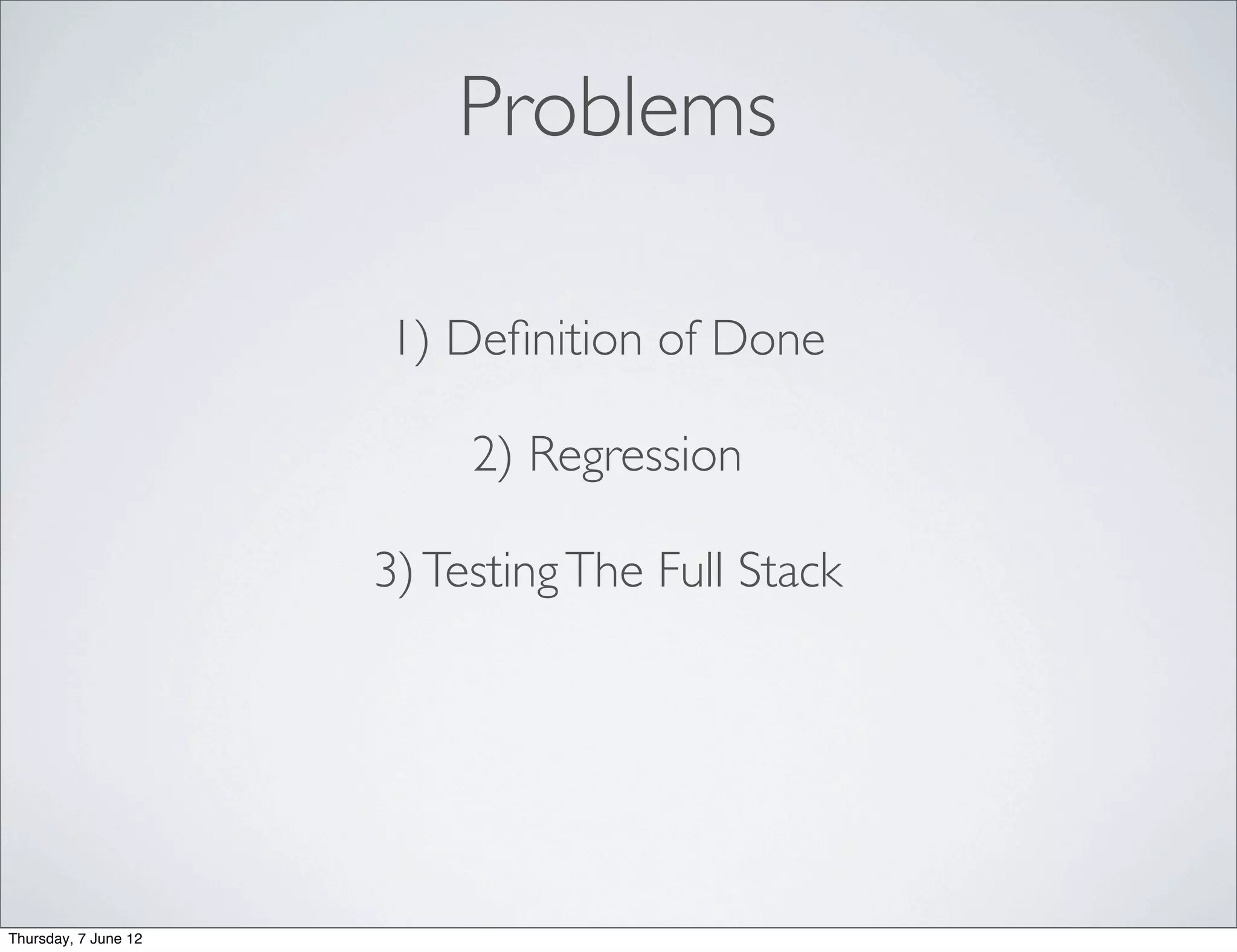

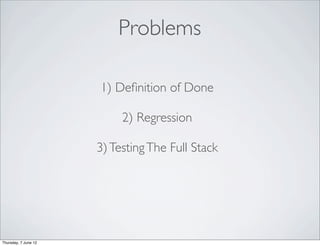

83. Problems
1) Definition of Done
2) Regression
3) Testing The Full Stack
Thursday, 7 June 12

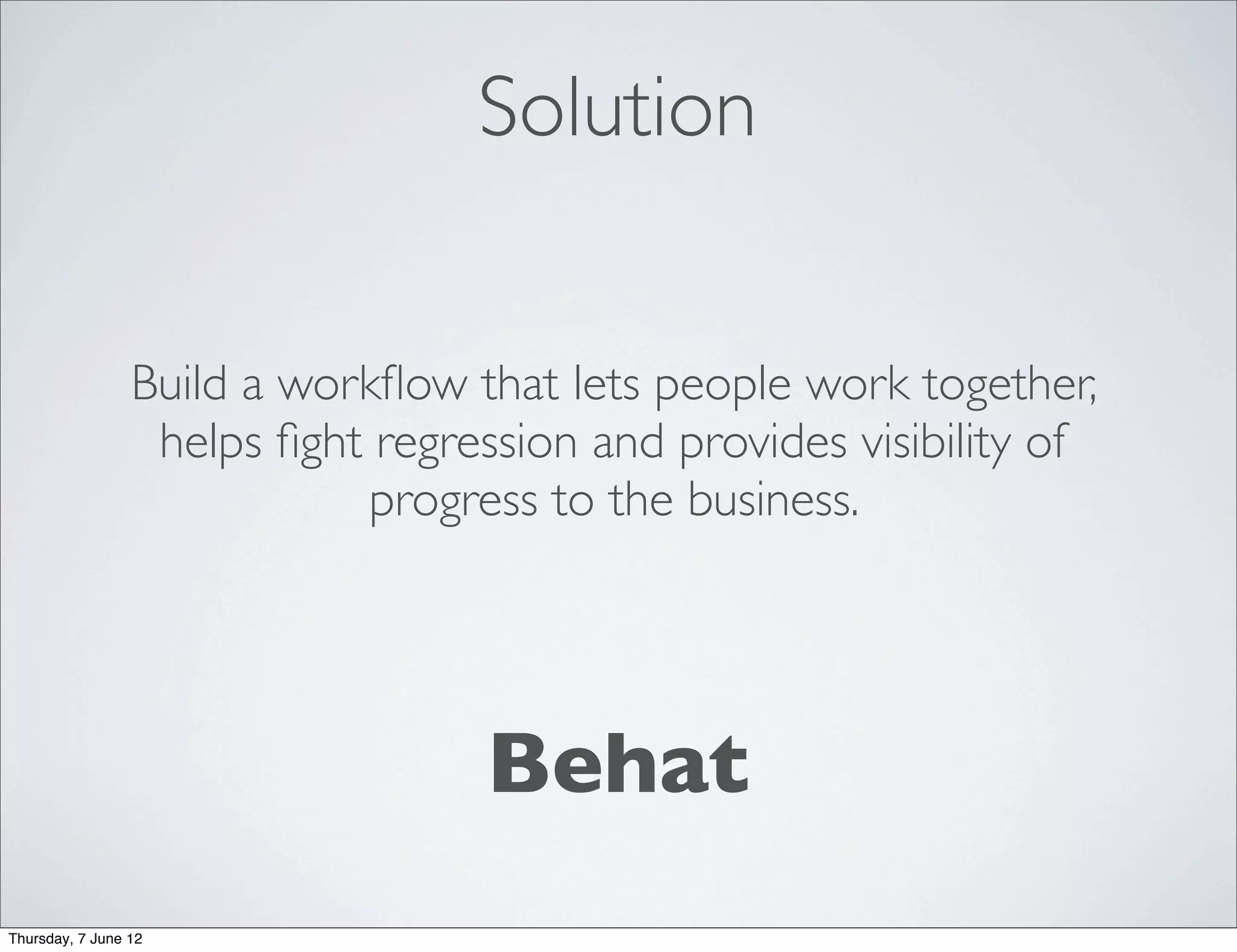

84. Solution
Build a workflow that lets people work together,
helps fight regression and provides visibility of
progress to the business.
Behat
Thursday, 7 June 12

85. The Players: Business Analyst
Thursday, 7 June 12

86. The Players:The Tester
Thursday, 7 June 12

87. Ninja,
Cat Like,
Good Looking,
Charismatic,
Hard Working,
Modest
Developers.
Thursday, 7 June 12

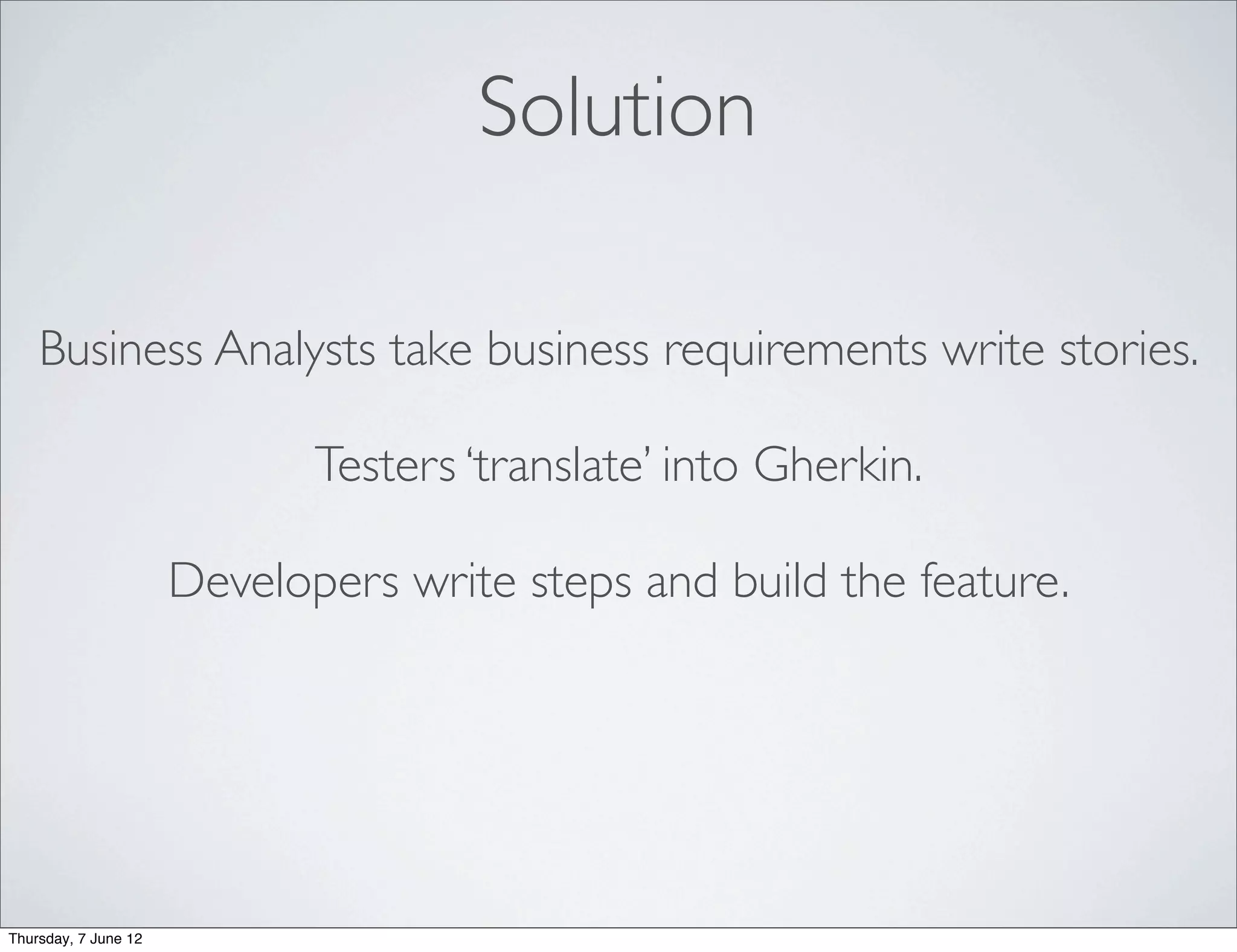

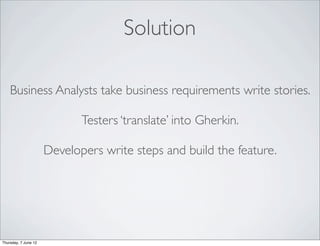

88. Solution
Business Analysts take business requirements write stories.
Testers ‘translate’ into Gherkin.
Developers write steps and build the feature.
Thursday, 7 June 12

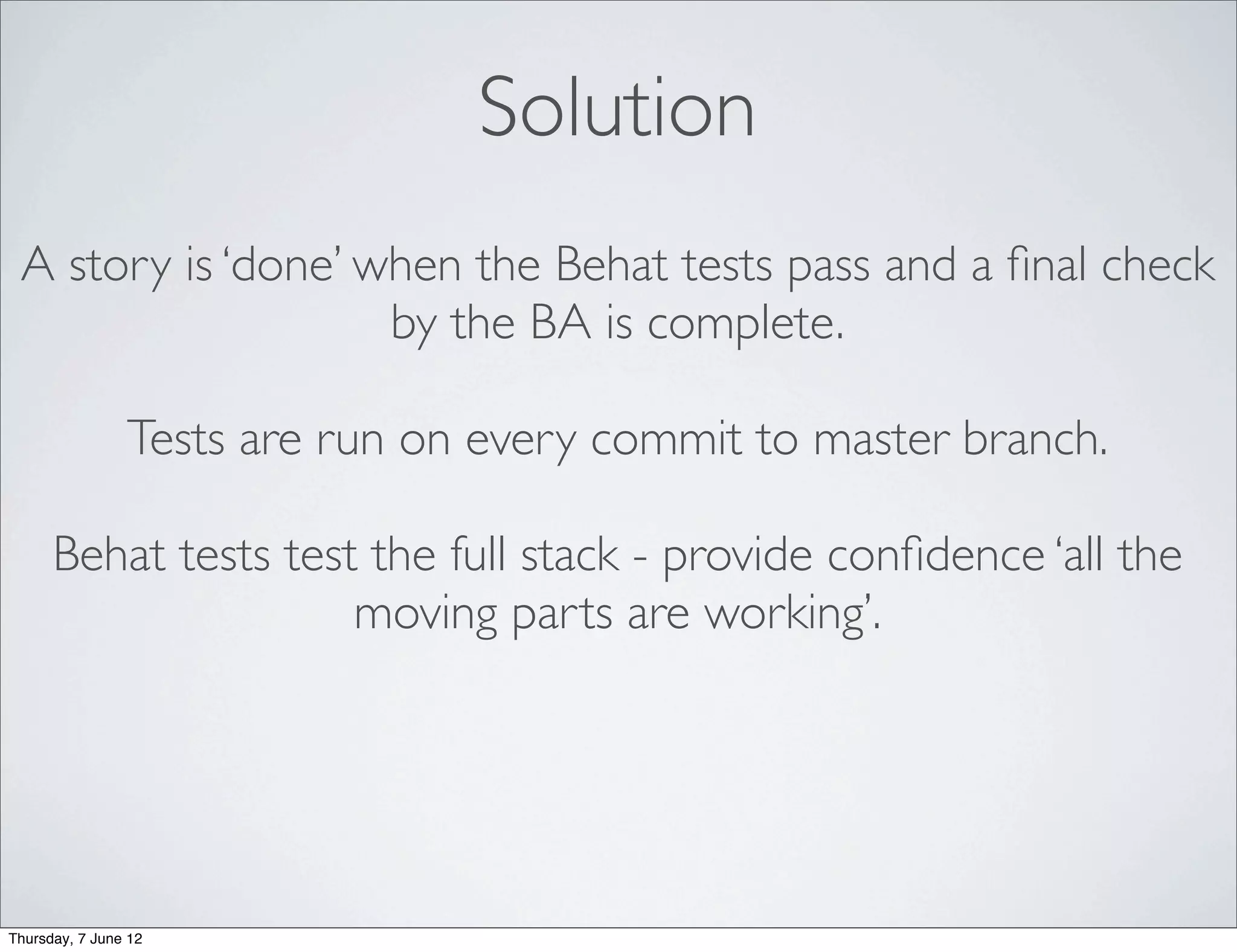

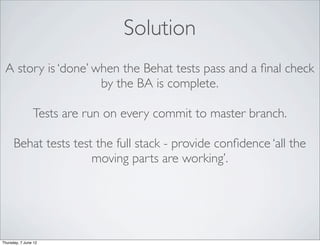

89. Solution
A story is ‘done’ when the Behat tests pass and a final check
by the BA is complete.
Tests are run on every commit to master branch.
Behat tests test the full stack - provide confidence ‘all the
moving parts are working’.
Thursday, 7 June 12

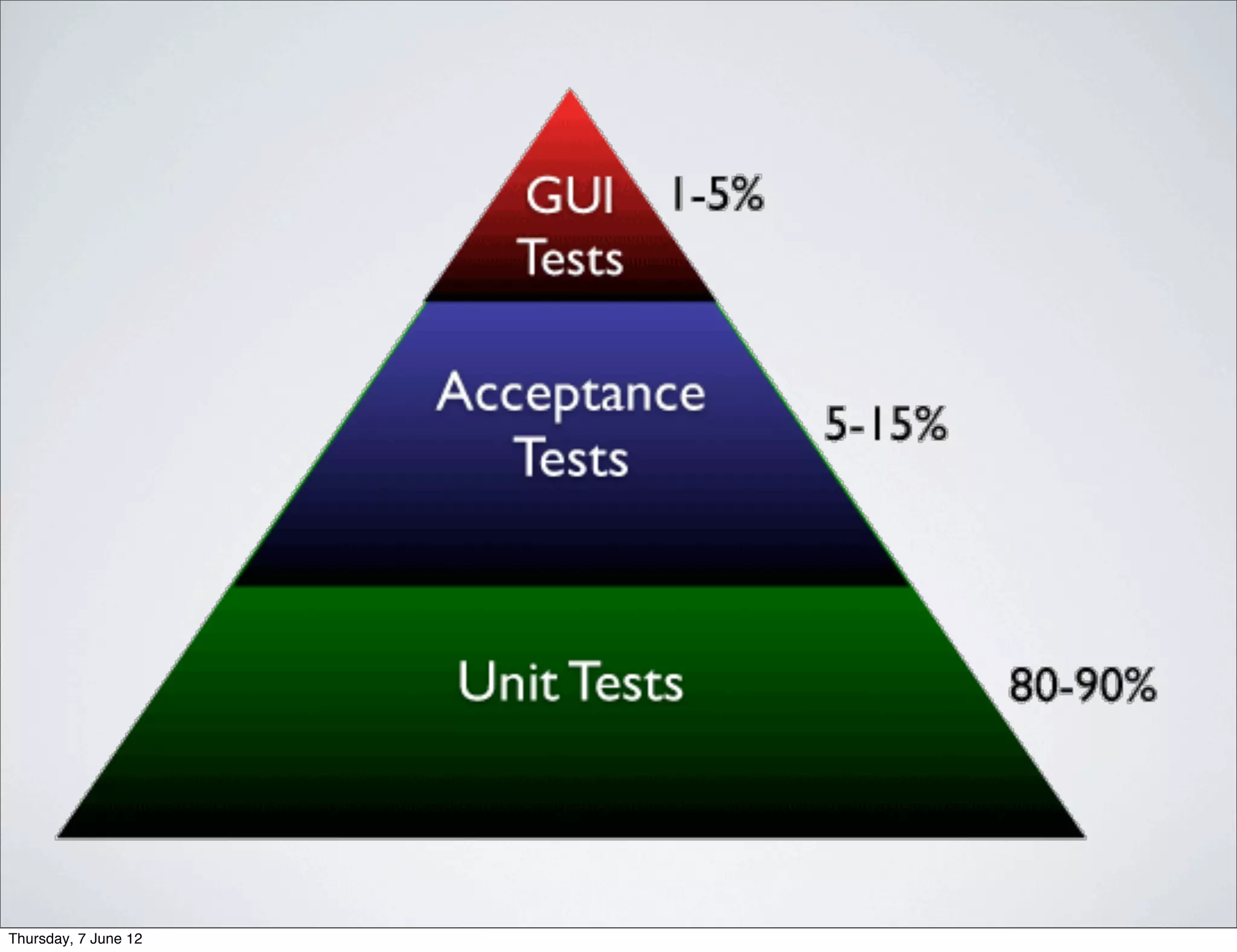

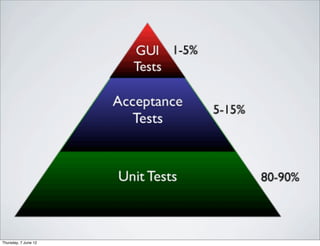

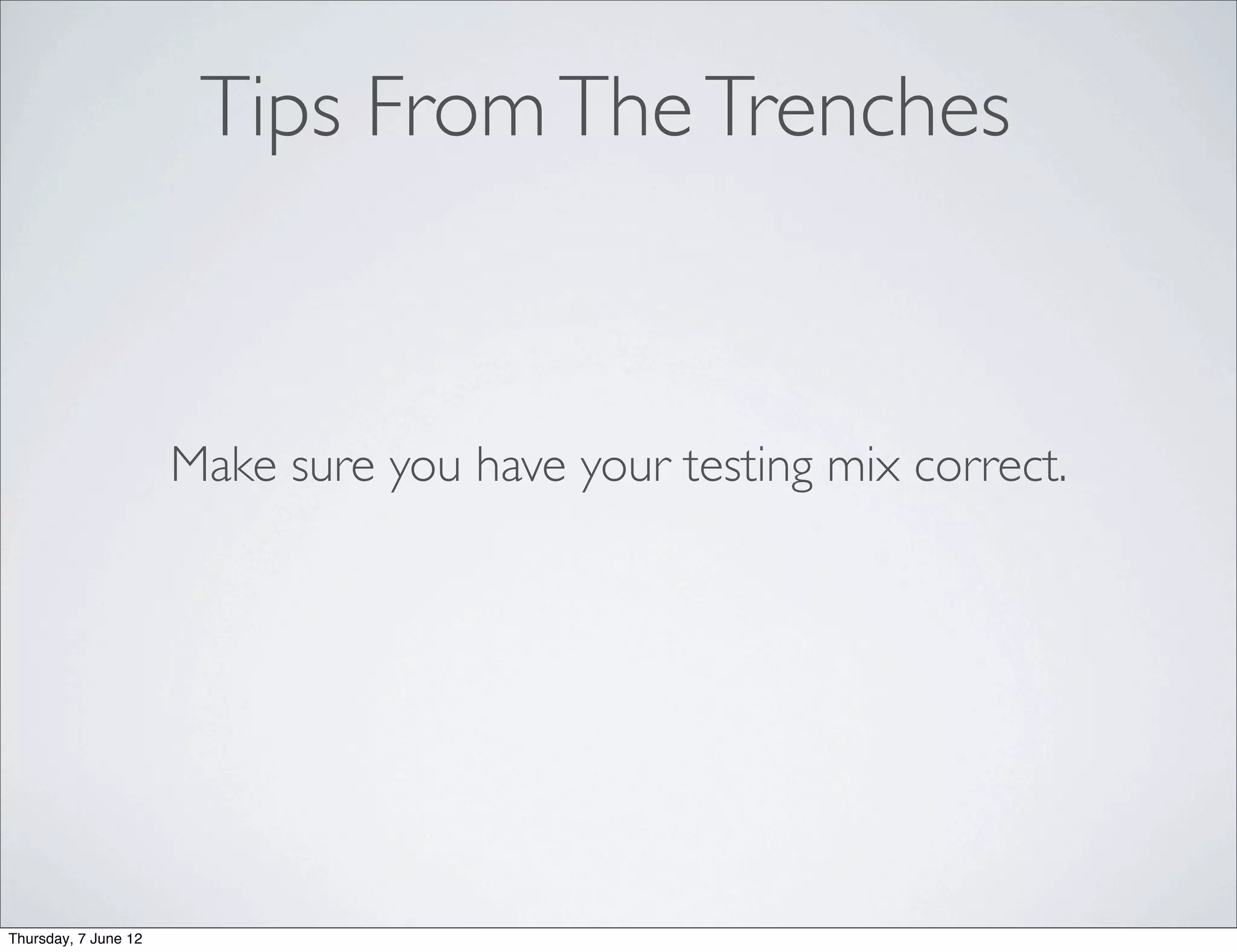

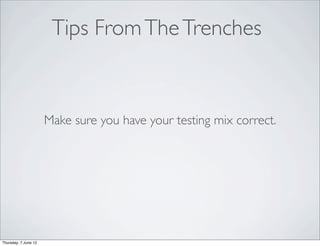

90. Tips From The Trenches
Make sure you have your testing mix correct.
Thursday, 7 June 12

91. Thursday, 7 June 12

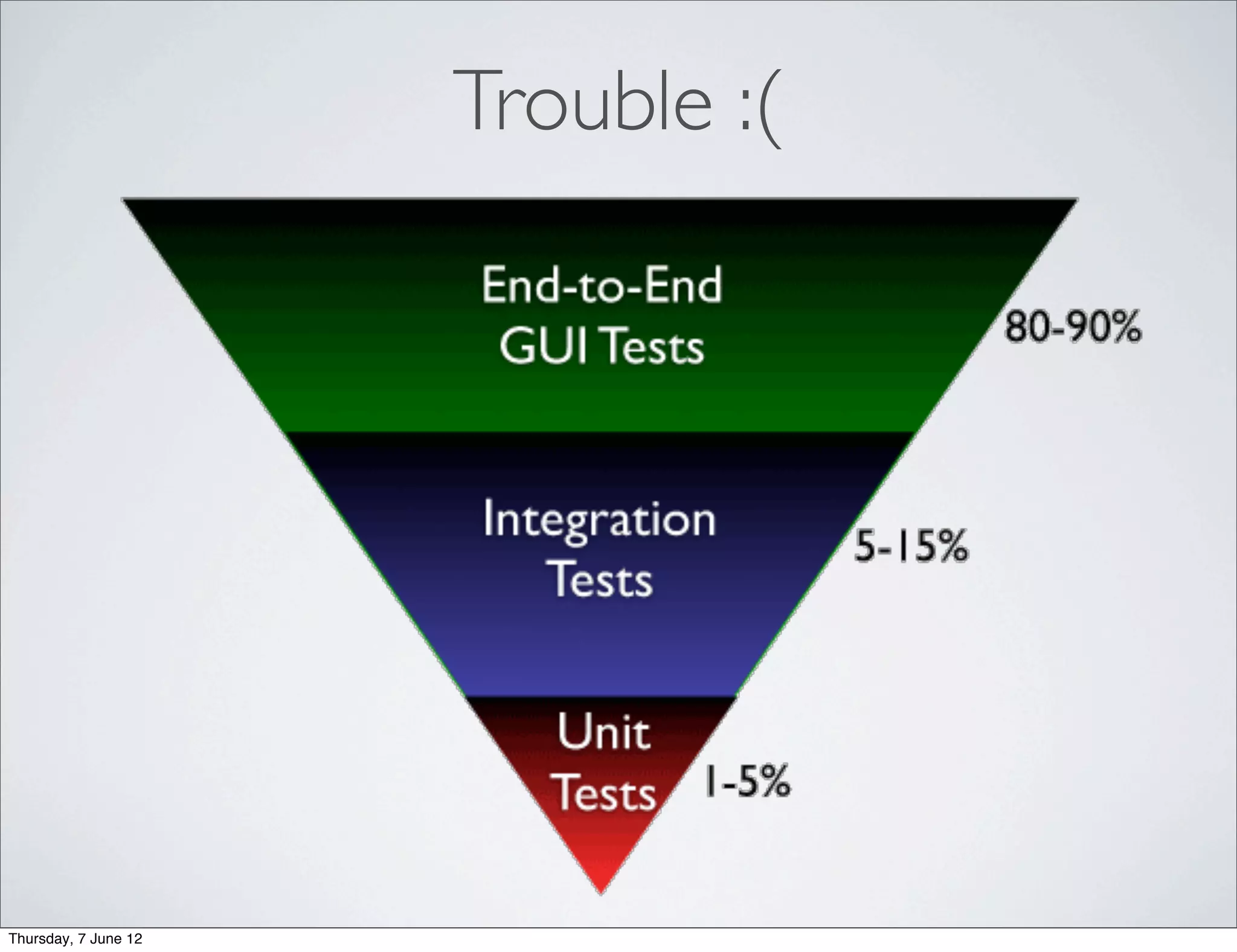

92. Trouble :(
Thursday, 7 June 12

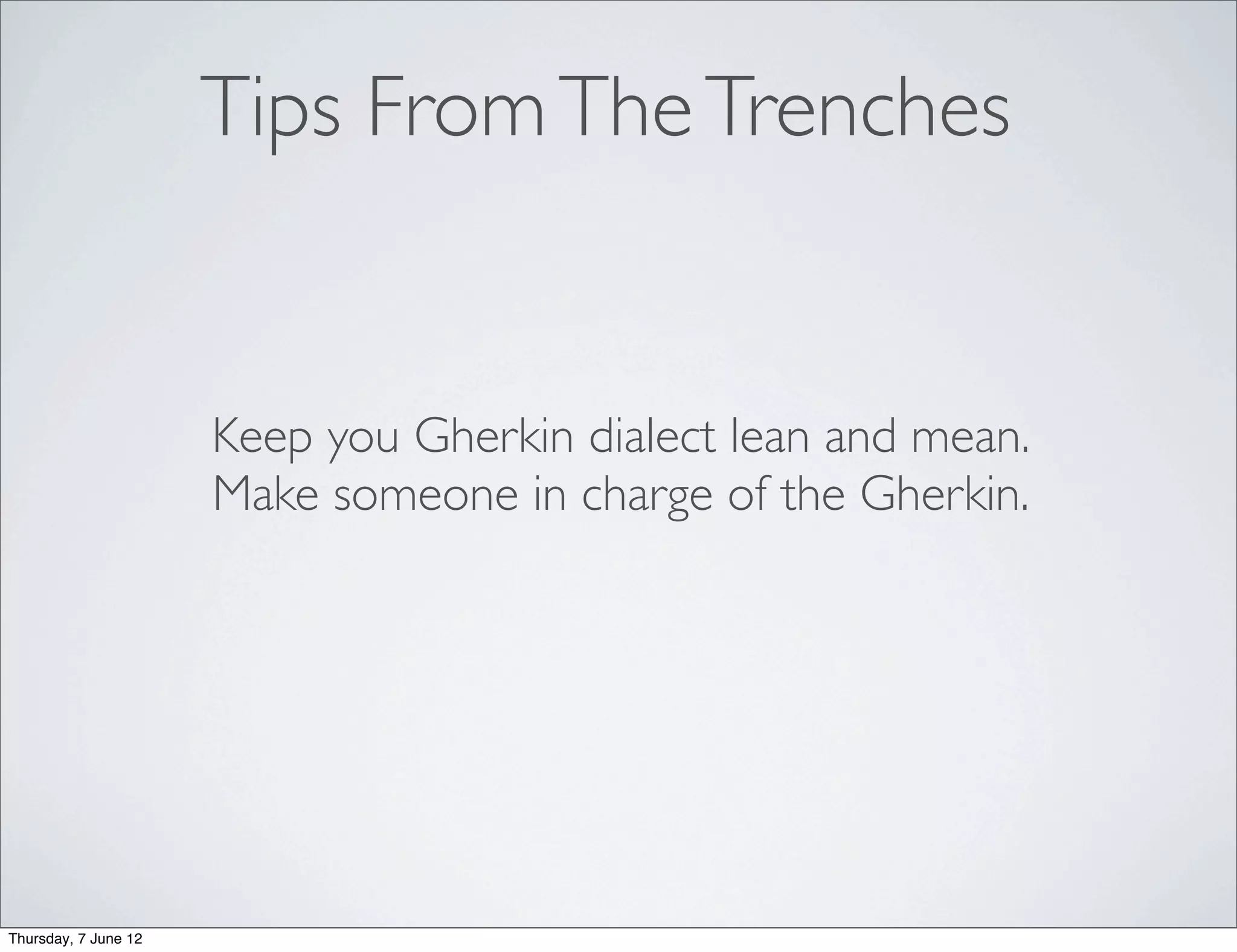

93. Tips From The Trenches
Keep you Gherkin dialect lean and mean.
Make someone in charge of the Gherkin.
Thursday, 7 June 12

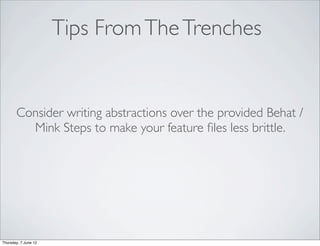

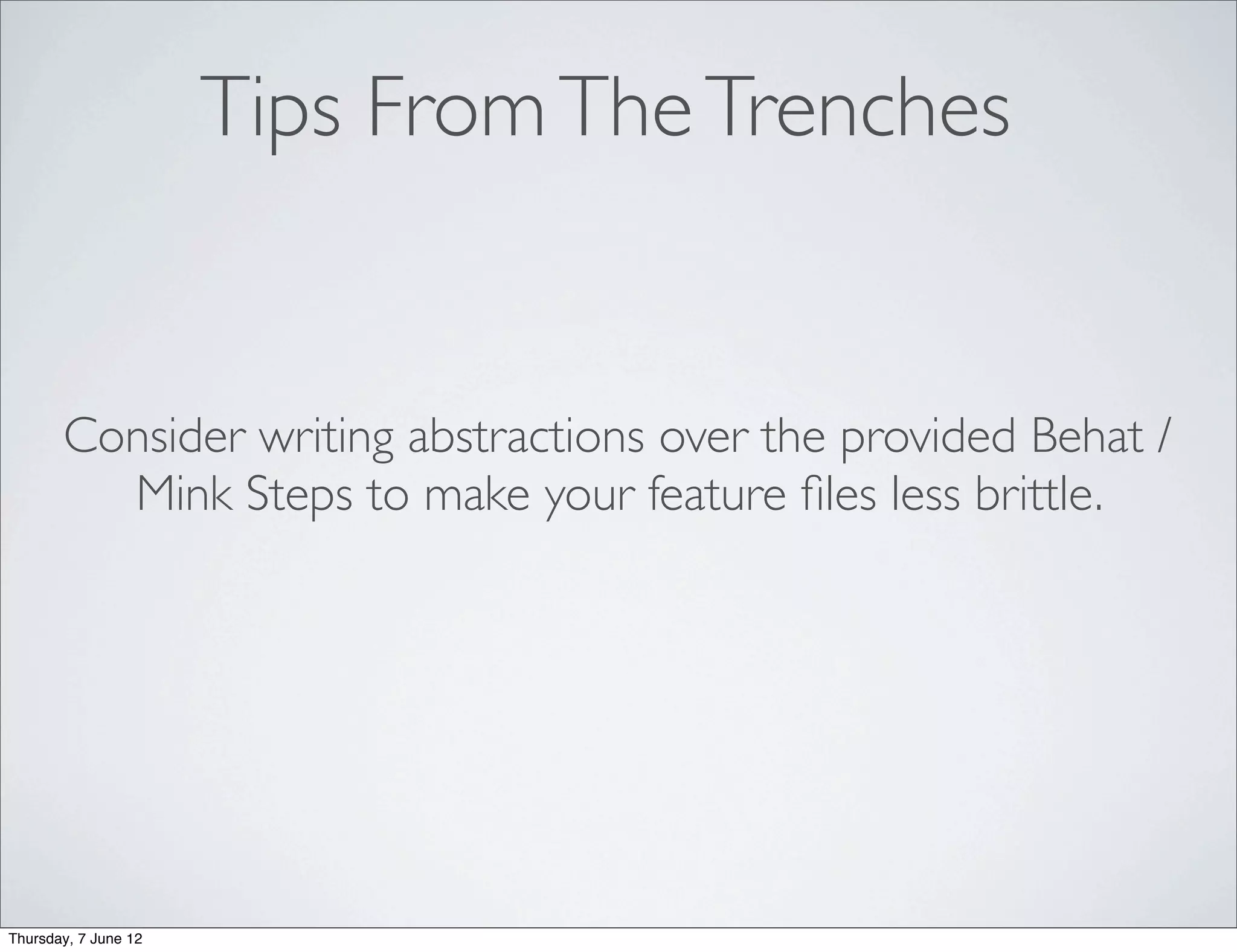

94. Tips From The Trenches
Consider writing abstractions over the provided Behat /
Mink Steps to make your feature files less brittle.
Thursday, 7 June 12

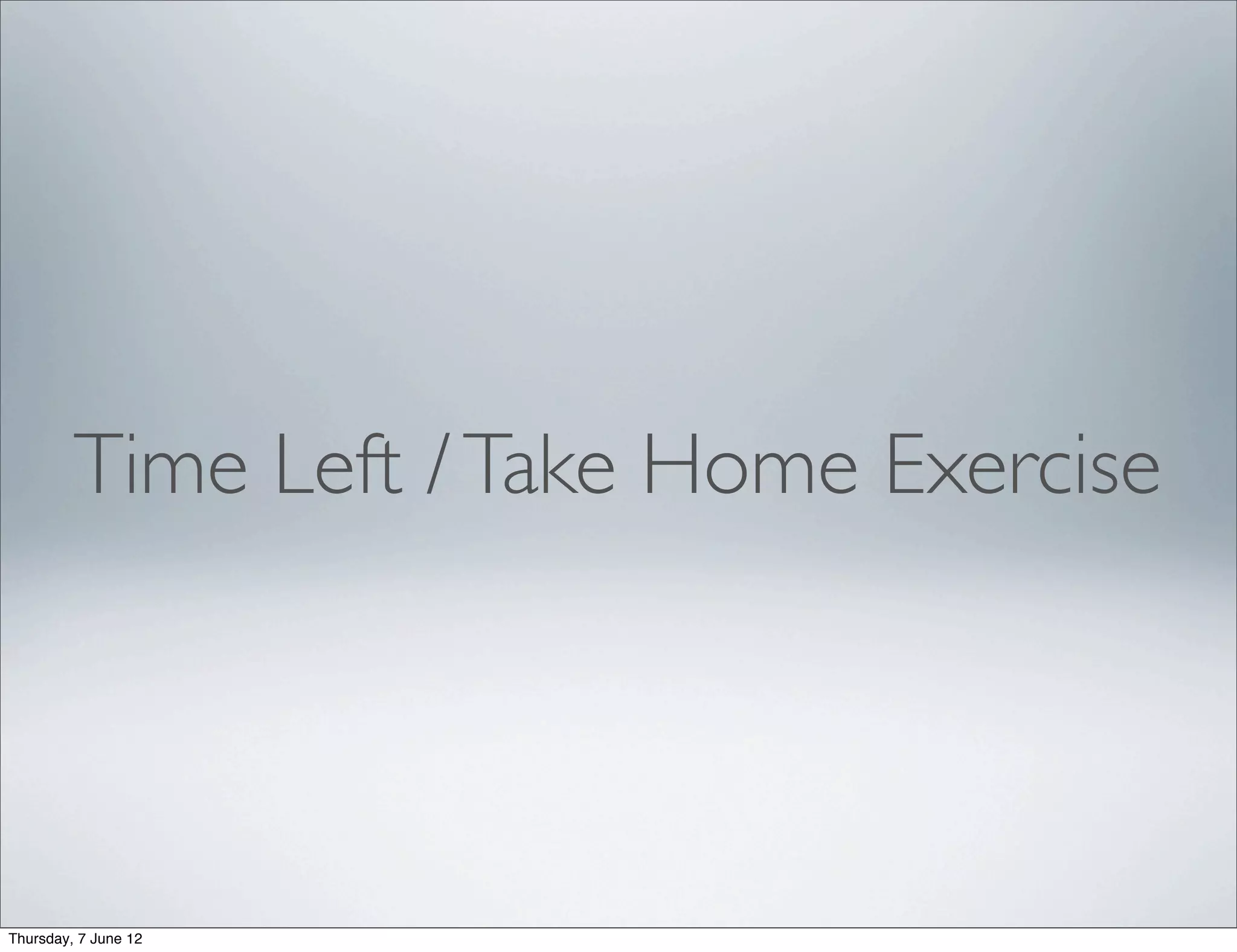

95. Time Left / Take Home Exercise
Thursday, 7 June 12

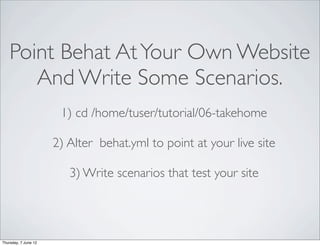

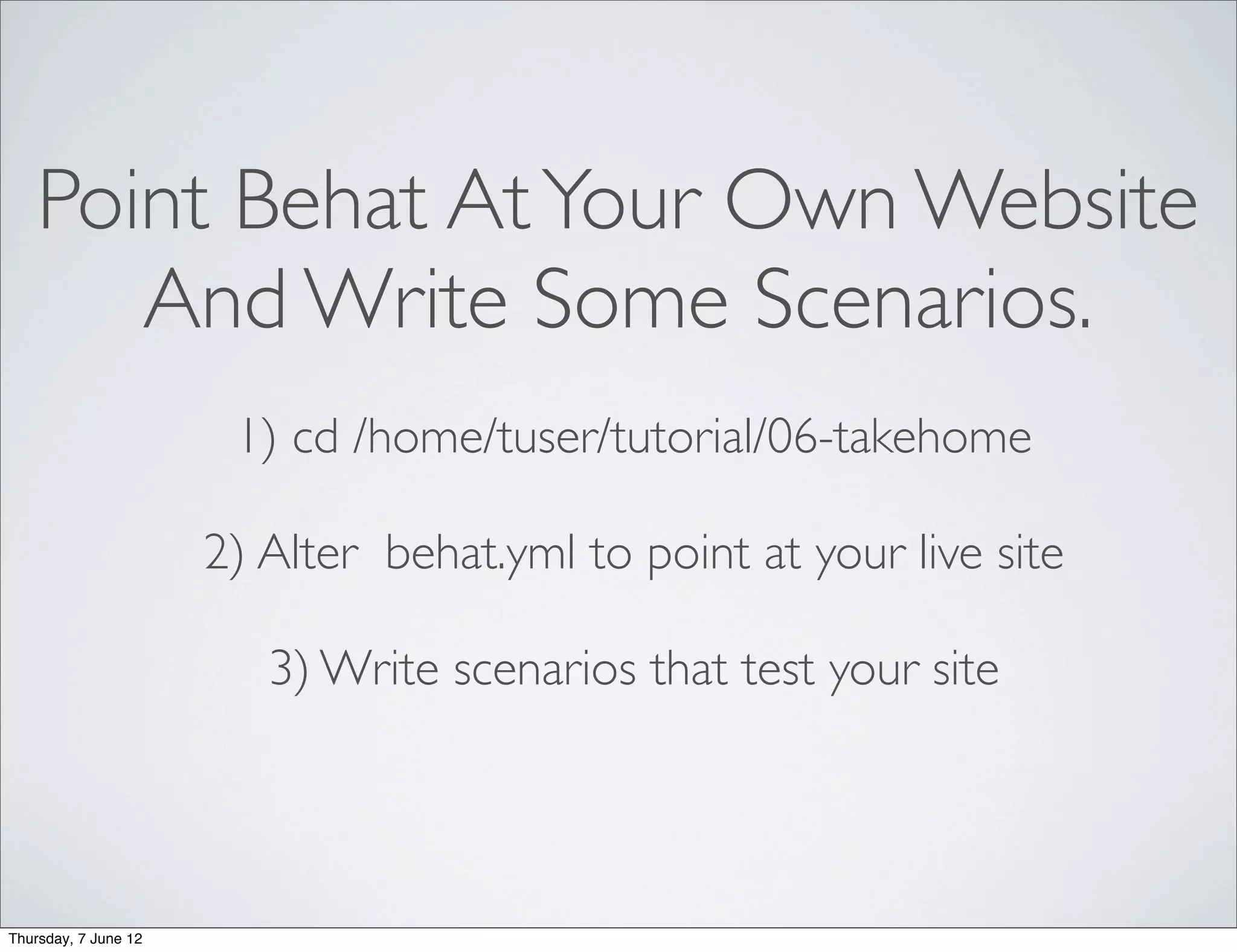

96. Point Behat At Your Own Website
And Write Some Scenarios.
1) cd /home/tuser/tutorial/06-takehome
2) Alter behat.yml to point at your live site
3) Write scenarios that test your site
Thursday, 7 June 12

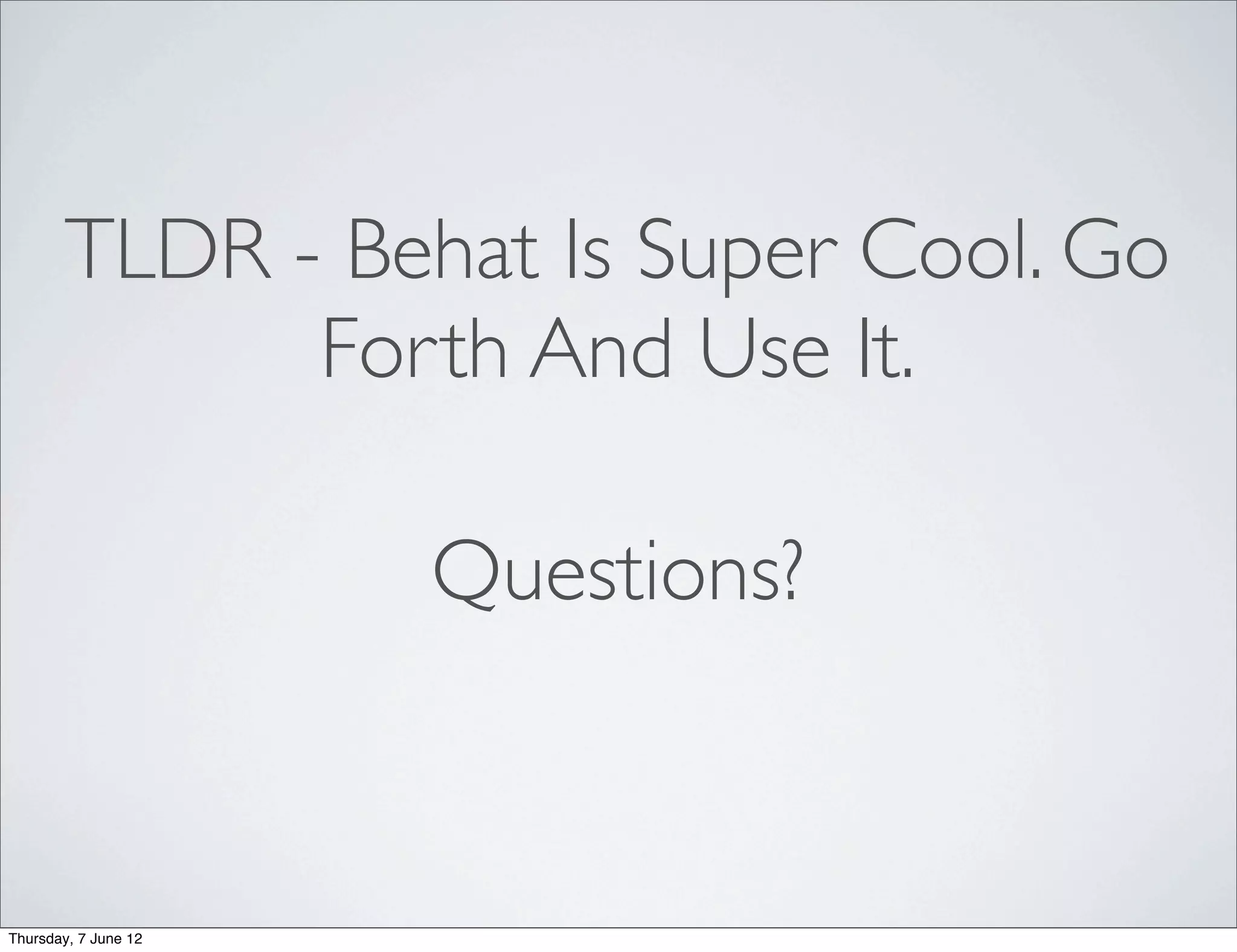

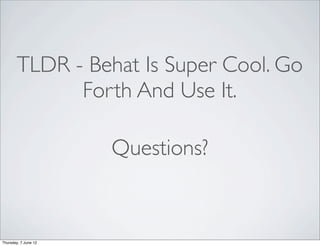

97. TLDR - Behat Is Super Cool. Go
Forth And Use It.
Questions?
Thursday, 7 June 12

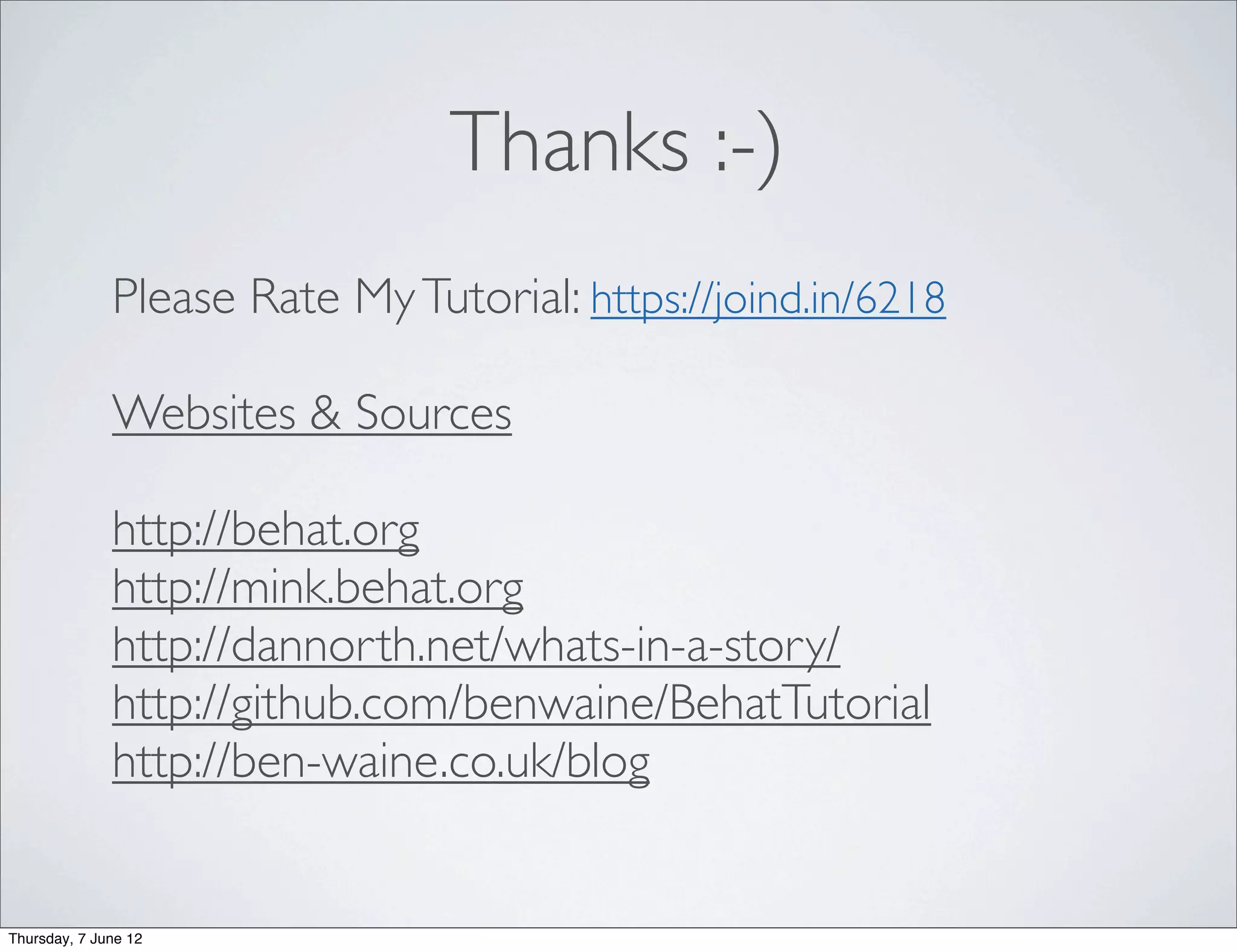

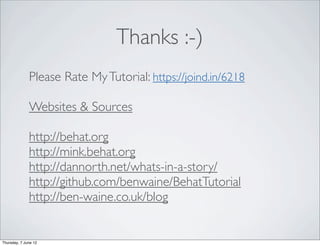

98. Thanks :-)
Please Rate My Tutorial: https://joind.in/6218
Websites & Sources
http://behat.org
http://mink.behat.org
http://dannorth.net/whats-in-a-story/
http://github.com/benwaine/BehatTutorial
http://ben-waine.co.uk/blog
Thursday, 7 June 12
