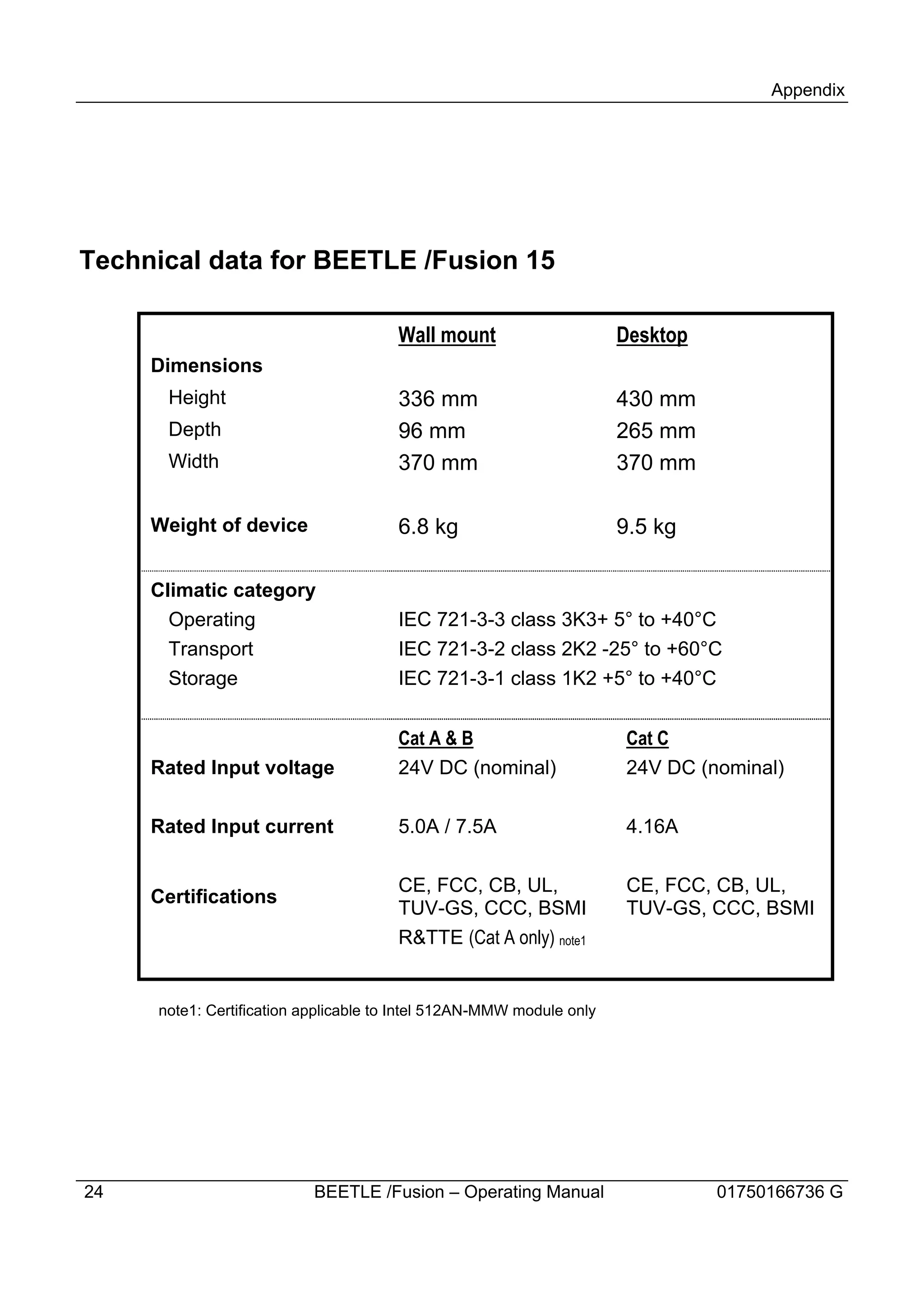

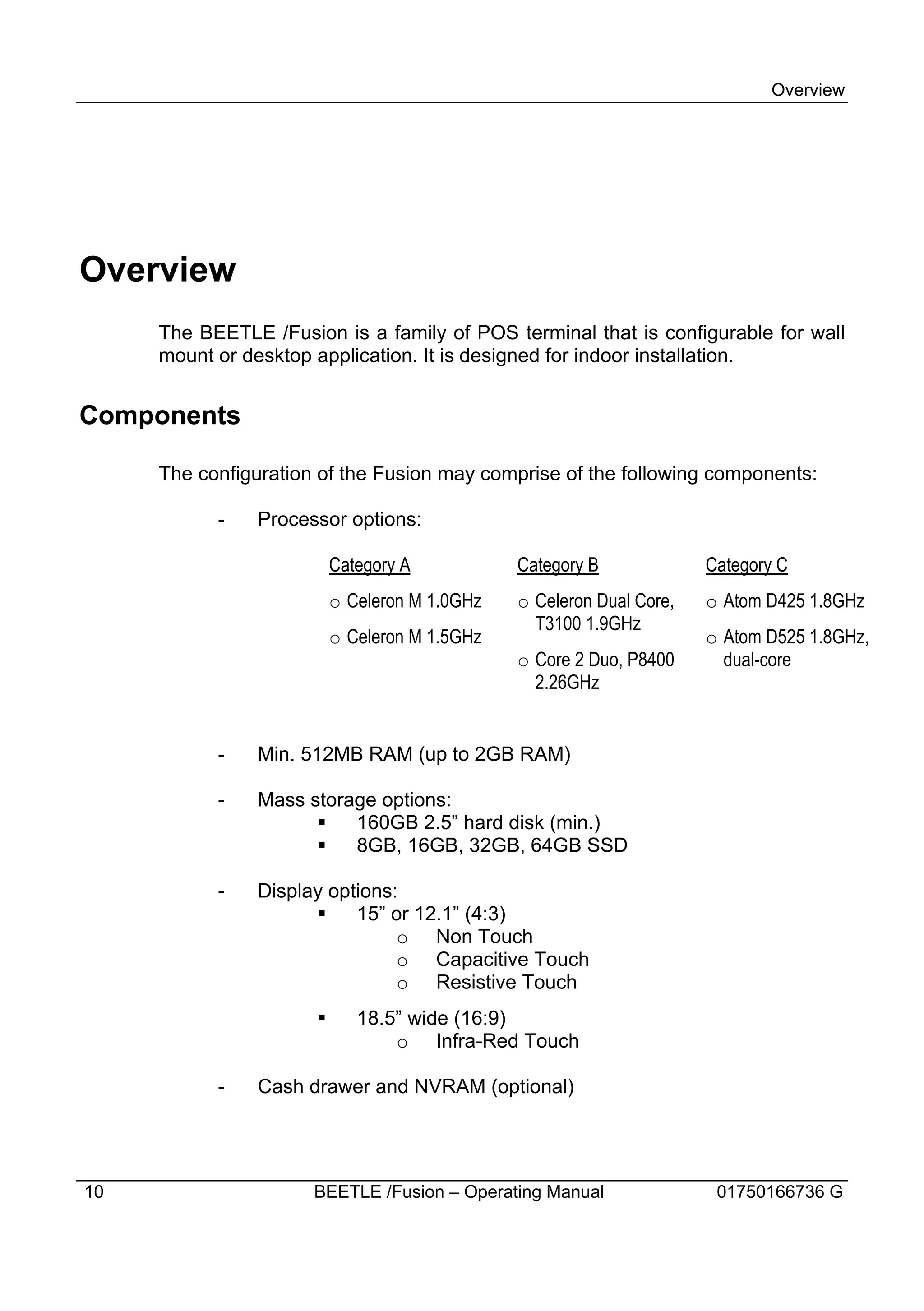

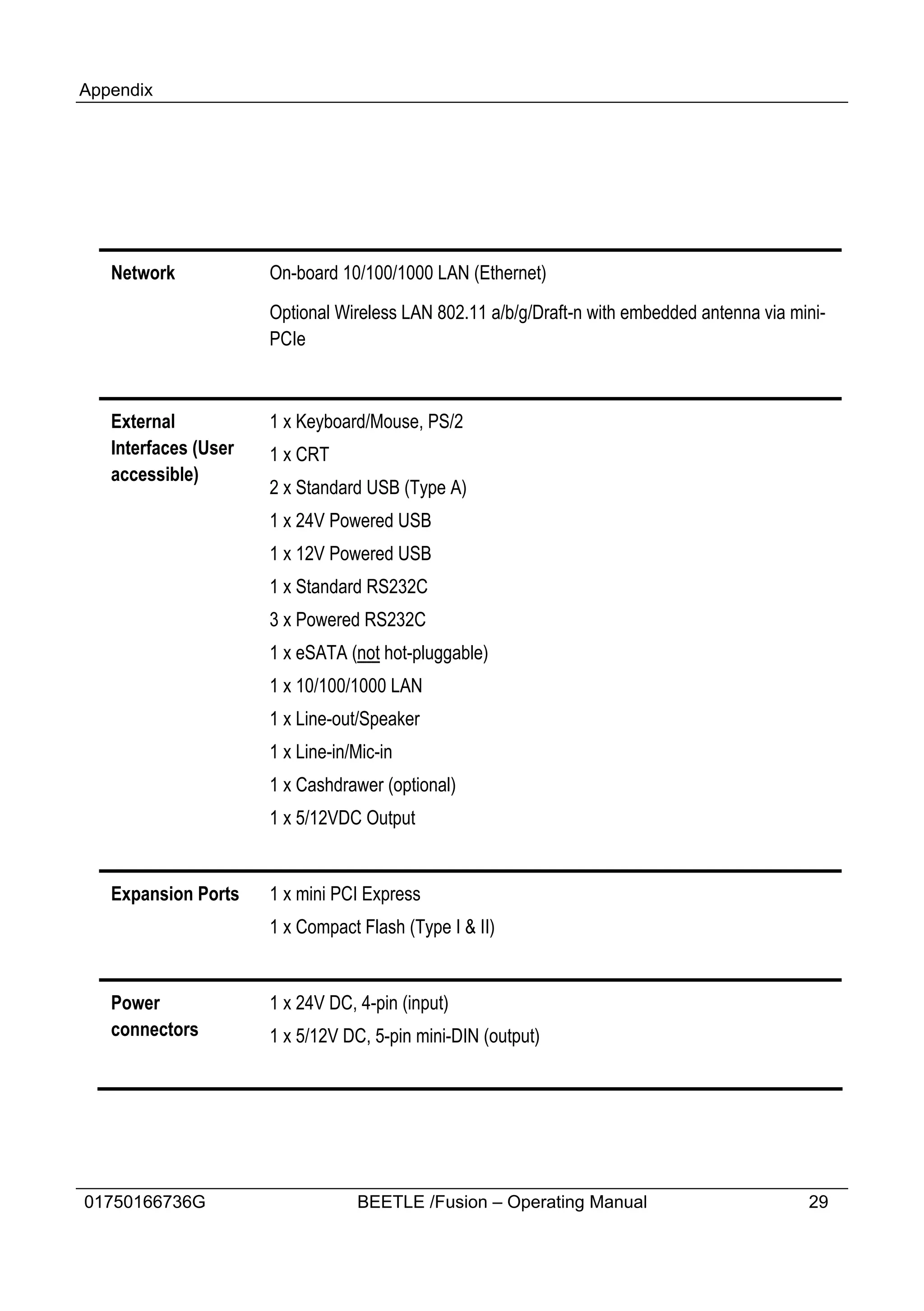

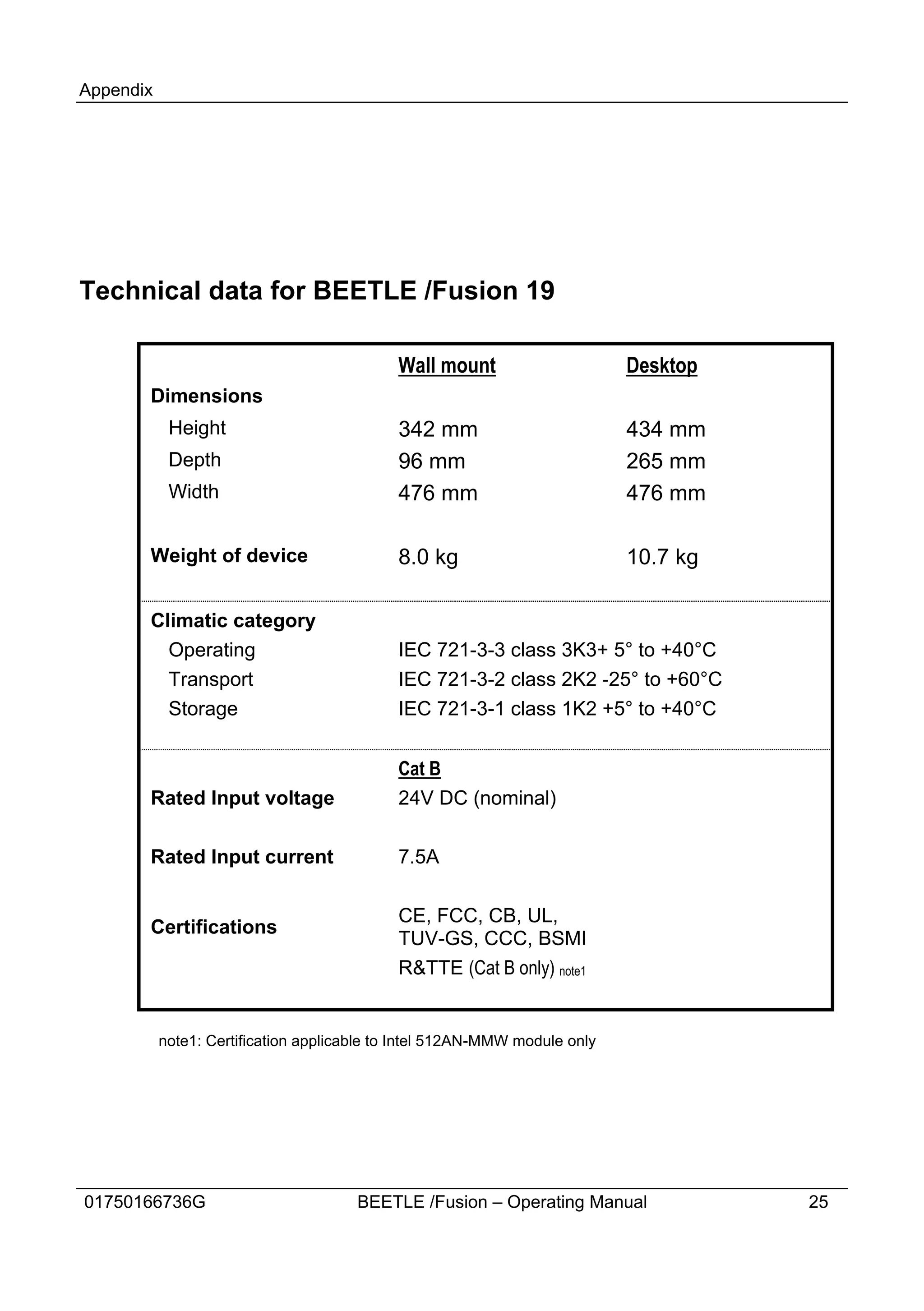

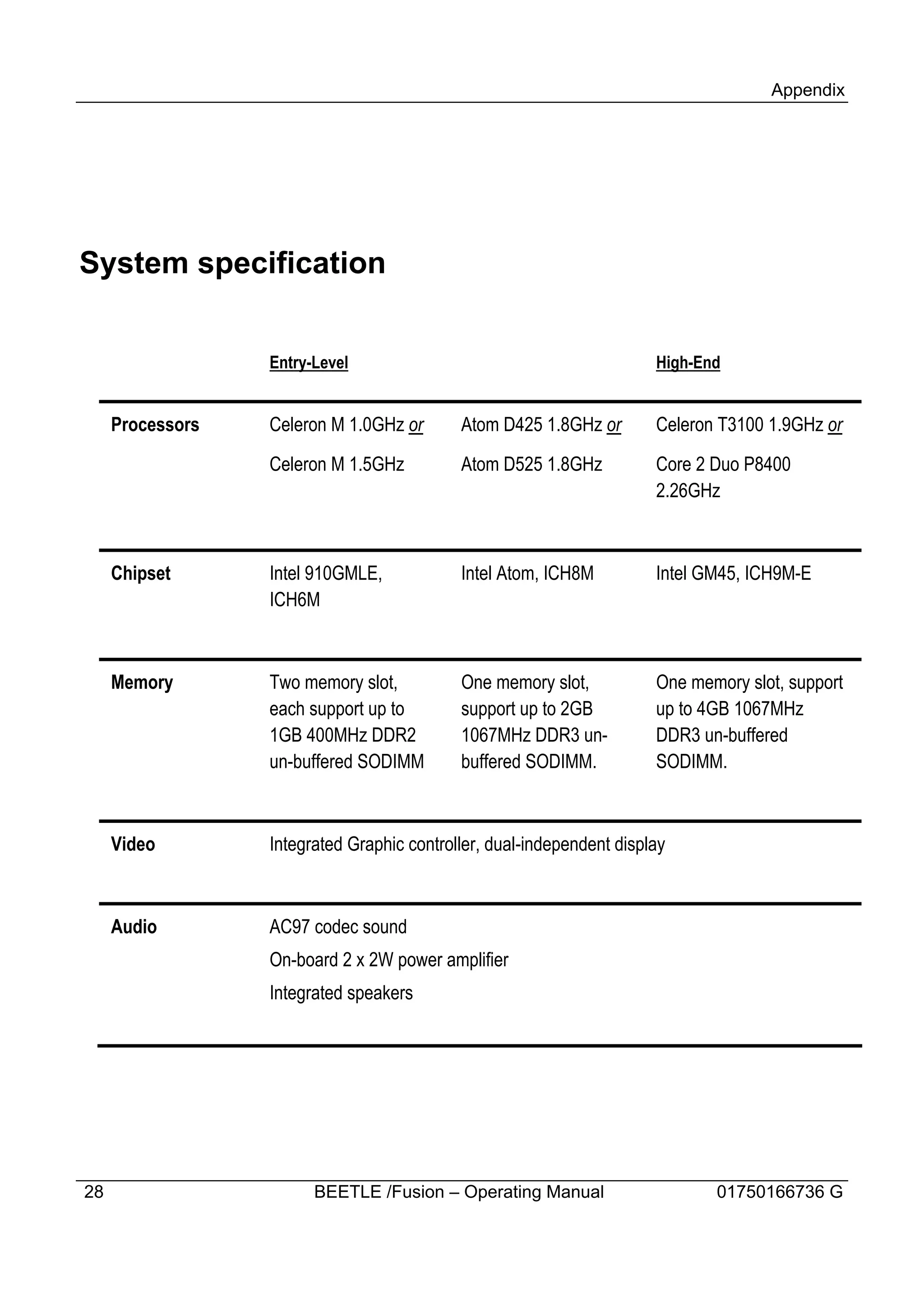

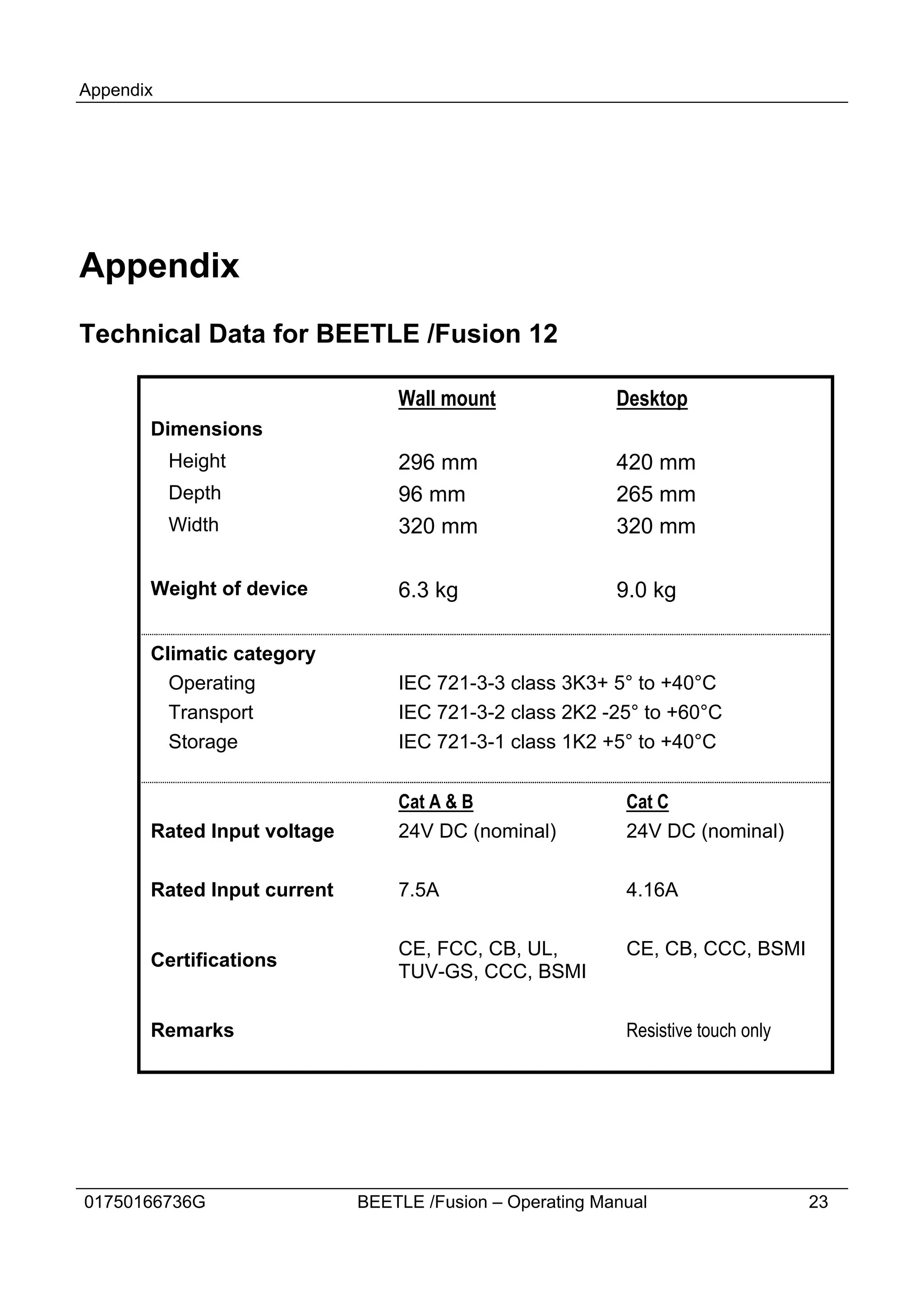

Chi tiết kỹ thuật máy pos BEETLE / Fusion.
Nhà phân phối: Công ty TNHH Tầm Nhìn Toàn Cầu (Global Vision Co., Ltd.)
Địa chỉ : 456/57 Cao Thắng Nối Dài, Phường 12, Quận 10, Tp.Hồ Chí Minh
Tel : (84-8) 3868 0103 / (84-8) 3868 0104
Fax : (84-8) 3868 0105
Email:sales@globalvision.com.vn
Hotline: +84 916 590 468
URL: www.globalvision.com (Global Vision Co., Ltd.)
www.wincor.com.vn (Wincor-Nixdorf Việt Nam)
아보패널PC ARBOR LYNC-712-1900G4 12.1인치 산업용패널PC 매뉴얼HION IT
아보 산업용 패널PC, LYNC-712-1900G4 는 12.1 인치 인텔 ® J1900 쿼드 코어 ™ 프로세서가 장착 된 산업용 패널 PC 입니다.
산업용 PC, LYNC-712-1900G4 는 고휘도 TFT LCD 디스플레이, 멀티미디어 및 네트워킹 구성 요소 및 사용자 친화적 인 터치 스크린을 사용하여 고성능 코어 논리를 바탕으로 구축, 견고하고 컴팩트하게 설계 디자인되었습니다.
최첨단 기술로 설계된 ARBOR, LYNC-712-1900G4 패널 PC 는 판매 시점과 정보 시점에서 기계 제어 및 건강 관리에 이르기까지 포괄적 인 응용 프로그램 라인을 제공하는 강력하고 컴팩트 한 공간 절약형 패널PC 입니다.
Fewer Cables, Fanless Design
12.1" 1024 x 768 XGA LCD Display w/ LED Backlight
Front Bezel with Completely Covered Membrane
Flush Front Panel, IP65-Compliant
Brightness Control Button
Outside-accessible Push-pull CFast Socket
Outside-accessible USB port with rubber cover on the front bezel
Serial Ports (RS-485), w/ Auto-flow Control
1 x MiniCard socket for WiFi module
2 x SMA Antenna Holes for optional WiFi Function
9~36V Wide-Range DC Input with reverse protection
SYSTEM
CPU : Intel® J1900 Quad-Core™ Processor 2.0GHz
Memory : 1 x 4GB DDR3L SO-DIMM memory module (installed)
LAN : 2 x Realtek® 8111E GbE controllers
Watchdog Timer : 1~255 levels reset
STORAGE
1st Device : 1 x outside-accessible CFast slot
2nd Device : 1 x 2.5” drive bay
AUDIO
Speaker : 2 x 1.5W speakers (optional)
LCD DISPLAY
Size/Type : 12.1" TFT LCD Panel
Max. Resolution : 1024 x 768, XGA
Max. Colors : 16.7M
Luminance : 350 cd/m²
Touch Screen : 5-wire Analog Resistive
View Angle (U/D/R/L) : 80°/80°/80°/80°
BUTTON & INDICATOR
Function Key : Brightness up/down, Screen on/off
LED Indicator ; Power on LED
POWER SYSTEM
Power Input : DC 9~36V
CERTIFICATION
EMC / EMI : CE, FCC Class A
EXPANSION
Expansion Bus : 1 x Mini-card socket
EXTERNAL I/O
Serial Ports : 4 x DB-9 connectors for COM1~4 (COM1 ~ COM4 are RS-232/485 configurable)
USB Ports :
4 x Type-A USB 2.0 ports (rear)
1 x Type-A USB 2.0 port with rubber cover on front bezel
LAN : 2 x RJ-45 GbE ports
DVI : 1 x DVI connector
WiFi : 2 x SMA antenna holes for optional WiFi function
MECHANICAL
Mounting Type : Panel Mounting and VESA-75/100 Mounting
Chassis : Panel-mounting chassis, aluminum front bezel and SECC steel chassis
Dimension (W x H x D) : 325.88 x 258.86 x 44.00 mm (12.8” x 10.2” x 2.26”)
Weight (Net) : 2.2 kg (without VESA bracket)
ENVIRONMENT
Operating Temp. : -20 ~ 55ºC (-4 ~ 131°F)
Storage Temp. : -20 ~ 70°C (-4 ~ 158°F)
Operating Humidity : 10 ~ 95% RH @ 55°C (non-condensing)
Vibration : 5 ~ 500Hz, 2Grms X,Y,Z axis (with CFast/SSD)
Shock : Operating 20G, 11ms X,Y,Z axis (with CFast/SSD)
OS SUPPORT
Windows 7 / Windows 8.1 / Linux (Kernel: 3.1X)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
아보 산업용 패널PC, LYNC-817 는 17인치 인텔 ® 셀러론 ® J1900 프로세서가 장착 된 산업용 패널 PC 입니다.
산업용 PC, LYNC-817 는 고휘도 TFT LCD 디스플레이, 멀티미디어 및 네트워킹 구성 요소 및 사용자 친화적 인 터치 스크린을 사용하여 고성능 코어 논리를 바탕으로 구축되었으며 견고하고 컴팩트하게 설계 디자인되었습니다.
최첨단 기술로 설계된 ARBOR, LYNC-817 패널 PC 는 판매 시점과 정보 시점에서 기계 제어 및 건강 관리에 이르기까지 포괄적 인 응용 프로그램 라인을 제공하는 강력하고 컴팩트 한 공간 절약형 패널PC 입니다.
Less Cable , Fanless Design
User Selectable Modularized Design
17” 1280 x 1024 SXGA LCD Display w/ LED Backlight
Front Panel IP65 Compliant
Serial Ports (RS-485), w/ Auto-flow Control
Mini-card Sockets x 1, PCI x 1 or PCIe x 1
Semi-Piercing DB9 Hole Reserved for Field-bus Card
SMA Antenna Holes for optional WiFi Function
9~36V Wide Range DC Input
SYSTEM
CPU : Intel® Celeron® Processor J1900 2.0GHz
Memory :
2 x DDR3 SO-DIMM Socket, supporting 1066/1333 MHz SDRAM up to 8GB
1 x 4GB DDR3 SO-DIMM memory module installed
LAN : 2 x Intel® I210AT GbE controllers
Watchdog Timer : 1~255 levels reset
STORAGE
1st Device : 1 x outside-accessible CFast slot
2nd Device : 1 x outside accessible 2.5” Drive Bay (Deault), or CFast slots ( optional)
LCD DISPLAY
Size/Type : 17" TFT LCD Panel
Max. Resolution : 1280 x 1024, SXGA
Max. Colors : 16.2M
Luminance : 350 cd/m²
Touch Screen : 5-wire Analog Resistive
BUTTON & INDICATOR
Function Key : Power on/off
LED Indicator : Power on LED
POWER SYSTEM
Power Input : DC 9~36V
CERTIFICATION
EMC / EMI : CE, FCC Class A
EXPANSION
Expansion Bus :
1 x Mini-card socket ( full-size)
1 x PCI 32-bit slot (default) or 1 x PCIe x1 slot (included in Standard Accessories)
Optional : 1 x semi-piercing DB9 hole reserved
EXTERNAL I/O
Serial Ports : 2 x RS-232 and 2 x RS232/485 ports with auto-flow design, all are DB9 connectors
USB Ports :
1 x USB 3.0 Type-A USB port
3 x USB 2.0 Type-A ports
LAN : 2 x RJ-45 GbE ports
DVI : 1 x DVI-I connector
WiFi : 2 x SMA antenna holes for optional WiFi function
Audio : Line-out
MECHANICAL
Mounting Type : Panel Mounting and VESA-75/100 Mounting
Chassis : Panel-mounting chassis, aluminum front bezel and SECC steel chassis
Dimension (W x H x D) : 428.00 x 380.00 x 77.00 mm (16.8” x 14.9” x 3.0”)
Weight (Net) : 6.5 kg (14.3 lb)
ENVIRONMENT
Operating Temp. : -0ºC ~ 55ºC (-32 ~ 131°F)
Storage Temp. : -10ºC ~ 75°C (-50 ~ 167°F)
Operating Humidity : 10 ~ 95% RH @ 60°C (non-condensing)
Vibration : 5 ~ 500Hz, 2Grms Random (with CF/SSD)
Shock : Operating 10G, 11ms Non-operating 30G, 11ms (with CF/SSD)
OS SUPPORT
W7 Pro / WS7E / W8.1 Industry
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
아보패널PC ARBOR LYNC-715-1900G4 15인치 산업용패널PC 매뉴얼HION IT
아보 산업용 패널PC, LYNC-715-1900G4 는 15 인치 인텔 ® J1900 쿼드 코어 ™ 프로세서가 장착 된 산업용 패널 PC 입니다.
산업용 PC, LYNC-715-1900G4 는 고휘도 TFT LCD 디스플레이, 멀티미디어 및 네트워킹 구성 요소 및 사용자 친화적인 터치 스크린을 사용하여 고성능 코어 논리를 바탕으로 구축, 견고하고 컴팩트하게 설계 디자인 되었습니다.
최첨단 기술로 설계된 ARBOR, LYNC-715-1900G4 패널 PC 는 판매 시점과 정보 시점에서 기계 제어 및 건강 관리에 이르기까지 포괄적인 응용 프로그램 라인을 제공하는 강력하고 컴팩트 한 공간 절약형 패널PC 입니다.
Fewer Cables, Fanless Design
15" 1024 x 768 XGA LCD Display w/ LED Backlight
Front Bezel with Completely Covered Membrane
Flush Front Panel, IP65-Compliant
Brightness Control Button
Outside-accessible Push-pull CFast Socket
Outside-accessible USB port with rubber cover on the front bezel
Serial Ports (RS-485), w/ Auto-flow Control
1 x MiniCard socket for WiFi module
2 x SMA Antenna Holes for optional WiFi Function
9~36V Wide-Range DC Input with reverse protection
SYSTEM
CPU : Intel® J1900 Quad-Core™ Processor 2.0GHz
Memory : 1 x 4GB DDR3L SO-DIMM memory module (installed)
LAN : 2 x Realtek® 8111E GbE controllers
Watchdog Timer : 1~255 levels reset
STORAGE
1st Device : 1 x outside-accessible CFast slot
2nd Device : 1 x 2.5” drive bay
AUDIO
Speaker : 2 x 1.5W speakers (optional)
LCD DISPLAY
Size/Type : 15" TFT LCD Panel
Max. Resolution : 1024 x 768, XGA
Max. Colors : 16.7M
Luminance : 420 cd/m²
Touch Screen : 5-wire Analog Resistive
View Angle (U/D/R/L) : 80°/80°/80°/80°
BUTTON & INDICATOR
Function Key : Brightness up/down, Screen on/off
LED Indicator : Power on LED
POWER SYSTEM
Power Input : DC 9~36V
CERTIFICATION
EMC / EMI : CE, FCC Class A
EXPANSION
Expansion Bus : 1 x Mini-card socket
EXTERNAL I/O
Serial Ports : 4 x DB-9 connectors for COM1~4 (COM1 ~ COM4 are RS-232/485 configurable)
USB Ports :
4 x Type-A USB 2.0 ports (rear)
1 x Type-A USB 2.0 port with rubber cover on front bezel
LAN : 2 x RJ-45 GbE ports
DVI : 1 x DVI connector
WiFi : 2 x SMA antenna holes for optional WiFi function
MECHANICAL
Mounting Type : Panel Mounting and VESA-75/100 Mounting
Chassis : Panel-mounting chassis, aluminum front bezel and SECC steel chassis
Dimension (W x H x D) : 389.93 x 309.93 x 46.80 mm (15.4” x 12.2” x 2.37”)
Weight (Net) : 3.4 kg (without VESA bracket)
ENVIRONMENT
Operating Temp. : -20 ~ 55ºC (-4 ~ 131°F)
Storage Temp. : -20 ~ 70°C (-4 ~ 158°F)
Operating Humidity : 10 ~ 95% RH @ 55°C (non-condensing)
Vibration : 5 ~ 500Hz, 2Grms X,Y,Z axis (with CFast/SSD)
Shock : Operating 20G, 11ms X,Y,Z axis (with CFast/SSD)
OS SUPPORT
Windows 7 / Windows 8.1 / Linux (Kernel: 3.1X)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
How to use the good obd tuning Honda GNA600?josy jiang
Honda GNA600 comes with the latest software to access immobilizer, reprogram key and install new or used PCM's functions. Full access to all systems using the only guaranteed accurate data available. This kit will also give you access to the latest reflash software for PCM updates.
아보패널PC ARBOR LYNC-712-1900G4 12.1인치 산업용패널PC 매뉴얼HION IT
아보 산업용 패널PC, LYNC-712-1900G4 는 12.1 인치 인텔 ® J1900 쿼드 코어 ™ 프로세서가 장착 된 산업용 패널 PC 입니다.
산업용 PC, LYNC-712-1900G4 는 고휘도 TFT LCD 디스플레이, 멀티미디어 및 네트워킹 구성 요소 및 사용자 친화적 인 터치 스크린을 사용하여 고성능 코어 논리를 바탕으로 구축, 견고하고 컴팩트하게 설계 디자인되었습니다.
최첨단 기술로 설계된 ARBOR, LYNC-712-1900G4 패널 PC 는 판매 시점과 정보 시점에서 기계 제어 및 건강 관리에 이르기까지 포괄적 인 응용 프로그램 라인을 제공하는 강력하고 컴팩트 한 공간 절약형 패널PC 입니다.
Fewer Cables, Fanless Design
12.1" 1024 x 768 XGA LCD Display w/ LED Backlight
Front Bezel with Completely Covered Membrane
Flush Front Panel, IP65-Compliant
Brightness Control Button
Outside-accessible Push-pull CFast Socket
Outside-accessible USB port with rubber cover on the front bezel
Serial Ports (RS-485), w/ Auto-flow Control
1 x MiniCard socket for WiFi module
2 x SMA Antenna Holes for optional WiFi Function
9~36V Wide-Range DC Input with reverse protection
SYSTEM
CPU : Intel® J1900 Quad-Core™ Processor 2.0GHz
Memory : 1 x 4GB DDR3L SO-DIMM memory module (installed)
LAN : 2 x Realtek® 8111E GbE controllers
Watchdog Timer : 1~255 levels reset
STORAGE
1st Device : 1 x outside-accessible CFast slot
2nd Device : 1 x 2.5” drive bay
AUDIO
Speaker : 2 x 1.5W speakers (optional)
LCD DISPLAY
Size/Type : 12.1" TFT LCD Panel
Max. Resolution : 1024 x 768, XGA
Max. Colors : 16.7M
Luminance : 350 cd/m²
Touch Screen : 5-wire Analog Resistive
View Angle (U/D/R/L) : 80°/80°/80°/80°
BUTTON & INDICATOR
Function Key : Brightness up/down, Screen on/off
LED Indicator ; Power on LED
POWER SYSTEM
Power Input : DC 9~36V
CERTIFICATION
EMC / EMI : CE, FCC Class A
EXPANSION
Expansion Bus : 1 x Mini-card socket
EXTERNAL I/O
Serial Ports : 4 x DB-9 connectors for COM1~4 (COM1 ~ COM4 are RS-232/485 configurable)
USB Ports :
4 x Type-A USB 2.0 ports (rear)
1 x Type-A USB 2.0 port with rubber cover on front bezel
LAN : 2 x RJ-45 GbE ports
DVI : 1 x DVI connector
WiFi : 2 x SMA antenna holes for optional WiFi function
MECHANICAL
Mounting Type : Panel Mounting and VESA-75/100 Mounting
Chassis : Panel-mounting chassis, aluminum front bezel and SECC steel chassis
Dimension (W x H x D) : 325.88 x 258.86 x 44.00 mm (12.8” x 10.2” x 2.26”)
Weight (Net) : 2.2 kg (without VESA bracket)
ENVIRONMENT
Operating Temp. : -20 ~ 55ºC (-4 ~ 131°F)
Storage Temp. : -20 ~ 70°C (-4 ~ 158°F)
Operating Humidity : 10 ~ 95% RH @ 55°C (non-condensing)
Vibration : 5 ~ 500Hz, 2Grms X,Y,Z axis (with CFast/SSD)
Shock : Operating 20G, 11ms X,Y,Z axis (with CFast/SSD)
OS SUPPORT
Windows 7 / Windows 8.1 / Linux (Kernel: 3.1X)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
아보 산업용 패널PC, LYNC-817 는 17인치 인텔 ® 셀러론 ® J1900 프로세서가 장착 된 산업용 패널 PC 입니다.
산업용 PC, LYNC-817 는 고휘도 TFT LCD 디스플레이, 멀티미디어 및 네트워킹 구성 요소 및 사용자 친화적 인 터치 스크린을 사용하여 고성능 코어 논리를 바탕으로 구축되었으며 견고하고 컴팩트하게 설계 디자인되었습니다.
최첨단 기술로 설계된 ARBOR, LYNC-817 패널 PC 는 판매 시점과 정보 시점에서 기계 제어 및 건강 관리에 이르기까지 포괄적 인 응용 프로그램 라인을 제공하는 강력하고 컴팩트 한 공간 절약형 패널PC 입니다.
Less Cable , Fanless Design
User Selectable Modularized Design
17” 1280 x 1024 SXGA LCD Display w/ LED Backlight
Front Panel IP65 Compliant
Serial Ports (RS-485), w/ Auto-flow Control
Mini-card Sockets x 1, PCI x 1 or PCIe x 1
Semi-Piercing DB9 Hole Reserved for Field-bus Card
SMA Antenna Holes for optional WiFi Function
9~36V Wide Range DC Input
SYSTEM
CPU : Intel® Celeron® Processor J1900 2.0GHz
Memory :
2 x DDR3 SO-DIMM Socket, supporting 1066/1333 MHz SDRAM up to 8GB
1 x 4GB DDR3 SO-DIMM memory module installed
LAN : 2 x Intel® I210AT GbE controllers
Watchdog Timer : 1~255 levels reset
STORAGE
1st Device : 1 x outside-accessible CFast slot
2nd Device : 1 x outside accessible 2.5” Drive Bay (Deault), or CFast slots ( optional)
LCD DISPLAY
Size/Type : 17" TFT LCD Panel
Max. Resolution : 1280 x 1024, SXGA
Max. Colors : 16.2M
Luminance : 350 cd/m²
Touch Screen : 5-wire Analog Resistive
BUTTON & INDICATOR
Function Key : Power on/off
LED Indicator : Power on LED
POWER SYSTEM
Power Input : DC 9~36V
CERTIFICATION
EMC / EMI : CE, FCC Class A
EXPANSION
Expansion Bus :
1 x Mini-card socket ( full-size)
1 x PCI 32-bit slot (default) or 1 x PCIe x1 slot (included in Standard Accessories)
Optional : 1 x semi-piercing DB9 hole reserved
EXTERNAL I/O
Serial Ports : 2 x RS-232 and 2 x RS232/485 ports with auto-flow design, all are DB9 connectors
USB Ports :
1 x USB 3.0 Type-A USB port
3 x USB 2.0 Type-A ports
LAN : 2 x RJ-45 GbE ports
DVI : 1 x DVI-I connector
WiFi : 2 x SMA antenna holes for optional WiFi function
Audio : Line-out
MECHANICAL
Mounting Type : Panel Mounting and VESA-75/100 Mounting
Chassis : Panel-mounting chassis, aluminum front bezel and SECC steel chassis
Dimension (W x H x D) : 428.00 x 380.00 x 77.00 mm (16.8” x 14.9” x 3.0”)
Weight (Net) : 6.5 kg (14.3 lb)
ENVIRONMENT
Operating Temp. : -0ºC ~ 55ºC (-32 ~ 131°F)
Storage Temp. : -10ºC ~ 75°C (-50 ~ 167°F)
Operating Humidity : 10 ~ 95% RH @ 60°C (non-condensing)
Vibration : 5 ~ 500Hz, 2Grms Random (with CF/SSD)
Shock : Operating 10G, 11ms Non-operating 30G, 11ms (with CF/SSD)
OS SUPPORT
W7 Pro / WS7E / W8.1 Industry
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
아보패널PC ARBOR LYNC-715-1900G4 15인치 산업용패널PC 매뉴얼HION IT
아보 산업용 패널PC, LYNC-715-1900G4 는 15 인치 인텔 ® J1900 쿼드 코어 ™ 프로세서가 장착 된 산업용 패널 PC 입니다.
산업용 PC, LYNC-715-1900G4 는 고휘도 TFT LCD 디스플레이, 멀티미디어 및 네트워킹 구성 요소 및 사용자 친화적인 터치 스크린을 사용하여 고성능 코어 논리를 바탕으로 구축, 견고하고 컴팩트하게 설계 디자인 되었습니다.
최첨단 기술로 설계된 ARBOR, LYNC-715-1900G4 패널 PC 는 판매 시점과 정보 시점에서 기계 제어 및 건강 관리에 이르기까지 포괄적인 응용 프로그램 라인을 제공하는 강력하고 컴팩트 한 공간 절약형 패널PC 입니다.
Fewer Cables, Fanless Design
15" 1024 x 768 XGA LCD Display w/ LED Backlight
Front Bezel with Completely Covered Membrane
Flush Front Panel, IP65-Compliant
Brightness Control Button
Outside-accessible Push-pull CFast Socket
Outside-accessible USB port with rubber cover on the front bezel
Serial Ports (RS-485), w/ Auto-flow Control
1 x MiniCard socket for WiFi module
2 x SMA Antenna Holes for optional WiFi Function
9~36V Wide-Range DC Input with reverse protection
SYSTEM
CPU : Intel® J1900 Quad-Core™ Processor 2.0GHz
Memory : 1 x 4GB DDR3L SO-DIMM memory module (installed)
LAN : 2 x Realtek® 8111E GbE controllers
Watchdog Timer : 1~255 levels reset
STORAGE
1st Device : 1 x outside-accessible CFast slot
2nd Device : 1 x 2.5” drive bay
AUDIO
Speaker : 2 x 1.5W speakers (optional)
LCD DISPLAY
Size/Type : 15" TFT LCD Panel
Max. Resolution : 1024 x 768, XGA
Max. Colors : 16.7M
Luminance : 420 cd/m²
Touch Screen : 5-wire Analog Resistive
View Angle (U/D/R/L) : 80°/80°/80°/80°
BUTTON & INDICATOR
Function Key : Brightness up/down, Screen on/off
LED Indicator : Power on LED
POWER SYSTEM
Power Input : DC 9~36V
CERTIFICATION
EMC / EMI : CE, FCC Class A
EXPANSION
Expansion Bus : 1 x Mini-card socket
EXTERNAL I/O
Serial Ports : 4 x DB-9 connectors for COM1~4 (COM1 ~ COM4 are RS-232/485 configurable)
USB Ports :
4 x Type-A USB 2.0 ports (rear)
1 x Type-A USB 2.0 port with rubber cover on front bezel
LAN : 2 x RJ-45 GbE ports
DVI : 1 x DVI connector
WiFi : 2 x SMA antenna holes for optional WiFi function
MECHANICAL
Mounting Type : Panel Mounting and VESA-75/100 Mounting
Chassis : Panel-mounting chassis, aluminum front bezel and SECC steel chassis
Dimension (W x H x D) : 389.93 x 309.93 x 46.80 mm (15.4” x 12.2” x 2.37”)
Weight (Net) : 3.4 kg (without VESA bracket)
ENVIRONMENT
Operating Temp. : -20 ~ 55ºC (-4 ~ 131°F)
Storage Temp. : -20 ~ 70°C (-4 ~ 158°F)
Operating Humidity : 10 ~ 95% RH @ 55°C (non-condensing)
Vibration : 5 ~ 500Hz, 2Grms X,Y,Z axis (with CFast/SSD)
Shock : Operating 20G, 11ms X,Y,Z axis (with CFast/SSD)
OS SUPPORT
Windows 7 / Windows 8.1 / Linux (Kernel: 3.1X)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
How to use the good obd tuning Honda GNA600?josy jiang
Honda GNA600 comes with the latest software to access immobilizer, reprogram key and install new or used PCM's functions. Full access to all systems using the only guaranteed accurate data available. This kit will also give you access to the latest reflash software for PCM updates.
소형 패키지의 성능
아보, 산업용 PC, IOT-800은 강력한 쿼드 코어 ARM Cortex-A9 프로세서 기반의 8 인치 HMI 입니다.
산업용 PC, IOT-800 시스템은 안드로이드 4.4에서 실행되며 성능을 중요시하는 까다로운 애플리케이션을 충족하도록 설계되었습니다.
견고하고 신뢰성있는 제품
산업용 PC인 IOT-800은 고해상도 디스플레이와 터치스크린 방식의 패널PC 입니다.
터치패널은 IP-65 등급을 유지하며 높은 충격, 진동 및 온도 범위 (최대 -10 ℃ ~ 70 ℃ 또는 14 ℉ ~ 158 ℉)에서 작동하도록 설계되었습니다. 또한 이 패널 PC는 46.5cm 두께의 견고함을 감안할 때 놀라울 정도로 슬림합니다.
모든 응용 프로그램에 대한 연결성
패널PC ARBOR IOT-800은 802.11 a / b / g / n WiFi, 블루투스 4.0, GPS, 3G / 4G 연결 및 NFC와 같은 표준 무선 기능을 갖춘 진정한 사물의 인터넷 장치입니다. 어떤 환경이나 응용분야에 관계없이, IOT-800은 시스템과 프로세스가 연결된 상태를 유지합니다.
풍부한 I/O
아보 IOT-800 패널에는 RS-232 포트 1 개, RS-232 / 422 / 485 포트 1 개, 고속 USB 포트 2 개, 2MP 카메라, 통합 스피커 및 마이크가 내장되어 있습니다. ARBOR IOT-800은 CANbus 2.0 / OBD-II 및 GPIO 포트가 장착되어있어 특별한 환경응용분야에서 사용할 수 있습니다.
Android 4.4 operating system
Quad-core ARM Cortex-A9 @1.6 GHz
Front bezel IP65 water and dust resistance
Flat front bezel with 8" TFT LCD
Built-in CAN 2.0b / OBD-II
Built-in WLAN 802.11a/b/g/n and Bluetooth 4.0 BLE
12~24V Wide-range voltage DC-input support
SYSTEM
CPU : Quad-core ARM Cortex-A9 1.6GHz
OS : Android™ v4.4
Memory : 1GB LPDDR3
Flash : 16GB eMMC
PERIPHERALS AND DEVICES
Front Camera : 2.0 megapixel camera
Audio :
1 x built-in speaker (2W)
1 x built-in microphone
WIRELESS
WCDMA / CDMA / TDSCDMA / LTE (optional) : Mini PCIE interface
GPS + BeiDou : GPS mouse
WLAN : IEEE 802.11 a/b/g/n
Bluetooth : Bluetooth 4.0 low power BLE
NFC : Support NFC transmission standard 14443A/ B,15693,felica
I/O INTERFACE
SD Card : Micro SD Card slot, maximum 32 GB
USB Host : 2 x USB 2.0 High Speed
Speaker : 1 x 8Ω/2W
DB9 Interface :
1 x RS-232 (full function),
1 x RS-232/422/485 (TX/RX)
Power button : Power on/off button
DIO Connectors : 4 x 3.3V GPIO
CAN : CAN 2.0b / OBD-II
Power-in : Connect power input, 9V~36V/1.5A
RJ45 : RJ45 x 1,support Ethernet (10/100Mbps)
MIC : One MIC-fidelity audio input
Update hole : Updade program hole
Power on switch : On/off switchable, Toggle Switch
LCD DISPLAY
Physical size : 8 inches
Resolution : 1024(W) x 600(H)
Technology : High definition and high brightness LCD display
Colors : 16M Colors,24bit
Touchscreen : GG Capacitive, 5-points Multi-touch
POWER INPUT
DC Input 2-pin terminal block 12V~24V Auto-Detection
MECHANICAL & ENVIRONMENTAL
Ingress Protection : Front bezel IP65
Operating Temp. : -10°C ~ 70°C (14°F ~ 158°F )
Storage Temp. : -20°C ~ 85°C (-4°F ~ 185°F)
Operating Humidity : 5% ~ 90% RH
Dimensions (W x H x D) : 218.2 x 162.7 x 46.5 mm (8.59” x 6.41” x 1.83”)
Weight : Around 0.926kg
INSTALLATION
VESA Mount 75mm x 75mm
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
아보태블릿PC ARBOR M1040 2D 10.4인치 윈도우즈 헬스케어 태블릿PC 매뉴얼HION IT
아보, GM1040 의료용 태블릿 PC는 10.4 인치 Intel® Atom™ N450 프로세서가 포함 된 Mobile Clinical Assistant 핸드헬드 태블릿 PC 입니다.
ARBOR 의료 컴퓨팅 솔루션은 국제적으로 인정된 산업표준 (UL-60601-1 / EN60601-1, CE / FCC Class B Certified)을 준수합니다
OS SUPPORT :
Windows Embedded 7 / Windows 7 Professional
Windows XP Embedded / Windows XP Professional
Ubuntu and Fedora Linux compliant
eHealthcare and Clinical Assistant Application
Soldered onboard Intel® Atom™ Processor N450
Electromagnetic Digitizer with Resistive Touch
EN60601-1, EN60601-1-2 Certified
Redundant Battery (Internal + Hot-swappable External Battery) w/ Long Battery Life (6.5hrs Max.)
Slim Appearance - Ultra-light Weight (1.3kg) and Ultra-slim (26mm) ; Slip-free Grip for Easy Handling
Multi-connectivity (Bluetooth, WLAN)
2D Barcode Scanner, 2.0 Megapixels Camera, RFID Reader
Multi-expansion (1 x RS-232, 1 x USB,1 x LAN,1 x VGA , and 1 x SmartCard)
SYSTEM
CPU : Soldered onboard Intel® Atom™ Processor N450 1.6GHz
Graphics Controller : Intel® GMA3150
Memory : 2GB DDR2 SO-DIMM memory module installed
Chipset : Intel® ICH8M
Storage : 32GB 1.8" SATA SSD installed
PERIPHERALS AND DEVICES
Camera :
1 x 2.0 MP CMOS camera (front)
1 x 2.0 MP CMOS camera w/ auto-focus (back) (optional)
RFID : 1 x Integrated 13.56MHz RFID reader with ISO 14443A/14443B/15693 support (optional)
WLAN : 1 x 802.11 b/g/n Mini PCIe Wireless LAN card
GSM/UMTS : Up to HSUPA 3.75G (optional)
Bluetooth : 1 x Bluetooth 2.1+EDR module (optional)
Barcode Scanner : 1 x 2D Barcode Scanner (optional)
Smart Card Reader : 1 x Smart Card Reader (optional)
I/O INTERFACE
Audio : 2 x Integrated 2W speakers, 1 x built-in Microphone
USB Port : 1 x USB 2.0 port
Docking Port : 1 x 35-pin POGO connector to expand USB, VGA & GbE
BUTTON & INDICATOR
Button :
1 x Power on/off button with indicative LED ring
1 x 5-way function key
1 x RFID on/off button
1 x Barcode scan trigger button
4 x Programmable function keys (F1 ~ F4), Default setting: referring to User Manual
Indicator :
1 x Battery status LED
1 x Bluetooth LED
1 x WLAN/RFID on/off LED
1 x Power on/off LED
Reset Function : 1 x hardware reset
TOUCH SCREEN
Type : Digitizer with Resistive Touch
Touch Pen : Battery-free pen
LCD DISPLAY
Size/Type : 10.4" TFT Active Matrix Panel
Max. Resolution : 1024 x 768 (XGA) w/ 262,144 colors
Luminance : 340 cd/m² (typ.)
Contrast Ratio : 600:1 (typ.)
View Angle (U/D/R/L) : 89°/89°/89°/89°
Backlight Type : LED
POWER REQUIREMENT
Adapter Input : 100 ~ 240 VAC (Full Range)
Adapter Output : 20VDC, 3A, 60W with medical certificate
Battery Type : Li-battery pack
Battery Capacity :
Internal 1880mAH 3-cell
External 1880mAH 4-cell
Battery Operating Time : 6.5 hours (Max.)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
Chi tiết kỹ thuật máy pos BEETLE / i8A 1 và 2
Nhà phân phối: Công ty TNHH Tầm Nhìn Toàn Cầu (Global Vision Co., Ltd.)
Địa chỉ : 456/57 Cao Thắng Nối Dài, Phường 12, Quận 10, Tp.Hồ Chí Minh
Tel : (84-8) 3868 0103 / (84-8) 3868 0104
Fax : (84-8) 3868 0105
Email:sales@globalvision.com.vn
Hotline: +84 916 590 468
URL: www.globalvision.com (Global Vision Co., Ltd.)
www.wincor.com.vn (Wincor-Nixdorf Việt Nam)
Chi tiết kỹ thuật máy pos BEETLE /mini POS System
Nhà phân phối: Công ty TNHH Tầm Nhìn Toàn Cầu (Global Vision Co., Ltd.)
Địa chỉ : 456/57 Cao Thắng Nối Dài, Phường 12, Quận 10, Tp.Hồ Chí Minh
Tel : (84-8) 3868 0103 / (84-8) 3868 0104
Fax : (84-8) 3868 0105
Email:sales@globalvision.com.vn
Hotline: +84 916 590 468
URL: www.globalvision.com (Global Vision Co., Ltd.)
www.wincor.com.vn (Wincor-Nixdorf Việt Nam)
Chi tiết kỹ thuật máy pos BEETLE /M-II
Nhà phân phối: Công ty TNHH Tầm Nhìn Toàn Cầu (Global Vision Co., Ltd.)
Địa chỉ : 456/57 Cao Thắng Nối Dài, Phường 12, Quận 10, Tp.Hồ Chí Minh
Tel : (84-8) 3868 0103 / (84-8) 3868 0104
Fax : (84-8) 3868 0105
Email:sales@globalvision.com.vn
Hotline: +84 916 590 468
URL: www.globalvision.com (Global Vision Co., Ltd.)
www.wincor.com.vn (Wincor-Nixdorf Việt Nam)
Chi tiết kỹ thuật máy pos BEETLE /Express
Nhà phân phối: Công ty TNHH Tầm Nhìn Toàn Cầu (Global Vision Co., Ltd.)
Địa chỉ : 456/57 Cao Thắng Nối Dài, Phường 12, Quận 10, Tp.Hồ Chí Minh
Tel : (84-8) 3868 0103 / (84-8) 3868 0104
Fax : (84-8) 3868 0105
Email:sales@globalvision.com.vn
Hotline: +84 916 590 468
URL: www.globalvision.com (Global Vision Co., Ltd.)
www.wincor.com.vn (Wincor-Nixdorf Việt Nam)

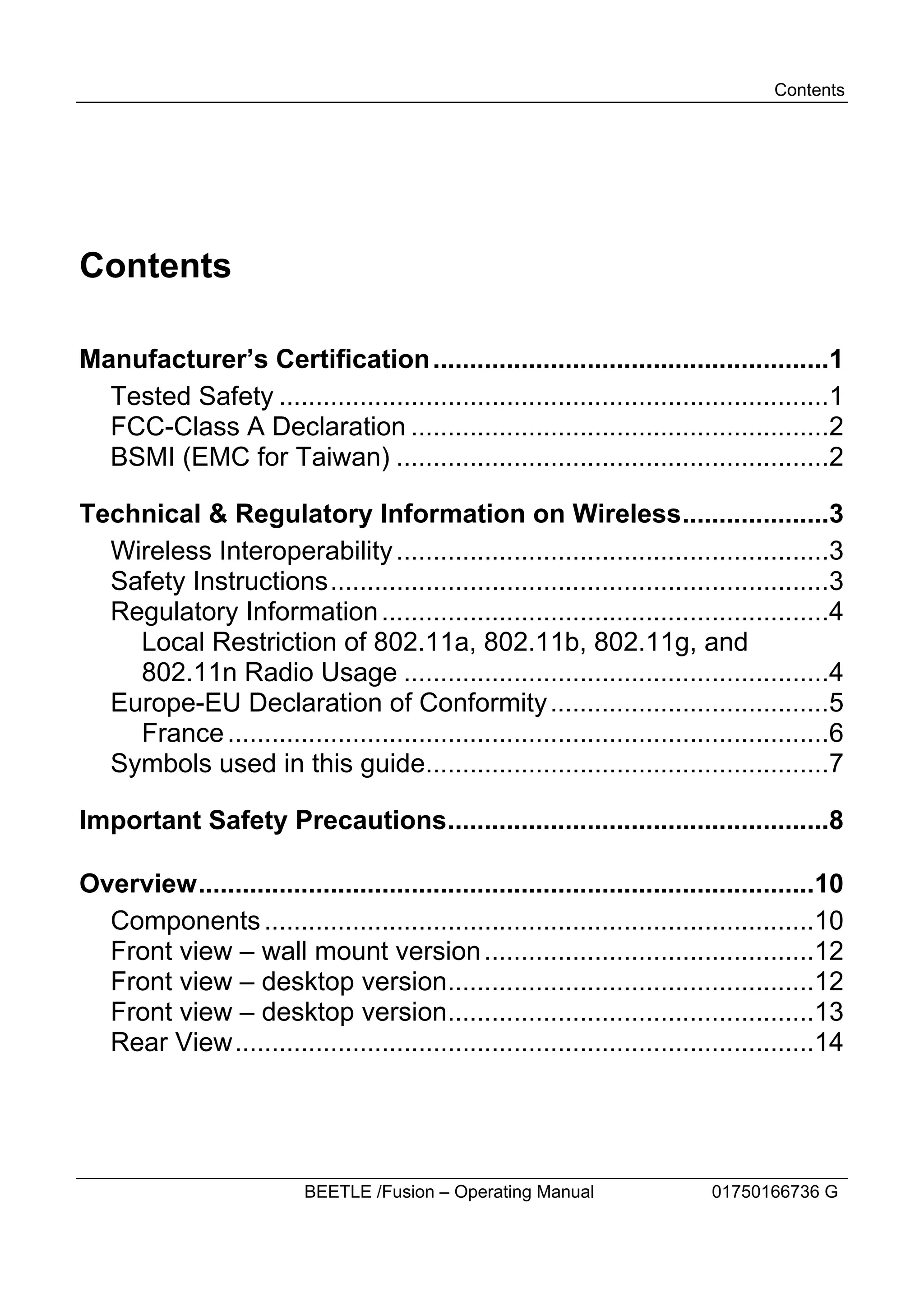

4. Contents
Contents
Manufacturer’s Certification ......................................................1
Tested Safety ...........................................................................1
FCC-Class A Declaration .........................................................2
BSMI (EMC for Taiwan) ...........................................................2
Technical & Regulatory Information on Wireless....................3
Wireless Interoperability ...........................................................3
Safety Instructions....................................................................3
Regulatory Information .............................................................4
Local Restriction of 802.11a, 802.11b, 802.11g, and
802.11n Radio Usage ..........................................................4
Europe-EU Declaration of Conformity ......................................5
France ..................................................................................6
Symbols used in this guide.......................................................7
Important Safety Precautions....................................................8
Overview....................................................................................10
Components ...........................................................................10

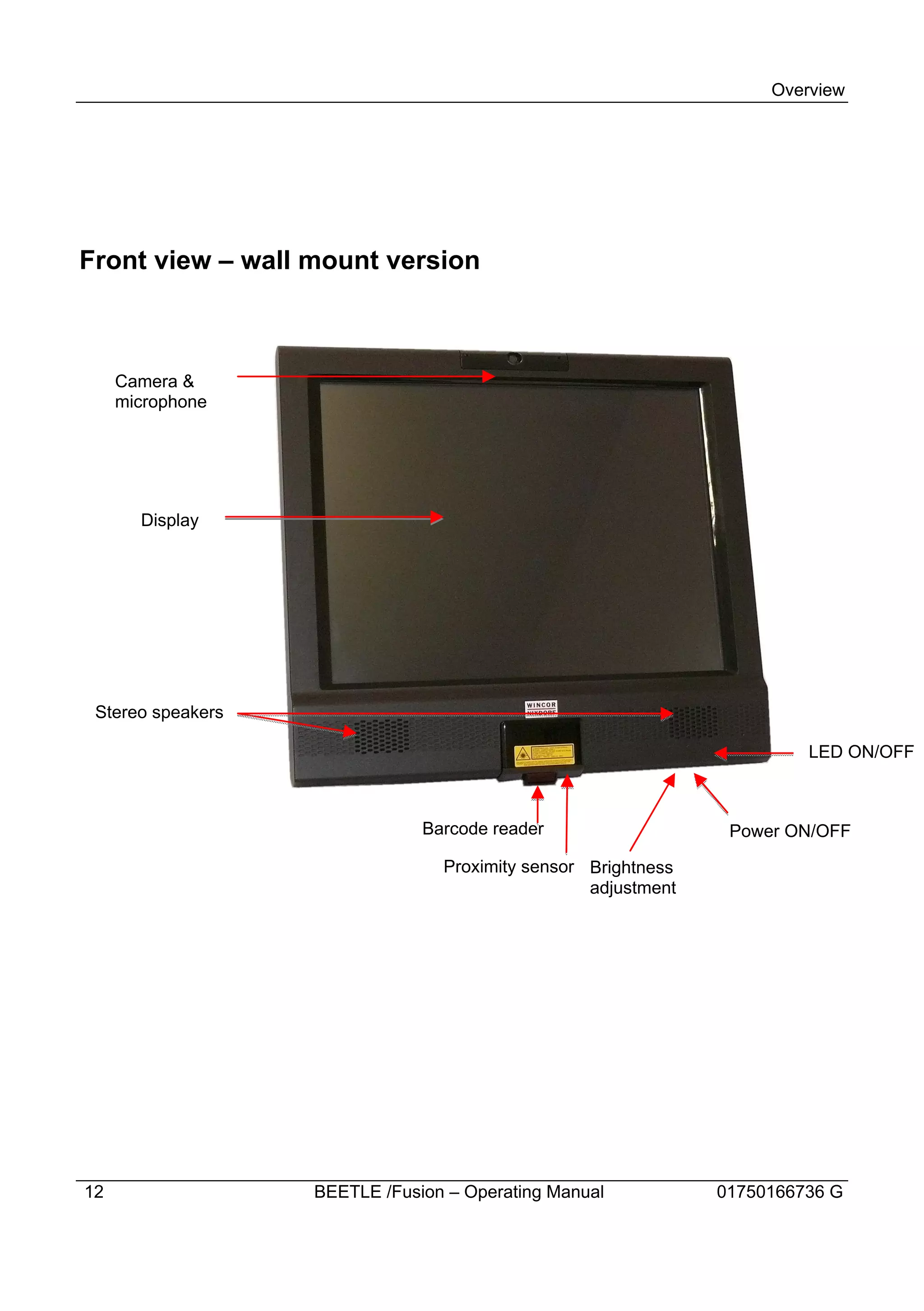

Front view – wall mount version .............................................12

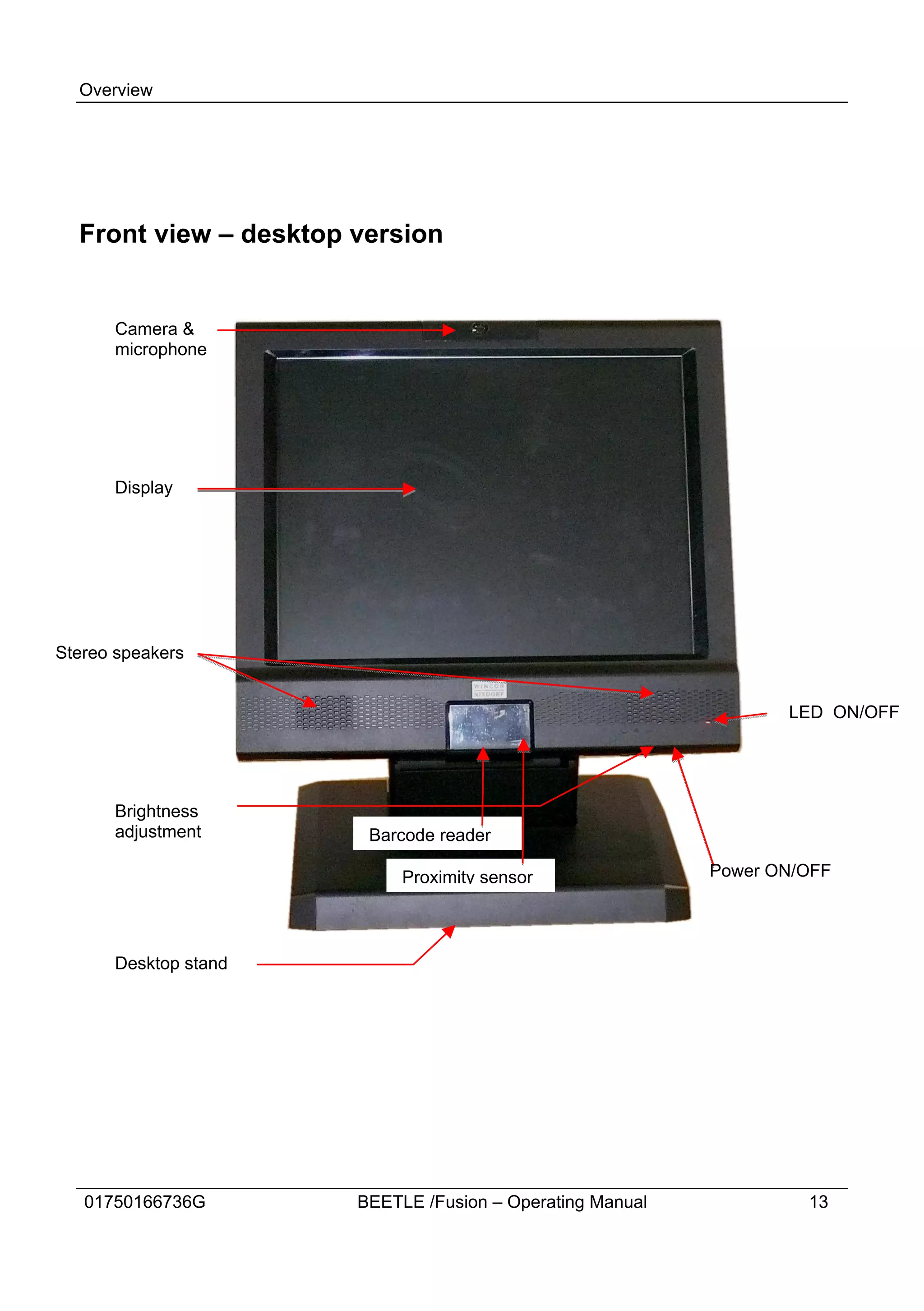

Front view – desktop version..................................................12
Front view – desktop version..................................................13

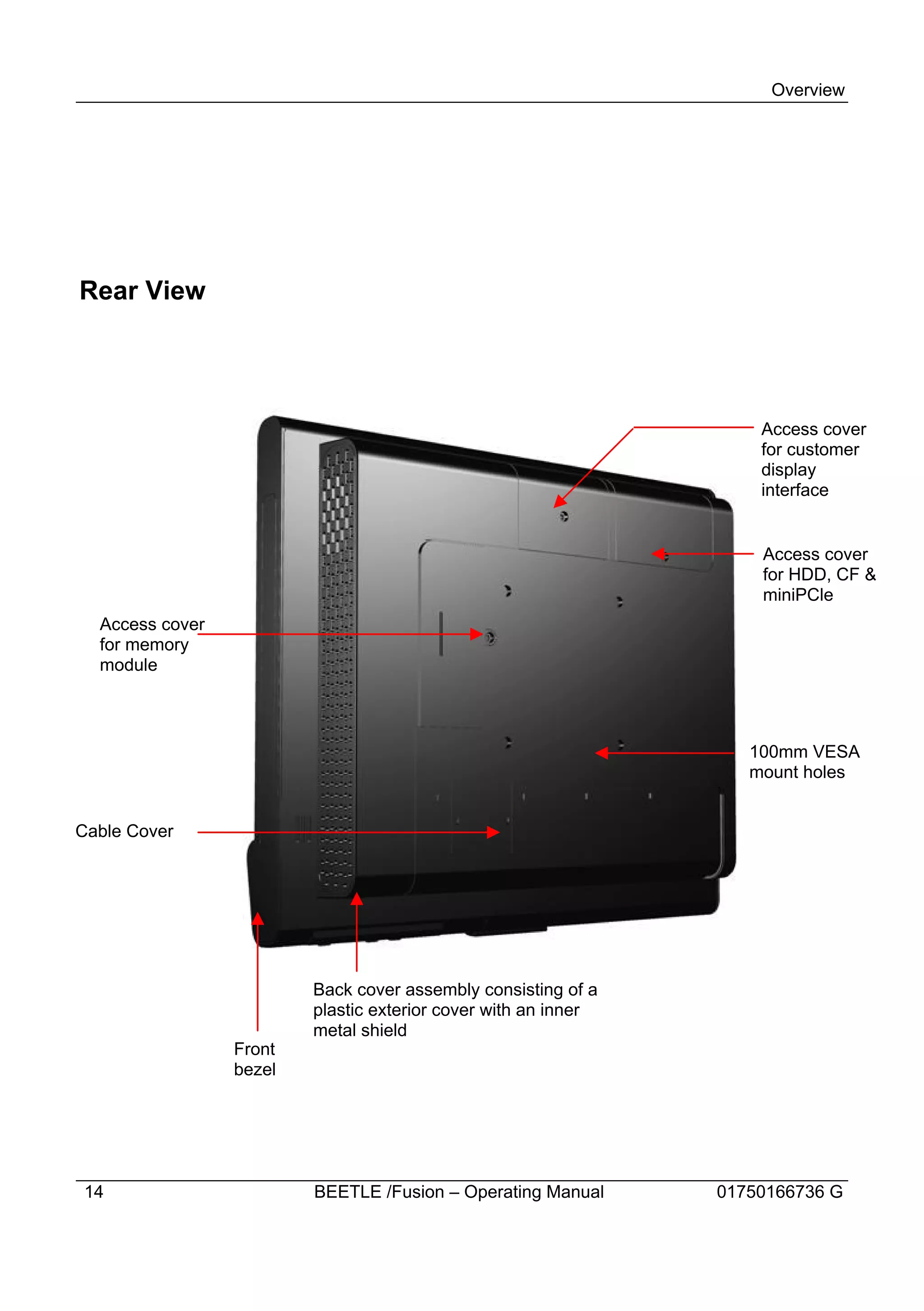

Rear View...............................................................................14
BEETLE /Fusion – Operating Manual 01750166736 G

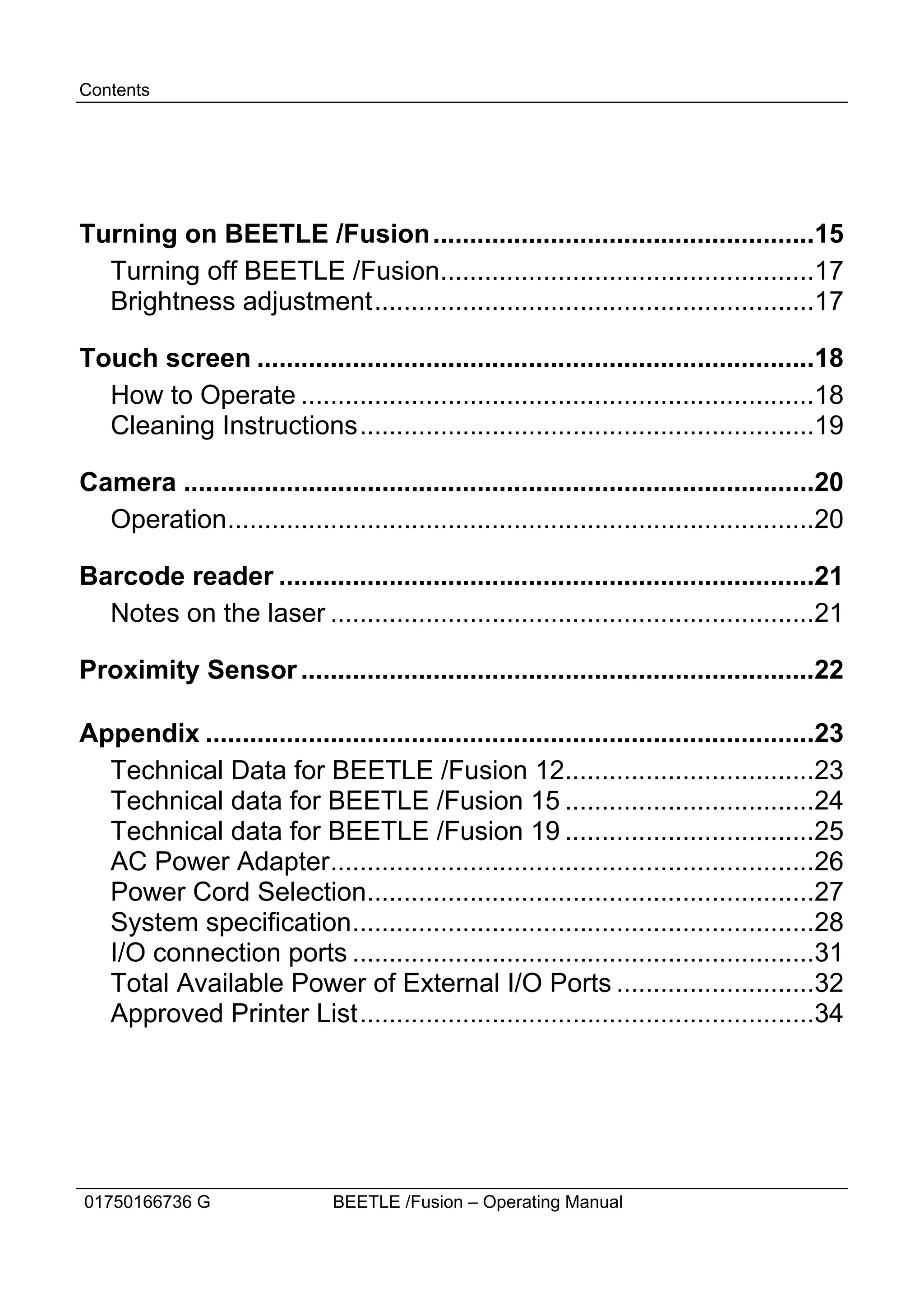

5. Contents

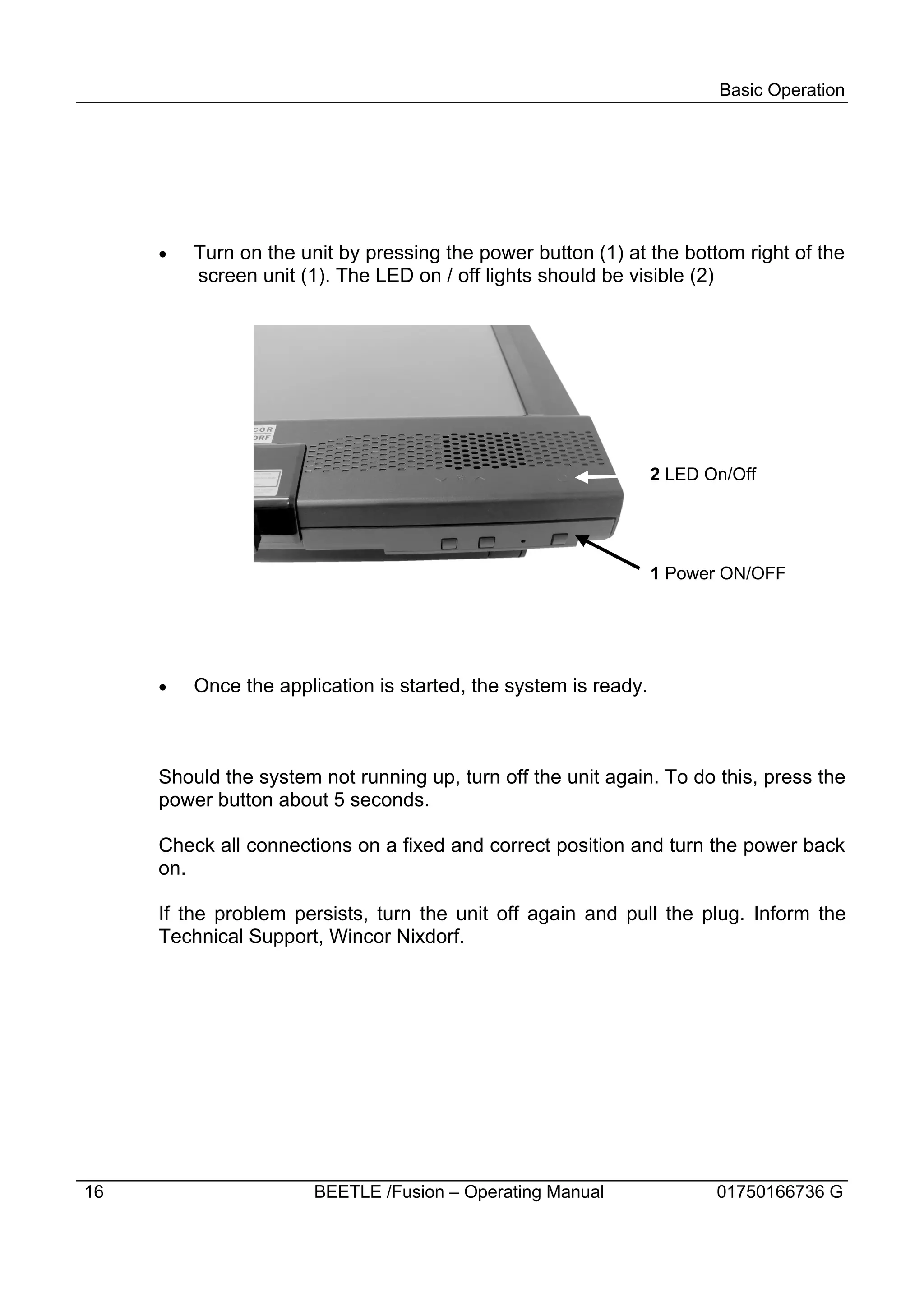

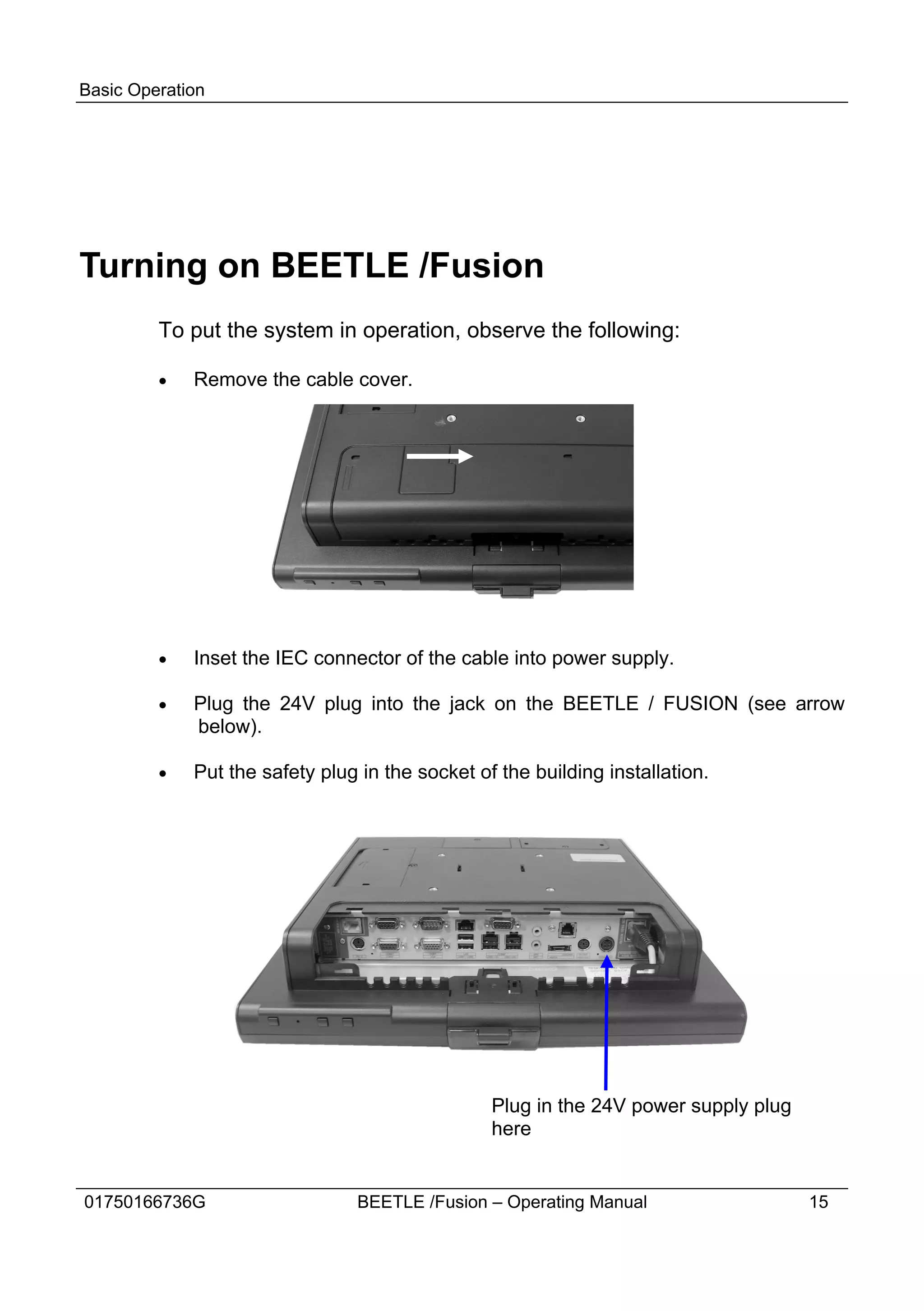

Turning on BEETLE /Fusion ....................................................15

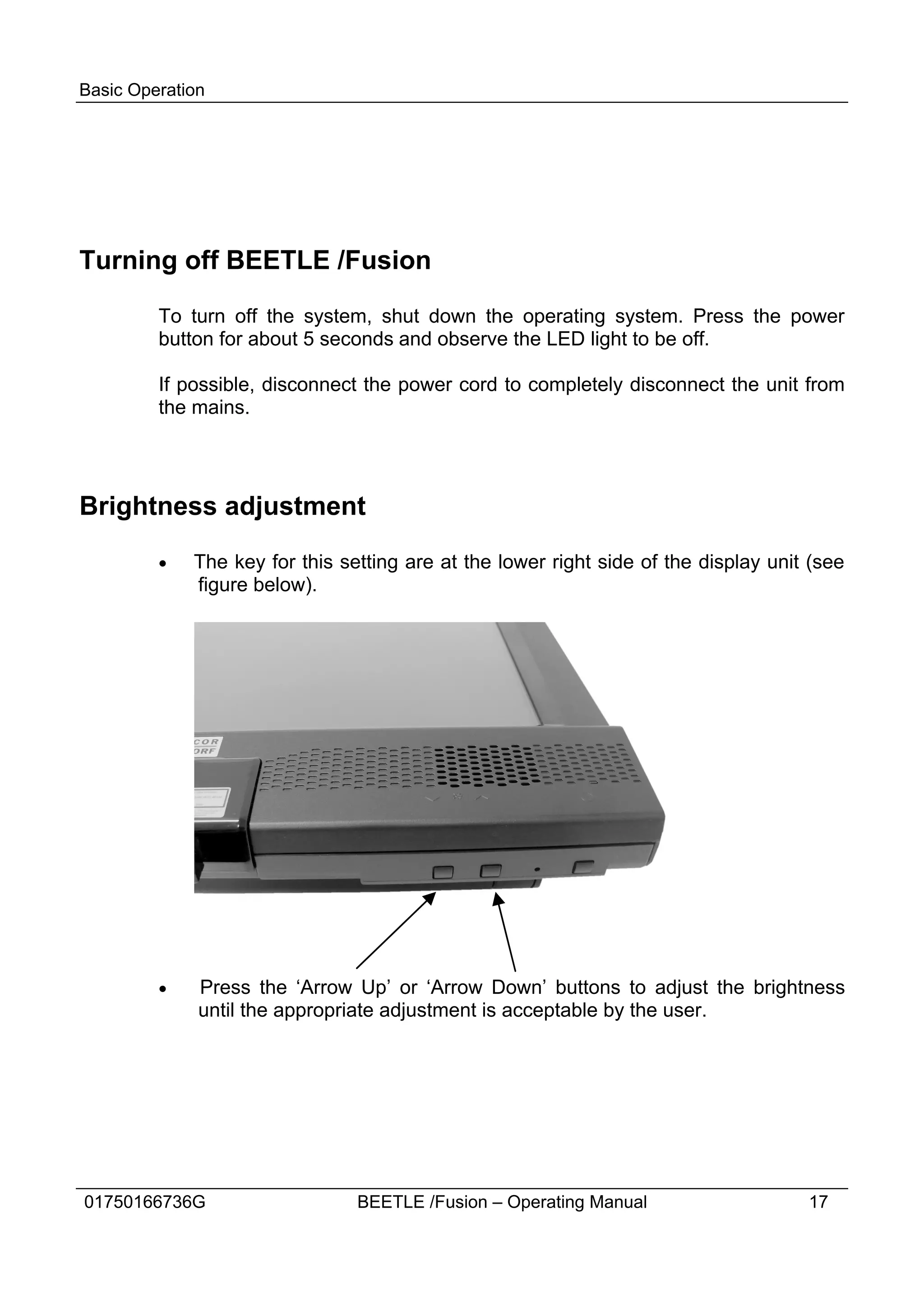

Turning off BEETLE /Fusion...................................................17
Brightness adjustment............................................................17

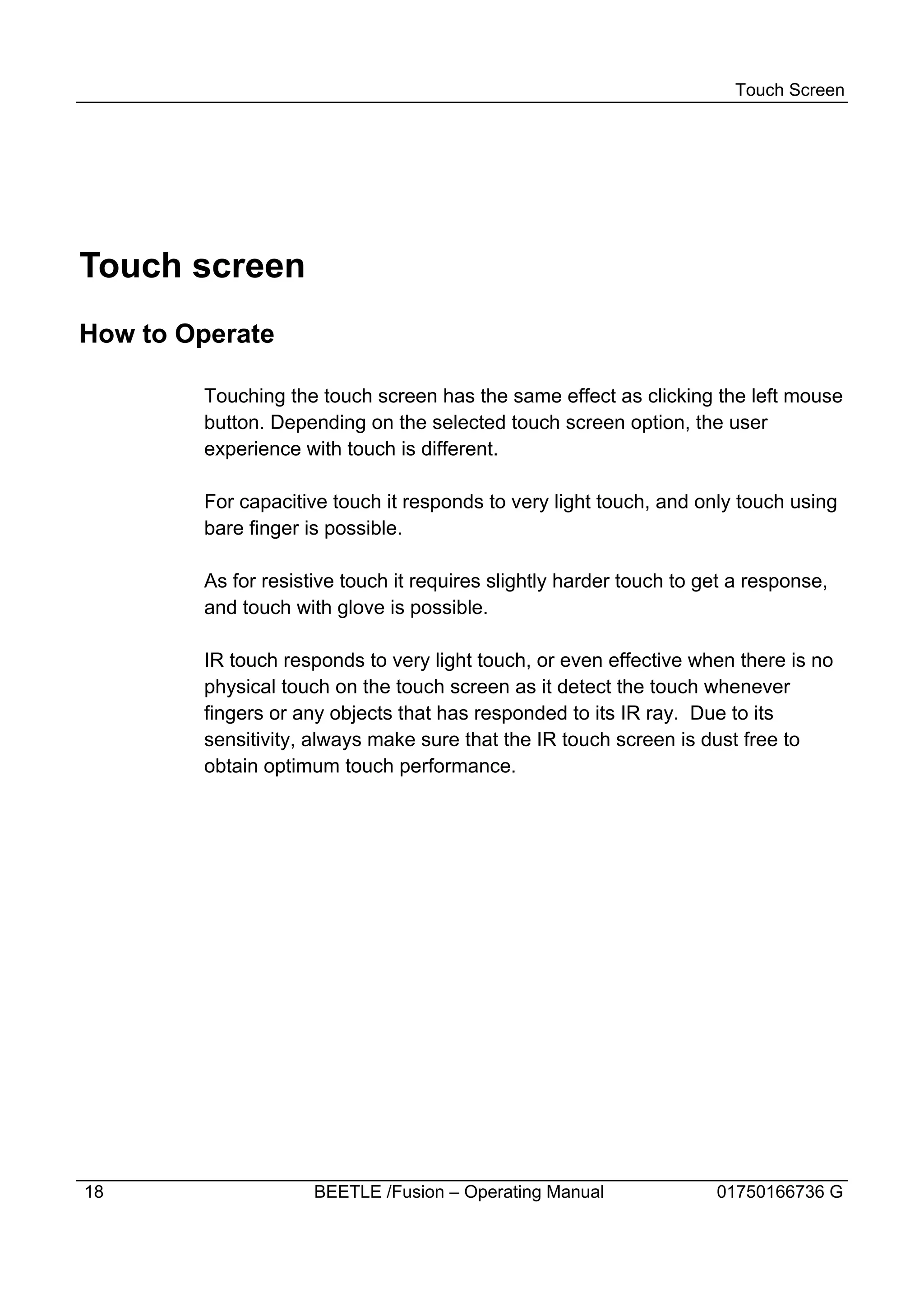

Touch screen ............................................................................18
How to Operate ......................................................................18

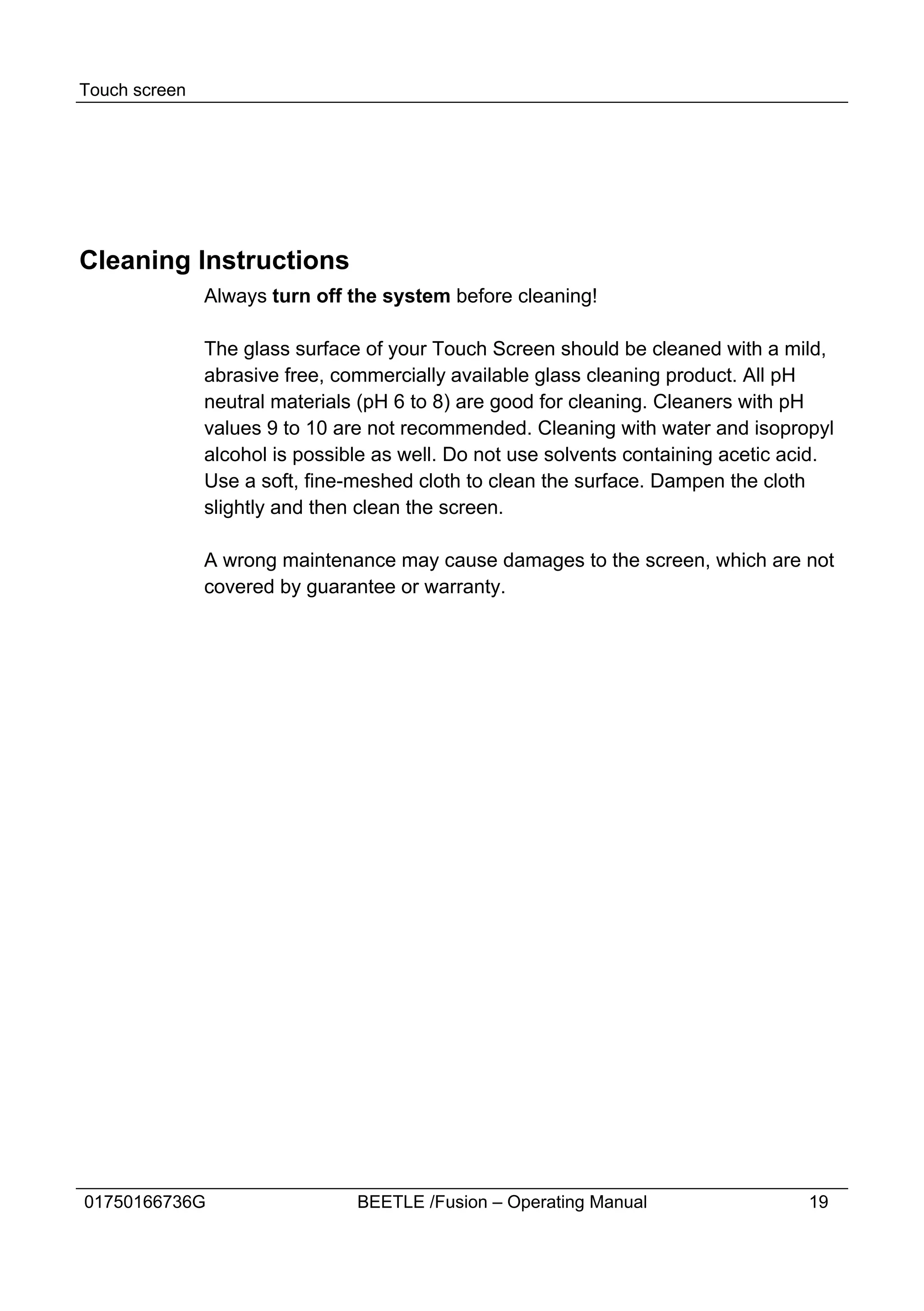

Cleaning Instructions..............................................................19

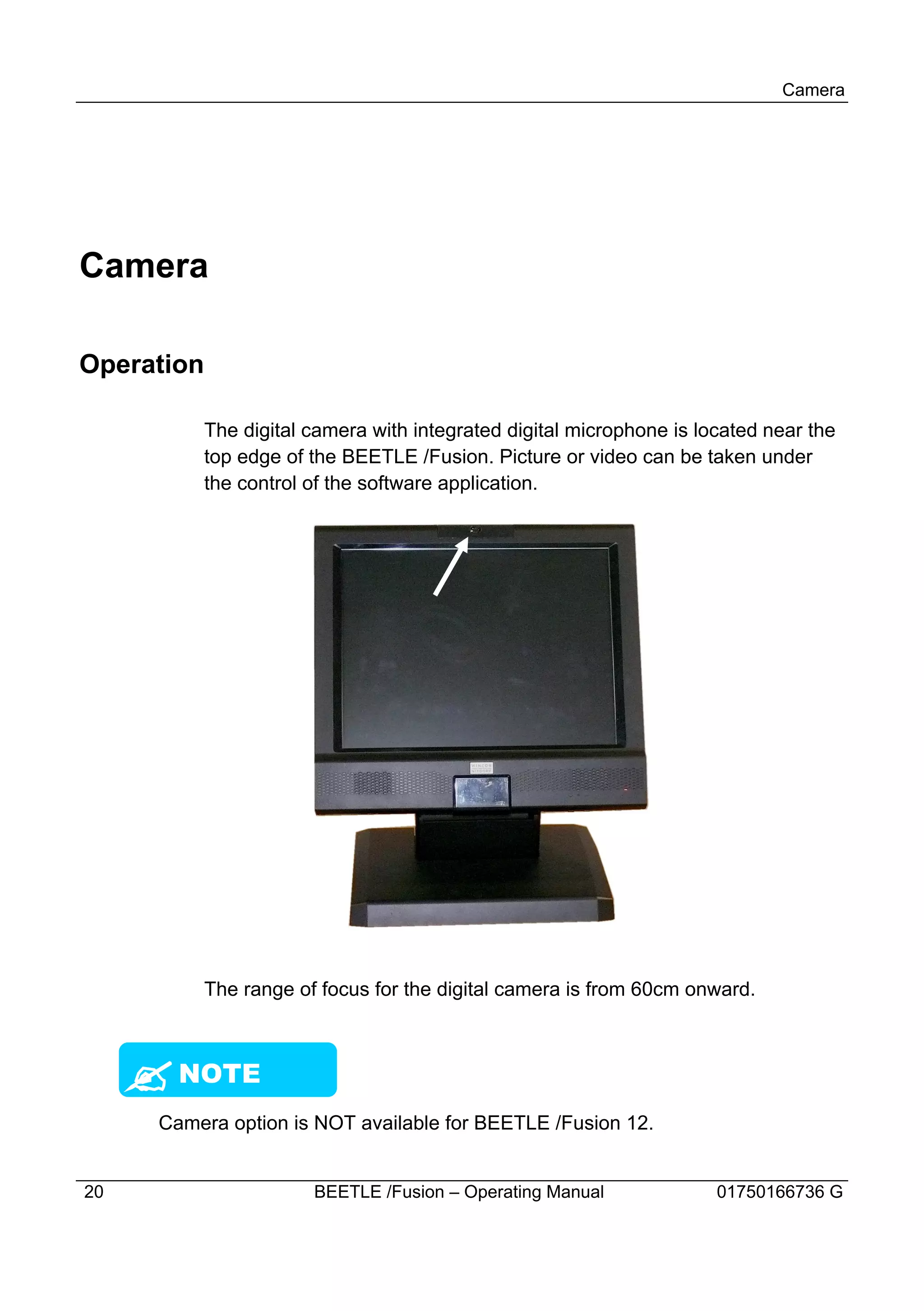

Camera ......................................................................................20
Operation................................................................................20

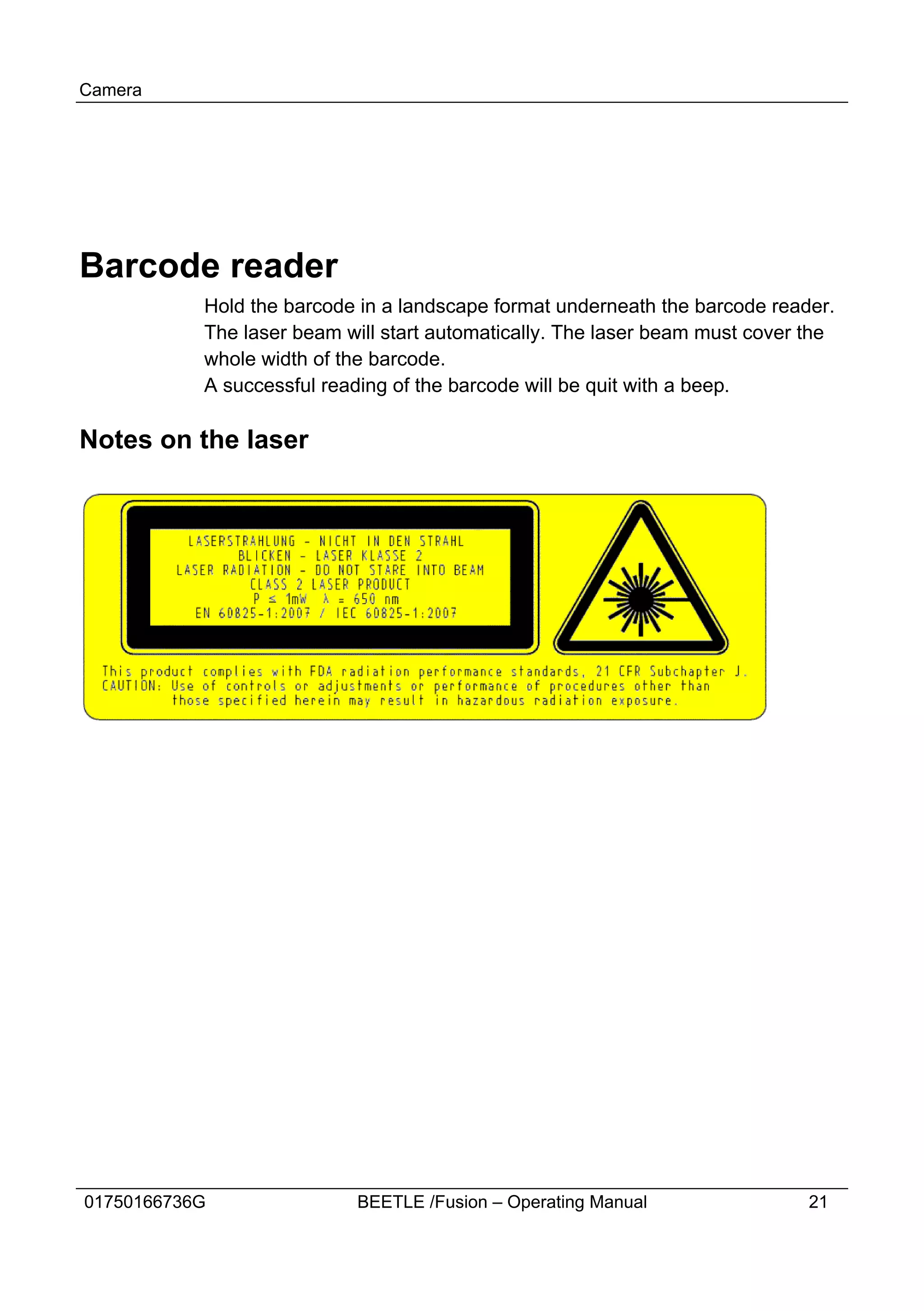

Barcode reader .........................................................................21
Notes on the laser ..................................................................21

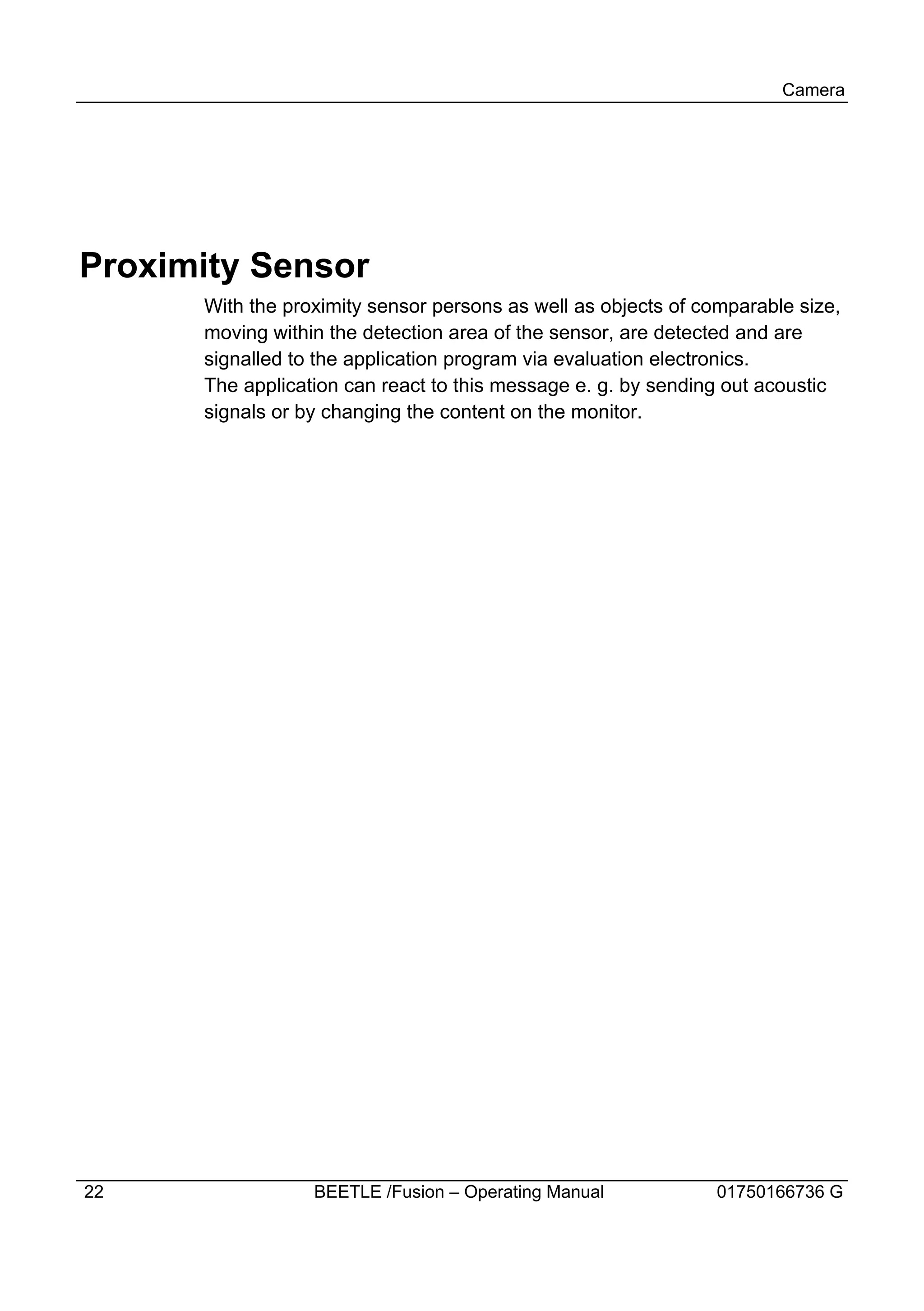

Proximity Sensor ......................................................................22
Appendix ...................................................................................23
Technical Data for BEETLE /Fusion 12..................................23
Technical data for BEETLE /Fusion 15 ..................................24
Technical data for BEETLE /Fusion 19 ..................................25

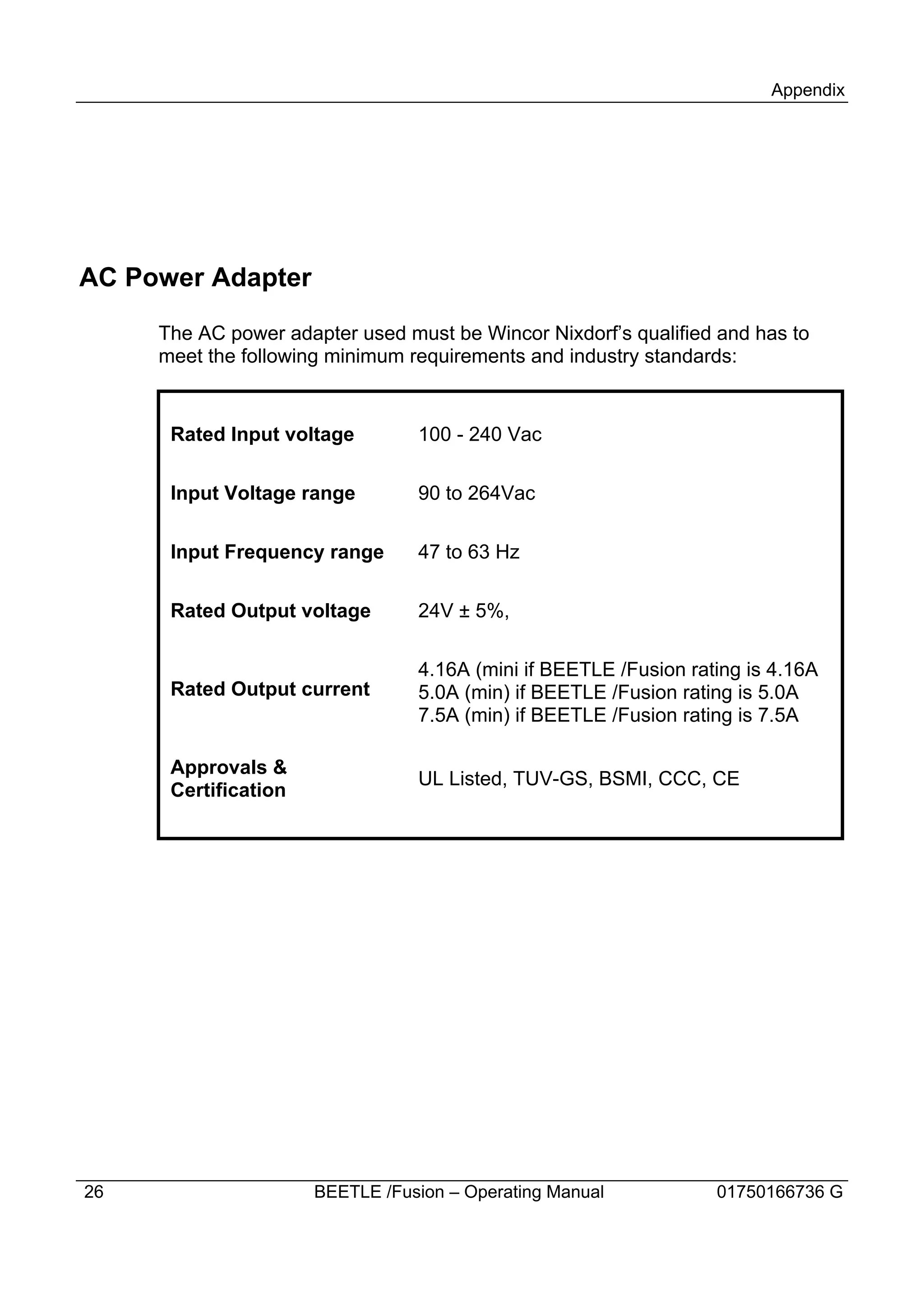

AC Power Adapter..................................................................26

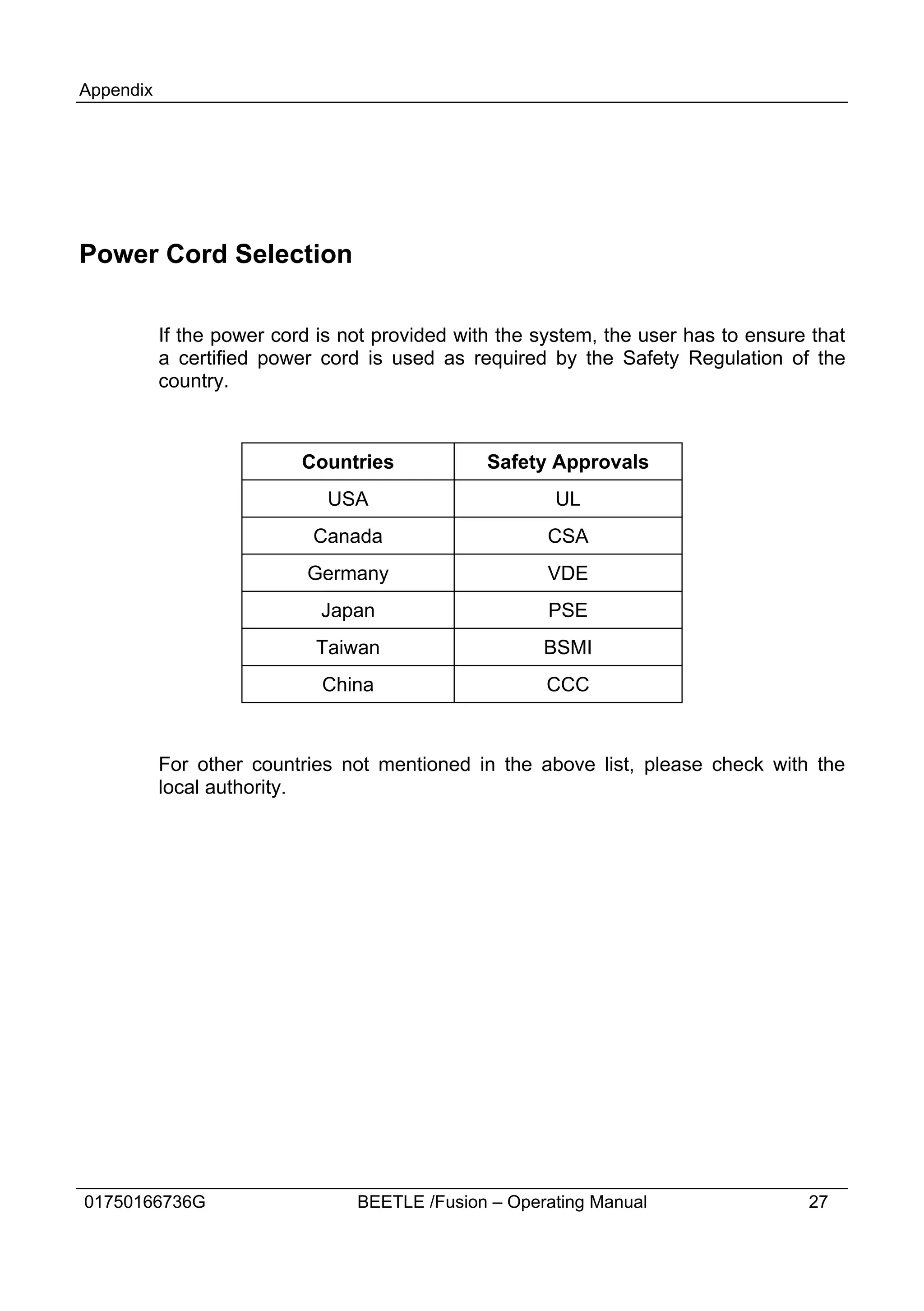

Power Cord Selection.............................................................27

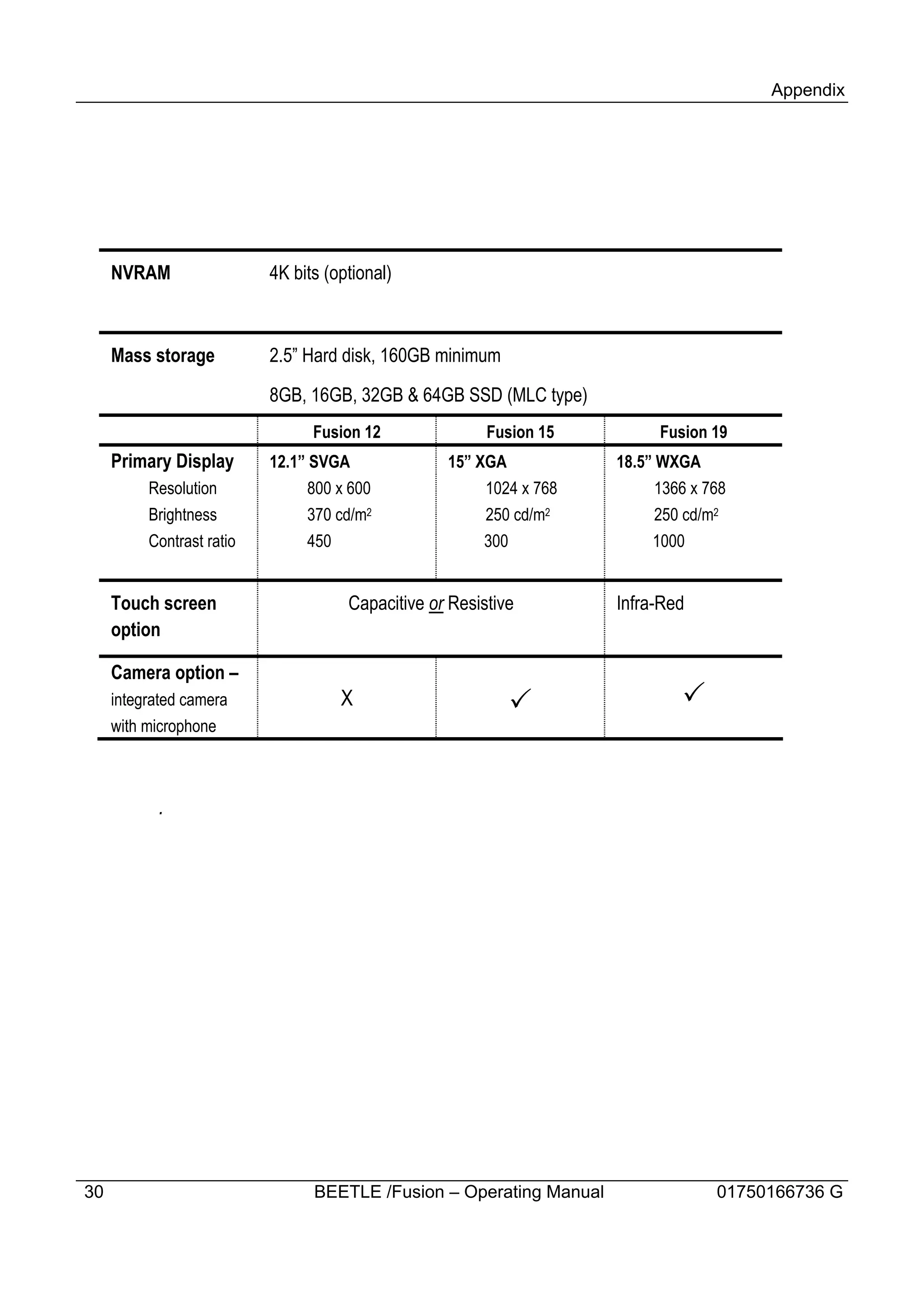

System specification...............................................................28

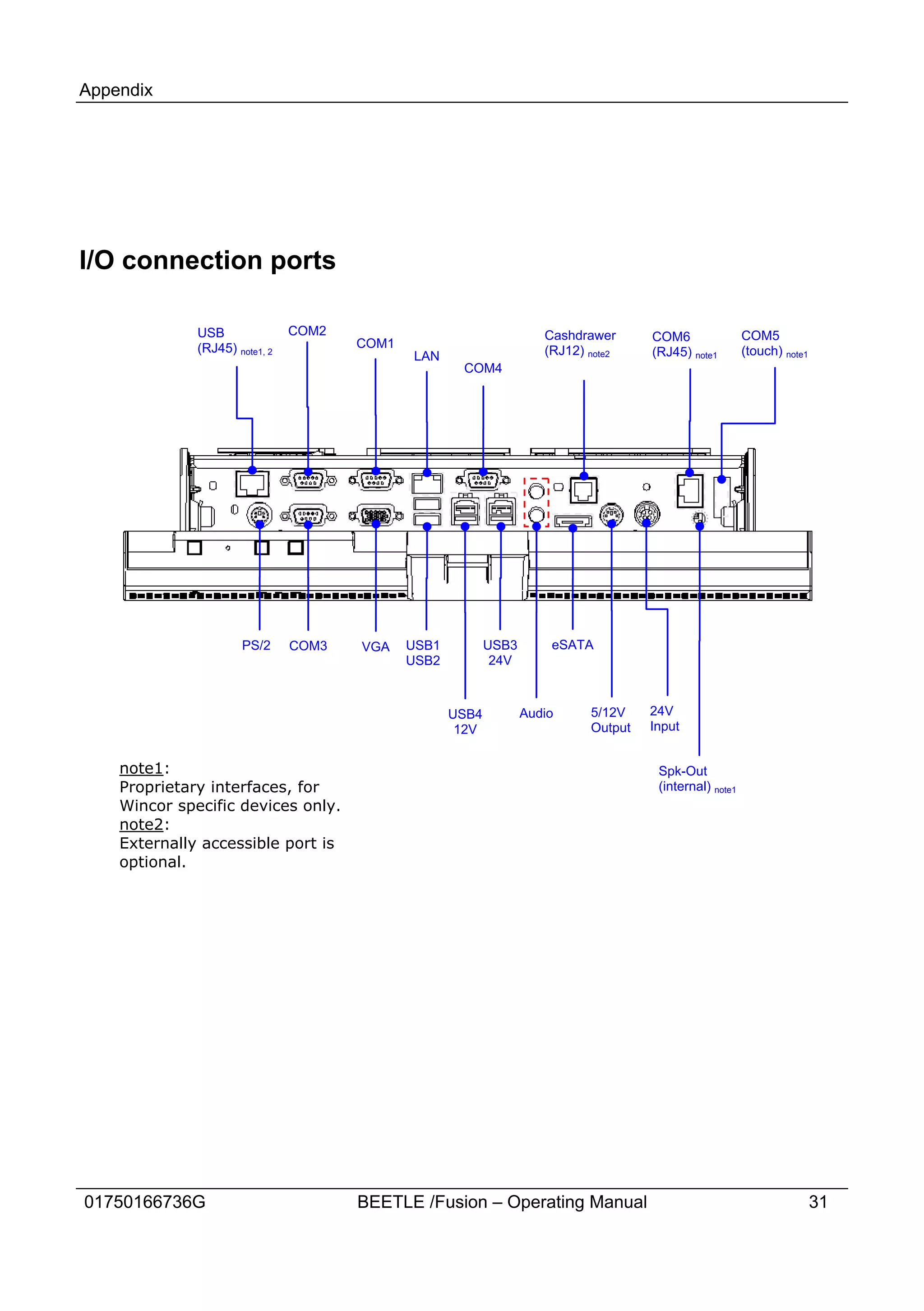

I/O connection ports ...............................................................31

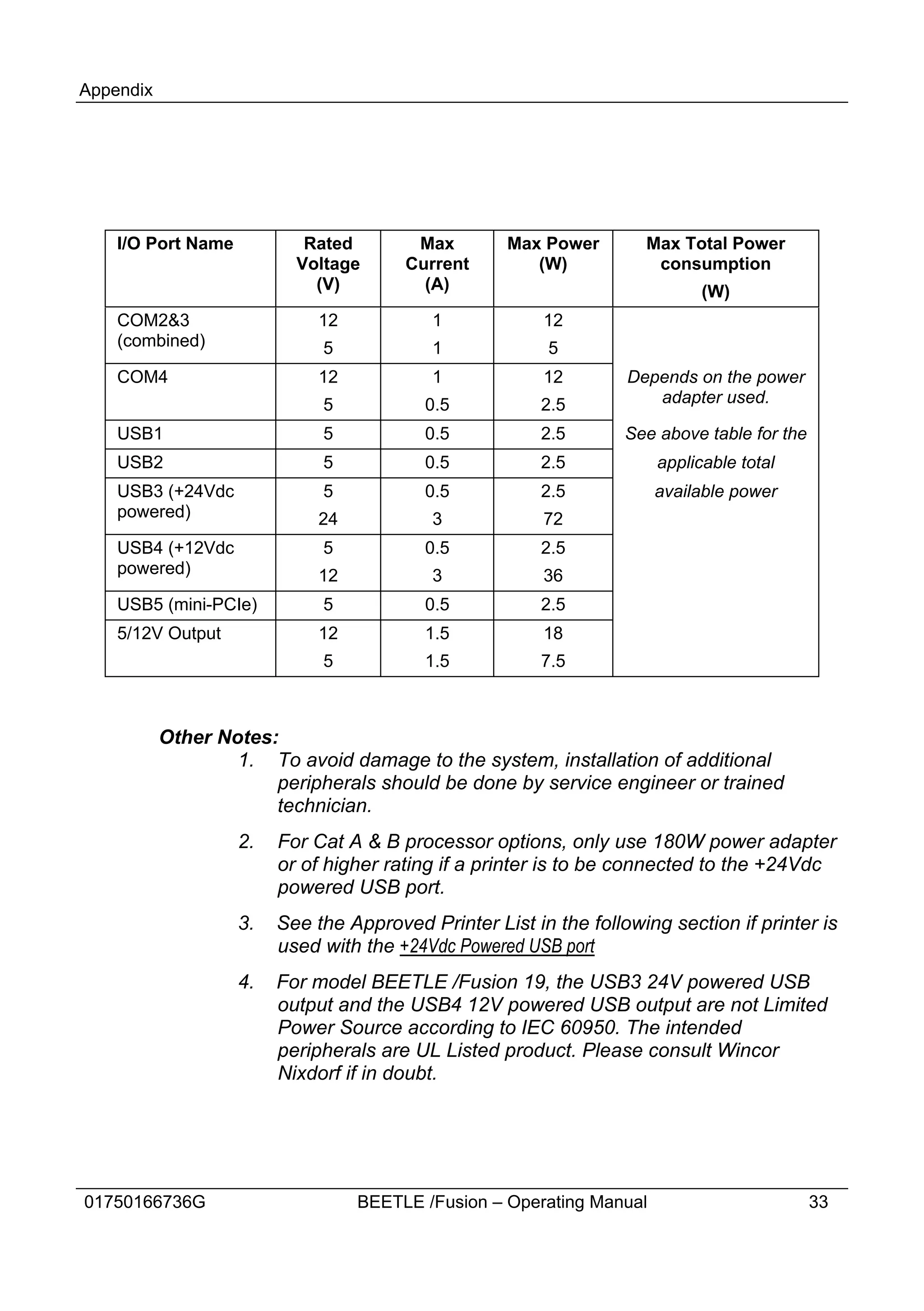

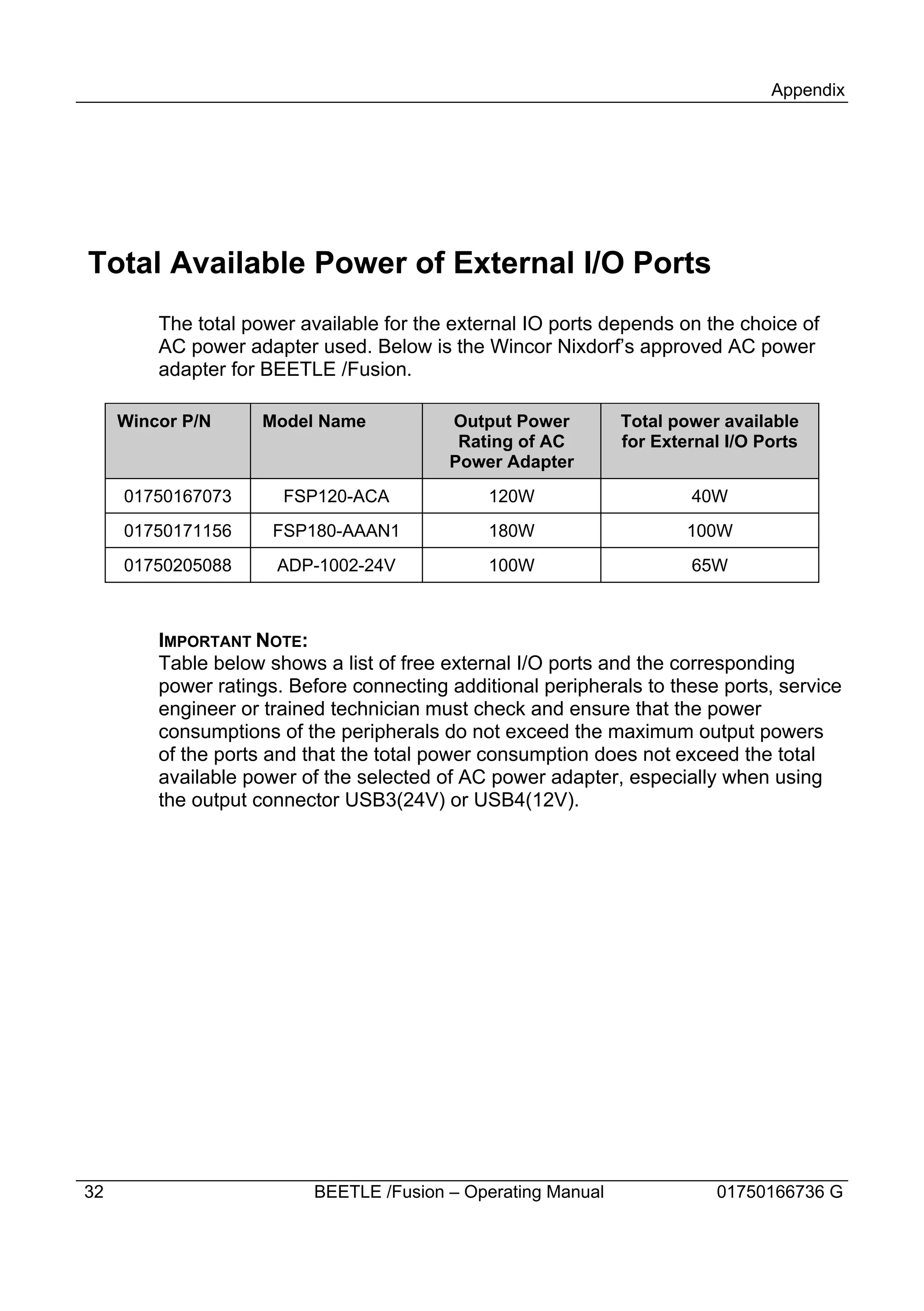

Total Available Power of External I/O Ports ...........................32

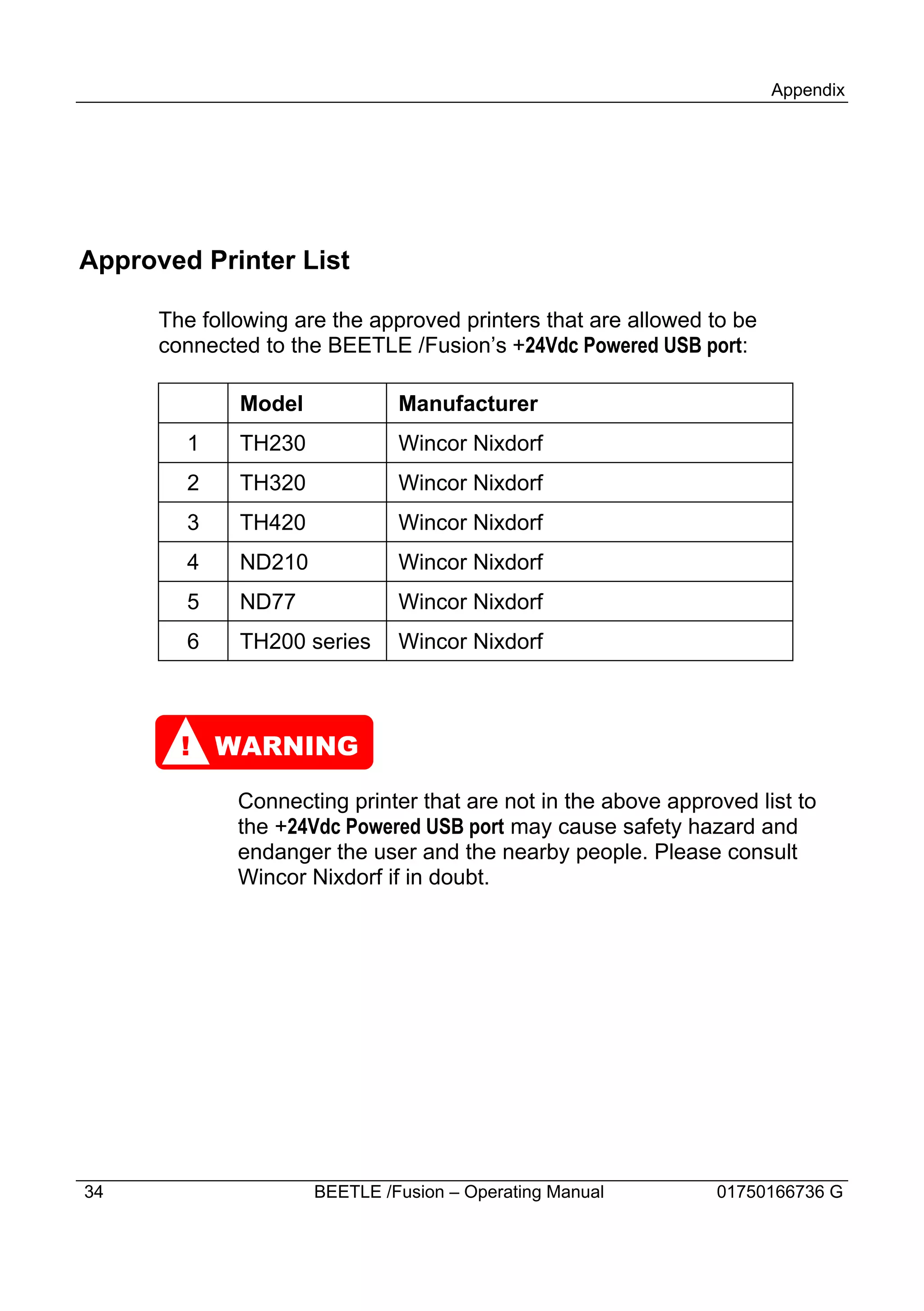

Approved Printer List..............................................................34
01750166736 G BEETLE /Fusion – Operating Manual

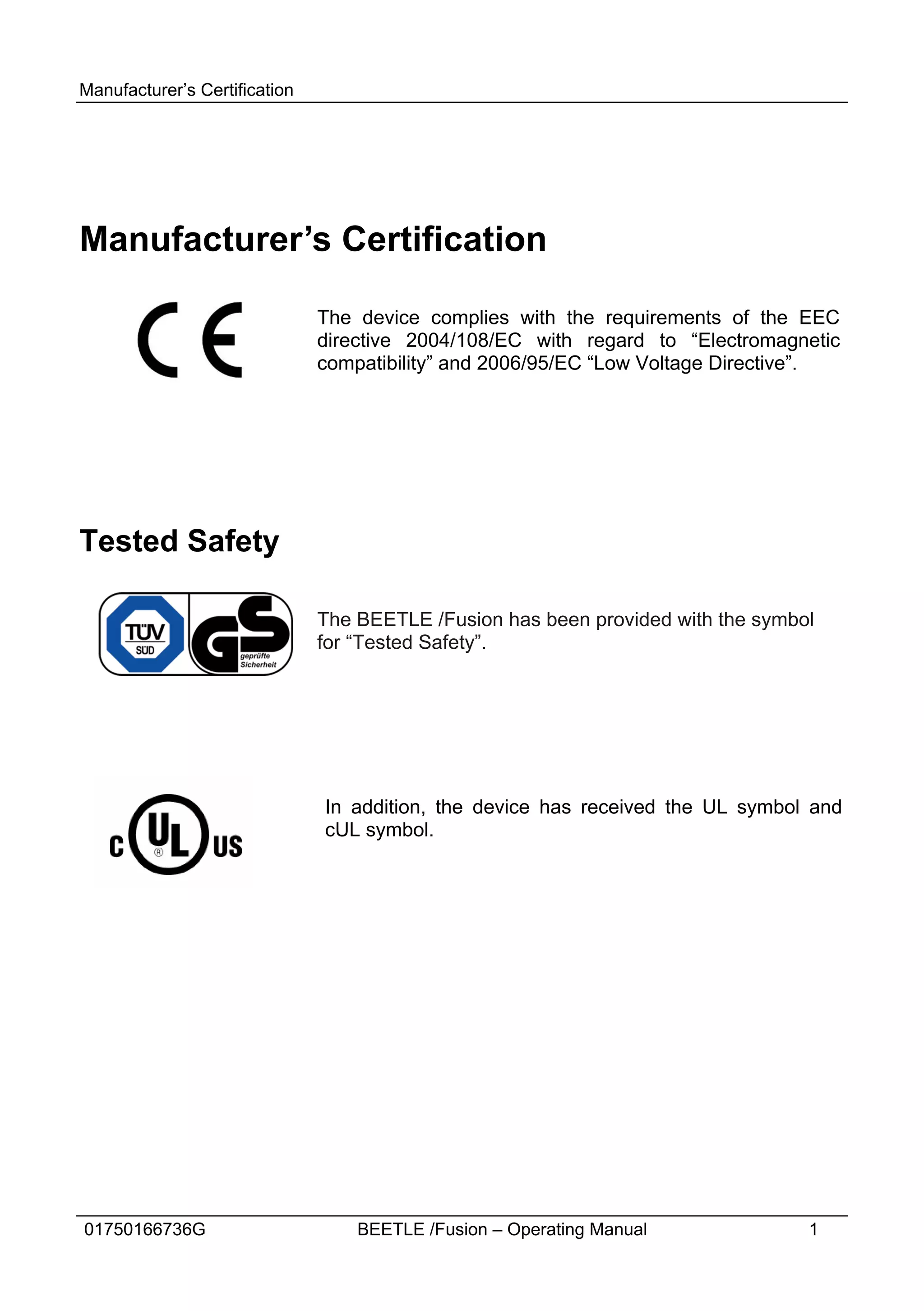

6. Manufacturer’s Certification
Manufacturer’s Certification
The device complies with the requirements of the EEC
directive 2004/108/EC with regard to “Electromagnetic
compatibility” and 2006/95/EC “Low Voltage Directive”.
Tested Safety
The BEETLE /Fusion has been provided with the symbol
for “Tested Safety”.
In addition, the device has received the UL symbol and
cUL symbol.
01750166736G BEETLE /Fusion – Operating Manual 1
7. Manufacturer’s Certification

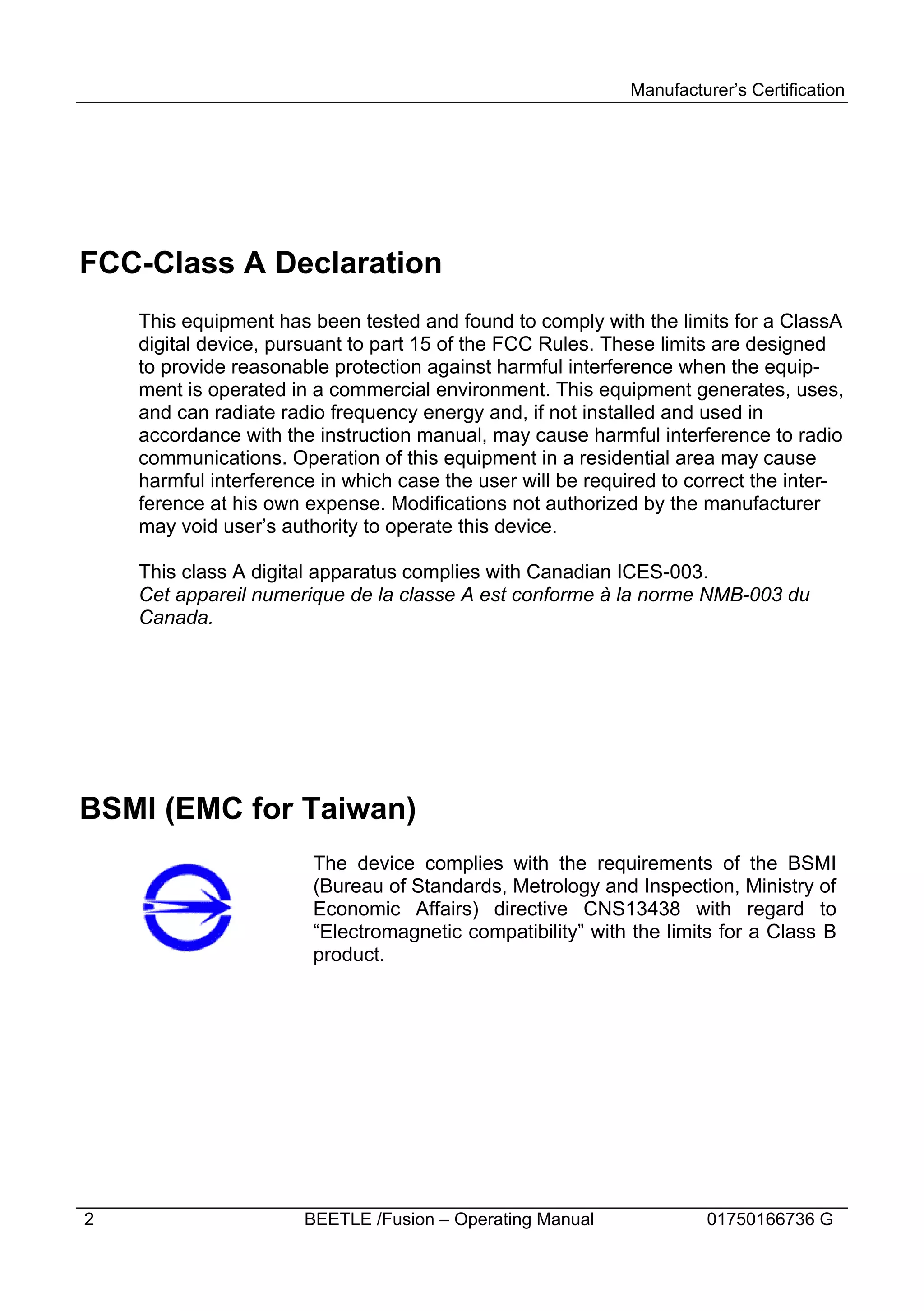

FCC-Class A Declaration
This equipment has been tested and found to comply with the limits for a ClassA
digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area may cause
harmful interference in which case the user will be required to correct the inter-
ference at his own expense. Modifications not authorized by the manufacturer
may void user’s authority to operate this device.
This class A digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe A est conforme à la norme NMB-003 du
Canada.
BSMI (EMC for Taiwan)
The device complies with the requirements of the BSMI
(Bureau of Standards, Metrology and Inspection, Ministry of
Economic Affairs) directive CNS13438 with regard to
“Electromagnetic compatibility” with the limits for a Class B
product.
2 BEETLE /Fusion – Operating Manual 01750166736 G
8. Manufacturer’s Certification

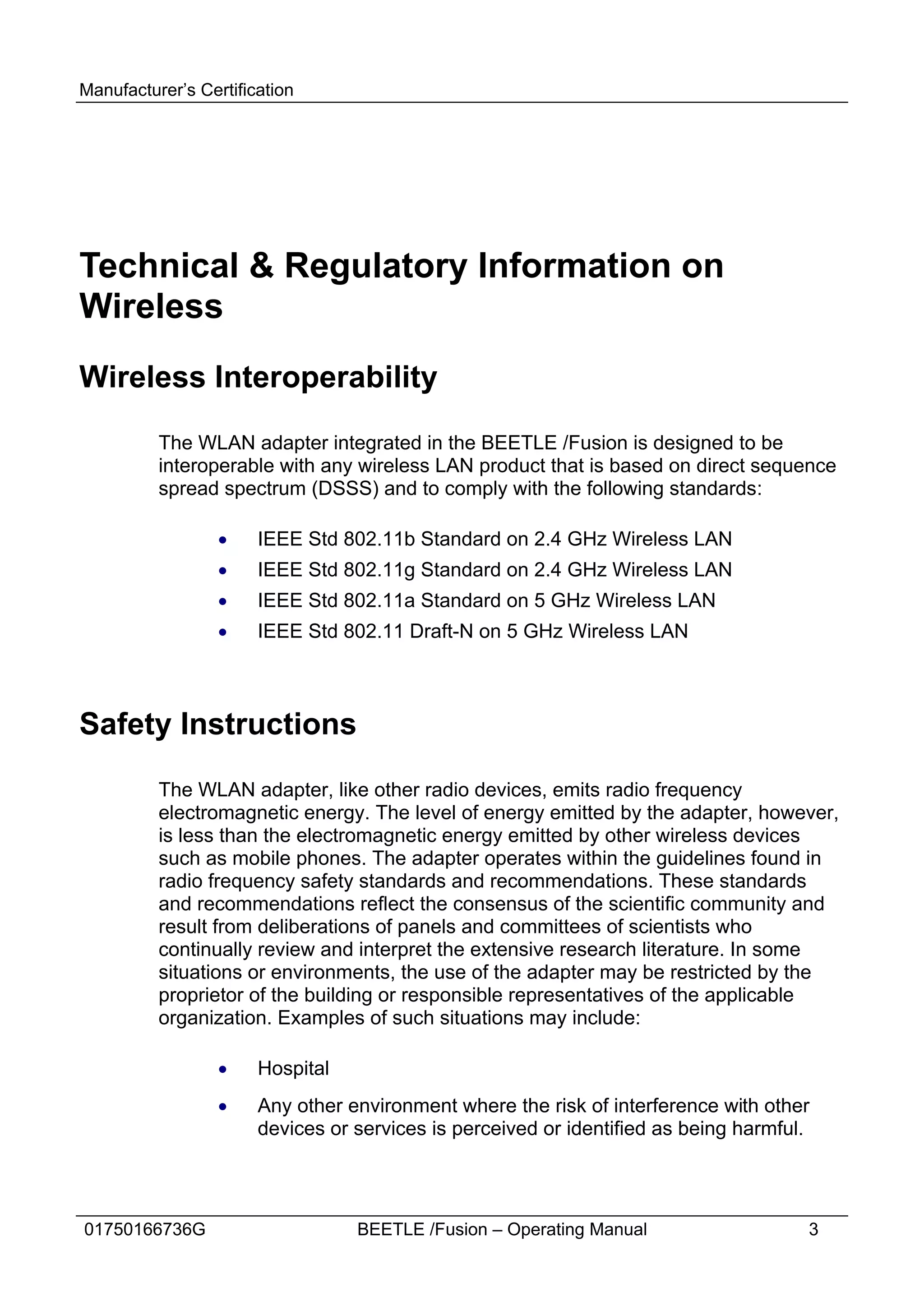

Technical & Regulatory Information on
Wireless
Wireless Interoperability
The WLAN adapter integrated in the BEETLE /Fusion is designed to be
interoperable with any wireless LAN product that is based on direct sequence
spread spectrum (DSSS) and to comply with the following standards:
· IEEE Std 802.11b Standard on 2.4 GHz Wireless LAN
· IEEE Std 802.11g Standard on 2.4 GHz Wireless LAN
· IEEE Std 802.11a Standard on 5 GHz Wireless LAN
· IEEE Std 802.11 Draft-N on 5 GHz Wireless LAN
Safety Instructions
The WLAN adapter, like other radio devices, emits radio frequency
electromagnetic energy. The level of energy emitted by the adapter, however,
is less than the electromagnetic energy emitted by other wireless devices
such as mobile phones. The adapter operates within the guidelines found in
radio frequency safety standards and recommendations. These standards
and recommendations reflect the consensus of the scientific community and
result from deliberations of panels and committees of scientists who
continually review and interpret the extensive research literature. In some
situations or environments, the use of the adapter may be restricted by the
proprietor of the building or responsible representatives of the applicable
organization. Examples of such situations may include:
· Hospital
· Any other environment where the risk of interference with other
devices or services is perceived or identified as being harmful.
01750166736G BEETLE /Fusion – Operating Manual 3
9. Manufacturer’s Certification

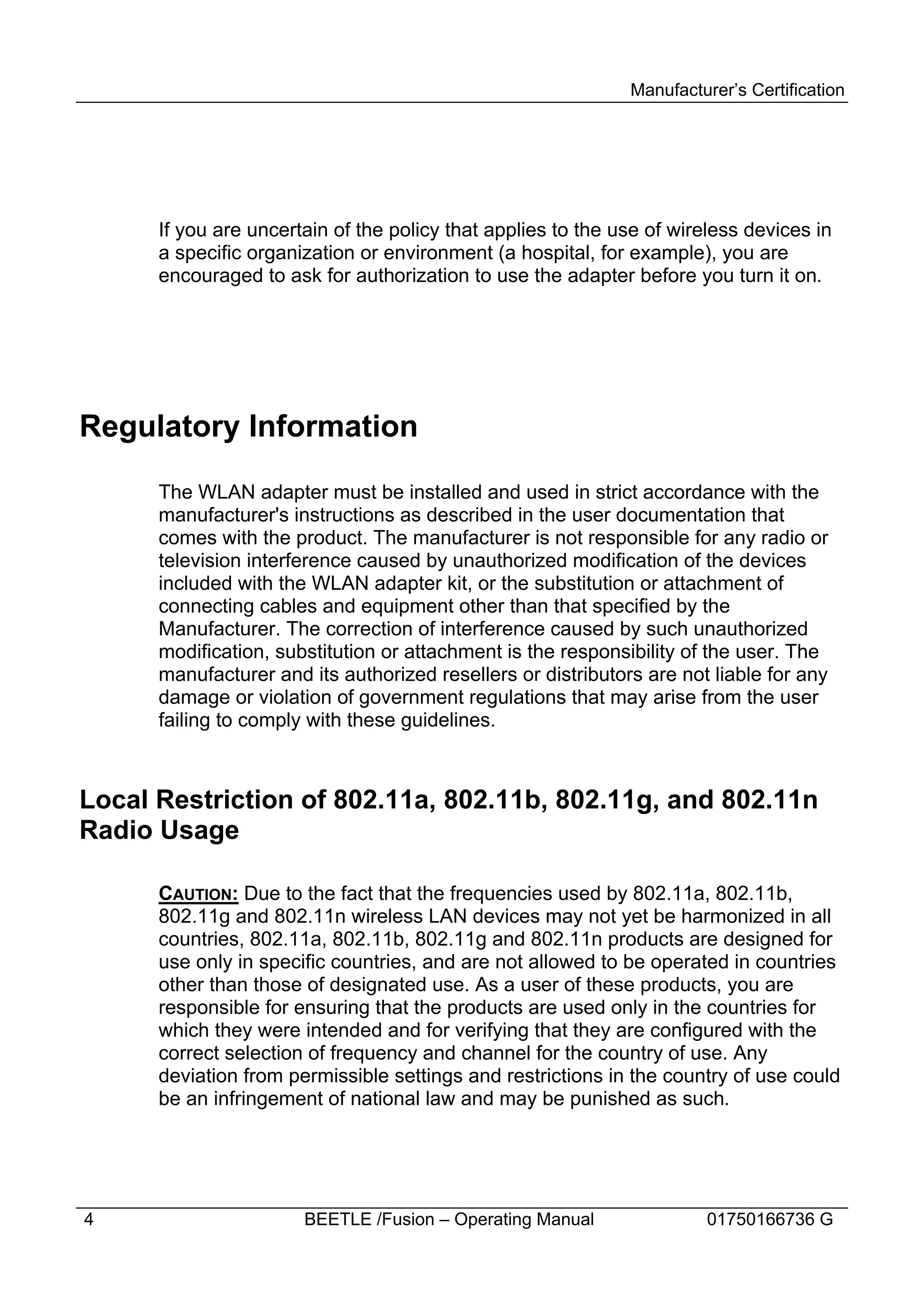

If you are uncertain of the policy that applies to the use of wireless devices in
a specific organization or environment (a hospital, for example), you are
encouraged to ask for authorization to use the adapter before you turn it on.
Regulatory Information
The WLAN adapter must be installed and used in strict accordance with the
manufacturer's instructions as described in the user documentation that
comes with the product. The manufacturer is not responsible for any radio or
television interference caused by unauthorized modification of the devices
included with the WLAN adapter kit, or the substitution or attachment of
connecting cables and equipment other than that specified by the
Manufacturer. The correction of interference caused by such unauthorized
modification, substitution or attachment is the responsibility of the user. The
manufacturer and its authorized resellers or distributors are not liable for any
damage or violation of government regulations that may arise from the user
failing to comply with these guidelines.
Local Restriction of 802.11a, 802.11b, 802.11g, and 802.11n
Radio Usage
CAUTION: Due to the fact that the frequencies used by 802.11a, 802.11b,
802.11g and 802.11n wireless LAN devices may not yet be harmonized in all
countries, 802.11a, 802.11b, 802.11g and 802.11n products are designed for
use only in specific countries, and are not allowed to be operated in countries
other than those of designated use. As a user of these products, you are
responsible for ensuring that the products are used only in the countries for
which they were intended and for verifying that they are configured with the
correct selection of frequency and channel for the country of use. Any
deviation from permissible settings and restrictions in the country of use could
be an infringement of national law and may be punished as such.
4 BEETLE /Fusion – Operating Manual 01750166736 G
10. Manufacturer’s Certification

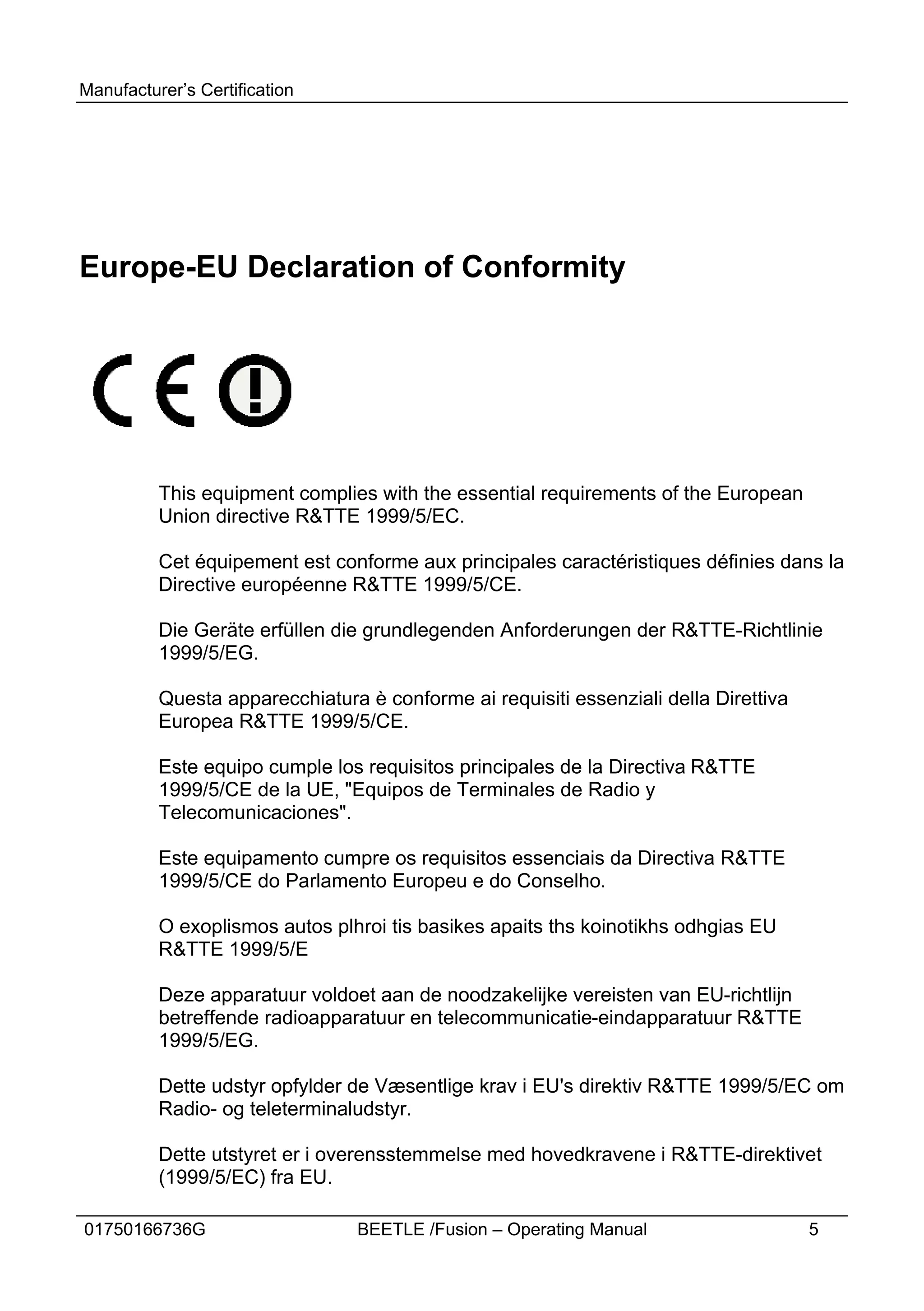

Europe-EU Declaration of Conformity
This equipment complies with the essential requirements of the European
Union directive R&TTE 1999/5/EC.
Cet équipement est conforme aux principales caractéristiques définies dans la
Directive européenne R&TTE 1999/5/CE.
Die Geräte erfüllen die grundlegenden Anforderungen der R&TTE-Richtlinie
1999/5/EG.
Questa apparecchiatura è conforme ai requisiti essenziali della Direttiva
Europea R&TTE 1999/5/CE.
Este equipo cumple los requisitos principales de la Directiva R&TTE
1999/5/CE de la UE, "Equipos de Terminales de Radio y
Telecomunicaciones".
Este equipamento cumpre os requisitos essenciais da Directiva R&TTE
1999/5/CE do Parlamento Europeu e do Conselho.
O exoplismos autos plhroi tis basikes apaits ths koinotikhs odhgias EU
R&TTE 1999/5/E
Deze apparatuur voldoet aan de noodzakelijke vereisten van EU-richtlijn
betreffende radioapparatuur en telecommunicatie-eindapparatuur R&TTE
1999/5/EG.
Dette udstyr opfylder de Væsentlige krav i EU's direktiv R&TTE 1999/5/EC om
Radio- og teleterminaludstyr.
Dette utstyret er i overensstemmelse med hovedkravene i R&TTE-direktivet
(1999/5/EC) fra EU.
01750166736G BEETLE /Fusion – Operating Manual 5
11. Manufacturer’s Certification

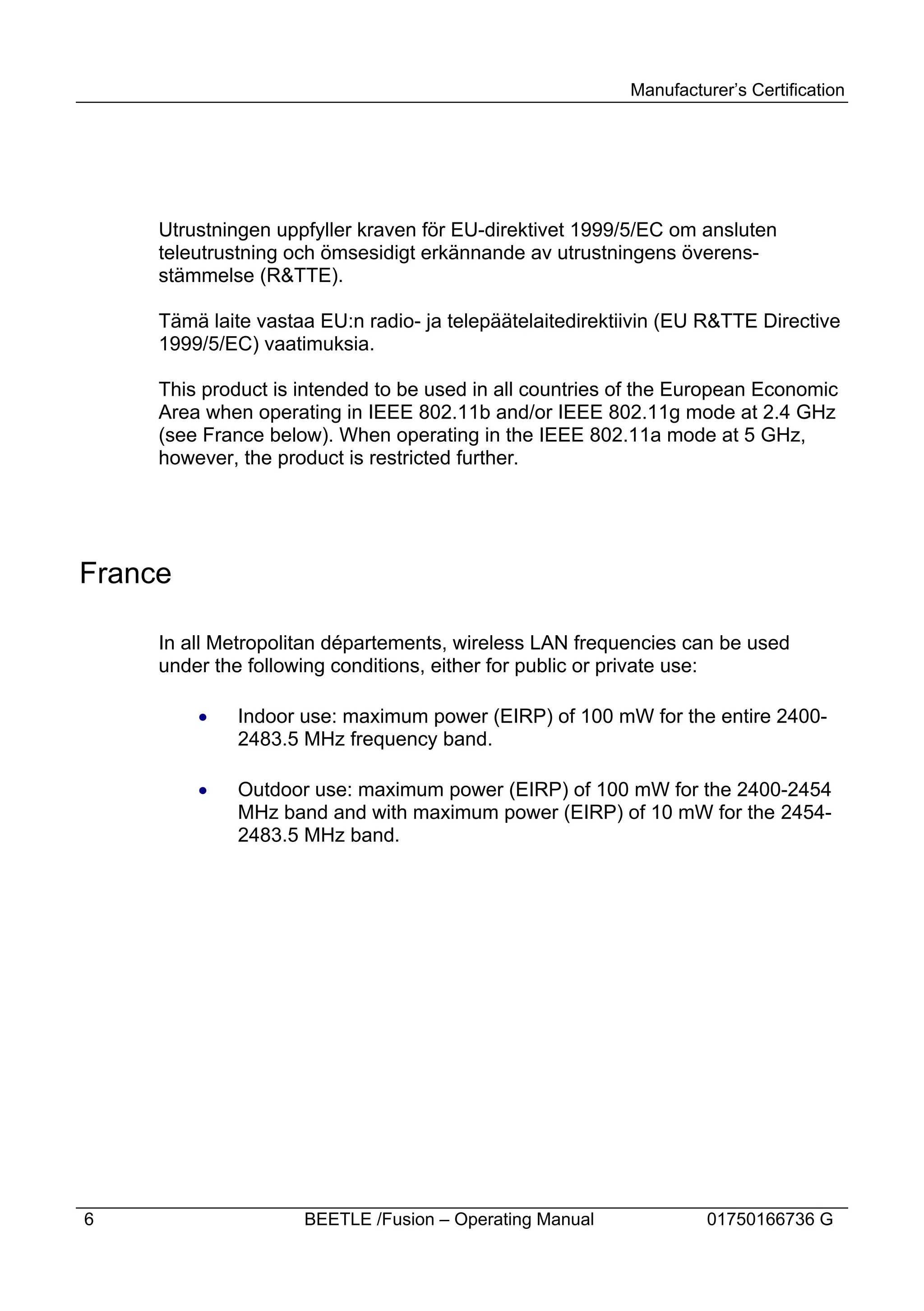

Utrustningen uppfyller kraven för EU-direktivet 1999/5/EC om ansluten
teleutrustning och ömsesidigt erkännande av utrustningens överens-
stämmelse (R&TTE).
Tämä laite vastaa EU:n radio- ja telepäätelaitedirektiivin (EU R&TTE Directive
1999/5/EC) vaatimuksia.
This product is intended to be used in all countries of the European Economic
Area when operating in IEEE 802.11b and/or IEEE 802.11g mode at 2.4 GHz
(see France below). When operating in the IEEE 802.11a mode at 5 GHz,
however, the product is restricted further.
France
In all Metropolitan départements, wireless LAN frequencies can be used
under the following conditions, either for public or private use:
· Indoor use: maximum power (EIRP) of 100 mW for the entire 2400-
2483.5 MHz frequency band.
· Outdoor use: maximum power (EIRP) of 100 mW for the 2400-2454
MHz band and with maximum power (EIRP) of 10 mW for the 2454-
2483.5 MHz band.
6 BEETLE /Fusion – Operating Manual 01750166736 G
12. Introduction

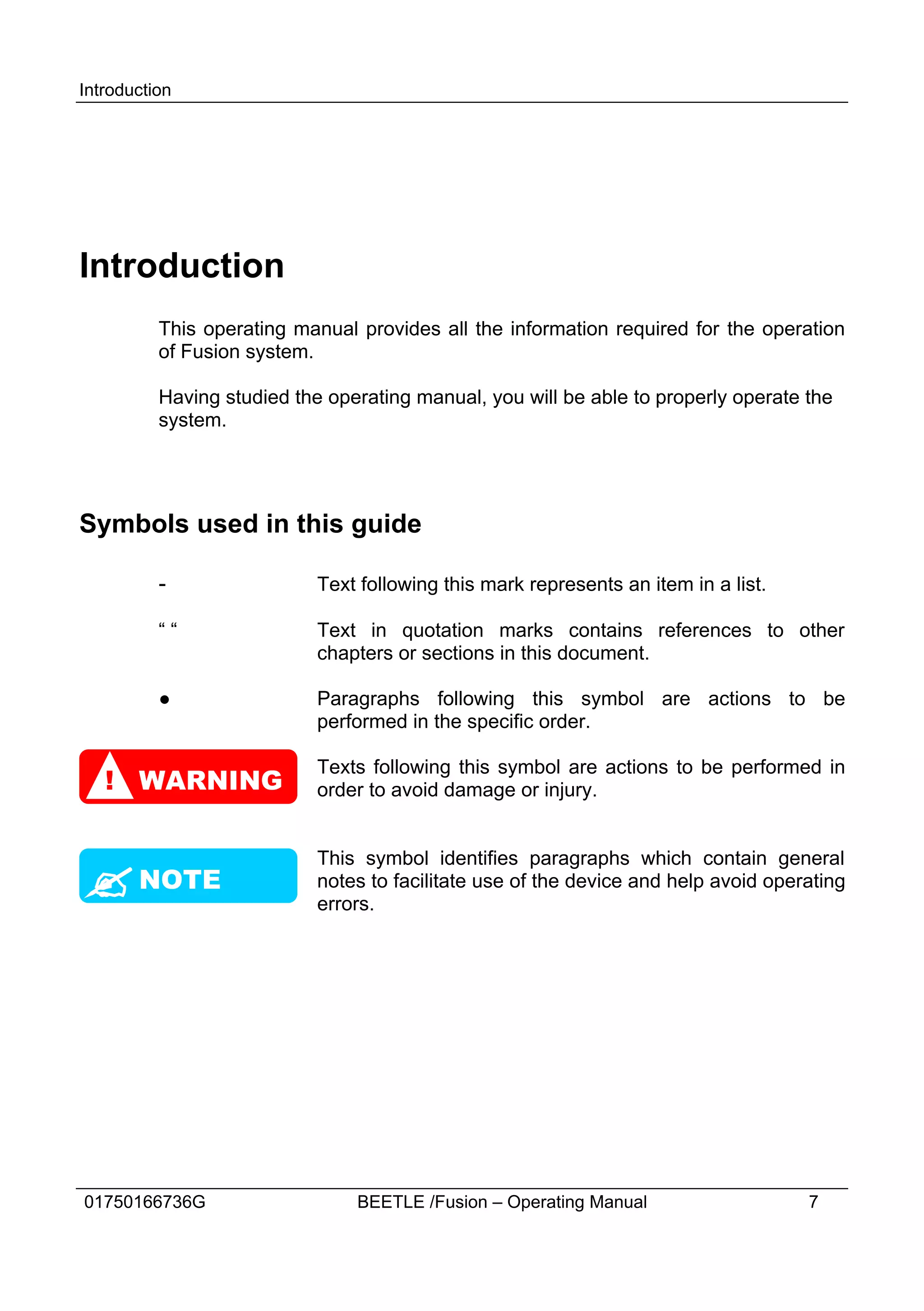

Introduction
This operating manual provides all the information required for the operation
of Fusion system.
Having studied the operating manual, you will be able to properly operate the
system.
Symbols used in this guide
- Text following this mark represents an item in a list.
““ Text in quotation marks contains references to other
chapters or sections in this document.
● Paragraphs following this symbol are actions to be
performed in the specific order.
Texts following this symbol are actions to be performed in
! WARNING order to avoid damage or injury.
This symbol identifies paragraphs which contain general
? NOTE notes to facilitate use of the device and help avoid operating
errors.
01750166736G BEETLE /Fusion – Operating Manual 7
13. Introduction

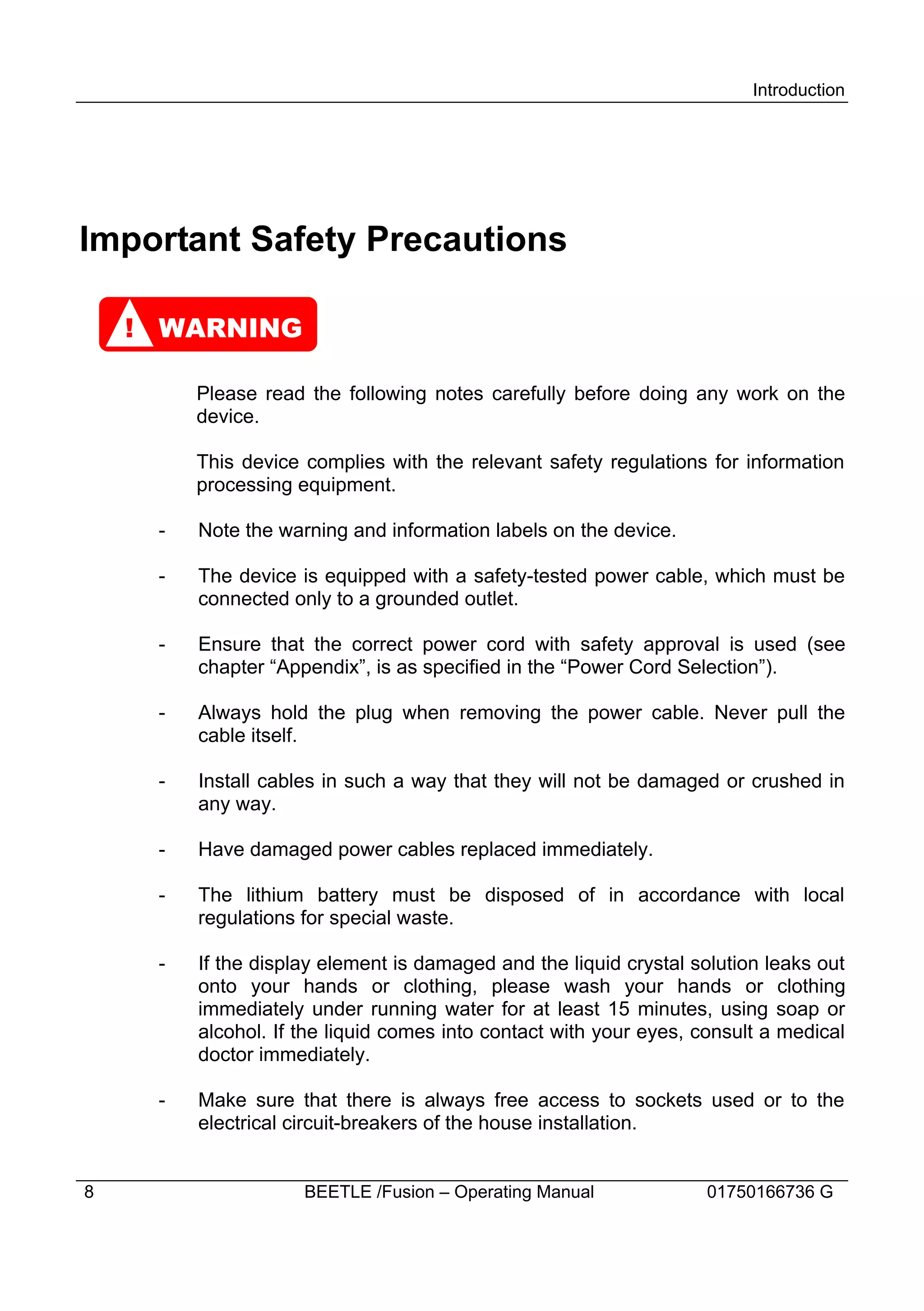

Important Safety Precautions
! WARNING
Please read the following notes carefully before doing any work on the
device.
This device complies with the relevant safety regulations for information
processing equipment.
- Note the warning and information labels on the device.
- The device is equipped with a safety-tested power cable, which must be
connected only to a grounded outlet.
- Ensure that the correct power cord with safety approval is used (see
chapter “Appendix”, is as specified in the “Power Cord Selection”).
- Always hold the plug when removing the power cable. Never pull the
cable itself.
- Install cables in such a way that they will not be damaged or crushed in
any way.
- Have damaged power cables replaced immediately.
- The lithium battery must be disposed of in accordance with local
regulations for special waste.
- If the display element is damaged and the liquid crystal solution leaks out
onto your hands or clothing, please wash your hands or clothing
immediately under running water for at least 15 minutes, using soap or
alcohol. If the liquid comes into contact with your eyes, consult a medical
doctor immediately.
- Make sure that there is always free access to sockets used or to the
electrical circuit-breakers of the house installation.
8 BEETLE /Fusion – Operating Manual 01750166736 G

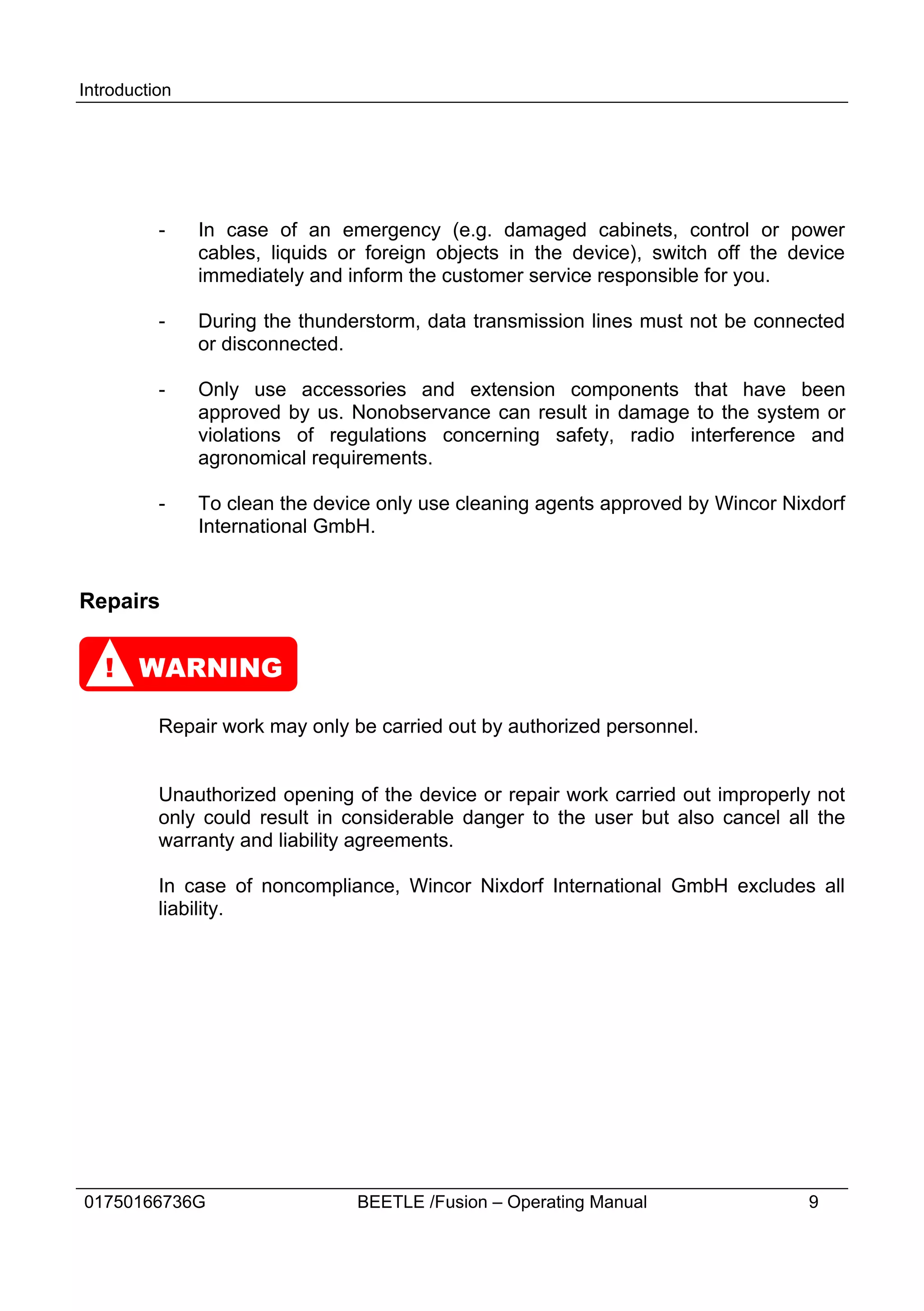

14. Introduction
- In case of an emergency (e.g. damaged cabinets, control or power
cables, liquids or foreign objects in the device), switch off the device
immediately and inform the customer service responsible for you.
- During the thunderstorm, data transmission lines must not be connected
or disconnected.
- Only use accessories and extension components that have been
approved by us. Nonobservance can result in damage to the system or
violations of regulations concerning safety, radio interference and
agronomical requirements.
- To clean the device only use cleaning agents approved by Wincor Nixdorf
International GmbH.
Repairs
! WARNING
Repair work may only be carried out by authorized personnel.
Unauthorized opening of the device or repair work carried out improperly not
only could result in considerable danger to the user but also cancel all the
warranty and liability agreements.
In case of noncompliance, Wincor Nixdorf International GmbH excludes all
liability.
01750166736G BEETLE /Fusion – Operating Manual 9
15. Overview
Overview
The BEETLE /Fusion is a family of POS terminal that is configurable for wall
mount or desktop application. It is designed for indoor installation.
Components
The configuration of the Fusion may comprise of the following components:
- Processor options:
Category A Category B Category C
o Celeron M 1.0GHz o Celeron Dual Core, o Atom D425 1.8GHz
T3100 1.9GHz
o Celeron M 1.5GHz o Atom D525 1.8GHz,
o Core 2 Duo, P8400 dual-core
2.26GHz
- Min. 512MB RAM (up to 2GB RAM)
- Mass storage options:
§ 160GB 2.5” hard disk (min.)
§ 8GB, 16GB, 32GB, 64GB SSD
- Display options:
§ 15” or 12.1” (4:3)
o Non Touch
o Capacitive Touch
o Resistive Touch
§ 18.5” wide (16:9)
o Infra-Red Touch
- Cash drawer and NVRAM (optional)
10 BEETLE /Fusion – Operating Manual 01750166736 G

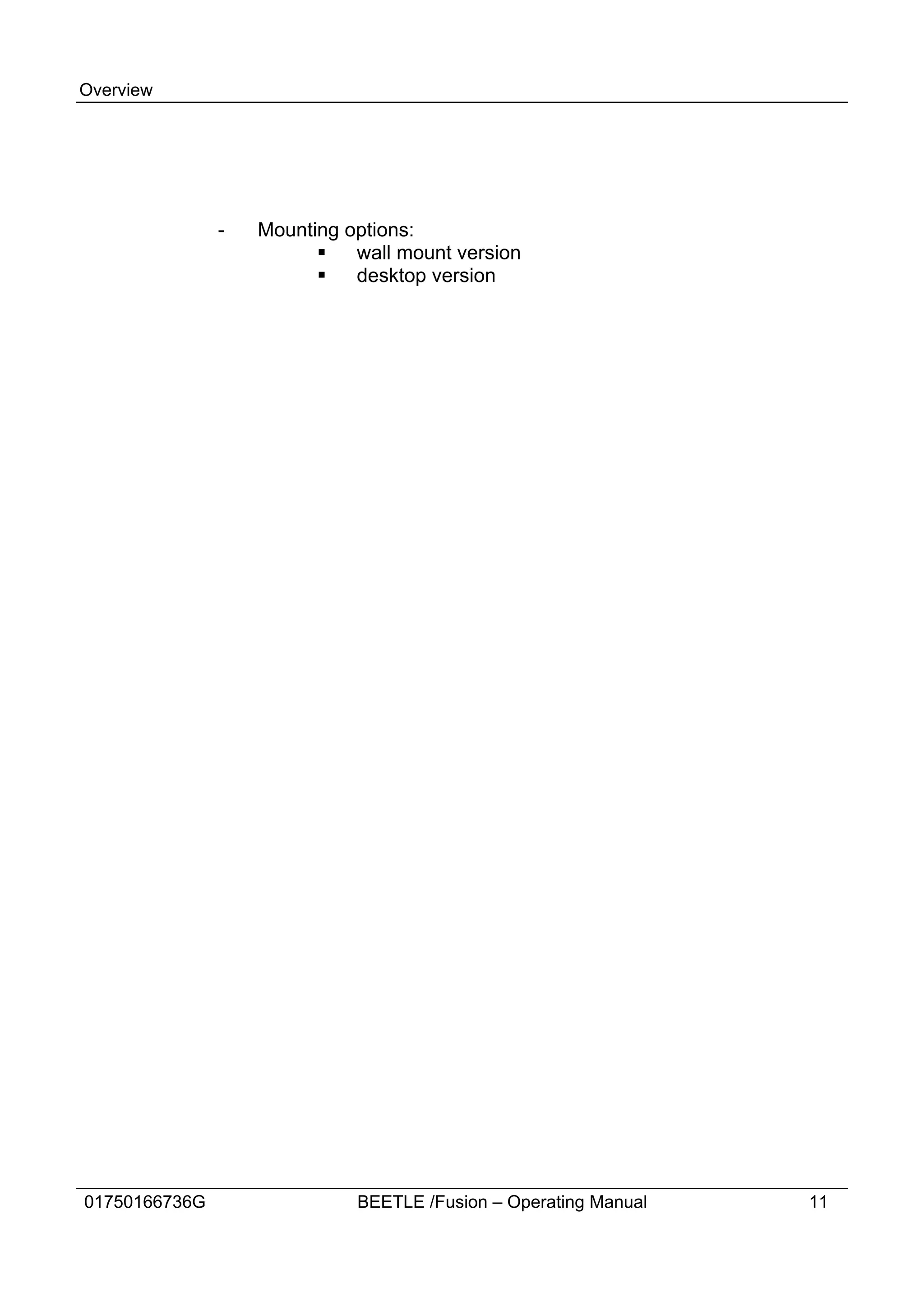

16. Overview
- Mounting options:
§ wall mount version
§ desktop version
01750166736G BEETLE /Fusion – Operating Manual 11
17. Overview
Front view – wall mount version
Camera &
microphone
Display
Stereo speakers
LED ON/OFF
Barcode reader Power ON/OFF
Proximity sensor Brightness
adjustment
12 BEETLE /Fusion – Operating Manual 01750166736 G
18. Overview
Front view – desktop version
Camera &
microphone
Display
Stereo speakers
LED ON/OFF
Brightness
adjustment Barcode reader
Proximity sensor Power ON/OFF
Desktop stand
01750166736G BEETLE /Fusion – Operating Manual 13
19. Overview
Rear View
Access cover
for customer
display
interface
Access cover
for HDD, CF &
miniPCle
Access cover
for memory
module
100mm VESA
mount holes
Cable Cover
Back cover assembly consisting of a
plastic exterior cover with an inner
metal shield
Front
bezel
14 BEETLE /Fusion – Operating Manual 01750166736 G
20. Basic Operation
Turning on BEETLE /Fusion
To put the system in operation, observe the following:
· Remove the cable cover.
· Inset the IEC connector of the cable into power supply.
· Plug the 24V plug into the jack on the BEETLE / FUSION (see arrow
below).
· Put the safety plug in the socket of the building installation.
Plug in the 24V power supply plug
here
01750166736G BEETLE /Fusion – Operating Manual 15
21. Basic Operation
· Turn on the unit by pressing the power button (1) at the bottom right of the
screen unit (1). The LED on / off lights should be visible (2)
2 LED On/Off
1 Power ON/OFF
· Once the application is started, the system is ready.
Should the system not running up, turn off the unit again. To do this, press the
power button about 5 seconds.
Check all connections on a fixed and correct position and turn the power back
on.
If the problem persists, turn the unit off again and pull the plug. Inform the
Technical Support, Wincor Nixdorf.
16 BEETLE /Fusion – Operating Manual 01750166736 G
22. Basic Operation
Turning off BEETLE /Fusion
To turn off the system, shut down the operating system. Press the power
button for about 5 seconds and observe the LED light to be off.
If possible, disconnect the power cord to completely disconnect the unit from
the mains.
Brightness adjustment
· The key for this setting are at the lower right side of the display unit (see
figure below).
· Press the ‘Arrow Up’ or ‘Arrow Down’ buttons to adjust the brightness
until the appropriate adjustment is acceptable by the user.
01750166736G BEETLE /Fusion – Operating Manual 17
23. Touch Screen
Touch screen
How to Operate
Touching the touch screen has the same effect as clicking the left mouse
button. Depending on the selected touch screen option, the user
experience with touch is different.
For capacitive touch it responds to very light touch, and only touch using
bare finger is possible.
As for resistive touch it requires slightly harder touch to get a response,
and touch with glove is possible.
IR touch responds to very light touch, or even effective when there is no
physical touch on the touch screen as it detect the touch whenever
fingers or any objects that has responded to its IR ray. Due to its
sensitivity, always make sure that the IR touch screen is dust free to
obtain optimum touch performance.
18 BEETLE /Fusion – Operating Manual 01750166736 G
24. Touch screen
Cleaning Instructions
Always turn off the system before cleaning!
The glass surface of your Touch Screen should be cleaned with a mild,
abrasive free, commercially available glass cleaning product. All pH
neutral materials (pH 6 to 8) are good for cleaning. Cleaners with pH
values 9 to 10 are not recommended. Cleaning with water and isopropyl
alcohol is possible as well. Do not use solvents containing acetic acid.
Use a soft, fine-meshed cloth to clean the surface. Dampen the cloth
slightly and then clean the screen.
A wrong maintenance may cause damages to the screen, which are not
covered by guarantee or warranty.
01750166736G BEETLE /Fusion – Operating Manual 19
25. Camera
Camera
Operation
The digital camera with integrated digital microphone is located near the
top edge of the BEETLE /Fusion. Picture or video can be taken under
the control of the software application.
The range of focus for the digital camera is from 60cm onward.
? NOTE
Camera option is NOT available for BEETLE /Fusion 12.
20 BEETLE /Fusion – Operating Manual 01750166736 G
26. Camera
Barcode reader
Hold the barcode in a landscape format underneath the barcode reader.
The laser beam will start automatically. The laser beam must cover the
whole width of the barcode.
A successful reading of the barcode will be quit with a beep.
Notes on the laser
01750166736G BEETLE /Fusion – Operating Manual 21
27. Camera
Proximity Sensor
With the proximity sensor persons as well as objects of comparable size,
moving within the detection area of the sensor, are detected and are
signalled to the application program via evaluation electronics.
The application can react to this message e. g. by sending out acoustic
signals or by changing the content on the monitor.
22 BEETLE /Fusion – Operating Manual 01750166736 G
28. Appendix
Appendix
Technical Data for BEETLE /Fusion 12
Wall mount Desktop
Dimensions
Height 296 mm 420 mm
Depth 96 mm 265 mm
Width 320 mm 320 mm
Weight of device 6.3 kg 9.0 kg
Climatic category
Operating IEC 721-3-3 class 3K3+ 5° to +40°C
Transport IEC 721-3-2 class 2K2 -25° to +60°C
Storage IEC 721-3-1 class 1K2 +5° to +40°C
Cat A & B Cat C
Rated Input voltage 24V DC (nominal) 24V DC (nominal)
Rated Input current 7.5A 4.16A
CE, FCC, CB, UL, CE, CB, CCC, BSMI
Certifications
TUV-GS, CCC, BSMI
Remarks Resistive touch only
01750166736G BEETLE /Fusion – Operating Manual 23
29. Appendix
Technical data for BEETLE /Fusion 15
Wall mount Desktop
Dimensions
Height 336 mm 430 mm
Depth 96 mm 265 mm
Width 370 mm 370 mm
Weight of device 6.8 kg 9.5 kg
Climatic category
Operating IEC 721-3-3 class 3K3+ 5° to +40°C
Transport IEC 721-3-2 class 2K2 -25° to +60°C
Storage IEC 721-3-1 class 1K2 +5° to +40°C
Cat A & B Cat C
Rated Input voltage 24V DC (nominal) 24V DC (nominal)
Rated Input current 5.0A / 7.5A 4.16A
CE, FCC, CB, UL, CE, FCC, CB, UL,
Certifications
TUV-GS, CCC, BSMI TUV-GS, CCC, BSMI
R&TTE (Cat A only) note1
note1: Certification applicable to Intel 512AN-MMW module only
24 BEETLE /Fusion – Operating Manual 01750166736 G
30. Appendix
Technical data for BEETLE /Fusion 19
Wall mount Desktop
Dimensions
Height 342 mm 434 mm
Depth 96 mm 265 mm
Width 476 mm 476 mm
Weight of device 8.0 kg 10.7 kg
Climatic category
Operating IEC 721-3-3 class 3K3+ 5° to +40°C
Transport IEC 721-3-2 class 2K2 -25° to +60°C
Storage IEC 721-3-1 class 1K2 +5° to +40°C
Cat B
Rated Input voltage 24V DC (nominal)
Rated Input current 7.5A
CE, FCC, CB, UL,
Certifications
TUV-GS, CCC, BSMI
R&TTE (Cat B only) note1
note1: Certification applicable to Intel 512AN-MMW module only
01750166736G BEETLE /Fusion – Operating Manual 25
31. Appendix
AC Power Adapter
The AC power adapter used must be Wincor Nixdorf’s qualified and has to
meet the following minimum requirements and industry standards:
Rated Input voltage 100 - 240 Vac
Input Voltage range 90 to 264Vac
Input Frequency range 47 to 63 Hz
Rated Output voltage 24V ± 5%,
4.16A (mini if BEETLE /Fusion rating is 4.16A
Rated Output current 5.0A (min) if BEETLE /Fusion rating is 5.0A
7.5A (min) if BEETLE /Fusion rating is 7.5A
Approvals &
UL Listed, TUV-GS, BSMI, CCC, CE
Certification
26 BEETLE /Fusion – Operating Manual 01750166736 G
32. Appendix
Power Cord Selection
If the power cord is not provided with the system, the user has to ensure that
a certified power cord is used as required by the Safety Regulation of the
country.
Countries Safety Approvals
USA UL
Canada CSA
Germany VDE
Japan PSE
Taiwan BSMI
China CCC
For other countries not mentioned in the above list, please check with the
local authority.
01750166736G BEETLE /Fusion – Operating Manual 27
33. Appendix
System specification
Entry-Level High-End
Processors Celeron M 1.0GHz or Atom D425 1.8GHz or Celeron T3100 1.9GHz or
Celeron M 1.5GHz Atom D525 1.8GHz Core 2 Duo P8400
2.26GHz
Chipset Intel 910GMLE, Intel Atom, ICH8M Intel GM45, ICH9M-E
ICH6M
Memory Two memory slot, One memory slot, One memory slot, support
each support up to support up to 2GB up to 4GB 1067MHz
1GB 400MHz DDR2 1067MHz DDR3 un- DDR3 un-buffered
un-buffered SODIMM buffered SODIMM. SODIMM.
Video Integrated Graphic controller, dual-independent display
Audio AC97 codec sound
On-board 2 x 2W power amplifier
Integrated speakers
28 BEETLE /Fusion – Operating Manual 01750166736 G
34. Appendix
Network On-board 10/100/1000 LAN (Ethernet)
Optional Wireless LAN 802.11 a/b/g/Draft-n with embedded antenna via mini-
PCIe
External 1 x Keyboard/Mouse, PS/2
Interfaces (User 1 x CRT
accessible)
2 x Standard USB (Type A)
1 x 24V Powered USB
1 x 12V Powered USB
1 x Standard RS232C
3 x Powered RS232C
1 x eSATA (not hot-pluggable)
1 x 10/100/1000 LAN
1 x Line-out/Speaker
1 x Line-in/Mic-in
1 x Cashdrawer (optional)
1 x 5/12VDC Output
Expansion Ports 1 x mini PCI Express
1 x Compact Flash (Type I & II)
Power 1 x 24V DC, 4-pin (input)
connectors 1 x 5/12V DC, 5-pin mini-DIN (output)
01750166736G BEETLE /Fusion – Operating Manual 29
35. Appendix
NVRAM 4K bits (optional)
Mass storage 2.5” Hard disk, 160GB minimum
8GB, 16GB, 32GB & 64GB SSD (MLC type)
Fusion 12 Fusion 15 Fusion 19
Primary Display 12.1” SVGA 15” XGA 18.5” WXGA
Resolution 800 x 600 1024 x 768 1366 x 768
Brightness 370 cd/m2 250 cd/m2 250 cd/m2
Contrast ratio 450 300 1000
Touch screen Capacitive or Resistive Infra-Red
option
Camera option –
integrated camera X P P
with microphone
.
30 BEETLE /Fusion – Operating Manual 01750166736 G
37. Appendix
Total Available Power of External I/O Ports
The total power available for the external IO ports depends on the choice of
AC power adapter used. Below is the Wincor Nixdorf’s approved AC power
adapter for BEETLE /Fusion.
Wincor P/N Model Name Output Power Total power available
Rating of AC for External I/O Ports
Power Adapter
01750167073 FSP120-ACA 120W 40W
01750171156 FSP180-AAAN1 180W 100W
01750205088 ADP-1002-24V 100W 65W
IMPORTANT NOTE:
Table below shows a list of free external I/O ports and the corresponding
power ratings. Before connecting additional peripherals to these ports, service
engineer or trained technician must check and ensure that the power
consumptions of the peripherals do not exceed the maximum output powers
of the ports and that the total power consumption does not exceed the total
available power of the selected of AC power adapter, especially when using
the output connector USB3(24V) or USB4(12V).
32 BEETLE /Fusion – Operating Manual 01750166736 G
38. Appendix
I/O Port Name Rated Max Max Power Max Total Power
Voltage Current (W) consumption
(V) (A) (W)
COM2&3 12 1 12
(combined) 5 1 5
COM4 12 1 12 Depends on the power
5 0.5 2.5 adapter used.
USB1 5 0.5 2.5 See above table for the
USB2 5 0.5 2.5 applicable total
USB3 (+24Vdc 5 0.5 2.5 available power
powered) 24 3 72
USB4 (+12Vdc 5 0.5 2.5
powered) 12 3 36
USB5 (mini-PCIe) 5 0.5 2.5
5/12V Output 12 1.5 18
5 1.5 7.5
Other Notes:
1. To avoid damage to the system, installation of additional
peripherals should be done by service engineer or trained
technician.
2. For Cat A & B processor options, only use 180W power adapter
or of higher rating if a printer is to be connected to the +24Vdc
powered USB port.
3. See the Approved Printer List in the following section if printer is
used with the +24Vdc Powered USB port
4. For model BEETLE /Fusion 19, the USB3 24V powered USB
output and the USB4 12V powered USB output are not Limited
Power Source according to IEC 60950. The intended
peripherals are UL Listed product. Please consult Wincor
Nixdorf if in doubt.
01750166736G BEETLE /Fusion – Operating Manual 33
39. Appendix
Approved Printer List
The following are the approved printers that are allowed to be
connected to the BEETLE /Fusion’s +24Vdc Powered USB port:
Model Manufacturer
1 TH230 Wincor Nixdorf
2 TH320 Wincor Nixdorf
3 TH420 Wincor Nixdorf
4 ND210 Wincor Nixdorf
5 ND77 Wincor Nixdorf
6 TH200 series Wincor Nixdorf
! WARNING
Connecting printer that are not in the above approved list to
the +24Vdc Powered USB port may cause safety hazard and
endanger the user and the nearby people. Please consult
Wincor Nixdorf if in doubt.
34 BEETLE /Fusion – Operating Manual 01750166736 G
