1. InterConnect
2017
BAS-5676:
Java EE 8 Introduction
Kevin Sutter, STSM
Java EE Architect

2. 2 3/19/17

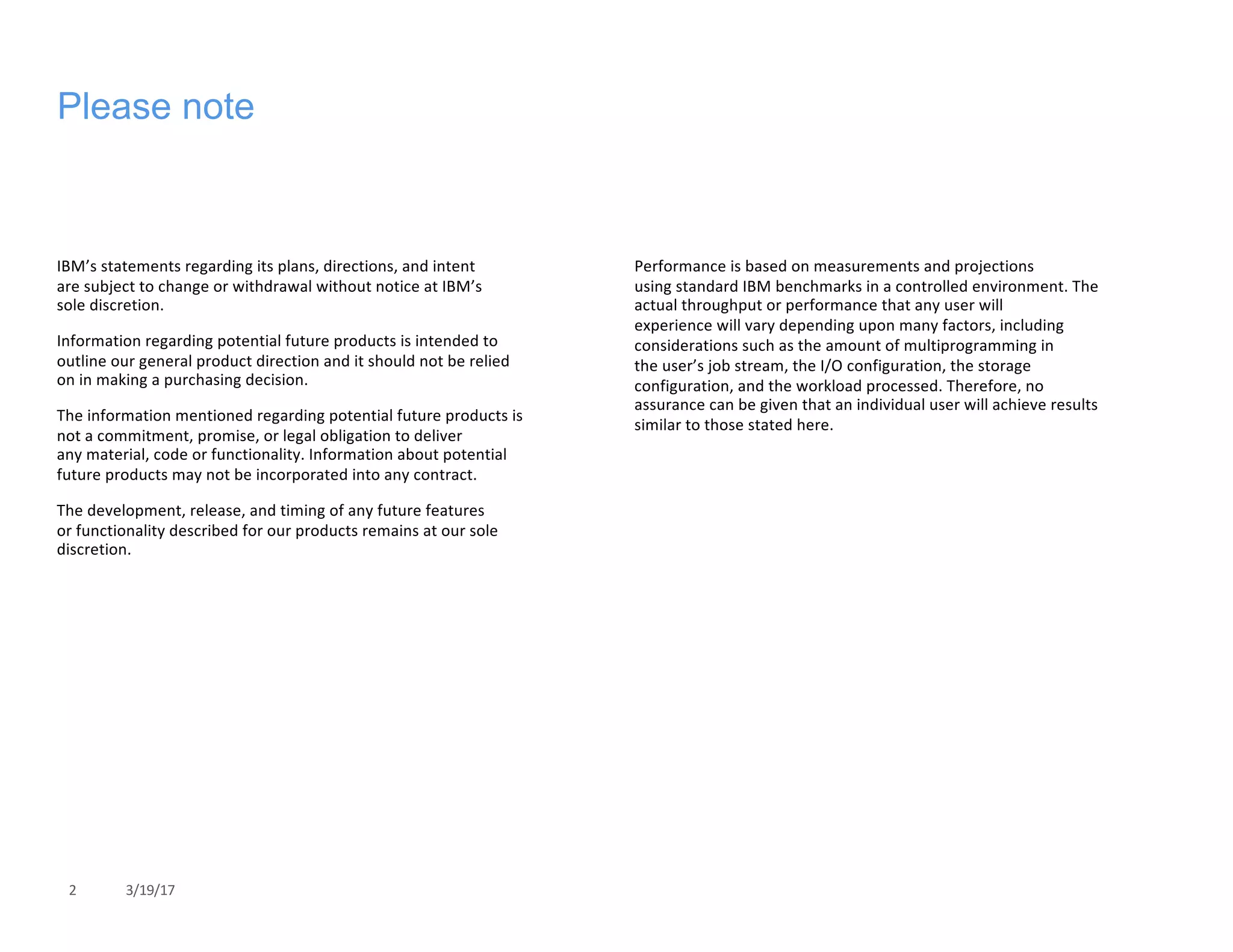

Please note
IBM’s statements regarding its plans, directions, and intent
are subject to change or withdrawal without notice at IBM’s
sole discretion.
Information regarding potential future products is intended to
outline our general product direction and it should not be relied
on in making a purchasing decision.
The information mentioned regarding potential future products is
not a commitment, promise, or legal obligation to deliver
any material, code or functionality. Information about potential
future products may not be incorporated into any contract.
The development, release, and timing of any future features
or functionality described for our products remains at our sole
discretion.
Performance is based on measurements and projections
using standard IBM benchmarks in a controlled environment. The
actual throughput or performance that any user will
experience will vary depending upon many factors, including
considerations such as the amount of multiprogramming in
the user’s job stream, the I/O configuration, the storage
configuration, and the workload processed. Therefore, no
assurance can be given that an individual user will achieve results
similar to those stated here.

3. Java EE 8 Introduction
(as of Feb 2017)
3 3/19/17

4. Java EE 8 – Where are we at and how did we get here?
4 3/19/17

5. Java EE 8 – Late 2015
Servlet 4.0
(JSR 369)
JMS 2.1
(JSR 368)
JSON-B
(JSR 367)
JAX-RS 2.1
(JSR 370)
Security 1.0
(JSR 375)
CDI 2.0
(JSR 365)
JSF 2.3
(JSR 372)
MVC 1.0
(JSR 371)
Bean Validation 2.0
(JSR 380)
Management 2.0
(JSR 373)
JSON-P 1.1
(JSR 374)
5 3/19/17

6. Java EE 8 – JavaOne 2016 (Sept)
Servlet 4.0
(JSR 369)
JMS 2.1
(JSR 368)
JSON-B
(JSR 367)
JAX-RS 2.1
(JSR 370)
Security 1.0
(JSR 375)
Configuration 1.0
(JSR ???)
CDI 2.0
(JSR 365)
JSF 2.3
(JSR 372)
MVC 1.0
(JSR 371)
Bean Validation 2.0
(JSR 380)
Management 2.0
(JSR 373)
JSON-P 1.1
(JSR 374)
Health Check 1.0
(JSR ???)
6 No Change Drop from Java EE 8 Add to Java EE 83/19/17

7. Java EE 8 – Early 2017 Draft
Servlet 4.0
(JSR 369)
JMS 2.1
(JSR 368)
JSON-B
(JSR 367)
JAX-RS 2.1
(JSR 370)
Security 1.0
(JSR 375)
Configuration 1.0
(JSR ???)
CDI 2.0
(JSR 365)
JSF 2.3
(JSR 372)
MVC 1.0
(JSR 371)
Bean Validation 2.0
(JSR 380)
Management 2.0
(JSR 373)
JSON-P 1.1
(JSR 374)
Health Check 1.0
(JSR ???)
7 No Change Drop from Java EE 8 Add to Java EE 8
JPA 2.2
(JSR ???)
Java Mail 1.6
Common Annotations 1.3
Interceptors 1.2 rev A
3/19/17

8. Java EE 8 – InterConnect 2017
Servlet 4.0
(JSR 369)
JSON-B
(JSR 367)
JAX-RS 2.1
(JSR 370)
Security 1.0
(JSR 375)
CDI 2.0
(JSR 365)
JSF 2.3
(JSR 372)
Bean Validation 2.0
(JSR 380)
JSON-P 1.1
(JSR 374)
8
JPA 2.2
(JSR ???)
Java Mail 1.6
Common Annotations 1.3
Interceptors 1.2 rev A
Final Content ???
3/19/17

9. Java EE 8 Content
(as of Feb 2017)
9 3/19/17

10. Security 1.0 (JSR 375)
• Scaled back from original content in order to make Java EE 8
dates… The following items are still in plan…
• API for Authentication Mechanism
• API for Identity Store
• API for Security Context (still being discussed)
• Goals
• Plug the portability holes
• Modernize – Utilize CDI, POJOs, EL
• App Developer Friendly – Common security configurations and
annotation defaults
• New Reference Impl – Soteria
• Should work on existing Java EE 7 Impls…
3/19/1710

11. Servlet 4.0 (JSR 369)
• Support for HTTP/2*
• Request/response multiplexing
• Stream prioritization
• Server push promise request
• Major upgrade from HTTP 1.0, but still compatible with 1.0 and 1.1
• Smaller community-requested improvements (JIRA issues)
• Support for request.getMapping so an application can determine which
mapping was used to select the resource being called
• Support for specifying a default context for the application in web.xml
• Support for specifying default request/response character encoding in
web.xml
3/19/1711

12. Servlet 4.0 (JSR 369) - cont
• *HTTP/2 hiccup
• Currently, the ALPN dependency is only provided in Java SE 9
• Java EE 8 only requires Java SE 8
• Disconnect that needs to be ironed out…
• Current thought is to backport the required APIs to Java SE 8 in the jdk.* package
• Immediately mark these as ”deprecated” so that they are not accidentally used in
Java SE 9
• But, no official work item has been logged with the Oracle JDK to resolve this yet…
3/19/1712

13. CDI 2.0 (JSR 365)
• Core CDI, Java SE CDI, and Java EE CDI
• Ordering of observers based on priorities
void afterLogin(@Observes @Priority(javax.interceptor.Interceptor.Priority.APPLICATION)
LoggedInEvent event) { ... }
• Asynchronous Events
@Inject Event<LoggedInEvent> loggedInEvent;
public void login() {
...
loggedInEvent.fireAsync( new LoggedInEvent(user) );
}
• Introduced Configurator Interfaces
For example, AnnotedTypeConfigurator SPI for AnnotatedType configuration
• Built-in annotation literals, such as Default
• Utilize Java 8 language features – streams, lambdas, etc
3/19/1713

14. Bean Validation 2.0 (JSR 380)
• Container element validation via annotations on type arguments of
generics.
• List<@Max(1) Integer> postiveNumbers;
• Map<@Valid CustomerType, @Valid Customer>
customersByType;
• Cascaded validation of arrarys, iterables, and maps.
• @Valid List<Address> addresses;
• New date/time data types built-in constraints of @Past and @Future
or custom temporal constraints can now be used for temporal
validation.
• Other new features include:
• built-in constraints are now marked as repeatable
• parameter names for method validation are retrieved through reflection
• support for JavaFX property types
• java.util.Optional support
3/19/1714

15. JSON-B 1.0 (JSR 367)
• Converts Java objects to and from JSON
• Natural follow up to JSON-P: closes the JSON support gap
• JAXB-like API to marshal/unmarshal Java objects to/from JSON
• javax.json.bind
• Default mapping for basic Java types, including collections and
arrays
• Optional overrides for customized mappings
public class Employee {
public String firstName;
public String lastName;
@JsonbProperty(value = "ssn")
public long taxId;
}
Jsonb jsonb = JsonbBuilder.create();
Employee employee =
jsonb.fromJson("{firstName:"Kevin",lastName:"Sutter",ssn:123456789}",
Employee.class);
String json = jsonb.toJson(employee);3/19/1715

16. JSON-P 1.1 (JSR 374)
• Keep JSON-P spec up-to-date and relevant
• And, consistent with JSON-B 1.0 (JSR 367)
• Support for IETF standards on JSON Pointer, JSON Patch, and
JSON Merge
• rfc6901, rfc6902, and rfc7396, respectively
• Add Editing operations to JsonObject and JsonArray
• add all, remove, set at index, add at index operations
• Helper classes and methods to better utilize Java SE 8’s stream
operations
3/19/1716

17. JAX-RS 2.1 (JSR 370)
• Server-sent events
• Reactive Client API
• Needed for both Server-sent event processing as well as improving the
jax-rs asynchronous client support.
• Non-blocking I/O in providers (filters, interceptors…)
• Utilize Java SE 8 language features such as lambdas
• Scaled back a bit from original jax-rs 2.1 intent…
• Hypermedia API Enhancements
• Support for declarative security
• JAX-RS resource classes as controllers (for MVC, which was dropped)
3/19/1717

18. JSF 2.3 (JSR 372)
• WebSocket Integration
• Multi-field validation
• Java 8 SE Time/Date support
• CDI integration enhancements
• Use CDI for evaluation of JSF specific EL implicit Objects
• Deprecate javax.faces.bean. Support @Inject on JSF specific artifacts
• CDI Replacement for @ManagedProperty. See javadocs for
javax.faces.annotation.ManagedProperty.
http://arjan-tijms.omnifaces.org/p/jsf-23.html
3/19/1718

19. JPA 2.2 (JSR ???)
• Pretty minor – Maintenance Release (MR) ???
• Support for Java SE 8 language updates
• Repeating annotations
• Java Date/Time support
• Stream support in queries
3/19/1719

20. Other minor JSR updates…
• JavaMail 1.6 (JSR 919)
• @Repeatable on @MailSession annotation
• Common Annotations 1.3 (JSR 250)
• Very common to update Common Annotations with every Java EE
release
• Interceptors 1.2 rev A (JSR 318)
• No functional changes, just cleanup and clarifications
3/19/1720

21. Java EE 8 Roadmap
(as of Feb 2017)
21 3/19/17

22. Java EE 8 Specification, Early Draft 2
• EDR 2 was submitted for review 11/28/2016
• Very little discussion
• Some discussion about why JMS 2.1 was dropped…
• Overall, pretty quiet review…
3/19/1722

23. Java EE 8 Survey Results
• Posted 12/21/2016
• Results
https://blogs.oracle.com/theaquarium/entry/java_ee_8_community_s
urvey2
• Summary
https://java.net/projects/javaee-
spec/downloads/download/Java%20EE%20Survey%20Results%20Dece
mber%202016.pdf
• Top Features
• REST (JAX-RS 2.1) and HTTP/2 (Servlet 4.0)
• Other High-ranking Features
• CDI 2.0, Bean Validation 2.0, and JSF 2.3
• JSON-B 1.0, JSON-P 1.1
• Security in general…
3/19/1723

24. Java EE 8 – InterConnect 2017
Servlet 4.0
(JSR 369)
JSON-B
(JSR 367)
JAX-RS 2.1
(JSR 370)
Security 1.0
(JSR 375)
CDI 2.0
(JSR 365)
JSF 2.3
(JSR 372)
Bean Validation 2.0
(JSR 380)
JSON-P 1.1
(JSR 374)
24
JPA 2.2
(JSR ???)
Java Mail 1.6
Common Annotations 1.3
Interceptors 1.2 rev A
Final Content ???
3/19/17

25. Java EE 8 Completion in 3Q 2017 ???
• Feb 21 “Announcement”
• Public Review - Apr/May 2017
• Proposed Final Draft - June 2017
• Final Release - July 2017
• Much more detail…
• https://www.slideshare.net/delabassee/java-ee-8-february-2017-
update
• Goal is to have Java EE 8 ready by JavaOne (Sept 2017)
• Glassfish (Reference Implementation) ready when ???
• https://blogs.oracle.com/theaquarium/entry/glassfish_5_update
3/19/1725

26. WebSphere’s Plans for Java EE 8
• WebSphere is a Java EE Application Server
• WebSphere has certified and supported every version of Java
EE since J2EE 1.4
• You do the math… J
3/19/1726

27. Sampling of Related Sessions…
• HAJ-4308: OpenJPA, EclipseLink, and the WebSphere Migration Toolkit
– Monday, Mar 20, 1:00pm-1:45pm, Mandalay Bay South, Level 2 – Reef B
• HAM-4393: MicroProfile, Java EE, and the Application Server
– Monday, Mar 20, 2:00-2:45pm, Mandalay Bay North, Level 0 – Islander F
• 1842: Technical Deep-Dive into IBM WebSphere Liberty
– Tuesday, Mar 21, 1:30-2:15pm, Mandalay Bay North, Level 0 – Islander G
– Tuesday, Mar 21, 4:45-5:30pm, Surf D
• 7014: Roundtable Discussion on Building Java Microservices with WebSphere Liberty
– Monday, Mar 20, 2:00-2:45pm, Tropics A
– Wednesday, Mar 22, 8:00-8:45am, Tropics A
• HAJ-4328: Java EE 7 Overview
– Wednesday, Mar 22, 8:00-8:45am, Mandalay Bay South, Level 2 – Reef B
• BAS-5676: Java EE 8 Introduction
– Wednesday, Mar 22, 2:00-2:45pm, Mandalay Bay North, Level 0 – South Pacific A
• BMC-4286: MicroProfile: A Programming Model for Microservices-Based Applications
– Wednesday, Mar 22, 4:15-5:00pm, Mandalay Bay North, Level 0 – South Pacific A
• HAJ-4344: Java SE 9 and the Application Server
– Thursday, Mar 23, 10:30-11:15am, Mandalay Bay South, Level 2 – Reef B
• 1835: Agile Development Using MicroProfile and IBM WebSphere Liberty (Lab)
– Thursday, Mar 23, 10:30-12:15pm, South Seas D
27

28. Questions?
3/19/1728

29. 29 3/19/17
Notices and disclaimers
Copyright © 2017 by International Business Machines Corporation (IBM).
No part of this document may be reproduced or transmitted in any form
without written permission from IBM.
U.S. Government Users Restricted Rights — use, duplication or disclosure
restricted by GSA ADP Schedule Contract with IBM.
Information in these presentations (including information relating to
products that have not yet been announced by IBM) has been reviewed for
accuracy as of the date of initial publication and could include unintentional
technical or typographical errors. IBM shall have no responsibility to update
this information. This document is distributed “as is” without any warranty,
either express or implied. In no event shall IBM be liable for any damage
arising from the use of this information, including but not limited to, loss
of data, business interruption, loss of profit or loss of opportunity.
IBM products and services are warranted according to the terms and
conditions of the agreements under which they are provided.
IBM products are manufactured from new parts or new and used parts.
In some cases, a product may not be new and may have been previously
installed. Regardless, our warranty terms apply.”
Any statements regarding IBM's future direction, intent or product plans
are subject to change or withdrawal without notice.
Performance data contained herein was generally obtained in a controlled,
isolated environments. Customer examples are presented
as illustrations of how those customers have used IBM products and
the results they may have achieved. Actual performance, cost, savings or
other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not
imply that IBM intends to make such products, programs or services
available in all countries in which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by
independent session speakers, and do not necessarily reflect the
views of IBM. All materials and discussions are provided for informational
purposes only, and are neither intended to, nor shall constitute legal or
other guidance or advice to any individual participant or their specific
situation.
It is the customer’s responsibility to insure its own compliance with legal
requirements and to obtain advice of competent legal counsel as to
the identification and interpretation of any relevant laws and regulatory
requirements that may affect the customer’s business and any actions
the customer may need to take to comply with such laws. IBM does not
provide legal advice or represent or warrant that its services or products will
ensure that the customer is in compliance with any law.

30. 30 3/19/17
Notices and disclaimers
continued
Information concerning non-IBM products was obtained from the suppliers
of those products, their published announcements or other publicly available
sources. IBM has not tested those products in connection with this
publication and cannot confirm the accuracy of performance, compatibility
or any other claims related to non-IBM products. Questions on the
capabilities of non-IBM products should be addressed to the suppliers of
those products. IBM does not warrant the quality of any third-party
products, or the ability of any such third-party products to interoperate with
IBM’s products. IBM expressly disclaims all warranties, expressed or
implied, including but not limited to, the implied warranties of
merchantability and fitness for a particular, purpose.
The provision of the information contained herein is not intended to, and
does not, grant any right or license under any IBM patents, copyrights,
trademarks or other intellectual property right.
IBM, the IBM logo, ibm.com, Aspera®, Bluemix, Blueworks Live, CICS,
Clearcase, Cognos®, DOORS®, Emptoris®, Enterprise Document Management
System™, FASP®, FileNet®, Global Business Services®,
Global Technology Services®, IBM ExperienceOne™, IBM SmartCloud®, IBM
Social Business®, Information on Demand, ILOG, Maximo®,
MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower,
PureAnalytics™, PureApplication®, pureCluster™, PureCoverage®, PureData®,
PureExperience®, PureFlex®, pureQuery®, pureScale®, PureSystems®, QRadar®,
Rational®, Rhapsody®, Smarter Commerce®, SoDA, SPSS, Sterling Commerce®,
StoredIQ, Tealeaf®, Tivoli® Trusteer®, Unica®, urban{code}®, Watson,
WebSphere®, Worklight®, X-Force® and System z® Z/OS, are trademarks of
International Business Machines Corporation, registered in many
jurisdictions worldwide. Other product and service names might
be trademarks of IBM or other companies. A current list of IBM trademarks is
available on the Web at "Copyright and trademark information" at:
www.ibm.com/legal/copytrade.shtml.

31. InterConnect
2017
31 3/19/17
