1. AWS Step Functions 実践
AWS Premeir Night #3
クラスメソッド株式会社
菊池 修治

2. • 菊池 修治（きくち しゅうじ）
– クラスメソッド AWS事業
– Solutions Architect
– AWS Certified in All 5!
– SIer à 製造業 à クラスメソッド
– 好きなAWSサービス
• VPC、S3、Step Functions
⾃⼰紹介

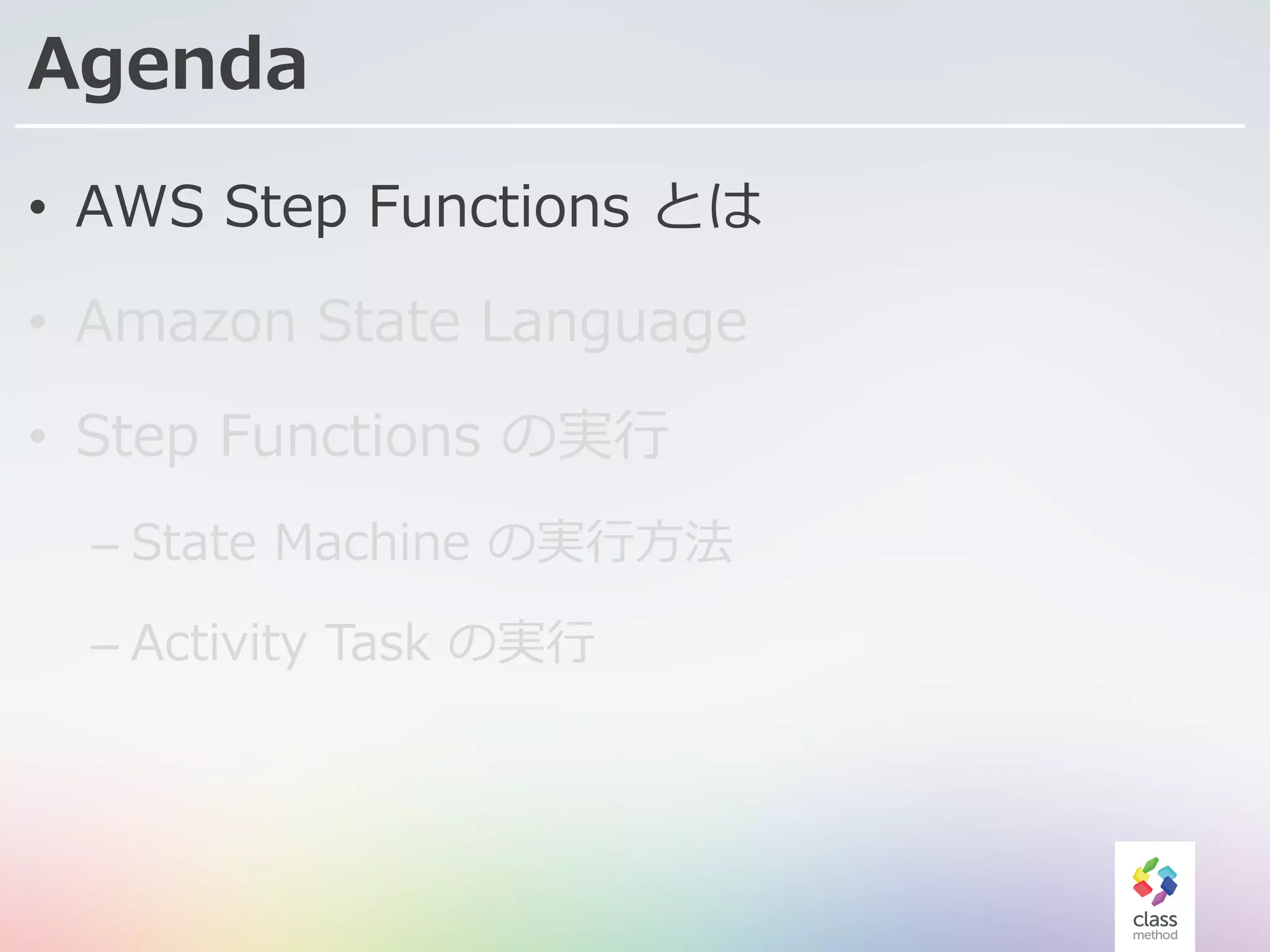

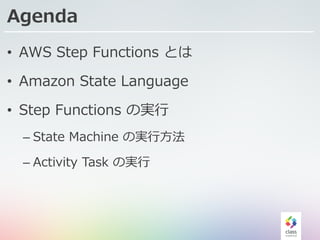

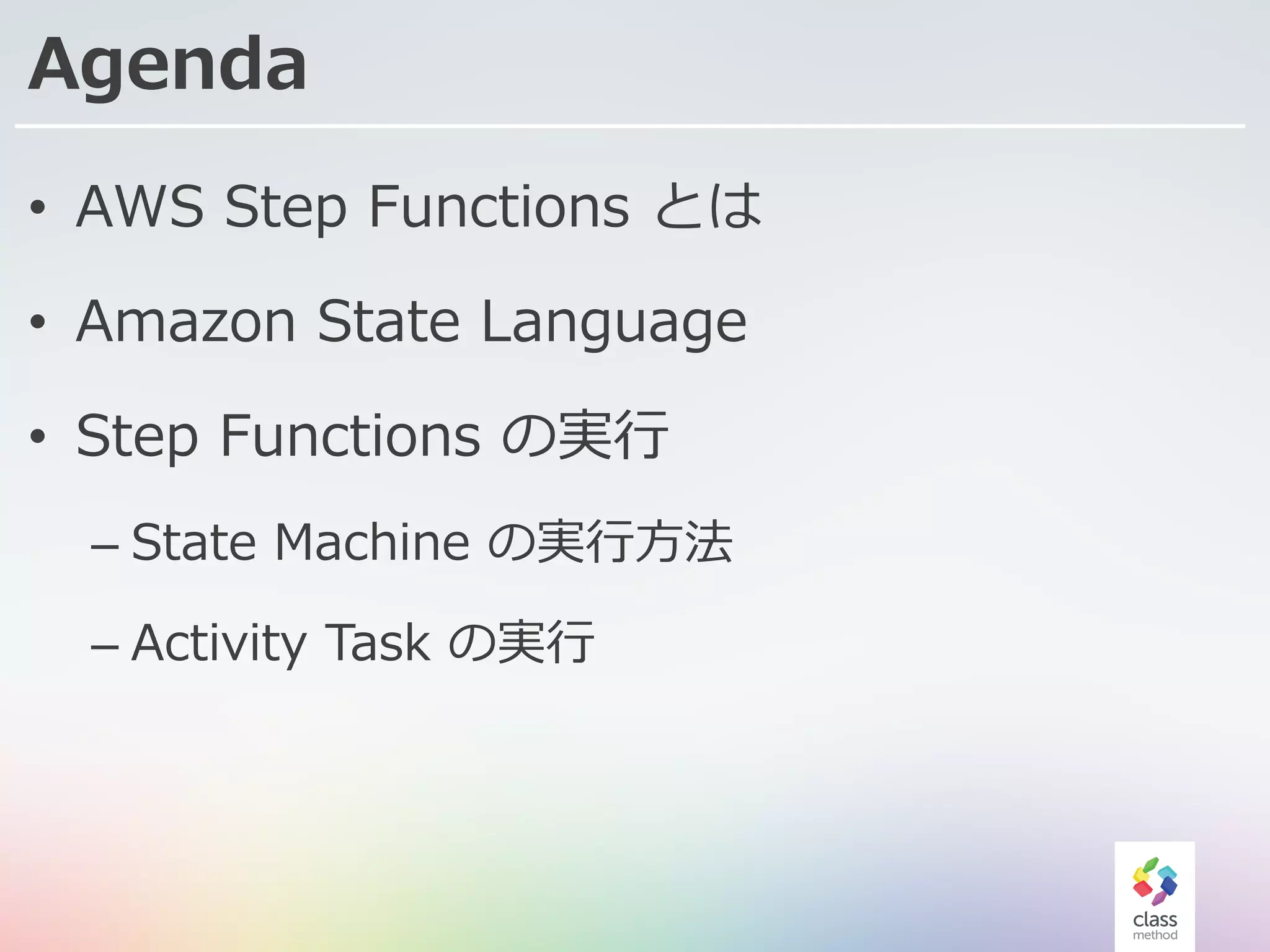

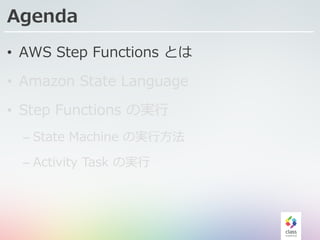

3. Agenda
• AWS Step Functions とは
• Amazon State Language
• Step Functions の実⾏
– State Machine の実⾏⽅法
– Activity Task の実⾏

4. Agenda
• AWS Step Functions とは
• Amazon State Language
• Step Functions の実⾏
– State Machine の実⾏⽅法
– Activity Task の実⾏

5. AWS Step Functions
re:Invent 2016 にて発表！

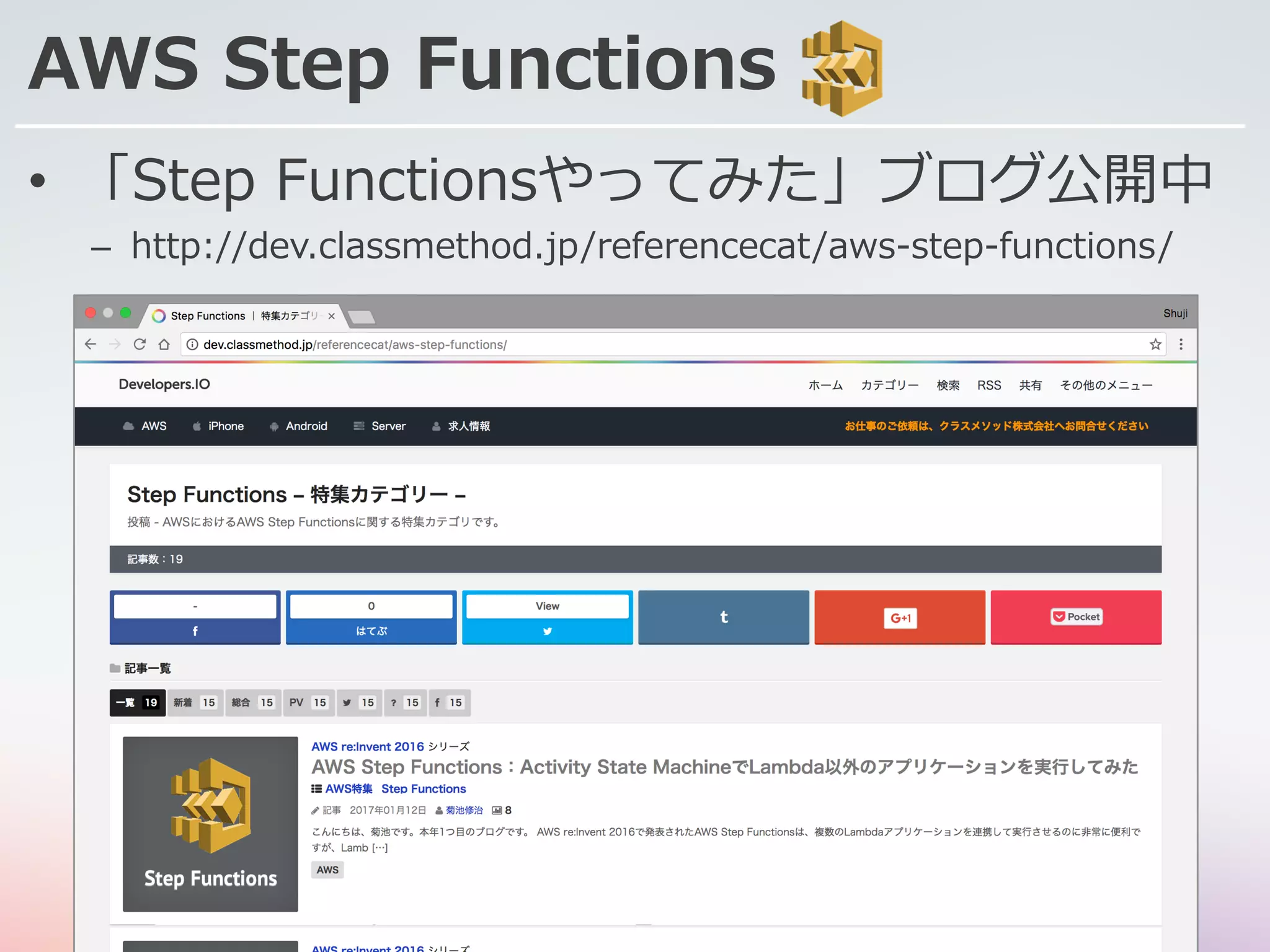

6. AWS Step Functions
• 「Step Functionsやってみた」ブログ公開中
– http://dev.classmethod.jp/referencecat/aws-step-functions/

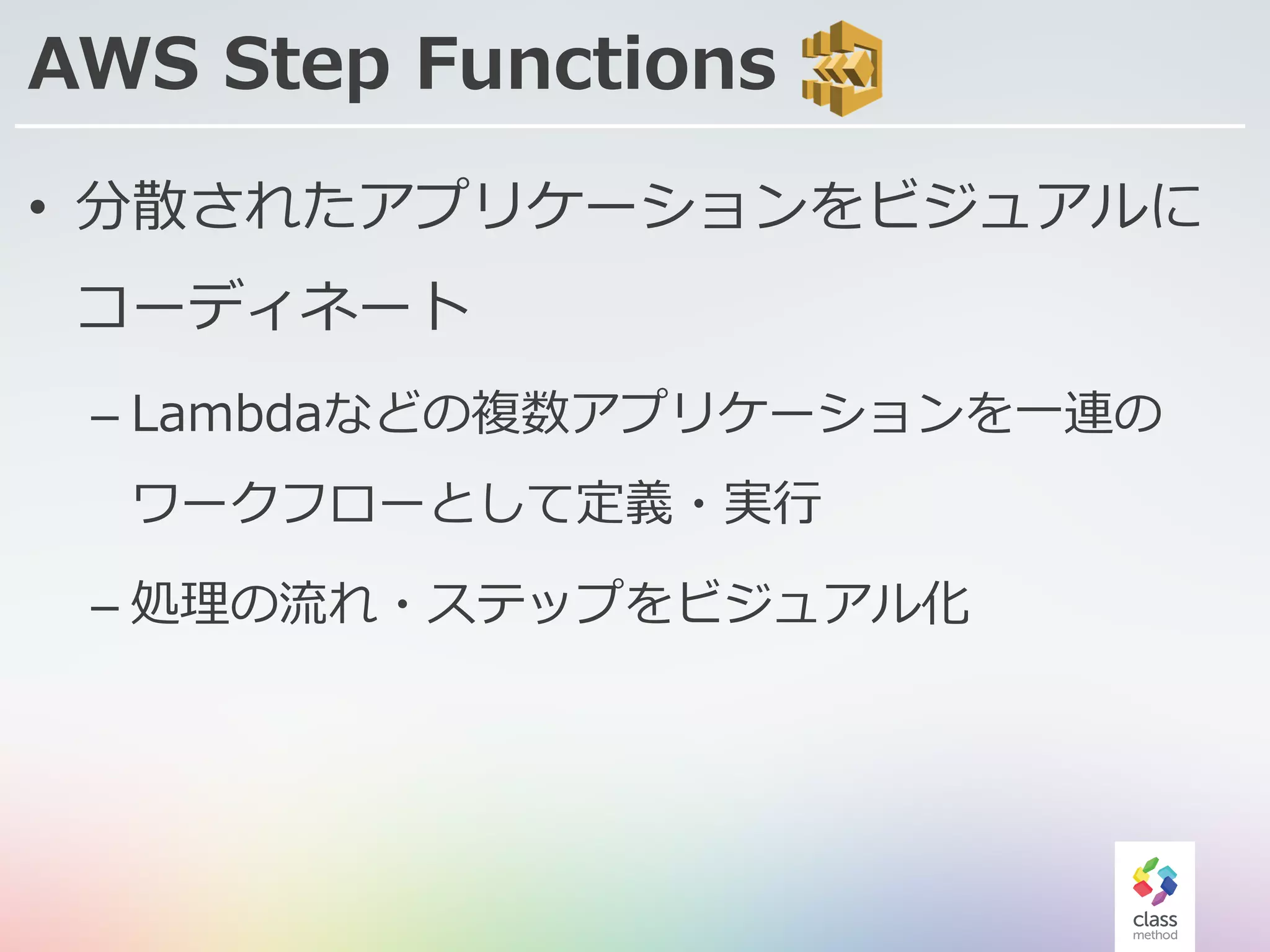

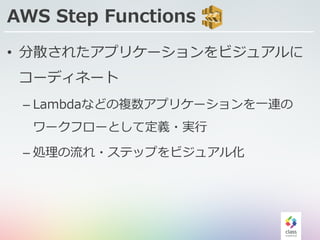

7. AWS Step Functions
• 分散されたアプリケーションをビジュアルに
コーディネート
– Lambdaなどの複数アプリケーションを⼀連の
ワークフローとして定義・実⾏
– 処理の流れ・ステップをビジュアル化

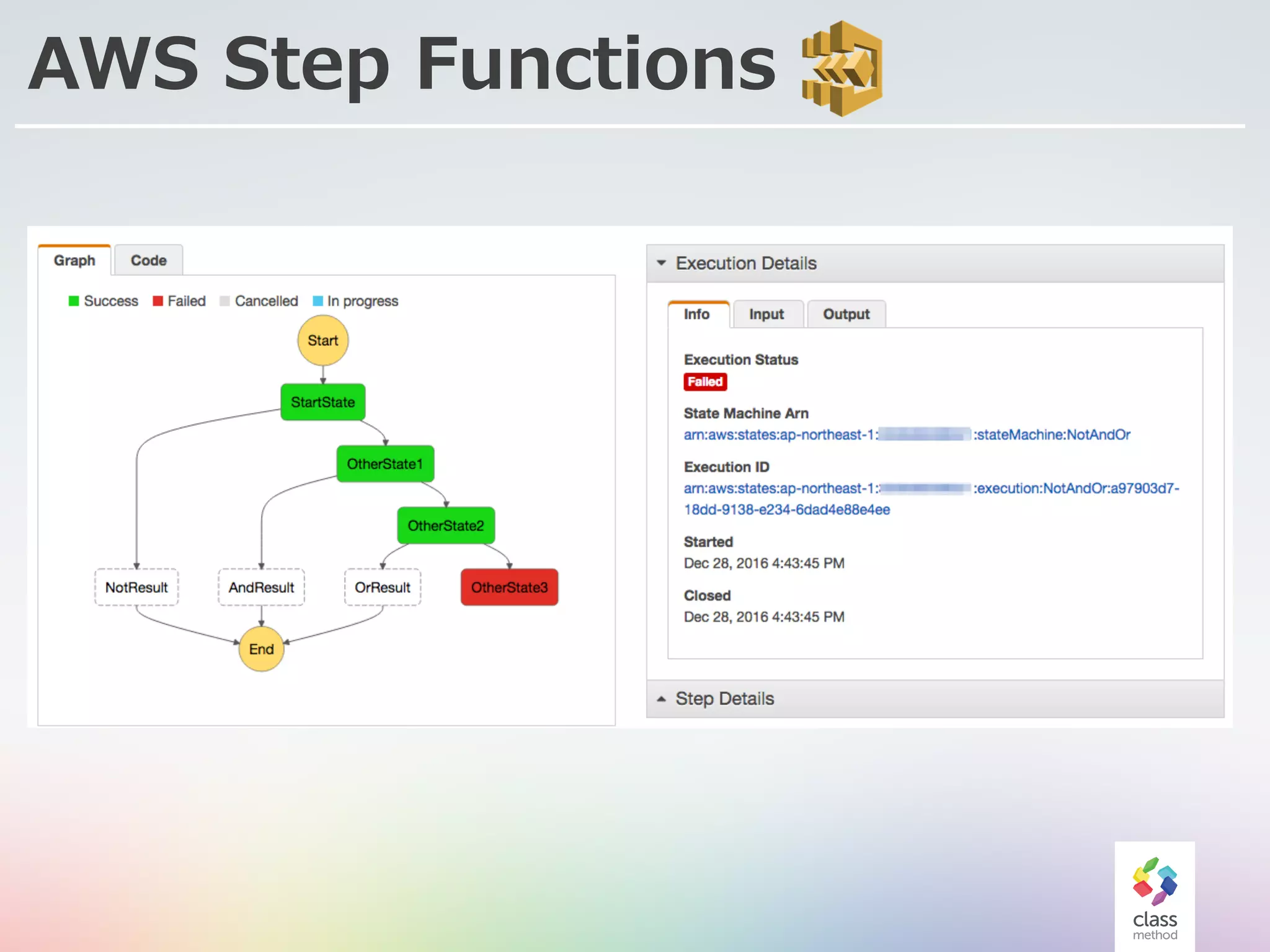

8. AWS Step Functions

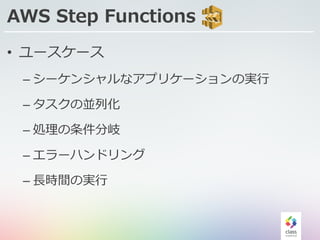

9. AWS Step Functions
• ユースケース
– シーケンシャルなアプリケーションの実⾏
– タスクの並列化
– 処理の条件分岐
– エラーハンドリング
– ⻑時間の実⾏

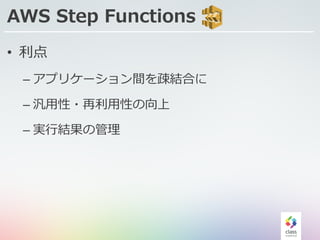

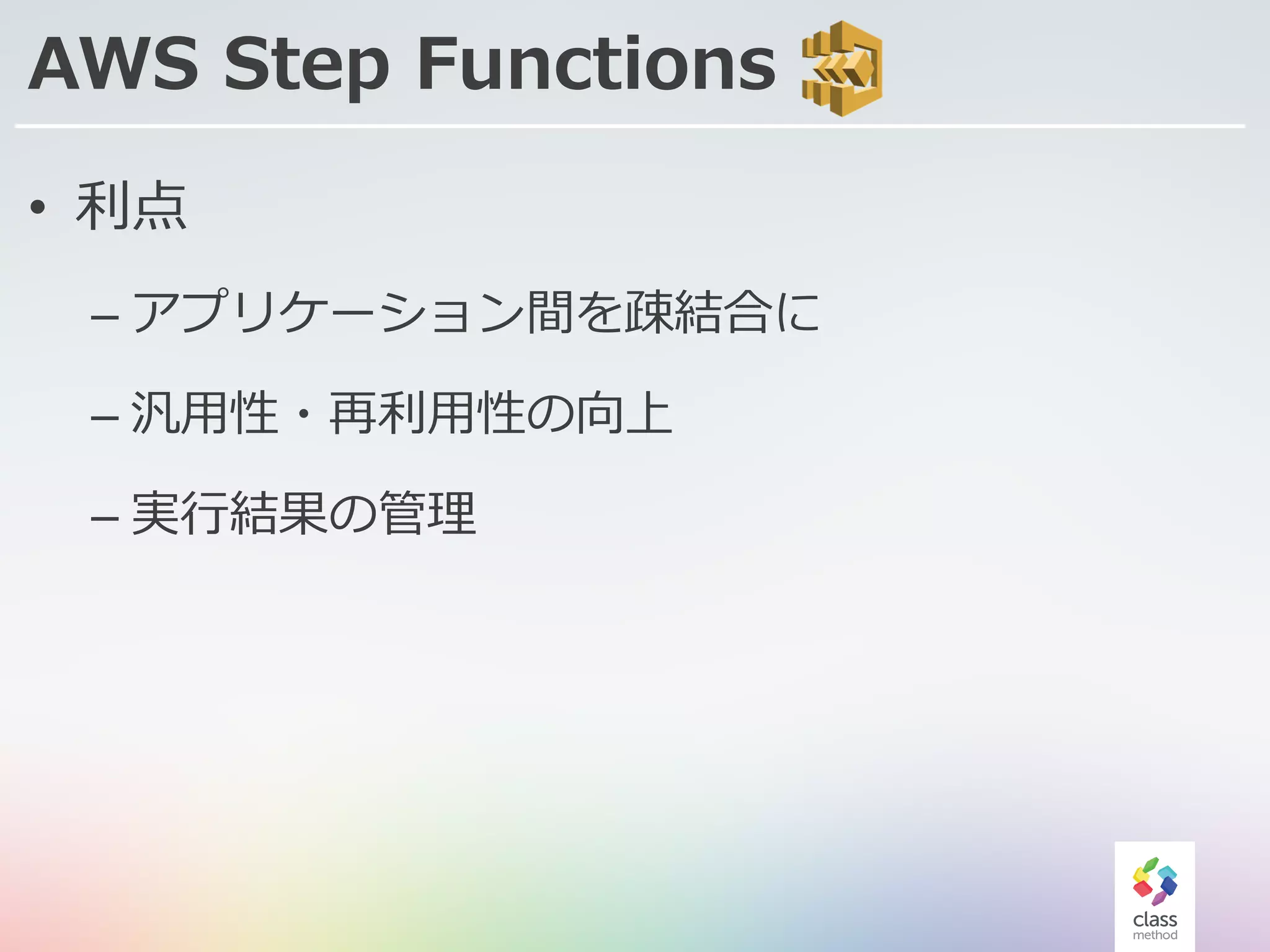

10. AWS Step Functions
• 利点
– アプリケーション間を疎結合に
– 汎⽤性・再利⽤性の向上
– 実⾏結果の管理

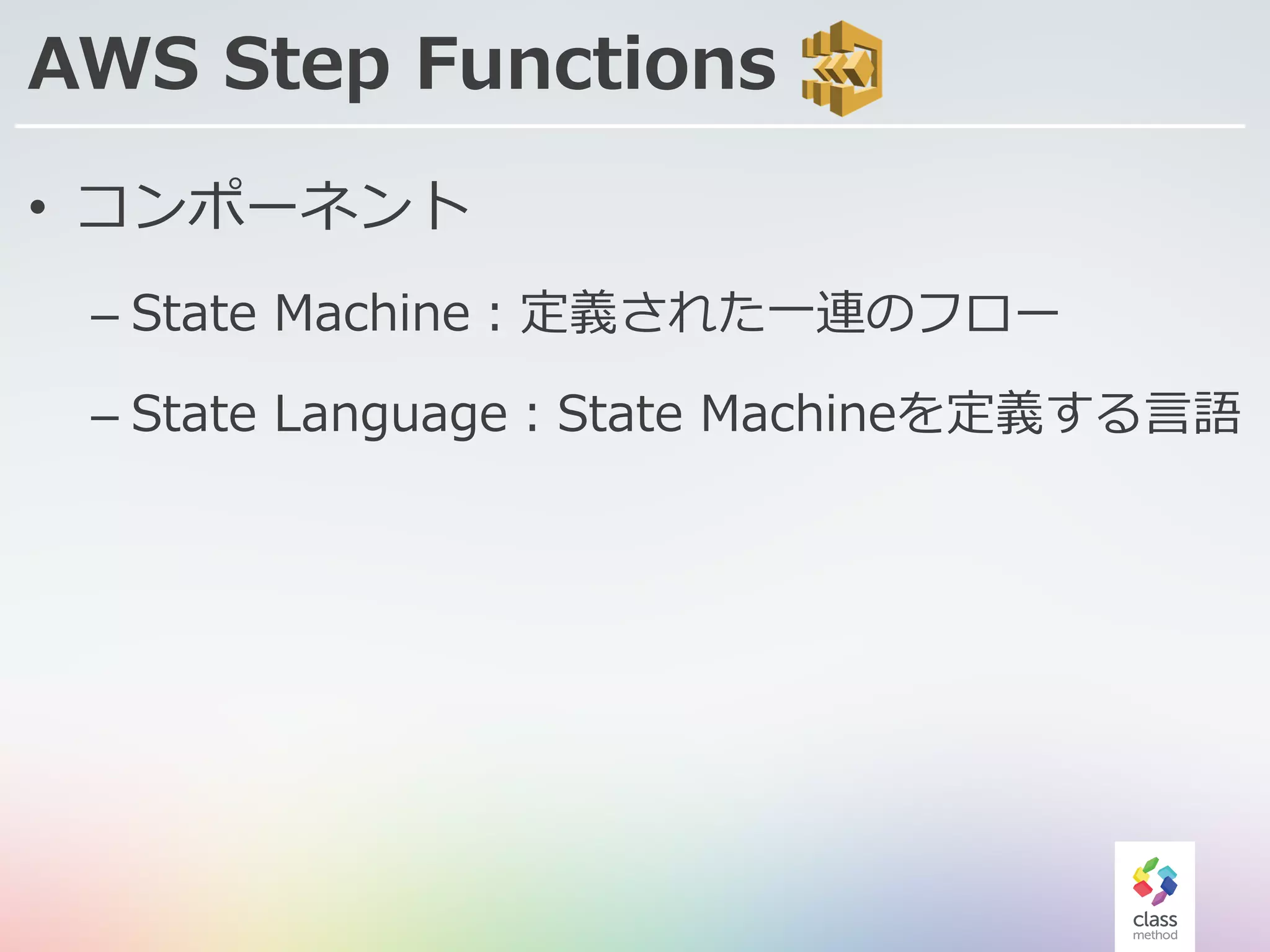

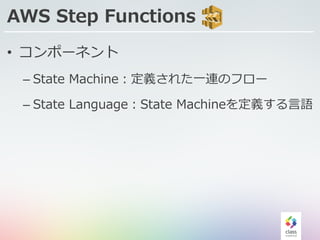

11. AWS Step Functions
• コンポーネント
– State Machine：定義された⼀連のフロー
– State Language：State Machineを定義する⾔語

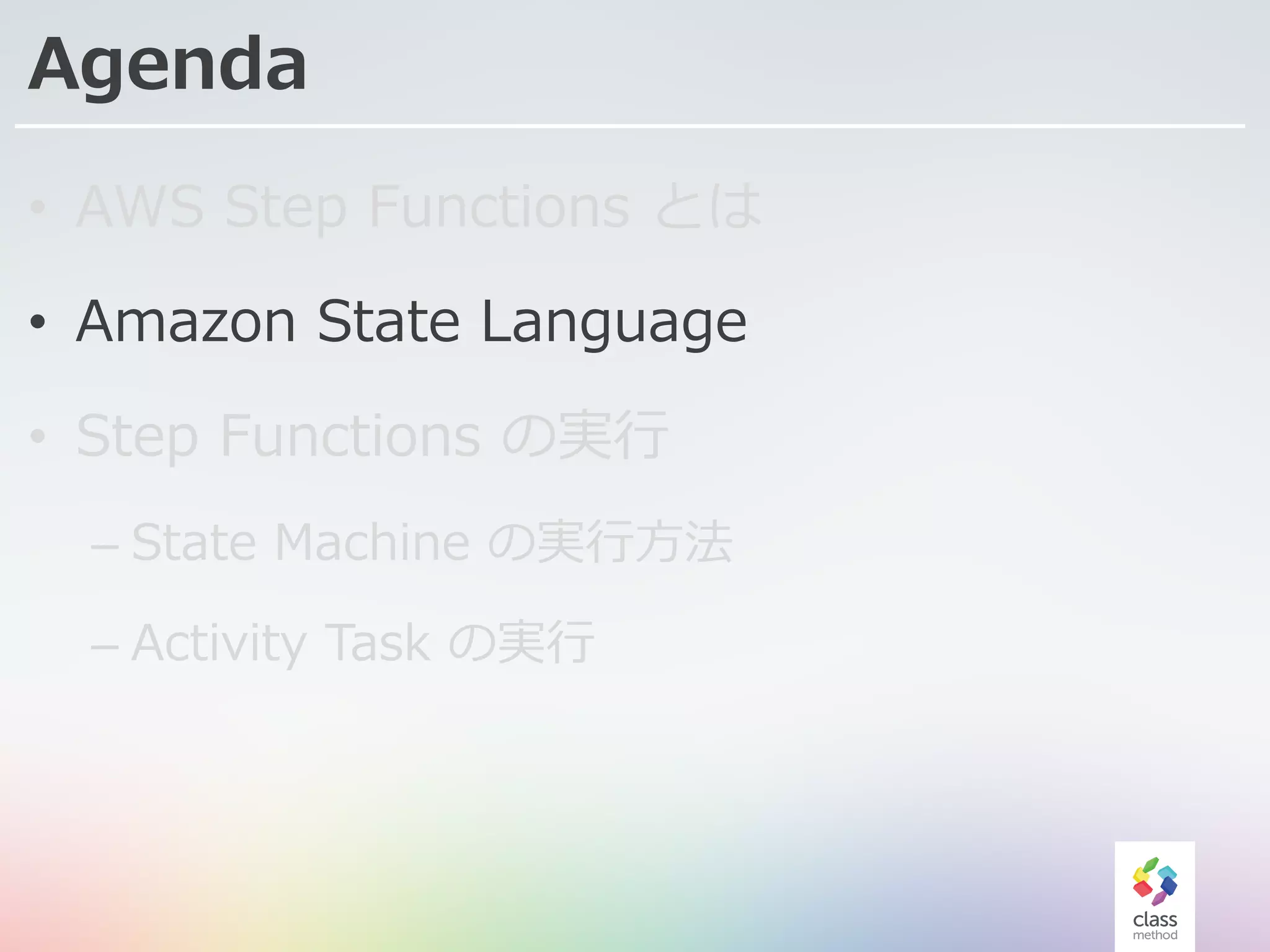

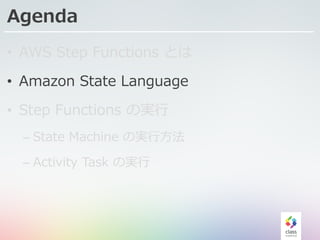

12. Agenda
• AWS Step Functions とは
• Amazon State Language
• Step Functions の実⾏
– State Machine の実⾏⽅法
– Activity Task の実⾏

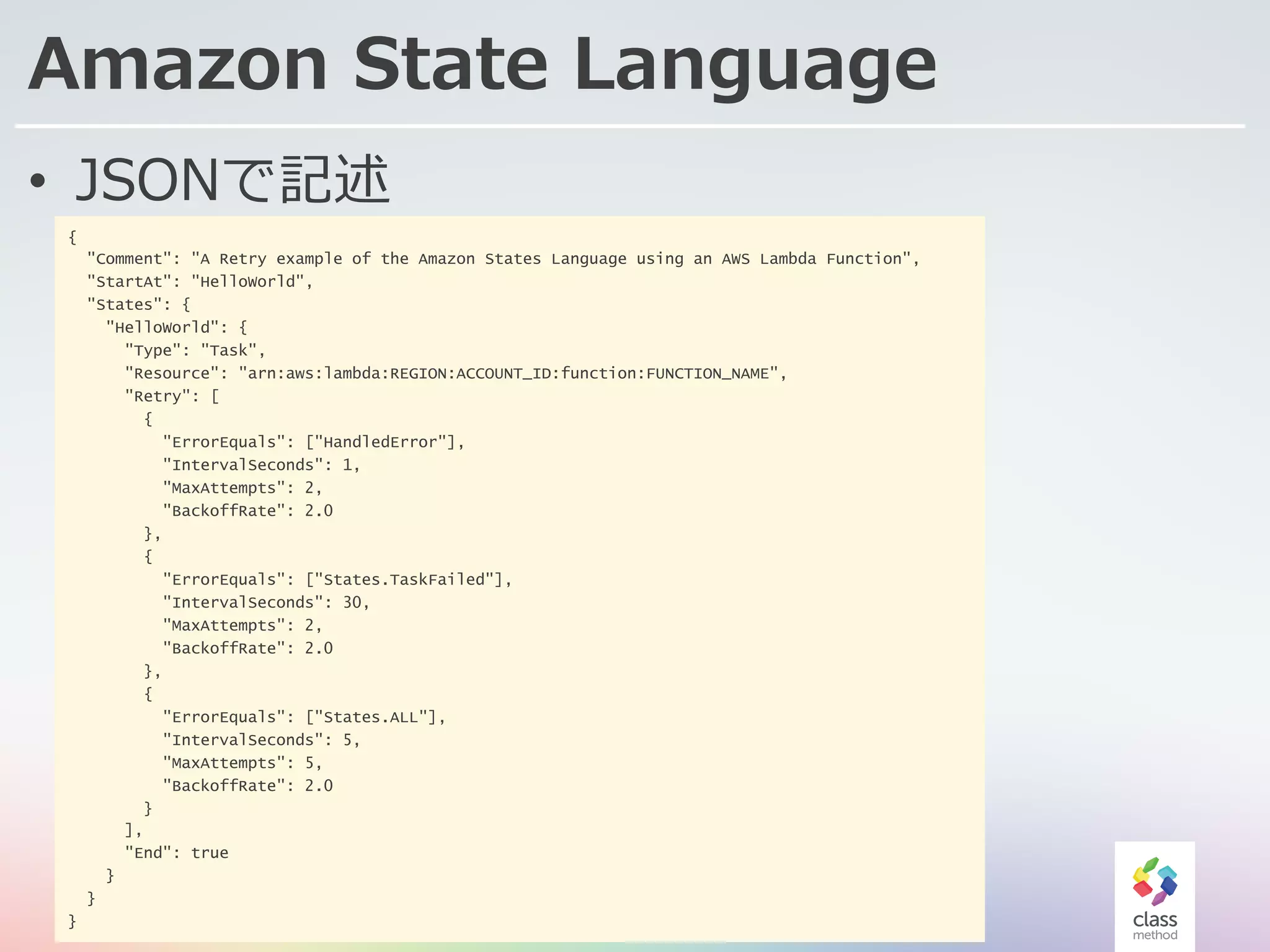

13. Amazon State Language
• JSONで記述
{
"Comment": "A Retry example of the Amazon States Language using an AWS Lambda Function",
"StartAt": "HelloWorld",
"States": {
"HelloWorld": {
"Type": "Task",
"Resource": "arn:aws:lambda:REGION:ACCOUNT_ID:function:FUNCTION_NAME",
"Retry": [
{
"ErrorEquals": ["HandledError"],
"IntervalSeconds": 1,
"MaxAttempts": 2,
"BackoffRate": 2.0
},
{
"ErrorEquals": ["States.TaskFailed"],
"IntervalSeconds": 30,
"MaxAttempts": 2,
"BackoffRate": 2.0
},
{
"ErrorEquals": ["States.ALL"],
"IntervalSeconds": 5,
"MaxAttempts": 5,
"BackoffRate": 2.0
}
],
"End": true
}
}
}

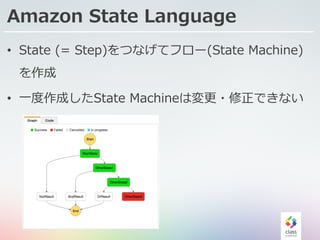

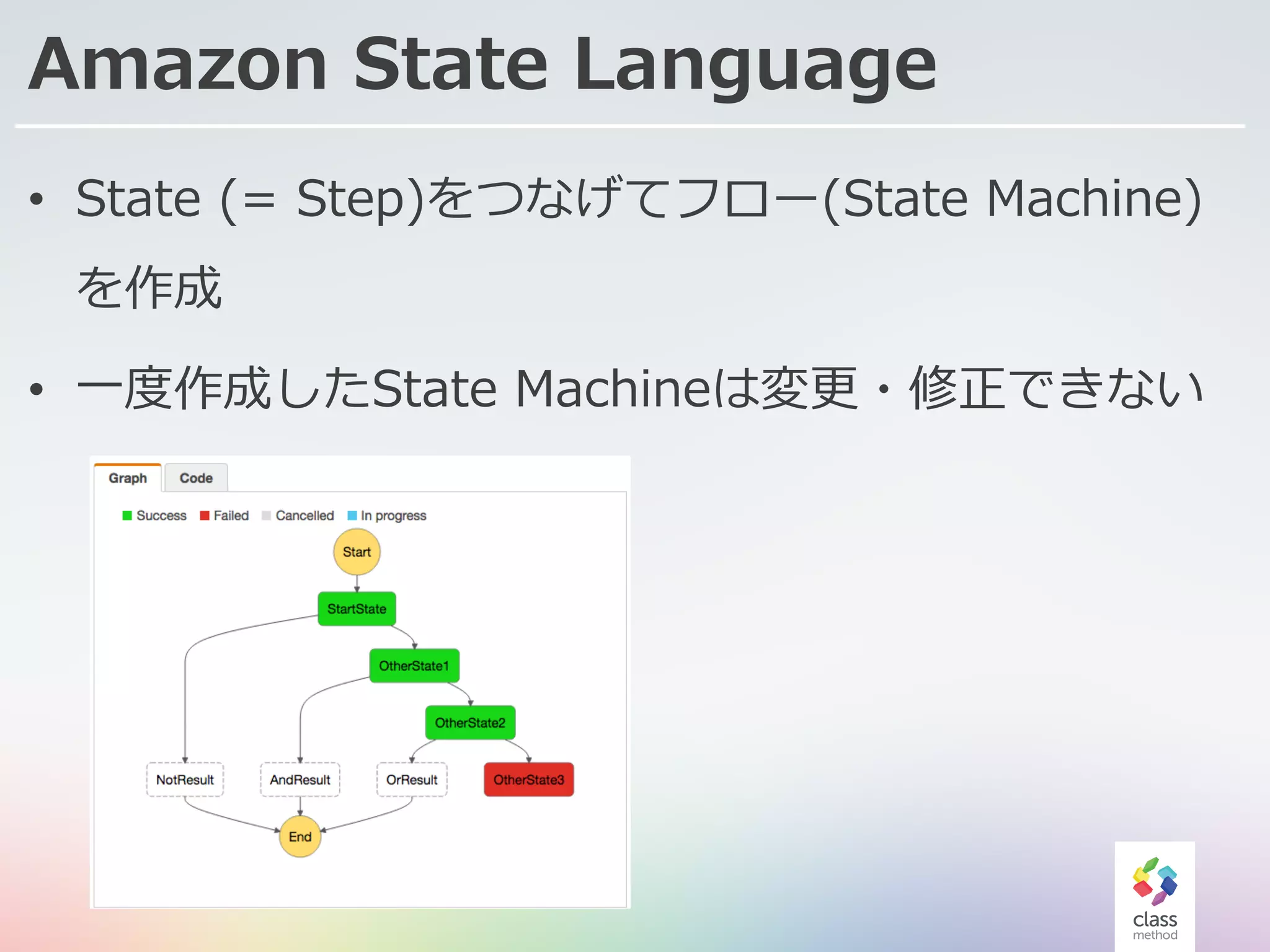

14. Amazon State Language
• State (= Step)をつなげてフロー(State Machine)
を作成
• ⼀度作成したState Machineは変更・修正できない

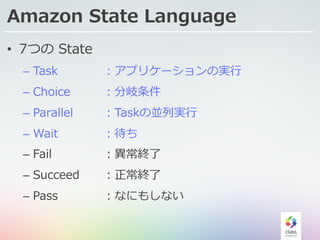

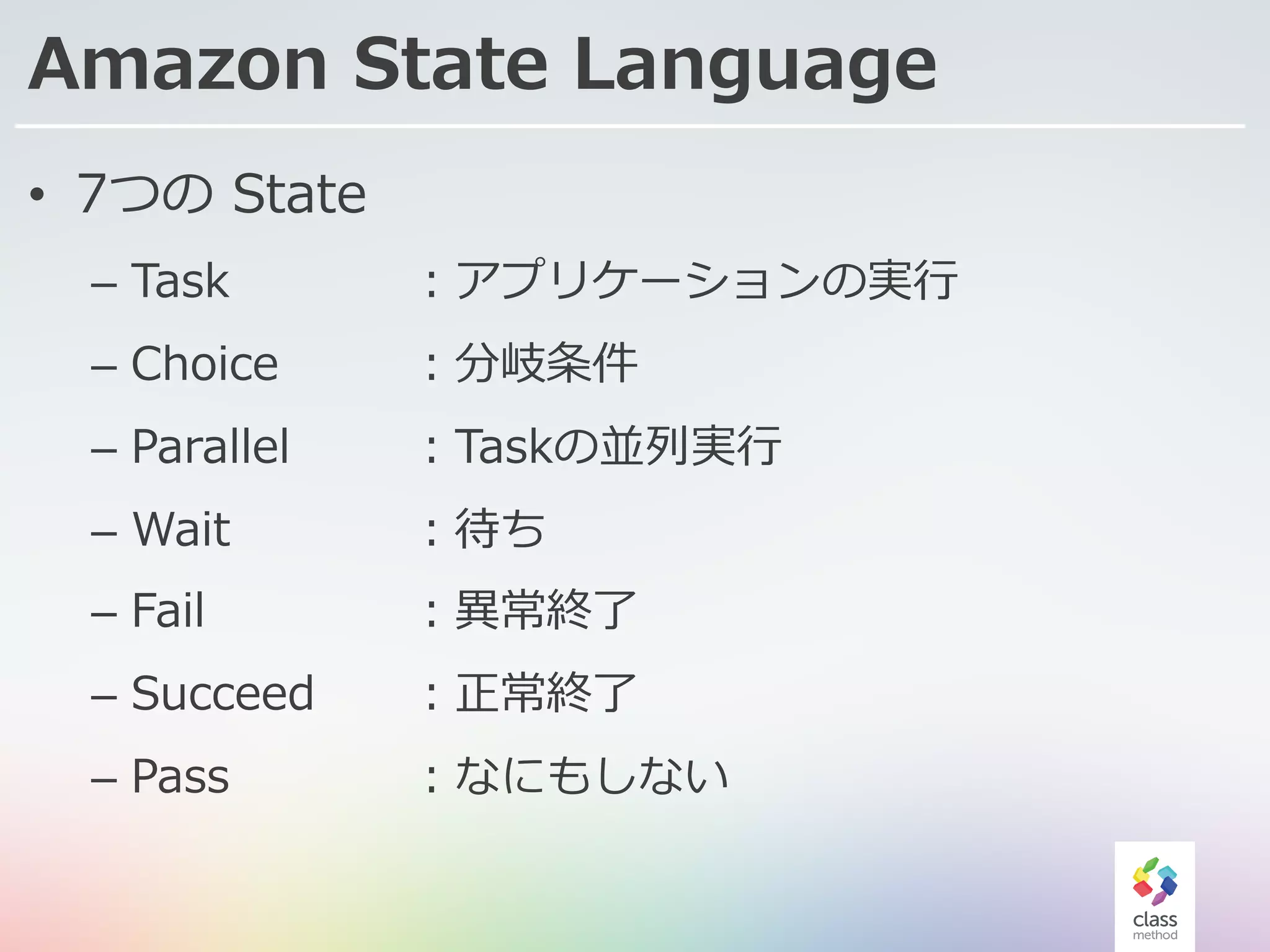

15. Amazon State Language
• 7つの State
– Task ：アプリケーションの実⾏
– Choice ：分岐条件
– Parallel ：Taskの並列実⾏
– Wait ：待ち
– Fail ：異常終了
– Succeed ：正常終了
– Pass ：なにもしない

16. Amazon State Language
• 7つの State
– Task ：アプリケーションの実⾏
– Choice ：分岐条件
– Parallel ：Taskの並列実⾏
– Wait ：待ち
– Fail ：異常終了
– Succeed ：正常終了
– Pass ：なにもしない

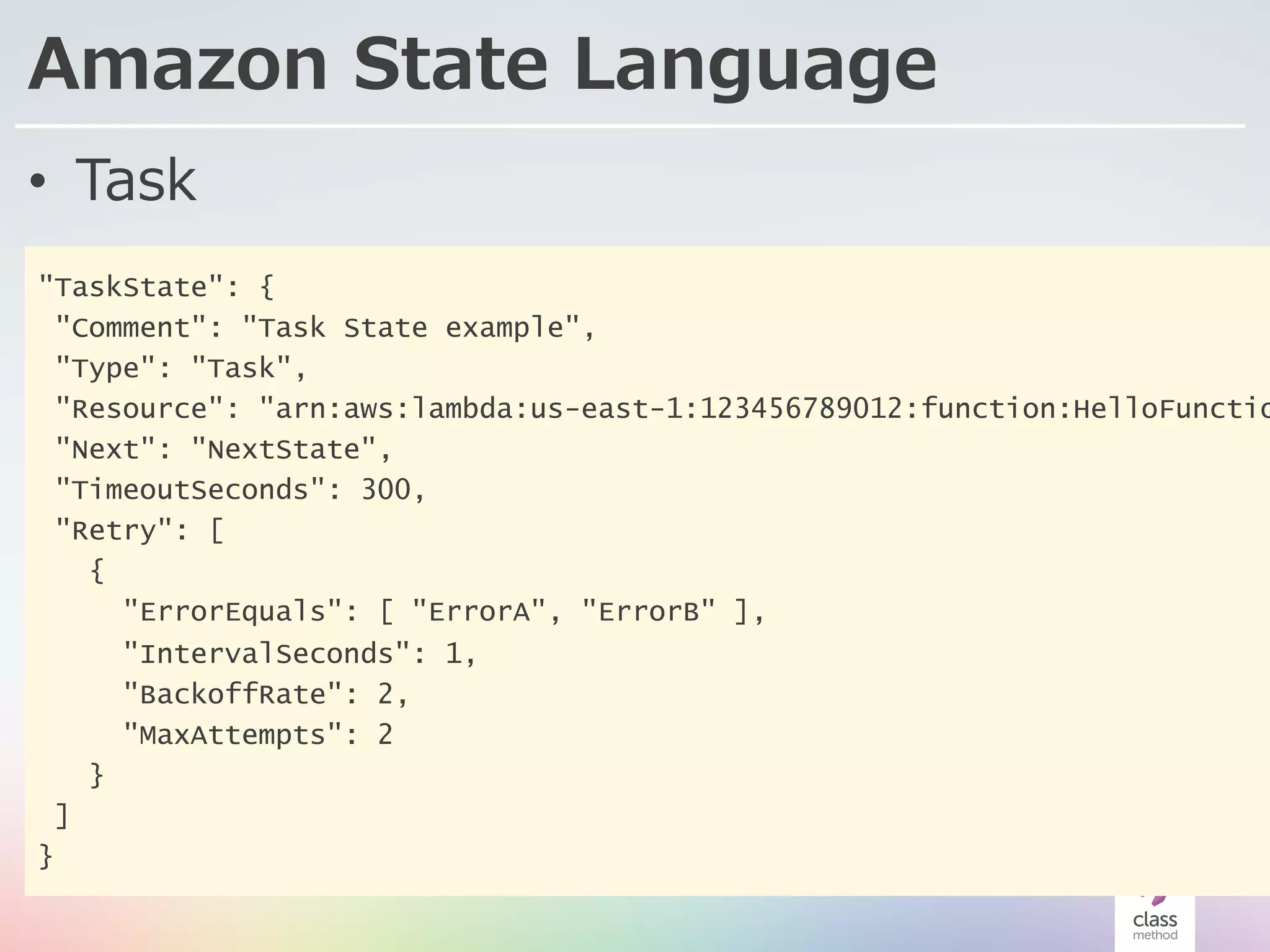

17. Amazon State Language
• Task
"TaskState": {
"Comment": "Task State example",
"Type": "Task",
"Resource": "arn:aws:lambda:us-east-1:123456789012:function:HelloFunctio
"Next": "NextState",
"TimeoutSeconds": 300,
"Retry": [
{
"ErrorEquals": [ "ErrorA", "ErrorB" ],
"IntervalSeconds": 1,
"BackoffRate": 2,
"MaxAttempts": 2
}
]
}

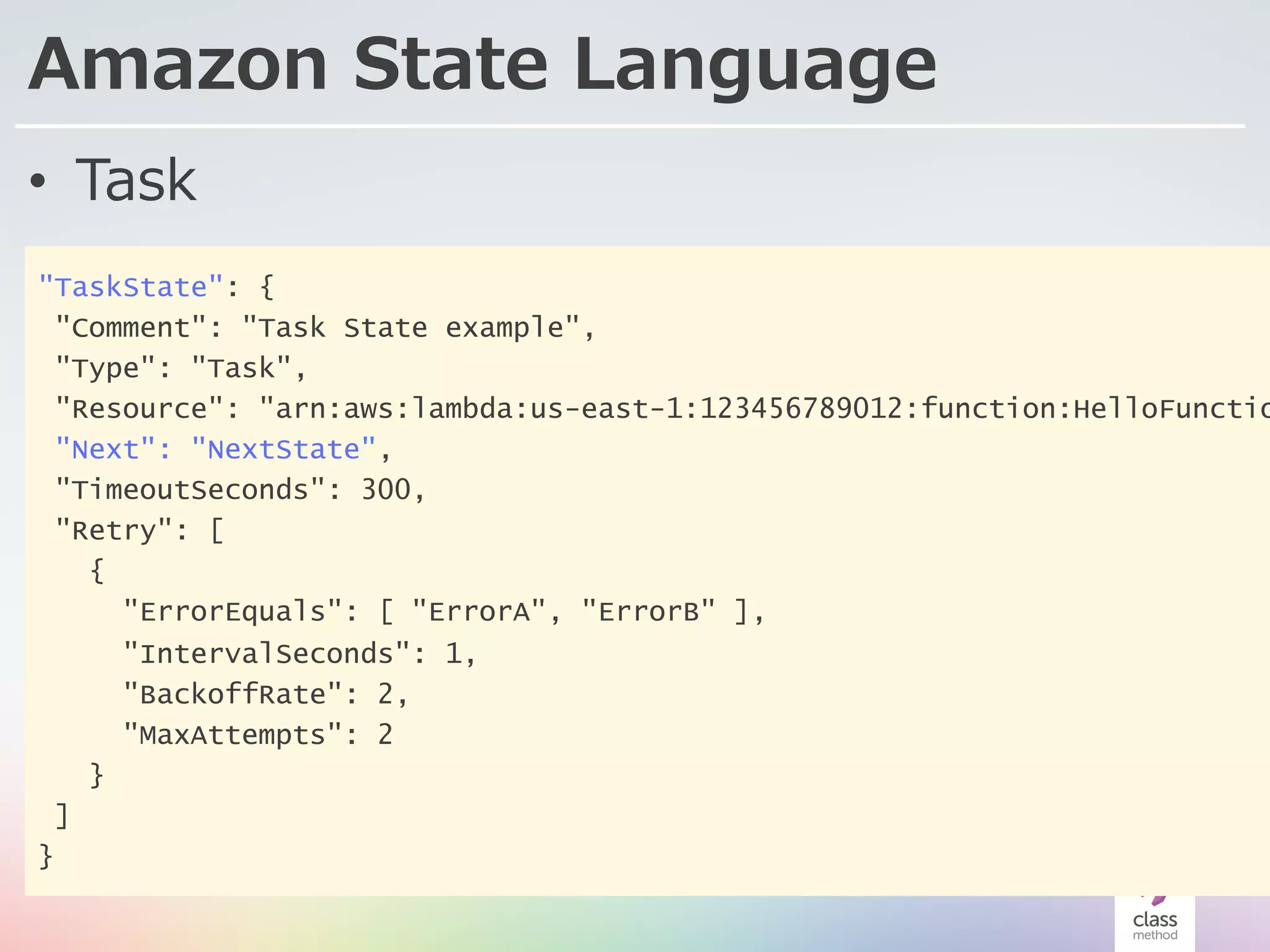

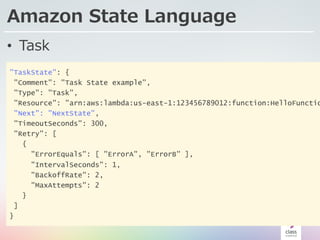

18. Amazon State Language
• Task
"TaskState": {
"Comment": "Task State example",
"Type": "Task",
"Resource": "arn:aws:lambda:us-east-1:123456789012:function:HelloFunctio
"Next": "NextState",
"TimeoutSeconds": 300,
"Retry": [
{
"ErrorEquals": [ "ErrorA", "ErrorB" ],
"IntervalSeconds": 1,
"BackoffRate": 2,
"MaxAttempts": 2
}
]
}

19. Amazon State Language
• Task
"TaskState": {
"Comment": "Task State example",
"Type": "Task",
"Resource": "arn:aws:lambda:us-east-1:123456789012:function:HelloFunctio
"Next": "NextState",
"TimeoutSeconds": 300,
"Retry": [
{
"ErrorEquals": [ "ErrorA", "ErrorB" ],
"IntervalSeconds": 1,
"BackoffRate": 2,
"MaxAttempts": 2
}
]
}

20. Amazon State Language
• Task
"TaskState": {
"Comment": "Task State example",
"Type": "Task",
"Resource": "arn:aws:lambda:us-east-1:123456789012:function:HelloFunctio
"Next": "NextState",
"TimeoutSeconds": 300,
"Retry": [
{
"ErrorEquals": [ "ErrorA", "ErrorB" ],
"IntervalSeconds": 1,
"BackoffRate": 2,
"MaxAttempts": 2
}
]
}

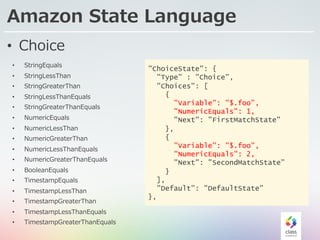

21. Amazon State Language
• Choice
"ChoiceState": {
"Type" : "Choice",
"Choices": [
{
"Variable": "$.foo",
"NumericEquals": 1,
"Next": "FirstMatchState"
},
{
"Variable": "$.foo",
"NumericEquals": 2,
"Next": "SecondMatchState”
}
],
"Default": "DefaultState"
},
• StringEquals
• StringLessThan
• StringGreaterThan
• StringLessThanEquals
• StringGreaterThanEquals
• NumericEquals
• NumericLessThan
• NumericGreaterThan
• NumericLessThanEquals
• NumericGreaterThanEquals
• BooleanEquals
• TimestampEquals
• TimestampLessThan
• TimestampGreaterThan
• TimestampLessThanEquals
• TimestampGreaterThanEquals

22. Amazon State Language
• Choice "ChoiceStateX": {
"Type" : "Choice",
"Choices": [
{
"Not": {
"Variable": "$.type",
"StringEquals": "Private”
},
"Next": "Public”
},
{
"And": [
{
"Variable": "$.value",
"NumericGreaterThanEquals": 20
},
{
"Variable": "$.value",
"NumericLessThan": 30
}
],
"Next": "ValueInTwenties”
}
],
"Default": "DefaultState”
},
• Not
• Or
• And

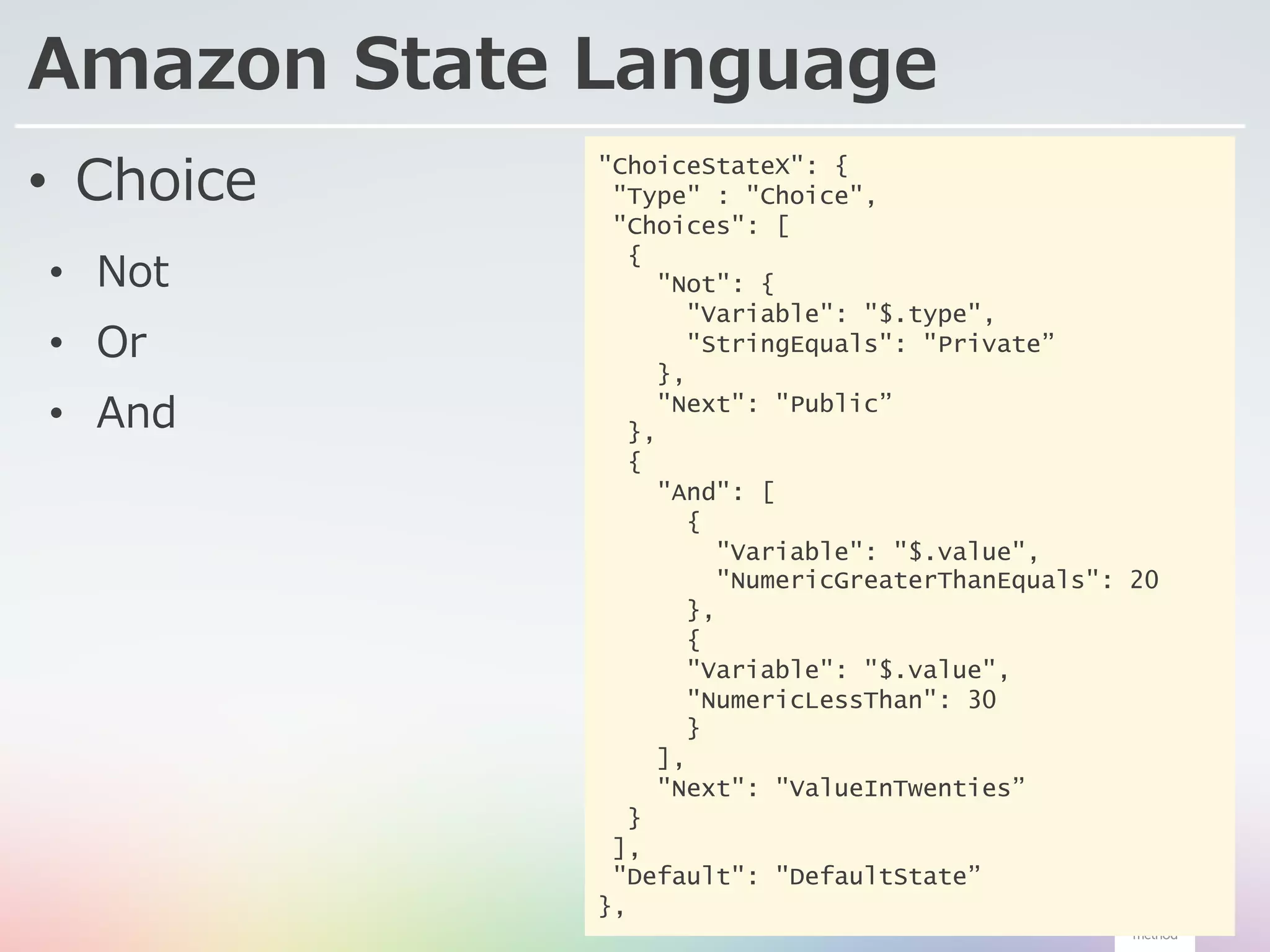

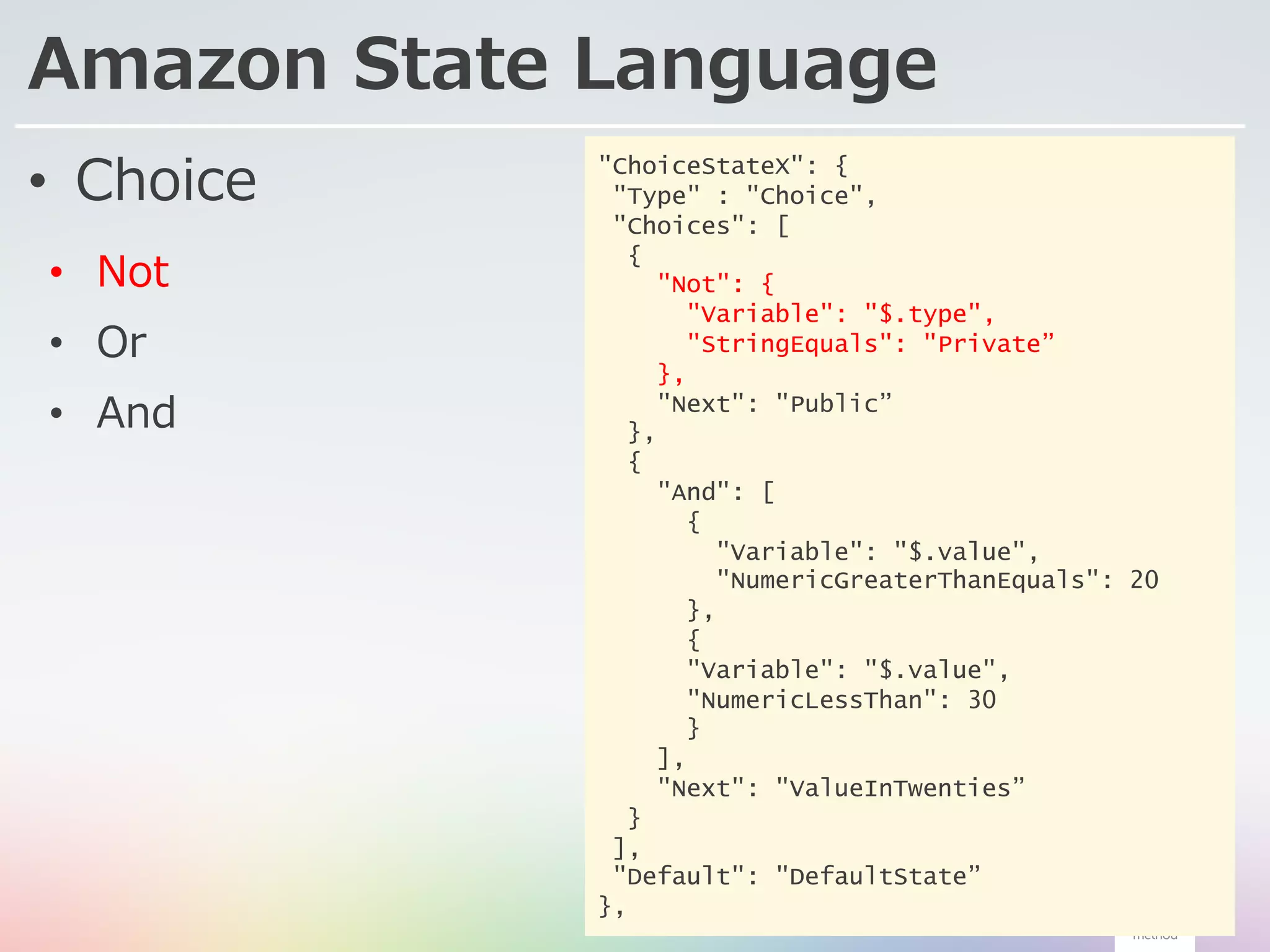

23. Amazon State Language
• Choice "ChoiceStateX": {
"Type" : "Choice",
"Choices": [
{
"Not": {
"Variable": "$.type",
"StringEquals": "Private”
},
"Next": "Public”
},
{
"And": [
{
"Variable": "$.value",
"NumericGreaterThanEquals": 20
},
{
"Variable": "$.value",
"NumericLessThan": 30
}
],
"Next": "ValueInTwenties”
}
],
"Default": "DefaultState”
},
• Not
• Or
• And

24. Amazon State Language
• Choice "ChoiceStateX": {
"Type" : "Choice",
"Choices": [
{
"Not": {
"Variable": "$.type",
"StringEquals": "Private”
},
"Next": "Public”
},
{
"And": [
{
"Variable": "$.value",
"NumericGreaterThanEquals": 20
},
{
"Variable": "$.value",
"NumericLessThan": 30
}
],
"Next": "ValueInTwenties”
}
],
"Default": "DefaultState”
},
• Not
• Or
• And

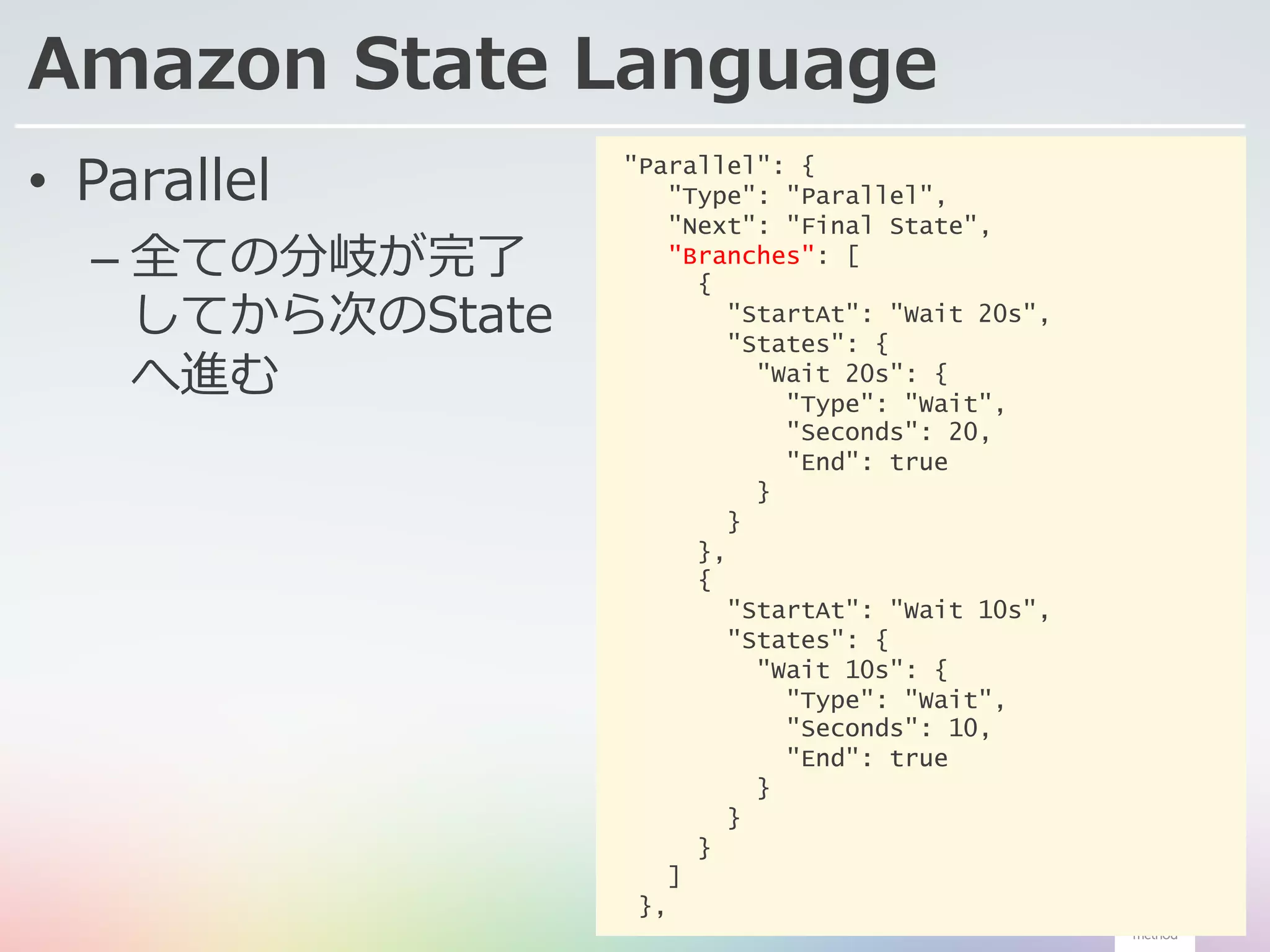

25. Amazon State Language
• Parallel
– 全ての分岐が完了
してから次のState
へ進む
"Parallel": {
"Type": "Parallel",
"Next": "Final State",
"Branches": [
{
"StartAt": "Wait 20s",
"States": {
"Wait 20s": {
"Type": "Wait",
"Seconds": 20,
"End": true
}
}
},
{
"StartAt": "Wait 10s",
"States": {
"Wait 10s": {
"Type": "Wait",
"Seconds": 10,
"End": true
}
}
}
]
},

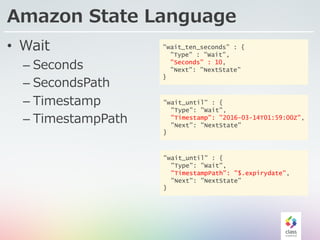

26. Amazon State Language
• Wait
– Seconds
– SecondsPath
– Timestamp
– TimestampPath
"wait_ten_seconds" : {
"Type" : "Wait",
"Seconds" : 10,
"Next": "NextState”
}
"wait_until" : {
"Type": "Wait",
"Timestamp": "2016-03-14T01:59:00Z",
"Next": "NextState”
}
"wait_until" : {
"Type": "Wait",
"TimestampPath": "$.expirydate",
"Next": "NextState”
}

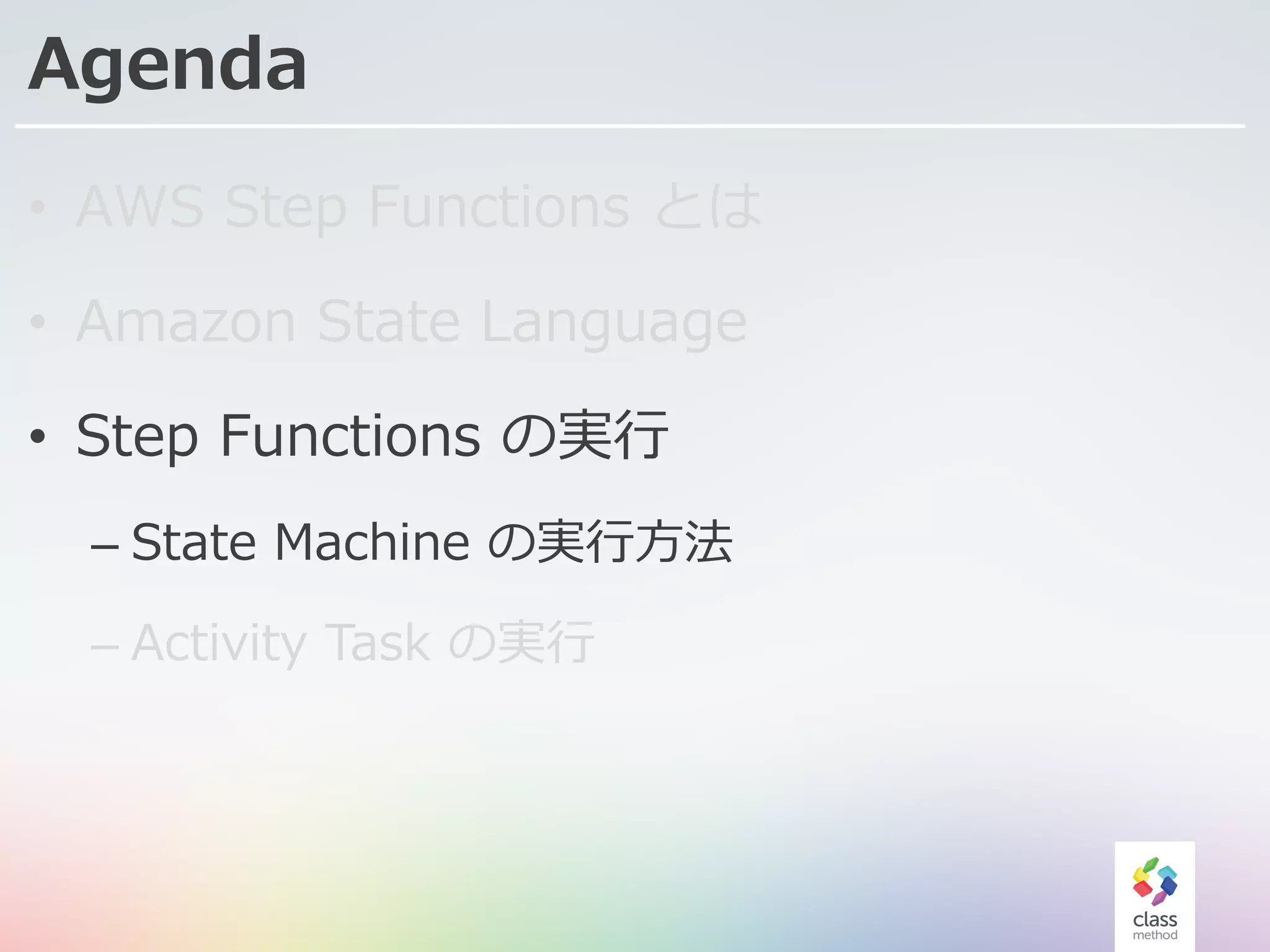

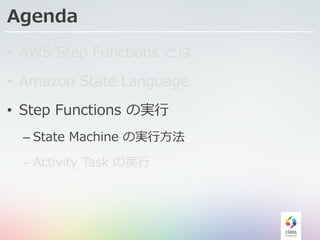

27. Agenda
• AWS Step Functions とは
• Amazon State Language
• Step Functions の実⾏
– State Machine の実⾏⽅法
– Activity Task の実⾏

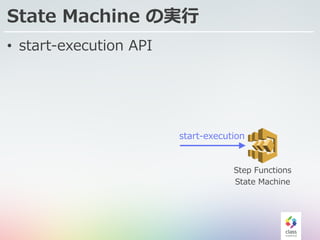

28. State Machine の実⾏
• start-execution API
Step Functions
State Machine
start-execution

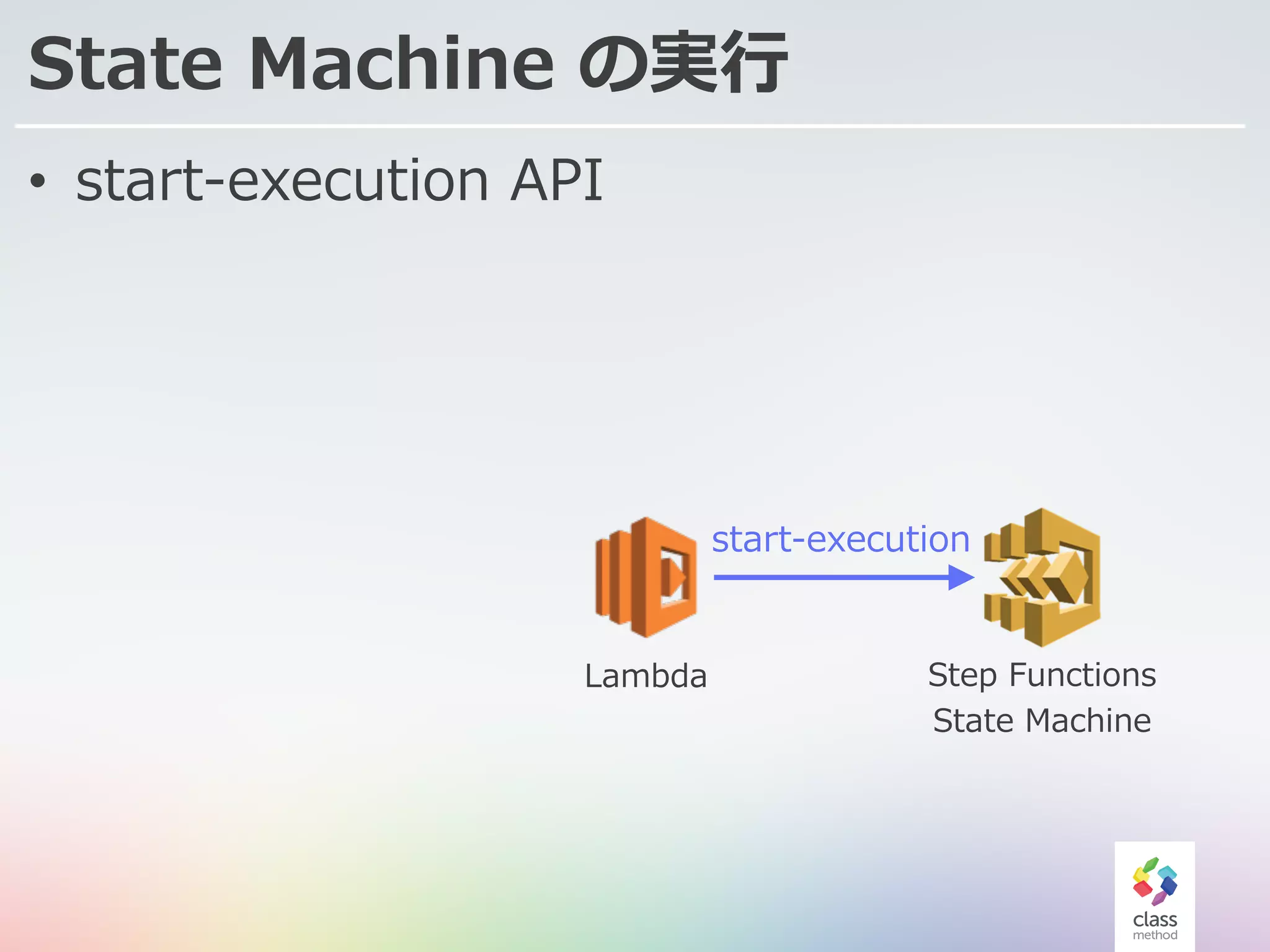

29. State Machine の実⾏
• start-execution API
Lambda Step Functions
State Machine
start-execution

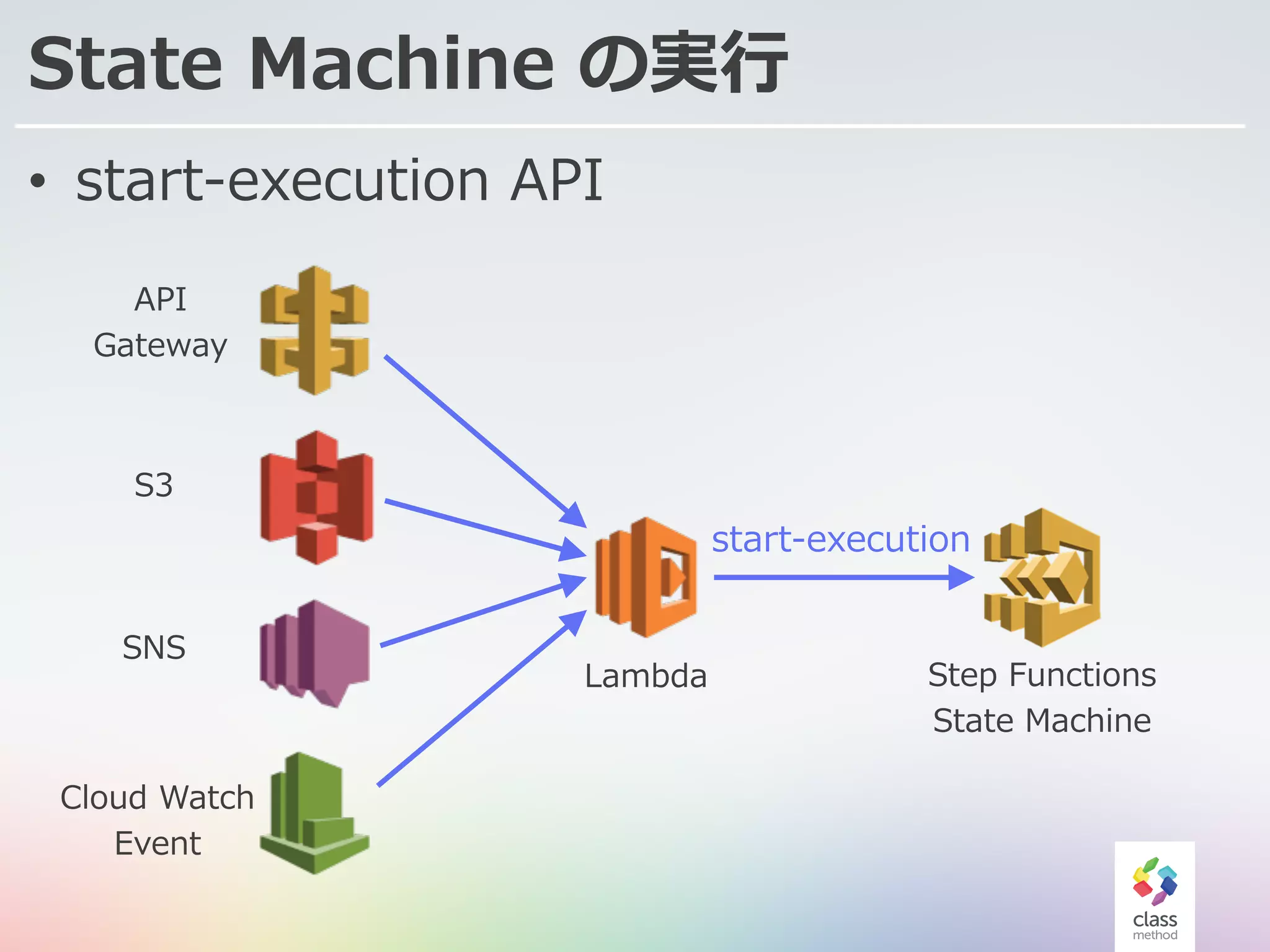

30. State Machine の実⾏
• start-execution API
API
Gateway
S3
SNS
Cloud Watch
Event
Lambda Step Functions
State Machine
start-execution

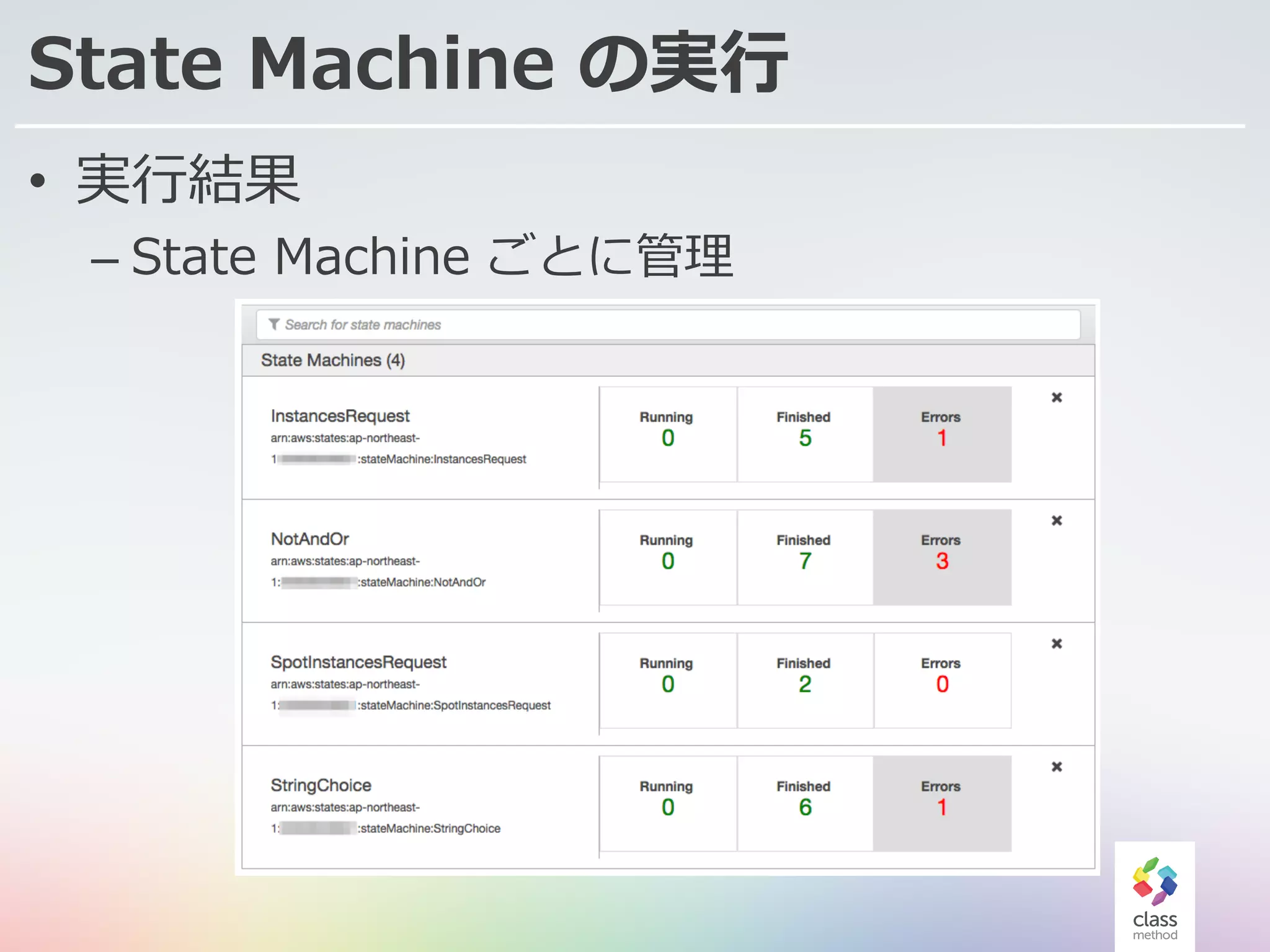

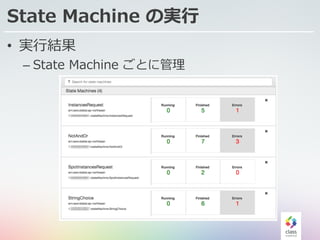

31. State Machine の実⾏
• 実⾏結果
– State Machine ごとに管理

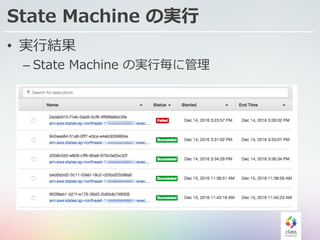

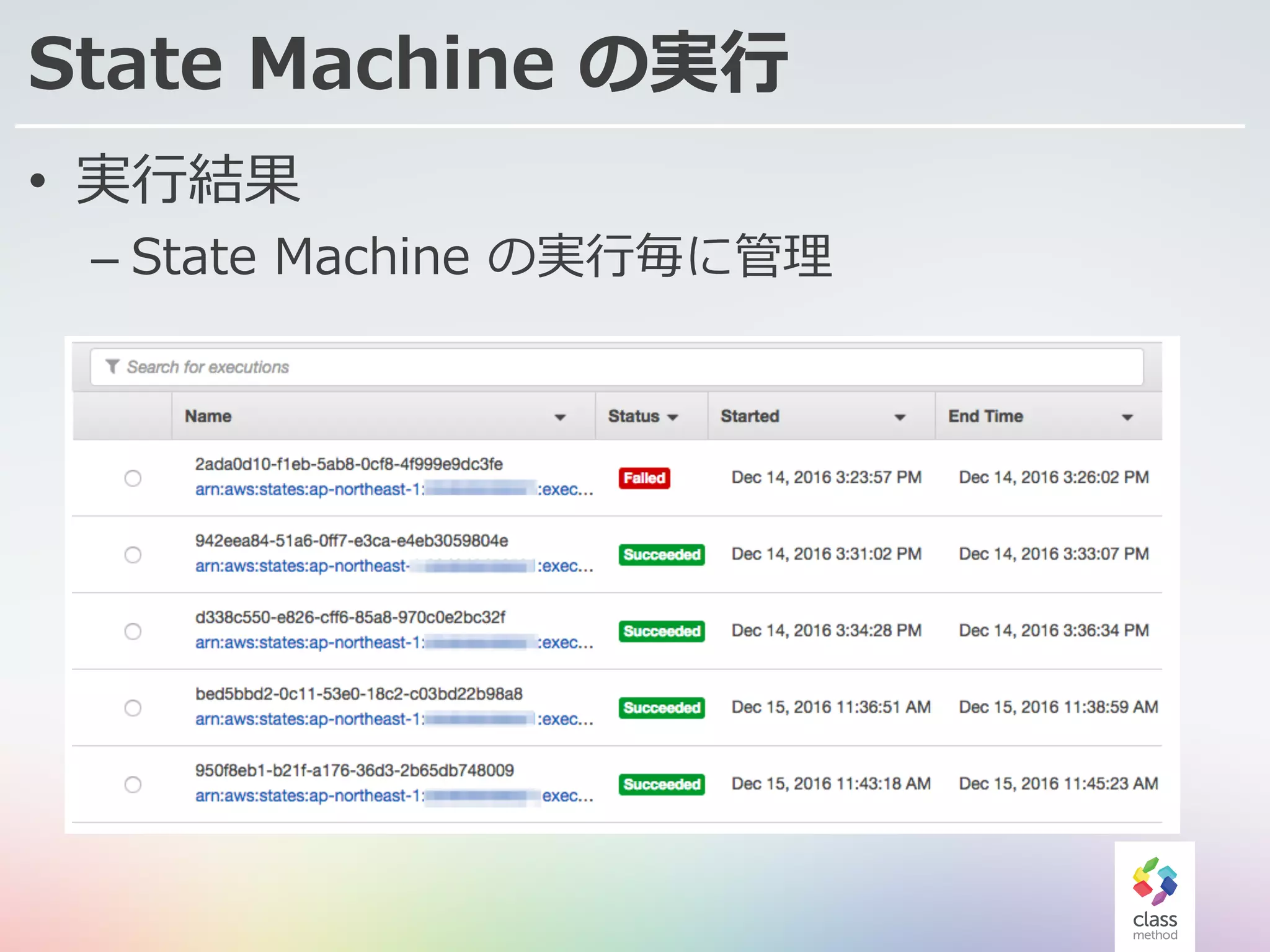

32. State Machine の実⾏
• 実⾏結果
– State Machine の実⾏毎に管理

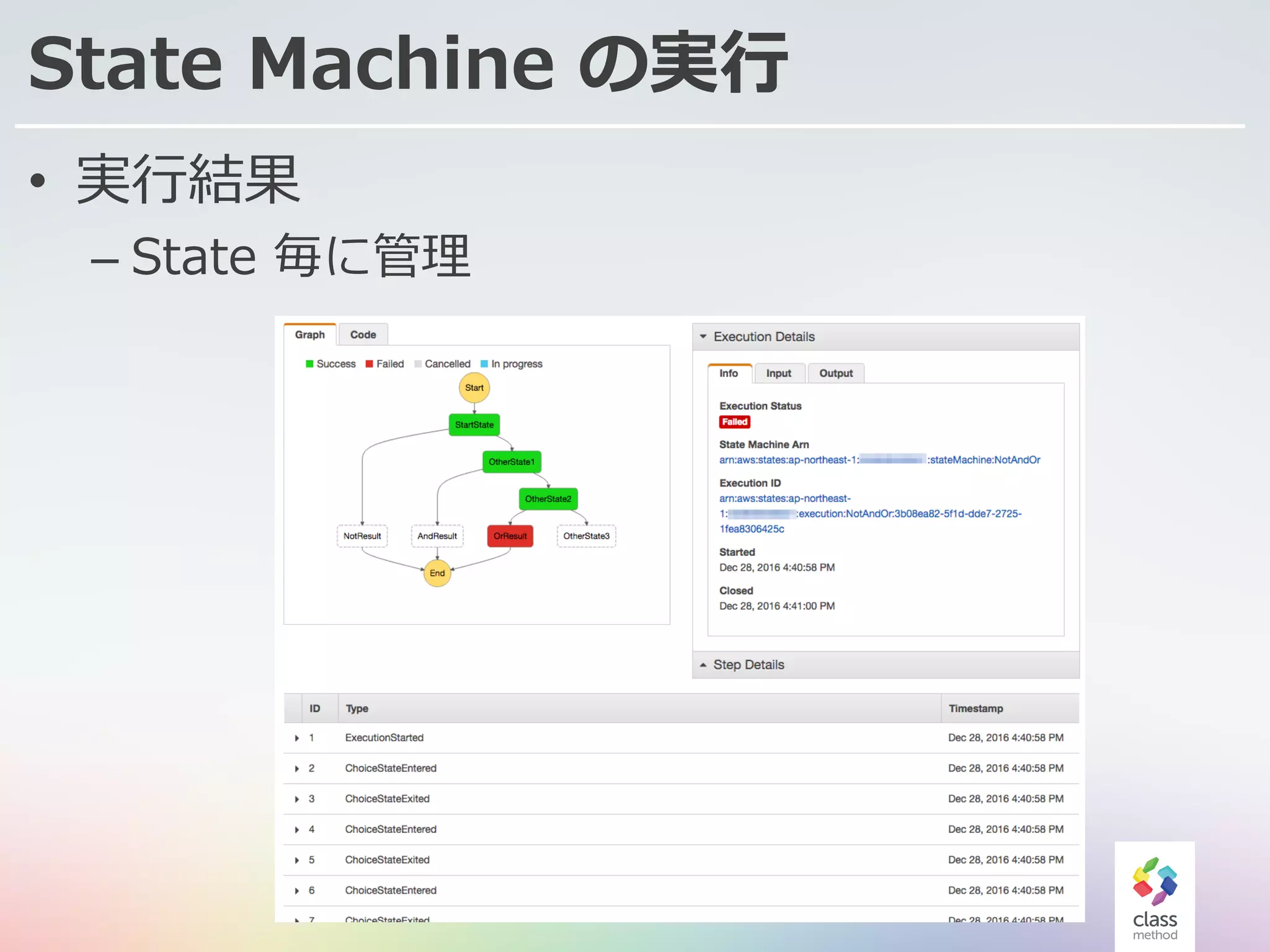

33. State Machine の実⾏
• 実⾏結果
– State 毎に管理

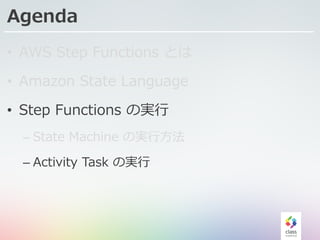

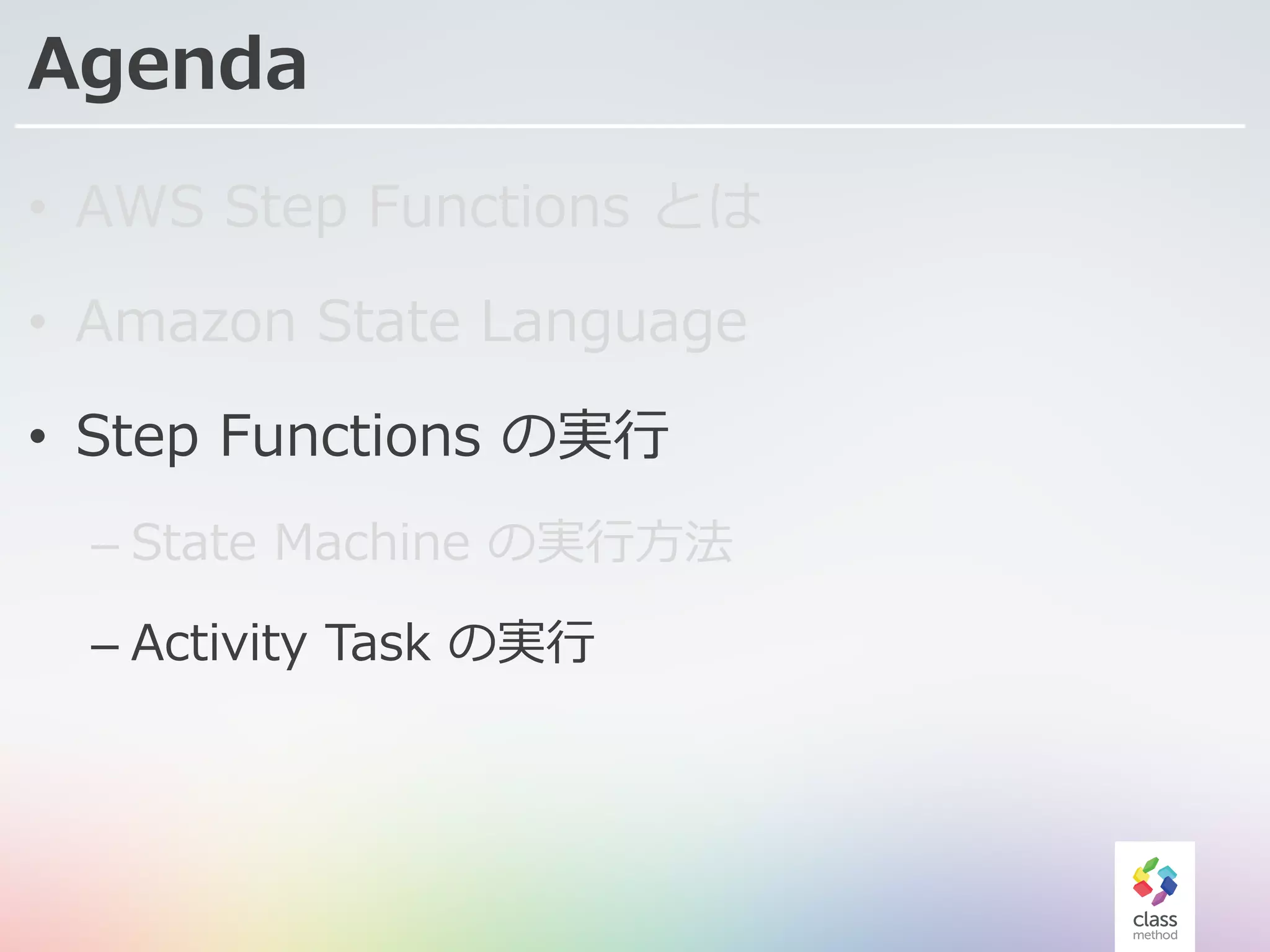

34. Agenda
• AWS Step Functions とは
• Amazon State Language
• Step Functions の実⾏
– State Machine の実⾏⽅法
– Activity Task の実⾏

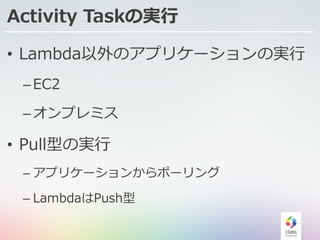

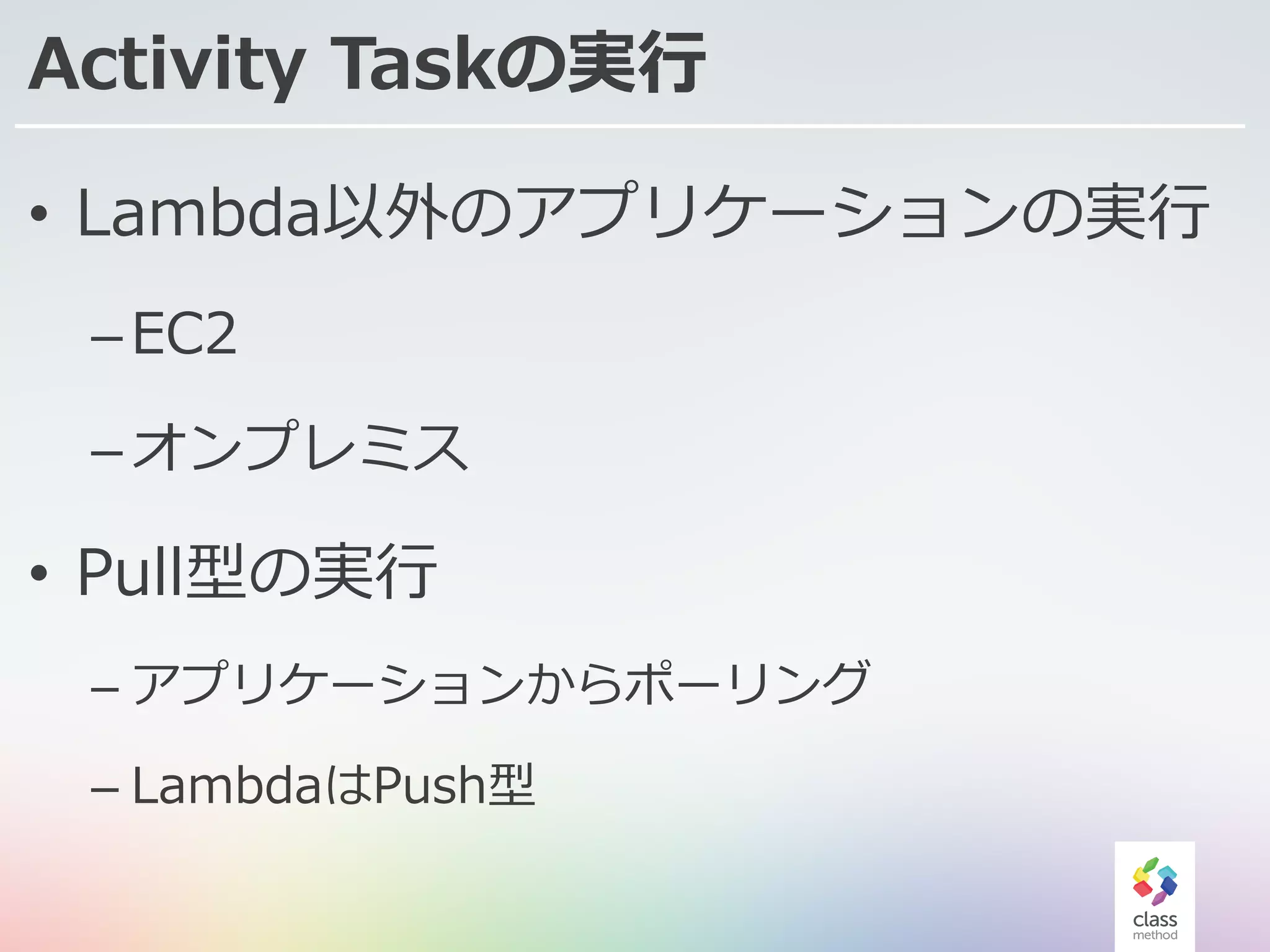

35. Activity Taskの実⾏
• Lambda以外のアプリケーションの実⾏
–EC2
–オンプレミス
• Pull型の実⾏
– アプリケーションからポーリング
– LambdaはPush型

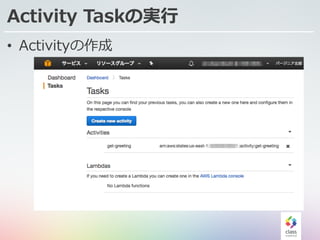

36. Activity Taskの実⾏
• Activityの作成

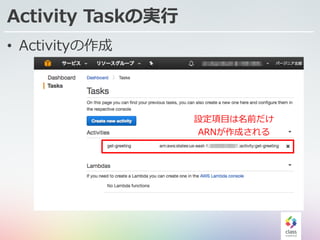

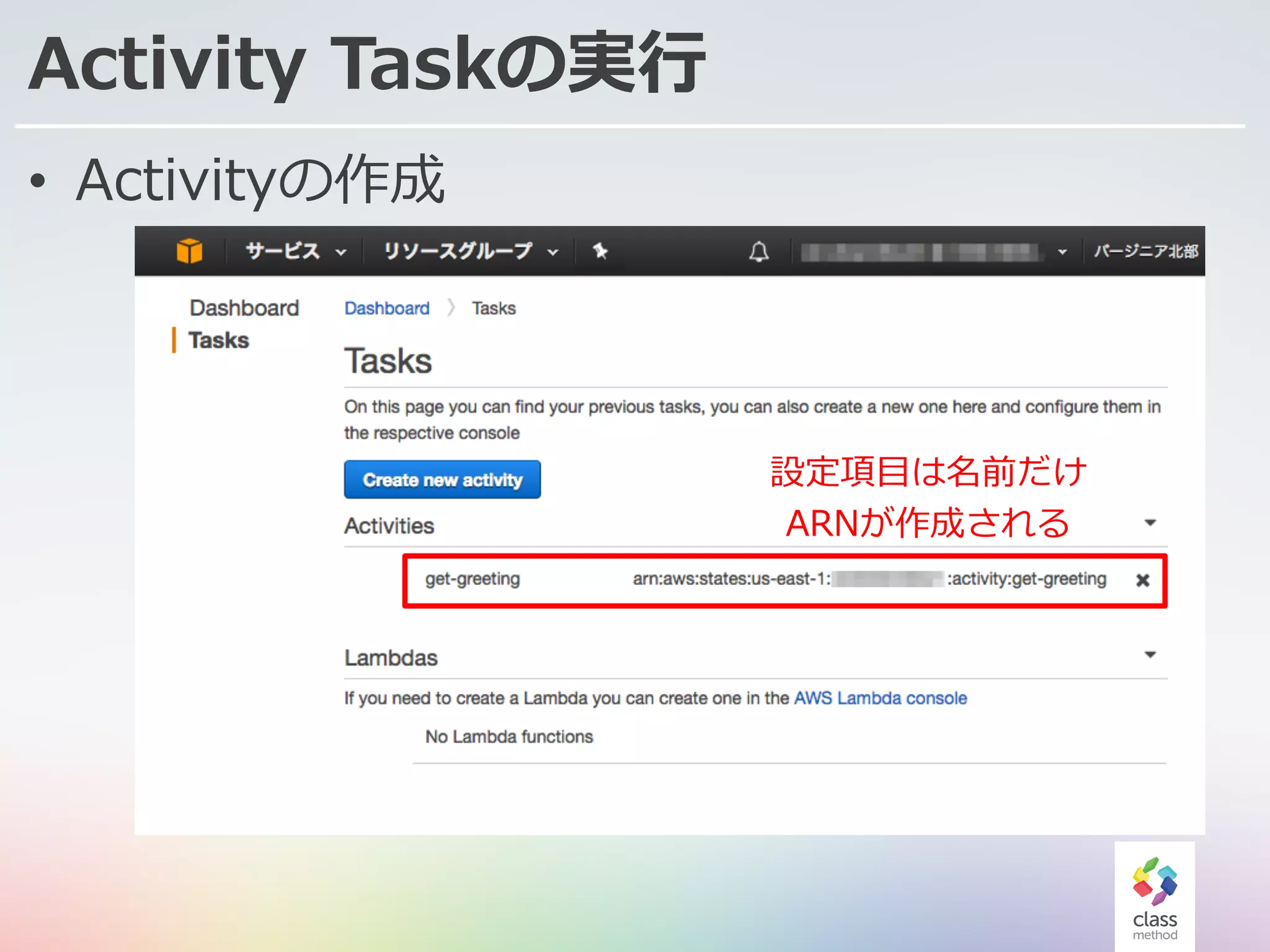

37. Activity Taskの実⾏
• Activityの作成
設定項⽬は名前だけ
ARNが作成される

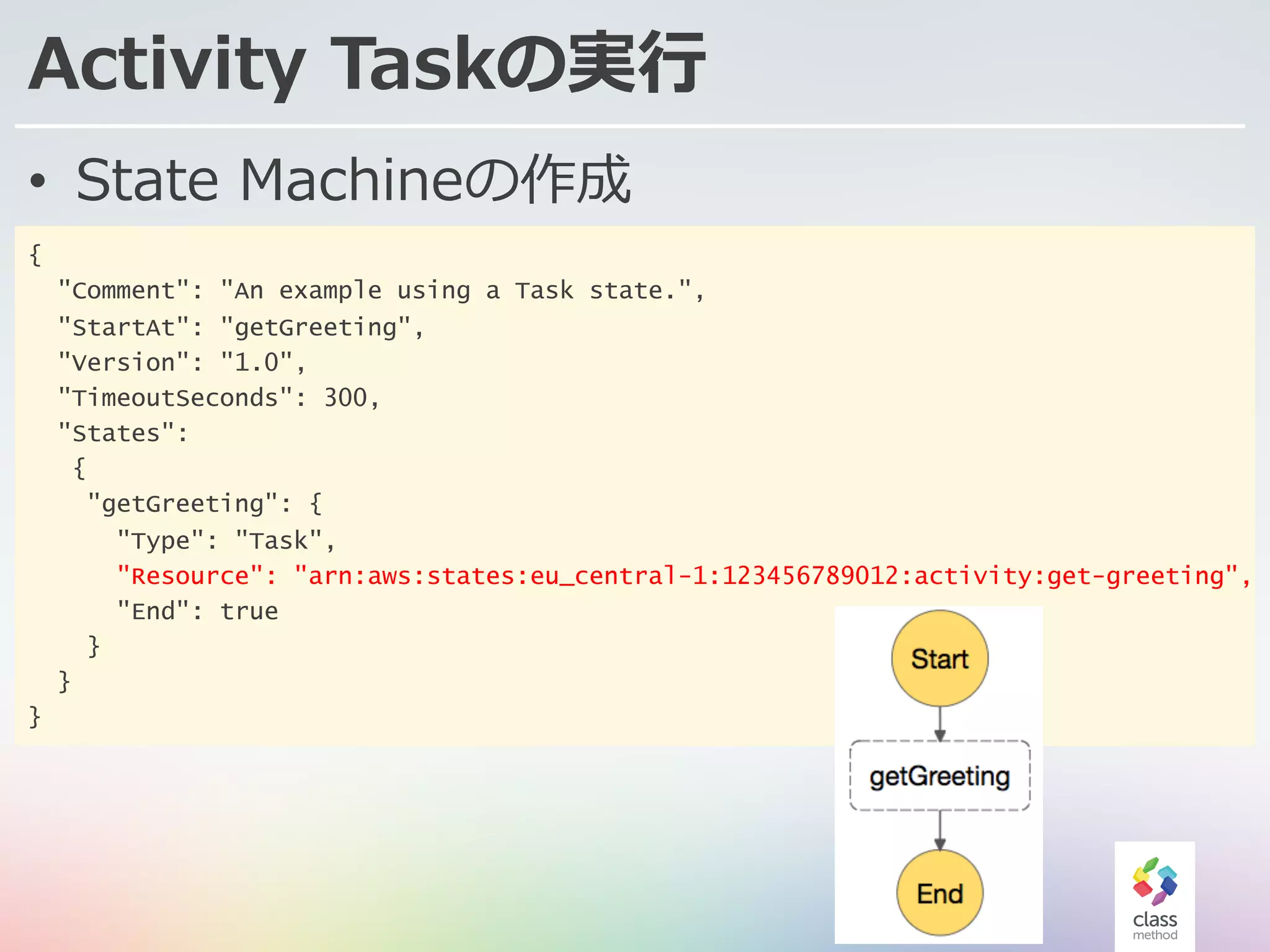

38. Activity Taskの実⾏
• State Machineの作成
{
"Comment": "An example using a Task state.",
"StartAt": "getGreeting",
"Version": "1.0",
"TimeoutSeconds": 300,
"States":
{
"getGreeting": {
"Type": "Task",
"Resource": "arn:aws:states:eu_central-1:123456789012:activity:get-greeting",
"End": true
}
}
}

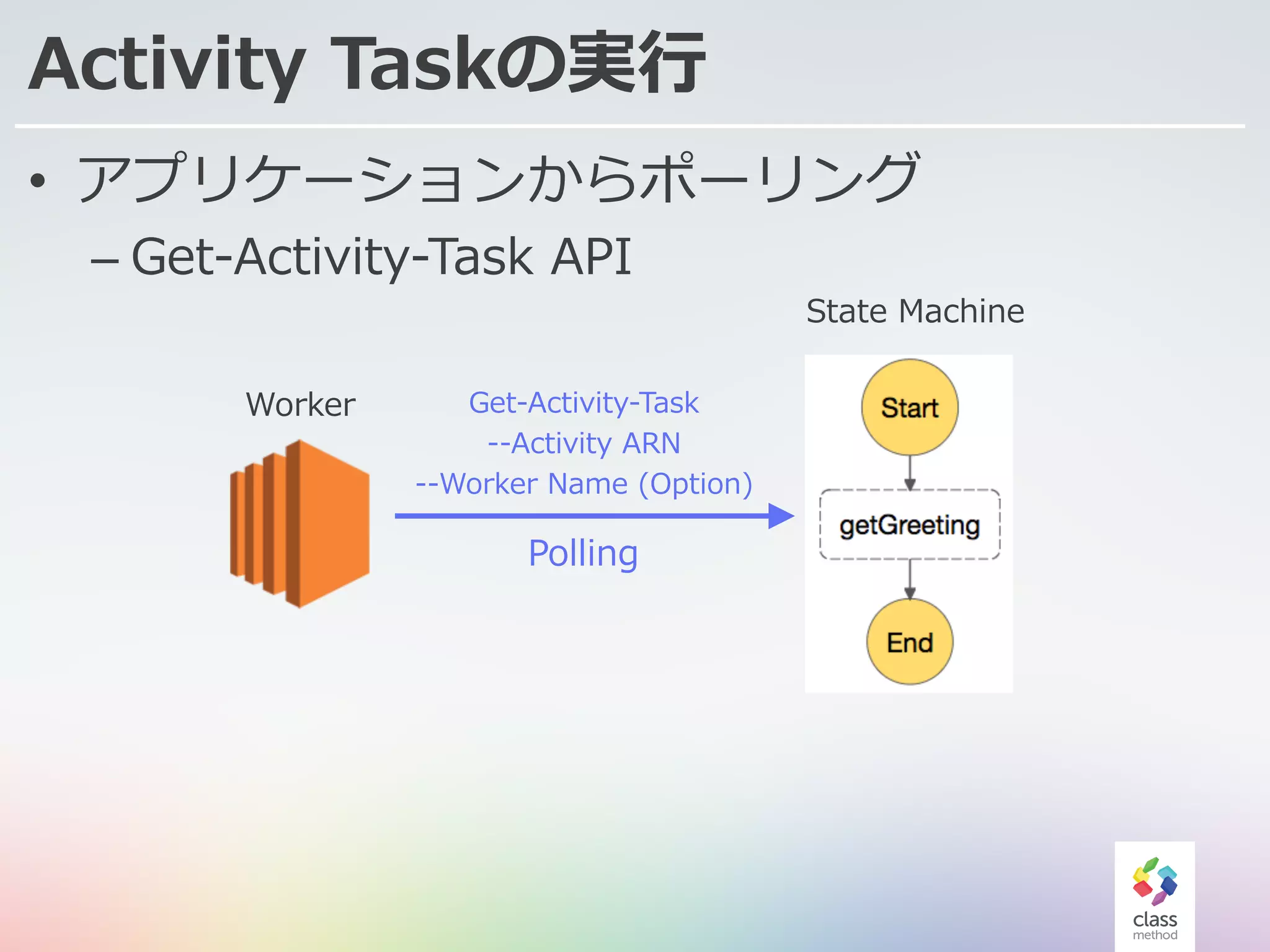

39. Activity Taskの実⾏
• アプリケーションからポーリング
– Get-Activity-Task API
Polling
Get-Activity-Task
--Activity ARN
--Worker Name (Option)
Worker
State Machine

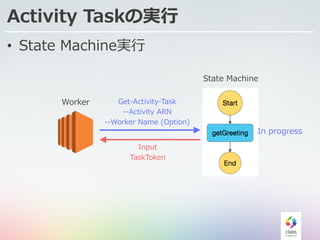

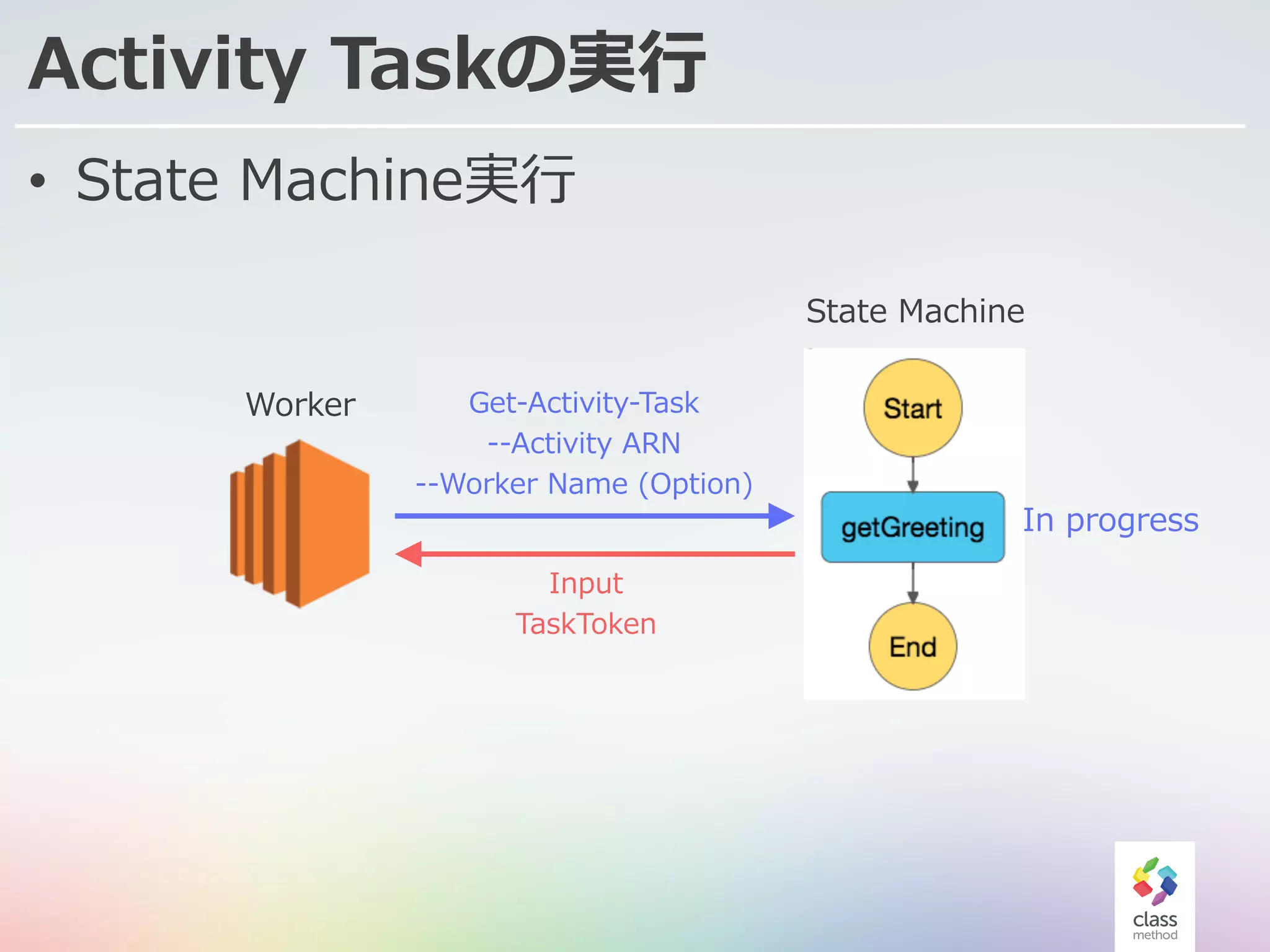

40. Activity Taskの実⾏
• State Machine実⾏
Input
TaskToken
In progress
Get-Activity-Task
--Activity ARN
--Worker Name (Option)
Worker
State Machine

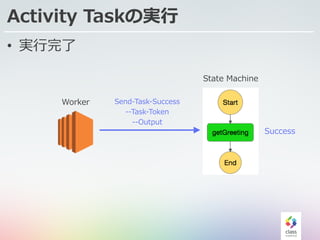

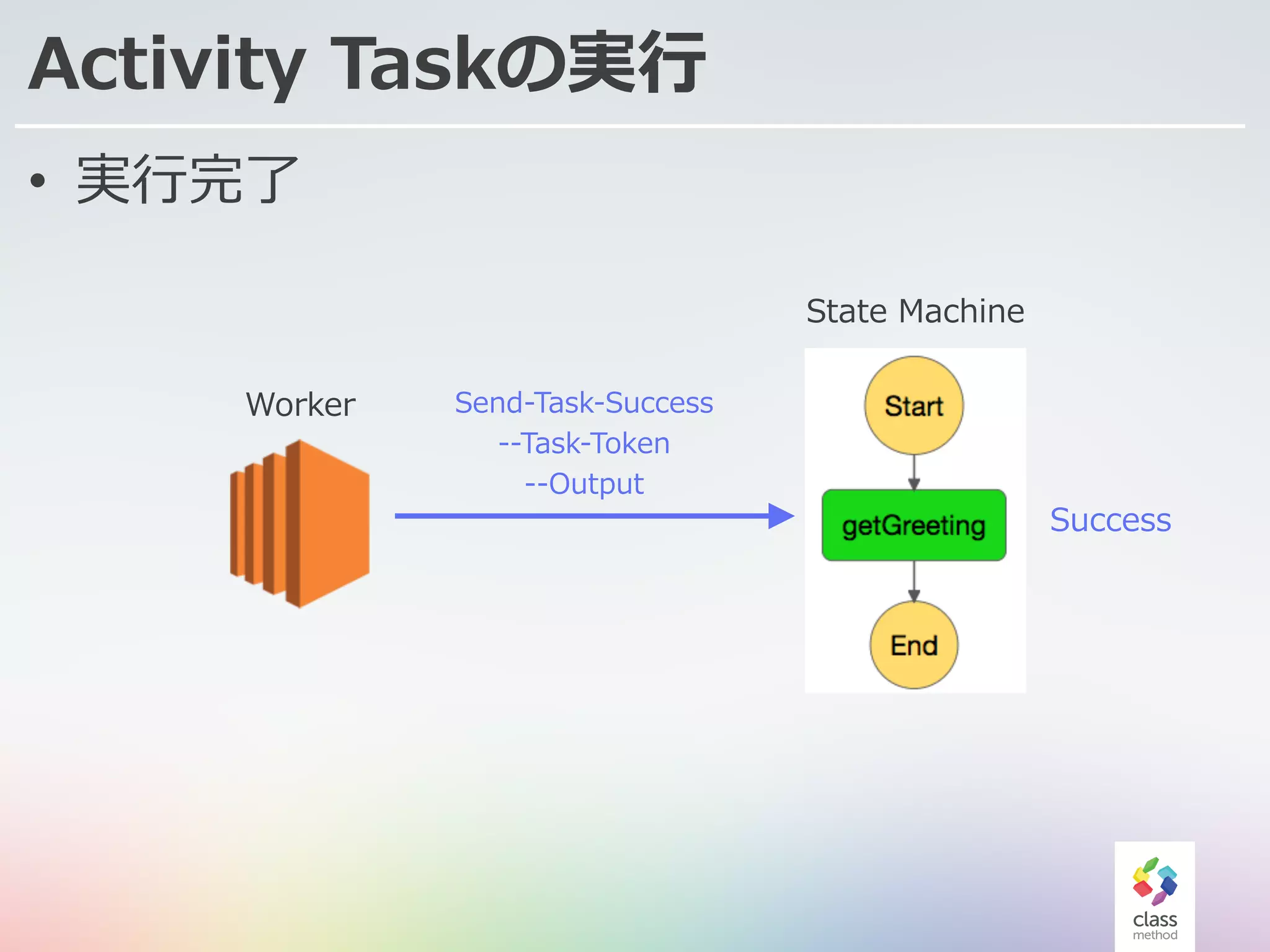

41. Activity Taskの実⾏
• 実⾏完了
Success
Send-Task-Success
--Task-Token
--Output
Worker
State Machine

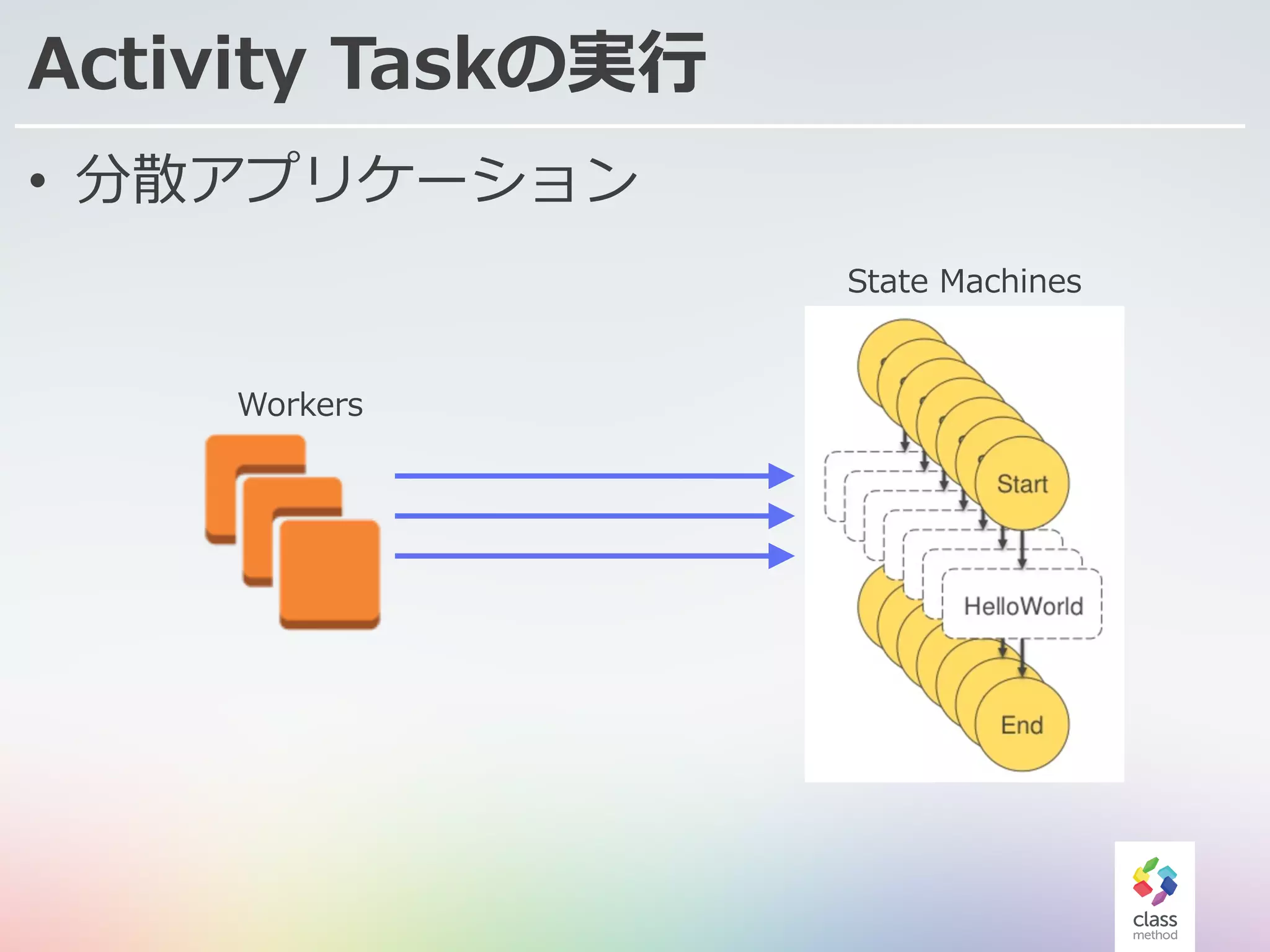

42. Activity Taskの実⾏
• 分散アプリケーション
Workers
State Machines

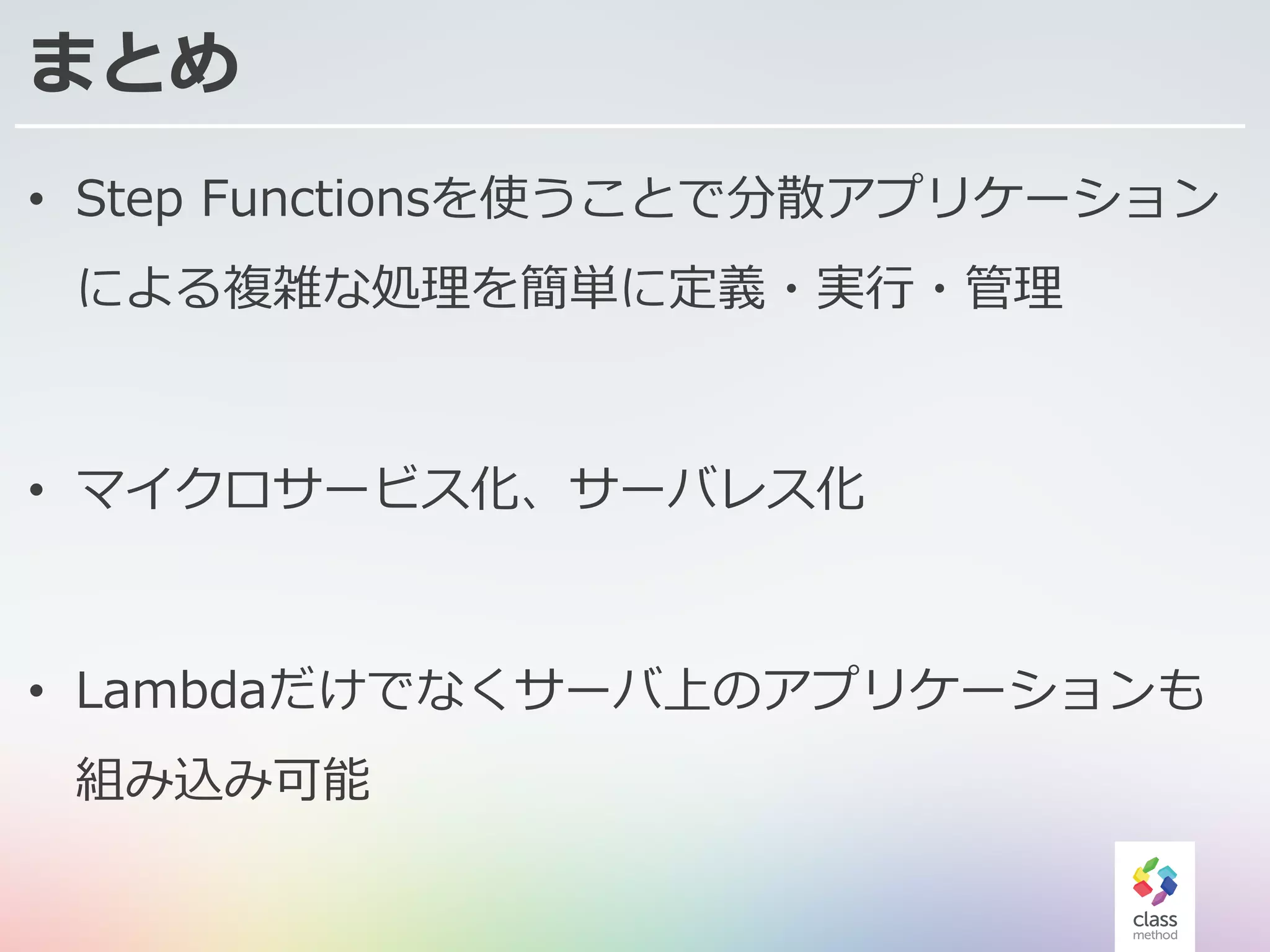

43. まとめ
• Step Functionsを使うことで分散アプリケーション
による複雑な処理を簡単に定義・実⾏・管理
• マイクロサービス化、サーバレス化
• Lambdaだけでなくサーバ上のアプリケーションも
組み込み可能
