Avlock Company Profile

ENGINEERED RIVETING, SWAGING &
AUTOMOTIVE FASTENING SYSTEMS
PRODUCT OVERVIEW CATALOGUE
AVLOCK INTERNATIONALAVLOCK INTERNATIONALAVLOCK INTERNATIONAL
INDIA PRIVATE LIMITED
Ramon House,6th Floor
169 Backbay Reclamation
Mumbai :- 400 020, India
Tel : +91-22-66345611/12
Fax : +91-22-66345622
Email : info@avlock.co.in
Website : www.avlock.co.in
BREAKSTEM HYDRANUT HYSPEED LOCKBOLT

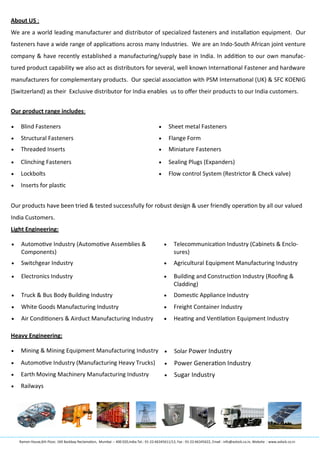

About US :
We are a world leading manufacturer and distributor of specialized fasteners and installation equipment. Our
fasteners have a wide range of applications across many Industries. We are an Indo-South African joint venture
company & have recently established a manufacturing/supply base in India. In addition to our own manufac-
tured product capability we also act as distributors for several, well known International Fastener and hardware
manufacturers for complementary products. Our special association with PSM International (UK) & SFC KOENIG
(Switzerland) as their Exclusive distributor for India enables us to offer their products to our India customers.
Our product range includes:
Our products have been tried & tested successfully for robust design & user friendly operation by all our valued
India Customers.
Light Engineering:
Heavy Engineering:
 Blind Fasteners  Sheet metal Fasteners
 Structural Fasteners  Flange Form
 Threaded Inserts  Miniature Fasteners
 Clinching Fasteners  Sealing Plugs (Expanders)
 Lockbolts  Flow control System (Restrictor & Check valve)
 Inserts for plastic
 Automotive Industry (Automotive Assemblies &
Components)
 Telecommunication Industry (Cabinets & Enclo-
sures)
 Switchgear Industry  Agricultural Equipment Manufacturing Industry
 Electronics Industry  Building and Construction Industry (Roofing &
Cladding)
 Truck & Bus Body Building Industry  Domestic Appliance Industry
 White Goods Manufacturing Industry  Freight Container Industry
 Air Conditioners & Airduct Manufacturing Industry  Heating and Ventilation Equipment Industry
 Mining & Mining Equipment Manufacturing Industry  Solar Power Industry
 Automotive Industry (Manufacturing Heavy Trucks)  Power Generation Industry
 Earth Moving Machinery Manufacturing Industry  Sugar Industry
 Railways
Ramon House,6th Floor, 169 Backbay Reclamation, Mumbai :- 400 020,India.Tel.: 91-22-66345611/12, Fax : 91-22-66345622, Email : info@avlock.co.in, Website : www.avlock.co.in

Break Stem Fasteners: are used where access is limited to one side of work surface only, available in various
types & different materials. They are widely used in all sheet metal industry and finding more and more applica-
tions in plastics & composites.
HYDRAVEX: Multi-grip capability, Good hole fill, Retained stem,
Large blind side bearing area.
Sizes: 3.2mm to 4.8mm (1/8" to 3/16")
Materials: Aluminium, Steel and stainless steel
Head forms: Dome, countersunk and large flange
HYDRANOX/HYDRABULB: High shear and tensile strength, Retained
stem Large blind side bearing area.
Sizes: 3.2mm to 4.8mm (1/8" to 3/16"),
Materials: Steel, Stainless steel, Head forms: Dome Head
HYDRASOFT: Split tail formation for plastic and low strength materi-
als Multi-grip capability, Retained stem.
Sizes: 4.0mm and 4.8mm (5/32" and 3/16")
Material: Aluminum alloy, Head form: Dome, large flange
HYDRAHEM: Very high shear and tensile strength, Large blind side
bearing area,
Interference lock via splined stem.
Sizes: 6.4mm(1/4”), Materials: Steel, Head forms: Dome Head
HYBOLT MB: Multi-grip capability fully sealed fastener visible lock,
excellent hole fill, Mechanically locked stem Good sheet take-up per-
formance.
Sizes: 4.8mm, 6.4mm and (3/16", ¼" )
Materials: Aluminum alloy, steel and stainless steel
Head forms: Protruding and countersunk
HYDRASEAL: Fully sealed fasteners, Good hole fill, Retained stem,
Wide range of materials and sizes.
Sizes: 3.2mm (1/8”), 4.0 mm (5/32) and 6.4mm (1/4”)
Material: Aluminium,Steel,Stainless Steel
Head form: Dome, Countersunk Head
HYDRAPOP: Low cost standard rivet, Wide range of materials and
sizes, Quick installation, Increased stem retention.
Sizes: 2.4mm to 6.4mm, Materials: Aluminium, Steel,Stainless Steel
Head forms: Dome,Large Flange, Counter Sunk.
Installation Equipment For Break Stem Fasteners:
Model No: A2000-02000,A3000-02000,A4000-02000
Typical placing sequence
Break Stem Fasteners

Hydranut Inserts Fasteners: are used where work piece requires internal threads and accessible from
one side only, available in various types & different materials. They are widely used in all sheet metal industry
and finding more and more applications in plastics & composites and a cost effective and time saving replace-
ment of weld nuts.
Hydranut Round is a blind threaded nut insert with a round profile designed to
provide a load bearing threads in thin sheet materials.
Thread Sizes: M3-M12
Materials: Aluminium, Steel, Stainless Steel
Head forms: Low profile, countersunk and large flange
Hydranut Sealed Prevents ingress of dirt and fluids into thread, Prevents in-
gress of water and foreign bodies into electrical circuits.
Materials: Steel, stainless steel, aluminium
Head forms: Low profile, countersunk and large flange
Hydranut Splined Body Improves torque-to-turn resistance in softer materials
such as aluminium when compared to plain body inserts, Improved electrical
continuity in sheet metal fixings.
Thread Sizes: M4 – M10,
Materials: Steel, Aluminium
Headforms: Low profile and large flange
Hydranut Square Body Square section and bore improves torque - to turn ratio
in components, Increased hole punch life compared to hexagonal geometries
Thread Sizes: M5-M8
Material: Steel
Headform: Large flange
Hydranut Half Hex Ease of hole entry, Particularly suited for automation. Hexag-
onal profile improves torque - to turn ratio compared to round and splined Hy-
dranut
Material: Steel, stainless steel
Head forms: Low profile and large flange
Hydranut Full Hexagonal Body Hexagonal section and bore improves torque to-
turn in components via form lock when compared to round and splined inserts
Material: Steel, stainless steel
Head forms: Low profile and large flange
Installation Equipment For Hydranut Inserts :
Model No: T1000-02000
Hydranut Inserts Fasteners

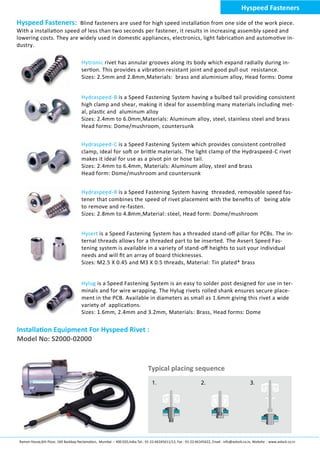

Hyspeed Fasteners: Blind fasteners are used for high speed installation from one side of the work piece.
With a installation speed of less than two seconds per fastener, it results in increasing assembly speed and
lowering costs. They are widely used in domestic appliances, electronics, light fabrication and automotive in-
dustry.
Hytronic rivet has annular grooves along its body which expand radially during in-
sertion. This provides a vibration resistant joint and good pull out resistance.
Sizes: 2.5mm and 2.8mm,Materials: brass and aluminium alloy, Head forms: Dome
Hydraspeed-B is a Speed Fastening System having a bulbed tail providing consistent
high clamp and shear, making it ideal for assembling many materials including met-
al, plastic and aluminum alloy
Sizes: 2.4mm to 6.0mm,Materials: Aluminum alloy, steel, stainless steel and brass
Head forms: Dome/mushroom, countersunk
Hydraspeed-C is a Speed Fastening System which provides consistent controlled
clamp, ideal for soft or brittle materials. The light clamp of the Hydraspeed-C rivet
makes it ideal for use as a pivot pin or hose tail.
Sizes: 2.4mm to 6.4mm, Materials: Aluminum alloy, steel and brass
Head form: Dome/mushroom and countersunk
Hydraspeed-R is a Speed Fastening System having threaded, removable speed fas-
tener that combines the speed of rivet placement with the benefits of being able
to remove and re-fasten.
Sizes: 2.8mm to 4.8mm,Material: steel, Head form: Dome/mushroom
Hysert is a Speed Fastening System has a threaded stand-off pillar for PCBs. The in-
ternal threads allows for a threaded part to be inserted. The Avsert Speed Fas-
tening system is available in a variety of stand-off heights to suit your individual
needs and will fit an array of board thicknesses.
Sizes: M2.5 X 0.45 and M3 X 0.5 threads, Material: Tin plated* brass
Hylug is a Speed Fastening System is an easy to solder post designed for use in ter-
minals and for wire wrapping. The Hylug rivets rolled shank ensures secure place-
ment in the PCB. Available in diameters as small as 1.6mm giving this rivet a wide
variety of applications.
Sizes: 1.6mm, 2.4mm and 3.2mm, Materials: Brass, Head forms: Dome
AVLOCK INTERNATIONAL
ENGINEERED RIVETING,SWAGING & AUTOMOTIVEFASTENING SYSTEMS
I N D I A P R I V A T E L I M I T E D
Installation Equipment For Hyspeed Rivet :
Model No: S2000-02000
Hyspeed Fasteners

Hydra Lockbolt Fasteners: High strength bolt type fastener. Elimates problems associated with loose nuts, lock
nuts, bolt and solid rivets. Vibration & is tamper resistant. Consistent pre- tension values. High speed installation, low
noise level. High tensile, grade 8.8 Variety of head forms and lengths.
Hydraloc ‘T’ Pin & Collar
Heavy duty, high strength, tamper resistant, High tensile and shear strength, fast in-
stallation, vibration resistance, high grip capability, tamper resistant. Ideal rivet
for heavy engineering applications.
Size : 1/2” to 1” , Material : Steel, Head Form : Dome , CSK
Hydraloc ‘T’ Nut Head Pin & Collar
Designed for applications where access is difficult.
Size : 13 to 28mm Various lengths. Material - Grade 8.8
Hydramax ‘M’ Series Pin & Collar
Fastener with extensive grip range. Ideal for applications where material thicknesses
vary. Reduces stock holding, operator error and provides cost effective benefits over
traditional fastening methods.
Size : 5 to 10mm Material : Steel, Head Form : Dome , CSK
Hydraloc ‘I’ & ‘M” Series Pin & Collar
Heavy duty, high strength, tamper resistant, High tensile and shear strength, fast in-
stallation, vibration resistance, high grip capability, tamper resistant. Ideal rivet
for heavy engineering applications.
Size: 3/16” - 3/8”, Material : Steel / Aluminium, Head Form : Dome , CSK.
Hydrabom
The Hydrabom Oversize Mechanically locked Fastener are so strong, one can do the
work of up to four ordinary fasteners.
Size: Material: Head Form:
Avtainer®
The Avdel Avtainer® fastener is a high strength steel fastener for joining composite materi-
als to metal. With a high shear strength due to the internally locked stem the Avtainer rivet
creates a vibration resistant joint whilst the under- head Santoprene TM seal creates a
watertight joint.
Size : Material: Head Form:
Installation Equipment For Hydra Lockbolt Fasteners:
Model No: A5000-02000
Hydraloc Bolt Fasteners

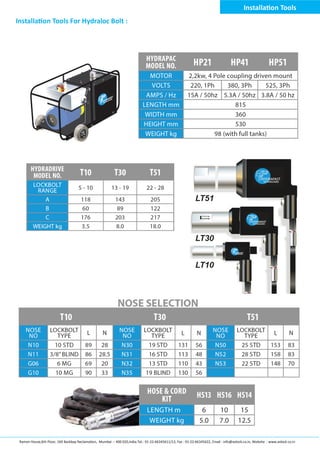

Installation Tools For Hydraloc Bolt :
Installation Tools

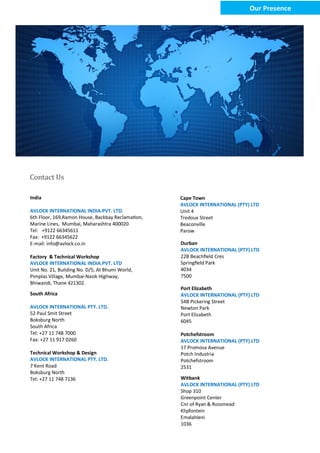

India
AVLOCK INTERNATIONAL INDIA.PVT. LTD.
6th Floor, 169,Ramon House, Backbay Reclamation,
Marine Lines, Mumbai, Maharashtra 400020
Tel: +9122 66345611
Fax: +9122 66345622
E-mail: info@avlock.co.in
Factory & Technical Workshop
AVLOCK INTERNATIONAL INDIA.PVT. LTD
Unit No. 21, Building No. D/5, At Bhumi World,
Pimplas Village, Mumbai-Nasik Highway,
Bhiwandi, Thane 421302.
Contact Us
South Africa
AVLOCK INTERNATIONAL PTY. LTD.
52 Paul Smit Street
Boksburg North
South Africa
Tel: +27 11 748 7000
Fax: +27 11 917 0260
Technical Workshop & Design
AVLOCK INTERNATIONAL PTY. LTD.
7 Kent Road
Boksburg North
Tel: +27 11 748 7136
Cape Town
AVLOCK INTERNATIONAL (PTY) LTD
Unit 4
Tredoux Street
Beaconville
Parow
Port Elizabeth
54B Pickering Street
Newton Park
Port Elizabeth
6045
Durban
22B Beachfield Cres
Springfield Park
4034
7500
Potchefstroom
17 Promosa Avenue
Potch Industria
Potchefstroom
2531
Witbank
Shop 310
Greenpoint Center
Cnr of Ryan & Rossmead
Klipfontein
Emalahleni
1036
Our Presence
