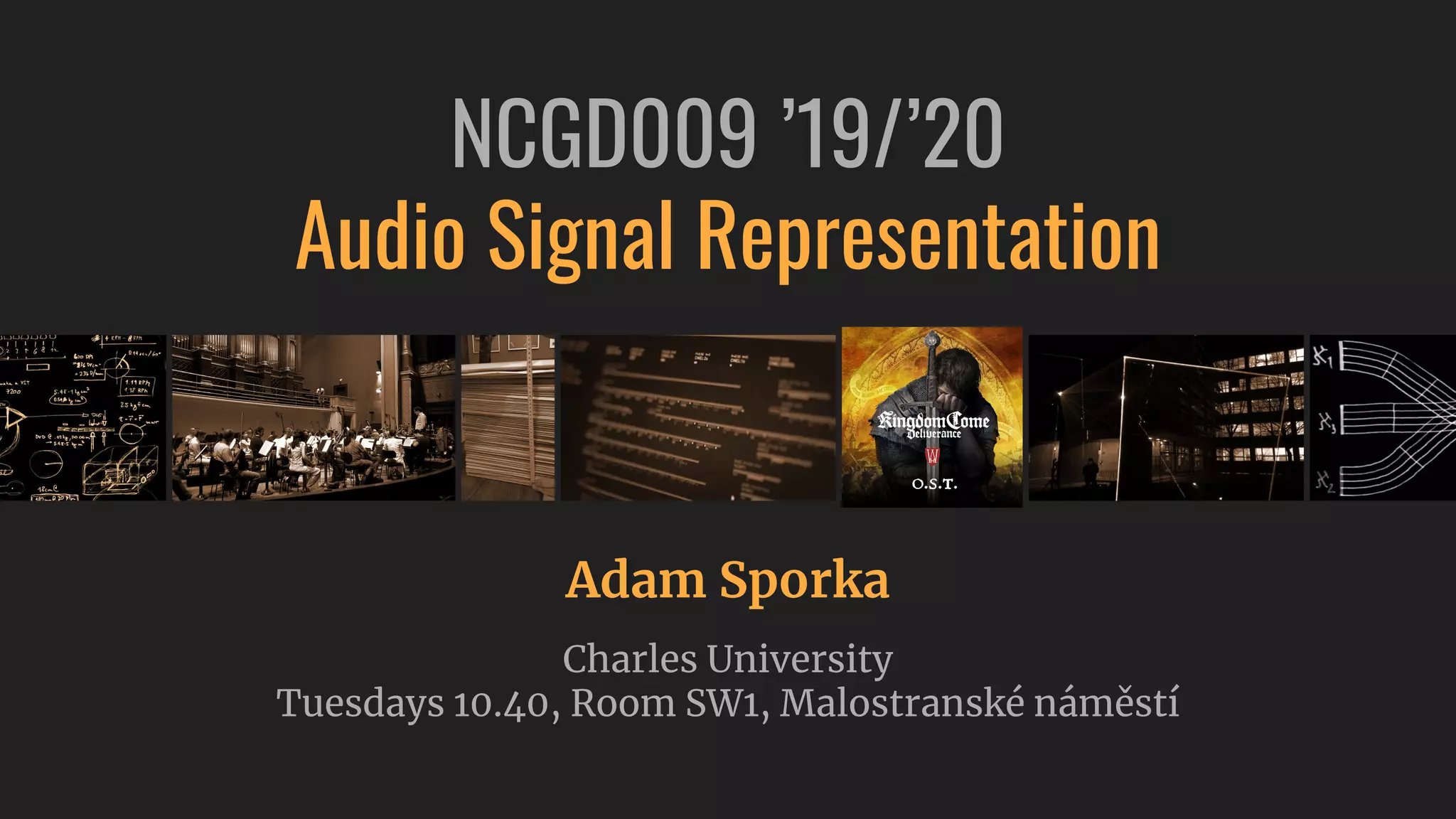

1. Adam Sporka
Charles University
Tuesdays 10.40, Room SW1, Malostranské náměstí
NCGD009 ’19/’20
Audio Signal Representation

2. Technical remark: I drew a number of sketches on the whiteboard. These
were not archived in this deck of slides. Sorry about that, I’ll keep it in mind
next time!

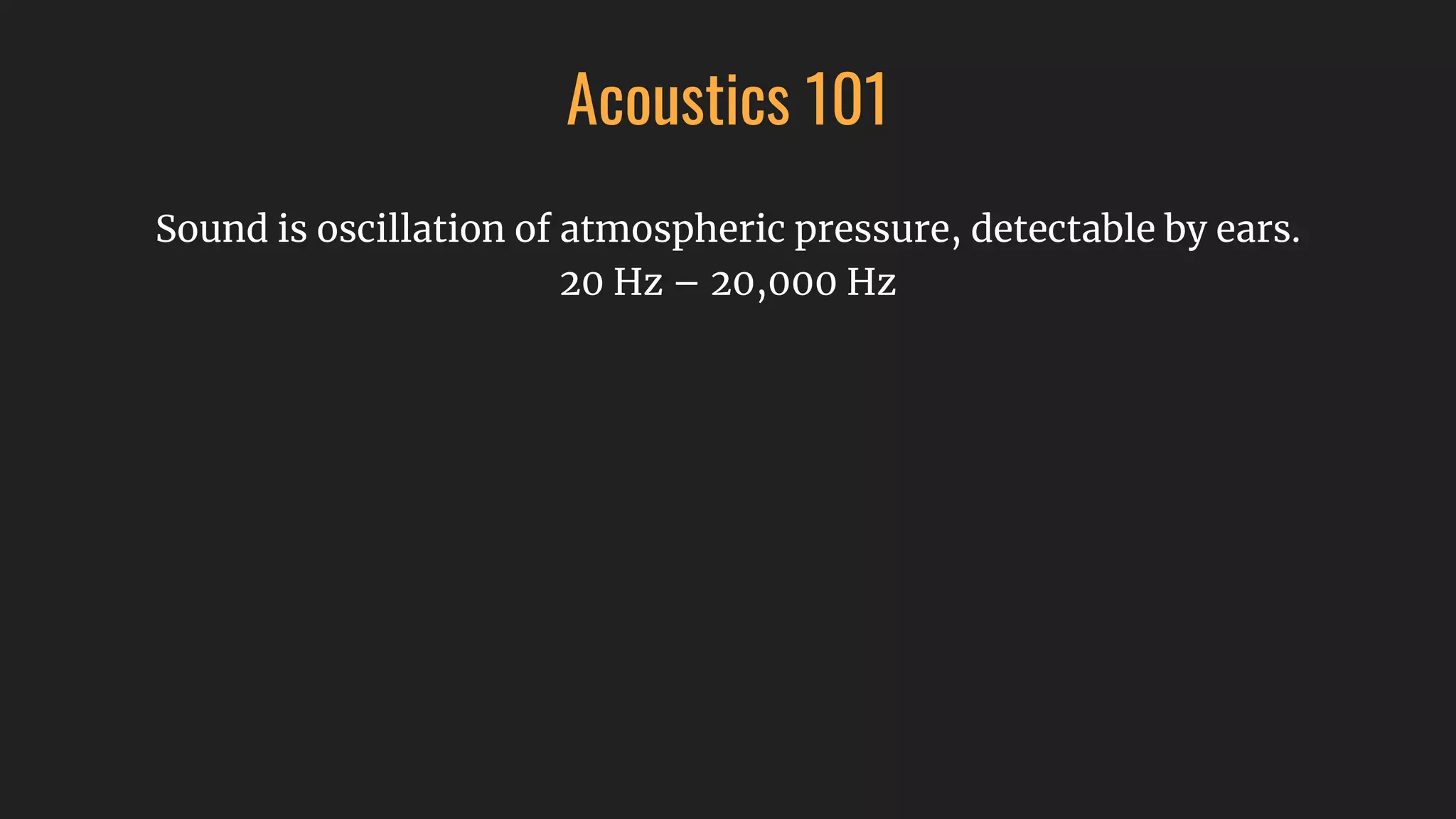

3. Acoustics 101
Sound is oscillation of atmospheric pressure, detectable by ears.
20 Hz – 20,000 Hz

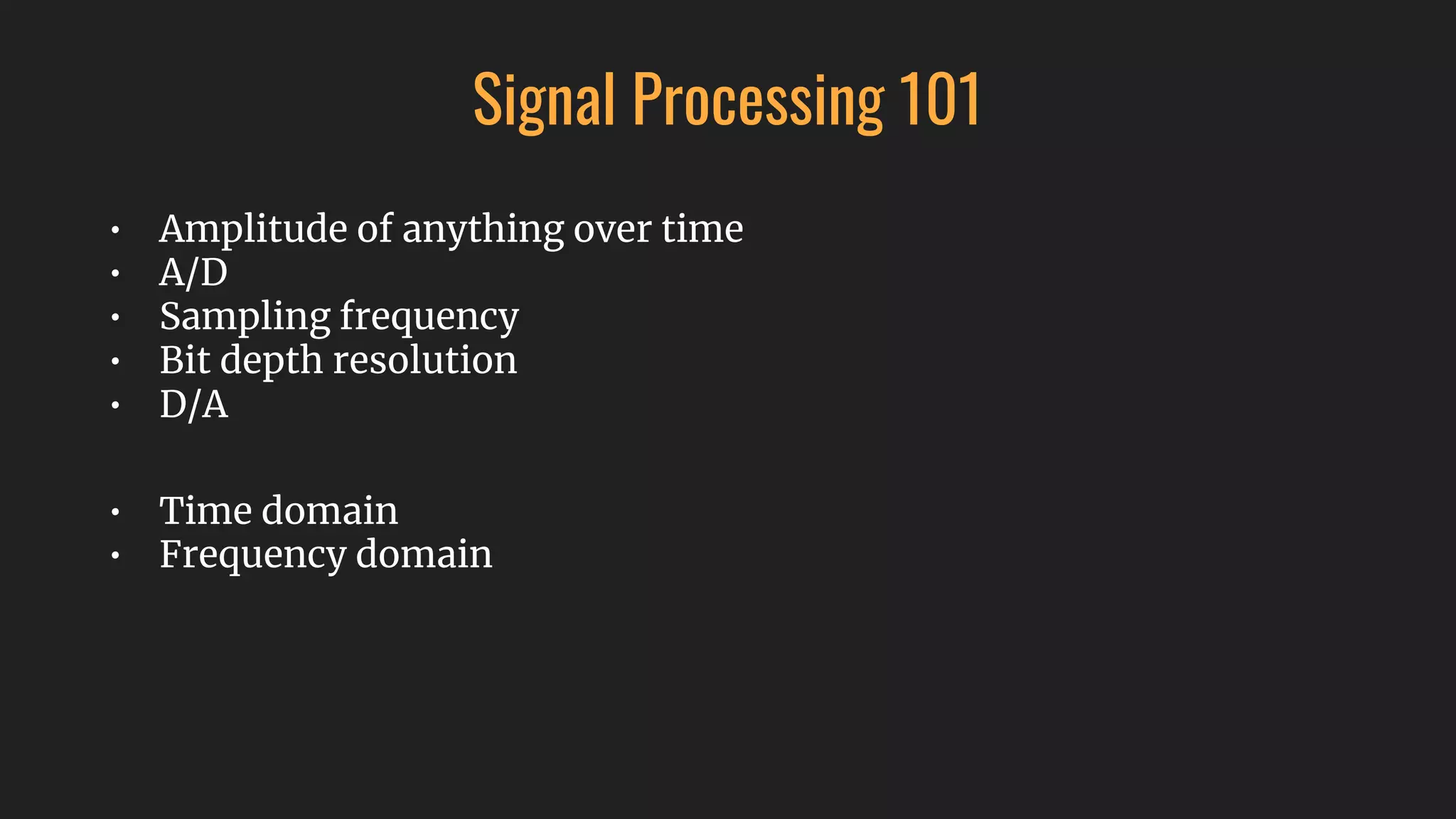

4. • Amplitude of anything over time
• A/D
• Sampling frequency
• Bit depth resolution
• D/A
• Time domain
• Frequency domain
Signal Processing 101

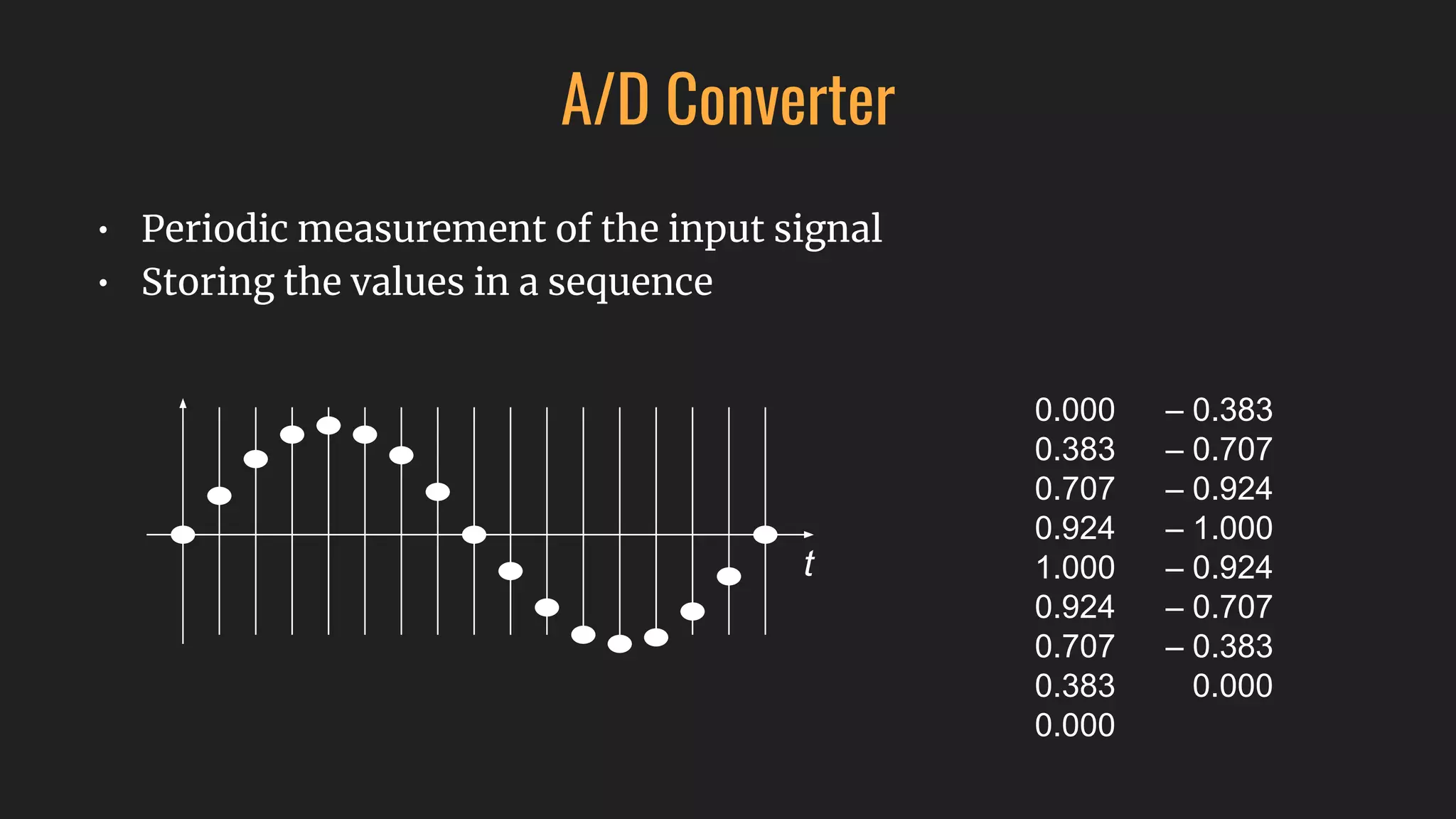

5. • Periodic measurement of the input signal
• Storing the values in a sequence
A/D Converter
0.000
0.383
0.707
0.924
1.000
0.924
0.707
0.383
0.000
– 0.383
– 0.707
– 0.924
– 1.000
– 0.924
– 0.707
– 0.383
0.000
t

6. D/A Converter (DAC)
• Processing a sequence of values
• Conversion of each value to amplitude
0.000
0.383
0.707
0.924
1.000
0.924
0.707
0.383
0.000
– 0.383
– 0.707
– 0.924
– 1.000
– 0.924
– 0.707
– 0.383
0.000
t

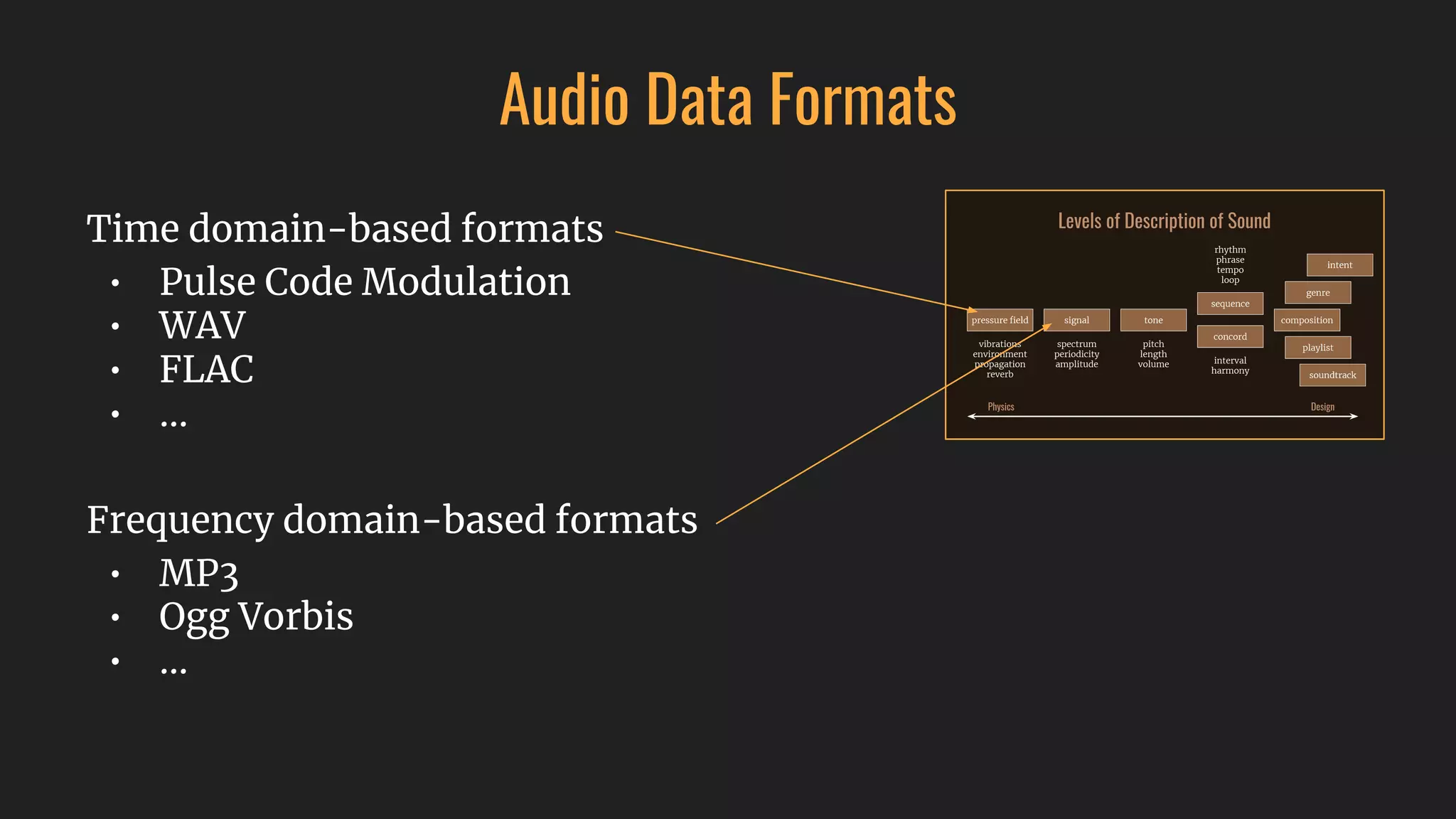

7. Audio Data Formats
Time domain-based formats
• Pulse Code Modulation
• WAV
• FLAC
• ...
Frequency domain-based formats
• MP3
• Ogg Vorbis
• ...

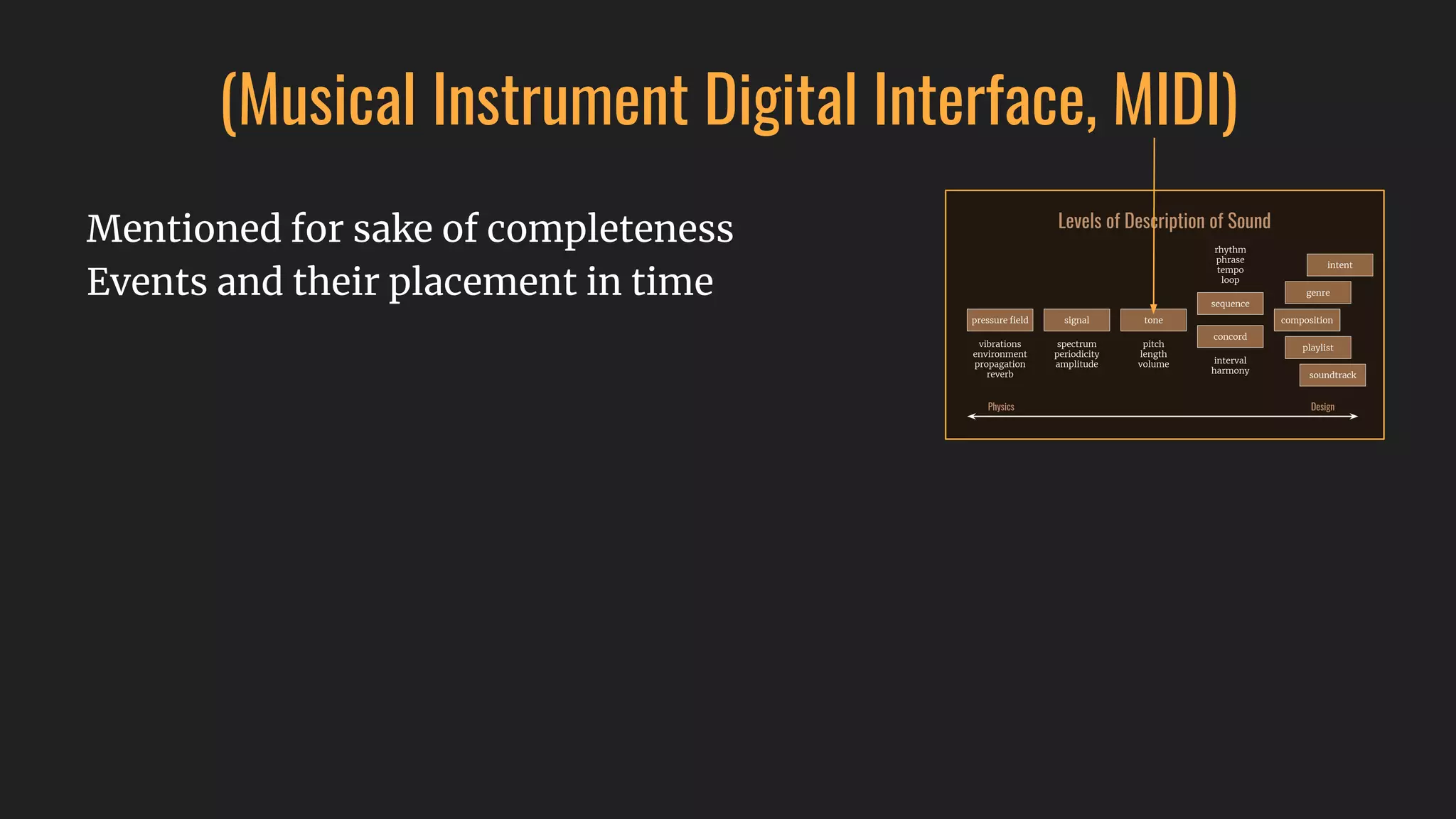

8. (Musical Instrument Digital Interface, MIDI)
Mentioned for sake of completeness
Events and their placement in time

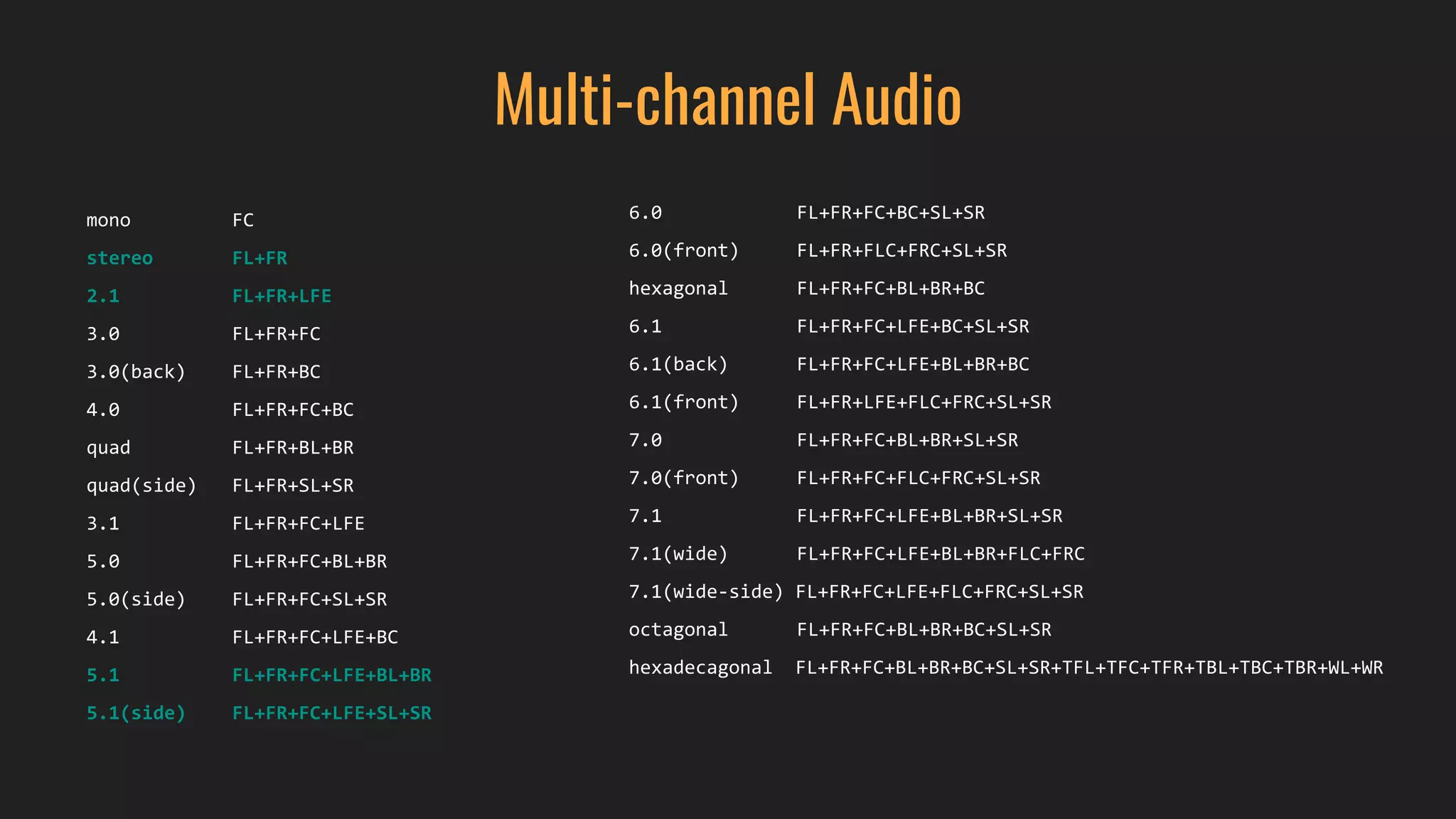

9. Multi-channel Audio
mono FC
stereo FL+FR
2.1 FL+FR+LFE
3.0 FL+FR+FC
3.0(back) FL+FR+BC
4.0 FL+FR+FC+BC
quad FL+FR+BL+BR
quad(side) FL+FR+SL+SR
3.1 FL+FR+FC+LFE
5.0 FL+FR+FC+BL+BR
5.0(side) FL+FR+FC+SL+SR
4.1 FL+FR+FC+LFE+BC
5.1 FL+FR+FC+LFE+BL+BR
5.1(side) FL+FR+FC+LFE+SL+SR
6.0 FL+FR+FC+BC+SL+SR
6.0(front) FL+FR+FLC+FRC+SL+SR
hexagonal FL+FR+FC+BL+BR+BC
6.1 FL+FR+FC+LFE+BC+SL+SR
6.1(back) FL+FR+FC+LFE+BL+BR+BC
6.1(front) FL+FR+LFE+FLC+FRC+SL+SR
7.0 FL+FR+FC+BL+BR+SL+SR
7.0(front) FL+FR+FC+FLC+FRC+SL+SR
7.1 FL+FR+FC+LFE+BL+BR+SL+SR
7.1(wide) FL+FR+FC+LFE+BL+BR+FLC+FRC
7.1(wide-side) FL+FR+FC+LFE+FLC+FRC+SL+SR
octagonal FL+FR+FC+BL+BR+BC+SL+SR
hexadecagonal FL+FR+FC+BL+BR+BC+SL+SR+TFL+TFC+TFR+TBL+TBC+TBR+WL+WR

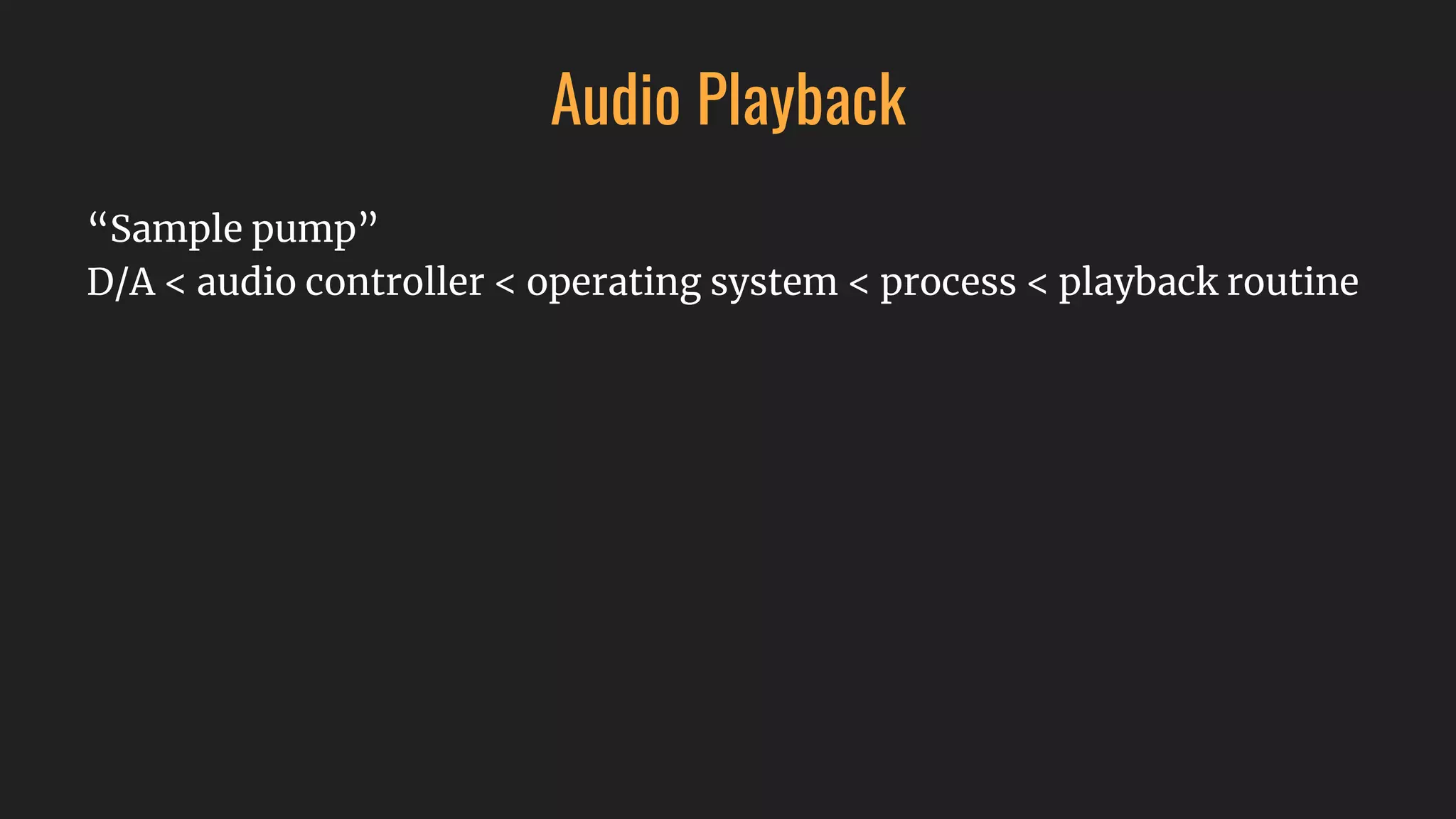

10. Audio Playback
“Sample pump”
D/A < audio controller < operating system < process < playback routine

11. Aliasing
http://www.cs.berkeley.edu/~sequin/CS184/LECT_09/L28.html

12. Aliasing
http://www.cs.berkeley.edu/~sequin/CS184/LECT_09/L28.html

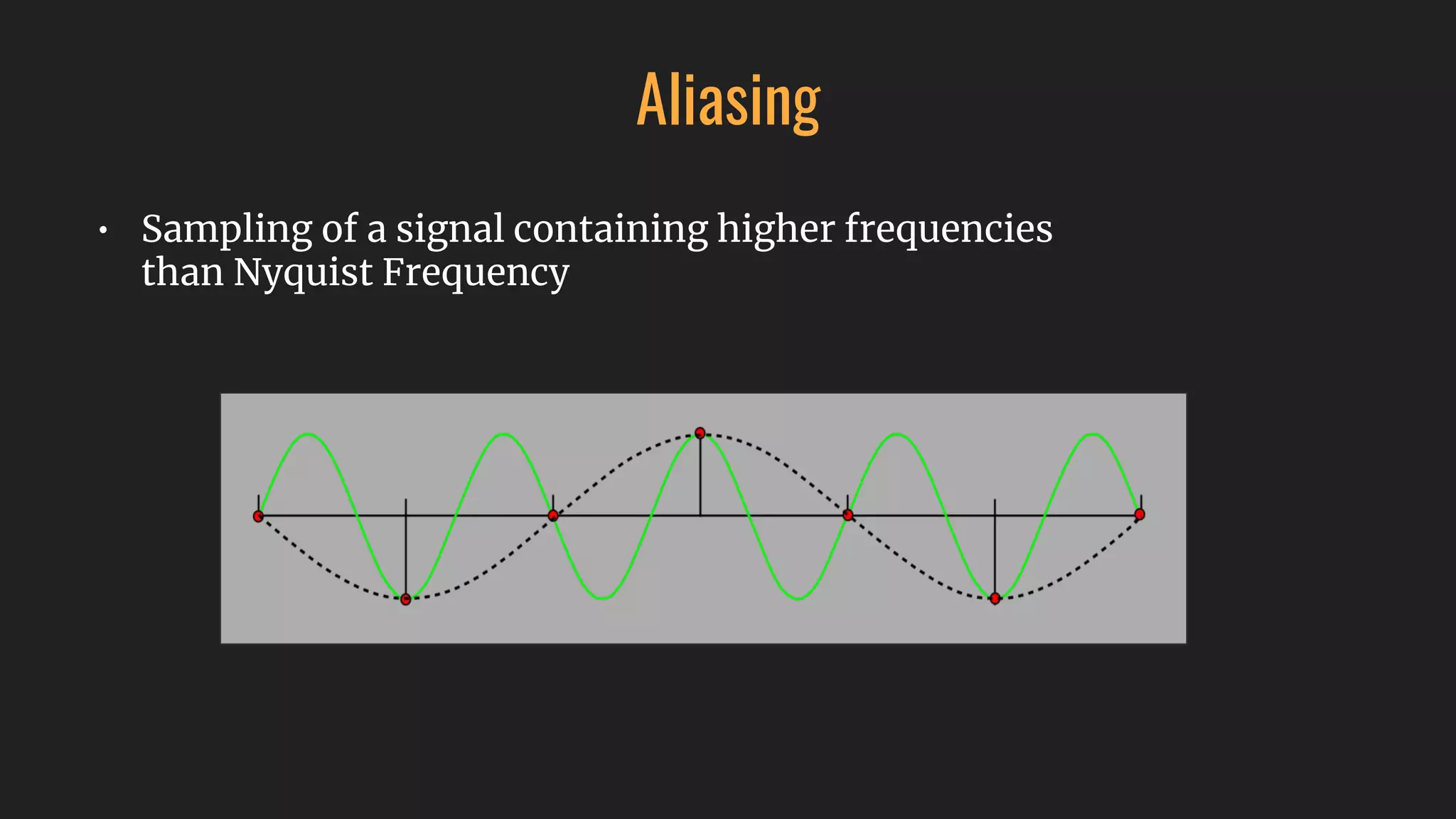

13. • Sampling of a signal containing higher frequencies
than Nyquist Frequency
Aliasing

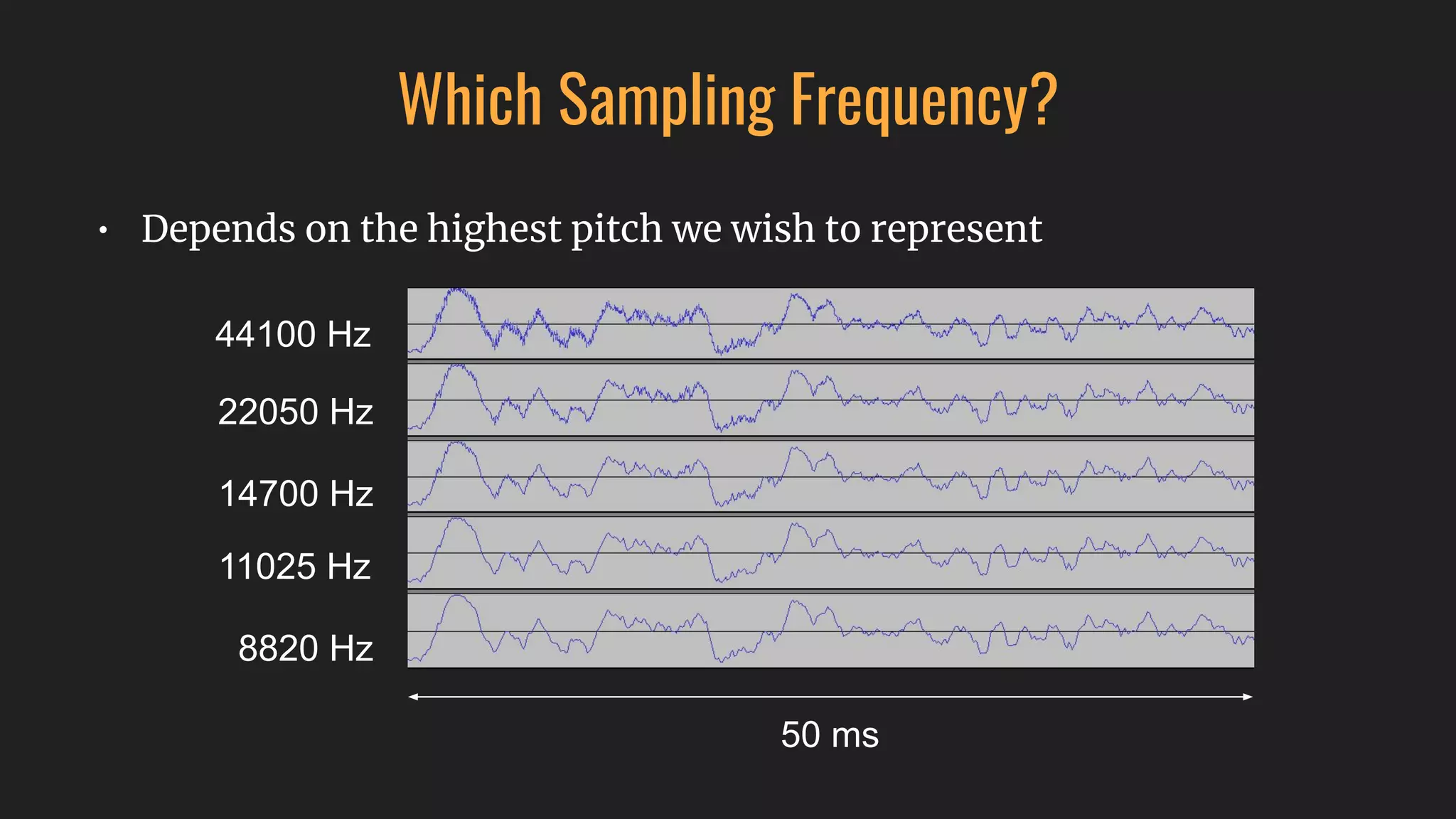

14. Which Sampling Frequency?
• Depends on the highest pitch we wish to represent
50 ms
44100 Hz
22050 Hz
14700 Hz
11025 Hz
8820 Hz

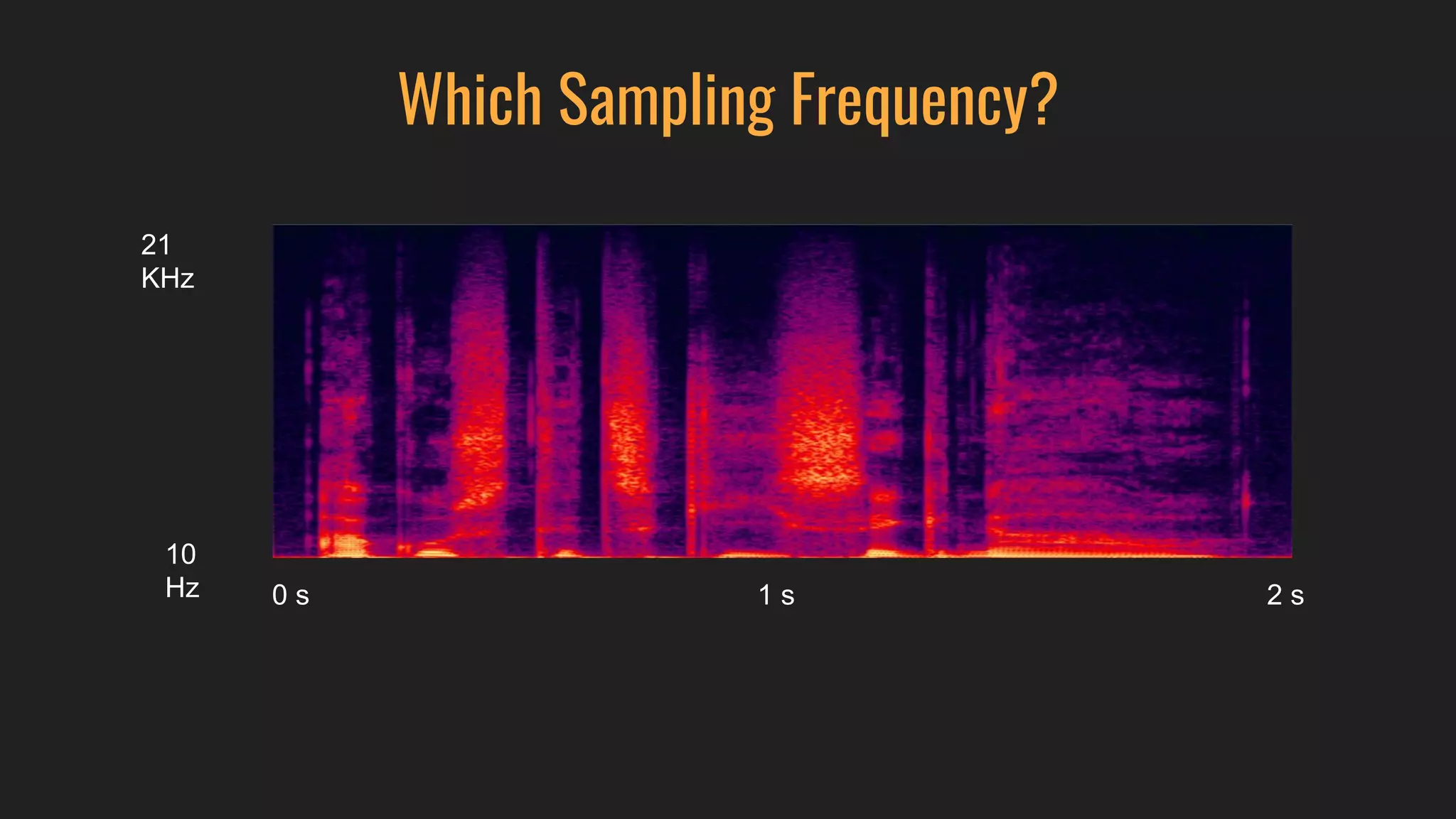

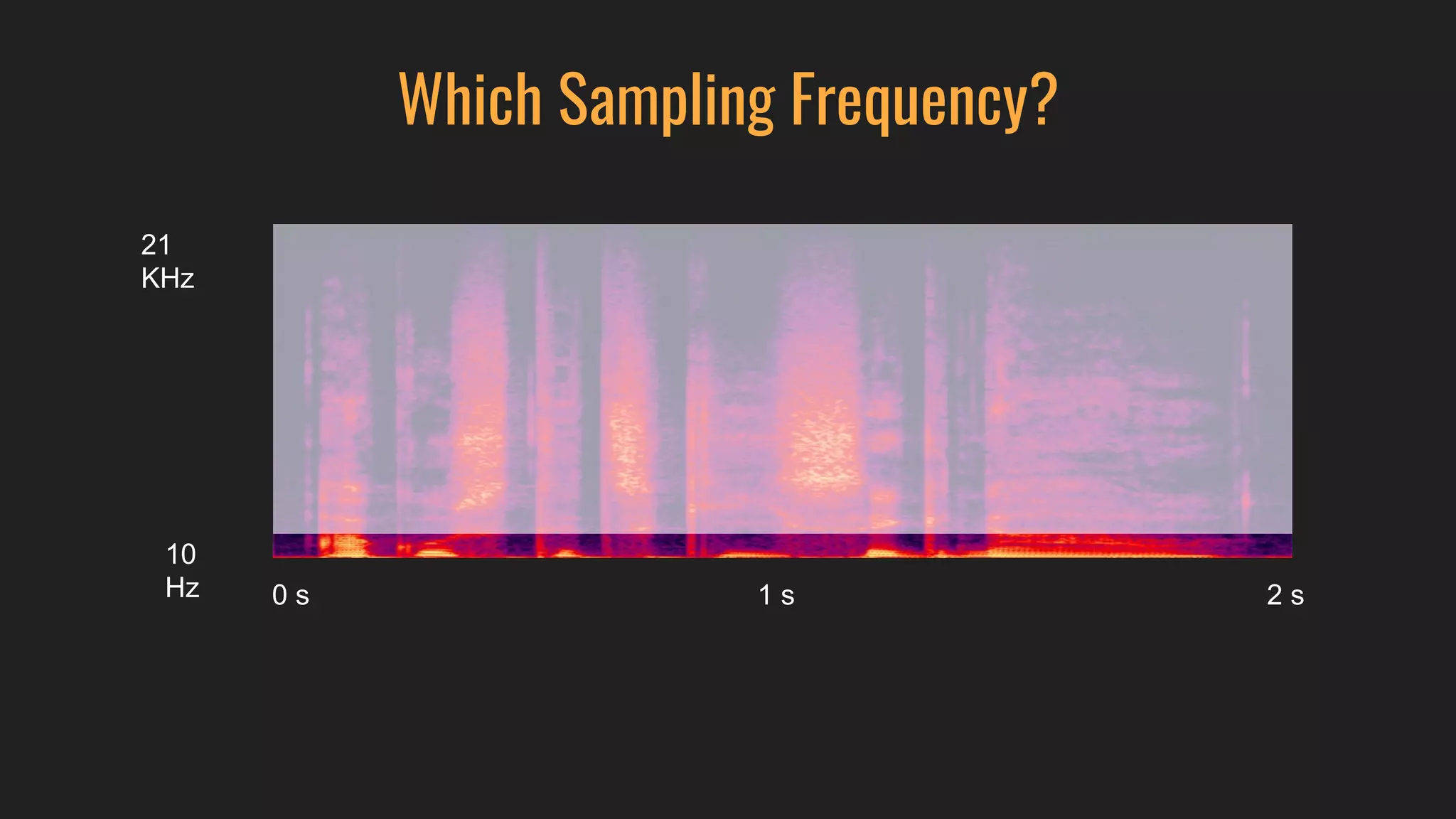

15. Which Sampling Frequency?
0 s 1 s 2 s
21
KHz
10
Hz

16. Which Sampling Frequency?
0 s 1 s 2 s
21
KHz
10
Hz

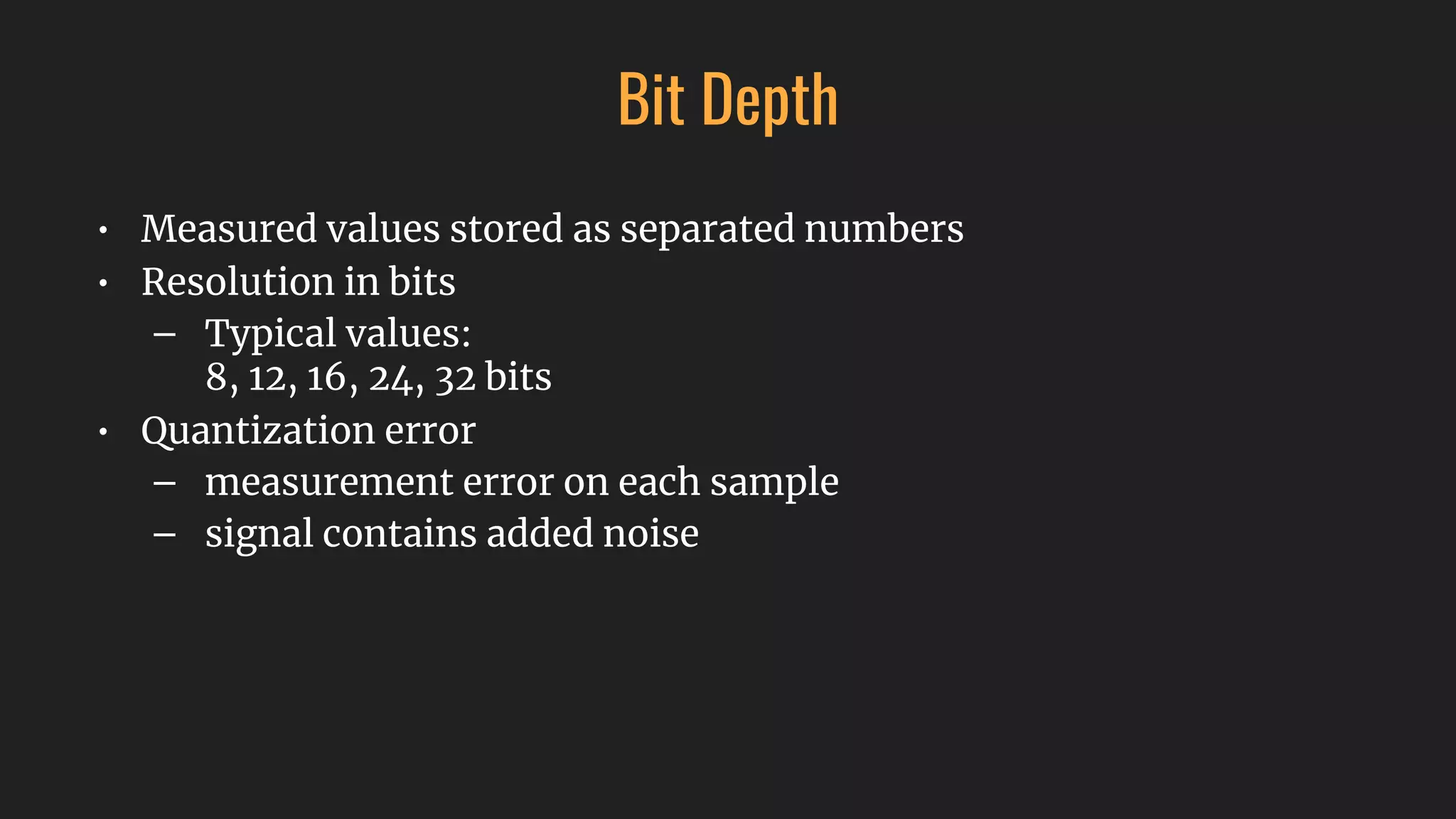

17. Bit Depth
• Measured values stored as separated numbers
• Resolution in bits
– Typical values:
8, 12, 16, 24, 32 bits
• Quantization error
– measurement error on each sample
– signal contains added noise

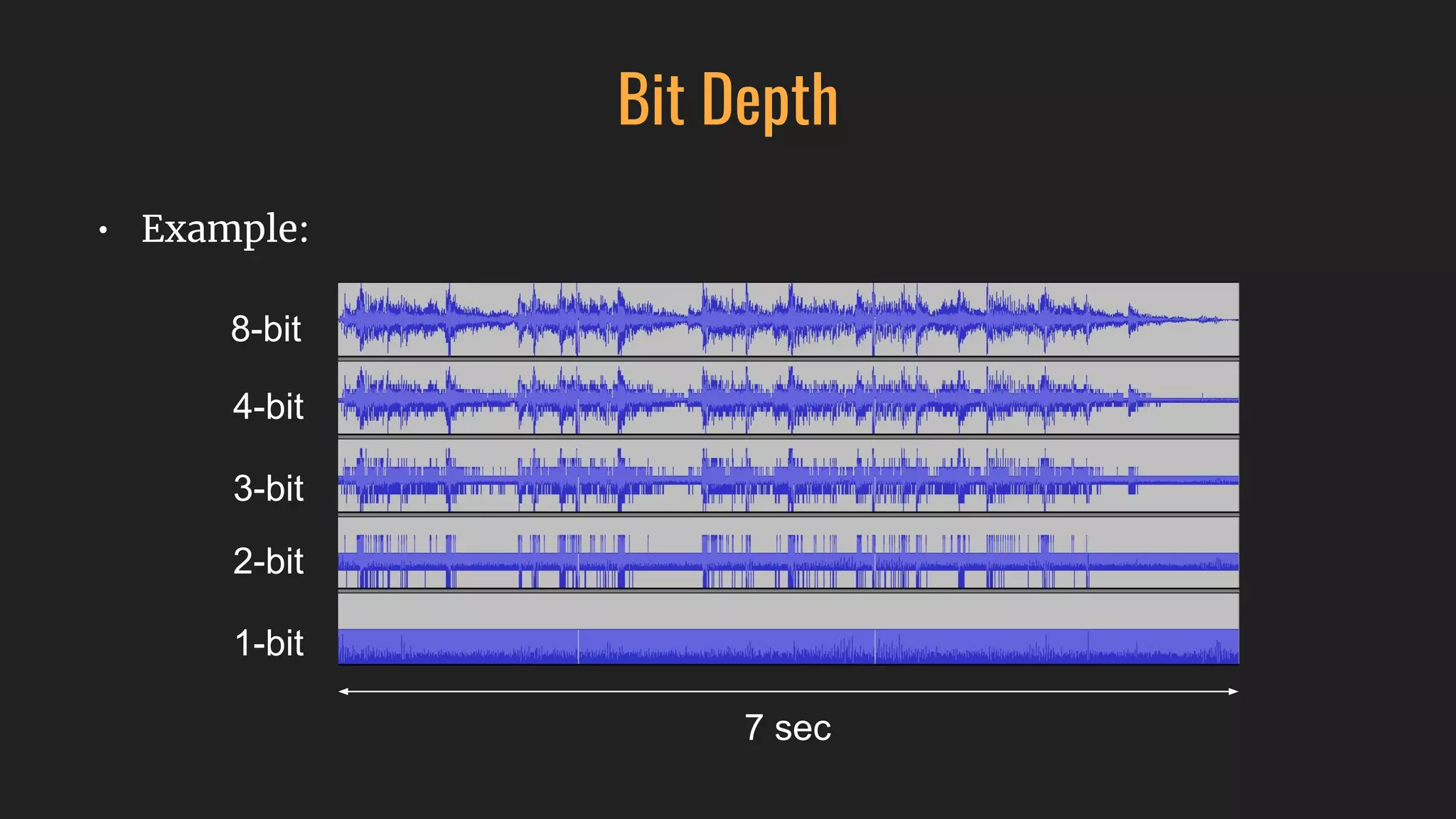

18. Bit Depth
• Example:
8-bit
4-bit
3-bit
2-bit
1-bit
7 sec

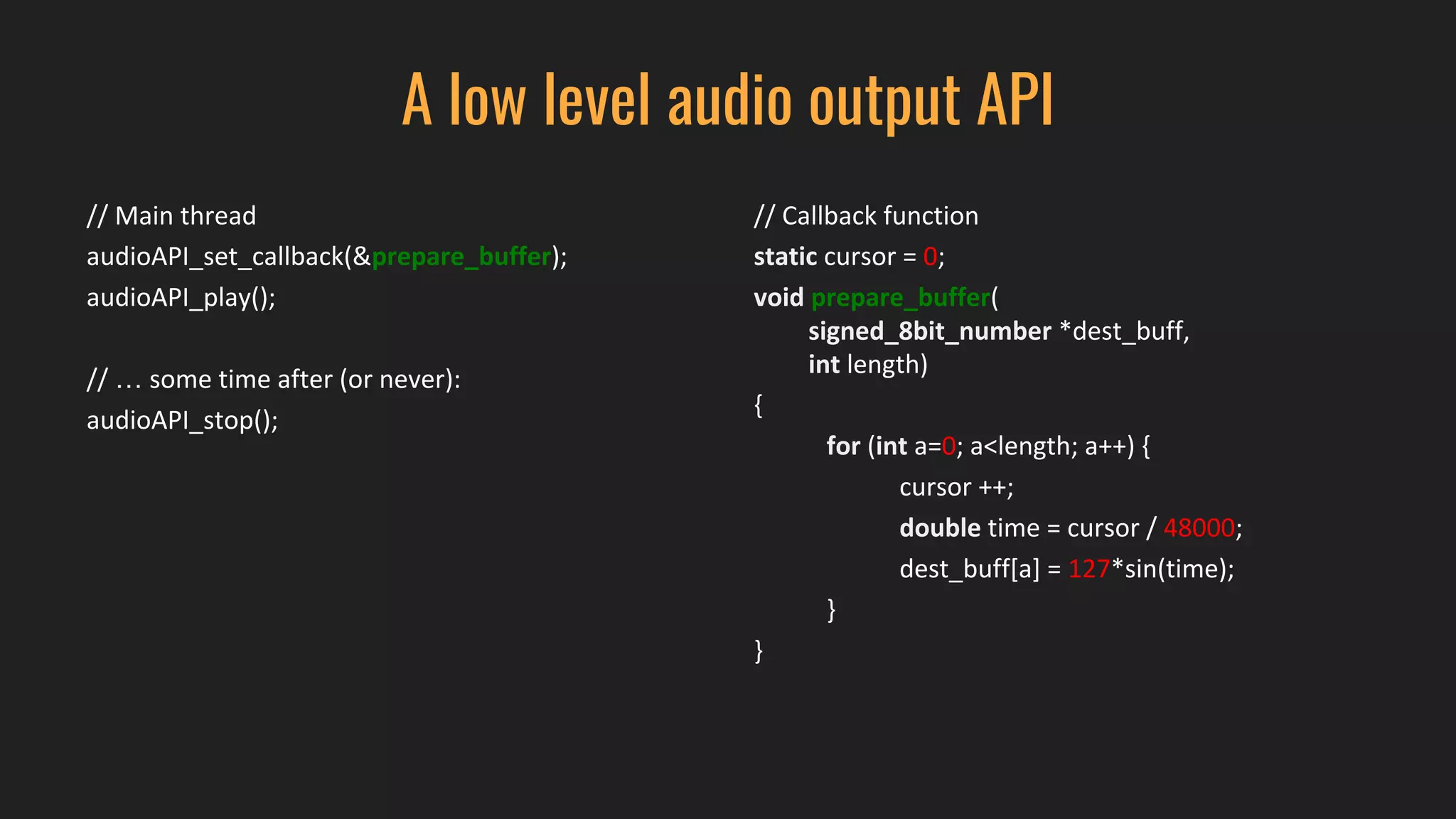

19. A low level audio output API
// Main thread
audioAPI_set_callback(&prepare_buffer);
audioAPI_play();
// … some time after (or never):
audioAPI_stop();
// Callback function
static cursor = 0;
void prepare_buffer(
signed_8bit_number *dest_buff,
int length)
{
for (int a=0; a<length; a++) {
cursor ++;
double time = cursor / 48000;
dest_buff[a] = 127*sin(time);
}
}

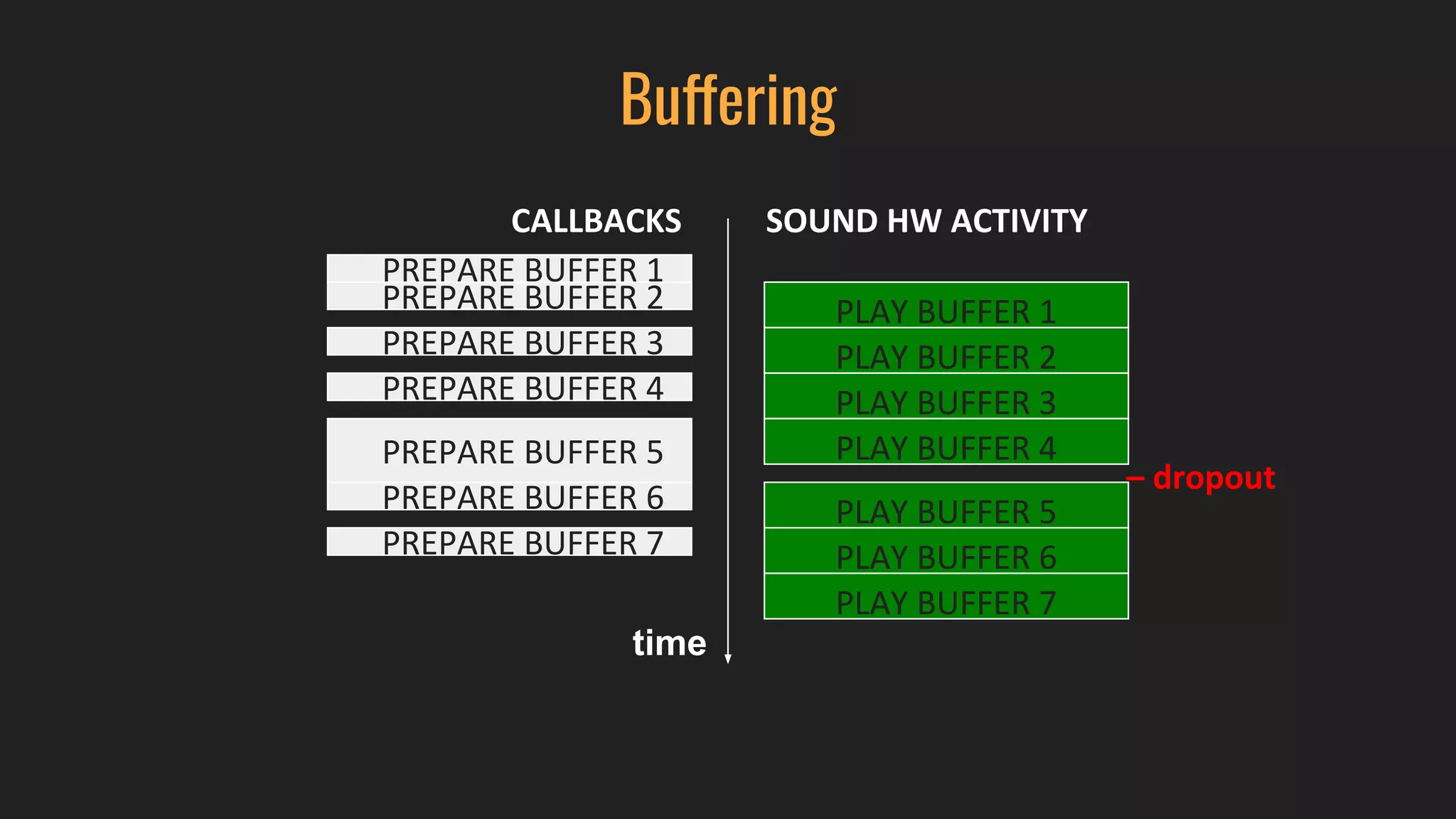

20. Buffering
PLAY BUFFER 1PREPARE BUFFER 2
PLAY BUFFER 2
PLAY BUFFER 3
PLAY BUFFER 4
PLAY BUFFER 5
PREPARE BUFFER 3
PREPARE BUFFER 4
PREPARE BUFFER 5
PREPARE BUFFER 1
PREPARE BUFFER 6
PLAY BUFFER 6PREPARE BUFFER 7
PLAY BUFFER 7
time
– dropout
CALLBACKS SOUND HW ACTIVITY

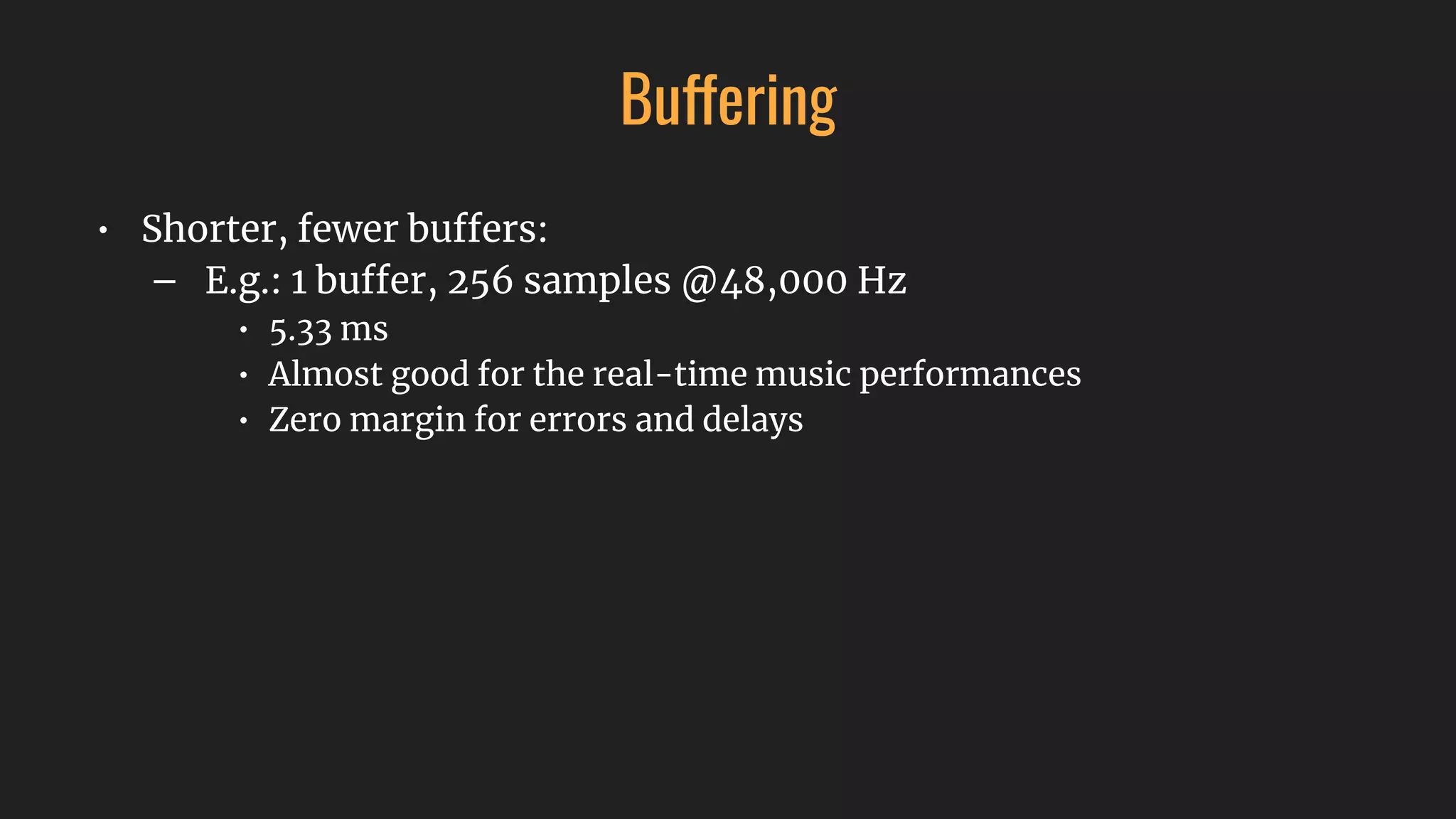

21. Buffering
• Shorter, fewer buffers:
– E.g.: 1 buffer, 256 samples @48,000 Hz
• 5.33 ms
• Almost good for the real-time music performances
• Zero margin for errors and delays

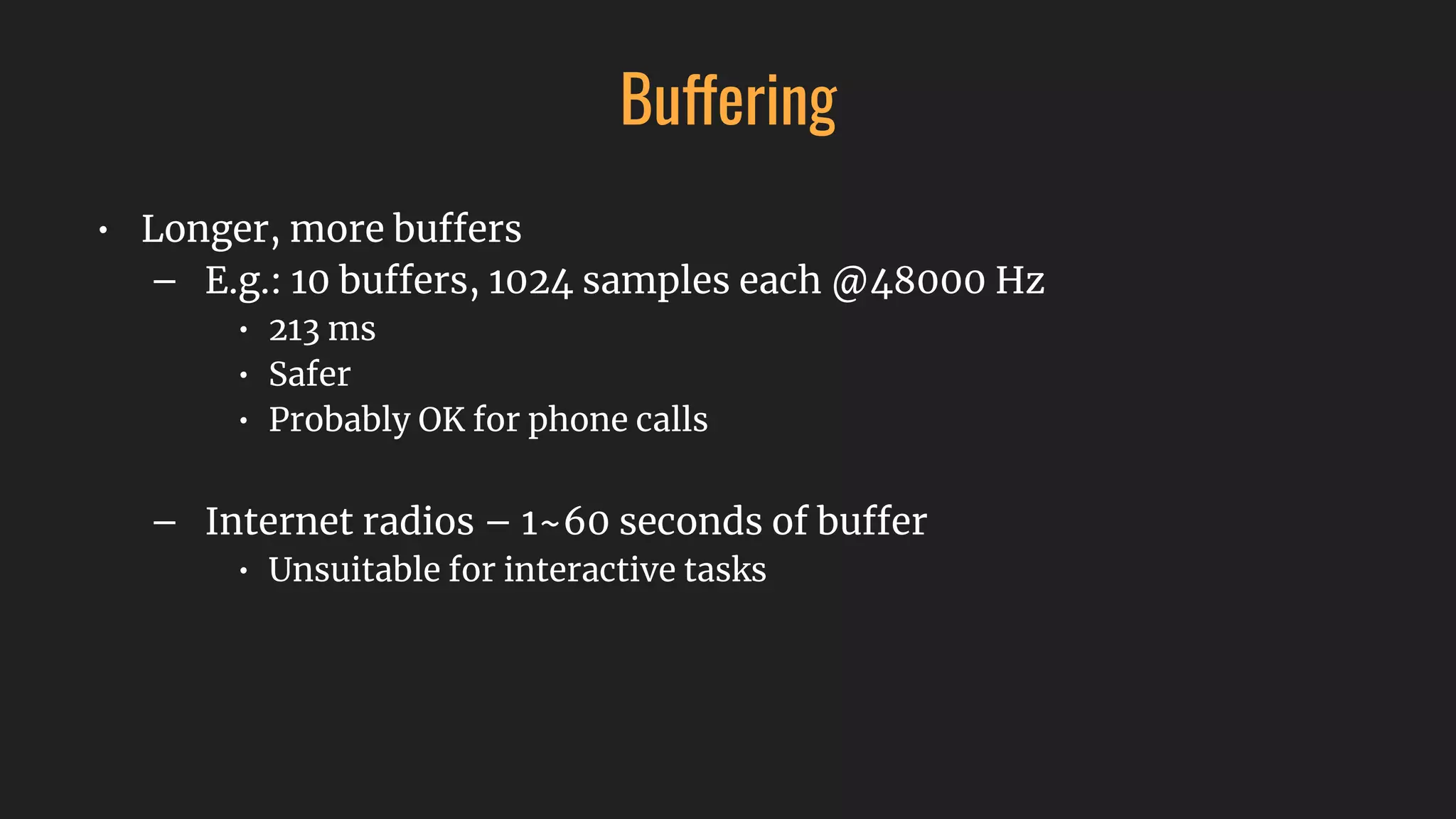

22. Buffering
• Longer, more buffers
– E.g.: 10 buffers, 1024 samples each @48000 Hz
• 213 ms
• Safer
• Probably OK for phone calls
– Internet radios – 1~60 seconds of buffer
• Unsuitable for interactive tasks

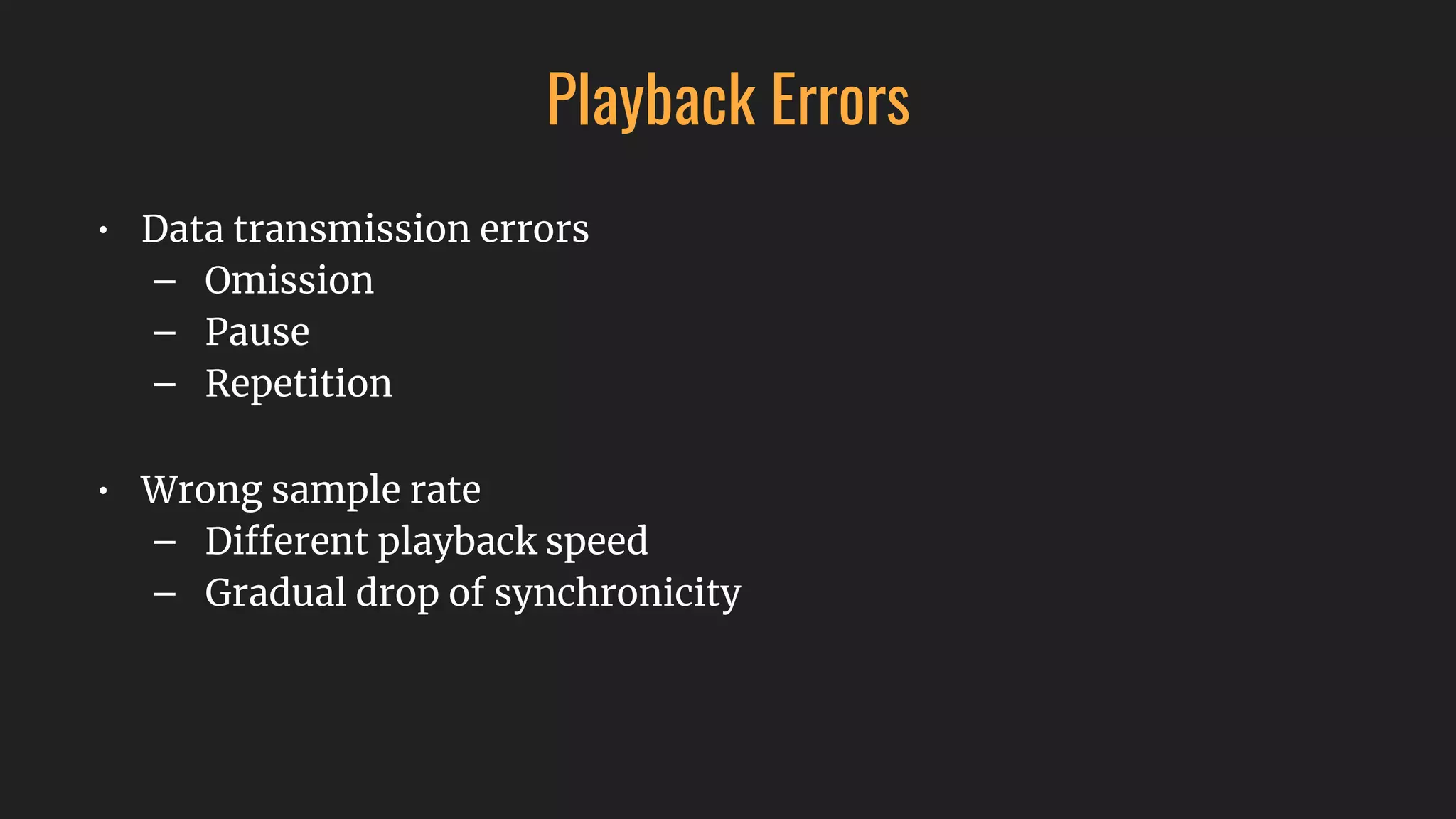

23. Playback Errors
• Data transmission errors
– Omission
– Pause
– Repetition
• Wrong sample rate
– Different playback speed
– Gradual drop of synchronicity

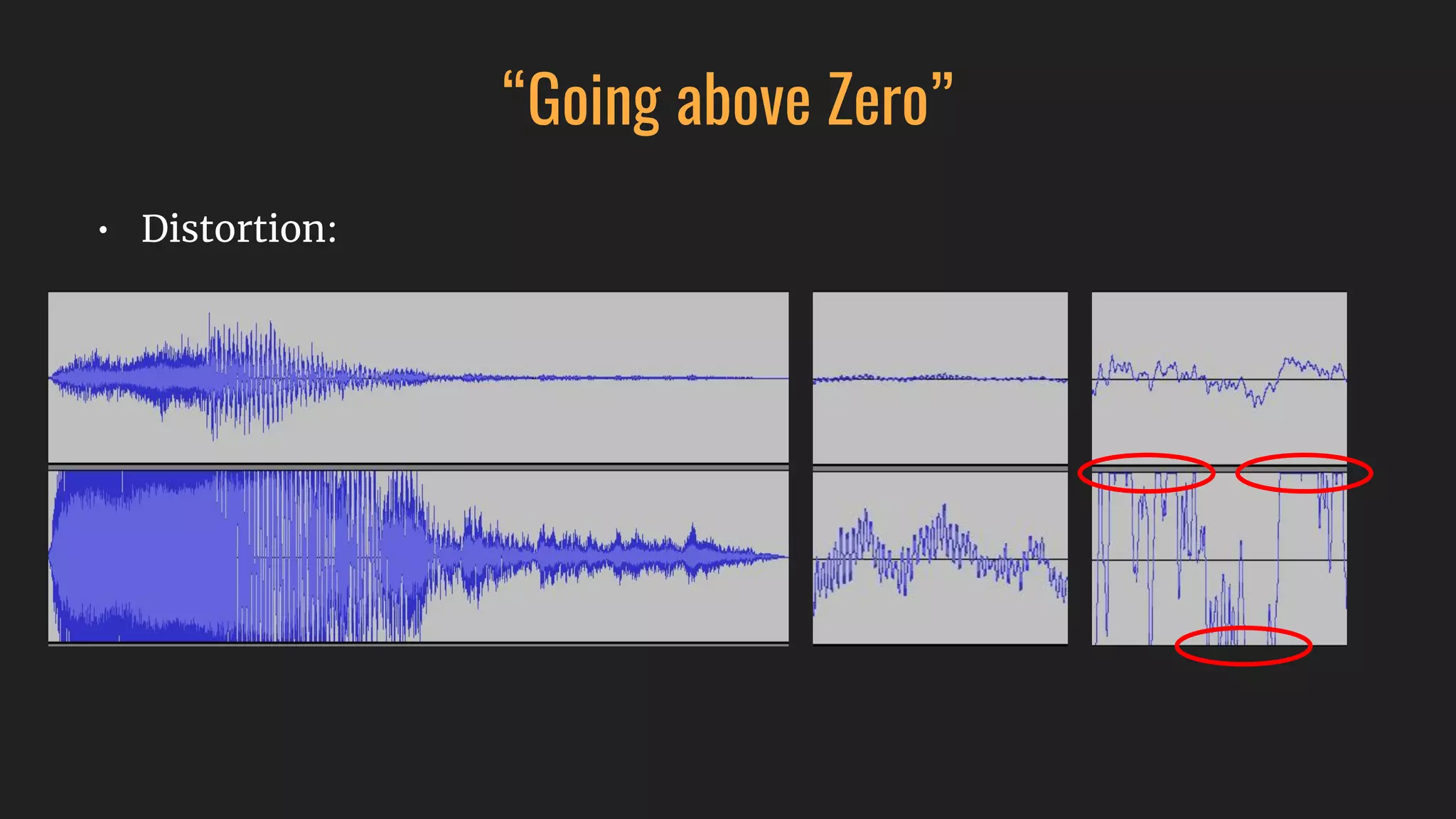

24. “Going above Zero”
• Distortion:
