ATT&CKing Your Adversaries
Operationalizing cyber intelligence in your own environment for
better sleep and a safer tomorrow

Introductions
▪ Jamie Williams ( @jamieantisocial)
▪ Cyber adversarial engineer
▪ Adversary emulation + behavior detection research
▪ Sarah Yoder ( @sarah__yoder)
▪ Cyber security engineer
▪ Cyber threat intelligence + red teaming
▪ ATT&CK & ATT&CK Evaluations ( @MITREattack)
| 2 |

If You Were at 2018 BSidesLV
ATT&CKing the Status Quo:
Improving Threat Intelligence and
Cyber Defense with MITRE ATT&CK™
Slides available at
https://www.slideshare.net/KatieNickels/bsideslv-2018-
katie-nickels-and-john-wunder-attcking-the-status-quo
Threat Intelligence

If You Were at 2018 BSidesLV

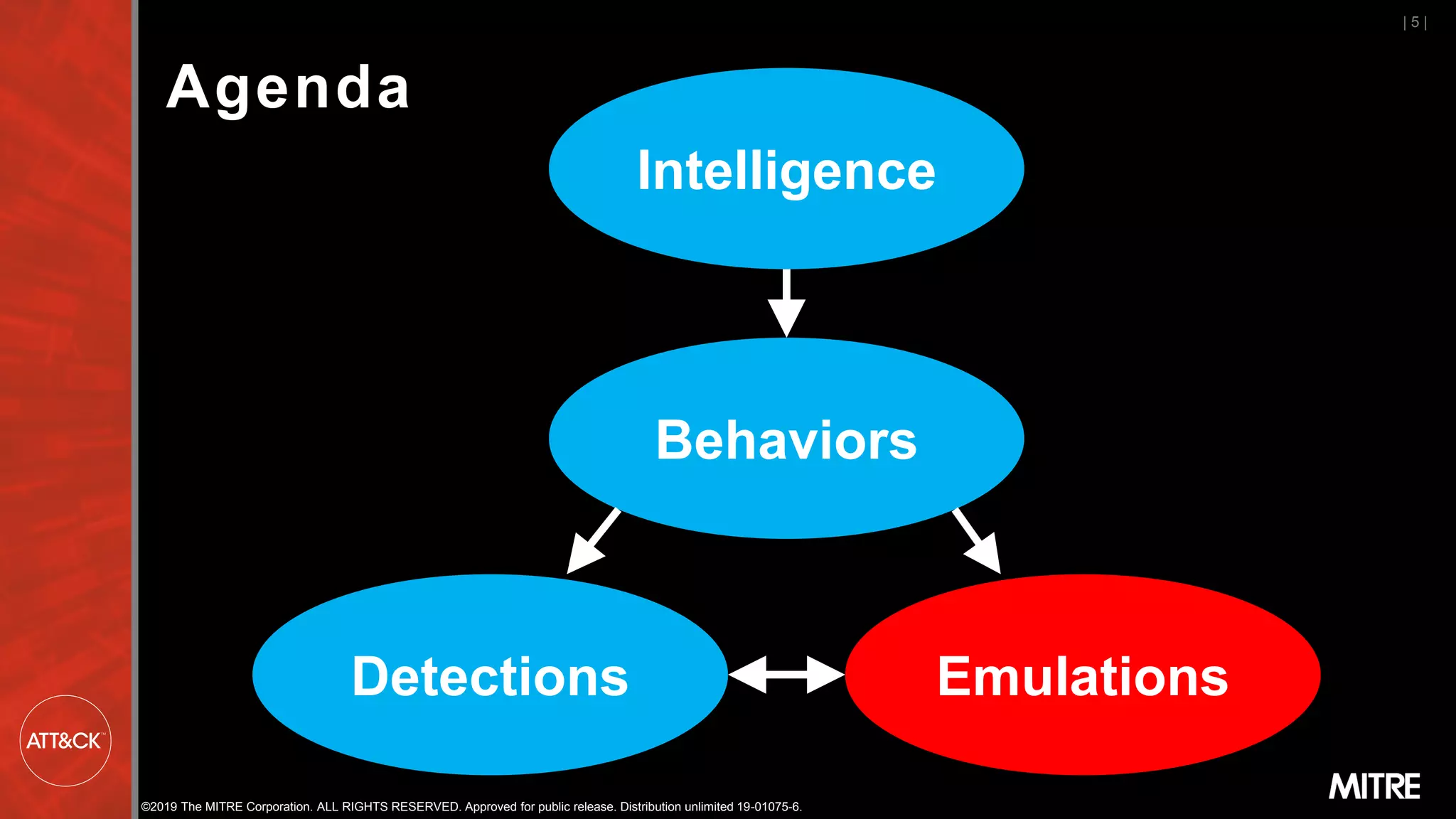

Agenda
| 5 |
Intelligence
Behaviors
Detections Emulations

| 6 |

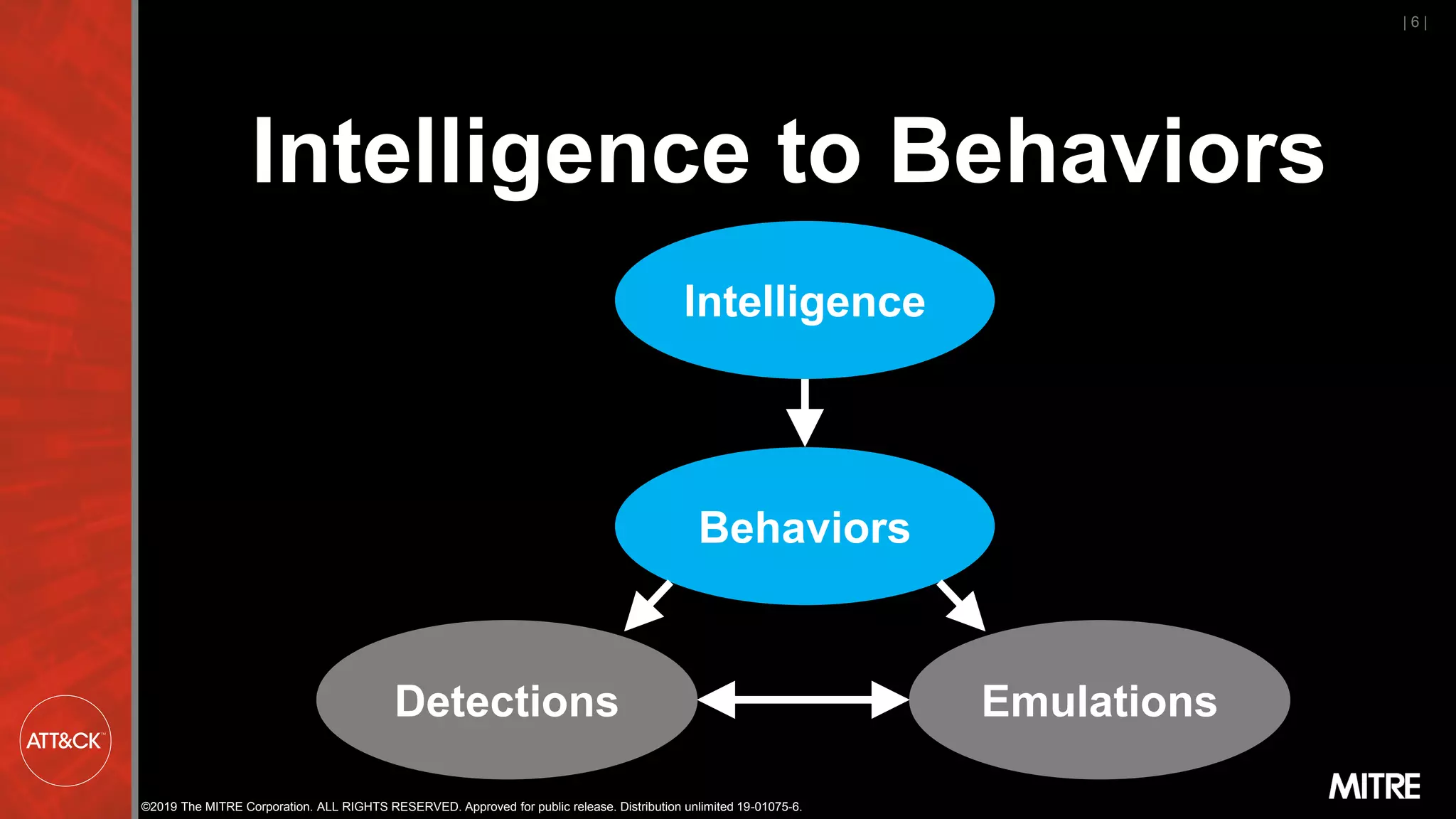

Intelligence to Behaviors
Intelligence
Behaviors

| 7 |
"Cyber threat intelligence (CTI) is the process
of analyzing information about adversaries,
as well as the output of that analysis, in a way
that can be applied to help network defenders
and decisionmakers”
What is Cyber Threat Intelligence?
https://www.mitre.org/capabilities/cybersecurity/overview/
cybersecurity-blog/using-attck-to-advance-cyber-threat

Where Does It Come From?
| 8 |
Internal Reporting
Open Source
Finished
Reporting
Indicators

| 9 |
All this information can become overwhelming!
but fear not!
ATT&CK
can help!
https://www.pngkit.com/png/
full/53-533742_batman-vs-
superman-open-shirt-

| 10 |
Knowledge base of adversary behaviors
Threat-informed defense
Based on real-world observations
References to publicly reported intelligence
Free, open, and globally accessible
attack.mitre.org
Community contribution driven
attack@mitre.org
@MITREattack

| 11 |

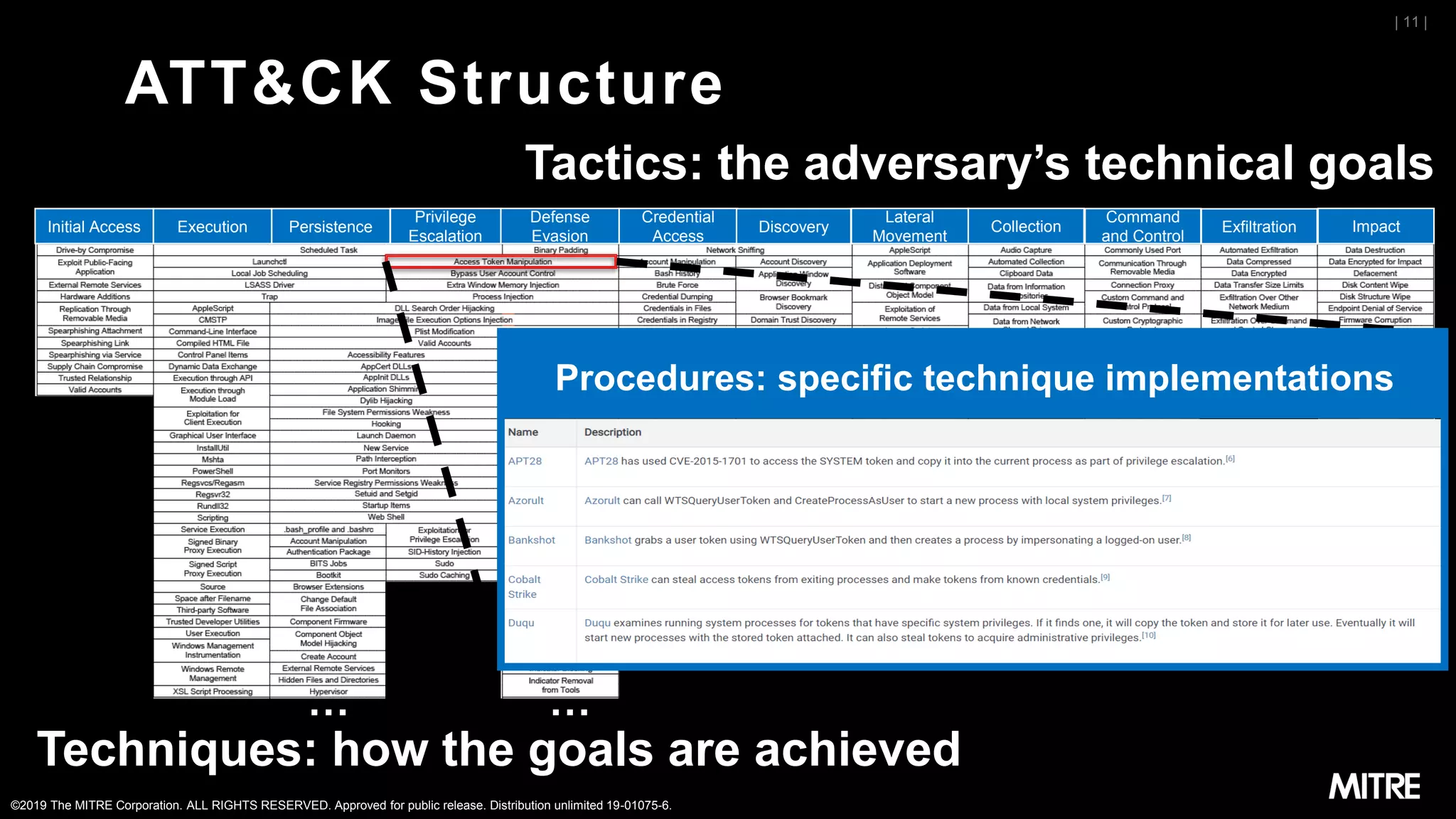

ATT&CK Structure
Tactics: the adversary’s technical goals
Techniques: how the goals are achieved
… …
Initial Access Execution Persistence
Privilege
Escalation
Defense
Evasion
Credential
Access
Discovery
Lateral
Movement
Collection Exfiltration Impact
Procedures: specific technique implementations
Command
and Control

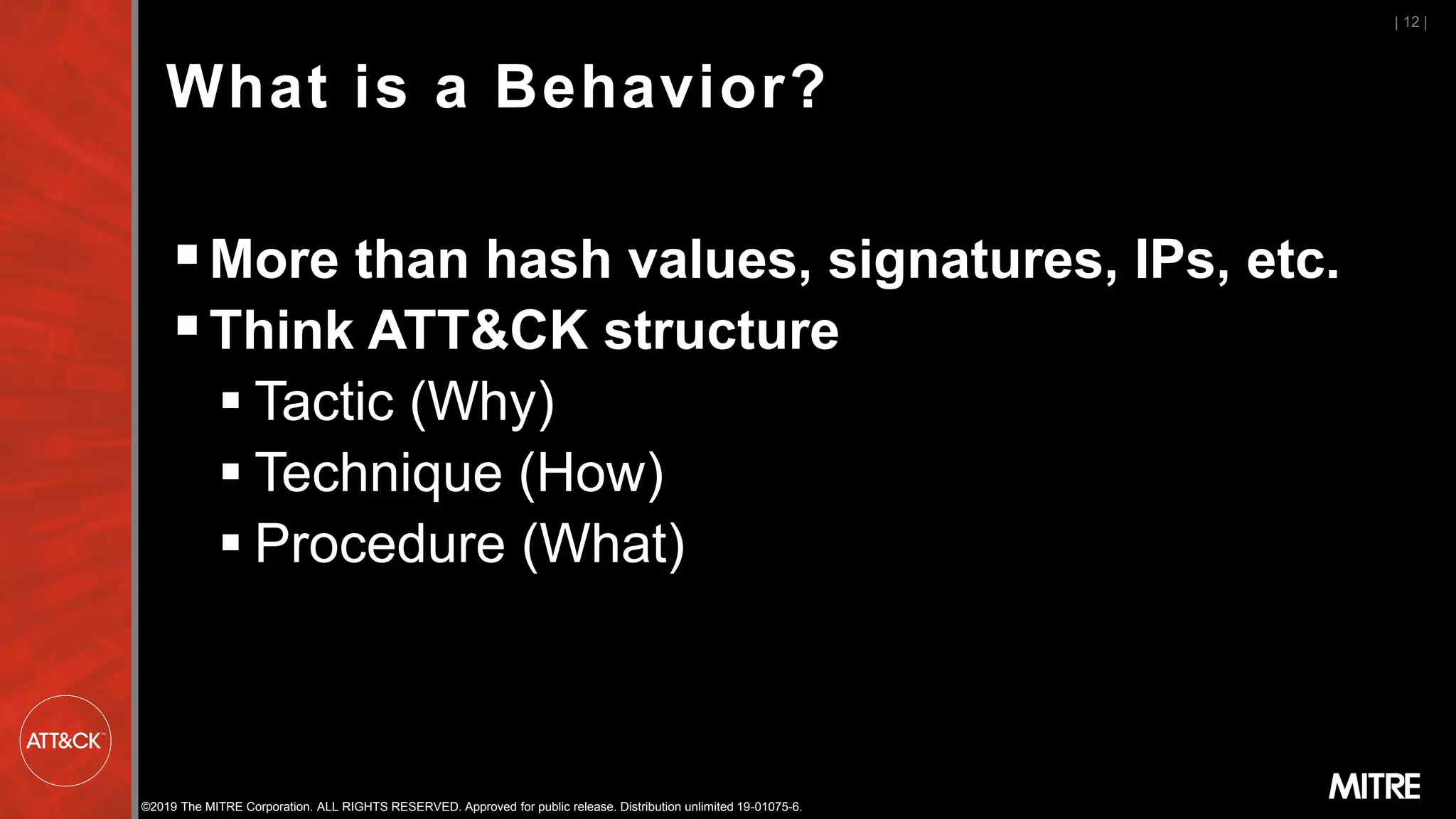

What is a Behavior?
▪More than hash values, signatures, IPs, etc.
▪Think ATT&CK structure
▪ Tactic (Why)
▪ Technique (How)
▪ Procedure (What)
| 12 |

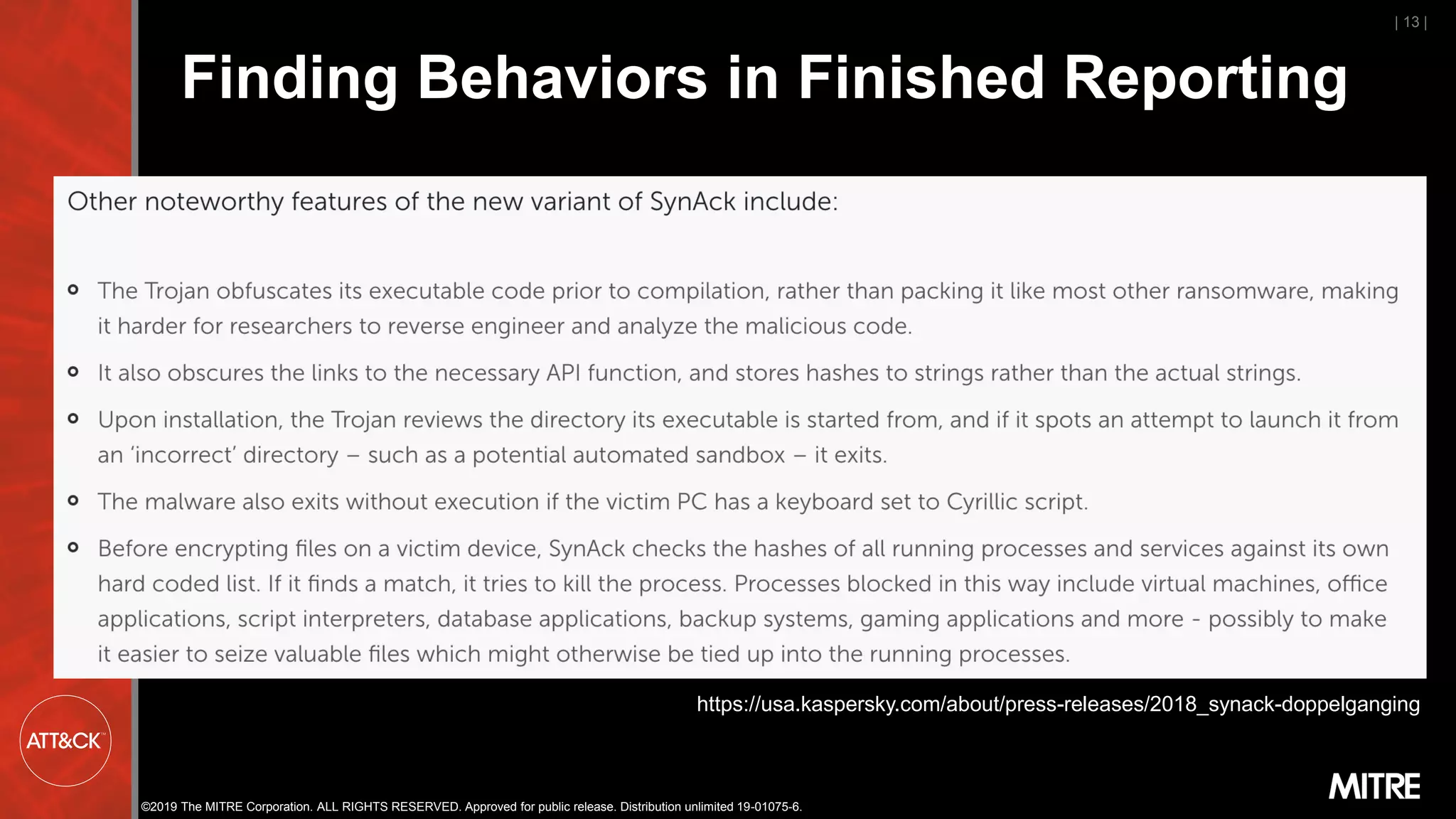

Finding Behaviors in Finished Reporting
| 13 |
https://usa.kaspersky.com/about/press-releases/2018_synack-doppelganging

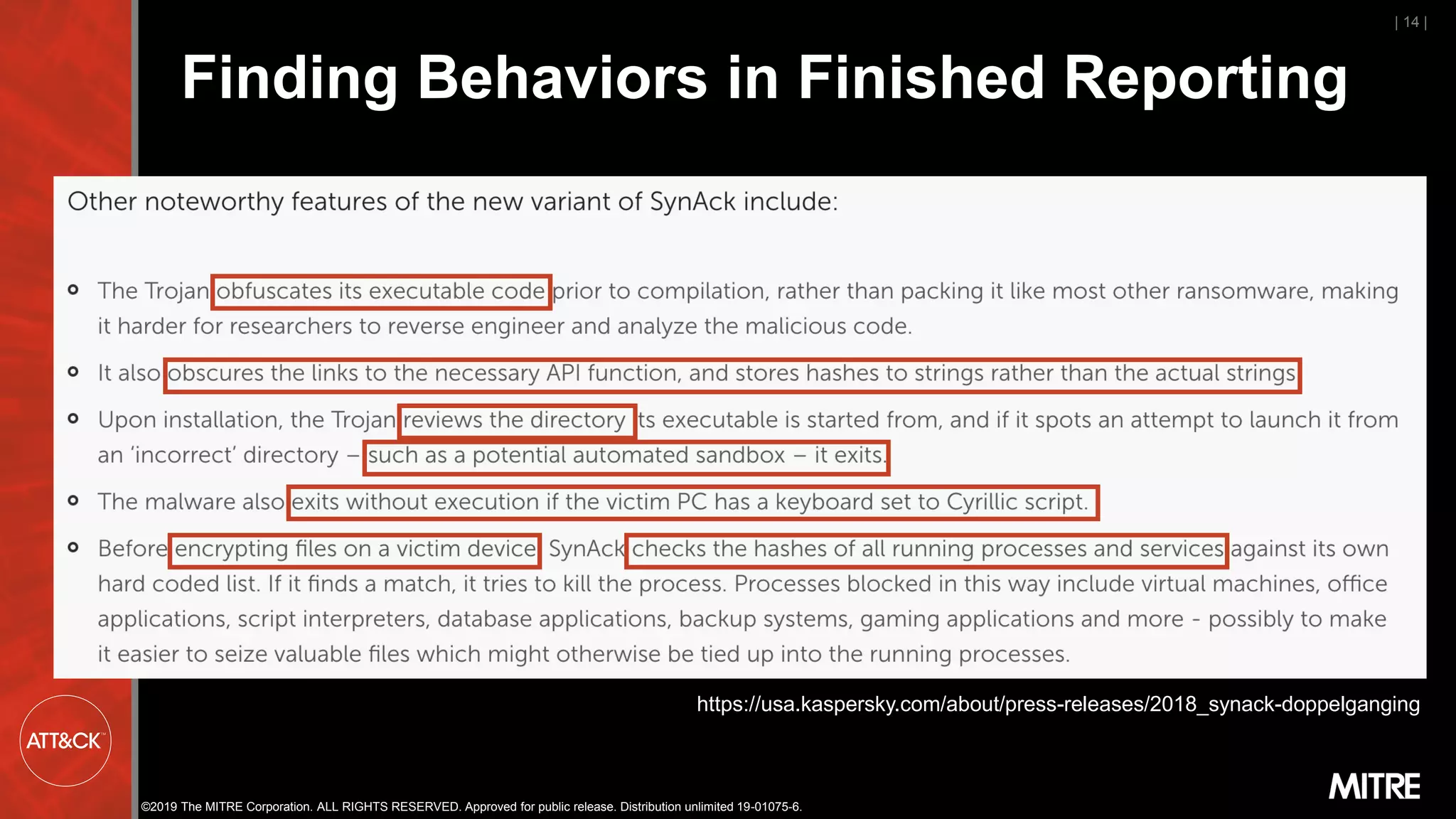

Finding Behaviors in Finished Reporting
| 14 |

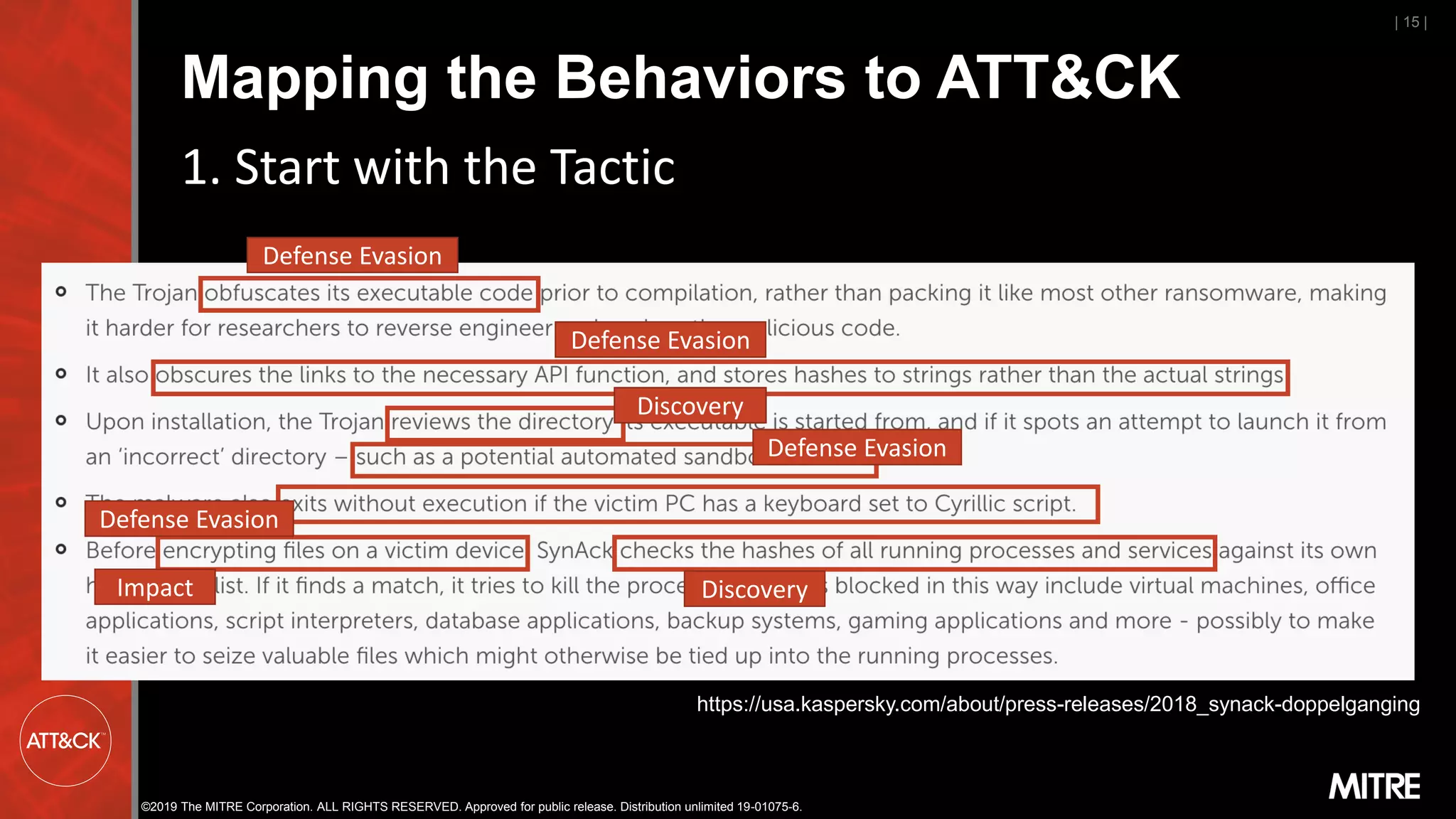

Mapping the Behaviors to ATT&CK
| 15 |
1. Start with the Tactic
Defense Evasion
Defense Evasion
Impact Discovery
Discovery
Defense Evasion
Defense Evasion

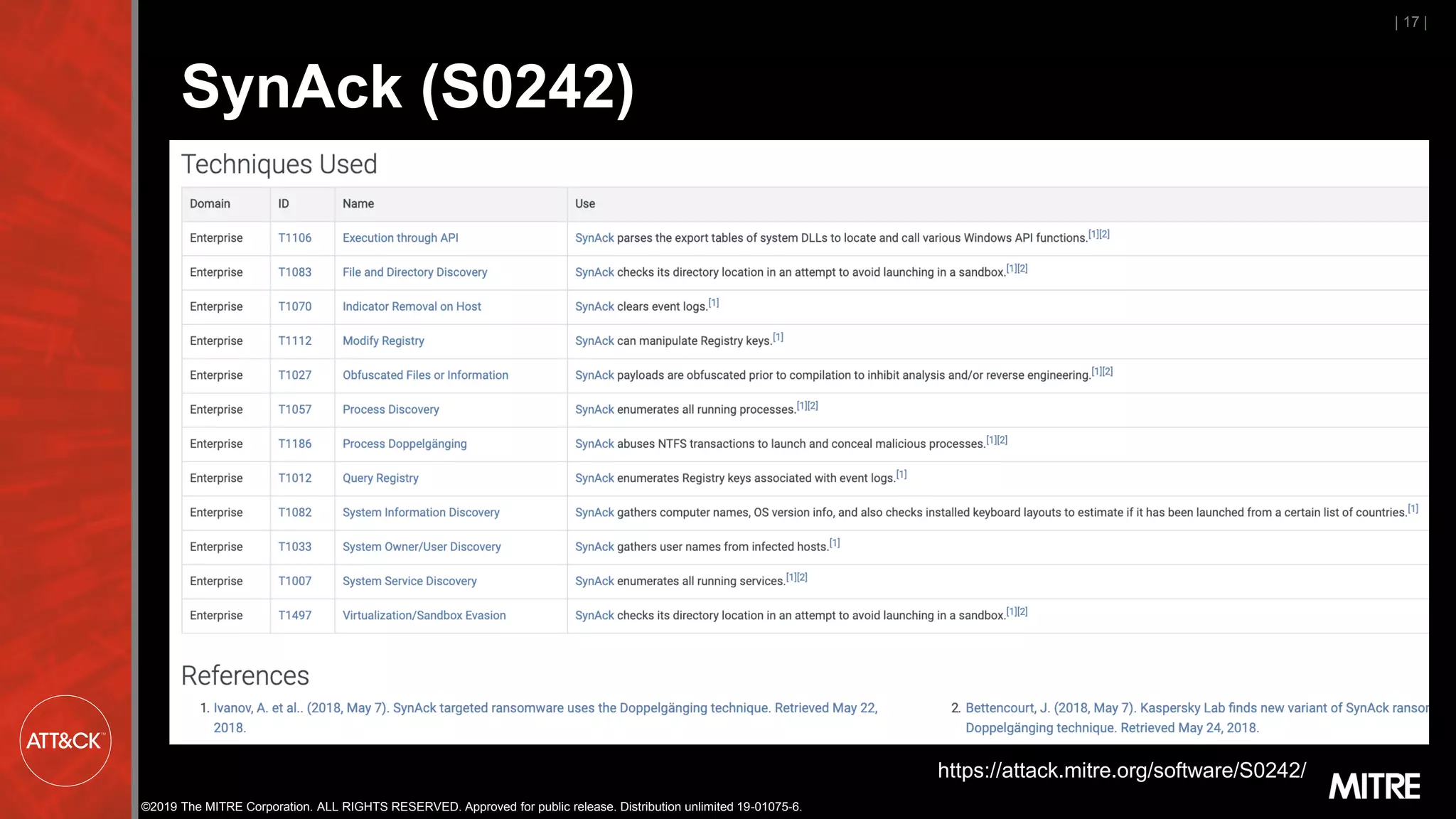

SynAck (S0242)
| 17 |
https://attack.mitre.org/software/S0242/

| 18 |

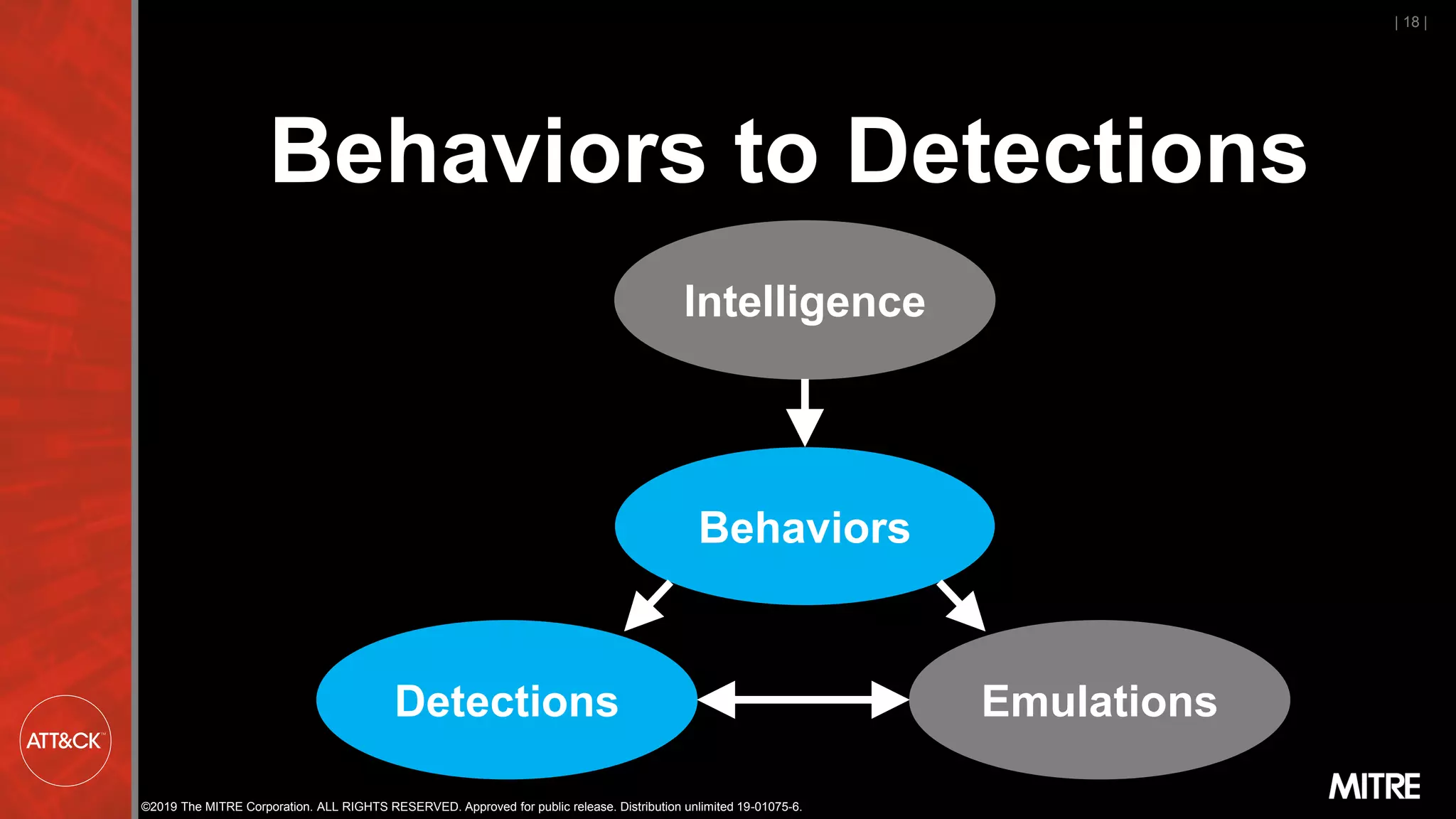

Behaviors to Detections
Intelligence
Behaviors

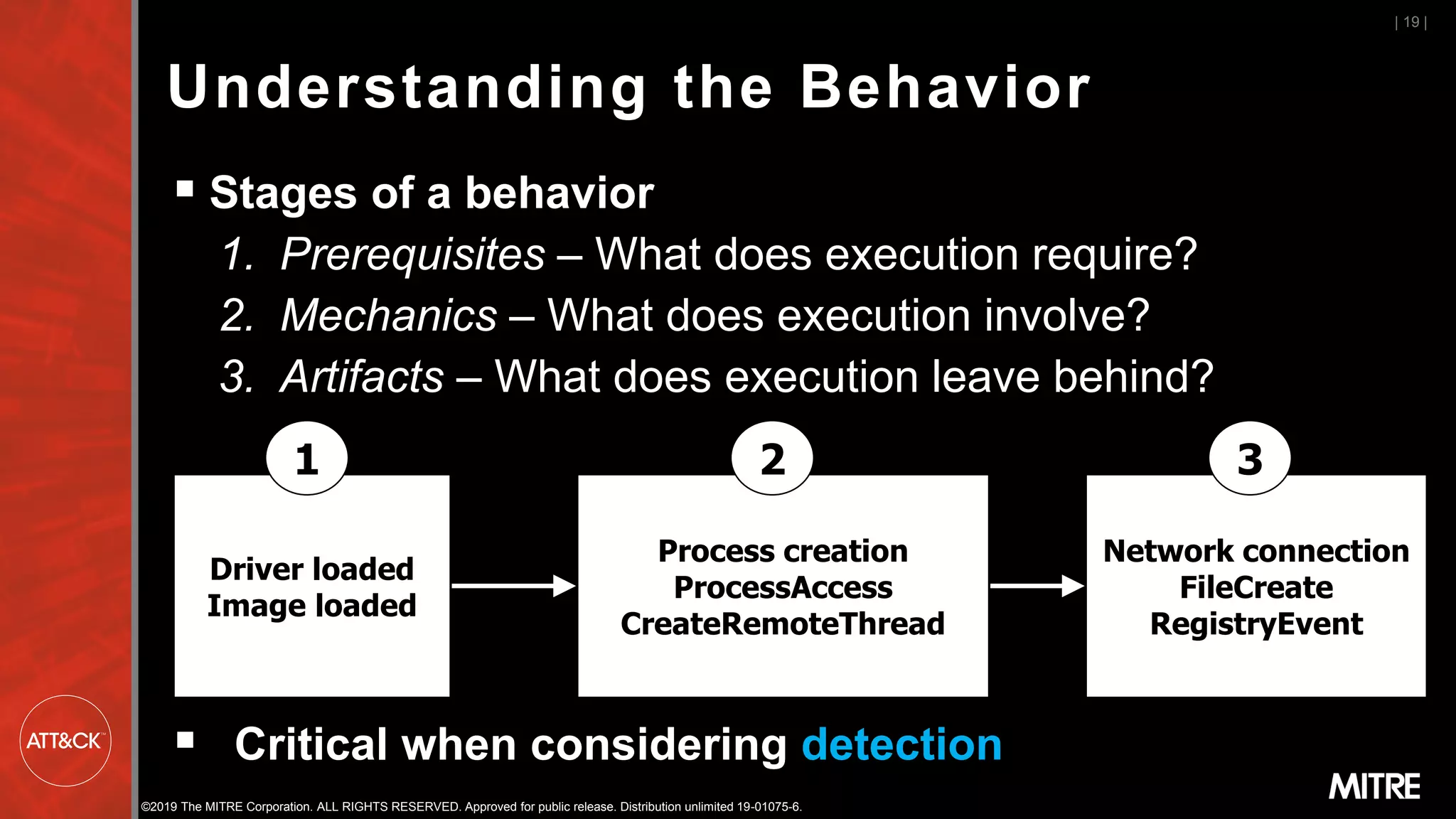

Understanding the Behavior
▪ Stages of a behavior
1. Prerequisites – What does execution require?
2. Mechanics – What does execution involve?
3. Artifacts – What does execution leave behind?
▪ Critical when considering detection
| 19 |
Driver loaded
Image loaded
Process creation
ProcessAccess
CreateRemoteThread
Network connection
FileCreate
RegistryEvent
1 2 3

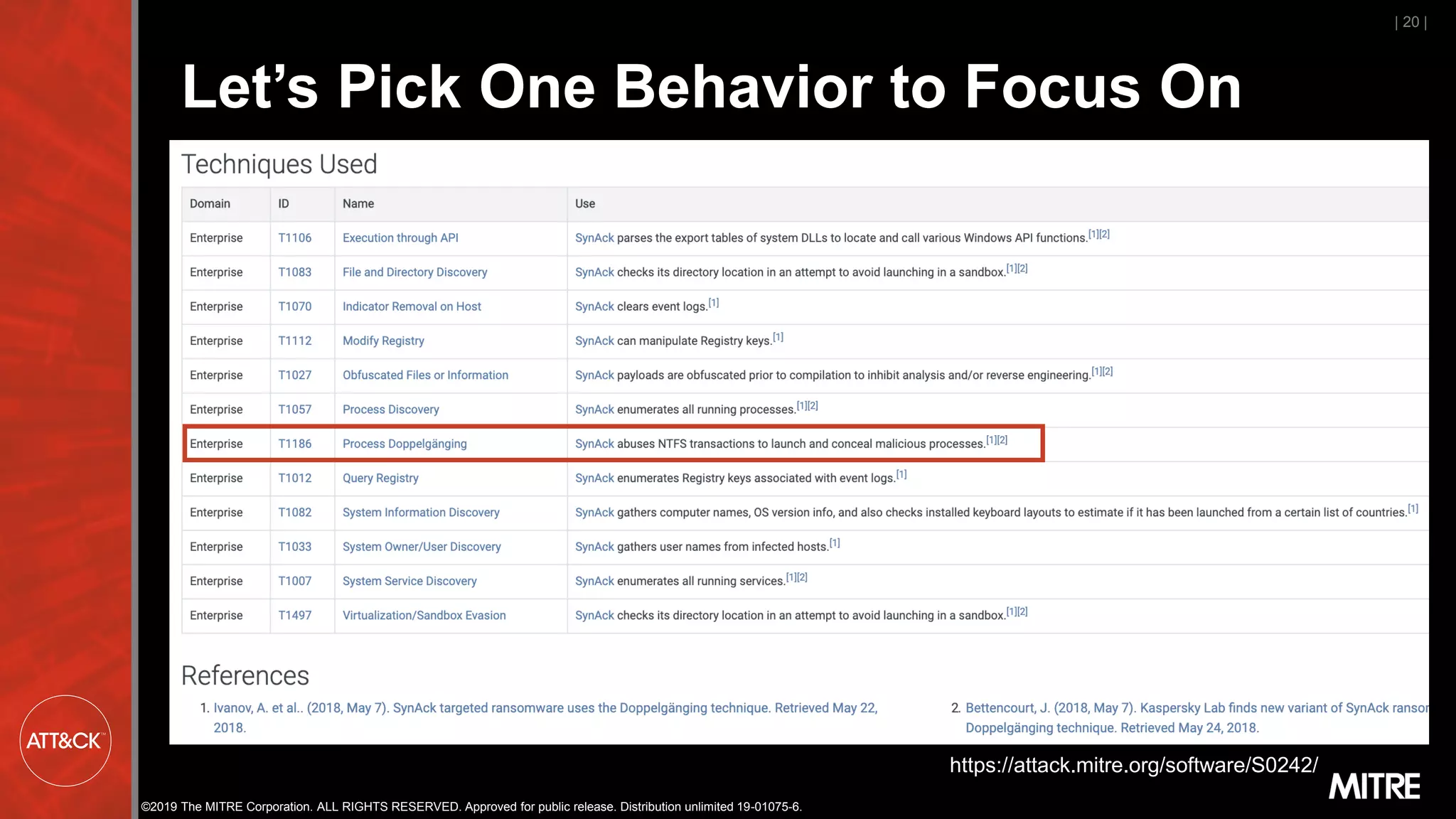

Let’s Pick One Behavior to Focus On
| 20 |

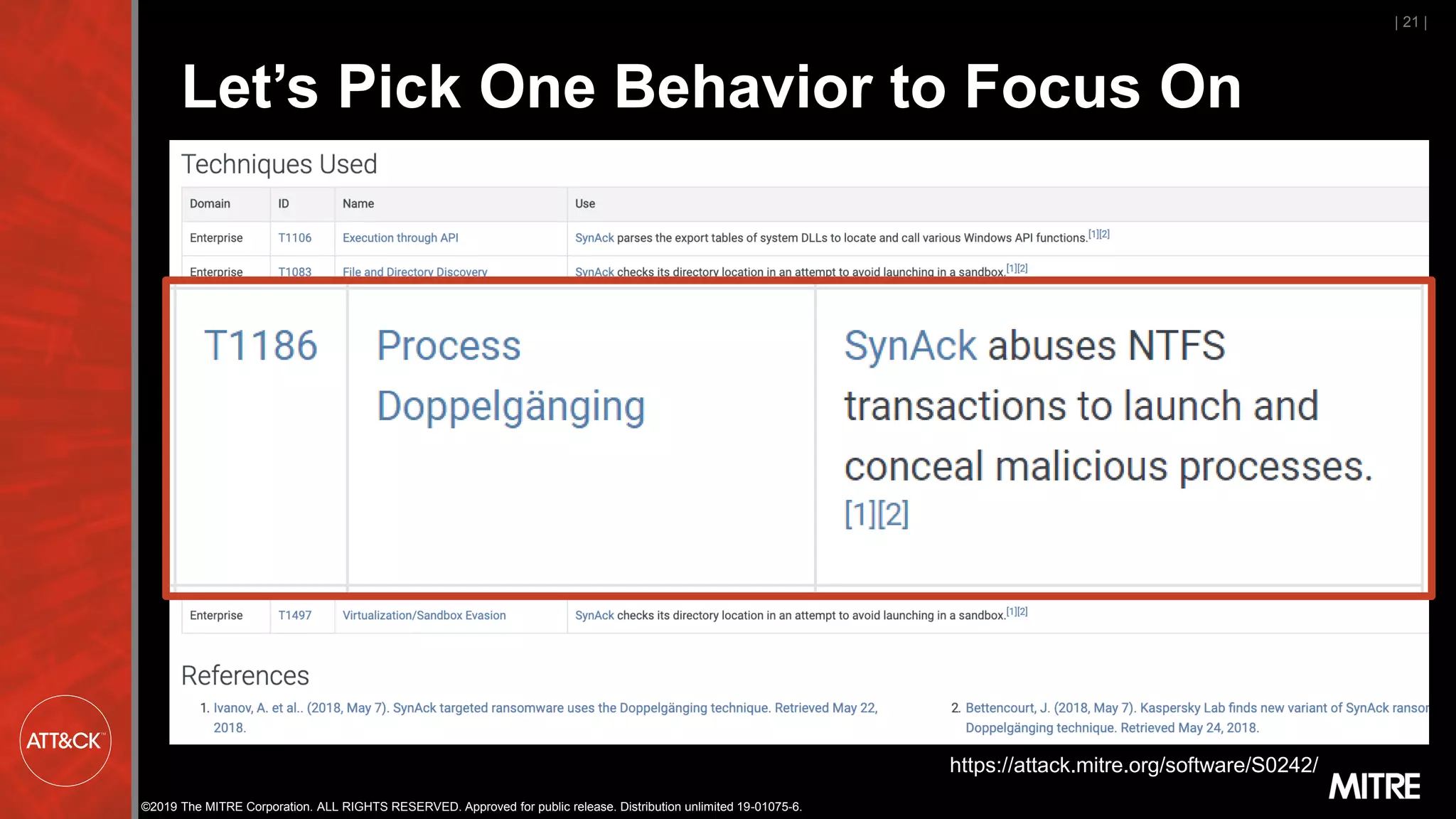

Let’s Pick One Behavior to Focus On
| 21 |

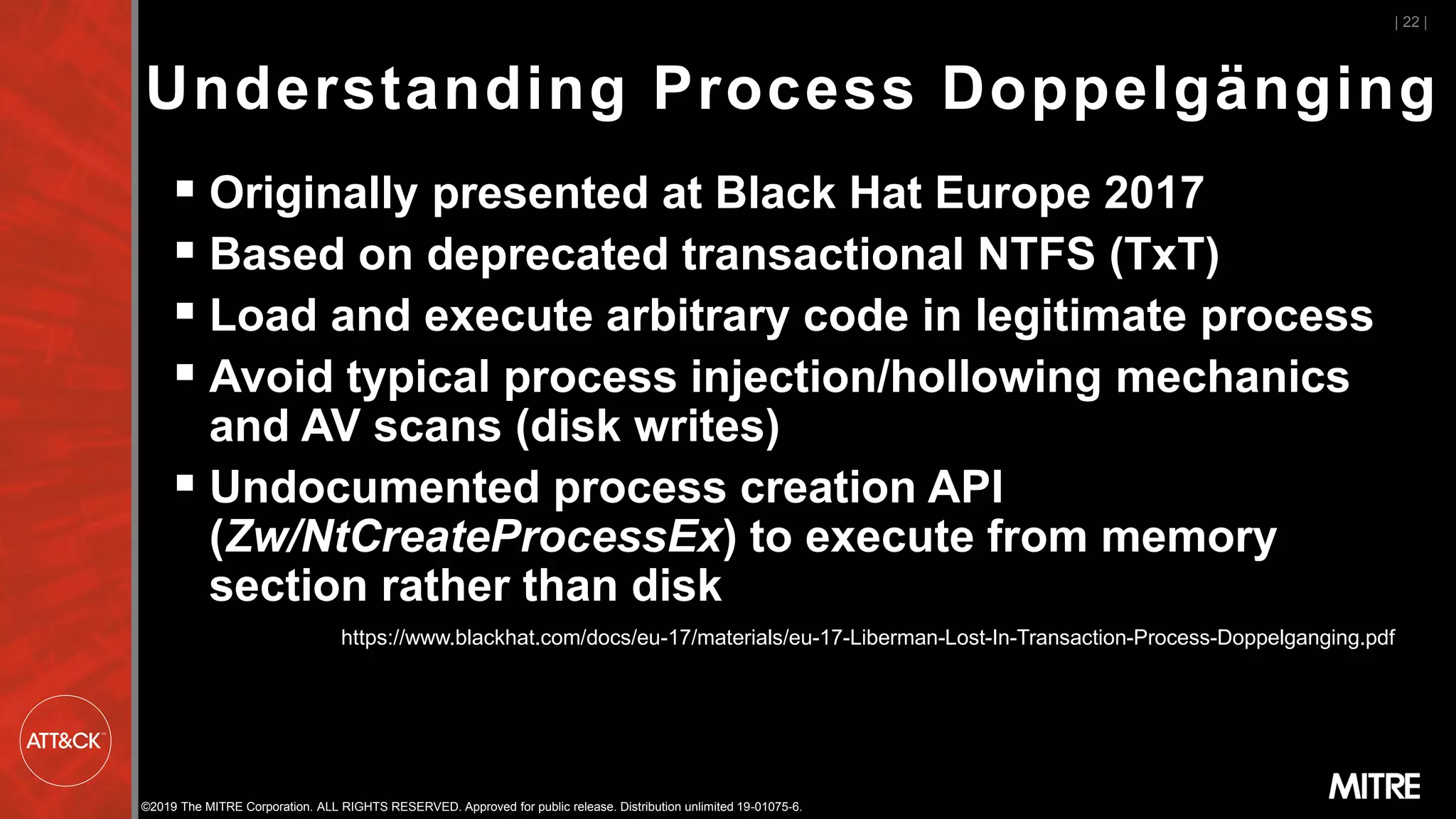

Understanding Process Doppelgänging
▪ Originally presented at Black Hat Europe 2017
▪ Based on deprecated transactional NTFS (TxT)
▪ Load and execute arbitrary code in legitimate process
▪ Avoid typical process injection/hollowing mechanics
and AV scans (disk writes)
▪ Undocumented process creation API
(Zw/NtCreateProcessEx) to execute from memory
section rather than disk
| 22 |
https://www.blackhat.com/docs/eu-17/materials/eu-17-Liberman-Lost-In-Transaction-Process-Doppelganging.pdf

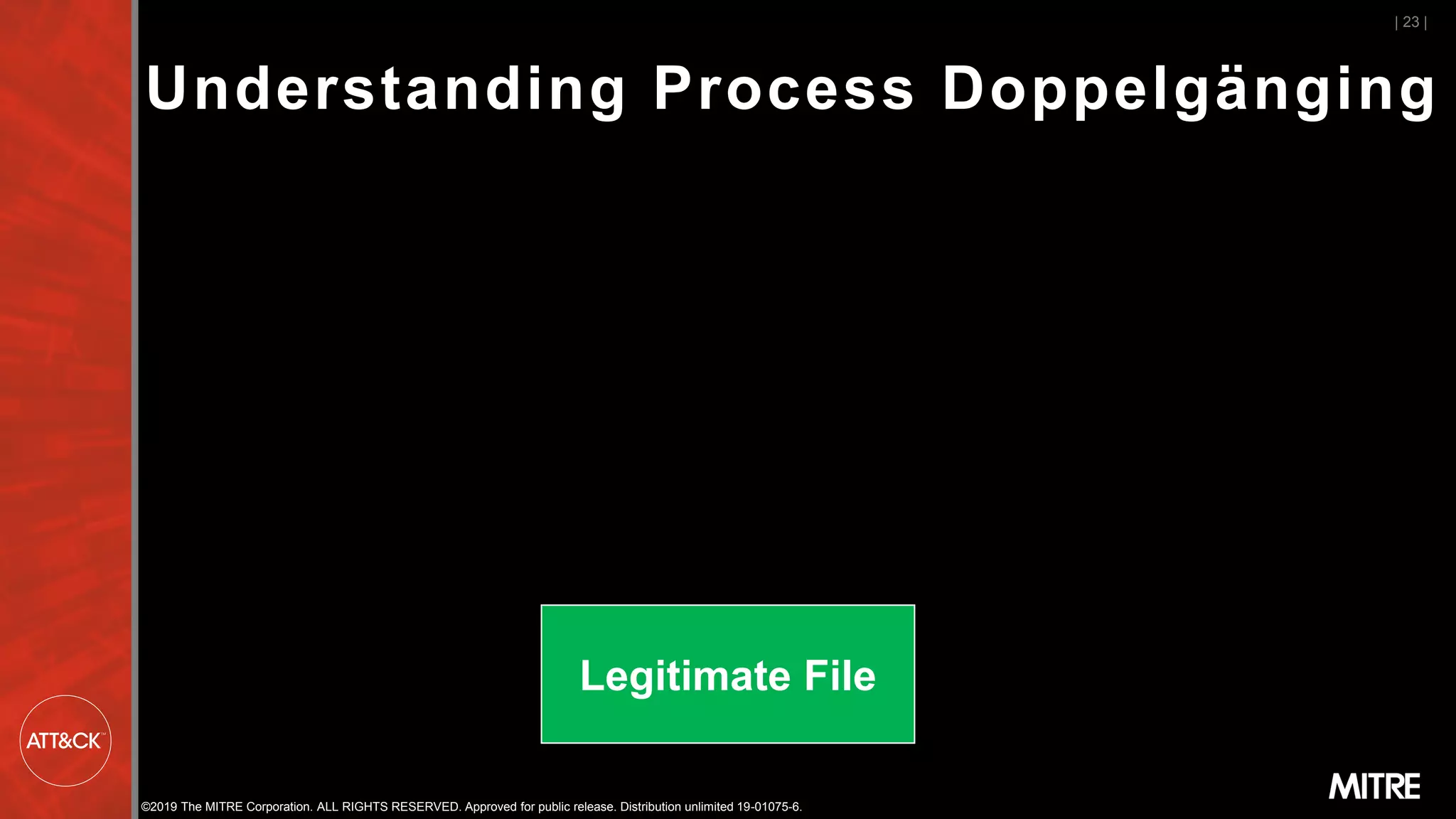

Legitimate File
| 23 |

Legitimate FileMalicious File
| 24 |

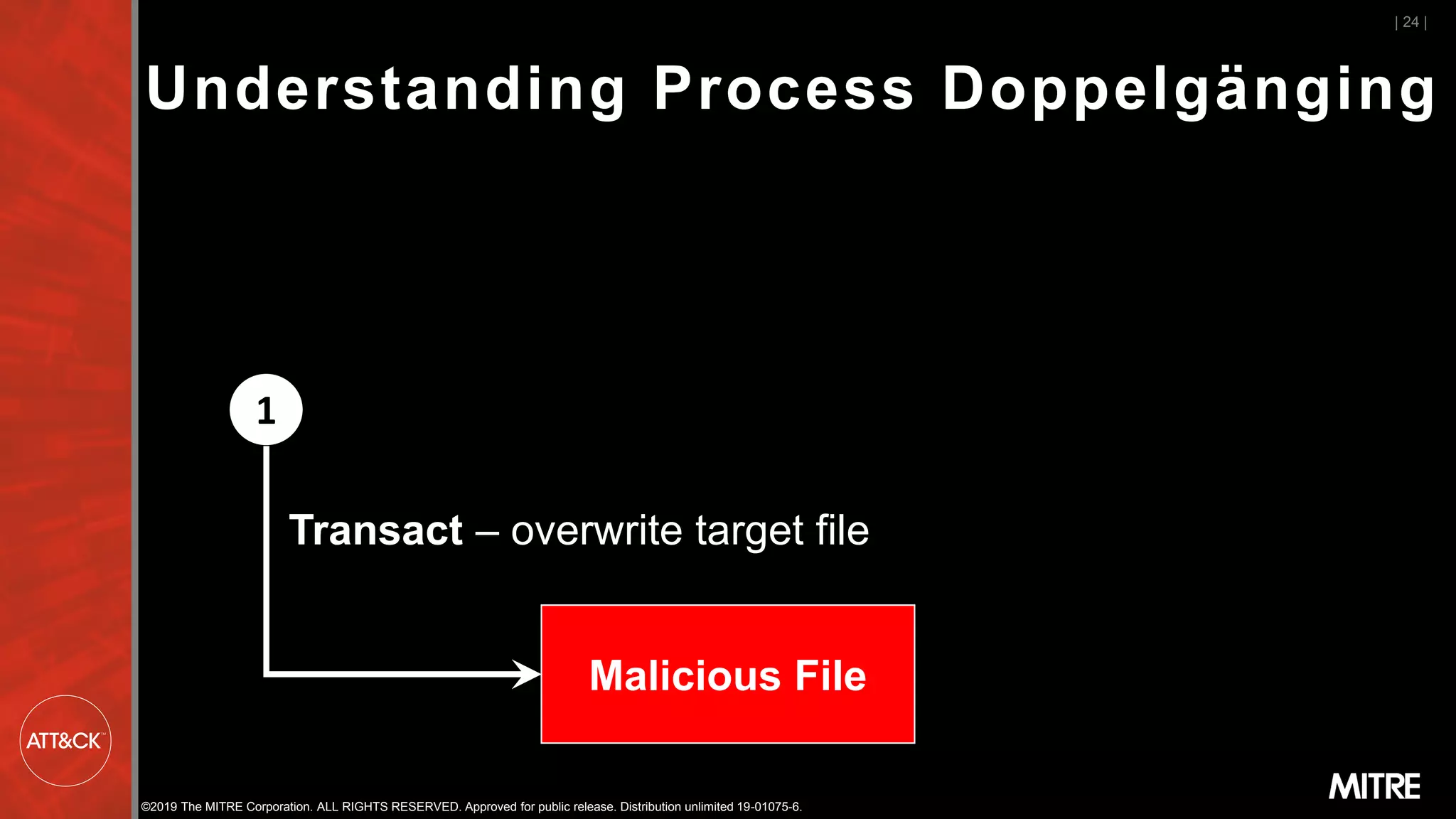

1
Transact – overwrite target file

Legitimate FileMalicious File
| 25 |

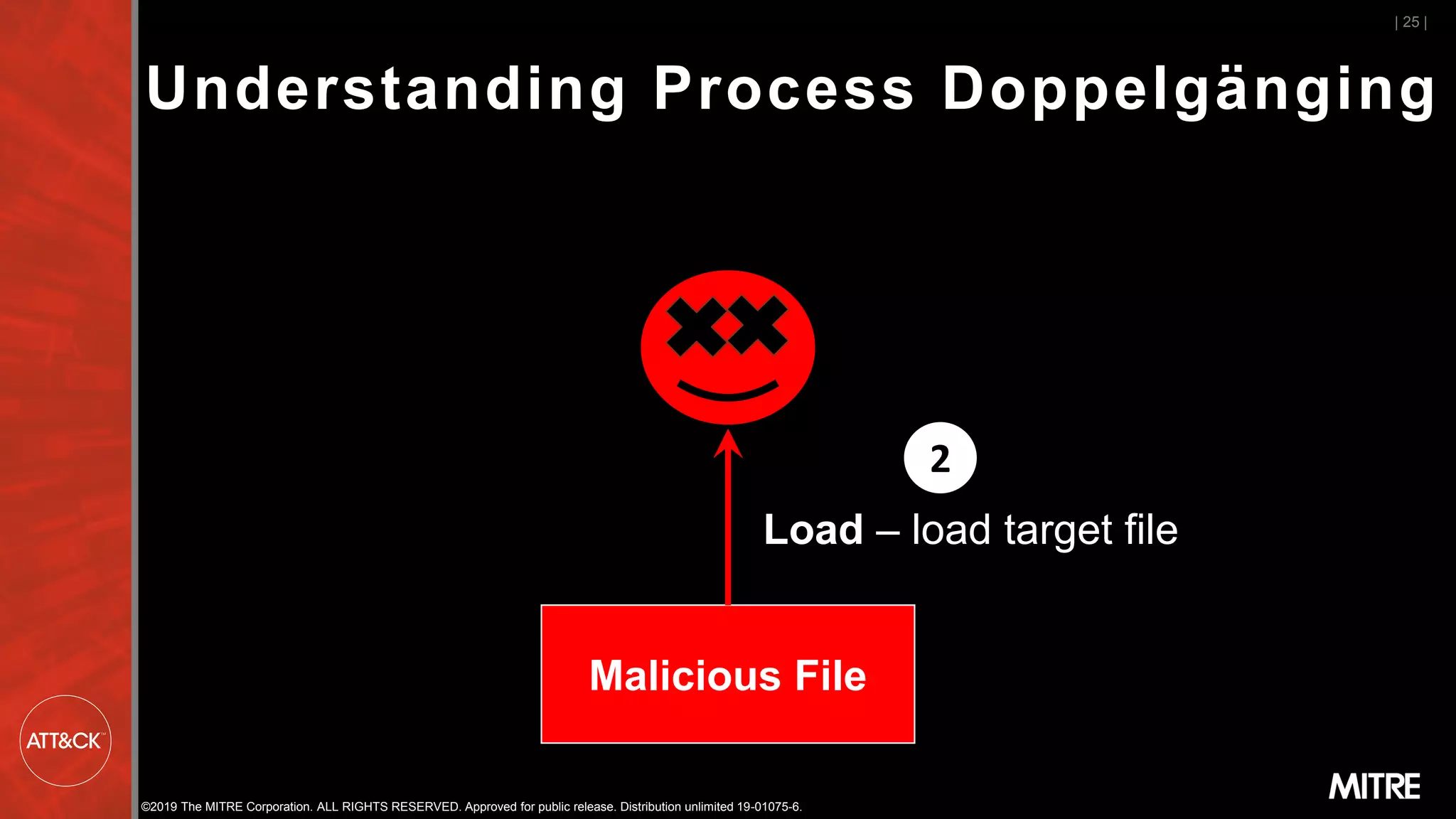

2
Load – load target file

Legitimate File
| 26 |

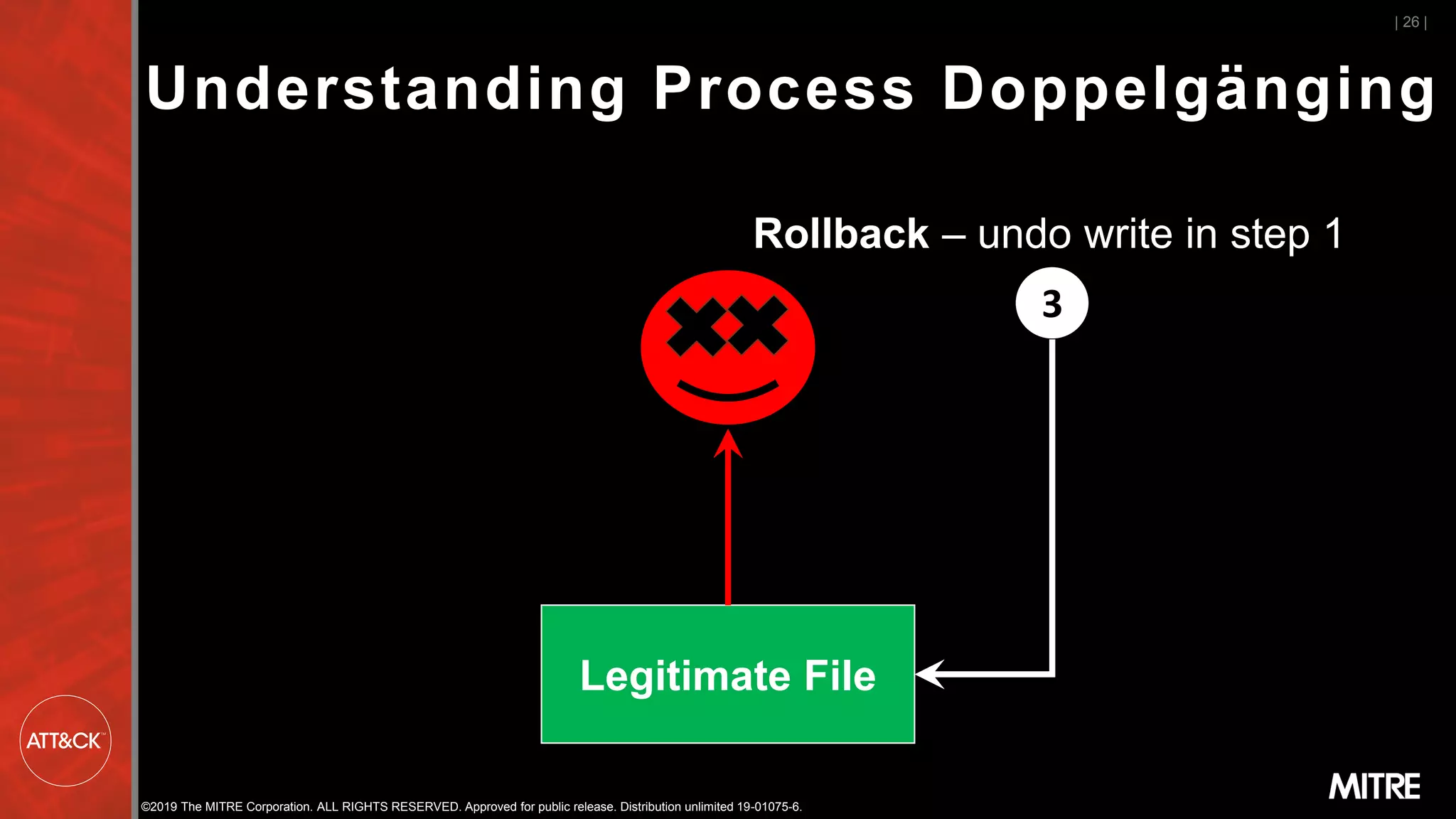

3
Rollback – undo write in step 1

Changes are only visible
within transaction
Legitimate File

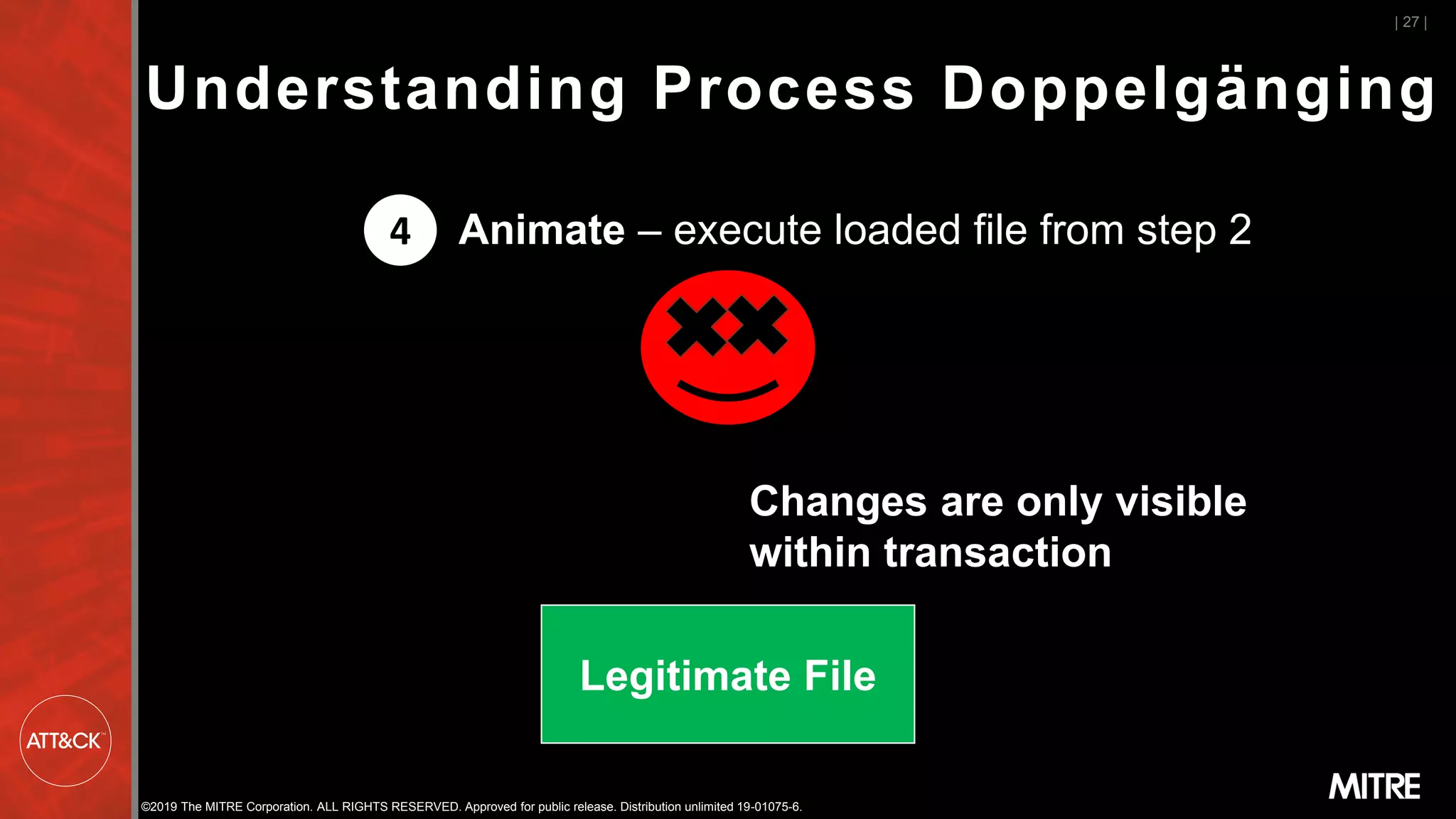

Animate – execute loaded file from step 2
| 27 |
4

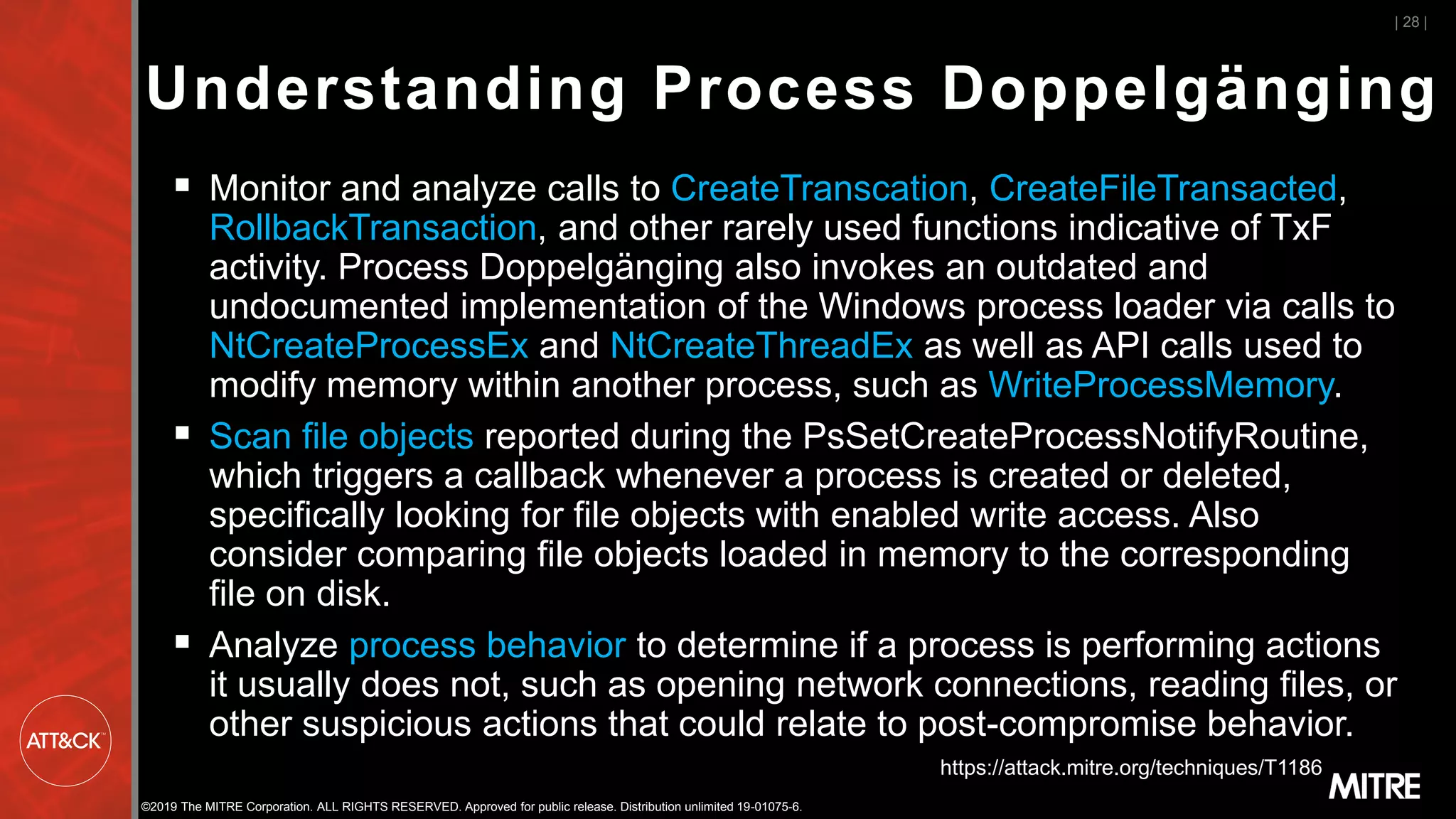

▪ Monitor and analyze calls to CreateTranscation, CreateFileTransacted,
RollbackTransaction, and other rarely used functions indicative of TxF
activity. Process Doppelgänging also invokes an outdated and
undocumented implementation of the Windows process loader via calls to
NtCreateProcessEx and NtCreateThreadEx as well as API calls used to
modify memory within another process, such as WriteProcessMemory.
▪ Scan file objects reported during the PsSetCreateProcessNotifyRoutine,
which triggers a callback whenever a process is created or deleted,
specifically looking for file objects with enabled write access. Also
consider comparing file objects loaded in memory to the corresponding
file on disk.
▪ Analyze process behavior to determine if a process is performing actions
it usually does not, such as opening network connections, reading files, or
other suspicious actions that could relate to post-compromise behavior.
| 28 |
https://attack.mitre.org/techniques/T1186

▪ Monitor and analyze calls to CreateTranscation, CreateFileTransacted,
RollbackTransaction, and other rarely used functions indicative of TxF
activity. Process Doppelgänging also invokes an outdated and
undocumented implementation of the Windows process loader via calls to
NtCreateProcessEx and NtCreateThreadEx as well as API calls used to
modify memory within another process, such as WriteProcessMemory.
▪ Scan file objects reported during the PsSetCreateProcessNotifyRoutine,
which triggers a callback whenever a process is created or deleted,
specifically looking for file objects with enabled write access. Also
consider comparing file objects loaded in memory to the corresponding
file on disk.
▪ Analyze process behavior to determine if a process is performing actions
it usually does not, such as opening network connections, reading files, or
other suspicious actions that could relate to post-compromise behavior.

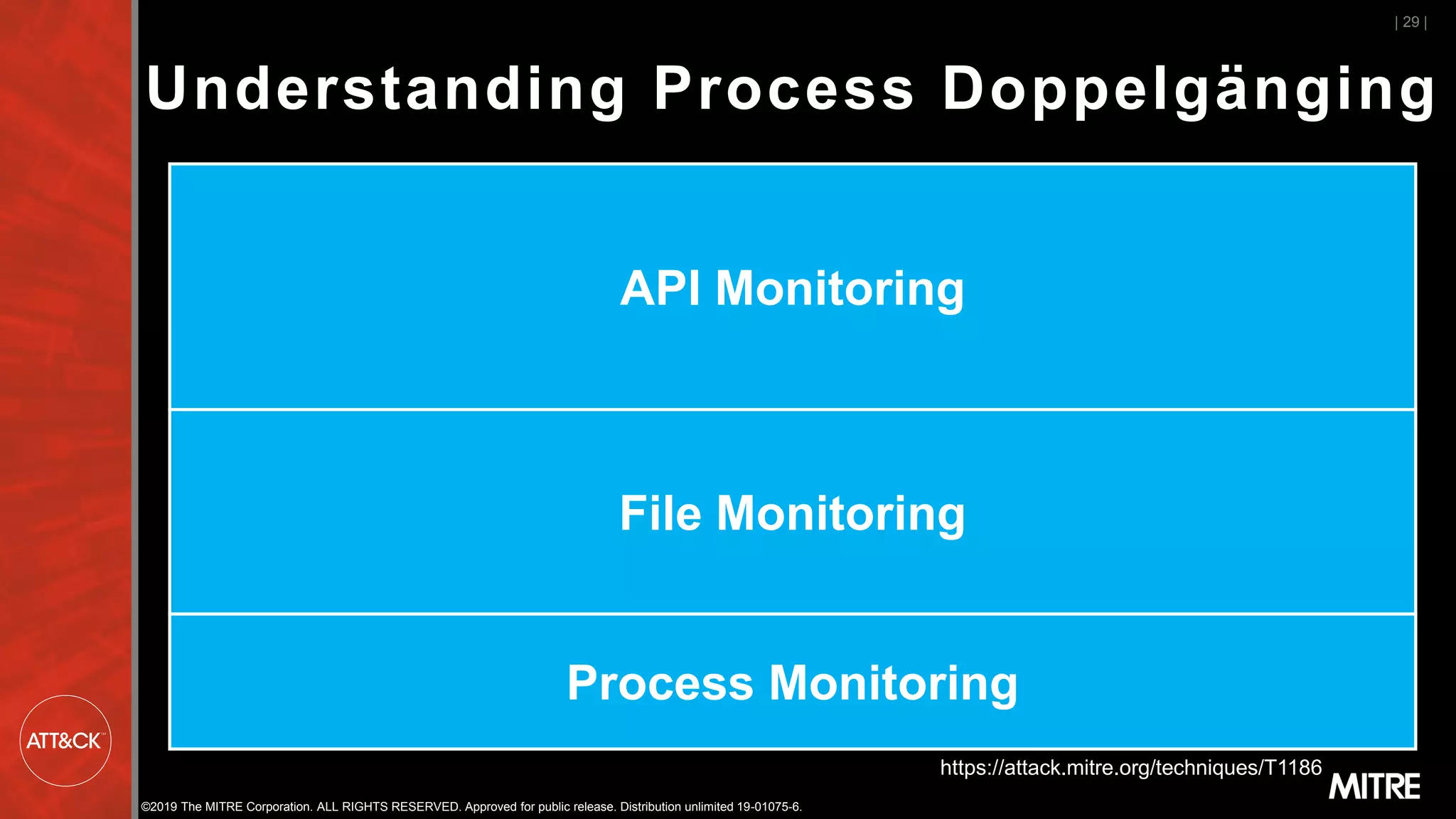

API Monitoring
Process Monitoring
File Monitoring
| 29 |
https://attack.mitre.org/techniques/T1186

| 30 |

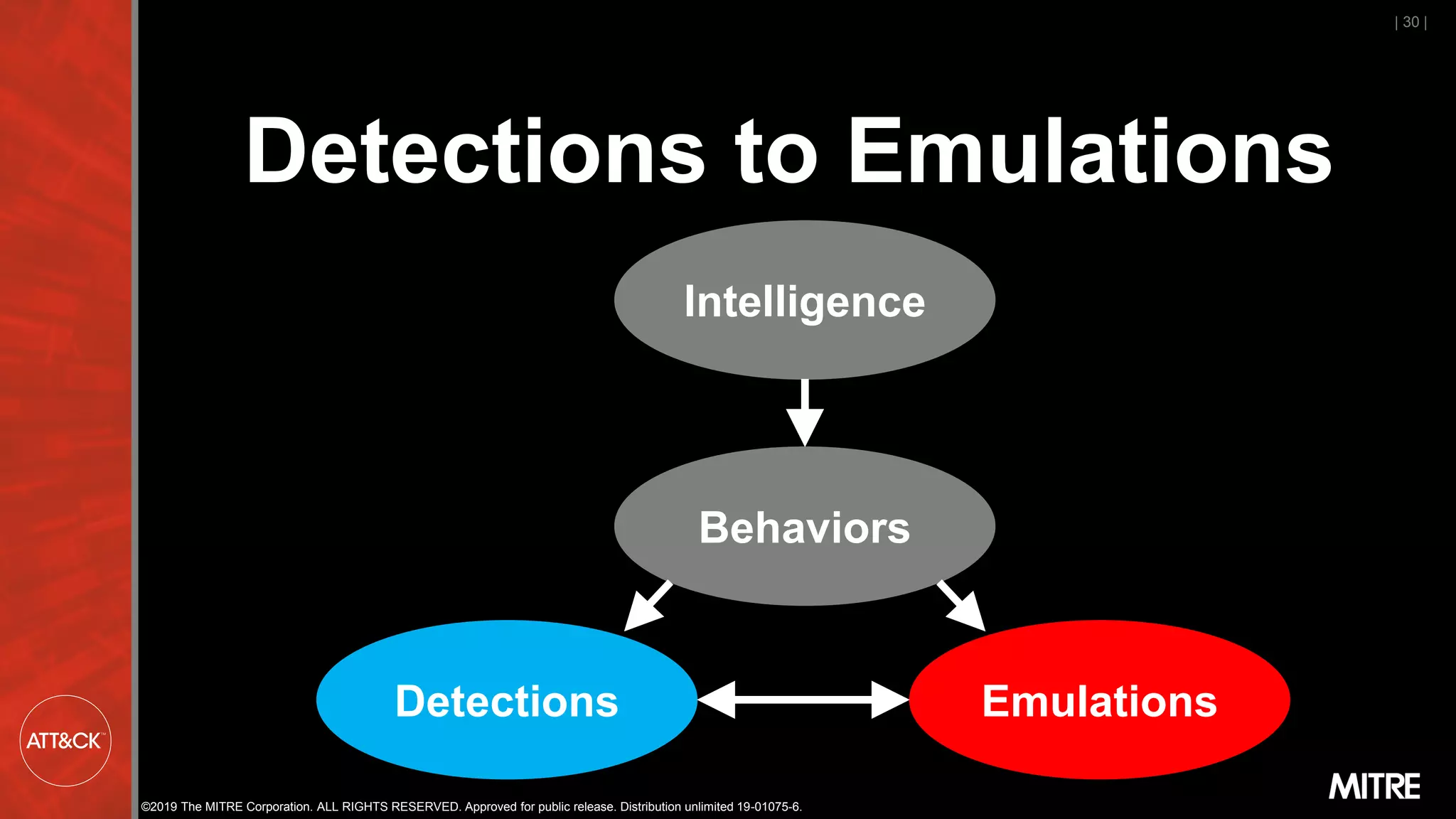

Detections to Emulations
Intelligence
Behaviors

Emulating Process Doppelgänging
▪ PoC available from Ruben
Booen (@FuzzySec)
▪ github.com/FuzzySecurity/
PowerShell-Suite
▪ Start-Eidolon.ps1
▪ Windows API (T1106) via
PowerShell (T1086)
| 31 |
https://gph.is/1XJvaI6

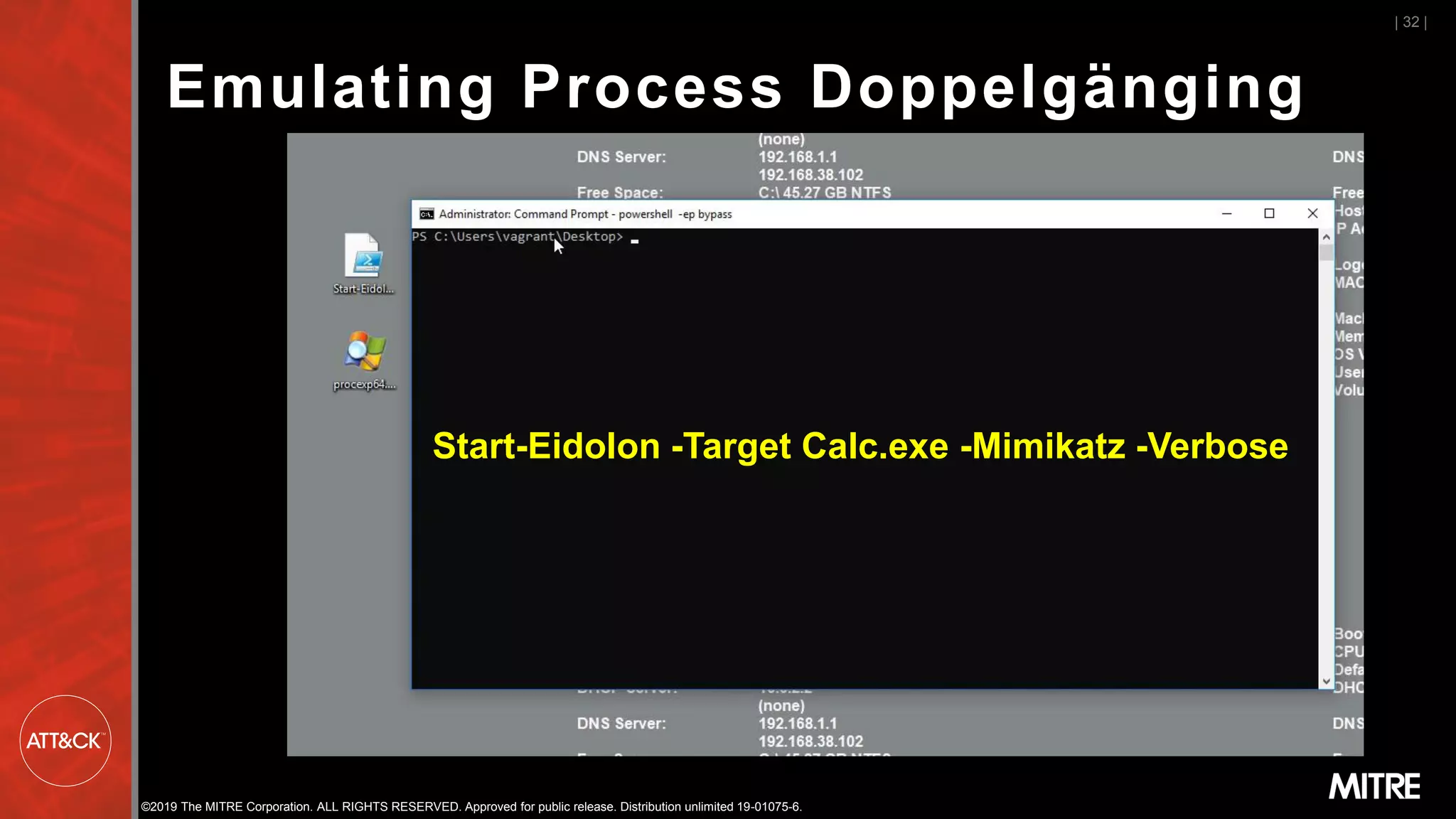

Start-Eidolon -Target Calc.exe -Mimikatz -Verbose
Emulating Process Doppelgänging
| 32 |

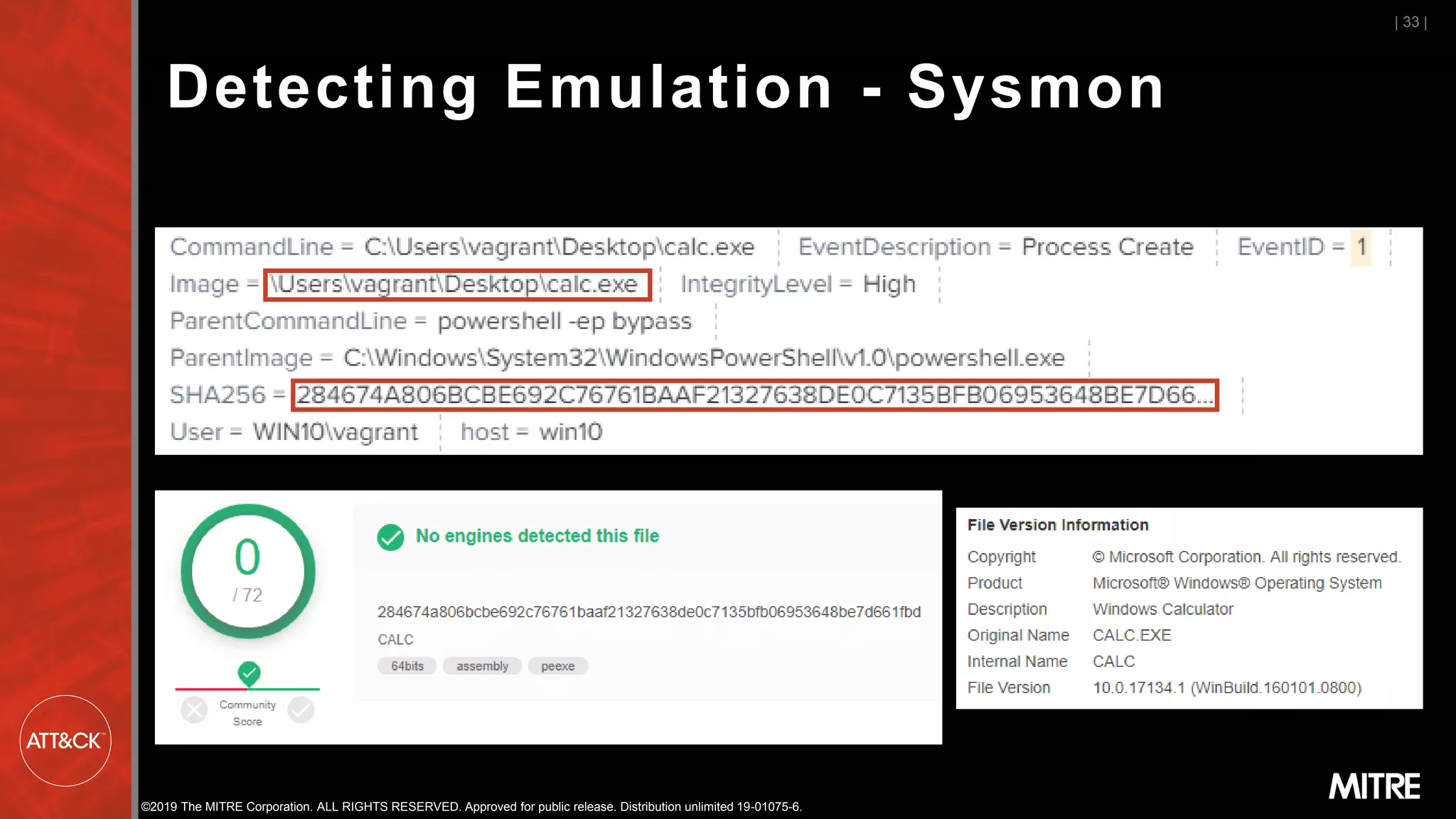

Detecting Emulation - Sysmon
| 33 |

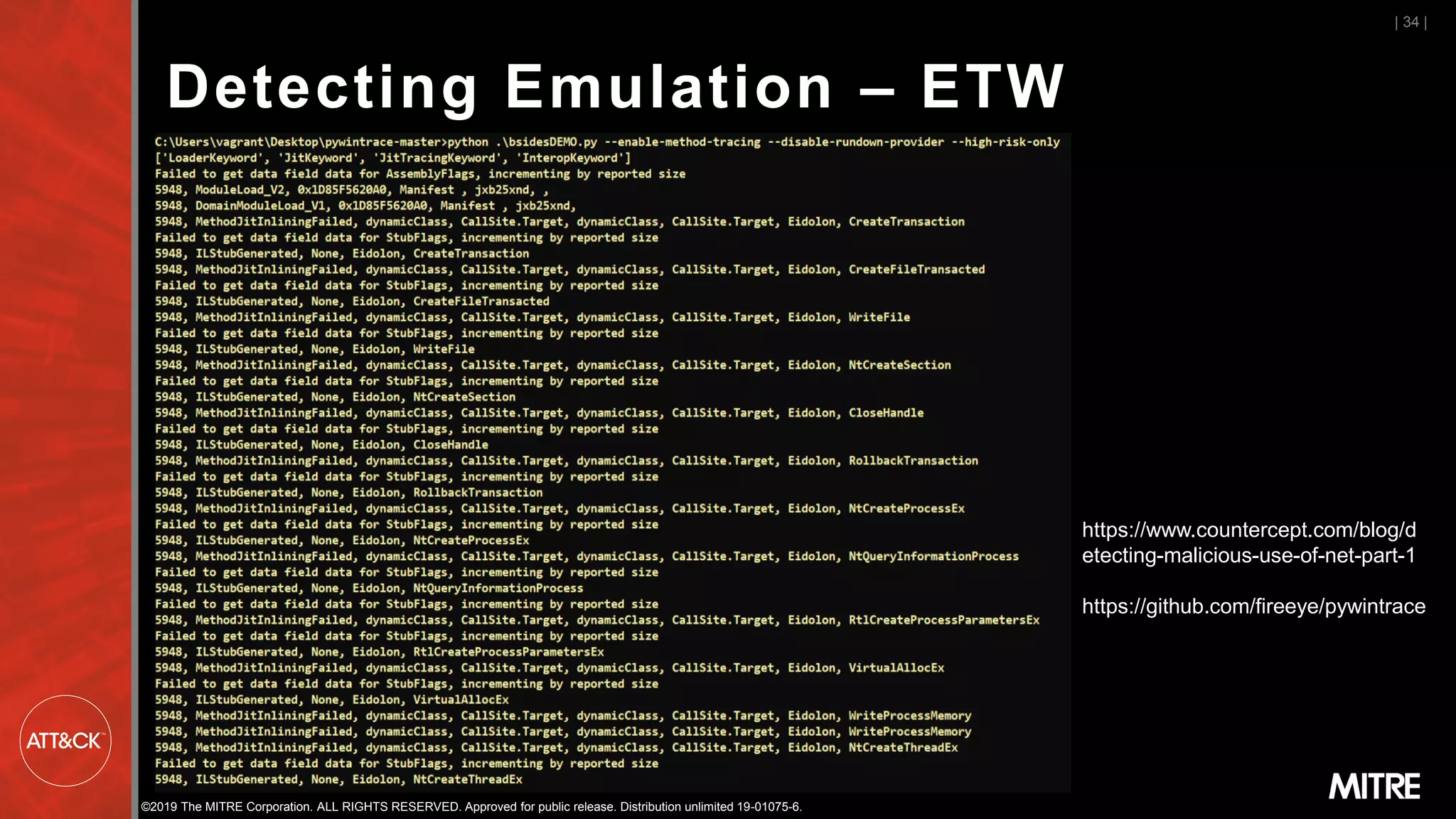

Detecting Emulation – ETW
| 34 |
https://www.countercept.com/blog/d
etecting-malicious-use-of-net-part-1
https://github.com/fireeye/pywintrace

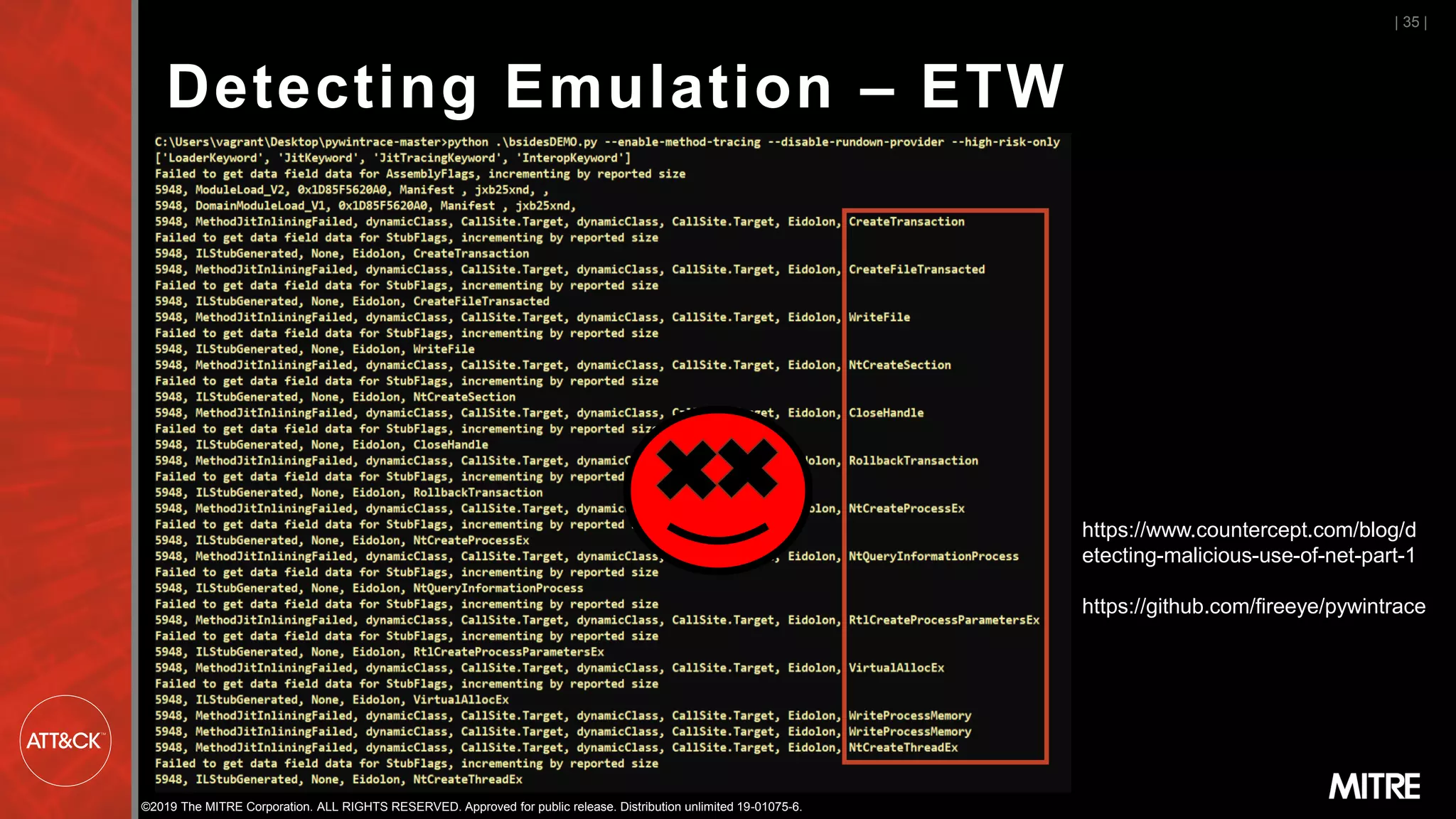

Detecting Emulation – ETW
| 35 |
https://www.countercept.com/blog/d
etecting-malicious-use-of-net-part-1
https://github.com/fireeye/pywintrace

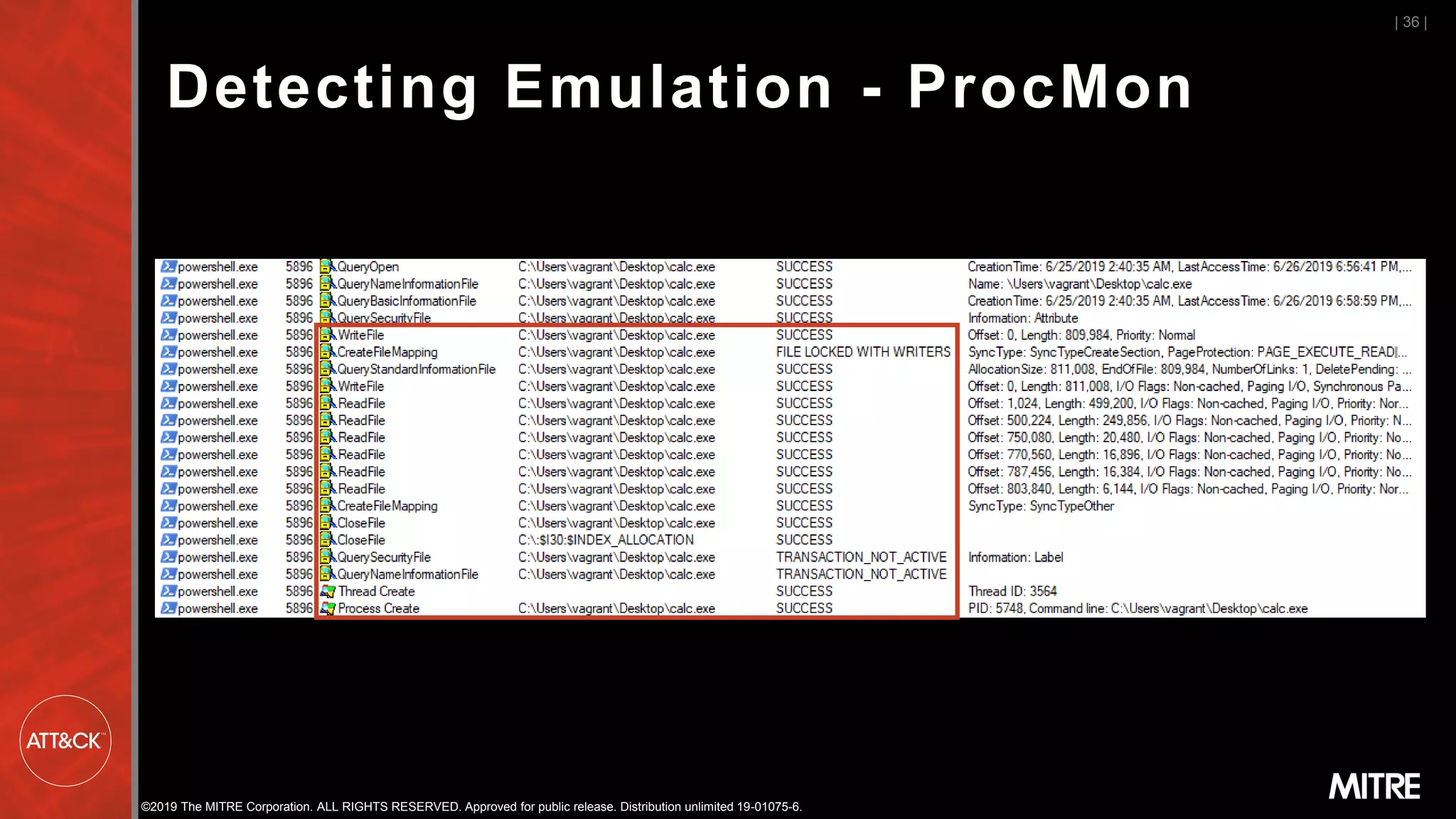

Detecting Emulation - ProcMon
| 36 |

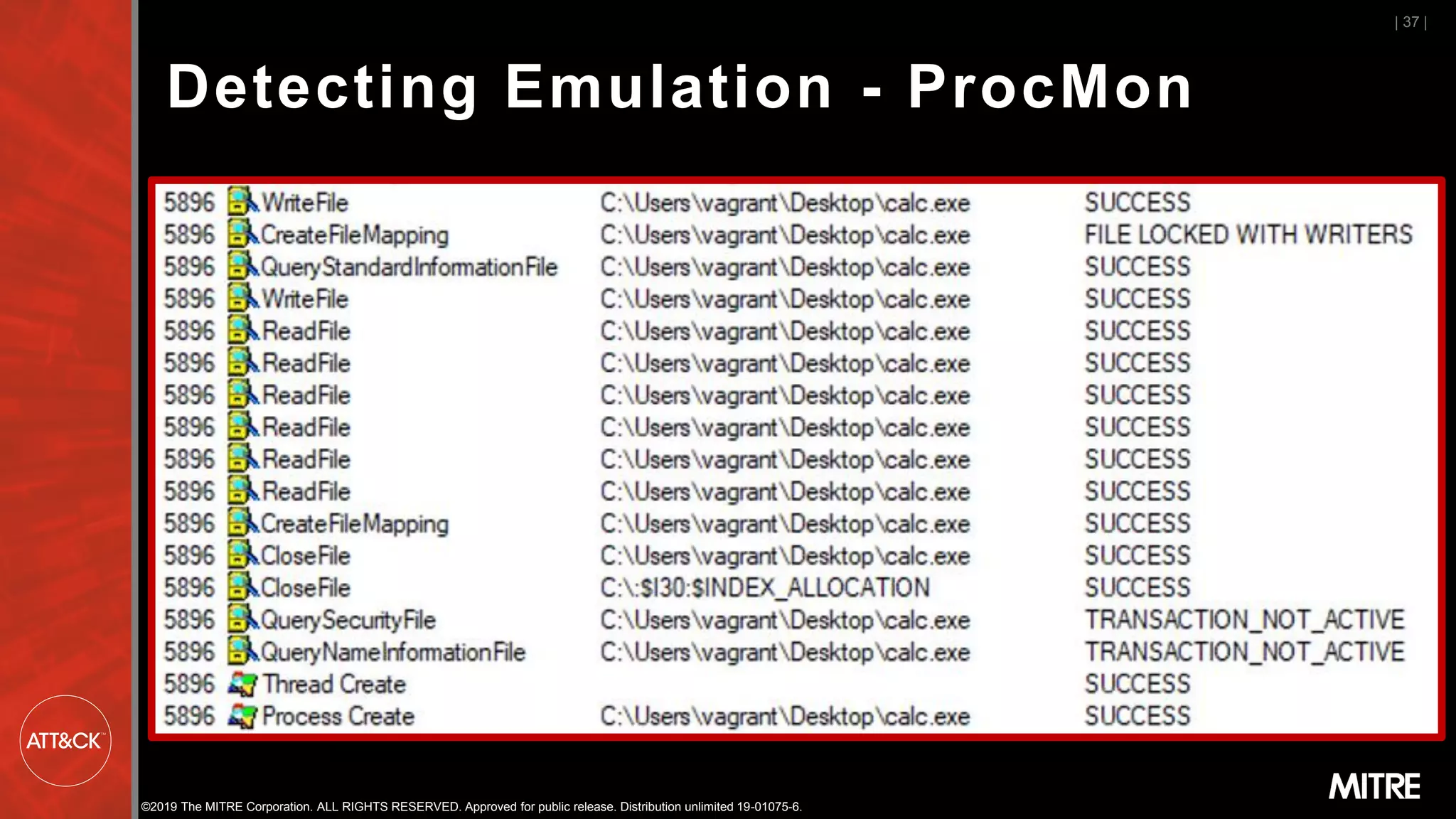

Detecting Emulation - ProcMon
| 37 |

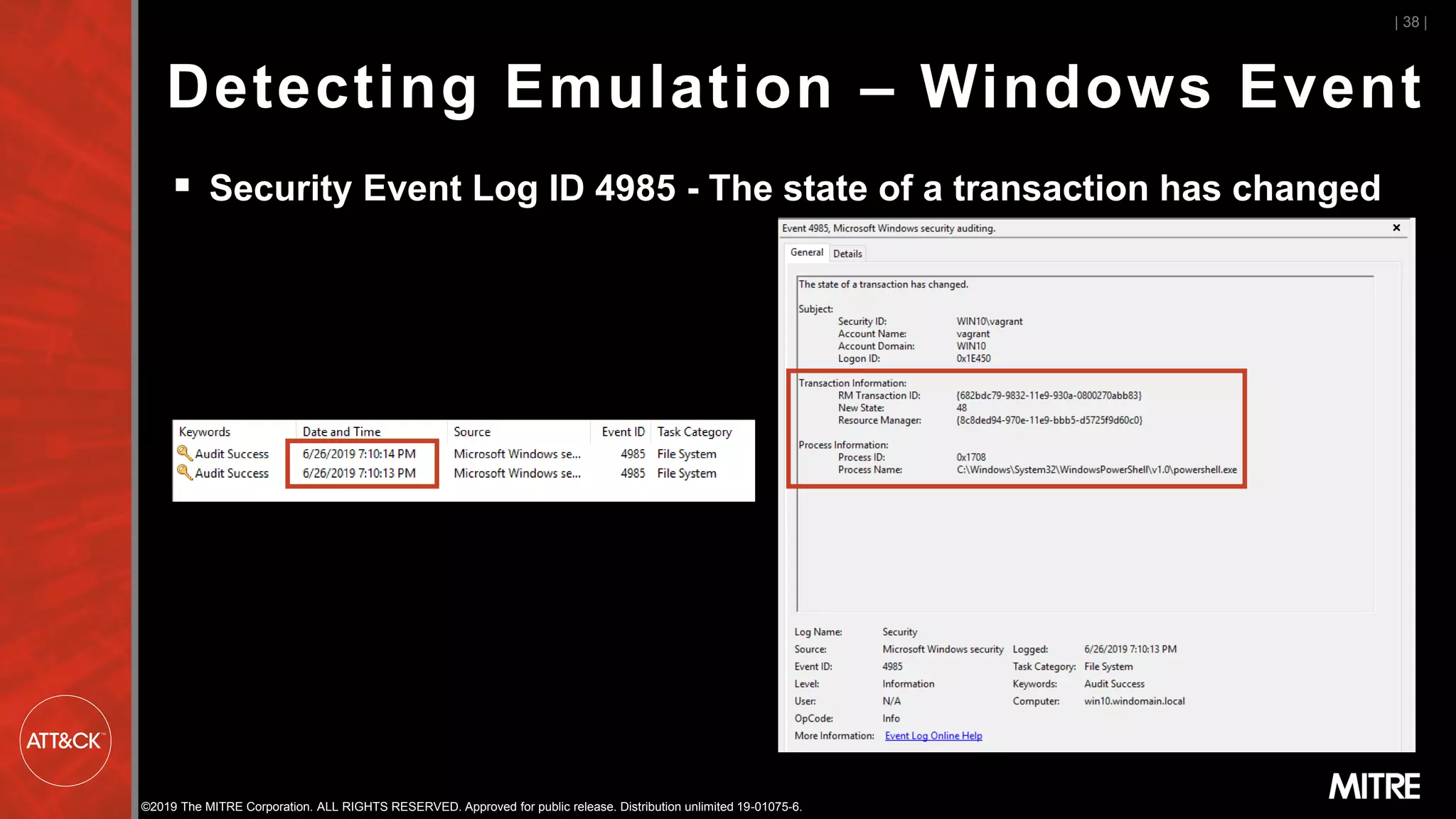

Detecting Emulation – Windows Event
▪ Security Event Log ID 4985 - The state of a transaction has changed
| 38 |

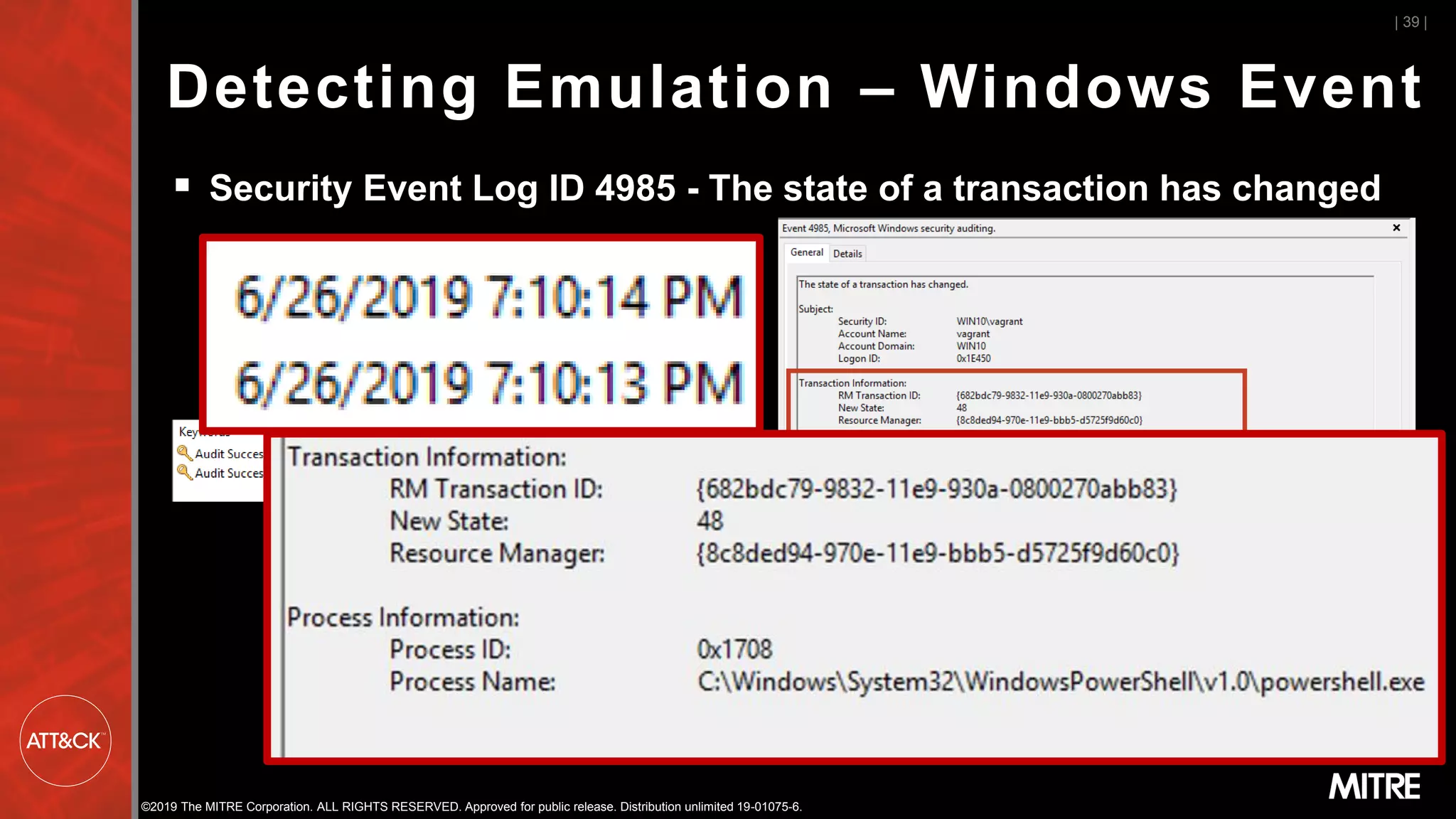

Detecting Emulation – Windows Event
▪ Security Event Log ID 4985 - The state of a transaction has changed
| 39 |

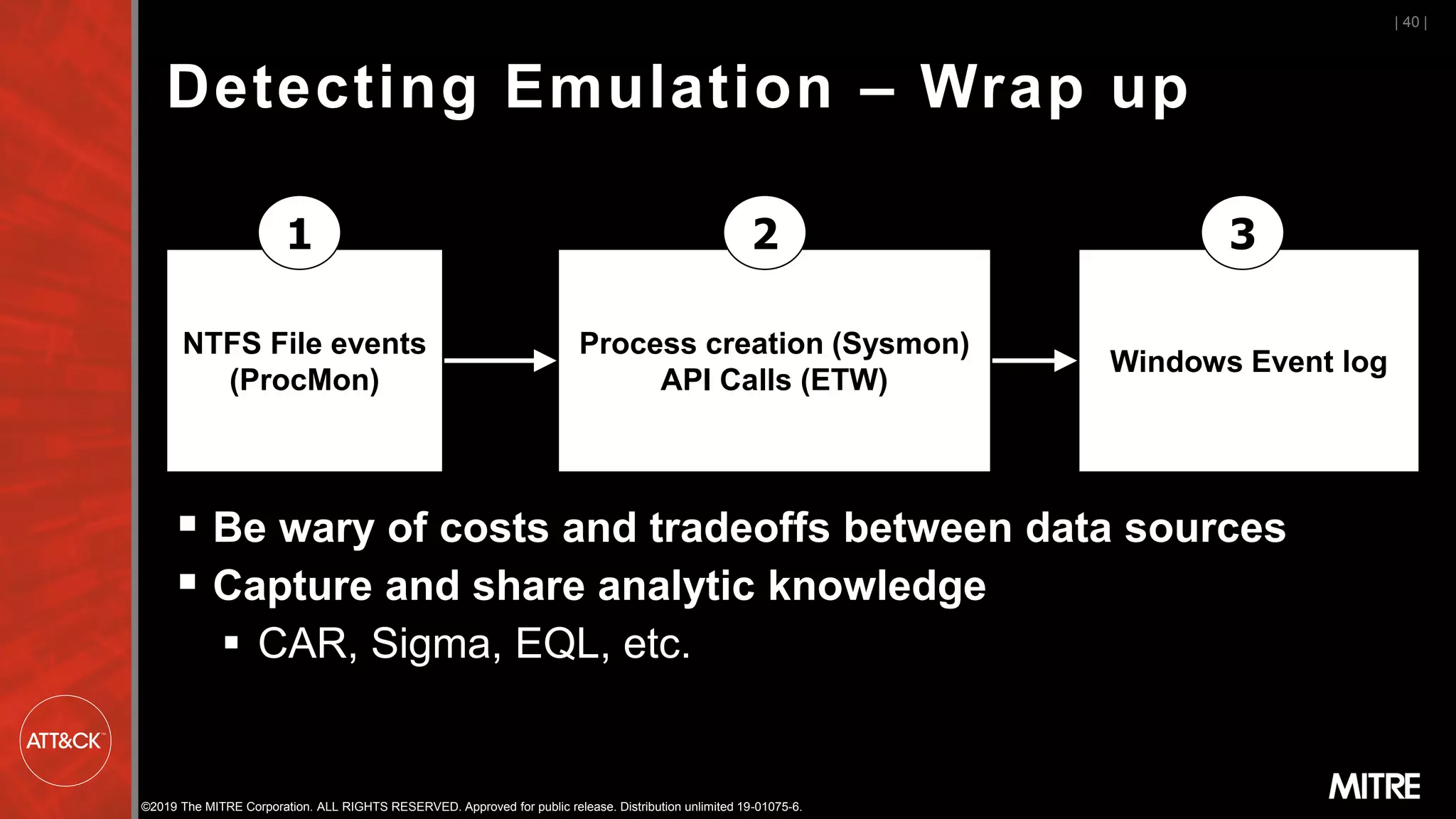

Detecting Emulation – Wrap up
| 40 |
NTFS File events
(ProcMon)
Process creation (Sysmon)
API Calls (ETW)
Windows Event log
1 2 3
▪ Be wary of costs and tradeoffs between data sources
▪ Capture and share analytic knowledge
▪ CAR, Sigma, EQL, etc.

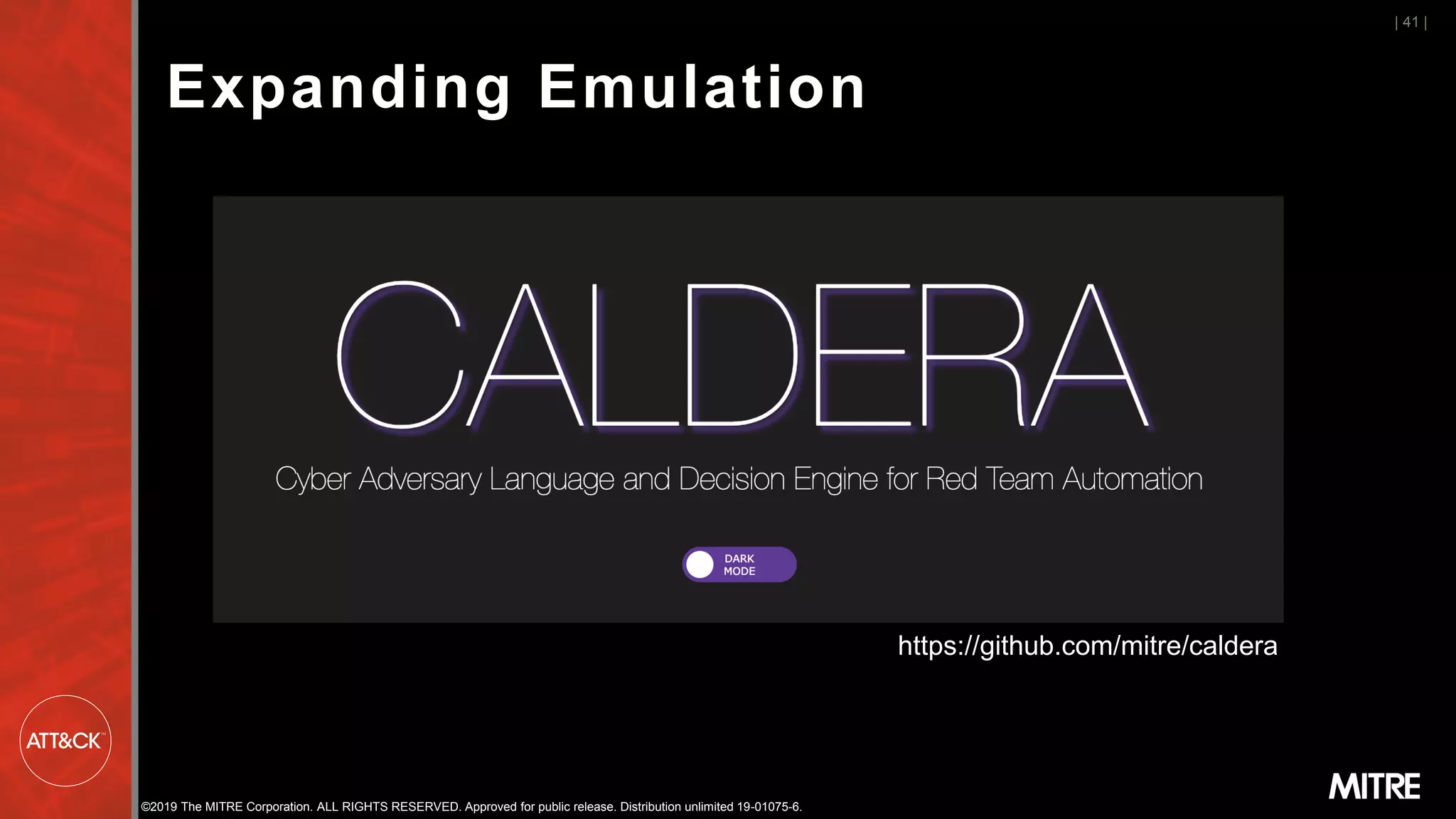

Expanding Emulation
| 41 |
https://github.com/mitre/caldera

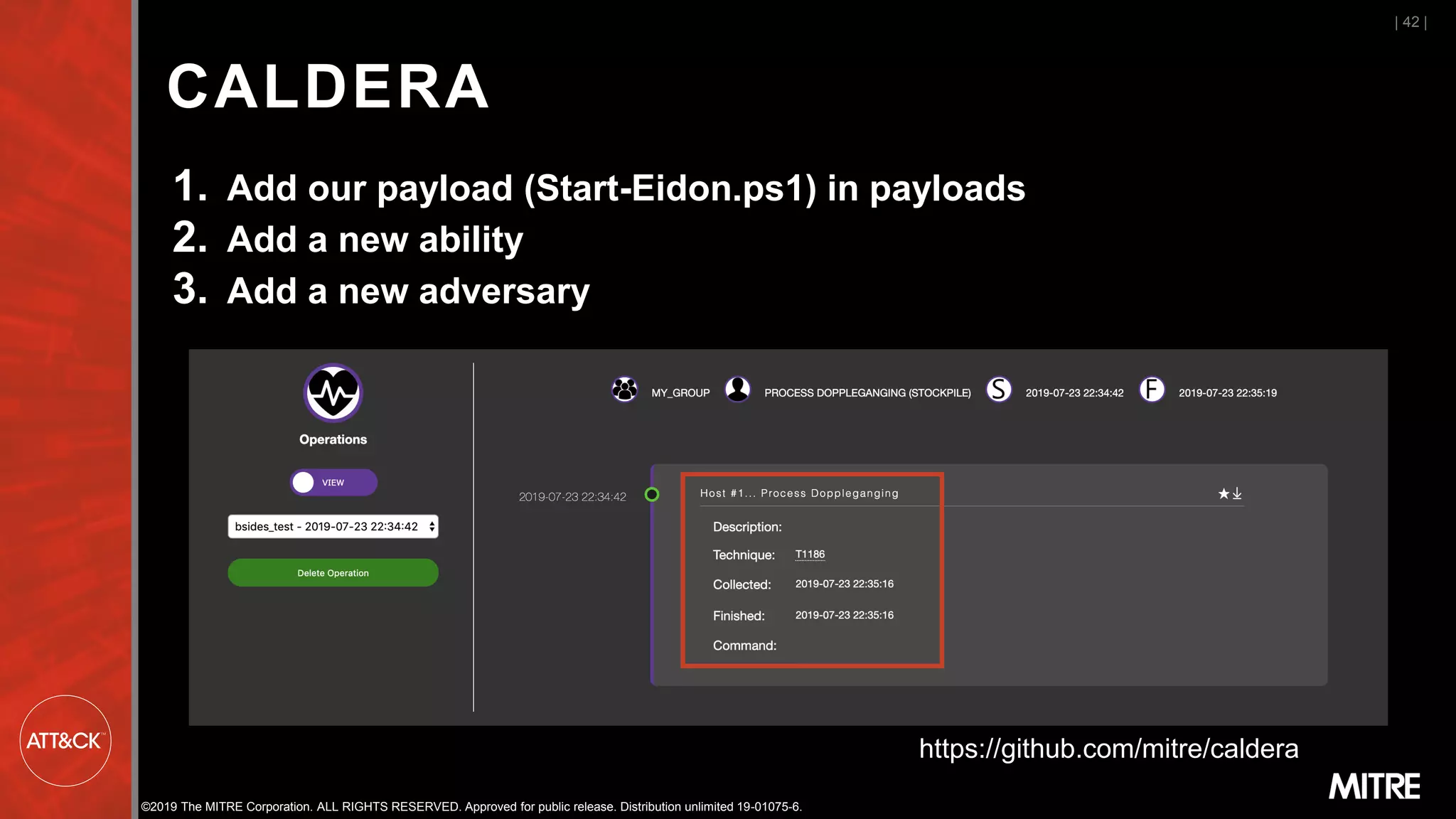

CALDERA
1. Add our payload (Start-Eidon.ps1) in payloads
2. Add a new ability
3. Add a new adversary
| 42 |

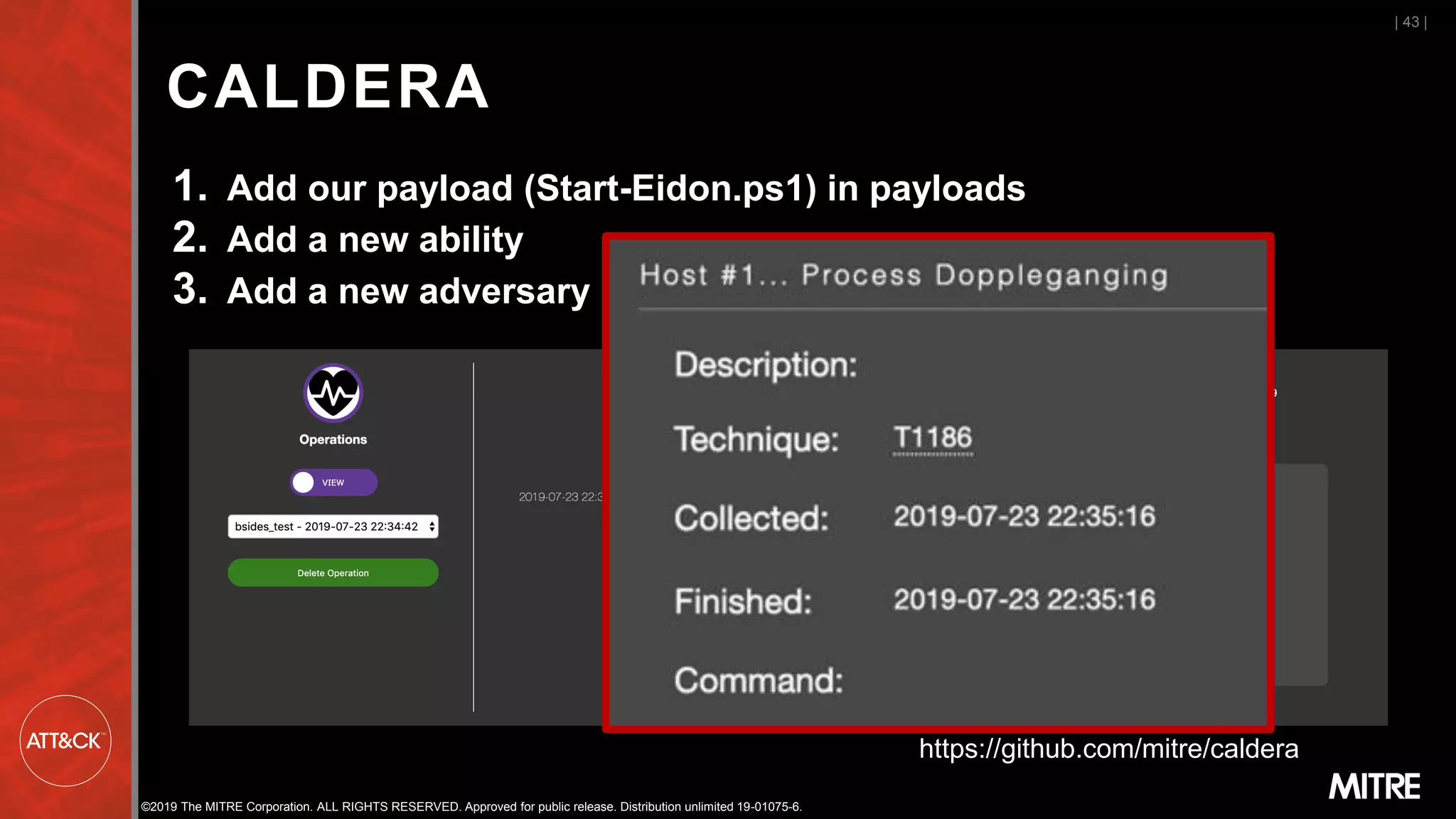

CALDERA
1. Add our payload (Start-Eidon.ps1) in payloads
2. Add a new ability
3. Add a new adversary
| 43 |

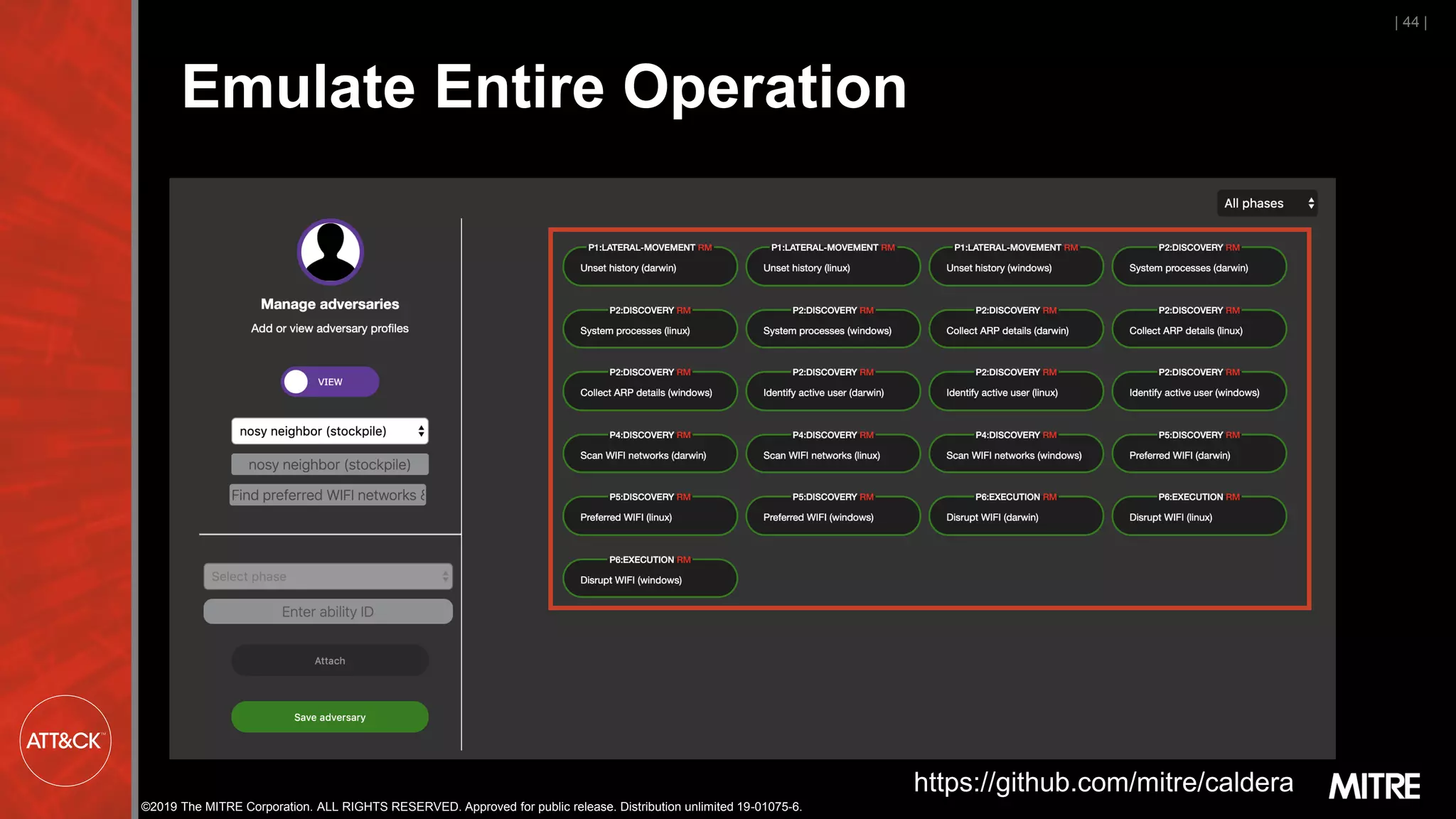

Emulate Entire Operation
| 44 |

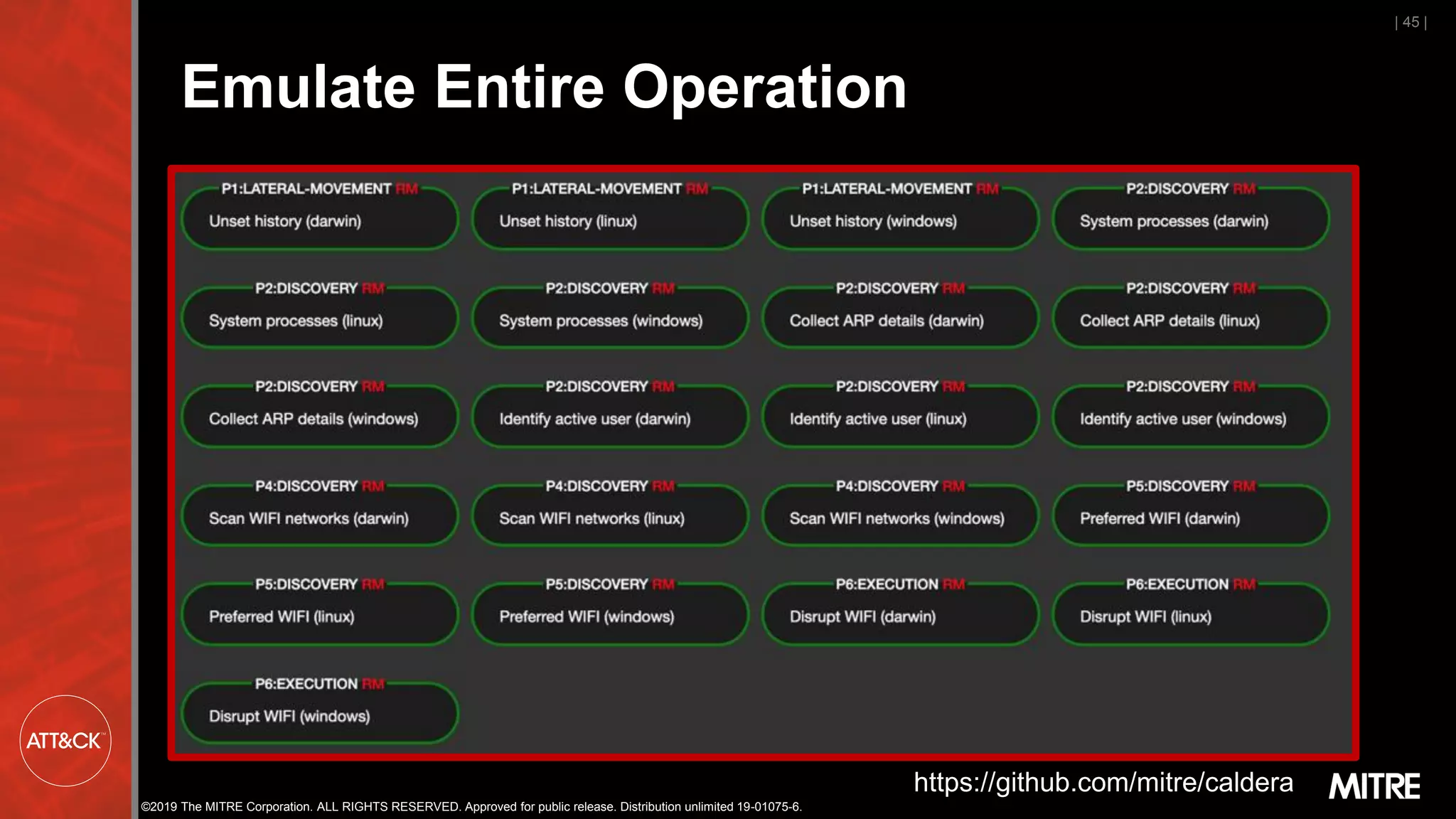

Emulate Entire Operation
| 45 |

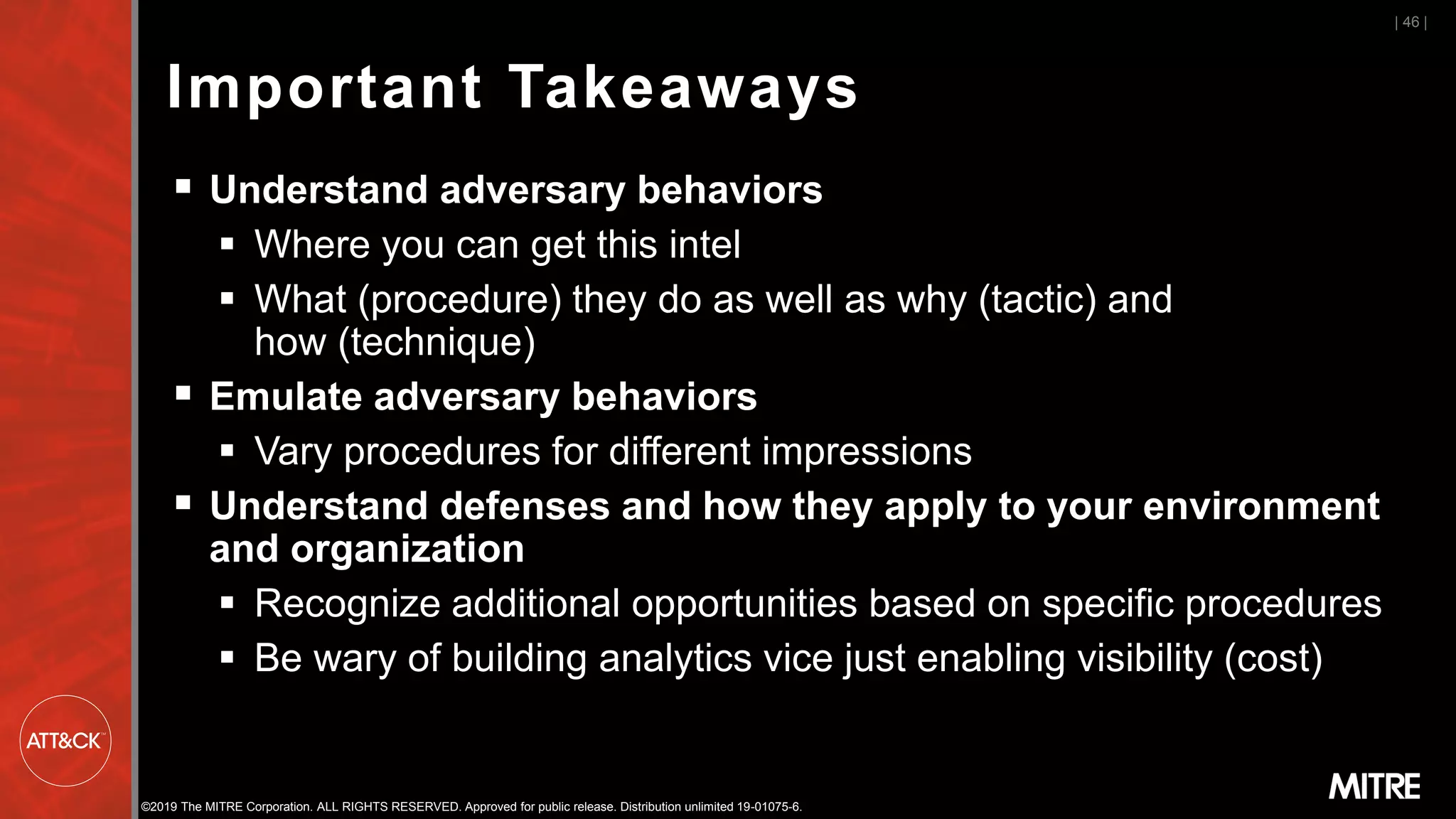

Important Takeaways
▪ Understand adversary behaviors
▪ Where you can get this intel
▪ What (procedure) they do as well as why (tactic) and
how (technique)
▪ Emulate adversary behaviors
▪ Vary procedures for different impressions
▪ Understand defenses and how they apply to your environment
and organization
▪ Recognize additional opportunities based on specific procedures
▪ Be wary of building analytics vice just enabling visibility (cost)
| 46 |

| 47 |
attack.mitre.org
medium.com/mitre-attack
attack@mitre.org
@MITREattack
@sarah__yoder
@jamieantisocial
