This document presents a project proposal for an IoT-based ATM security system using RFID and SMS control. The system utilizes RFID authentication for secure access control to the ATM and allows security officers to remotely control and monitor the ATM through a GSM module. It incorporates gas/smoke sensors to detect suspicious activities. The system aims to provide cost-effective and flexible security for ATMs located in isolated areas by enabling remote management through SMS commands.

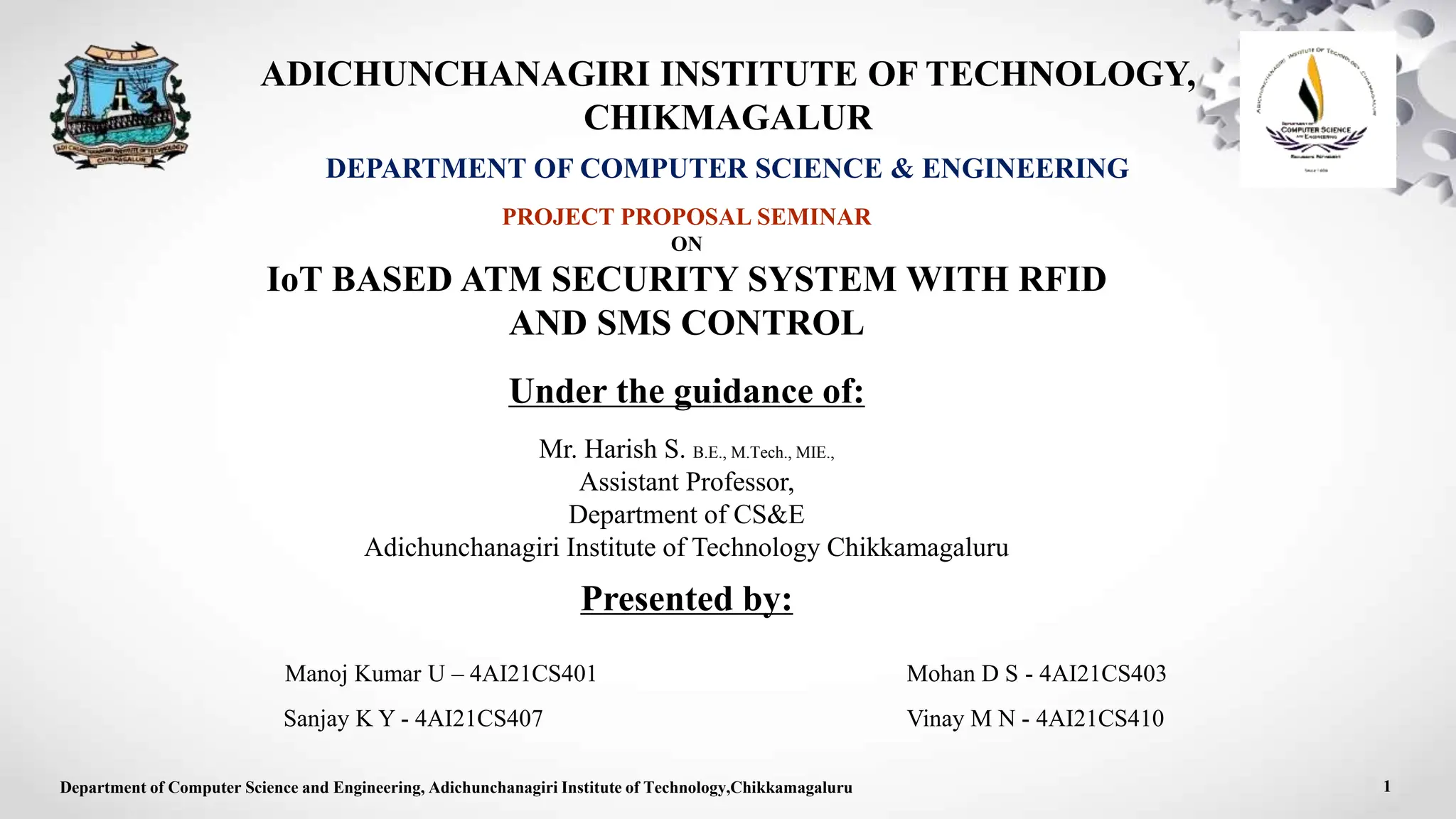

1. PROJECT PROPOSAL SEMINAR
ON
IoT BASED ATM SECURITY SYSTEM WITH RFID
AND SMS CONTROL
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 1
ADICHUNCHANAGIRI INSTITUTE OF TECHNOLOGY,
CHIKMAGALUR
DEPARTMENT OF COMPUTER SCIENCE & ENGINEERING
Presented by:
Manoj Kumar U – 4AI21CS401 Mohan D S - 4AI21CS403
Sanjay K Y - 4AI21CS407 Vinay M N - 4AI21CS410
Under the guidance of:
Mr. Harish S. B.E., M.Tech., MIE.,
Assistant Professor,
Department of CS&E
Adichunchanagiri Institute of Technology Chikkamagaluru

2. Abstract
• Development of an IoT-based ATM security system.
• Utilizes RFID authentication for secure access control to the ATM.
• Security officers will perform the ATM security operations .
• Enables remote control and monitoring through a GSM module.
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 2

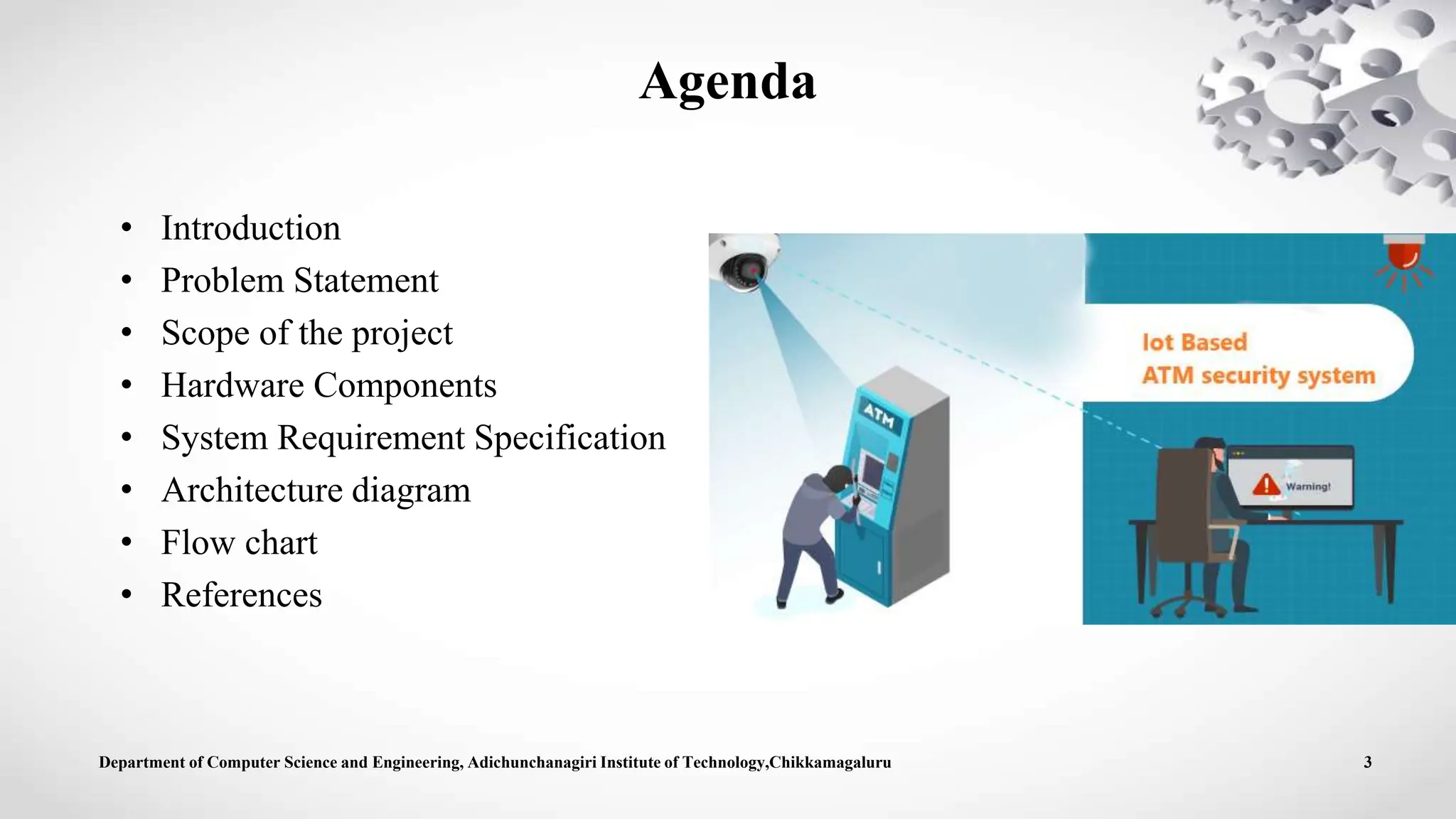

3. Agenda
• Introduction
• Problem Statement
• Scope of the project
• Hardware Components
• System Requirement Specification
• Architecture diagram
• Flow chart
• References
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 3

4. Introduction
• Development of an IoT-based ATM security system using Arduino technology.
• RFID technology is employed to ensure secure ATM entry, allowing only authorized
users with the proper credentials.
• A GSM module enables remote management, allowing security officers to send SMS
commands for ATM security operation.
• Incorporates gas/smoke sensors for suspicious activities.
• This remote control capability enhances flexibility
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 4

5. Problem Statement
ATM security concerns, including cash trapping and physical security lapses, often arise
in isolated locations, leading to delayed incident responses. This project offers a cost-
effective solution to ATM security.
• Input:
The customer RFID card is given as input.security operations are controlled by
given the commands
• Processing:
• Authentication of RFID card data, verifying access privileges for ATM entry.
• Continuous monitoring of gas/smoke sensor readings for potential security
breaches.
• Interpretation of incoming SMS commands for remote control of the ATM
door.
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 5

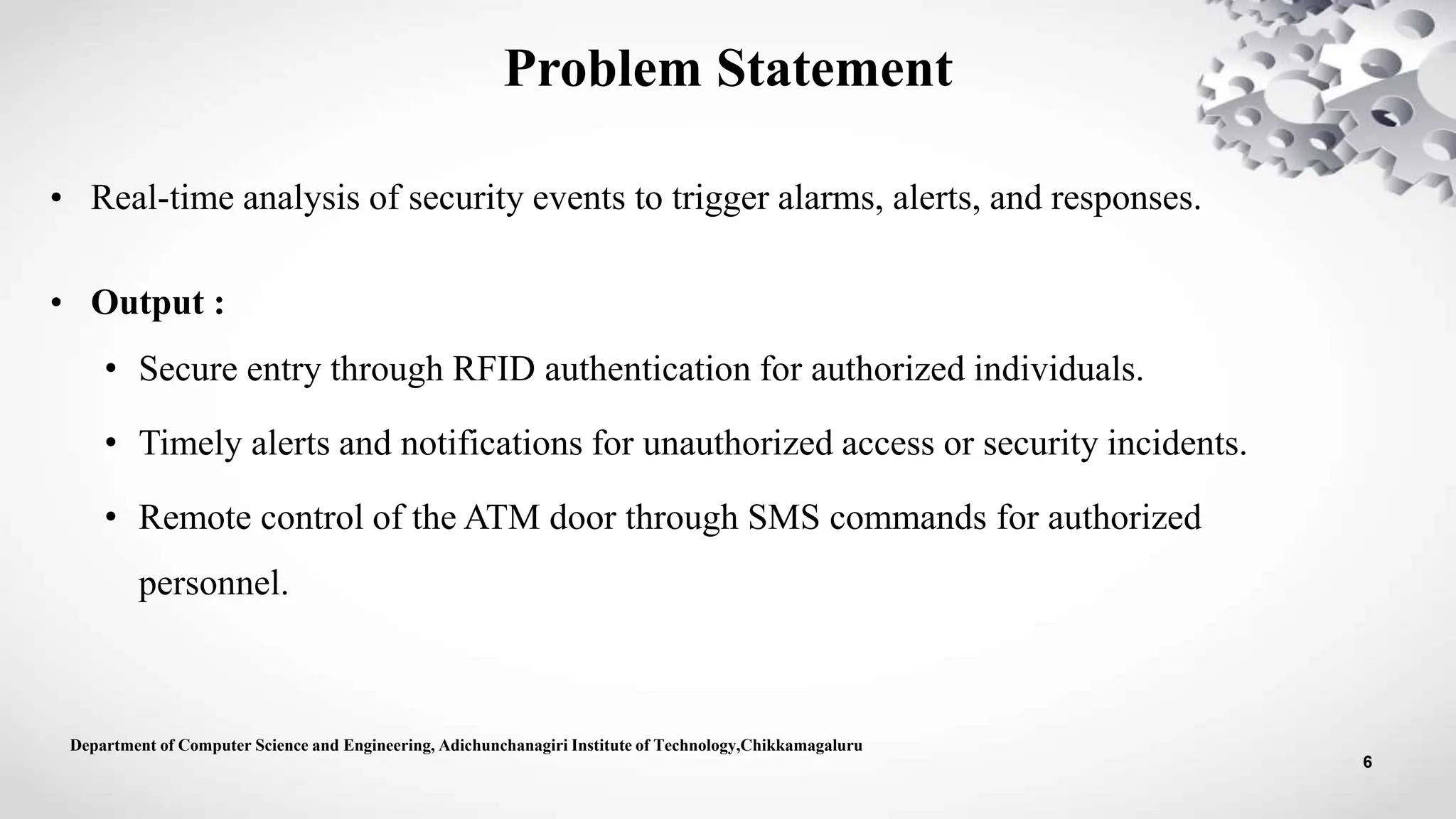

6. • Real-time analysis of security events to trigger alarms, alerts, and responses.
• Output :
• Secure entry through RFID authentication for authorized individuals.
• Timely alerts and notifications for unauthorized access or security incidents.
• Remote control of the ATM door through SMS commands for authorized
personnel.
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru
6
Problem Statement

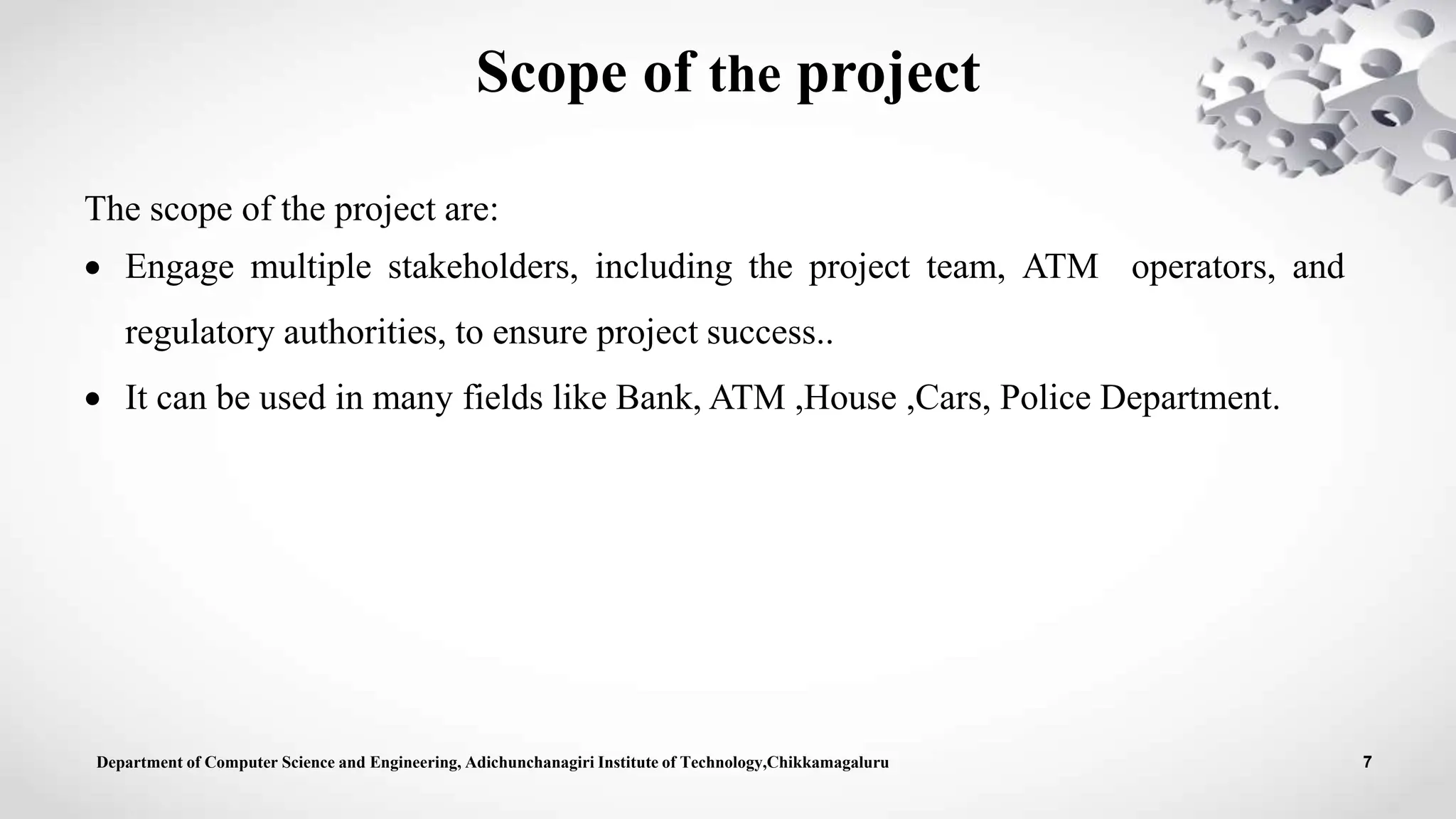

7. Scope of the project
The scope of the project are:
 Engage multiple stakeholders, including the project team, ATM operators, and
regulatory authorities, to ensure project success..
 It can be used in many fields like Bank, ATM ,House ,Cars, Police Department.
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 7

8. Hardware Components
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 8
• RFID module
 GSM module
• I2C Module
• LCD 16x2 Alphanumeric Display

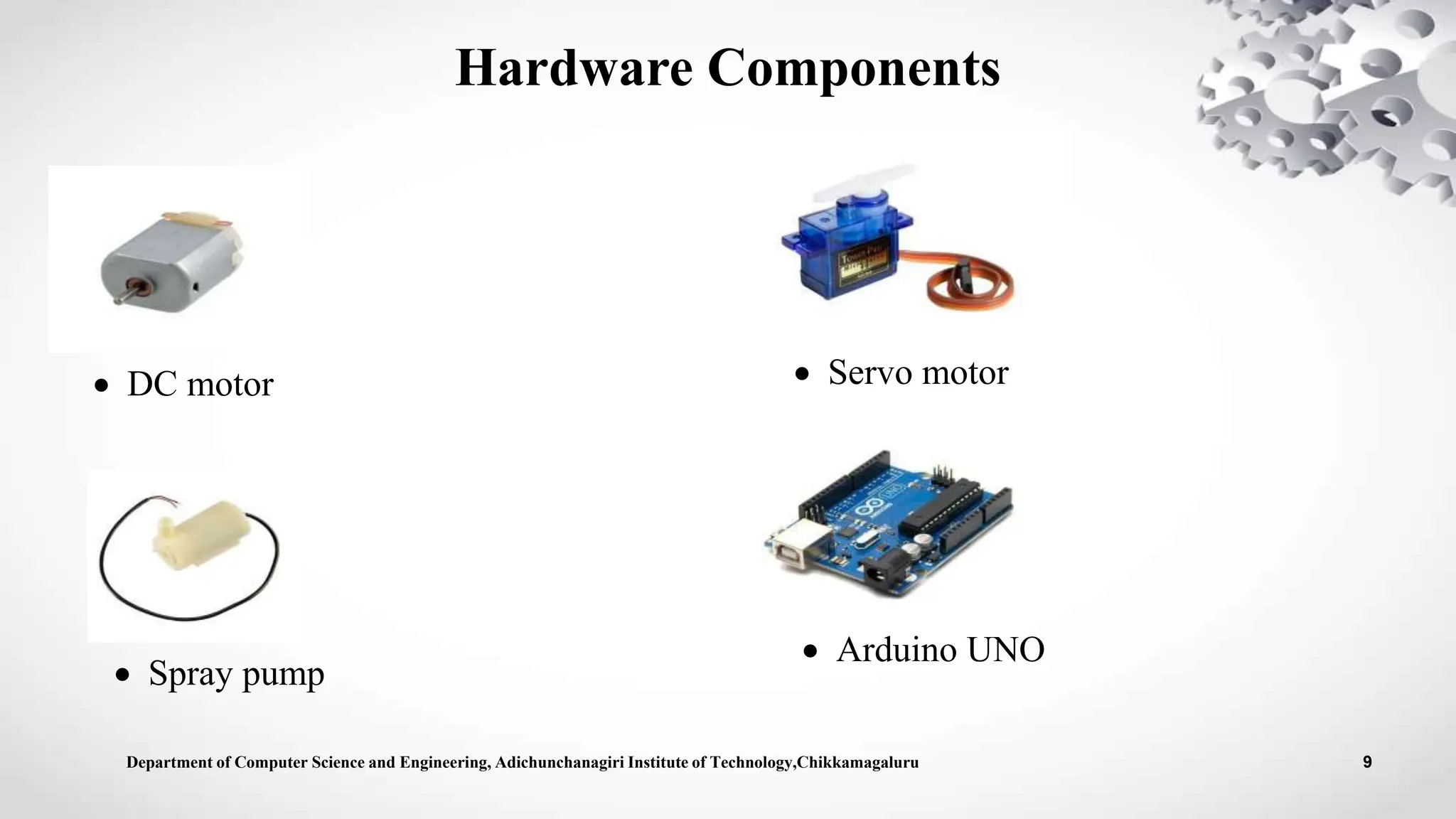

9. Hardware Components
 Spray pump
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 9
 DC motor  Servo motor
 Arduino UNO

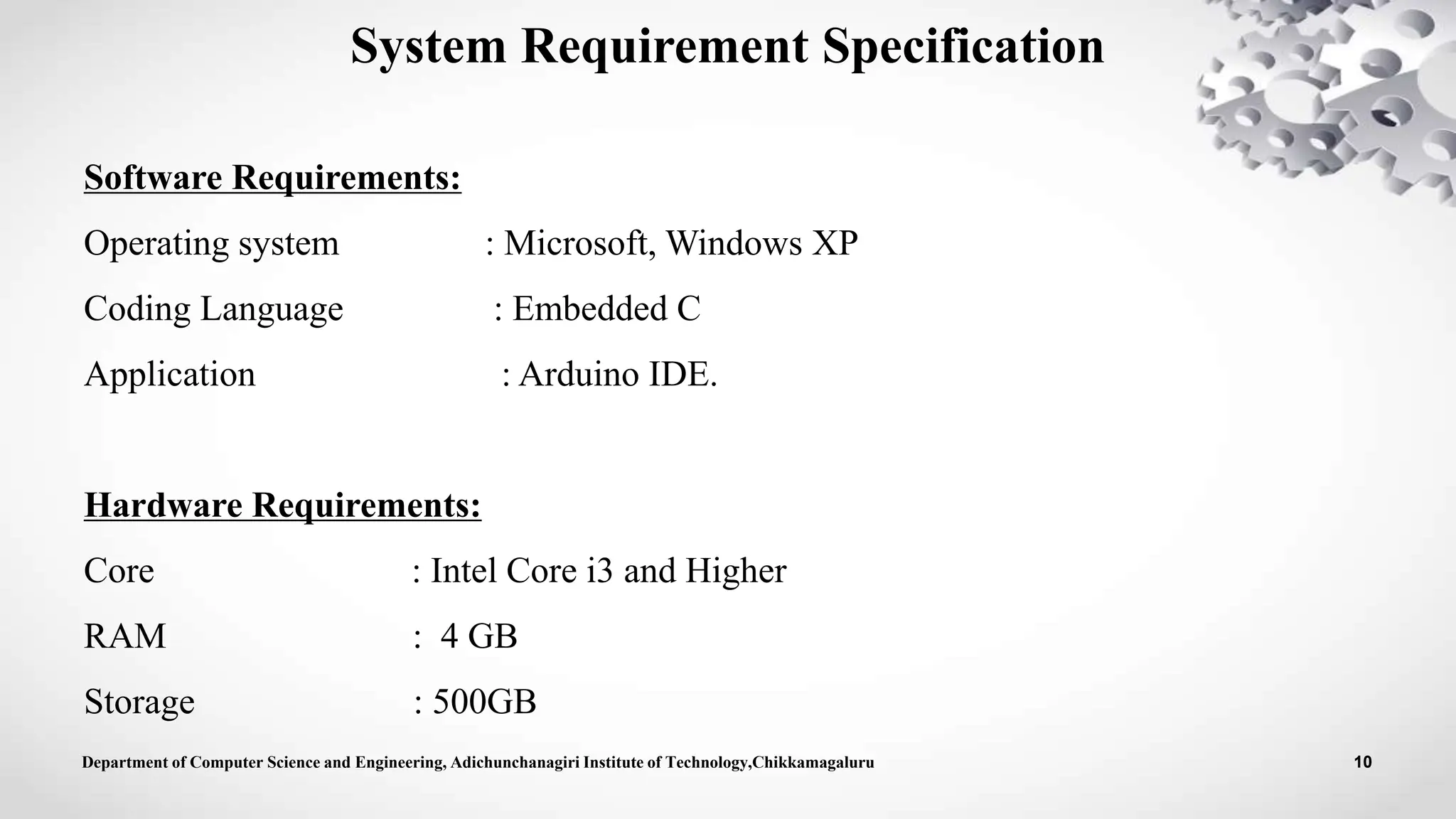

10. Software Requirements:
Operating system : Microsoft, Windows XP
Coding Language : Embedded C
Application : Arduino IDE.
Hardware Requirements:
Core : Intel Core i3 and Higher
RAM : 4 GB
Storage : 500GB
System Requirement Specification
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 10

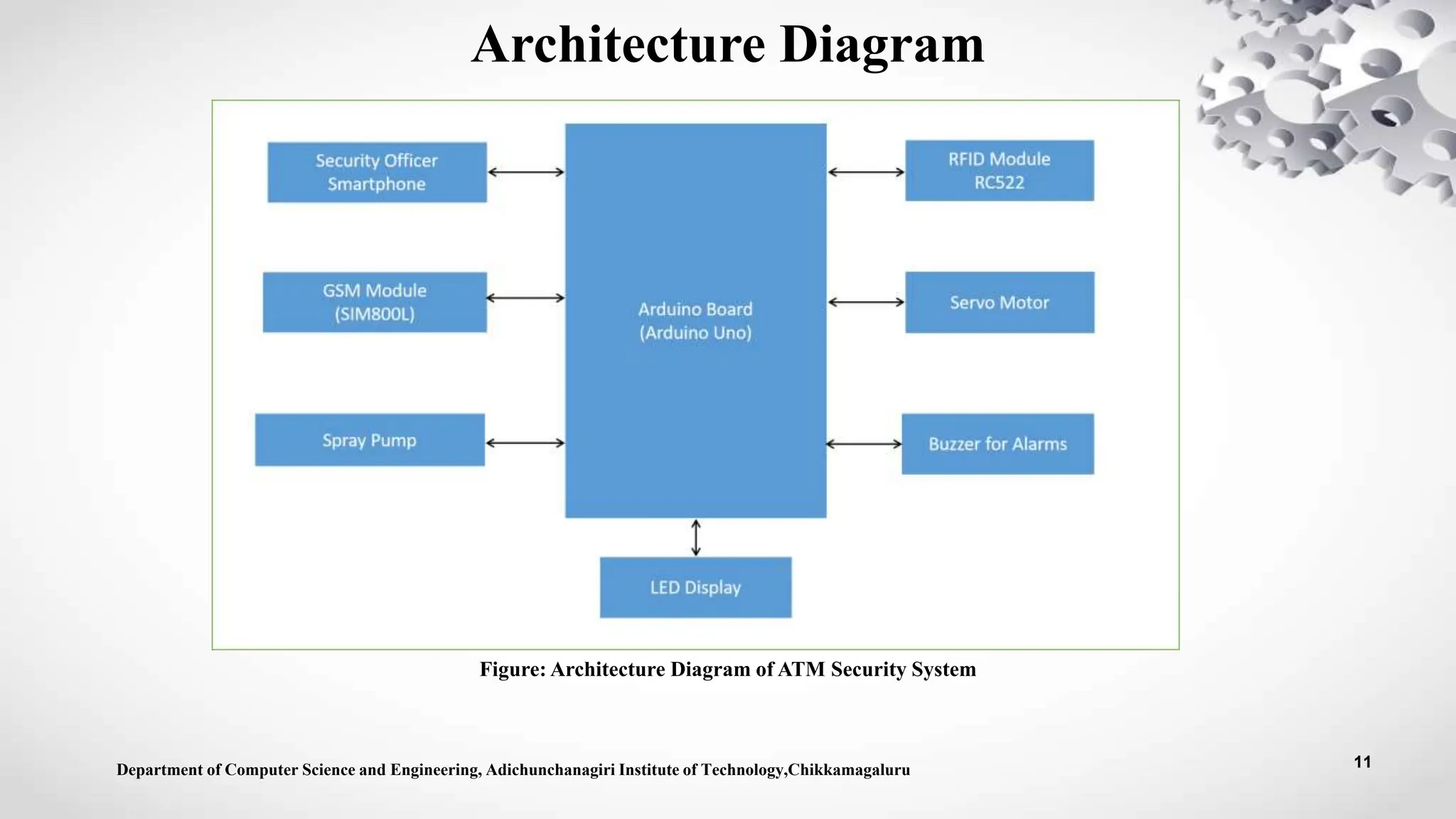

11. Architecture Diagram
Figure: Architecture Diagram of ATM Security System
11
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru

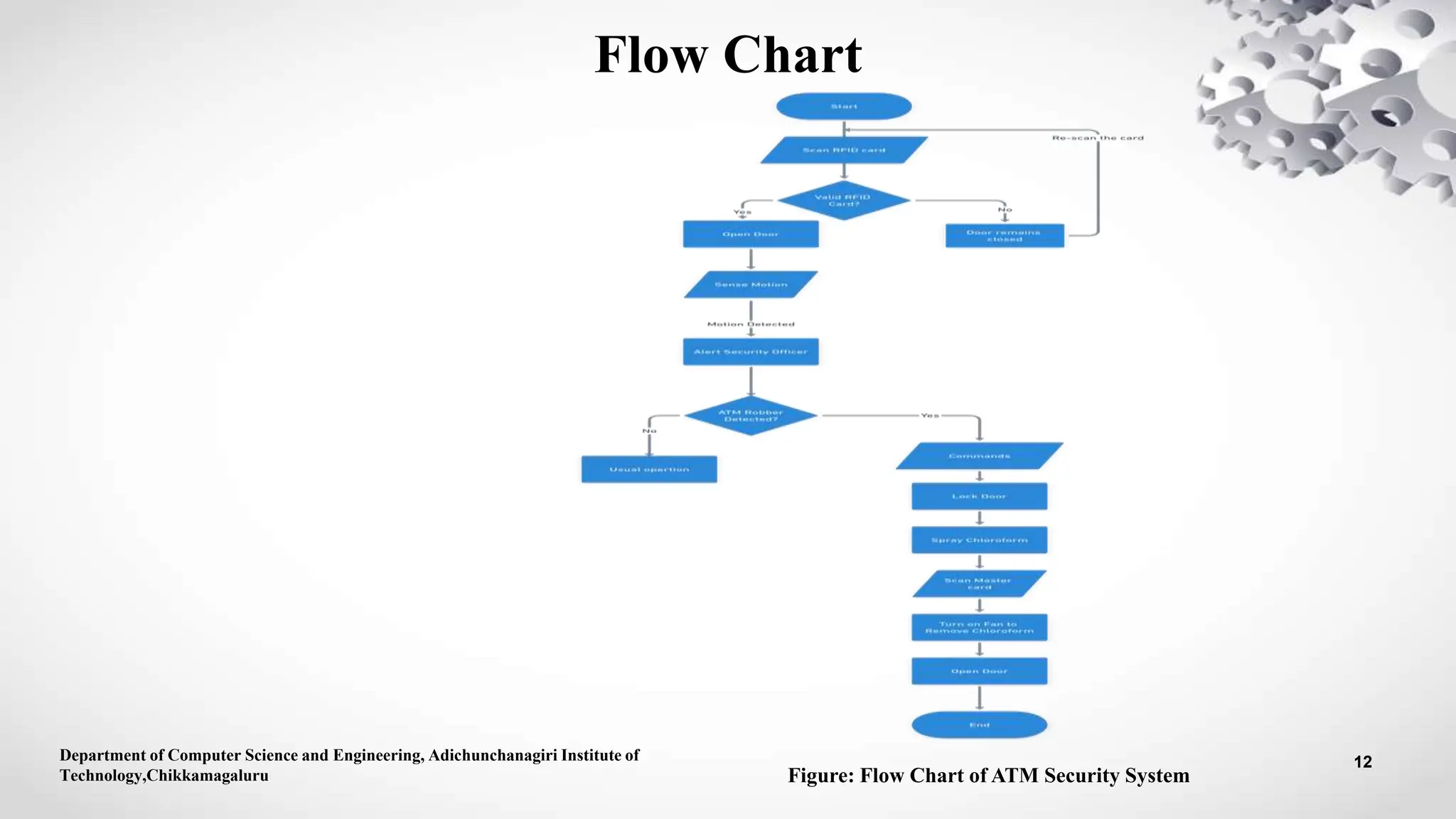

12. Flow Chart
Figure: Flow Chart of ATM Security System
12
Department of Computer Science and Engineering, Adichunchanagiri Institute of
Technology,Chikkamagaluru

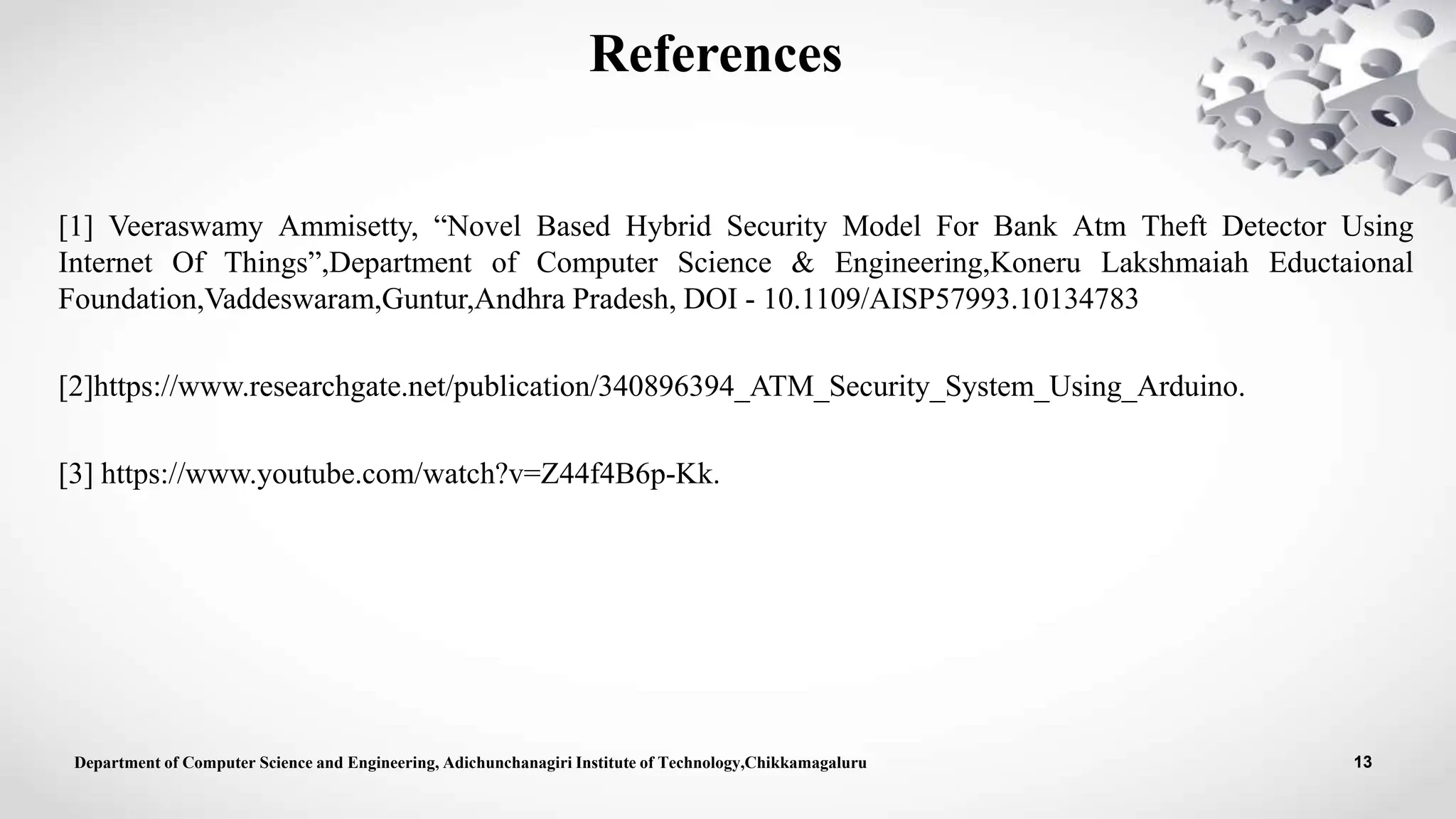

13. References
[1] Veeraswamy Ammisetty, “Novel Based Hybrid Security Model For Bank Atm Theft Detector Using
Internet Of Things”,Department of Computer Science & Engineering,Koneru Lakshmaiah Eductaional
Foundation,Vaddeswaram,Guntur,Andhra Pradesh, DOI - 10.1109/AISP57993.10134783
[2]https://www.researchgate.net/publication/340896394_ATM_Security_System_Using_Arduino.
[3] https://www.youtube.com/watch?v=Z44f4B6p-Kk.
Department of Computer Science and Engineering, Adichunchanagiri Institute of Technology,Chikkamagaluru 13

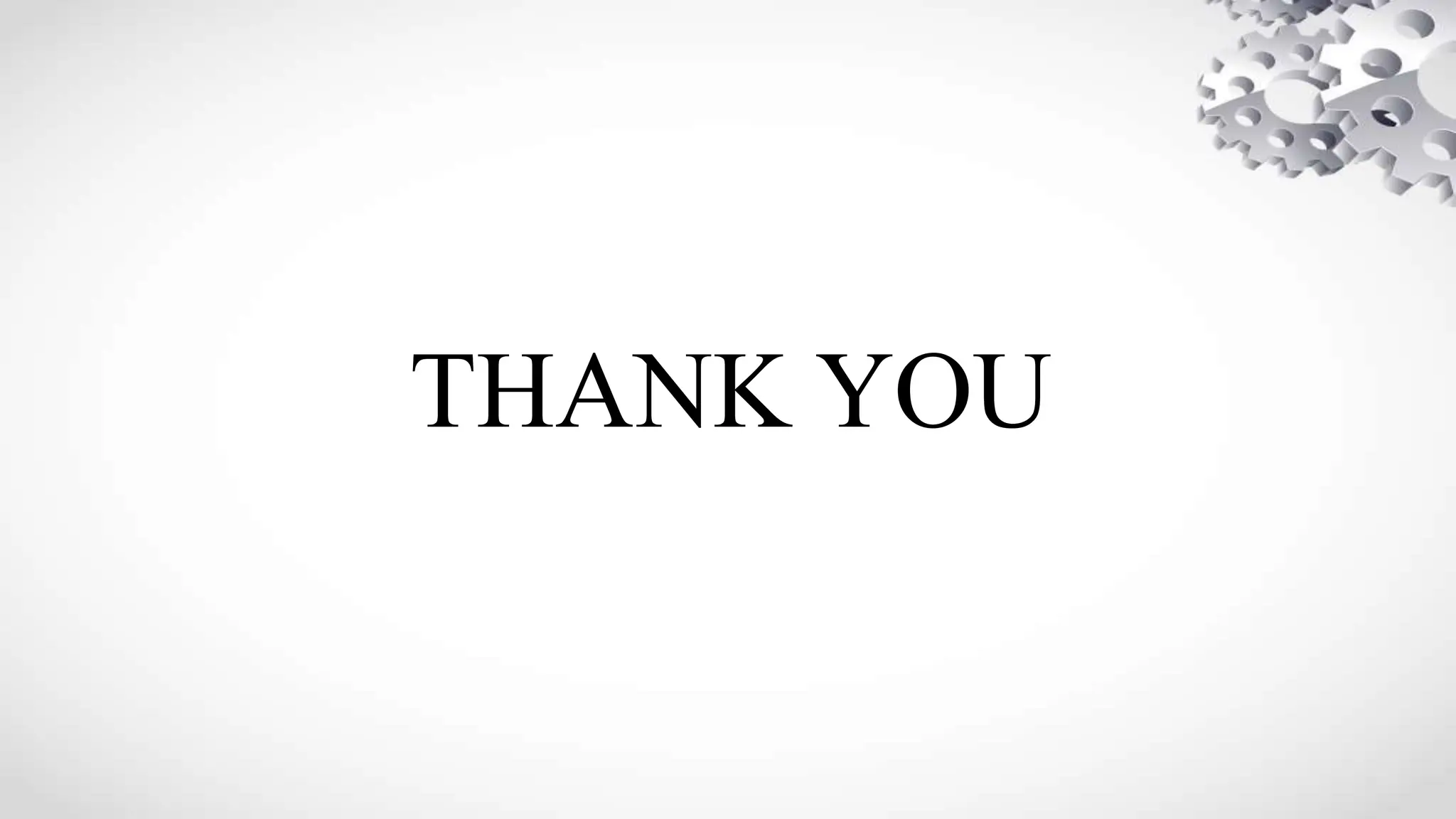

14. THANK YOU
