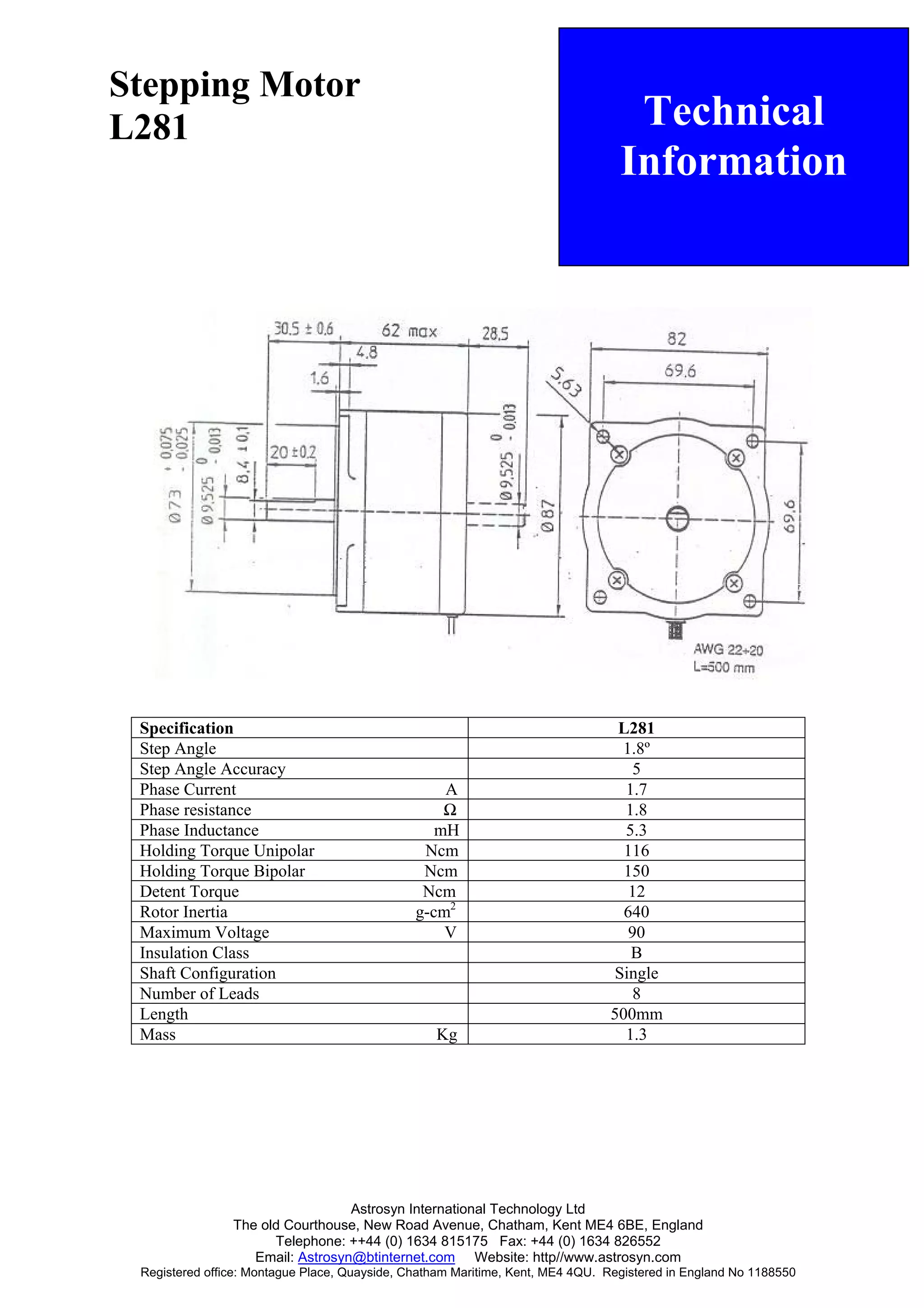

1. Stepping Motor
L281 Technical
Information
Specification L281
Step Angle 1.8º
Step Angle Accuracy 5
Phase Current A 1.7
Phase resistance Ω 1.8
Phase Inductance mH 5.3
Holding Torque Unipolar Ncm 116
Holding Torque Bipolar Ncm 150
Detent Torque Ncm 12
Rotor Inertia g-cm2 640
Maximum Voltage V 90
Insulation Class B
Shaft Configuration Single
Number of Leads 8
Length 500mm
Mass Kg 1.3
Astrosyn International Technology Ltd
The old Courthouse, New Road Avenue, Chatham, Kent ME4 6BE, England
Telephone: ++44 (0) 1634 815175 Fax: +44 (0) 1634 826552
Email: Astrosyn@btinternet.com Website: http//www.astrosyn.com
Registered office: Montague Place, Quayside, Chatham Maritime, Kent, ME4 4QU. Registered in England No 1188550

2. Stepping Motor
L281 Technical
Information
Curve Shown with Bipolar chopper drive. Windings in Parallel. Current 2.4A/Ph
Unipolar Drive Terminal Colour
A+ 5 Orange
A- 6 Black
A common 1&3 White/Black & White/Orange
B+ 7 Yellow
B- 8 Red
B common 2&4 White/Yellow & White/Red
Bipolar Drive - Series Terminal Colour
A+ 5 Orange
A- 6 Black
B+ 7 Yellow
B- 8 Red
Link & Isolate 1&3 White/Black & White/Orange
Link & Isolate 2&4 White/Red & White/Yellow
Bipolar Drive – Parallel Terminal Colour
A+ 1&5 White/Black & Orange
A- 3&6 White/Orange & Black
B+ 2&7 White/Red & Yellow
B- 4&8 White/Yellow & Red
