The document presents the results of a systematic mapping study on API deprecation. It describes the systematic mapping process, including database searches, study selection, and data extraction. It identifies several research gaps, such as a focus on Java APIs, lack of studies on preventing deprecation, and few studies of remote/REST APIs. Finally, it provides examples of research directions studied, such as usage of deprecation features, reactions to deprecation, updating calls to deprecated APIs, and deprecation of REST APIs.

1. Leif Bonorden & Matthias Riebisch
API Deprecation:
A Systematic Mapping Study

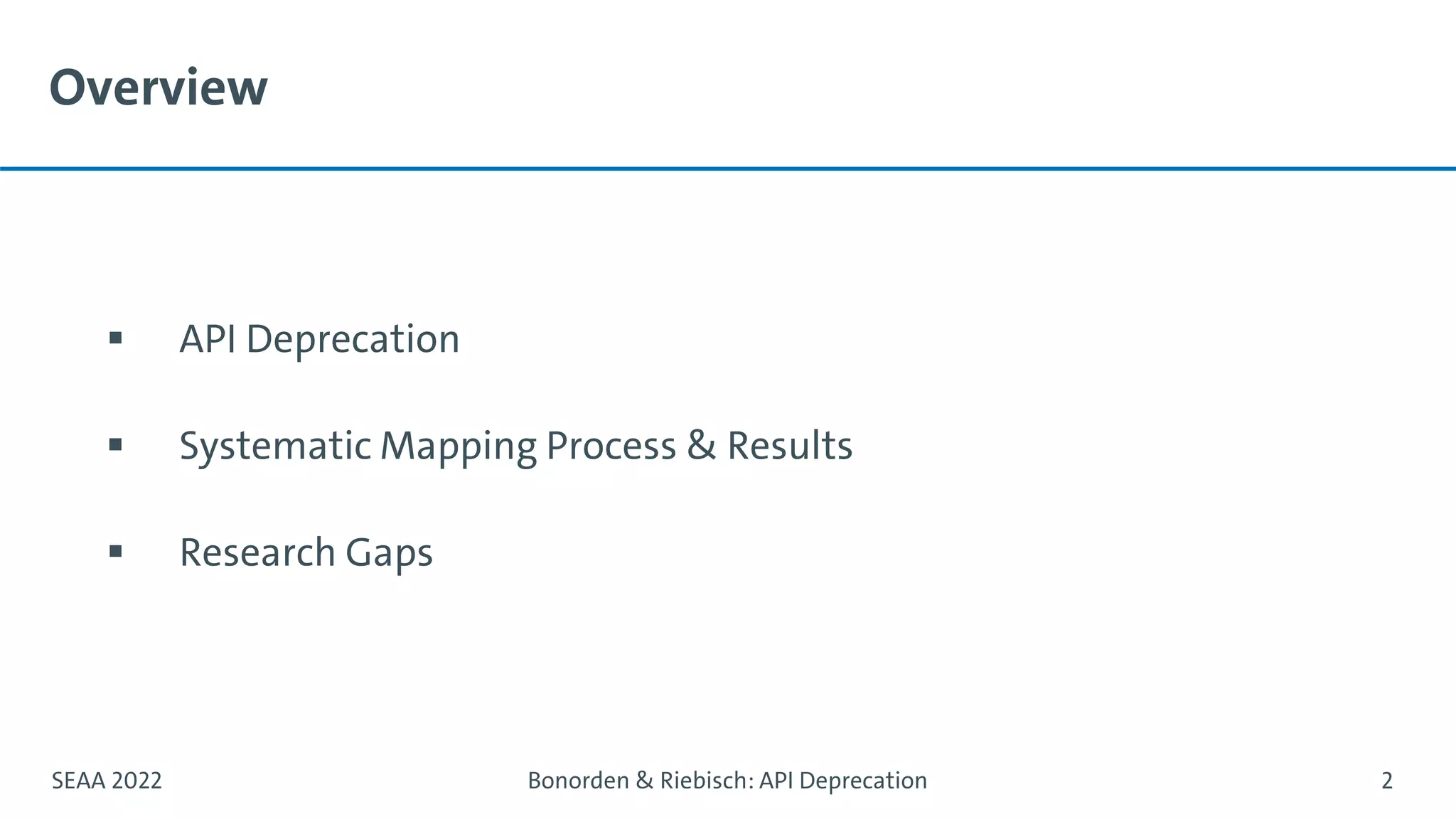

2. Overview
▪ API Deprecation
▪ Systematic Mapping Process & Results
▪ Research Gaps
SEAA 2022 Bonorden & Riebisch: API Deprecation 2

3. Application Programming Interface
boundary across which a software application uses
facilities of programming languages to invoke software services
SEAA 2022 Bonorden & Riebisch: API Deprecation 3
API
[ISO/IEC 13522-6]

4. request
response
API
SEAA 2022 Bonorden & Riebisch: API Deprecation 4
API
client
API
supplier

5. request
response

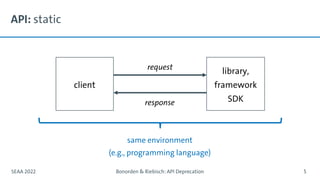

API: static
SEAA 2022 Bonorden & Riebisch: API Deprecation 5
client
library,
framework
SDK
same environment
(e.g., programming language)

6. request
response

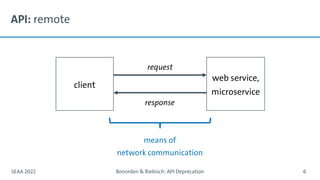

API: remote
SEAA 2022 Bonorden & Riebisch: API Deprecation 6
client
web service,
microservice
means of
network communication

7. dep·re·cate
to express disapproval of
SEAA 2022 Bonorden & Riebisch: API Deprecation 7
[Merriam-Webster.com Dictionary]
Deprecation

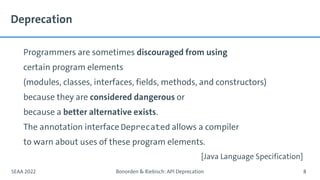

8. Deprecation
Programmers are sometimes discouraged from using
certain program elements
(modules, classes, interfaces, fields, methods, and constructors)
because they are considered dangerous or
because a better alternative exists.
The annotation interface Deprecated allows a compiler
to warn about uses of these program elements.
SEAA 2022 Bonorden & Riebisch: API Deprecation 8
[Java Language Specification]

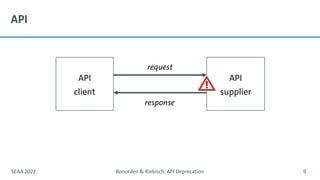

9. request
response
API
SEAA 2022 Bonorden & Riebisch: API Deprecation 9
API
client
API
supplier

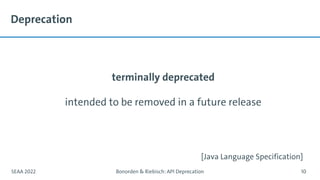

10. Deprecation
terminally deprecated
intended to be removed in a future release
SEAA 2022 Bonorden & Riebisch: API Deprecation 10
[Java Language Specification]

11. Overview
▪ API Deprecation
▸ Systematic Mapping Process & Results
▪ Research Gaps
SEAA 2022 Bonorden & Riebisch: API Deprecation 11

12. Systematic Mapping Process
SEAA 2022 Bonorden & Riebisch: API Deprecation 12

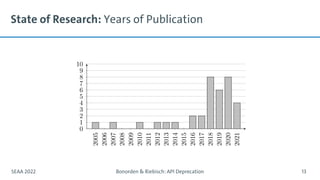

13. State of Research: Years of Publication
SEAA 2022 Bonorden & Riebisch: API Deprecation 13

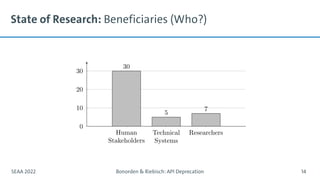

14. State of Research: Beneficiaries (Who?)
SEAA 2022 Bonorden & Riebisch: API Deprecation 14

15. State of Research: Contribution (What?)
SEAA 2022 Bonorden & Riebisch: API Deprecation 15

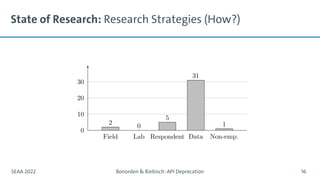

16. State of Research: Research Strategies (How?)
SEAA 2022 Bonorden & Riebisch: API Deprecation 16

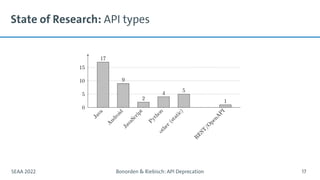

17. State of Research: API types
SEAA 2022 Bonorden & Riebisch: API Deprecation 17

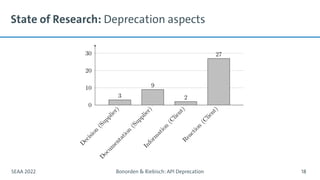

18. State of Research: Deprecation aspects
SEAA 2022 Bonorden & Riebisch: API Deprecation 18

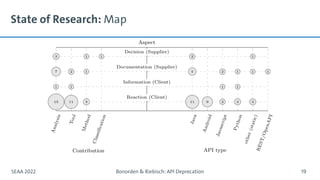

19. State of Research: Map
SEAA 2022 Bonorden & Riebisch: API Deprecation 19

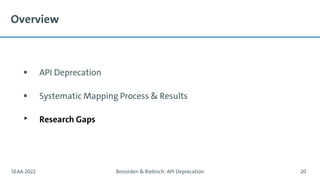

20. Overview
▪ API Deprecation
▪ Systematic Mapping Process & Results
▸ Research Gaps
SEAA 2022 Bonorden & Riebisch: API Deprecation 20

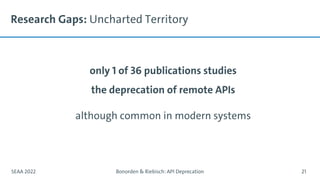

21. Research Gaps: Uncharted Territory
only 1 of 36 publications studies
the deprecation of remote APIs
although common in modern systems
SEAA 2022 Bonorden & Riebisch: API Deprecation 21

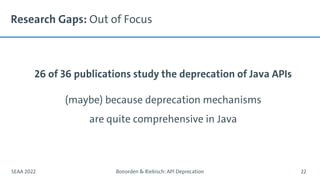

22. Research Gaps: Out of Focus
26 of 36 publications study the deprecation of Java APIs
(maybe) because deprecation mechanisms
are quite comprehensive in Java
SEAA 2022 Bonorden & Riebisch: API Deprecation 22

23. Research Gaps: Unbridged Gap
only 4 of 36 publications consider suppliers and clients
often seen as opponent parties
SEAA 2022 Bonorden & Riebisch: API Deprecation 23

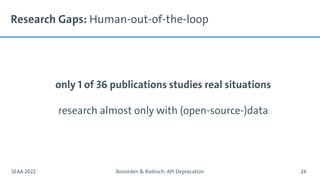

24. Research Gaps: Human-out-of-the-loop
only 1 of 36 publications studies real situations
research almost only with (open-source-)data
SEAA 2022 Bonorden & Riebisch: API Deprecation 24

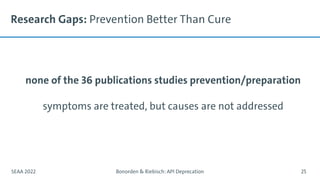

25. Research Gaps: Prevention Better Than Cure
none of the 36 publications studies prevention/preparation
symptoms are treated, but causes are not addressed
SEAA 2022 Bonorden & Riebisch: API Deprecation 25

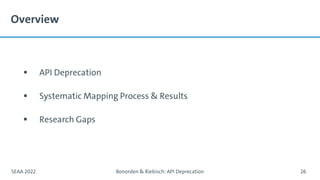

26. Overview
▪ API Deprecation
▪ Systematic Mapping Process & Results
▪ Research Gaps
SEAA 2022 Bonorden & Riebisch: API Deprecation 26

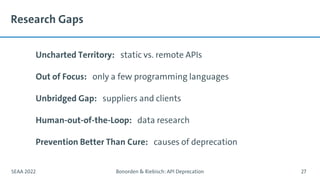

27. Research Gaps
Uncharted Territory: static vs. remote APIs
Out of Focus: only a few programming languages
Unbridged Gap: suppliers and clients
Human-out-of-the-Loop: data research
Prevention Better Than Cure: causes of deprecation
SEAA 2022 Bonorden & Riebisch: API Deprecation 27

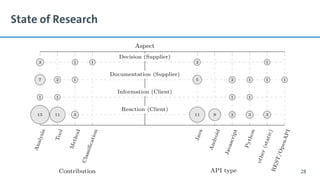

28. State of Research
Bonorden & Riebisch: API Deprecation 28
SEAA 2022

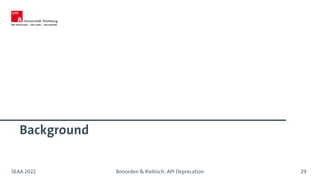

29. Background
SEAA 2022 Bonorden & Riebisch: API Deprecation 29

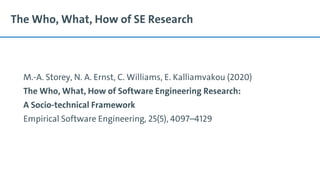

30. The Who, What, How of SE Research
M.-A. Storey, N. A. Ernst, C. Williams, E. Kalliamvakou (2020)
The Who, What, How of Software Engineering Research:
A Socio-technical Framework
Empirical Software Engineering, 25(5), 4097–4129

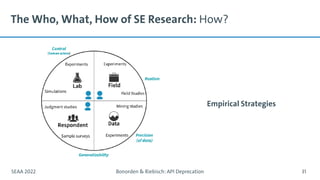

31. The Who, What, How of SE Research: How?
SEAA 2022 Bonorden & Riebisch: API Deprecation 31
Empirical Strategies

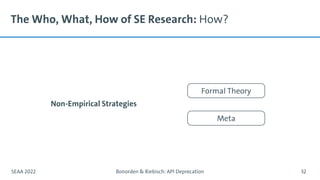

32. The Who, What, How of SE Research: How?
SEAA 2022 Bonorden & Riebisch: API Deprecation 32
Non-Empirical Strategies
Formal Theory
Meta

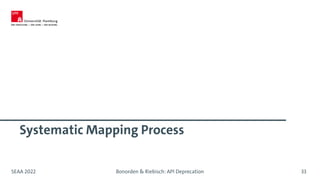

33. Systematic Mapping Process
SEAA 2022 Bonorden & Riebisch: API Deprecation 33

34. Systematic Mapping Process
SEAA 2022 Bonorden & Riebisch: API Deprecation 34

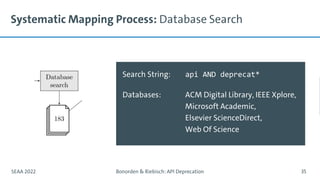

35. Systematic Mapping Process: Database Search
SEAA 2022 Bonorden & Riebisch: API Deprecation 35
Search String: api AND deprecat*
Databases: ACM Digital Library, IEEE Xplore,
Microsoft Academic,
Elsevier ScienceDirect,
Web Of Science

36. Systematic Mapping Process
SEAA 2022 Bonorden & Riebisch: API Deprecation 36

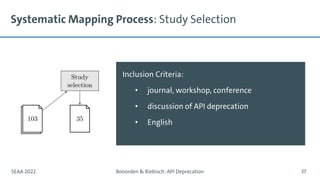

37. Systematic Mapping Process: Study Selection
SEAA 2022 Bonorden & Riebisch: API Deprecation 37
Inclusion Criteria:
• journal, workshop, conference
• discussion of API deprecation
• English

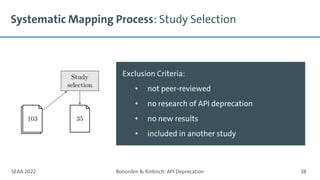

38. Systematic Mapping Process: Study Selection
SEAA 2022 Bonorden & Riebisch: API Deprecation 38
Exclusion Criteria:
• not peer-reviewed
• no research of API deprecation
• no new results
• included in another study

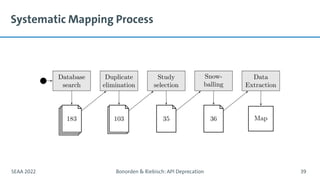

39. Systematic Mapping Process
SEAA 2022 Bonorden & Riebisch: API Deprecation 39

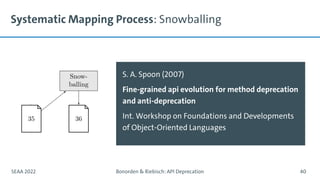

40. Systematic Mapping Process: Snowballing
SEAA 2022 Bonorden & Riebisch: API Deprecation 40
S. A. Spoon (2007)
Fine-grained api evolution for method deprecation
and anti-deprecation
Int. Workshop on Foundations and Developments
of Object-Oriented Languages

41. Systematic Mapping Process
SEAA 2022 Bonorden & Riebisch: API Deprecation 41

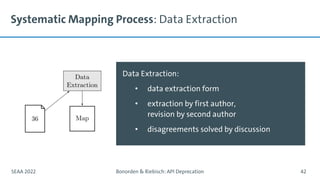

42. Systematic Mapping Process: Data Extraction
SEAA 2022 Bonorden & Riebisch: API Deprecation 42
Data Extraction:
• data extraction form
• extraction by first author,
revision by second author
• disagreements solved by discussion

43. Research Directions: Examples
SEAA 2022 Bonorden & Riebisch: API Deprecation 43

44. Examples: Usage of Deprecation Features
D. Qiu, B. Li, H. Leung (2016)
Understanding the API usage in Java
G. Brito, A. Hora, M. Tulio Valente, R. Robbes (2018)
On the use of replacement messages in API deprecation: An empirical study
L. Li, J. Gao, T. F. Bissyandé, L. Ma, X. Xia, J. Klein (2020)
CDA: Characterising Deprecated Android APIs
R. Nascimento, E. Figueiredo, A. Hora (2021)
JavaScript API Deprecation Landscape: A Survey and Mining Study
SEAA 2022 Bonorden & Riebisch: API Deprecation 44

45. Examples: Reaction to Deprecation
R. Robbes, M. Lungu, D. Röthlisberger (2012)
How Do Developers React to API Deprecation?
The Case of a Smalltalk Ecosystem
A. A. Sawant, R. Robbes, A. Bacchelli (2018)
On the reaction to deprecation of clients of 4+1 popular Java APIs and the JDK
A. A. Sawant, G. Huang, G. Vilen, S. Stojkovski, A. Bacchelli (2019)
To react, or not to react: Patterns of reaction to API deprecation
SEAA 2022 Bonorden & Riebisch: API Deprecation 45

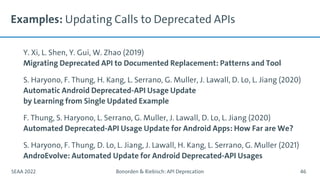

46. Examples: Updating Calls to Deprecated APIs
Y. Xi, L. Shen, Y. Gui, W. Zhao (2019)
Migrating Deprecated API to Documented Replacement: Patterns and Tool
S. Haryono, F. Thung, H. Kang, L. Serrano, G. Muller, J. Lawall, D. Lo, L. Jiang (2020)
Automatic Android Deprecated-API Usage Update
by Learning from Single Updated Example
F. Thung, S. Haryono, L. Serrano, G. Muller, J. Lawall, D. Lo, L. Jiang (2020)
Automated Deprecated-API Usage Update for Android Apps: How Far are We?
S. Haryono, F. Thung, D. Lo, L. Jiang, J. Lawall, H. Kang, L. Serrano, G. Muller (2021)
AndroEvolve: Automated Update for Android Deprecated-API Usages
SEAA 2022 Bonorden & Riebisch: API Deprecation 46

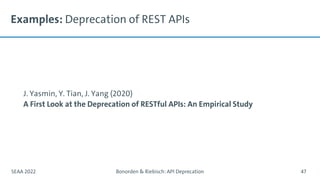

47. Examples: Deprecation of REST APIs
J. Yasmin, Y. Tian, J. Yang (2020)
A First Look at the Deprecation of RESTful APIs: An Empirical Study
SEAA 2022 Bonorden & Riebisch: API Deprecation 47
