1. Submitted By:
Lhona Padmayuky S
20234012404123
Android Sqlite (Handling Tables )

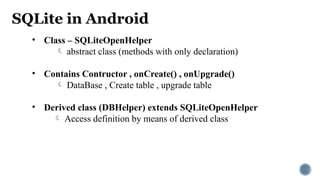

2. SQLite in Android
• Class – SQLiteOpenHelper
 abstract class (methods with only declaration)
• Contains Contructor , onCreate() , onUpgrade()
 DataBase , Create table , upgrade table
• Derived class (DBHelper) extends SQLiteOpenHelper
 Access definition by means of derived class

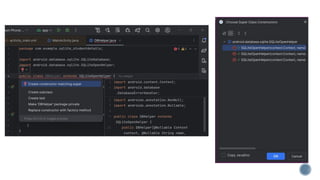

3. Create Java class :
 Named DBHelper

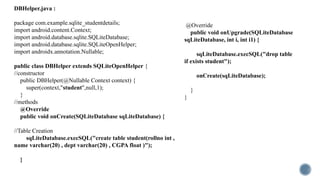

6. package com.example.sqlite_studentdetails;
import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;
import androidx.annotation.Nullable;
public class DBHelper extends SQLiteOpenHelper {
//constructor
public DBHelper(@Nullable Context context) {
super(context,"student",null,1);
}
//methods
@Override
public void onCreate(SQLiteDatabase sqLiteDatabase) {
//Table Creation
sqLiteDatabase.execSQL("create table student(rollno int ,
name varchar(20) , dept varchar(20) , CGPA float )");
}
@Override
public void onUpgrade(SQLiteDatabase
sqLiteDatabase, int i, int i1) {
sqLiteDatabase.execSQL("drop table
if exists student");
onCreate(sqLiteDatabase);
}
}
DBHelper.java :

7. • Create an object for DBHelper in MainActivity
 SQLiteDataBase db;
• db = dbHelper.getWritableDatabase()  Insert
• db = dbHelper.getReadableDatabase()  Fetch
MainActivity.java :
package com.example.sqlite_studentdetails;
Import …..
public class MainActivity extends AppCompatActivity
{
// Reference (used to access DBHelper )
SQLiteDatabase db;
@Override
protected void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
DBHelper dbHelper = new DBHelper(this);
//Read and Write
db=dbHelper.getWritableDatabase();
db=dbHelper.getReadableDatabase();
}
}
App Successfully Linked with the Datasbase …

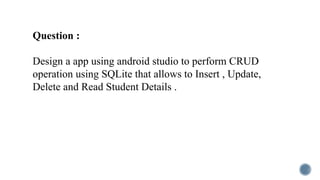

8. Question :
Design a app using android studio to perform CRUD
operation using SQLite that allows to Insert , Update,
Delete and Read Student Details .

9. activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android
"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/main"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:id="@+id/tv1"
android:text="Student Details"
android:layout_centerHorizontal="true"
android:layout_marginTop="50dp"
android:textStyle="bold"
android:textSize="30sp"/>
<EditText
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/et1"
android:hint="Enter Rollno"
android:layout_marginTop="15dp"
android:layout_marginHorizontal="30dp"
android:layout_below="@+id/tv1"/>
<EditText
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/et2"
android:hint="Enter Name"
android:layout_marginTop="15dp"
android:layout_marginHorizontal="30dp"
android:layout_below="@+id/et1"/>

10. <EditText
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/et3"
android:hint="Enter Department"
android:layout_marginTop="15dp"
android:layout_marginHorizontal="30dp"
android:layout_below="@+id/et2"/>
<EditText
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/et4"
android:hint="Enter CGPA"
android:layout_marginTop="15dp"
android:layout_marginHorizontal="30dp"
android:layout_below="@+id/et3"/>
<Button
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/bt1“
android:onClick =“onInsert”
android:text="Insert Data"
android:layout_marginTop="15dp"
android:layout_marginHorizontal="30dp"
android:layout_below="@+id/et4"/>
<Button
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/bt2“
android:onClick =“onUpdate”
android:text="Update Data"
android:layout_marginTop="15dp"
android:layout_marginHorizontal="30dp"
android:layout_below="@+id/bt1"/>

11. <Button
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/bt3“
android:onClick =“onread”
android:text="Read Data"
android:layout_marginTop="15dp"
android:layout_marginHorizontal="30dp"
android:layout_below="@+id/bt2"/>
<Button
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/bt3“
android:onClick =“ondelete”
android:text=“Delete Data"
android:layout_marginTop="15dp"
android:layout_marginHorizontal="30dp"
android:layout_below="@+id/bt3"/>
</RelativeLayout>

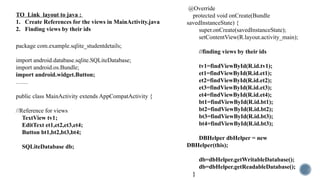

12. TO Link layout to java :
1. Create References for the views in MainActivity.java
2. Finding views by their ids
package com.example.sqlite_studentdetails;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.widget.Button;
……
public class MainActivity extends AppCompatActivity {
//Reference for views
TextView tv1;
EditText et1,et2,et3,et4;
Button bt1,bt2,bt3,bt4;
SQLiteDatabase db;
@Override
protected void onCreate(Bundle
savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
//finding views by their ids
tv1=findViewById(R.id.tv1);
et1=findViewById(R.id.et1);
et2=findViewById(R.id.et2);
et3=findViewById(R.id.et3);
et4=findViewById(R.id.et4);
bt1=findViewById(R.id.bt1);
bt2=findViewById(R.id.bt2);
bt3=findViewById(R.id.bt3);
bt4=findViewById(R.id.bt3);
DBHelper dbHelper = new
DBHelper(this);
db=dbHelper.getWritableDatabase();
db=dbHelper.getReadableDatabase();
}

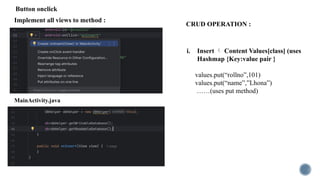

13. Implement all views to method :
i. Insert  Content Values[class] (uses
Hashmap {Key:value pair }
values.put(“rollno”,101)
values.put(“name”,”Lhona”)
……(uses put method)
MainActivity.java
CRUD OPERATION :
Button onclick

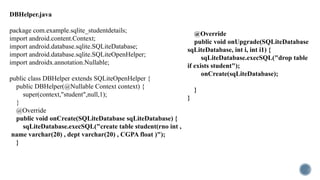

14. DBHelper.java
package com.example.sqlite_studentdetails;
import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;
import androidx.annotation.Nullable;
public class DBHelper extends SQLiteOpenHelper {
public DBHelper(@Nullable Context context) {
super(context,"student",null,1);
}
@Override
public void onCreate(SQLiteDatabase sqLiteDatabase) {
sqLiteDatabase.execSQL("create table student(rno int ,
name varchar(20) , dept varchar(20) , CGPA float )");
}
@Override
public void onUpgrade(SQLiteDatabase
sqLiteDatabase, int i, int i1) {
sqLiteDatabase.execSQL("drop table
if exists student");
onCreate(sqLiteDatabase);
}
}

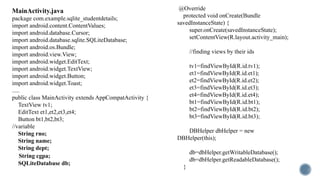

15. MainActivity.java
package com.example.sqlite_studentdetails;
import android.content.ContentValues;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.View;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Button;
import android.widget.Toast;
.....
public class MainActivity extends AppCompatActivity {
TextView tv1;
EditText et1,et2,et3,et4;
Button bt1,bt2,bt3;
//variable
String rno;
String name;
String dept;
String cgpa;
SQLiteDatabase db;
@Override
protected void onCreate(Bundle
savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
//finding views by their ids
tv1=findViewById(R.id.tv1);
et1=findViewById(R.id.et1);
et2=findViewById(R.id.et2);
et3=findViewById(R.id.et3);
et4=findViewById(R.id.et4);
bt1=findViewById(R.id.bt1);
bt2=findViewById(R.id.bt2);
bt3=findViewById(R.id.bt3);
DBHelper dbHelper = new
DBHelper(this);
db=dbHelper.getWritableDatabase();
db=dbHelper.getReadableDatabase();
}

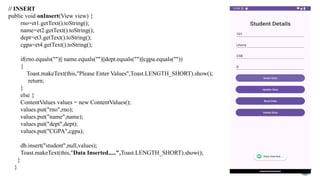

16. // INSERT
public void onInsert(View view) {
rno=et1.getText().toString();
name=et2.getText().toString();
dept=et3.getText().toString();
cgpa=et4.getText().toString();
if(rno.equals("")|| name.equals("")||dept.equals("")||cgpa.equals(""))
{
Toast.makeText(this,"Please Enter Values",Toast.LENGTH_SHORT).show();
return;
}
else {
ContentValues values = new ContentValues();
values.put("rno",rno);
values.put("name",name);
values.put("dept",dept);
values.put("CGPA",cgpa);
db.insert("student",null,values);
Toast.makeText(this,"Data Inserted.....",Toast.LENGTH_SHORT).show();
}
}

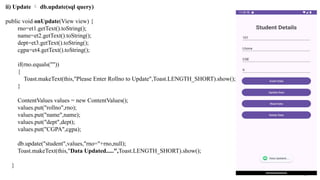

17. ii) Update  db.update(sql query)
public void onUpdate(View view) {
rno=et1.getText().toString();
name=et2.getText().toString();
dept=et3.getText().toString();
cgpa=et4.getText().toString();
if(rno.equals(""))
{
Toast.makeText(this,"Please Enter Rollno to Update",Toast.LENGTH_SHORT).show();
}
ContentValues values = new ContentValues();
values.put("rollno",rno);
values.put("name",name);
values.put("dept",dept);
values.put("CGPA",cgpa);
db.update("student",values,"rno="+rno,null);
Toast.makeText(this,"Data Updated.....",Toast.LENGTH_SHORT).show();
}

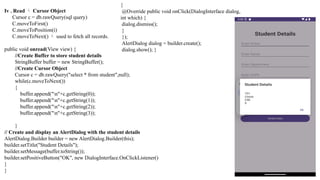

18. Iv . Read  Cursor Object
Cursor c = db.rawQuery(sql query)
C.moveToFirst()
C.moveToPosition(i)
C.moveToNext()  used to fetch all records.
public void onread(View view) {
//Create Buffer to store student details
StringBuffer buffer = new StringBuffer();
//Create Cursor Object
Cursor c = db.rawQuery("select * from student",null);
while(c.moveToNext())
{
buffer.append("n"+c.getString(0));
buffer.append("n"+c.getString(1));
buffer.append("n"+c.getString(2));
buffer.append("n"+c.getString(3));
}
// Create and display an AlertDialog with the student details
AlertDialog.Builder builder = new AlertDialog.Builder(this);
builder.setTitle("Student Details");
builder.setMessage(buffer.toString());
builder.setPositiveButton("OK", new DialogInterface.OnClickListener()
}
}
{
@Override public void onClick(DialogInterface dialog,
int which) {
dialog.dismiss();
}
});
AlertDialog dialog = builder.create();
dialog.show(); }

19. iii) Delete  db.delete(sql query)
public void onDelete(View view) {
rno=et1.getText().toString();
name=et2.getText().toString();
dept=et3.getText().toString();
cgpa=et4.getText().toString();
if(rno.equals(""))
{
Toast.makeText(this,"Please Enter Rollno",Toast.LENGTH_SHORT).show();
return;
}
else {
db.delete("student“ ,” “rollno=“ ,null);
Toast.makeText(this,"Data Deleted.....",Toast.LENGTH_SHORT).show();
}
}

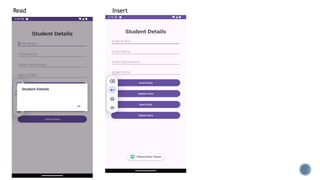

20. Read Insert
