inearLayout is a fundamental layout model in Android that arranges its children in a single direction, either vertically or horizontally. This layout is particularly useful when you need to create a form or a list that has a consistent flow in one direction. The direction of the layout can be set using the android:orientation attribute, which accepts either vertical or horizontal as values. Key Attributes of LinearLayout android:orientation: Determines the arrangement of child views. vertical stacks them one below the other, while horizontal aligns them side by side. android:layout_weight: Assigns an "importance" value to a view, dictating how much space it should occupy relative to other views. A higher weight means more space. android:weightSum: Defines the total weight sum within a LinearLayout, against which individual weights are measured. android:gravity: Specifies the alignment of the content within the LinearLayout itself, such as center, bottom, end, etc. android:layout_gravity: Sets the gravity of the View or Layout relative to its parent.

1. View, ViewGroup
& Layouts in
Android

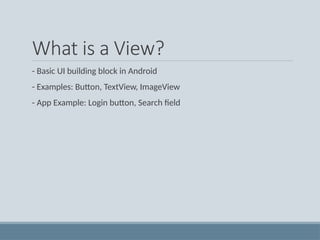

2. What is a View?
- Basic UI building block in Android
- Examples: Button, TextView, ImageView
- App Example: Login button, Search field

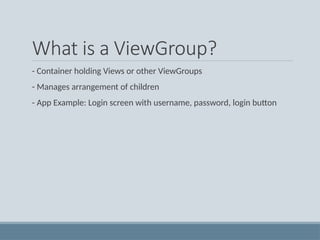

3. What is a ViewGroup?
- Container holding Views or other ViewGroups
- Manages arrangement of children
- App Example: Login screen with username, password, login button

4. View vs ViewGroup
View = Single UI element (e.g. Button)
ViewGroup = Container (e.g. LinearLayout)
App Example: Button vs Layout with multiple buttons

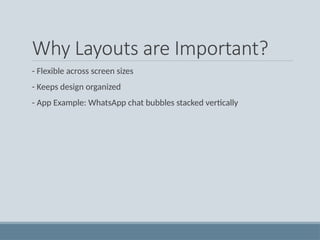

5. Why Layouts are Important?
- Flexible across screen sizes
- Keeps design organized
- App Example: WhatsApp chat bubbles stacked vertically

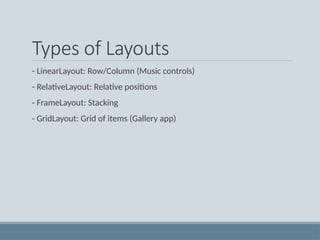

6. Types of Layouts
- LinearLayout: Row/Column (Music controls)
- RelativeLayout: Relative positions
- FrameLayout: Stacking
- GridLayout: Grid of items (Gallery app)

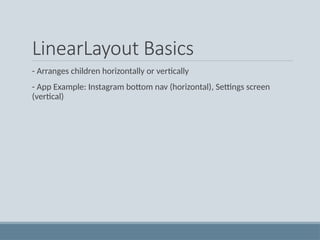

7. LinearLayout Basics
- Arranges children horizontally or vertically
- App Example: Instagram bottom nav (horizontal), Settings screen
(vertical)

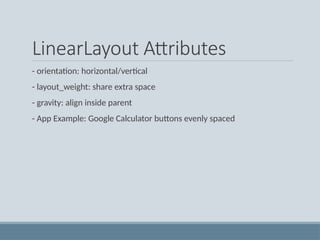

8. LinearLayout Attributes
- orientation: horizontal/vertical
- layout_weight: share extra space
- gravity: align inside parent
- App Example: Google Calculator buttons evenly spaced

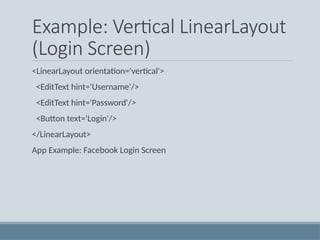

9. Example: Vertical LinearLayout
(Login Screen)
<LinearLayout orientation='vertical'>
<EditText hint='Username'/>
<EditText hint='Password'/>
<Button text='Login'/>
</LinearLayout>
App Example: Facebook Login Screen

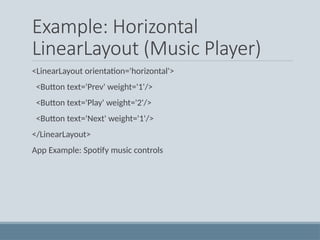

10. Example: Horizontal
LinearLayout (Music Player)
<LinearLayout orientation='horizontal'>
<Button text='Prev' weight='1'/>
<Button text='Play' weight='2'/>
<Button text='Next' weight='1'/>
</LinearLayout>
App Example: Spotify music controls

11. Wrap vs Match vs Fixed
- wrap_content: fit content → Chat bubble in WhatsApp
- match_parent: fill space → YouTube fullscreen video
- fixed size: fixed dimension → Standard size button

12. Nesting Layouts & Best
Practices
- Avoid too much nesting → slows apps
- App Example: ConstraintLayout better for complex UIs (Instagram
feed)

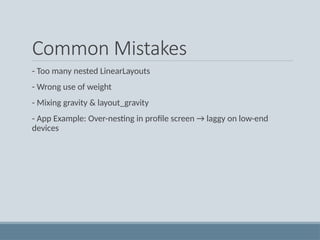

13. Common Mistakes
- Too many nested LinearLayouts
- Wrong use of weight
- Mixing gravity & layout_gravity
- App Example: Over-nesting in profile screen → laggy on low-end
devices

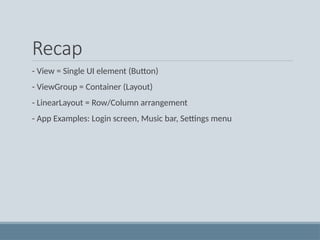

14. Recap
- View = Single UI element (Button)
- ViewGroup = Container (Layout)
- LinearLayout = Row/Column arrangement
- App Examples: Login screen, Music bar, Settings menu
