4. allison care center
Psychsocially-Supportive Nursing Home Design: Creating
Beautiful, Peaceful Surroundings While Providing for the
Functional Needs of the Patient
Front Entry View, Allison Care Center Southwest View, Allison Care Center
graduate project

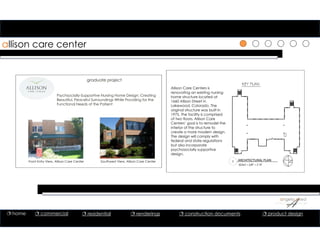

Allison Care Centers is
renovating an existing nursing
home structure located at
1660 Allison Street in
Lakewood, Colorado. The
original structure was built in
1975. The facility is comprised
of two floors. Allison Care
Centers’ goal is to remodel the
interior of the structure to
create a more modern design.
The design will comply with
federal and state regulations
but also incorporate
psychosocially supportive
design.
1 ARCHITECTURAL PLAN
SCALE = 1/8” = 1’‐0”
 home  commercial  residential  renderings  construction documents  product design

5. allison care center

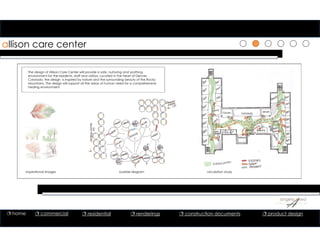

bubble diagram
The design of Allison Care Center will provide a safe, nurturing and soothing
environment for the residents, staff and visitors. Located in the heart of Denver,
Colorado, the design is inspired by nature and the surrounding beauty of the Rocky
Mountains. The design will support all the areas of human need for a comprehensive
healing environment.
inspirational images circulation study
 home  commercial  residential  renderings  construction documents  product design

6. 2'-0"
9'-3"2'-0"9'-2"11'-3"
2'-0"8'-7"2'-0"2'-0"2'-0"
15'-0"
23'-9"
11'-01
2" 9'-111
2"
2'-7"
7'-5"
2'-0"
2'-0"
2'-0"5'-101
2"9'-21
2"2'-0"
2'-0"
9'-10"
12'-71
2"2'-2"
2'-2"
65'-11
2"
3'-21
2"
13'-1"3'-111
2"
R17'-9"
R1
7'-
812
"
R17'-2"
14'-1"
12'-4"
9'-3"
2'-0"5'-7"
8'-5"2'-0"9'-21
2"
2'-0"5'-7"
2'-0"9'-21
2"9'-21
2"
8'-81
2"
5'-7"2'-0"
2'-0"5'-7"
5'-6"
6'-11"3'-111
2"
4'-3"5'-0"
13'-8"5'-7"2'-0"2'-0"
5'-21
2" 26'-31
2"
R22'-2"
R21'-81
4"
17'-41
2"
1'-111
2"17'-111
2"
R21
'-4
1
2
"
16'-01
2"
11'-2" 2'-0"
1'-11" 5'-7"
7'-11"
9'-11" 2'-0"
2'-0"8'-2"
8'-10"
5'-7"
15'-4"
15'-10"
4'-3"5'-0"
2'-0"9'-21
2"
5'-7"
2'-6"12'-111
2"
13'-01
2"
PATIENT
129
160 SQ FT
2
A5
05/DT3
1
A5
05/DT3
05/DT3
RESTROOM
120
104 SQ FT
844884488448844884488448844884488448
8448844884488448
8448844884488448844884488448
84488448
84488448
8448 8448 8448 8448 8448
84488448
8448
4848 4848 4848
4848 4848 4848
48484848
48484848
4848 4848 4848
8448
3682
3682
3682
3682
4282
19'-5"
11'-3" 11'-3" 7'-6"
5'-0"
3'-8" 3'-8"
3'-8" 3'-8"
3'-8" 3'-8"
3'-8" 3'-8"
5'-0"15'-4"15'-4"15'-4"15'-4"15'-4"15'-4"15'-4"15'-4"6'-8"
17'-10"
2'-7"5'-11"
15'-6"
18'-41
2"
6'-8"15'-4"8'-2"
4'-1"4'-1"
6'-2"4'-1"4'-1"4'-6"
6'-2"4'-1"4'-1"4'-6"
6'-4" 4'-1" 4'-1" 6'-4"
3'-21
2" 12'-91
2" 8'-0" 8'-0" 8'-4"
8'-10"15'-4"6'-8"
15'-2"
2'-111
2"5'-61
2"
18'-2"
6'-7"15'-5"15'-4"15'-4"15'-4"15'-4"15'-4"5'-6"
15'-61
2"
3'-0"
16'-0"
18'-6"
7'-10"6'-8"
7'-6"15'-4"7'-11"
15'-4"15'-4"15'-4"15'-4"18'-11"
9'-9"15'-4"15'-4"15'-4"5'-0"
14'-6" 9'-4" 9'-6" 6'-8"
3'-0"
15'-61
2"
4'-8"21'-7"6'-9"
STAFF 2
111
230 SQ FT
STAFF 3
112
228 SQ FT
STAFF 4
113
228 SQ FT
RESTROOM
114
60 SQ FT
ELEVATOR
PATIENT
138
160 SQ FT
PATIENT
135
150 SQ FT PATIENT
136
275 SQ FT
PATIENT
134
250 SQ FT
PATIENT
137
160 SQ FT
NOOK
88 SQ FT
RESTROOM
121
104 SQ FT
RESTROOM
122
104 SQ FT
RESTROOM
123
104 SQ FT
CONSULTATION
106
320 SQ FT
KITCHEN
440 SQ FT
DINING
107
1515 SQ FT
FAMILY 2
102
390 SQ FT
RECEPTION/
WAITING
RM 100
600 SQ FT
FAMILY 1
101
250 SQ FT
STAFF 1
110
208 SQ FT
NURSE 2
109
130 SQ FT
SOCIAL 1
104
460 SQ FT
SOCIAL 2
105
365 SQ FT
NURSE 1
108
170 SQ FT
RESTROOM
115
65 SQ FT
PATIENT
124
160 SQ FT
RESTROOM
119
104 SQ FT
PATIENT
126
160 SQ FT
PATIENT
128
150 SQ FT
PATIENT
133
155 SQ FT
PATIENT
127
150 SQ FT
PATIENT
130
160 SQ FT
FAMILY 3
103
265 SQ FT
PATIENT
125
145 SQ FT
PATIENT
131
370 SQ FT
PATIENT
132
155 SQ FT
RESTROOM
116
104 SQ FT
RESTROOM
117
104 SQ FT
RESTROOM
118
104 SQ FT

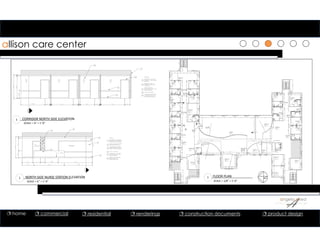

allison care center
1 FLOOR PLAN
SCALE = 1/8” = 1’‐0”
1 CORRIDOR NORTH SIDE ELEVATION
SCALE = ¼” = 1’‐0”
1 NORTH SIDE NURSE STATION ELEVATION
SCALE = ¼” = 1’‐0”
9'-0"
4'-8" 5'-81
2" 14'-9"
12'-11
2"
8"
TOEKICK
3'-0"
TO
KITCHEN AQUARIUM
5'-4"
5'-2"
3'-2"
13'-0"
2'-0"
05/DT3
KEYNOTES:
SCHEDULED WAVE AQUARIUM -
SEE SCHEDULE. WOOD FRAME
STAINED TO MATCH FLOORING
PAINTED GWB WALL TREATMENT -
SEE FINISH SCHEDULE P5
STAIN GRADE WOOD CROWN
MOLDING STAINED TO MATCH
FLOOR - SEE DETAIL DRAWING 3
4" VINYL COVE BASE
SCHEDULED WALL SCONCE L2
MOUNTED @ 80" AFF - SEE
LIGHTING SCHEDULE
HERMAN MILLER ETHOSPACE
NURSE STATION - SEE
FURNITURE SCHEDULE
1
2
3
4
5
2
4
1
3
5
6
6
9'-0"
9'-21
2" 2'-0" 8'-5" 5'-7" 2'-0" 2'-0"
8'-6"6"
9'-3"2'-0"
3'-0"
05/DT3
5" 8" 5"
KEYNOTES:
GWB SOFFIT WITH COVE
LIGHTING L1 - SEE LIGHTING
SCHEDULE
PAINTED GWB WALL
TREATMENT - SEE FINISH
SCHEDULE P5
DOUBLE HANDRAIL
MOUNTED @ 36" AFF - SEE
FINISH SCHEDULE
4" VINYL COVE BASE
SCHEDULED WALL SCONCE
L2 MOUNTED @ 80" AFF -
SEE LIGHTING SCHEDULE
1
1
2
2
3
4
3
4 5
5
 home  commercial  residential  renderings  construction documents  product design

7. allison care center

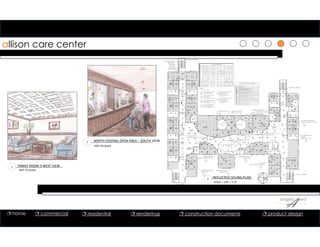

1 NORTH CENTRAL OPEN AREA – SOUTH VIEW
NOT TO SCALE
1 FAMILY ROOM 3 WEST VIEW
NOT TO SCALE
4'-8"
6'-111
2"
5'-101
2"
14'-4"
7'-034"
6'-4"
6'-61
2" 7'-2"
6'-9"
6'-71
2"
6'-71
2"
8'-8"
7'-1"
PATIENT
129
160 SQ FT
2
A5
05/DT3
LIGHTING LEGEND
KEY MANUFACTURER DESCRIPTION LAMP FINISH SIZE
L1 CLASSIC COVES LUMAROC COVE LIGHTING LED N/A VARIES-SEE
PLAN
L2
METROPOLITAN
LIGHTING
MONTE TITANO ORO WALL
SCONCE
2-100W A19 MED F
INCAND 120V
MONTE TITANO
ORO
7.25"W X
14.5" H
L3
METROPOLITAN
LIGHTING
MONTE TITANO ORO LIGHT
CHANDELIER
6-60W B10 INCAND F
+ 1-7W C7 CAND F
INCAND
MONTE TITANO
ORO
42.5" H,
30.5" DIA
L4
METROPOLITAN
LIGHTING
MONTE TITANO ORO LIGHT 2-TIER
CHANDELIER
12-40W B10 CNAD F
+ 1-7W C7 CAND F
INCAND
MONTE TITANO
ORO
52.5" H,
48.5" DIA
L5 GALAXY LIGHTING RECESSED LIGHT-WALL WASHER MR16
ANTIQUE
COPPER
5" DIA
L6 GALAXY LIGHTING RECESSED LIGHT MR16
ANTIQUE
COPPER
5" DIA
L7 LITHONIA EXIT LIGHTING LED
BRUSHED
ALUMINUM
12.25"H X
13"L X 0.5"W
L8 LITHONIA EMERGENCY LIGHTING 120 /277 V 12.5"W X 5"H
L9
METROPOLITAN
LIGHTING
VANITY LIGHT 3-10W A19 INCAND
MONTE TITANO
ORO
30" W X 11.5"
H
REFLECTED CEILING LEGEND
COVE LIGHTING
VANITY LIGHT WALL MOUNTED @ 84" AFF
UNLESS NOTED OTHERWISE
SYMBOL DESCRIPTION
RECESSED DOWNLIGHT CEILING MOUNTED
PENDANT LIGHT, CEILING MOUNTED
WALL LIGHT MOUNTED AT +80" AFF UNLESS OTHERWISE NOTED
RECESSED WALL WASHER CEILING MOUNTED
EXIT SIGN CEILING MOUNTED
EMERGENCY LIGHTING FIXTURE CEILING MOUNTED
BUILDING STANDARD SINGLE POLE SWITCH MOUNTED @ 48" AFF
BUILDING STANDARD THREE-WAY SWITCH MOUNTED AT 48" AFF
DIMMER SWITCH MOUNTED @ 48" AFFDM
3
CEILINGS:
CEILING TREATMENTS
MANUF: INNOVATIVE CEILINGS
STYLE: LINEAR TUSCAN
TYPE: COFFERED CEILING
MANUF: INTERIOR SYSTEMS
STYLE: WING WAVE
COLOR: MANILLA
TYPE: PATTERNED ACOUSTIC TILE
MANUF: INTERIOR SYSTEMS
STYLE: CONTOURA RIPPLE MARK
COLOR: MANILLA
TYPE: PATTERNED ACOUSTIC TILE
MANUF: INTERIOR SYSTEMS
STYLE: DETAILS GEOMETRIC
COLOR: DS08 WHITE
TYPE: PATTERNED ACOUSTIC TILE
CT1
CT2
CT3
CT4
P6
P7
ALL PATIENT ROOMS
CEILING HEIGHT 9'-0" AFF
CT3
ALL RESTROOMS
CEILING
HEIGHT 9'-0" AFF
P6
ALL STAFF
CEILING HEIGHT 9'-0" AFF
CT2
CT2
CONSULTATION
CEILING HEIGHT 9'-0" AFF
PAINTED GYP
@9'-0" AFF
ACT @ 8'-6" AFF P7
CT4
GYP @ 9'-0" AFF
P7
P6
COFFERED CEILING
@ 9'-0" AFF
CT1
CT1
CT1
CT1
COFFERED CEILING
@ 9'0" AFF
SOFFIT @ 8'-6" AFF
@ 1'-0" ALONG PERIMETER
COFFERED CEILING
@ 9'-0" AFF
COFFERED CEILING
@ 9'-0" AFF
CT1
COFFERED CEILING
@ 9'0" AFF
SOFFIT @
8'-6" AFF
1'-0" ALONG
PERIMETER
GYP @ 9'-0" AFF
W/ SOFFIT @ WALLS @ 8'-6" AFF
P7
OPEN TO ABOVE
OPEN TO ABOVE
OPEN TO
ABOVE
OPEN TO ABOVE
GYP @ 9'-0" AFF
W/ SOFFIT @ WALLS @ 8'-6" AFF
PAINT
MANUF: AMERICAN FORMULATING
STYLE: ACRYLIC LATEX
NUMBER: CSL56689
GLOSS: FLAT
COLOR: EVENING BREEZE
COLOR #: 28
MANUF: AMERICAN FORMULATING
STYLE: ACRYLIC LATEX
NUMBER: CSL54293
GLOSS: EGGSHELL
COLOR: RESERVED WHITE
COLOR #: 45
31'-0"
15'-101
2"
R7'-3" R7'-3"
1
A5
D
D
D
D
DD
D
DDD
D
3D3D
3D 3D
3D
3D
DD
D
D
D
D
D
DD
D
DD
D
DD
3D3D
D
3D 3D
a
b
a
a
a
a
a
a
a a a a a
bb
b
b
b
b
b
b
b
b
b
b
b
b
b
c
c c
c
c
c
3D
3D
d
d
d
ddd
d
d
d
d d d
dd
d d
d
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
f
f f
f f f
g g g b
h h
h
h
h
h h
i
i
i
i
i
i
i
i
i
i
i
j
j
j
j
j j
jj
j
j
j j
j
j
j j
j
j j
k
k
k
k
k
k
kk
k
kk
k
k
k
k k
k
k k k
L
L
L
L
L
L
L
L
LL
L
L
L
L
m
m
m
m m
m
m
m
m
m
m
m
m
n
D
n
n
n
n
n
n
n
n
n
n
n n n
D
o
o
o
o
o o
o
o
o
o
o
p
p
p
p
p
p
q
q
q
q
q
q
q
q q
q
q q
q
q
q
q
q
r
r
r r
r
r
r
r
r
r
r
r
r
s
ss
s
s
s
s
s
t
t
t
t
t
t
05/DT3
05/DT3
RESTROOM
120
104 SQ FT
844884488448844884488448844884488448
8448844884488448
8448844884488448844884488448
84488448
84488448
8448 8448 8448 8448 8448
84488448
8448
4848 4848 4848
4848 4848 4848
48484848
48484848
4848 4848 4848
8448
3682
3682
3682
3682
4282
SMOKE DETECTOR CEILING MOUNTEDS
S
S S
SS
S S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
3'-0"
7'-5"
3'-0"3'-0"
3'-0"
9'-0"
STAFF 2
111
230 SQ FT
STAFF 3
112
228 SQ FT
STAFF 4
113
228 SQ FT
RESTROOM
114
60 SQ FT
ELEVATOR
9'-4"
3'-0"
PATIENT
138
160 SQ FT
PATIENT
135
150 SQ FT PATIENT
136
275 SQ FT
PATIENT
134
250 SQ FT
3'-0"
PATIENT
137
160 SQ FT
4'-41
2"
NOOK
88 SQ FT
3'-0"
3'-0"
3'-0"
3'-0"
3'-0"
3'-0"
3'-0"
3'-0"
RESTROOM
121
104 SQ FT
RESTROOM
122
104 SQ FT
RESTROOM
123
104 SQ FT
5'-534"2'-1134"
2'-1158"
4'-978"
6'-81
4"
3'-0"
8'-0"
3'-0"
6'-5"
5'-111
2"
5'-61
8"
3'-61
2"
5'-9"
11'-31
2"
10'-0"
CONSULTATION
106
320 SQ FT
KITCHEN
440 SQ FT
DINING
107
1515 SQ FT
FAMILY 2
102
390 SQ FT
RECEPTION/
WAITING
RM 100
600 SQ FT
FAMILY 1
101
250 SQ FT
STAFF 1
110
208 SQ FT
NURSE 2
109
130 SQ FT
SOCIAL 1
104
460 SQ FT
12'-2"
SOCIAL 2
105
365 SQ FT
9'-4"
3'-0"
3'-11
2"
5'-2"
8'-0"
6'-5"
NURSE 1
108
170 SQ FT
RESTROOM
115
65 SQ FT
2'-1134"
PATIENT
124
160 SQ FT
RESTROOM
119
104 SQ FT
2'-1134"
PATIENT
126
160 SQ FT
2'-1134"
PATIENT
128
150 SQ FT
2'-1134"
PATIENT
133
155 SQ FT
3'-31
4"
3'-4"
3'-4"
2'-1134"
PATIENT
127
150 SQ FT
2'-1134"
PATIENT
130
160 SQ FT
2'-1134"
4'-0"
FAMILY 3
103
265 SQ FT
PATIENT
125
145 SQ FT
3'-0"
PATIENT
131
370 SQ FT
2'-1134"
PATIENT
132
155 SQ FT
3'-0"
2'-1134"
3'-0"
3'-5"
3'-0"3'-0"
3'-0"
RESTROOM
116
104 SQ FT
RESTROOM
117
104 SQ FT
RESTROOM
118
104 SQ FT
8'-4"
REFLECTED CEILING PLAN
SCALE = 1/8” = 1’‐0”
1
 home  commercial  residential  renderings  construction documents  product design

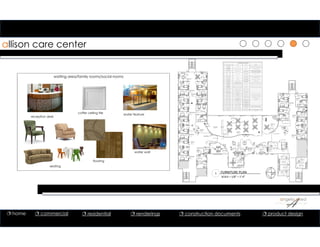

8. allison care center
reception desk
seating
flooring
water feature
water wall
waiting area/family rooms/social rooms
coffer ceiling tile
1 FURNITURE PLAN
SCALE = 1/8” = 1’‐0”
F3 F3
F3
F4 F4
F5
F5 F5
F5 F5
F6
F1
F1
F6
F6
F6
F6
F7
F7
F7
F7
F7
F7
F8
F8
F8
F8
F9
F9
F9
F9
F10F10
F10
F10
F10
F10
F10
F11
F11
F11
F11
F11
F11
F11
F11
F11
F11
F11
F11
F11
F11
F12F13
F13 F13 F13
F13
F13F13F13
F13
F13
F13
F13
F13
F13
F13
F13
F13
F13
F13
F13
F13
F13
F13
F13
F13
F11
F11
F11
F14
F14
F14
F14
F15
F16
F17
F17
F18
F18
F18
F18
F18
F18 F18
F18
F18
F18
F18 F18
F18
F18
F18
F18
F19
F19
F19
F19
F19
F19
F19 F19
F19
F19 F19
F19
F19
F19
F19
F19
F20
F20
F20
F20
F20
F20 F20
F20
F20
F20 F20F20
F20
F20
F20
F20
F21
F21
F21
F21
F21
F21
F21 F21
F21
F21
F21
F21
F21
F21
F21
F22
F22
F22
F22
F22
F22F22
F22
F22
F22
F22
F22
F22
F23
F23
4'-8"
6'-111
2"
5'-101
2"
14'-4"
7'-034"
6'-4"
6'-61
2" 7'-2"
6'-9"
6'-71
2"
6'-71
2"
8'-8"
7'-1"
PATIENT
129
160 SQ FT
2
A5
05/DT3
1
A5
F6
F6
05/DT3
05/DT3
RESTROOM
120
104 SQ FT
844884488448844884488448844884488448
8448844884488448
8448844884488448844884488448
84488448
84488448
8448 8448 8448 8448 8448
84488448
8448
4848 4848 4848
4848 4848 4848
48484848
48484848
4848 4848 4848
8448
3682
3682
3682
3682
4282
FURNITURE LEGEND
KEY ROOM QTY ITEM MANUF REMARKS
F1
WAITING
FAMILY
SOCIAL
23 OLIVER LOUNGE CHAIR NEMSCHOFF
MAHOGANY ON MAPLE WOOD FINISH, TRUE
PATH WITH AGION FABRIC IN BONSAI
F2
WAITING
FAMILY
SOCIAL
12 PLEYTON LOUNGE CHAIR MARQUIS CRYPTON UPHOLSTERY
F3 DINING 32 CANIM DINING CHAIR
M&M HEALTHCARE
FURNISHINGS
MAHOGANY ON MAPLE WOOD FINISH,
CRYPTON FLORAL PARK CABERNET
FABRIC/MUZAC RUBY FABRIC
F4 WAITING 2 GARRETT LOVESEAT
M&M HEALTHCARE
FURNISHINGS
CRYPTON FABRIC IN CW982101
F5
WAITING
NOOK
5 BENCH
M&M HEALTHCARE
FURNISHINGS
CRYPTON UPHOLSTERY. MAHOGANY ON
MAPLE WOOD FINISH
F6
SOCIAL
FAMILY
6 LOVESEAT
M&M HEALTHCARE
FURNISHINGS
CRYPTON FABRIC IN SAVINA SKY
F7
SOCIAL
FAMILY
6 ACCENT CHAIR
M&M HEALTHCARE
FURNISHINGS
CRYPTON FABRIC
F8
SOCIAL
FAMILY
4
ALMA CHAIR AND LINUS
TABLE-CHILDREN FURNITURE
PLUSHPOD FOUR CHAIRS AND ONE TABLE PER SET
F9
WAITING
FAMILY
SOCIAL
4 MARCO GRANDE ROUND TABLE NEMSCHOFF MAHOGANY ON MAPLE WOOD FINISH
F10
WAITING
FAMILY
SOCIAL
7 MAROC GRANDE COFFEE TABLE NEMSCHOFF MAHOGANY ON MAPLE WOOD FINISH
F11 DINING 14 EAMES DINING TABLE HERMAN MILLER
F12 CONSULT 1 EAMES CONFERENCE TABLE HERMAN MILLER
F13
STAFF
CONSULT
25 AERON CHAIR HERMAN MILLER
F14 STAFF 4
CANVAS LANDSCAPE SYSTEMS
FURNITURE
HERMAN MILLER PRIVATE OFFICE CONFIGURATION
F15 RECEPTION 1 ETHOSPACE RECEPTION DESK HERMAN MILLER 3FORM CURVED CUSTOM FASCIA
F16 WAITING 1 WATER FEATURE
BLUE WORLD OF WATER
LLC
COPPER METALLIC FINISH
F17 NURSE 2
NURSE STATION SYSTEMS
FURNITURE
HERMAN MILLER ETHOSPACE
F18 PATIENT 16 MAZAMA BEDSIDE TABLE
NORTHLAND FURNITURE
COMPANY
F19 PATIENT 16 MAZAMA HEADBOARD
NORTHLAND FURNITURE
COMPANY
F20 PATIENT 16 MAZAMA FOOTBOARD
NORTHLAND FURNITURE
COMPANY
F21 PATIENT 15 MAZAMA ARMOIRE
NORTHLAND FURNITURE
COMPANY
REMOVE TOP DRAWER AND ADD TWO
DOORS FOR CLOTHING STORAGE
F22 PATIENT 15 SERENITY II SLEEPOVER NEMSCHOFF
F23
OPEN
AREA
2 WAVE WALL AQUARIUM TENECOR AQUARIUMS
NEAR NURSE STATIONS NEAR PATIENT AREA
AT EACH WING
5'-0"
5'-0"
5'-0"
5'-0"
3'-0"
7'-5"
3'-0"3'-0"
3'-0"
9'-0"
STAFF 2
111
230 SQ FT
STAFF 3
112
228 SQ FT
STAFF 4
113
228 SQ FT
RESTROOM
114
60 SQ FT
ELEVATOR
9'-4"
5'-0"
3'-0"
PATIENT
138
160 SQ FT
5'-0"
5'-0"
PATIENT
135
150 SQ FT
5'-0"
5'-0"
5'-0"
PATIENT
136
275 SQ FT
5'-0"
5'-0"
PATIENT
134
250 SQ FT
5'-0"
3'-0"
PATIENT
137
160 SQ FT
5'-0"
4'-41
2"
NOOK
88 SQ FT
3'-0"
3'-0"
3'-0"
3'-0"
3'-0"
3'-0"
3'-0"
3'-0"
RESTROOM
121
104 SQ FT
RESTROOM
122
104 SQ FT
RESTROOM
123
104 SQ FT
WATER WALL
BUFFET
AQUARIUM
AQUARIUM
5'-534"2'-1134"
2'-1158"
4'-978"
5'-0"
5'-0"
5'-0"
5'-0"
5'-0"
5'-0"5'-0"
5'-0"
5'-0"
5'-0"
6'-81
4"
3'-0"
8'-0"
3'-0"
6'-5"
5'-111
2"
5'-61
8"
3'-61
2"
5'-9"
11'-31
2"
10'-0"
CONSULTATION
106
320 SQ FT
KITCHEN
440 SQ FT
DINING
107
1515 SQ FT
FAMILY 2
102
390 SQ FT
RECEPTION/
WAITING
RM 100
600 SQ FT
FAMILY 1
101
250 SQ FT
STAFF 1
110
208 SQ FT
NURSE 2
109
130 SQ FT
SOCIAL 1
104
460 SQ FT
WATER
WALL
12'-2"
SOCIAL 2
105
365 SQ FT
AQUARIUM
9'-4"
3'-0"
3'-11
2"
5'-2"
8'-0"
6'-5"
NURSE 1
108
170 SQ FT
RESTROOM
115
65 SQ FT
5'-0"
2'-1134"
PATIENT
124
160 SQ FT
RESTROOM
119
104 SQ FT
5'-0"
5'-0"
2'-1134"
PATIENT
126
160 SQ FT
5'-0"
5'-0"
2'-1134"
PATIENT
128
150 SQ FT
5'-0"
5'-0"
2'-1134"
PATIENT
133
155 SQ FT
5'-0"
3'-31
4"
KIDS CORNER
5'-0"
3'-4"
3'-4"
5'-0"
2'-1134"
PATIENT
127
150 SQ FT
5'-0"
2'-1134"
PATIENT
130
160 SQ FT
5'-0"
5'-0"
2'-1134"
5'-0"
4'-0"
FAMILY 3
103
265 SQ FT
KIDS
CORNER
WATER
WALL
PATIENT
125
145 SQ FT
5'-0"
3'-0"
5'-0"
5'-0"
PATIENT
131
370 SQ FT
5'-0"
2'-1134"
PATIENT
132
155 SQ FT
3'-0"2'-1134"
3'-0"
3'-5"
3'-0"3'-0"
3'-0"
RESTROOM
116
104 SQ FT
RESTROOM
117
104 SQ FT
RESTROOM
118
104 SQ FT
8'-4"
5'-0"
F1
F1
F1
F1 F1
F1 F1
F1
F1
F1F1
F1
F1
F1
F1
F1
F1 F1 F1
F2
F2
F2
F2
F2
F2
F2
F2
F1 F1
F2
F2
F3
F3 F3
F3
F3
F3 F3
F3 F3
F3 F3
F3 F3
F3 F3
F3
F3 F3
F3F3
F3
F3
F3
F3
F3
F3 F3
F3
F3
 home  commercial  residential  renderings  construction documents  product design

9. allison care center

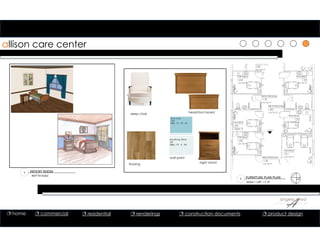

1 PATIENT ROOM
NOT TO SCALE
sleep chair
head/foot board
flooring
wall paint
night stand
1 FURNITURE PLAN PLAN
SCALE = 1/8” = 1’‐0”
F18 F18
F18
F18
F18
F18 F18
F19
F19
F19 F19
F19
F19 F19
F20 F20
F20
F20
F20 F20F20
F21
F21
F21 F21
F21
F22
F22
F22F22
F22
F22
05/DT3
RESTROOM
120
104 SQ FT
844884488448
844884488448
105
365 SQ FT
2'-113
4"
PATIENT
124
160 SQ FT
RESTROOM
119
104 SQ FT
2'-113
4"
PATIENT
126
160 SQ FT
2'-113
4"
PATIENT
133
155 SQ FT
3'-31
4"
3'-4"
PATIENT
125
145 SQ FT
3'-0"
PATIENT
131
370 SQ FT
2'-113
4"
PATIENT
132
155 SQ FT
3'-0"
3'-0"
3'-5"
3'-0"
RESTROOM
118
104 SQ FT
 home  commercial  residential  renderings  construction documents  product design

10. the source bookstore

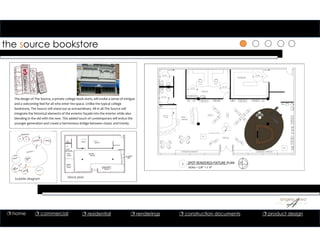

The design of The Source, a private college book store, will evoke a sense of intrigue
and a welcoming feel for all who enter the space. Unlike the typical college
bookstore, The Source will stand out as extraordinary. All in all The Source will
integrate the historical elements of the exterior façade into the interior while also
blending in the old with the new. This added touch of contemporary will entice the
younger generation and create a harmonious bridge between classic and trendy.
1 SPOT RENDERED FIXTURE PLAN
SCALE = 1/8” = 1’‐0”
STORAGE
OFFICE
5'-0"
5'-0"
5'-0"
5'-0"
RETAIL
5'-0"
WIFI/
SNACK
WINDOW DISPLAY
CUSTOM DISPLAY
F3 F3 F3 F3 F3 F3
F3F3F3F3F3F3
F4 F4 F4F4F4 F4F4 F4F4F4 F4
F4
F4
F4
F4
F4
F4
WINDOW DISPLAY
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5SERVICE
DOOR
F5
F5
F5
F5
F2
F2
F5
THESOURCE
block planbubble diagram
 home  commercial  residential  renderings  construction documents  product design

11. the source bookstore

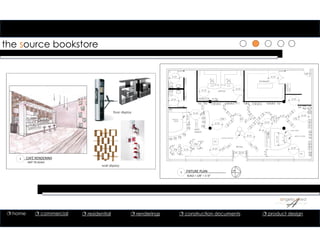

wall display
floor display
1 CAFÉ RENDERING
NOT TO SCALE
1 FIXTURE PLAN
SCALE = 1/8” = 1’‐0”
STORAGE
OFFICE
5'-0"
5'-0"
5'-0"
5'-0"
RETAIL
5'-0"
5'-0"
WIFI/
SNACK
5'-0"
CUSTOM DISPLAY
F3F3 F3 F3F3 F3
F3F3F3F3F3F3
F4 F4 F4F4F4 F4F4 F4F4F4 F4
F4
F4
F4
F4
F4
F4
CASH WRAP
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5
F5SERVICE
DOOR
5'-0"
5'-0"
5'-0"
3'-3"
3'-1"
5'-10"
SERVICE DOOR
2'-8"
3'-4"
F5
F5
F5
F5
4'-7"
F1
F1
F1
F1
F2
F2
F5
5'-0"
5'-0"
3'-1"
3'-1"
3'-6"
3'-6"
5'-0"
5'-0"
5'-0"
5'-0"
CASHIER/
CUSTOMERSERVICE
CAFE
MENWOMEN
STORAGE-
EMPLOYEE
ONLY
EXIT EXIT
EXIT
MGR
F6 F6
F6
F7
F7
F7
F7
F7
F7
F7
F7
F8 F8 F8
F8
F8
F8
F8
F8
F8
F8
F9
F9
F10 F10
F11 F11
 home  commercial  residential  renderings  construction documents  product design

12. the source bookstore

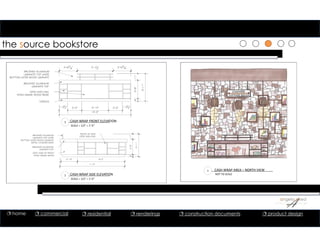

1 CASH WRAP AREA – NORTH VIEW
NOT TO SCALE
1 CASH WRAP FRONT ELEVATION
SCALE = 1/2” = 1’‐0”
1 CASH WRAP SIDE ELEVATION
SCALE = 1/2” = 1’‐0”
10'-3"
1'-21
2" 2'-0" 3'-10" 2'-0" 1'-21
2"
3'-11"
4"2'-8"11"
2'-63
4" 5'-11
2" 2'-63
4"
TOEKICK
OPEN SHELVING
STAIN GRADE WOOD BASE
BRUSHED ALUMINUM
LAMINATE TOP
BRUSHED ALUMINUM
LAMINATE TOP LAYER
BOTTOM LAYER WOOD LAMINATE
11'-2"
3'-11"
4"2'-8"11"
8'-2"2'-10"
EAST SIDE OF FRONT
STAIN GRADE WOOD
FRONT OF SIDE
OPEN SHELVING
BRUSHED ALUMINUM
LAMINATE TOP LAYER
BOTTOM LAYER WOOD LAMINATE
METAL CYLINDER BASE
BRUSHED ALUMINUM
LAMINATE TOP
 home  commercial  residential  renderings  construction documents  product design

13. the source bookstore
signagelighting

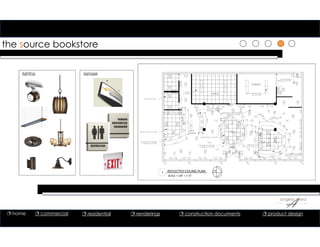

1 REFLECTED CEILING PLAN
SCALE = 1/8” = 1’‐0”
STORAGE
OFFICE
RETAIL
WIFI/
SNACK
5'-0"
5'-0"
3'-3"
3'-1"
5'-10"
2'-8"
3'-4"
4'-7"
3'-1"
3'-1"
3'-6"
3'-6"
GYP SOFFIT W/ PAINTED
FINISH @ 13'-0" AFF
BLACK ACT @ 15'-0" AFF
BLACK ACT @ 15'-0" AFF
GYP SOFFIT W/ PAINTED
FINISH @ 13'-0" AFF
GYP SOFFIT W/ PAINTED
FINISH @ 13'-0" AFF
BLACK ACT
@ 15'-0" AFF
ARMSTRONG WOODWORKS
CEILING @ 15'-0" AFF
ACT @15'-0" AFF
ACT @
15'-0" AFF GYP W/ PAINTED FINISH
@ 15'-0" AFF
GYP W/ PAINTED
FINISH @ 15'-0" AFF
L7
L7
L7
Ø12'-5"
1'-0"
2'-0"
13'-6"
15'-1"
14'-11"
6'-81
2"
2'-0"
12'-4"
9'-0"
12'-0"
GYP SOFFIT W/ PAINTED
FINISH @ 13'-0" AFF
8'-6"
2'-2"
L7
L7
L3
L3
L3
L3
L3
L3
L3
L3 L3
L3
L3
L3
L3
L3
L4
L4
L4L4 L4 L4
L12 L12
L4
L4
L4
L4
L1 L1 L1 L1 L1 L1 L1 L1 L1 L1 L1 L1 L1 L1 L1 L1
L1
L1 L1 L1 L1 L1 L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1L2 L2
L2
L2
L2 L2
L2
L2 L2
L2
L2 L2
L2 L2
L2
L2
L2
L2
L2
L2
L2
L2
L2
L2
L2
L2
L2
L2
L2
L2
L2 L2
L2
L2
L5
L3
L3
L3
L3
L2 L2
L2 L2
L6 L6 L6 L6 L6 L6
L11 L11
L11
L12L12
CASHIER/
CUSTOMERSERVICE
CAFE
MENWOMEN
STORAGE-
EMPLOYEE
ONLY
EXIT EXIT
EXIT
MGR
L11 L11 L11 L11
 home  commercial  residential  renderings  construction documents  product design

14. the source bookstore
zero voc paint
materials and finishes

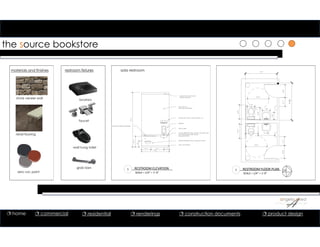

1 RESTROOM FLOOR PLAN
SCALE = 1/4” = 1’‐0”
1 RESTROOM ELEVATION
SCALE = 1/4” = 1’‐0”
ada restroom
stone veneer wall
retail flooring
restroom fixtures
grab bars
wall hung toilet
faucet
lavatory
7'-8"
15'-0"
1'-8"
PAINT ON GYP -
SEE FINISH SCHEDULE
SCHEDULED VANITY LIGHT FIXTURE L10
MIRROR
KINGSTON BRASS GRAB BAR
KOHLER BRENHAM WALL MOUNT LAVATORY SINK
W/ SCHEDULED KOHLER FAUCET
INSULATED PIPES
KOHLER KINGSTON WALL HUNG ADA TOILET
VINYL COVE BASE
ACOUSTICAL TILE CEILING
CROWN MOLDING
3'-0"
DECO LINER
1'-6"3'-7"2'-7"
5'-0"
5'-0"
3'-0"3'-0"2'-1"2'-1"
3'-4"3'-4"
3'-0"
1'-9"
2'-9"
3'-101
2"
1'-9"
1'-8"
7'-5"
8'-81
2"
 home  commercial  residential  renderings  construction documents  product design

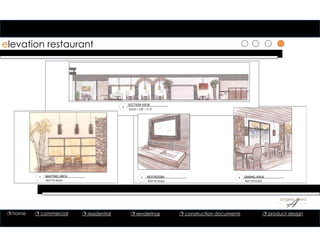

15. elevation restaurant

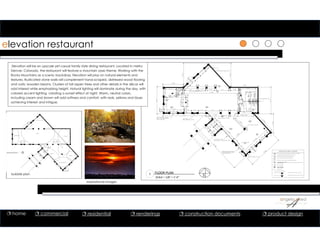

Elevation will be an upscale yet casual family style dining restaurant. Located in metro
Denver, Colorado, the restaurant will feature a mountain oasis theme. Working with the
Rocky Mountains as a scenic backdrop, Elevation will play on natural elements and
textures. Rusticated stone walls will complement hand-scraped, distressed wood flooring
and rustic wooden beams. Clusters of tall aspen trees and other details in the décor will
add interest while emphasizing height. Natural lighting will dominate during the day, with
colored accent lighting creating a sunset effect at night. Warm, neutral colors,
including cream and brown will add softness and comfort, with reds, yellows and blues
achieving interest and intrigue.
1 FLOOR PLAN
SCALE = 1/8” = 1’‐0”
BRICK MASONRY ARCHES
W/ 42" HIGH INFILL PANELS
BELOW WINDOWS
BRICK MASONRY TYPICAL
FULL HEIGHT GLASS
CURTAIN WALL - EXTENDS TO ROOF
BRICK MASONRY BEARING WALL
BRICK MASONRY WALL
BRICK MASONRY ARCHES
W/ 42" HIGH INFILL PANELS
BELOW WINDOWS
FULL HEIGHT
BRICK MASONRY TYPICAL
2'-0" BRICK COLUMN
BRICK MASONRY ARCHES
BRICK MASONRY ARCHES
WAITING
GIFT SHOP/CAFE
OFFICE
DINING
WOMEN'S RESTROOM
KITCHEN
BAR
DINING
STORAGE
LOUNGE
STAFF
RESTROOM
100
101
102
103
106
105
104
111
110
109
108
MEN'S RESTROOM
107
ARCHITECTURAL LEGEND
BLDG CORE PARTITION OR EXISTING PARTITION TO REMAIN
NEW BUILDING STANDARD DRYWALL PARTITION
BUILDING STANDARD DEMISING PARTITION
BUTT-JOINT TEXTURED GLASS PARTITION
EXISTING DOOR, FRAME & HARDWARE TO REMAIN
HARDWARE COMBINATION
ROOM NUMBER
IN NEW OR EXISTING BLDG STD DOORA
01
ROOM NUMBER40
DETAIL NUMBER
SHEET NUMBER
01
DT1
WATER LINE
EXISTING TO REMAIN
INSULATED WALL SECTION TYPICAL
NON-INSULATED WALL SECTION TYPICAL
05/DT1
06/DT1
48'-0"
30'-6"
23'-33
8"
31'-41
2"
30'-2"
21'-11
2"
26'-11
2"
26'-11
2"
39'-91 8
"
66'-0
58
"
9'-8"
12'-11" 7'-6"
7'-103
4"
17'-15
8"
22'-6"
5'-0"
61'-21
2"
14'-0" 8'-0" 8'-0" 14'-0" 2'-0" 9'-21
2"
2'-0" 2'-0" 2'-0"
6'-73
4"
6'-0"6'-91
2"
8'-0" 8'-0" 8'-0" 16'-0" 2'-0" 8'-0" 2'-0" 8'-0"
8'-11"6'-4"12'-01
2"
21'-0"
15'-03
4"
3'-0"
3'-0"
21'-01
8"
11'-111
4"
17'-91
4"25'-91
4"8'-0"14'-41
2"
36'-111 8
"
6'-111 8
"
7'-8"
8'-4"
7'-8"
6'-4"
27'-014
"
6'-71
4"
14'-214
"
2'-0"
16'-8
5 8
"
7'-11
12
"
13'-1
78
"
18'-4
12
"
8'-1
38
"
7'-8"
6'-4"
3'-0"
6'-0"
6'-0"
8'-0"
6'-10" 8'-0" 7'-8"
8'-0"
7'-11
1 8
"
8'-0"
8'-0"
6'-101 8
"
1
A5
3
A5
2
A5
4
A5
06/DT2
06/DT3
06/DT4
06/D
T5
bubble plan
inspirational images
 home  commercial  residential  renderings  construction documents  product design

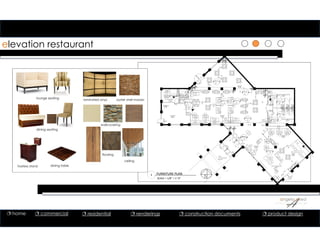

16. elevation restaurant
lounge seating
dining seating
laminated onyx
wallcovering
oyster shell mosaic
flooring
ceiling
hostess stand dining table
1 FURNITURE PLAN
SCALE = 1/8” = 1’‐0”
WAIT
STATION
STORAGE
3'-2"
3'-0"
WAIT
STATION
SERVIC
E
ADA
COMPLIANCE
ROUTE
7'-4"
3'-0"
3'-0"
5'-0"
4'-51
2"
3'-0"
8'-0" 8'-0"
6'-4"
4'-0"
4'-0"
4'-03
8"
5'-0
58
"
11'-53
8"
7'-1
1 4
"
5'-0"
4'-01
8"
2'-6"2'-6"
4'-9"
4'-37
8"
4'-9"
3'-1
7 8
"
3'-101
8"
5'-8
5 8
"
FE
3'-11
4 "
3'-8"
6'-0"
F1
F2
F2
F2
F2
F3
F3
F4 F4
F4 F4
F4
F4 F4
F3 F3
F3F3
F6 F6 F6
F6
F7 F7
F7 F7 F7
F9
F9
F9 F9 F9
F9
F9
F9
F9
F9
F9
F9
F9F9F9F9F9
F9 F9 F9
F14
F10
F10
F10
F10
F10
F10
F10
F10
F10
F10
F10
F10
F11
F11
F12
F13
F13
F13
F14
F11
F11
F11
F11
F15
F16
F16
F9
LOUNGE
STAFF
RESTROOM
100
101
102
103
106
105
104
111
110
109
108
MEN'S RESTROOM
107
Ø5'-0"Ø5'-0"
Ø5'-0"
Ø5'-0"
Ø5'-0"
Ø5'-0"
Ø5'-0"
Ø5'-0" Ø5'-0"
Ø5'-0"
Ø5'-0"
Ø5'-0"
Ø5'-0"
Ø5'-0"
Ø5'-0"
06/DT2
06/DT3
06/DT4
06/D
T5
5'-
9"
5'-
9"
A
A
A
A
B B
B
B
B
C
C
C
C
C
C
CC
C
C
C
D D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
E
E
E
E
E
E
E
E
E
E
E
E
F
F
F
F
F
F
F
F
F
F
F
F
F
G
G
G
G
G
H H H
HHH
H
I
I
I
J
J
J
WAITING
GIFT SHOP/CAFE
OFFICE
DINING
WOMEN'S RESTROOM
KITCHEN
BAR
DINING
BACK
BAR
COUNTER
COUNTER
BACK
DIS
PLAY
 home  commercial  residential  renderings  construction documents  product design

17. elevation restaurant
pendant
multilight pendant
recessed lighting wall sconce

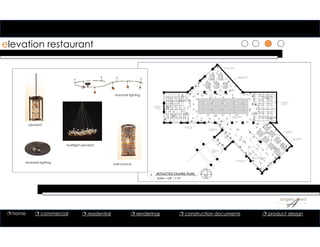

1 REFLECTED CEILING PLAN
SCALE = 1/8” = 1’‐0”
WAITING
GIFT SHOP/CAFE
OFFICE
DINING
WOMEN'S RESTROOM
KITCHEN
BAR
DINING
BACK
BAR
COUNTER
COUNTER
BACK
DIS
PLAY
WAIT
STATION
STORAGE
WAIT
STATION
SERVIC
E
ADA
COMPLIANCE
ROUTE
FE
F1
F2
F2
F2
F2
F3
F3
F4 F4
F4 F4
F4
F4 F4
F3 F3
F3F3
F6 F6 F6
F6
F7 F7
F7 F7 F7
F9
F9
F9 F9 F9
F9
F9
F9
F9
F9
F9
F9
F9F9F9F9F9
F9 F9 F9
F14
F10
F10
F10
F10
F10
F10
F10
F10
F10
F10
F10
F10
F11
F11
F12
F13
F13
F13
F14
F11
F11
F11
F11
F15
F16
F16
F9
2X4 ACOUSTICAL
CEILING TILE W/ TYP
METAL GRID
@ 12'-0" AFF
2X4 ACOUSTICAL
CEILING TILE W/ TYP
METAL GRID
@ 12'-0" AFF
ARMSTRONG WOODWORKS
LINEAR CEILING SYSTEM
@ 12'-0" AFF
ACOUSTICAL GYPSUM
CEILING W/ PAINT FINISH
@ 14'-0" AFF ACOUSTICAL GYPSUM
CEILING W/ PAINT FINISH
@ 14'-0" AFF
ACOUSTICAL GYPSUM
SOFFIT W/ PAINT FINISH
@ 13'-0" AFF
ARMSTRONG WOODWORKS
LINEAR CEILING SYSTEM
@ 14'-0" AFF
ACOUSTICAL GYPSUM
CEILING W/ PAINT
FINISH @ 13'-0" AFF
ARMSTRONG WOODWORKS
LINEAR CEILING SYSTEM
@ 14'-0" AFF
ACOUSTICAL GYPSUM CEILING
W/ PAINT FINISH @ 13'-0" AFF
L3
L3
L1
L1
L1
L1
L1
L1
L1
L1L1 L1
L1
L1L1
L1
L1
L1
L1
L1
L1
L1
L1L1
L1
L1 L1 L1 L1 L1
L1
L1
L1
L1 L1
L1 L1
L1
L1
L1
L1
L2
L2
L2
L2
L2
L2
L2
L2
L2L2
L2
L2
L2
L2
L2
L2
L2
L2
L2 L2
L2
L2
L2
L2
L2
L2
L2
L2
L1
L1
L2
L2
L2
L6
L6
L6
L6
L6
L7
L7
LOUNGE
STAFF
RESTROOM
100
101
102
103
106
105
104
111
110
109
108
MEN'S RESTROOM
107
L10
L10
L10
L10
L10
L10L10
L10
L10
L11
L12
L12
L12
L12
L12
L5
L5
L5
L5
L5
L5L5
L5 L5L5L5
L5
L5
L5
L5 L5 L5
L5
L5
L5
L5
L5L5
L5
L5
L5 L5
L5
L5
L5
L5
L5
L5
L5
L5
L5
L5
L5
L7
L4
L4
L4
L4
L4
L4
L4
L4
L4L4
L4
L4 L4 L4
L4 L4
L4
L4
L4
L4
L4 L4
L4
L4
L4
L10
L10
L10L10
L10
L12
monorail lighting
 home  commercial  residential  renderings  construction documents  product design

18. elevation restaurant
1 WAITING AREA
NOT TO SCALE
1 RESTROOM
NOT TO SCALE
1 DINING AREA
NOT TO SCALE
1
SECTION VIEW
SCALE = 1/8” = 1’‐0”
 home  commercial  residential  renderings  construction documents  product design

19. xeno consulting
1
avignon, france
1

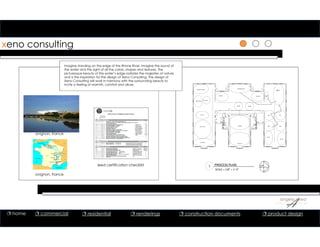

1 PROCESS PLAN
SCALE = 1/8” = 1’‐0”
leed certification checklist
Imagine standing on the edge of the Rhone River. Imagine the sound of
the water and the sight of all the colors, shapes and textures. The
picturesque beauty of the water’s edge radiates the majesties of nature
and is the inspiration for the design of Xeno Consulting. The design of
Xeno Consulting will work in harmony with the surrounding beauty to
incite a feeling of warmth, comfort and allure.
avignon, france
 home  commercial  residential  renderings  construction documents  product design

20. 1

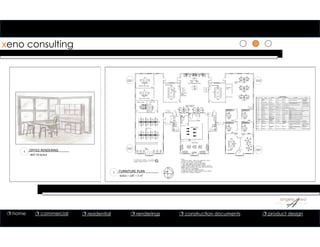

xeno consulting
1
1 FURNITURE PLAN
SCALE = 1/8” = 1’‐0”
1 OFFICE RENDERING
NOT TO SCALE
Furniture Schedule
KEY QTY SPACE DESCRIPTION DIMENSIONS MANUFACTURER SUSTAINABILITY REMARKS
F1 59 Collaboration/Meeting
Rooms
Cobi Chair Adjustable Steelcase BIFMA Level 2 Certified; Indoor Air Advantage Gold Platinum Finish with Snow
Fabric; ergonomic
F2 30 Reception Alerion Chair 23 ¾”d x24”w x29
½” h
Steelcase SCS Indoor Advantage Certified Upholstered back on
maple; ergonomic
F3 37 Workstations/Desks ThinkChair Adjustable Steelcase BIFMA Level 3 Certified; Cradle to Cradle Certified;
SCS Indoor Advantage Certified
Platinum finish with Graphite
upholstery ergonomic
F4 12 Waiting and Lounge areas Big Lounge Seating 32”d x66”w x 29”h Turnstone bySteelcase Fabric upholstery contains recycled content Microcosm in Micah Fabric
F5 16 Waiting/Lounge/ThinkTank Alight Round Ottomon 30” diameter, 20” h Turnstone bySteelcase Fabric upholstery contains recycled content Microcosm in Micah Fabric
F6 8 Waiting Area Campfire PrivacyScreens 54”h x30” x34” (L-
shape)
Turnstone bySteelcase Mesh screen in sultrysmoke
F7 6 Waiting/Lounge Area Paper Table 18”d x18”w x 23 ½” h Turnstone bySteelcase Recycled Content
F8 1 Reception Custom Reception Desk 7’-0” x 5’-0” Blueline FSC Wood, Recycled Content
F9 2 Presentation Host Credenza 74”l x 22” h x 27” w Coalesse bySteelcase Recycled Content, Recyclable, Indoor Air Advantage
Certified
Wood veneer with glass
doors
F10 2 Presentation Host Conference Table 14’-0”l x5’-0”w Coalesse bySteelcase Recycled Content, Recyclable, Indoor Air Advantage
Certified
F11 2 Consultation Room Media Space 8’-0”l x4’-0” w Coalesse bySteelcase Recycled Content, Recyclable, Indoor Air Advantage
Certified
F12 1 Meeting Area Get Together 5’-11”w x6’-6” l Steelcase Recycled Content, Recyclable, Indoor Air Advantage
Certified
F13 1 ThinkTank Meeting/Conference
Room 3
9’-11”l x 5’-11” w Steelcase Recycled Content, Recyclable, Indoor Air Advantage
Certified
Upholstered bench seating
F14 1 Meeting Area Meeting/Conference
Room 5-Host Table
10’-0”l x4’-0” w Steelcase Recycled Content, Recyclable, Indoor Air Advantage
Certified
F15 2 setsof 8
stations
Consultation Workstations Let’sGet Focused
Workstations
9.5’ x24’ ea Steelcase Cradle to Cradle, Indoor Air QualityCertification
F16 3 Break Room Round Table 3’-0” diameter Groupworksby
Steelcase
Cradle to Cradle, Indoor Air QualityCertification Height adjustable
F17 5 Break Room Square Table 2’-7”w x 2’-7” l Groupworksby
Steelcase
Cradle to Cradle, Indoor Air QualityCertification Height adjustable
F18 6 Secretarial Area Montage Workstation 6’-0” x 6’-0” L-shape Steelcase Silver Cradle to Cradle Certified, SCSIndoor
Advantage Indoor Air Quality Certified, BIFMA Level
1 Certified
Platinum Trim, Clear Walnut
panel tiles, Elmo Soft White
leather cushion top on
storage
F19 4 Administrative Elective Elements6
Workstation
9’-2” x 8’-’0” Steelcase Silver Cradle to Cradle Certified, SCSIndoor
Advantage Indoor Air Quality Certified, BIFMA Level
1 Certified
Wood veneer,Platinum
finish and trim
F20 2 ThinkTank Alight Table 18”d x18” w x 17” h Steelcase Cradle to Cradle Certified Maple veneer with glasstop
 home  commercial  residential  renderings  construction documents  product design

21. 111
xeno consulting

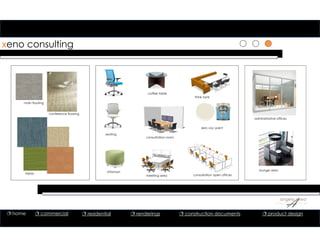

main flooring
fabric
zero voc paint
seating
administrative offices
think tank
meeting area
consultation room
ottoman
coffee table
consultation open offices
lounge area
conference flooring
 home  commercial  residential  renderings  construction documents  product design

22. 1
1
1

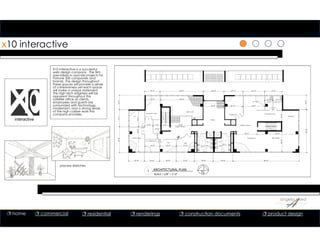

x10 interactive
interactive
X10 Interactive is a successful
web design company. The firm
specializes in upscale projects for
Fortune 500 companies and
brands. The design throughout
these spaces will provide a sense
of cohesiveness yet each space
will make a unique statement.
This high tech edginess will be
apparent throughout this
satellite office as clients,
employees and guests are
surrounded with technology,
modernism, and a strong sense
of the high caliber work this
company provides.
1 ARCHITECTURAL PLAN
SCALE = 1/8” = 1’‐0”
web design
sm conference
lobby
brainstorming
server
studio head
Sr Assoc work room
executive suite
Women's
Restroom
design feature
PR
Production
design feature
VP Support
Men's
Restroom
storage
conference
cyber cafe
HR
process sketches
 home  commercial  residential  renderings  construction documents  product design

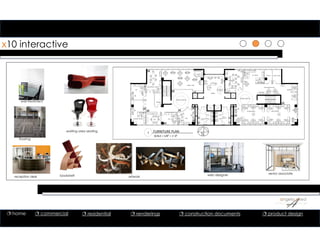

23. 1
x10 interactive
wall treatment
reception desk
waiting area seating
bookshelf artwork
web designer senior associate
flooring
1
web design
sm conference
lobby
brainstorming
server
studio head
Sr Assoc work room
executive suite
Women's
Restroom
swings
design feature
PR
Production
design feature
VP Support
Men's
Restroom
storage
conference
cyber cafe
aquarium
HR
1 FURNITURE PLAN
SCALE = 1/8” = 1’‐0”
 home  commercial  residential  renderings  construction documents  product design

24. 11
x10 interactive
1 WAITING AREA
NOT TO SCALE
lighting

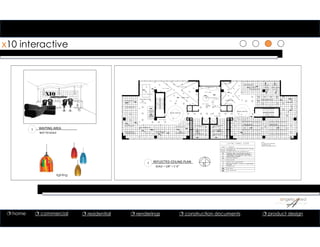

1 REFLECTED CEILING PLAN
SCALE = 1/8” = 1’‐0”
web design
sm conference
lobby
brainstorming
server
studio head
Sr Assoc work room
executive suite
Women's
Restroom
design feature
PR
Production
design feature
VP Support
Men's
Restroom
storage
conference
cyber cafe
HR
NOTE:
ALL CEILINGS SUSPENDED
ACOUSTICAL TILE
UNLESS OTHERWISE NOTED
 home  commercial  residential  renderings  construction documents  product design

25. 11
x10 interactive
1 CONFERENCE ROOM
NOT TO SCALE
1 CONFERENCE ROOM ELEVATION
SCALE = 1/2” = 1’‐0”
1 SUPPORT EAST ELEVATION
SCALE = 1/2” = 1’‐0”
clear glazing
fabric panel
metal file
steel frames
open
interactive
Wall Tiles
Soffit
Wood base
wood/steel
table
steel/fabric
chairs
 home  commercial  residential  renderings  construction documents  product design

26. 111

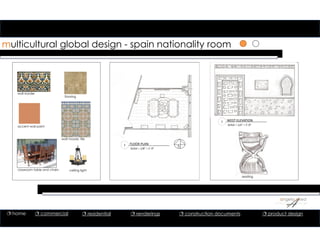

multicultural global design - spain nationality room
seating
wall border
flooring
wall mosaic tile
accent wall paint
ceiling lightclassroom table and chairs
1 FLOOR PLAN
SCALE = 1/8” = 1’‐0”
1 WEST ELEVATION
SCALE = 1/2” = 1’‐0”
 home  commercial  residential  renderings  construction documents  product design

27. 111

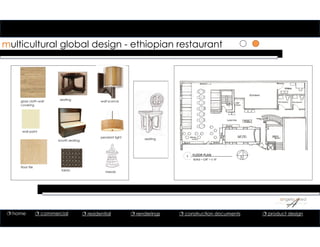

multicultural global design - ethiopian restaurant
grass cloth wall
covering
wall paint
seating
seating
mesob
booth seating
pendant light
wall sconce
fabric
floor tile
1 FLOOR PLAN
SCALE = 1/8” = 1’‐0”
 home  commercial  residential  renderings  construction documents  product design

28. residential design
 home  commercial  residential  renderings  construction documents  product design

29. 11
1
1

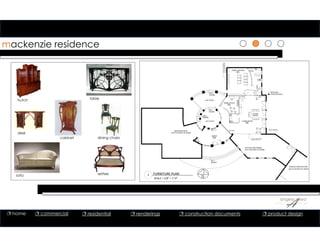

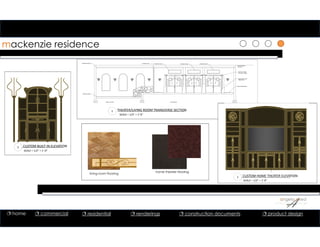

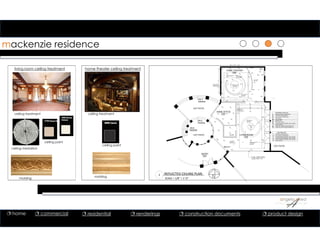

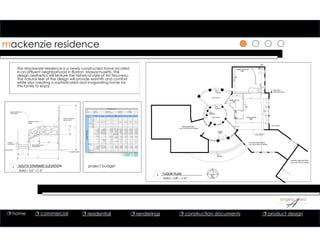

mackenzie residence
The Mackenzie residence is a newly constructed home located
in an affluent neighborhood in Boston, Massachusetts. The
design aesthetics will feature the historical style of Art Nouveau.
The natural feel of the design will provide warmth and comfort
while also creating a sophisticated and invigorating home for
this family to enjoy.
1 FLOOR PLAN
SCALE = 1/8” = 1’‐0”
EXISTING WALL
NEW WALL
ENTRY
KITCHEN AND DINING
NOT IN SCOPE OF WORK
HOME OFFICE
HOME THEATER
LIVING ROOM
NOT IN SCOPE OF WORK
BEDROOM WING
STEEL PIPE. TYP.
5" DIA. STRUCTURAL
DN 5
RISERS
DN 3
RISERS
DN 2
RISERS
UP 4
RISERS
EXT PATIO
EXT PATIO
EXT PATIO
GARAGE AREA BEYOND
NOT IN SCOPE OF WORK
ARCHWAY
101
102
103
104
DOWN
DOWN
33'-4"
26'-51
8"
10'-21
4"
11'-01
4"
31'-67
8"
34'-51
2"
18'-93
8"
BUILT IN
WALL DESIGN
LANDING LANDING
1
A12
1
A6
1
A8
1
A7
14'-8"
16'-0"
3'-7"
3'-0"
3'-7"
6'-6"
WOOD HANDRAIL/
NEWEL POST
CARPET
ON STAIRS
WROUGHT IRON
PANEL
SLIDING DOOR
WALLPAPER WALL
TREATMENT
WALLPAPER WALL
TREATMENT
FLOOR LINE
1 SOUTH STAIRWAY ELEVATION
SCALE = 1/2” = 1’‐0”
project budget
 home  commercial  residential  renderings  construction documents  product design

30. 11
mackenzie residence
hutch
1 FURNITURE PLAN
SCALE = 1/8” = 1’‐0”
EXISTING WALL
NEW WALL
F3
ENTRY
KITCHEN AND DINING
NOT IN SCOPE OF WORK
HOME OFFICE
HOME THEATER
LIVING ROOM
NOT IN SCOPE OF WORK
BEDROOM WING
STEEL PIPE. TYP.
5" DIA. STRUCTURAL
DN 5
RISERS
DN 3
RISERS
DN 2
RISERS
UP 4
RISERS
EXT PATIO
EXT PATIO
EXT PATIO
GARAGE AREA BEYOND
NOT IN SCOPE OF WORK
ARCHWAY
101
102
103
104
BUILT-INCABINETS
W/10'PROJECTOR
SCREEN
DOWN
DOWN
F6
F4
F4
BUILT IN
WALL DESIGN
LANDING LANDING
desk
settee
cabinet
table
dining chairs
sofa
 home  commercial  residential  renderings  construction documents  product design

31. 111
mackenzie residence
ceiling treatment
ceiling medallion
molding
ceiling paint
living room ceiling treatment home theater ceiling treatment
molding
ceiling treatment
ceiling paint
1 REFLECTED CEILING PLAN
SCALE = 1/8” = 1’‐0”
ENTRY
HOME OFFICE
HOME THEATER
LIVING ROOM
STEEL PIPE. TYP.
5" DIA. STRUCTURAL
DN 5
RISERS
DN 3
RISERS
DN 2
RISERS
EXT PATIO
EXT PATIO
EXT PATIOARCHWAY
101
102
103
104
16'-0" ABOVE
SUBFLOOR
15'-6" ABOVE
SUBFLOOR
DRYWALL COVE
13'-6" ABOVE
SUBFLOOR
12'-0" ABOVE
SUBFLOOR
MEDALLION
WOOD CROWN
MOLDING 12'-0"
ABOVE SUBFLOOR
RECESSED INCANDESCENT
LIGHTING OUTLETS
CEILING FAN
WALL MOUNT INCANDESCENT
SURFACE MOUNT INCANDESCENT
WALL WASHER
HEAT, VENT, LIGHT
CEILING MOUNTED PENDANT LIGHT FIXTURE
COVE LIGHTING
BUILT IN
CABINET
TV/GAMING
DRYWALL SOFFIT
12'-6" ABOVE
SUBFLOOR
12'-0" ABOVE
SUBFLOOR
DRYWALL/PAINT
DRYWALL SOFFIT
14'-6" ABOVE
SUBFLOOR
WOOD CROWN
MOLDING 12'-0"
ABOVE SUBFLOOR
DRYWALL SOFFIT
14'-0" ABOVE
SUBFLOOR
RECESSED INCANDESCENT
LIGHTING KEY
WALL MOUNT INCANDESCENT
CEILING MOUNTED PENDANT LIGHT FIXTURE
CEILING MOUNTED PENDANT LIGHT FIXTURE
L1
L2
L3
L4
L5
L2
L2
L2 L2
L2
L2
L2L2L2
L3
L6
L1
L1
L1 L1
L1 L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1
L1 L1
L1L1
L1
L1
L1
L4
L4
L5
L5
COVE LIGHTINGL6
CEILING MOUNTED PENDANT LIGHT FIXTURE
L1
L1
L1
L1
EXHAUST FAN
PAINT WITH METAL
TRIM
PAINT
THREE WAY DIMMER MOUNTED @ 48" AFF
THREE WAY SWITCH MOUNTED @ 48" AFF
2'-05
8"
18'-5"
R3'-1"
39'-3
3 4
"
2'-0"
19'-71
2"
17'-71
2"
33'-45
8"
R7'-1
0
1 2
"
R2'-6"
P1
P2
P3
18'-53
4"
6'-71
2"
L1
L1
L1 L1
L1L1L1
L1
L1
L1
9'-5" 11'-91
2"
9'-81
2"
17'-65
8"
 home  commercial  residential  renderings  construction documents  product design

32. 1
1
1
1
mackenzie residence
1 CUSTOM BUILT‐IN ELEVATION
SCALE = 1/2” = 1’‐0”
1 CUSTOM HOME THEATER ELEVATION
SCALE = 1/2” = 1’‐0”
living room flooring
home theater flooring
1 THEATER/LIVING ROOM TRANSVERSE SECTION
SCALE = 1/2” = 1’‐0”
STAINED GLASS STAINED GLASS STAINED GLASS
WOOD BASEBOARD
WOOD CROWN
MOLDING
WROUGHT IRON
ROD WITH FABRIC
WOOD DOOR AND
TRIM DETAIL
SLIDING DOOR
HOME THEATER LIVING ROOM
CROWN MOLDING
BASE MOLDING
 home  commercial  residential  renderings  construction documents  product design

33. renderings
 home  commercial  residential  renderings  construction documents  product design

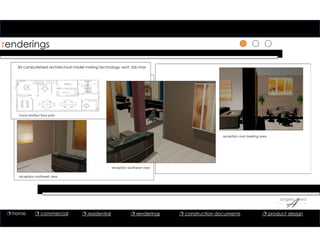

34. 1
1
1
renderings
reception northwest view
hand drafted floor plan
3d computerized architectural model making technology: revit, 3ds max
reception southeast view
reception and meeting area
 home  commercial  residential  renderings  construction documents  product design

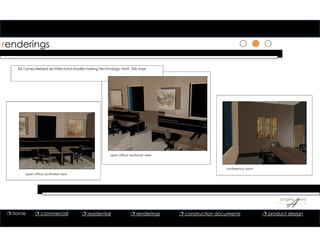

35. 1
1
1
1
renderings
open office southwest view
3d computerized architectural model making technology: revit, 3ds max
open office southeast view
conference room
 home  commercial  residential  renderings  construction documents  product design

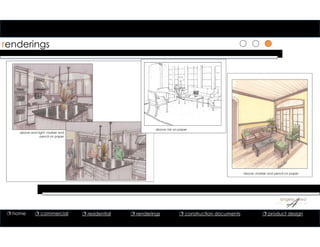

36. 1
1
renderings
above and right: marker and
pencil on paper
above: marker and pencil on paper
1
above: ink on paper
 home  commercial  residential  renderings  construction documents  product design

37. construction documents
 home  commercial  residential  renderings  construction documents  product design
available upon request

38. product design
 home  commercial  residential  renderings  construction documents  product design

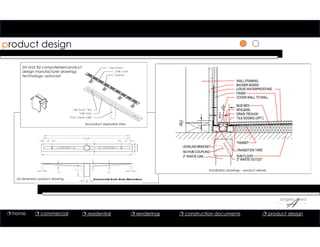

39. 1
1
1
product design
Installation drawings – product details
2d dimension product drawing
2d and 3d computerized product
design manufacturer drawings
technology: autocad
3d product exploded view
 home  commercial  residential  renderings  construction documents  product design

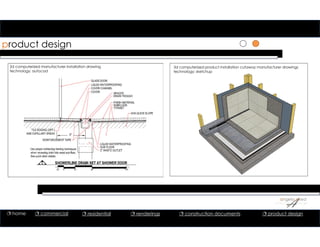

40. 1 1
product design
3d computerized product installation cutaway manufacturer drawings
technology: sketchup
2d computerized manufacturer installation drawing
technology: autocad
 home  commercial  residential  renderings  construction documents  product design
