This document summarizes structural, electrical, and fire safety upgrades completed at HKD International's facility in Bangladesh. It outlines work done in each area, including retrofitting columns, adding steel bracing, installing an underground water reservoir and fire pump room, and erecting a steel-framed canteen. For fire safety, it details a new addressable central detection system, hydrant and sprinkler system, and fire-rated doors. Electrical upgrades included implementing a new single line diagram, removing hot spots, installing a lightning protection system, and conducting testing. The work brought the facility's capacity up to Alliance standards for wind load, live load, seismic tolerance, and fire resistance.

1. PAGE-1/4
*
Alliance
Structural
Safety
Electrical
Safety
Fire
Safety
In HKD International (CEPZ) Ltd

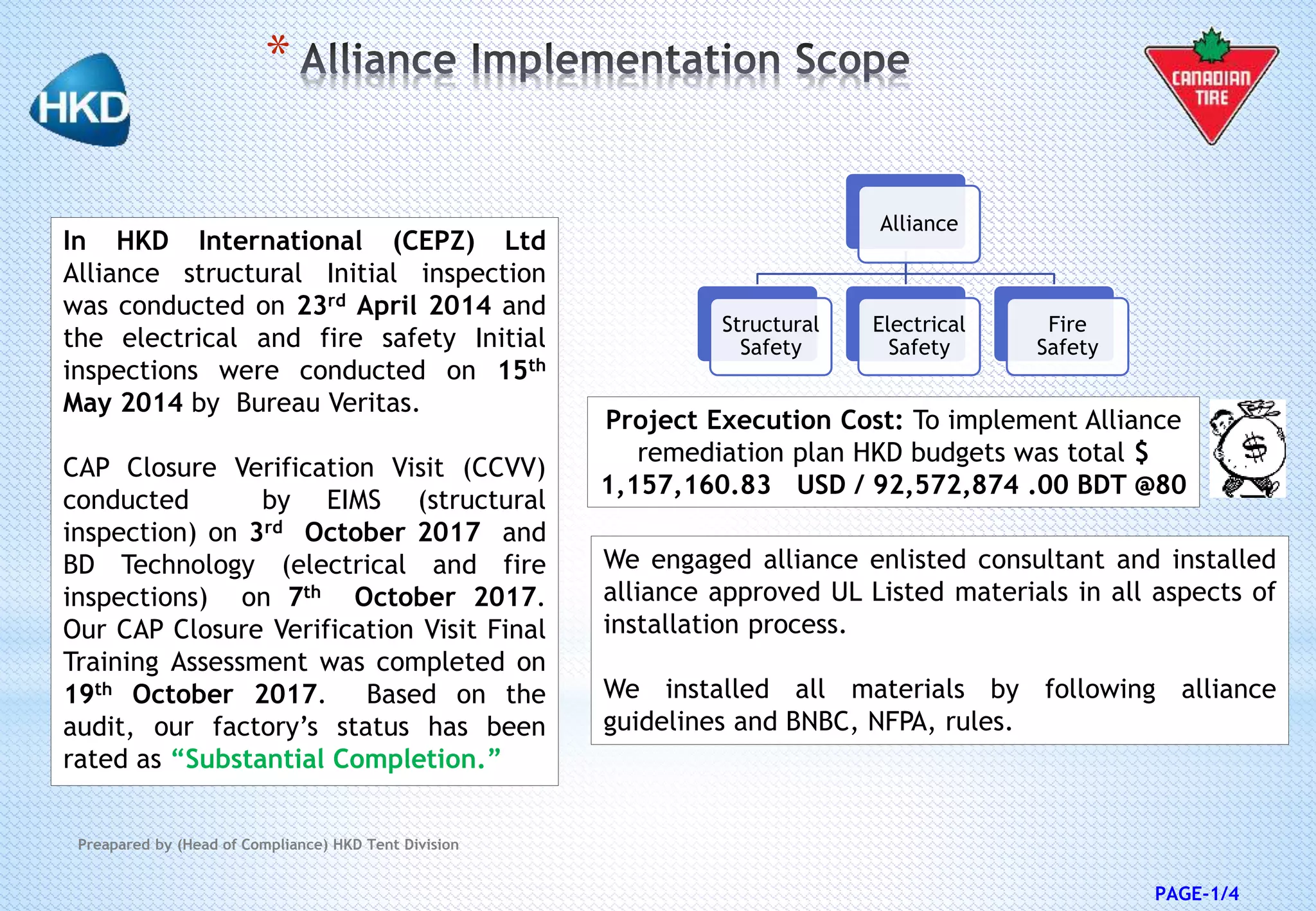

Alliance structural Initial inspection
was conducted on 23rd April 2014 and
the electrical and fire safety Initial
inspections were conducted on 15th
May 2014 by Bureau Veritas.
CAP Closure Verification Visit (CCVV)
conducted by EIMS (structural
inspection) on 3rd October 2017 and
BD Technology (electrical and fire
inspections) on 7th October 2017.
Our CAP Closure Verification Visit Final
Training Assessment was completed on
19th October 2017. Based on the
audit, our factory’s status has been
rated as “Substantial Completion.”
Project Execution Cost: To implement Alliance
remediation plan HKD budgets was total $
1,157,160.83 USD / 92,572,874 .00 BDT @80
We engaged alliance enlisted consultant and installed
alliance approved UL Listed materials in all aspects of
installation process.
We installed all materials by following alliance
guidelines and BNBC, NFPA, rules.
Preapared by (Head of Compliance) HKD Tent Division

2. PAGE-1/4

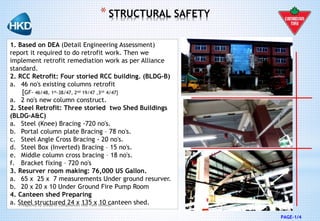

1. Based on DEA (Detail Engineering Assessment)
report it required to do retrofit work. Then we
implement retrofit remediation work as per Alliance
standard.
2. RCC Retrofit: Four storied RCC building. (BLDG-B)
a. 46 no's existing columns retrofit
[GF- 46/48, 1st-38/47, 2nd 19/47 ,3rd- 4/47]
a. 2 no's new column construct.
2. Steel Retrofit: Three storied two Shed Buildings
(BLDG-A&C)
a. Steel (Knee) Bracing -720 no's.
b. Portal column plate Bracing – 78 no's.
c. Steel Angle Cross Bracing - 20 no's.
d. Steel Box (Inverted) Bracing – 15 no's.
e. Middle column cross bracing – 18 no's.
f. Bracket fixing – 720 no's
3. Resurver room making: 76,000 US Gallon.
a. 65 x 25 x 7 measurements Under ground resurver.
b. 20 x 20 x 10 Under Ground Fire Pump Room
4. Canteen shed Preparing
a. Steel structured 24 x 135 x 10 canteen shed.
* STRUCTURAL SAFETY
Preapared by (Head of Compliance) HKD Tent Division

3. PAGE-1/4
* FIRE SAFETY
1.Detection System: Addressable Central Fire
Detection System.
a. 143 Pcs Smoke detection Device.
b. 15 Pcs Heat Detector Device
c. 84 Pcs MCP (Manual Call Point).
d. 51 Pcs Module (Input-12, Out put -39)
2.Protection System: Hydrant & Sprinkler
System
a. Fire Pump (Auto Synchronized) 1250 US
GPM.
b. Hydrant Hose Box 20 Pcs
c. Pillar Hydrant 2 Pcs
d. Sprinkler 1293 Pcs
e. Fire Service Connection.
f. Fire Fighting Trained member – 323 Person
g. Qualified Fire Safety Engineer.
3. Fire Rated Door:
a. 48 set Two Hour Fire rated doors.
Preapared by (Head of Compliance) HKD Tent Division

4. PAGE-1/4
Automatic Hydrant & Sprinkler System: We
have install auto synchronized Fire Hydrant
& Sprinkler system in our facility. Our Fire
pump has 1250 US GPM capacity as per
hydraulic calculation to maintain standard
water flow till most remote area. Sprinkler
sensor valve auto blast with 65°+
temperature heat, and then check valve send
signal to output module through water flow
inside desire zone. When Fire pump pressure
gauge meter lose respected water pressure then
it auto start 1st Jokey pump, then Electric pump
and if electricity shut down then self generated
diesel engine will auto start to maintain the
required water pressure in the zones.
Beside that a supervisory signal will send signal
to CFDS panel indicating that fire pump is
running and also it will visual the location where
incident (Module location where sprinkler blast
due to fire/heat/other) happened.

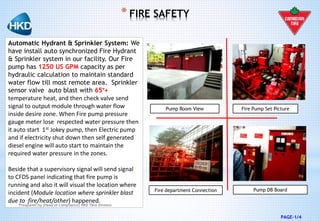

Fire department Connection Pump DB Board
Pump Room View Fire Pump Set Picture
* FIRE SAFETY
Preapared by (Head of Compliance) HKD Tent Division

5. PAGE-1/4
3. Central Fire Detection
System (CFDS) Control panel:
We installed UL Listed
addressable central fire
detection system, in our
facility. It detect zone wise
location and indicate a visual
display and alarm to trace and
rectify any incident. After that
through module CFDS panel got
notification of the incident and
it indicate the detected
location and rang the alarm to
whole facility. After that
control panel send the signal to
Fire door magnetic conductor
to release the door leafs &
exhaust fan to stop.
* FIRE SAFETY
Preapared by (Head of Compliance) HKD Tent Division

6. PAGE-1/4
* ELECTRICAL SAFETY
1. SLD (Single Line Diagram)
a. 1NO’s LT Panel, 1 NO’s ATS Panel
,16 NO’s DB,1 NO’s SDB, 100%
implementation done as per SLD.
2. Thermal SCAN
a. All category - 3 & category - 2 Hot
spots removed successfully .
3. LPS (Lightning Protection System)
a. All boring pit, Air terminal, Main &
Down conductor implementation
done as per LPS.
4. All Testing: All testing done by
following standard guideline.
a. Insulation Resistance test (IR)
b. Earth Resistance Test (ER)
c. Transformer Oil Analysis test
report.
Approved SLD Drawing Approved LPS Drawing Pith For LT Panel
DB Board Cable Chanel Tray LPS Connection
Preapared by (Head of Compliance) HKD Tent Division

7. PAGE-1/4

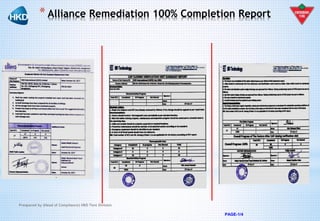

* Alliance Remediation 100% Completion Report
Preapared by (Head of Compliance) HKD Tent Division

8. PAGE-1/4

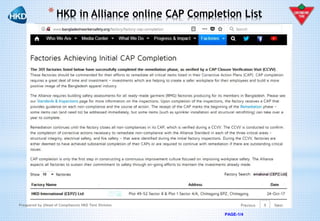

* HKD in Alliance online CAP Completion List
Preapared by (Head of Compliance) HKD Tent Division

9. PAGE-1/4

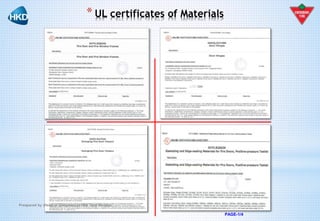

* UL certificates of Materials
Preapared by (Head of Compliance) HKD Tent Division

10. PAGE-1/4
* UL certificates of Materials
Preapared by (Head of Compliance) HKD Tent Division

11. PAGE-1/4
We strengthen our focused three areas- Structural, Electrical & Fire as per Alliance standard
remediation process.

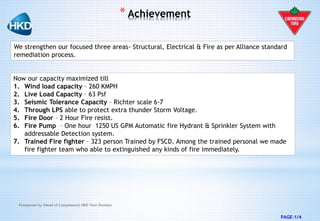

* Achievement
Now our capacity maximized till
1. Wind load capacity – 260 KMPH
2. Live Load Capacity – 63 Psf
3. Seismic Tolerance Capacity – Richter scale 6-7
4. Through LPS able to protect extra thunder Storm Voltage.
5. Fire Door – 2 Hour Fire resist.
6. Fire Pump – One hour 1250 US GPM Automatic fire Hydrant & Sprinkler System with
addressable Detection system.
7. Trained Fire fighter – 323 person Trained by FSCD. Among the trained personal we made
fire fighter team who able to extinguished any kinds of fire immediately.
Preapared by (Head of Compliance) HKD Tent Division
