All about Erubis (English)

RubyKaigi2009

All about Erubis
And the future of template system

makoto kuwata <kwa@kuwata-lab.com>
http://www.kuwata-lab.com/

copyright(c) 2009 kuwata-lab.com all rights reserved.
1

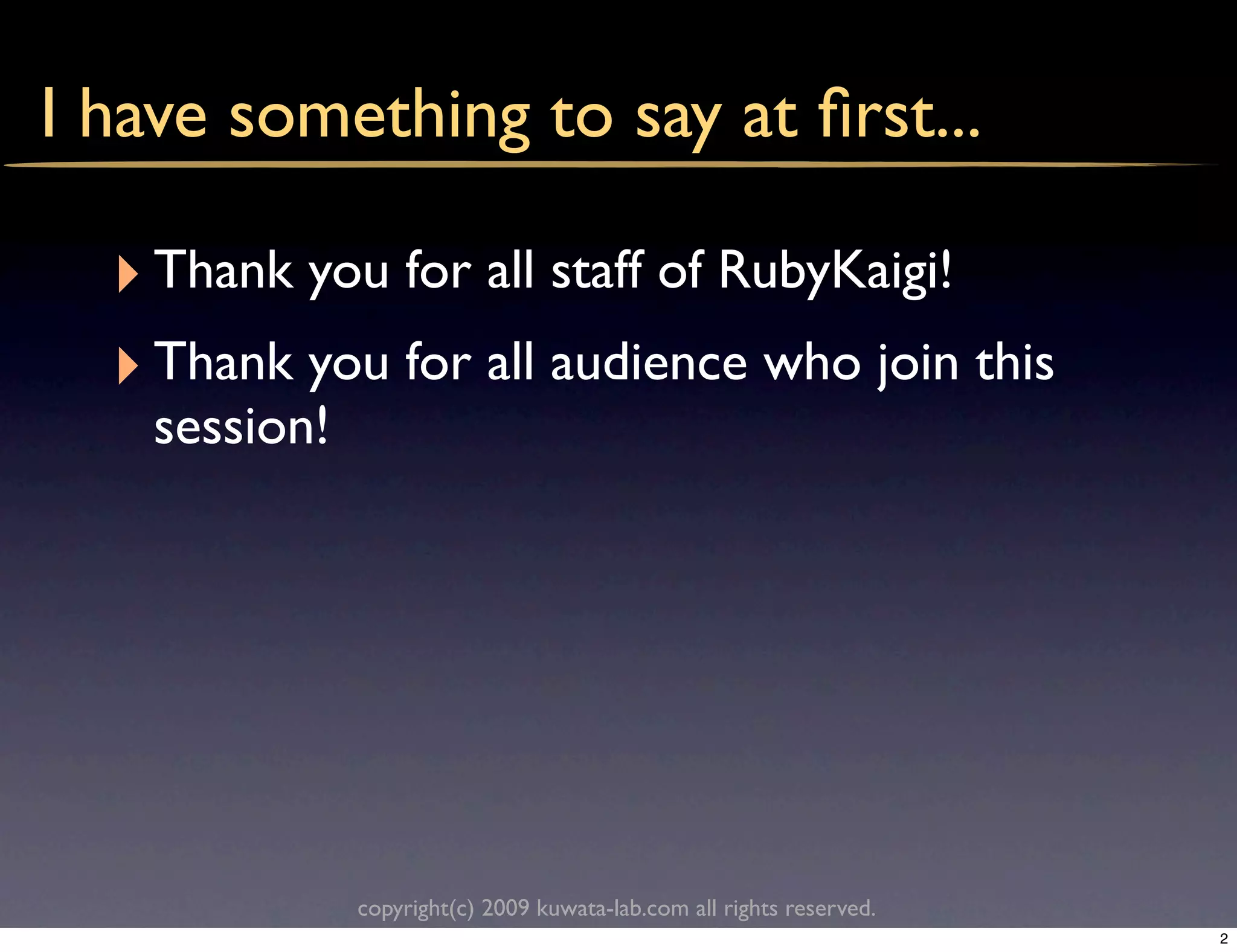

I have something to say at ﬁrst...

‣ Thank you for all staff of RubyKaigi!
‣ Thank you for all audience who join this
session!

2

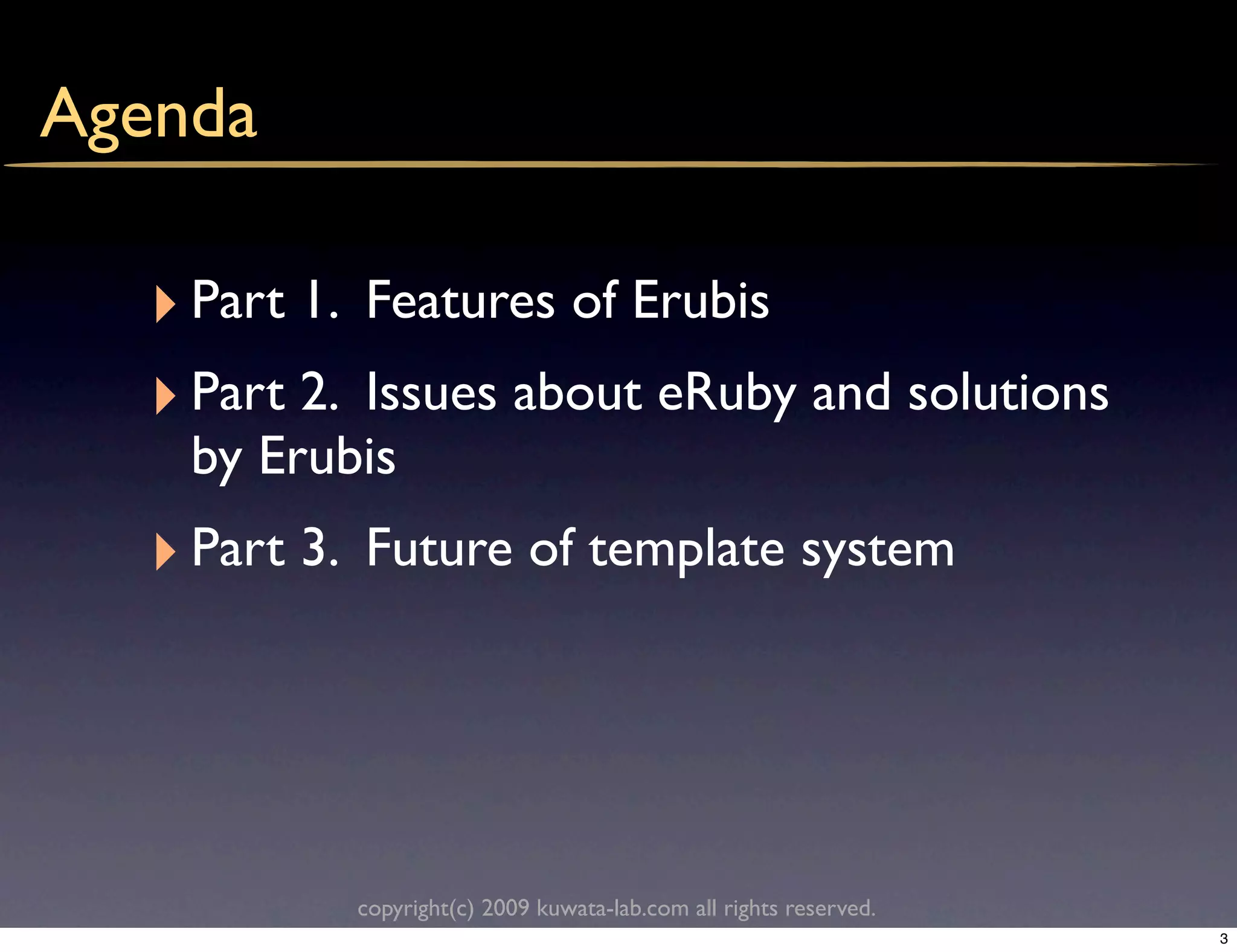

Agenda

‣ Part 1. Features of Erubis
‣ Part 2.Issues about eRuby and solutions
by Erubis
‣ Part 3. Future of template system

3

Part 1. Features of Erubis

4

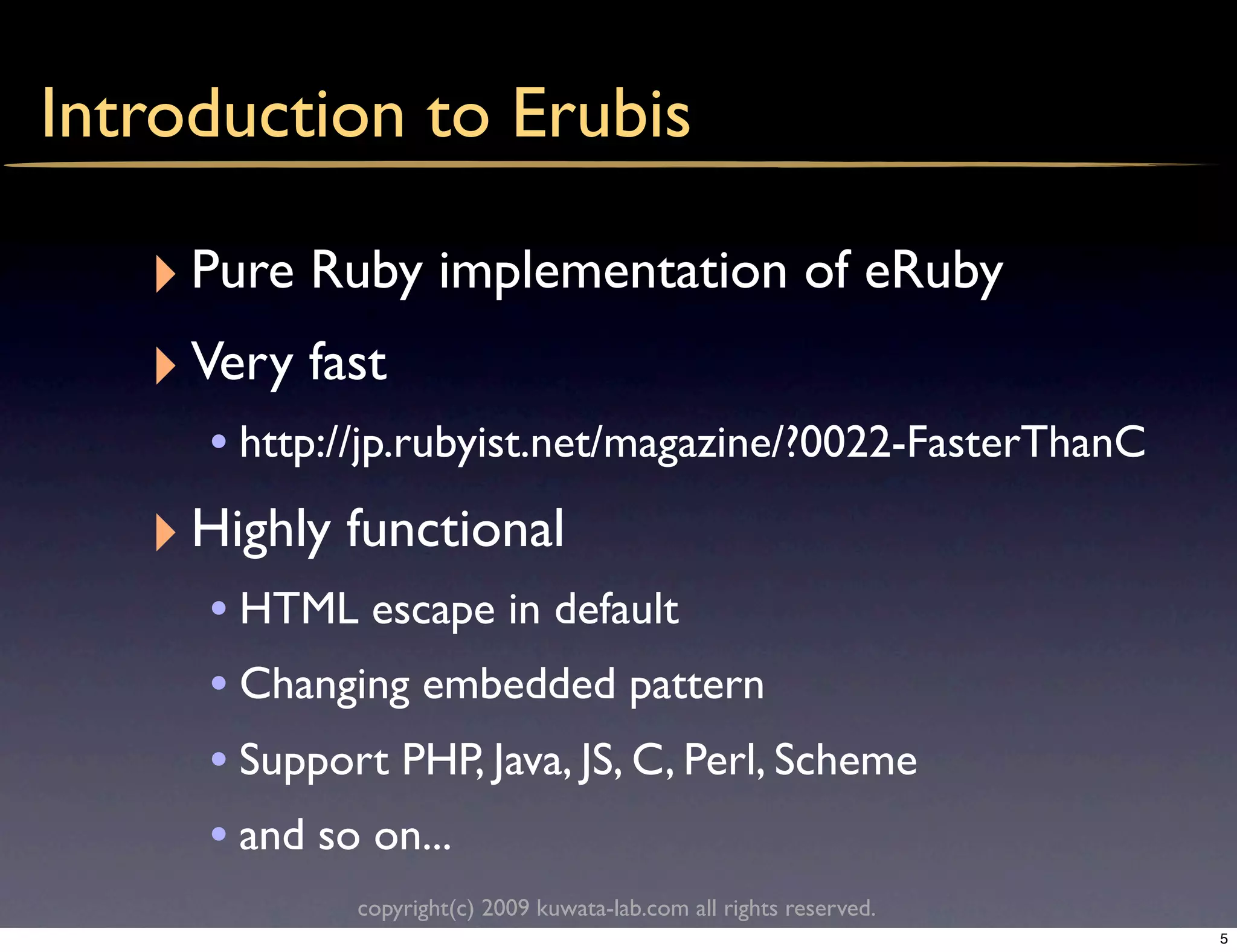

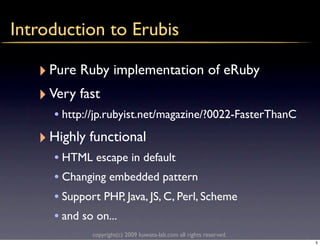

Introduction to Erubis

‣ Pure Ruby implementation of eRuby
‣ Very fast
• http://jp.rubyist.net/magazine/?0022-FasterThanC
‣ Highly functional
• HTML escape in default
• Changing embedded pattern
• Support PHP, Java, JS, C, Perl, Scheme
• and so on...
5

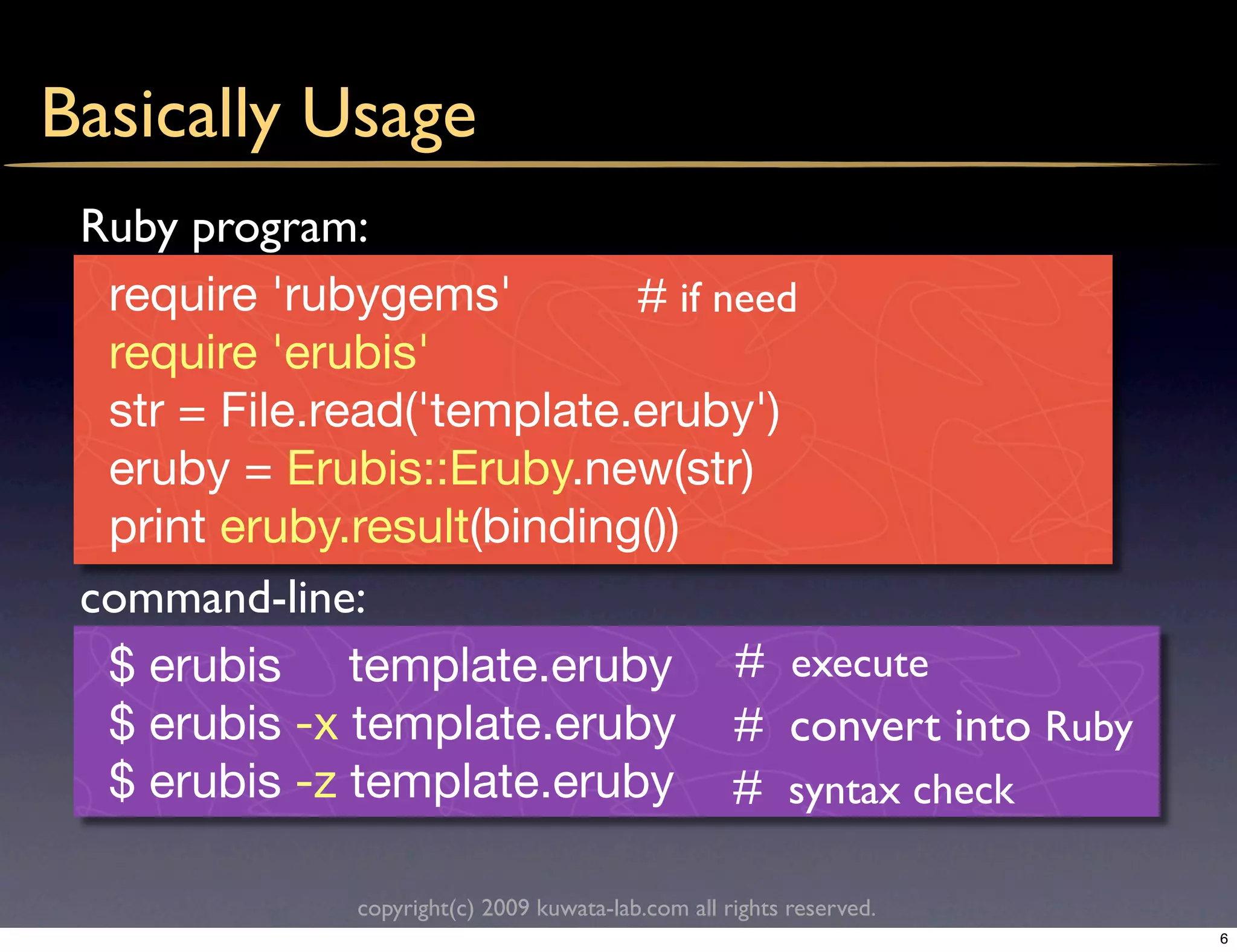

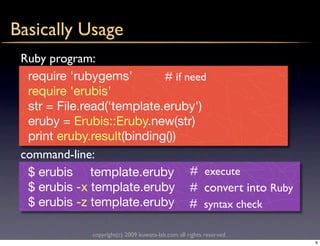

Basically Usage
Ruby program:
require 'rubygems' # if need
require 'erubis'
str = File.read('template.eruby')
eruby = Erubis::Eruby.new(str)
print eruby.result(binding())
command-line:
$ erubis template.eruby # execute
$ erubis -x template.eruby # convert into Ruby
$ erubis -z template.eruby # syntax check

6

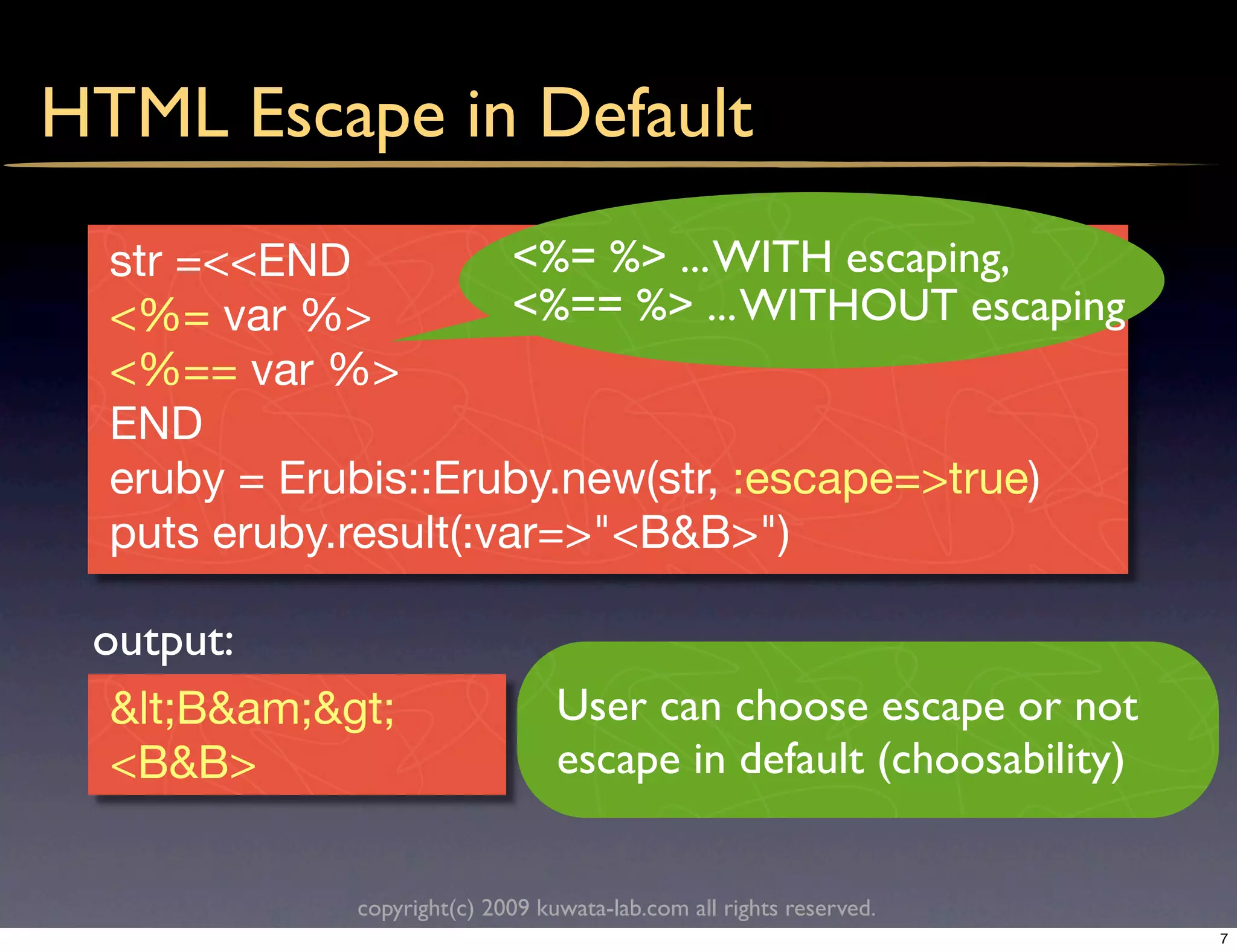

HTML Escape in Default
str =<<END <%= %> ... WITH escaping,
<%= var %> <%== %> ... WITHOUT escaping
<%== var %>
END
eruby = Erubis::Eruby.new(str, :escape=>true)
puts eruby.result(:var=>"<B&B>")

output:
<B&am;> User can choose escape or not
<B&B> escape in default (choosability)

7

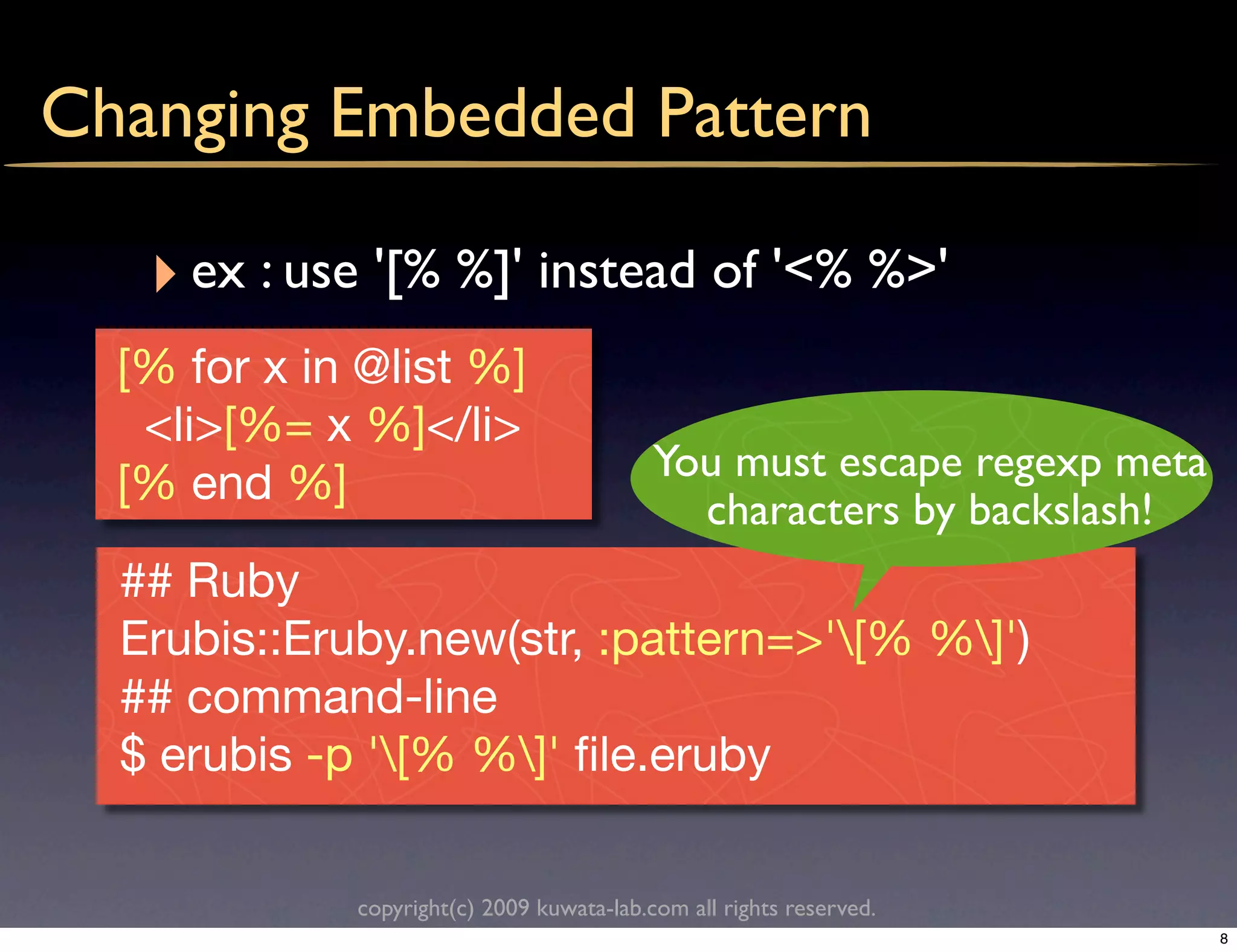

Changing Embedded Pattern

‣ ex : use '[% %]' instead of '<% %>'
[% for x in @list %]
<li>[%= x %]</li>
You must escape regexp meta
[% end %]
characters by backslash!
## Ruby
Erubis::Eruby.new(str, :pattern=>'[% %]')
## command-line
$ erubis -p '[% %]' ﬁle.eruby

8

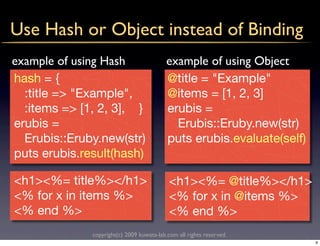

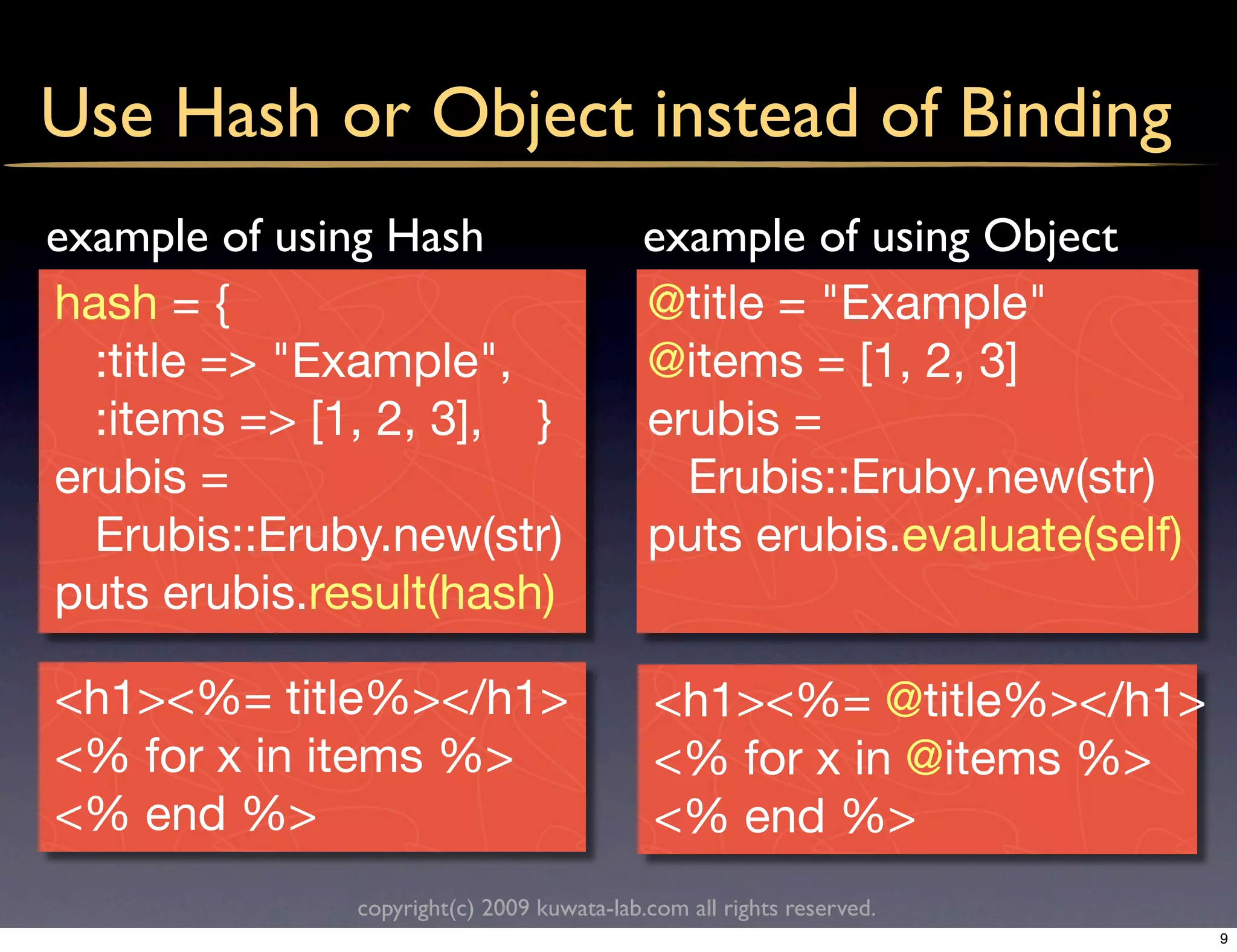

Use Hash or Object instead of Binding
example of using Hash example of using Object
hash = { @title = "Example"
:title => "Example", @items = [1, 2, 3]
:items => [1, 2, 3], } erubis =
erubis = Erubis::Eruby.new(str)
Erubis::Eruby.new(str) puts erubis.evaluate(self)
puts erubis.result(hash)

<h1><%= title%></h1> <h1><%= @title%></h1>
<% for x in items %> <% for x in @items %>
<% end %> <% end %>
9

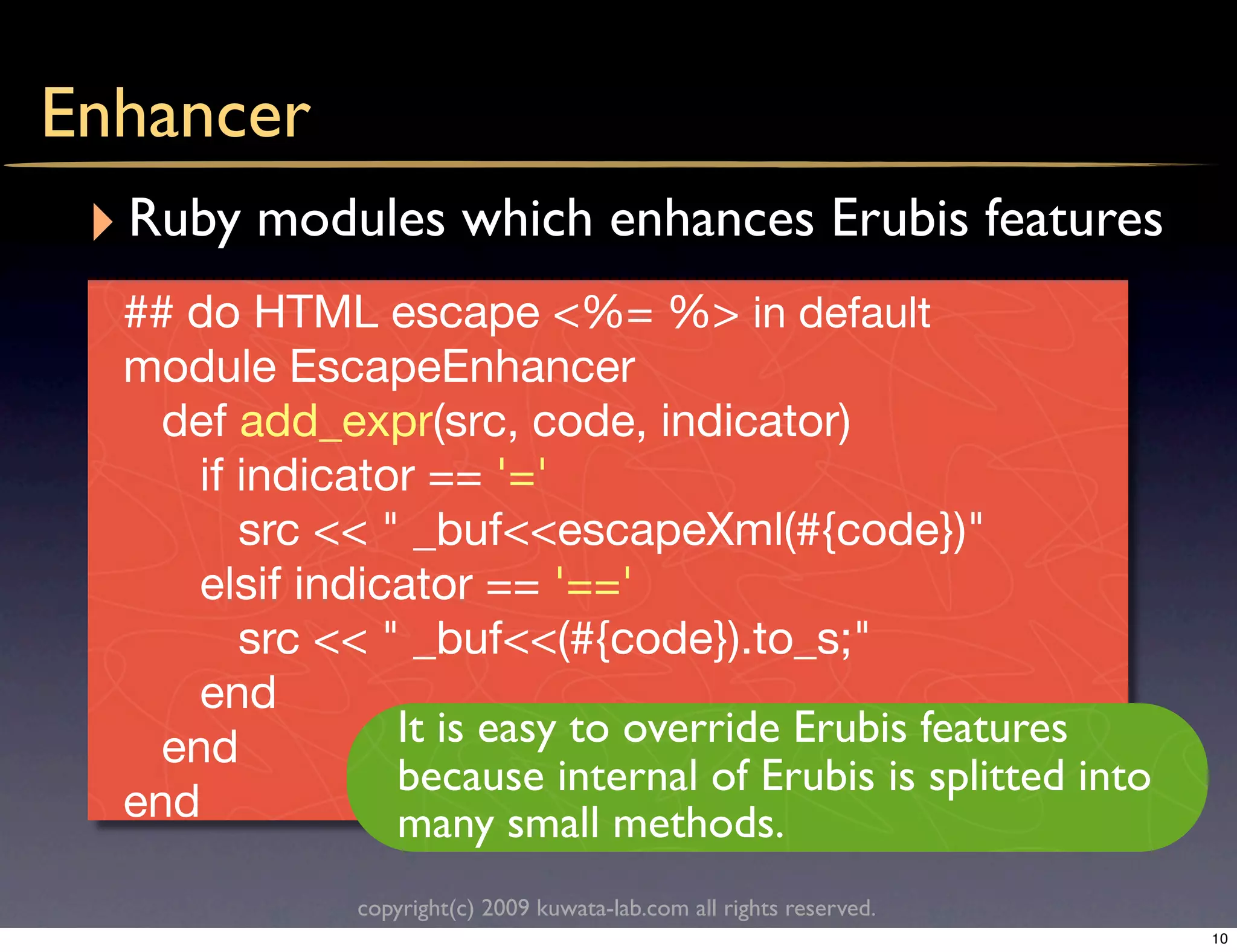

Enhancer
‣ Ruby modules which enhances Erubis features
## do HTML escape <%= %> in default
module EscapeEnhancer
def add_expr(src, code, indicator)
if indicator == '='
src << " _buf<<escapeXml(#{code})"
elsif indicator == '=='
src << " _buf<<(#{code}).to_s;"
end
end It is easy to override Erubis features
because internal of Erubis is splitted into
end many small methods.
10

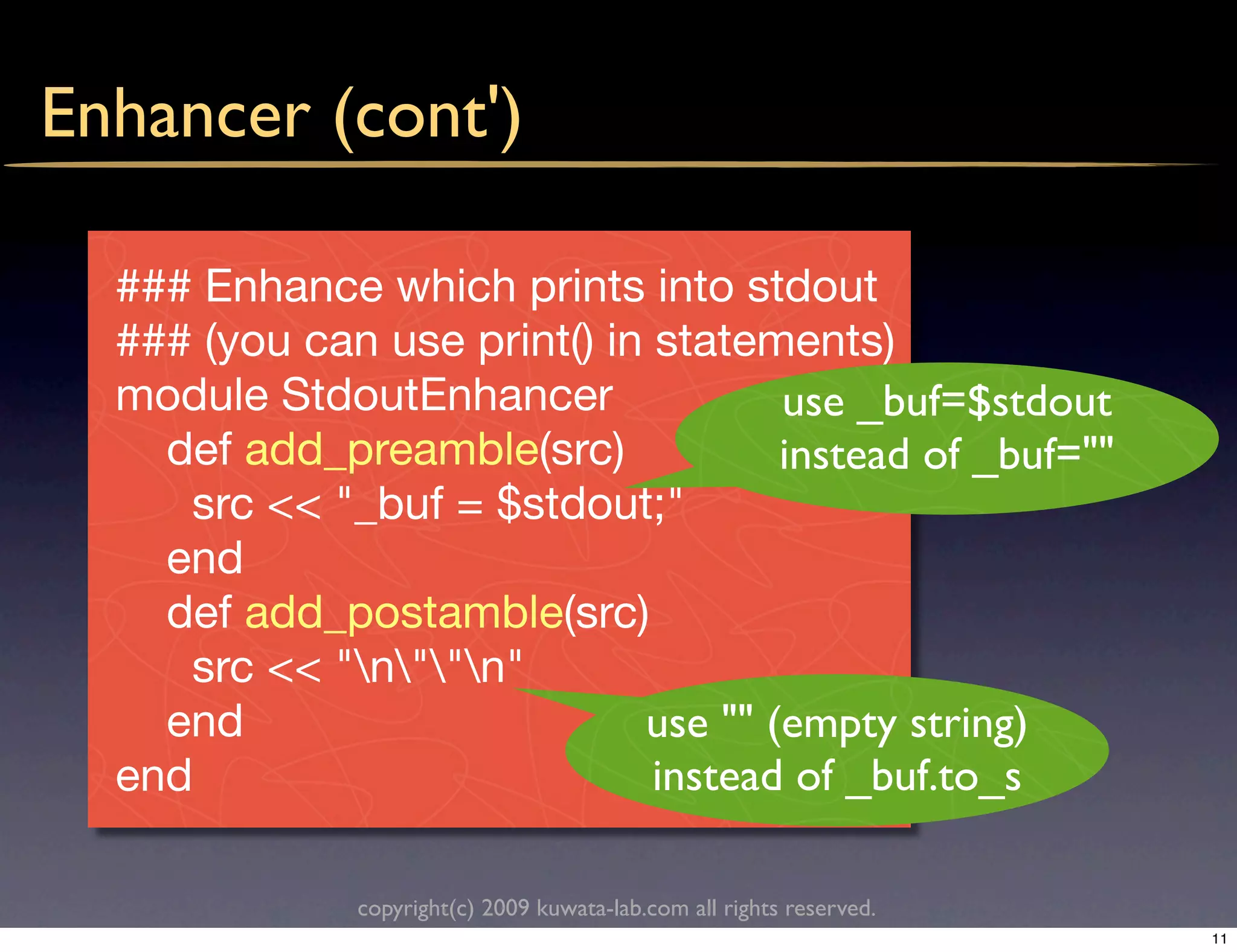

Enhancer (cont')

### Enhance which prints into stdout
### (you can use print() in statements)
module StdoutEnhancer use _buf=$stdout
def add_preamble(src) instead of _buf=""
src << "_buf = $stdout;"
end
def add_postamble(src)
src << "n""n"
end use "" (empty string)
end instead of _buf.to_s

11

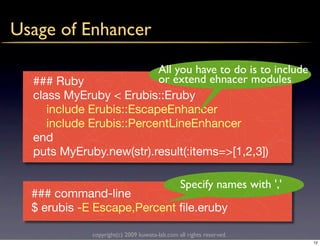

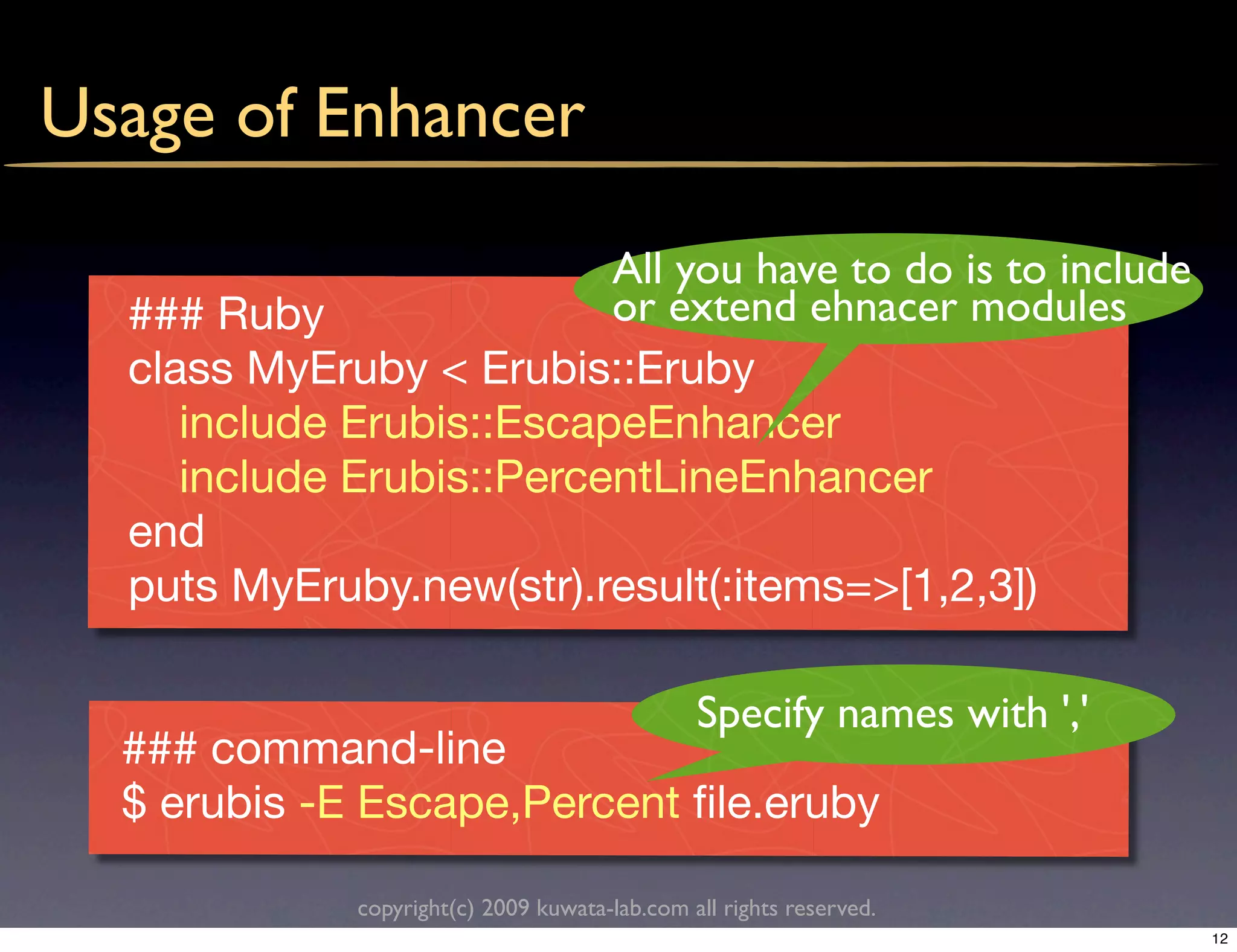

Usage of Enhancer

All you have to do is to include
### Ruby or extend ehnacer modules
class MyEruby < Erubis::Eruby
include Erubis::EscapeEnhancer
include Erubis::PercentLineEnhancer
end
puts MyEruby.new(str).result(:items=>[1,2,3])

Specify names with ','
### command-line
$ erubis -E Escape,Percent ﬁle.eruby

12

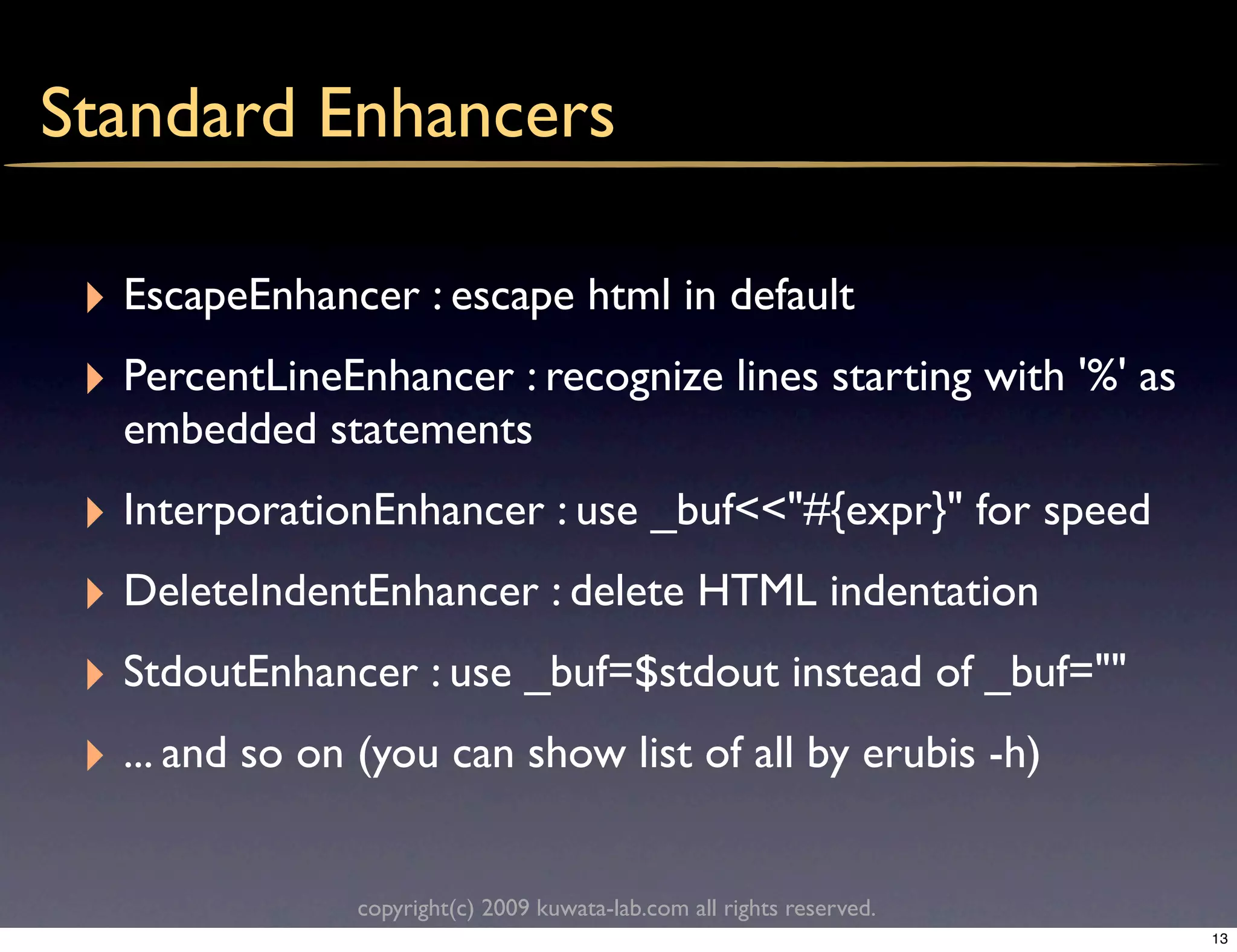

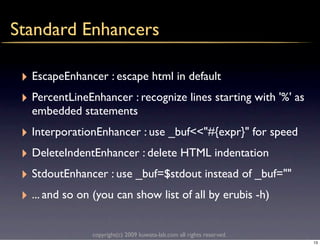

Standard Enhancers

‣ EscapeEnhancer : escape html in default
‣ PercentLineEnhancer : recognize lines starting with '%' as
embedded statements
‣ InterporationEnhancer : use _buf<<"#{expr}" for speed
‣ DeleteIndentEnhancer : delete HTML indentation
‣ StdoutEnhancer : use _buf=$stdout instead of _buf=""
‣ ... and so on (you can show list of all by erubis -h)

13

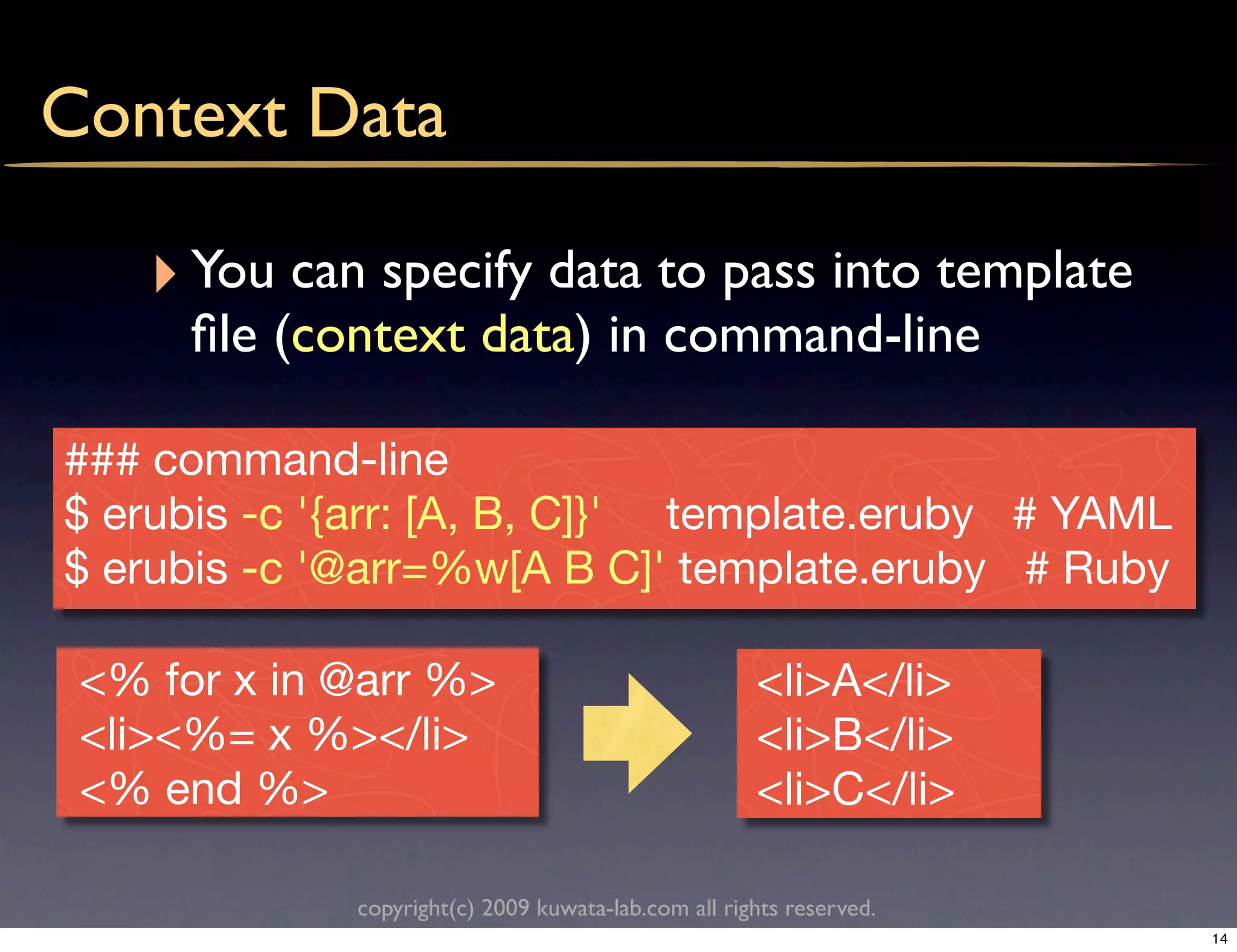

Context Data

‣ You can specify data to pass into template
ﬁle (context data) in command-line

### command-line
$ erubis -c '{arr: [A, B, C]}' template.eruby # YAML
$ erubis -c '@arr=%w[A B C]' template.eruby # Ruby

<% for x in @arr %> <li>A</li>
<li><%= x %></li> <li>B</li>
<% end %> <li>C</li>

14

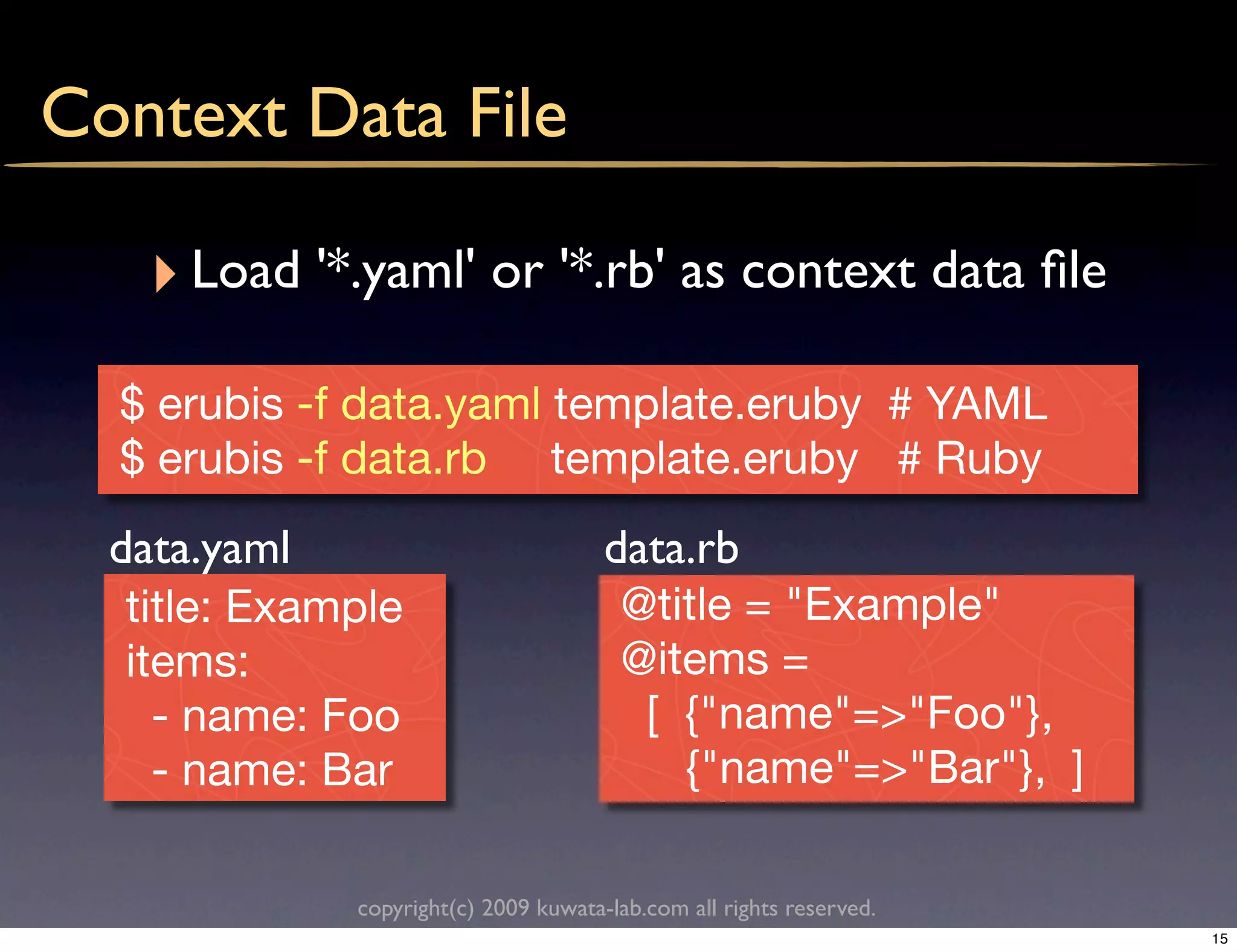

Context Data File

‣ Load '*.yaml' or '*.rb' as context data ﬁle
$ erubis -f data.yaml template.eruby # YAML
$ erubis -f data.rb template.eruby # Ruby
data.yaml data.rb
title: Example @title = "Example"
items: @items =
- name: Foo [ {"name"=>"Foo"},
- name: Bar {"name"=>"Bar"}, ]

15

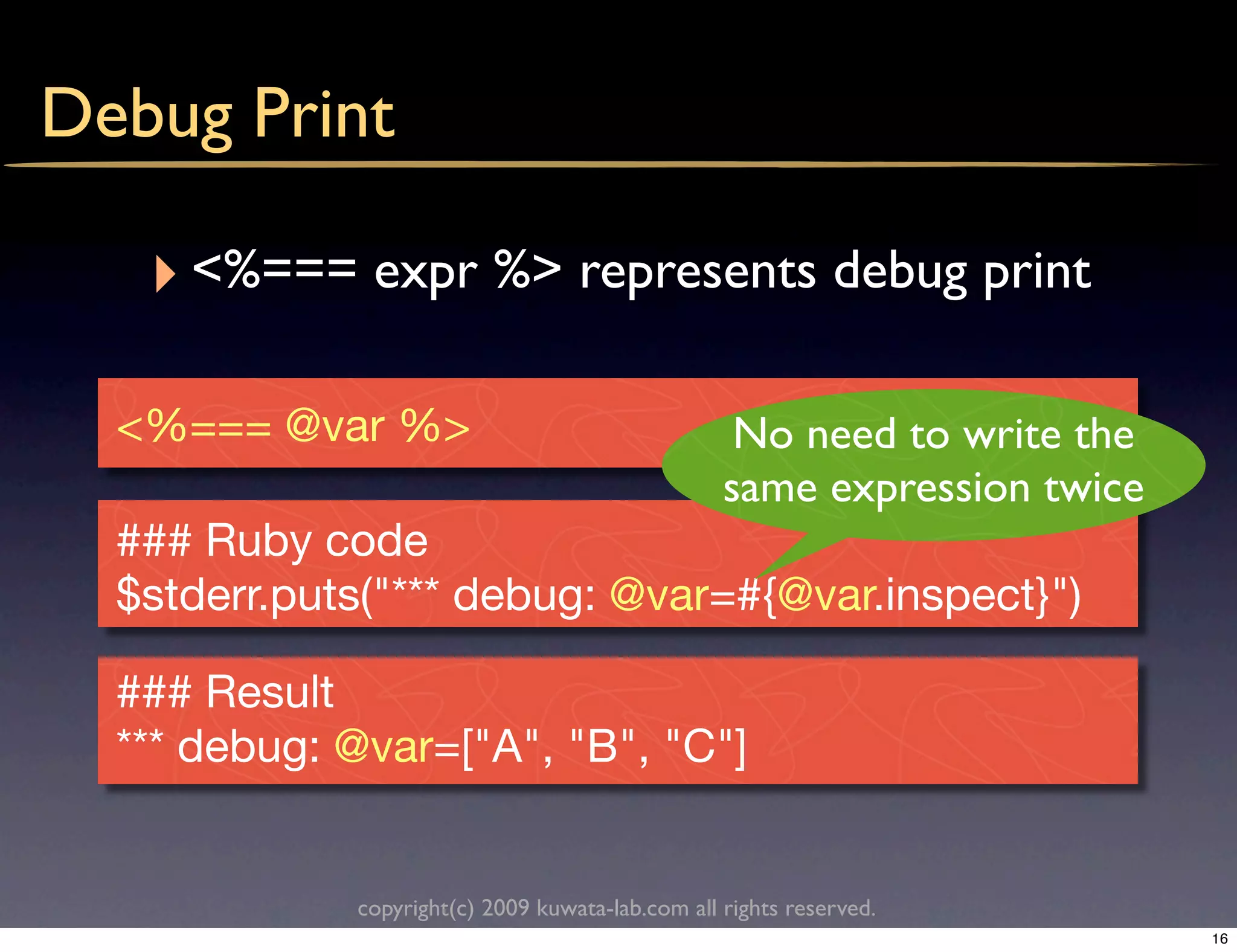

Debug Print

‣ <%=== expr %> represents debug print

<%=== @var %> No need to write the
same expression twice
### Ruby code
$stderr.puts("*** debug: @var=#{@var.inspect}")

### Result
*** debug: @var=["A", "B", "C"]

16

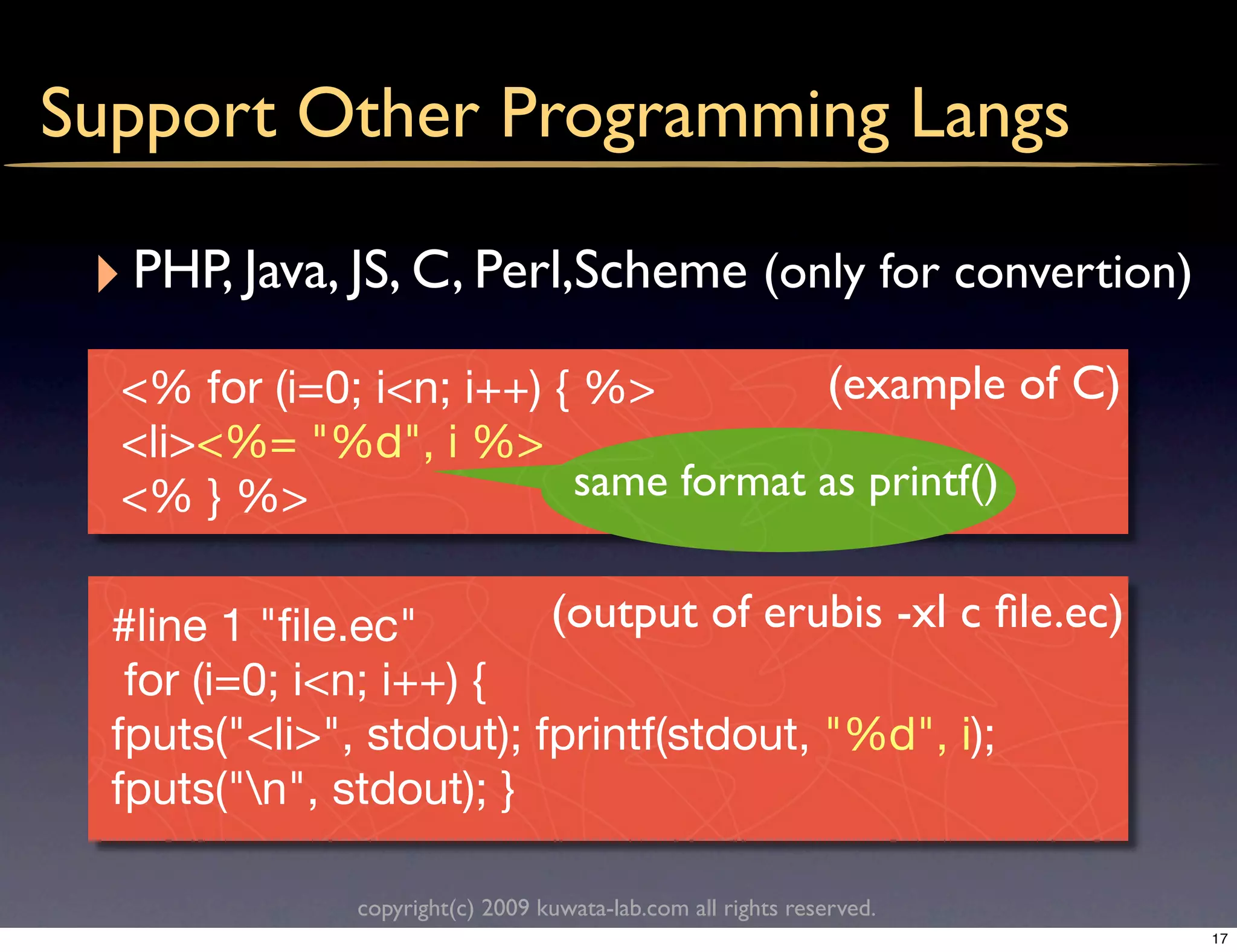

Support Other Programming Langs

‣ PHP, Java, JS, C, Perl,Scheme (only for convertion)
<% for (i=0; i<n; i++) { %> (example of C)
<li><%= "%d", i %>
<% } %> same format as printf()

#line 1 "ﬁle.ec" (output of erubis -xl c ﬁle.ec)
for (i=0; i<n; i++) {
fputs("<li>", stdout); fprintf(stdout, "%d", i);
fputs("n", stdout); }

17

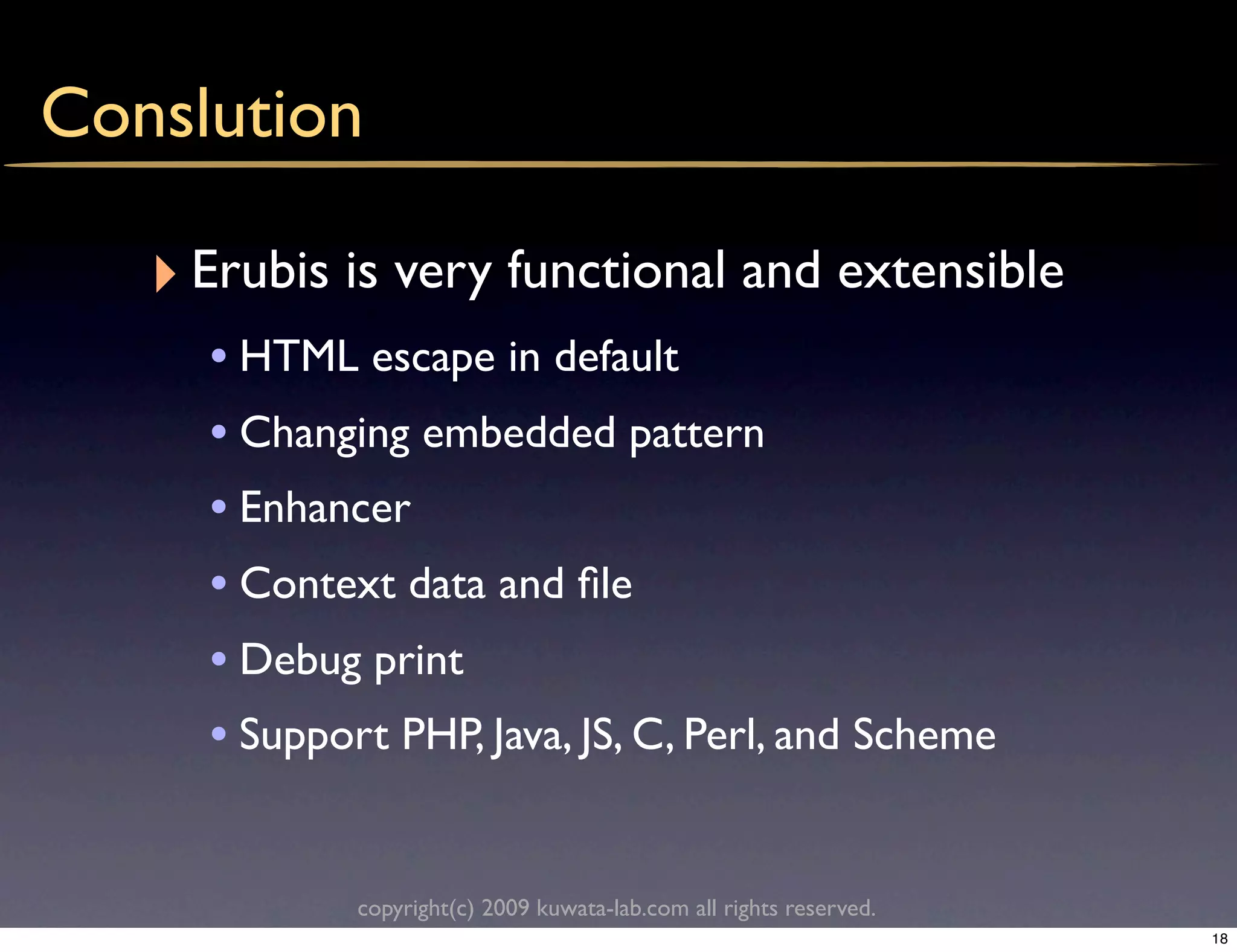

Conslution

‣ Erubis is very functional and extensible
• Changing embedded pattern
• Enhancer
• Context data and ﬁle
• Debug print
• Support PHP, Java, JS, C, Perl, and Scheme

18

Part 2. Issues about eRuby
and solutions by Erubis

19

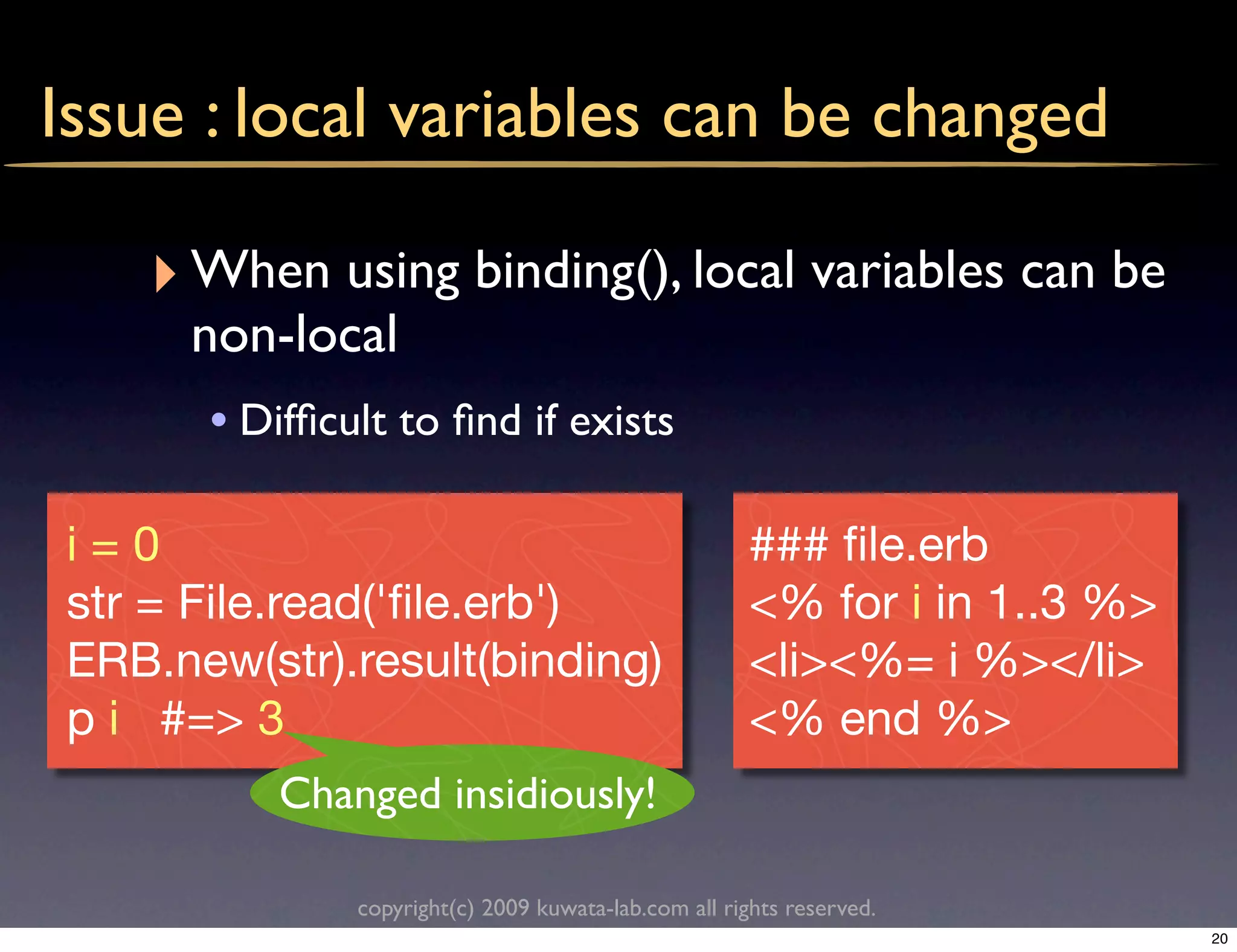

Issue : local variables can be changed

‣ When using binding(), local variables can be
non-local
• Difficult to find if exists

i=0 ### file.erb
str = File.read('file.erb') <% for i in 1..3 %>
ERB.new(str).result(binding) <li><%= i %></li>
p i #=> 3 <% end %>
Changed insidiously!

20

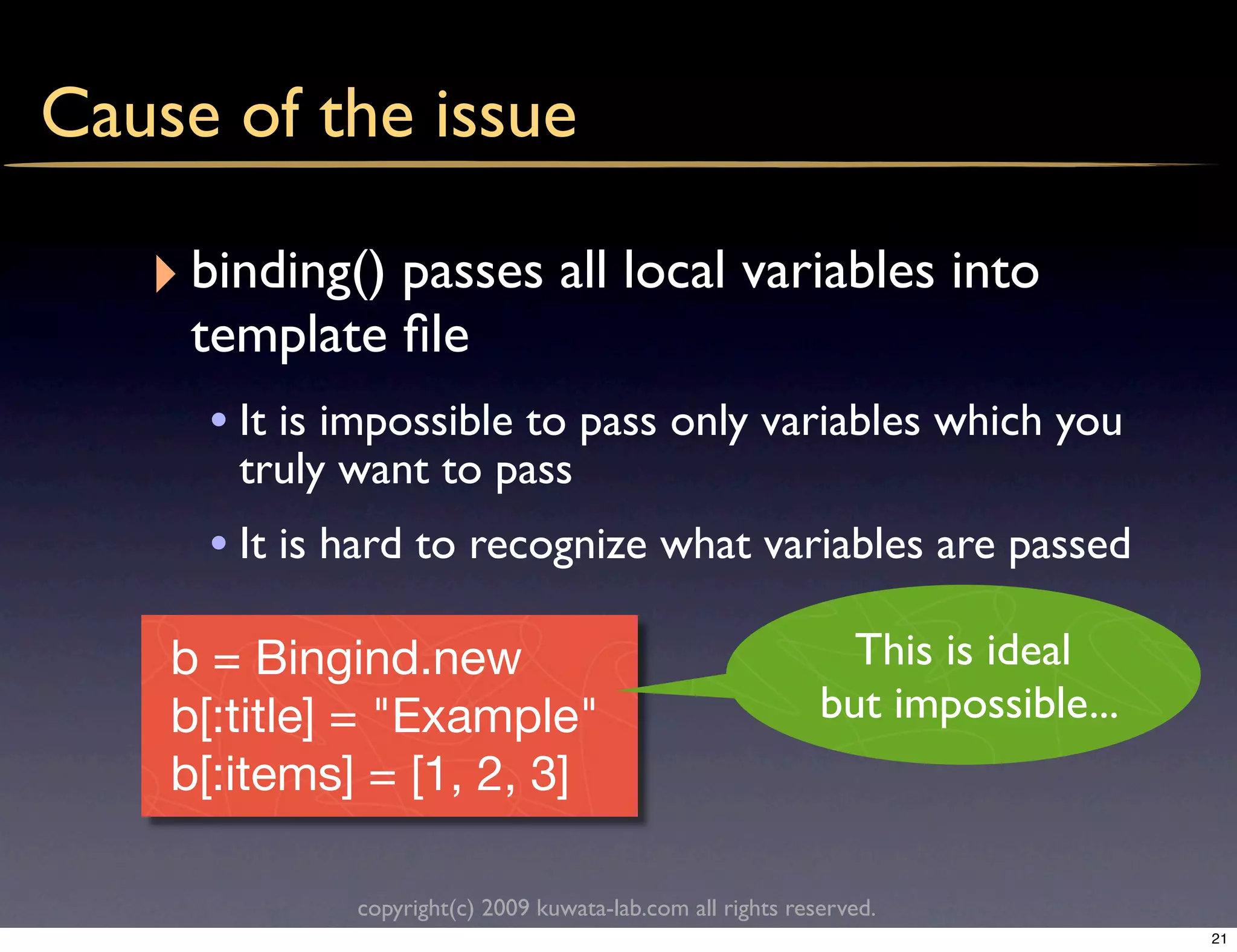

Cause of the issue

‣ binding() passes all local variables into
template ﬁle
• It is impossible to pass only variables which you
truly want to pass
• It is hard to recognize what variables are passed

b = Bingind.new This is ideal
b[:title] = "Example" but impossible...
b[:items] = [1, 2, 3]

21

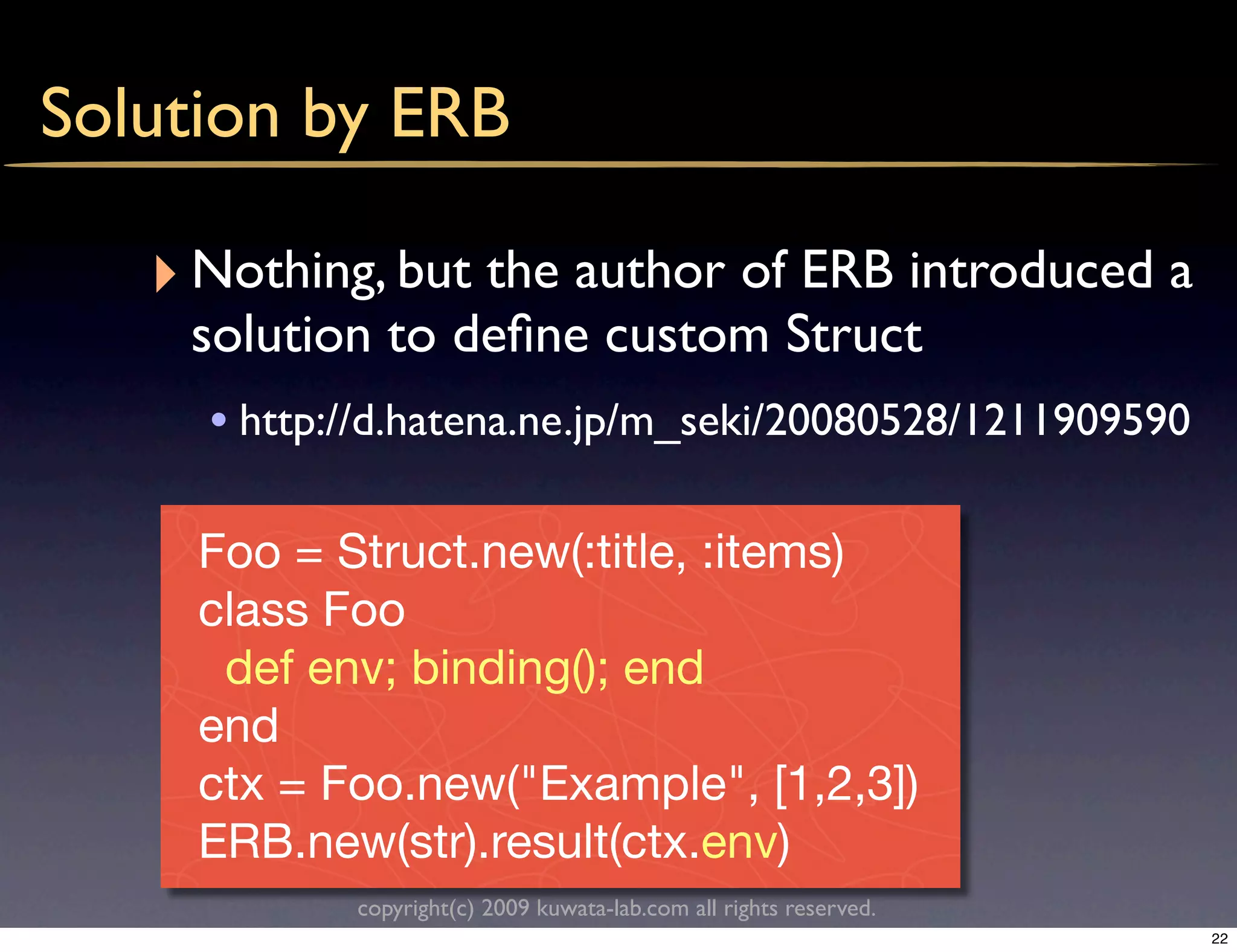

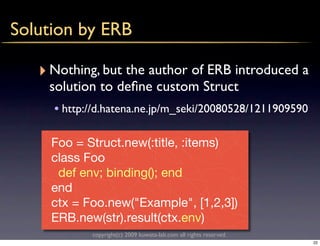

Solution by ERB

‣ Nothing, but the author of ERB introduced a
solution to deﬁne custom Struct
• http://d.hatena.ne.jp/m_seki/20080528/1211909590

Foo = Struct.new(:title, :items)
class Foo
def env; binding(); end
end
ctx = Foo.new("Example", [1,2,3])
ERB.new(str).result(ctx.env)
22

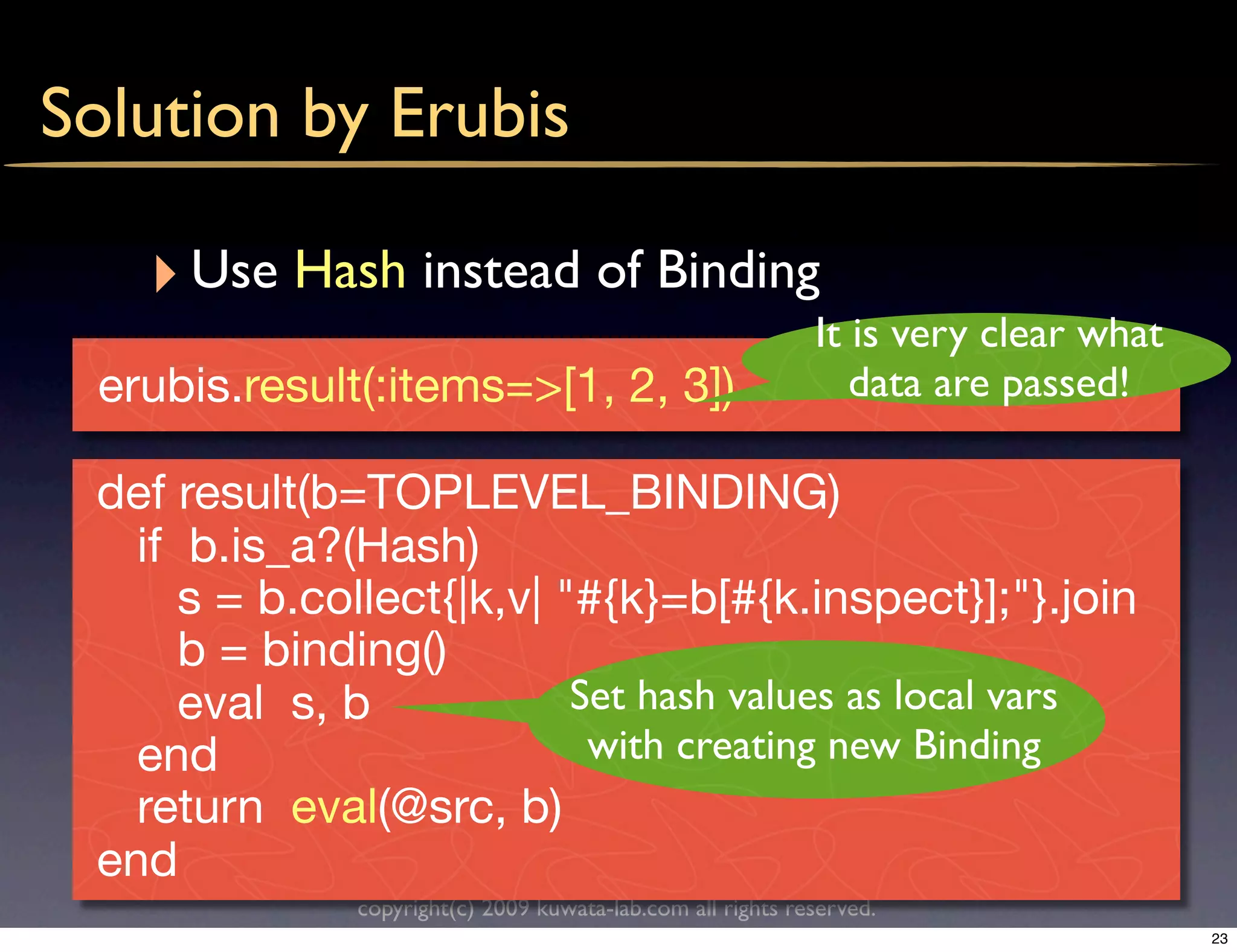

Solution by Erubis

‣ Use Hash instead of Binding
It is very clear what
erubis.result(:items=>[1, 2, 3]) data are passed!

def result(b=TOPLEVEL_BINDING)
if b.is_a?(Hash)
s = b.collect{|k,v| "#{k}=b[#{k.inspect}];"}.join
b = binding()
eval s, b Set hash values as local vars
end with creating new Binding
return eval(@src, b)
end
23

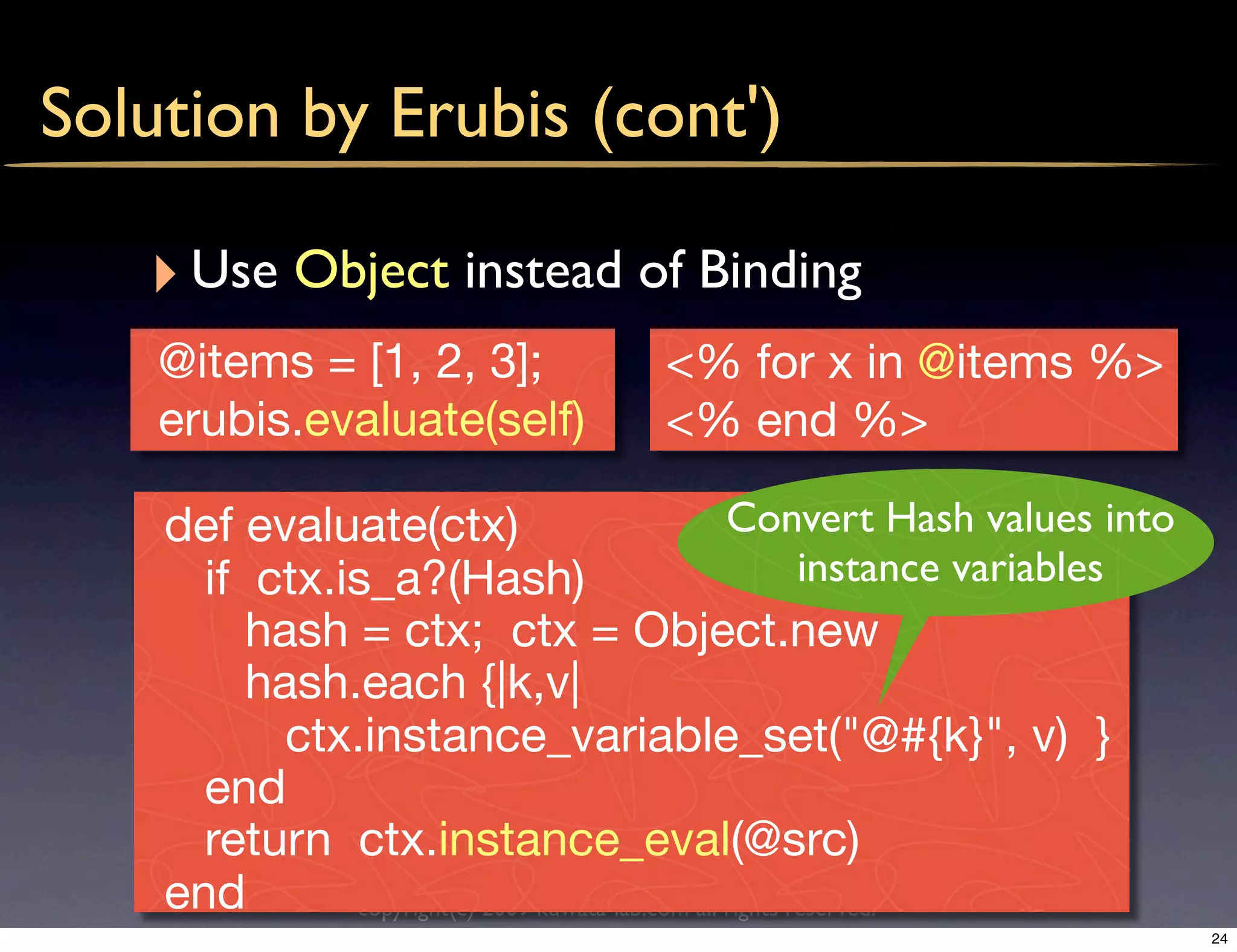

Solution by Erubis (cont')

‣ Use Object instead of Binding
@items = [1, 2, 3]; <% for x in @items %>
erubis.evaluate(self) <% end %>

def evaluate(ctx) Convert Hash values into
if ctx.is_a?(Hash) instance variables
hash = ctx; ctx = Object.new
hash.each {|k,v|
ctx.instance_variable_set("@#{k}", v) }
end
return ctx.instance_eval(@src)
end copyright(c) 2009 kuwata-lab.com all rights reserved.
24

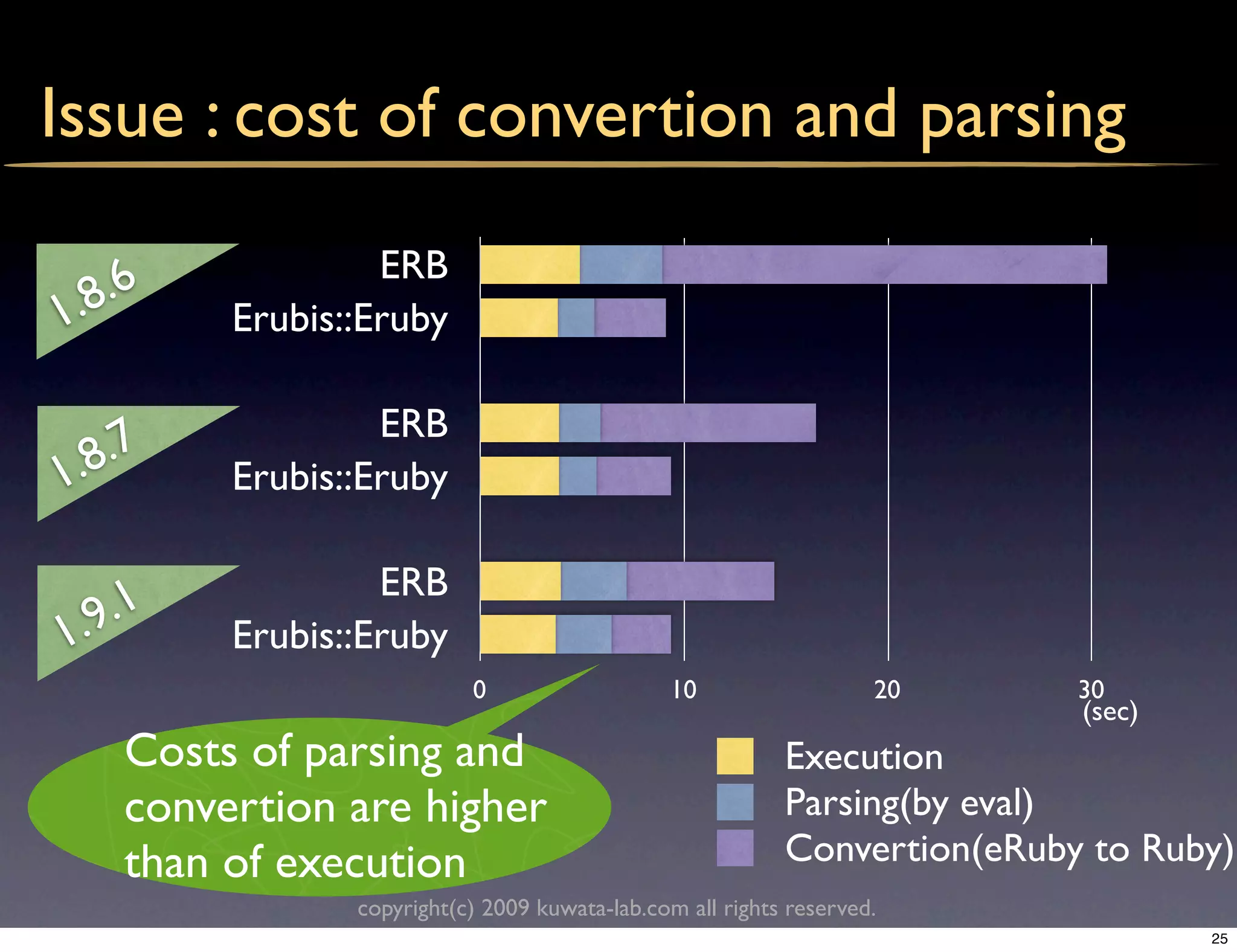

Issue : cost of convertion and parsing
ERB
1. 8.6 Erubis::Eruby

ERB
1. 8.7 Erubis::Eruby

ERB
1.9.1 Erubis::Eruby
0 10 20 30
(sec)
Costs of parsing and Execution
convertion are higher Parsing(by eval)
than of execution Convertion(eRuby to Ruby)
25

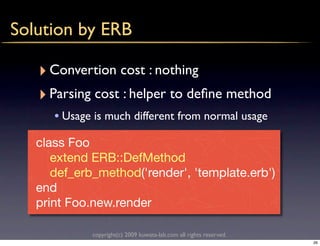

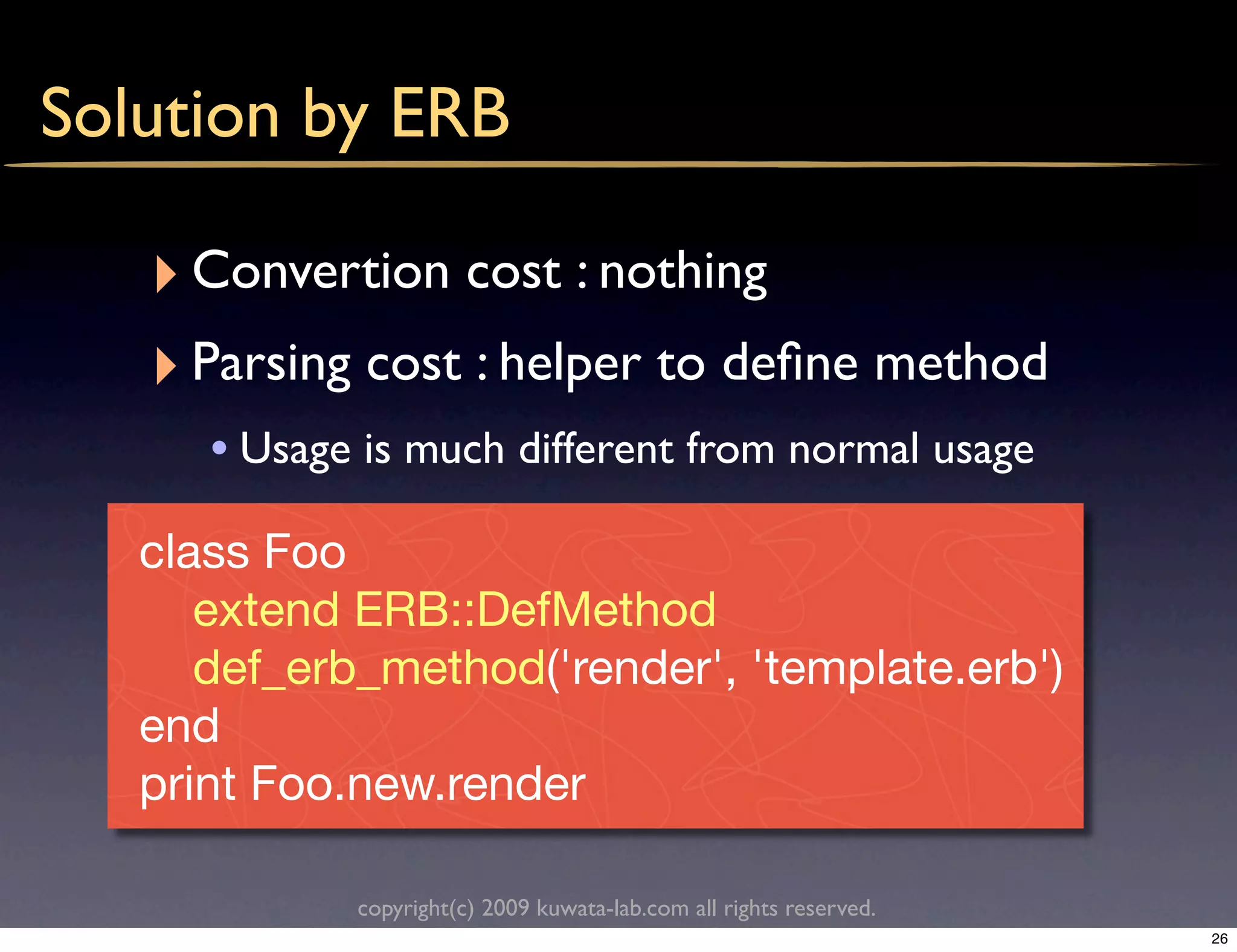

Solution by ERB

‣ Convertion cost : nothing
‣ Parsing cost : helper to deﬁne method
• Usage is much different from normal usage
class Foo
extend ERB::DefMethod
def_erb_method('render', 'template.erb')
end
print Foo.new.render

26

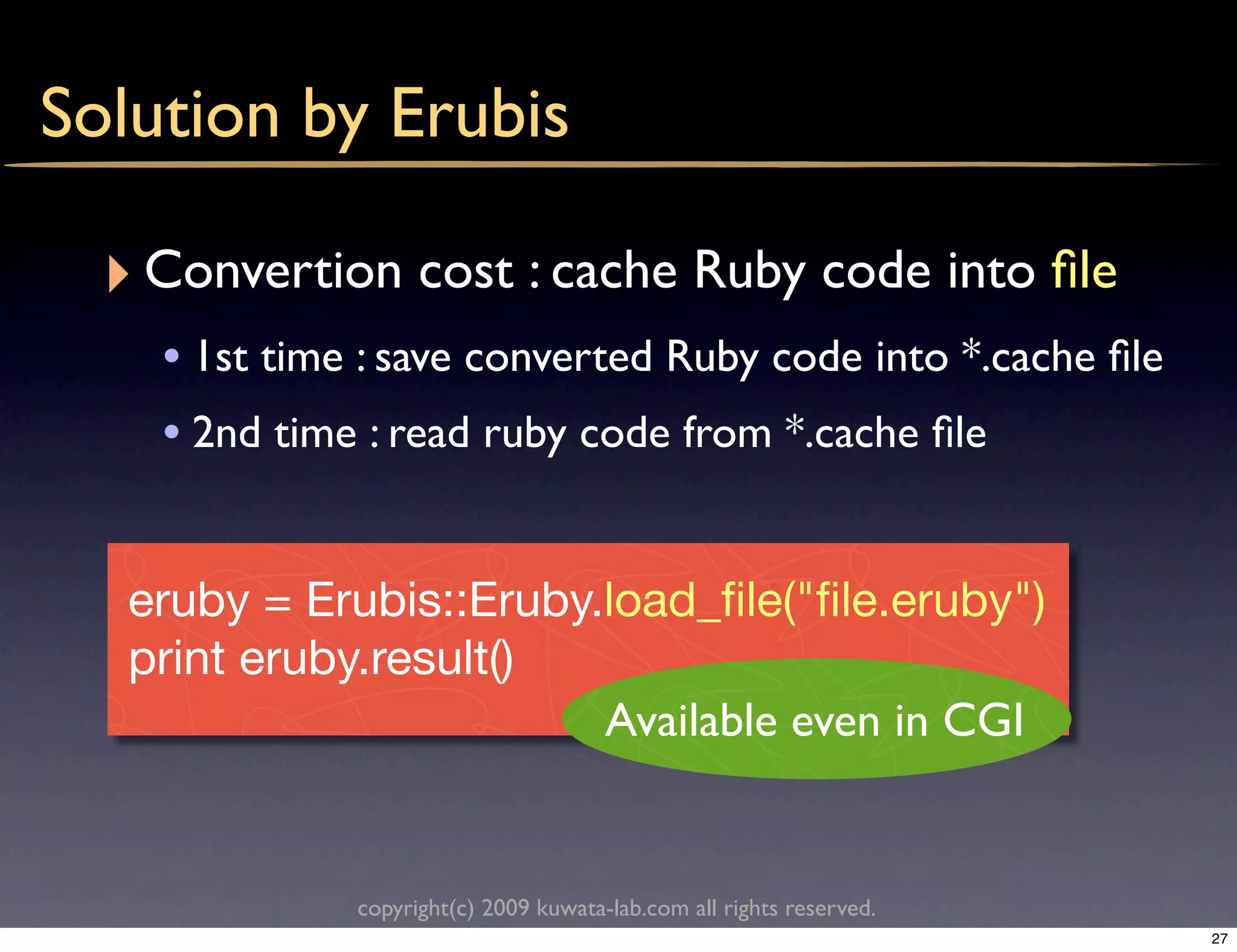

Solution by Erubis

‣ Convertion cost : cache Ruby code into file
• 1st time : save converted Ruby code into *.cache file
• 2nd time : read ruby code from *.cache file

eruby = Erubis::Eruby.load_file("file.eruby")
print eruby.result()
Available even in CGI

27

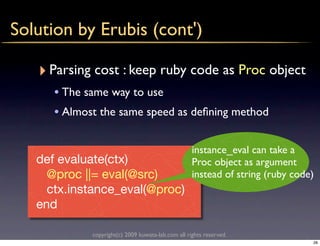

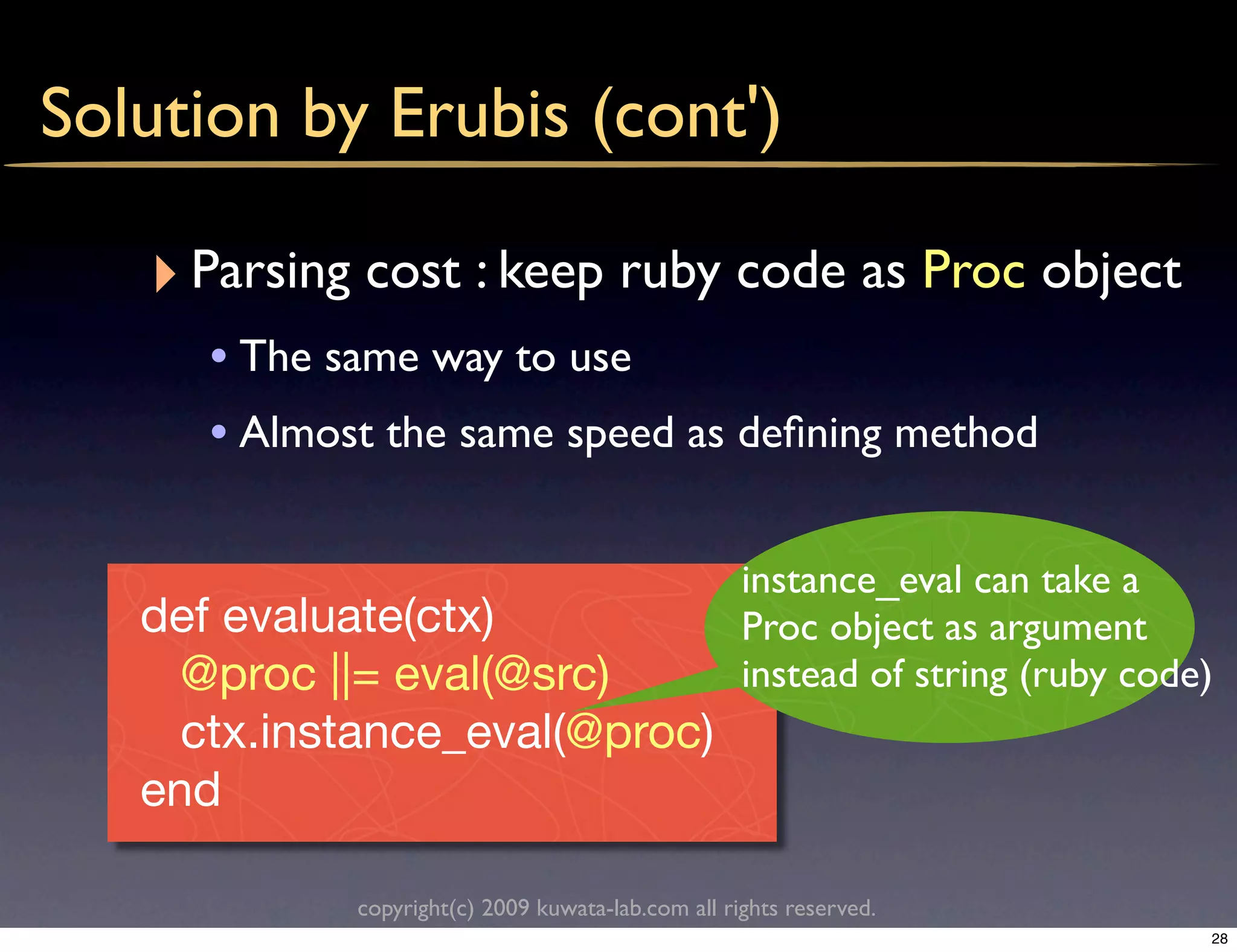

Solution by Erubis (cont')

‣ Parsing cost : keep ruby code as Proc object
• The same way to use
• Almost the same speed as deﬁning method

instance_eval can take a
def evaluate(ctx) Proc object as argument
@proc ||= eval(@src) instead of string (ruby code)
ctx.instance_eval(@proc)
end

28

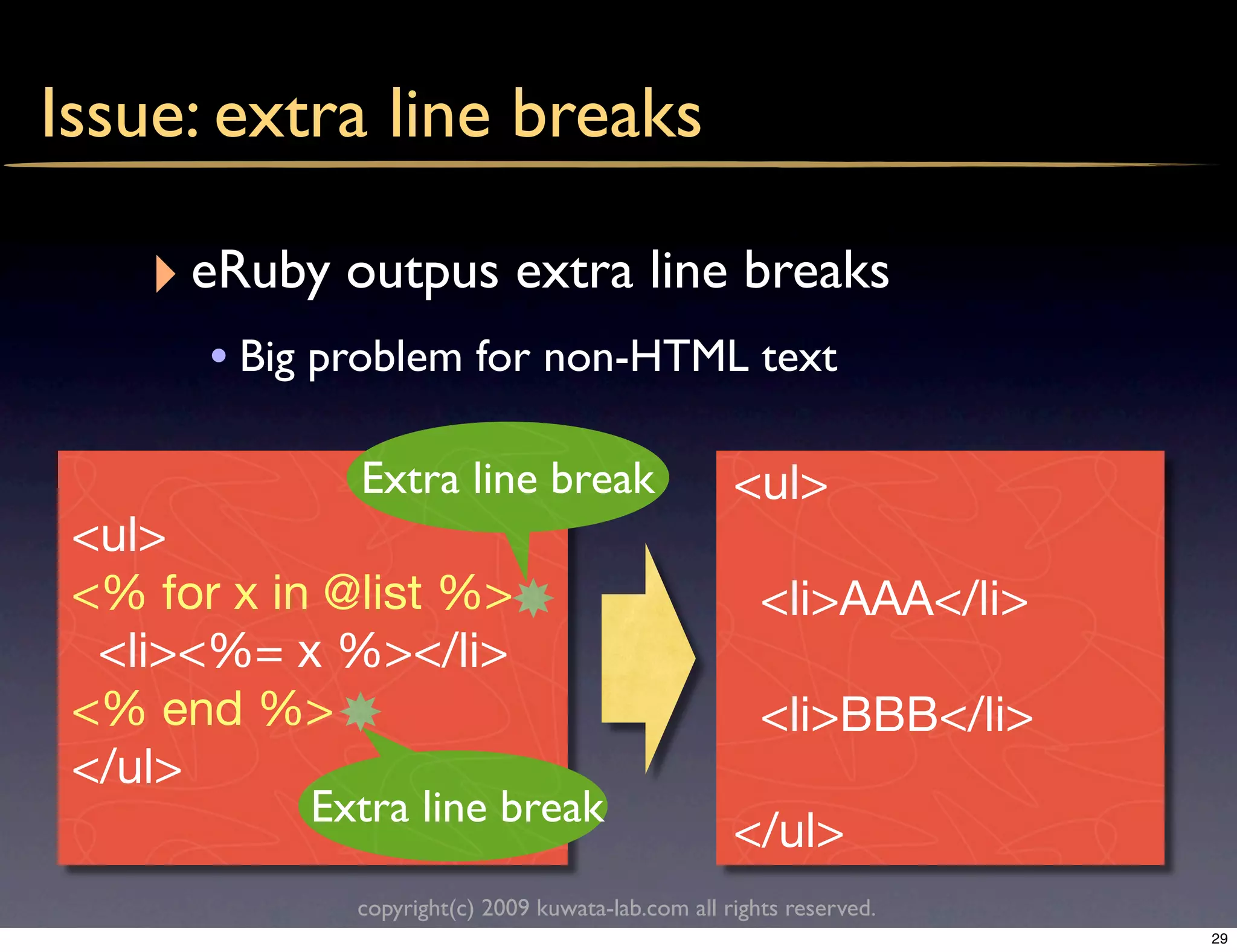

Issue: extra line breaks

‣ eRuby outpus extra line breaks
• Big problem for non-HTML text

Extra line break <ul>
<ul>
<% for x in @list %> <li>AAA</li>
<li><%= x %></li>
<% end %> <li>BBB</li>
</ul>
Extra line break
</ul>
29

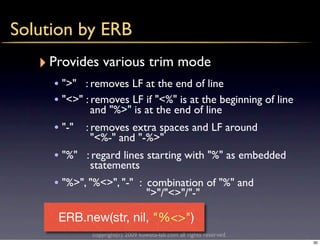

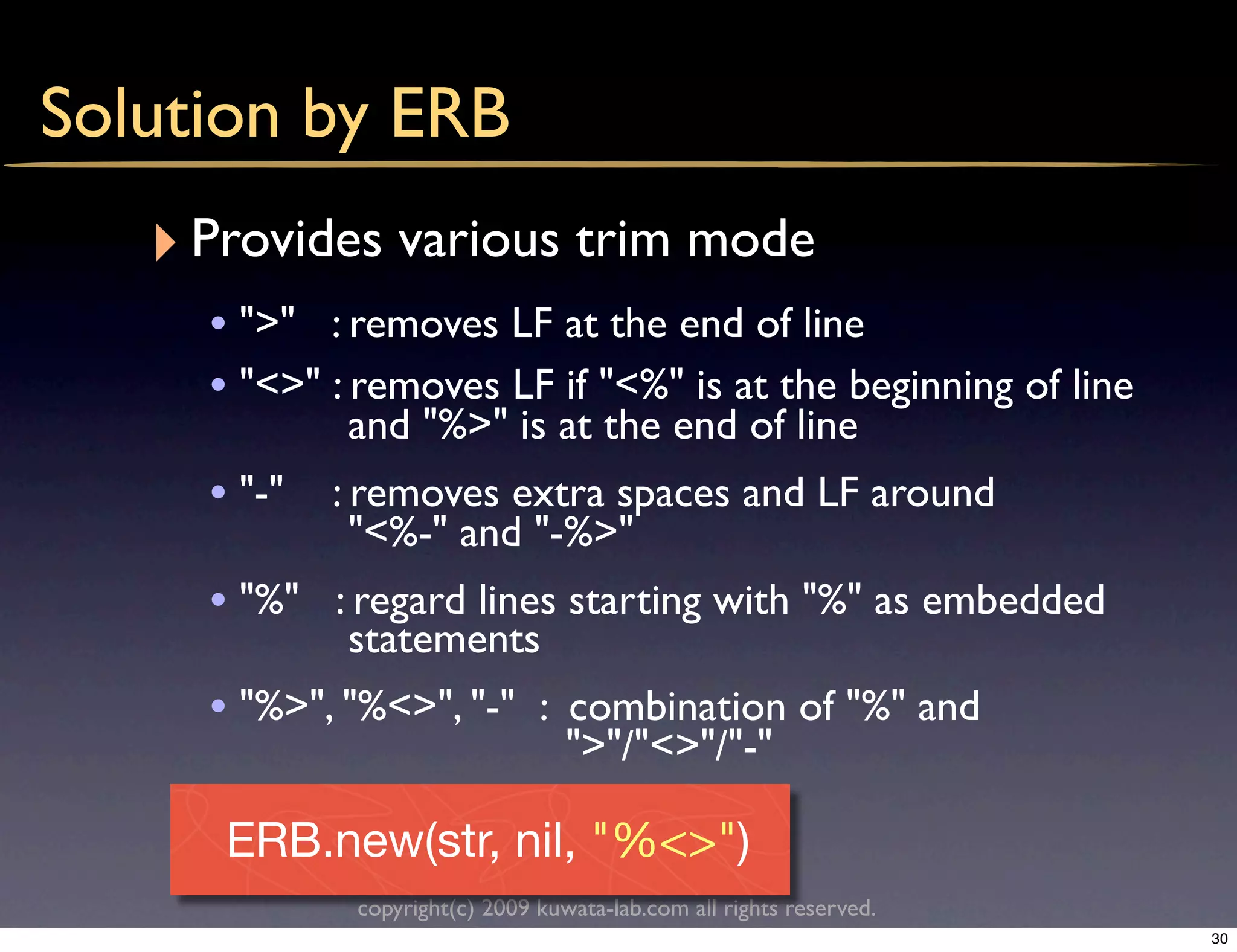

Solution by ERB
‣ Provides various trim mode
• ">" : removes LF at the end of line
• "<>" : removes LF if "<%" is at the beginning of line
and "%>" is at the end of line
• "-" : removes extra spaces and LF around
"<%-" and "-%>"
• "%" : regard lines starting with "%" as embedded
statements
• "%>", "%<>", "-" : combination of "%" and
">"/"<>"/"-"

ERB.new(str, nil, "%<>")
30

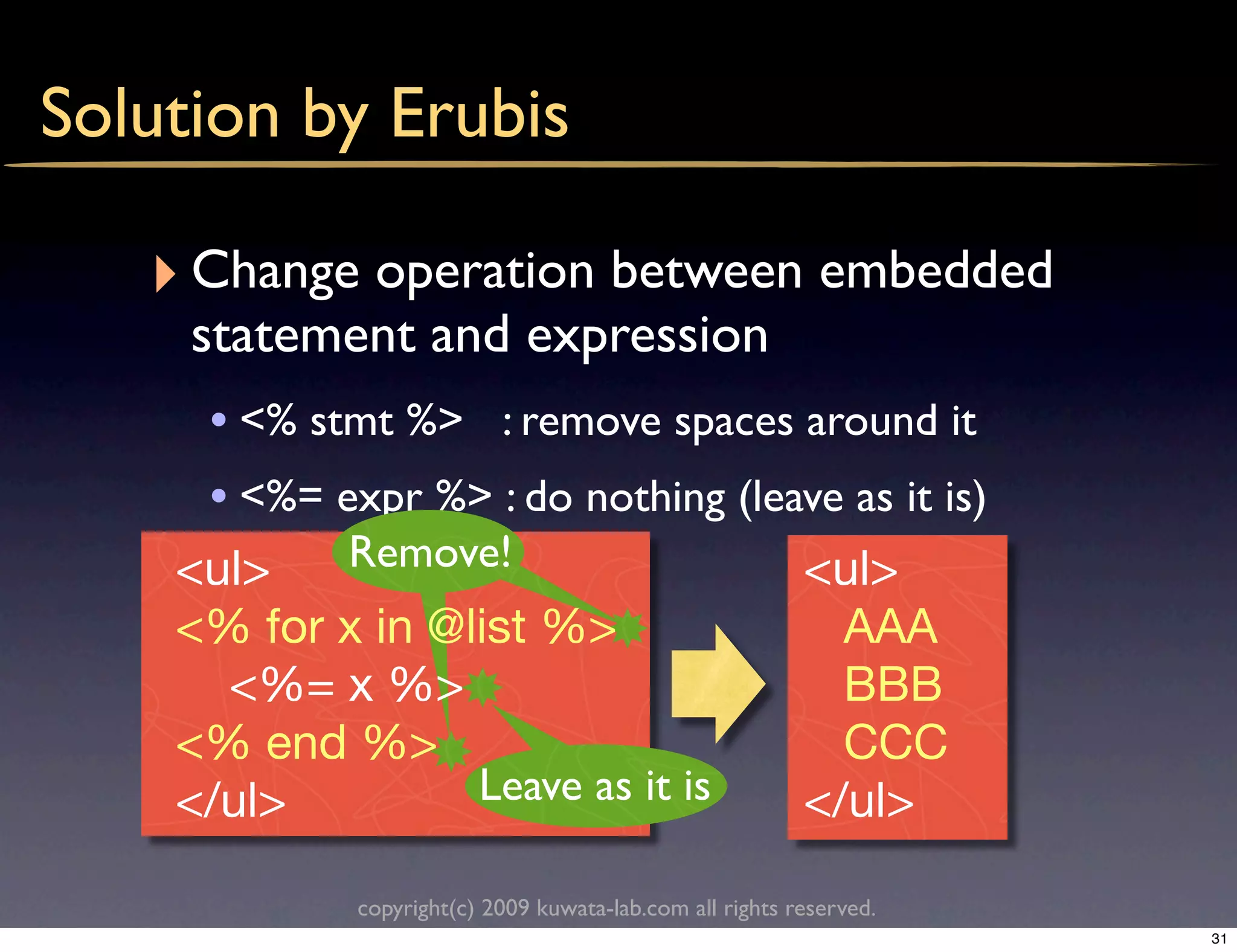

Solution by Erubis

‣ Change operation between embedded
statement and expression
• <% stmt %> : remove spaces around it
• <%= expr %> : do nothing (leave as it is)
<ul> Remove! <ul>
<% for x in @list %> AAA
<%= x %> BBB
<% end %> CCC
</ul> Leave as it is </ul>

31

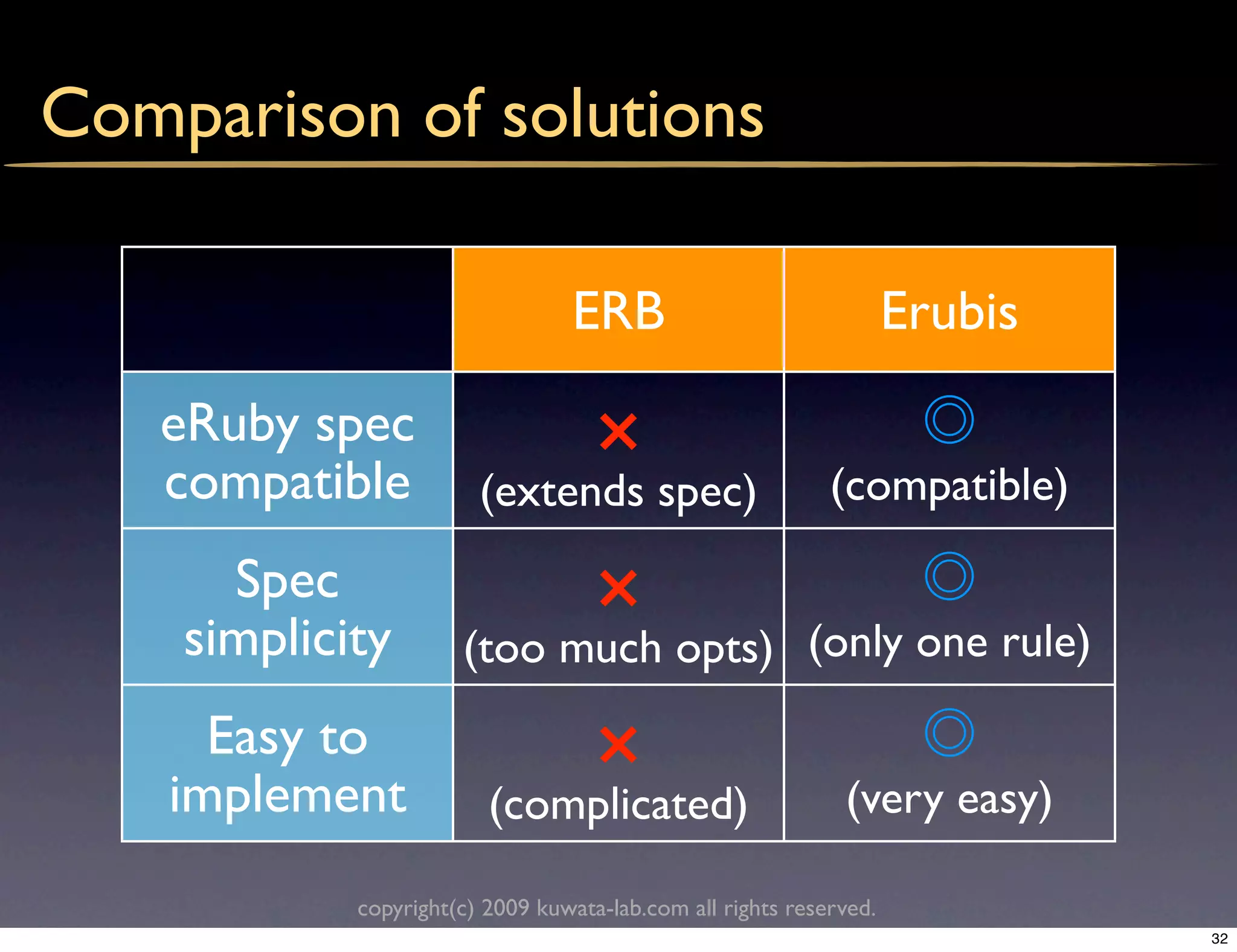

Comparison of solutions

ERB Erubis

eRuby spec
compatible
× spec) (compatible)
(extends
Spec
simplicity
× opts) (only one rule)
(too much
Easy to
implement
× (very easy)
(complicated)

32

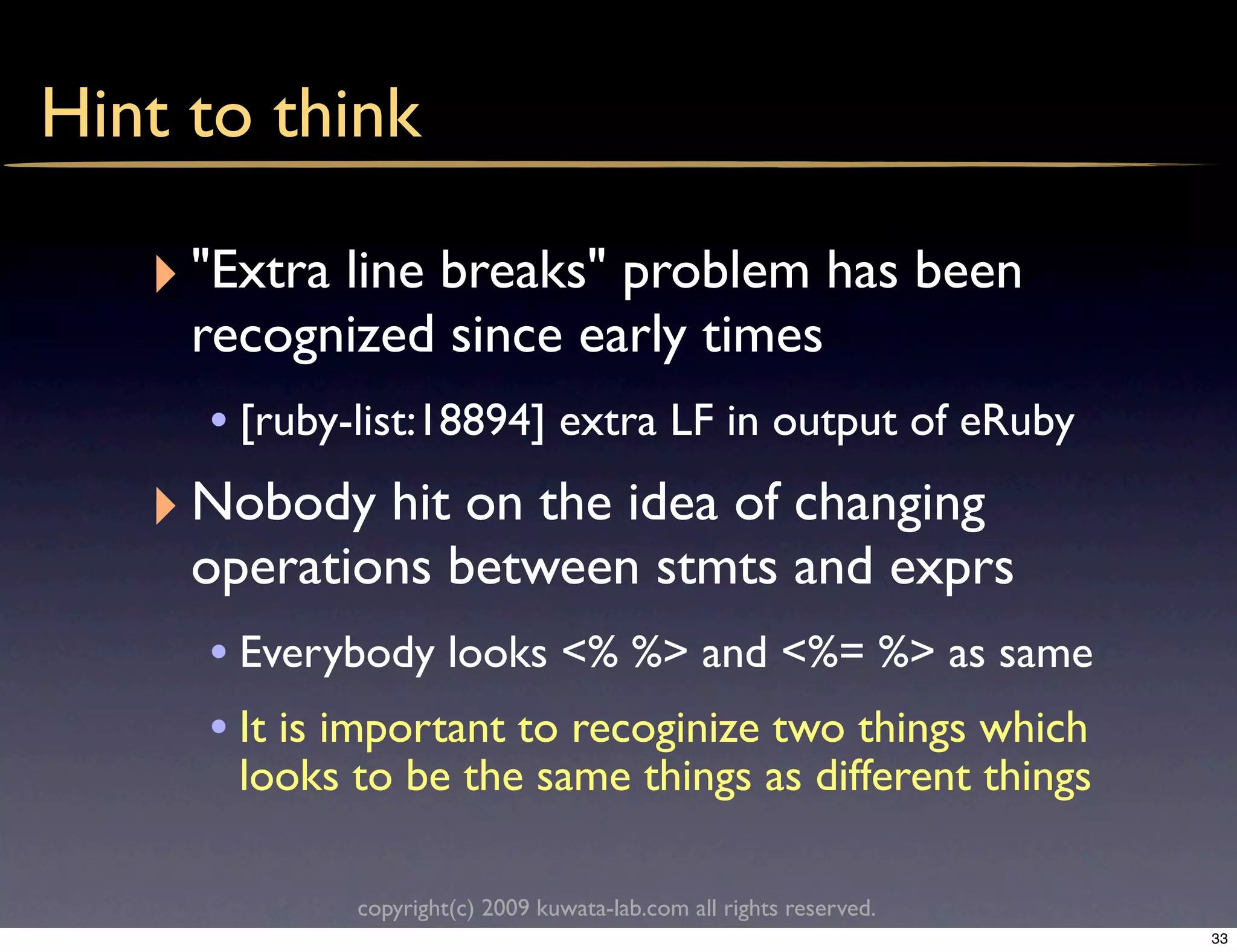

Hint to think

‣ "Extra line breaks" problem has been
recognized since early times
• [ruby-list:18894] extra LF in output of eRuby
‣ Nobody hit on the idea of changing
operations between stmts and exprs
• Everybody looks <% %> and <%= %> as same
• It is important to recoginize two things which
looks to be the same things as different things

33

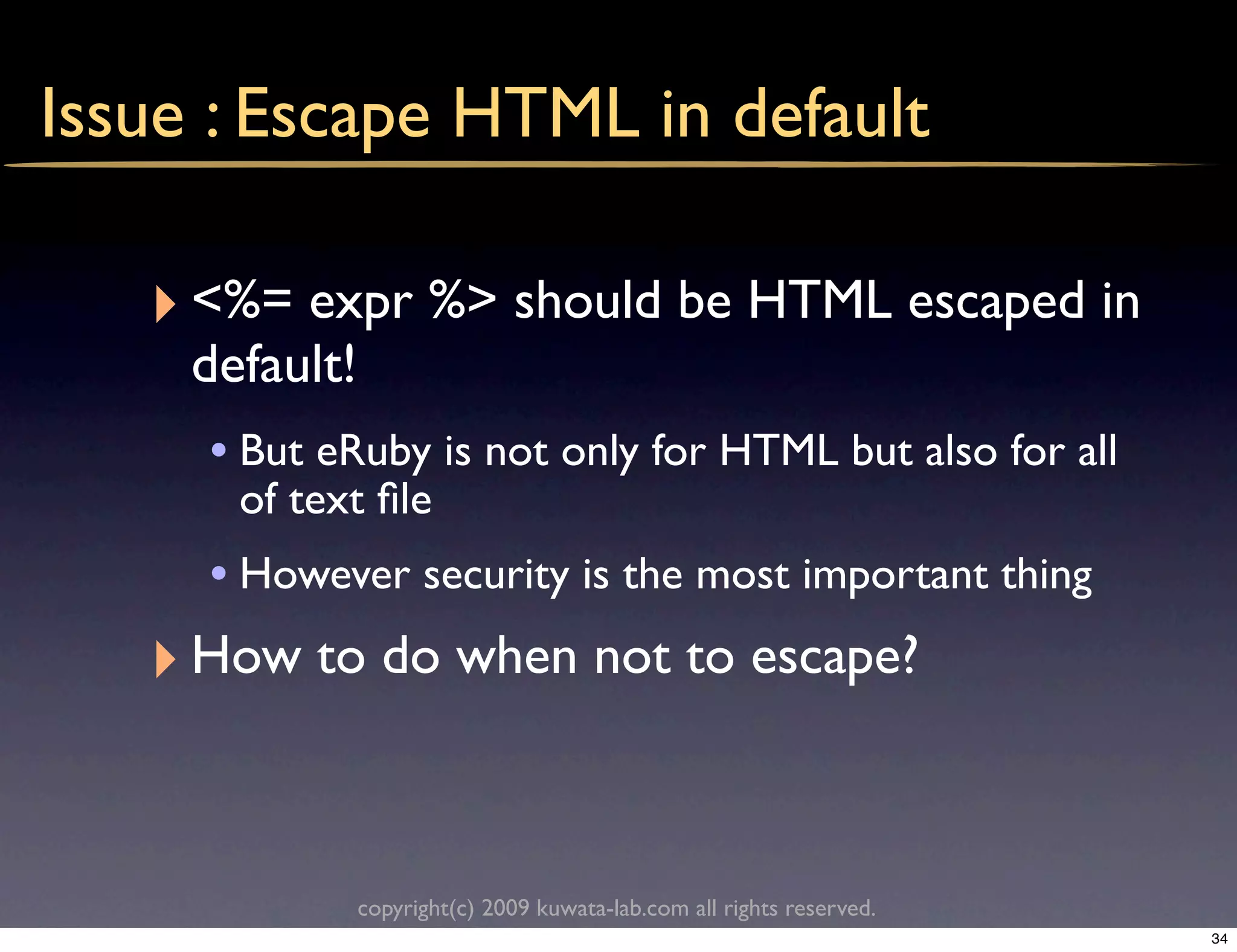

Issue : Escape HTML in default

‣ <%= expr %> should be HTML escaped in
default!
• But eRuby is not only for HTML but also for all
of text ﬁle
• However security is the most important thing
‣ How to do when not to escape?

34

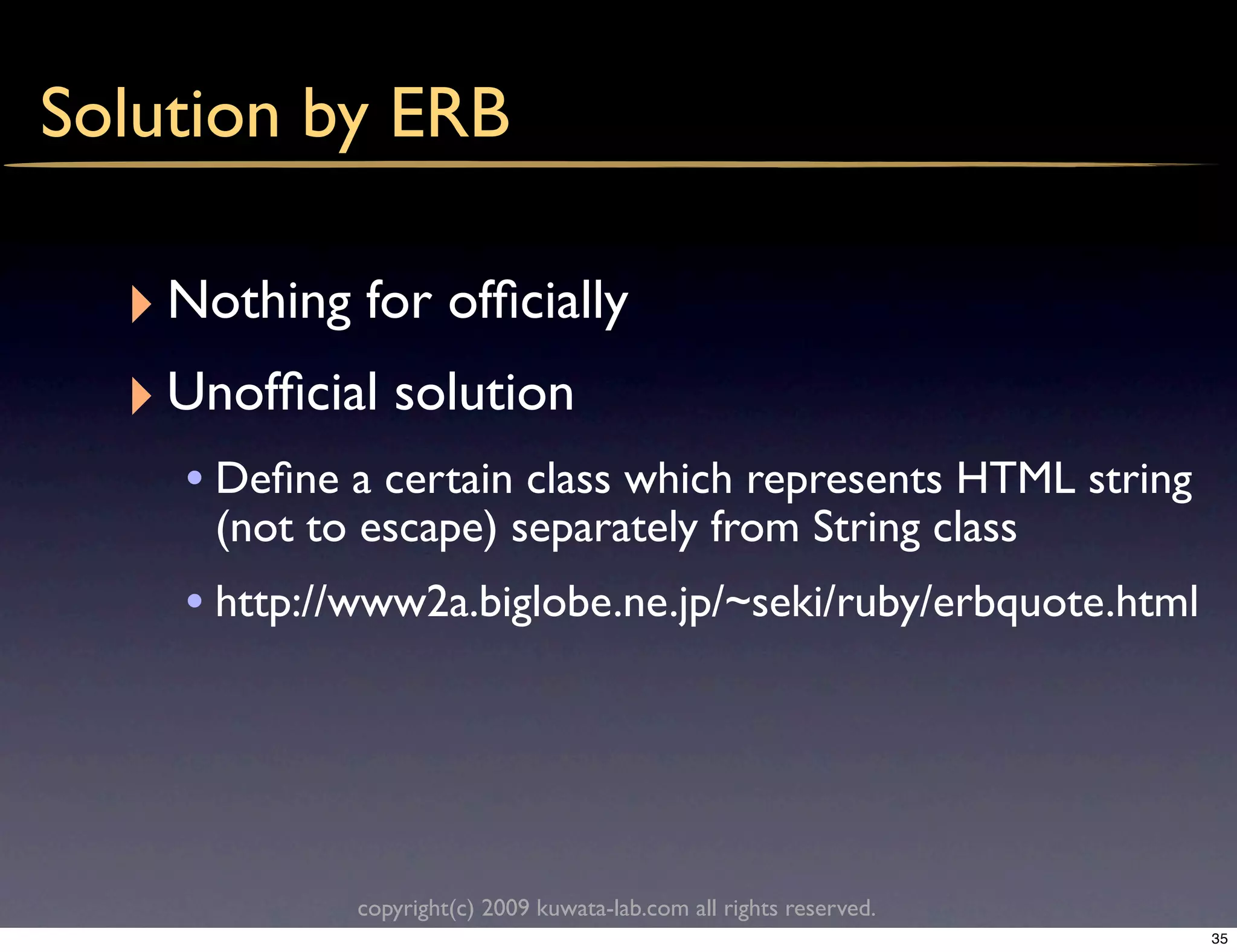

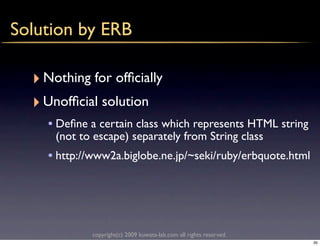

Solution by ERB

‣ Nothing for officially
‣ Unofficial solution
• Define a certain class which represents HTML string
(not to escape) separately from String class
• http://www2a.biglobe.ne.jp/~seki/ruby/erbquote.html

35

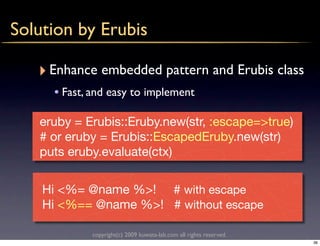

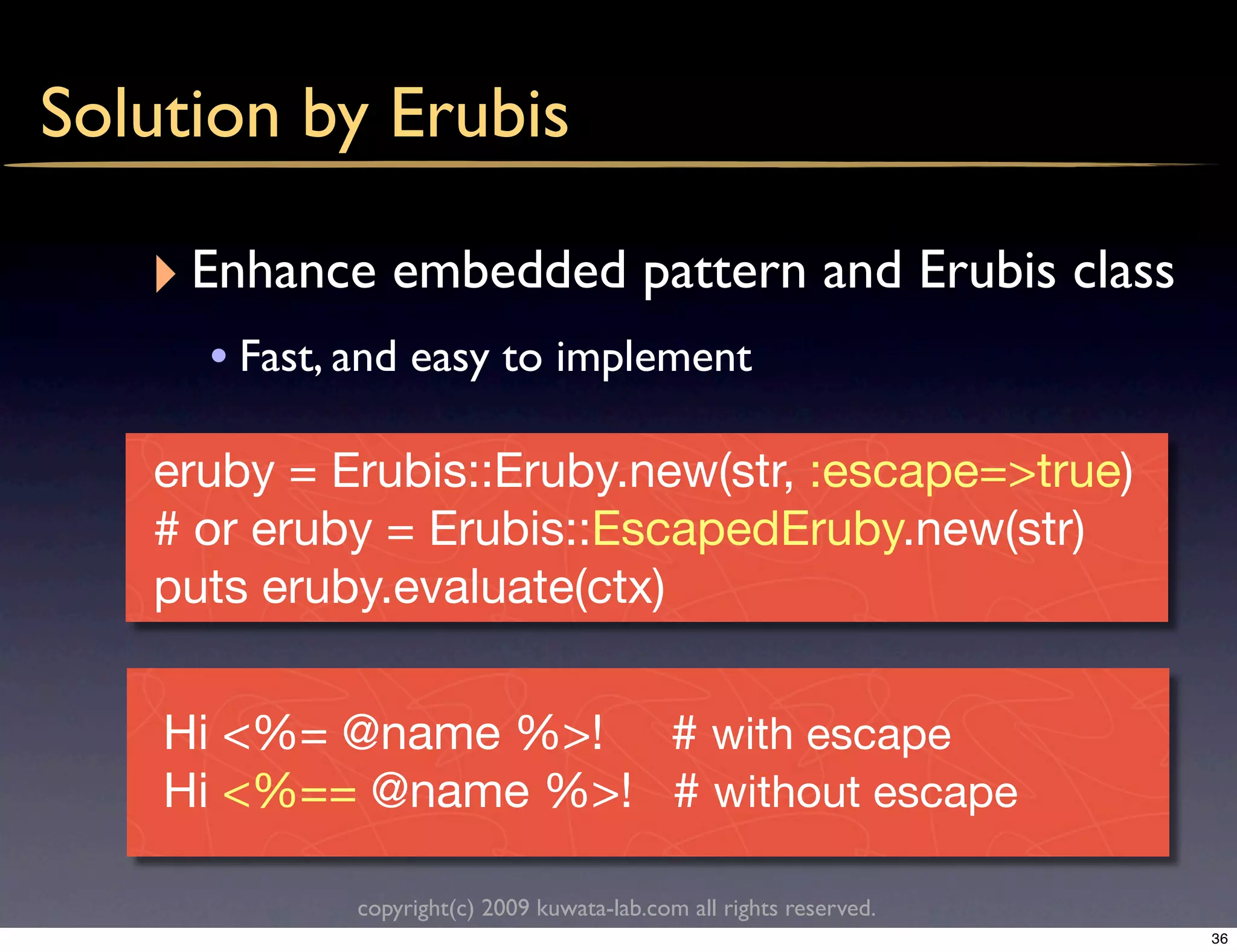

Solution by Erubis

‣ Enhance embedded pattern and Erubis class
• Fast, and easy to implement

eruby = Erubis::Eruby.new(str, :escape=>true)
# or eruby = Erubis::EscapedEruby.new(str)
puts eruby.evaluate(ctx)

Hi <%= @name %>! # with escape
Hi <%== @name %>! # without escape

36

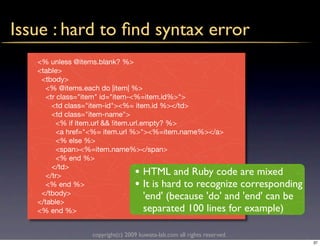

Issue : hard to ﬁnd syntax error
<% unless @items.blank? %>
<table>
<tbody>
<% @items.each do |item| %>
<tr class="item" id="item-<%=item.id%>">
<td class="item-id"><%= item.id %></td>
<td class="item-name">
<% if item.url && !item.url.empty? %>
<a href="<%= item.url %>"><%=item.name%></a>
<% else %>
<span><%=item.name%></span>
<% end %>
</td>
</tr> • HTML and Ruby code are mixed
<% end %> • It is hard to recognize corresponding
</tbody>
</table>
'end' (because 'do' and 'end' can be
<% end %> separated 100 lines for example)

37

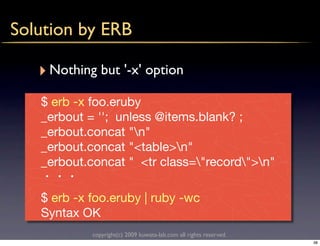

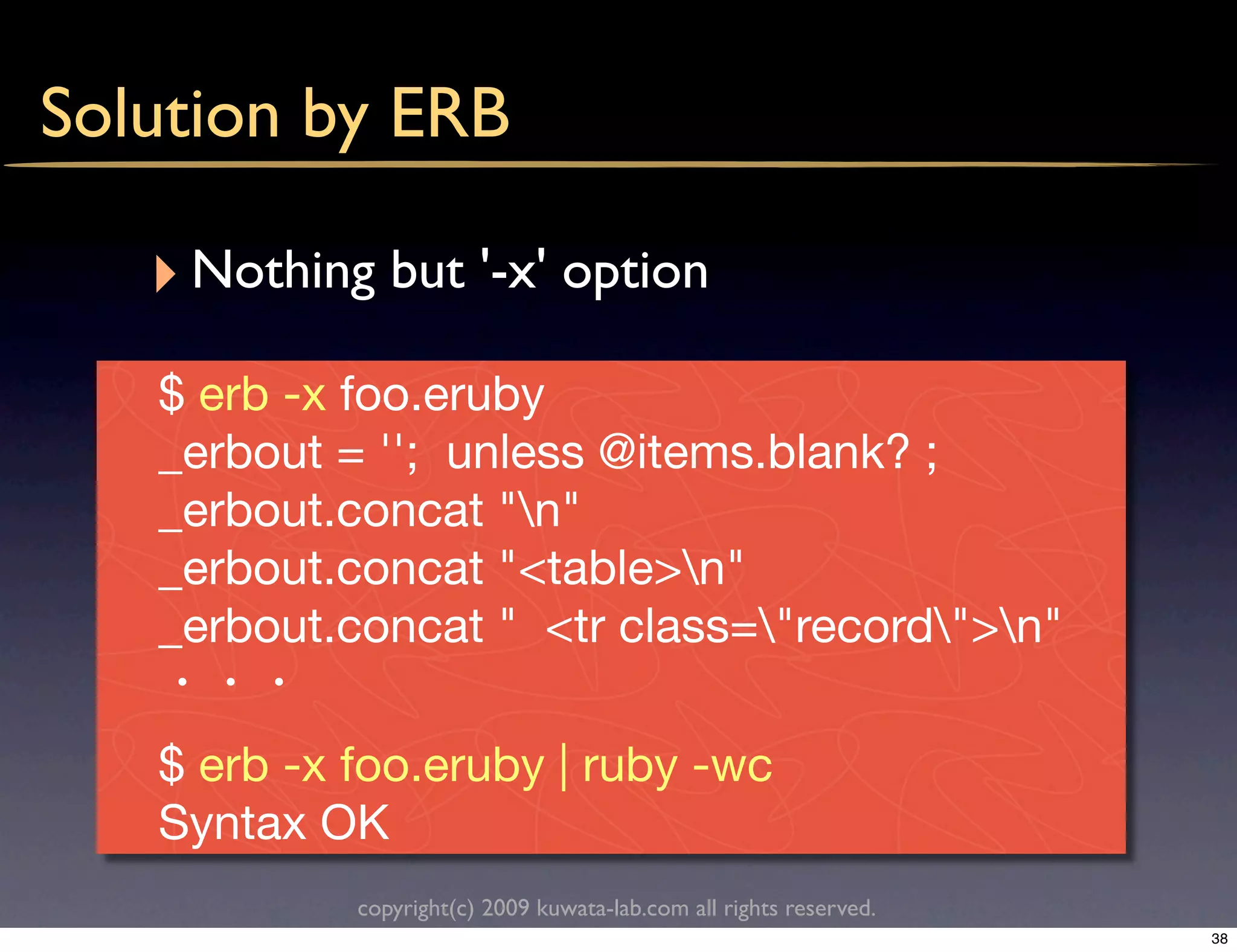

Solution by ERB

‣ Nothing but '-x' option
$ erb -x foo.eruby
_erbout = ''; unless @items.blank? ;
_erbout.concat "n"
_erbout.concat "<table>n"
_erbout.concat " <tr class="record">n"

$ erb -x foo.eruby | ruby -wc
Syntax OK
38

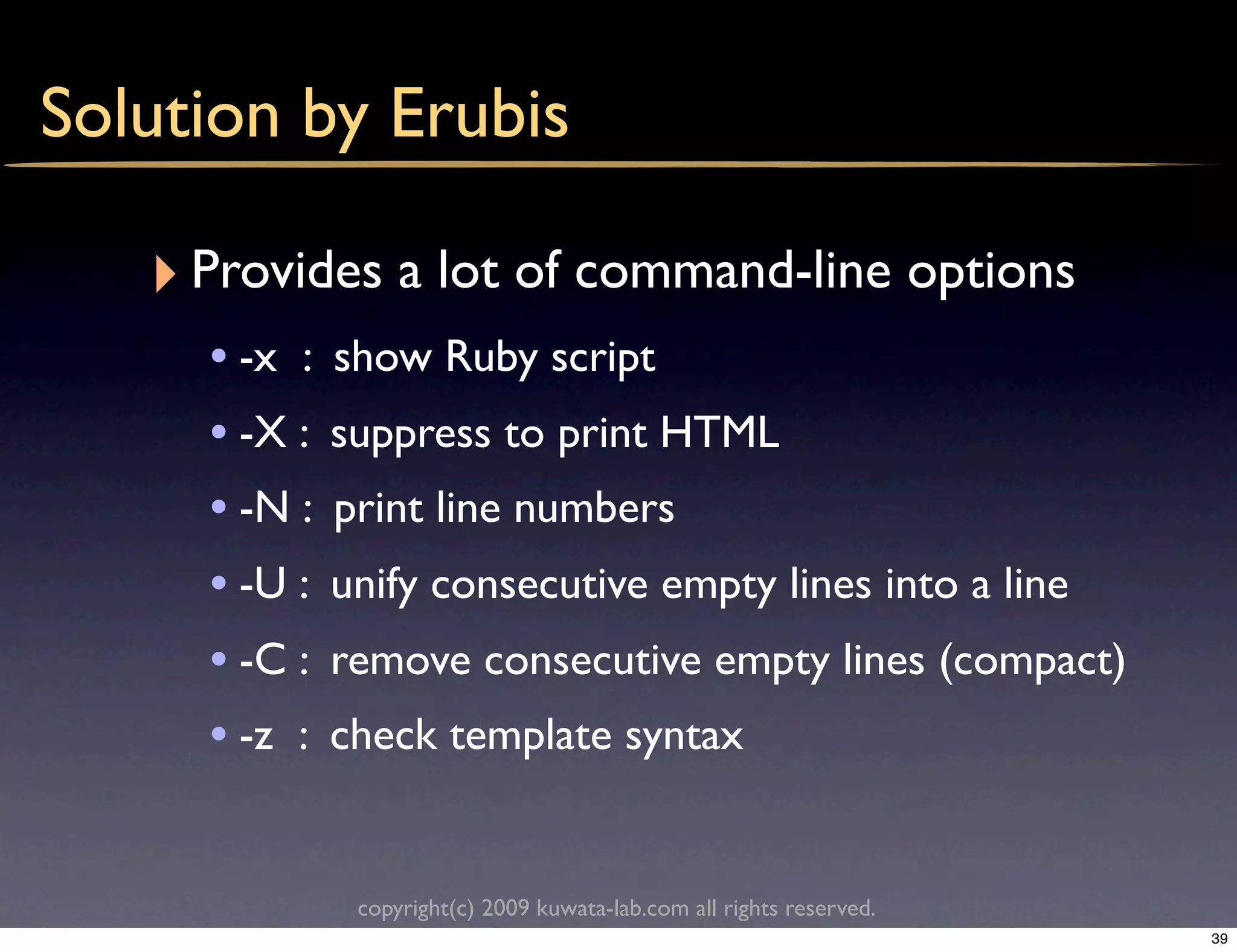

Solution by Erubis

‣ Provides a lot of command-line options
• -x : show Ruby script
• -X : suppress to print HTML
• -N : print line numbers
• -U : unify consecutive empty lines into a line
• -C : remove consecutive empty lines (compact)
• -z : check template syntax

39

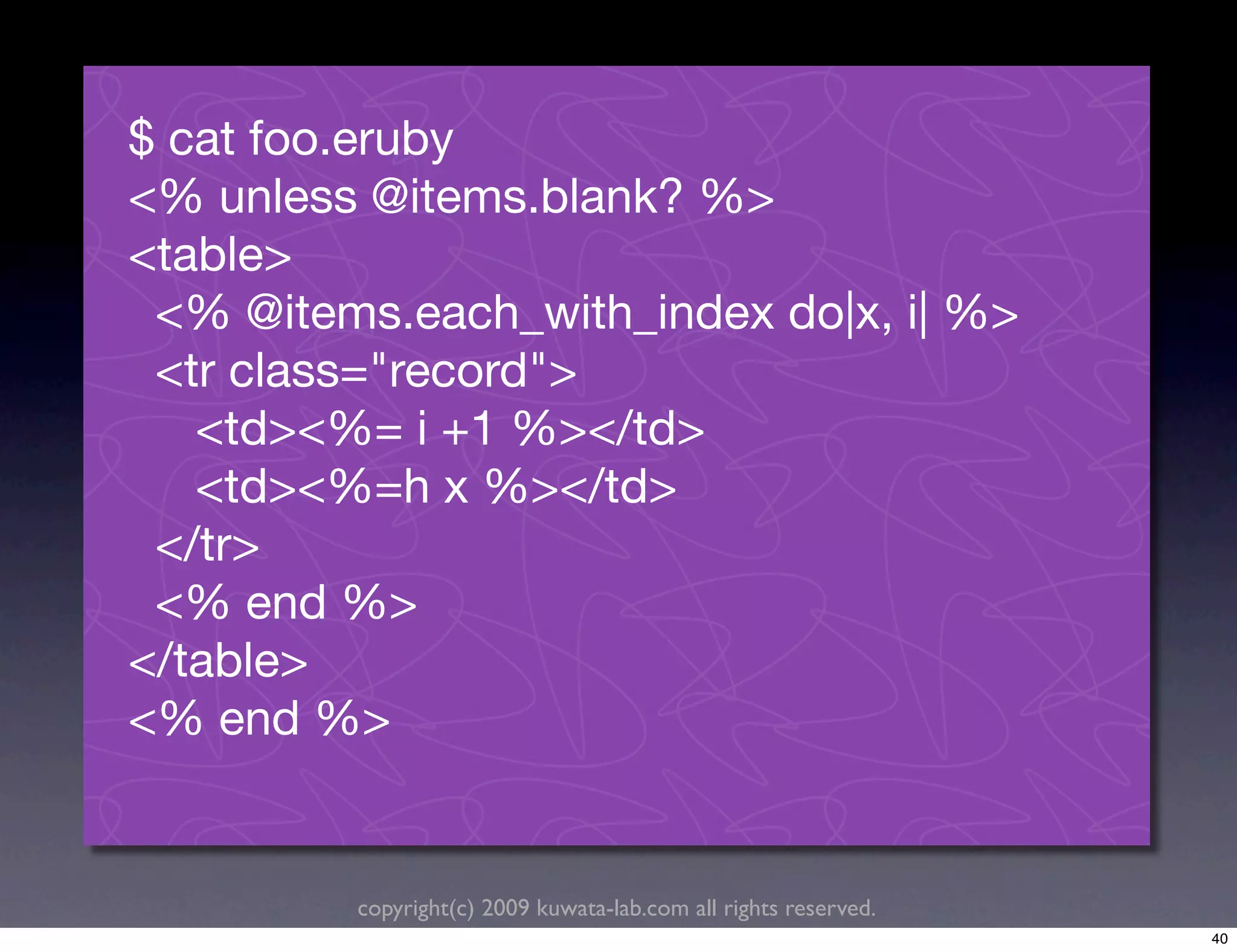

$ cat foo.eruby
<% unless @items.blank? %>
<table>
<% @items.each_with_index do|x, i| %>
<tr class="record">
<td><%= i +1 %></td>
<td><%=h x %></td>
</tr>
<% end %>
</table>
<% end %>

40

-x : show Ruby script
$ erubis -x foo.eruby
_buf = ''; unless @items.blank?
_buf << '<table>
'; @items.each_with_index do|x, i|
_buf << ' <tr class="record">
<td>'; _buf << ( i +1 ).to_s; _buf << '</td>
<td>'; _buf << (h x ).to_s; _buf << '</td>
</tr>
'; end
_buf << '</table>
'; end
_buf.to_s

41

-X : suppress to print HTML
$ erubis -X foo.eruby
_buf = ''; unless @items.blank?

@items.each_with_index do|x, i|

_buf << ( i +1 ).to_s;
_buf << (h x ).to_s;

end

end
_buf.to_s

42

-N : print line numbers
$ erubis -XN foo.eruby
1: _buf = ''; unless @items.blank?
2:
3: @items.each_with_index do|x, i|
4:
5: _buf << ( i +1 ).to_s;
6: _buf << (h x ).to_s;
7:
8: end
9:
10: end
11: _buf.to_s

43

-U : uniﬁy consecutive empty
lines into a line
$ erubis -XNU foo.eruby


5: _buf << ( i +1 ).to_s;
6: _buf << (h x ).to_s;

8: end

10: end
11: _buf.to_s

44

-C : remove empty lines
(compact)
$ erubis -XNC foo.eruby
5: _buf << ( i +1 ).to_s;
6: _buf << (h x ).to_s;
8: end
10: end
11: _buf.to_s

45

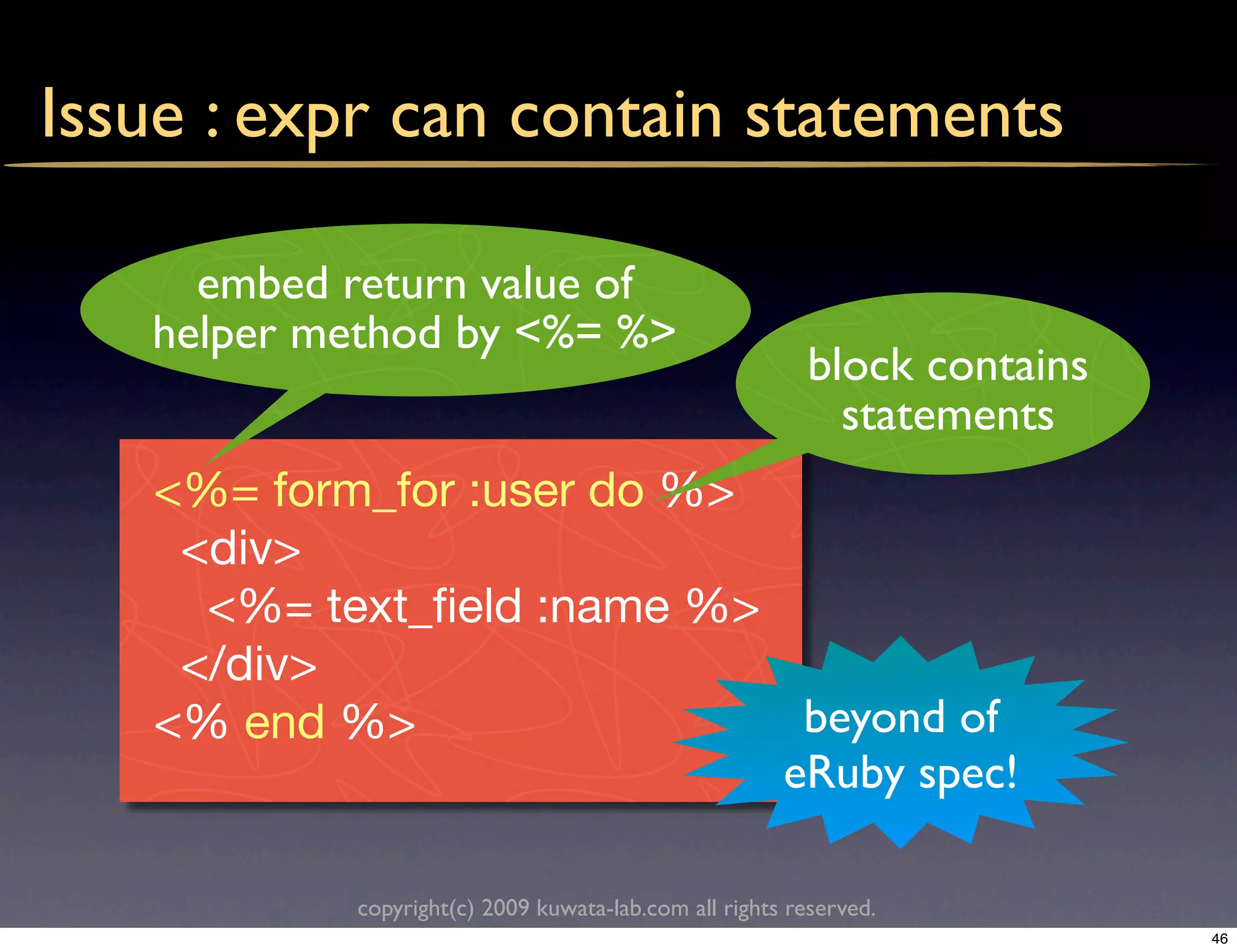

Issue : expr can contain statements

embed return value of
helper method by <%= %>
block contains
statements
<%= form_for :user do %>
<div>
<%= text_ﬁeld :name %>
</div>
<% end %> beyond of
eRuby spec!

46

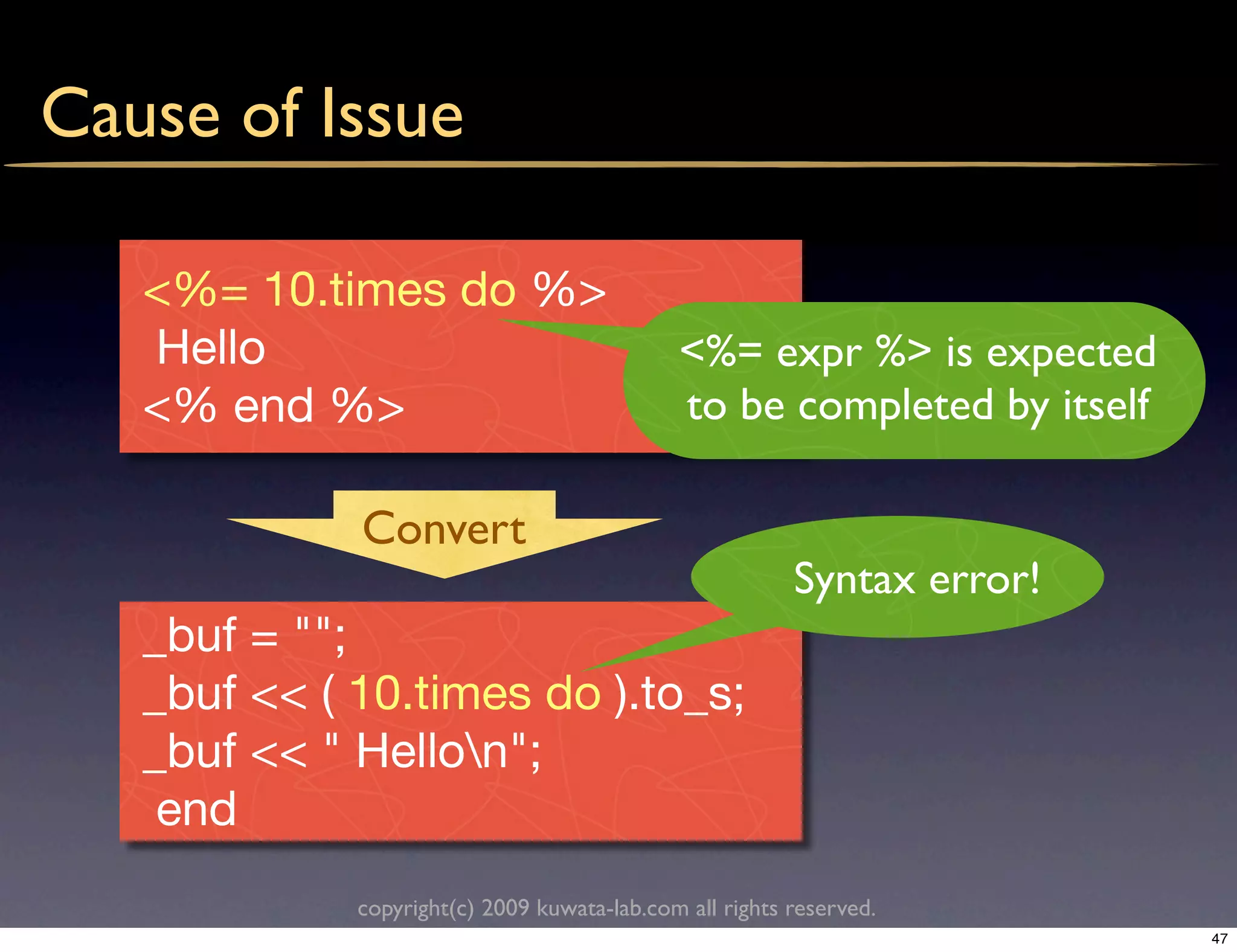

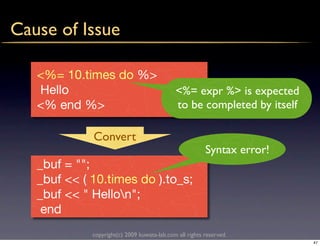

Cause of Issue

<%= 10.times do %>
Hello <%= expr %> is expected
<% end %> to be completed by itself

Convert
Syntax error!
_buf = "";
_buf << ( 10.times do ).to_s;
_buf << " Hellon";
end
47

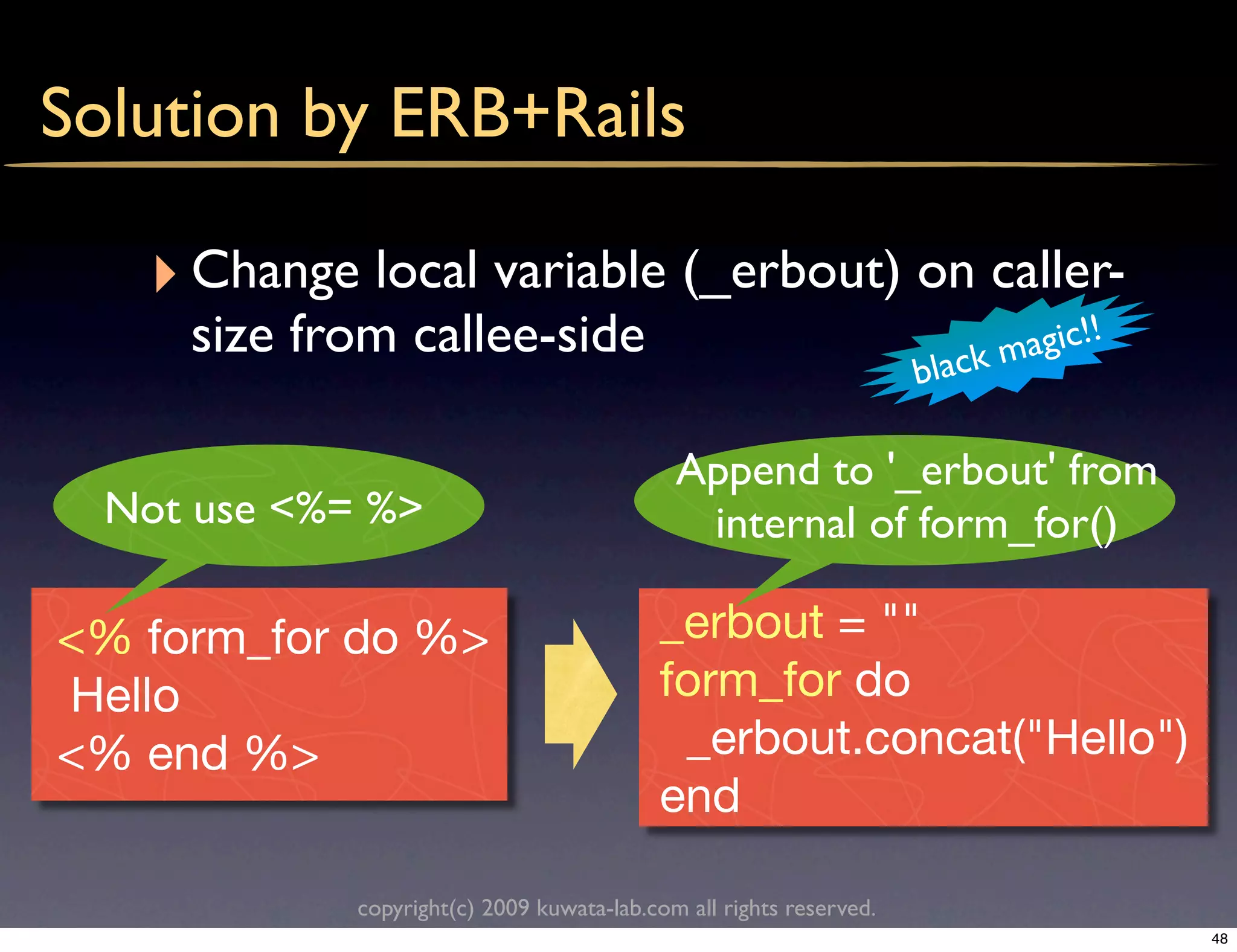

Solution by ERB+Rails

‣ Change local variable (_erbout) on caller-
size from callee-side agic!!
b lack m

Append to '_erbout' from
Not use <%= %> internal of form_for()

<% form_for do %> _erbout = ""
Hello form_for do
<% end %> _erbout.concat("Hello")
end

48

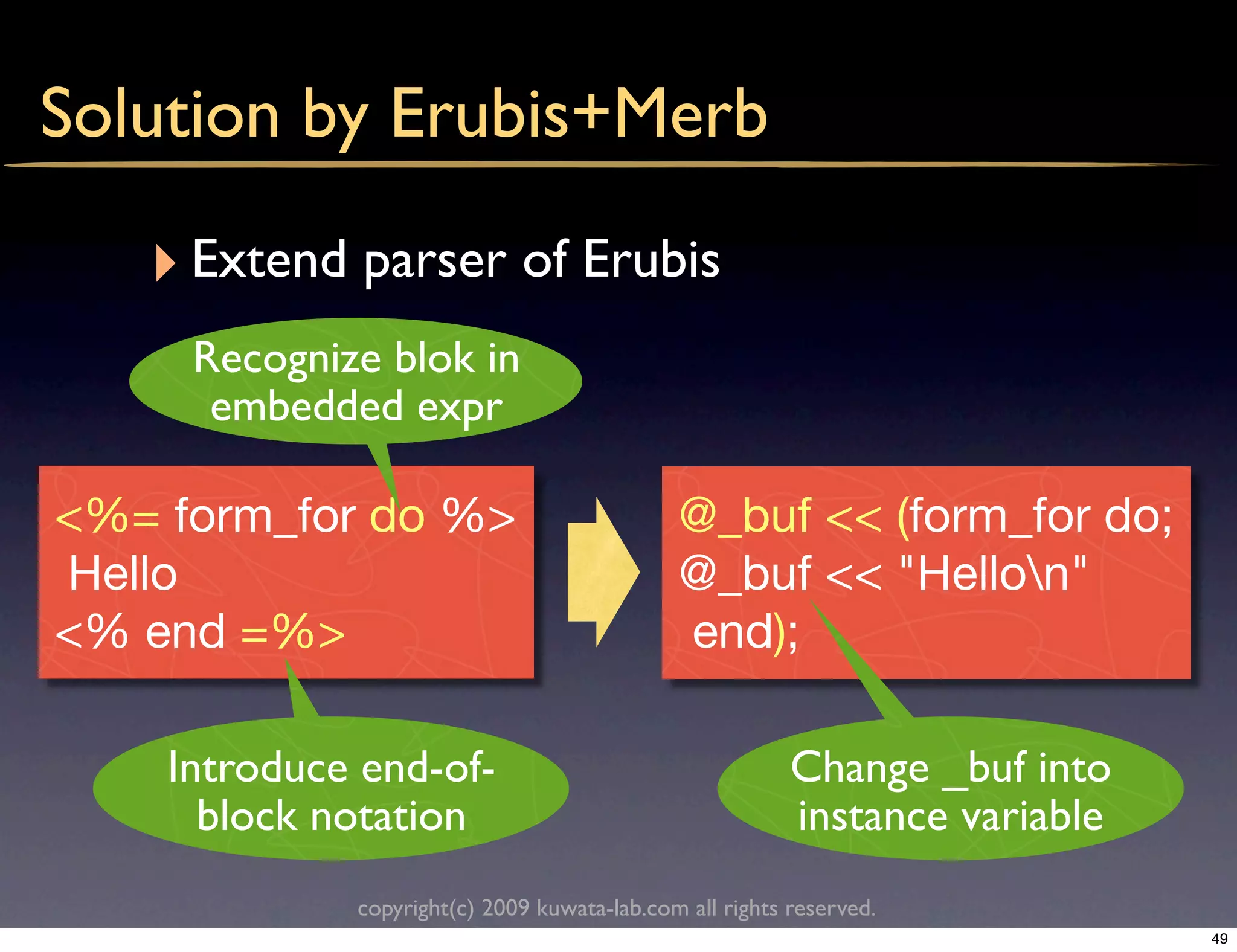

Solution by Erubis+Merb

‣ Extend parser of Erubis
Recognize blok in
embedded expr

<%= form_for do %> @_buf << (form_for do;
Hello @_buf << "Hellon"
<% end =%> end);

Introduce end-of- Change _buf into
block notation instance variable
49

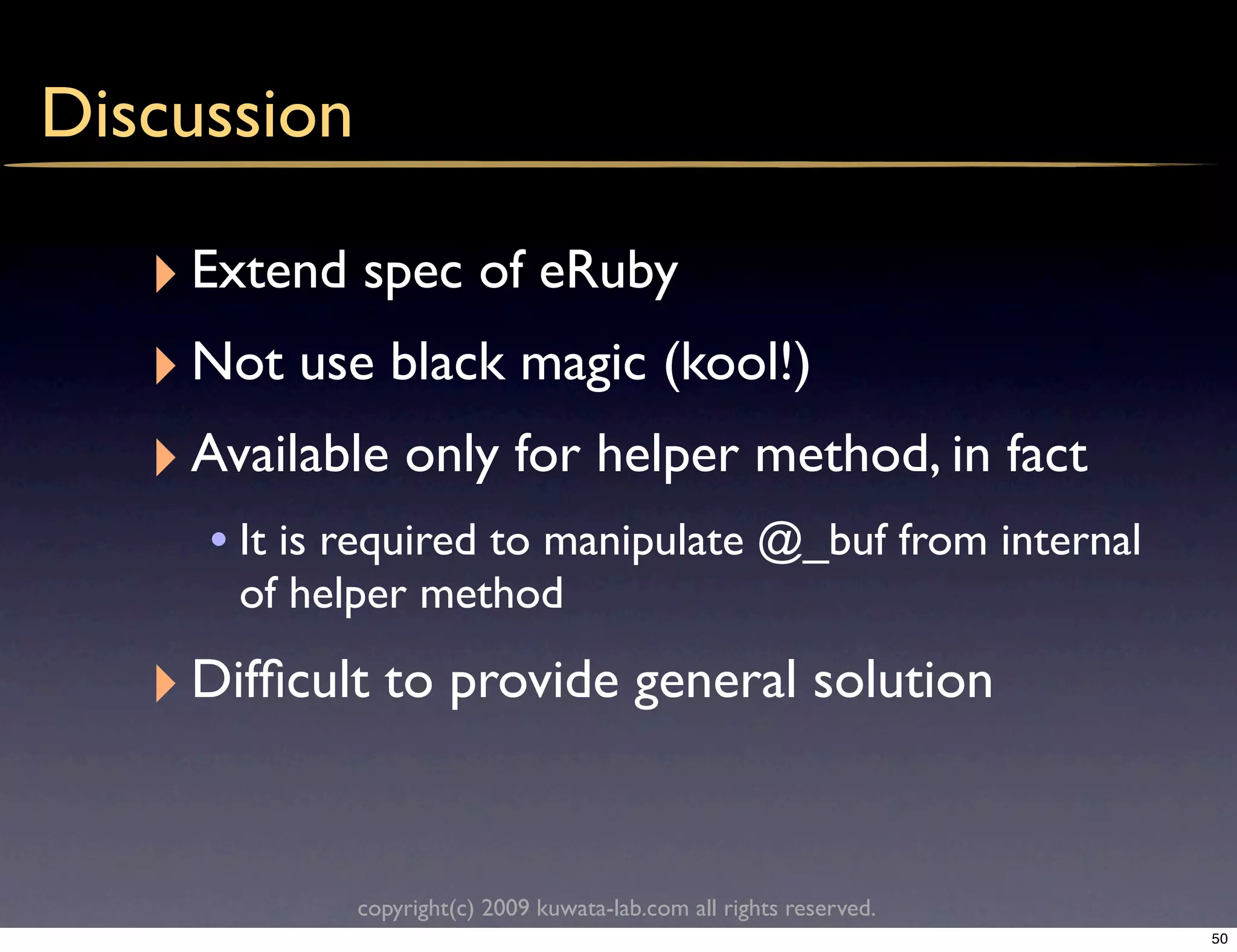

Discussion

‣ Extend spec of eRuby
‣ Not use black magic (kool!)
‣ Available only for helper method, in fact
• It is required to manipulate @_buf from internal
of helper method

‣ Difﬁcult to provide general solution

50

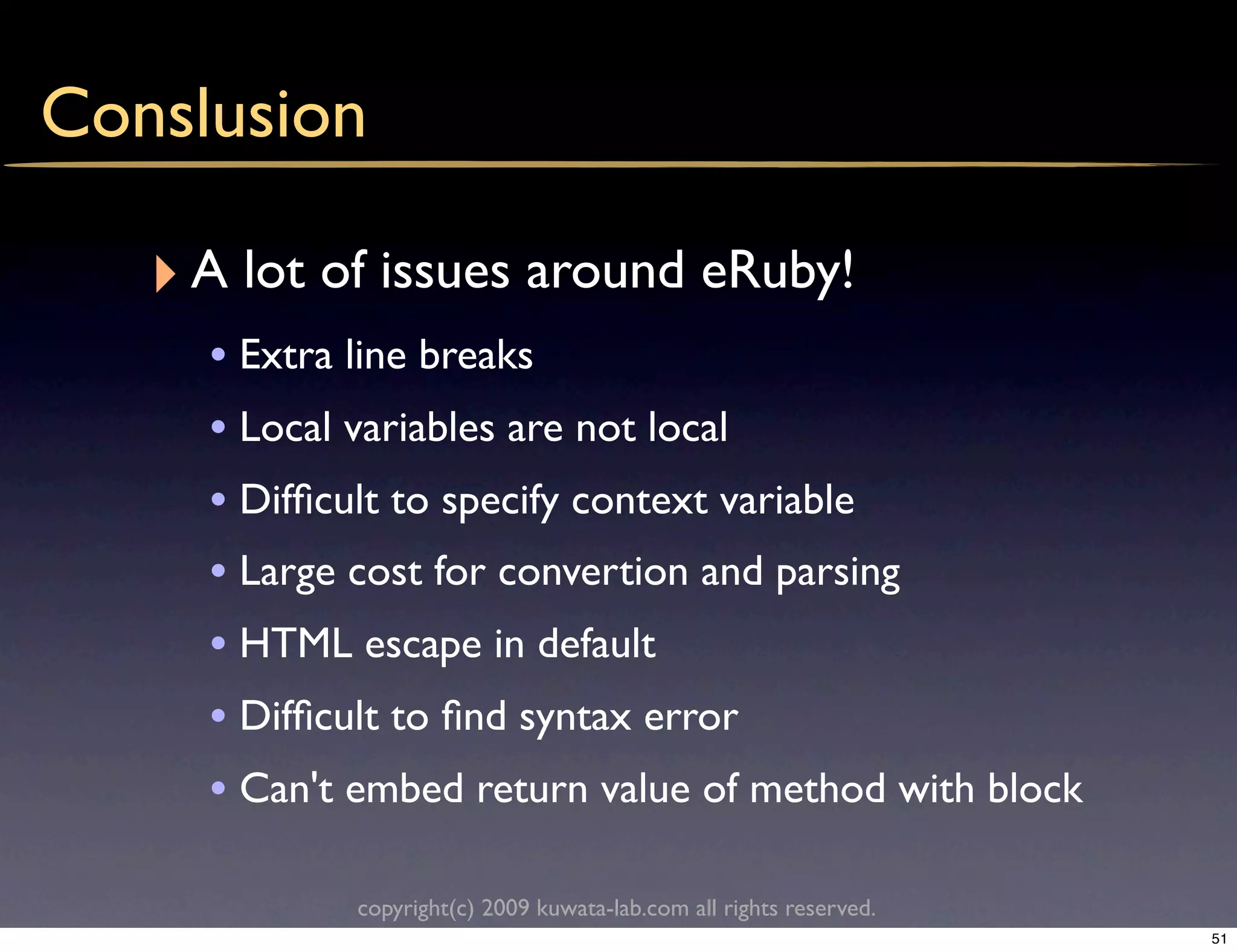

Conslusion

‣ A lot of issues around eRuby!
• Extra line breaks
• Local variables are not local
• Difficult to specify context variable
• Large cost for convertion and parsing
• Difficult to find syntax error
• Can't embed return value of method with block

51

Part 3. Future of template
system

52

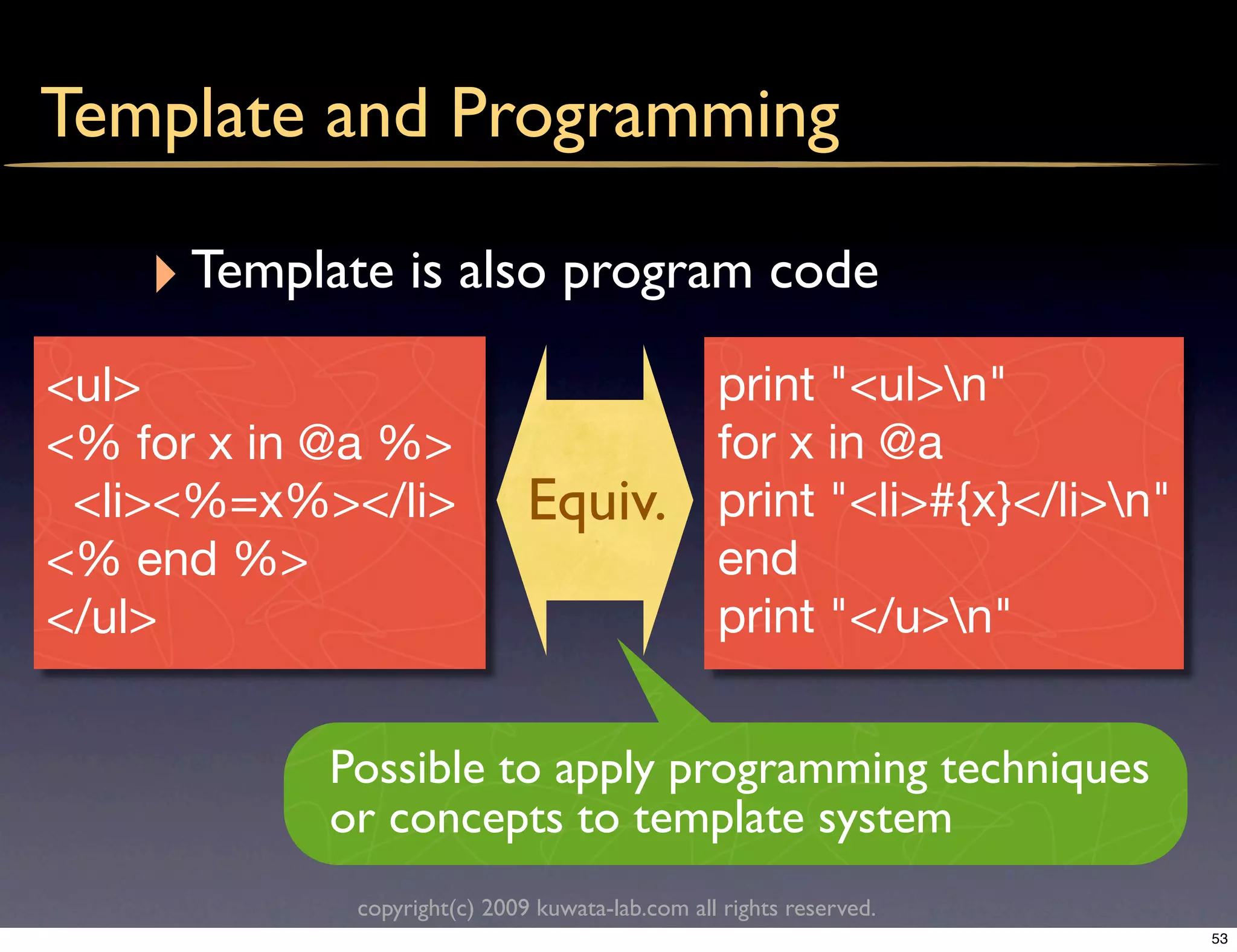

Template and Programming

‣ Template is also program code
<ul> print "<ul>n"
<% for x in @a %> for x in @a
<li><%=x%></li> Equiv. print "<li>#{x}</li>n"
<% end %> end
</ul> print "</u>n"

Possible to apply programming techniques
or concepts to template system
53

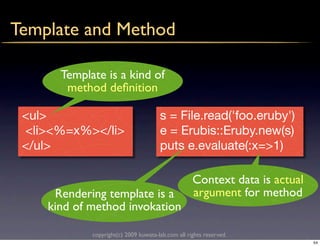

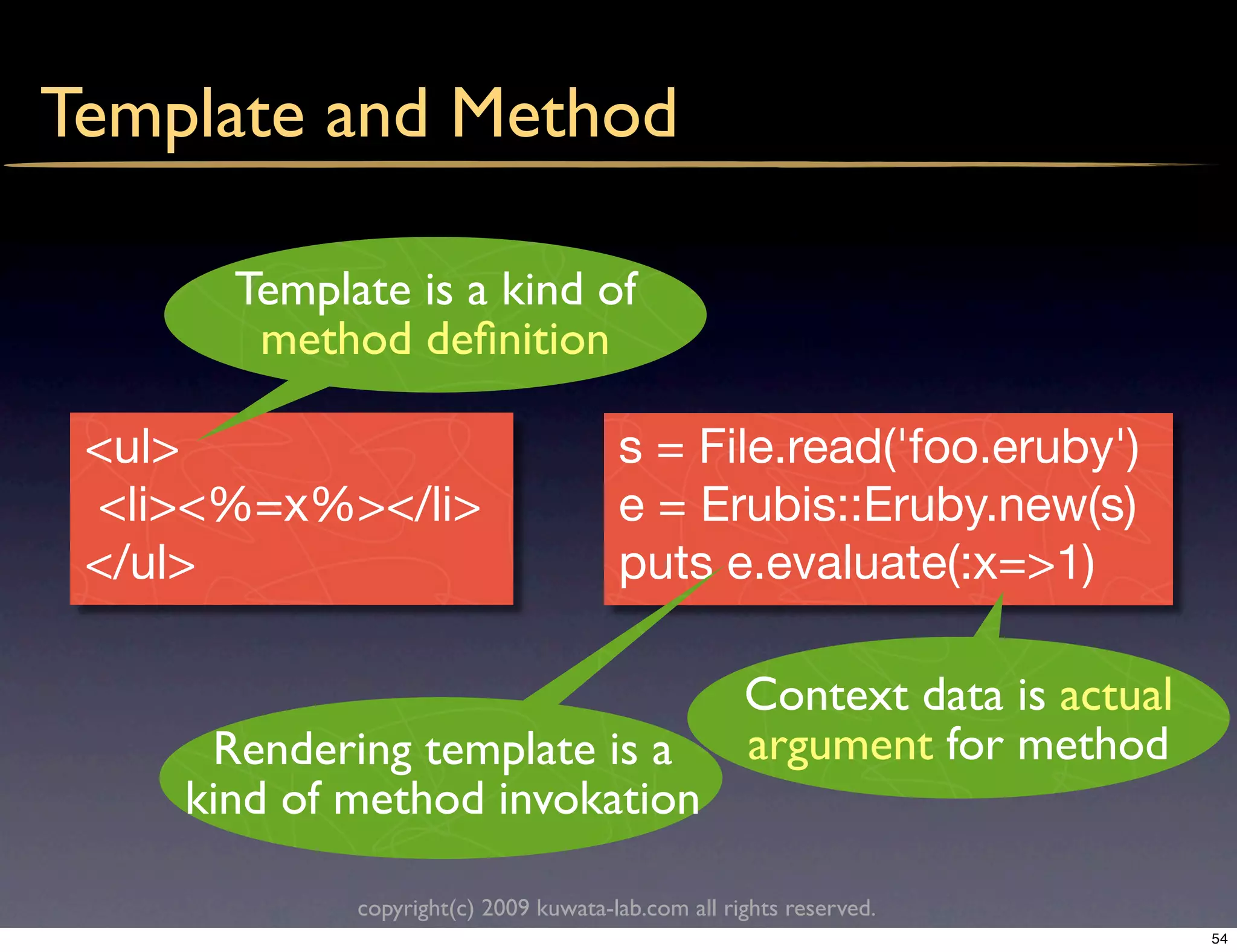

Template and Method

Template is a kind of
method deﬁnition

<ul> s = File.read('foo.eruby')
<li><%=x%></li> e = Erubis::Eruby.new(s)
</ul> puts e.evaluate(:x=>1)

Context data is actual
Rendering template is a argument for method
kind of method invokation

54

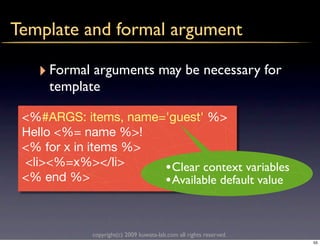

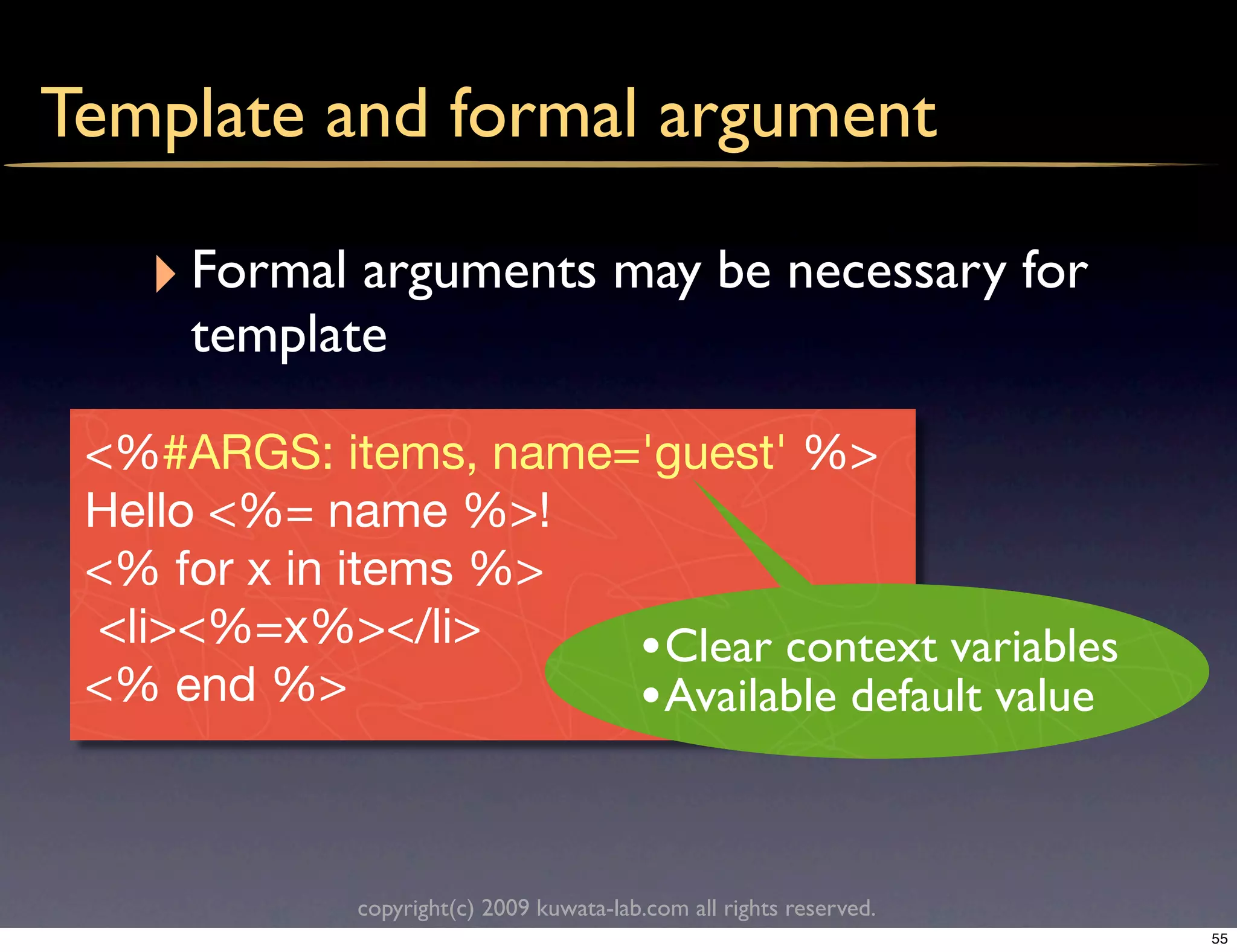

Template and formal argument

‣ Formal arguments may be necessary for
template

<%#ARGS: items, name='guest' %>
Hello <%= name %>!
<% for x in items %>
<li><%=x%></li> • Clear context variables
<% end %> • Available default value

55

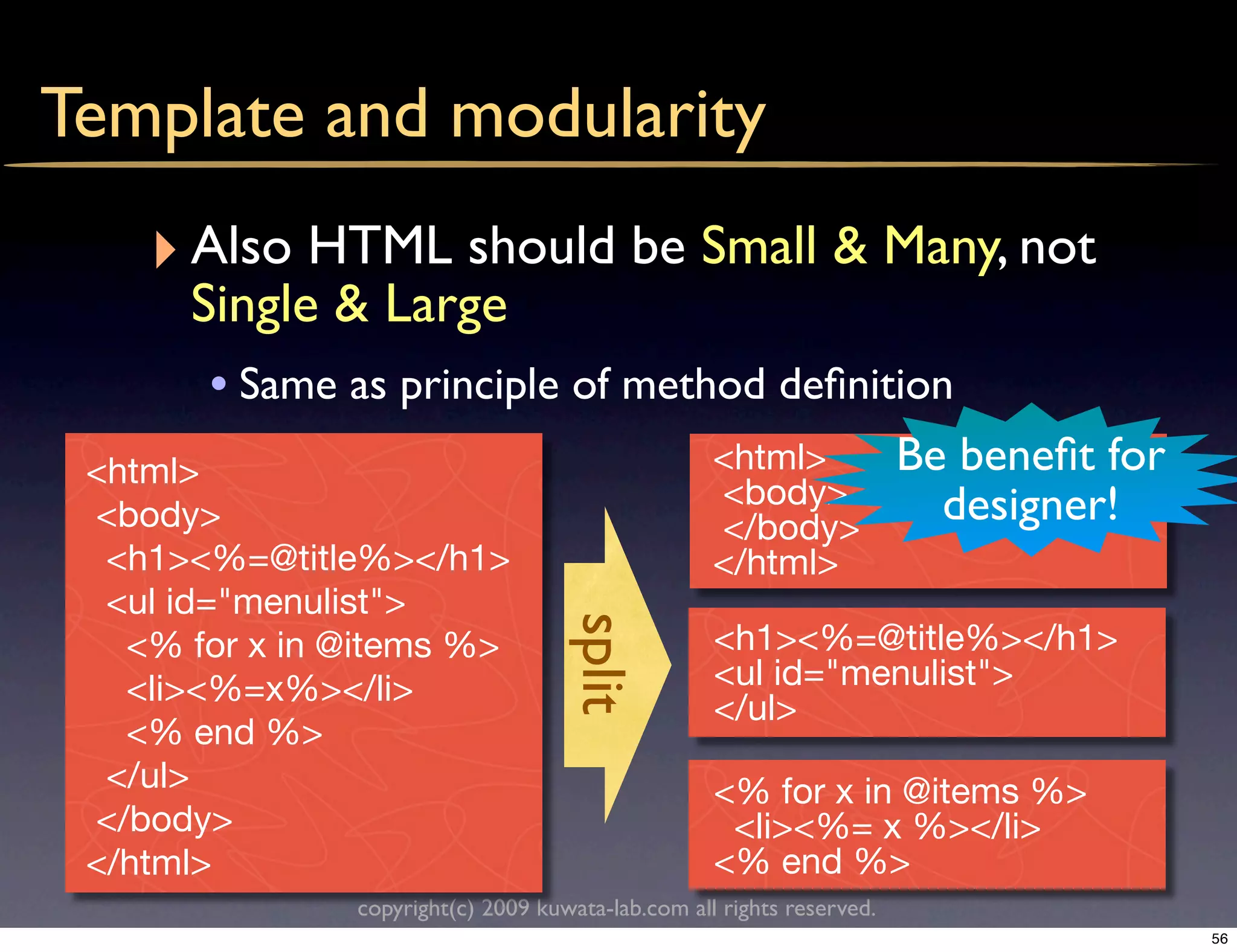

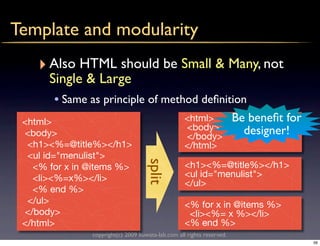

Template and modularity
‣ Also HTML should be Small & Many, not
Single & Large
• Same as principle of method deﬁnition
<html> <html> Be beneﬁt for
<body> designer!
<body> </body>
<h1><%=@title%></h1> </html>
<ul id="menulist">
split
<% for x in @items %> <h1><%=@title%></h1>
<li><%=x%></li> <ul id="menulist">
</ul>
<% end %>
</ul> <% for x in @items %>
</body> <li><%= x %></li>
</html> <% end %>
56

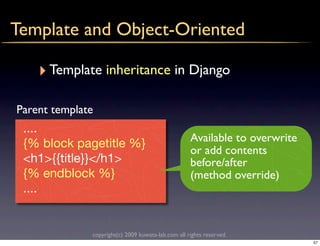

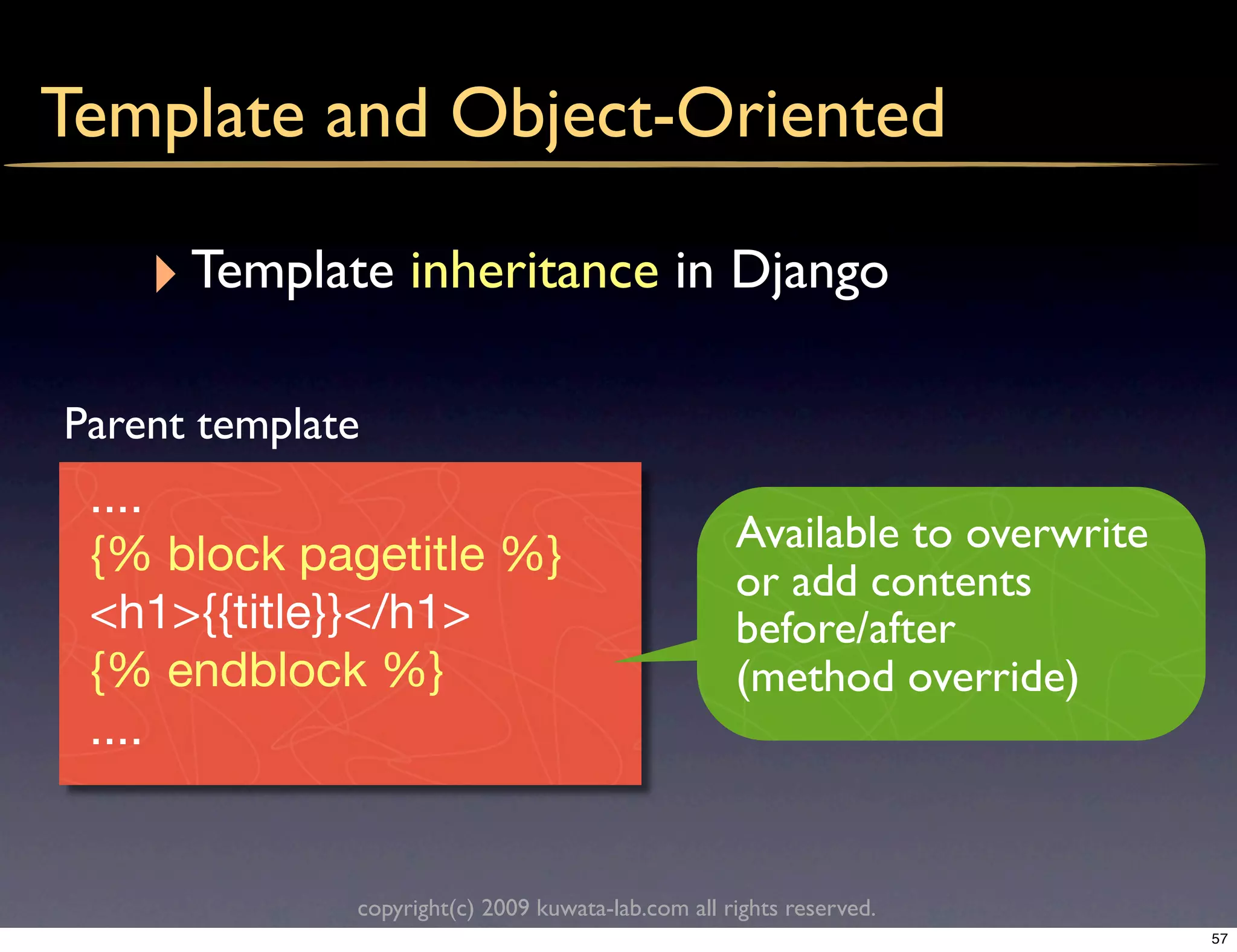

Template and Object-Oriented

‣ Template inheritance in Django
Parent template
....
Available to overwrite
{% block pagetitle %}
or add contents
<h1>{{title}}</h1> before/after
{% endblock %} (method override)
....

57

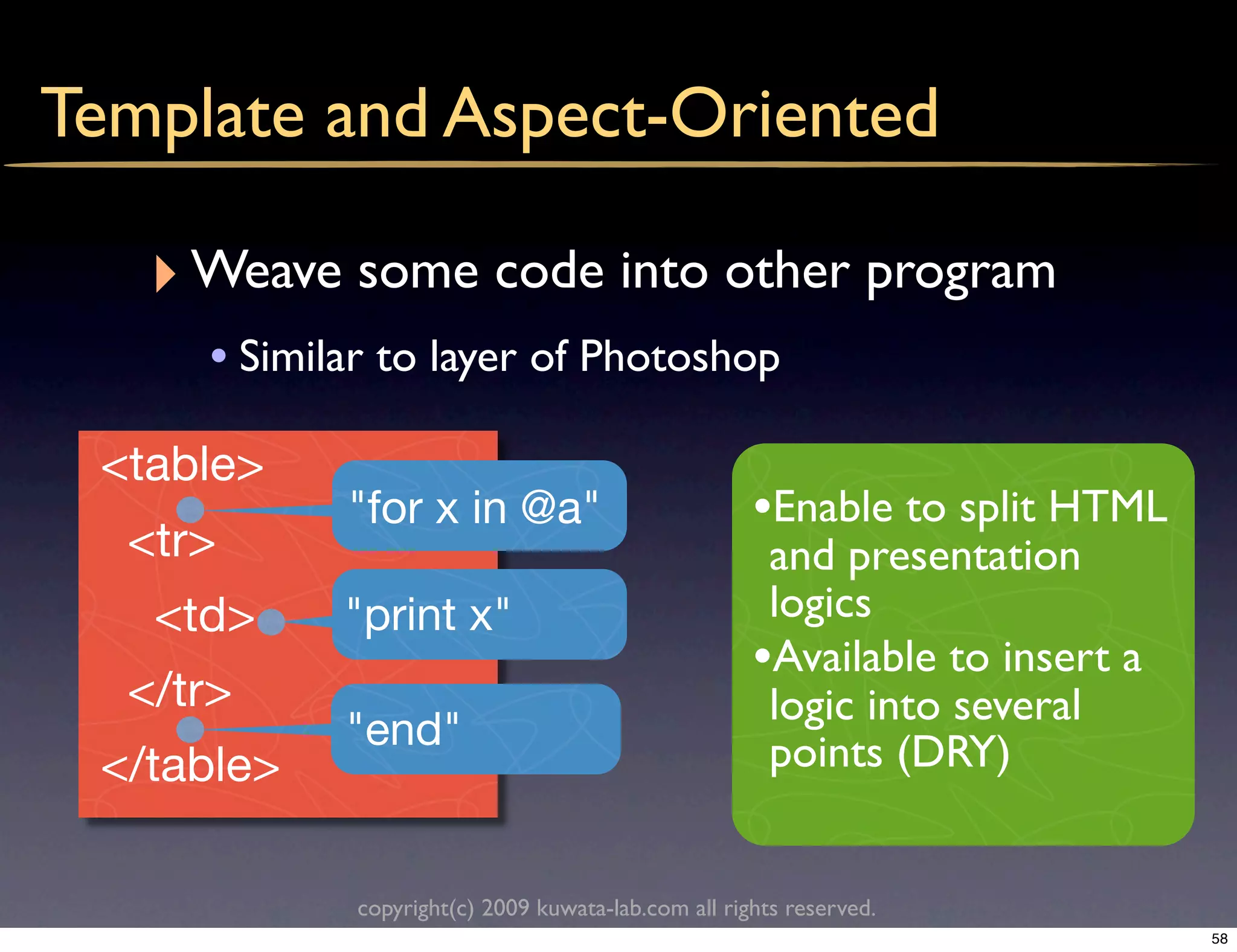

Template and Aspect-Oriented

‣ Weave some code into other program
• Similar to layer of Photoshop
<table>
"for x in @a" •Enable to split HTML
<tr> and presentation
<td> "print x" logics
•Available to insert a
</tr> logic into several
"end" points (DRY)
</table>

58

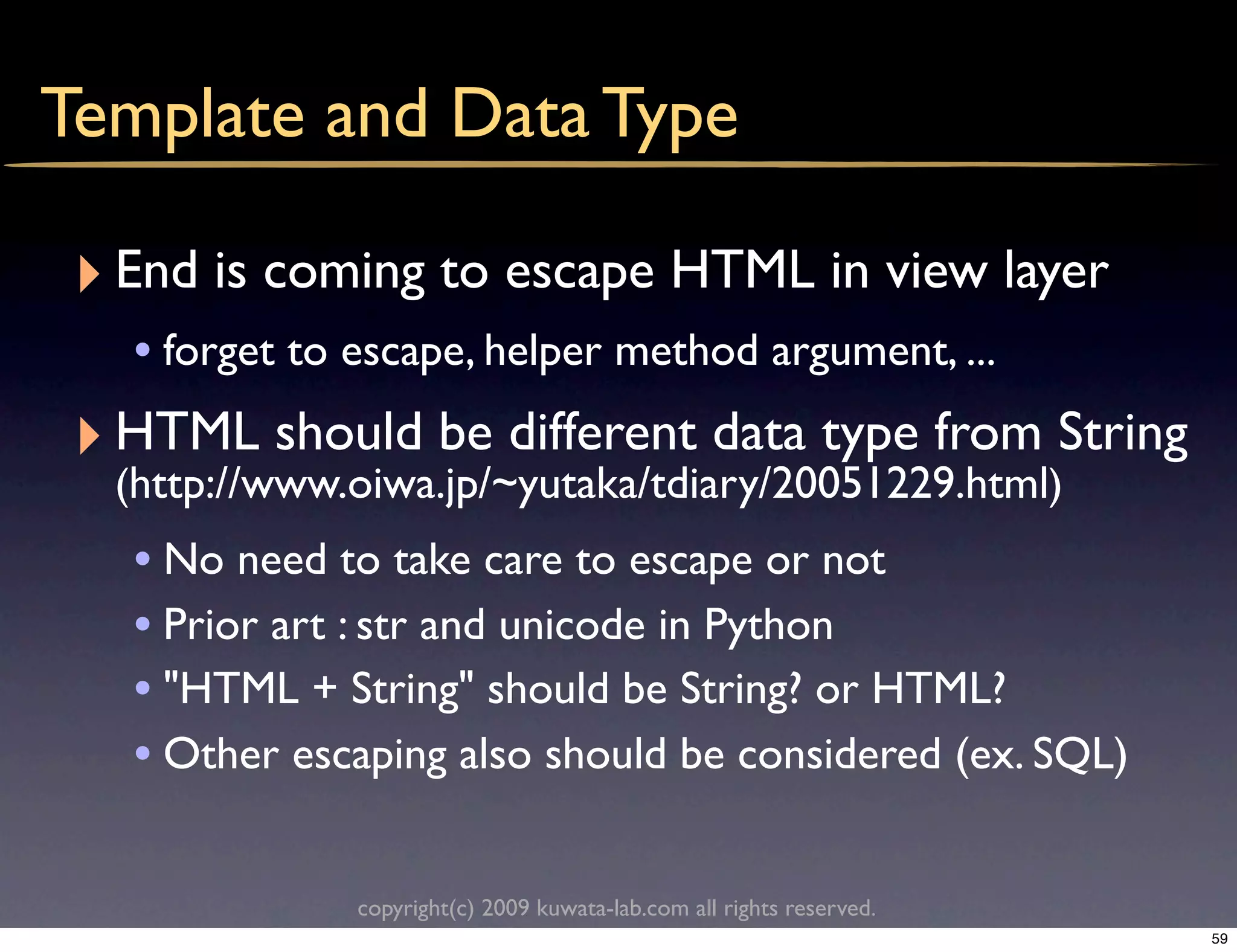

Template and Data Type

‣ End is coming to escape HTML in view layer
• forget to escape, helper method argument, ...
‣ HTML should be different data type from String
(http://www.oiwa.jp/~yutaka/tdiary/20051229.html)
• No need to take care to escape or not
• Prior art : str and unicode in Python
• "HTML + String" should be String? or HTML?
• Other escaping also should be considered (ex. SQL)

59

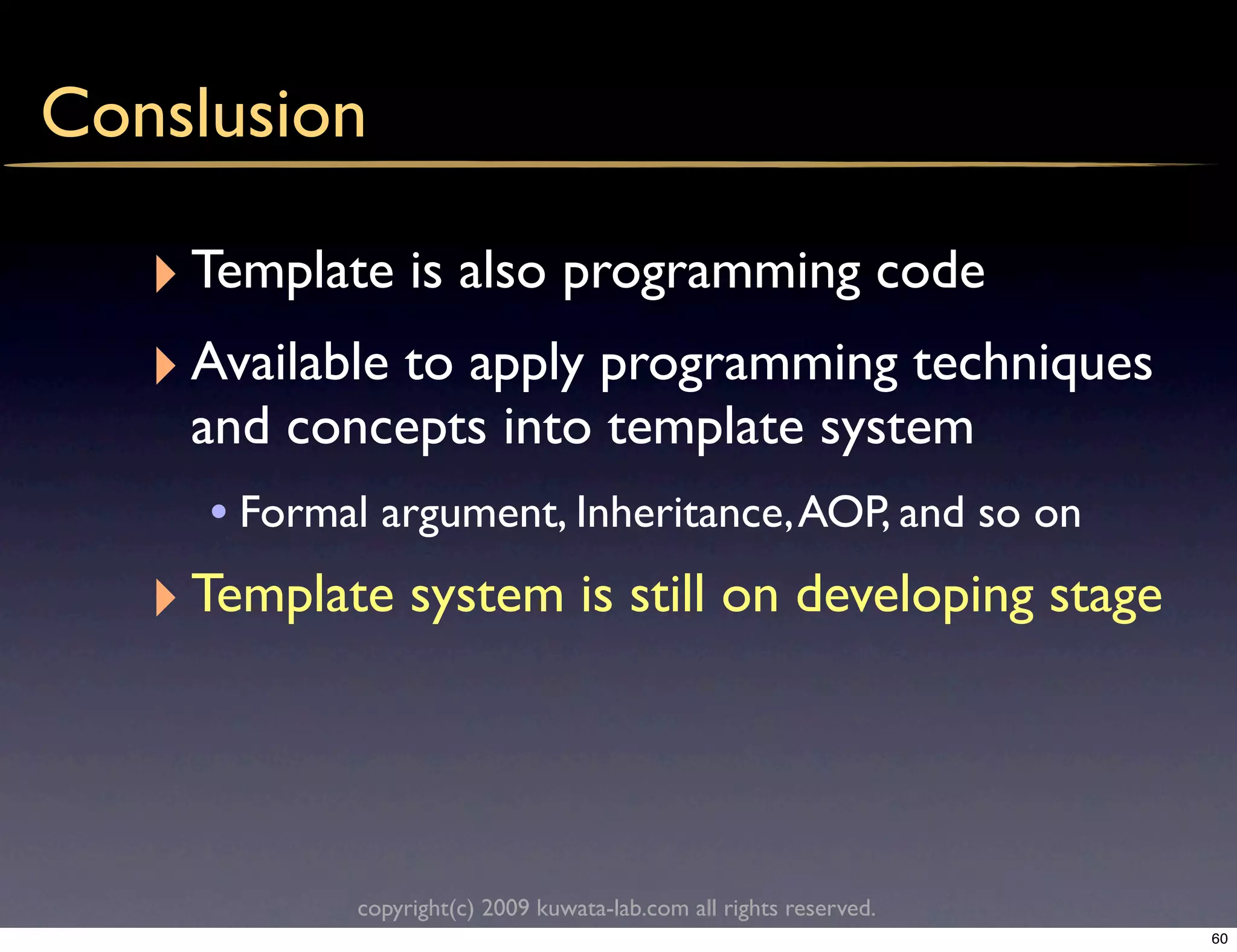

Conslusion

‣ Template is also programming code
‣ Available to apply programming techniques
and concepts into template system
• Formal argument, Inheritance, AOP, and so on
‣ Template system is still on developing stage

60

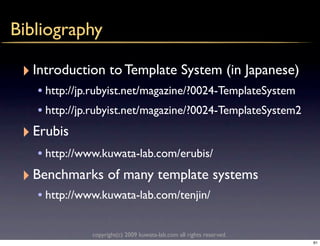

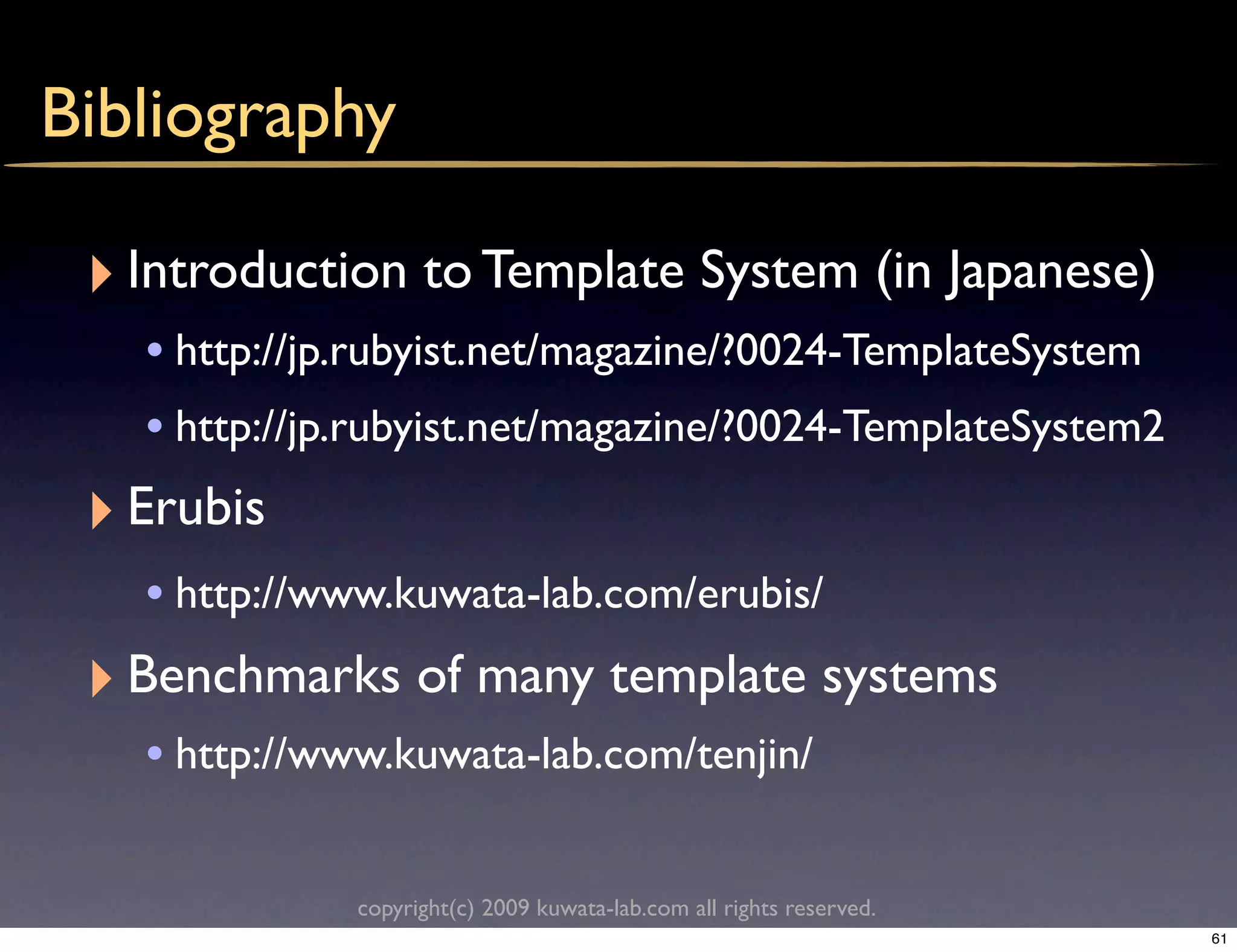

Bibliography

‣ Introduction to Template System (in Japanese)
• http://jp.rubyist.net/magazine/?0024-TemplateSystem
• http://jp.rubyist.net/magazine/?0024-TemplateSystem2
‣ Erubis
• http://www.kuwata-lab.com/erubis/
‣ Benchmarks of many template systems
• http://www.kuwata-lab.com/tenjin/

61

one more thing

62

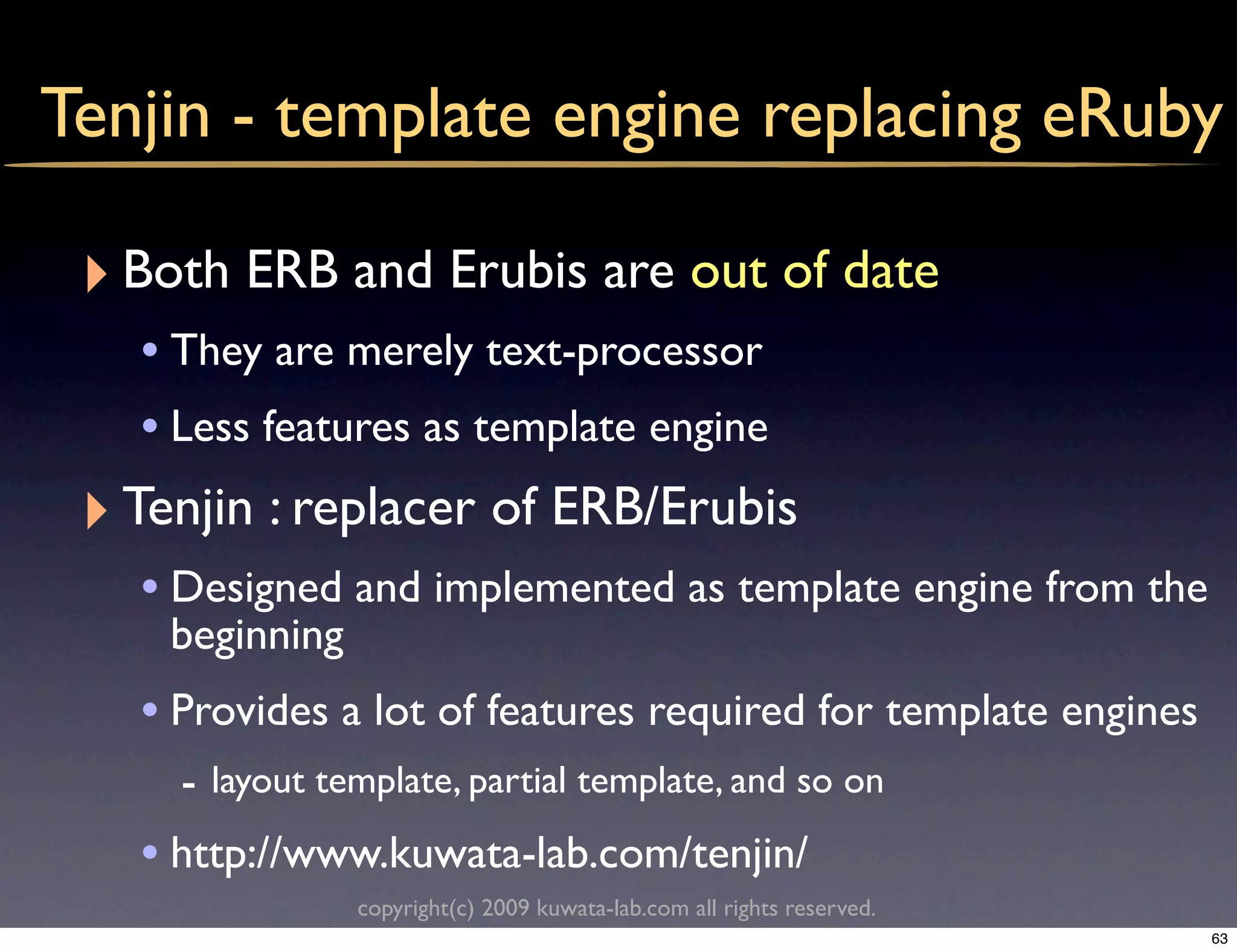

Tenjin - template engine replacing eRuby

‣ Both ERB and Erubis are out of date
• They are merely text-processor
• Less features as template engine
‣ Tenjin : replacer of ERB/Erubis
• Designed and implemented as template engine from the
beginning
• Provides a lot of features required for template engines
- layout template, partial template, and so on
• http://www.kuwata-lab.com/tenjin/
63

thank you

64

All about Erubis (English)

More Related Content

What's hot

Similar to All about Erubis (English)

More from kwatch

Recently uploaded

All about Erubis (English)
