This document contains plans and schedules for a new residence designed by Akberet Hadgu. It includes a cover sheet with project information, a sheet list, and 16 numbered drawings (A00-A09.4). The drawings include floor plans, elevations, sections, and perspectives of the basement, first and second floors, roof, and building exterior. Schedules provide information on doors, windows, and rooms. The document was created in Autodesk Revit and provides construction documents for a new single-family home.

1. Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
11/4/201612:15:41PM
A00
Cover Sheet
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
Sheet List
Sheet
Number Sheet Name
A00 Cover Sheet
A01 Basement Floor Plan
A2 First Floor Plan
A3 Second Floor Plan
A4 Roof Plan
A5 Second Floor RCP
A 6.1 Exterior Elevation
A 6.2 Exterior Elevation
A 7.1 Interior Elevation
A 7.2 Interior Elevation
A 8.1 Perspective
A 8.2 Perspective
A 8.3 Perspective
A 8.4 Perspective
A 9.1 Schedules and Legend
A 9.2 Schedule and Legend
A 9.3 Schedule and Legend
A 9.4 Schedule and Legend
T1 Tile Sheet
NEW RESIDENCE FOR AKBERET HADGU
1
{3D}

2. UP
A 6.1
A 6.2
---
1
1
-
-
-
271 SF
Room
001
39 SF
Room
002
754 SF
Room
003
271 SF
Room
004
84 SF
Room
005
38 SF
Room
006
304 SF
Room
007
5
6
2
4
Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
1/8" = 1'-0"
11/4/201612:15:42PM
A01

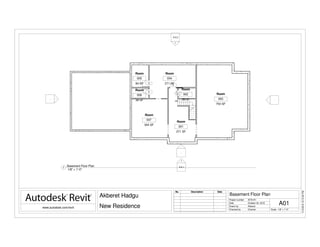

Basement Floor Plan
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Checker
No. Description Date
1/8" = 1'-0"
1
Basement Floor Plan

3. UP DN
DW
REF.
DN
A 6.1
A 6.2
---
1
1
-
107A
100
104B 104A
105
103B
103A
101
107C 107B
45 45 45 454545
454545
37
37
37 37
37 6262
56
56
56
56
28' - 0" 48' - 8" 7' - 4"
12' - 3" 3' - 6" 9' - 6 11/16" 2' - 8 5/16"4' - 0" 8' - 10" 8' - 6 7/8" 3' - 6" 11' - 3 1/8" 3' - 6" 3' - 6" 5' - 6"
84' - 0"
36'-0"
4'-0"28'-0"4'-0"
12'-3"3'-6"12'-3"
-
-
A 7.1 2
A 7.11
A 7.2 1
-
-
282 SF
ENTRY
100
39 SF
COAT CLOSET
101
786 SF
LIVING ROOM
102
280 SF
KITCHEN
103
87 SF
MUD ROOM
104
38 SF
BATH
105
312 SF
DINING
106
749 SF
GARAGE
107
Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
1/8" = 1'-0"
11/4/201612:15:43PM
A2
First Floor Plan
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
1/8" = 1'-0"
1
First Floor

4. DN
A 6.1
A 6.2
---
1
1
-
207B
206B
200
207A 201
202
206A
205
203
37 37 3737
373737 37
3838 38
38 38
-
-
345 SF
Room
200
241 SF
OFFICE
201
343 SF
Room
202
44 SF
Room
203
41 SF
Room
204
80 SF
Room
205
207 SF
Room
206
272 SF
Room
207
Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
1/8" = 1'-0"
11/4/201612:15:45PM
A3

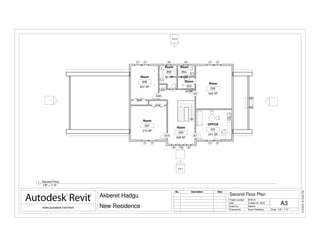

Second Floor Plan
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
1/8" = 1'-0"
1
Second Floor

5. A 6.1
A 6.2
---
1
1
-
-
-
A 7.1 2
A 7.11
A 7.2 1
-
-
Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
1/8" = 1'-0"
11/4/201612:15:45PM
A4

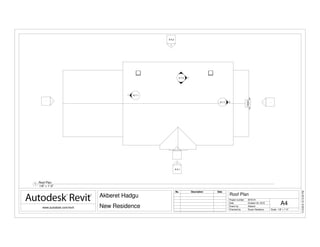

Roof Plan
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
1/8" = 1'-0"
1
Roof Plan

6. A 6.1
A 6.2
---
1
1
-
-
-
Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
1/8" = 1'-0"
11/4/201612:15:47PM
A5
Second Floor RCP
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
1/8" = 1'-0"
1
Second Floor

7. First Floor
0' - 0"
Second Floor
9' - 0"
Roof
18' - 0"
Basement
-8' - 6"
T.O. Footing
-9' - 3"
B.O. Footing
-10' - 3"
Foundation
-1' - 4 1/2"
Low Roof
12' - 0"
Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
1/8" = 1'-0"
11/4/201612:15:48PM

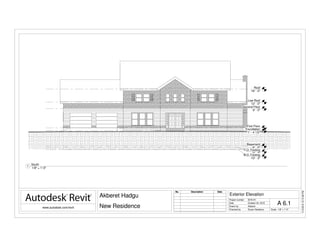

A 6.1
Exterior Elevation
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
1/8" = 1'-0"
1
South

8. First Floor
0' - 0"
Second Floor
9' - 0"
Roof
18' - 0"
Basement
-8' - 6"
T.O. Footing
-9' - 3"
B.O. Footing
-10' - 3"
Foundation
-1' - 4 1/2"
Low Roof
12' - 0"
58 58
Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
1/8" = 1'-0"
11/4/201612:15:50PM

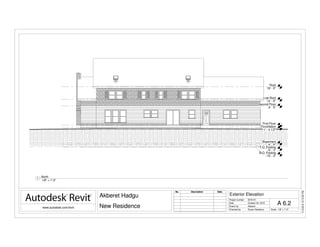

A 6.2
Exterior Elevation
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
1/8" = 1'-0"
1
North

9. First Floor
0' - 0"
3'-4"
1' - 4" 2' - 0"
24" x 36" FRAMELESS MIRROR
SOLID POLYMER COUNTER TOP
24" DEEP WOOD VANITY BASE CABINET
TOILET
4'-103/4"
6' - 8"
CUSTOM WOOD MANTEL
-
---
Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
As indicated
11/4/201612:15:51PM
A 7.1
Interior Elevation
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
1/2" = 1'-0"
1
1/2 Bath
1/4" = 1'-0"
2
Living Room - East

10. First Floor
0' - 0"
2' - 0" 2' - 3"
3'-0"1'-6"2'-6"
3' - 0" 1' - 0" 1' - 3" 3' - 0"
1'-3"
RUBBER BASE
WOOD BASE CABINETS
- 24" DEEP
30" WIDE RANGE (N.I.C.)
SOLID POLYMER COUNTER
TOP WITH BACKSPLASH
WOOD WALL CABINETS
- 12" DEEP
RANGE HOOD
Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
1/2" = 1'-0"
11/4/201612:15:52PM
A 7.2
Interior Elevation
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
1/2" = 1'-0"
1
Kitchen (east)

11. Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
6" = 1'-0"
11/4/201612:15:52PM
A 8.1
Perspective
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
6" = 1'-0"
1
Kitchen 2

12. Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
12" = 1'-0"
11/4/201612:15:53PM
A 8.2
Perspective
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Author
Checker
No. Description Date
12" = 1'-0"
1
Kitchen 3

13. Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
12" = 1'-0"
11/4/201612:15:54PM
A 8.3
Perspective
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
12" = 1'-0"
1
Kitchen 6

14. Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
11/4/201612:16:11PM
A 8.4
Perspective
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
1
3D View 1

15. Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
11/4/201612:16:12PM
A 9.1
Schedules and Legend
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date

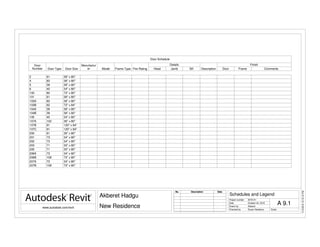

Door Schedule
Door
Number Door Type Door Size
Manufactur
er Model Frame Type Fire Rating
Details
Description
Finish
Head Jamb Sill Door Frame Comments
2 61 36" x 80"
4 83 36" x 80"
5 39 36" x 80"
6 40 34" x 80"
100 80 72" x 80"
101 61 36" x 80"
103A 83 36" x 80"
103B 62 72" x 84"
104A 39 36" x 80"
104B 39 36" x 80"
105 40 34" x 80"
107A 102 36" x 80"
107B 91 120" x 84"
107C 91 120" x 84"
200 61 36" x 80"
201 73 34" x 80"
202 73 34" x 80"
203 71 30" x 80"
205 71 30" x 80"
206A 73 34" x 80"
206B 108 72" x 80"
207A 73 34" x 80"
207B 108 72" x 80"

16. Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
11/4/201612:16:13PM
A 9.2
Schedule and Legend
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Author
Checker
No. Description Date
Door Schedule 2
Mark Width Height
Frame
Material Frame Type Fire Rating
2 3' - 0" 6' - 8"
4 3' - 0" 6' - 8"
5 3' - 0" 6' - 8"
6 2' - 10" 6' - 8"
100 6' - 0" 6' - 8"
101 3' - 0" 6' - 8"
103A 3' - 0" 6' - 8"
103B 6' - 0" 7' - 0"
104A 3' - 0" 6' - 8"
104B 3' - 0" 6' - 8"
105 2' - 10" 6' - 8"
107A 3' - 0" 6' - 8"
107B 10' - 0" 7' - 0"
107C 10' - 0" 7' - 0"
200 3' - 0" 6' - 8"
201 2' - 10" 6' - 8"
202 2' - 10" 6' - 8"
203 2' - 6" 6' - 8"
205 2' - 6" 6' - 8"
206A 2' - 10" 6' - 8"
206B 6' - 0" 6' - 8"
207A 2' - 10" 6' - 8"
207B 6' - 0" 6' - 8"
Room Schedule
Number Name
Base
Finish
Floor
Finish Wall Finish
Ceiling
Finish Area
001 Room 271 SF
002 Room 39 SF
003 Room 754 SF
004 Room 271 SF
005 Room 84 SF
006 Room 38 SF
007 Room 304 SF
100 ENTRY 282 SF
101 COAT CLOSET 39 SF
102 LIVING ROOM 786 SF
103 KITCHEN 280 SF
104 MUD ROOM 87 SF
105 BATH 38 SF
106 DINING 312 SF
107 GARAGE 749 SF
200 Room 345 SF
201 OFFICE 241 SF
202 Room Wood CARPET-1 PAINT-1 GB 343 SF
203 Room 44 SF
204 Room 41 SF
205 Room 80 SF
206 Room Wood CARPET-1 PAINT-1 GB 207 SF
207 Room Wood CARPET-1 PAINT-1 GB 272 SF

17. Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
11/4/201612:16:14PM
A 9.3
Schedule and Legend
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
Window Schedule
Type Mark
Rough Opening
Type
Manufactur
er Model Material Finish
Detail Glazing Head
Height
Comm
entsWidth Height Head Jamb Sill Thickness Type
37 3' - 0" 4' - 0" Double Hung with Trim 7' - 0"
38 2' - 0" 4' - 0" Double Hung with Trim 7' - 0"
45 3' - 0" 6' - 0" Double Hung with Trim 7' - 0"
56 3' - 0" 1' - 8" Fixed with Trim 7' - 0"
58 2' - 0" 2' - 3" Skylight
62 3' - 0" 3' - 6" Double Hung with Trim 7' - 0"
Lighting Fixture Schedule
Type Mark Family and Type Manufacturer Model Lamp Type Comments
Downlight - Recessed Can: 6" Incandescent - 277V A-19
Troffer Light - 2x4 Parabolic: 2'x4'(2 Lamp) - 120V T-12

18. Scale
Project number
Date
Drawn by
Checked by
www.autodesk.com/revit
11/4/201612:16:14PM
A 9.4
Schedule and Legend
2016-A1
Akberet Hadgu
New Residence
October 24, 2016
Akberet
Susan Newberry
No. Description Date
Room Finish Schedule
Room
Number
Room
Name
Finish
CommentsFloor Base Wall Ceiling
Ceiling
Height
100 ENTRY
101 COAT
CLOSET
102 LIVING
ROOM
103 KITCHEN
104 MUD
ROOM
105 BATH
106 DINING
107 GARAGE
200 Room
201 OFFICE
202 Room CARPET-1 Wood PAINT-1 GB
203 Room
204 Room
205 Room
206 Room CARPET-1 Wood PAINT-1 GB
207 Room CARPET-1 Wood PAINT-1 GB
001 Room
002 Room
003 Room
004 Room
005 Room
006 Room
007 Room
