Agile, qa and data projects geek night 2020
- 1. GLOBAL SOFTWARE CONSULTANCY AGILE, QA AND DATA PROJECTS Anjuman Saiyed, Pranesh Gaikwad Credits: Balvinder Khurana 1© 2020 ThoughtWorks
- 2. 2 Quality Analyst ANJUMAN SAIYED Data Engineer BALVINDER KHURANA Quality Analyst PRANESH GAIKWAD © 2020 ThoughtWorks

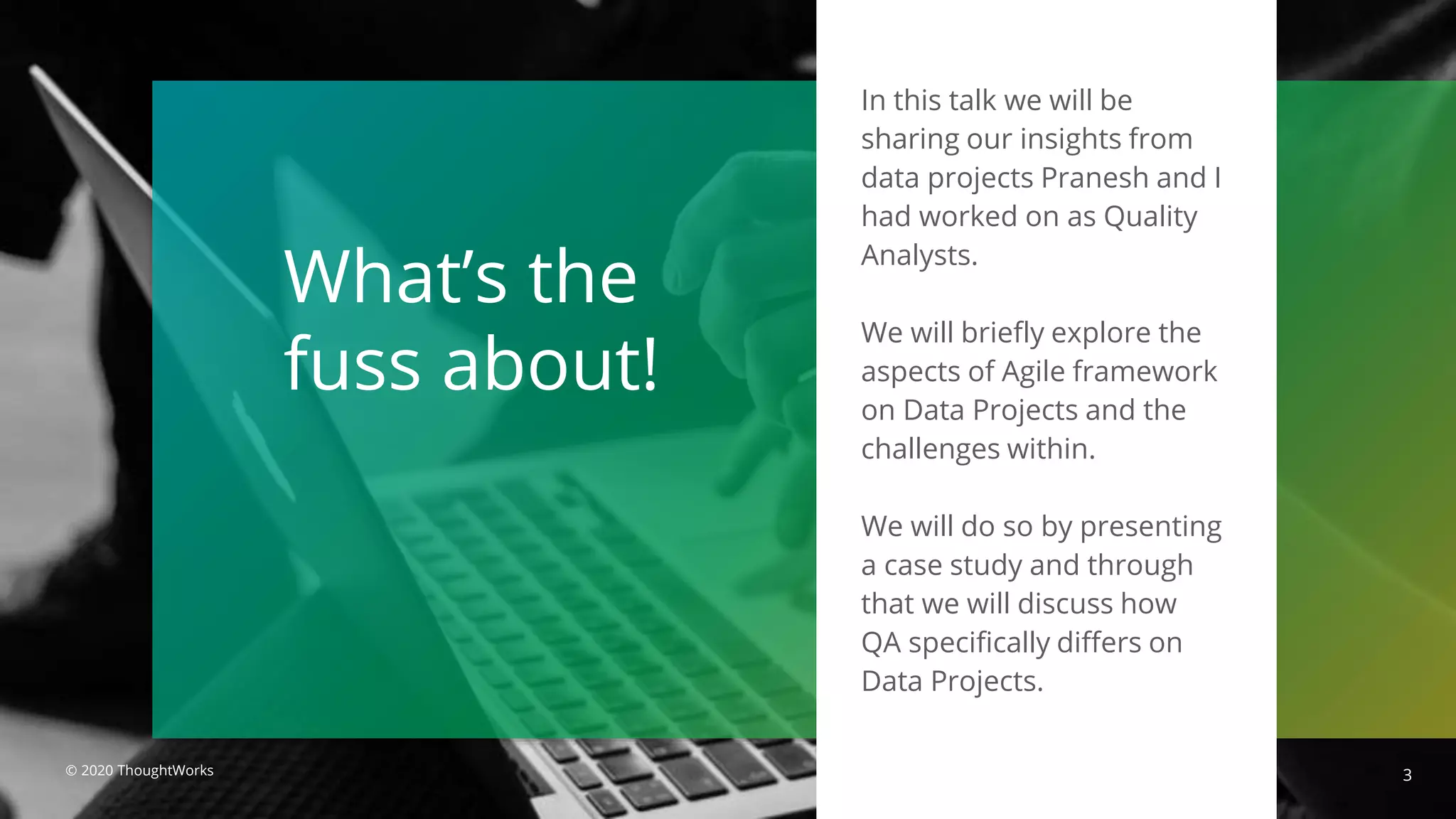

- 3. 3 What’s the fuss about! In this talk we will be sharing our insights from data projects Pranesh and I had worked on as Quality Analysts. We will briefly explore the aspects of Agile framework on Data Projects and the challenges within. We will do so by presenting a case study and through that we will discuss how QA specifically differs on Data Projects. © 2020 ThoughtWorks

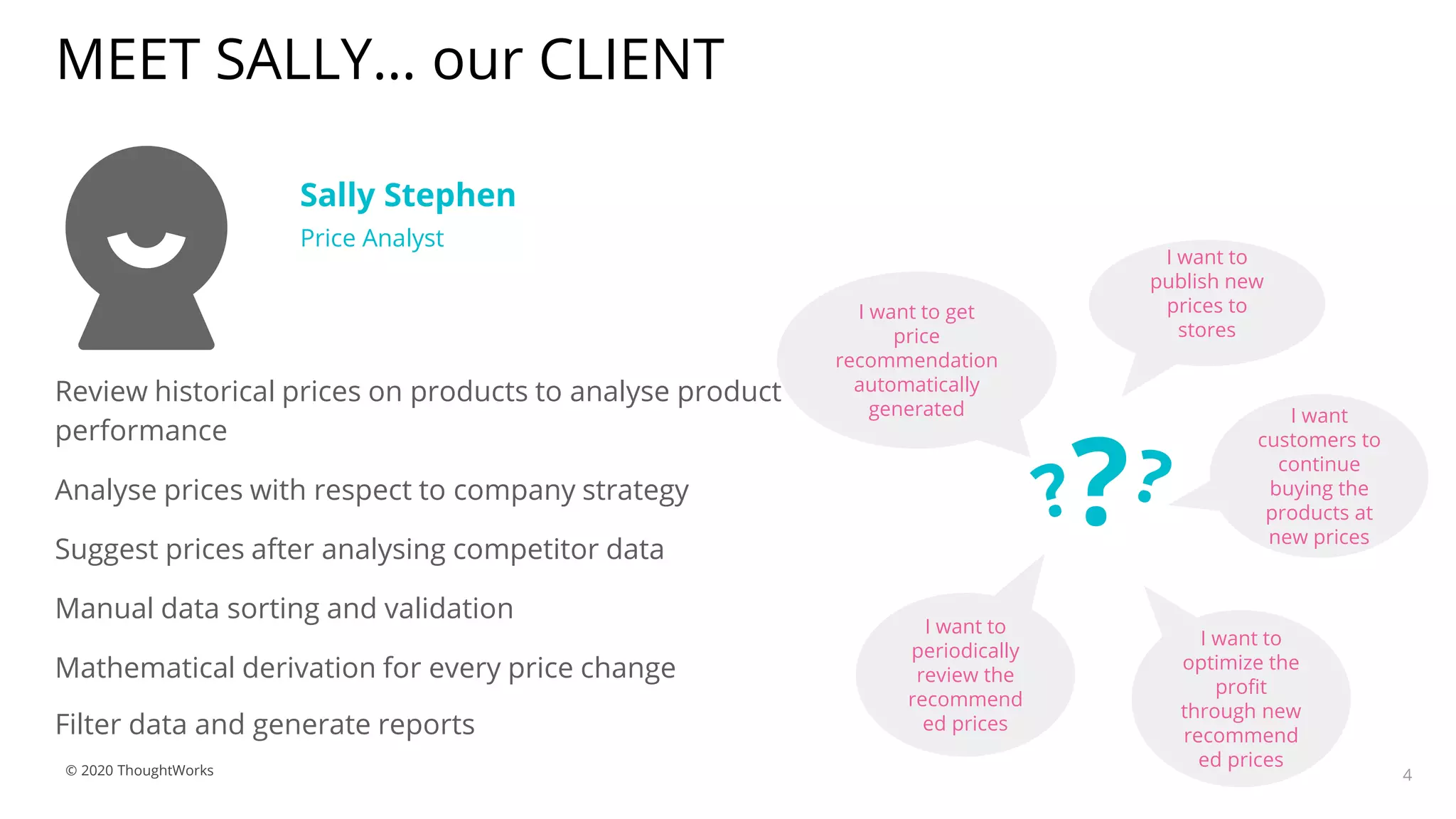

- 4. 4© 2020 ThoughtWorks I want to get price recommendation automatically generated I want to publish new prices to stores I want to optimize the profit through new recommend ed prices I want to periodically review the recommend ed prices I want customers to continue buying the products at new prices Review historical prices on products to analyse product performance Analyse prices with respect to company strategy Suggest prices after analysing competitor data Manual data sorting and validation Mathematical derivation for every price change Filter data and generate reports Sally Stephen Price Analyst ? MEET SALLY… our CLIENT

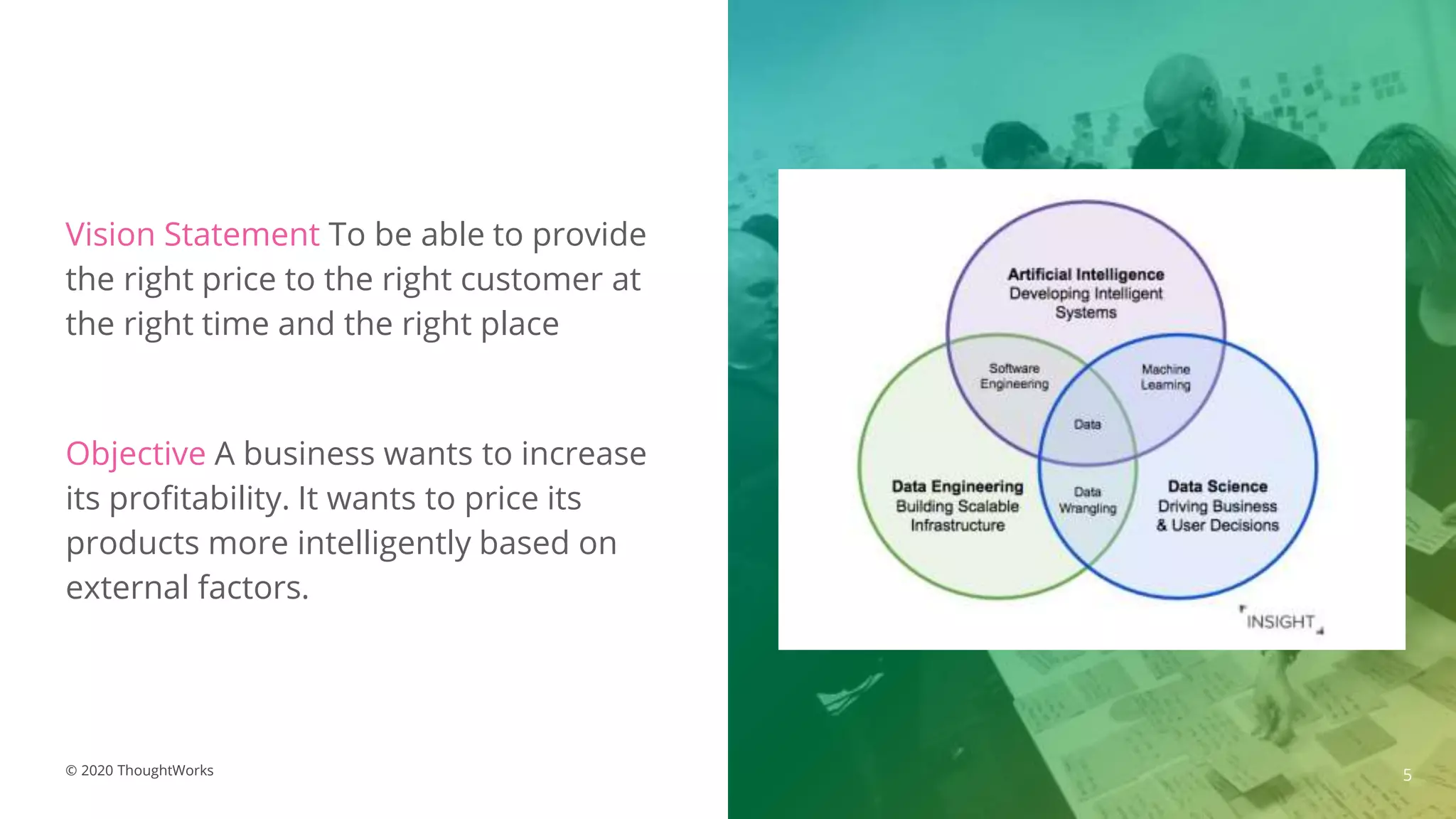

- 5. Vision Statement To be able to provide the right price to the right customer at the right time and the right place Objective A business wants to increase its profitability. It wants to price its products more intelligently based on external factors. 5© 2020 ThoughtWorks

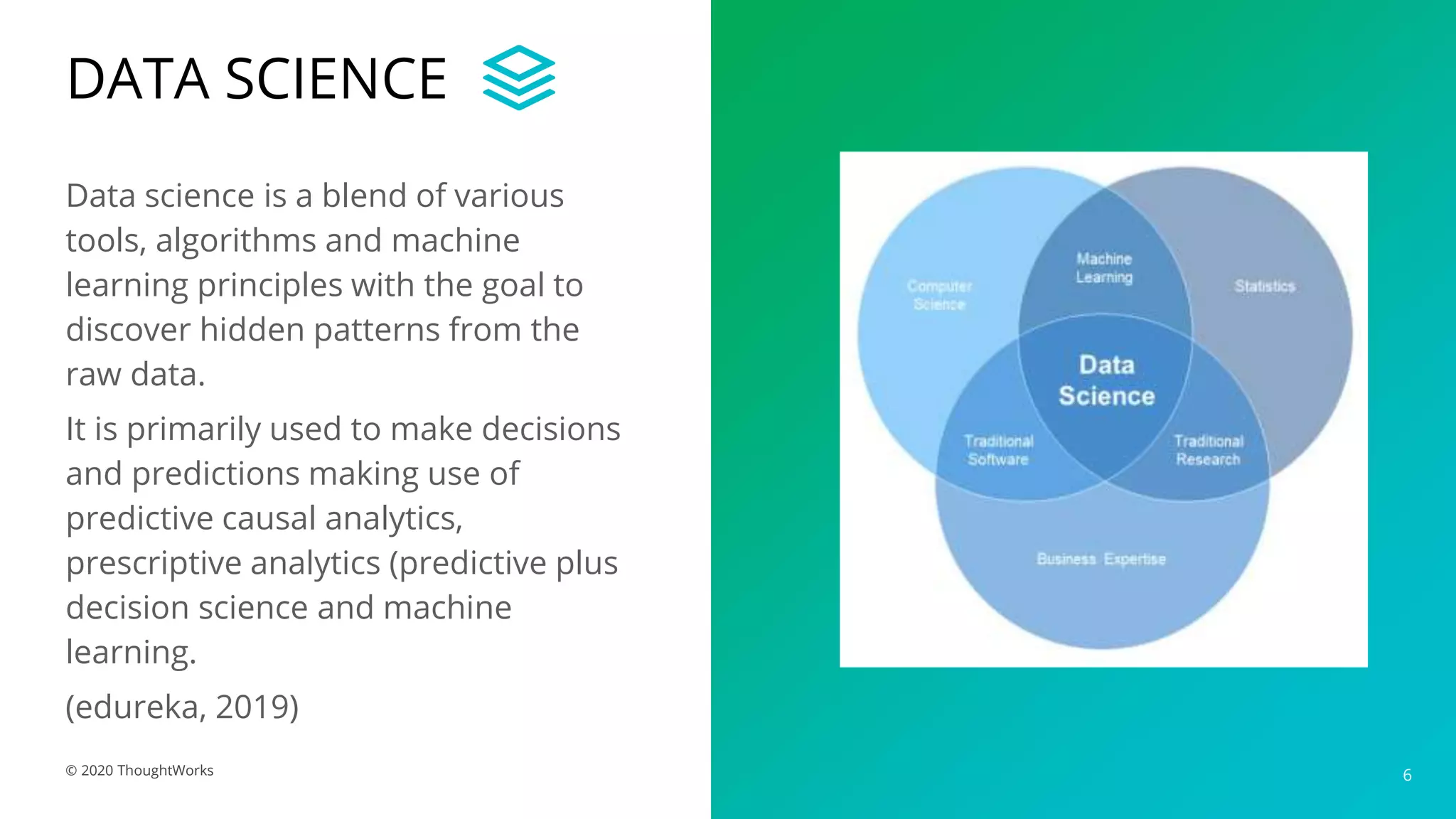

- 6. 6 DATA SCIENCE Data science is a blend of various tools, algorithms and machine learning principles with the goal to discover hidden patterns from the raw data. It is primarily used to make decisions and predictions making use of predictive causal analytics, prescriptive analytics (predictive plus decision science and machine learning. (edureka, 2019) © 2020 ThoughtWorks

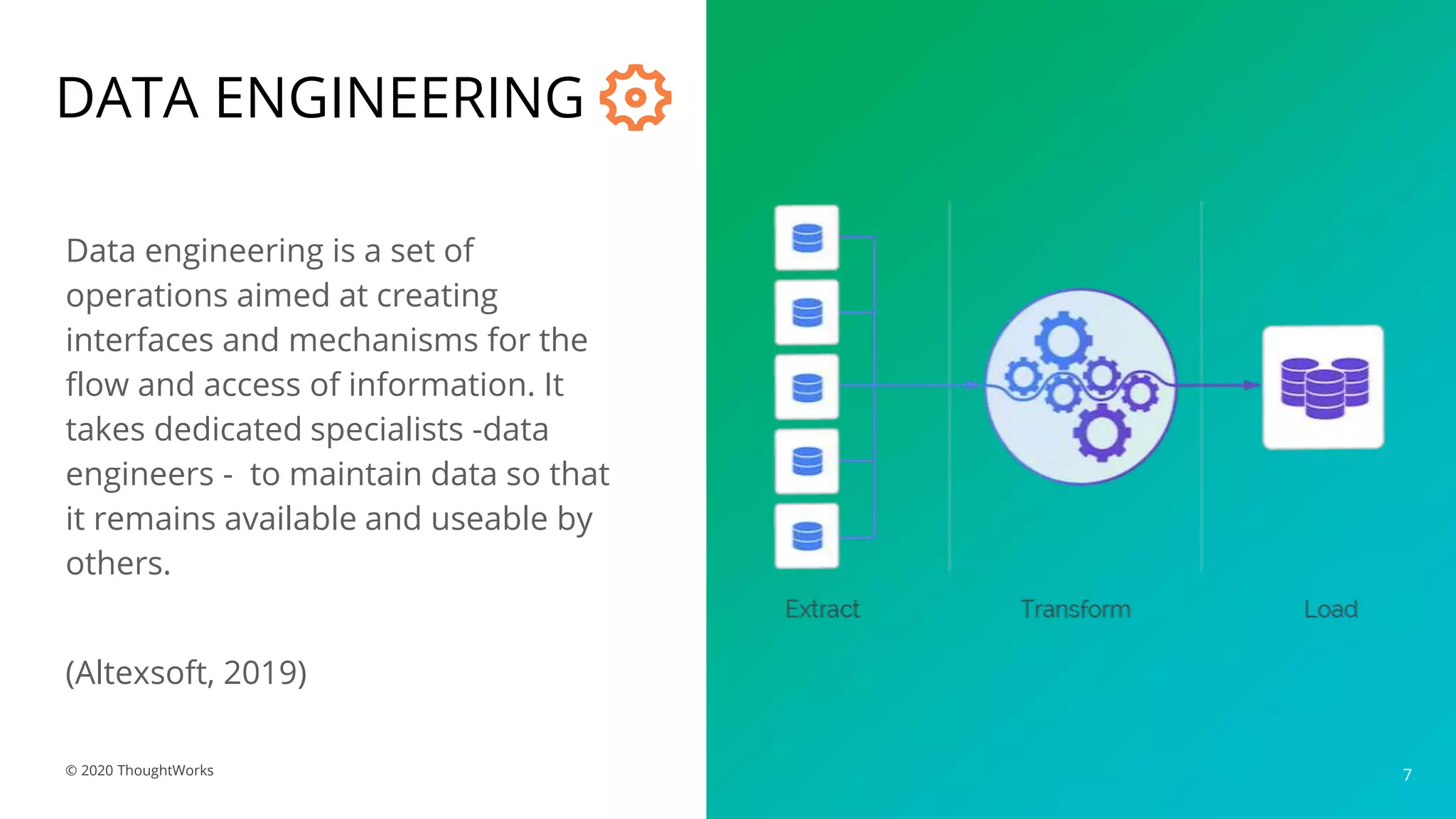

- 7. 7 DATA ENGINEERING Data engineering is a set of operations aimed at creating interfaces and mechanisms for the flow and access of information. It takes dedicated specialists -data engineers - to maintain data so that it remains available and useable by others. (Altexsoft, 2019) © 2020 ThoughtWorks

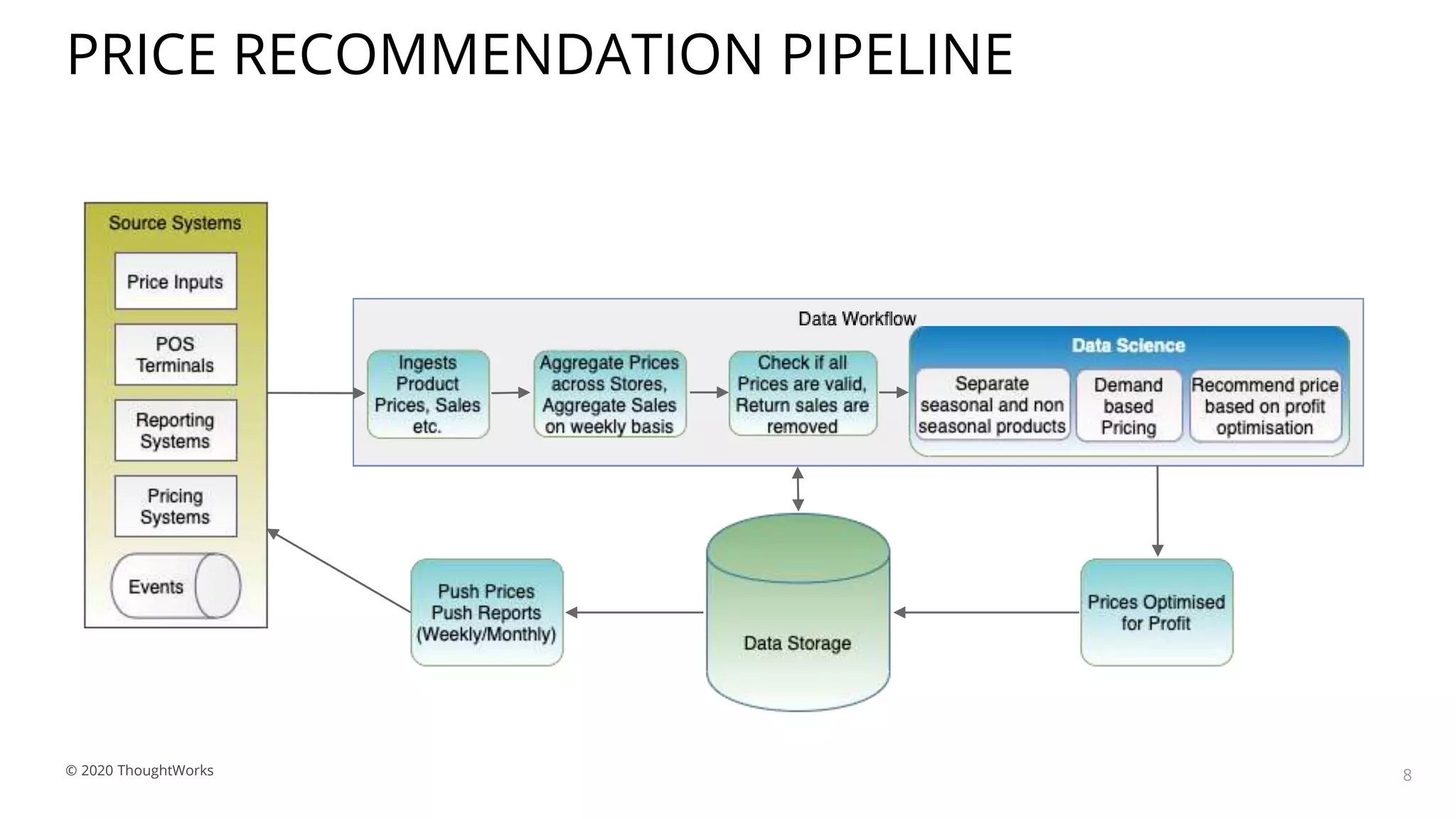

- 8. PRICE RECOMMENDATION PIPELINE 8© 2020 ThoughtWorks

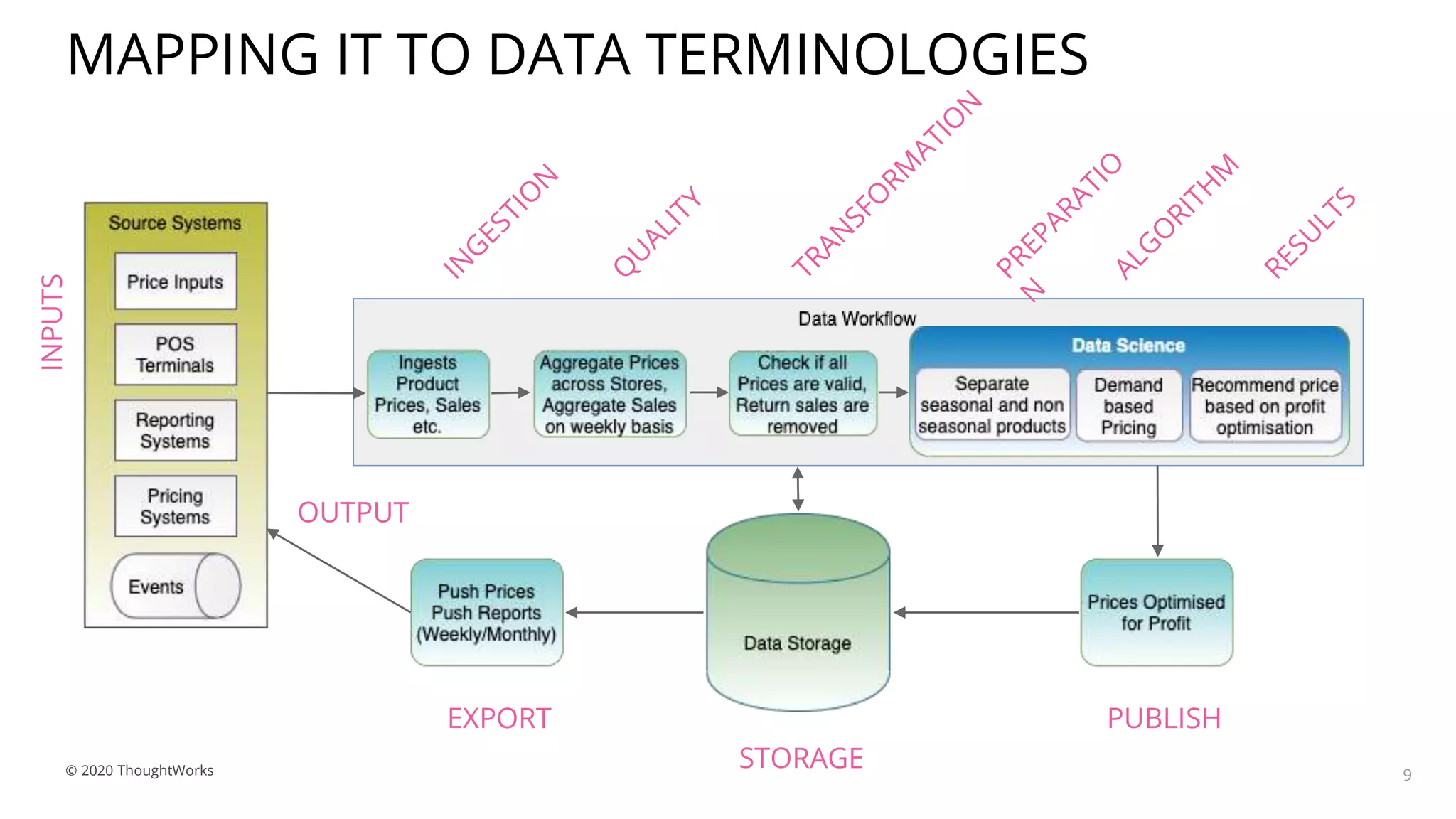

- 9. MAPPING IT TO DATA TERMINOLOGIES 9© 2020 ThoughtWorks
- 10. DATA WORKFLOW PIPELINE 10 © 2020 ThoughtWorks

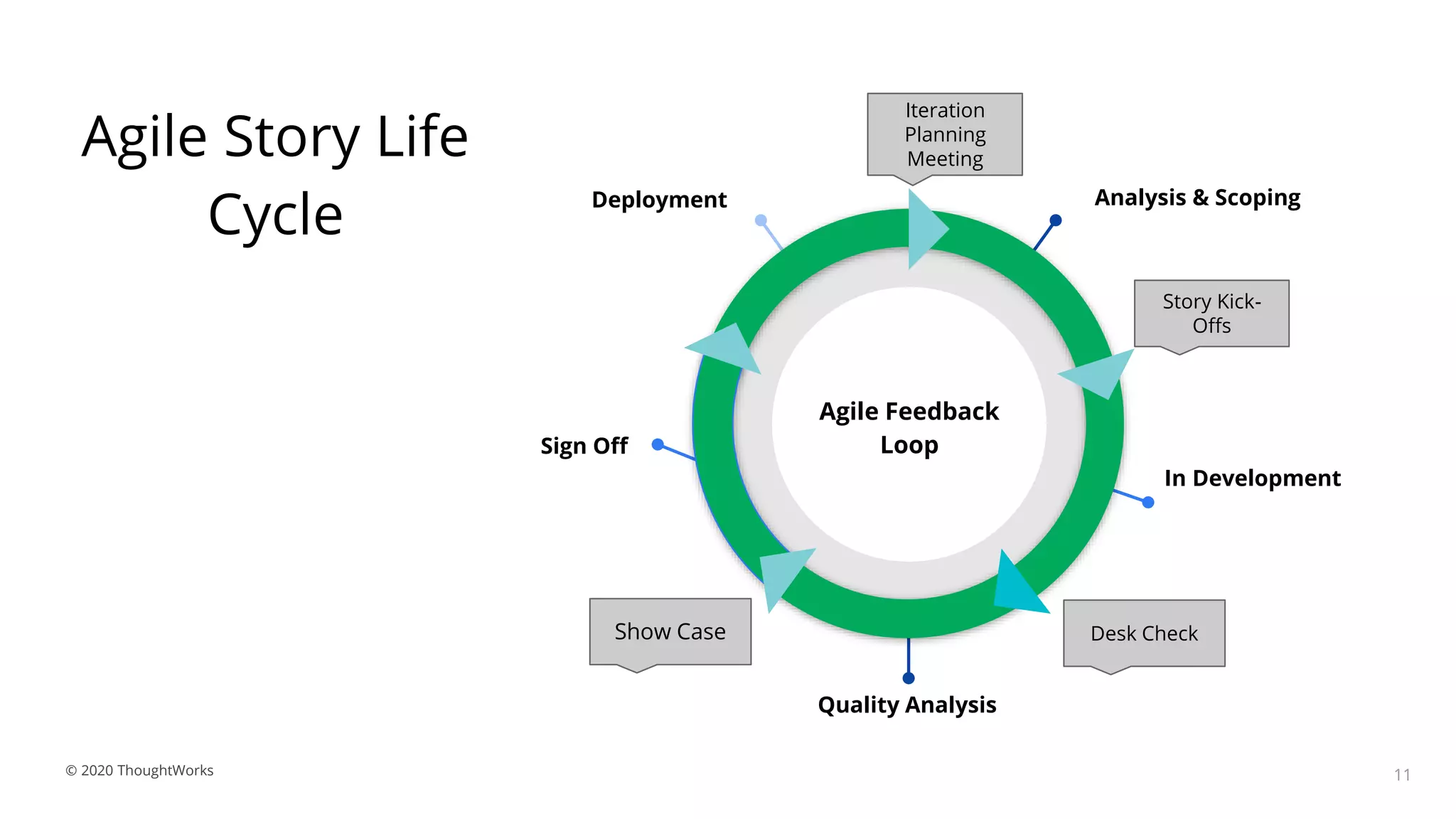

- 11. 11 Analysis & ScopingDeployment In Development Sign Off Quality Analysis Agile Feedback Loop Story Kick- Offs Desk Check Iteration Planning Meeting Show Case Agile Story Life Cycle © 2020 ThoughtWorks

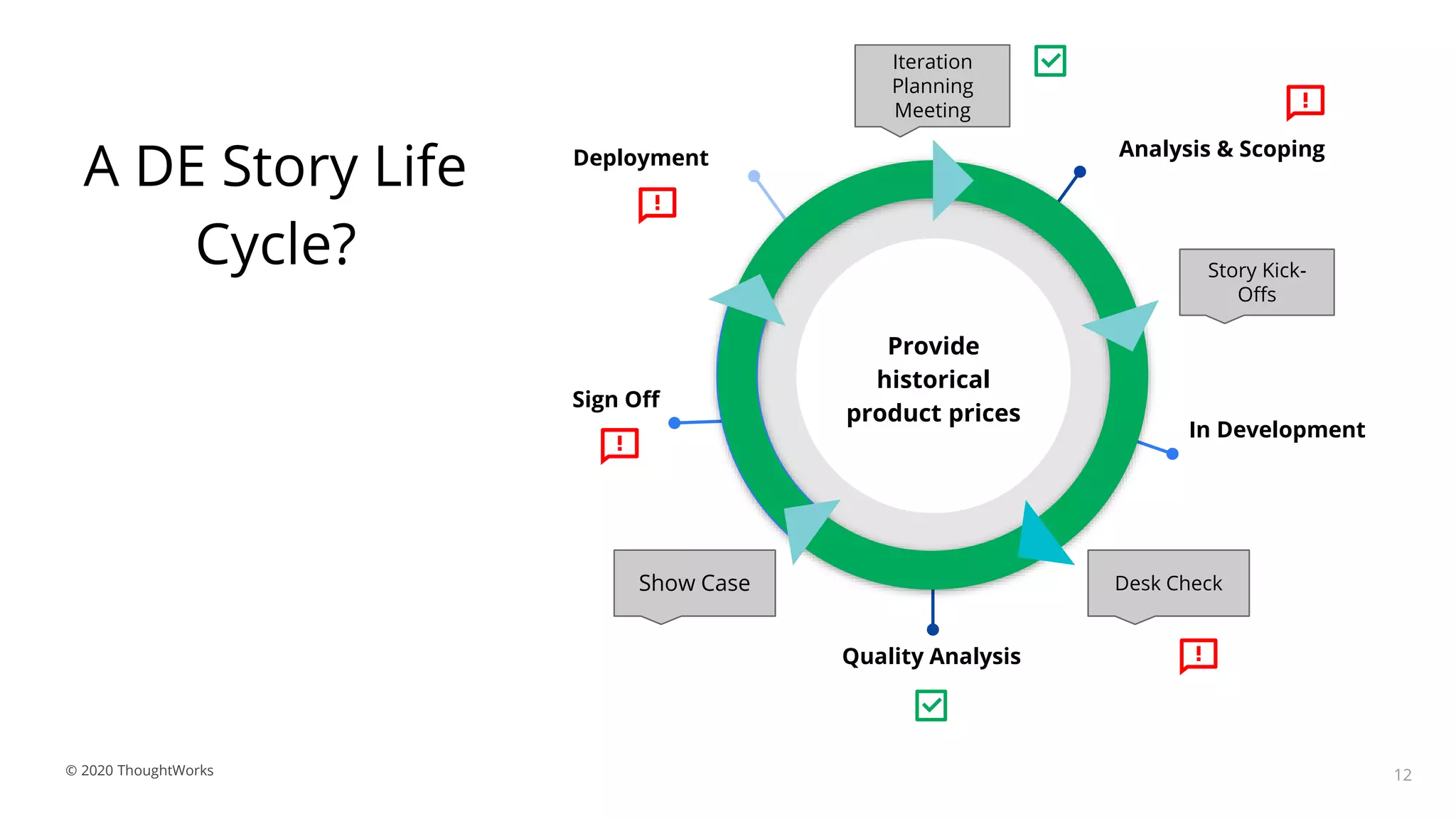

- 12. 12 Analysis & ScopingDeployment In Development Sign Off Quality Analysis Provide historical product prices Story Kick- Offs Desk Check Iteration Planning Meeting Show Case © 2020 ThoughtWorks A DE Story Life Cycle?

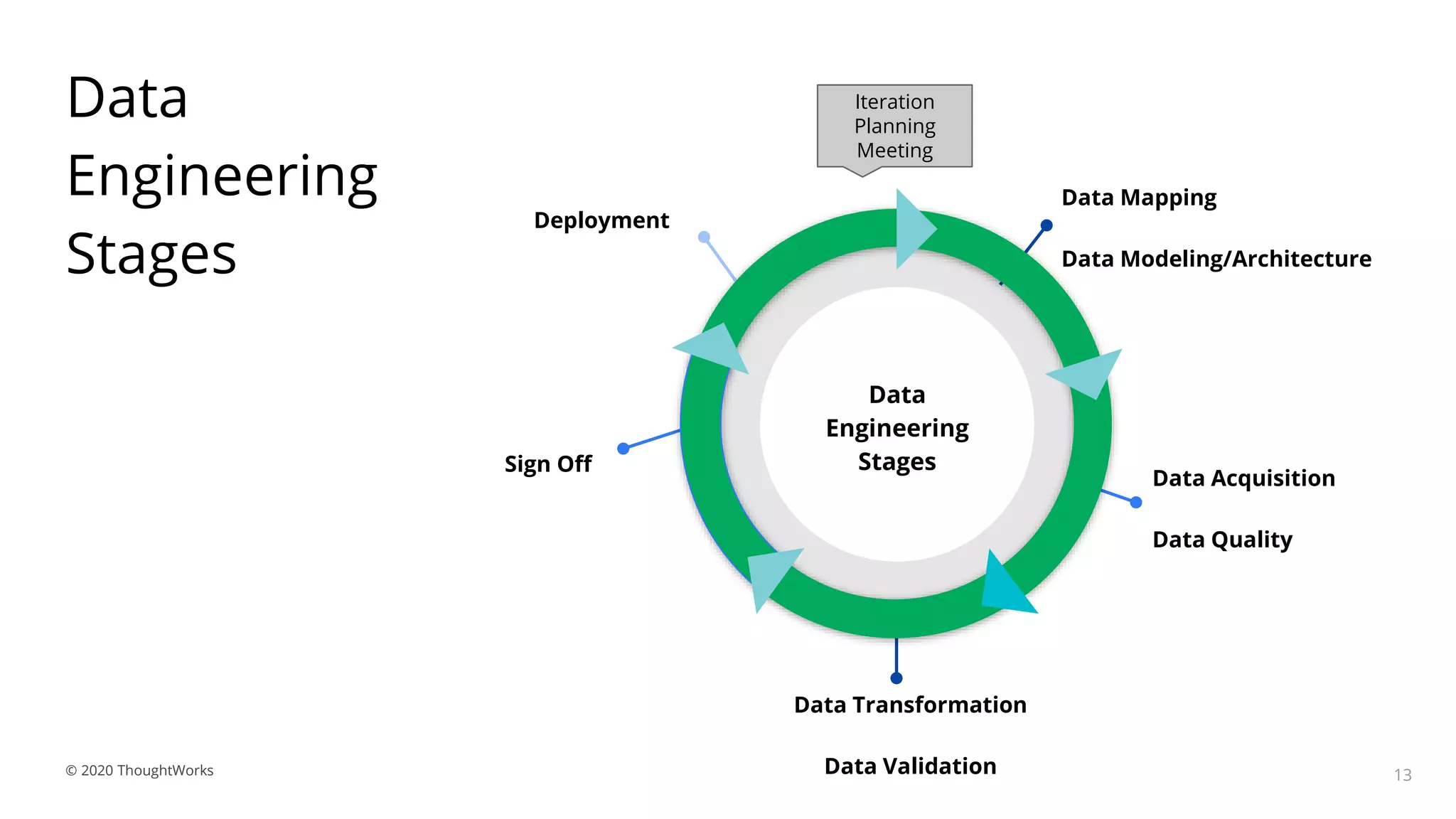

- 13. 13 Data Mapping Data Modeling/Architecture Deployment Data Acquisition Data Quality Sign Off Data Transformation Data Validation Data Engineering Stages Iteration Planning Meeting Data Engineering Stages © 2020 ThoughtWorks

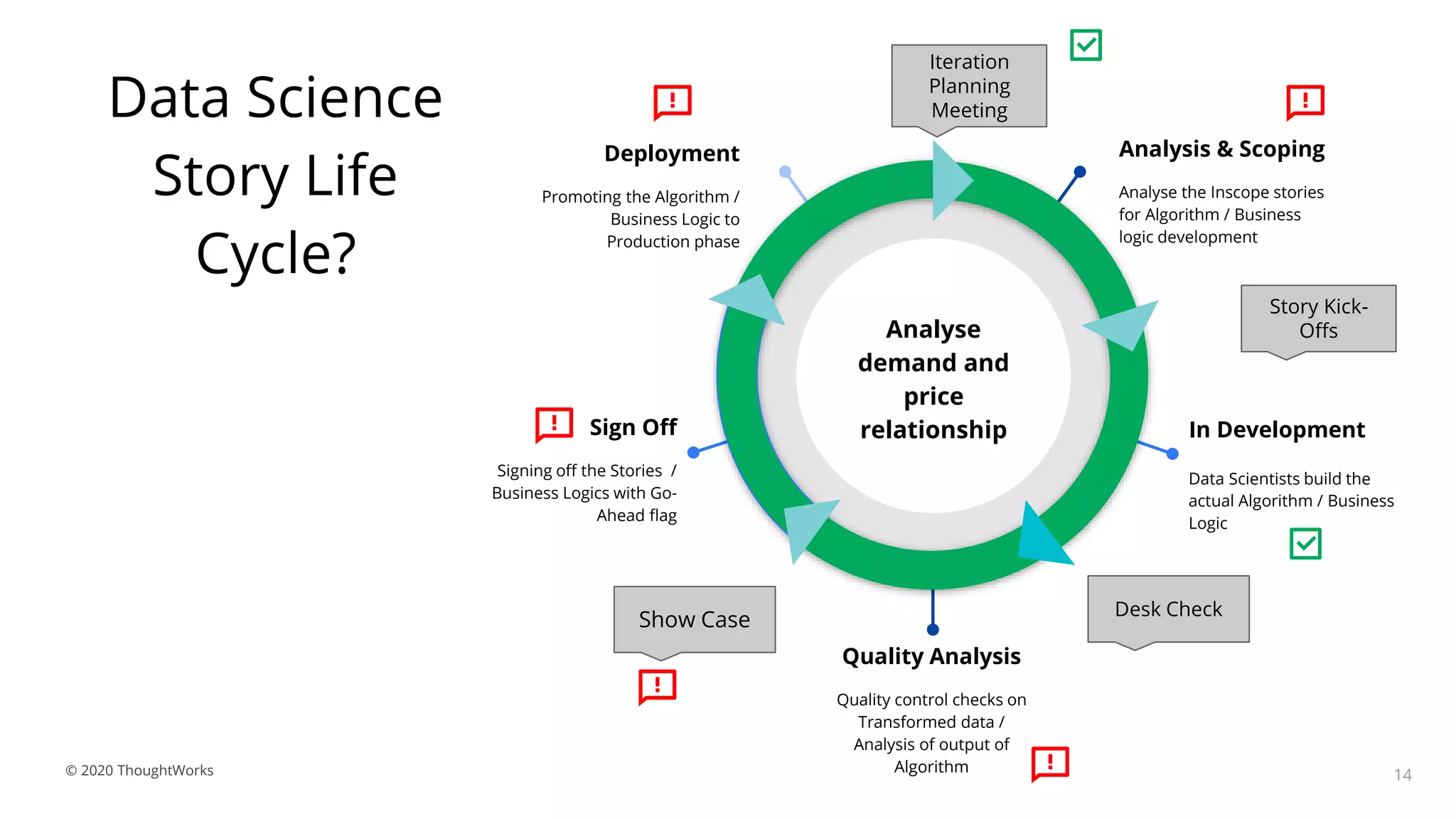

- 14. 14 Analysis & Scoping Analyse the Inscope stories for Algorithm / Business logic development Deployment Promoting the Algorithm / Business Logic to Production phase In Development Data Scientists build the actual Algorithm / Business Logic Sign Off Signing off the Stories / Business Logics with Go- Ahead flag Quality Analysis Quality control checks on Transformed data / Analysis of output of Algorithm Analyse demand and price relationship Story Kick- Offs Desk Check Iteration Planning Meeting Show Case Data Science Story Life Cycle? © 2020 ThoughtWorks

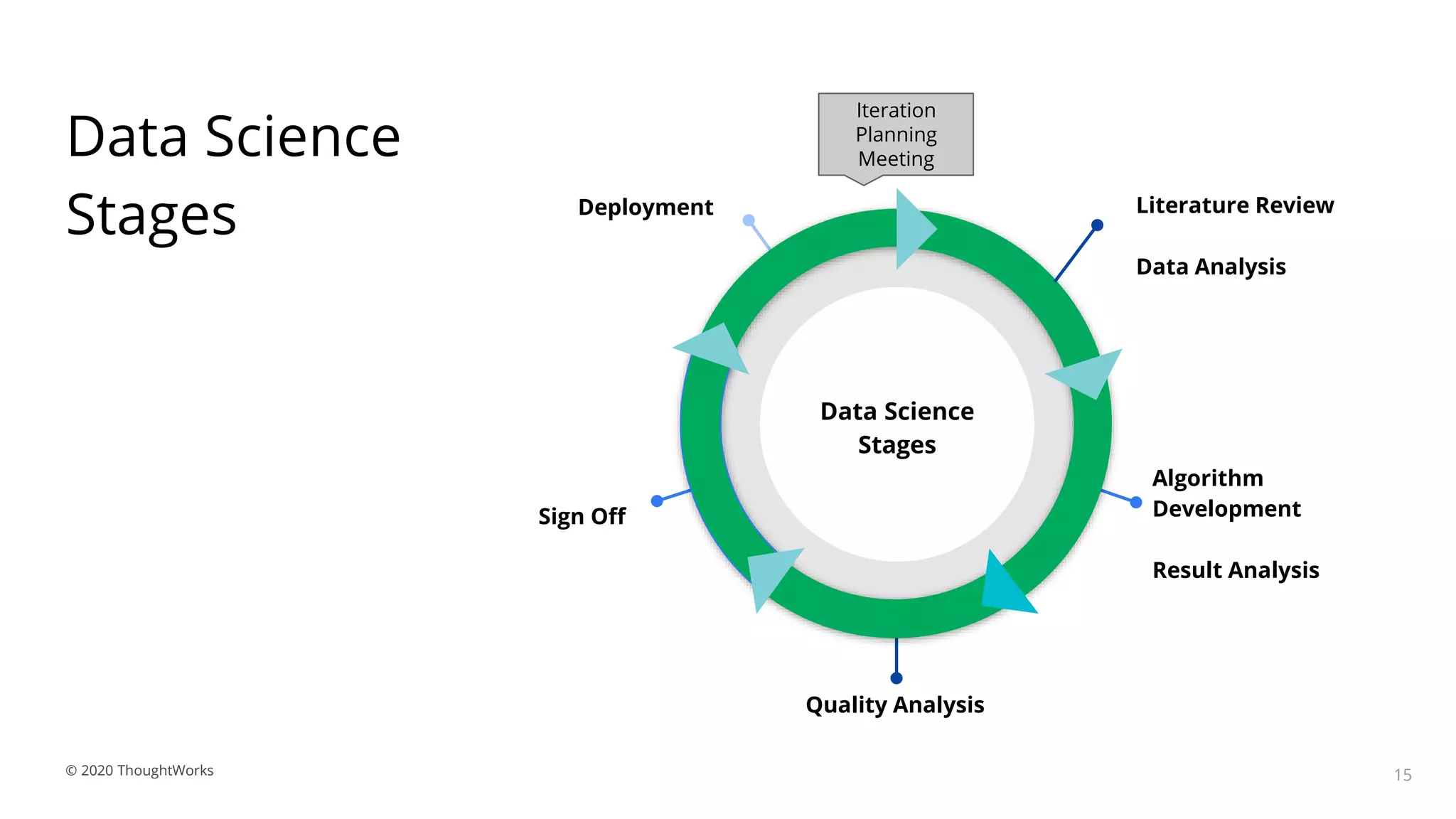

- 15. 15 Deployment Algorithm Development Result Analysis Sign Off Quality Analysis Data Science Stages Iteration Planning MeetingData Science Stages © 2020 ThoughtWorks Literature Review Data Analysis

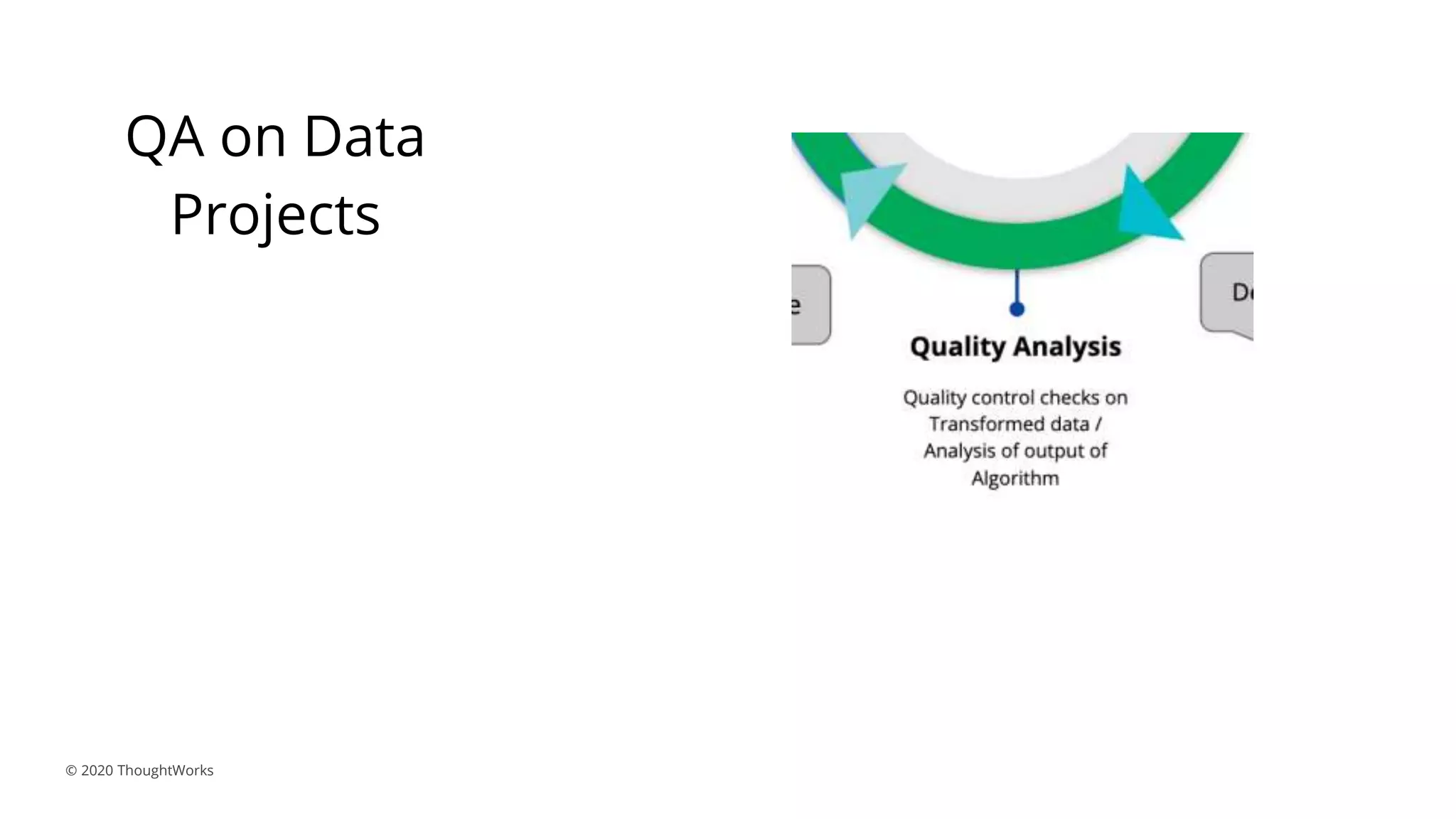

- 16. QA on Data Projects © 2020 ThoughtWorks

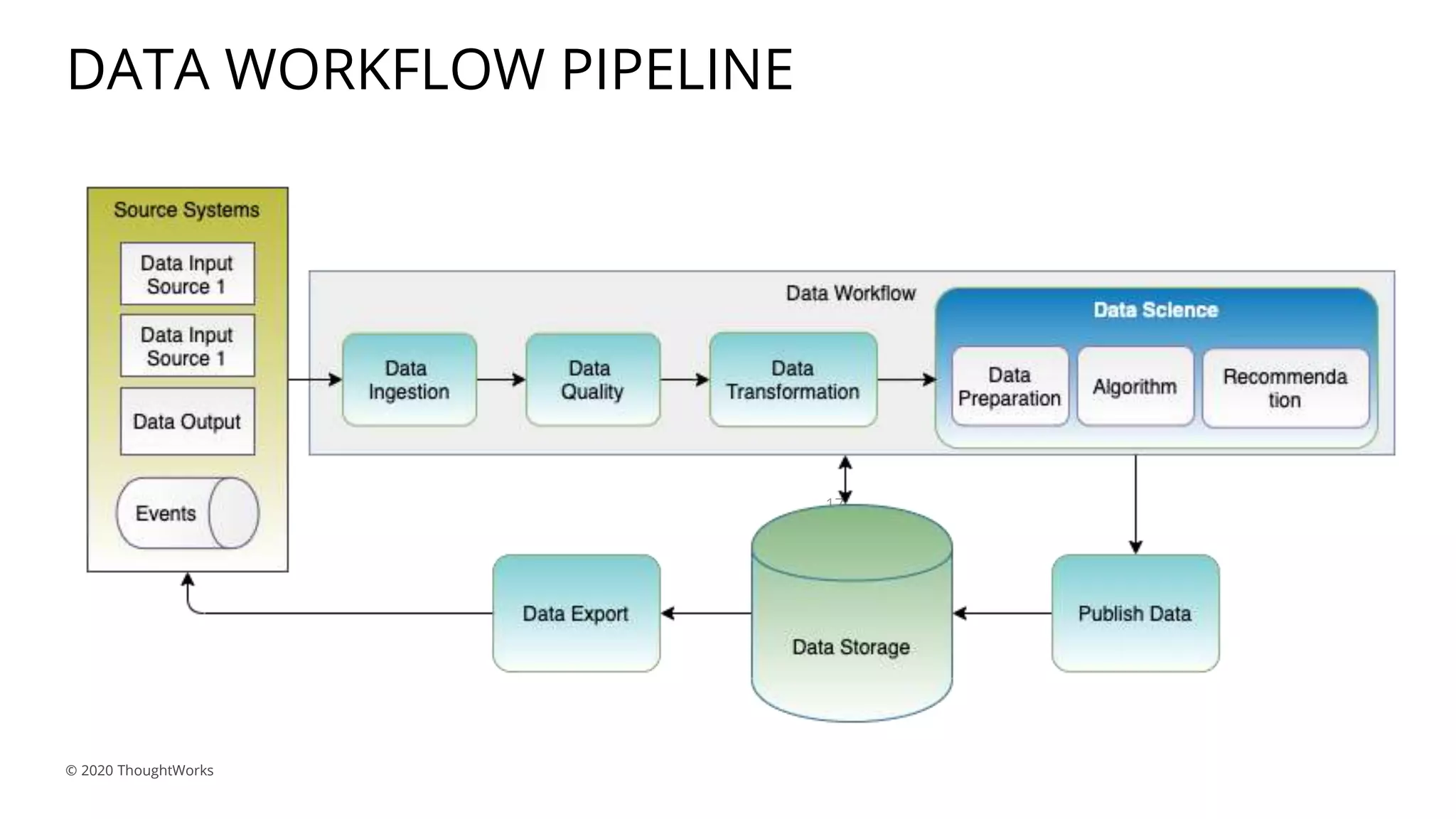

- 17. DATA WORKFLOW PIPELINE 17 © 2020 ThoughtWorks

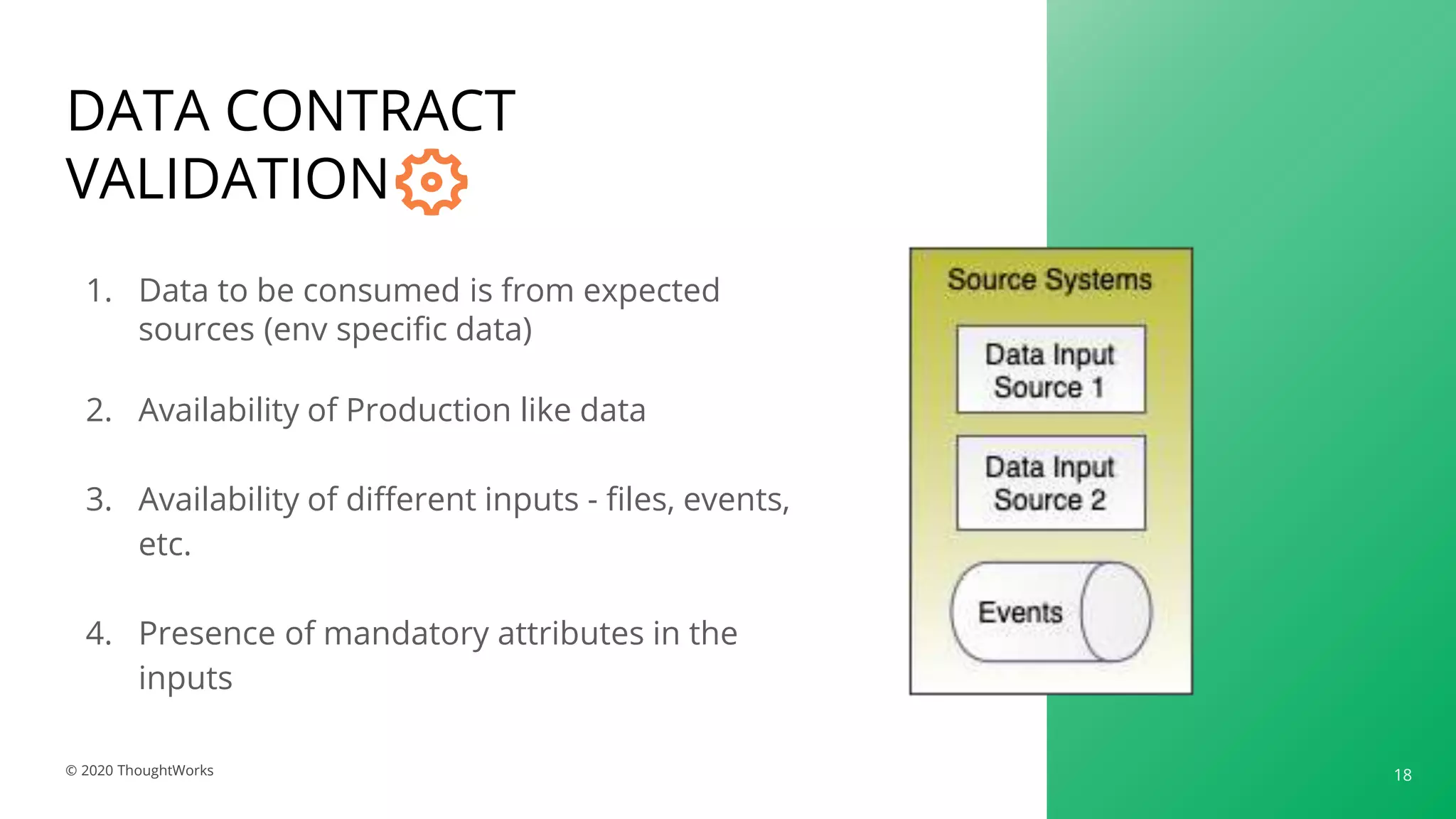

- 18. 18© 2020 ThoughtWorks DATA CONTRACT VALIDATION 1. Data to be consumed is from expected sources (env specific data) 2. Availability of Production like data 3. Availability of different inputs - files, events, etc. 4. Presence of mandatory attributes in the inputs

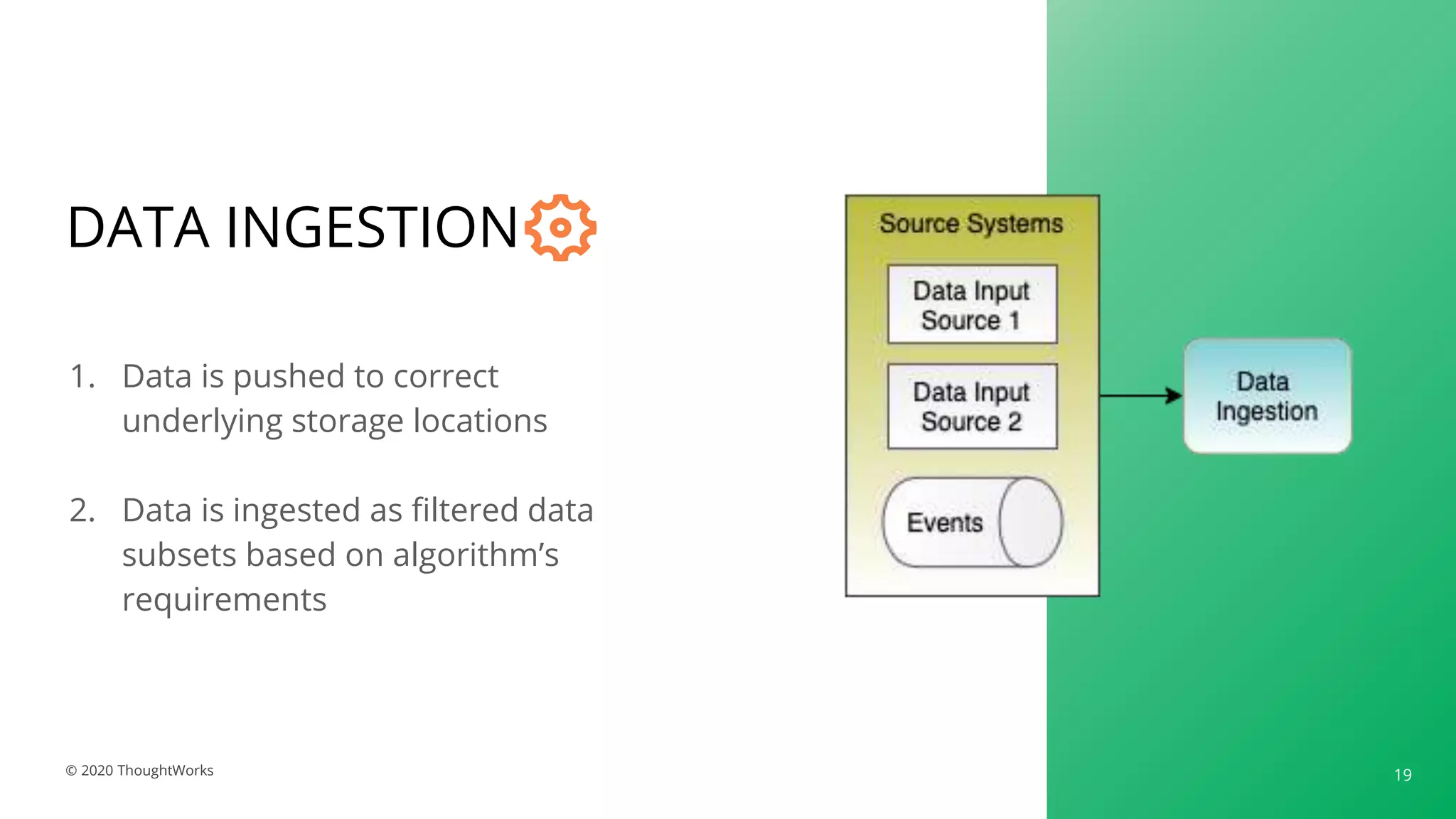

- 19. DATA INGESTION 1. Data is pushed to correct underlying storage locations 2. Data is ingested as filtered data subsets based on algorithm’s requirements 19© 2020 ThoughtWorks

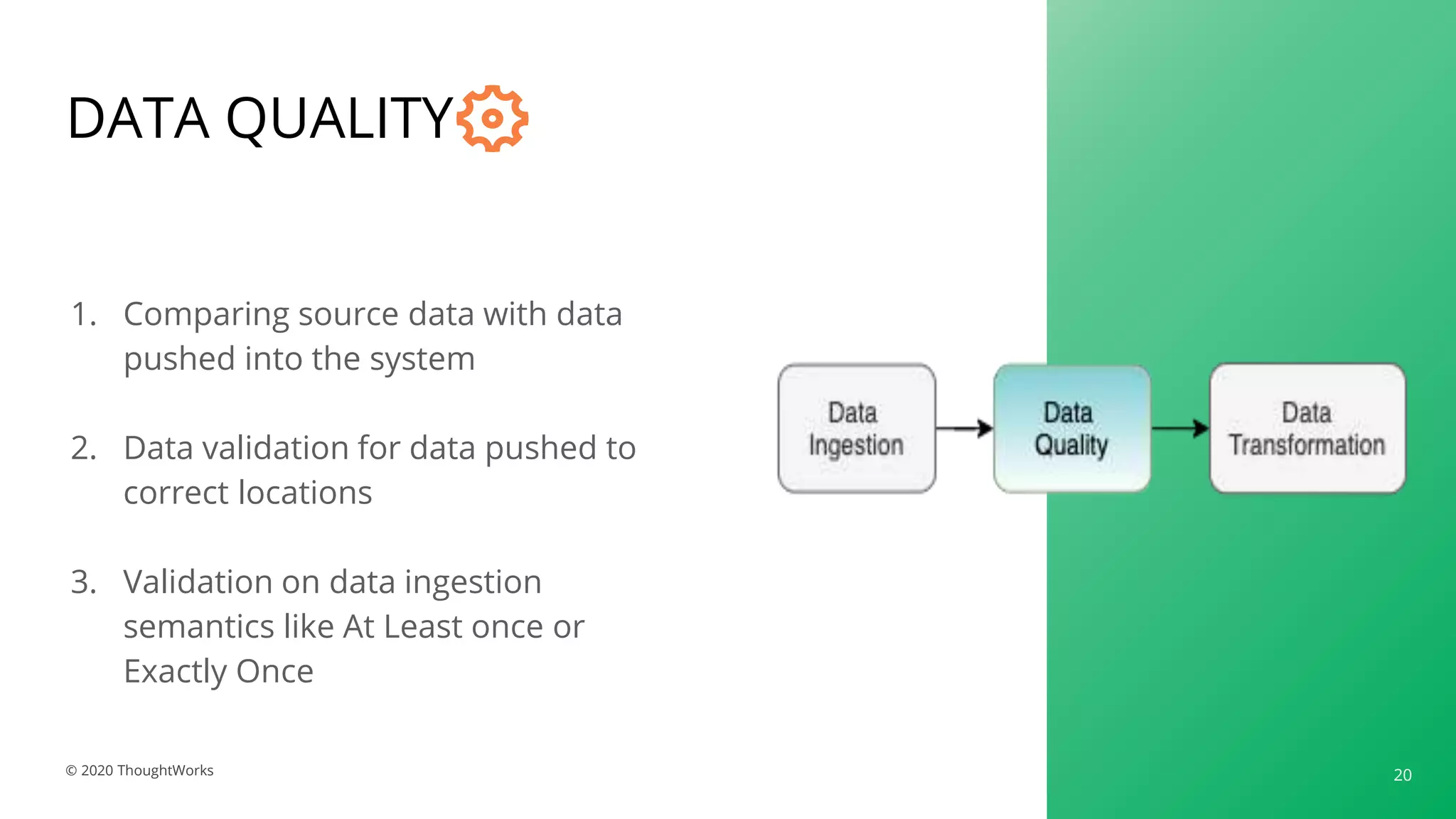

- 20. DATA QUALITY 1. Comparing source data with data pushed into the system 2. Data validation for data pushed to correct locations 3. Validation on data ingestion semantics like At Least once or Exactly Once 20© 2020 ThoughtWorks

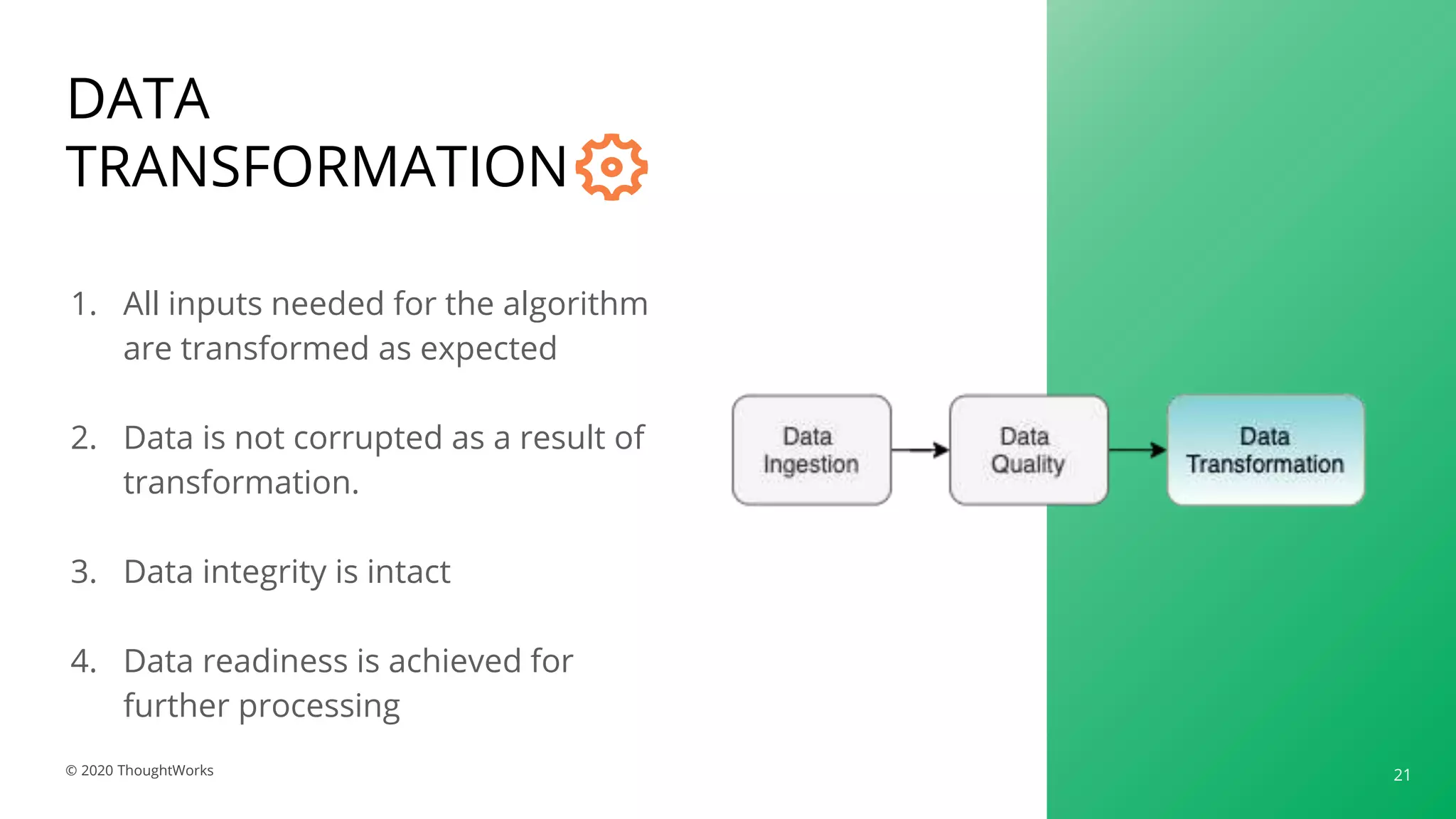

- 21. DATA TRANSFORMATION 1. All inputs needed for the algorithm are transformed as expected 2. Data is not corrupted as a result of transformation. 3. Data integrity is intact 4. Data readiness is achieved for further processing 21© 2020 ThoughtWorks

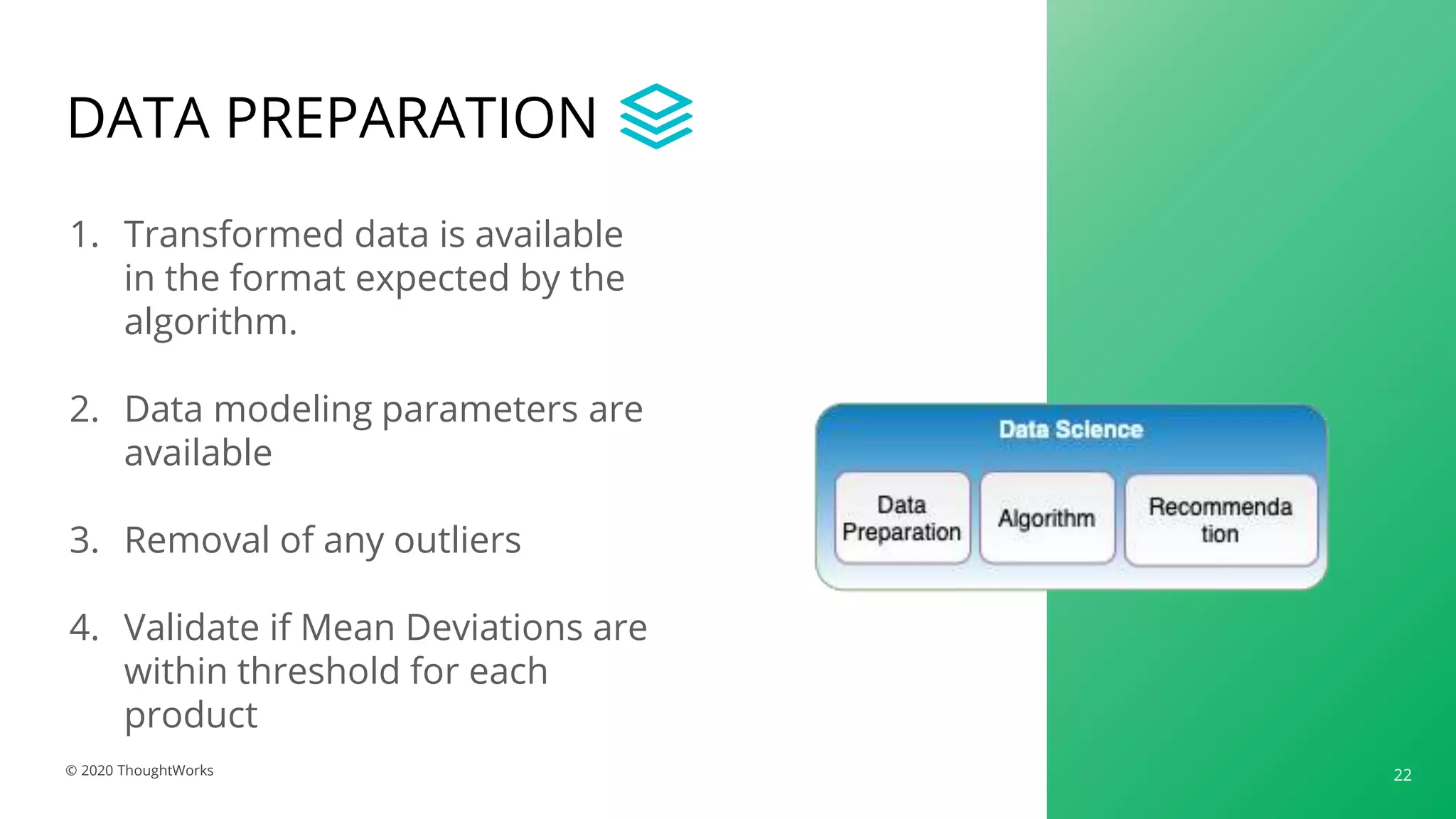

- 22. DATA PREPARATION 1. Transformed data is available in the format expected by the algorithm. 2. Data modeling parameters are available 3. Removal of any outliers 4. Validate if Mean Deviations are within threshold for each product 22© 2020 ThoughtWorks

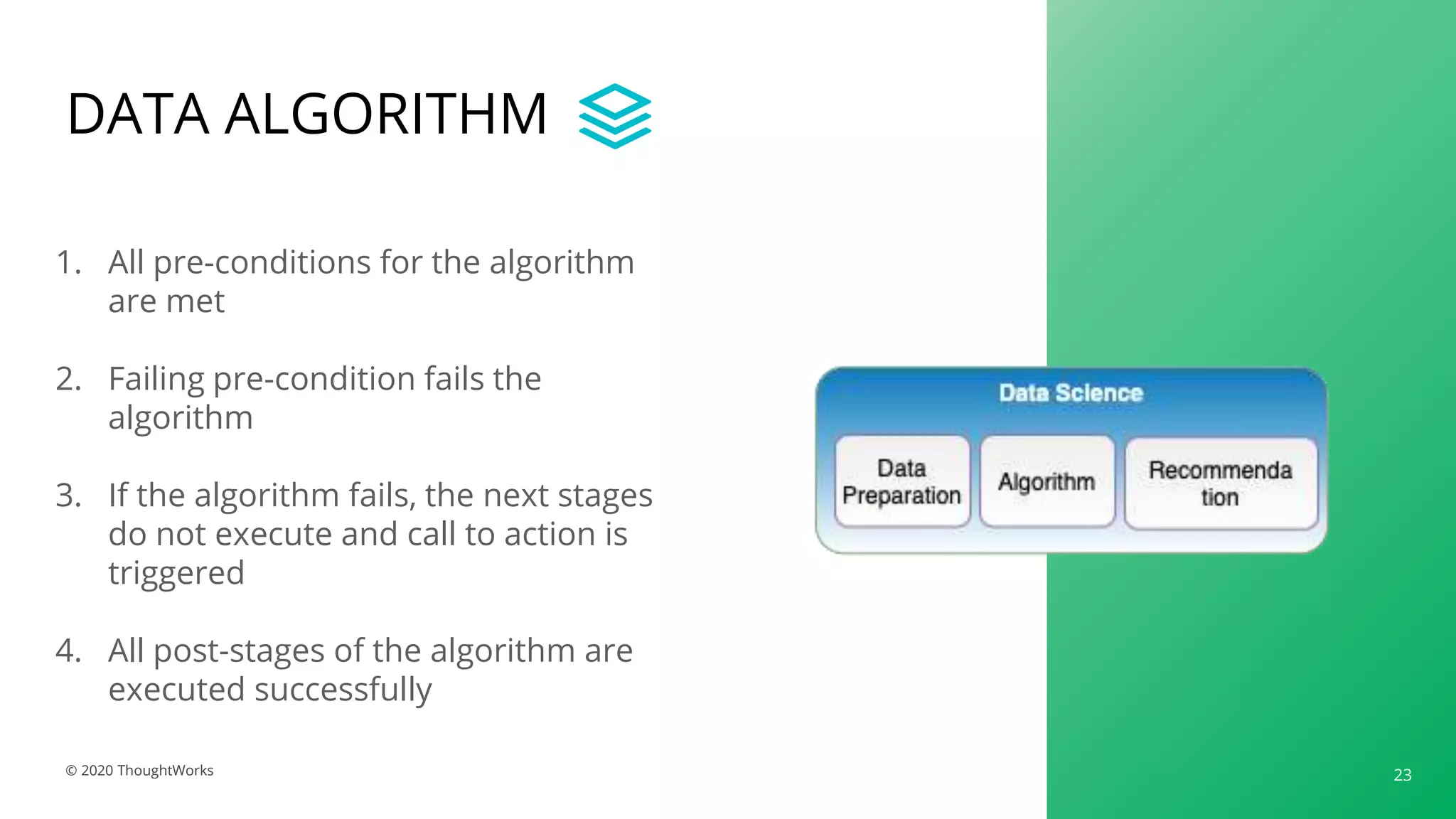

- 23. DATA ALGORITHM 1. All pre-conditions for the algorithm are met 2. Failing pre-condition fails the algorithm 3. If the algorithm fails, the next stages do not execute and call to action is triggered 4. All post-stages of the algorithm are executed successfully 23© 2020 ThoughtWorks

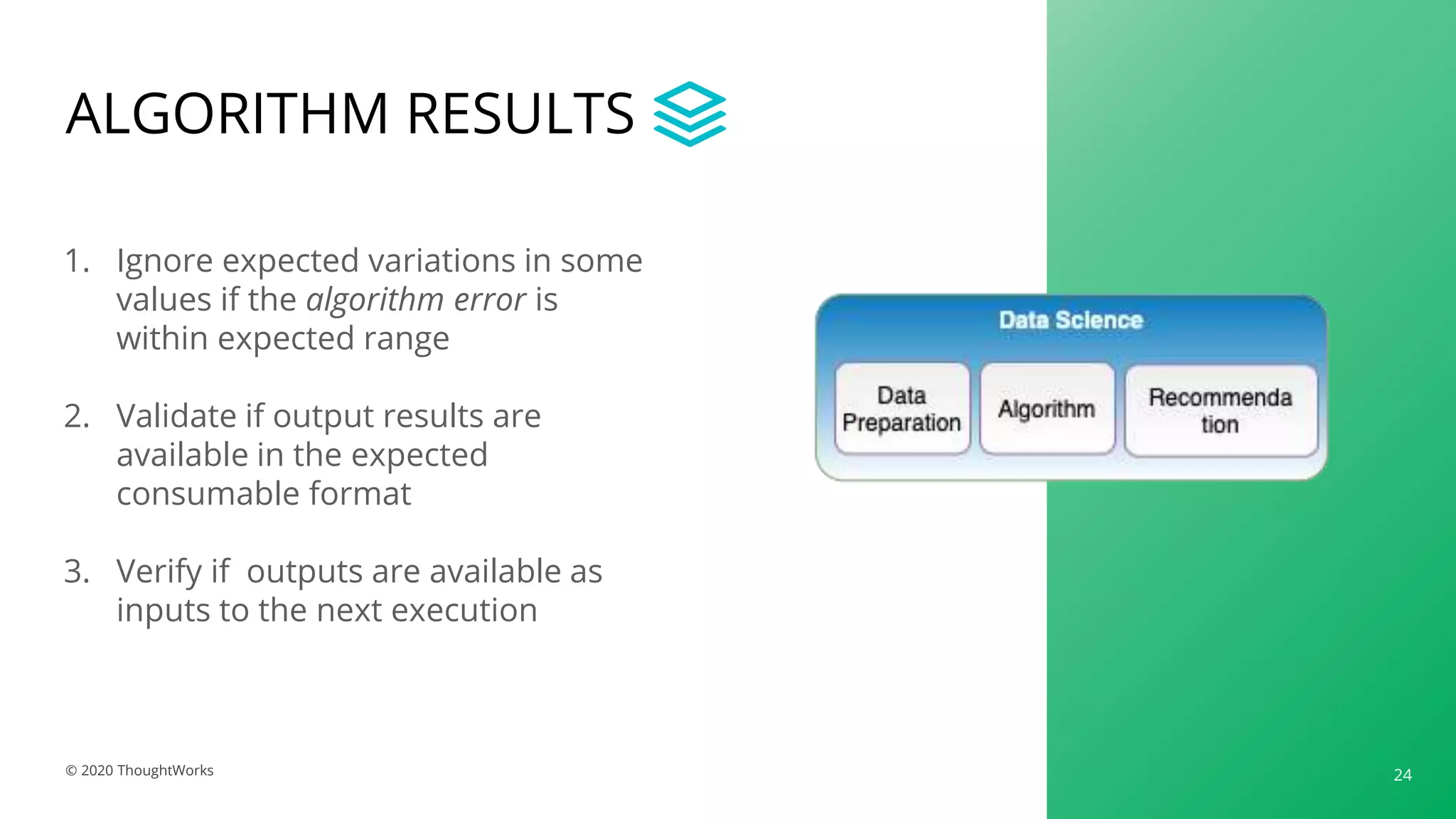

- 24. ALGORITHM RESULTS 1. Ignore expected variations in some values if the algorithm error is within expected range 2. Validate if output results are available in the expected consumable format 3. Verify if outputs are available as inputs to the next execution 24© 2020 ThoughtWorks

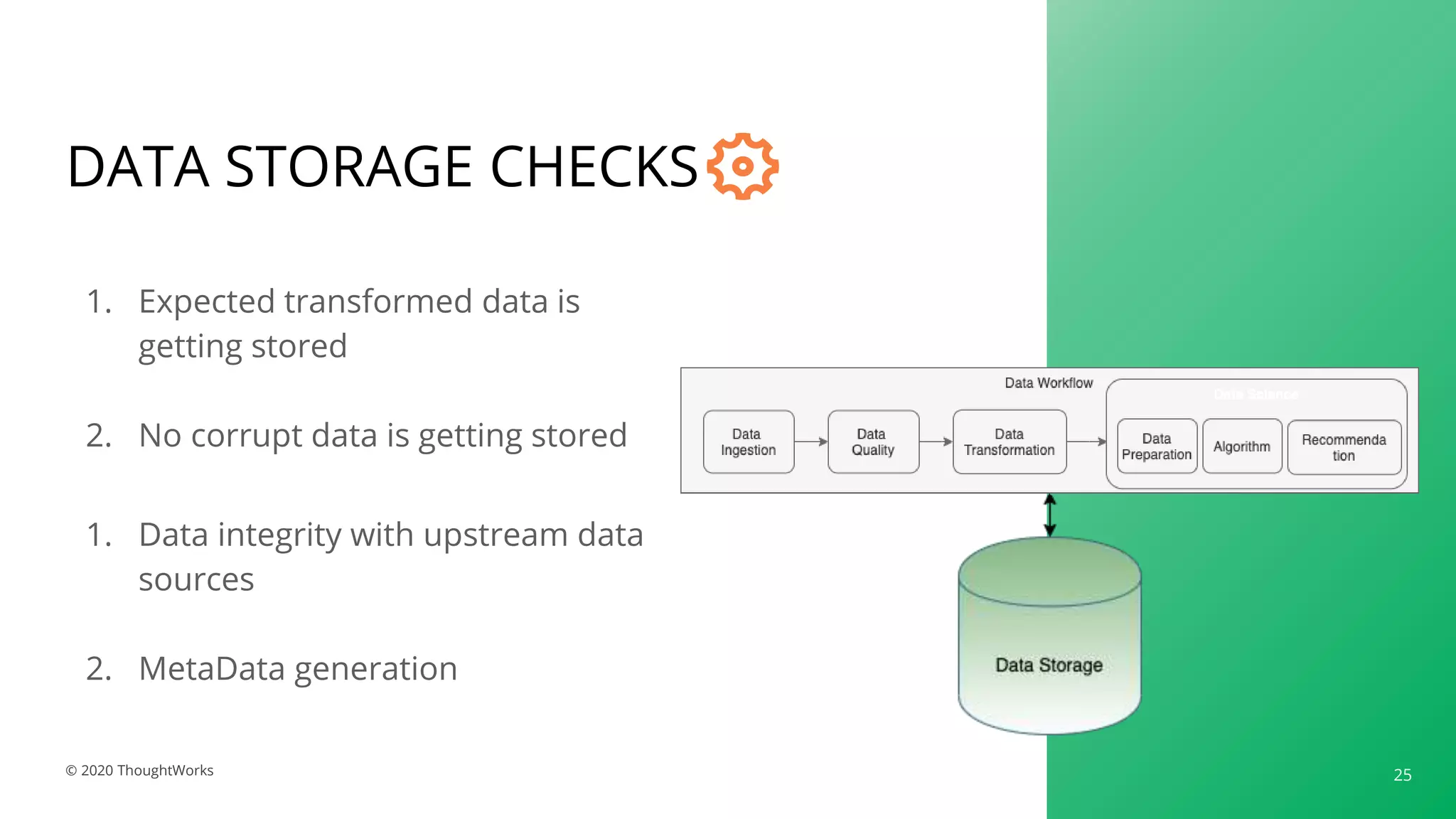

- 25. DATA STORAGE CHECKS 1. Expected transformed data is getting stored 2. No corrupt data is getting stored 1. Data integrity with upstream data sources 2. MetaData generation 25© 2020 ThoughtWorks

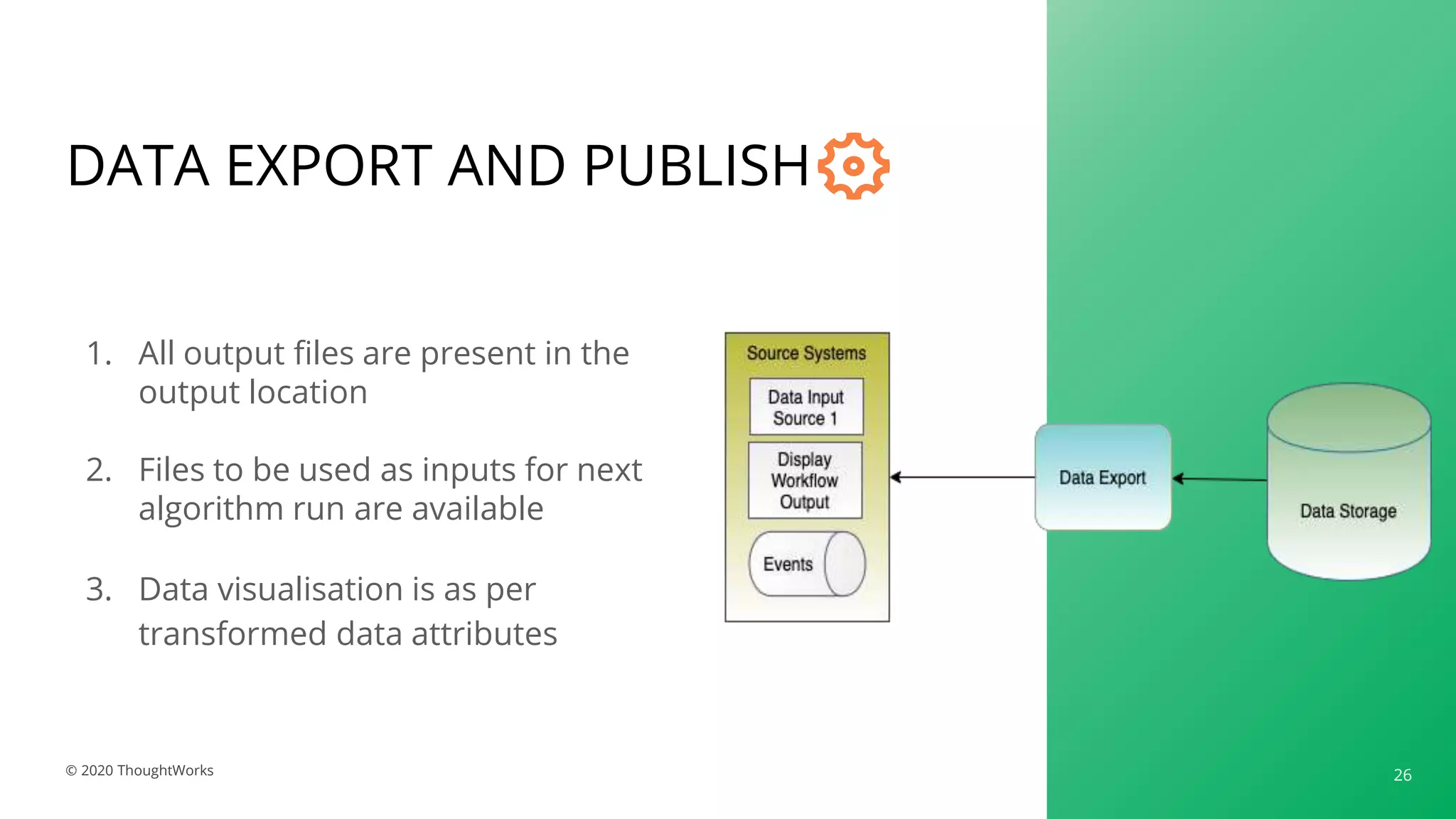

- 26. DATA EXPORT AND PUBLISH 1. All output files are present in the output location 2. Files to be used as inputs for next algorithm run are available 3. Data visualisation is as per transformed data attributes 26© 2020 ThoughtWorks

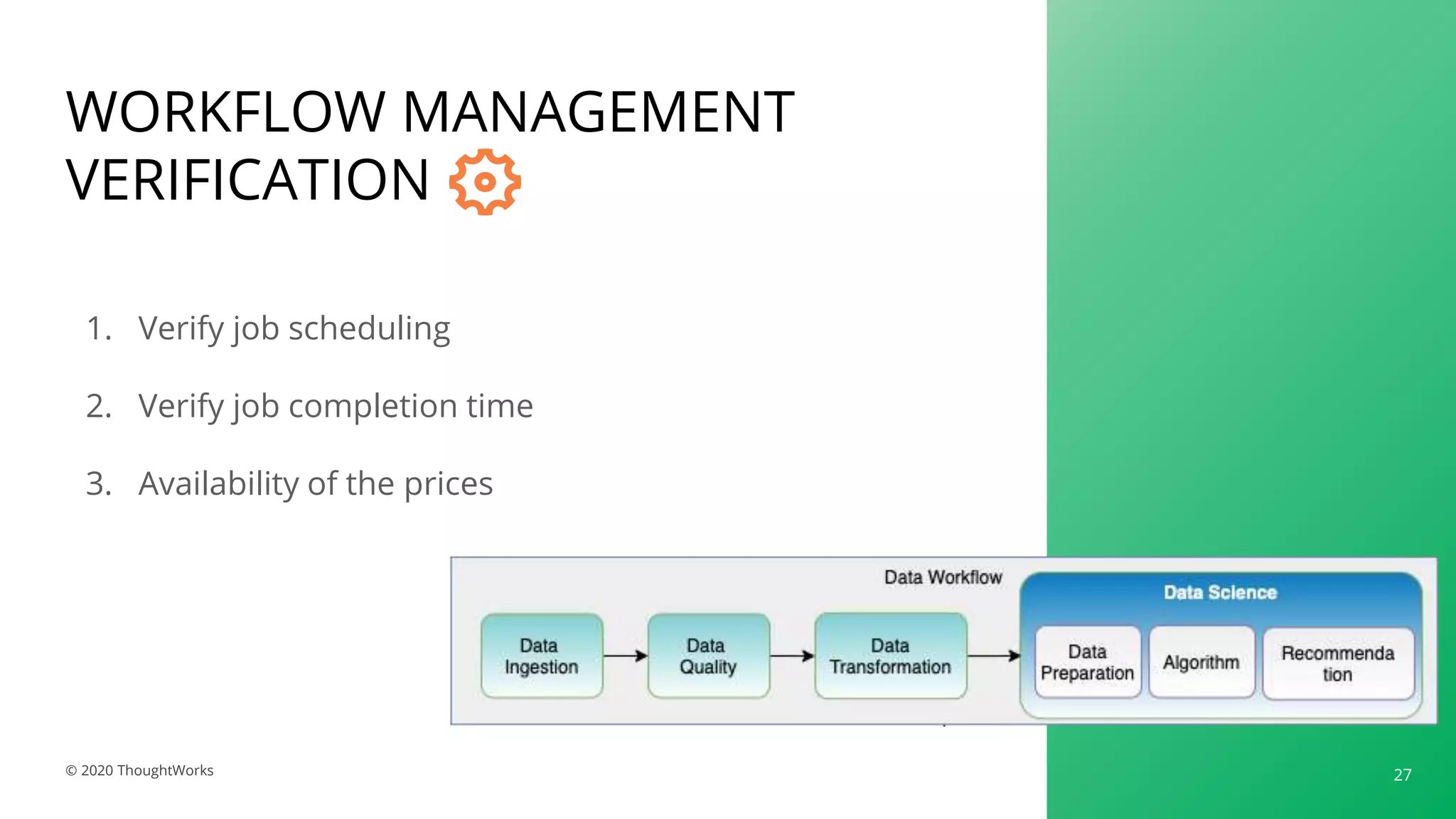

- 27. WORKFLOW MANAGEMENT VERIFICATION 1. Verify job scheduling 2. Verify job completion time 3. Availability of the prices 27© 2020 ThoughtWorks

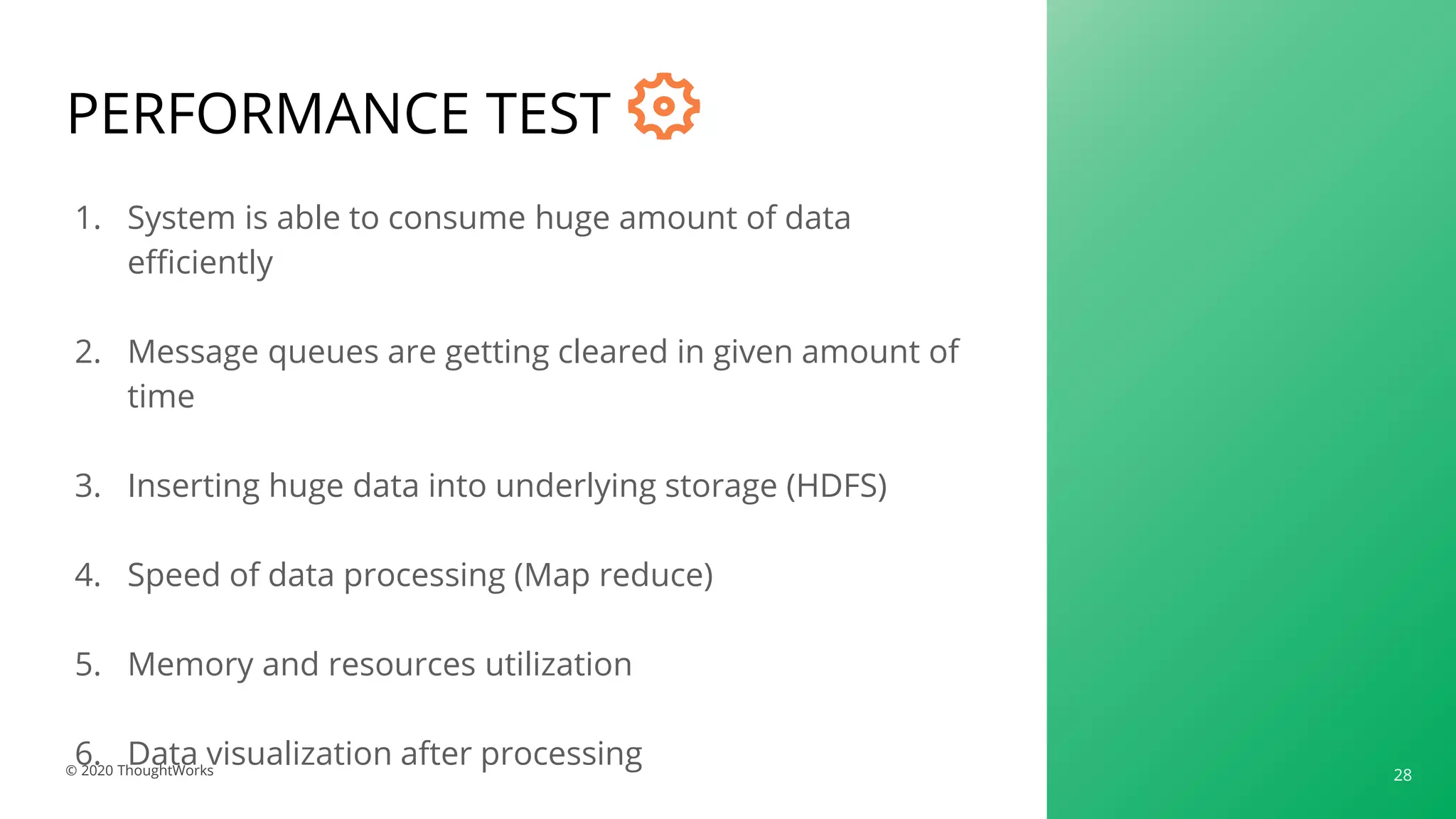

- 28. PERFORMANCE TEST 1. System is able to consume huge amount of data efficiently 2. Message queues are getting cleared in given amount of time 3. Inserting huge data into underlying storage (HDFS) 4. Speed of data processing (Map reduce) 5. Memory and resources utilization 6. Data visualization after processing 28© 2020 ThoughtWorks

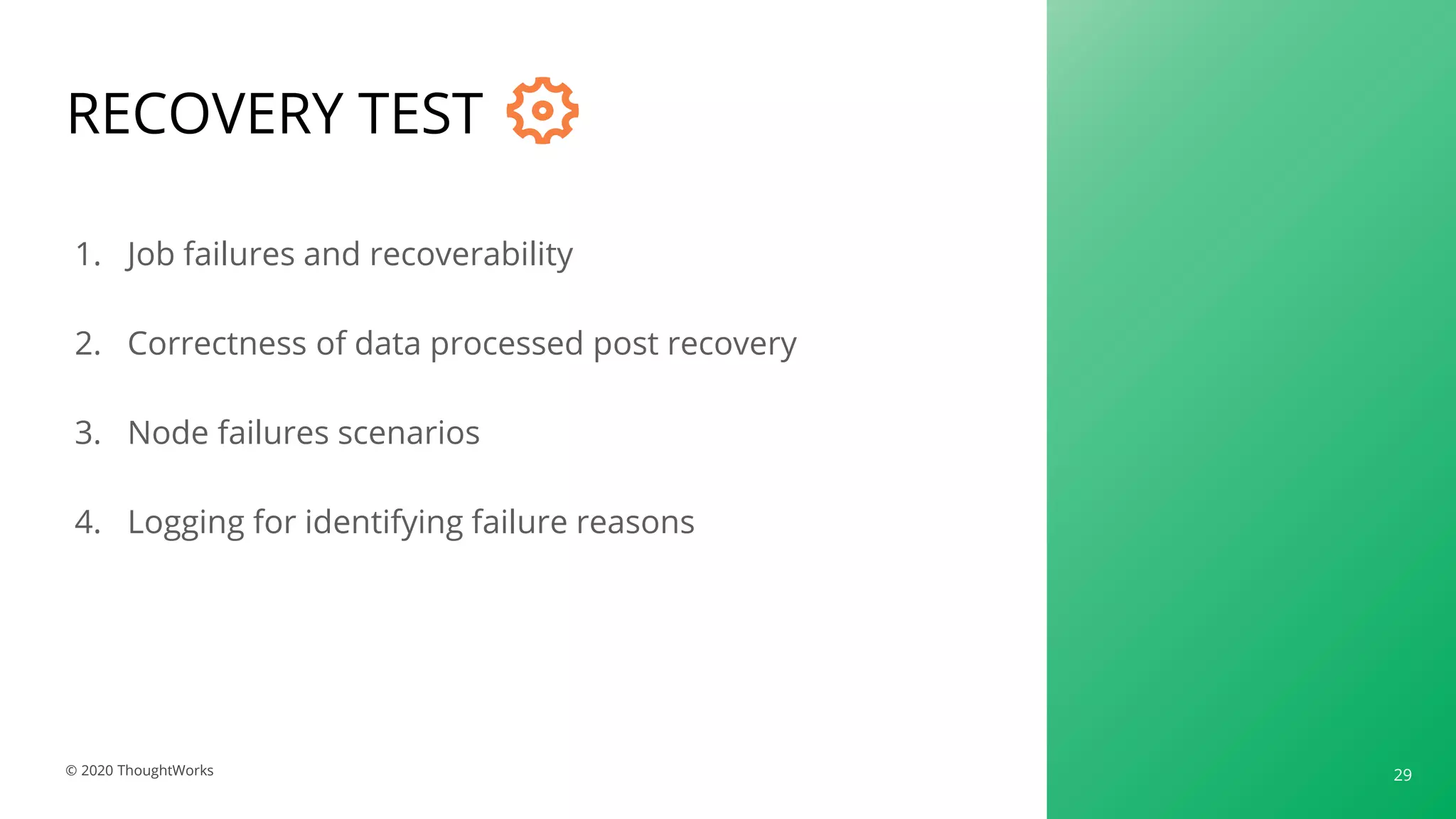

- 29. RECOVERY TEST 1. Job failures and recoverability 2. Correctness of data processed post recovery 3. Node failures scenarios 4. Logging for identifying failure reasons 29© 2020 ThoughtWorks

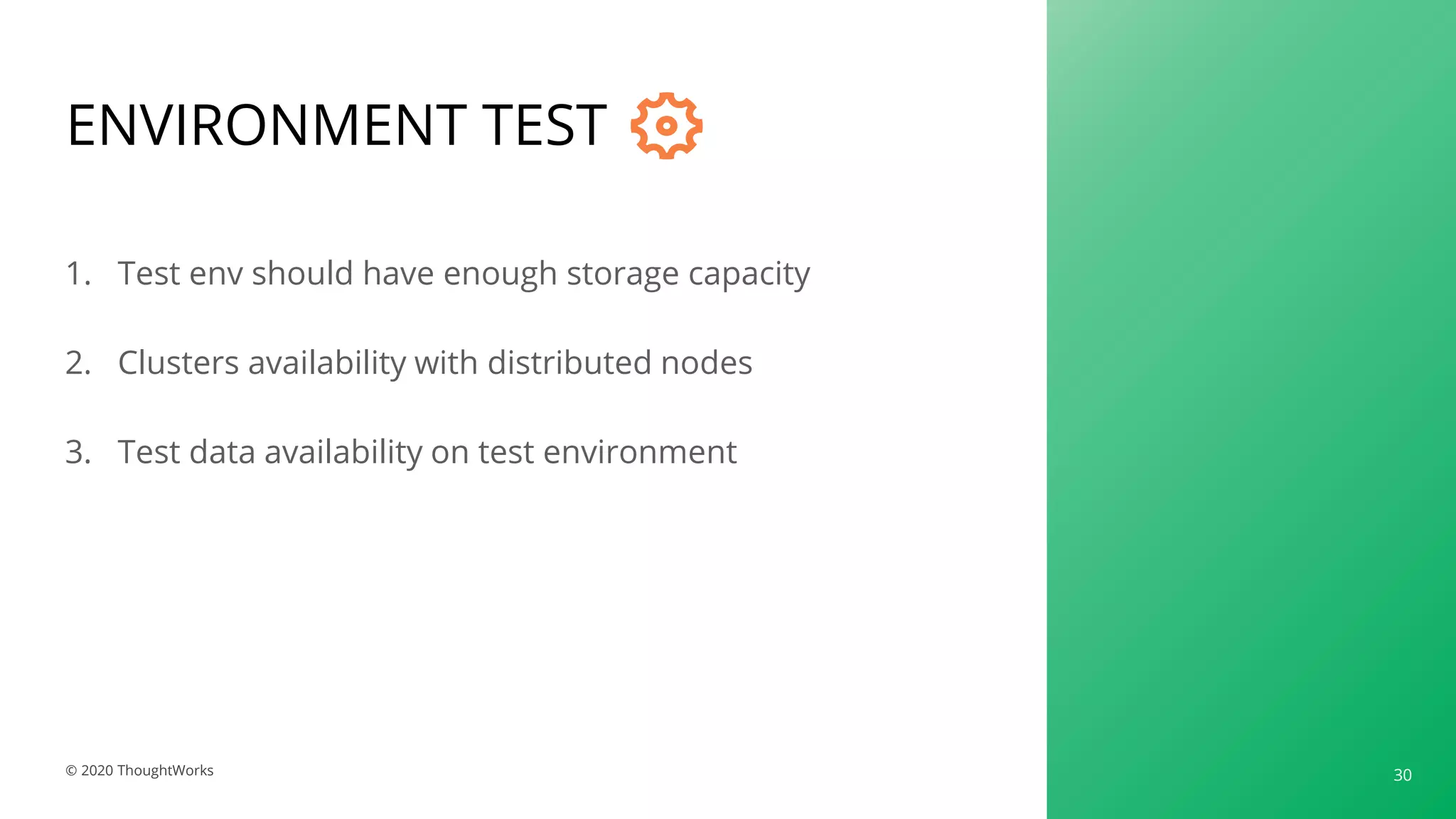

- 30. ENVIRONMENT TEST 1. Test env should have enough storage capacity 2. Clusters availability with distributed nodes 3. Test data availability on test environment 30© 2020 ThoughtWorks
- 31. CHALLENGES & LEARNINGS 31© 2020 ThoughtWorks

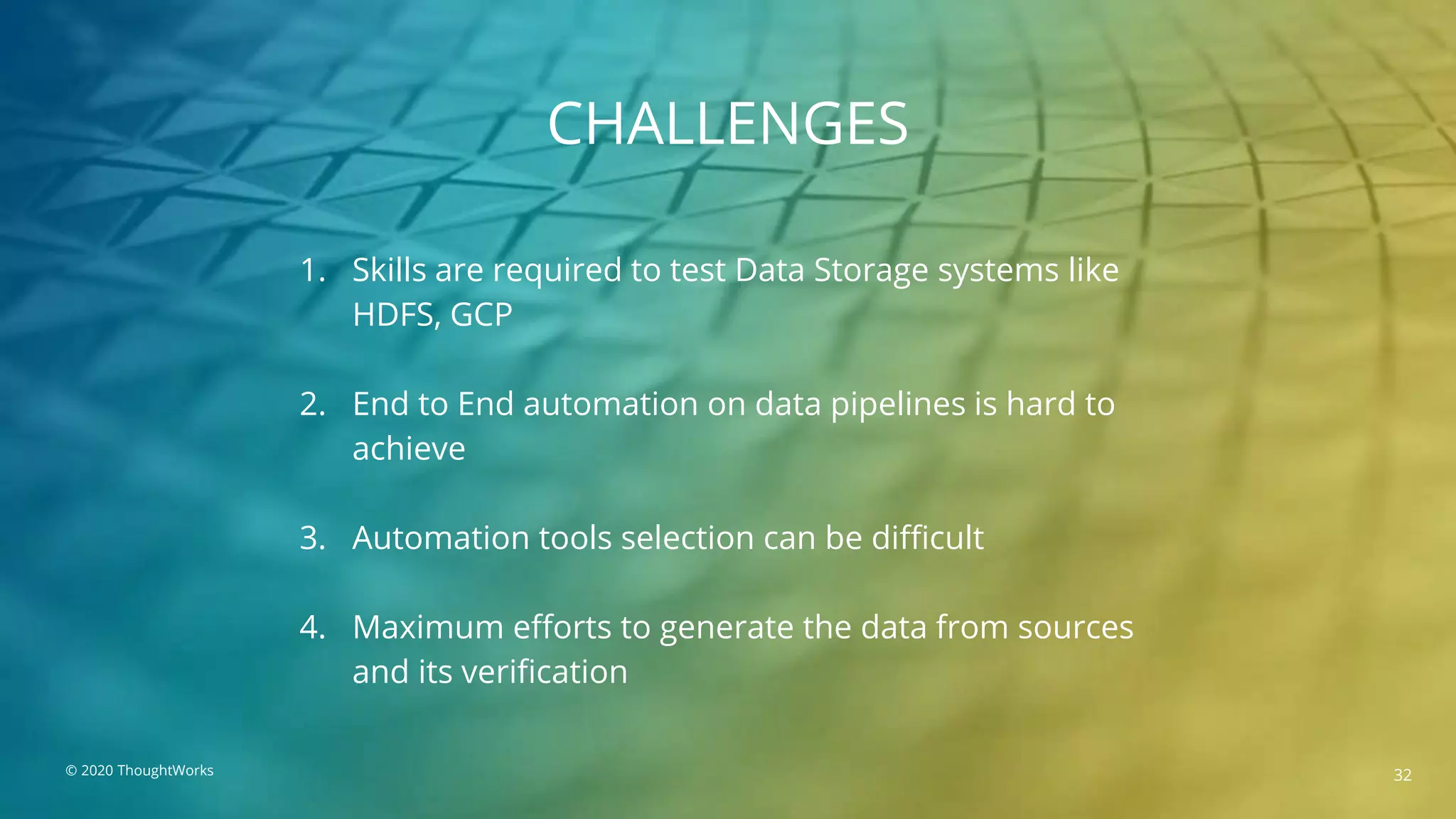

- 32. CHALLENGES 32© 2020 ThoughtWorks 1. Skills are required to test Data Storage systems like HDFS, GCP 2. End to End automation on data pipelines is hard to achieve 3. Automation tools selection can be difficult 4. Maximum efforts to generate the data from sources and its verification

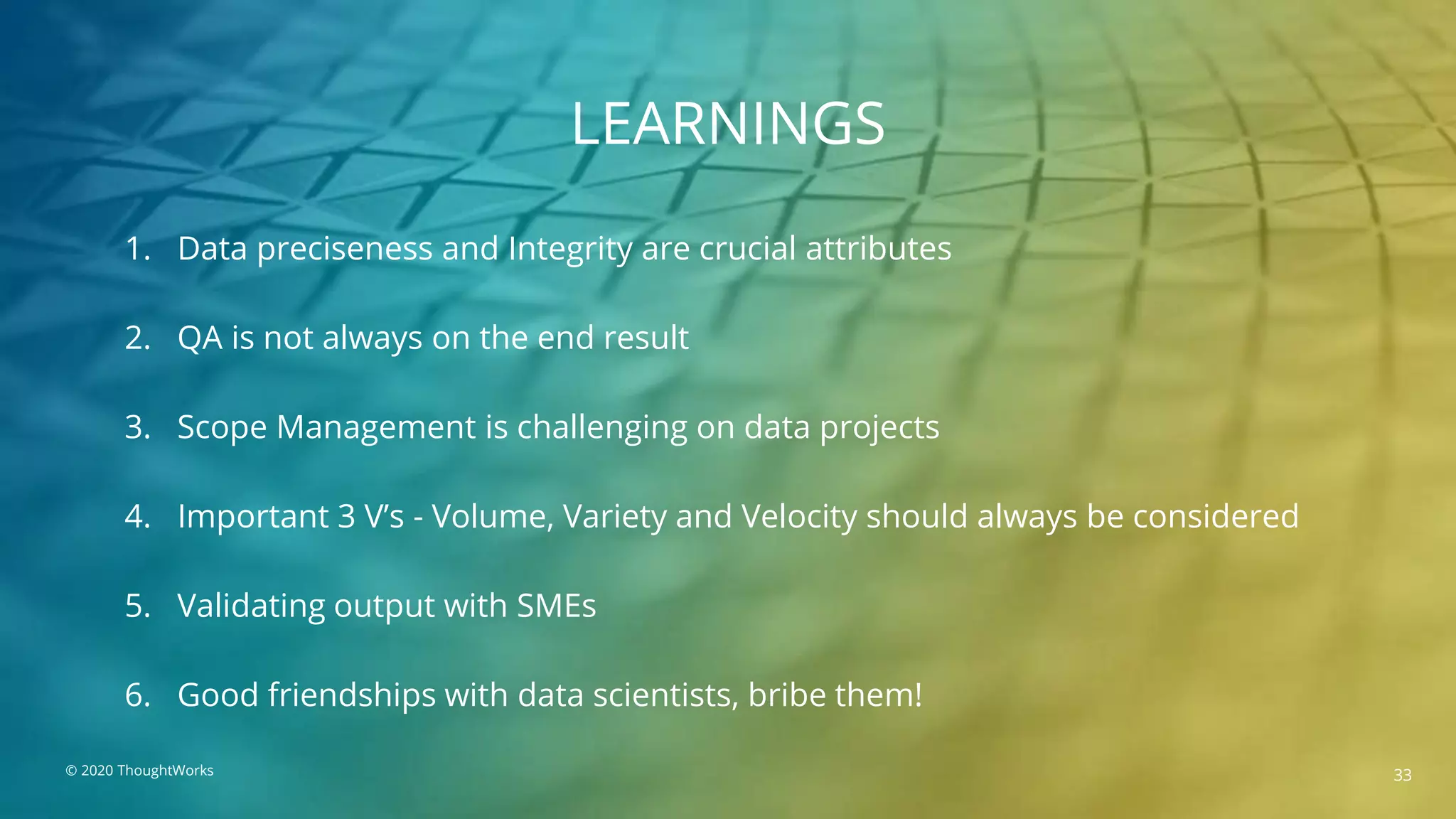

- 33. LEARNINGS 33© 2020 ThoughtWorks 1. Data preciseness and Integrity are crucial attributes 2. QA is not always on the end result 3. Scope Management is challenging on data projects 4. Important 3 V’s - Volume, Variety and Velocity should always be considered 5. Validating output with SMEs 6. Good friendships with data scientists, bribe them!
- 34. 34 THANK YOU Quality Analyst ANJUMAN SAIYED Data Engineer BALVINDER KHURANA Quality Analyst PRANESH GAIKWAD © 2020 ThoughtWorks ANY QUESTIONS/COMMENTS?
Editor's Notes
- Anjuman
- Anjuman
- Anjuman
- Anjuman How this translated into their business objective would be something like this. They have a vision...
- Pranesh Thanks Anjuman So this particular problem had two perspectives, one is Data Science to come up with an algorithm that can address Sally’s problem statement to predict the product prices by using historical data and analysis. So i can say data science is something that provides meaningful information based on large amounts of complex data.
- Pranesh And another perspective to solve this problem is Data Engineering, that will collect the product specific data from different sources and transform it as per requirements for further processing or store the transformed data in some storage for data science to make use of.
- Anjuman That sounds about the way to go. Visually, if I were to break Sally’s ask down, this is what it may look like. Essentially what she is asking for are prices and reports on periodic basis. Since we want prices to make profits, we want data intelligent mechanism to get prices at optimised profitability. Which need some valid sales data of products, Like Aggregate Prices across stores, Aggregate sales on weekly basis may be. And this data needs to be ingest from source systems like Point of Sales transactions, historical product prices from production pricing databases, competitor data from external agencies.
- Pranesh So what you are saying, we have translated problem statement into Data Architecture to solve the sally’s problem. Now we will try to map those with data terminologies We first identified all the data sources as input, following which we ingest it to the system having Quality checks on it. Then we moved with applying data transformation rules on ingested data so that it will be available for Algorithm to consume it. Finally we got the expected results in our case its price predictions and we published it and have them stored somewhere so that we can export the outputs to pricing system.
- Anjuman
- Pranesh With that said, the way a story would move in usual non data agile projects would fairly differ on data projects. Such as this one here as example of usual non data story life cycle.. We start with Iteration planning meeting what we called as IPM, where BAs, Developer and tester will sit together to discuss the scoping and analysing the stories to be covered in particular sprint. Once the IPM is done team will continue with story kick offs where developer and testers will discuss on functional and technical aspects of the story. Once this is done Developer will construct the actual logic followed by desk check where Developer will showcase the developed functionality to BAs and Testers…. QAs then test the functionality will all the checks and showcase the functionality to stakeholders to provide the sign off so that functionality can be promoted to next stage. Now lets see how this fits on data projects with problem statement like ours.
- Pranesh So let’s now consider a specific story from our problem statement, where we need to consume historical product prices to predict optimum price With this said here comes the pain points. Since scope of this story is so wast, its Analysis and Scoping become tricky since its coverage could spill up into next cycles. Since we are only consuming the historical data, Desk check of it will only include developer showing that we have consumed specific data. But what we do in regular Desk check is validating more checks on logic So that we can find issues early in life cycle. So in case of desk check for data project, it is humanly impossible to check different data variations and its outputs. Next pain point would be providing sign off from perspective of Data Scientists and since we are only consuming the historical data, Deployment of this functionality may not add much value to go into next phase.
- Pranesh So with data projects, we see certain practice changes on day to day product life cycle. So if you can remember the previous pain points that we talk about, we will try to map Data Engineering analogies instead. As mentioned here for Data Engineering first we do Data Mapping where we identify the data sources and the required data to be collected from those sources. In our case it will be Historical pricing Data. Once we identify all the data sources and required data ,next stage is Data modeling; which focuses on how do we structure and store this data for our use case. Then Acquiring that particular data and validating its quality. Afterwards we will transform the acquired data to extract required attributes say product information and its prices. And validating the transformed data for next phase.
- Anjuman With that said, even the way a story would move in non-data agile projects would fairly differ on data projects. Such as this one here… DS
- Pranesh/Anjuman Where as Data Science jourben usually begins with literature review to get more insights on problem statement and forces at work in given domain. With this basic understanding we analyse the data to find the patterns. An algorithm is developed based on understanding of previous 2 stages. The results of this algorithm is analysed to see if they give results with desired accuracy. Once we are satisfied with algorithm or model it can be deployed.
- Anjuman
- Pranesh Going back to data pipeline, this is what a data architecture for data pipeline commonly looks like. We can now look into Specific QA activities around each stage in it.
- Pranesh As first part in our data pipeline is consuming the data from different sources, now let’s discuss QA activities around this stage. We need continuous stream of events like sales transactions from Point of Sales Terminals of different stores, historical product prices from production pricing databases, competitor data from external agencies. We Ensured that all of the inputs are latest as they are on production, because this helped algorithm to analyse the valid data. Since we must test using different set of data, as the algorithm is going to need different types of pricing as inputs. we ensured that all of these prices are available from their respective sources. Like some files We also ensured that all mandatory attributes are present in source data, in our case it is the selling price of the products, discount prices etc.
- Pranesh If we can recall the next phase in data pipeline is ingesting the source data into system. With that said we validated if products and their respective prices which we consumed, are stored in the correct underlying storage locations. Storage systems here can be HDFS (Hadoop Distributed File System) or even storage buckets like S3. If we can recall we only needed historical data let’s say in the range of past 5 years. Hence from the input sources, we also ensured that we are ingesting data within this specific time period only, rather than considering all historical data.
- Pranesh The next stage in data pipeline is to check the Data quality of data ingested in previous step After ingestion, We ensured the data integrity, by comparing products and their prices with source data. We also Validated that all products have valid prices and data is pushed to correct storage location, for example no negative selling price and no null or blank values, etc. We also checked for duplicate or missing product information, as this could impact outcome from the algorithm intelligence.
- Pranesh The most crucial step in our data pipeline is Transforming the ingested data. So till last stage we just validated the data quality of data we ingested from source. Data Transformation on high level means extracting out necessary attributes from data set since we might not interested all of that ingested data. With said that We insured transformed data met algorithm requirements. For example, aggregate prices of a product across different stores, or aggregate sales for a product on weekly basis. Once that is done We validated there is no corrupt data in system After transformation, we also verified data integrity to check values are intact after transformation. (logic on aggregates does not impact) I can give one example here how we Ensured that, let’s say we ingested data of X products and we applied some transformation rules on product prices. so If we applied transformation on X product prices, in the end we still have X transformed product prices. We also validated that data is ready for next stage to be consumed by algorithm. Data transformation is defined by what input algorithm needs or what needs to be generated in the reports. Example, if there was a report that needed to be generated out of the system, required by C level executives every week, then transformation logic would only apply to be run weekly.
- Anjuman All data to be consumed by the algorithm is in expected format, for example - converting into csv at the time of run. Data modeling parameters are available to be used by the algorithm. Hyper parameter. Ensuring that the data ingested has all outliers removed. An example would be of a product whose selling price is way off than its average maintained price over the years. This could be due to good relations with the sales manager who gave heavy discounts for her favorite customer.
- Anjuman
- Anjuman (Example price points, etc.) Algorithm Errors To append to the historical data and to also evaluate if the algorithm is improving or not
- Anjuman Mostly with these kind of storage systems, you would also take care if the data i stored in correct partitions and correction locations Right level of meta-data is generated with every storage.
- Anjuman
- Anjuman
- Pranesh Apart from stages mentioned in data pipeline earlier, we feel that there could be more validation checks we can apply to further test our pipeline. One of it was validating how pipeline behaves when it encountered huge data. We validated if system consume such huge data efficiently ro not. Message queues are getting cleared on time so that there is no overlap between 2 subsequent jobs. This huge data is getting stored in underlying storage systems with ease And the same is getting transformed while applying data processing rule. We also ensured Memory and resource utilization of our jobs are within threshold while handling huge data And there is no any pain in visualizing it.
- Pranesh Another form of testing , we thought was Recovery test for jobs. Like how system recovered it self from any failures. And even after recovery, how data is getting consumed We also ensured if any node failed , other nodes shared the load. So that our process of data analysis is intact. The next important aspect that we covered is logging mechanism as it helped debug the failures
- Pranesh Health of environment need not to be validated in each iteration, So this checks can be done with some time interval . Like checking if environment is having enough storage capacity and clusters with distributed nodes. So just to summarize on QA activities that we talked about, they are not as same as traditional activities that we follow in normal projects. But approach for testing remains the same that is “challenge the business logic to make it more robust and the one that gives us confidence". But this QA activities might differ from other data projects.
- Anjuman Automation tool selection examples
- Anjuman Precise data - We need only selling prices, discount prices and promotion prices and no need of buying prices or refunds Production data - we are dealing with modeling of an algorithm that takes into account historical data from production and produce near accurate price recommendation Logging and Monitoring - Helped in debugging the job failure Close collaboration Setting up expectation Change management - Developing framework to adapt the changes at any data processing stage Iterative approach - So that we can promote the algorithm or business logic with MVP to production phase Important 3vs - to have variations in data so that price predictions will be close to accurate Good friendship - Data scientists and QAs should work hand in hand, Collaborating with data scientists Since data is most valuable to organisations, it’s preciseness and integrity are the most important attributes Important 3 V’s while testing huge data systems - Volume, Variety and Velocity Validating output with SMEs QA need not wait for the end result on Data projects Always use production like data to test Change Management - Scope Management? Good friendships with data scientists, bribe them! As a QA, if I were to QA a Data Science project then do I need to know about Data Science.
