Red Hat JBoss BPM Suite
Red Hat JBoss Fuse
Christina Lin
JBoss Technology Evangelist
clin@redhat.com
RED HAT CONFIDENTIAL | ADD NAME2

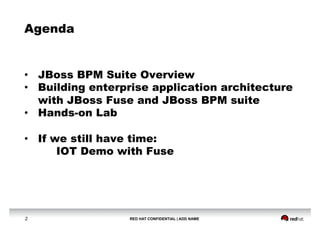

Agenda
•  JBoss BPM Suite Overview
•  Building enterprise application architecture
with JBoss Fuse and JBoss BPM suite
•  Hands-on Lab
•  If we still have time:
IOT Demo with Fuse

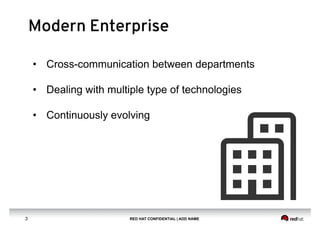

RED HAT CONFIDENTIAL | ADD NAME3
Modern Enterprise
•  Cross-communication between departments
•  Dealing with multiple type of technologies
•  Continuously evolving
RED HAT CONFIDENTIAL | ADD NAME4
ERP
New Business Flow
System
A
System
B
System
C
System
D
JBoss BPM Suite
RED HAT CONFIDENTIAL | ADD NAME5

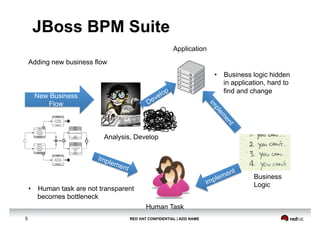

JBoss BPM Suite
Adding new business flow
New Business
Flow
Application
Human Task
Analysis, Develop
Business
Logic
•  Human task are not transparent
becomes bottleneck
•  Business logic hidden
in application, hard to
find and change
RED HAT CONFIDENTIAL | ADD NAME6
My Application
Biz
process
and logic
New product
rating
Government
Regulation
Competitor
Process
Change
Business Logic
Change
Priority Shift
New Market
My Application
My Application
JBoss BPM Suite
RED HAT CONFIDENTIAL | ADD NAME7
New Biz
Process
System
A
System
B
System
C
System
D ERP
Automated Business Process
JBoss BPM Suite
RED HAT CONFIDENTIAL | ADD NAME8

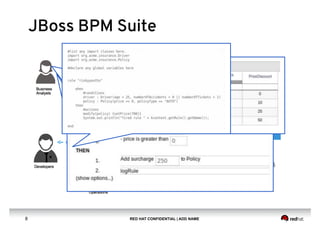

JBoss BPM Suite

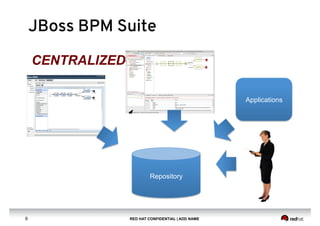

RED HAT CONFIDENTIAL | ADD NAME9
CENTRALIZED
Repository
Applications
JBoss BPM Suite
RED HAT CONFIDENTIAL | ADD NAME10

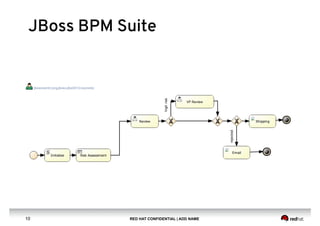

JBoss BPM Suite
RED HAT CONFIDENTIAL | ADD NAME11
Standard Format: BPMN 2.0
Start Event
End Event
Throwing
Error Event
Catching
Timmer Event
Catching
Signal Event
Script Tasks
User Task
Service
Tasks
Business
Rule Task
Embedded
Sub-Process
Reusable
Sub-process
Multi-Instance
Sub-Process
RED HAT CONFIDENTIAL | ADD NAME12
When to use WHAT!!!??
Lightweight Enterprise
Integration solution with
an elastic footprint that
supports
Enables enterprise
business and IT users to
document, simulate,
manage, automate and
monitor business
processes and policies
RED HAT CONFIDENTIAL | ADD NAME13

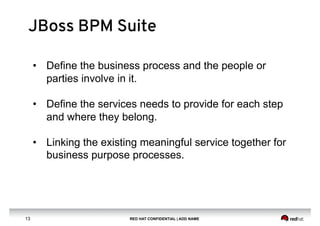

JBoss BPM Suite
•  Define the business process and the people or
parties involve in it.
•  Define the services needs to provide for each step
and where they belong.
•  Linking the existing meaningful service together for
business purpose processes.
RED HAT CONFIDENTIAL | ADD NAME14
JBoss Fuse
•  Pattern based integration framework
•  Dynamic configuration and management
•  Multiple connectivity options
•  Never put single business code in ESB, Routing
Logic only!!!
RED HAT CONFIDENTIAL | ADD NAME15

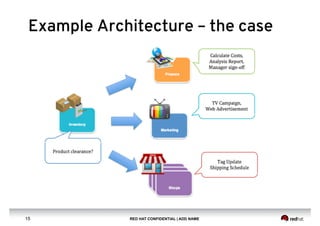

Example Architecture – the case
RED HAT CONFIDENTIAL | ADD NAME16

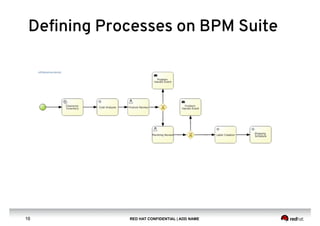

Defining Processes on BPM Suite
RED HAT CONFIDENTIAL | ADD NAME17
Wrapping Services with Fuse
RED HAT CONFIDENTIAL | ADD NAME18
Wrapping Services with Fuse
RED HAT CONFIDENTIAL | ADD NAME19

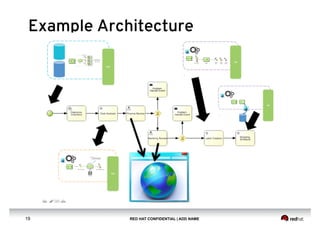

Example Architecture
Technical
Details
RED HAT CONFIDENTIAL | ADD NAME21
JBoss BPM Suite – Remote API
BPM Server
Rules
Process/runtime/{deploymentId}/process/{processDefId}/start
/runtime/{deploymentId}/workitem/{processItemId}/complete
/runtime/{deploymentId}/withvars/process/{processDefId}/start
/task/{taskId}/activate
/task/{taskId}/claim
/task/{taskId}/claimnextavailable
/task/{taskId}/complete
XML
JSON
RED HAT CONFIDENTIAL | ADD NAME22
JBoss Fuse – Rest Client
<cxf:rsClient id="rsClient" address="http://localhost:8080/business-central/rest/runtime/
customer:evaluation:1.0/process/customer.evaluation/start"
serviceClass="org.blogdemo.endpoint.CustEval"
username="erics"
password="bpmsuite1!"
loggingFeatureEnabled="true" >
<cxf:providers>
<bean class="org.apache.cxf.jaxrs.provider.JAXBElementProvider"/>
</cxf:providers>
<cxf:headers>
<cxf:entry key="Charset" value="UTF-8"/>
</cxf:headers>
</cxf:rsClient>
<to uri="cxfrs:bean:rsClient?exchangePattern=InOut"/>
RED HAT CONFIDENTIAL | ADD NAME23
JBoss Fuse – Rest Server
JBoss Fuse
Restful Service
<rest path="/alert">
<get uri="/richcust/{custName}/{amt}" produces="application/json">
<to uri="direct:alert"/>
</get>
<post uri=“/custInfo/storedata" produces="application/json">
<to uri="direct:store"/>
</post>
</rest>
Service Route
Service Route
RED HAT CONFIDENTIAL | ADD NAME24
JBoss BPM Suite – REST & WS Tasks
Workshop
RED HAT CONFIDENTIAL | ADD NAME26
Workshop
Customer
Data
JBoss Fuse
JBoss BPM Suite
Customer Evaluation
Process
Alert Service
Rest
Rest
RED HAT CONFIDENTIAL | ADD NAME27
Task One: Deploy and Run Business Process
BPM Server
Repository
Process Instance
RED HAT CONFIDENTIAL | ADD NAME28
XML
JBoss Fuse
Parse the XML file
for information
needed
BPM Suite
Kick off business
Process
Returns process
result
Task Two: Trigger Business process through
JBoss Fuse
RED HAT CONFIDENTIAL | ADD NAME29

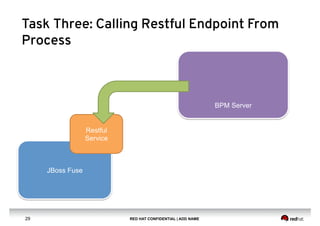

JBoss Fuse
Restful
Service
BPM Server
Task Three: Calling Restful Endpoint From
Process
RED HAT CONFIDENTIAL | ADD NAME30
RUN!!!
Task Four:

Integrating BPM with Fuse
