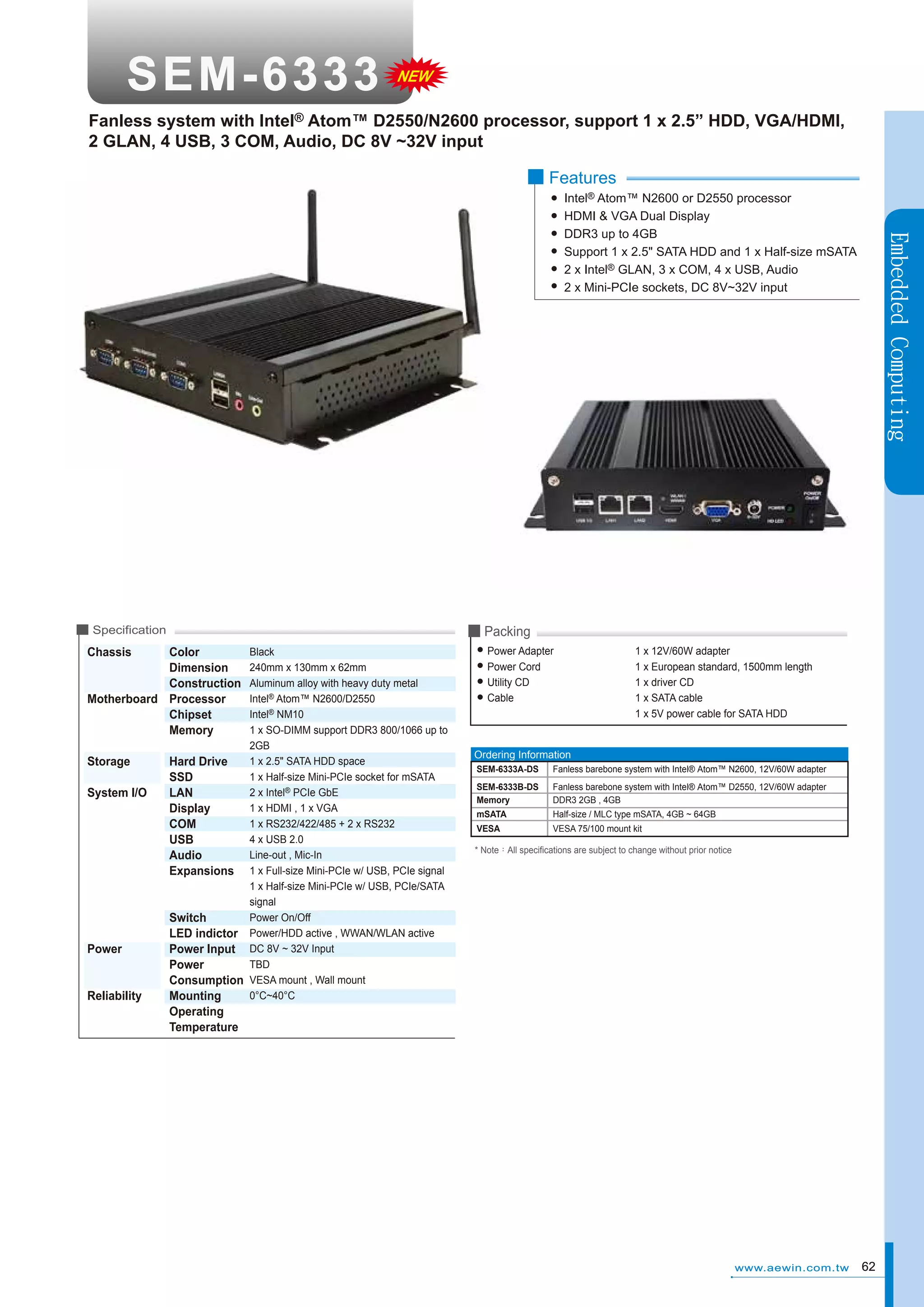

1. SEM-6333
NEW
Fanless system with Intel® Atom™ D2550/N2600 processor, support 1 x 2.5” HDD, VGA/HDMI,
2 GLAN, 4 USB, 4 COM, Audio, DC 8V ~32V input
3
■ Features
■ Packing
■ Specification
Chassis
Color
Dimension
Construction
Motherboard Processor
Chipset
Memory
Storage
System I/O
Power
Reliability
Embedded Computing
Embedded Computing
Intel® Atom™ N2600 or D2550 processor
HDMI & VGA Dual Display
DDR3 up to 4GB
Support 1 x 2.5" SATA HDD and 1 x Half-size mSATA
2 x Intel® GLAN, 4 x COM, 4 x USB, Audio
3
2 x Mini-PCIe sockets, DC 8V~32V input
Black
240mm x 130mm x 62mm
Aluminum alloy with heavy duty metal
Intel® Atom™ N2600/D2550
Intel® NM10
1 x SO-DIMM support DDR3 800/1066 up to
2GB
1 x 2.5" SATA HDD space
Hard Drive
1 x Half-size Mini-PCIe socket for mSATA
SSD
2 x Intel® PCIe GbE
LAN
1 x HDMI , 1 x VGA
Display
1 x RS232/422/485 + 3 x RS232
2
COM
4 x USB 2.0
USB
Line-out , Mic-In
Audio
Expansions 1 x Full-size Mini-PCIe w/ USB, PCIe signal
1 x Half-size Mini-PCIe w/ USB, PCIe/SATA
signal
Power On/Off
Switch
LED indictor Power/HDD active , WWAN/WLAN active
Power Input DC 8V ~ 32V Input
TBD
Power
Consumption VESA mount , Wall mount
0°C~40°C
Mounting
Power Adapter
Power Cord
Utility CD
Cable
1 x 12V/60W adapter
1 x European standard, 1500mm length
1 x driver CD
1 x SATA cable
1 x 5V power cable for SATA HDD
Ordering Information
SEM-6333A-DS
SEM-6333A-DT
Fanless barebone system with Intel® Atom N2600, VGA, HDMI, adapter
Intel® Atom™ N2600, 12V/60W 2 GLAN,
4 COM, 4 SCB, audio, DC 8V~ 32V Input
SEM-6333B-DS
Fanless barebone system with Intel® Atom™ D2550, 12V/60W adapter
SEM-6333B-DS
Fanless barebone system with Intel® Atom D2550, LGA, HDMI, 2 GLAN,
Memory
DDR3 2GB , 4GB
3 COM, 4 USB, audio, DC 8V~32V Input
mSATA
Half-size / MLC type mSATA, 4GB ~ 64GB
Memory
DDR3 2GB , 4GB
VESA
VESA 75/100 mount mSATA, 4GB ~ 64GB
mSATA
Half-size / MLC type kit
VESA
VESA 75/100 mount kit
* Note：All specifications are subject to change without prior notice
* Note：All specifications are subject to change without prior notice
Operating
Temperature
www.aewin.com.tw
