Android

App Lifecycle +
Advanced
Architectures/Patterns/Problems
bryan costanich

em: bryanc@xamarin.com
tw: @bryancostanich
slides: slideshare.net/bryancostanich
code: bit.ly/1avqivC
What We'll Cover
• Review Activity Lifecycle
• Relation to the App
Lifecycle

• App Lifecycle + Patterns
for Handling
• App Initialization

• Review States +
Important Events

• Application Crashes and
Restarts

• Background Updates

• Asynchronous
Initialization

• Configuration Changes
Activity Lifecycle
Important Methods
OnCreate ( ) - Initialize Stuf
OnResume ( ) - Begin Life
OnPause ( ) - Stop/Pause

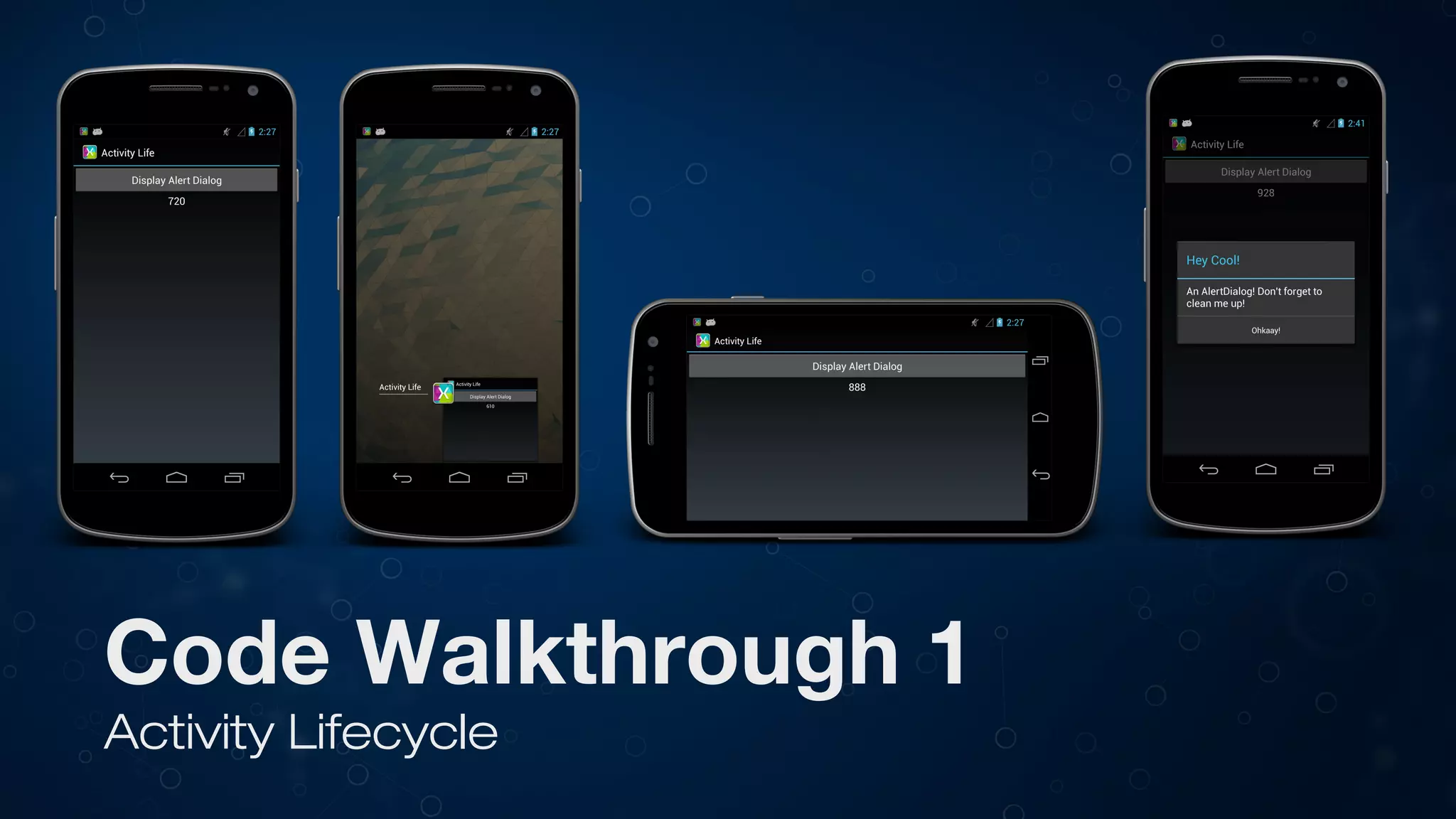

Code Walkthrough 1
Activity Lifecycle

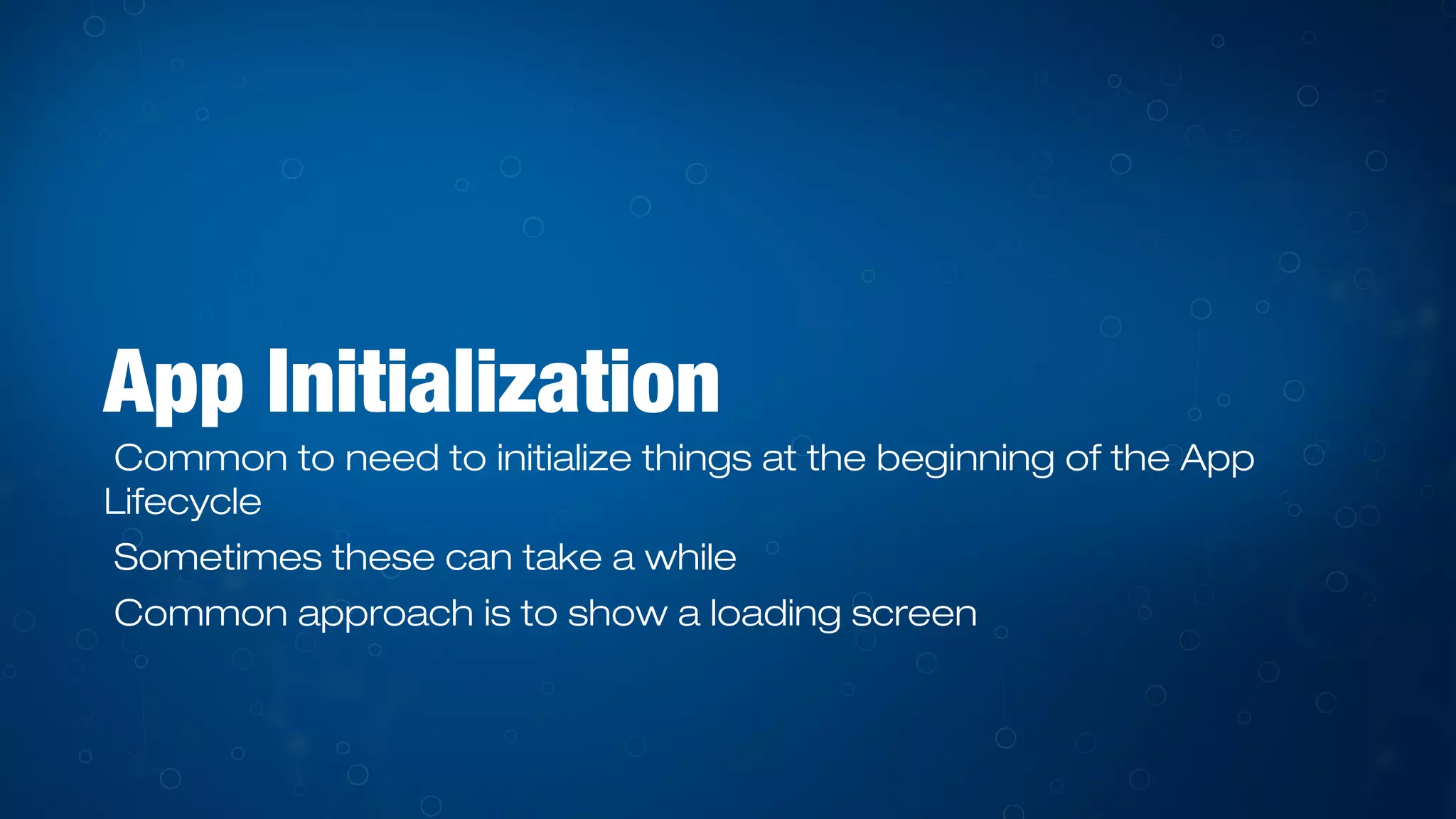

App Initialization
Common to need to initialize things at the beginning of the App
Lifecycle
Sometimes these can take a while
Common approach is to show a loading screen
Pattern: App
Singleton
App Singleton Class
bool IsInitialized Property
Initialized Event
ActivityBase
Check to see if
App.Current.IsInitialized

App
public static
App()
protected - ctor
()
public static App
Current
public bool
IsInitialized
public event
Initialized

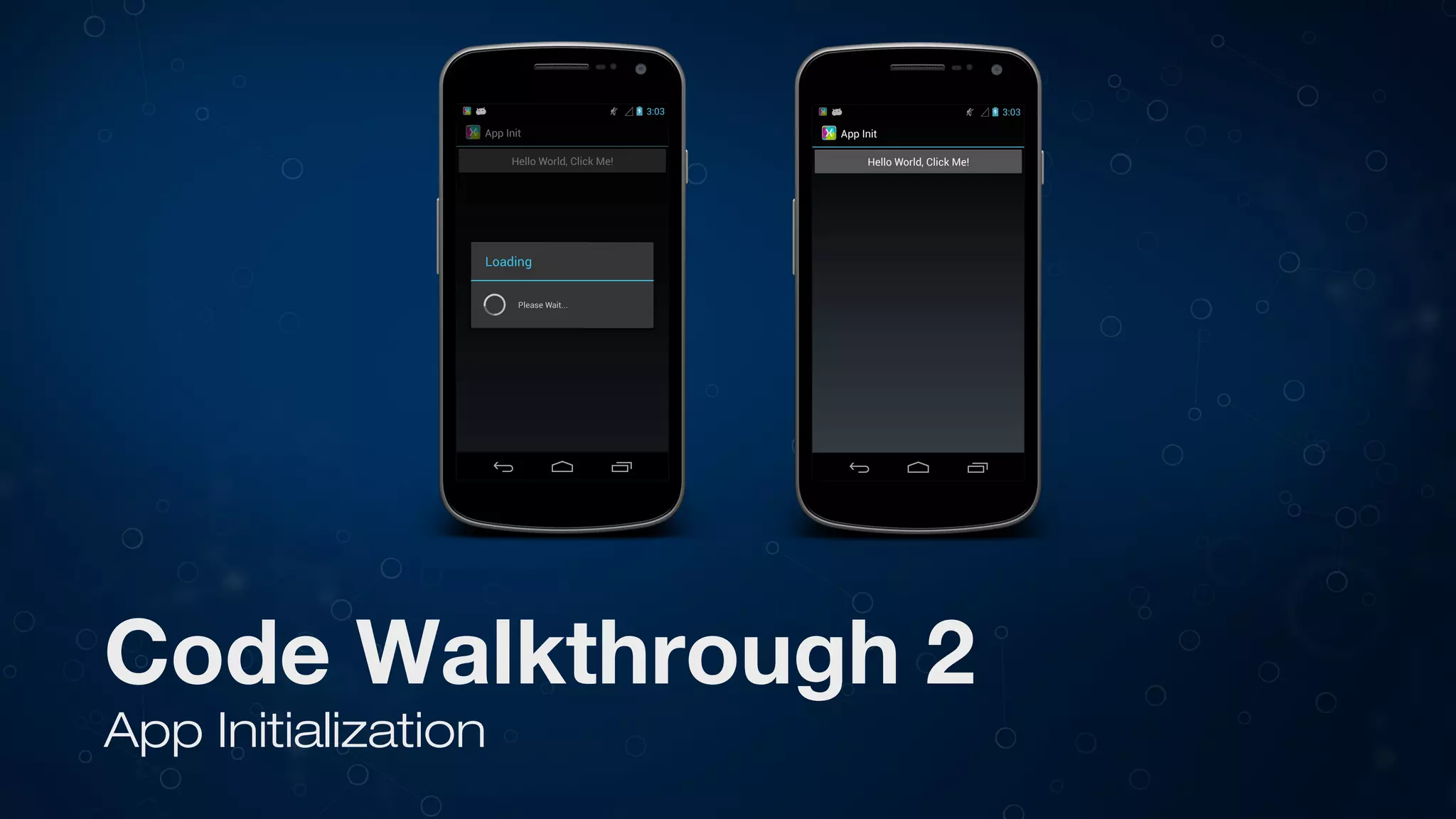

Code Walkthrough 2
App Initialization

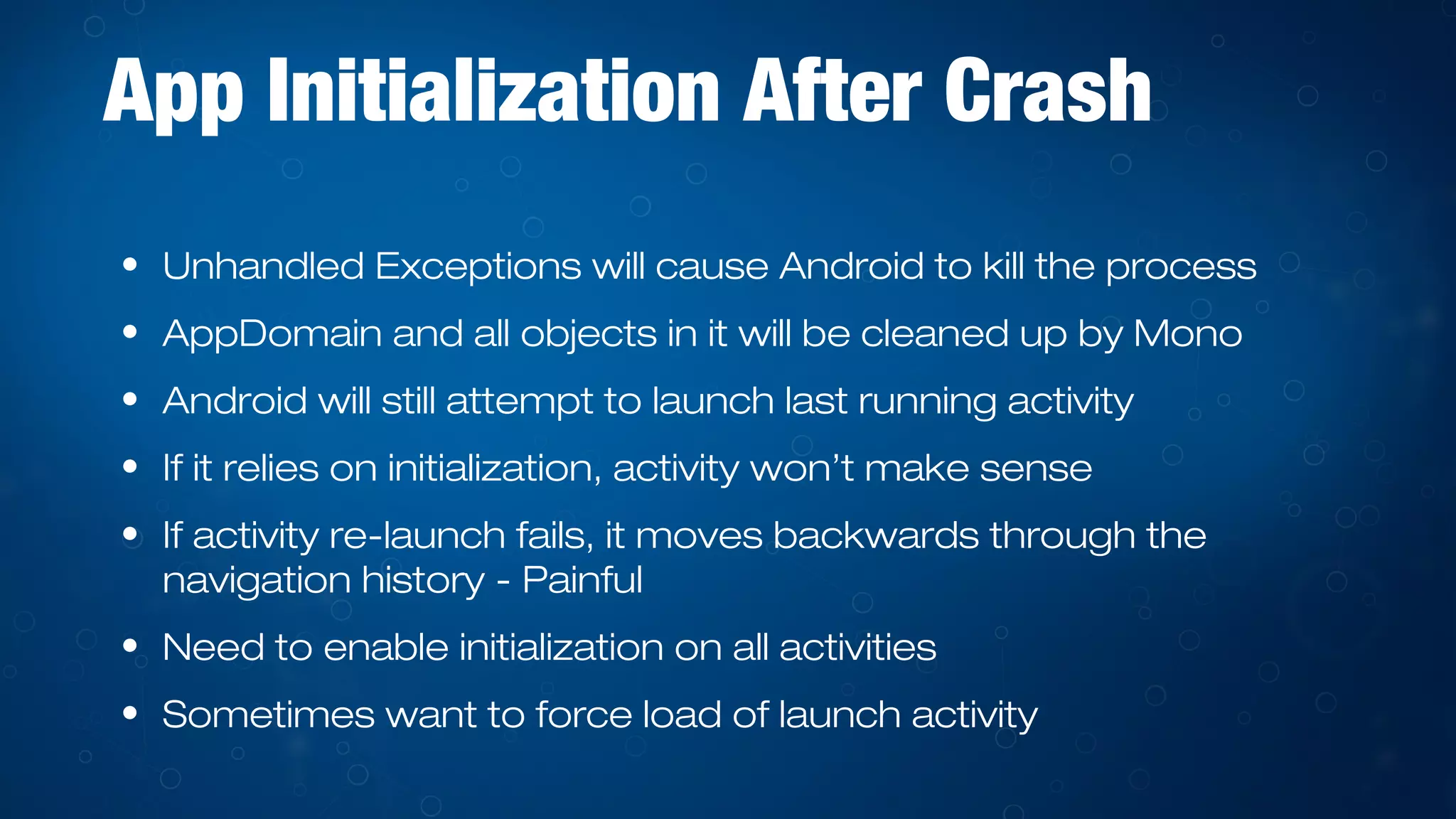

App Initialization After Crash
• Unhandled Exceptions will cause Android to kill the process
• AppDomain and all objects in it will be cleaned up by Mono
• Android will still attempt to launch last running activity
• If it relies on initialization, activity won’t make sense
• If activity re-launch fails, it moves backwards through the
navigation history - Painful
• Need to enable initialization on all activities
• Sometimes want to force load of launch activity

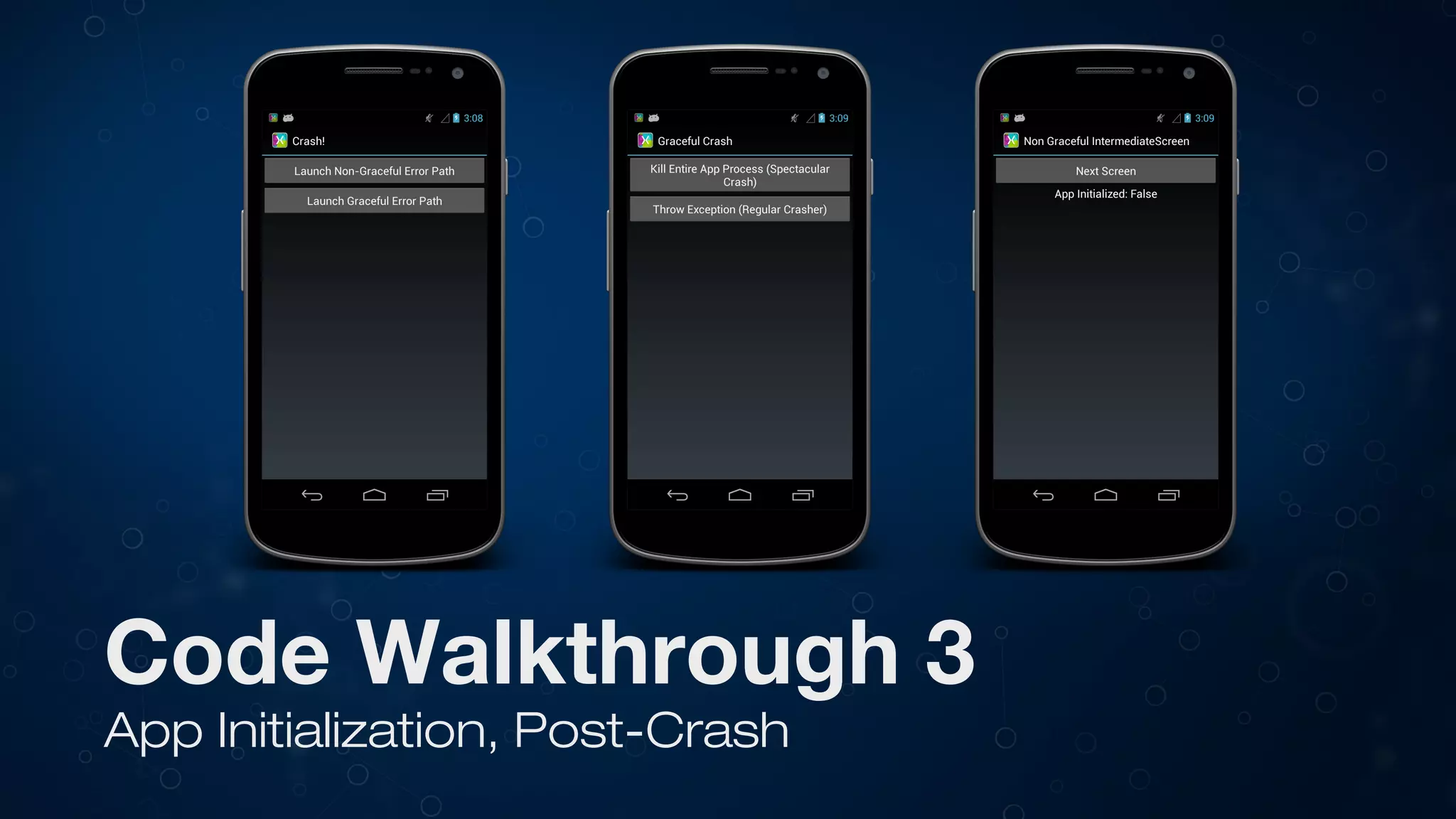

Code Walkthrough 3
App Initialization, Post-Crash

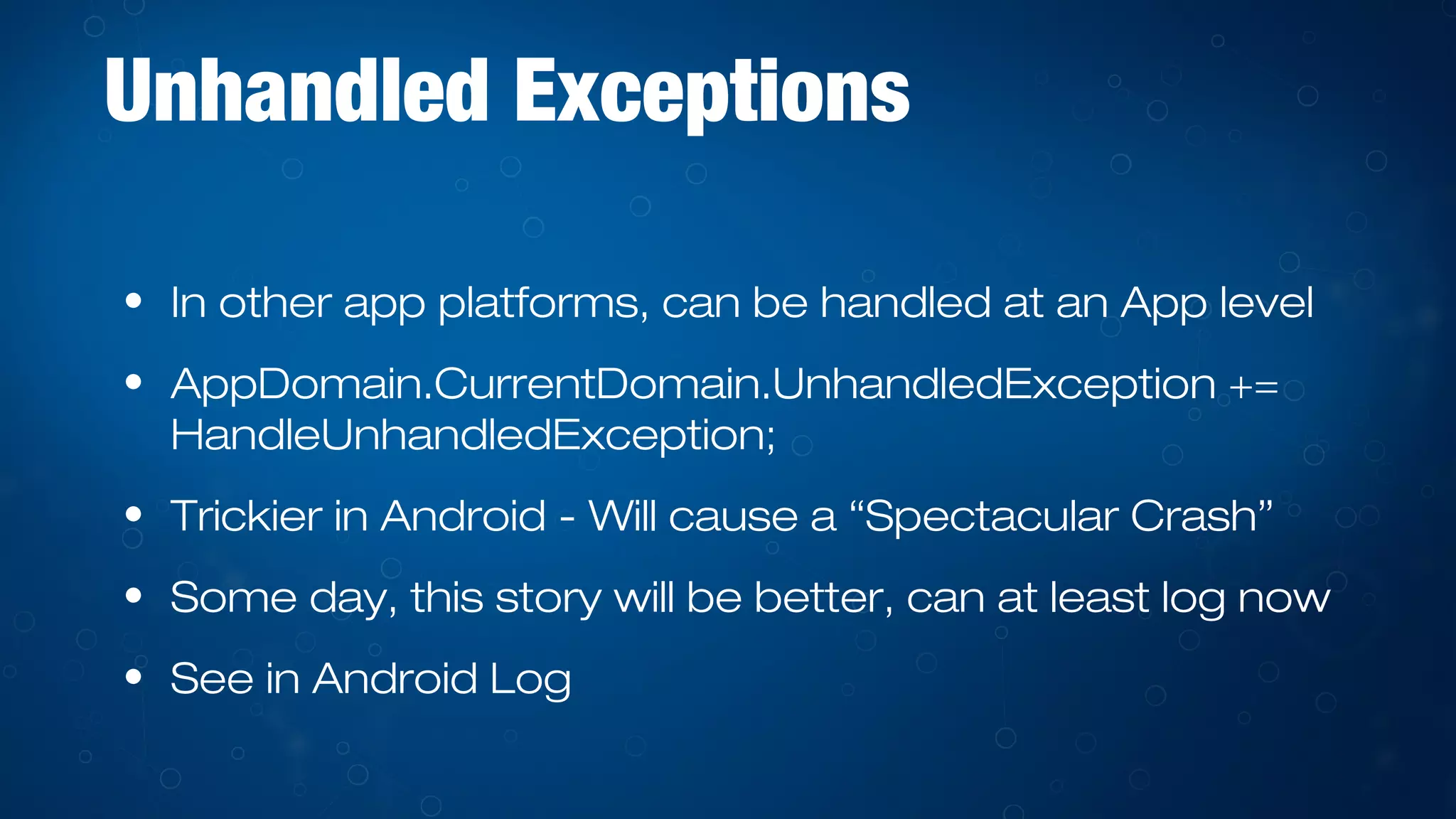

Unhandled Exceptions
• In other app platforms, can be handled at an App level
• AppDomain.CurrentDomain.UnhandledException +=
HandleUnhandledException;
• Trickier in Android - Will cause a “Spectacular Crash”
• Some day, this story will be better, can at least log now
• See in Android Log

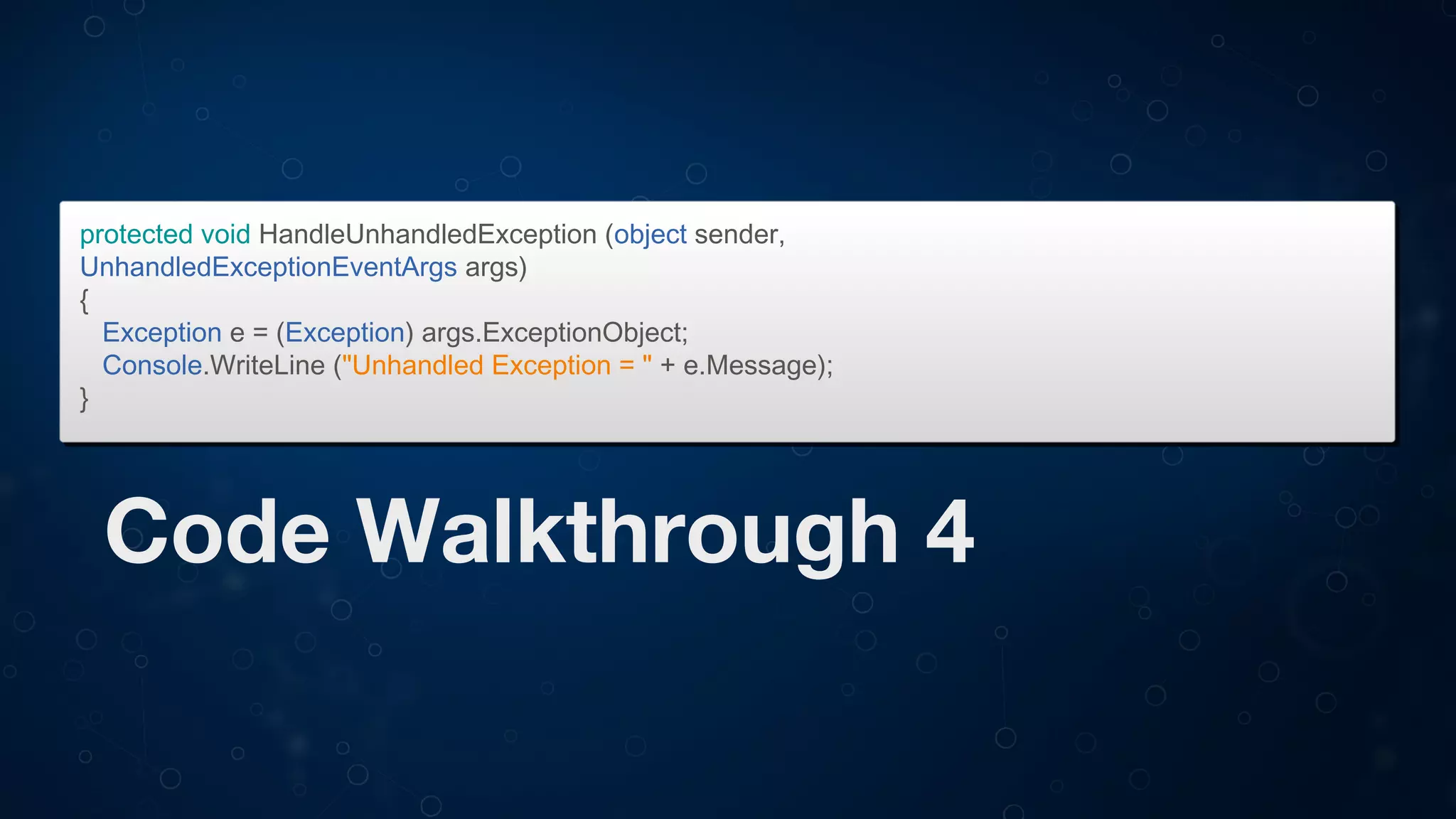

protected void HandleUnhandledException (object sender,
UnhandledExceptionEventArgs args)
{
Exception e = (Exception) args.ExceptionObject;
Console.WriteLine ("Unhandled Exception = " + e.Message);
}

Code Walkthrough 4

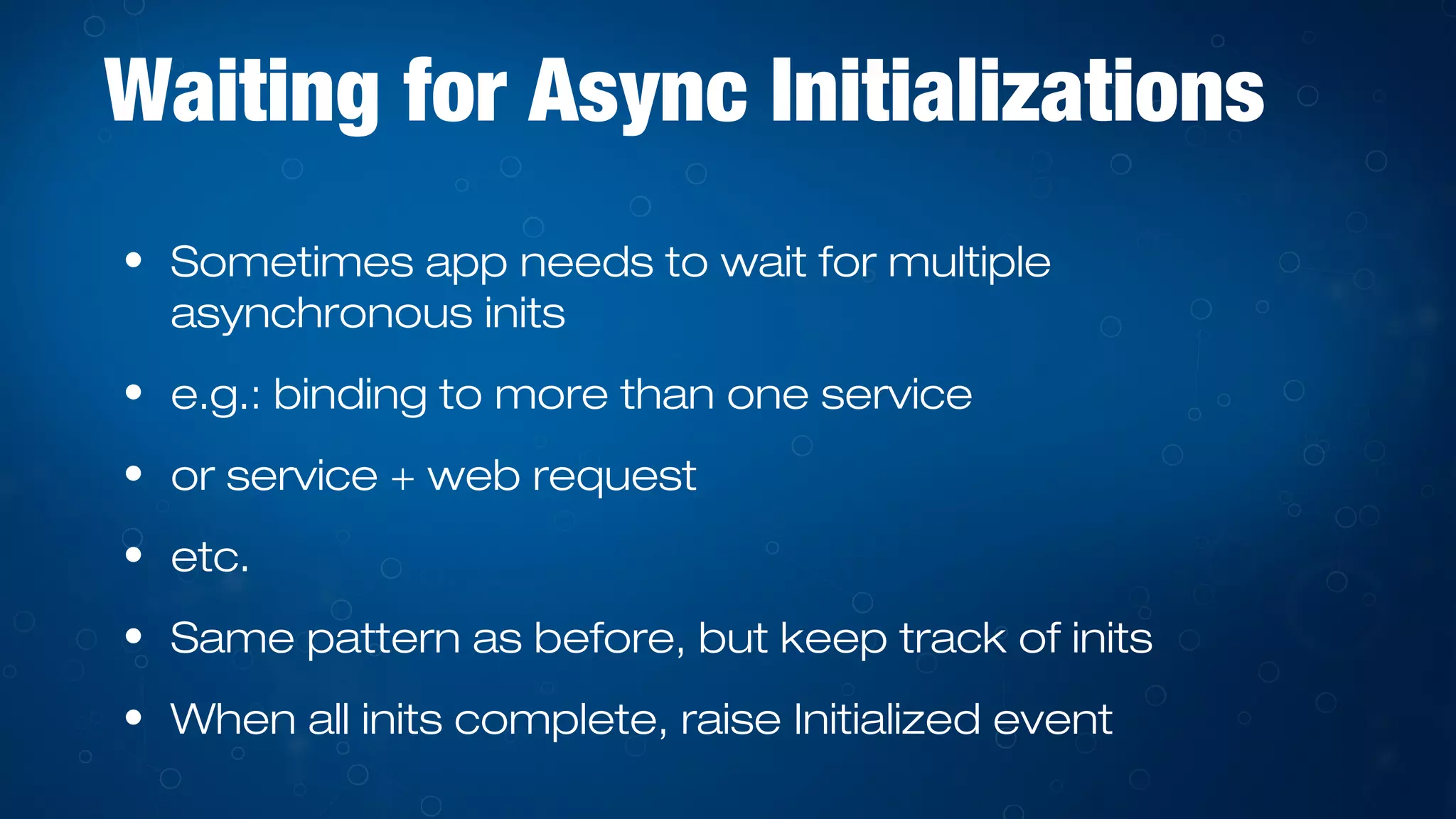

Waiting for Async Initializations
• Sometimes app needs to wait for multiple
asynchronous inits
• e.g.: binding to more than one service
• or service + web request
• etc.
• Same pattern as before, but keep track of inits
• When all inits complete, raise Initialized event

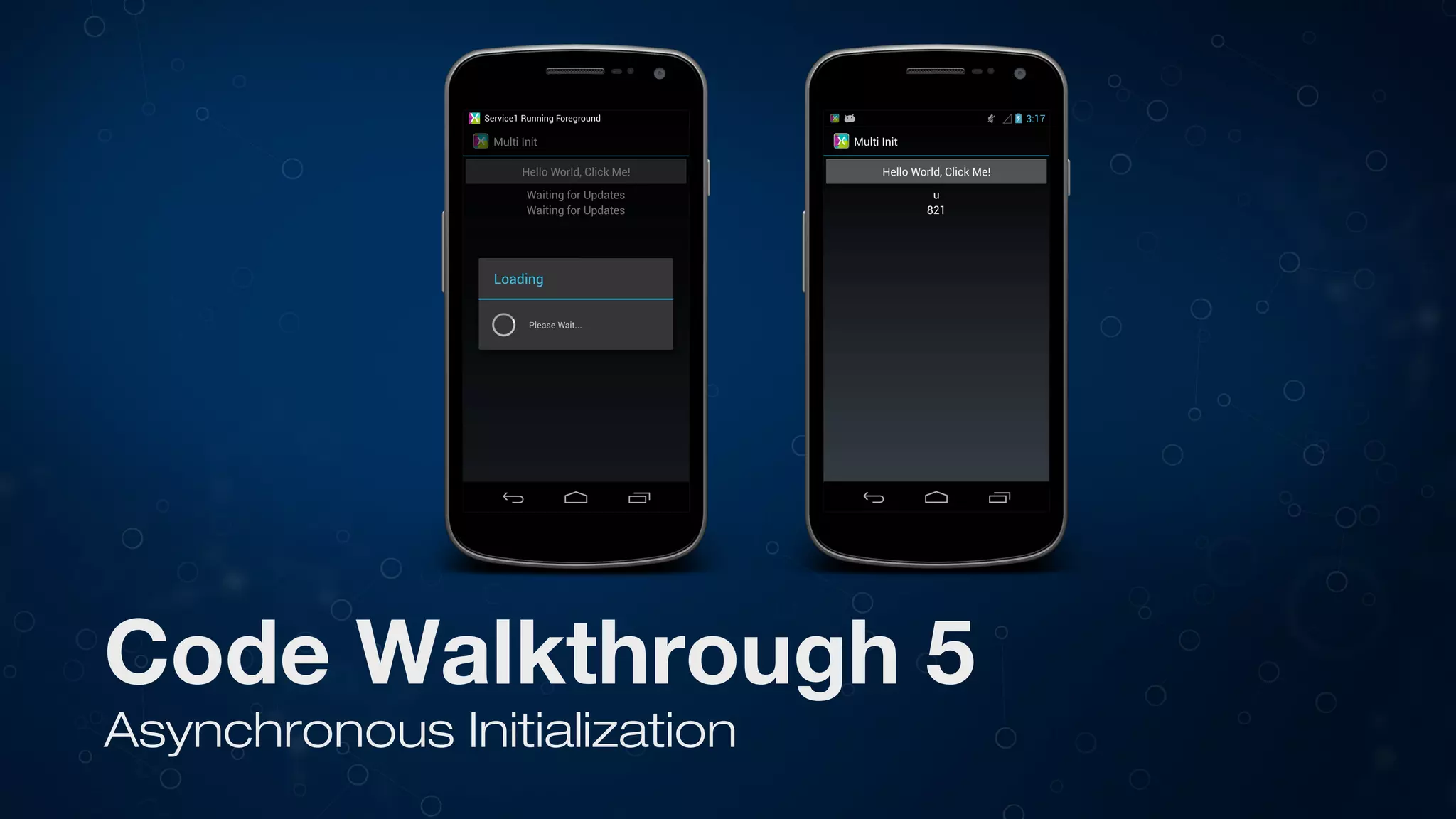

Code Walkthrough 5
Asynchronous Initialization
Q+A
