This document discusses arterial blood gas analysis and acid-base physiology. It provides indications for obtaining an ABG such as respiratory or metabolic disorders, hypoxia, shock, sepsis, and decreased cardiac output. It then defines the components of an ABG - pH, PaCO2, PaO2, HCO3, and base excess - and their normal ranges. It explains the Henderson-Hasselbalch equation and how the kidneys and respiratory system work to regulate pH levels and compensate for acid-base imbalances through bicarbonate and CO2 elimination. Various acid-base disorders like respiratory acidosis, metabolic acidosis, and mixed disorders are covered.

1. Dr. Anwar Yusr
Consultant of Critical Care medicine
Egyptian fellowship of ICU
USTH

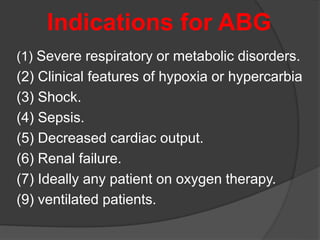

2. Indications for ABG
(1) Severe respiratory or metabolic disorders.
(2) Clinical features of hypoxia or hypercarbia
(3) Shock.
(4) Sepsis.
(5) Decreased cardiac output.
(6) Renal failure.
(7) Ideally any patient on oxygen therapy.
(9) ventilated patients.

3.  PaO2; the partial pressure of oxygen in arterial blood
 normal range breathing air > 75 mmHg on air (increases with FiO2)
 pH; the acidity or alkalinity of the blood, determined by the
concentration of hydrogen ions [H+]
 normal range 7.35 – 7.45
 PaCO2; the partial pressure of carbon dioxide in arterial blood
 normal range 35 – 45 mmHg
 Bicarbonate; a buffer, neutralises the effects of excess acid
 normal range 22 – 26 mmol L-1
 Base excess; a measure of the degree of excess acid or alkali
(base) in the blood
 normal range +2 to -2 mmol L-1
Terms used in arterial blood gas analysis

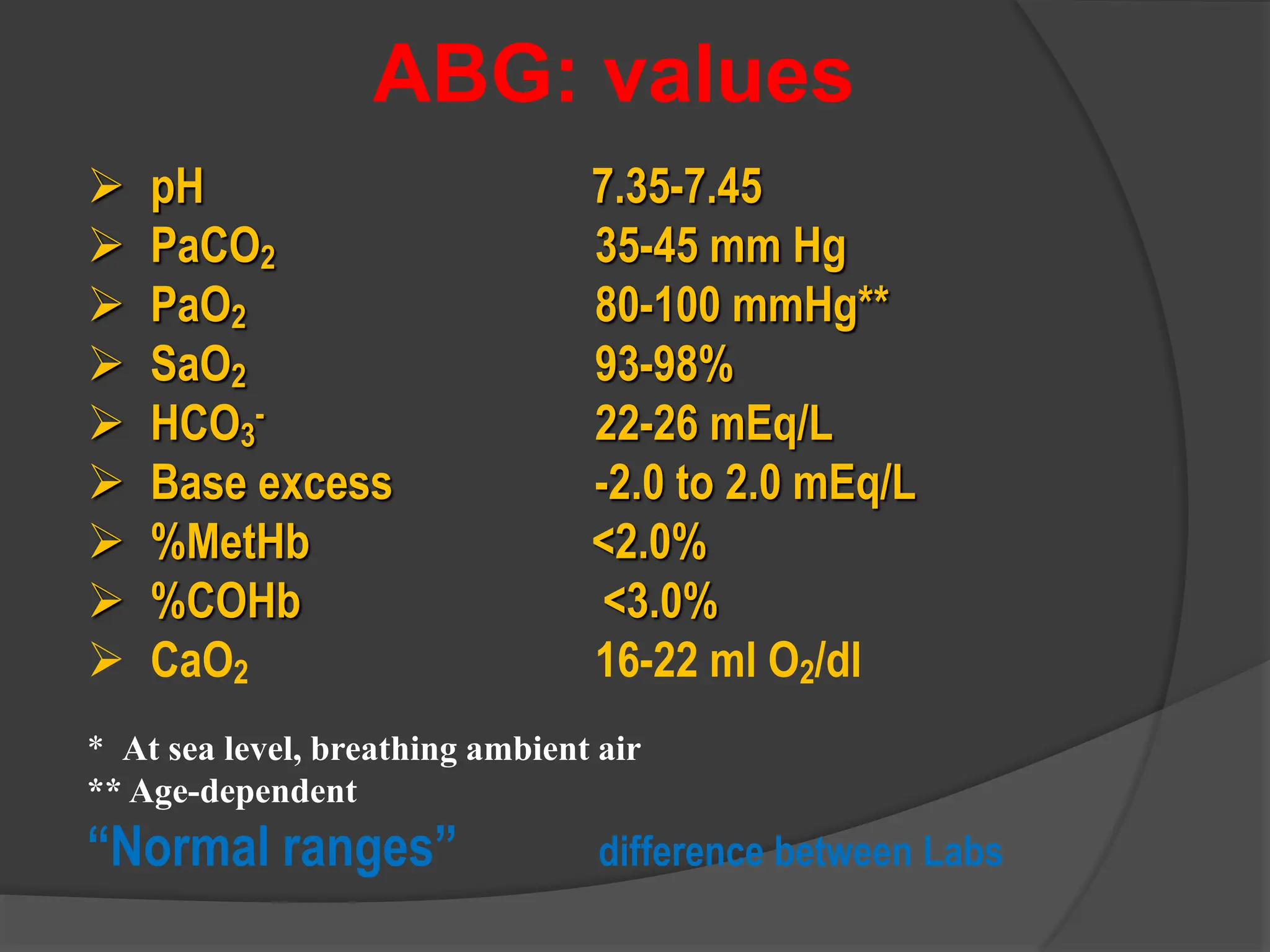

4. ABG: values
 pH 7.35-7.45
 PaCO2 35-45 mm Hg
 PaO2 80-100 mmHg**
 SaO2 93-98%
 HCO3
- 22-26 mEq/L
 Base excess -2.0 to 2.0 mEq/L
 %MetHb <2.0%
 %COHb <3.0%
 CaO2 16-22 ml O2/dl
* At sea level, breathing ambient air
** Age-dependent
“Normal ranges” difference between Labs

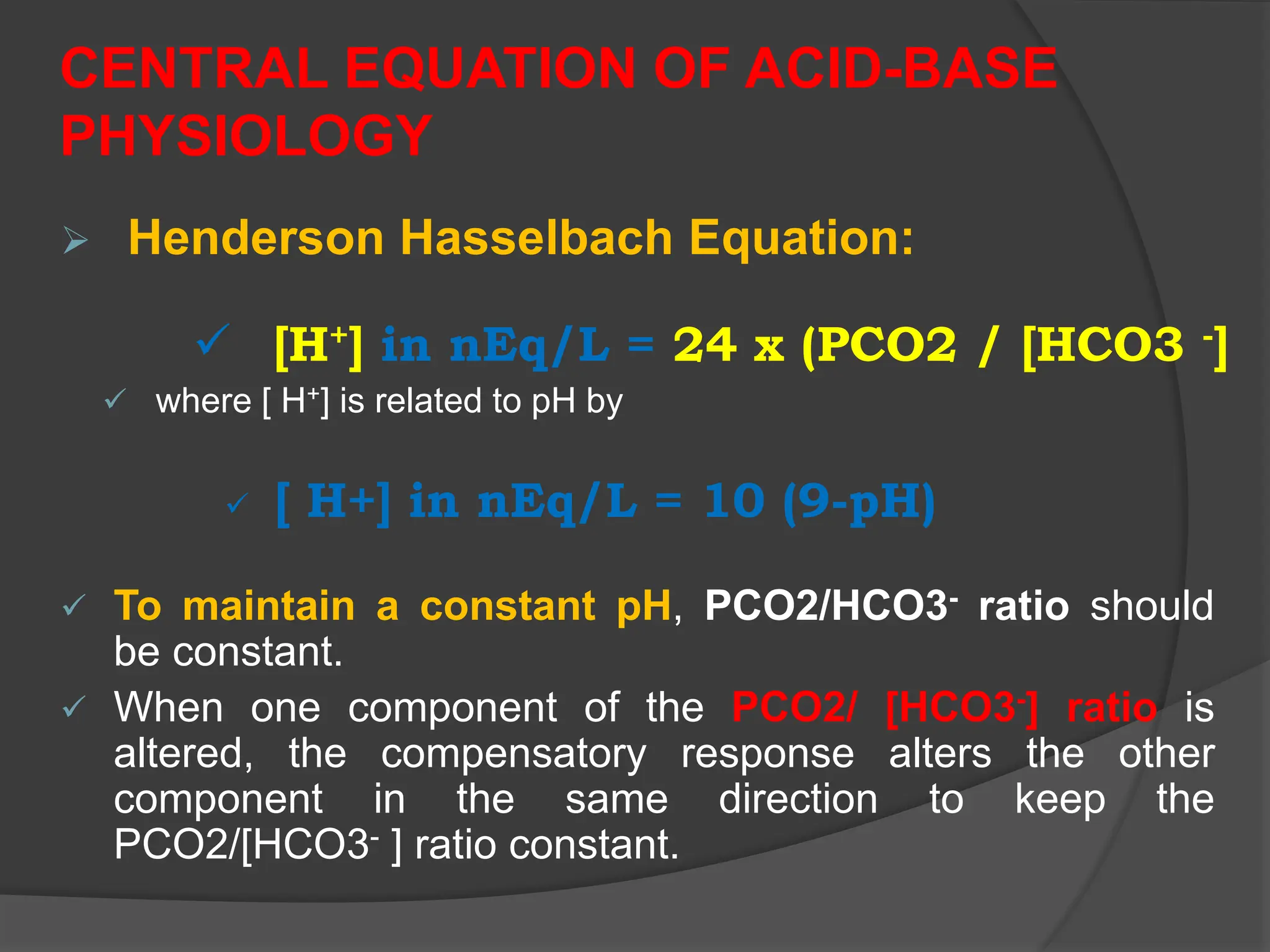

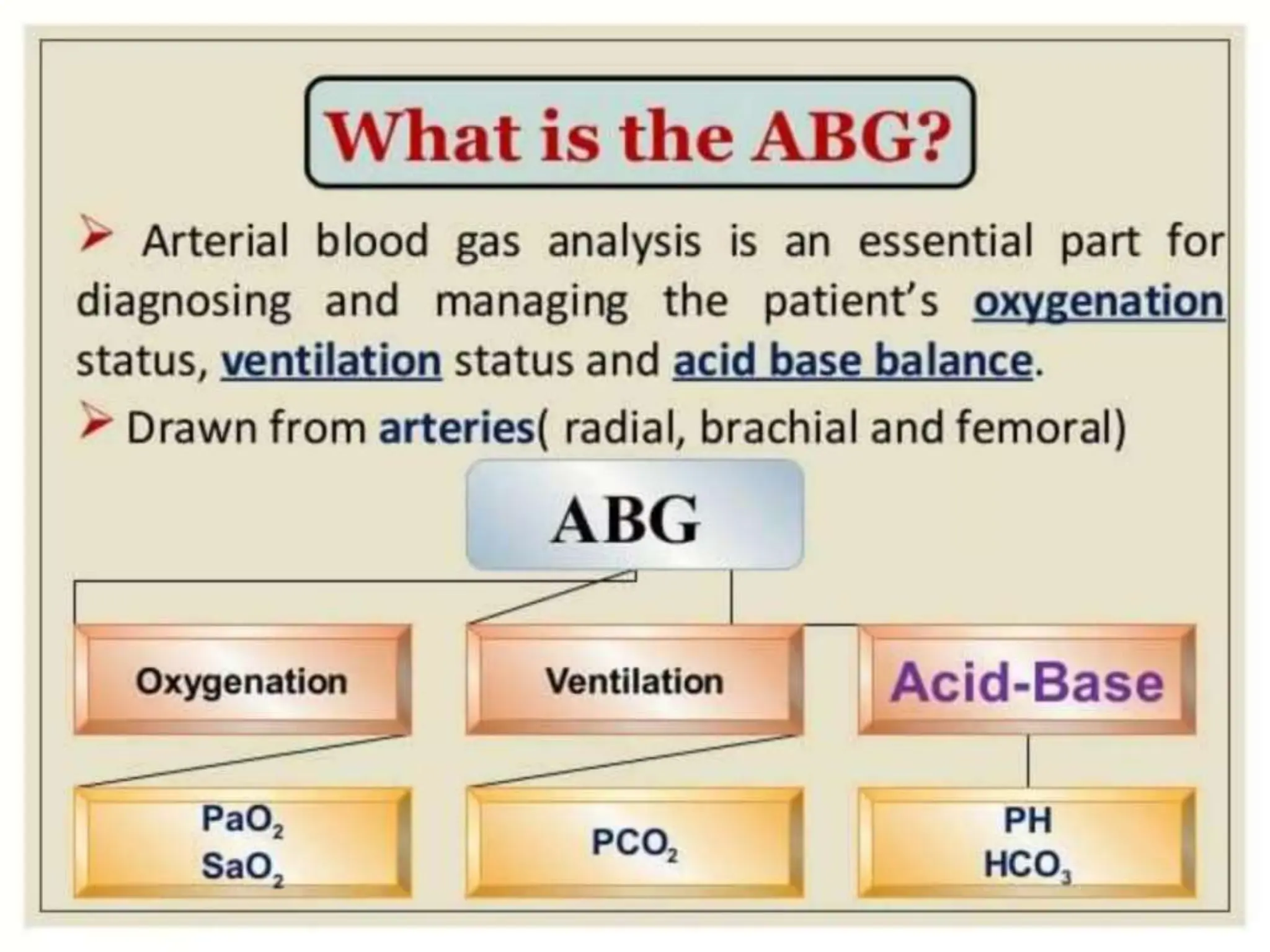

6. CENTRAL EQUATION OF ACID-BASE
PHYSIOLOGY
 Henderson Hasselbach Equation:
 where [ H+] is related to pH by
 To maintain a constant pH, PCO2/HCO3- ratio should
be constant.
 When one component of the PCO2/ [HCO3-] ratio is
altered, the compensatory response alters the other
component in the same direction to keep the
PCO2/[HCO3- ] ratio constant.
 [H+] in nEq/L = 24 x (PCO2 / [HCO3 -]
 [ H+] in nEq/L = 10 (9-pH)

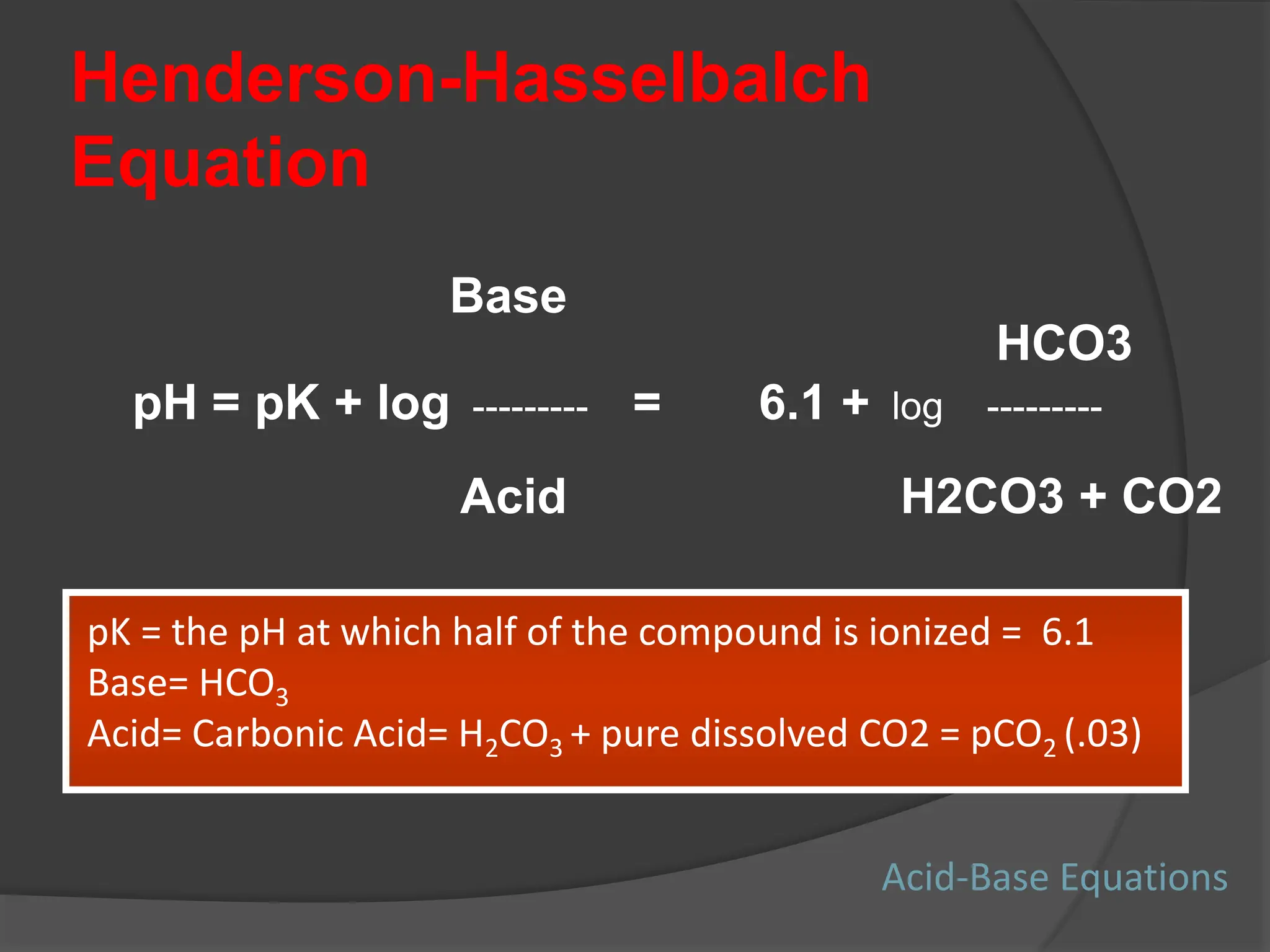

7. Henderson-Hasselbalch
Equation
Base
HCO3
pH = pK + log --------- = 6.1 + log ---------
Acid H2CO3 + CO2
pK = the pH at which half of the compound is ionized = 6.1
Base= HCO3
Acid= Carbonic Acid= H2CO3 + pure dissolved CO2 = pCO2 (.03)
Acid-Base Equations

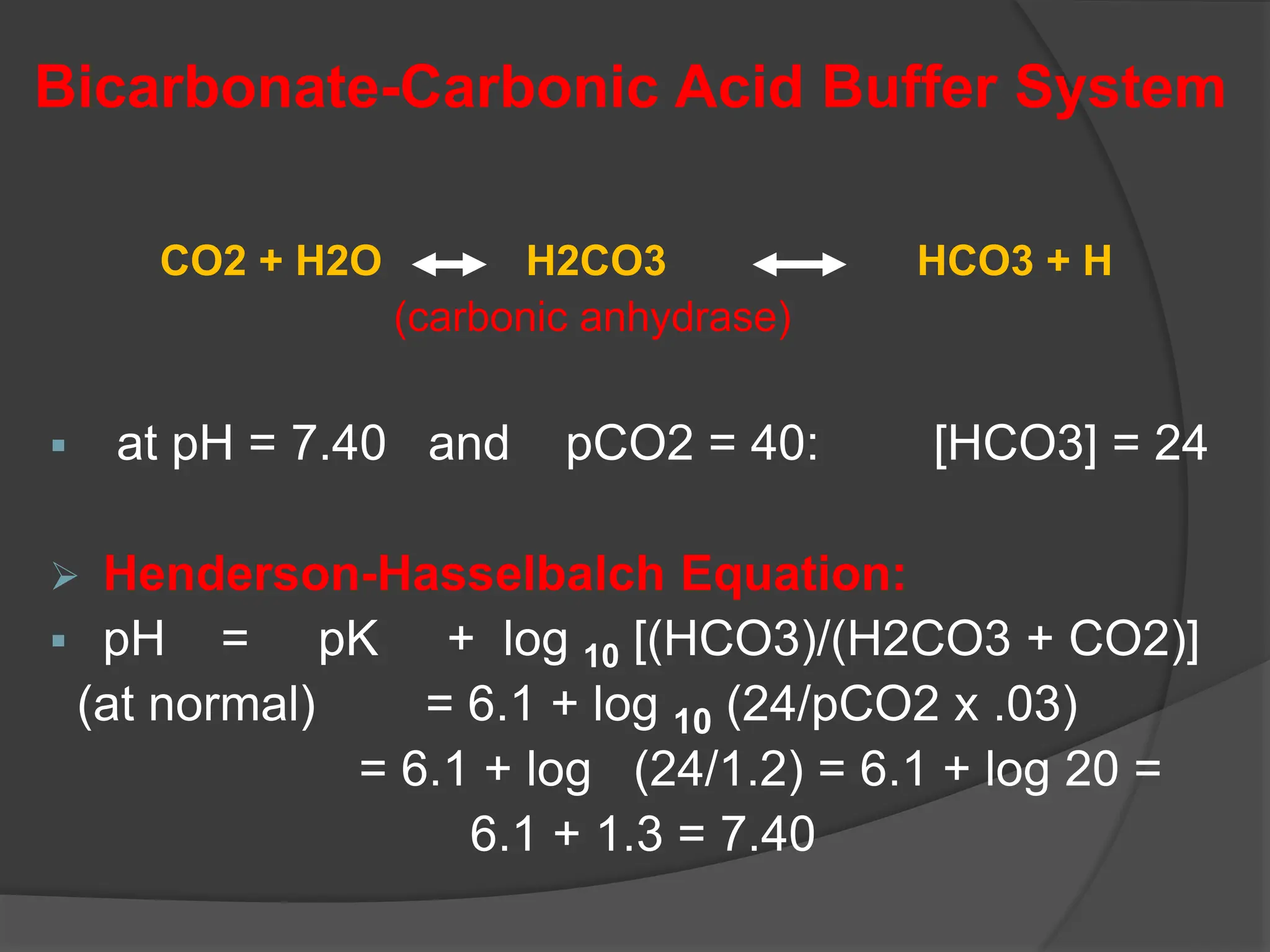

8. Bicarbonate-Carbonic Acid Buffer System
CO2 + H2O H2CO3 HCO3 + H
(carbonic anhydrase)
 at pH = 7.40 and pCO2 = 40: [HCO3] = 24
 Henderson-Hasselbalch Equation:
 pH = pK + log 10 [(HCO3)/(H2CO3 + CO2)]
(at normal) = 6.1 + log 10 (24/pCO2 x .03)
= 6.1 + log (24/1.2) = 6.1 + log 20 =
6.1 + 1.3 = 7.40

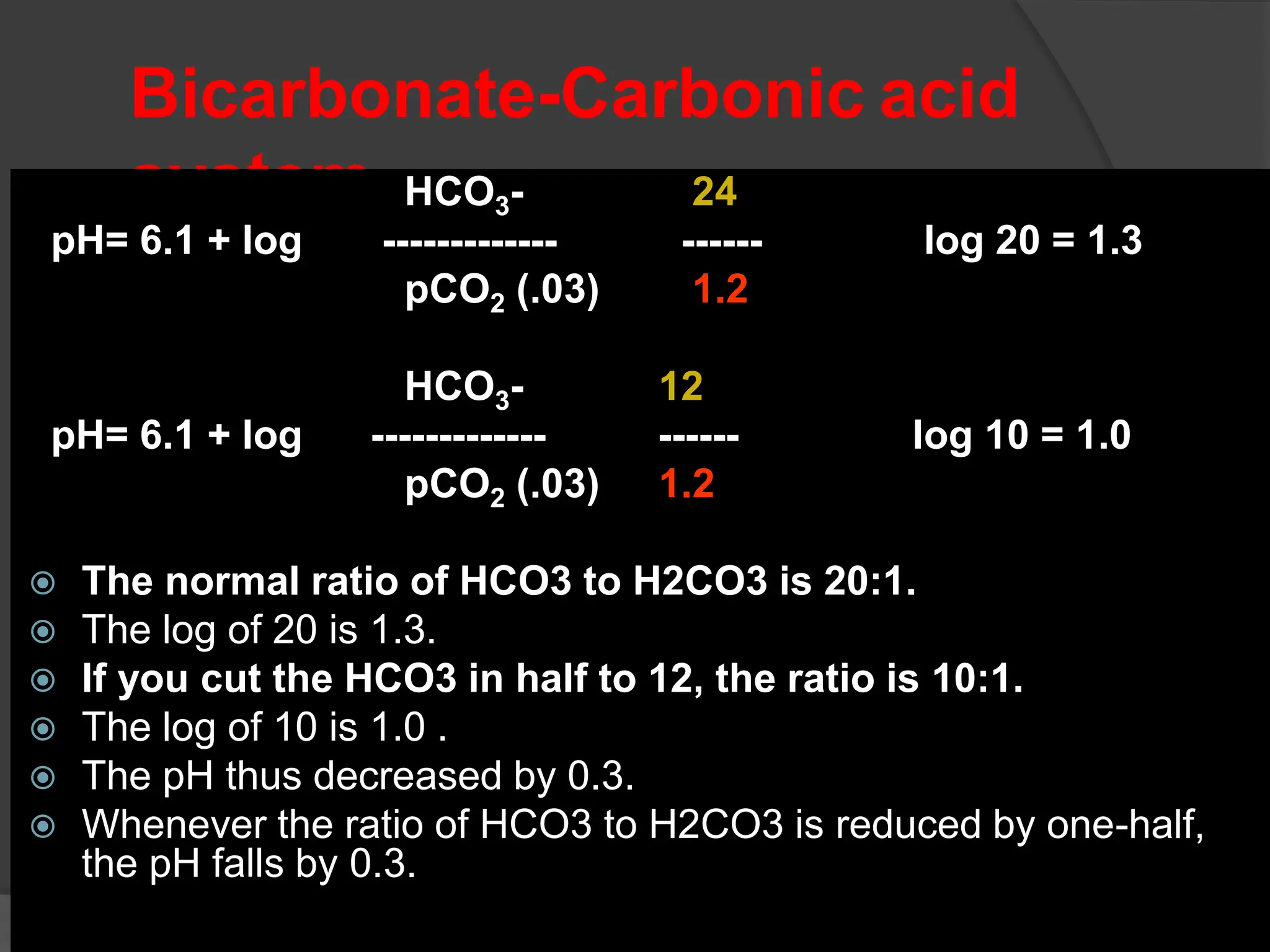

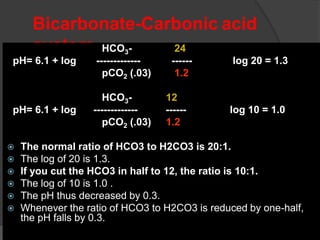

9. Bicarbonate-Carbonic acid
system HCO3- 24
pH= 6.1 + log ------------- ------ ---- log 20 = 1.3
pCO2 (.03) 1.2
HCO3- 12
pH= 6.1 + log ------------- ------ ---- log 10 = 1.0
pCO2 (.03) 1.2
 The normal ratio of HCO3 to H2CO3 is 20:1.
 The log of 20 is 1.3.
 If you cut the HCO3 in half to 12, the ratio is 10:1.
 The log of 10 is 1.0 .
 The pH thus decreased by 0.3.
 Whenever the ratio of HCO3 to H2CO3 is reduced by one-half,
the pH falls by 0.3.

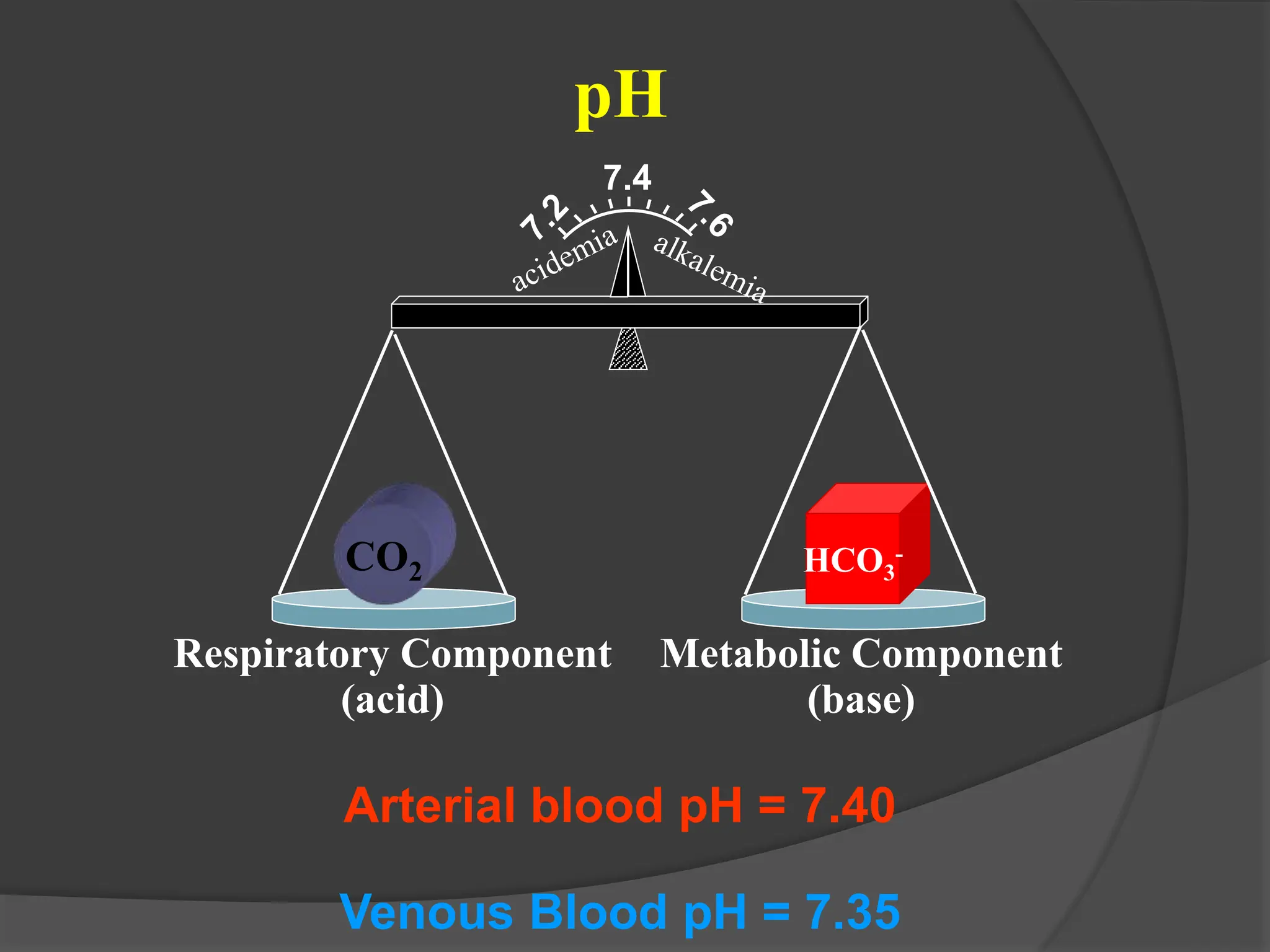

10. pH
7.4
CO2 HCO3
-
Respiratory Component
(acid)
Metabolic Component
(base)
Arterial blood pH = 7.40
Venous Blood pH = 7.35

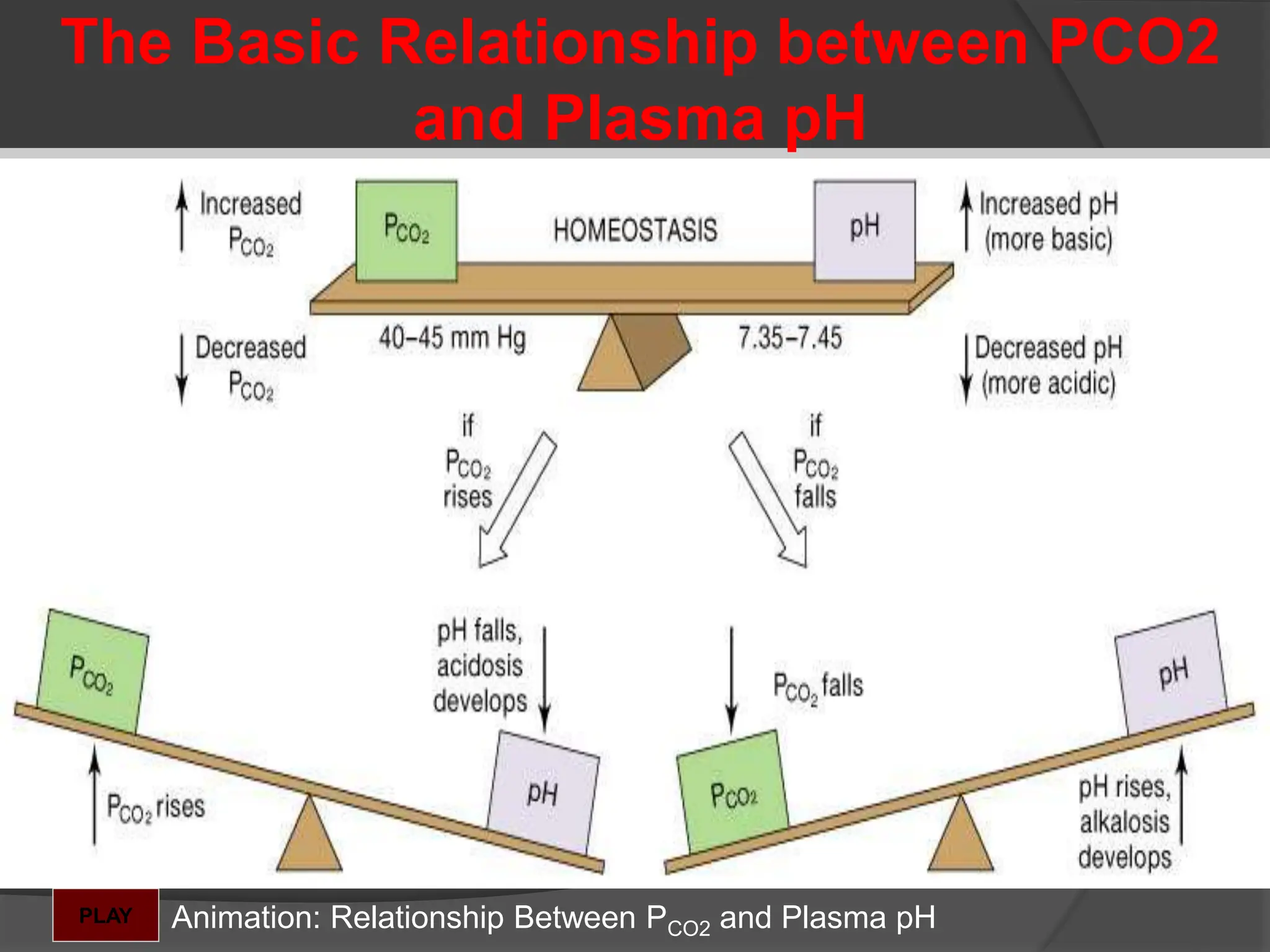

11. The Basic Relationship between PCO2
and Plasma pH
Animation: Relationship Between PCO2 and Plasma pH
PLAY

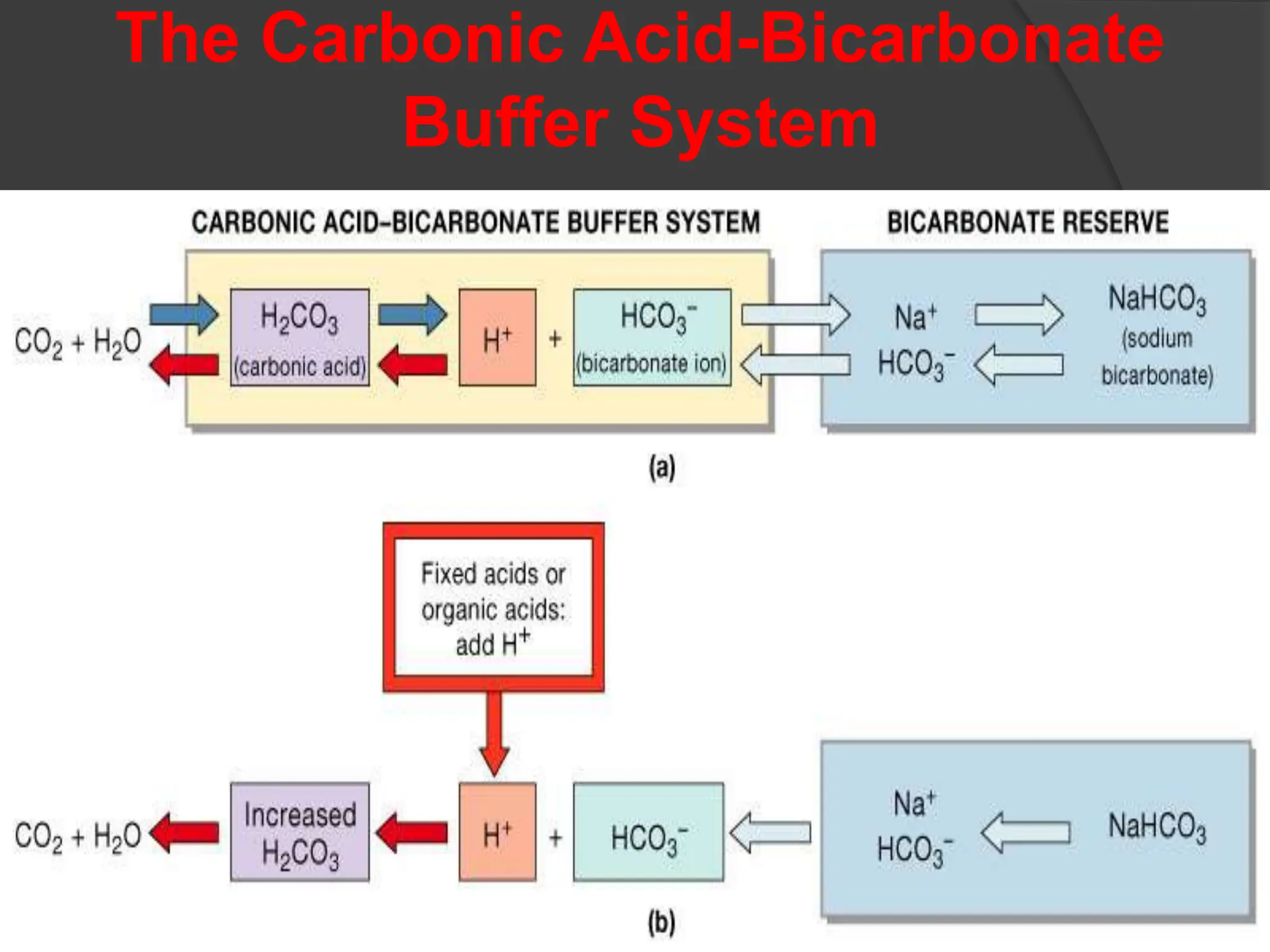

12. The Carbonic Acid-Bicarbonate
Buffer System

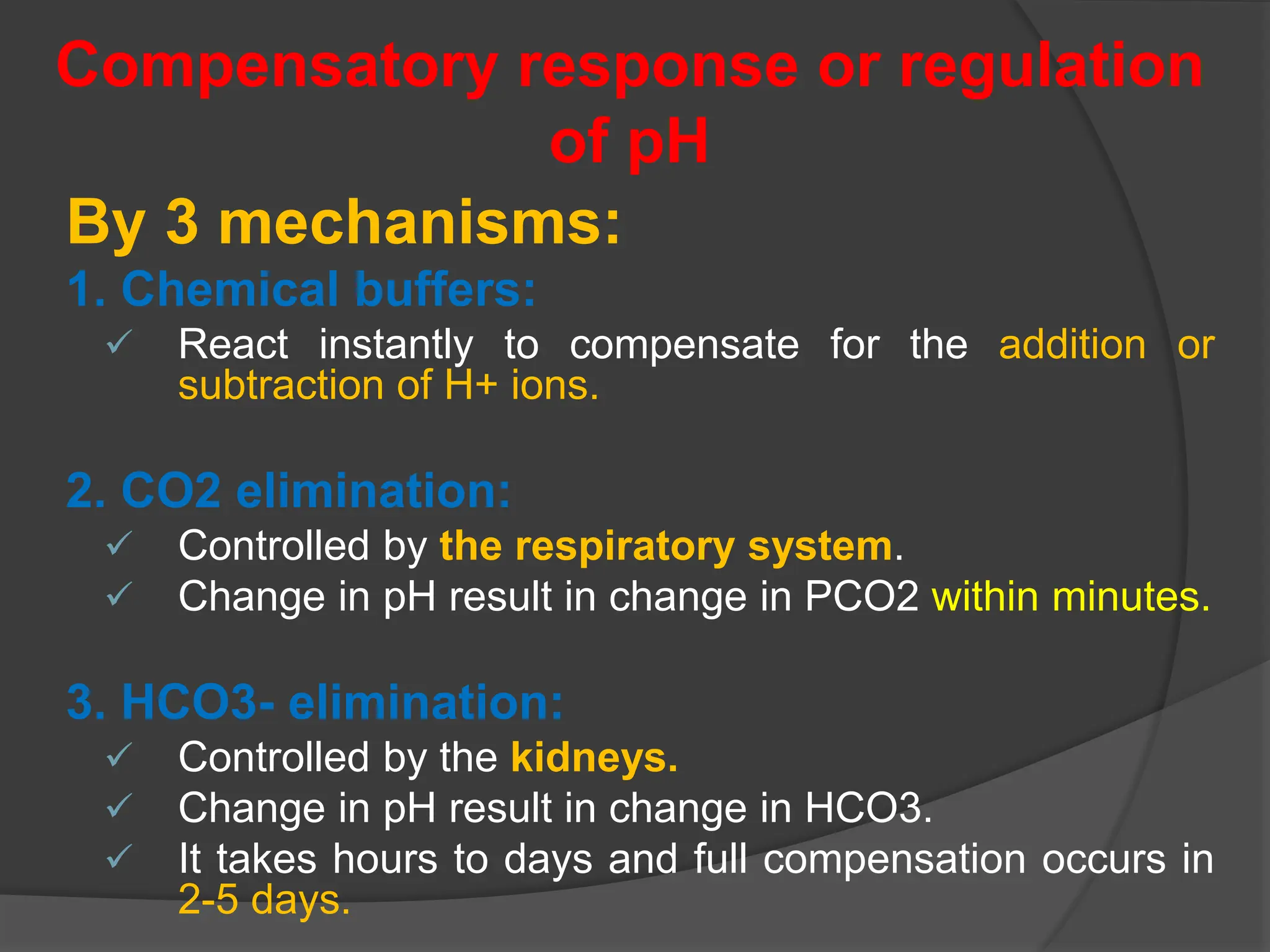

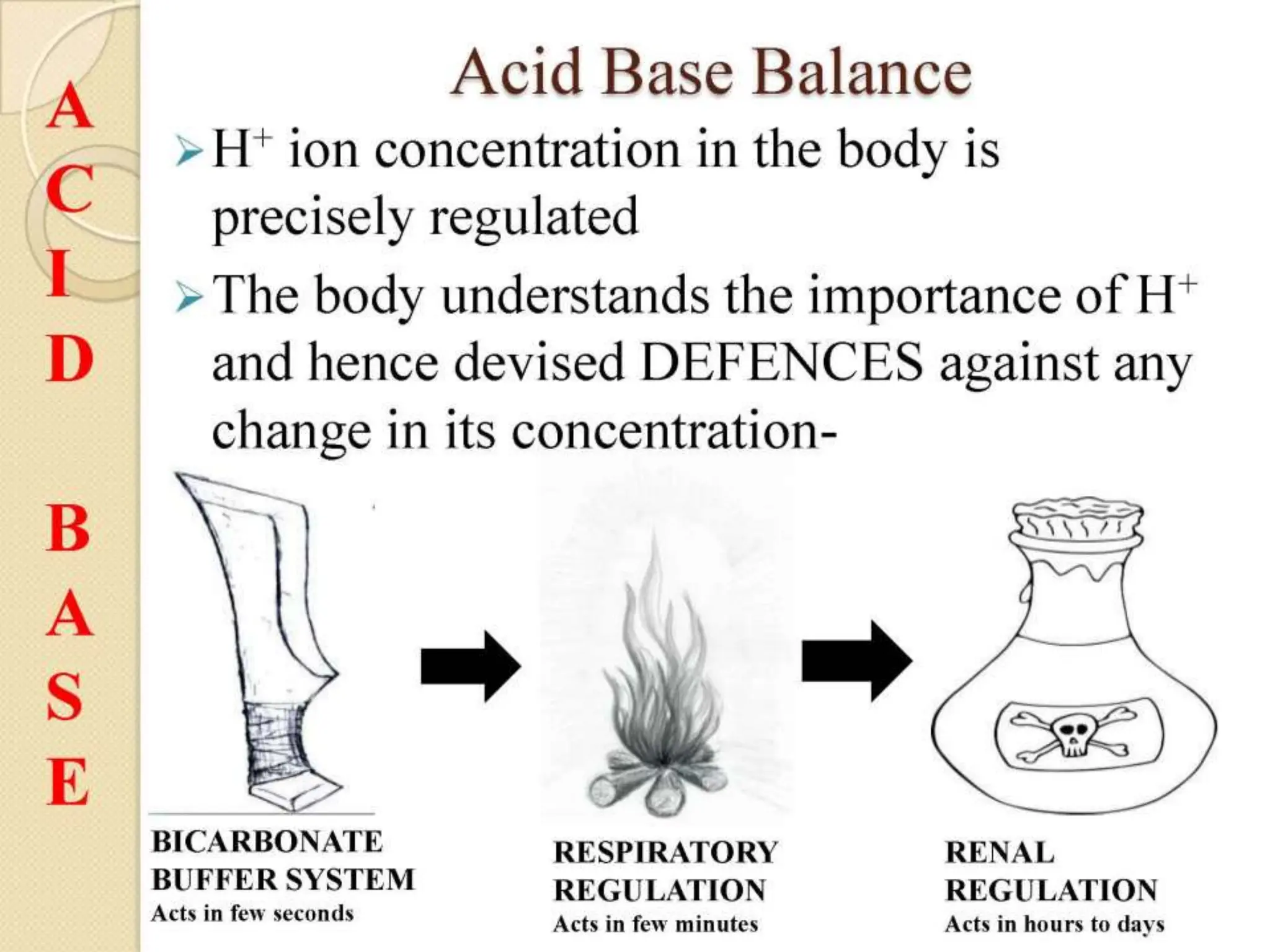

13. Compensatory response or regulation
of pH
By 3 mechanisms:
1. Chemical buffers:
 React instantly to compensate for the addition or
subtraction of H+ ions.
2. CO2 elimination:
 Controlled by the respiratory system.
 Change in pH result in change in PCO2 within minutes.
3. HCO3- elimination:
 Controlled by the kidneys.
 Change in pH result in change in HCO3.
 It takes hours to days and full compensation occurs in
2-5 days.

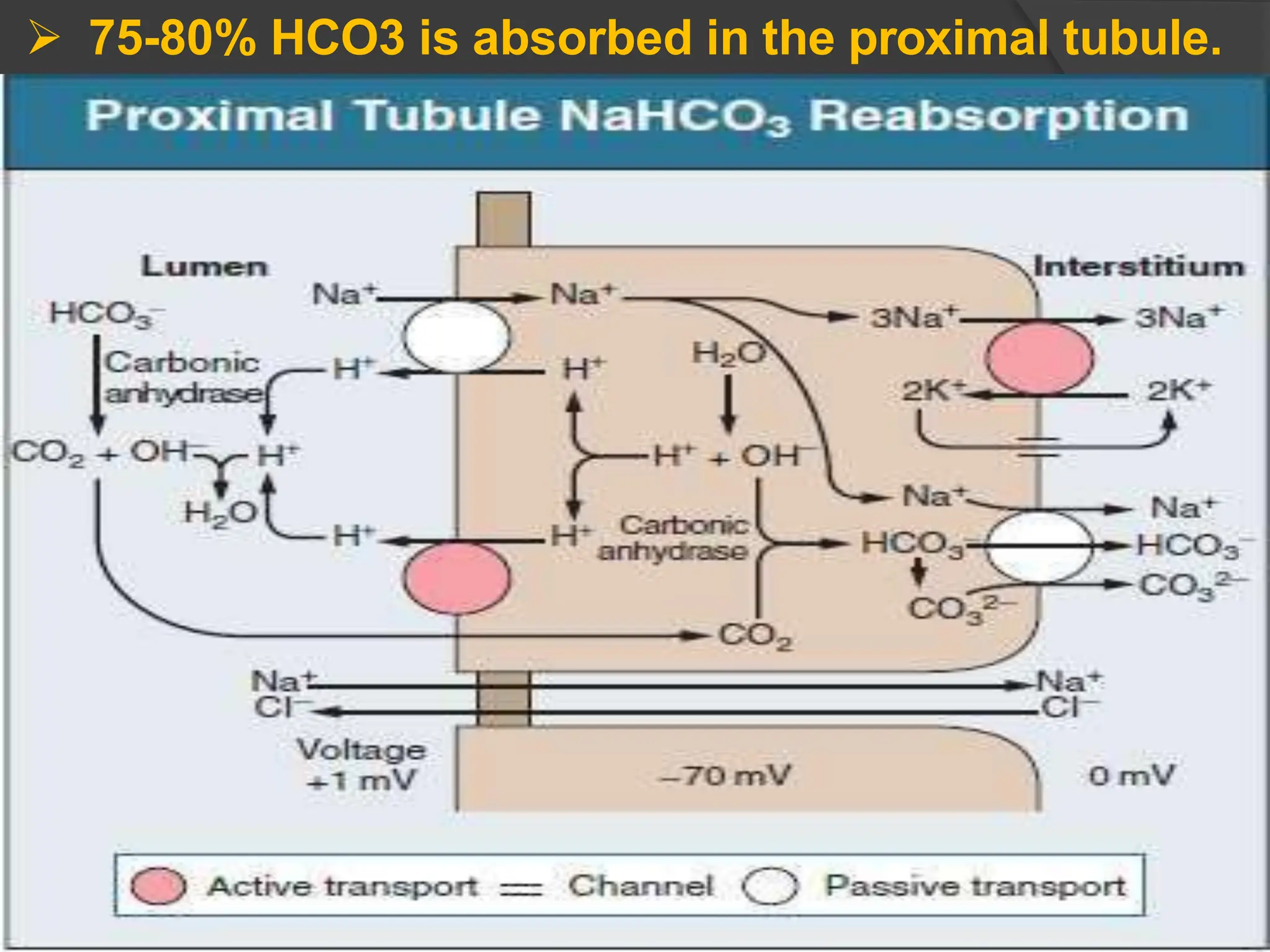

15.  75-80% HCO3 is absorbed in the proximal tubule.

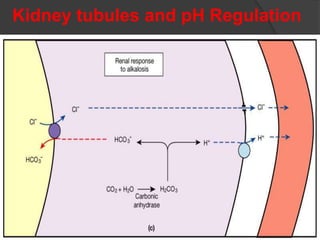

16. Kidney tubules and pH Regulation

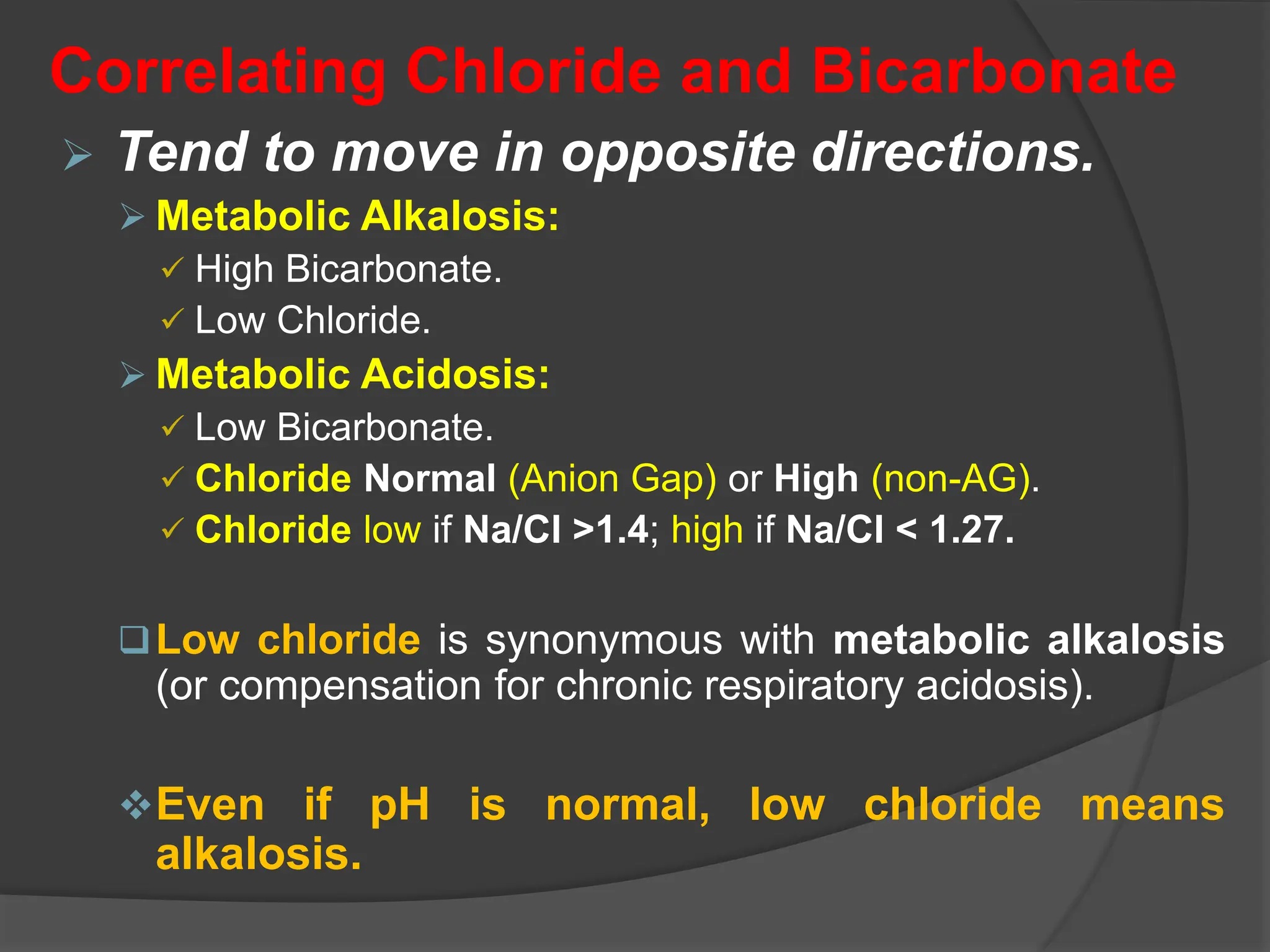

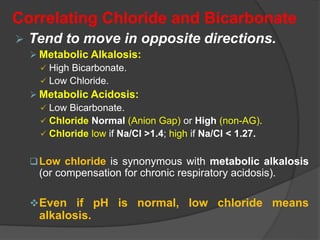

17. Correlating Chloride and Bicarbonate
 Tend to move in opposite directions.
 Metabolic Alkalosis:
 High Bicarbonate.
 Low Chloride.
 Metabolic Acidosis:
 Low Bicarbonate.
 Chloride Normal (Anion Gap) or High (non-AG).
 Chloride low if Na/Cl >1.4; high if Na/Cl < 1.27.
Low chloride is synonymous with metabolic alkalosis
(or compensation for chronic respiratory acidosis).
Even if pH is normal, low chloride means
alkalosis.

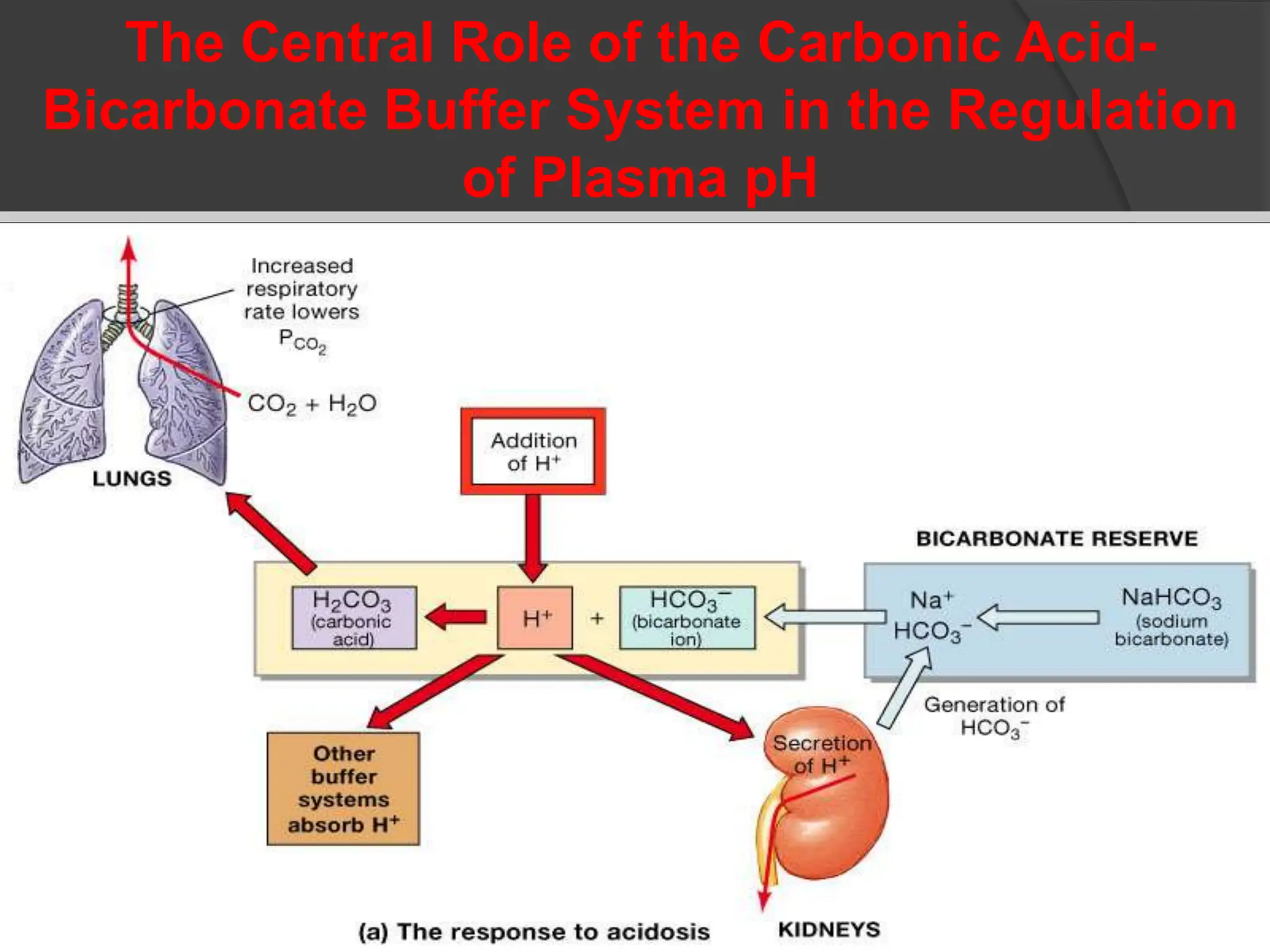

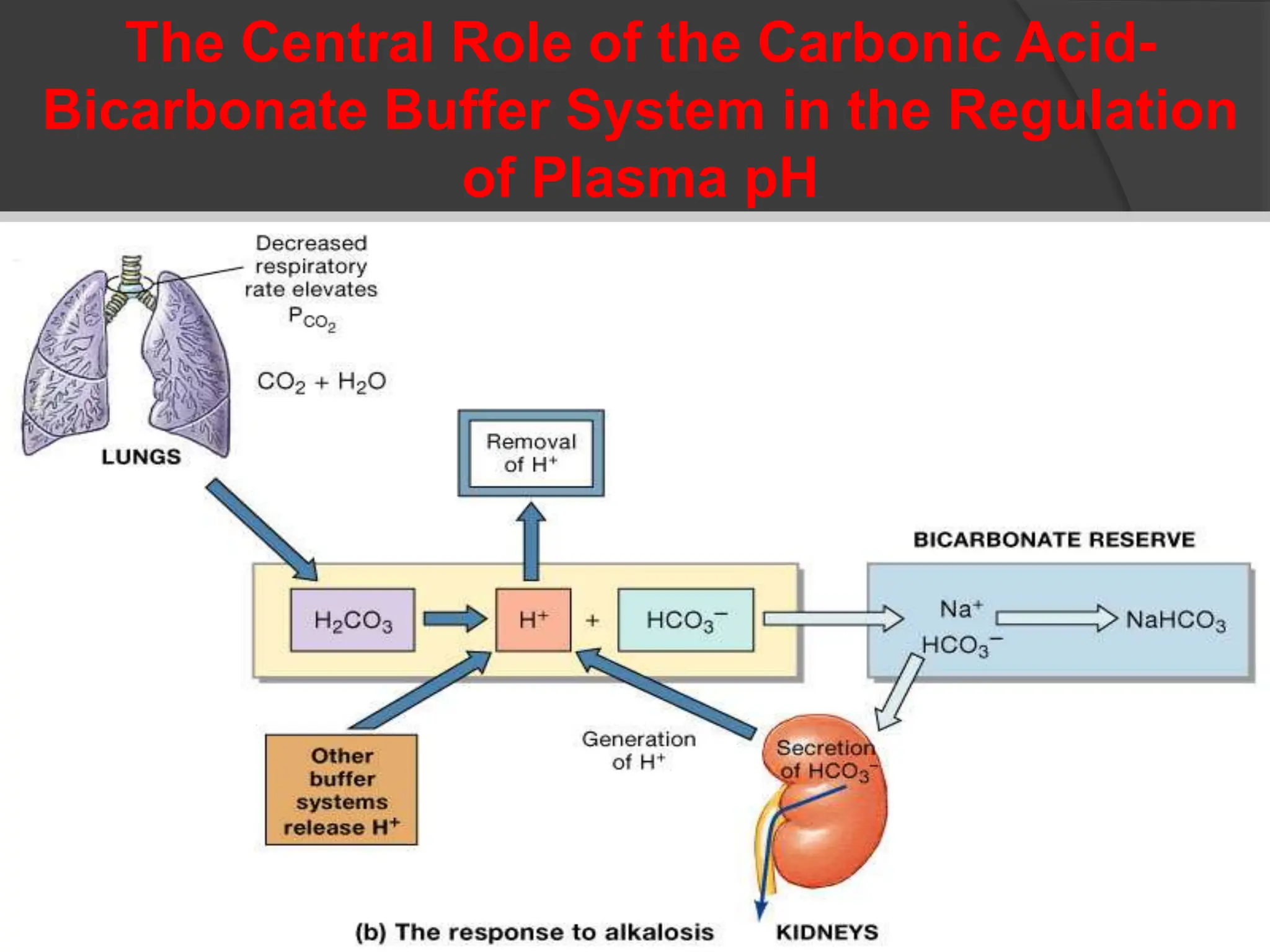

18. The Central Role of the Carbonic Acid-
Bicarbonate Buffer System in the Regulation
of Plasma pH

19. The Central Role of the Carbonic Acid-
Bicarbonate Buffer System in the Regulation
of Plasma pH

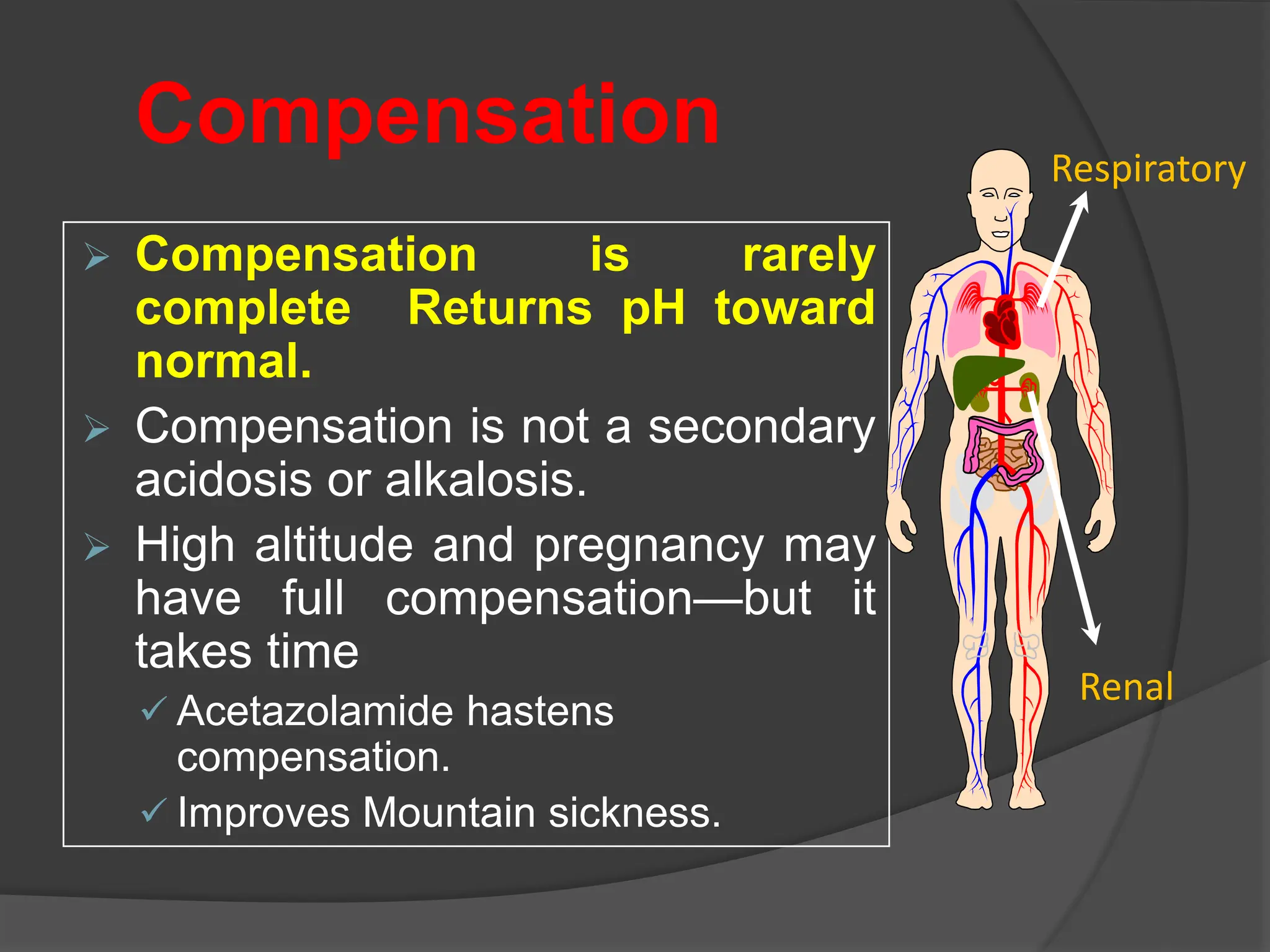

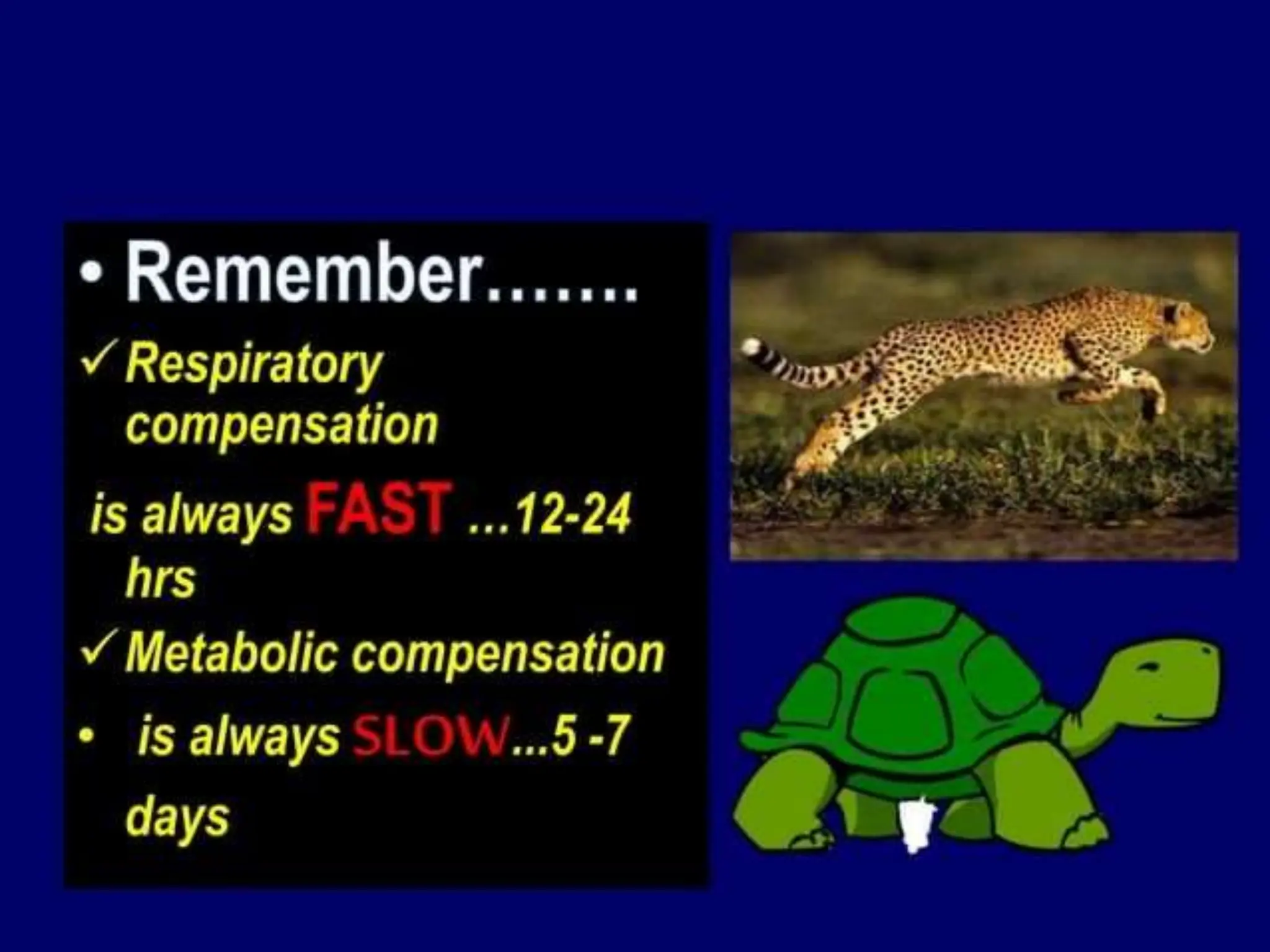

21. Compensation
 Compensation is rarely
complete Returns pH toward
normal.
 Compensation is not a secondary
acidosis or alkalosis.
 High altitude and pregnancy may
have full compensation—but it
takes time
 Acetazolamide hastens
compensation.
 Improves Mountain sickness.
Respiratory
Renal

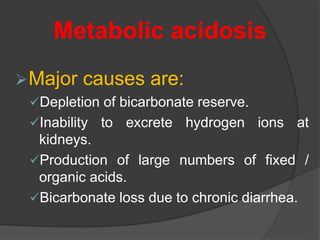

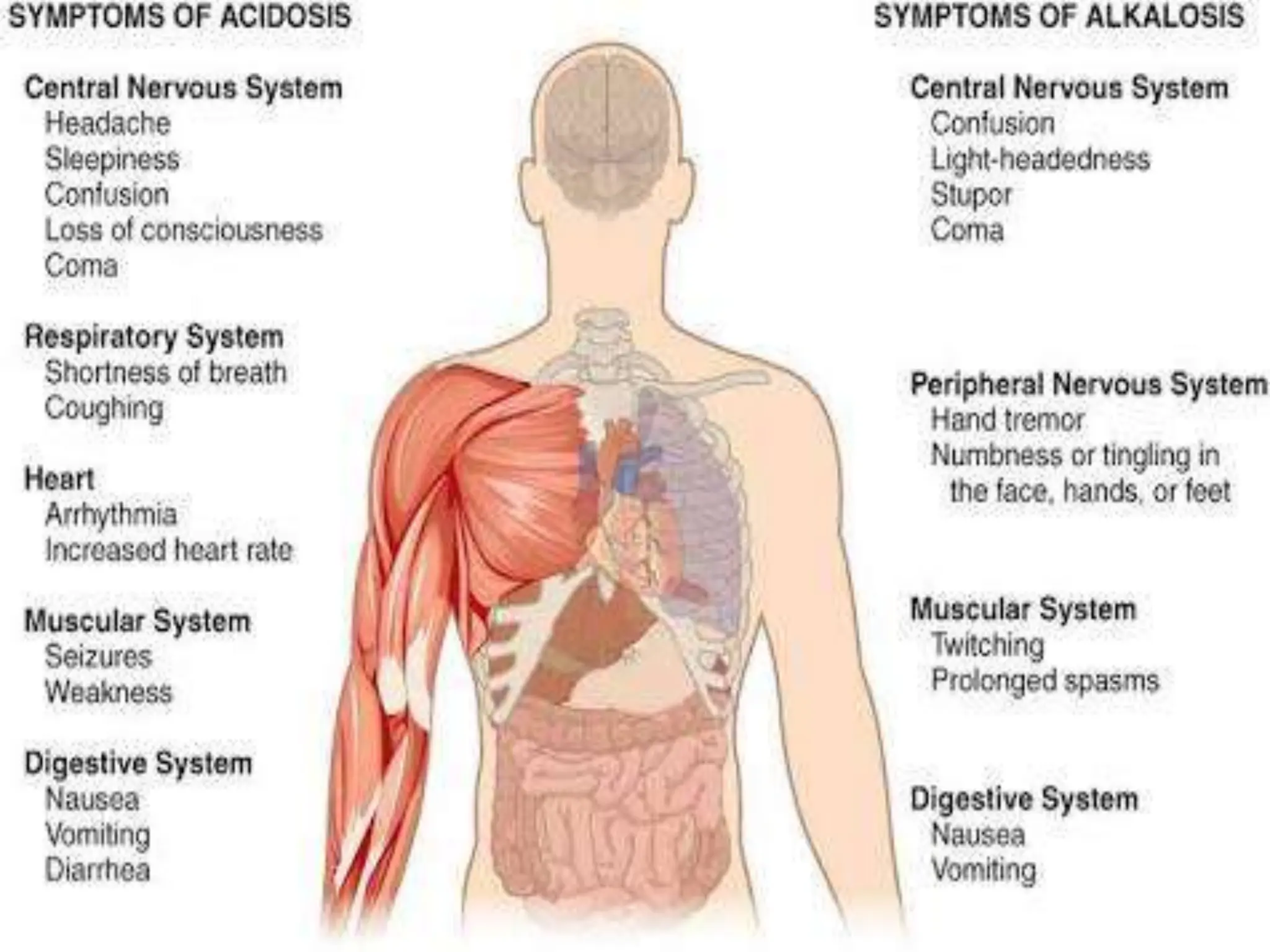

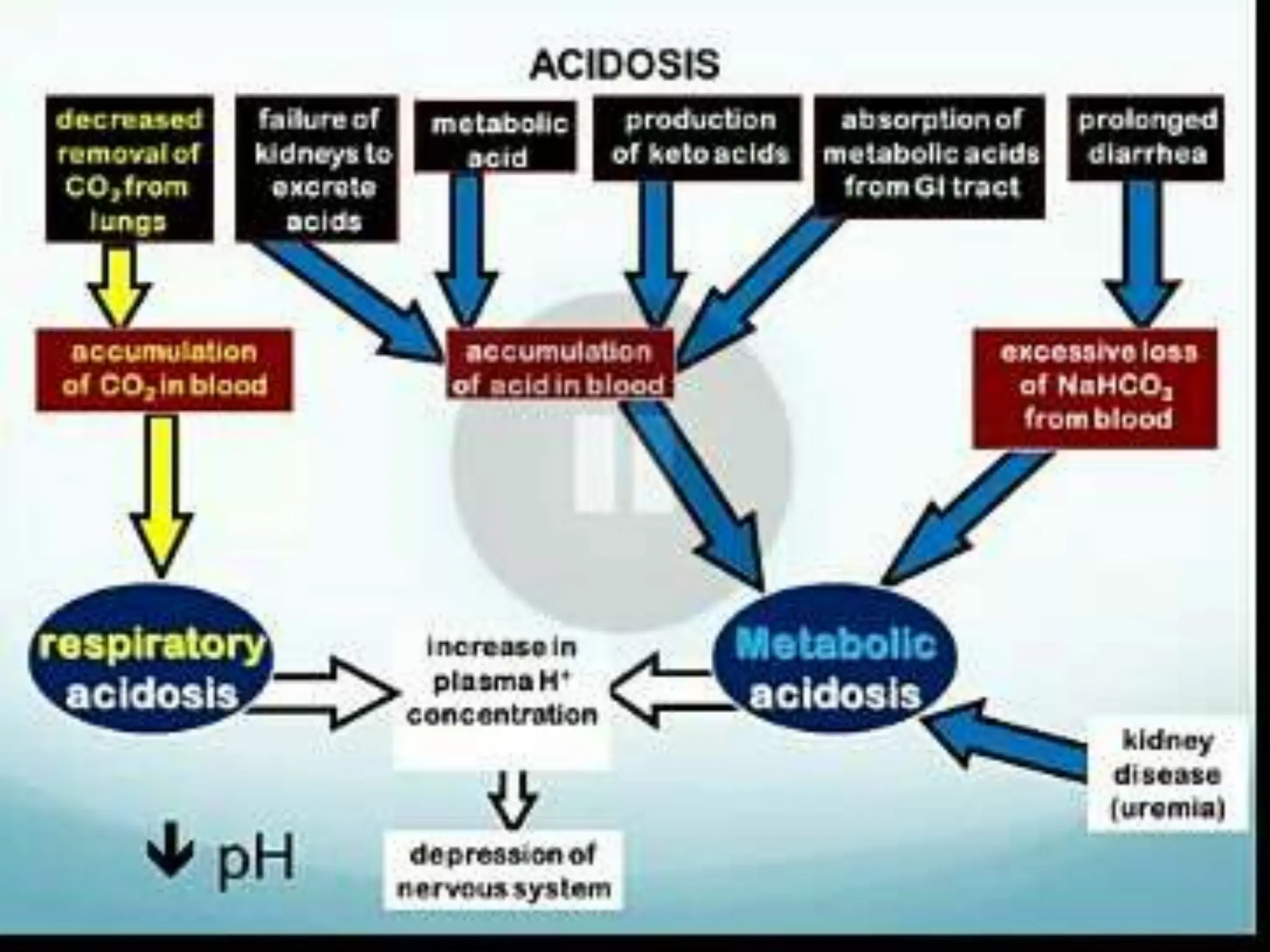

25. Major causes are:
Depletion of bicarbonate reserve.
Inability to excrete hydrogen ions at
kidneys.
Production of large numbers of fixed /
organic acids.
Bicarbonate loss due to chronic diarrhea.
Metabolic acidosis

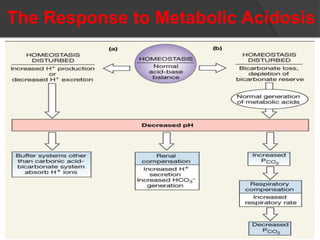

26. The Response to Metabolic Acidosis

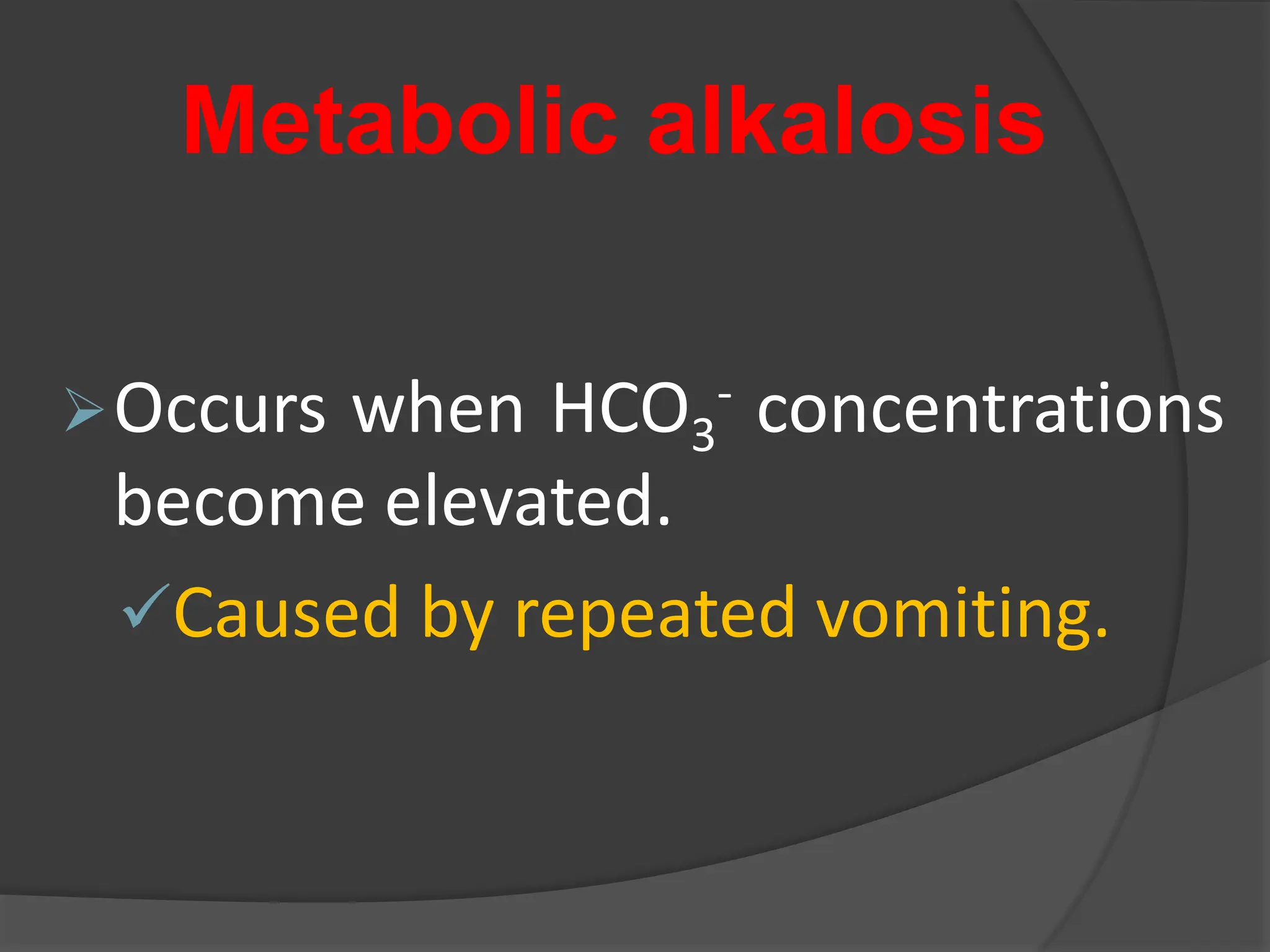

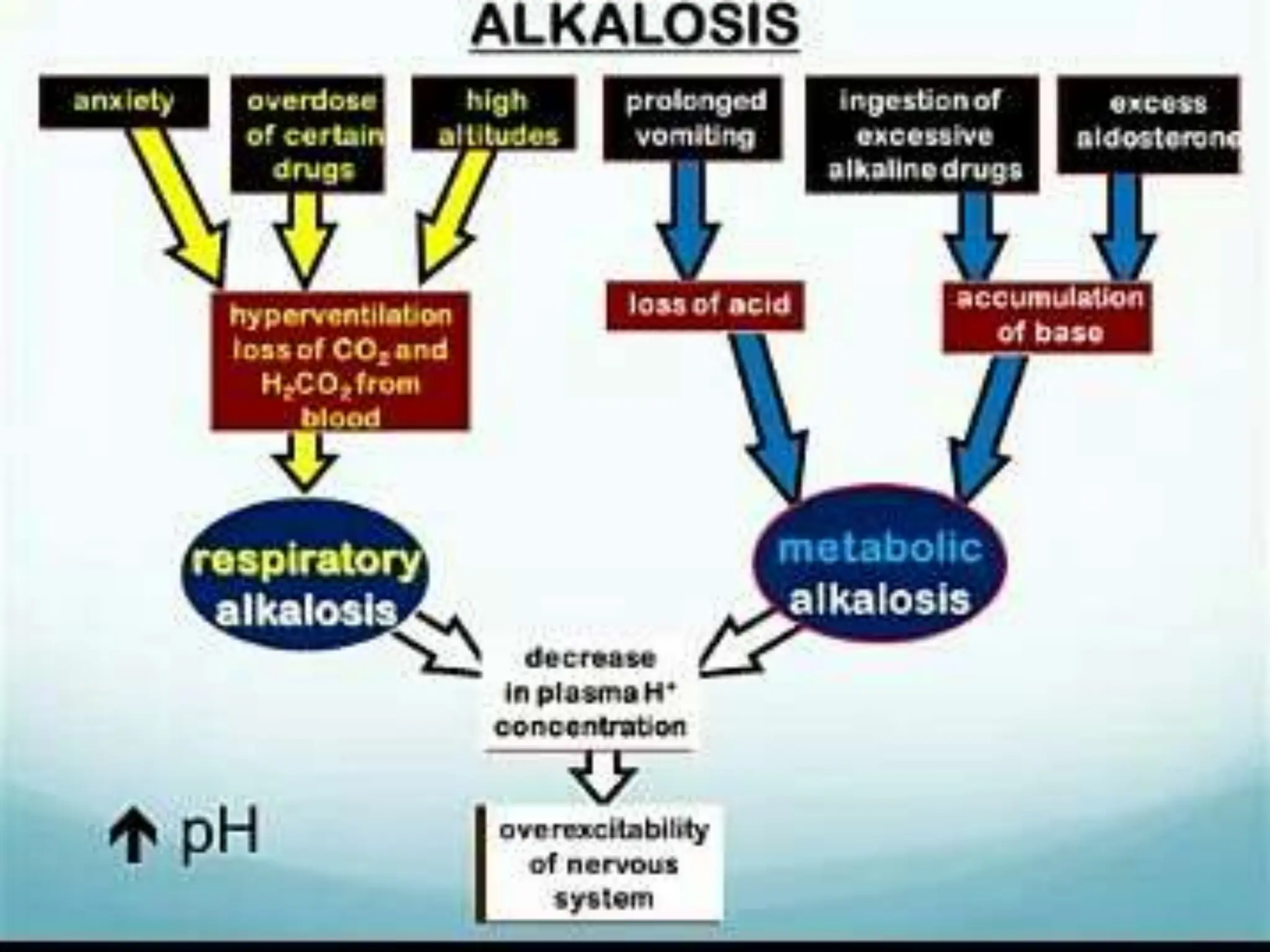

27. Occurs when HCO3
- concentrations
become elevated.
Caused by repeated vomiting.
Metabolic alkalosis

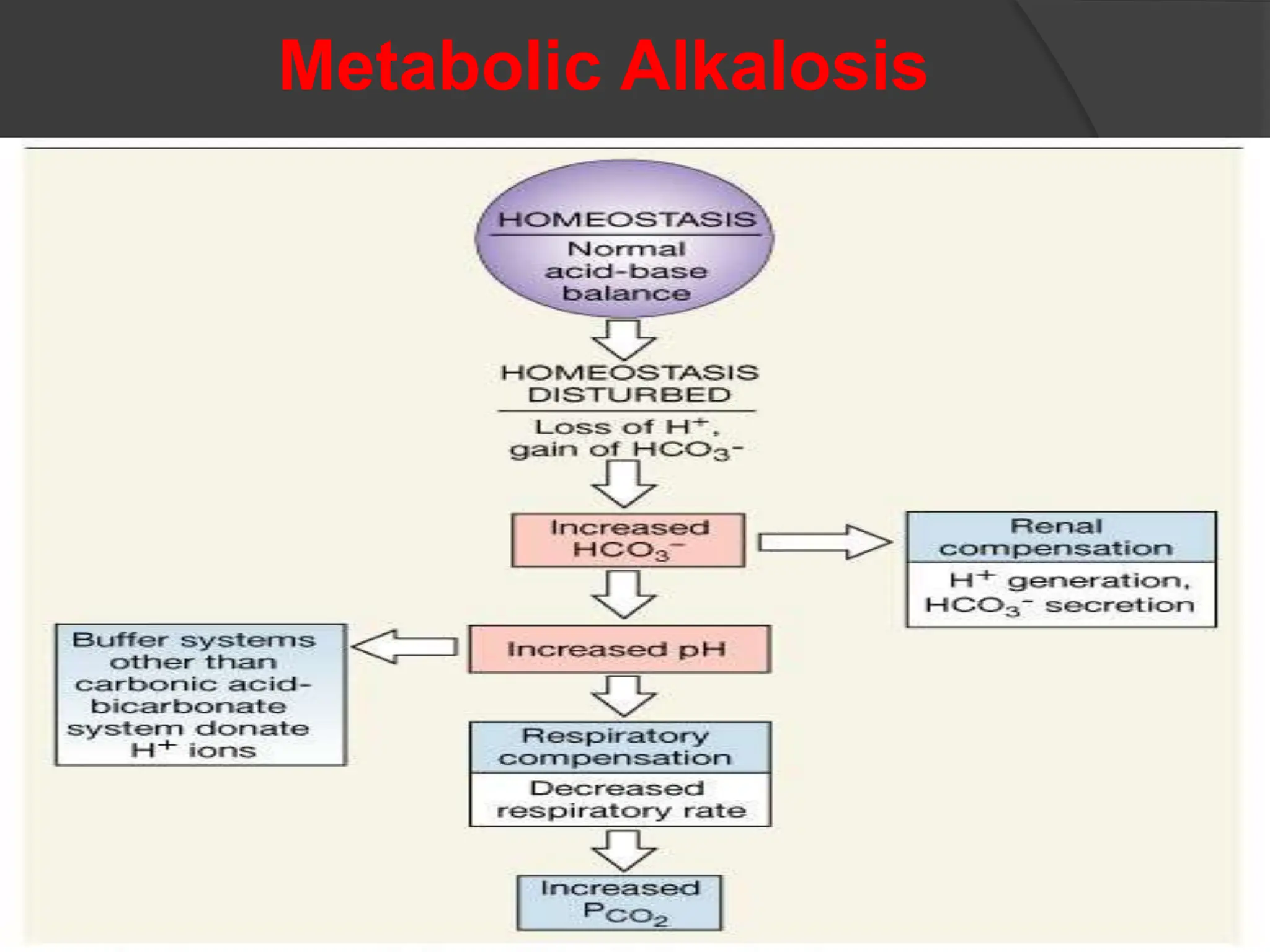

28. Metabolic Alkalosis

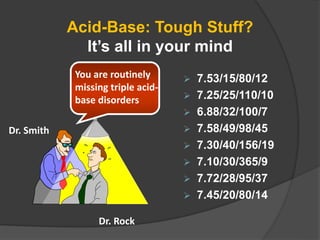

29. Acid-Base: Tough Stuff?
It’s all in your mind
 7.53/15/80/12
 7.25/25/110/10
 6.88/32/100/7
 7.58/49/98/45
 7.30/40/156/19
 7.10/30/365/9
 7.72/28/95/37
 7.45/20/80/14
You are routinely
missing triple acid-
base disorders
Dr. Smith
Dr. Rock

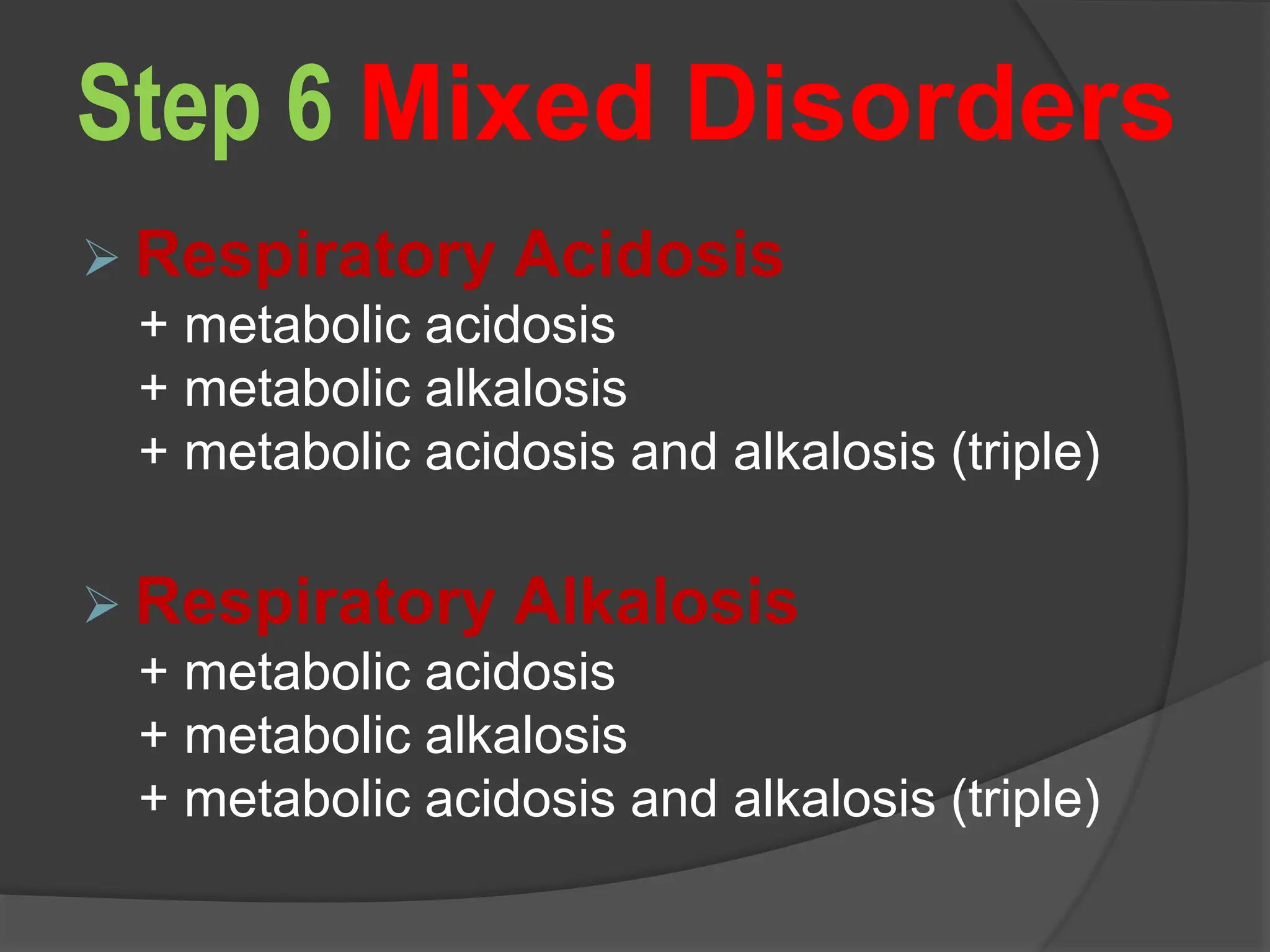

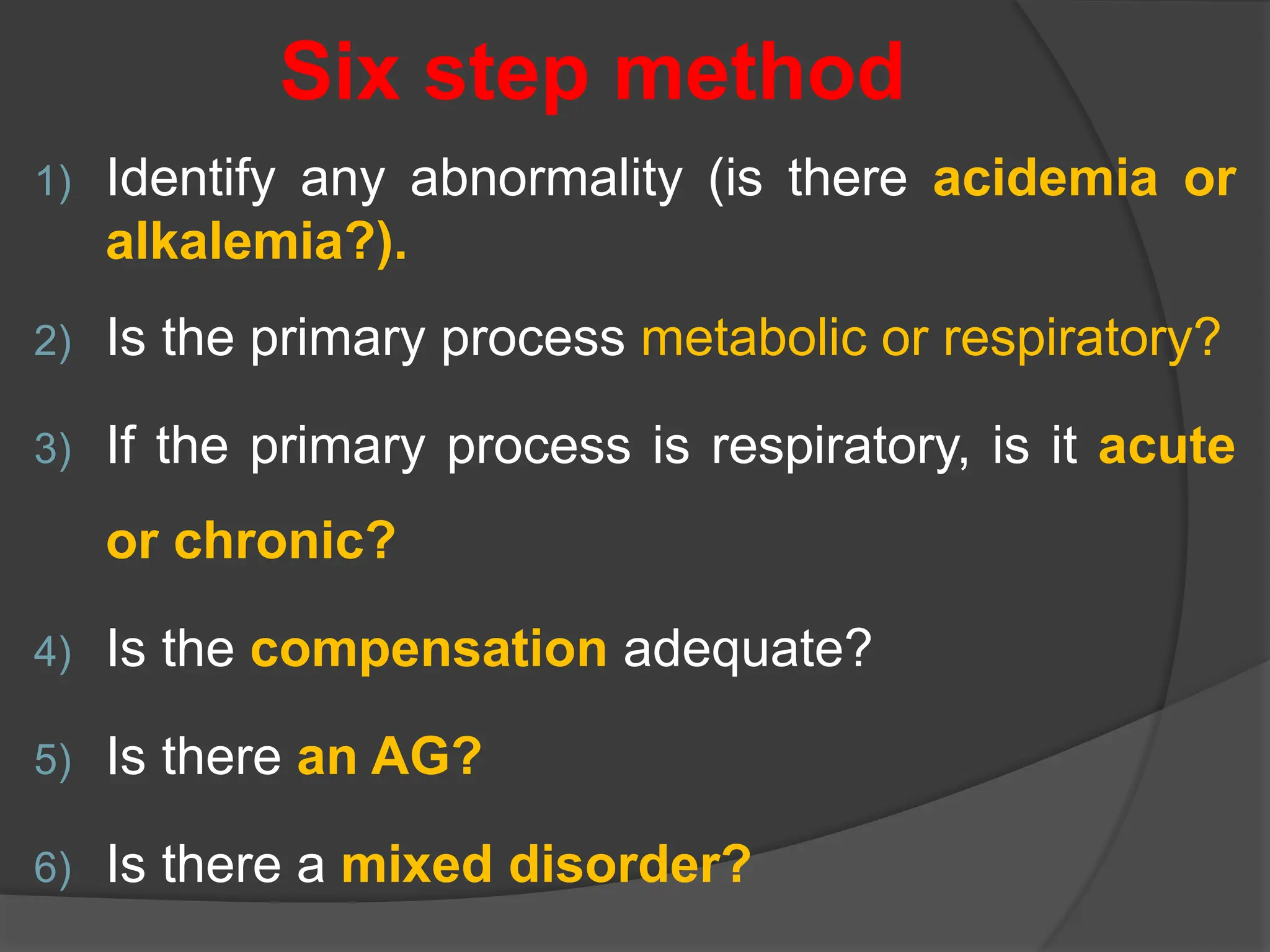

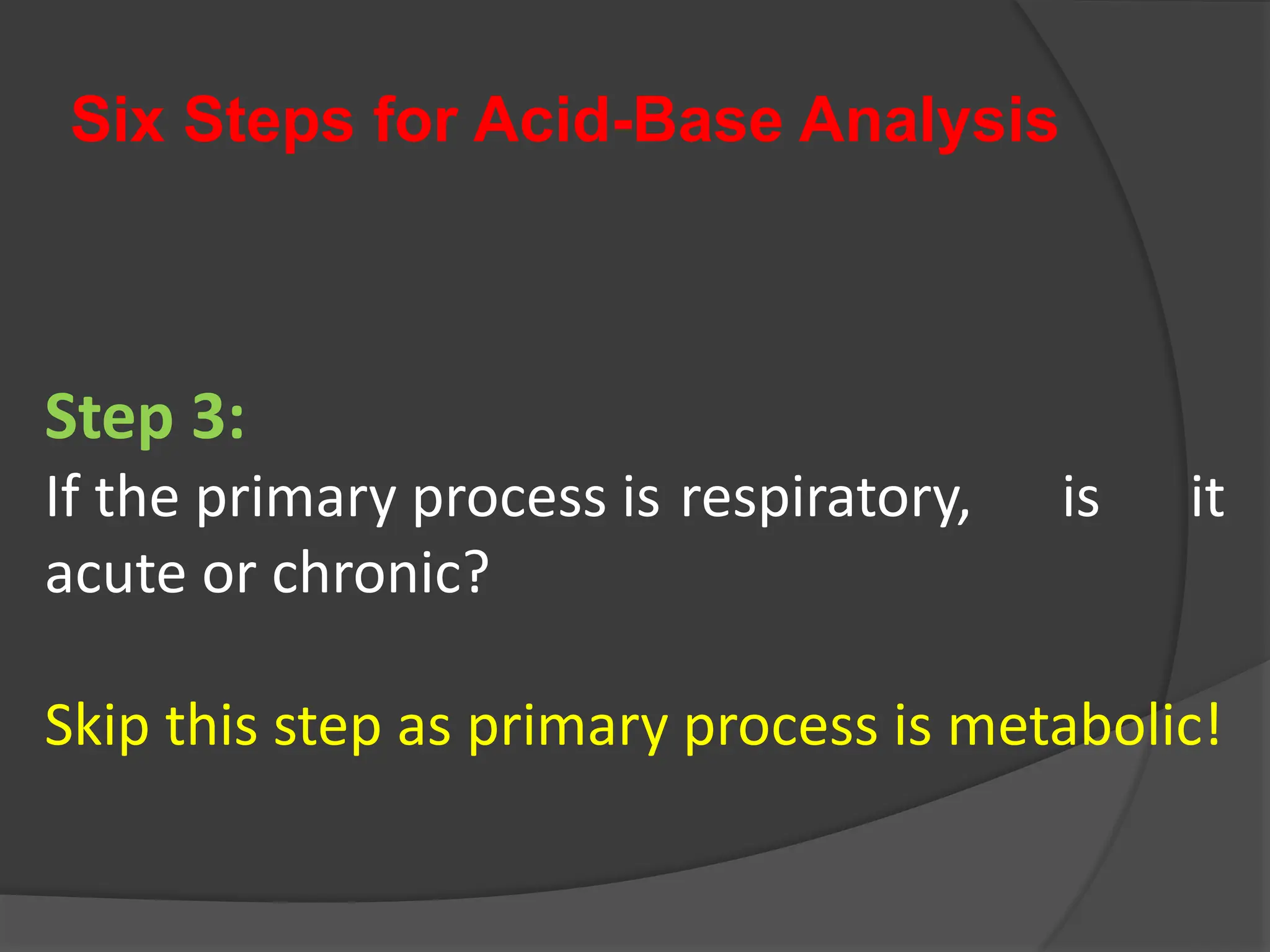

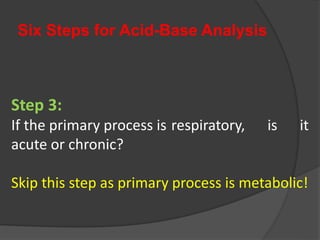

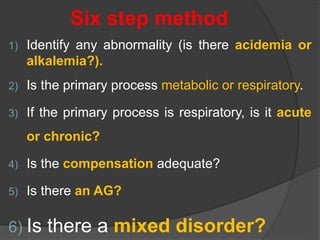

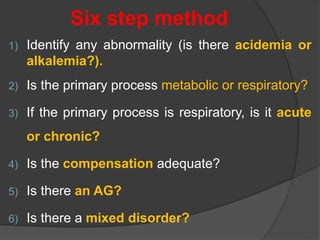

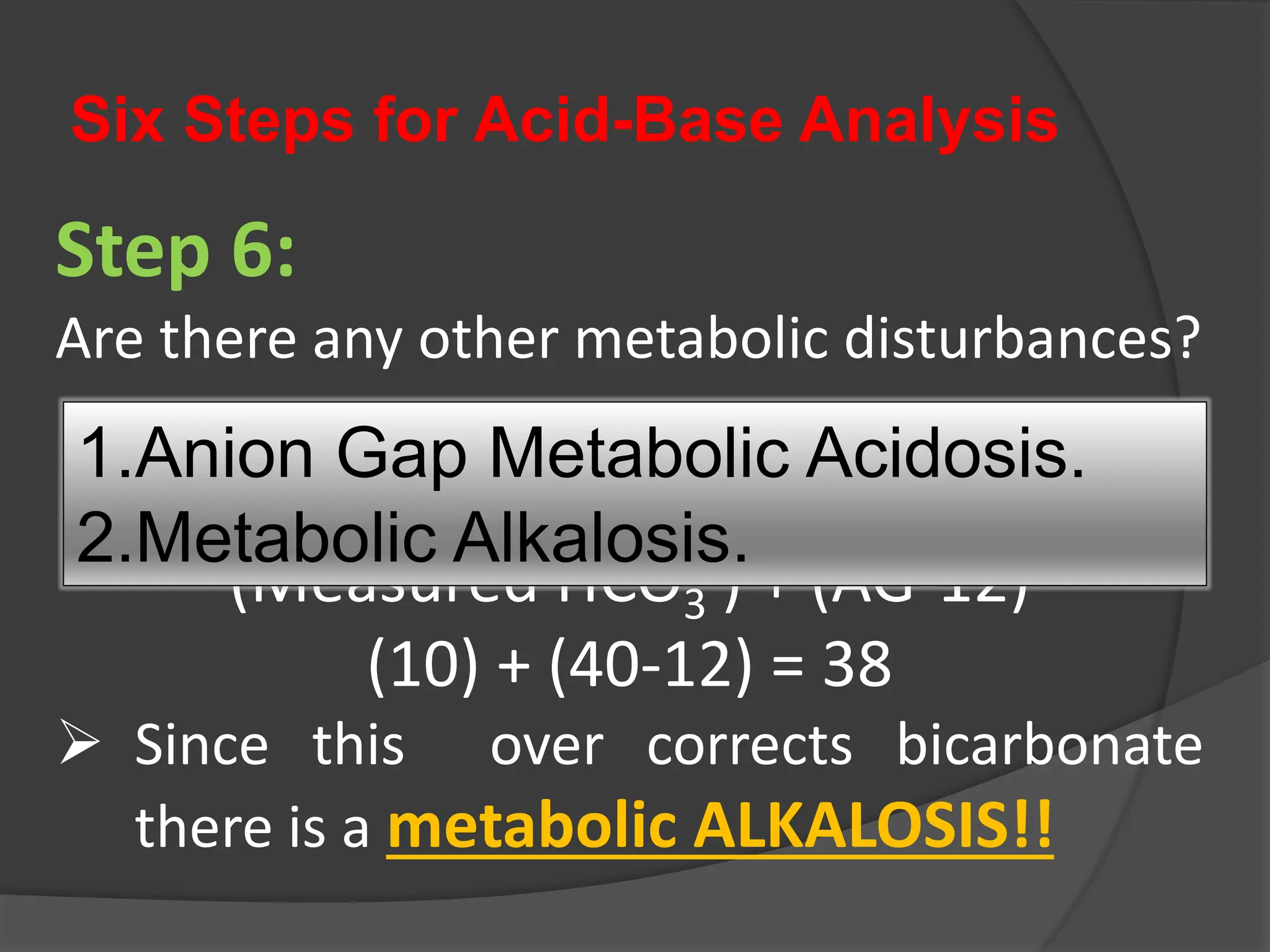

30. Six step method

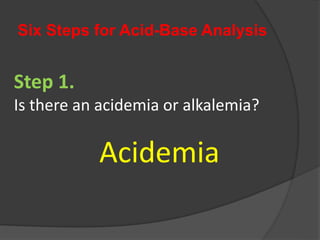

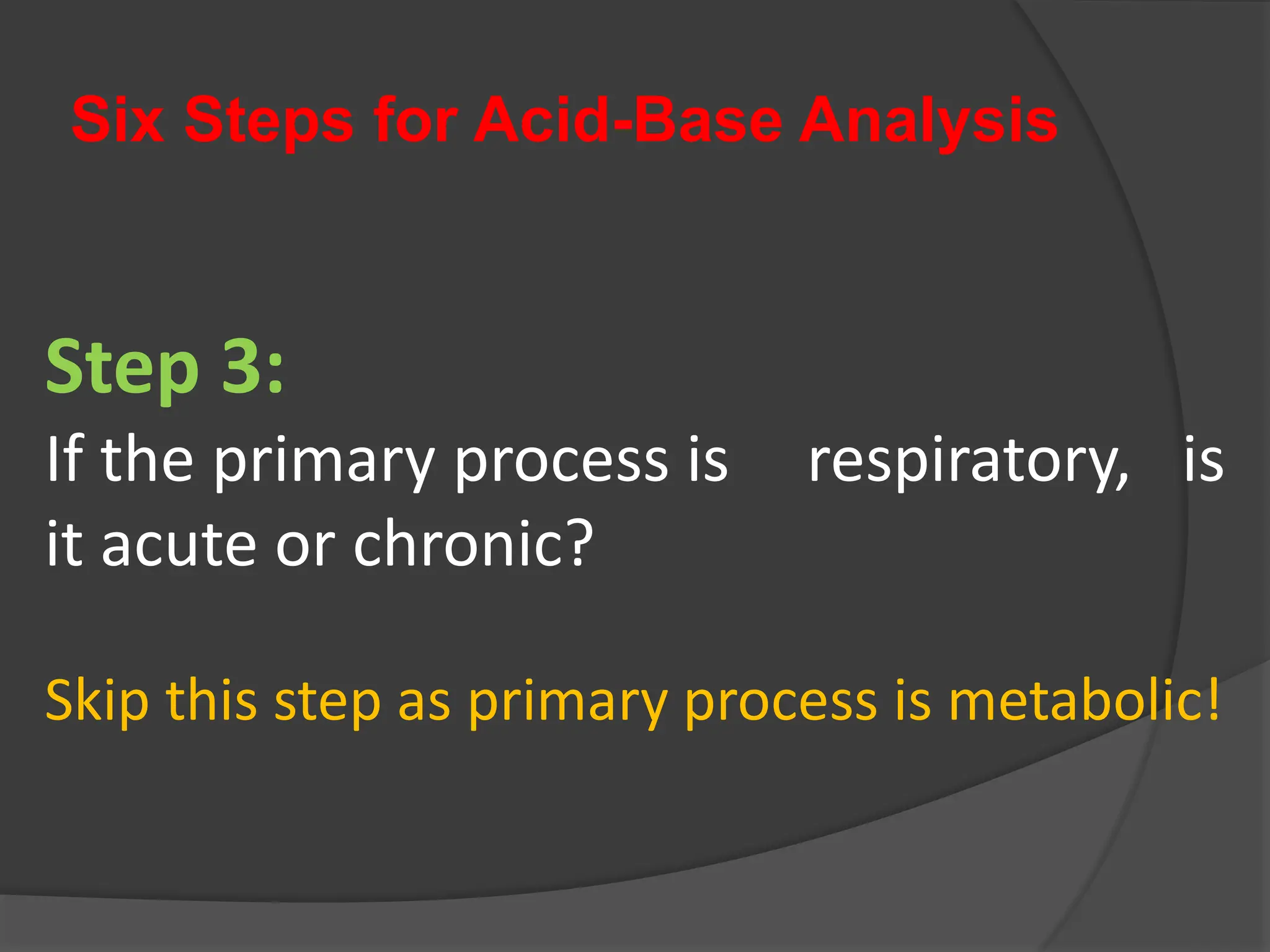

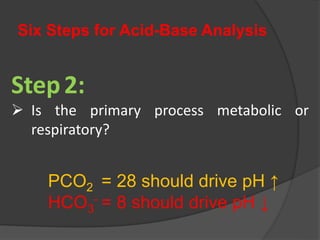

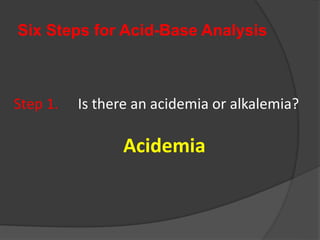

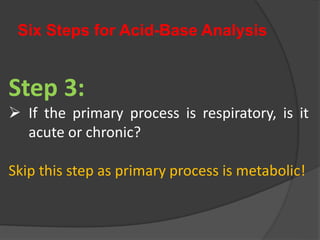

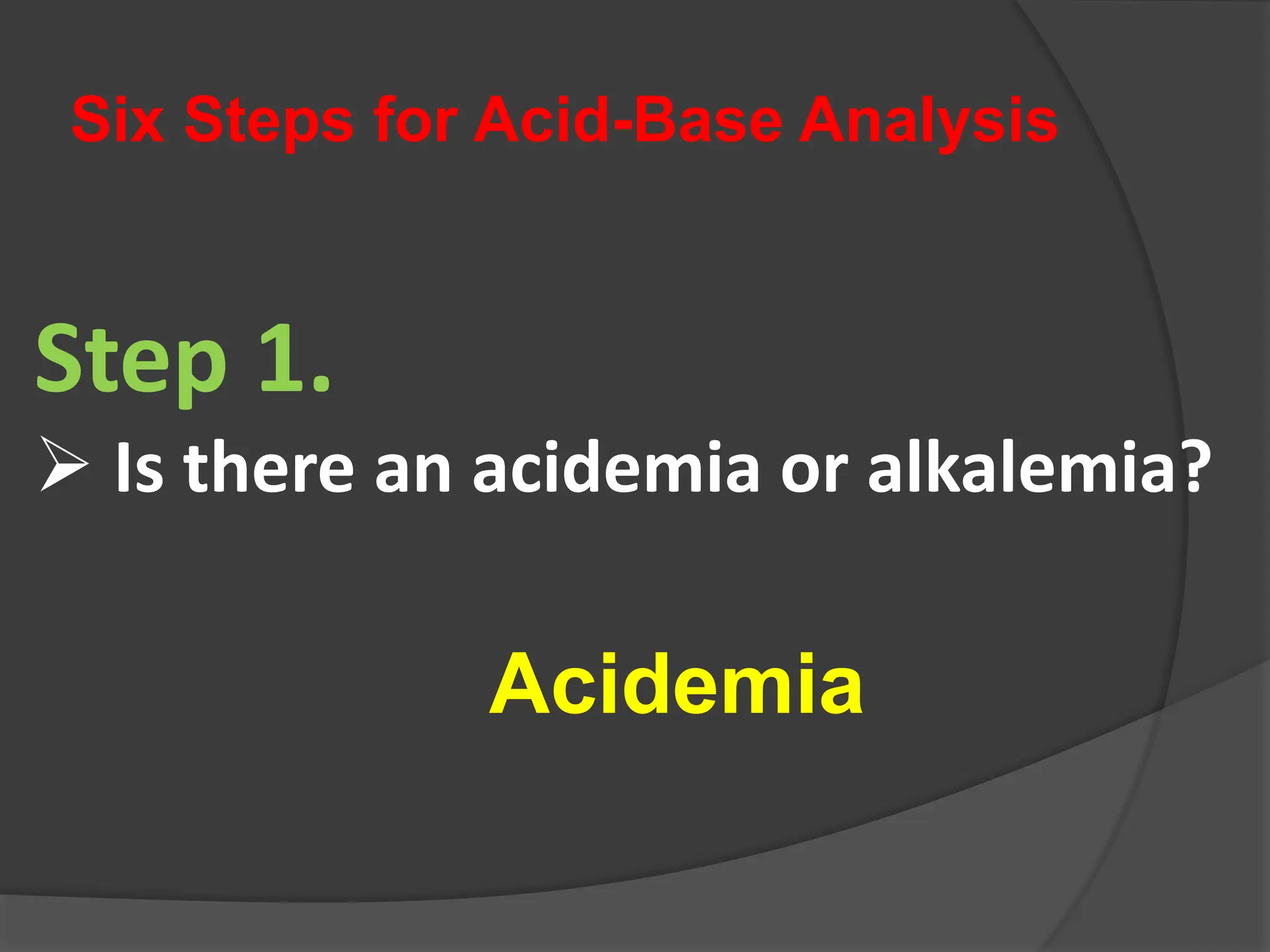

1) Identify any abnormality (is there acidemia or
alkalemia?).

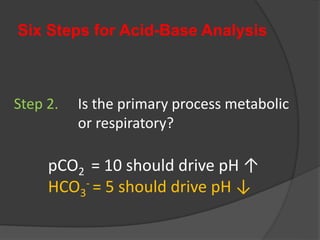

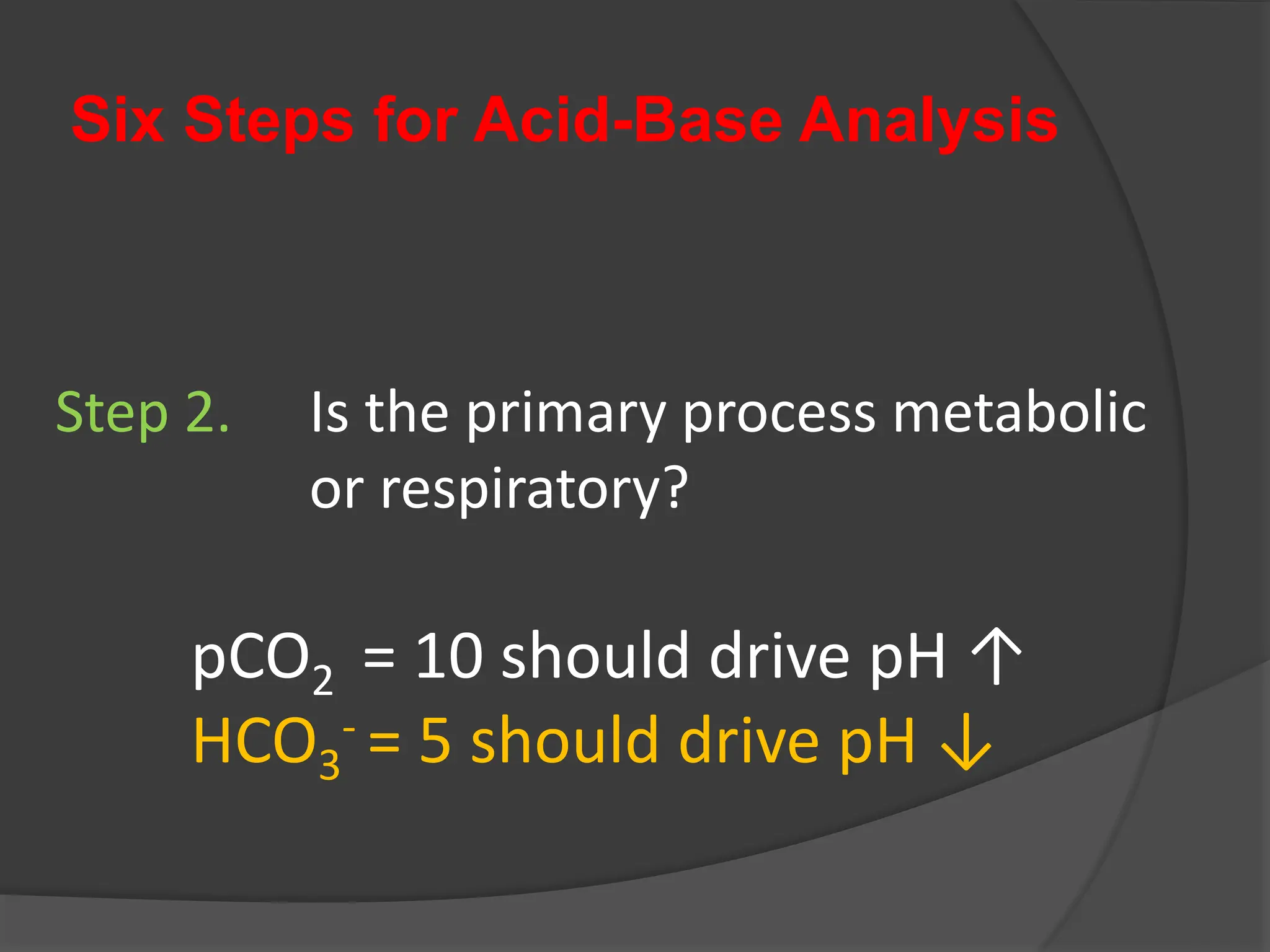

2) Is the primary process metabolic or respiratory?
3) If the primary process is respiratory, is it acute
or chronic?
4) Is the compensation adequate?
5) Is there an AG?
6) Is there a mixed disorder?

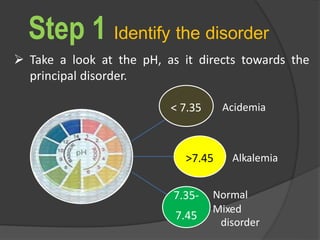

31. Step 1 Identify the disorder
 Take a look at the pH, as it directs towards the
principal disorder.
< 7.35 Acidemia
>7.45 Alkalemia
7.35-
7.45
Normal
Mixed
disorder

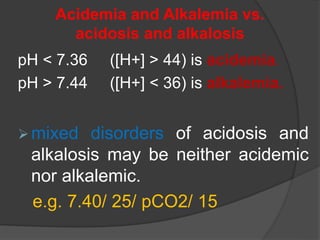

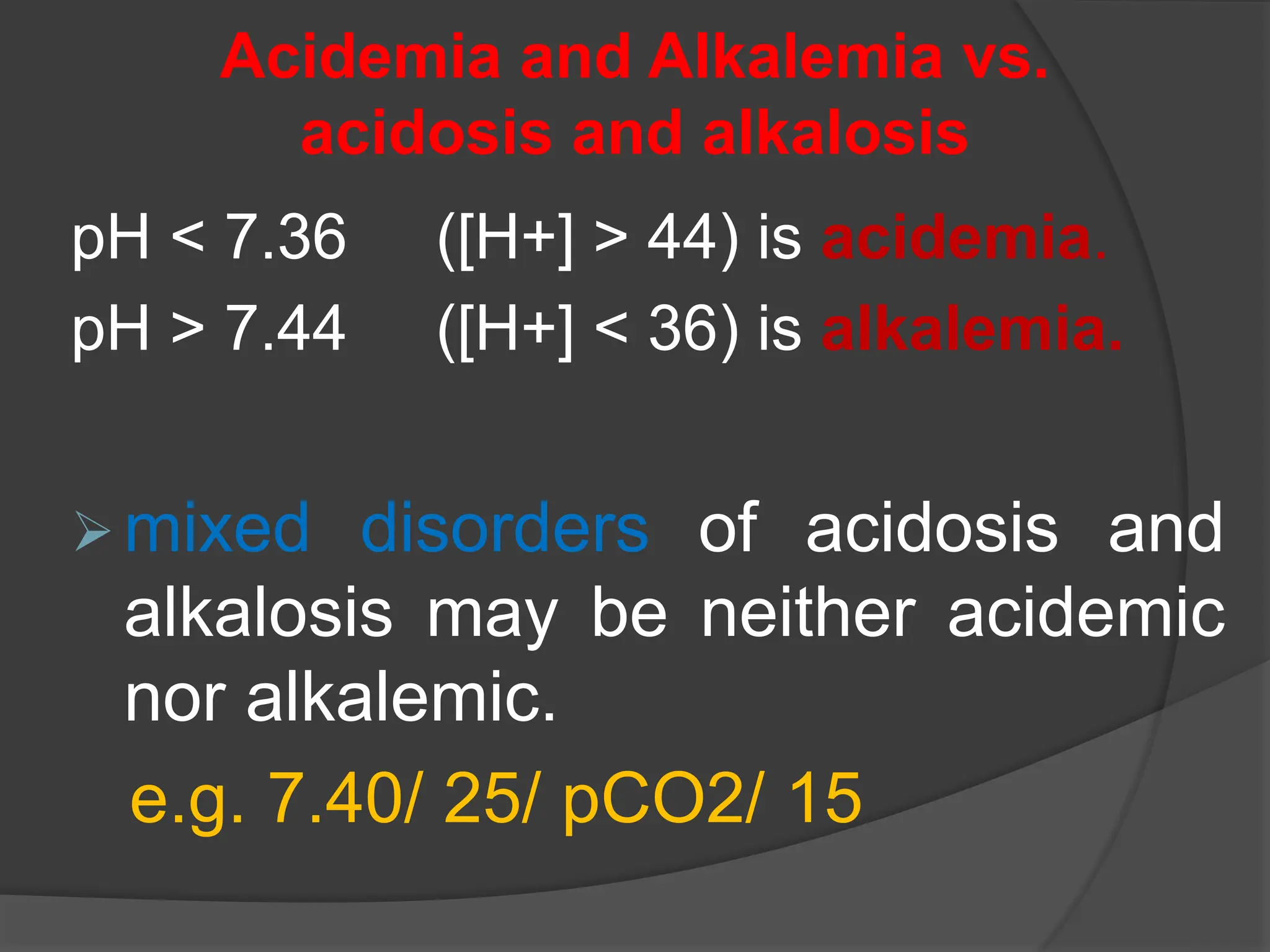

32. Acidemia and Alkalemia vs.
acidosis and alkalosis
pH < 7.36 ([H+] > 44) is acidemia.
pH > 7.44 ([H+] < 36) is alkalemia.
mixed disorders of acidosis and
alkalosis may be neither acidemic
nor alkalemic.
e.g. 7.40/ 25/ pCO2/ 15

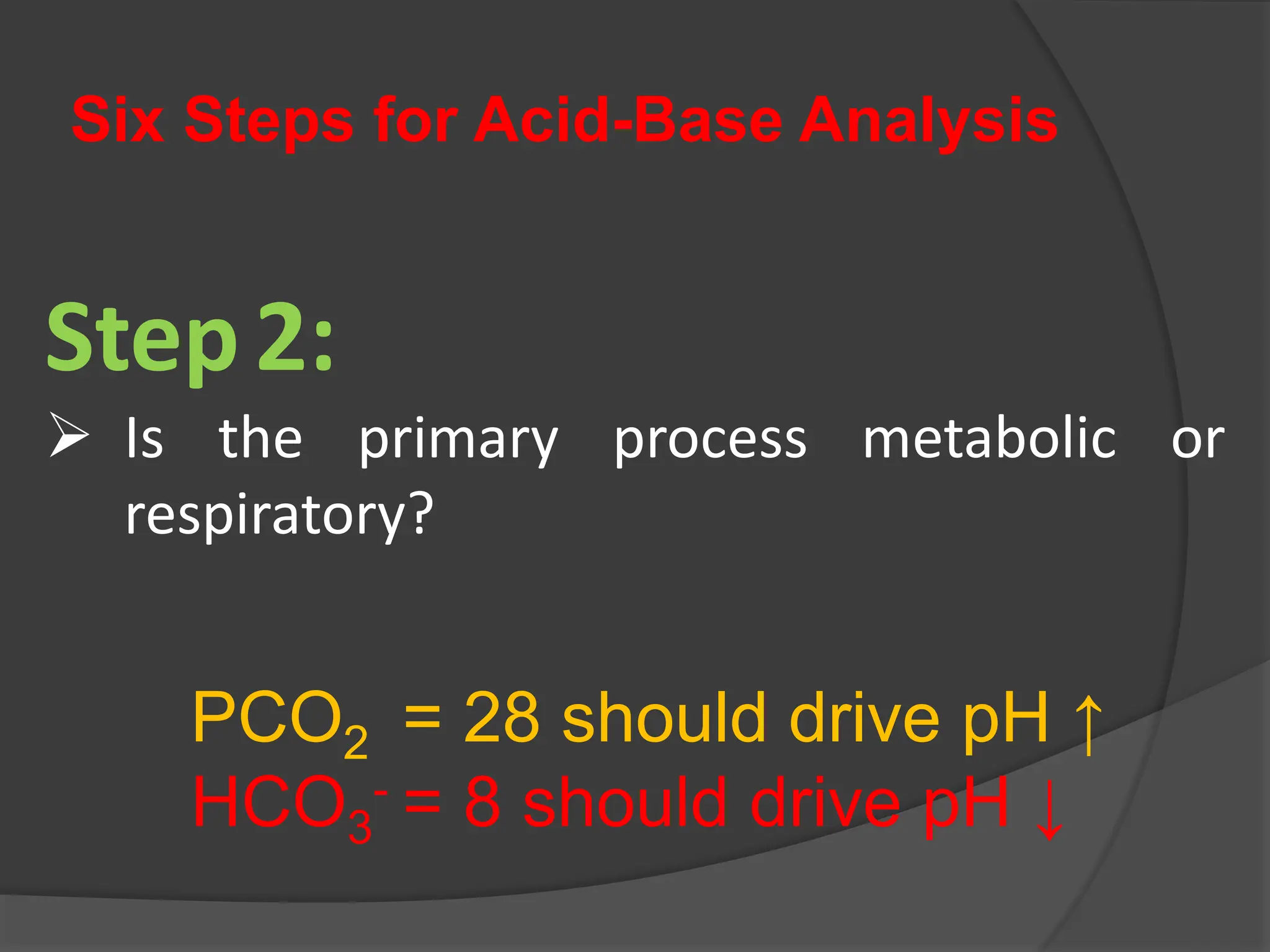

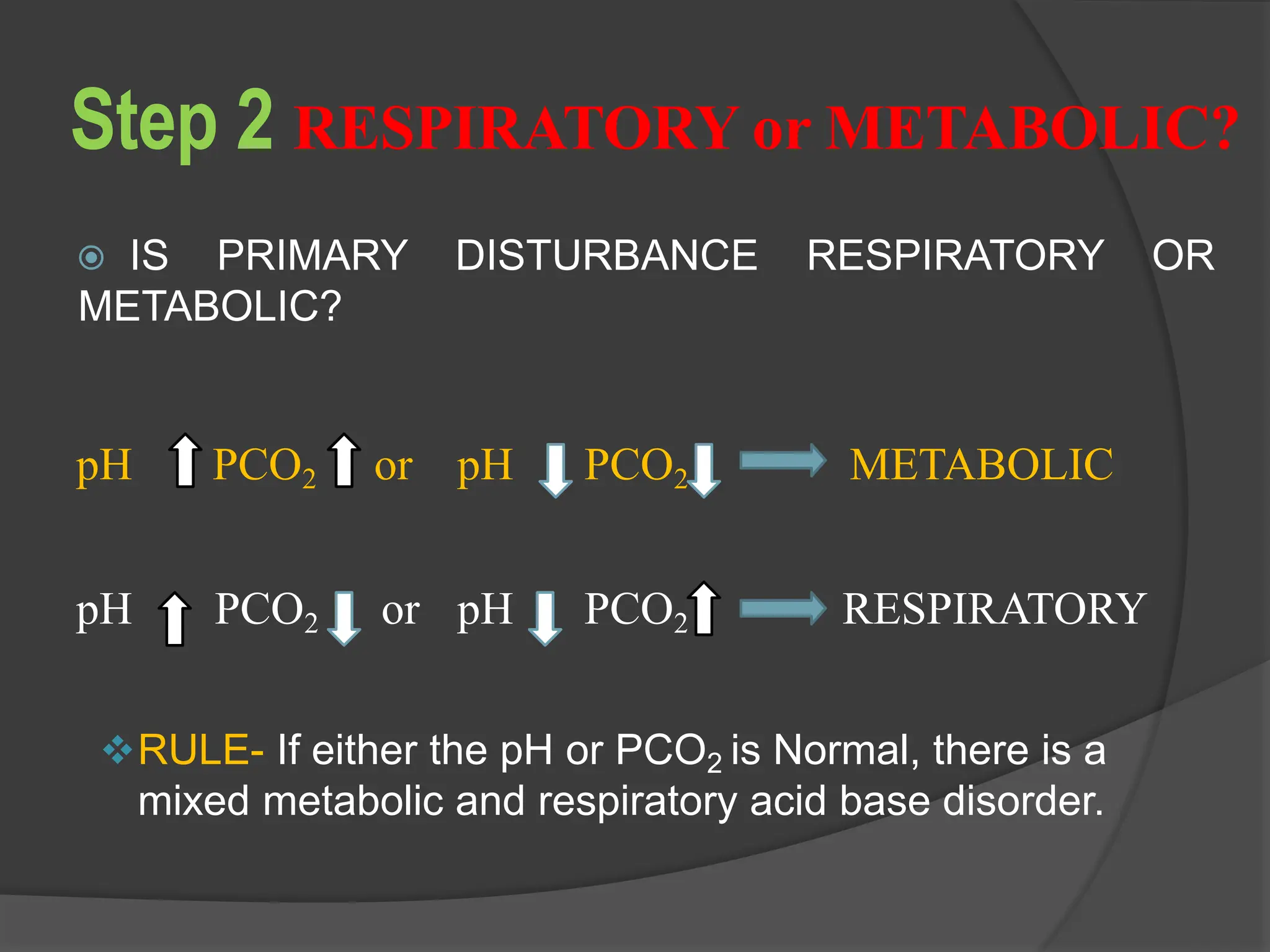

33. Step 2 RESPIRATORY or METABOLIC?
 IS PRIMARY DISTURBANCE RESPIRATORY OR
METABOLIC?
pH PCO2 or pH PCO2 METABOLIC
pH PCO2 or pH PCO2 RESPIRATORY
RULE- If either the pH or PCO2 is Normal, there is a
mixed metabolic and respiratory acid base disorder.

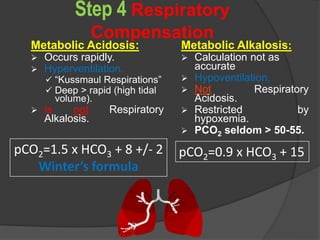

34. Step 4 Respiratory
Compensation
Metabolic Acidosis:
 Occurs rapidly.
 Hyperventilation.
 “Kussmaul Respirations”
 Deep > rapid (high tidal
volume).
 Is not Respiratory
Alkalosis.
Metabolic Alkalosis:
 Calculation not as
accurate
 Hypoventilation.
 Not Respiratory
Acidosis.
 Restricted by
hypoxemia.
 PCO2 seldom > 50-55.
pCO2=1.5 x HCO3 + 8 +/- 2

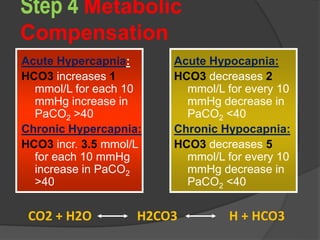

Winter’s formula
pCO2=0.9 x HCO3 + 15

35. Step 4 Metabolic
Compensation
Acute Hypercapnia:
HCO3 increases 1
mmol/L for each 10
mmHg increase in
PaCO2 >40
Chronic Hypercapnia:
HCO3 incr. 3.5 mmol/L
for each 10 mmHg
increase in PaCO2
>40
Acute Hypocapnia:
HCO3 decreases 2
mmol/L for every 10
mmHg decrease in
PaCO2 <40
Chronic Hypocapnia:
HCO3 decreases 5
mmol/L for every 10
mmHg decrease in
PaCO2 <40
CO2 + H2O H2CO3 H + HCO3

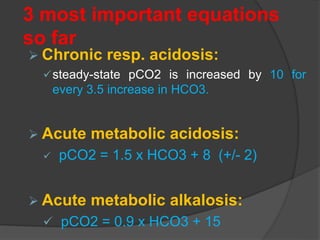

36. 3 most important equations
so far
 Chronic resp. acidosis:
steady-state pCO2 is increased by 10 for
every 3.5 increase in HCO3.
 Acute metabolic acidosis:
 pCO2 = 1.5 x HCO3 + 8 (+/- 2)
 Acute metabolic alkalosis:
 pCO2 = 0.9 x HCO3 + 15

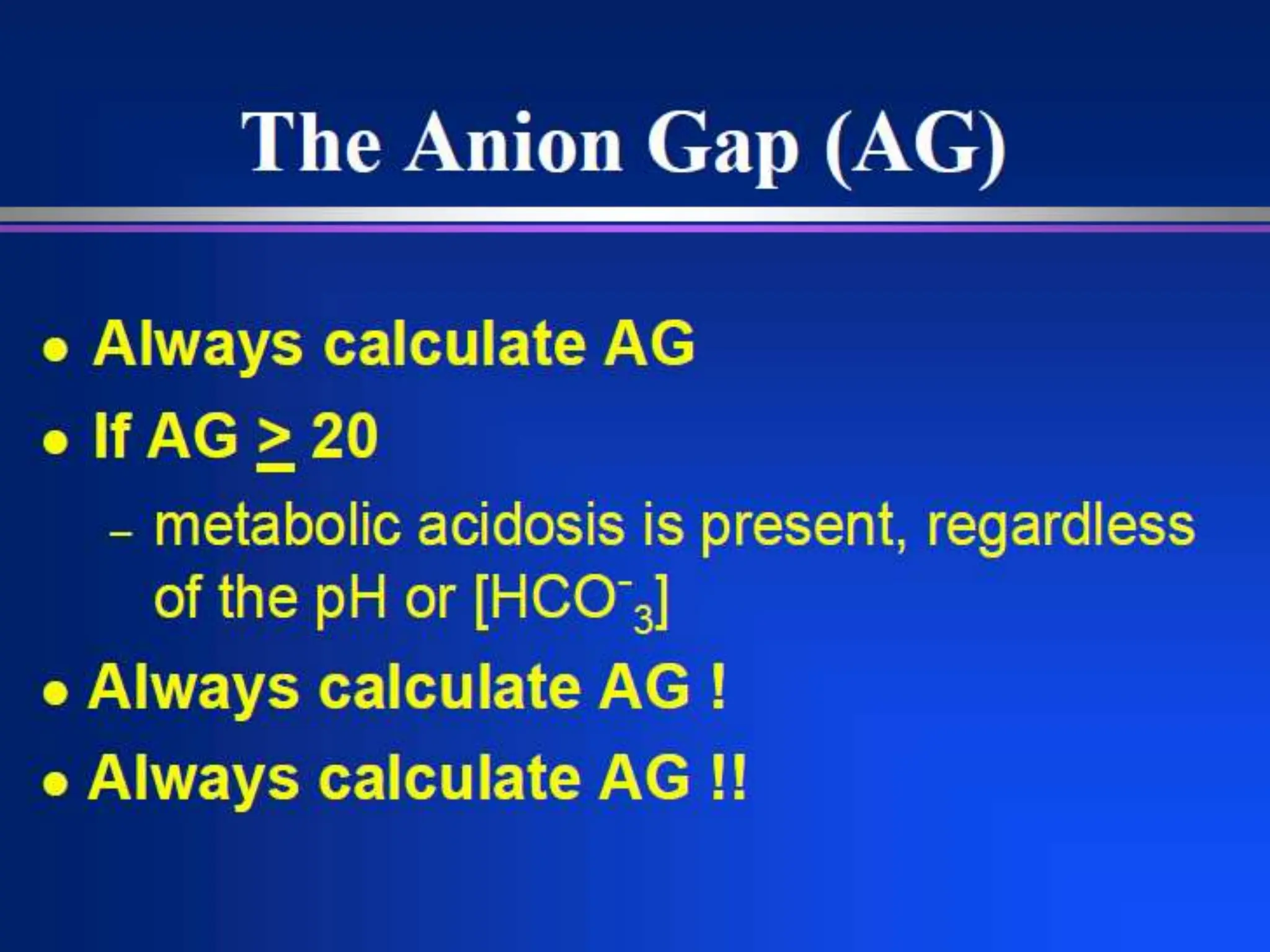

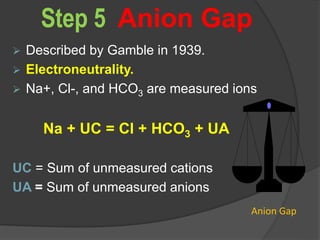

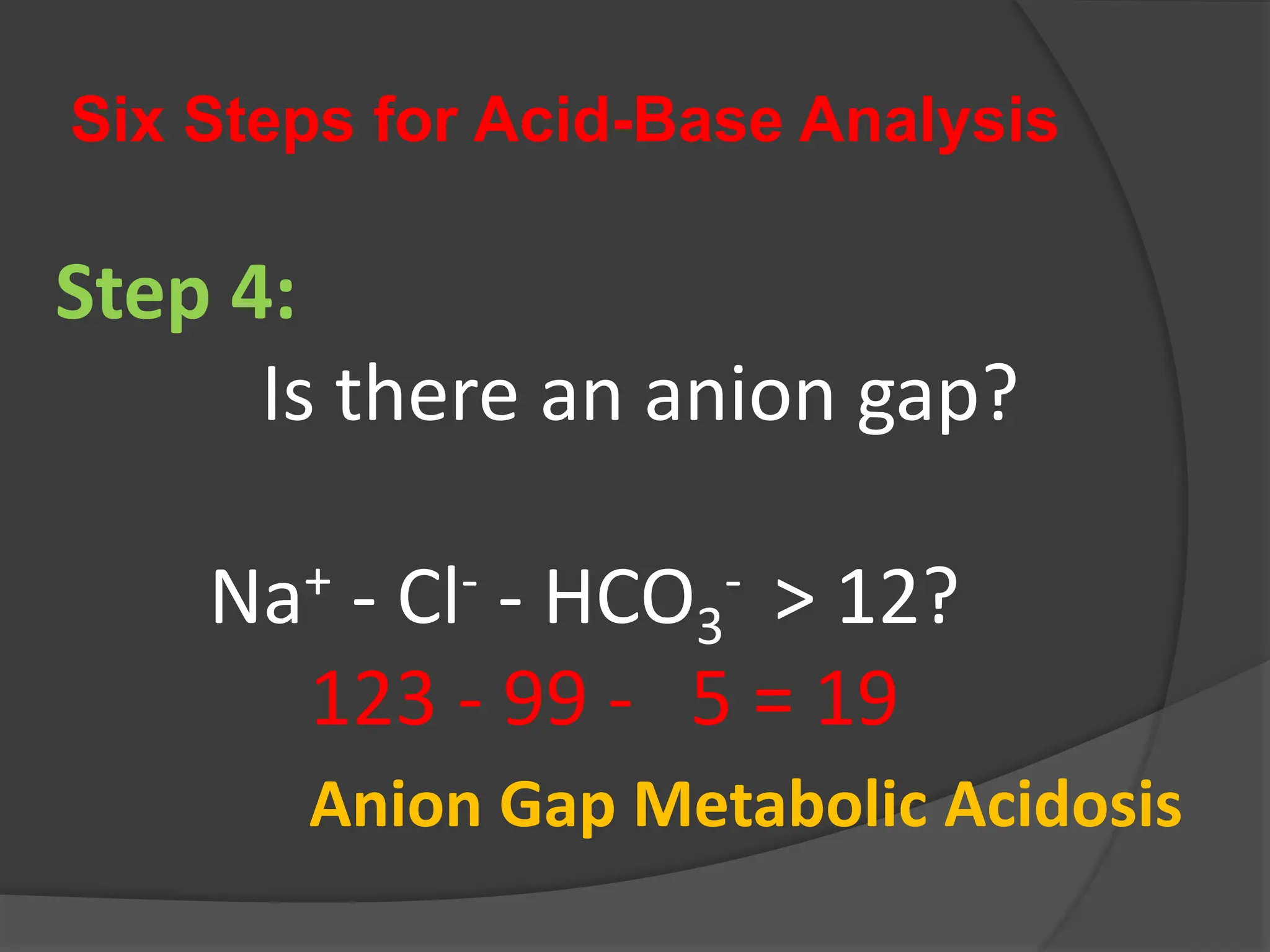

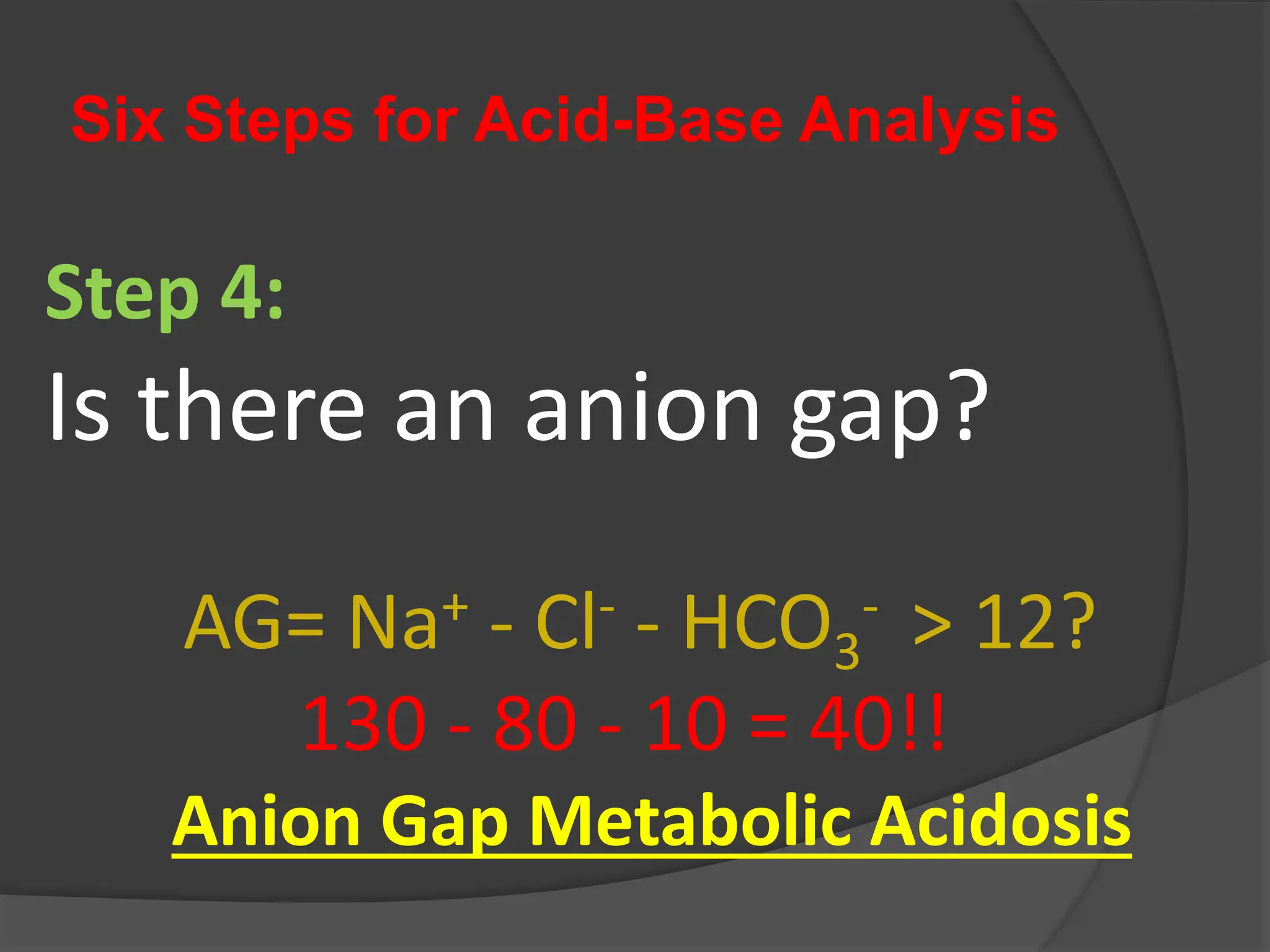

37. Step 5 Anion Gap
 Described by Gamble in 1939.
 Electroneutrality.
 Na+, Cl-, and HCO3 are measured ions
Na + UC = Cl + HCO3 + UA
UC = Sum of unmeasured cations
UA = Sum of unmeasured anions
Anion Gap

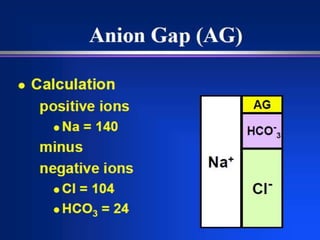

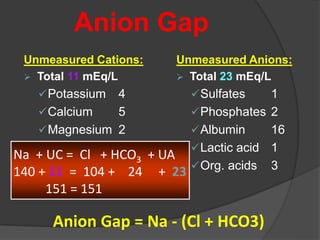

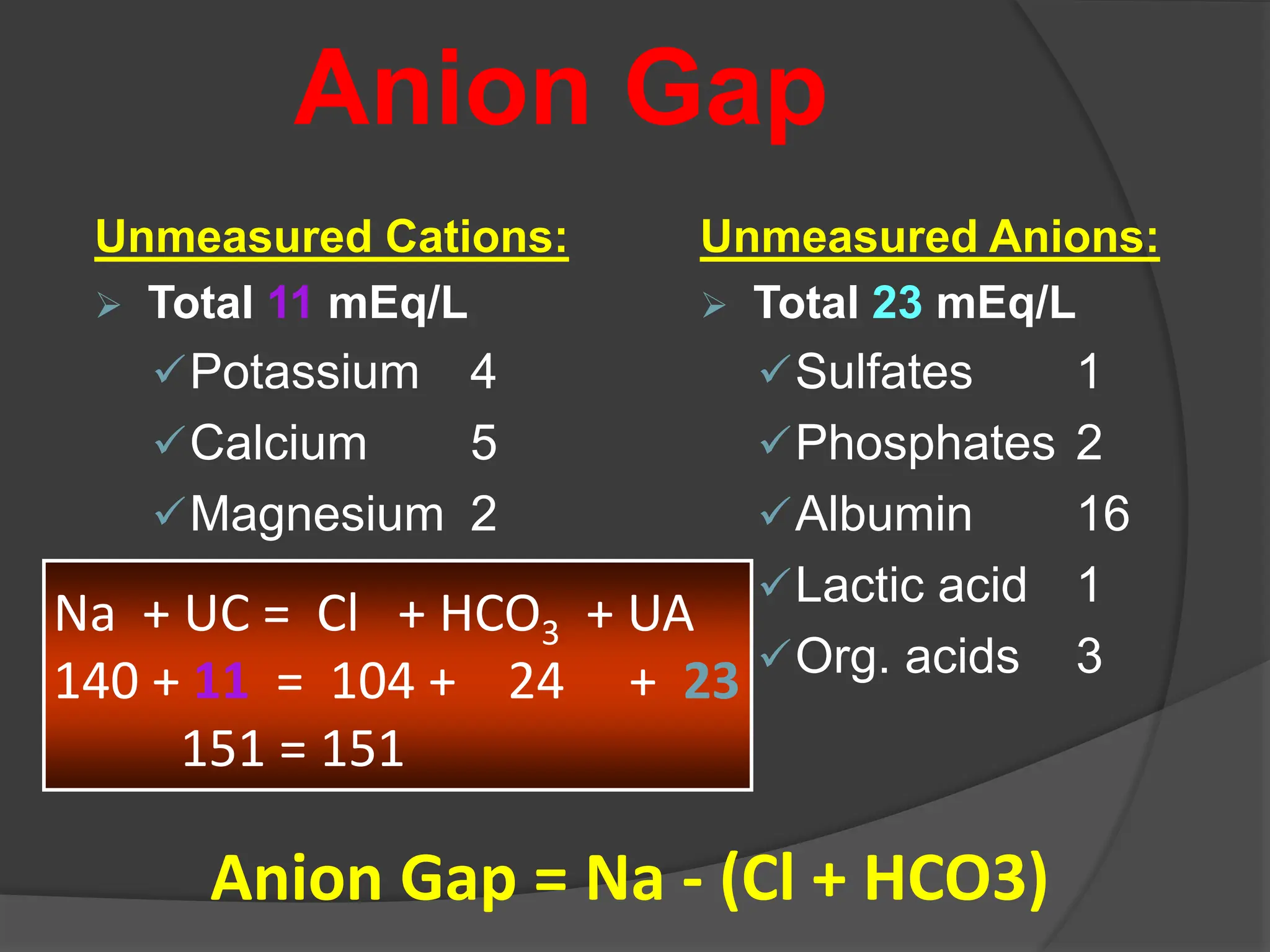

38. Anion Gap
Unmeasured Cations:
 Total 11 mEq/L
Potassium 4
Calcium 5
Magnesium 2
Unmeasured Anions:
 Total 23 mEq/L
Sulfates 1
Phosphates 2
Albumin 16
Lactic acid 1
Org. acids 3
Na + UC = Cl + HCO3 + UA
140 + 11 = 104 + 24 + 23
151 = 151

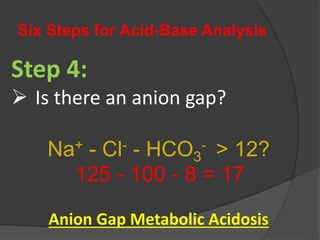

Anion Gap = Na - (Cl + HCO3)

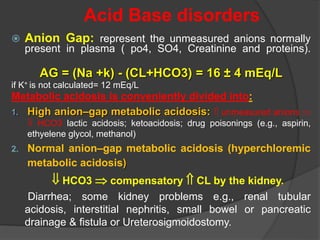

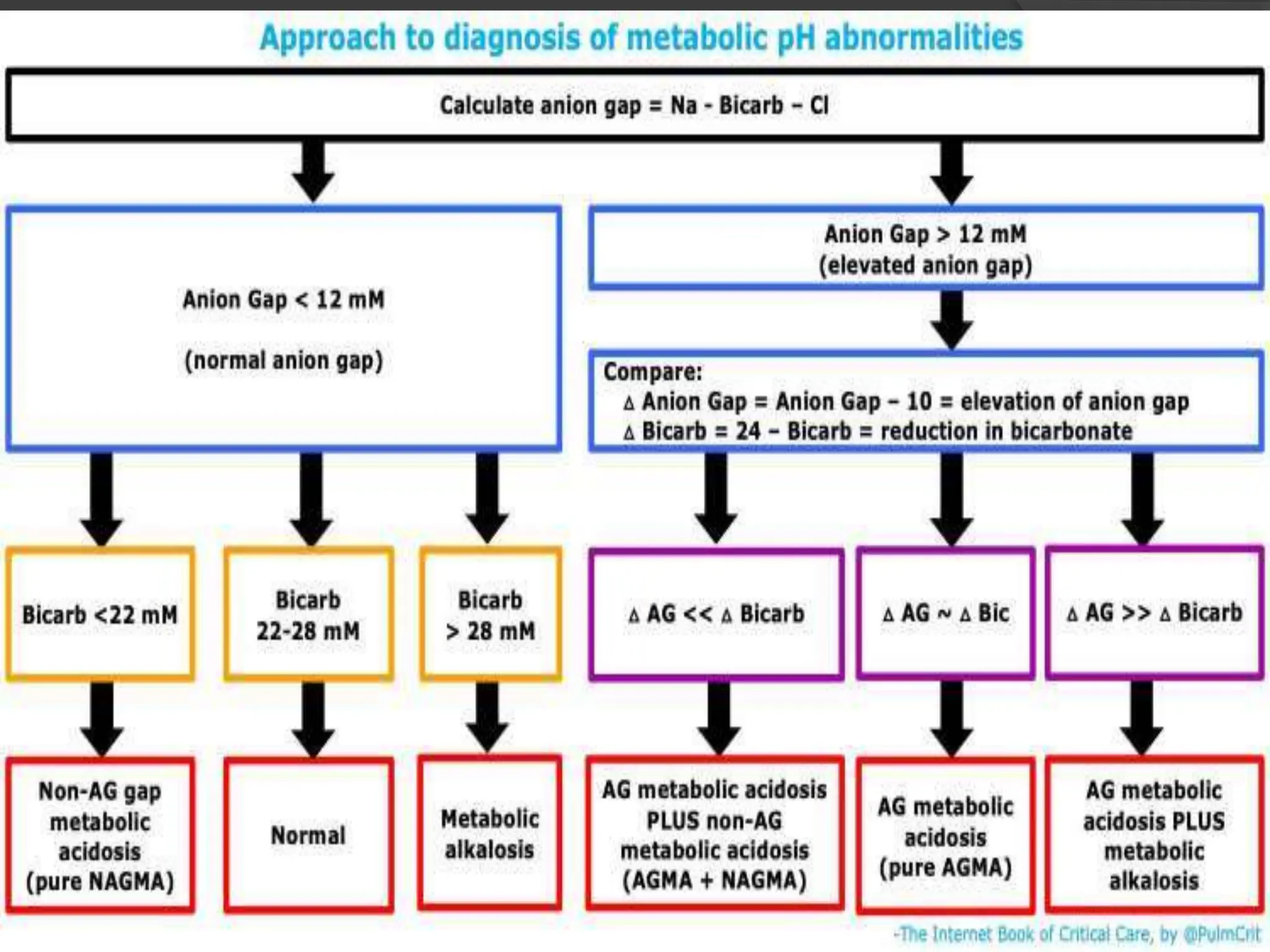

40. Acid Base disorders
 Anion Gap: represent the unmeasured anions normally
present in plasma ( po4, SO4, Creatinine and proteins).
AG = (Na +k) - (CL+HCO3) = 16 ± 4 mEq/L
if K+ is not calculated= 12 mEq/L
Metabolic acidosis is conveniently divided into:
1. High anion–gap metabolic acidosis:  unmeasured anions 
 HCO3 lactic acidosis; ketoacidosis; drug poisonings (e.g., aspirin,
ethyelene glycol, methanol)
2. Normal anion–gap metabolic acidosis (hyperchloremic
metabolic acidosis)
 HCO3  compensatory  CL by the kidney.
Diarrhea; some kidney problems e.g., renal tubular
acidosis, interstitial nephritis, small bowel or pancreatic
drainage & fistula or Ureterosigmoidostomy.

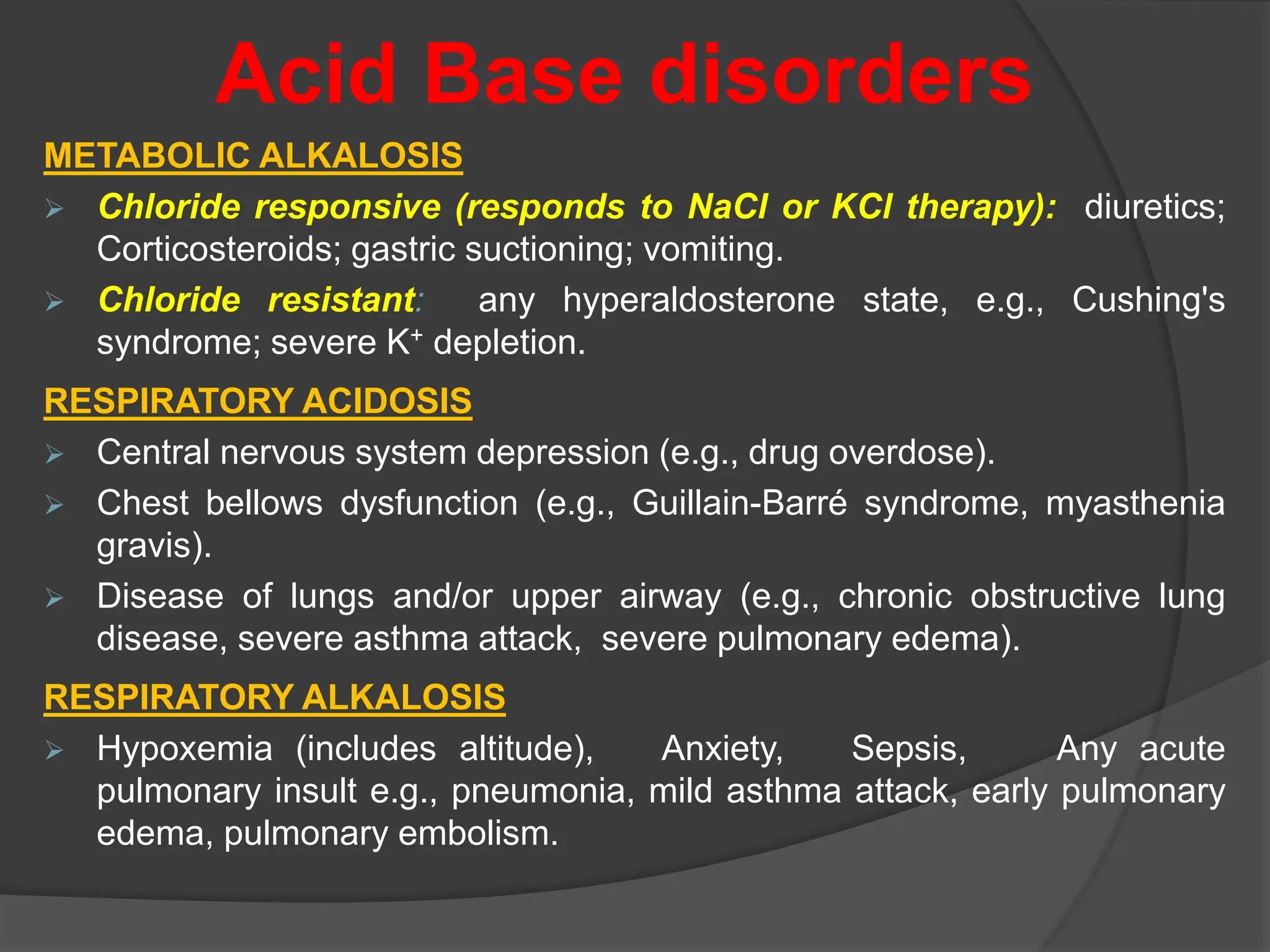

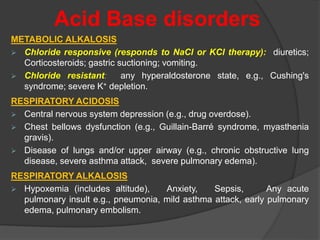

41. Acid Base disorders
METABOLIC ALKALOSIS
 Chloride responsive (responds to NaCl or KCl therapy): diuretics;
Corticosteroids; gastric suctioning; vomiting.
 Chloride resistant: any hyperaldosterone state, e.g., Cushing's
syndrome; severe K+ depletion.
RESPIRATORY ACIDOSIS
 Central nervous system depression (e.g., drug overdose).
 Chest bellows dysfunction (e.g., Guillain-Barré syndrome, myasthenia
gravis).
 Disease of lungs and/or upper airway (e.g., chronic obstructive lung
disease, severe asthma attack, severe pulmonary edema).
RESPIRATORY ALKALOSIS
 Hypoxemia (includes altitude), Anxiety, Sepsis, Any acute
pulmonary insult e.g., pneumonia, mild asthma attack, early pulmonary
edema, pulmonary embolism.

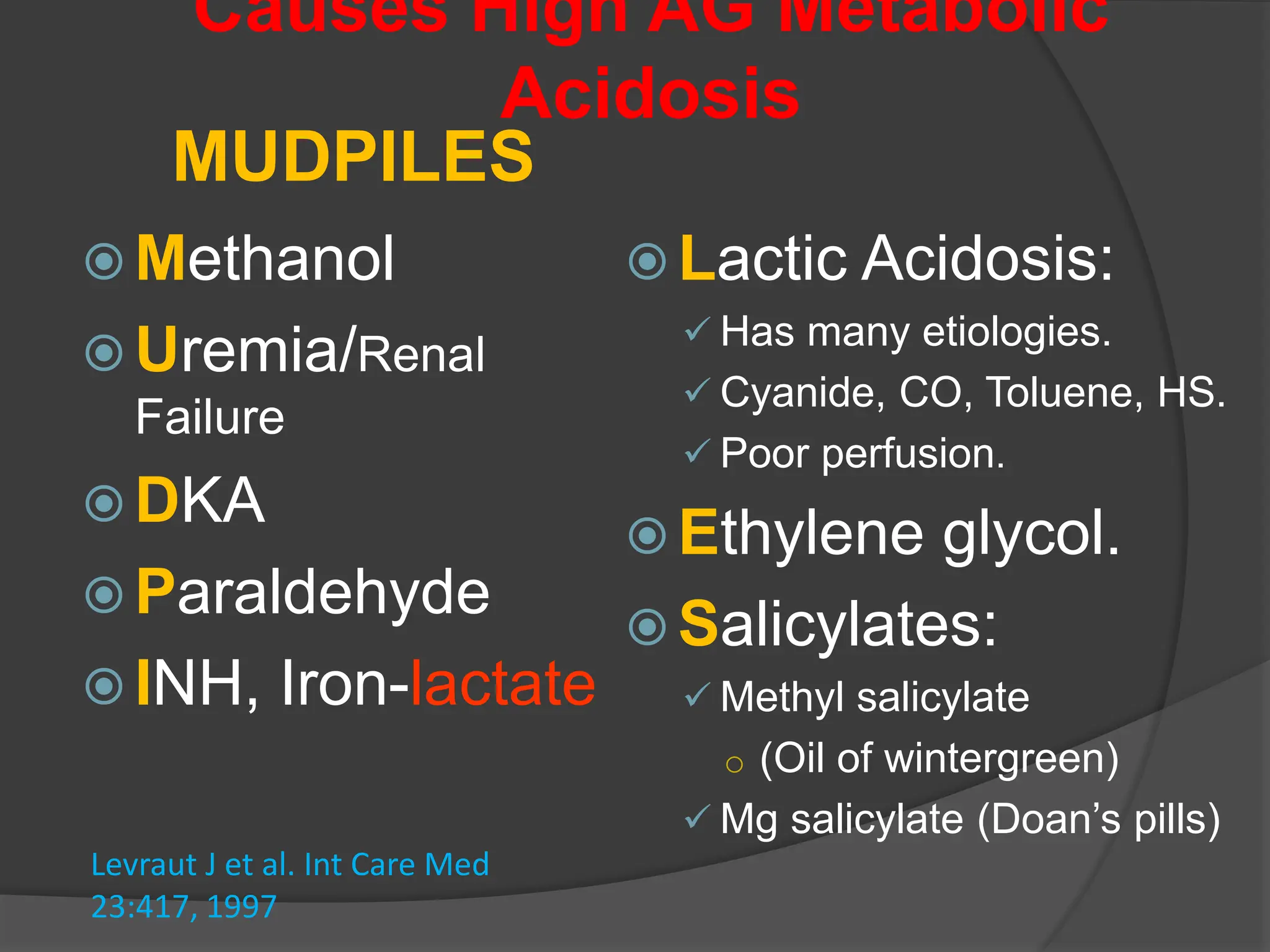

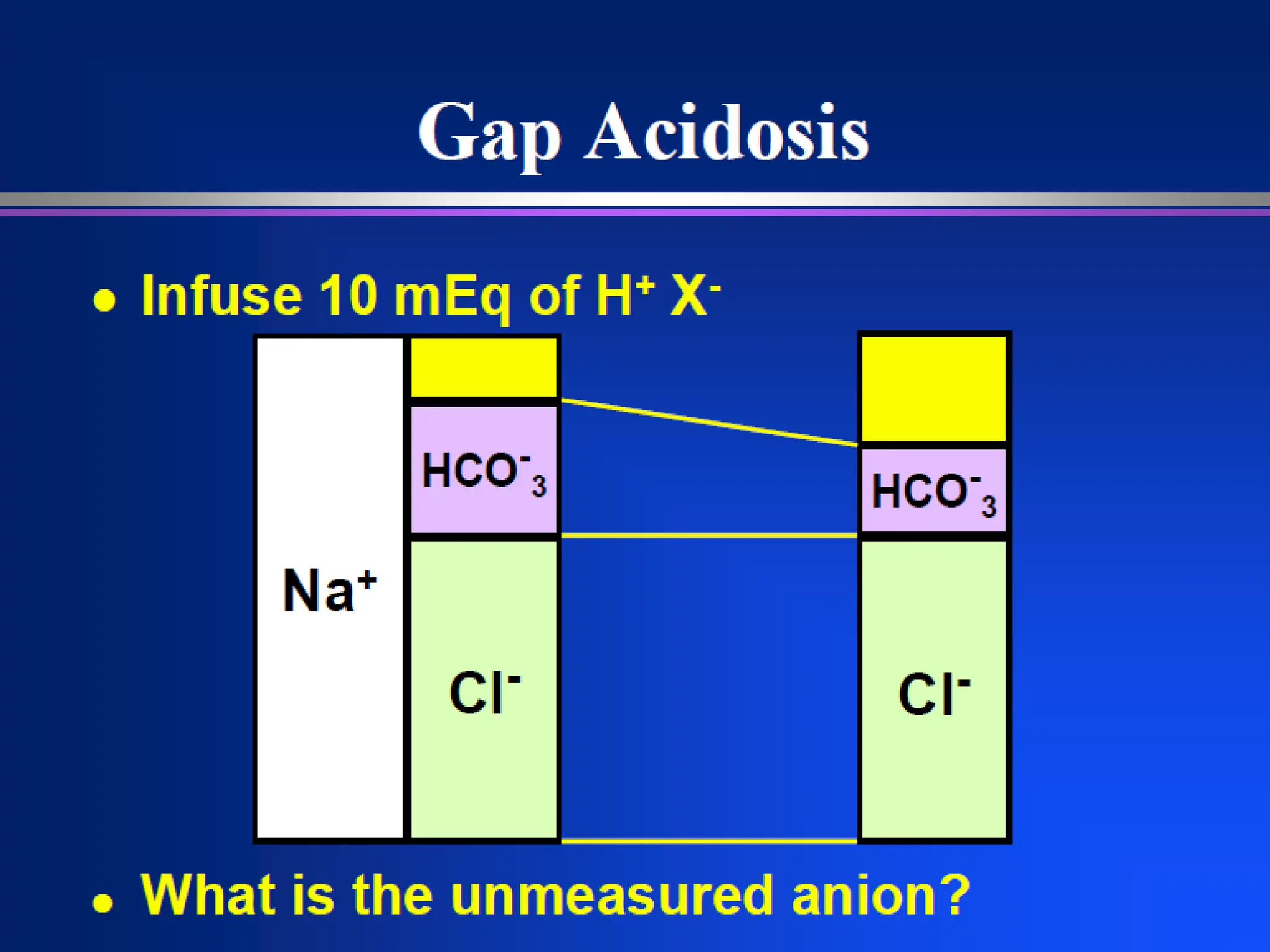

43. Causes High AG Metabolic
Acidosis
 Methanol
 Uremia/Renal
Failure
 DKA
 Paraldehyde
 INH, Iron-lactate
 Lactic Acidosis:
 Has many etiologies.
 Cyanide, CO, Toluene, HS.
 Poor perfusion.
 Ethylene glycol.
 Salicylates:
 Methyl salicylate
o (Oil of wintergreen)
 Mg salicylate (Doan’s pills)
Levraut J et al. Int Care Med
23:417, 1997
MUDPILES

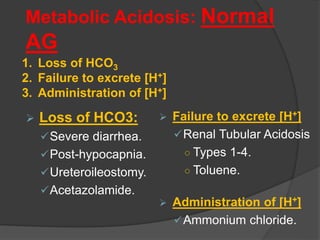

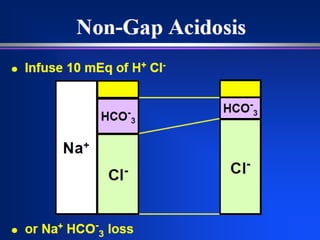

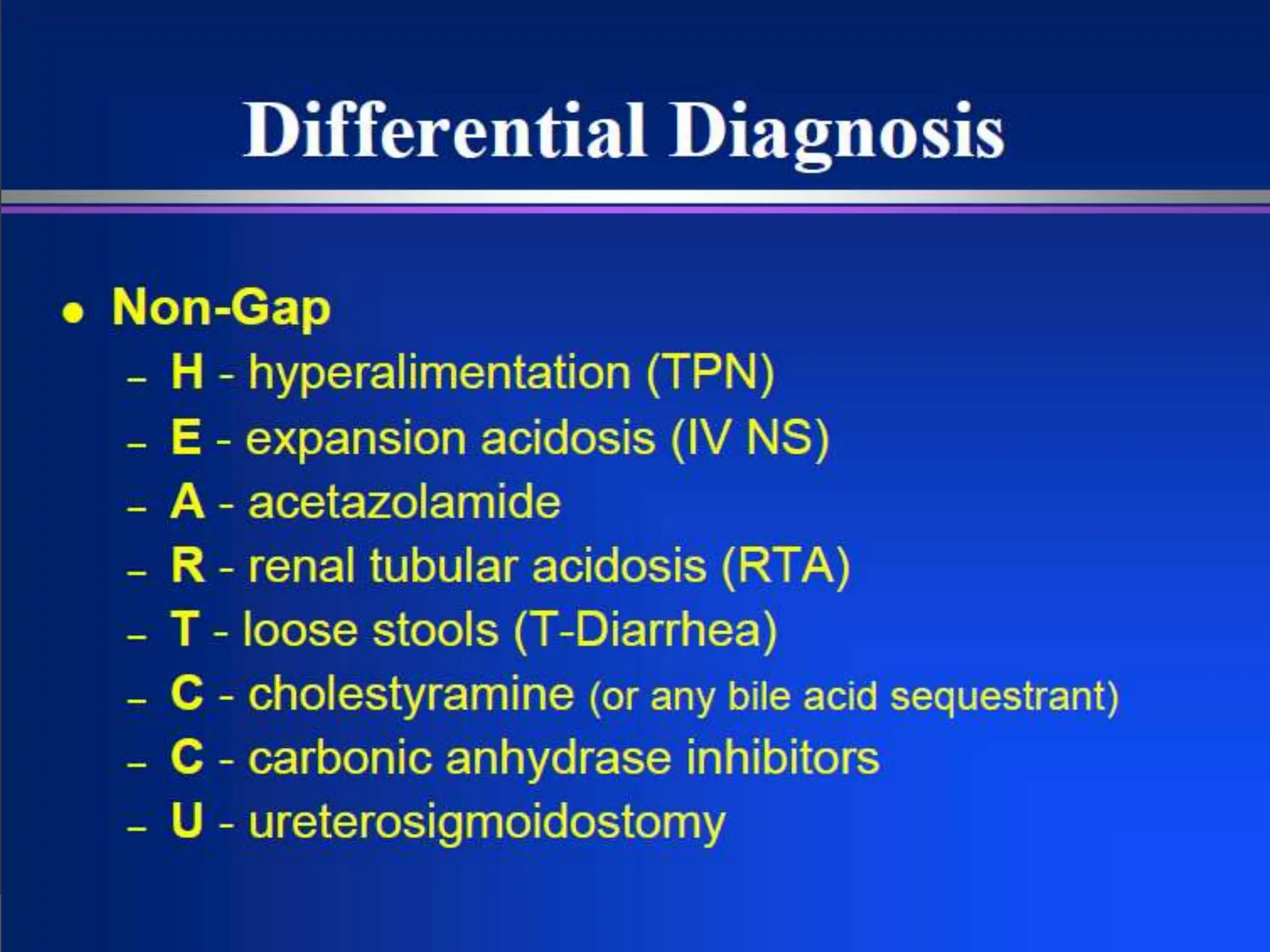

45. Metabolic Acidosis: Normal
AG
 Loss of HCO3:
Severe diarrhea.
Post-hypocapnia.
Ureteroileostomy.
Acetazolamide.
 Failure to excrete [H+]
Renal Tubular Acidosis
○ Types 1-4.
○ Toluene.
 Administration of [H+]
Ammonium chloride.
1. Loss of HCO3
2. Failure to excrete [H+]
3. Administration of [H+]

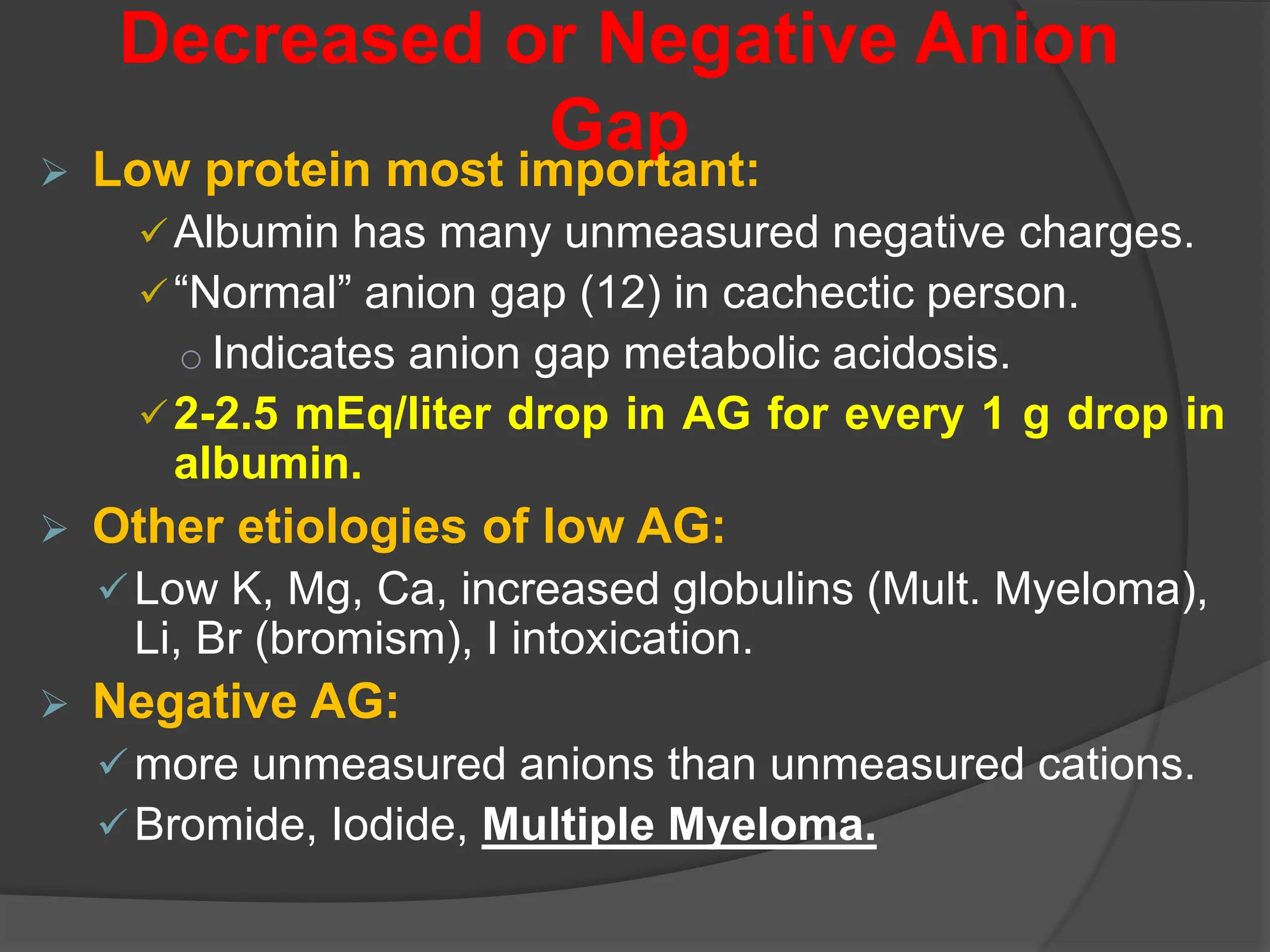

47. Decreased or Negative Anion
Gap
 Low protein most important:
Albumin has many unmeasured negative charges.
“Normal” anion gap (12) in cachectic person.
o Indicates anion gap metabolic acidosis.
2-2.5 mEq/liter drop in AG for every 1 g drop in
albumin.
 Other etiologies of low AG:
Low K, Mg, Ca, increased globulins (Mult. Myeloma),
Li, Br (bromism), I intoxication.
 Negative AG:
more unmeasured anions than unmeasured cations.
Bromide, Iodide, Multiple Myeloma.

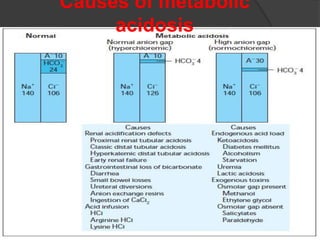

48. Causes of metabolic
acidosis

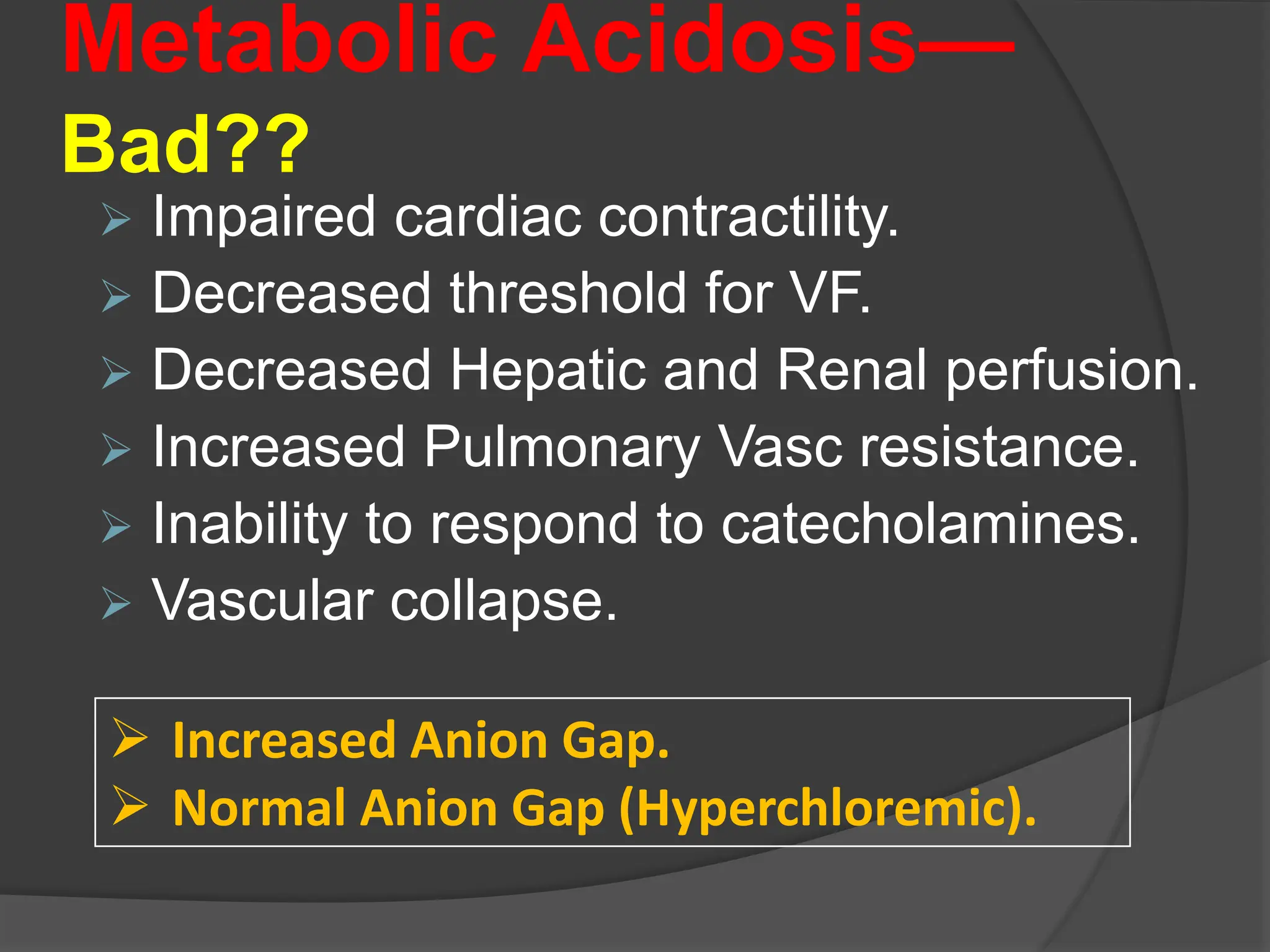

49. Metabolic Acidosis—
Bad??
 Impaired cardiac contractility.
 Decreased threshold for VF.
 Decreased Hepatic and Renal perfusion.
 Increased Pulmonary Vasc resistance.
 Inability to respond to catecholamines.
 Vascular collapse.
 Increased Anion Gap.
 Normal Anion Gap (Hyperchloremic).

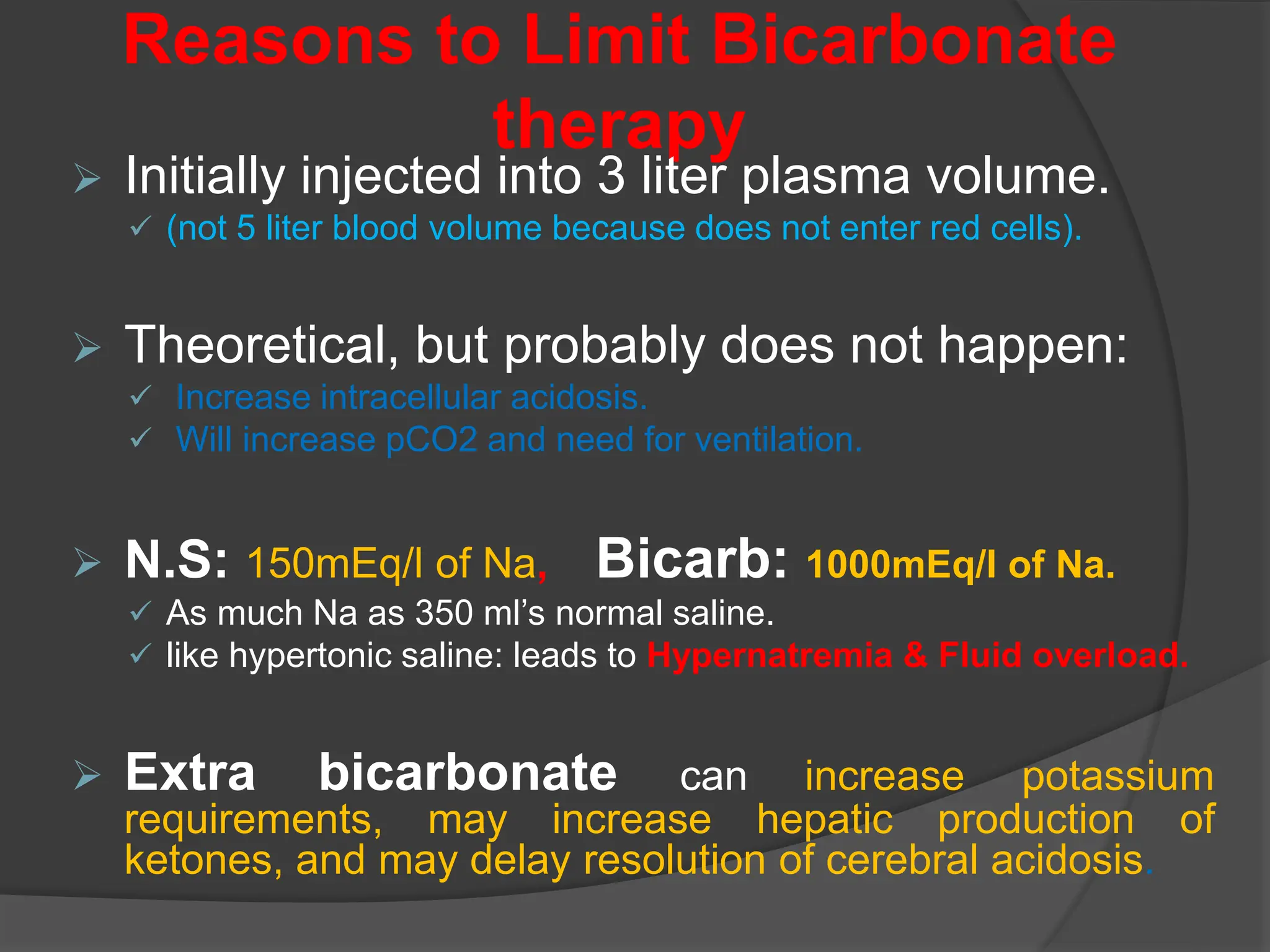

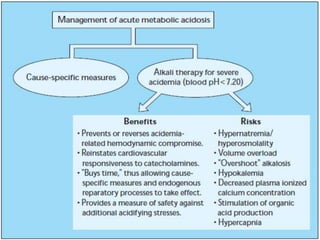

50. Reasons to Limit Bicarbonate
therapy
 Initially injected into 3 liter plasma volume.
 (not 5 liter blood volume because does not enter red cells).
 Theoretical, but probably does not happen:
 Increase intracellular acidosis.
 Will increase pCO2 and need for ventilation.
 N.S: 150mEq/l of Na, Bicarb: 1000mEq/l of Na.
 As much Na as 350 ml’s normal saline.
 like hypertonic saline: leads to Hypernatremia & Fluid overload.
 Extra bicarbonate can increase potassium
requirements, may increase hepatic production of
ketones, and may delay resolution of cerebral acidosis.

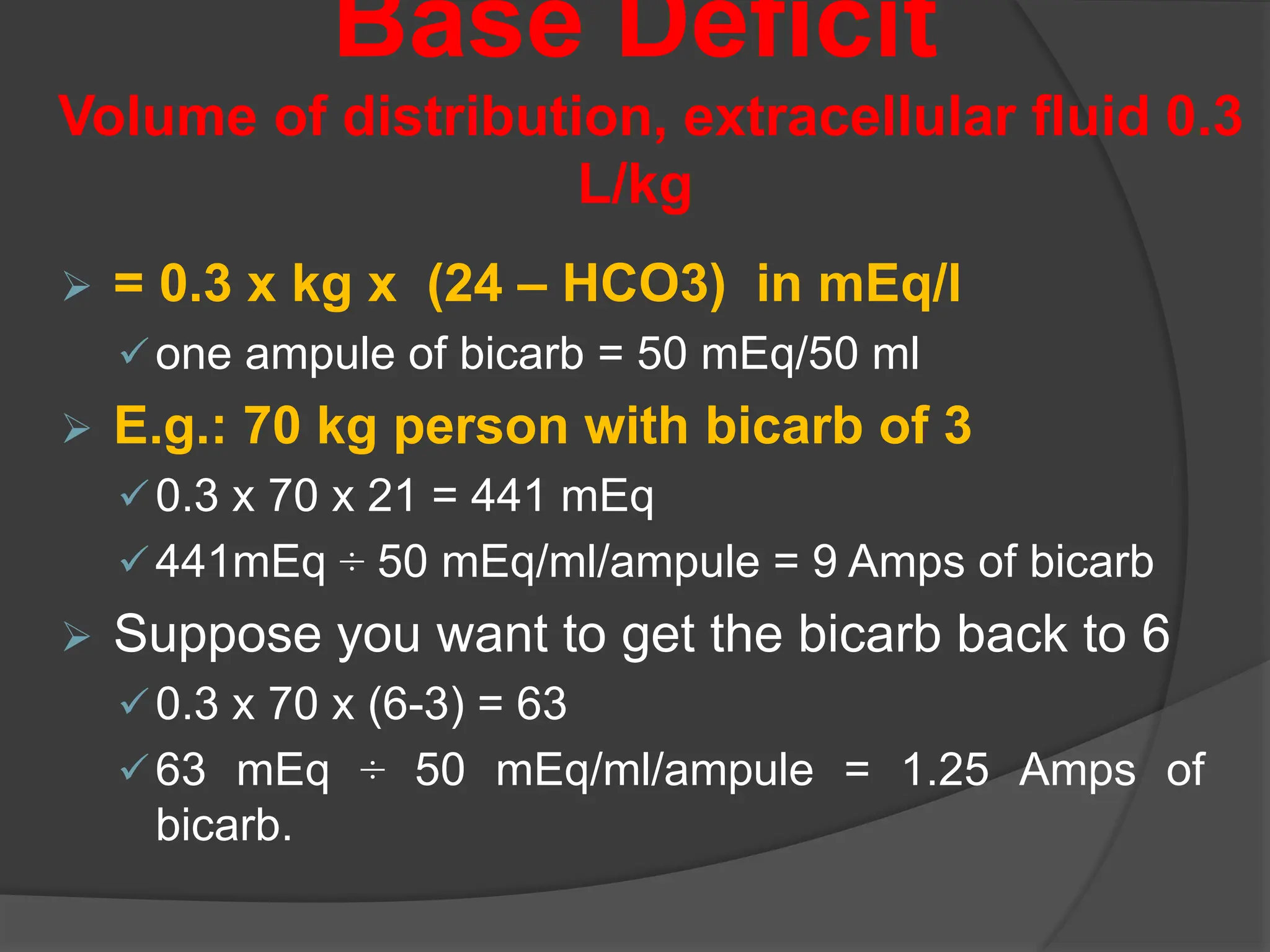

52. Base Deficit
Volume of distribution, extracellular fluid 0.3
L/kg
 = 0.3 x kg x (24 – HCO3) in mEq/l
one ampule of bicarb = 50 mEq/50 ml
 E.g.: 70 kg person with bicarb of 3
0.3 x 70 x 21 = 441 mEq
441mEq ÷ 50 mEq/ml/ampule = 9 Amps of bicarb
 Suppose you want to get the bicarb back to 6
0.3 x 70 x (6-3) = 63
63 mEq ÷ 50 mEq/ml/ampule = 1.25 Amps of
bicarb.

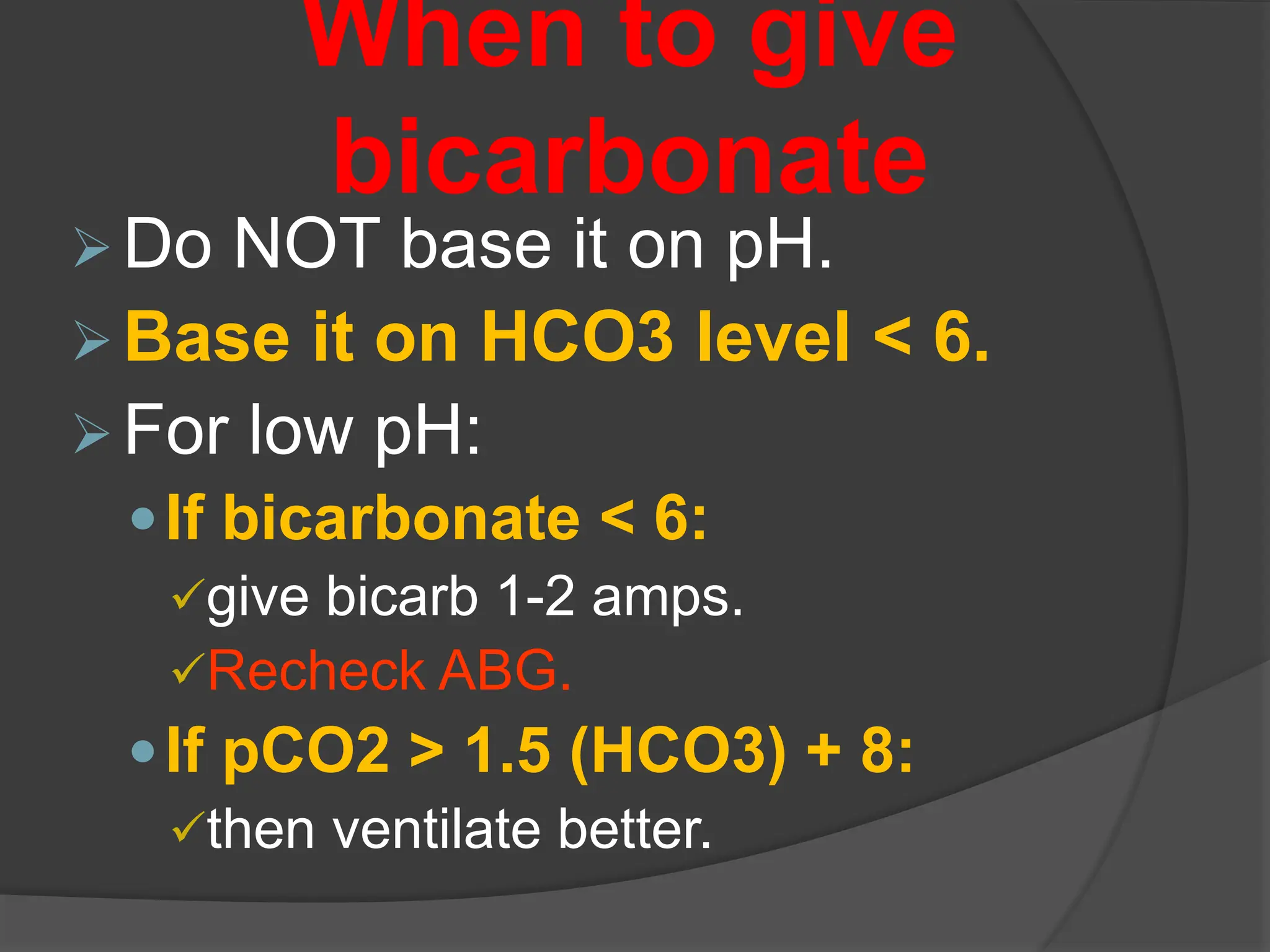

53. When to give
bicarbonate
Do NOT base it on pH.
Base it on HCO3 level < 6.
For low pH:
If bicarbonate < 6:
give bicarb 1-2 amps.
Recheck ABG.
If pCO2 > 1.5 (HCO3) + 8:
then ventilate better.

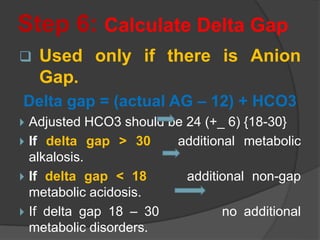

56. Step 6: Calculate Delta Gap
 Used only if there is Anion
Gap.
Delta gap = (actual AG – 12) + HCO3
 Adjusted HCO3 should be 24 (+_ 6) {18-30}
 If delta gap > 30 additional metabolic
alkalosis.
 If delta gap < 18 additional non-gap
metabolic acidosis.
 If delta gap 18 – 30 no additional
metabolic disorders.

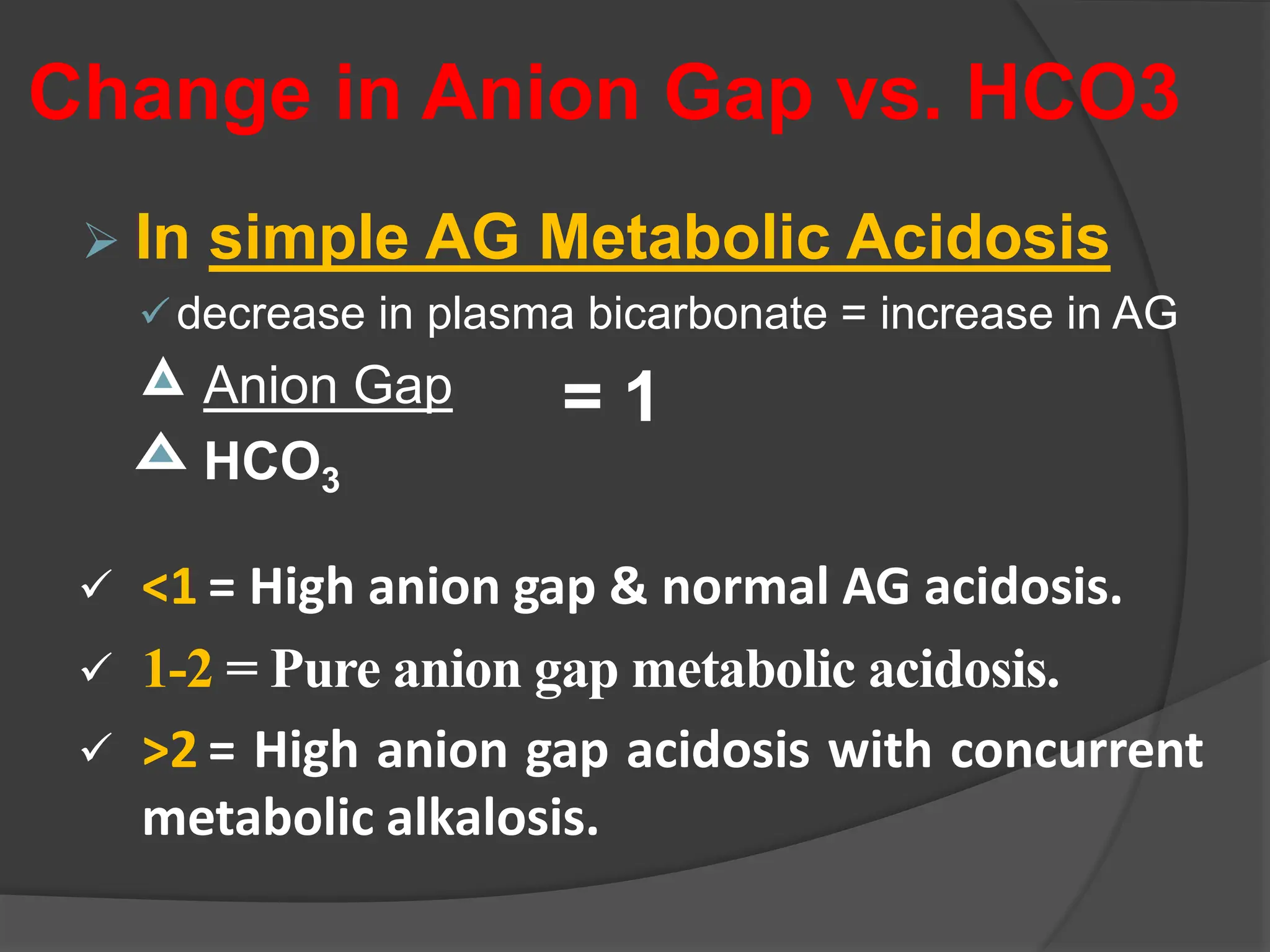

57. Change in Anion Gap vs. HCO3
 In simple AG Metabolic Acidosis
decrease in plasma bicarbonate = increase in AG
Anion Gap
HCO3
 <1 = High anion gap & normal AG acidosis.
 1-2 = Pure anion gap metabolic acidosis.
 >2 = High anion gap acidosis with concurrent
metabolic alkalosis.
= 1

58. Six step method
1) Identify any abnormality (is there acidemia or
alkalemia?).
2) Is the primary process metabolic or respiratory.
3) If the primary process is respiratory, is it acute
or chronic?
4) Is the compensation adequate?
5) Is there an AG?
6) Is there a mixed disorder?

59. Step 6 Mixed Disorders
 Respiratory Acidosis
+ metabolic acidosis
+ metabolic alkalosis
+ metabolic acidosis and alkalosis (triple)
 Respiratory Alkalosis
+ metabolic acidosis
+ metabolic alkalosis
+ metabolic acidosis and alkalosis (triple)

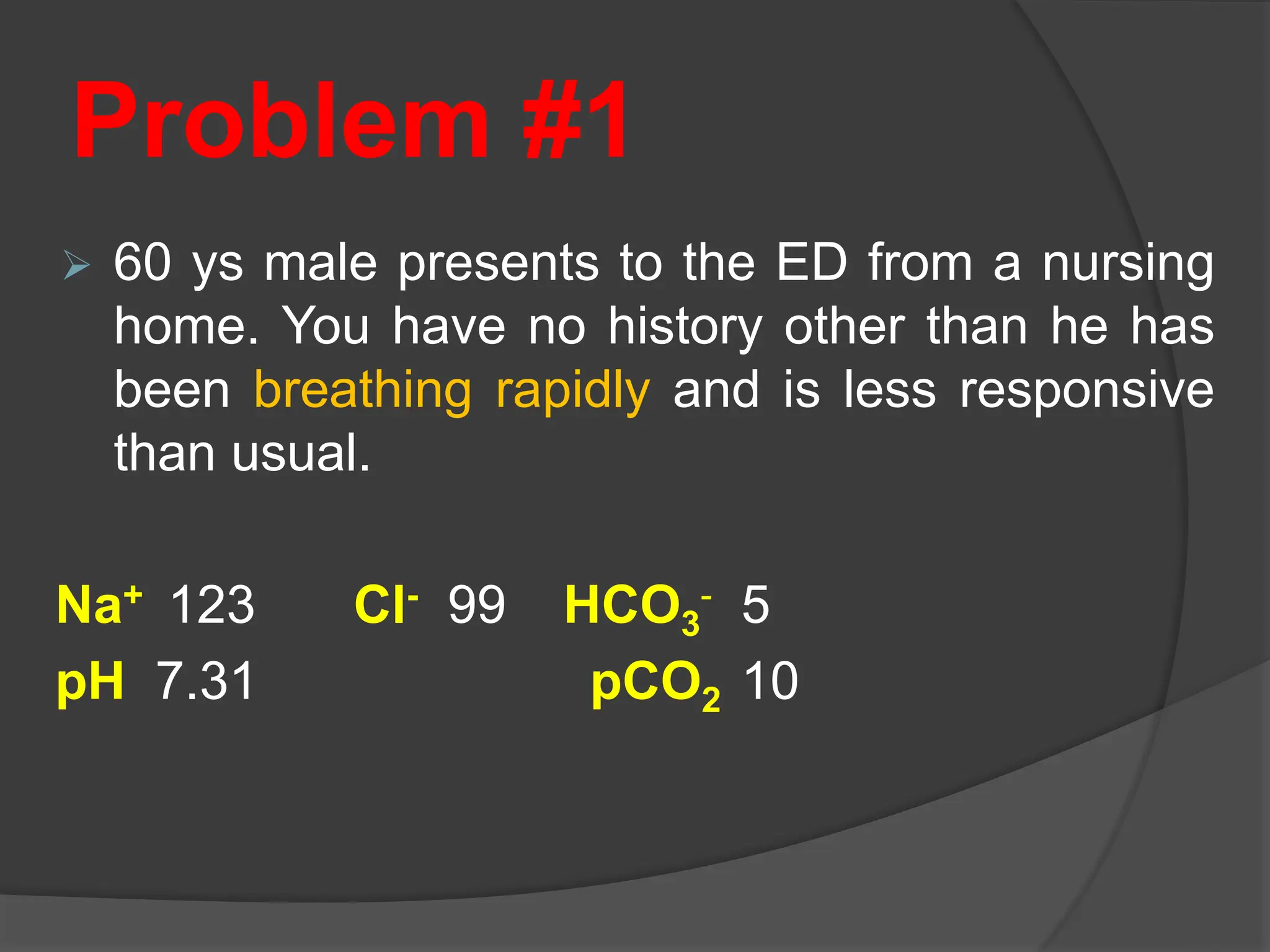

60. Problem #1
 60 ys male presents to the ED from a nursing
home. You have no history other than he has
been breathing rapidly and is less responsive
than usual.
Na+ 123 Cl- 99 HCO3
- 5
pH 7.31 pCO2 10

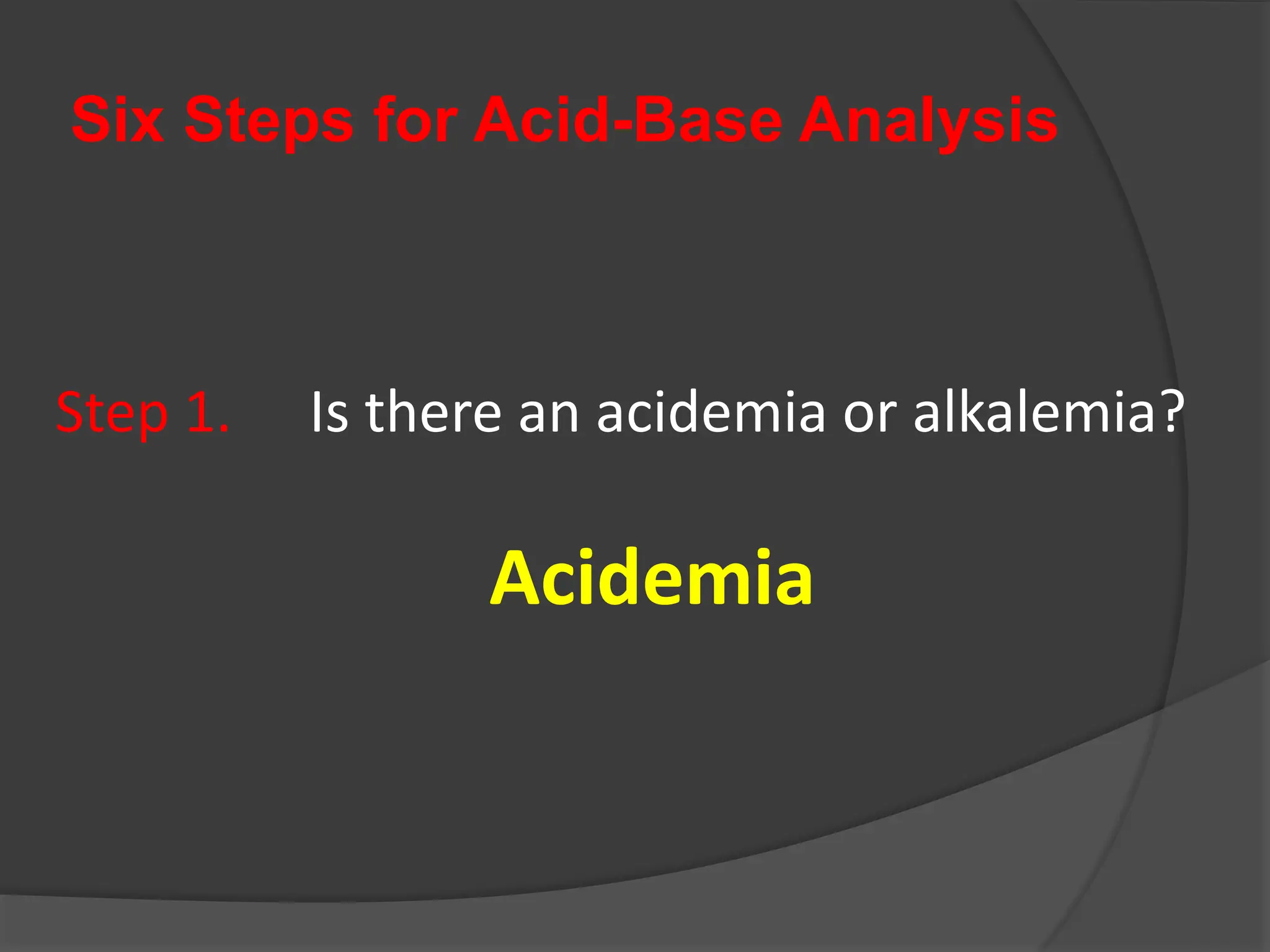

61. Six Steps for Acid-Base Analysis
Step 1. Is there an acidemia or alkalemia?
Acidemia

62. Six Steps for Acid-Base Analysis
Step 2. Is the primary process metabolic
or respiratory?
pCO2 = 10 should drive pH ↑
HCO3
- = 5 should drive pH ↓

63. Six Steps for Acid-Base Analysis
Step 3:
If the primary process is respiratory, is it
acute or chronic?
Skip this step as primary process is metabolic!

64. Six Steps for Acid-Base Analysis
Step 4:
Is there an anion gap?
Na+ - Cl- - HCO3
- > 12?
123 - 99 - 5 = 19
Anion Gap Metabolic Acidosis

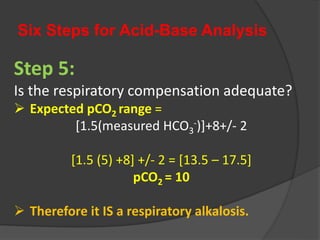

65. Six Steps for Acid-Base Analysis
Step 5:
Is the respiratory compensation adequate?
 Expected pCO2 range =
[1.5(measured HCO3
-)]+8+/- 2
[1.5 (5) +8] +/- 2 = [13.5 – 17.5]
pCO2 = 10
 Therefore it IS a respiratory alkalosis.

66. Six Steps for Acid-Base Analysis
Step 6:
Are there any other metabolic disturbances?
 Corrected HCO3
- =
(Measured HCO3
-) + (AG-12)
(5) + (19-12) = 12
 Since this does not correct bicarbonate back to
normal, there is a non anion gap acidosis.
1.Anion Gap Metabolic Acidosis.
2.Concurrent Respiratory Alkalosis.
3.non - anion gap met. acidosis.

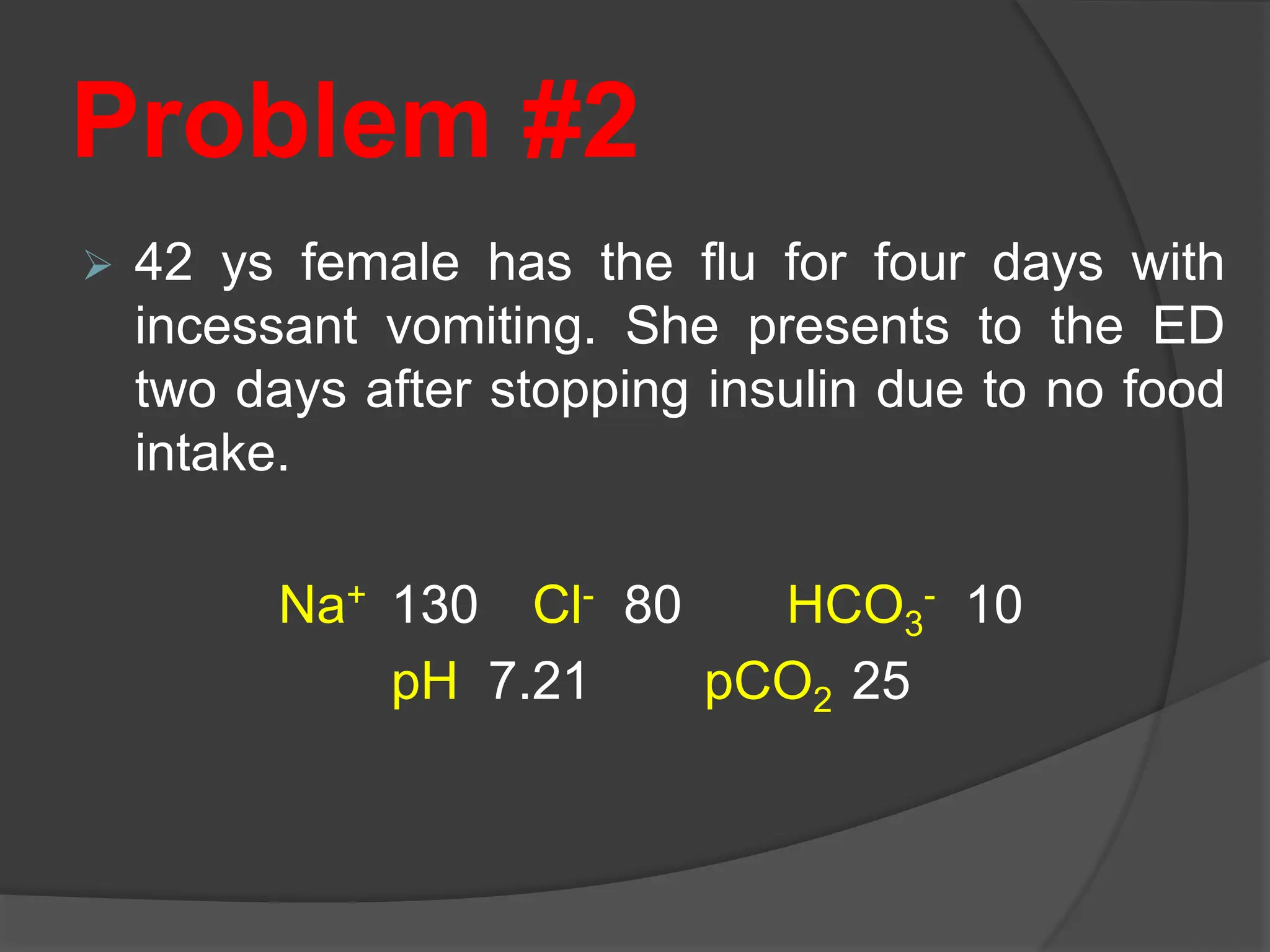

67. Problem #2
 42 ys female has the flu for four days with
incessant vomiting. She presents to the ED
two days after stopping insulin due to no food
intake.
Na+ 130 Cl- 80 HCO3
- 10
pH 7.21 pCO2 25

68. Six Steps for Acid-Base Analysis
Step 1.
Is there an acidemia or alkalemia?
Acidemia

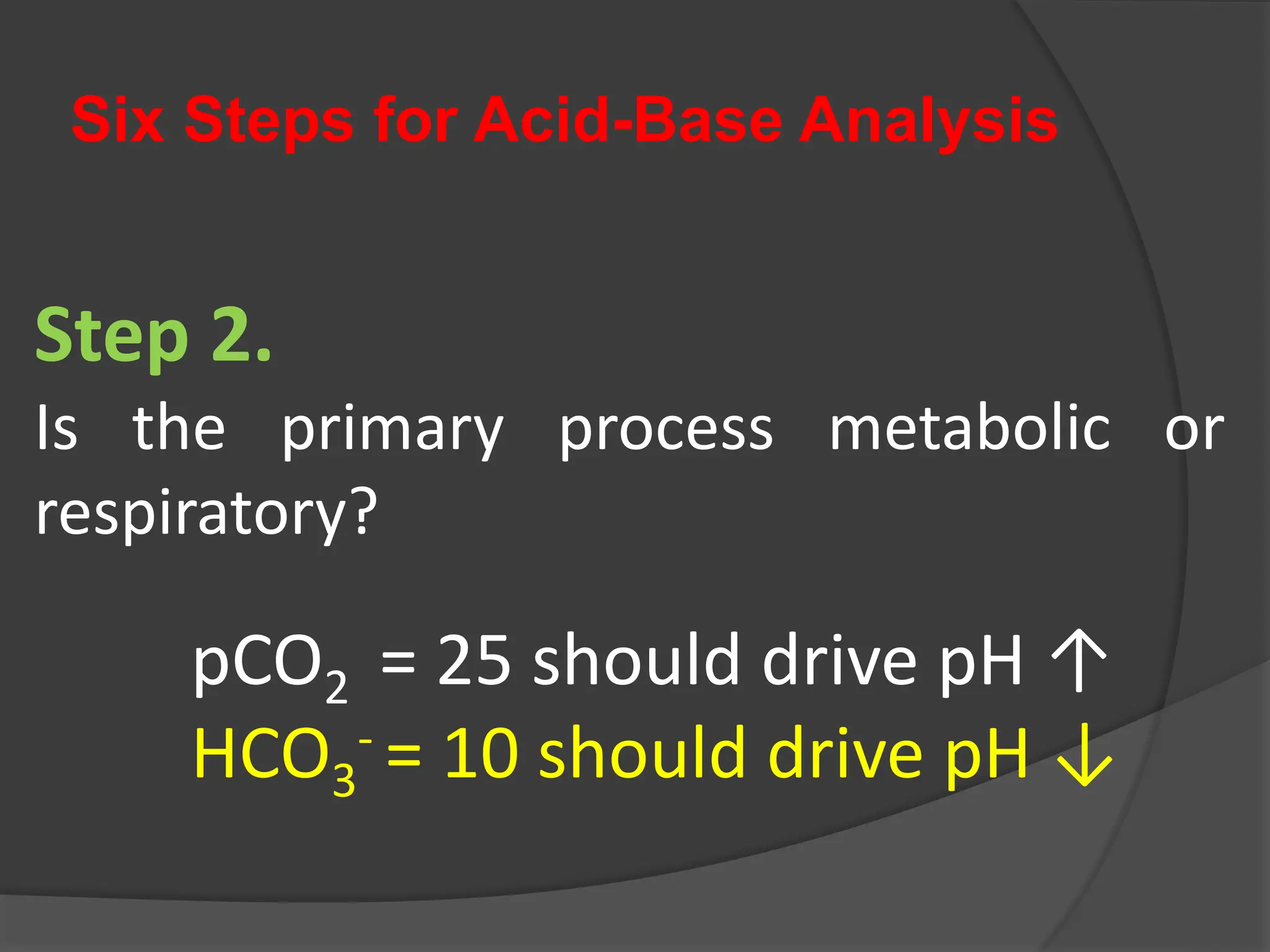

69. Six Steps for Acid-Base Analysis
Step 2.
Is the primary process metabolic or
respiratory?
pCO2 = 25 should drive pH ↑
HCO3
- = 10 should drive pH ↓

70. Six Steps for Acid-Base Analysis
Step 3:
If the primary process is respiratory, is
it acute or chronic?
Skip this step as primary process is metabolic!

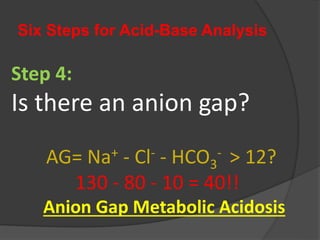

71. Six Steps for Acid-Base Analysis
Step 4:
Is there an anion gap?
AG= Na+ - Cl- - HCO3
- > 12?
130 - 80 - 10 = 40!!
Anion Gap Metabolic Acidosis

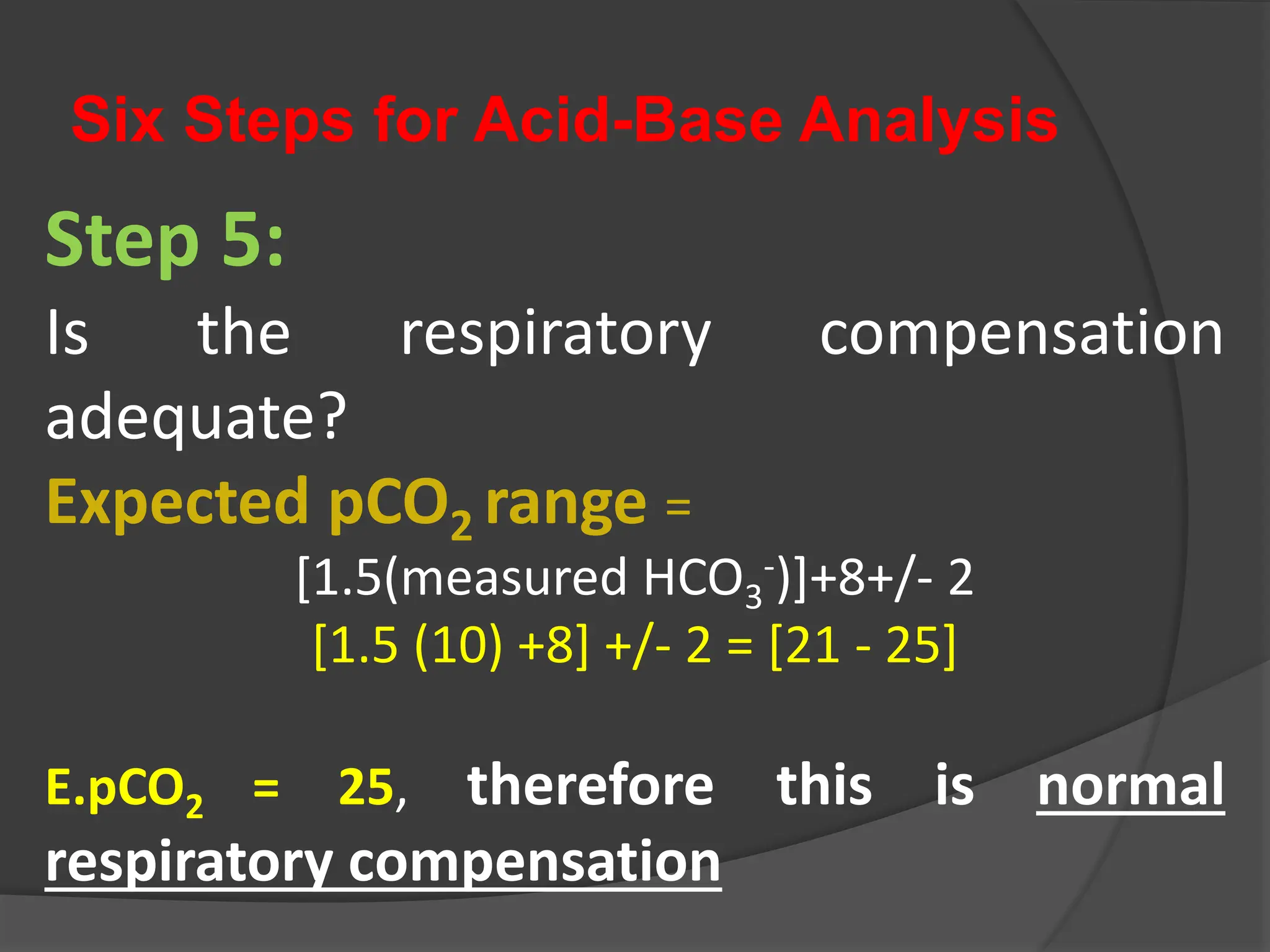

72. Six Steps for Acid-Base Analysis
Step 5:
Is the respiratory compensation
adequate?
Expected pCO2 range =
[1.5(measured HCO3
-)]+8+/- 2
[1.5 (10) +8] +/- 2 = [21 - 25]
E.pCO2 = 25, therefore this is normal
respiratory compensation

73. Six Steps for Acid-Base Analysis
Step 6:
Are there any other metabolic disturbances?
 Corrected HCO3
- =
(Measured HCO3
-) + (AG-12)
(10) + (40-12) = 38
 Since this over corrects bicarbonate
there is a metabolic ALKALOSIS!!
1.Anion Gap Metabolic Acidosis.
2.Metabolic Alkalosis.

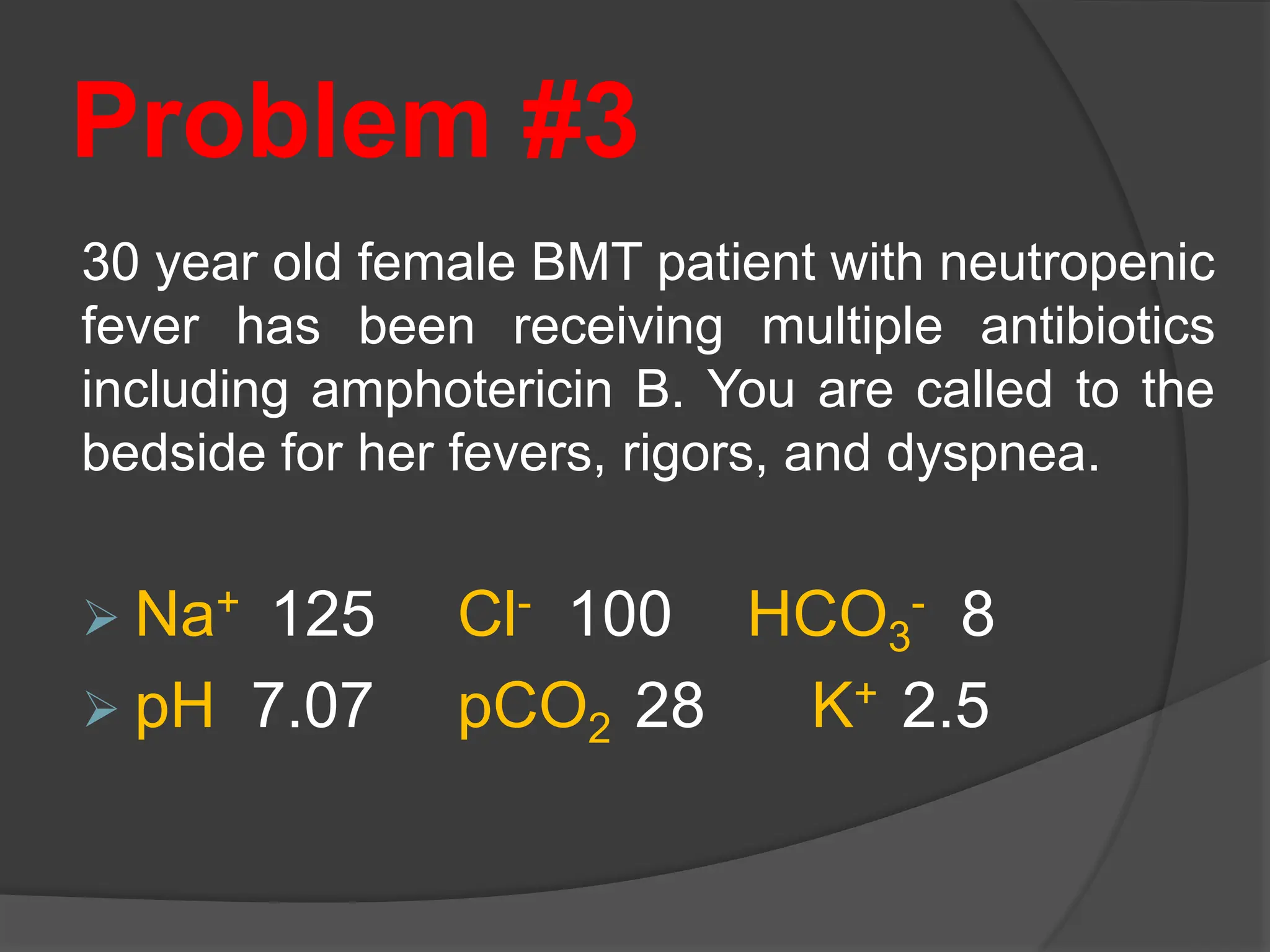

74. Problem #3
30 year old female BMT patient with neutropenic
fever has been receiving multiple antibiotics
including amphotericin B. You are called to the
bedside for her fevers, rigors, and dyspnea.
 Na+ 125 Cl- 100 HCO3
- 8
 pH 7.07 pCO2 28 K+ 2.5

75. Six Steps for Acid-Base Analysis
Step 1.
 Is there an acidemia or alkalemia?
Acidemia

76. Six Steps for Acid-Base Analysis
Step2:
 Is the primary process metabolic or
respiratory?
PCO2 = 28 should drive pH ↑
HCO3
- = 8 should drive pH ↓

77. Six Steps for Acid-Base Analysis
Step 3:
 If the primary process is respiratory, is it
acute or chronic?
Skip this step as primary process is metabolic!

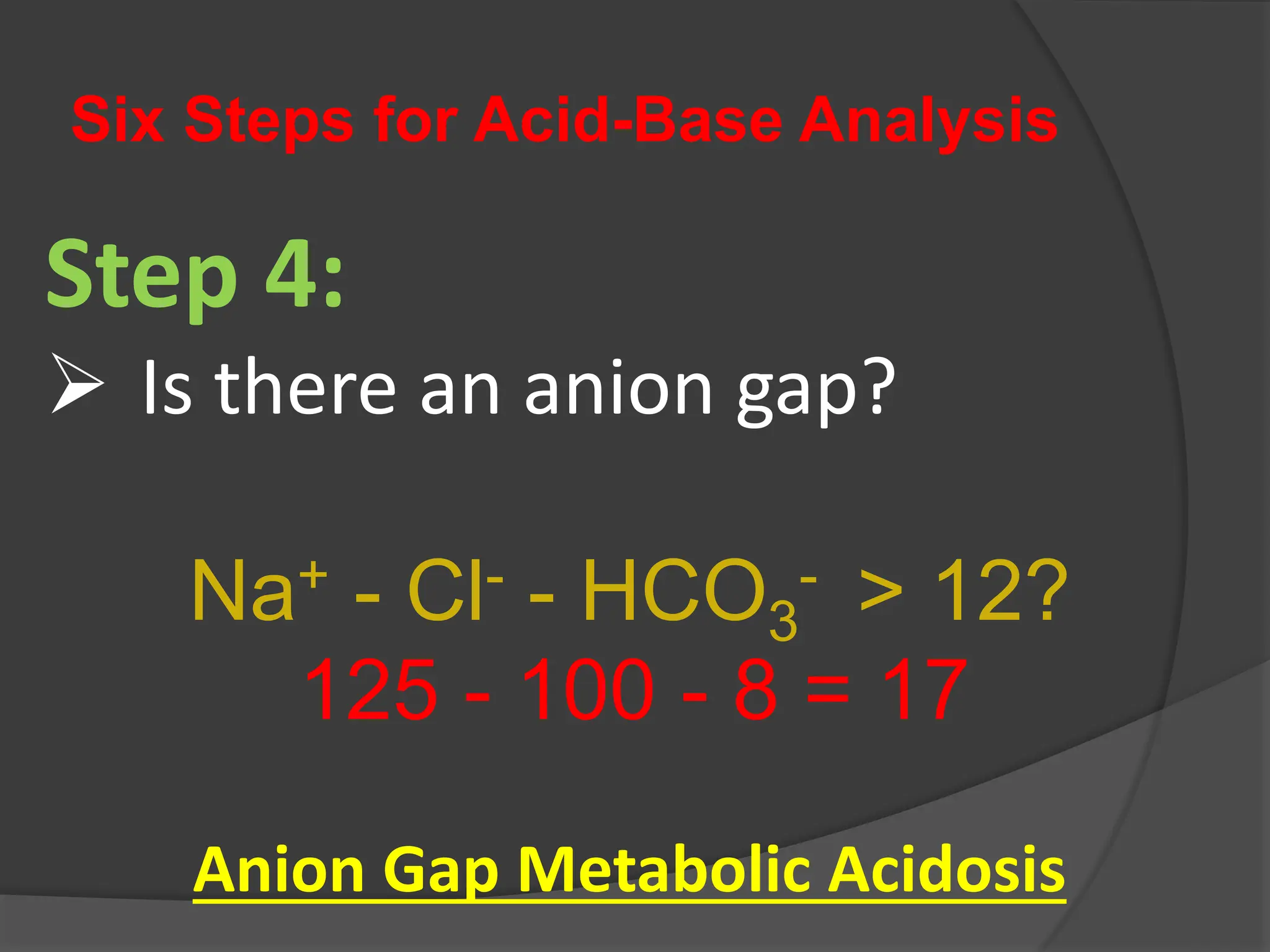

78. Six Steps for Acid-Base Analysis
Step 4:
 Is there an anion gap?
Na+ - Cl- - HCO3
- > 12?
125 - 100 - 8 = 17
Anion Gap Metabolic Acidosis

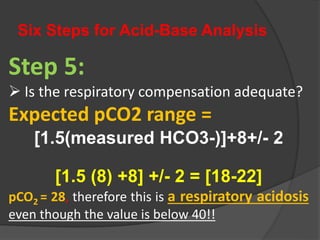

79. Six Steps for Acid-Base Analysis
Step 5:
 Is the respiratory compensation adequate?
Expected pCO2 range =
[1.5(measured HCO3-)]+8+/- 2
[1.5 (8) +8] +/- 2 = [18-22]
pCO2 = 28, therefore this is a respiratory acidosis
even though the value is below 40!!

80. Six Steps for Acid-Base Analysis
Step 6:
Are there any other metabolic
disturbances?
Corrected HCO3
- =
(Measured HCO3
-) + (AG-12)
(8) + (17-12) = 13
 Since this is below the normal range after
correction,there is a non anion gap acidosis.
1.Anion Gap Metabolic Acidosis.
2.Concurrent Respiratory Acidosis.
3.non - anion gap met. acidosis.

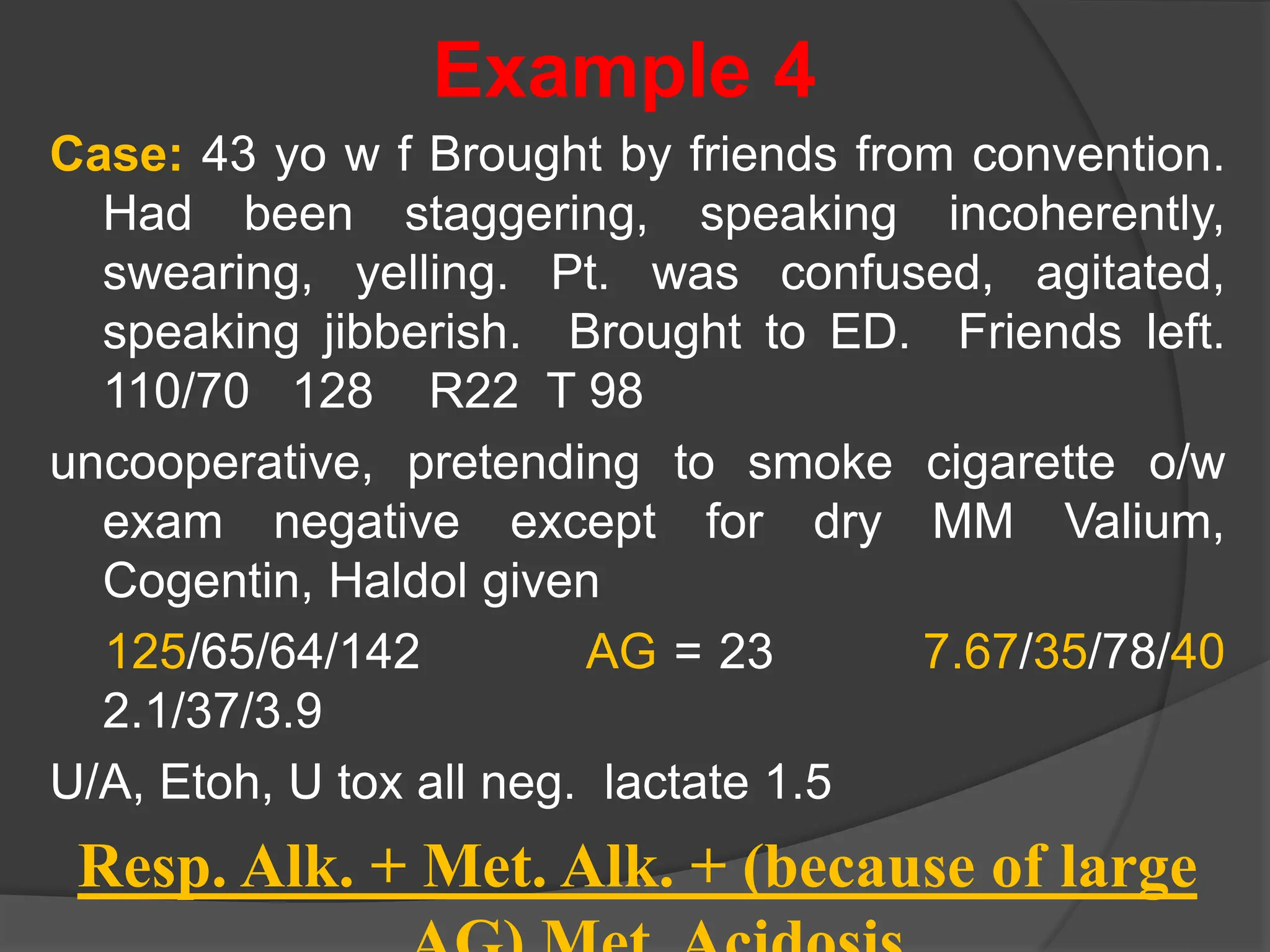

81. Example 4
Case: 43 yo w f Brought by friends from convention.
Had been staggering, speaking incoherently,
swearing, yelling. Pt. was confused, agitated,
speaking jibberish. Brought to ED. Friends left.
110/70 128 R22 T 98
uncooperative, pretending to smoke cigarette o/w
exam negative except for dry MM Valium,
Cogentin, Haldol given
125/65/64/142 AG = 23 7.67/35/78/40
2.1/37/3.9
U/A, Etoh, U tox all neg. lactate 1.5
Resp. Alk. + Met. Alk. + (because of large

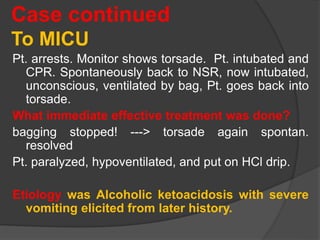

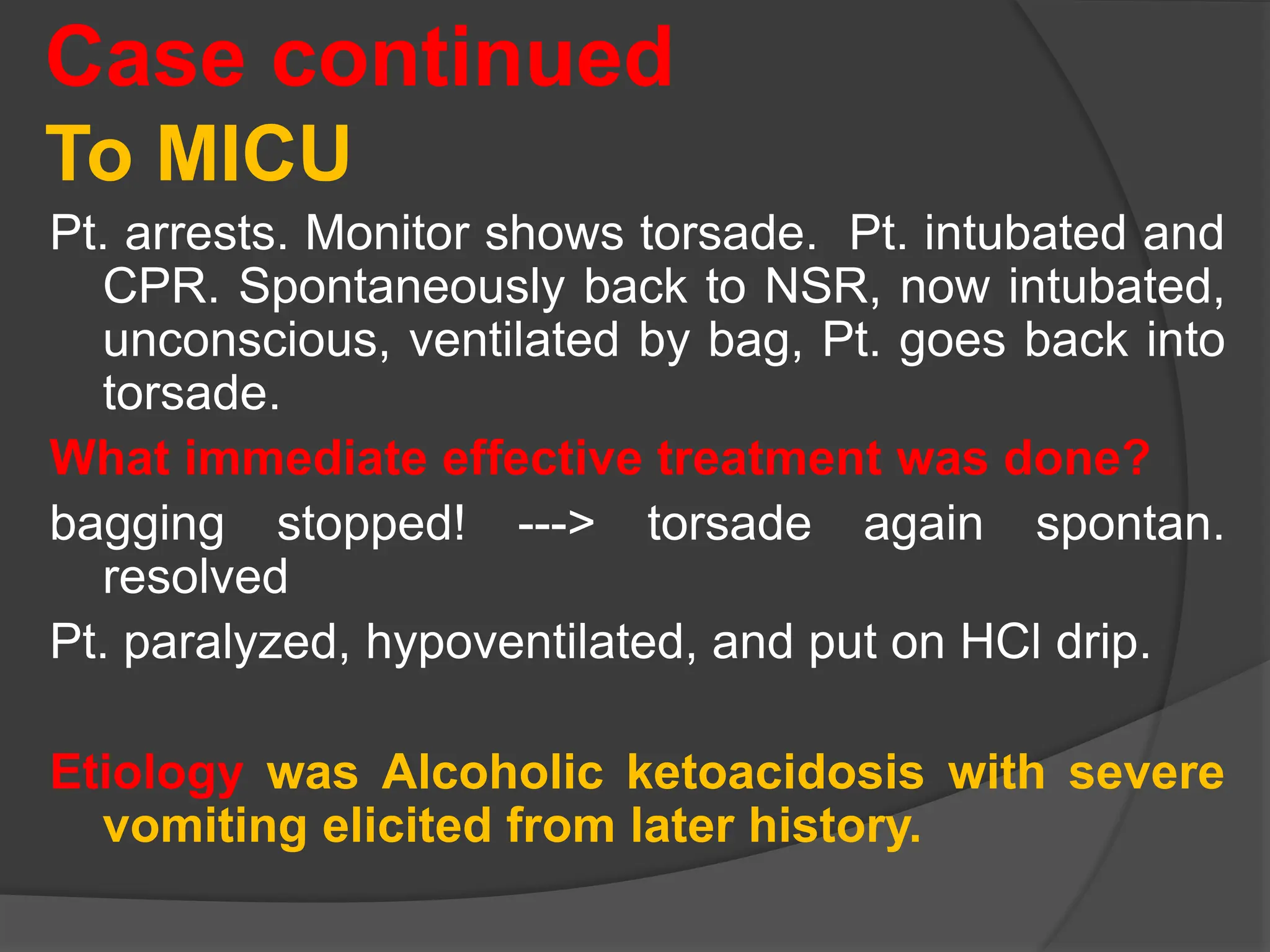

82. Case continued
To MICU
Pt. arrests. Monitor shows torsade. Pt. intubated and
CPR. Spontaneously back to NSR, now intubated,
unconscious, ventilated by bag, Pt. goes back into
torsade.
What immediate effective treatment was done?
bagging stopped! ---> torsade again spontan.
resolved
Pt. paralyzed, hypoventilated, and put on HCl drip.
Etiology was Alcoholic ketoacidosis with severe
vomiting elicited from later history.

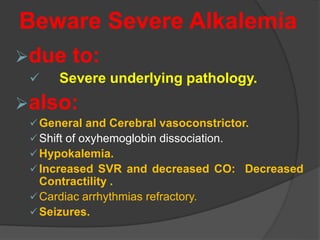

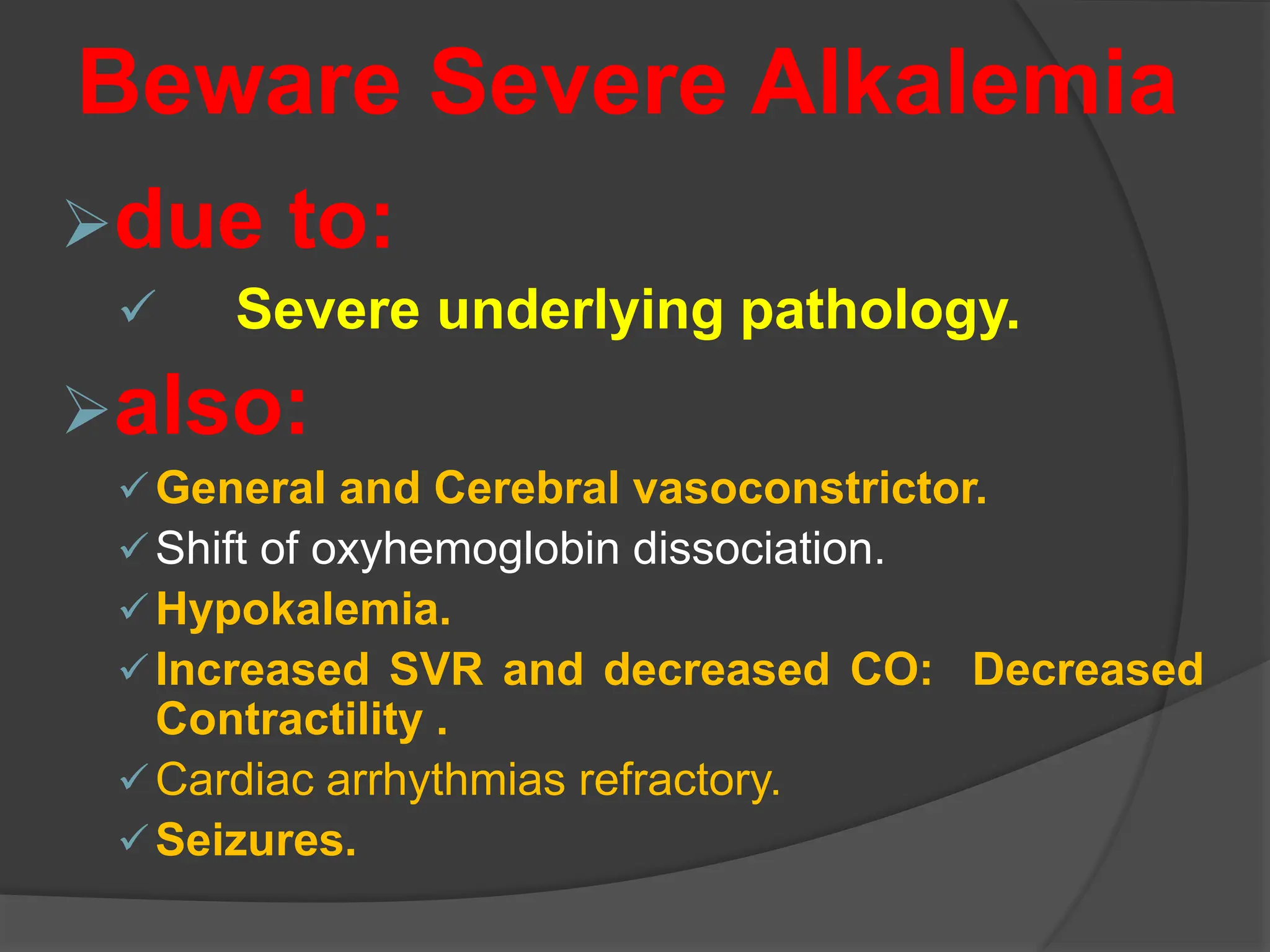

83. Beware Severe Alkalemia
due to:
 Severe underlying pathology.
also:
General and Cerebral vasoconstrictor.
Shift of oxyhemoglobin dissociation.
Hypokalemia.
Increased SVR and decreased CO: Decreased
Contractility .
Cardiac arrhythmias refractory.
Seizures.

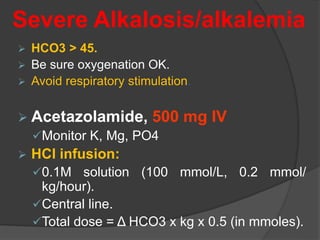

84. Severe Alkalosis/alkalemia
 HCO3 > 45.
 Be sure oxygenation OK.
 Avoid respiratory stimulation.
 Acetazolamide, 500 mg IV
Monitor K, Mg, PO4
 HCl infusion:
0.1M solution (100 mmol/L, 0.2 mmol/
kg/hour).
Central line.
Total dose = Δ HCO3 x kg x 0.5 (in mmoles).

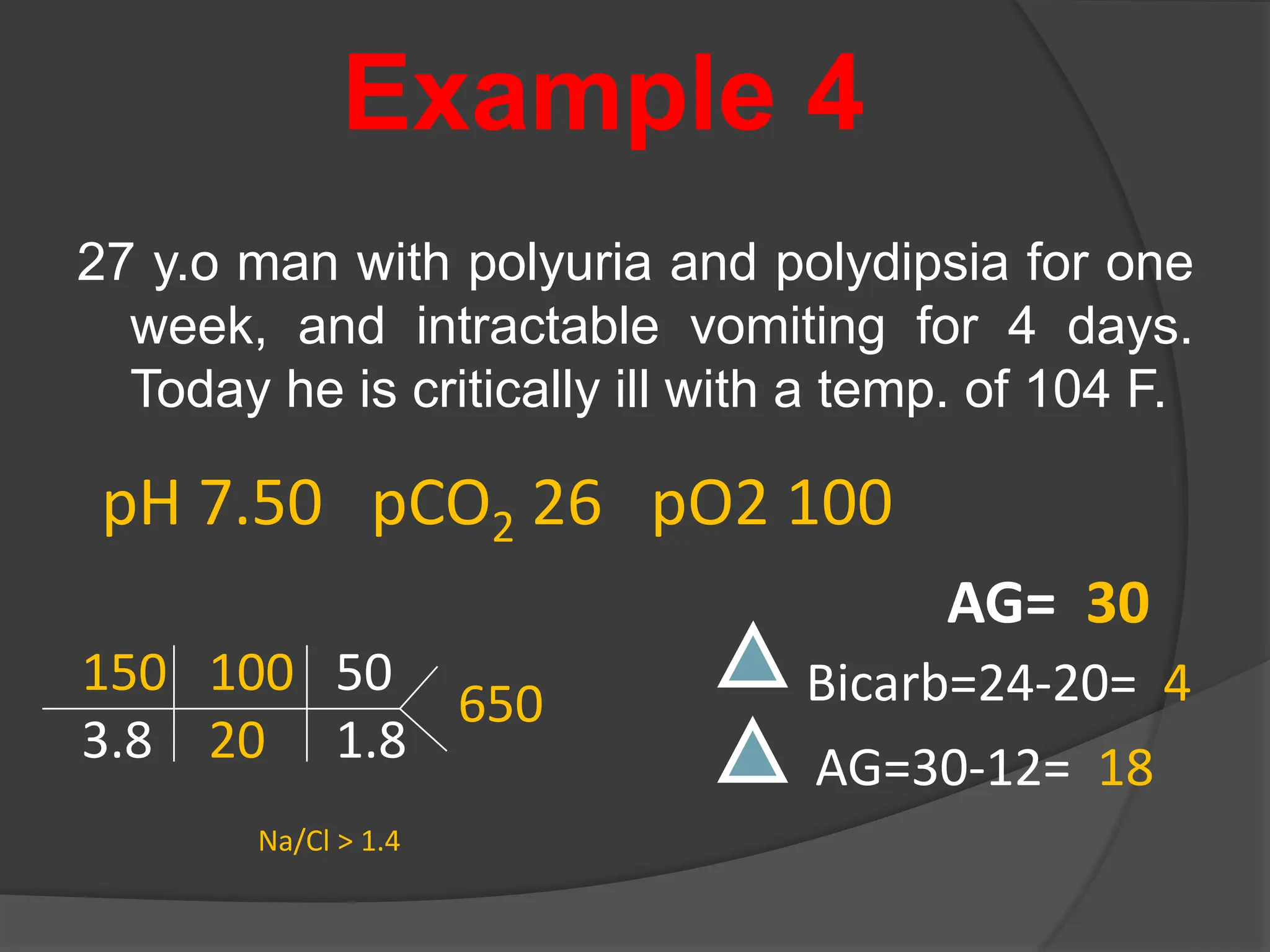

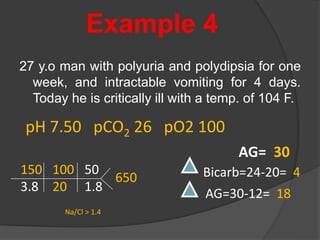

85. Example 4
27 y.o man with polyuria and polydipsia for one
week, and intractable vomiting for 4 days.
Today he is critically ill with a temp. of 104 F.
pH 7.50 pCO2 26 pO2 100
150 100 50
3.8 20 1.8
650
AG= 30
Bicarb=24-20= 4
AG=30-12= 18
Na/Cl > 1.4

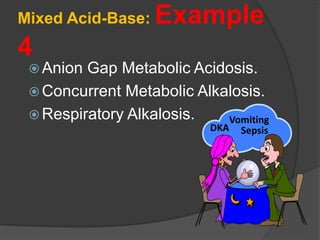

86. Mixed Acid-Base: Example
4
 Anion Gap Metabolic Acidosis.
 Concurrent Metabolic Alkalosis.
 Respiratory Alkalosis.
DKA
Vomiting
Sepsis

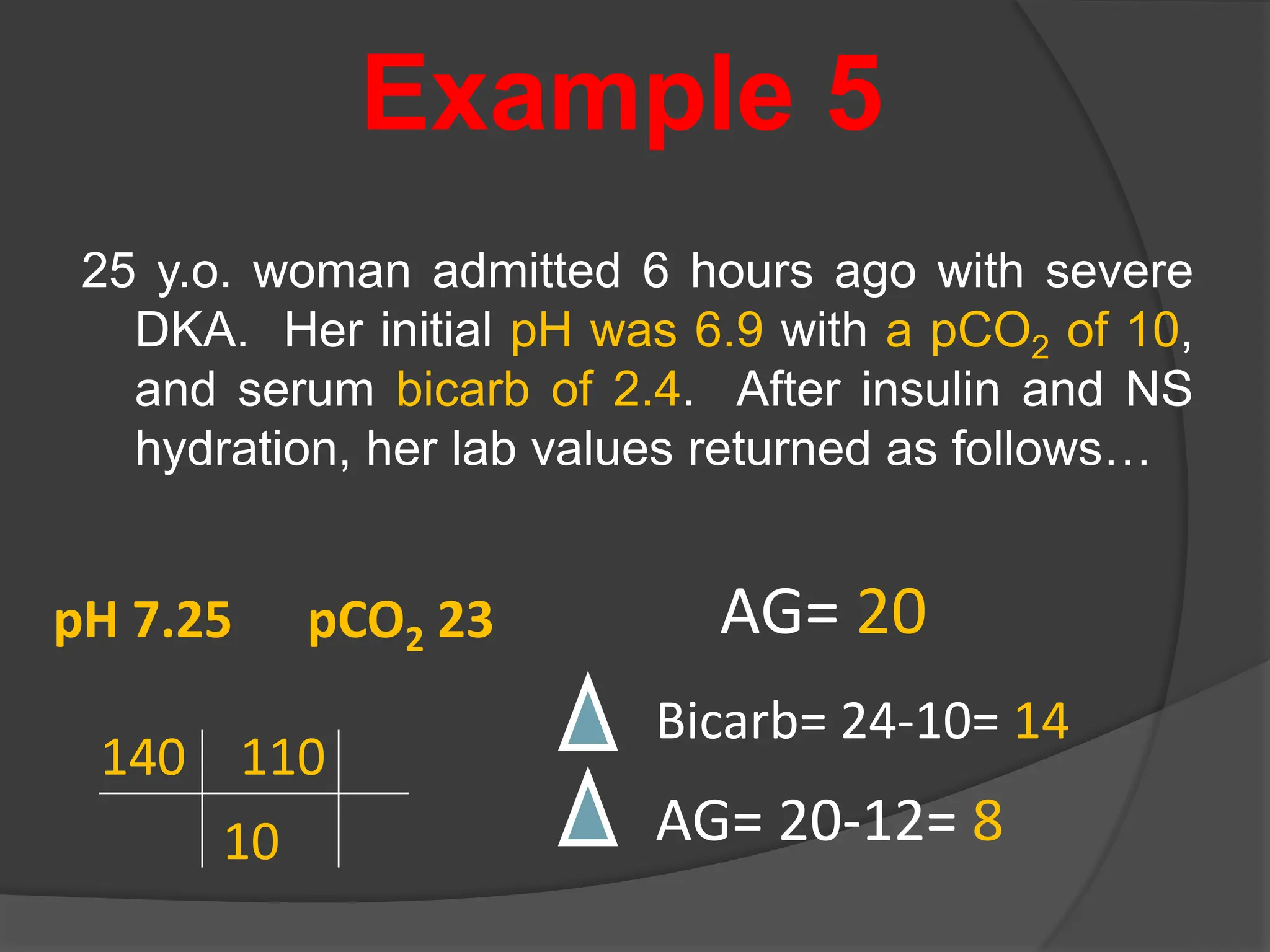

87. Example 5
25 y.o. woman admitted 6 hours ago with severe
DKA. Her initial pH was 6.9 with a pCO2 of 10,
and serum bicarb of 2.4. After insulin and NS
hydration, her lab values returned as follows…
140 110
10
AG= 20
Bicarb= 24-10= 14
AG= 20-12= 8
pH 7.25 pCO2 23

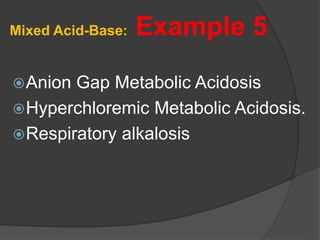

88. Mixed Acid-Base: Example 5
Anion Gap Metabolic Acidosis
Hyperchloremic Metabolic Acidosis.
Respiratory alkalosis

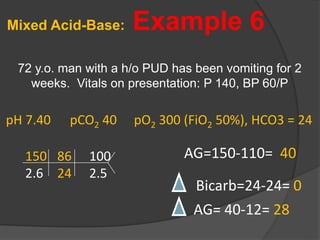

89. Mixed Acid-Base: Example 6
72 y.o. man with a h/o PUD has been vomiting for 2
weeks. Vitals on presentation: P 140, BP 60/P
pH 7.40 pCO2 40 pO2 300 (FiO2 50%), HCO3 = 24
150 86 100
2.6 24 2.5
AG=150-110= 40
Bicarb=24-24= 0
AG= 40-12= 28

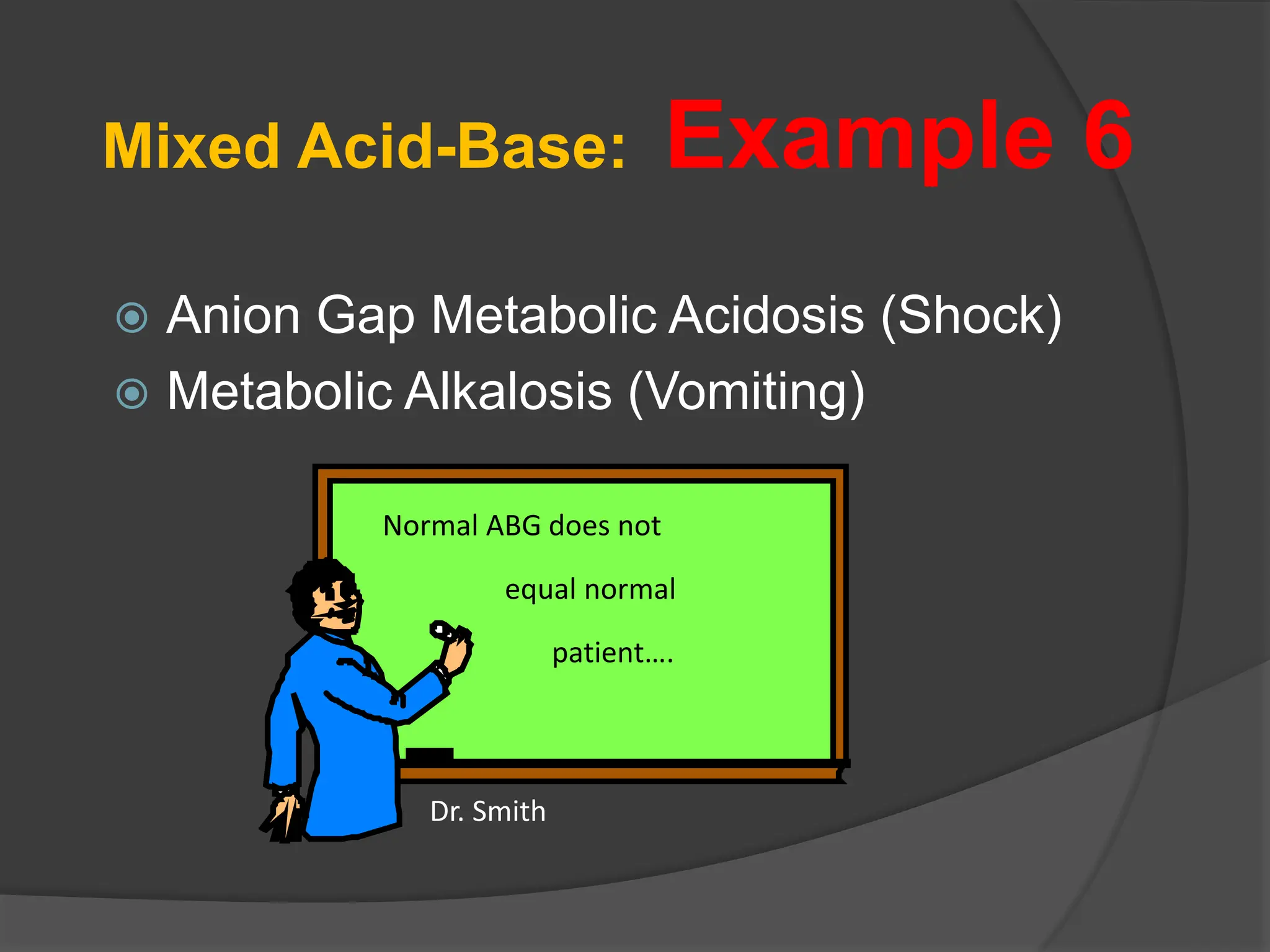

90. Mixed Acid-Base: Example 6
 Anion Gap Metabolic Acidosis (Shock)
 Metabolic Alkalosis (Vomiting)
Normal ABG does not
equal normal
patient….
Dr. Smith

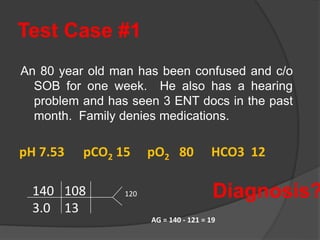

91. Test Case #1
An 80 year old man has been confused and c/o
SOB for one week. He also has a hearing
problem and has seen 3 ENT docs in the past
month. Family denies medications.
pH 7.53 pCO2 15 pO2 80 HCO3 12
140 108
3.0 13
120 Diagnosis?
AG = 140 - 121 = 19

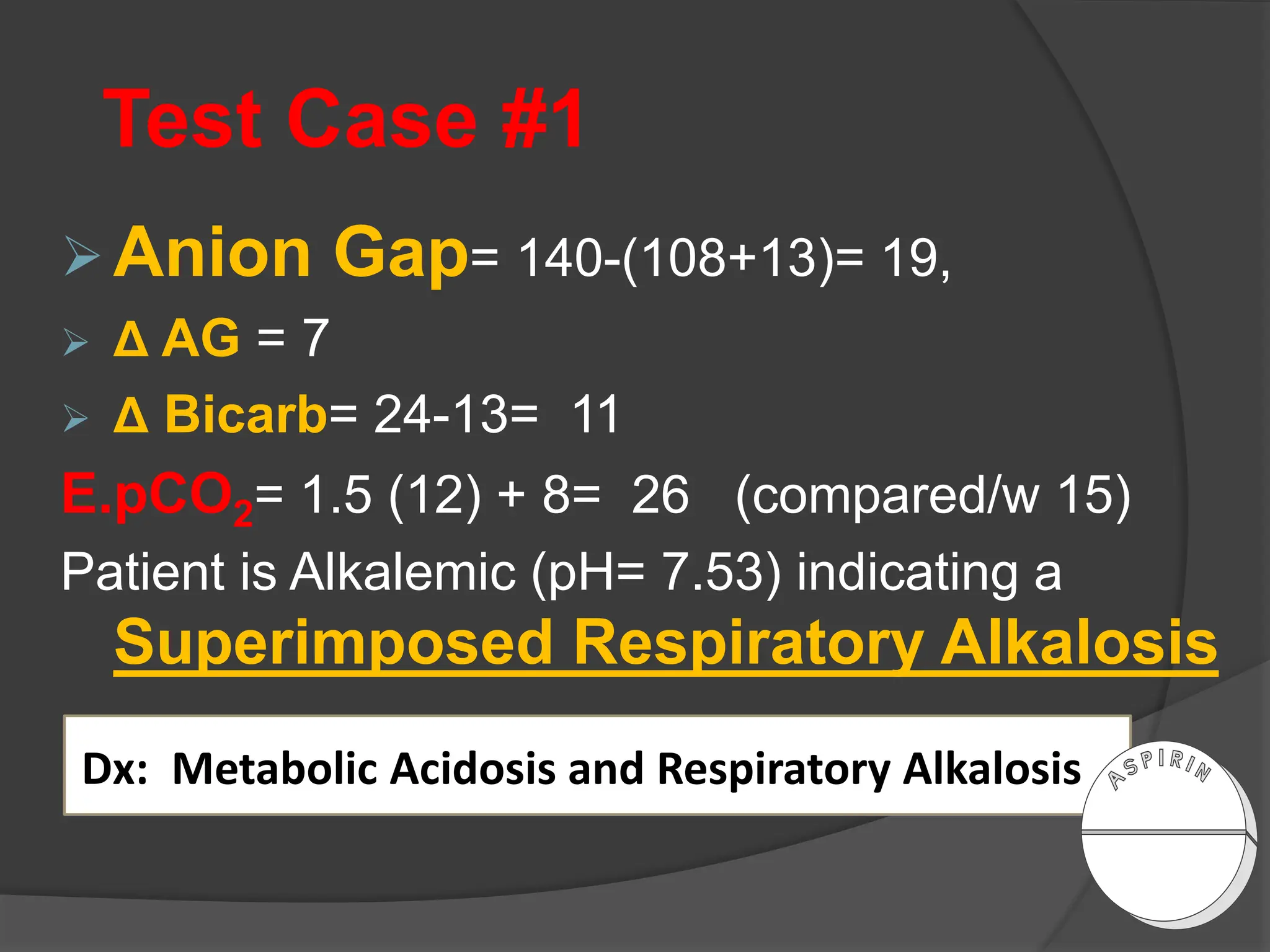

92. Test Case #1
Anion Gap= 140-(108+13)= 19,
 Δ AG = 7
 Δ Bicarb= 24-13= 11
E.pCO2= 1.5 (12) + 8= 26 (compared/w 15)
Patient is Alkalemic (pH= 7.53) indicating a
Superimposed Respiratory Alkalosis
Dx: Metabolic Acidosis and Respiratory Alkalosis

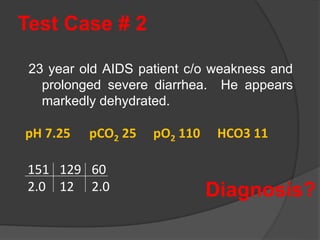

93. Test Case # 2
23 year old AIDS patient c/o weakness and
prolonged severe diarrhea. He appears
markedly dehydrated.
pH 7.25 pCO2 25 pO2 110 HCO3 11
151 129 60
2.0 12 2.0 Diagnosis?

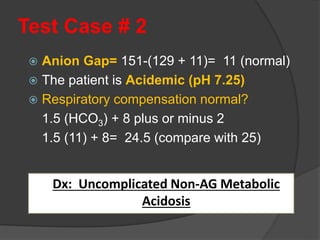

94. Test Case # 2
 Anion Gap= 151-(129 + 11)= 11 (normal)
 The patient is Acidemic (pH 7.25)
 Respiratory compensation normal?
1.5 (HCO3) + 8 plus or minus 2
1.5 (11) + 8= 24.5 (compare with 25)
Dx: Uncomplicated Non-AG Metabolic
Acidosis

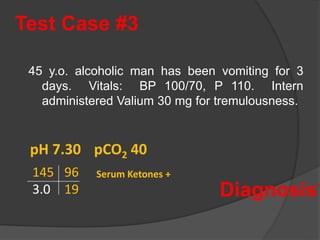

95. Test Case #3
45 y.o. alcoholic man has been vomiting for 3
days. Vitals: BP 100/70, P 110. Intern
administered Valium 30 mg for tremulousness.
pH 7.30 pCO2 40
145 96
3.0 19
Serum Ketones +
Diagnosis?

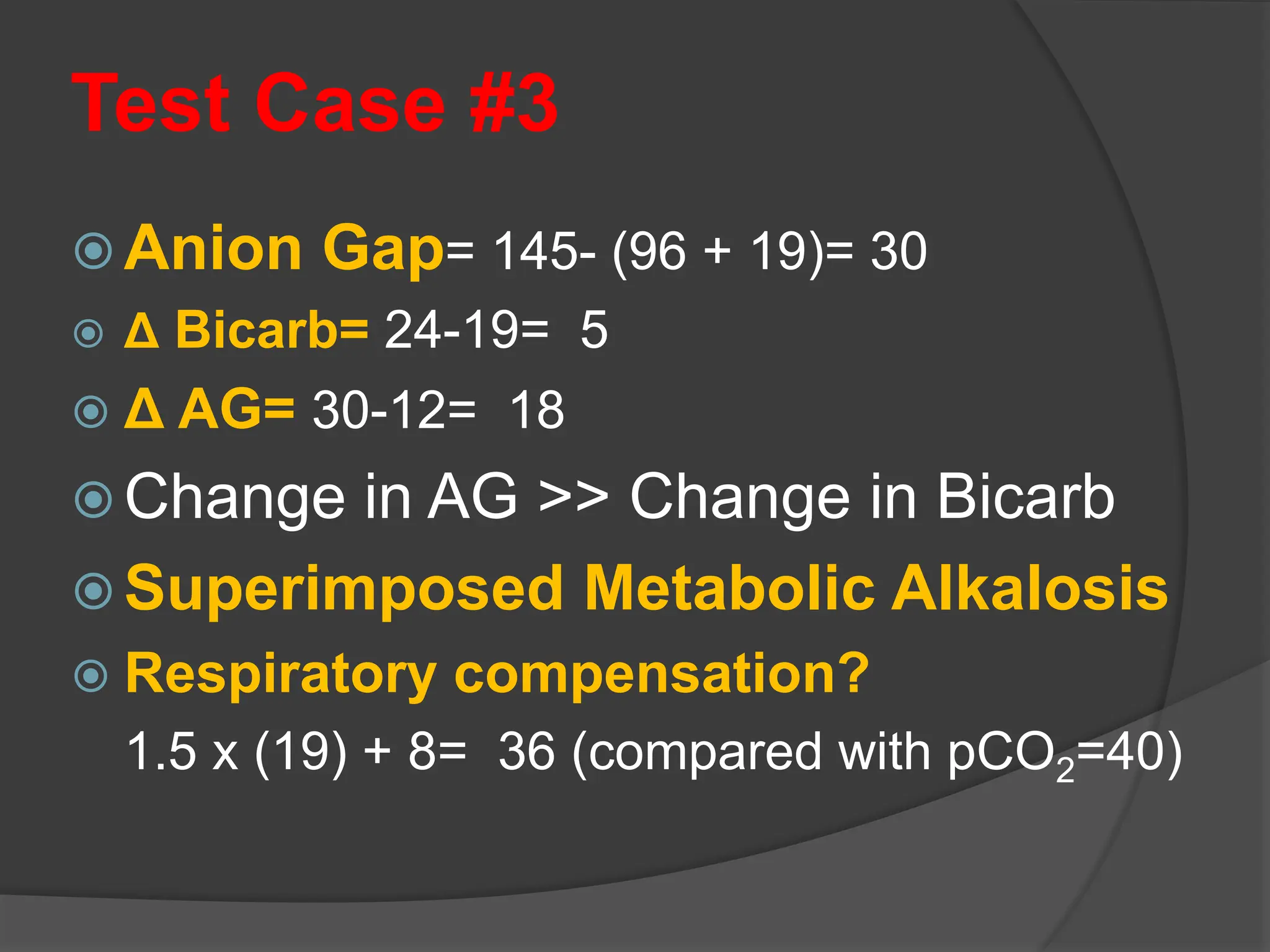

96. Test Case #3
 Anion Gap= 145- (96 + 19)= 30
 Δ Bicarb= 24-19= 5
 Δ AG= 30-12= 18
 Change in AG >> Change in Bicarb
 Superimposed Metabolic Alkalosis
 Respiratory compensation?
1.5 x (19) + 8= 36 (compared with pCO2=40)

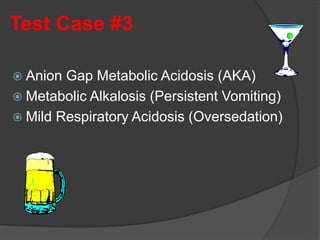

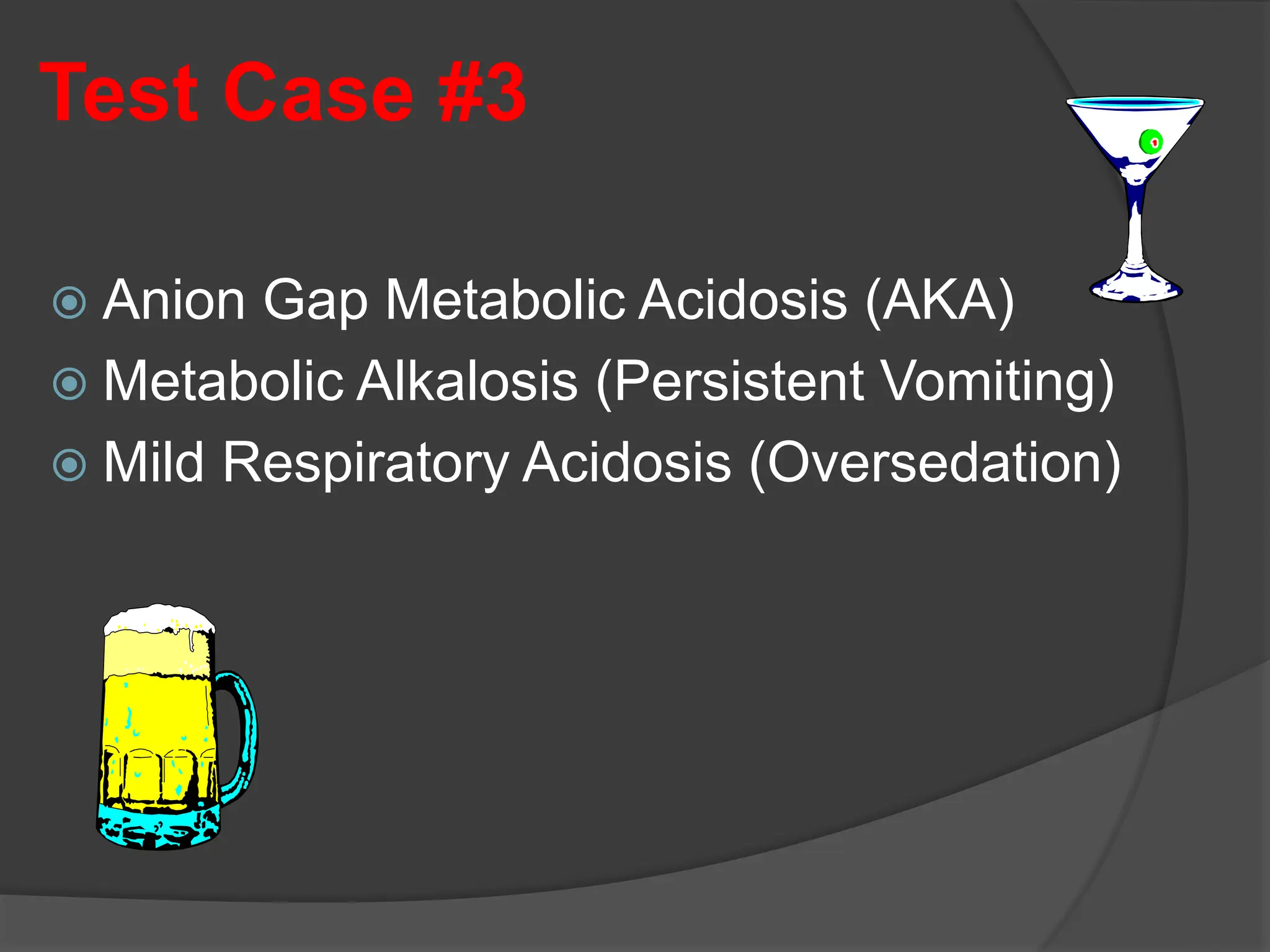

97. Test Case #3
 Anion Gap Metabolic Acidosis (AKA)
 Metabolic Alkalosis (Persistent Vomiting)
 Mild Respiratory Acidosis (Oversedation)

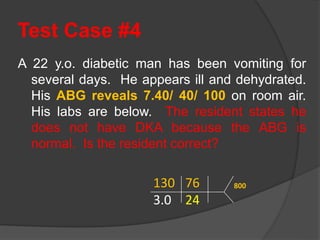

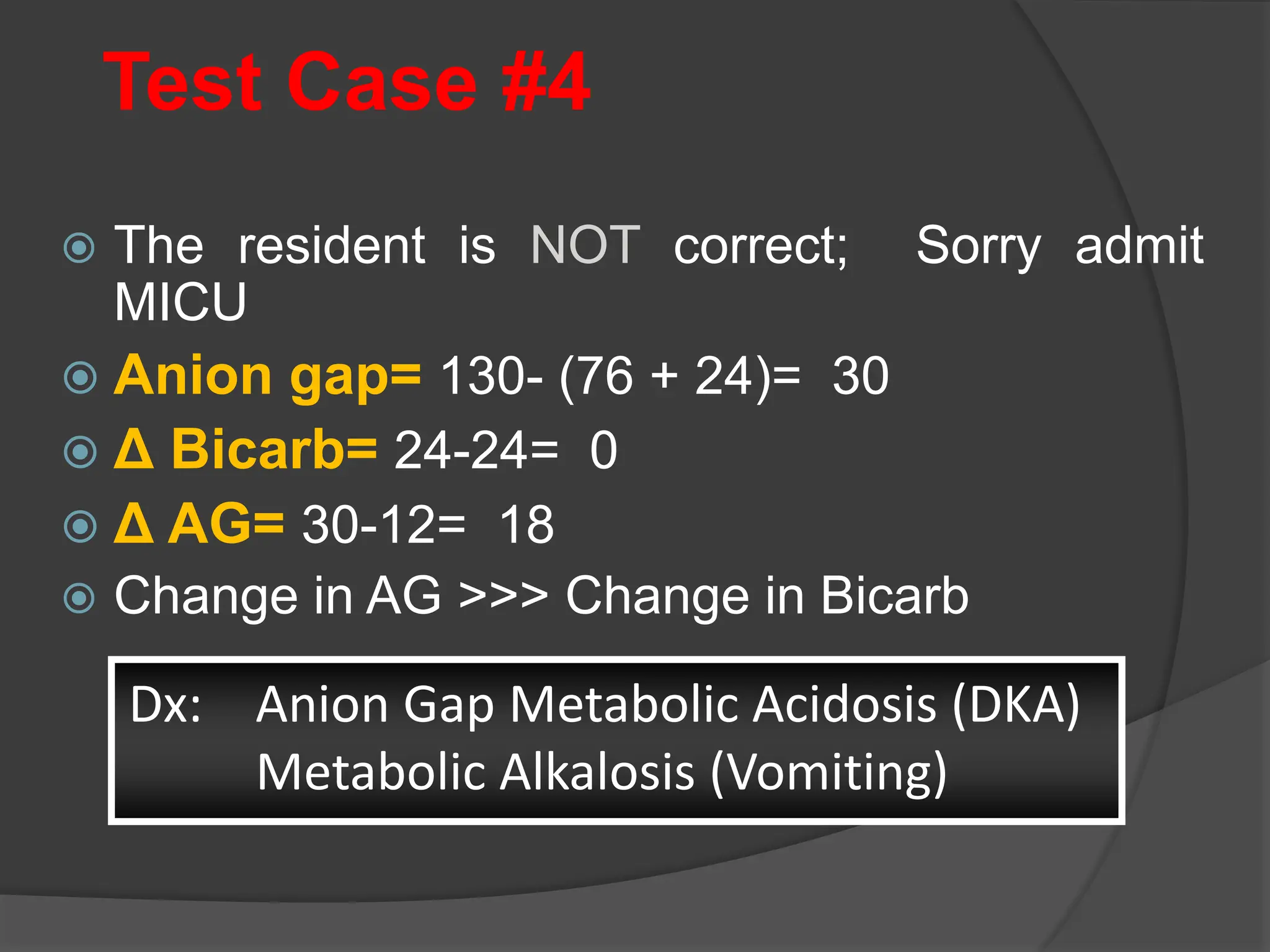

98. Test Case #4
A 22 y.o. diabetic man has been vomiting for
several days. He appears ill and dehydrated.
His ABG reveals 7.40/ 40/ 100 on room air.
His labs are below. The resident states he
does not have DKA because the ABG is
normal. Is the resident correct?
130 76
3.0 24
800

99. Test Case #4
 The resident is NOT correct; Sorry admit
MICU
 Anion gap= 130- (76 + 24)= 30
 Δ Bicarb= 24-24= 0
 Δ AG= 30-12= 18
 Change in AG >>> Change in Bicarb
Dx: Anion Gap Metabolic Acidosis (DKA)
Metabolic Alkalosis (Vomiting)

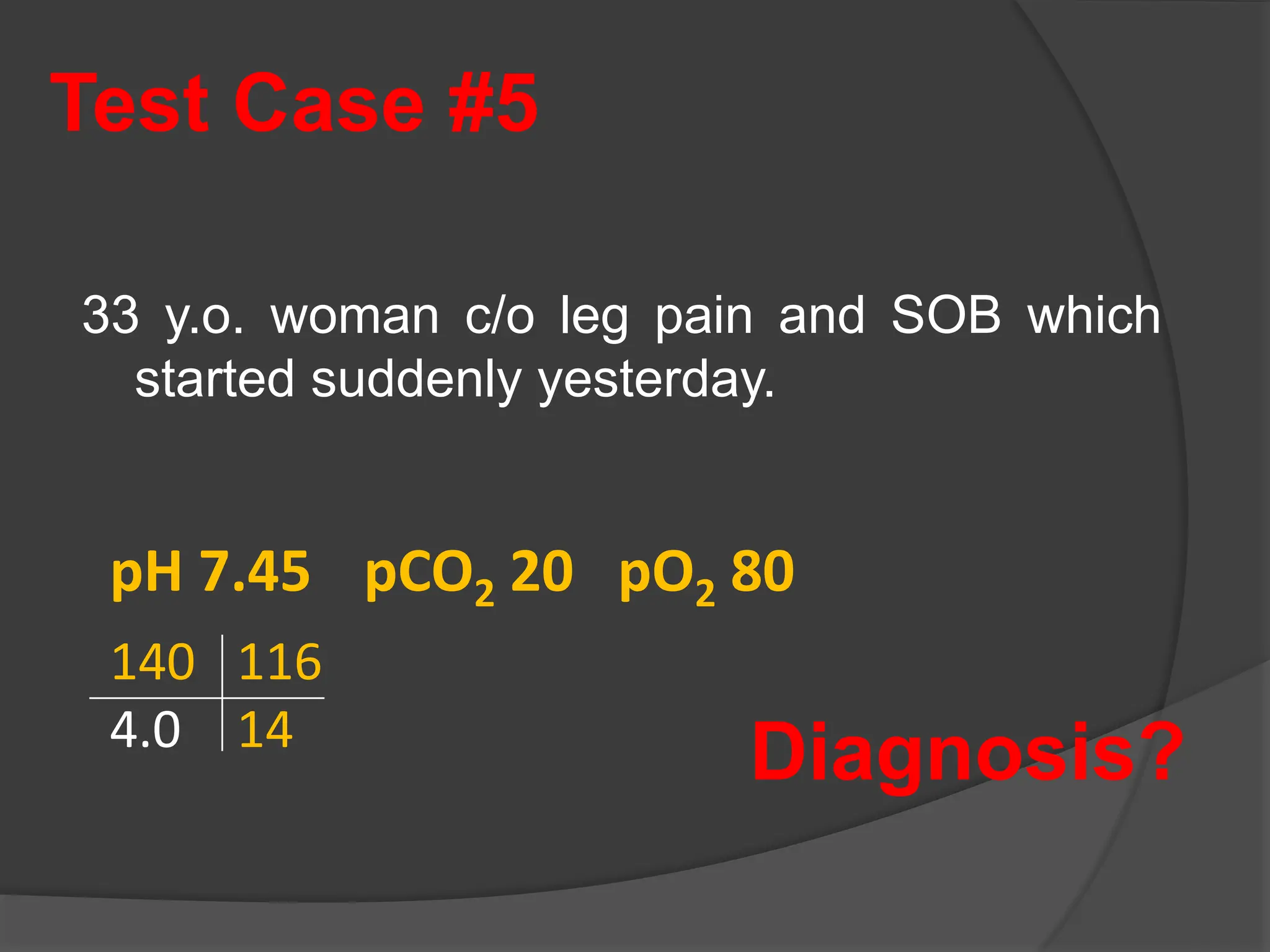

100. Test Case #5
33 y.o. woman c/o leg pain and SOB which
started suddenly yesterday.
pH 7.45 pCO2 20 pO2 80
140 116
4.0 14
Diagnosis?

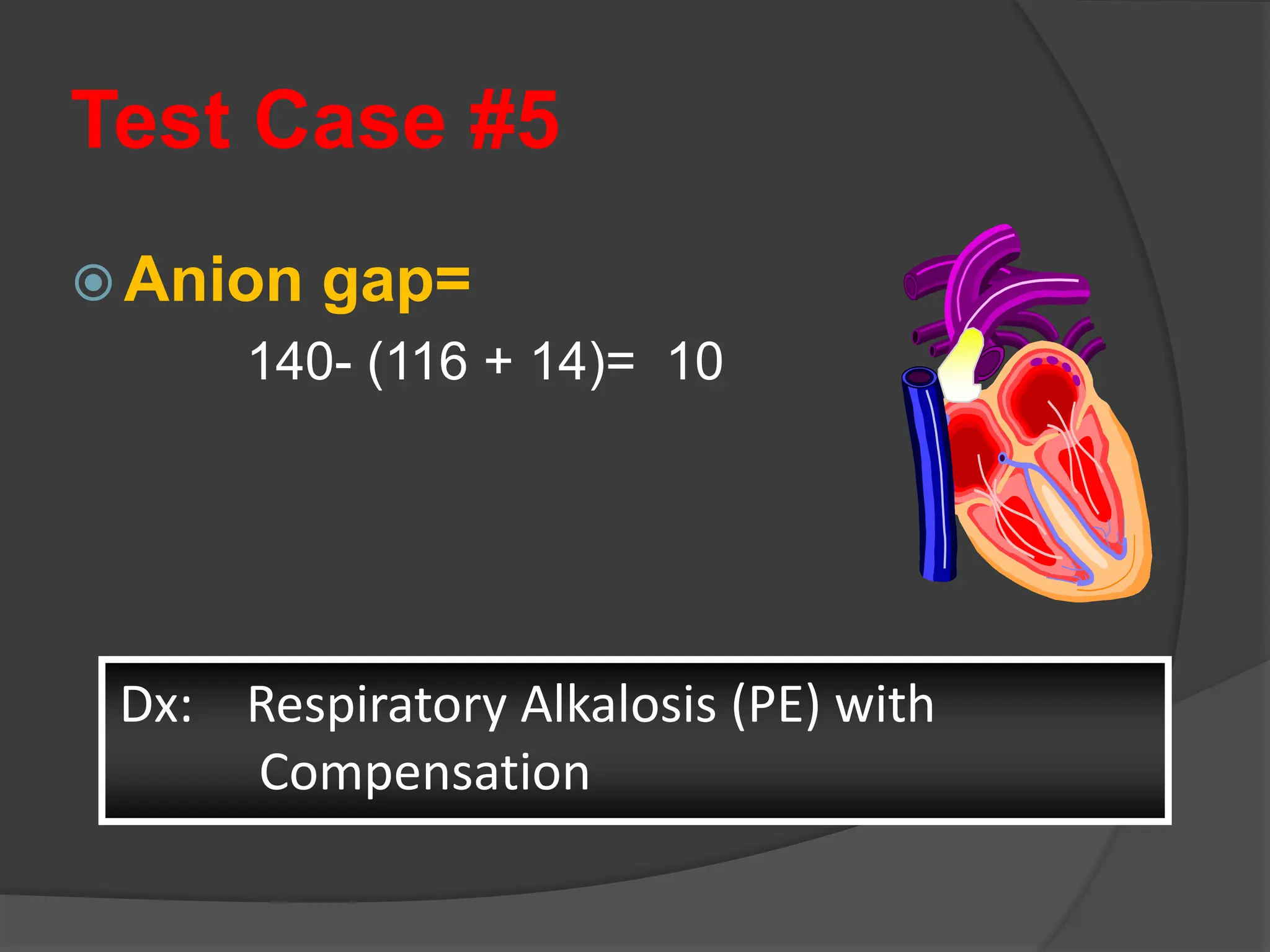

101. Test Case #5
 Anion gap=
140- (116 + 14)= 10
Dx: Respiratory Alkalosis (PE) with
Compensation

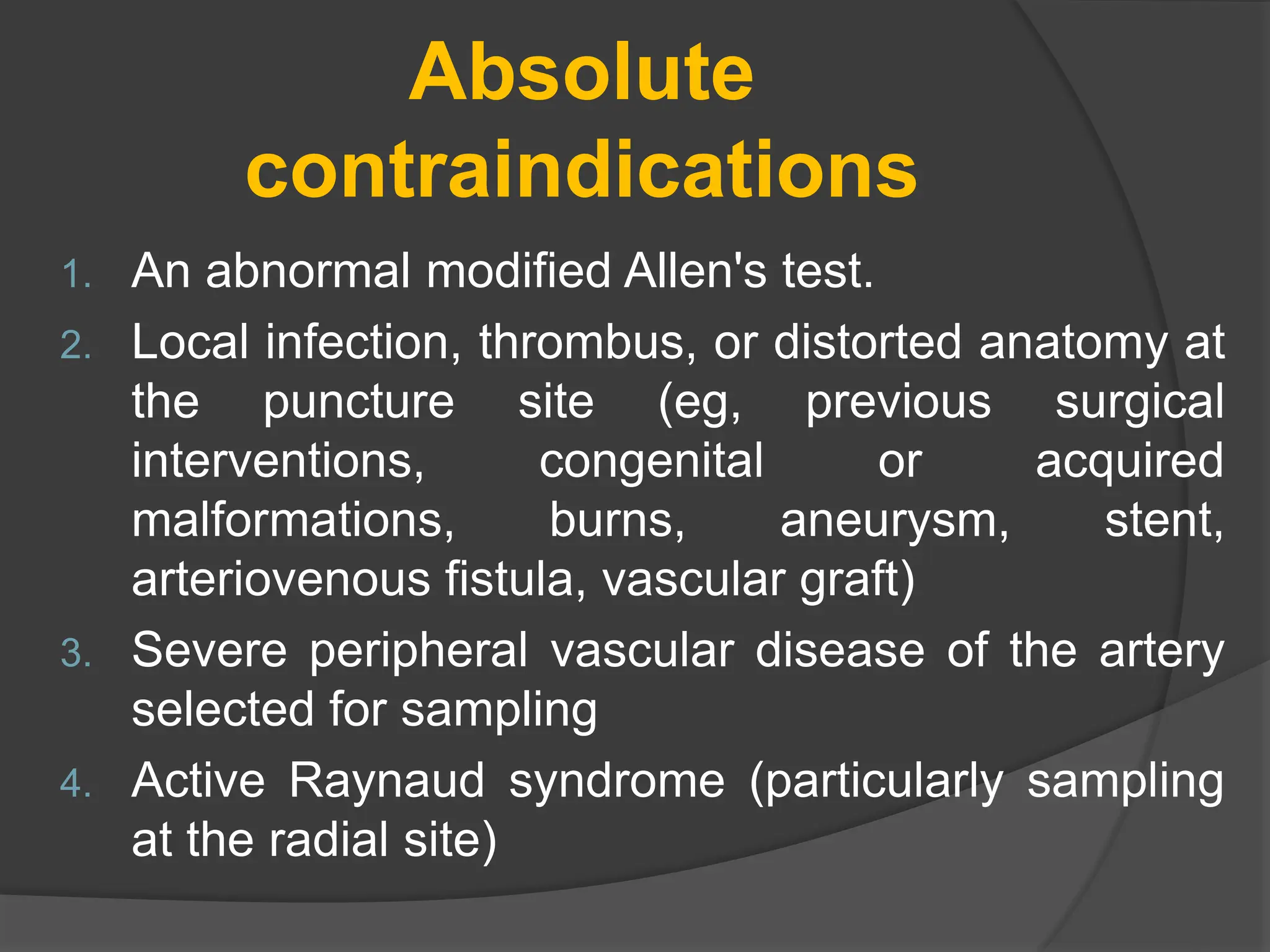

102. Absolute
contraindications
1. An abnormal modified Allen's test.
2. Local infection, thrombus, or distorted anatomy at
the puncture site (eg, previous surgical
interventions, congenital or acquired
malformations, burns, aneurysm, stent,
arteriovenous fistula, vascular graft)
3. Severe peripheral vascular disease of the artery
selected for sampling
4. Active Raynaud syndrome (particularly sampling
at the radial site)

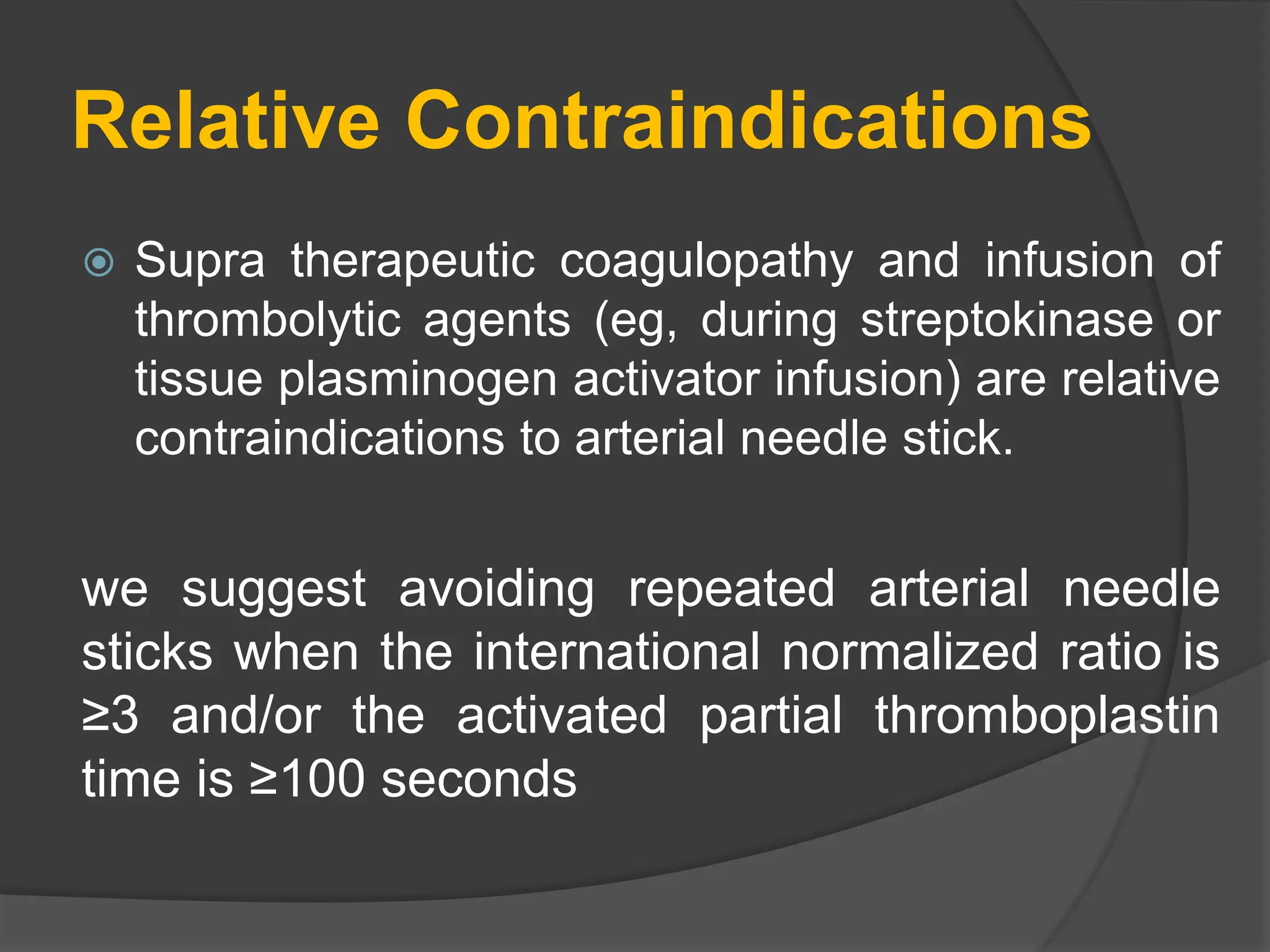

103. Relative Contraindications
 Supra therapeutic coagulopathy and infusion of
thrombolytic agents (eg, during streptokinase or
tissue plasminogen activator infusion) are relative
contraindications to arterial needle stick.
we suggest avoiding repeated arterial needle
sticks when the international normalized ratio is
≥3 and/or the activated partial thromboplastin
time is ≥100 seconds

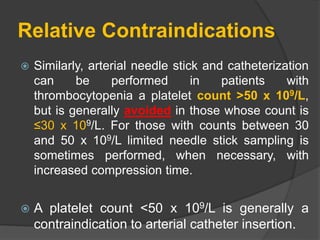

104. Relative Contraindications
 Similarly, arterial needle stick and catheterization
can be performed in patients with
thrombocytopenia a platelet count >50 x 109/L,
but is generally avoided in those whose count is
≤30 x 109/L. For those with counts between 30
and 50 x 109/L limited needle stick sampling is
sometimes performed, when necessary, with
increased compression time.
 A platelet count <50 x 109/L is generally a
contraindication to arterial catheter insertion.

105. How are ABG done?
 Site: Radial artery (Brachial, femoral arteries)
 non-dominant hand / good Ulnar artery blood flow/ adequate
pressure following sampling.
 Positioning of wrist: hyperextended + good support
under wrist.
 Syringe & Needles: low resistance / heparinized /
small/ blood “pulse” /  Arterial cannula.
 Lignocaine 1% ? Repeated sampling / pain induced
hyperventilation.
 Complications: Pain, hematoma, air/blood emboli,
infection, vascular trauma/occlusion, arterial spasm.

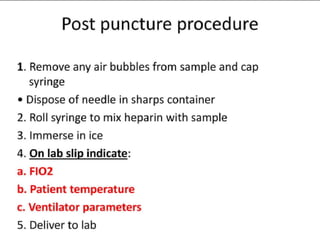

107. Delayed Analysis
Consumption of O2 & Production of CO2
continues after blood drawn.
 Iced Sample maintains values for 1-2 hours.
 Uniced sample quickly becomes invalid within 15
-20 minutes.
 PaCO2  3-10 mmHg/hour.
 Pao2 
 pH  d/t lactic acidosis generated by glycolysis
in R.B.C.

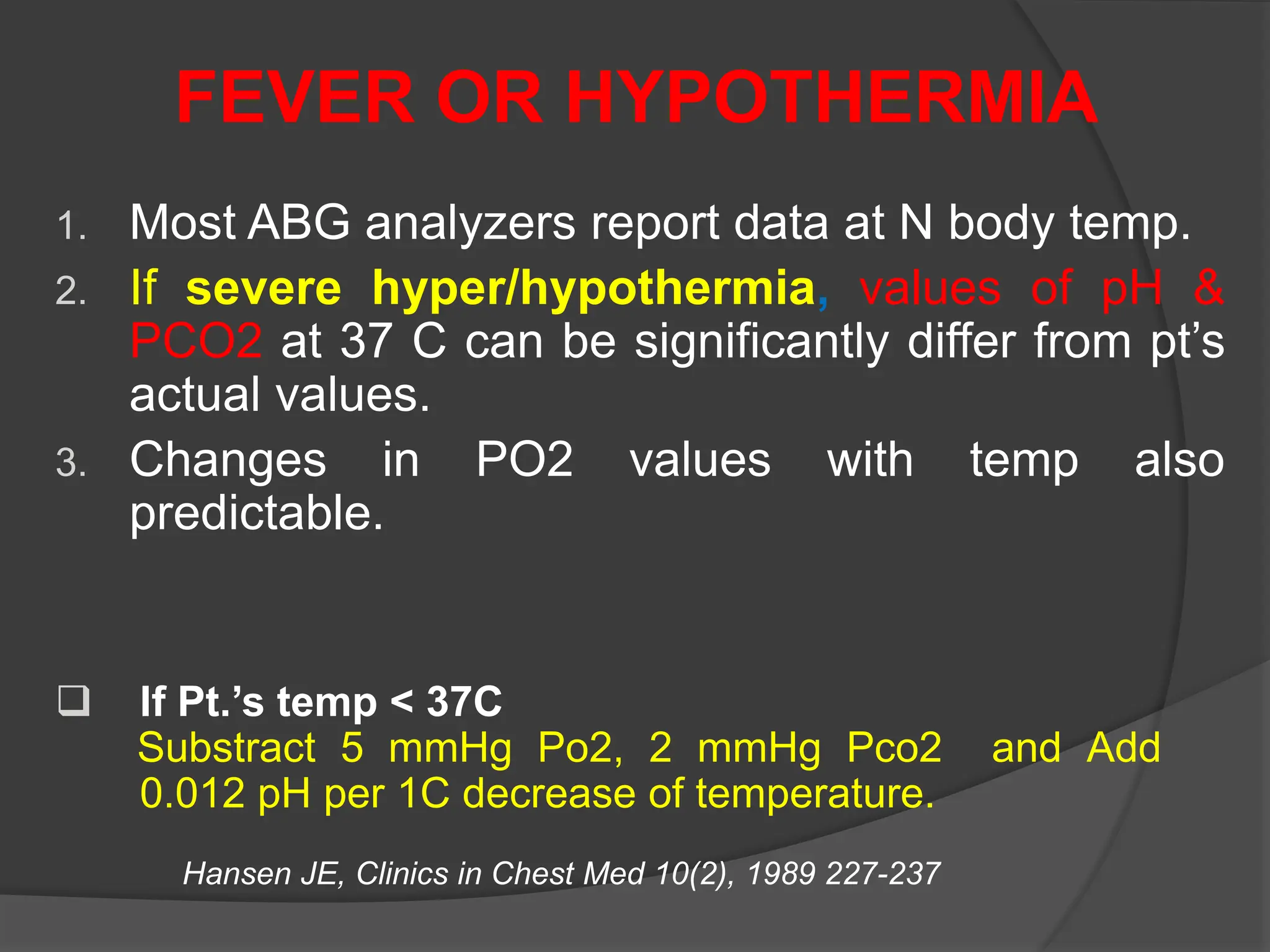

108. FEVER OR HYPOTHERMIA
1. Most ABG analyzers report data at N body temp.
2. If severe hyper/hypothermia, values of pH &
PCO2 at 37 C can be significantly differ from pt’s
actual values.
3. Changes in PO2 values with temp also
predictable.
Hansen JE, Clinics in Chest Med 10(2), 1989 227-237
 If Pt.’s temp < 37C
Substract 5 mmHg Po2, 2 mmHg Pco2 and Add
0.012 pH per 1C decrease of temperature.

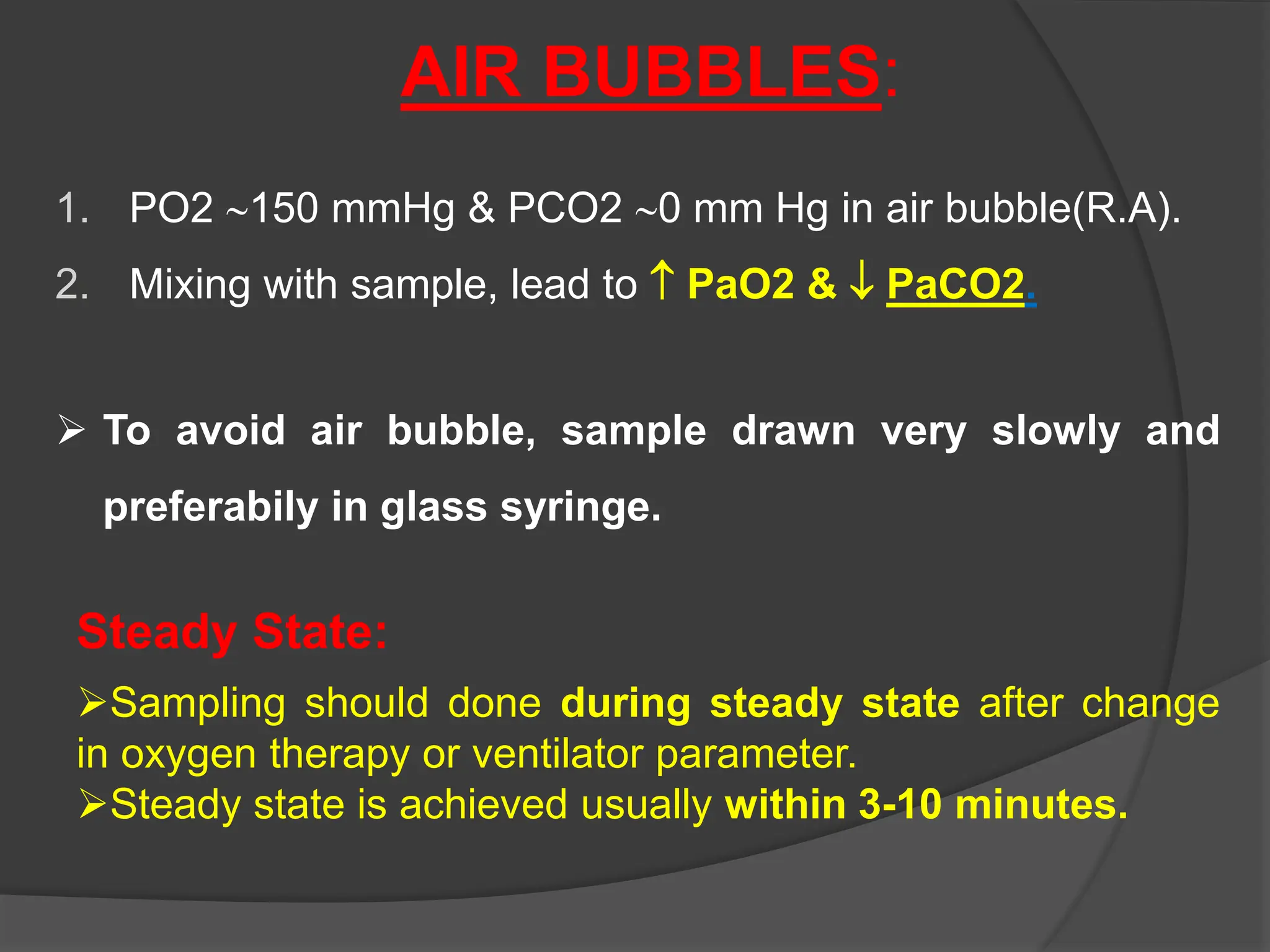

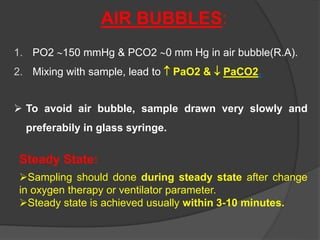

109. AIR BUBBLES:
1. PO2 150 mmHg & PCO2 0 mm Hg in air bubble(R.A).
2. Mixing with sample, lead to  PaO2 &  PaCO2.
 To avoid air bubble, sample drawn very slowly and
preferabily in glass syringe.
Steady State:
Sampling should done during steady state after change
in oxygen therapy or ventilator parameter.
Steady state is achieved usually within 3-10 minutes.

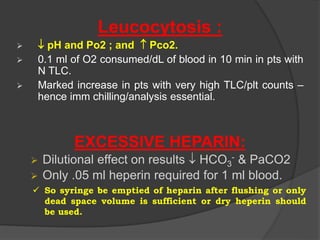

110. Leucocytosis :
  pH and Po2 ; and  Pco2.
 0.1 ml of O2 consumed/dL of blood in 10 min in pts with
N TLC.
 Marked increase in pts with very high TLC/plt counts –
hence imm chilling/analysis essential.
EXCESSIVE HEPARIN:
 Dilutional effect on results  HCO3
- & PaCO2
 Only .05 ml heperin required for 1 ml blood.
 So syringe be emptied of heparin after flushing or only
dead space volume is sufficient or dry heperin should
be used.

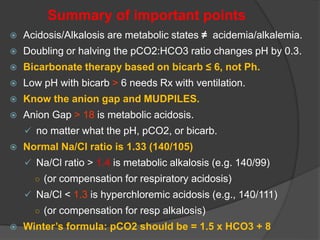

111. Summary of important points
 Acidosis/Alkalosis are metabolic states ≠ acidemia/alkalemia.
 Doubling or halving the pCO2:HCO3 ratio changes pH by 0.3.
 Bicarbonate therapy based on bicarb ≤ 6, not Ph.
 Low pH with bicarb > 6 needs Rx with ventilation.
 Know the anion gap and MUDPILES.
 Anion Gap > 18 is metabolic acidosis.
 no matter what the pH, pCO2, or bicarb.
 Normal Na/Cl ratio is 1.33 (140/105)
 Na/Cl ratio > 1.4 is metabolic alkalosis (e.g. 140/99)
○ (or compensation for respiratory acidosis)
 Na/Cl < 1.3 is hyperchloremic acidosis (e.g., 140/111)
○ (or compensation for resp alkalosis)
 Winter’s formula: pCO2 should be = 1.5 x HCO3 + 8

112. “Understanding ABG is not
magic but an art learned by
continued practice”
