1. Accelerate Performance
Achieving Superior Energy Performance
through Performance-based
Procurement

2. Adam McMillen
Director of Energy Consulting
Seventhwave
Agenda
Why performance based procurement
Industry momentum
How project support and energy
analysis is different (and more highly
valued)
How proposals are evaluated Jennifer Scheib
Research Engineer
NREL

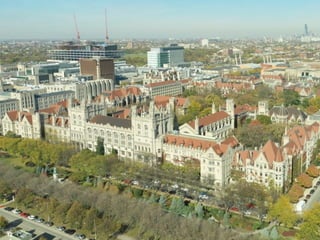

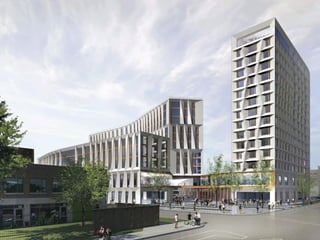

3. Photos courtesy of University of Chicago
12

4. Creating a better contract
Simplicity Results Value Alignment

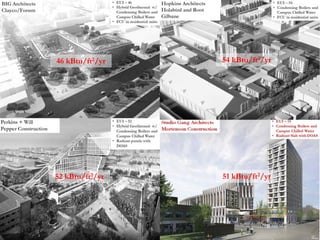

10. 46 kBtu/ft2/yr
52 kBtu/ft2/yr
54 kBtu/ft2/yr
51 kBtu/ft2/yr

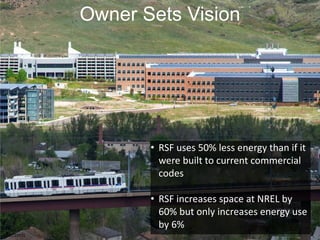

11. • RSF uses 50% less energy than if it
were built to current commercial
codes
• RSF increases space at NREL by
60% but only increases energy use
by 6%
NREL/25931
Owner Sets Vision

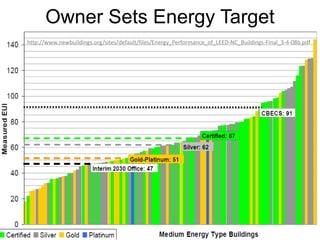

12. http://www.newbuildings.org/sites/default/files/Energy_Performance_of_LEED-NC_Buildings-Final_3-4-08b.pdf
Owner Sets Energy Target

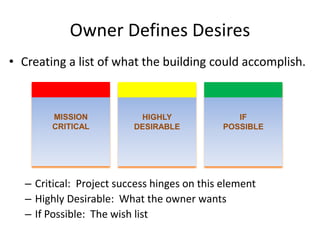

13. • Creating a list of what the building could accomplish.
– Critical: Project success hinges on this element
– Highly Desirable: What the owner wants
– If Possible: The wish list
HIGHLY
DESIRABLE
MISSION
CRITICAL
IF
POSSIBLE
HIGHLY
DESIRABLE
IF
POSSIBLE
Owner Defines Desires

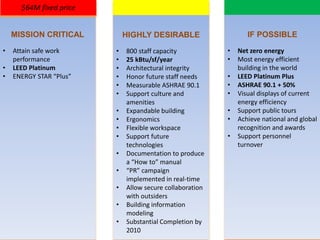

14. • Attain safe work
performance
• LEED Platinum
• ENERGY STAR “Plus”
$64M fixed price HIGHLY
DESIRABLE
MISSION CRITICAL
IF
POSSIBLE
• 800 staff capacity
• 25 kBtu/sf/year
• Architectural integrity
• Honor future staff needs
• Measurable ASHRAE 90.1
• Support culture and
amenities
• Expandable building
• Ergonomics
• Flexible workspace
• Support future
technologies
• Documentation to produce
a “How to” manual
• “PR” campaign
implemented in real-time
• Allow secure collaboration
with outsiders
• Building information
modeling
• Substantial Completion by
2010
HIGHLY DESIRABLE
• Net zero energy
• Most energy efficient
building in the world
• LEED Platinum Plus
• ASHRAE 90.1 + 50%
• Visual displays of current
energy efficiency
• Support public tours
• Achieve national and global
recognition and awards
• Support personnel
turnover
IF POSSIBLE

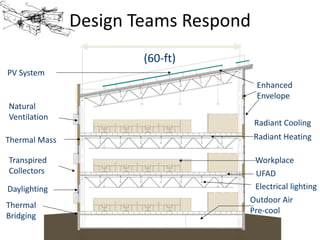

15. PV System
Natural
Ventilation
Thermal Mass
UFAD
Outdoor Air
Pre-cool
Transpired
Collectors
Radiant Cooling
Radiant Heating
Workplace
Daylighting
(60-ft)
Enhanced
Envelope
Thermal
Bridging
Electrical lighting
Design Teams Respond

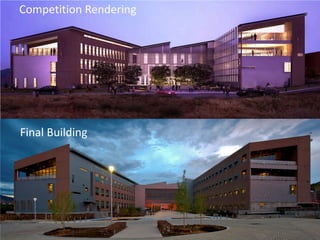

16. Competition Rendering
Final Building

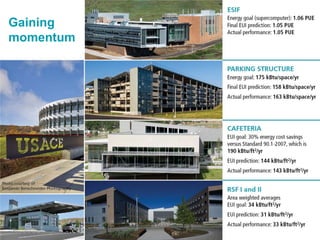

17. Gaining
momentum

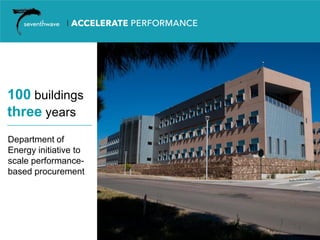

18. Department of
Energy initiative to
scale performance-
based procurement
100 buildings
three years

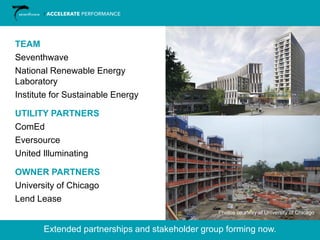

19. Extended partnerships and stakeholder group forming now.
TEAM
Seventhwave
National Renewable Energy
Laboratory
Institute for Sustainable Energy
UTILITY PARTNERS
ComEd
Eversource
United Illuminating
OWNER PARTNERS
University of Chicago
Lend Lease
Photos courtesy of University of Chicago

21. Photos courtesy of University of Chicago

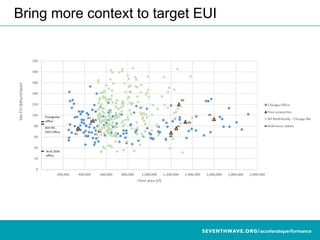

Bring more context to target EUI

22. Photos courtesy of University of Chicago

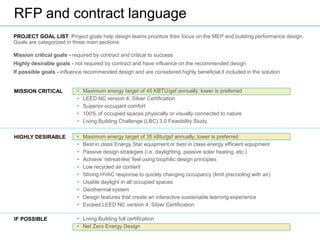

RFP and contract language
PROJECT GOAL LIST: Project goals help design teams prioritize their focus on the MEP and building performance design.
Goals are categorized in three main sections:
Mission critical goals - required by contract and critical to success
Highly desirable goals - not required by contract and have influence on the recommended design
If possible goals - influence recommended design and are considered highly beneficial if included in the solution
• Maximum energy target of 45 KBTU/gsf annually; lower is preferred
• LEED NC version 4, Silver Certification
• Superior occupant comfort
• 100% of occupied spaces physically or visually connected to nature
• Living Building Challenge (LBC) 3.0 Feasibility Study
MISSION CRITICAL
HIGHLY DESIRABLE
IF POSSIBLE • Living Building full certification
• Net Zero Energy Design
• Maximum energy target of 35 kBtu/gsf annually; lower is preferred
• Best in class Energy Star equipment or best in class energy efficient equipment
• Passive design strategies (i.e. daylighting, passive solar heating, etc.)
• Achieve ‘retreat-like’ feel using biophilic design principles
• Low recycled air content
• Strong HVAC response to quickly changing occupancy (limit precooling with air)
• Usable daylight in all occupied spaces
• Geothermal system
• Design features that create an interactive sustainable learning experience
• Exceed LEED NC version 4, Silver Certification

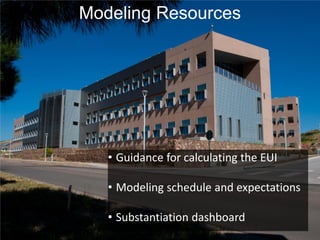

23. • Guidance for calculating the EUI
• Modeling schedule and expectations
• Substantiation dashboard
NREL/17833
Modeling Resources

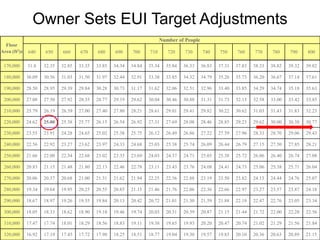

24. Owner Sets EUI Target Adjustments
Floor
Area (ft2)z
Number of People
640 650 660 670 680 690 700 710 720 730 740 750 760 770 780 790 800
170,000 31.8 32.35 32.85 33.35 33.85 34.34 34.84 35.34 35.84 36.33 36.83 37.33 37.83 38.33 38.82 39.32 39.82
180,000 30.09 30.56 31.03 31.50 31.97 32.44 32.91 33.38 33.85 34.32 34.79 35.26 35.73 36.20 36.67 37.14 37.61
190,000 28.50 28.95 29.39 29.84 30.28 30.73 31.17 31.62 32.06 32.51 32.96 33.40 33.85 34.29 34.74 35.18 35.63
200,000 27.08 27.50 27.92 28.35 28.77 29.19 29.62 30.04 30.46 30.88 31.31 31.73 32.15 32.58 33.00 33.42 33.85
210,000 25.79 26.19 26.59 27.00 27.40 27.80 28.21 28.61 29.01 29.41 29.82 30.22 30.62 31.03 31.43 31.83 32.23
220,000 24.62 25.00 25.38 25.77 26.15 26.54 26.92 27.31 27.69 28.08 28.46 28.85 29.23 29.62 30.00 30.38 30.77
230,000 23.55 23.91 24.28 24.65 25.02 25.38 25.75 26.12 26.49 26.86 27.22 27.59 27.96 28.33 28.70 29.06 29.43
240,000 22.56 22.92 23.27 23.62 23.97 24.33 24.68 25.03 25.38 25.74 26.09 26.44 26.79 27.15 27.50 27.85 28.21
250,000 21.66 22.00 22.34 22.68 23.02 23.35 23.69 24.03 24.37 24.71 25.05 25.38 25.72 26.06 26.40 26.74 27.08
260,000 20.83 21.15 21.48 21.80 22.13 22.46 22.78 23.11 23.43 23.76 24.08 24.41 24.73 25.06 25.38 25.71 26.04
270,000 20.06 20.37 20.68 21.00 21.31 21.62 21.94 22.25 22.56 22.88 23.19 23.50 23.82 24.13 24.44 24.76 25.07
280,000 19.34 19.64 19.95 20.25 20.55 20.85 21.15 21.46 21.76 22.06 22.36 22.66 22.97 23.27 23.57 23.87 24.18
290,000 18.67 18.97 19.26 19.55 19.84 20.13 20.42 20.72 21.01 21.30 21.59 21.88 22.18 22.47 22.76 23.05 23.34
300,000 18.05 18.33 18.62 18.90 19.18 19.46 19.74 20.03 20.31 20.59 20.87 21.15 21.44 21.72 22.00 22.28 22.56
310,000 17.47 17.74 18.01 18.29 18.56 18.83 19.11 19.38 19.65 19.93 20.20 20.47 20.74 21.02 21.29 21.56 21.84
320,000 16.92 17.19 17.45 17.72 17.98 18.25 18.51 18.77 19.04 19.30 19.57 19.83 20.10 20.36 20.63 20.89 21.15

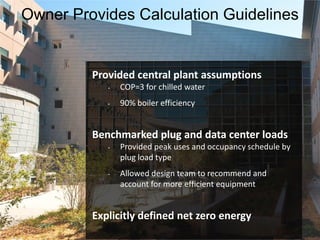

25. Owner Provides Calculation Guidelines
Provided central plant assumptions
• COP=3 for chilled water
• 90% boiler efficiency
Benchmarked plug and data center loads
• Provided peak uses and occupancy schedule by
plug load type
• Allowed design team to recommend and
account for more efficient equipment
Explicitly defined net zero energy

26. 46 kBtu/ft2/yr
52 kBtu/ft2/yr
54 kBtu/ft2/yr
51 kBtu/ft2/yr

27. How do the models look?
0.0
5.0
10.0
15.0
20.0
25.0
Lights Misc space heating space cooling heat reject pumps vent fans DhW
ModeledEUIbyenduse
Team Comparison - Energy by End Use
ECWv1 ECWv2 Team Av1 Team Av2 Team B Team C Team D

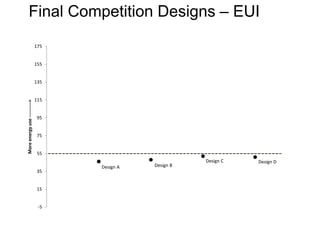

28. Design A Design B
Design C Design D
-5
15
35
55
75
95
115
135
155
175
Moreenergyuse---------->
Final Competition Designs – EUI

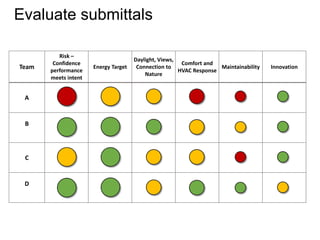

29. Evaluate submittals
Team
Risk –
Confidence
performance
meets intent
Energy Target
Daylight, Views,
Connection to
Nature
Comfort and
HVAC Response
Maintainability Innovation
A
B
C
D

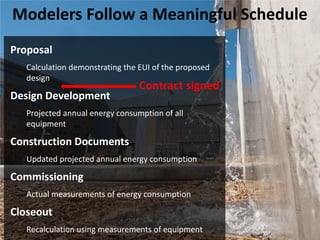

30. Modelers Follow a Meaningful Schedule
Proposal
Calculation demonstrating the EUI of the proposed
design
Design Development
Projected annual energy consumption of all
equipment
Construction Documents
Updated projected annual energy consumption
Commissioning
Actual measurements of energy consumption
Closeout
Recalculation using measurements of equipment
Contract signed

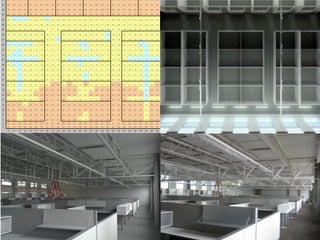

31. 5 4 4 4 5 1 4 8 3 7 4 1 4 6 5 1 5 2 4 4 4 7 5 1 5 4 5 5 4 8 4 7 4 9 5 4 5 2 3 9 4 3 4 6 5 2 4 9 4 0 4 8 5 0 5 3 5 2
5 2 3 9 4 2 4 0 3 3 3 7 3 9 4 4 4 4 3 6 3 9 4 2 4 4 4 5 3 9 4 0 4 2 4 5 4 3 3 4 3 9 4 1 4 3 4 2 3 3 4 1 4 3 4 7 4 4
5 0 3 3 3 5 3 4 3 1 3 2 3 5 3 6 3 5 3 2 3 4 3 6 3 9 3 8 3 0 3 5 3 6 3 7 3 8 3 0 3 0 3 5 3 7 3 6 3 2 3 4 3 6 4 0 3 9
4 8 2 9 3 3 3 3 3 0 2 8 3 0 3 4 3 5 3 2 2 8 3 1 3 6 3 6 3 2 2 6 3 0 3 6 3 5 3 2 2 8 2 9 3 5 3 4 3 1 2 8 3 1 3 5 3 6
4 6 2 2 1 2 1 1 1 1 2 1 2 2 1 3 1 2 1 3 2 3 2 4 1 3 1 4 1 3 2 1 2 3 1 4 1 3 1 3 2 3 2 3 1 4 1 4 1 3 2 2 2 4 1 4 1 4
4 4 1 9 1 5 1 6 1 8 2 1 1 9 1 6 1 6 1 9 2 2 2 0 1 7 1 8 1 9 2 2 1 9 1 8 1 7 1 9 2 0 2 0 1 7 1 7 1 9 2 3 2 2 1 9 1 8
4 2 1 6 1 7 1 6 1 6 1 8 1 6 1 7 1 7 1 7 2 0 1 8 2 0 1 9 1 9 2 1 1 9 1 8 1 9 1 8 2 1 1 8 1 9 1 9 1 9 2 1 1 9 2 1 1 9
4 0 1 5 1 5 1 5 1 6 1 8 1 5 1 6 1 6 1 7 1 3 1 8 1 7 1 9 1 6 1 8 1 8 1 8 1 7 1 2 1 9 1 6 1 6 1 7 1 9 2 1 1 8 1 9 1 9
3 8 2 0 1 6 1 7 1 8 1 9 1 9 1 5 1 4 1 7 1 2 1 4 1 9 2 0 2 0 2 2 1 7 1 5 1 5 1 2 1 9 1 6 1 5 1 8 2 2 2 0 1 7 1 8 2 3
3 6 1 2 1 1 6 1 1 1 2 1 3 1 3 1 6 1 7 1 7 1 4 1 4 1 3 1 0 9 1 3 1 4 1 4 1 7 1 6 1 5 1 5 1 4 1 4 1 2 7 1 3 1 4
3 4 1 6 1 4 9 1 3 1 6 1 6 1 7 1 7 1 7 1 7 1 7 1 7 1 8 1 5 1 1 1 6 1 8 1 7 1 8 1 7 1 7 1 6 1 5 1 7 1 6 9 1 8 1 9
3 2 1 3 1 2 1 2 1 4 1 4 1 4 1 8 1 7 1 7 1 7 1 8 1 6 1 7 1 5 1 4 1 6 1 6 1 6 1 7 1 7 1 8 1 7 1 6 1 6 1 5 7 1 4 1 9
3 0 4 4 4 8 3 4 1 7 1 7 1 7 1 8 1 8 4 4 5 4 4 5 1 6 1 8 1 8 1 8 1 7 4 6 7 5 4 6
2 8 1 3 1 2 1 1 1 3 1 4 1 5 1 9 1 7 1 8 1 8 1 7 1 5 1 4 1 2 1 3 1 4 1 5 1 9 1 9 1 9 1 8 1 8 1 6 1 5 1 4 9 1 6 1 6
2 6 1 5 1 4 1 1 1 5 1 6 1 7 1 8 1 9 1 9 2 1 1 9 1 8 1 8 1 4 1 4 1 7 1 7 2 0 2 1 2 0 1 9 1 9 1 9 1 9 1 7 1 0 1 9 2 0
2 4 1 7 1 5 8 1 5 1 7 1 8 1 9 2 1 2 2 2 2 2 1 2 0 1 8 1 5 1 2 1 9 1 9 2 1 2 2 2 2 2 2 2 2 2 1 2 1 1 7 9 2 1 2 1
2 2 1 4 1 6 7 1 6 1 6 2 0 1 7 2 0 2 3 1 9 1 8 1 8 1 6 1 3 1 2 1 6 2 2 2 0 1 8 2 4 2 2 1 9 2 1 1 7 1 5 7 2 1 1 9
2 0 2 1 1 9 1 0 2 1 2 2 2 1 2 3 2 5 2 5 2 6 2 4 2 5 2 4 1 8 4 2 2 3 2 4 2 3 2 3 2 5 2 5 2 5 2 5 2 3 2 2 1 2 2 5 2 5
1 8 2 2 2 2 1 1 1 9 2 3 2 4 2 7 2 7 2 7 2 8 2 7 2 7 2 6 2 1 1 7 2 5 2 5 2 6 2 5 2 7 2 8 2 6 2 7 2 7 2 3 1 1 2 5 2 7
1 6 2 6 2 4 2 2 2 4 2 5 2 7 2 9 3 0 2 8 2 9 3 0 2 9 2 7 2 4 2 5 2 6 2 8 2 9 2 8 2 9 2 9 2 9 2 8 2 7 2 7 1 2 2 8 3 0
1 4 1 7 1 5 1 5 2 0 1 9 1 7 3 1 3 2 3 1 3 2 3 0 1 7 1 9 1 8 1 7 1 7 2 0 2 9 2 9 3 0 3 1 3 1 2 0 1 8 1 8 9 2 1 1 8
1 2 3 0 2 7 2 7 2 4 2 9 3 1 3 5 3 4 3 5 3 7 3 5 3 2 2 8 3 0 2 7 2 7 3 1 3 5 3 5 3 3 3 3 3 6 3 2 3 1 2 7 1 4 2 9 3 1
1 0 3 4 3 0 2 8 2 9 3 5 3 6 3 6 3 5 3 8 3 8 3 7 4 1 3 8 3 1 3 0 3 3 3 7 3 2 3 2 3 8 3 7 3 6 3 6 3 6 3 5 2 1 3 5 3 9
8 3 4 3 2 1 5 2 6 3 4 3 4 3 5 3 5 4 1 4 4 4 2 3 6 3 7 2 7 1 8 3 2 3 4 3 3 3 3 3 6 3 9 3 7 3 5 3 7 3 0 1 4 3 6 4 2
6 3 2 2 9 1 7 2 9 3 1 3 2 3 1 3 9 4 9 4 4 3 4 3 4 3 6 2 3 1 7 3 0 3 0 3 1 3 5 4 7 4 4 3 3 3 1 3 3 2 9 1 3 3 5 3 7
4 5 7 5 4 5 7 5 9 5 7 5 7 5 5 5 6 5 8 5 5 5 8 5 9 5 7 5 8 5 7 5 7 5 0 5 0 5 5 5 1 5 1 5 1 4 9 5 3 6 3 5 7 5 7 5 2
2 6 2 7 5 7 9 6 8 5 6 6 2 7 5 7 8 7 1 5 8 6 1 7 3 7 9 7 0 6 0 6 0 6 9 7 6 6 7 6 2 6 0 6 6 7 6 6 9 5 7 6 6 7 5 7 8
2 4 6 8 1 0 1 2 1 4 1 6 1 8 2 0 2 2 2 4 2 6 2 8 3 0 3 2 3 4 3 6 3 8 4 0 4 2 4 4 4 6 4 8 5 0 5 2 5 4 5 6

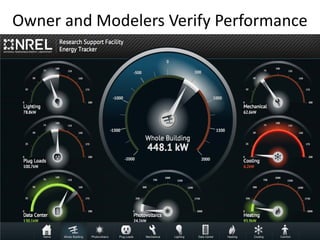

32. Owner and Modelers Verify Performance

33. • Attract early adopters
• Achievable path to scale
net zero buildings at little
to no cost premium
• Support cities, states and
owners with aggressive
energy goals
• Transform the
procurement paradigm
Accelerate Performance
A new construction initiative for superior energy performance

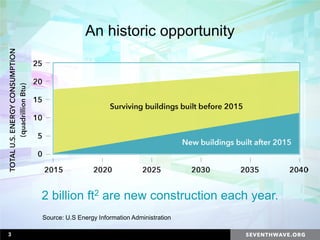

34. 2 billion ft2 are new construction each year.
An historic opportunity
Source: U.S Energy Information Administration
3

35. Thank you
Adam McMillen, PE, LEED AP BD+C
amcmillen@seventhwave.org
312.852.1360
Jennifer Scheib
Jennifer.Scheib@nrel.gov
303.275.4323
www.seventhwave.org/accelerateperformance
