1. ABAP 7.02 New Features
New String Functions
Johann Fößleitner, Cadaxo GmbH https://twitter.com/foessleitnerj

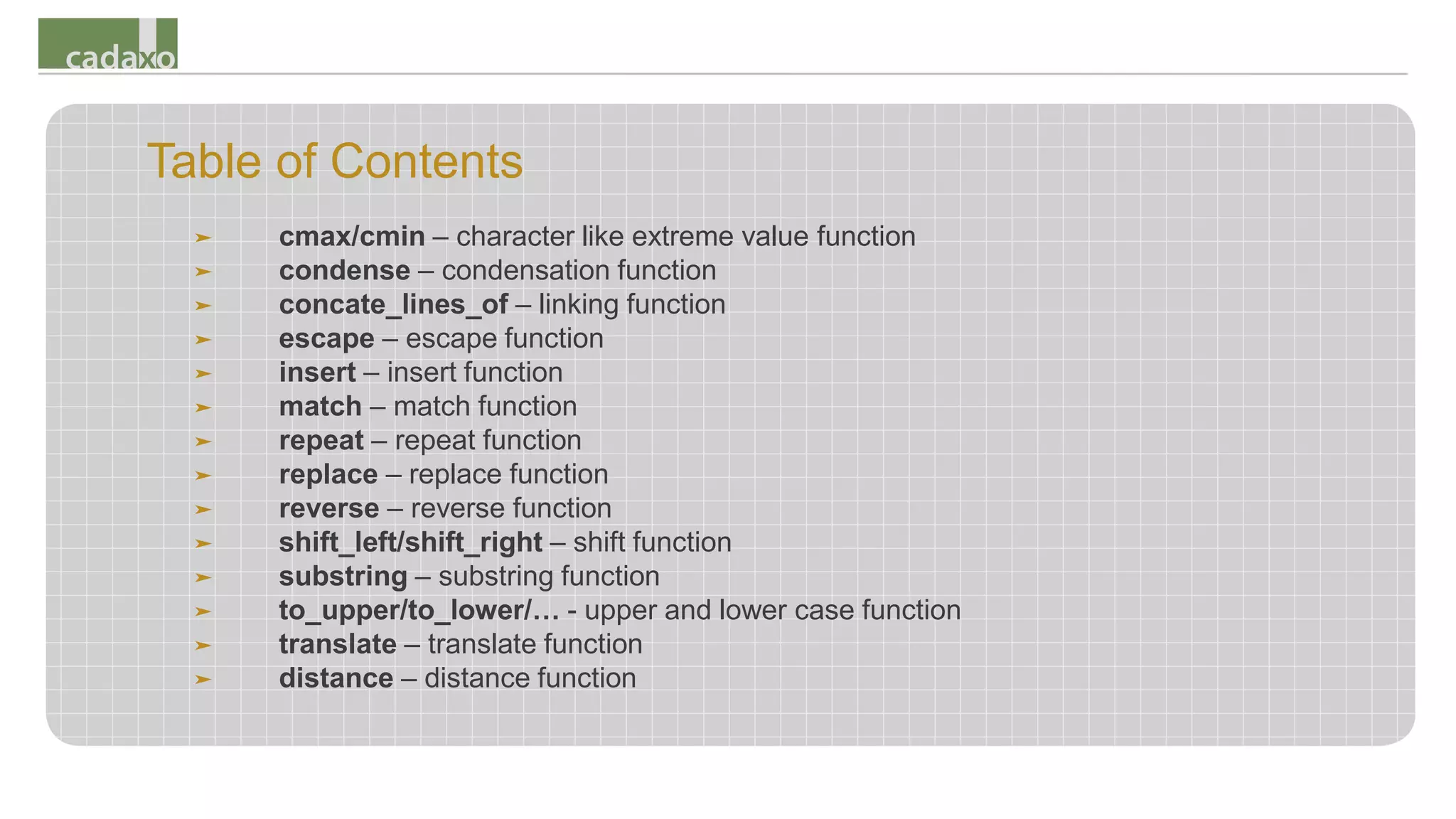

2. Table of Contents
➤ cmax/cmin – character like extreme value function
➤ condense – condensation function
➤ concate_lines_of – linking function
➤ escape – escape function
➤ insert – insert function
➤ match – match function
➤ repeat – repeat function
➤ replace – replace function
➤ reverse – reverse function
➤ shift_left/shift_right – shift function
➤ substring – substring function
➤ to_upper/to_lower/… - upper and lower case function
➤ translate – translate function
➤ distance – distance function

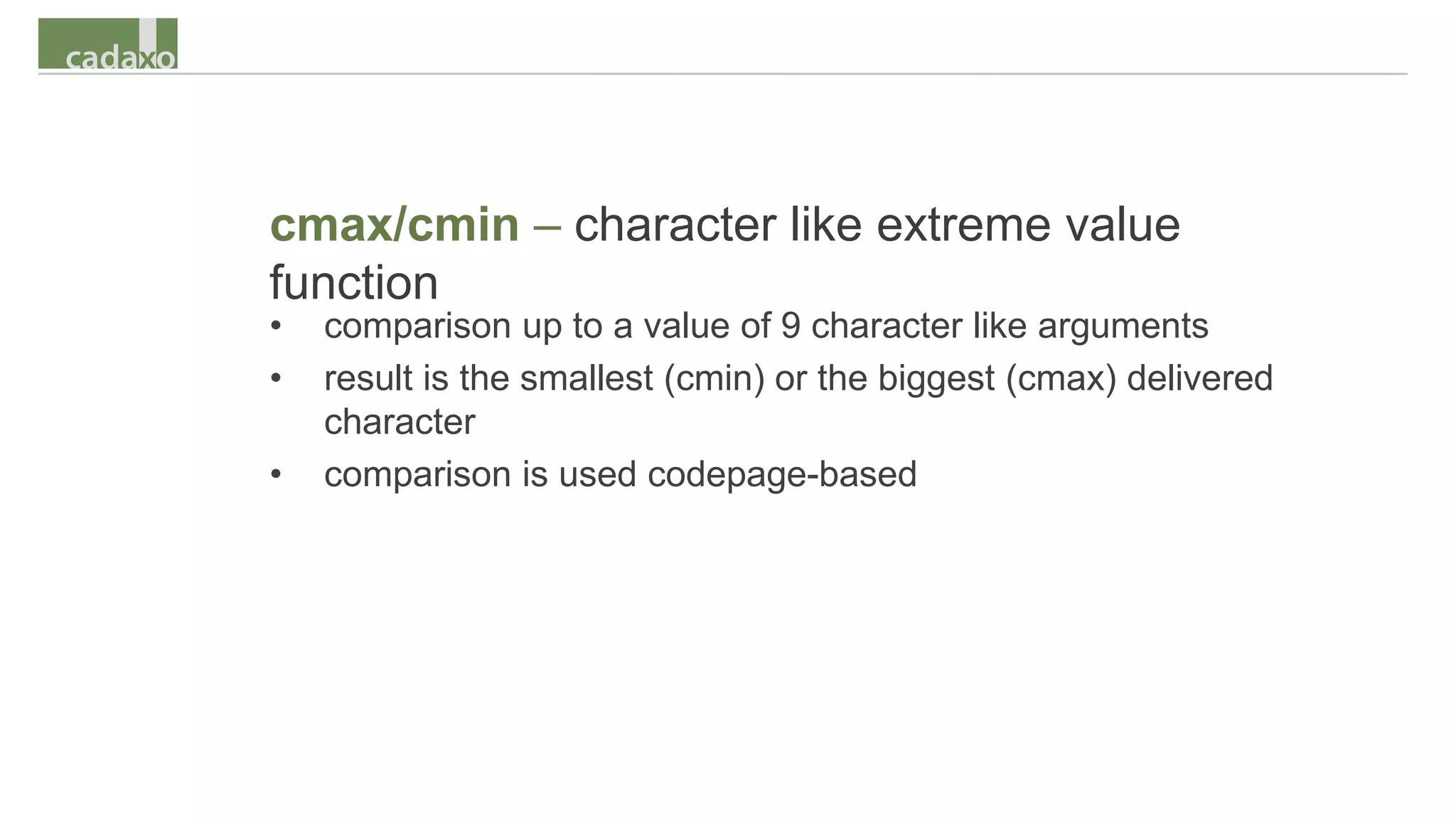

3. cmax/cmin – character like extreme value
function
• comparison up to a value of 9 character like arguments
• result is the smallest (cmin) or the biggest (cmax) delivered
character
• comparison is used codepage-based

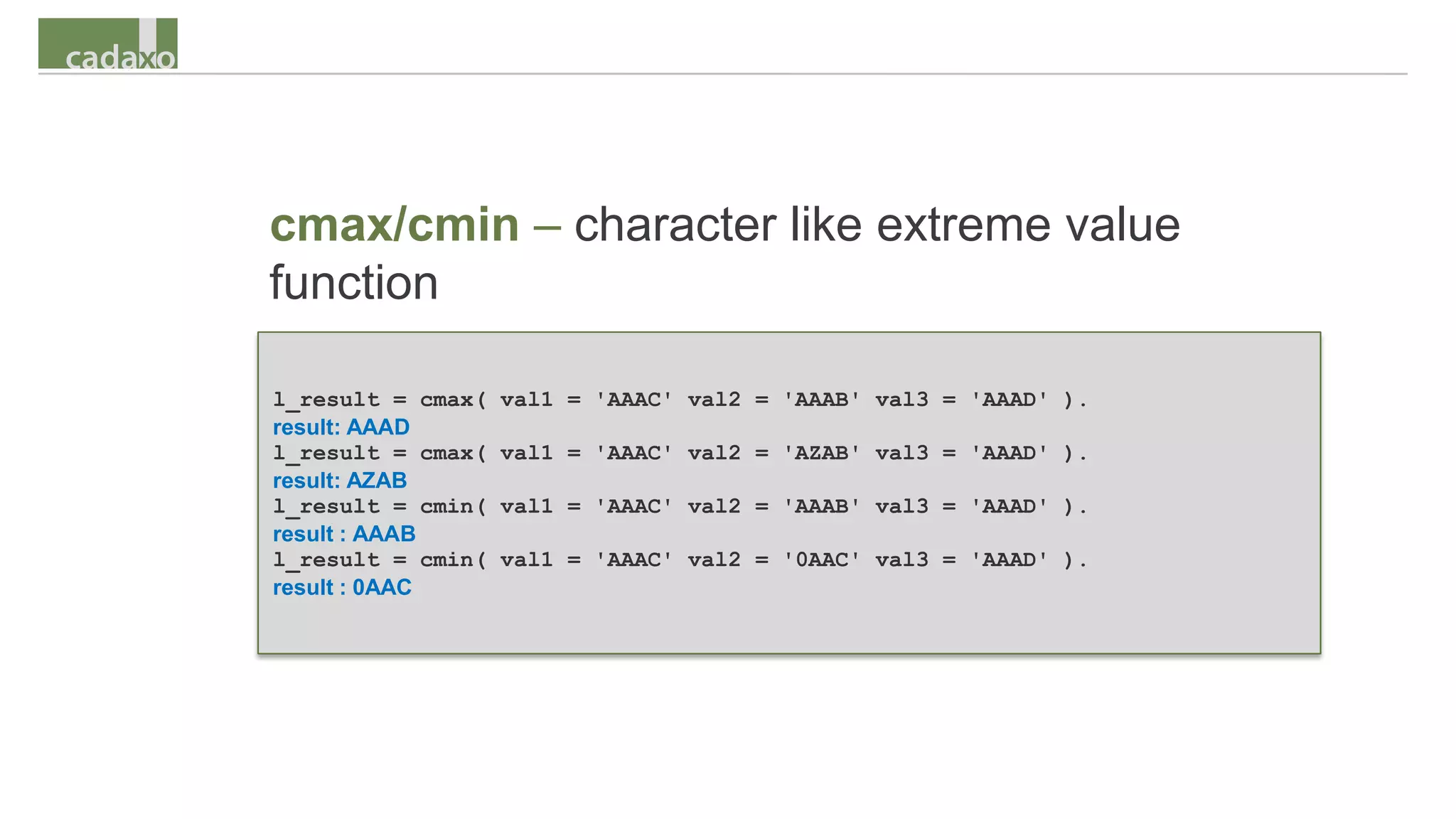

4. cmax/cmin – character like extreme value
function
l_result = cmax( val1 = 'AAAC' val2 = 'AAAB' val3 = 'AAAD' ).
result: AAAD
l_result = cmax( val1 = 'AAAC' val2 = 'AZAB' val3 = 'AAAD' ).
result: AZAB
l_result = cmin( val1 = 'AAAC' val2 = 'AAAB' val3 = 'AAAD' ).
result : AAAB
l_result = cmin( val1 = 'AAAC' val2 = '0AAC' val3 = 'AAAD' ).
result : 0AAC

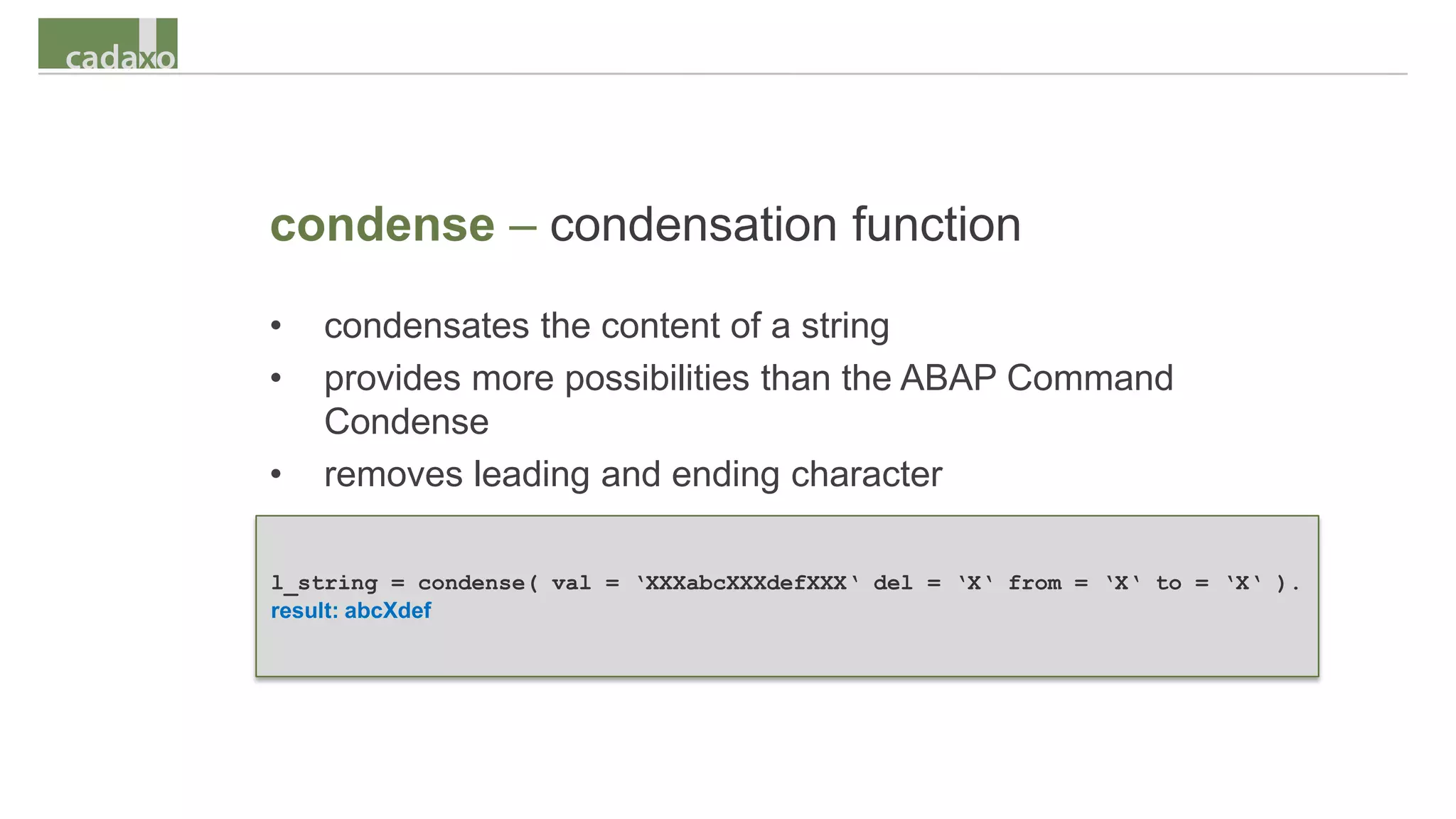

5. condense – condensation function
• condensates the content of a string
• provides more possibilities than the ABAP Command
Condense
• removes leading and ending character
l_string = condense( val = ‘XXXabcXXXdefXXX‘ del = ‘X‘ from = ‘X‘ to = ‘X‘ ).
result: abcXdef

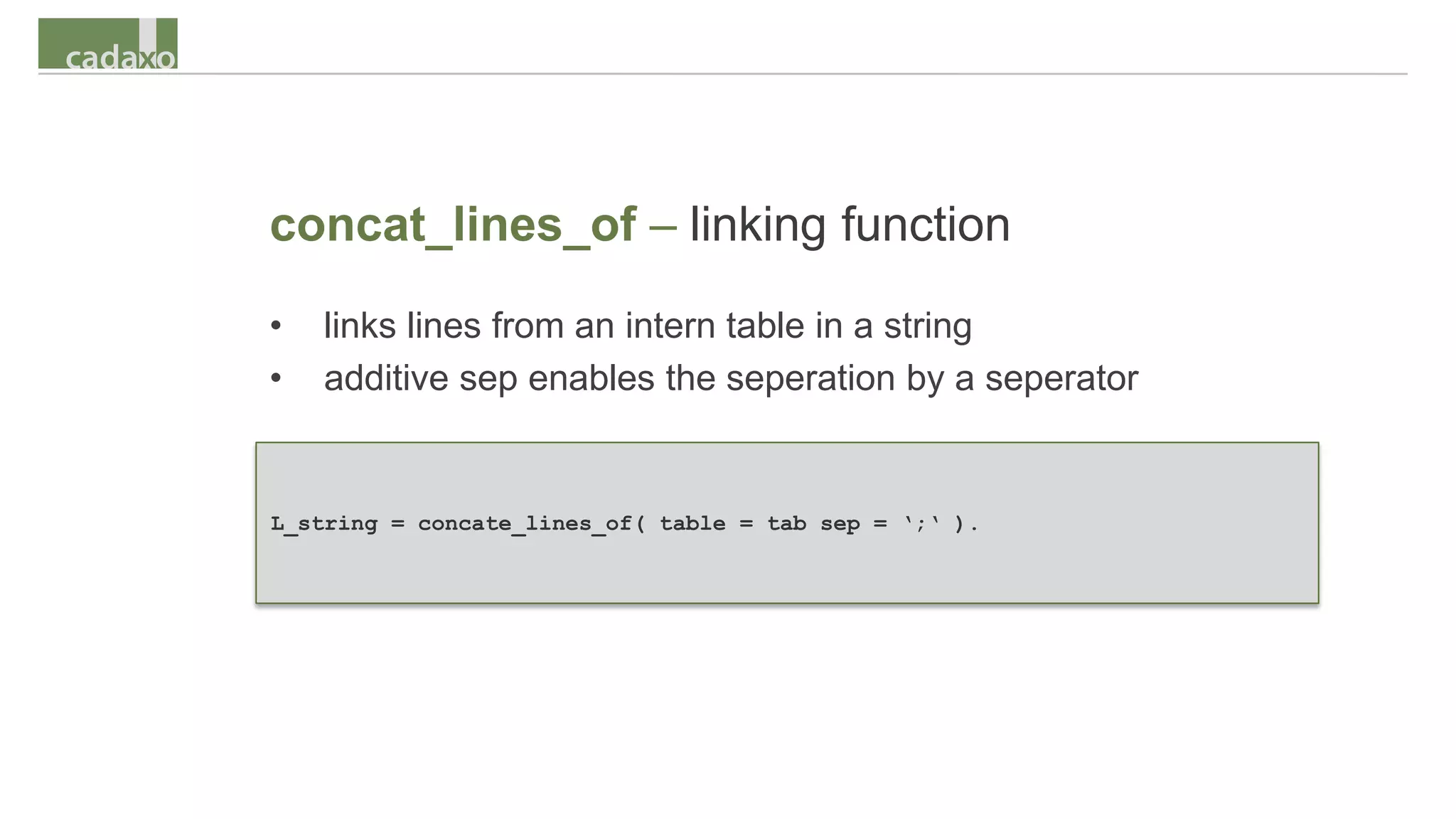

6. concat_lines_of – linking function
• links lines from an intern table in a string
• additive sep enables the seperation by a seperator
L_string = concate_lines_of( table = tab sep = ‘;‘ ).

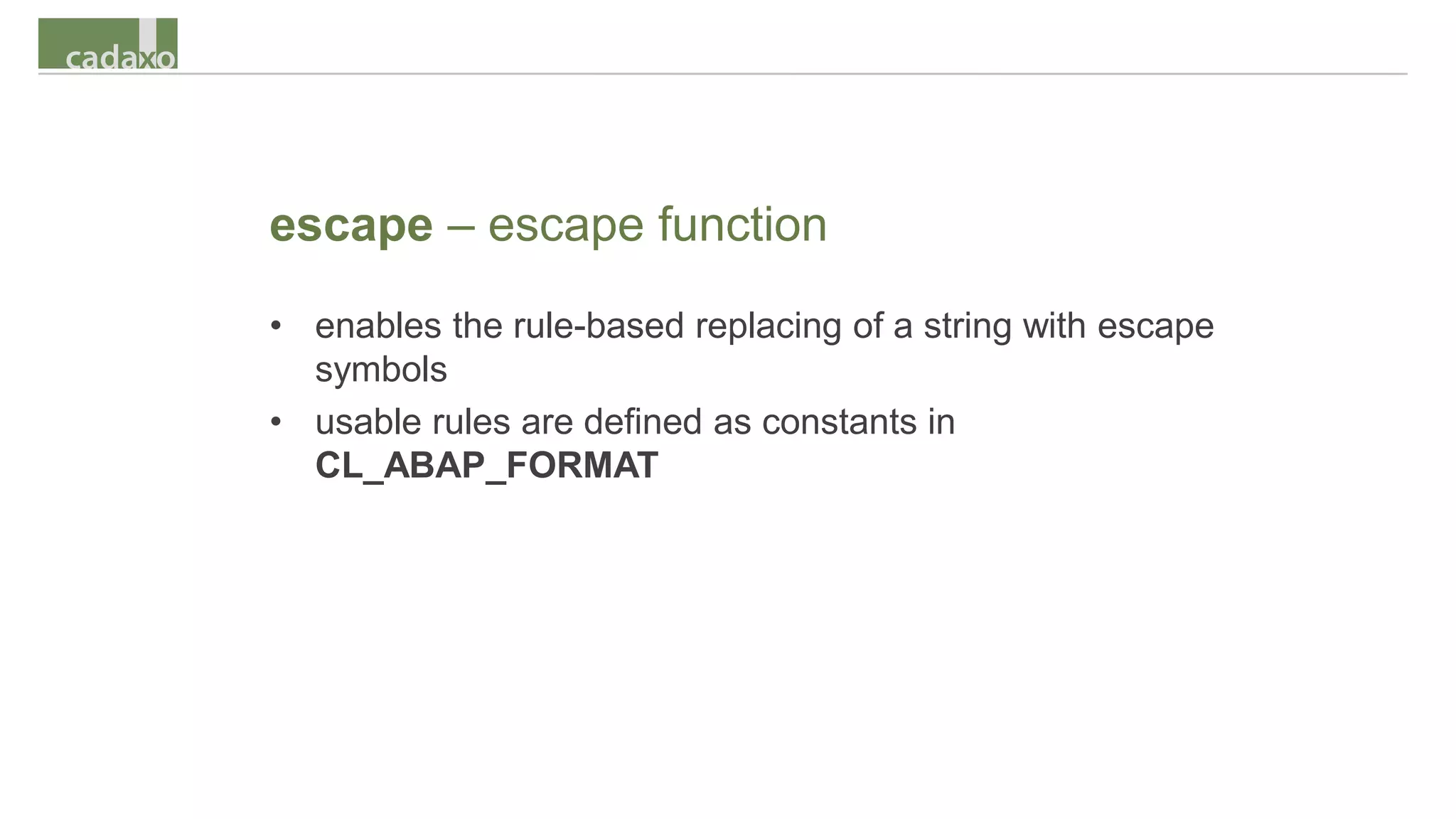

7. escape – escape function
• enables the rule-based replacing of a string with escape
symbols
• usable rules are defined as constants in
CL_ABAP_FORMAT

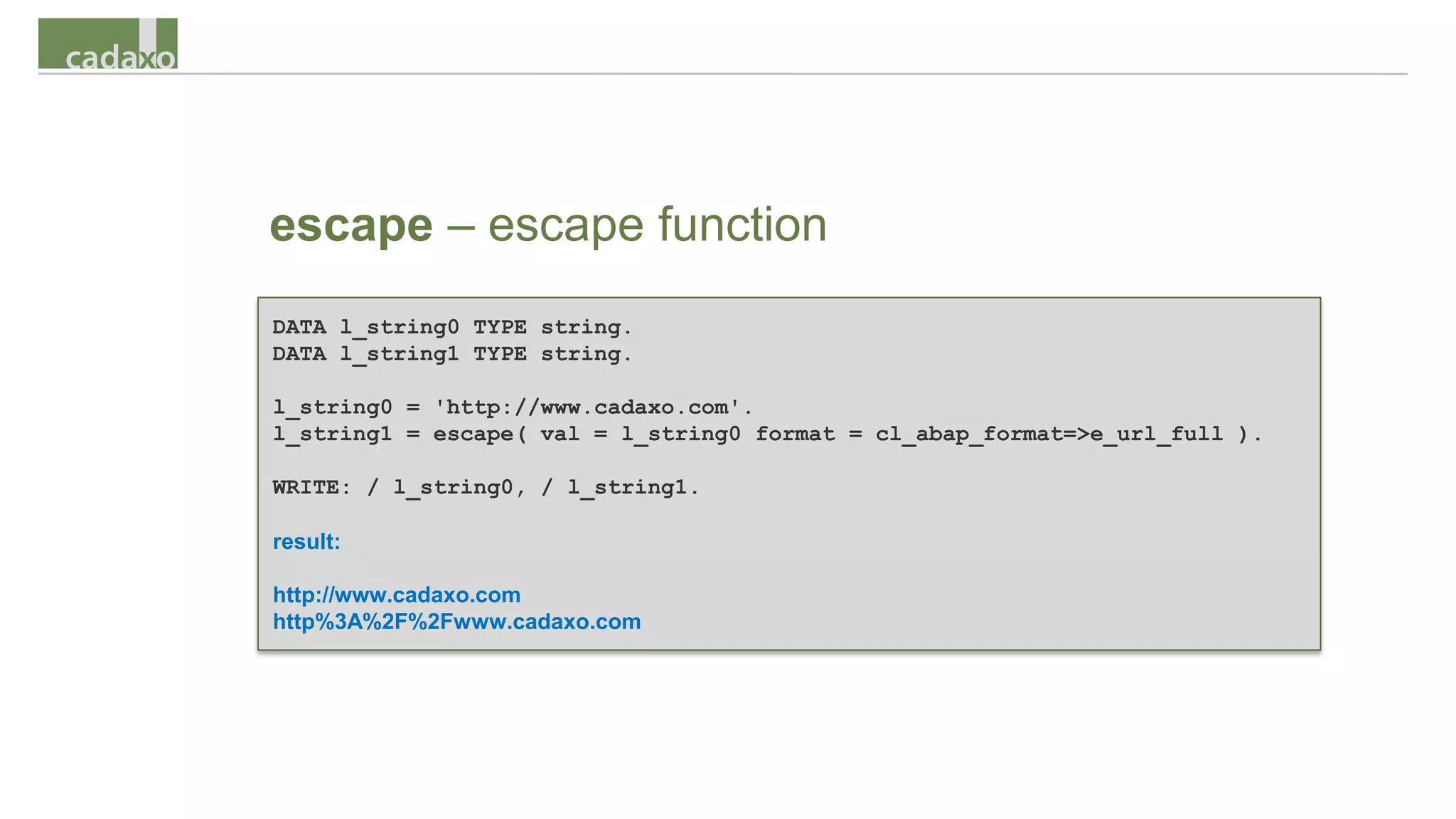

8. escape – escape function
DATA l_string0 TYPE string.
DATA l_string1 TYPE string.
l_string0 = 'http://www.cadaxo.com'.
l_string1 = escape( val = l_string0 format = cl_abap_format=>e_url_full ).
WRITE: / l_string0, / l_string1.
result:
http://www.cadaxo.com
http%3A%2F%2Fwww.cadaxo.com

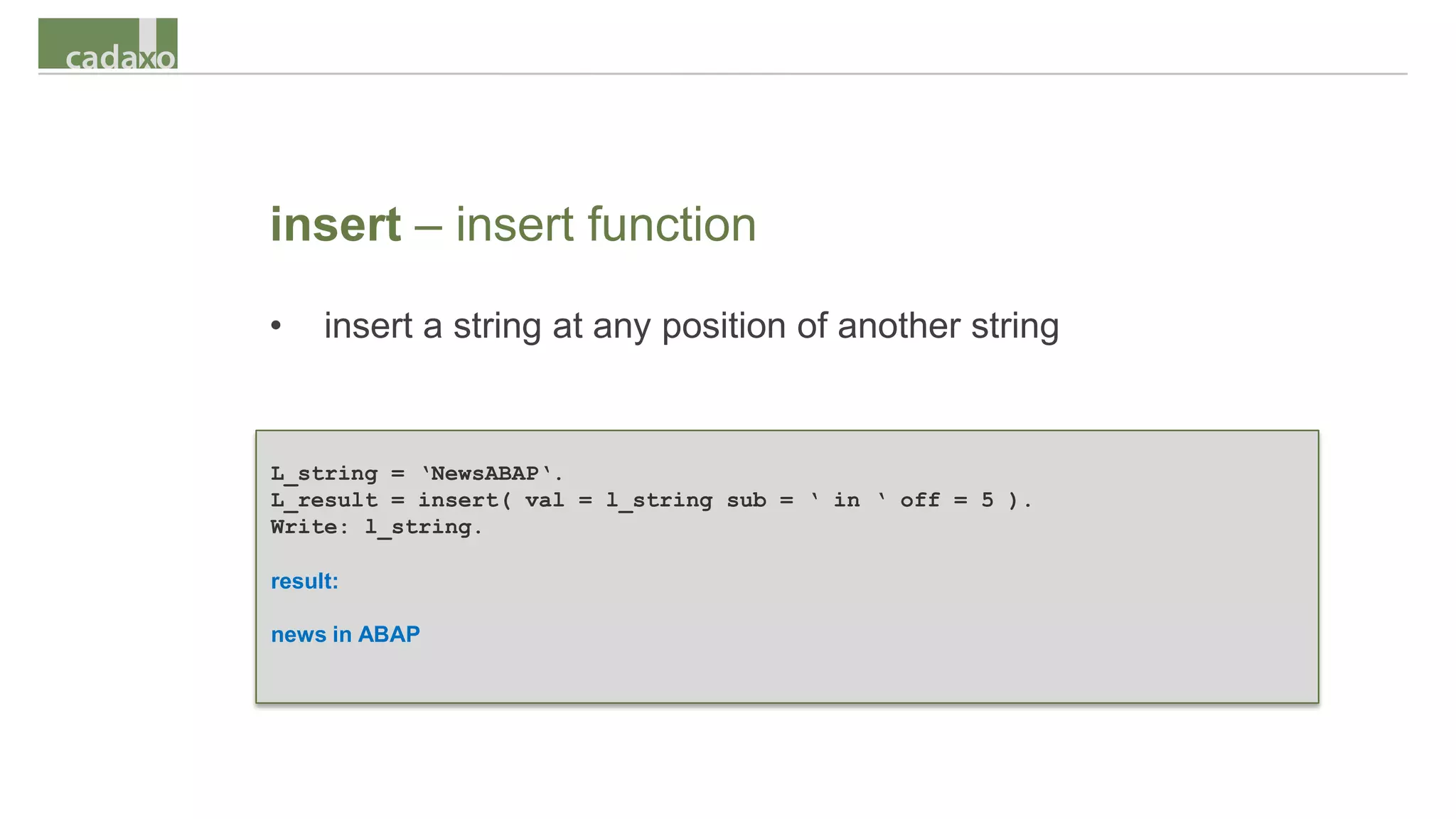

9. insert – insert function
• insert a string at any position of another string
L_string = ‘NewsABAP‘.
L_result = insert( val = l_string sub = ‘ in ‘ off = 5 ).
Write: l_string.
result:
news in ABAP

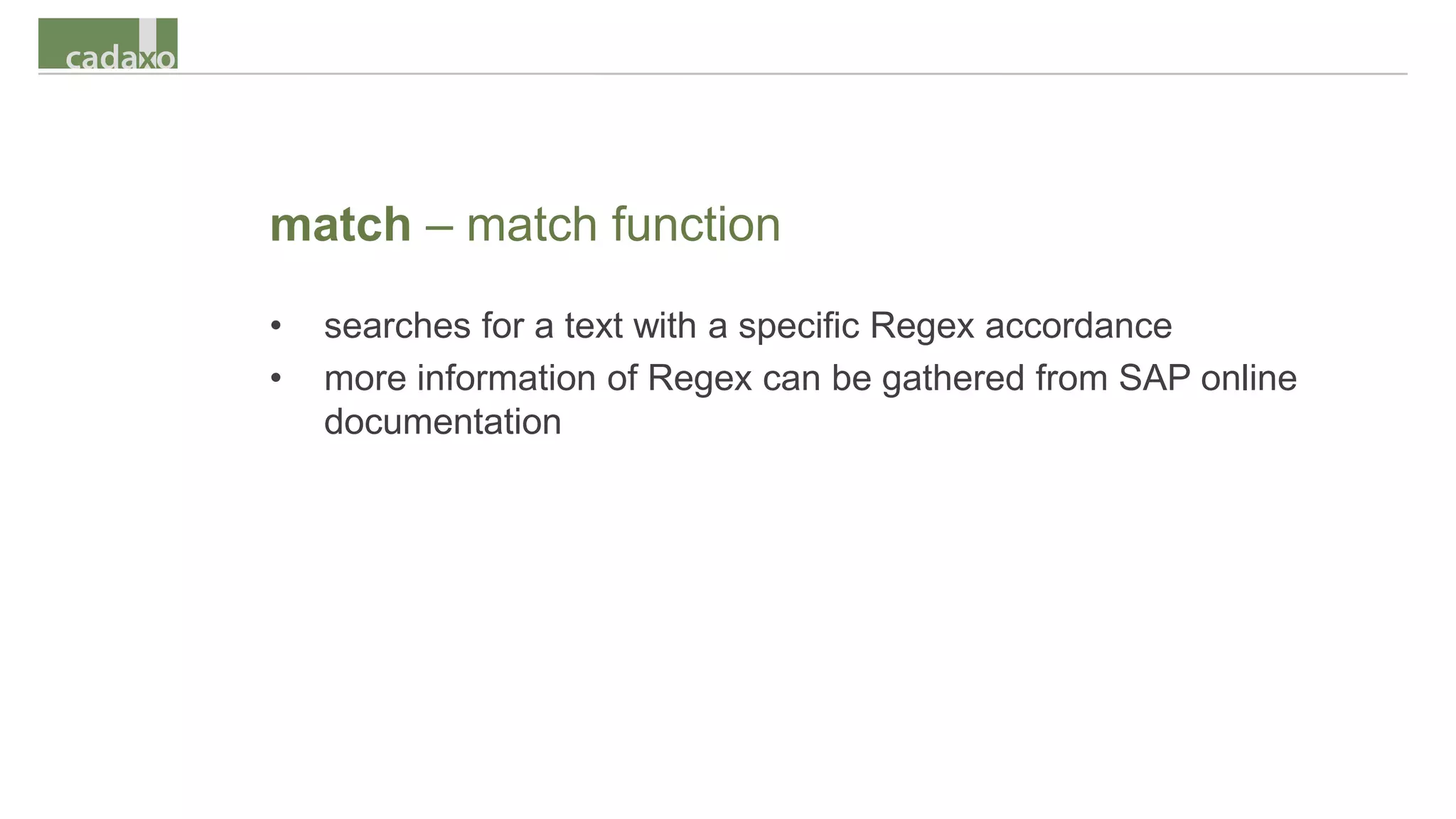

10. match – match function
• searches for a text with a specific Regex accordance
• more information of Regex can be gathered from SAP online
documentation

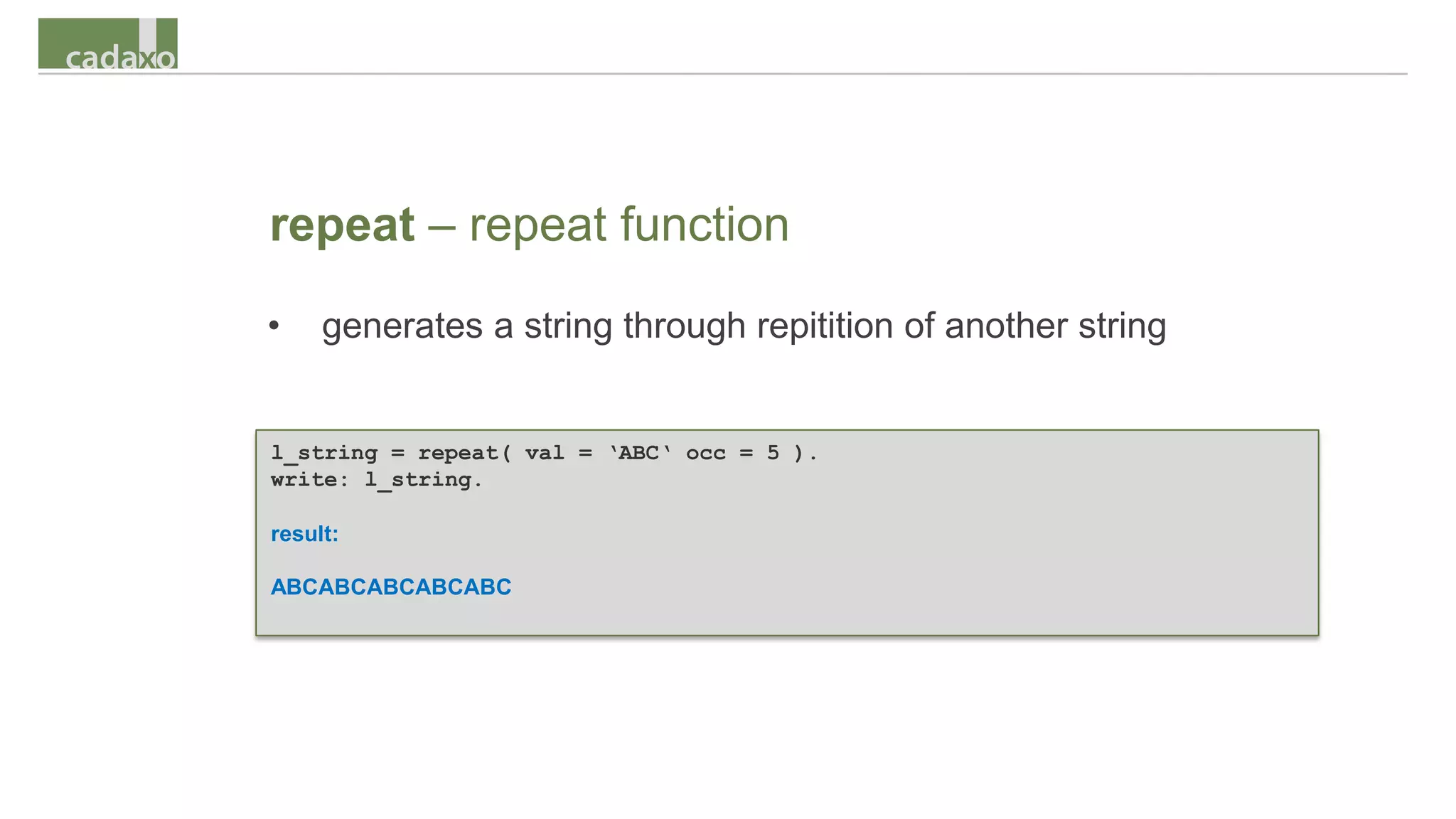

11. repeat – repeat function
• generates a string through repitition of another string
l_string = repeat( val = ‘ABC‘ occ = 5 ).
write: l_string.
result:
ABCABCABCABCABC

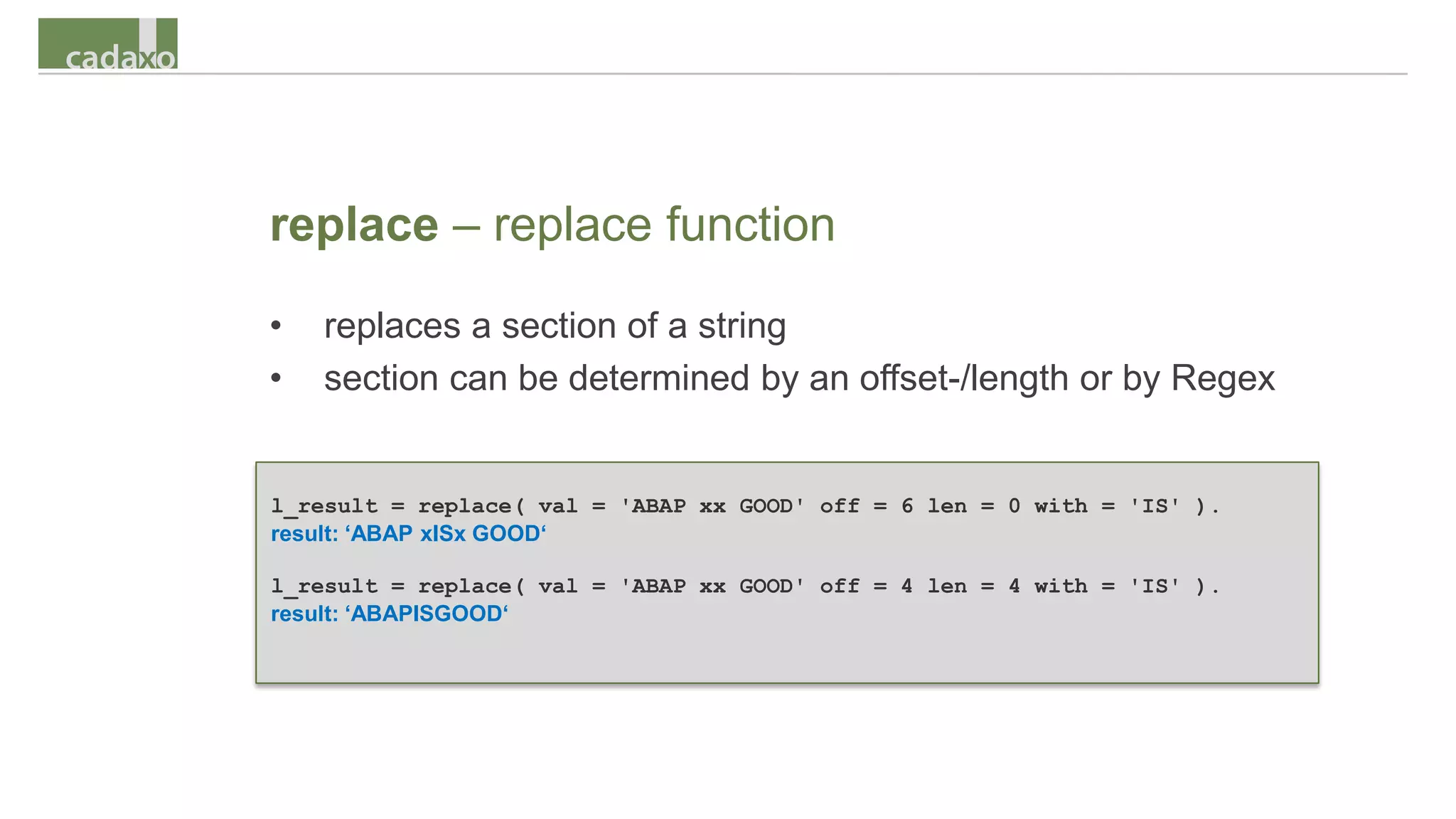

12. replace – replace function
• replaces a section of a string
• section can be determined by an offset-/length or by Regex
l_result = replace( val = 'ABAP xx GOOD' off = 6 len = 0 with = 'IS' ).
result: ‘ABAP xISx GOOD‘
l_result = replace( val = 'ABAP xx GOOD' off = 4 len = 4 with = 'IS' ).
result: ‘ABAPISGOOD‘

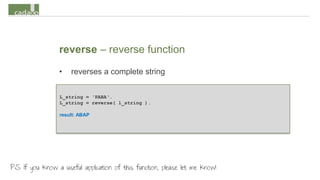

13. reverse – reverse function
• reverses a complete string
L_string = ‘PABA‘.
L_string = reverse( l_string ).
result: ABAP
PS: If you know a useful application of this function, please let me know!

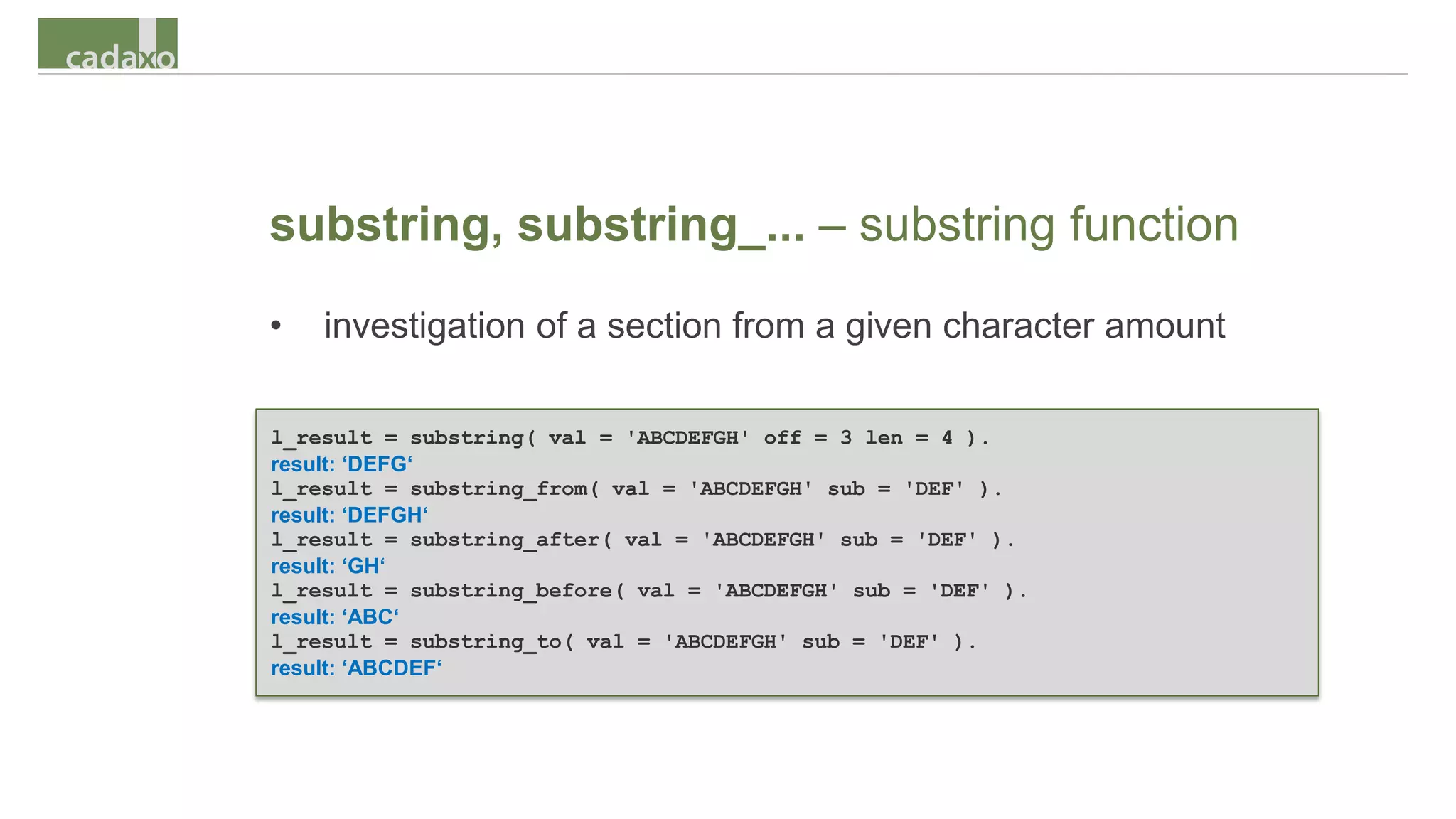

14. substring, substring_... – substring function
• investigation of a section from a given character amount
l_result = substring( val = 'ABCDEFGH' off = 3 len = 4 ).
result: ‘DEFG‘
l_result = substring_from( val = 'ABCDEFGH' sub = 'DEF' ).
result: ‘DEFGH‘
l_result = substring_after( val = 'ABCDEFGH' sub = 'DEF' ).
result: ‘GH‘
l_result = substring_before( val = 'ABCDEFGH' sub = 'DEF' ).
result: ‘ABC‘
l_result = substring_to( val = 'ABCDEFGH' sub = 'DEF' ).
result: ‘ABCDEF‘

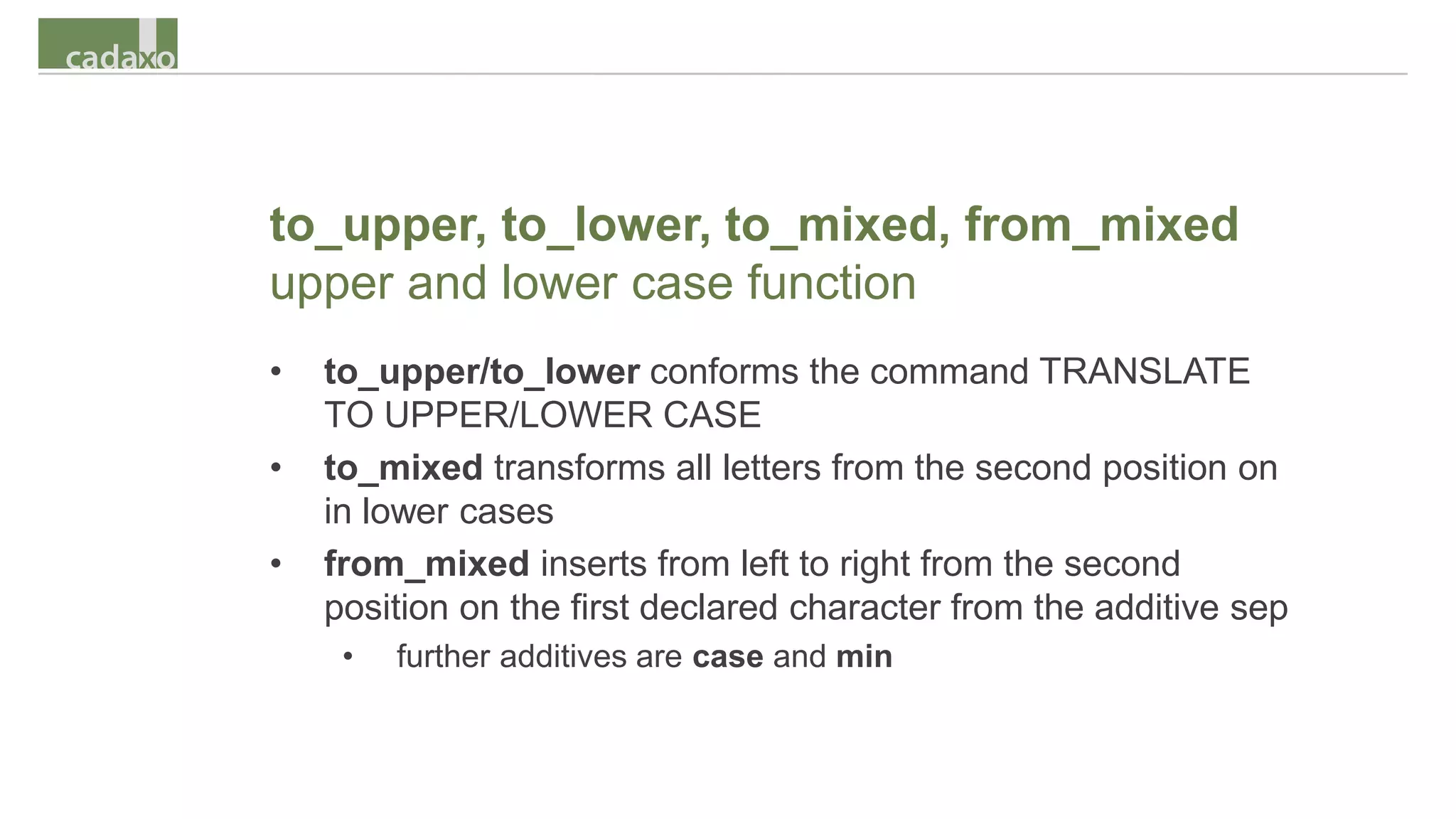

15. to_upper, to_lower, to_mixed, from_mixed
upper and lower case function
• to_upper/to_lower conforms the command TRANSLATE
TO UPPER/LOWER CASE
• to_mixed transforms all letters from the second position on
in lower cases
• from_mixed inserts from left to right from the second
position on the first declared character from the additive sep
• further additives are case and min

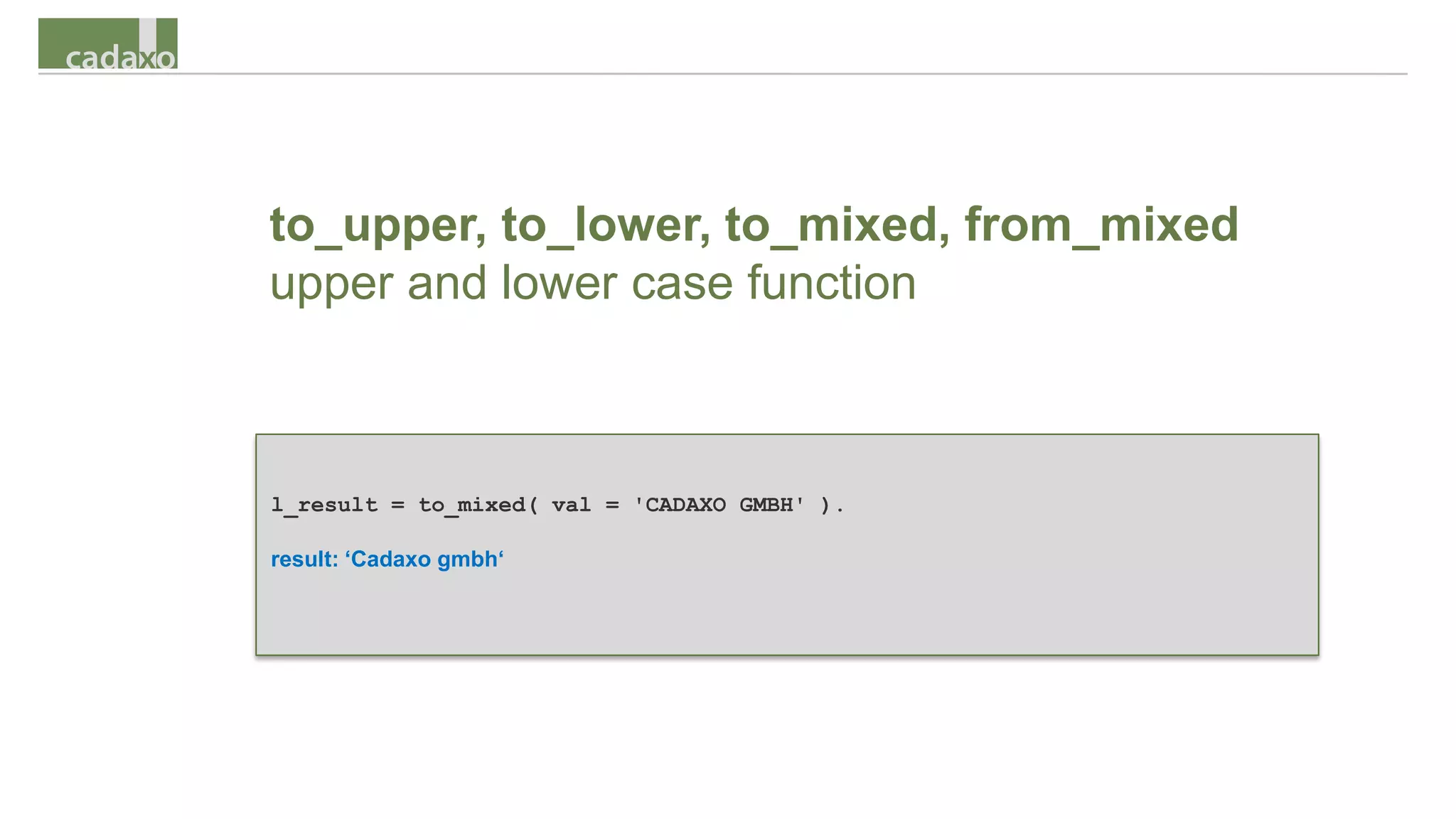

16. to_upper, to_lower, to_mixed, from_mixed
upper and lower case function
l_result = to_mixed( val = 'CADAXO GMBH' ).
result: ‘Cadaxo gmbh‘

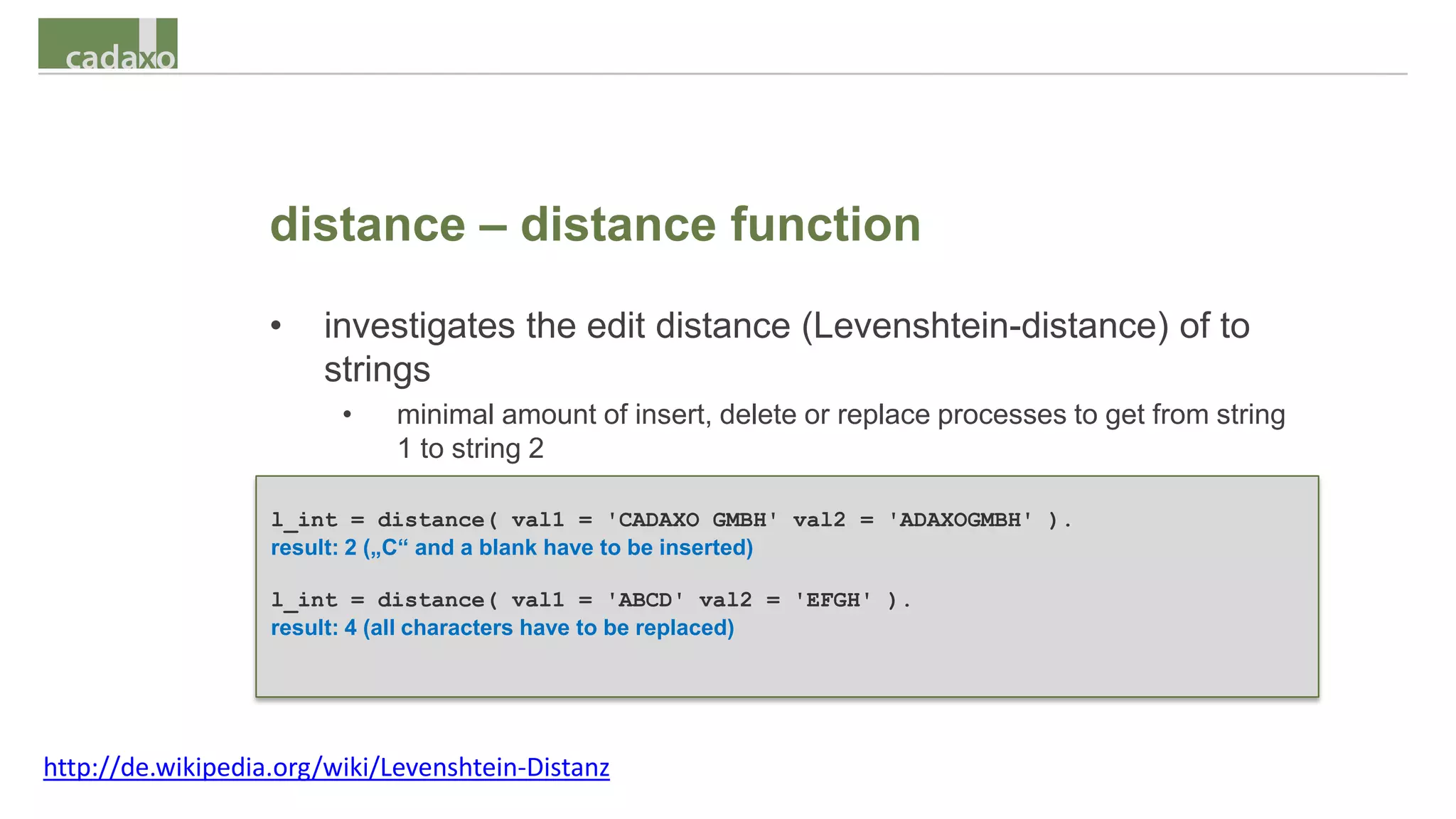

17. distance – distance function
• investigates the edit distance (Levenshtein-distance) of to
strings
• minimal amount of insert, delete or replace processes to get from string
1 to string 2
l_int = distance( val1 = 'CADAXO GMBH' val2 = 'ADAXOGMBH' ).
result: 2 („C“ and a blank have to be inserted)
l_int = distance( val1 = 'ABCD' val2 = 'EFGH' ).
result: 4 (all characters have to be replaced)
http://de.wikipedia.org/wiki/Levenshtein-Distanz

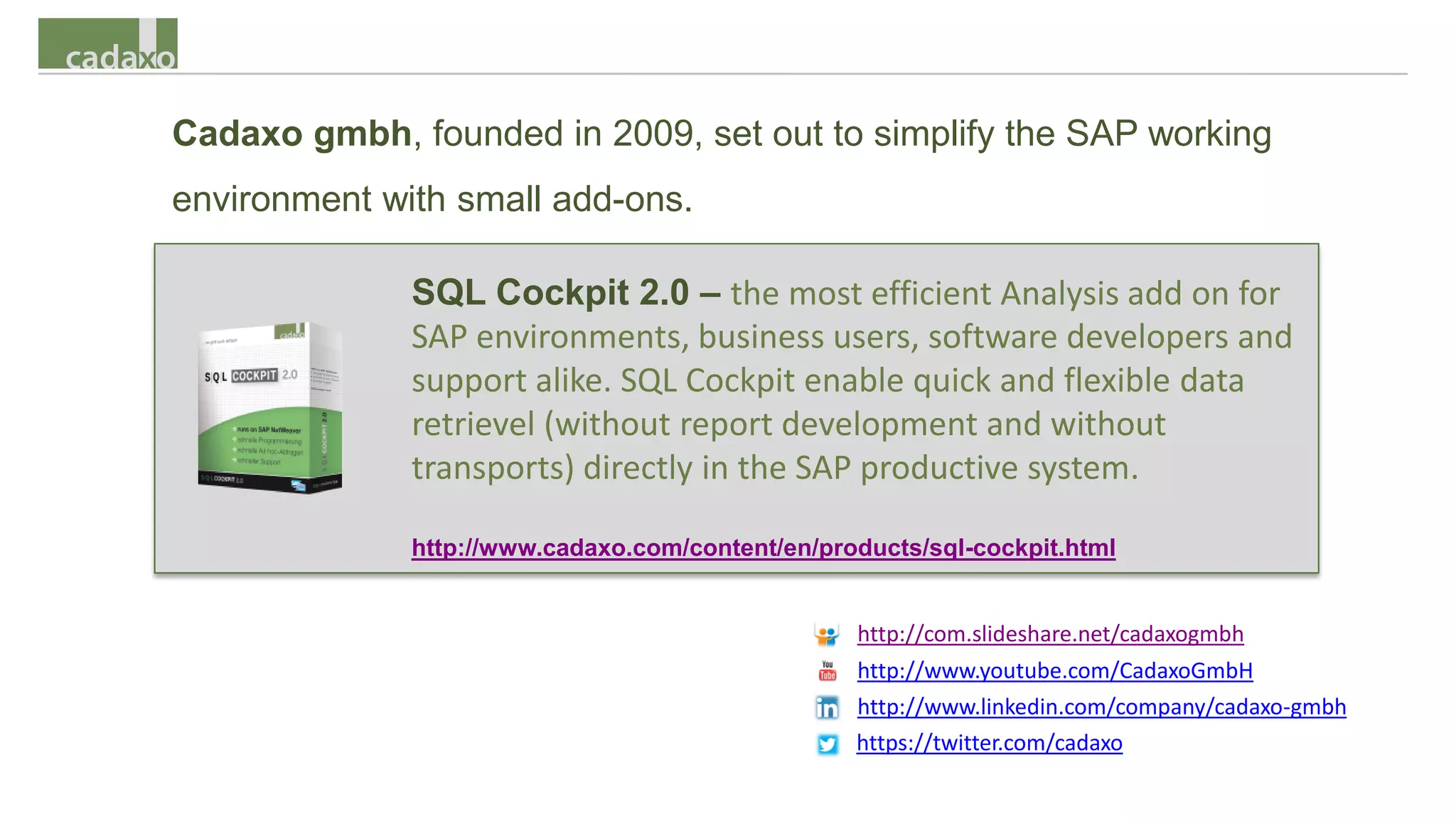

18. Cadaxo gmbh, founded in 2009, set out to simplify the SAP working
environment with small add-ons.
SQL Cockpit 2.0 – the most efficient Analysis add on for
SAP environments, business users, software developers and
support alike. SQL Cockpit enable quick and flexible data
retrievel (without report development and without
transports) directly in the SAP productive system.
http://www.cadaxo.com/content/en/products/sql-cockpit.html
http://com.slideshare.net/cadaxogmbh
http://www.youtube.com/CadaxoGmbH
http://www.linkedin.com/company/cadaxo-gmbh
https://twitter.com/cadaxo

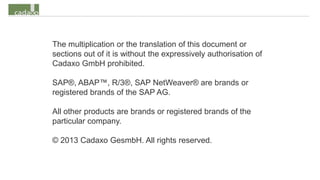

19. The multiplication or the translation of this document or
