The 90-9600 alarm panel has 12 alarm channels divided into three groups, with 8 in the primary group and 2 each in groups A and B, which can be interconnected. It provides both audible and visual alarm indications, has backlightable labels, and accepts grounded contact closure alarm inputs. The panel measures 5.5"W x 7.5"H x 3.5"D.

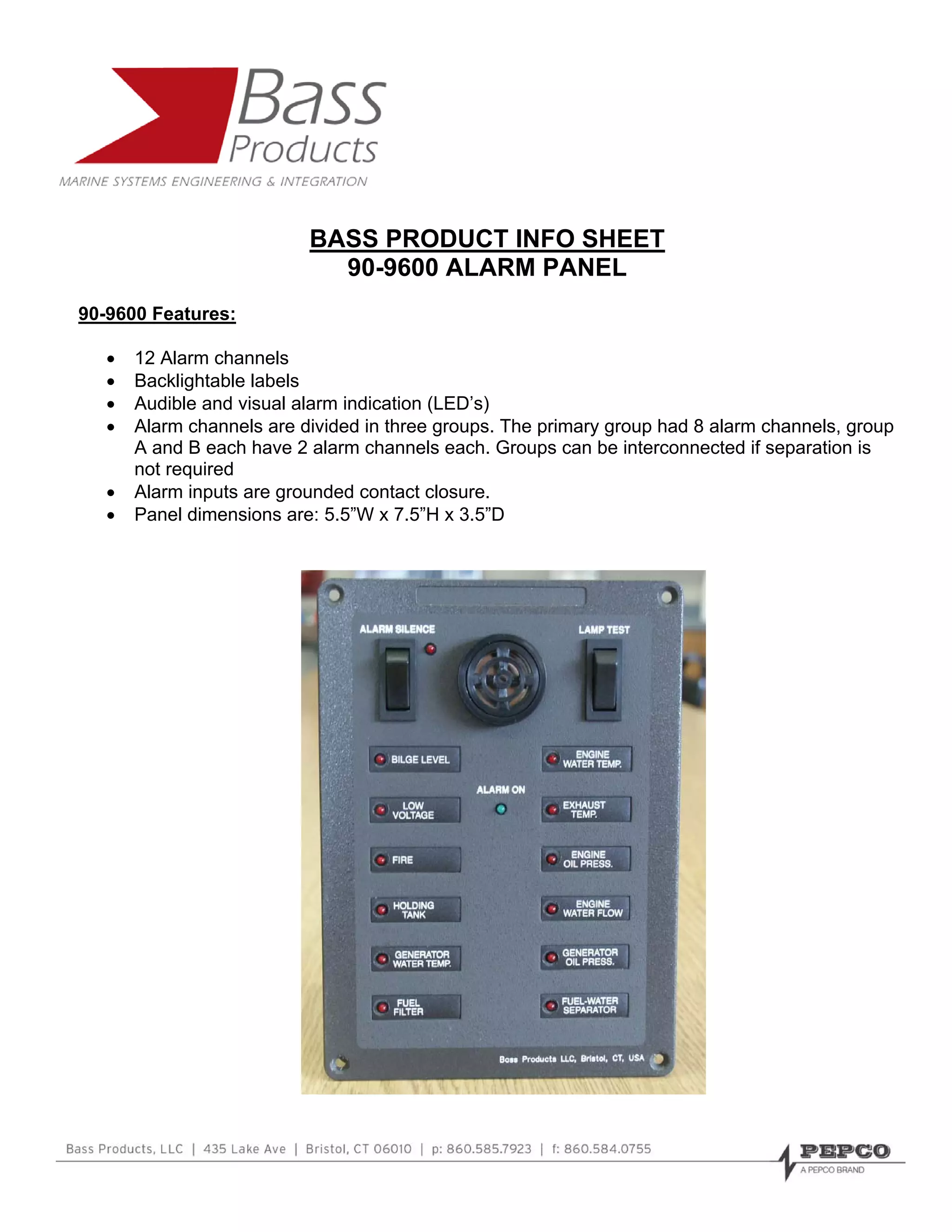

1. BASS PRODUCT INFO SHEET
90-9600 ALARM PANEL
90-9600 Features:
• 12 Alarm channels
• Backlightable labels
• Audible and visual alarm indication (LED’s)
• Alarm channels are divided in three groups. The primary group had 8 alarm channels, group
A and B each have 2 alarm channels each. Groups can be interconnected if separation is
not required
• Alarm inputs are grounded contact closure.
• Panel dimensions are: 5.5”W x 7.5”H x 3.5”D
