The document introduces the Model-View-Controller (MVC) design pattern and the Struts framework. It describes the key components of MVC - the Model, View, and Controller. It then explains how Struts implements each component and allows developers to build dynamic web applications using MVC. Struts handles common tasks like separating business logic from presentation, internationalization, and connecting user input to application processing. Developers can focus on application logic rather than framework details.

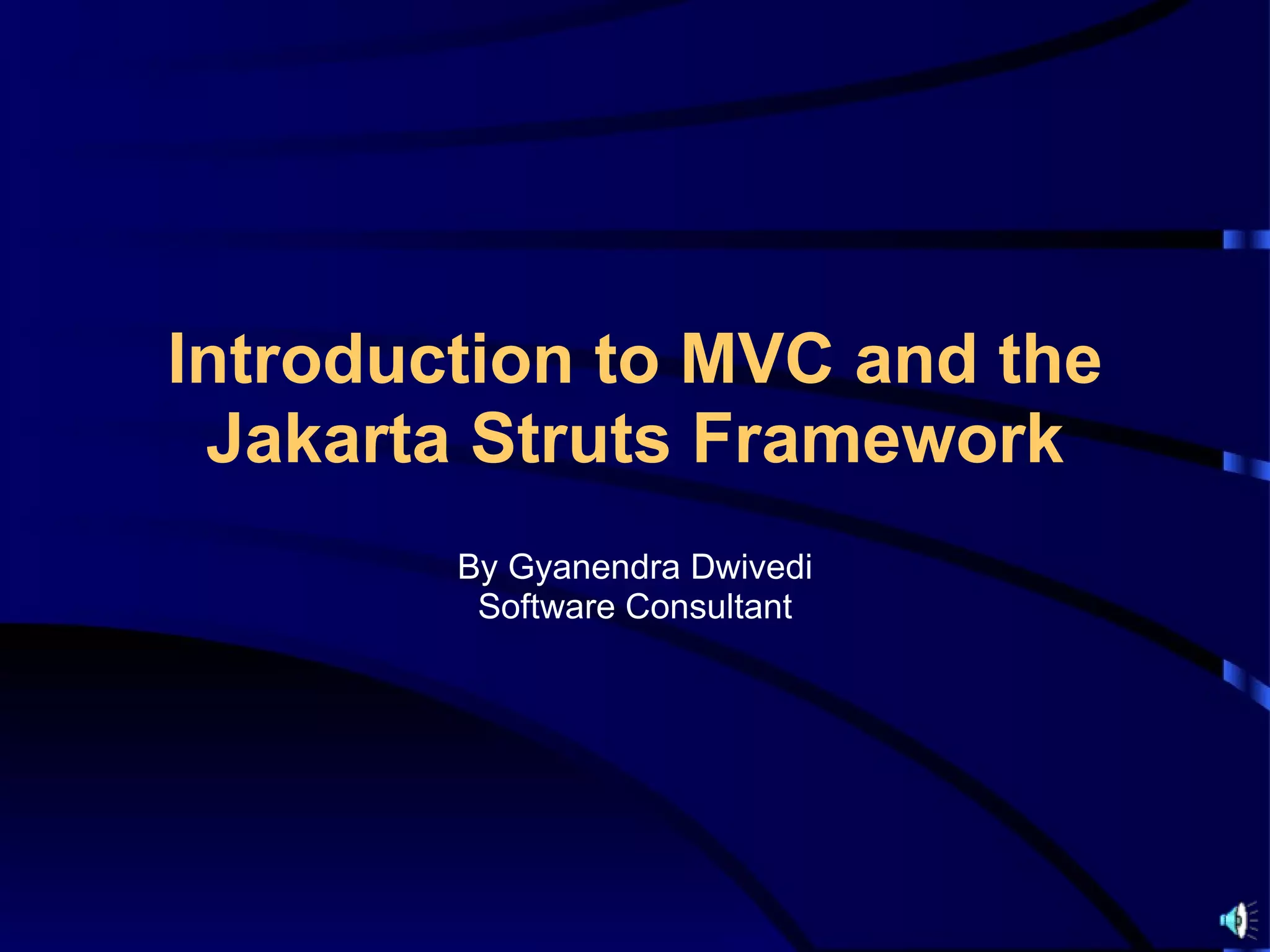

1. Introduction to MVC and the
Jakarta Struts Framework
By Gyanendra Dwivedi
Software Consultant

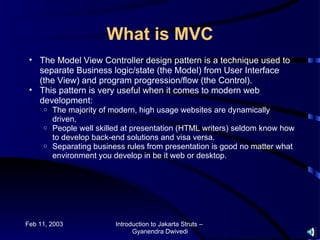

2. What is MVC
• The Model View Controller design pattern is a technique used to
separate Business logic/state (the Model) from User Interface
(the View) and program progression/flow (the Control).
• This pattern is very useful when it comes to modern web
development:
o The majority of modern, high usage websites are dynamically
driven.
o People well skilled at presentation (HTML writers) seldom know how
to develop back-end solutions and visa versa.
o Separating business rules from presentation is good no matter what
environment you develop in be it web or desktop.
Feb 11, 2003 Introduction to Jakarta Struts –
Gyanendra Dwivedi

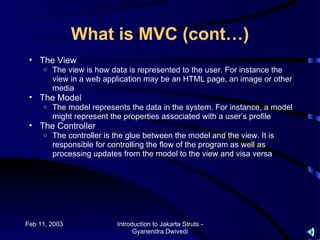

3. What is MVC (cont…)
• The View
o The view is how data is represented to the user. For instance the
view in a web application may be an HTML page, an image or other
media
• The Model
o The model represents the data in the system. For instance, a model
might represent the properties associated with a user’s profile
• The Controller
o The controller is the glue between the model and the view. It is
responsible for controlling the flow of the program as well as
processing updates from the model to the view and visa versa
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

4. What is MVC (cont…)
User
View Controller
Model
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

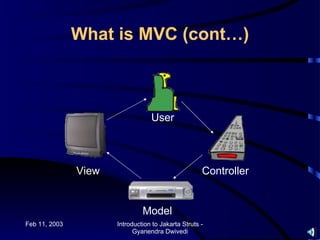

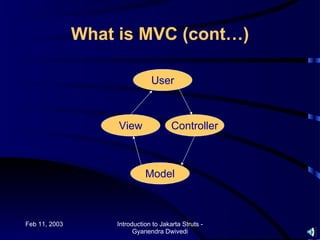

5. What is MVC (cont…)
User
View Controller
Model
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

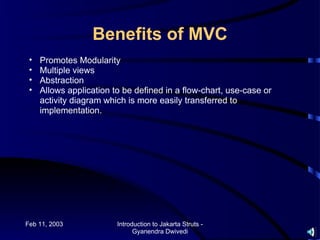

6. Benefits of MVC
• Promotes Modularity
• Multiple views
• Abstraction
• Allows application to be defined in a flow-chart, use-case or
activity diagram which is more easily transferred to
implementation.
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

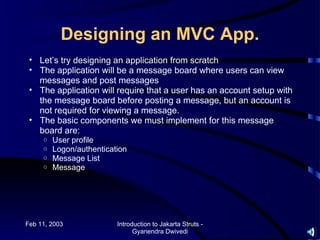

7. Designing an MVC App.
• Let’s try designing an application from scratch
• The application will be a message board where users can view
messages and post messages
• The application will require that a user has an account setup with
the message board before posting a message, but an account is
not required for viewing a message.
• The basic components we must implement for this message
board are:
o User profile
o Logon/authentication
o Message List
o Message
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

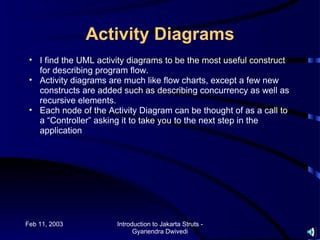

8. Activity Diagrams
• I find the UML activity diagrams to be the most useful construct
for describing program flow.
• Activity diagrams are much like flow charts, except a few new
constructs are added such as describing concurrency as well as
recursive elements.
• Each node of the Activity Diagram can be thought of as a call to
a “Controller” asking it to take you to the next step in the
application
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

9. Activity Diagram: Create Profile
Create Profile
Create
Edit Profile
[invalid]
== Profile()
[else]
Save Profile
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

10. Activity Diagram: Logon
Login Form
Create
Profile()
[new user]
== Logon()
[else]
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

11. Activity Diagram: View Msg.
Show Msg.
Board
Select
Select Msg. == Msg()
Display Msg.
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

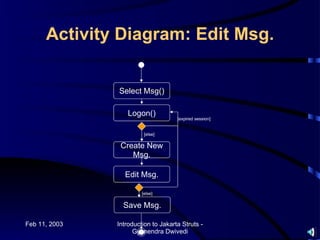

12. Activity Diagram: Edit Msg.
Select Msg()
Logon()
[expired session]
[else]
Create New
Msg.
Edit Msg.
[else]
Save Msg.
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

13. Jakarta Struts
• In order to take advantage of the MVC design pattern in your
applications a considerable framework must be in place.
• Today we are going to learn about such a framework named
Struts
• Struts is an open source MVC framework developed by the
Apache Jakarta project group.
• Struts allows JSP/Servlet writers the ability to fashion their web
applications using the MVC design pattern.
• By designing your web application using Struts you allow:
o Architect the ability to design using the MVC pattern
o Developer to exploit the Struts framework when building the app.
o Web designer to be sheltered from learning how to program
http://jakarta.apache.org/struts/
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

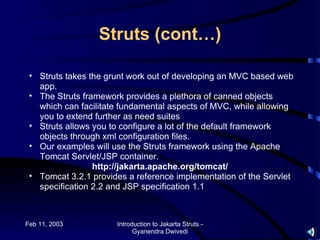

14. Struts (cont…)
• Struts takes the grunt work out of developing an MVC based web
app.
• The Struts framework provides a plethora of canned objects
which can facilitate fundamental aspects of MVC, while allowing
you to extend further as need suites
• Struts allows you to configure a lot of the default framework
objects through xml configuration files.
• Our examples will use the Struts framework using the Apache
Tomcat Servlet/JSP container.
http://jakarta.apache.org/tomcat/
• Tomcat 3.2.1 provides a reference implementation of the Servlet
specification 2.2 and JSP specification 1.1
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

15. Struts (cont…)
• The components of MVC in Struts:
o The View is usually defined as a JSP or HTML page.
o The Model is usually defined as a Java object (sometimes called a
bean).
o The Controller is defined by a Java object which extends the
org.apache.struts.action.Action class. The Action class is at the
heart of the Struts framework.
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

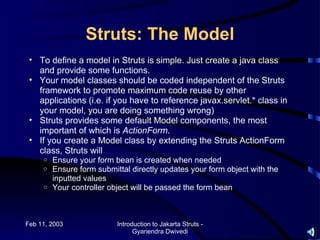

16. Struts: The Model
• To define a model in Struts is simple. Just create a java class
and provide some functions.
• Your model classes should be coded independent of the Struts
framework to promote maximum code reuse by other
applications (i.e. if you have to reference javax.servlet.* class in
your model, you are doing something wrong)
• Struts provides some default Model components, the most
important of which is ActionForm.
• If you create a Model class by extending the Struts ActionForm
class, Struts will
o Ensure your form bean is created when needed
o Ensure form submittal directly updates your form object with the
inputted values
o Your controller object will be passed the form bean
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

17. The Model (cont…)
• Struts will only handle models in an automatic fashion if you
extend org.apache.struts.action.ActionForm
• Most likely you will have already built model object such as
Customer, Employee, etc…
• Because you don’t want to tie your existing model objects to the
Struts framework by having to extend ActionForm, Struts
provides a org.apache.struts.util.PropertyUtils class that has a
static method called copyProperties
• When your controller receives a form, it can simply call
PropertyUtils.copyProperties(myModel, form) to copy all form
properties to your original model object.
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

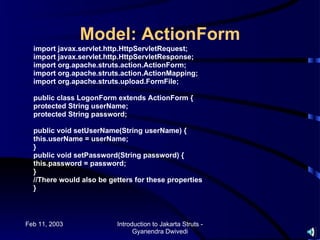

18. Model: ActionForm
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.struts.action.ActionForm;
import org.apache.struts.action.ActionMapping;
import org.apache.struts.upload.FormFile;
public class LogonForm extends ActionForm {
protected String userName;
protected String password;
public void setUserName(String userName) {
this.userName = userName;
}
public void setPassword(String password) {
this.password = password;
}
//There would also be getters for these properties
}
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

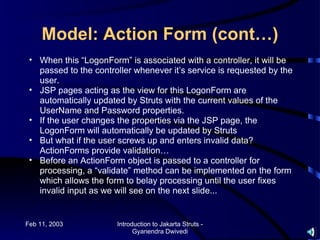

19. Model: Action Form (cont…)
• When this “LogonForm” is associated with a controller, it will be
passed to the controller whenever it’s service is requested by the
user.
• JSP pages acting as the view for this LogonForm are
automatically updated by Struts with the current values of the
UserName and Password properties.
• If the user changes the properties via the JSP page, the
LogonForm will automatically be updated by Struts
• But what if the user screws up and enters invalid data?
ActionForms provide validation…
• Before an ActionForm object is passed to a controller for
processing, a “validate” method can be implemented on the form
which allows the form to belay processing until the user fixes
invalid input as we will see on the next slide...
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

20. Model: ActionForm Validation
public ActionErrors validate(ActionMapping mapping,
HttpServletRequest request) {
if (“”.equals(this.userName)) {
ActionErrors aes = new ActionErrors();
aes.add(new ActionError(“error.username.invalid”));
return aes;
}
}
Typically what will happen is Struts will see that errors are being returned
and will forward the user to a jsp page that has been setup as the “failure”
page.
Usually, the errors result from bad input on a form, so the failure page will
be set to the original form and any <html:errors> tags which are found are
replaced with the contents of the ActionErrors returned from the validate
method.
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

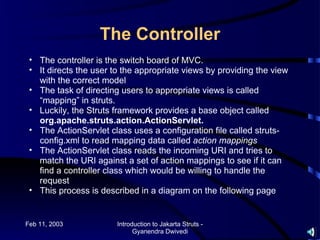

21. The Controller
• The controller is the switch board of MVC.
• It directs the user to the appropriate views by providing the view
with the correct model
• The task of directing users to appropriate views is called
“mapping” in struts.
• Luckily, the Struts framework provides a base object called
org.apache.struts.action.ActionServlet.
• The ActionServlet class uses a configuration file called struts-
config.xml to read mapping data called action mappings
• The ActionServlet class reads the incoming URI and tries to
match the URI against a set of action mappings to see if it can
find a controller class which would be willing to handle the
request
• This process is described in a diagram on the following page
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

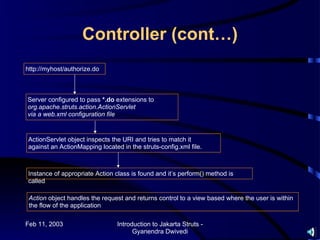

22. Controller (cont…)
http://myhost/authorize.do
Server configured to pass *.do extensions to
org.apache.struts.action.ActionServlet
via a web.xml configuration file
ActionServlet object inspects the URI and tries to match it
against an ActionMapping located in the struts-config.xml file.
Instance of appropriate Action class is found and it’s perform() method is
called
Action object handles the request and returns control to a view based where the user is within
the flow of the application
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

23. Controller: Sample
public class LogonAction extends Action {
public ActionForward perform(ActionMapping mapping, ActionForm form,
HttpServletRequest request,
HttpServletResponse response) {
LogonForm myForm = (LogonForm) form;
if (myForm.getUserName().equals(“john”) &&
myForm.getPassword().equals(“doe”)) {
//return a forward to our success page
return mapping.findForward(”success”);
} else {
ActionErrors errors = new ActionErrors();
errors.add("password",
new ActionError("error.password.required"));
this.saveErrors(errors); //Action implements this method
//go back to the page that made the request
return (new ActionForward(mapping.getInput()));
}
}
}
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

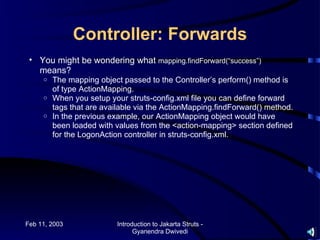

24. Controller: Forwards
• You might be wondering what mapping.findForward(“success”)
means?
o The mapping object passed to the Controller’s perform() method is
of type ActionMapping.
o When you setup your struts-config.xml file you can define forward
tags that are available via the ActionMapping.findForward() method.
o In the previous example, our ActionMapping object would have
been loaded with values from the <action-mapping> section defined
for the LogonAction controller in struts-config.xml.
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

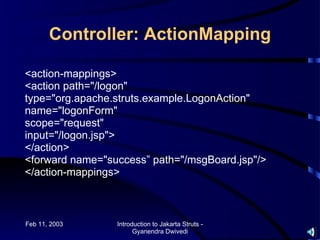

25. Controller: ActionMapping
<action-mappings>
<action path="/logon"
type="org.apache.struts.example.LogonAction"
name="logonForm"
scope="request"
input="/logon.jsp">
</action>
<forward name="success” path="/msgBoard.jsp"/>
</action-mappings>
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

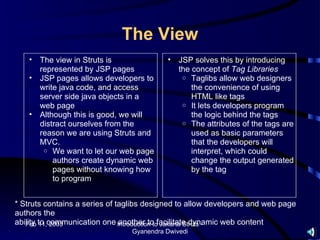

26. The View
• The view in Struts is • JSP solves this by introducing
represented by JSP pages the concept of Tag Libraries
• JSP pages allows developers to o Taglibs allow web designers
write java code, and access the convenience of using
server side java objects in a HTML like tags
web page o It lets developers program
• Although this is good, we will the logic behind the tags
distract ourselves from the o The attributes of the tags are
reason we are using Struts and used as basic parameters
MVC. that the developers will
o We want to let our web page interpret, which could
authors create dynamic web change the output generated
pages without knowing how by the tag
to program
* Struts contains a series of taglibs designed to allow developers and web page
authors the
ability to communication one Introduction tofacilitate dynamic web content
Feb 11, 2003 another to Jakarta Struts -
Gyanendra Dwivedi

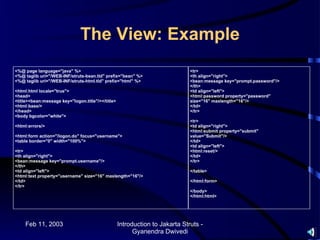

27. The View: Example
<%@ page language="java" %> <tr>
<%@ taglib uri="/WEB-INF/struts-bean.tld" prefix="bean" %> <th align="right">
<%@ taglib uri="/WEB-INF/struts-html.tld" prefix="html" %> <bean:message key="prompt.password"/>
</th>
<html:html locale="true"> <td align="left">
<head> <html:password property="password"
<title><bean:message key="logon.title"/></title> size="16" maxlength="16"/>
<html:base/> </td>
</head> </tr>
<body bgcolor="white">
<tr>
<html:errors/> <td align="right">
<html:submit property="submit"
<html:form action="/logon.do" focus="username"> value="Submit"/>
<table border="0" width="100%"> </td>
<td align="left">
<tr> <html:reset/>
<th align="right"> </td>
<bean:message key="prompt.username"/> </tr>
</th>
<td align="left"> </table>
<html:text property="username" size="16" maxlength="16"/>
</td> </html:form>
</tr>
</body>
</html:html>
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

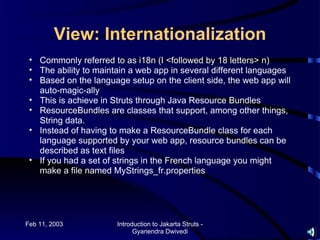

28. View: Internationalization
• Commonly referred to as i18n (I <followed by 18 letters> n)
• The ability to maintain a web app in several different languages
• Based on the language setup on the client side, the web app will
auto-magic-ally
• This is achieve in Struts through Java Resource Bundles
• ResourceBundles are classes that support, among other things,
String data.
• Instead of having to make a ResourceBundle class for each
language supported by your web app, resource bundles can be
described as text files
• If you had a set of strings in the French language you might
make a file named MyStrings_fr.properties
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

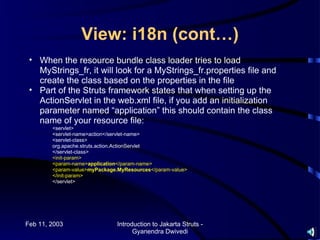

29. View: i18n (cont…)
• When the resource bundle class loader tries to load
MyStrings_fr, it will look for a MyStrings_fr.properties file and
create the class based on the properties in the file
• Part of the Struts framework states that when setting up the
ActionServlet in the web.xml file, if you add an initialization
parameter named “application” this should contain the class
name of your resource file:
<servlet>
<servlet-name>action</servlet-name>
<servlet-class>
org.apache.struts.action.ActionServlet
</servlet-class>
<init-param>
<param-name>application</param-name>
<param-value>myPackage.MyResources</param-value>
</init-param>
</servlet>
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

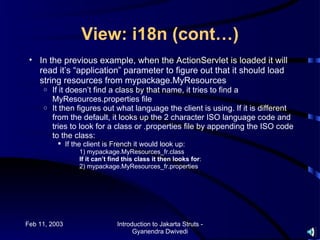

30. View: i18n (cont…)
• In the previous example, when the ActionServlet is loaded it will
read it’s “application” parameter to figure out that it should load
string resources from mypackage.MyResources
o If it doesn’t find a class by that name, it tries to find a
MyResources.properties file
o It then figures out what language the client is using. If it is different
from the default, it looks up the 2 character ISO language code and
tries to look for a class or .properties file by appending the ISO code
to the class:
 If the client is French it would look up:
1) mypackage.MyResources_fr.class
If it can’t find this class it then looks for:
2) mypackage.MyResources_fr.properties
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

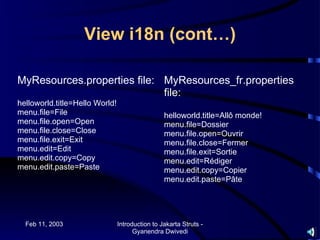

31. View i18n (cont…)
MyResources.properties file: MyResources_fr.properties
file:
helloworld.title=Hello World!
menu.file=File helloworld.title=Allô monde!
menu.file.open=Open menu.file=Dossier
menu.file.close=Close menu.file.open=Ouvrir
menu.file.exit=Exit menu.file.close=Fermer
menu.edit=Edit menu.file.exit=Sortie
menu.edit.copy=Copy menu.edit=Rédiger
menu.edit.paste=Paste menu.edit.copy=Copier
menu.edit.paste=Pâte
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

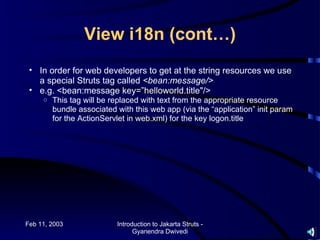

32. View i18n (cont…)
• In order for web developers to get at the string resources we use
a special Struts tag called <bean:message/>
• e.g. <bean:message key=”helloworld.title"/>
o This tag will be replaced with text from the appropriate resource
bundle associated with this web app (via the “application” init param
for the ActionServlet in web.xml) for the key logon.title
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi

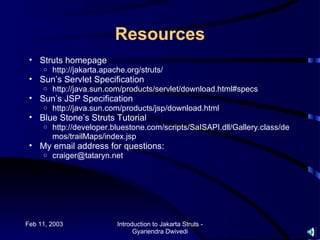

33. Resources
• Struts homepage
o http://jakarta.apache.org/struts/
• Sun’s Servlet Specification
o http://java.sun.com/products/servlet/download.html#specs
• Sun’s JSP Specification
o http://java.sun.com/products/jsp/download.html
• Blue Stone’s Struts Tutorial
o http://developer.bluestone.com/scripts/SaISAPI.dll/Gallery.class/de
mos/trailMaps/index.jsp
• My email address for questions:
o craiger@tataryn.net
Feb 11, 2003 Introduction to Jakarta Struts -
Gyanendra Dwivedi
